1. INTRODUCTION

The UniSmart Handle™ is designed to promote high-quality therapeutic exercise

for physiotherapy patients, members of fitness/wellness centers and those

exercising at home. Used with elastic exercise bands or tubes the UniSmart

TM

Handle is a practical and simple digital interface for resistive exercise.

When used by therapists the UniSmart Handles provides real-time feedback by

displaying force and repetition data. This enables therapists to see and record the

specific data needed for reliable, evidence-based exercise programmes that help

maximize patient strength and function in the shortest period of time possible.

Use the UniSmart Handle to:

o

Guide strengthening exercises.

o

Objectively measure and set precise resistance levels.

o

Count and indicate the number of repetitions of a specific exercise.

o

Encourage quality exercise by setting resistance targets and using immediate

audio & visual signals to cue range of motion and resistance targets.

o

Wirelessly transmit performance data from the UniSmart

Handle to your

Bluetooth® enabled computer.

o

Record detailed exercise information to document skilled therapy services.

For additional information and online education, please visit www.unismarthandle.com

UNISMART

TM

HANDLE USER MANUAL

2. THERAPY ADVANTAGES

OBJECTIVITY

Therapists constantly face challenges that limit their ability to help patients

achieve their therapy goals. Limited treatment times, an insufficient number of

patient visits and capped payments can all affect successful patient outcomes. It is

therefore vital that the therapist provides evidence-based treatments that are

designed to maximize patient outcome in the shortest period of time.

Resistance exercises with elastic bands and tubes designed to improve muscle

strength are one of the most essential and frequently provided forms of

physiotherapy treatment. Research demonstrates that excellent muscle

strengthening is achieved when specific exercise parameters, including body/limb

position and range of motion, are precisely replicated each time the exercise is

performed. Most critically, the intensity of the exercise (resistance level) must be

sufficiently challenging to the patient, and as the patient strengthens over time,

the resistance increased. In other words, to be effective the exercise must be both

consistent and progressive; hence the term Progressive Resistance Exercise, (PRE)

Keeping track of specific exercise resistances is easy when using cuff weights,

dumbbells, and weight machines because the amount of resistance, or weight, is

usually clearly labeled. However, this objectivity currently does not exist when

using resistive elastic bands.

When having patients exercise with elastic bands, the UniSmart™ Handle helps

therapists simply and quickly determine specific exercise resistance by displaying

the actual forces generated during each exercise.

When attached to a standard 10cm wide resistive elastic band, the UniSmart

Handle displays the peak force generated by the patient (or therapist) during a

single repetition. This information provides the therapist with detailed information

needed to determine the optimal resistance appropriate for that exercise and

patient.

UNISMART

TM

HANDLE USER MANUAL

Strength exercise research suggests that when a patient momentarily fatigues a

muscle group between 8 to 12 repetitions of a strength exercise, the resistance is

roughly 70% to 80% of one repetition maximum (1RM). This intensity is

recommended in many clinical exercise guidelines as it represents a level of

difficulty that is not too stressful to patients yet sufficient to generate rapid

strength gains. The UniSmart™ Handle helps therapists to determine an actual

1RM value used to calculate the specific targeted exercise intensity.

For example, if the patient’s 1RM is 5kg and the prescribed exercise intensity is

80% of RM, then the initial resistance load is 4kg.

In addition, research demonstrates that resistance must be progressed for muscles

to strengthen. So, progressive increases in resistance levels are necessary over

subsequent exercise sessions. The UniSmart Handle enables these increases to be

made systematically and accurately. Let us look at how this is accomplished.

Seventy to 80% of a 1 RM is challenging enough so that when exercising at that

intensity most people experience momentary muscle fatigue between 8 and 12

repetitions. If exercising to momentary fatigue, a patient demonstrates increased

strength when they perform more repetitions at the same resistance level. If

initially a patient fatigues between 8 and 12 repetitions and during a subsequent

exercise session performs more than 12 repetitions, the intensity is then less than

the target intensity of 70-80% of a 1 RM. Therefore after 12 or more repetitions

the resistance should be increased. The challenge is to know when to increase the

resistance and by how much.

Research suggests that when progressing resistance for those exercising from 70%

to 80% of a 1RM the appropriate amount of an increase is 5%. An increase of 5%

usually results in patients performing no fewer than 8 repetitions during the

subsequent exercise session. Limiting the increase to 5% helps protect patients

from over-exertion and ensures that they continue to exercise at the resistance

range/dosage of 70% to 80% of 1 RM.

Here’s an example of how objective data from the UniSmart Handle can provide

the objectivity necessary to present high-quality, evidence based strength

exercise.

UNISMART

TM

HANDLE USER MANUAL

A patient performs elbow flexion with the UniSmart™ Handle. During the

initial exercise session, the therapist determines that the appropriate

resistance for the patient is 5 kg. The patient fatigues during the 11

th

repetition. Because this is fewer than 12 repetitions the resistance is kept the

same at 5 kg during the next exercise session. When performing the same

exercise during the second exercise session, the patient fatigues during the

14

th

repetition. Since this is more than the 12 reps for the third exercise

session; the resistance for the exercise is increased by 5% (. x 1.05) to 5.25 kg.

The therapist chooses either a stronger level of band or sets the length of the

band within the UniSmart™ Handle so the new resistance is level can be set

at 5.25 kg. This is precise dosing of resistance helps optimize both patient

safety and treatment outcomes.

BIOFEEDBACK

People typically perform at a higher capacity when they receive useful feedback

relevant to their performance. Therapy patients are no different. The UniSmart™

Handle provides patients with specific feedback:

(a) The peak force of each repetition.

(b) The number of repetitions performed.

(c) Adjustable audio signals & synchronously visual signals to cue the patient when

repetition or peak force targets are achieved.

Furthermore, patients are naturally engaged and motivated by technology. While

resistive elastic bands are ‘low-tech’ products and may be perceived by some

patients as very simple form of exercise, they are none-the-less a very economical

and user-friendly exercise tool. The UniSmart Handle adds not only clinical value

but sophistication to band exercise, thereby influencing patient perceptions and

enhancing the professionalism of a therapy clinic.

CONTROL

Without close oversight and detailed monitoring, patients performing strength

exercises with resistive elastic bands often use poor technique: this can be in the

form of incomplete range of motion, inadequate (or excessive) resistance, and/or

improper body/limb position and substitute movements. The UniSmart Handle

UNISMART

TM

HANDLE USER MANUAL

technology, along with the band attachments, inherently encourages the

performance of good-quality exercise. The UniSmart Handle provides patients

with exercise targets, guiding patients with audio cues when resistance and/or

repetition goals are achieved thus promoting high-quality resistance exercise.

DEFENDABLE DOCUMENTATION

Health Services, governmental agencies and medical insurance companies have

steadily increased therapy documentation requirements. They want to see

objective data that reflects progress, or lack thereof. This includes an increased

focus on Therapeutic Exercise therapy procedures with reviewers closely

scrutinizing if exercises are skilled in nature, versus rote unskilled activities. The

UniSmart Handle provides essential, detailed resistance data and repetition figures

that can be recorded at each therapy session to reflect the mindful and skilled

therapy services provided to govern strength exercise. The reports produced by

the UniSmart Handle clearly show the patient’s progress and can be printed out

and when required attached to the patient’s record

The results of each strength exercise can be downloaded from the UniSmart

Handle directly to a Bluetooth-enabled device such as a lap-top computer or a

portable thermal printer. The captured information efficiently and effectively

guides therapists to better tailor a patient’s treatment plan based on the logical

progression of strength exercises. This level of detail can result in optimal therapy

results, shorter time to maximal patient function and better clinical patient

outcomes overall.

For example: Compare these two patient therapy notes describing a single

strength exercise:

1. Elbow flexion performed with green band. 2 sets of 10. Increased

resistance from red band last week.

2. Elbow flexion performed with blue band using 3.15kg of resistance.

Patient receiving cues to insure full repetition each repetition. Resistance

increased from 3 kg last week.

UNISMART

TM

HANDLE USER MANUAL

CLINICAL BENEFITS

The UniSmart Handle can be used as part of an exercise programme to:

o Improve muscle strength o Improve gait

o Improve muscle power o Enhance grip strength

o Improve range of motion o Improve cardiovascular function

o Improve posture o Increase blood circulation

o Improve balance and

proprioception

UNISMART

TM

HANDLE USER MANUAL

3. SAFETY

o The UniSmart Handle should only be used with designated resistive bands.

NOT ALL BANDS ARE SUITABLE. A list of approved resistive bands is shown in

Section 8 of this manual.

o Always follow the specific safety directions issued by exercise band

manufacturer.

o Be extra cautious when using exercises that involve stretching the resistive

band toward the face and head as sudden release of tension could cause

injury to the face or eyes. Protective eyewear should be worn if performing

this type of exercise.

o Avoid any exercise that could cause the patient or band user to lose balance

and fall if the band attached to the UniSmart Handle should suddenly snap or

slip during the exercise.

o Avoid any exercise that could cause the patient’s limbs move rapidly back and

hit an close object or person should the band attached to the UniSmart

Handle should suddenly snap or slip during the exercise.

o For patients using the UniSmart Handle as part of home therapy, it is very

important to instruct the patient on safe and proper use of the UniSmart set

to avoid injury.

o Inspect the resistive band before use for small nicks, tears, or punctures that

may cause the band to break. If you find any such damage in the resistive

band, discard the damaged band and replace with a new band before

performing any exercises. Always examine the surface of the bands for signs

of damage (i.e. cracks or tears) before use.

o Ensure a proper length of band to provide better user control and to avoid

high pull forces.

o Never use bands that have been cut down in width.

o Make sure the resistive band is securely gripped and locked in the UniSmart

Handle or its attachment before use. (i.e. you will hear a ‘click’ sound when

the clip is locked.)

o When using the accessories such as the door anchor or the extremity cuff,

make sure the accessory is fixed securely between the door and the door

frame. Always position the exerciser so that the door opens away from the

user. If the door has a lock, lock it to prevent unexpected door opening by

another person. Tug on the anchor to test for stability before exercise to make

UNISMART

TM

HANDLE USER MANUAL

sure the anchor does not slip during exercise.

o Always use a fresh piece of band for each and every exercise session.

o To avoid excessively high resistance levels do not use a band that is too short.

The minimum band length between the grips should always be greater than

30 cm.

o Some brands of exercise bands have a fine wax bloom or powder coating on

the surface or the band (this is to preserve the band) and this coating can

affect the grip. Follow the band manufacturer’s instructions for cleaning any

surface contamination from the band.

o If the resistance band is slipping from the band clamp, use a light wipe with

alcohol (isopropanol) to clean the inside face of the clamp grips. NEVER APPLY

ACHOHOL OR OTHER ORGANIC SOLVENTS DIRECTLY ON THE BANDS, only to

the clamp grip surfaces. If the clamp mechanism or the clamp faces are

damaged in anyway contact your local UniSmart Handle agent for repair.

o Do not overstretch bands by more than 2 times its resting length. Example: a

30cm band should not be stretched to more than 90cm total length.

o Do not use the UniSmart Handle while charging the battery. The system will

beep and automatically turn off when the charge signal is detected

o Do not tamper with the casing or change/remove any of original parts. This

will VOID the warranty.

o Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

PRECAUTIONS

Always consult a physician or therapist before starting any exercise

program.

U.S. Food and Drug Administration warns that Radio Frequency

Identification Devices can cause malfunctions in Pacemakers and

Cardioverter-Defibrillators. The UniSmart Handle can wirelessly

transfer exercise data via Bluetooth transmission at Radio

Frequency. Please keep a minimum separation distance of 2.5 cm

when using the Bluetooth transmission.

To prevent possible disruption of function, keep UniSmart Handle at

least 10 feet from microwave or shortwave diathermy equipment.

UNISMART

TM

HANDLE USER MANUAL

For patients, your physician or therapist should develop an

individualized exercise programme to meet your needs and abilities.

UniSmart Handle and resistive elastic bands are not toys; consult a

physici

an or therapist before allowing children to exercise with

elastic resistance bands.

With any exercise programme, muscle soreness may be

experienced over the first few days. If considerable muscle soreness

persists for more than 3-4 days, consult your physician or therapist.

Do not exercise if experiencing pain.

If you experience sharp pain, shortness of breath, dizziness or

light-headedness with any of these exercises, stop immediately

and contact your healthcare provider.

MAINTAINENCE

o Always inspect the band before use for small nicks, tears, or punctures that

may cause the band to break. If you find any flaws, discard the product and

replace before performing any exercises. For band maintenance, please follow

its manufacturer’s instructions.

o Store the UniSmart Handle and accessories out of direct sunlight and away

from extreme temperatures.

o After each use, wipe the UniSmart Handle with a clean damp cloth.

UNISMART

TM

HANDLE USER MANUAL

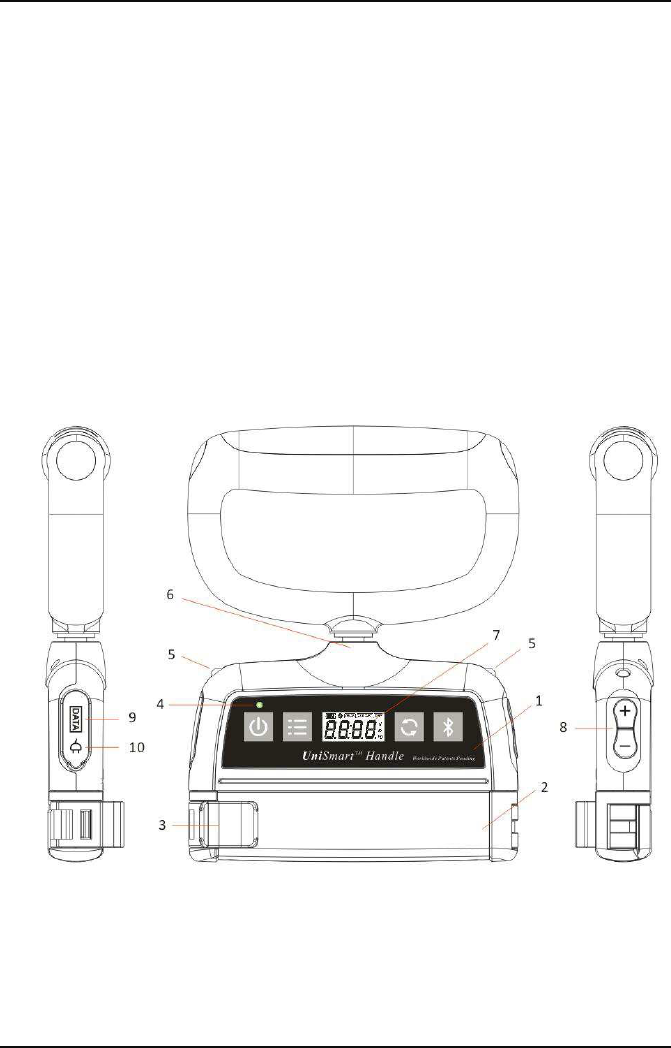

4. PRODUCT COMPOSITION

UNISMART HANDLE

1- Control Panel

2- Band Clamp

3- Locking Clip

4- Charge Indicator

5- Operation Indicator

6- Accessories Connector

7- LCD Indicator

8- Up/Down Button

9- Data Connector

10-Charge Connector

UNISMART

TM

HANDLE USER MANUAL

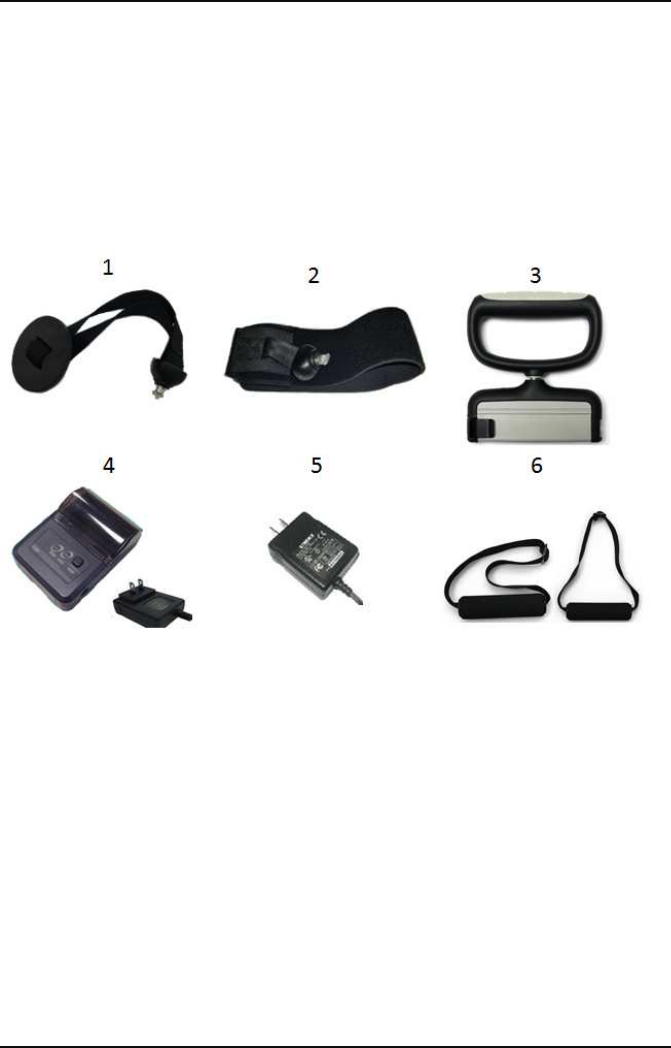

PRIMARY COMPONENTS

1- Door Anchor

2- Limb Strap

3- Dumb Handle

4- Bluetooth Printer & power supply (Optional)

5- Power supply unit

6- Webbing handle

UNISMART

TM

HANDLE USER MANUAL

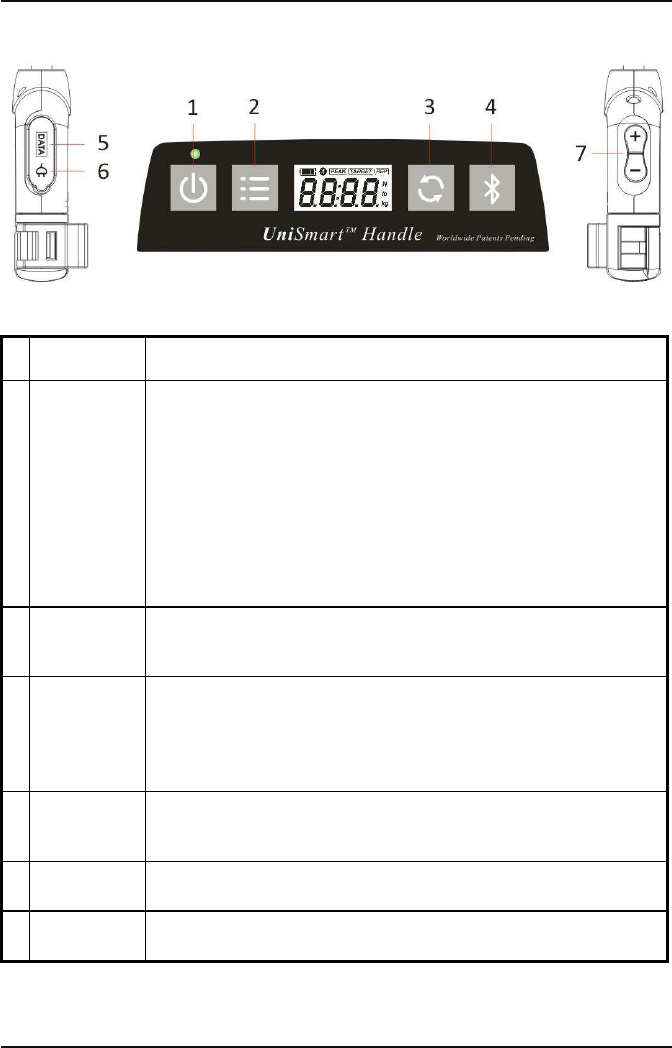

CONTROL PANEL

1

POWER Power device on and off.

2

MENU

Mode Setting

F-0: Peak Force (testing the maximum force of patient)

F-1: Target Force (Target force training)

F-2: Repetition (Target repetition training)

F-3: Rep & Target (Combination training)

F-4: Wireless Transmission (PC/Printer)

F-5: Volume Contorl (1-10 increments)

F-6: Unit (lb, kg, N)

F-7: ID setting (0000-9999)

3

SET/RESET Set and save the parameters for each mode/Clear previously

recorded data and reset (zero) the transducer.

4

DATA

TRANSFER

Send the last captured data set via Bluetooth on ACP Printer to

print formatted report. Press and hold the Print button for 2

seconds to start the sequence for printer identification and

Bluetooth ID

5

DATA Upgrade the firmware and calibrate the load cell through this

data transmission port if necessary.

6

DC 6V Charge the battery, the “CHARGE” indicator is lit when

charge is

activate

d

through the

power supply

unit

.

7

Up/Down

Button

Select up/down the MODE and Parameters.

UNISMART

TM

HANDLE USER MANUAL

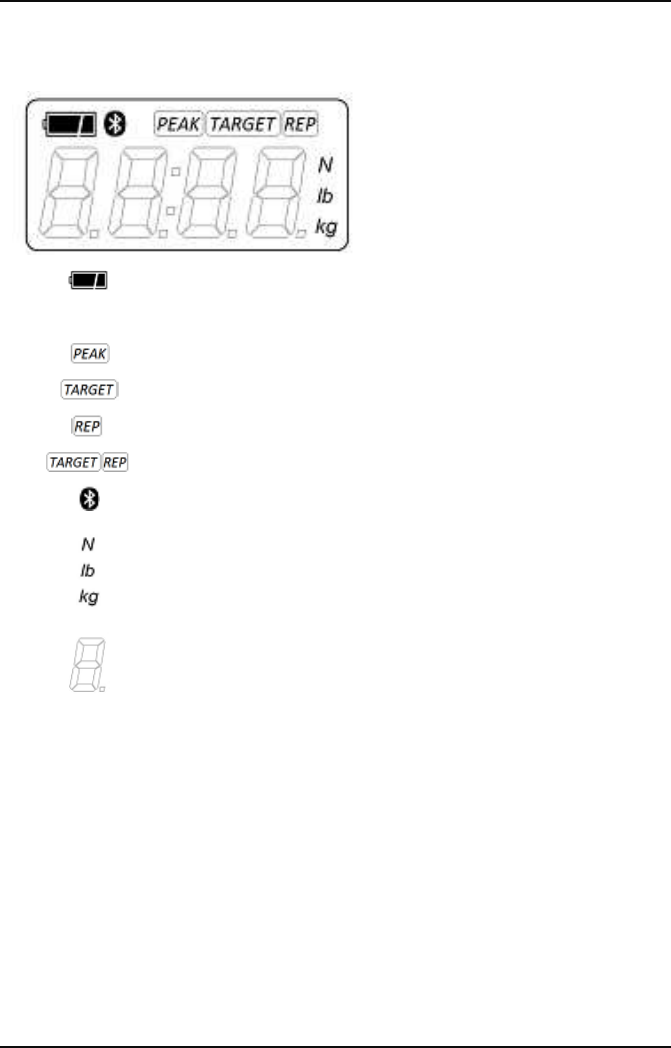

LCD DISPLAY

Battery Indicator (2 segments)

Mode Selection

- PEAK: Display in real-time and peak force

- TARGET: Target force setting

- REP: Repetition Setting

- TARGET+REP: Target force + Repetition Settings

Bluetooth Indicator (Status for wireless connection)

Force Unit: N, lb, kg

N: Newton increment by 1 N

lb: Pounds increment by 0.1 lb

kg: Kilograms increment by 0.1 kg

Digital display of measured force

UNISMART

TM

HANDLE USER MANUAL

BAND GRIP RANGE

o

The UniSmart Handle is made to grip only desinated brands of resistant bands

with specific thicknesses (0.17mm ~ 1.2mm) to perform the progress training.

See Section 8 for list of approved bands.

o UniSmart Handle is capable of gripping the approved elastic bands at single or

double layers.

o To avoid slipping risk due to band overstretch make sure to retain a safe grip

length (about the width of a hand palm) on the lose end of the band when

fastening the band into the grip.

o Note: Do not overstretch the elastic band by more than 2 times its resting

length. Example: a 10” band should not be stretched to more than 30” total

length.

o Do not use fold the band over on itself or use a band that is greater than 4

inches (10cm) in width. As this will result in it slipping from the grip when

the band is stretched.

UNISMART

TM

HANDLE USER MANUAL

LABELLING

CE compliance mark

European Union Directive on

Waste from Electrical and

Electronic Equipment

Consult instructions

for use

BF type applied part (grip)

Attention

QR Code

Link to the online education

www.unismarthandle.com

Manufacturer and

Manufacturing Date

UNISMART

TM

HANDLE USER MANUAL

5. INSTALLATION FOR USE

INSTALLATION OF ACCESSOIRES

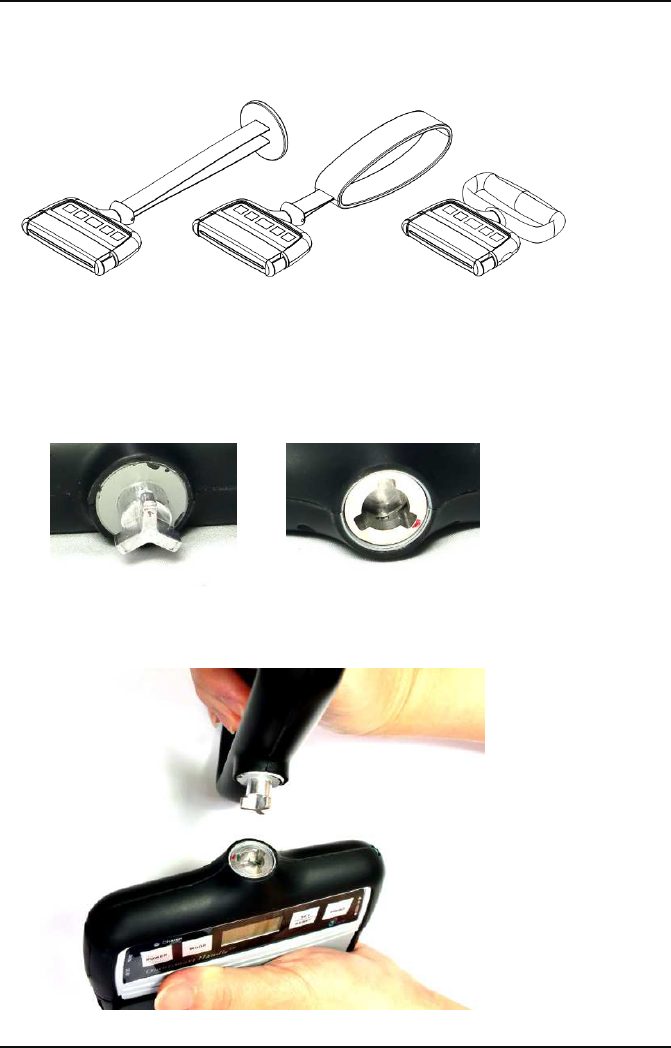

Each accessory has a “Y-shaped” KEY structure (see pictures below). Plug the key

into the “Socket” of UniSmart or dumb handle, and then press and rotate to lock

the KEY in place.

Key and Socket structure

o Installation: Insert, press down and rotate to lock the accessory in place.

o Uninstallation: Press down and rotate, and pull to remove accessory.

UNISMART

TM

HANDLE USER MANUAL

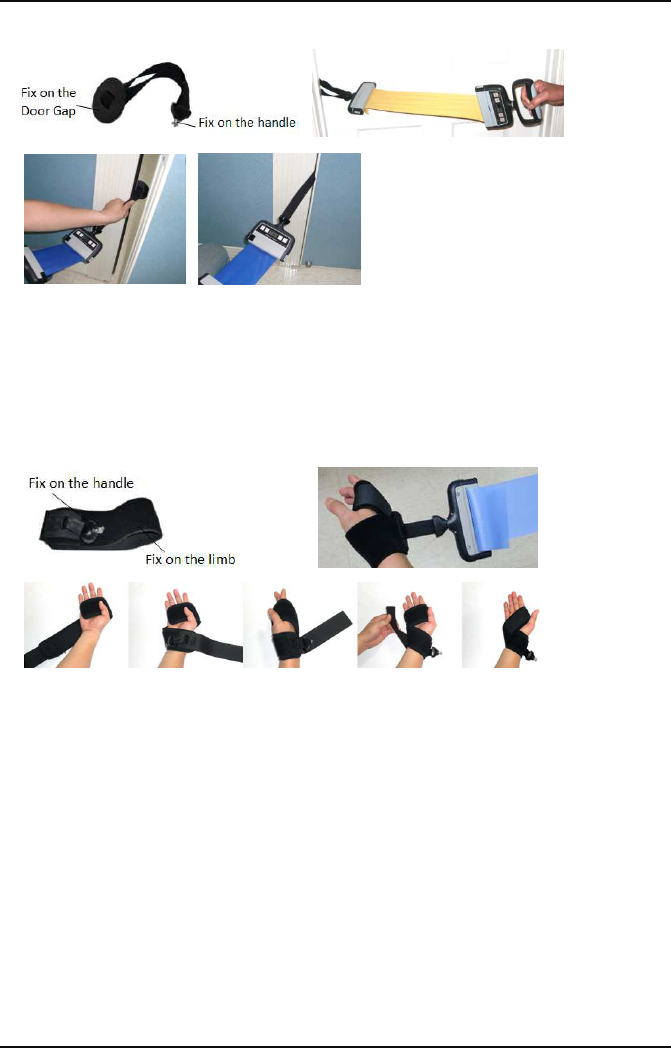

o Door Anchor

*For safety, place the door anchor between the door and the door frame.

Always position the exerciser so that the door opens away from the user. If

the door has a lock, lock it to prevent unexpected door opening by another

person. Tug on the anchor to test for stability before exercise to make sure

the anchor does not slip during exercise.

o Upper/Lower Extremity Strap

*For safety, please make sure the Velcro® strap is firmly attached.

UNISMART

TM

HANDLE USER MANUAL

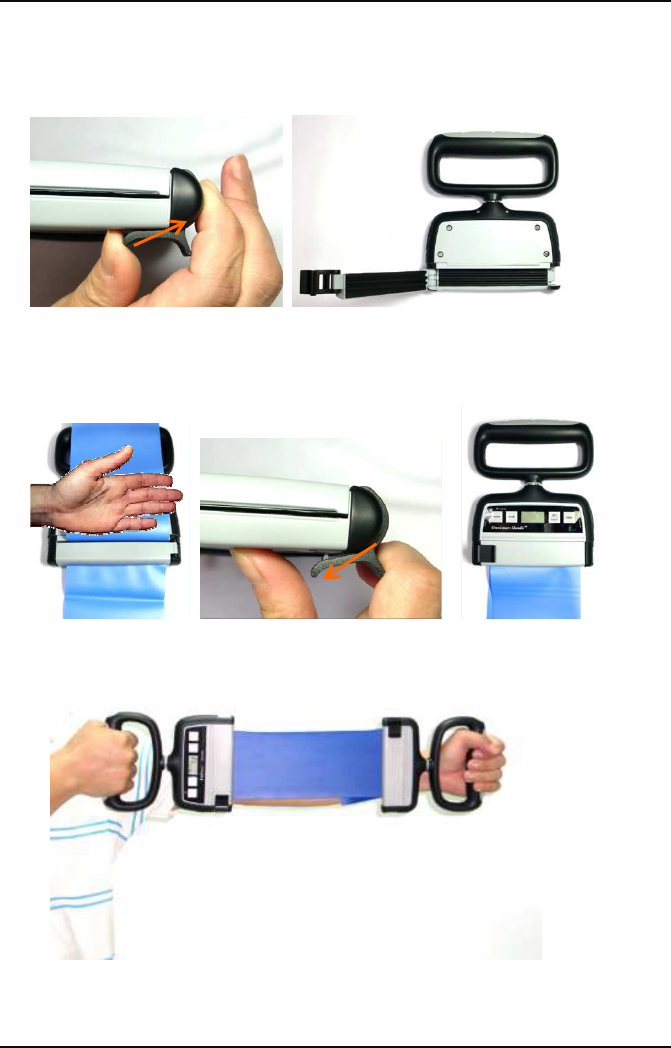

INSTALLATION OF BAND

Step1: Locate the locking clip on the UniSmart Handle and use your thumb to

open up the Locking Clip.

Step2: Use the appropriate length of 10 cm wide band for the clamp. For safety,

the band should always extend beyond the clamp by at least the width of

a palm. Close the Locking Clip and lock the clamp firmly.

Step3: Repeat the same procedure with the dumb handle band clamp.

Open

Close

UNISMART

TM

HANDLE USER MANUAL

6. OPERATION INSTRUCTIONS

UNISMART HANDLE

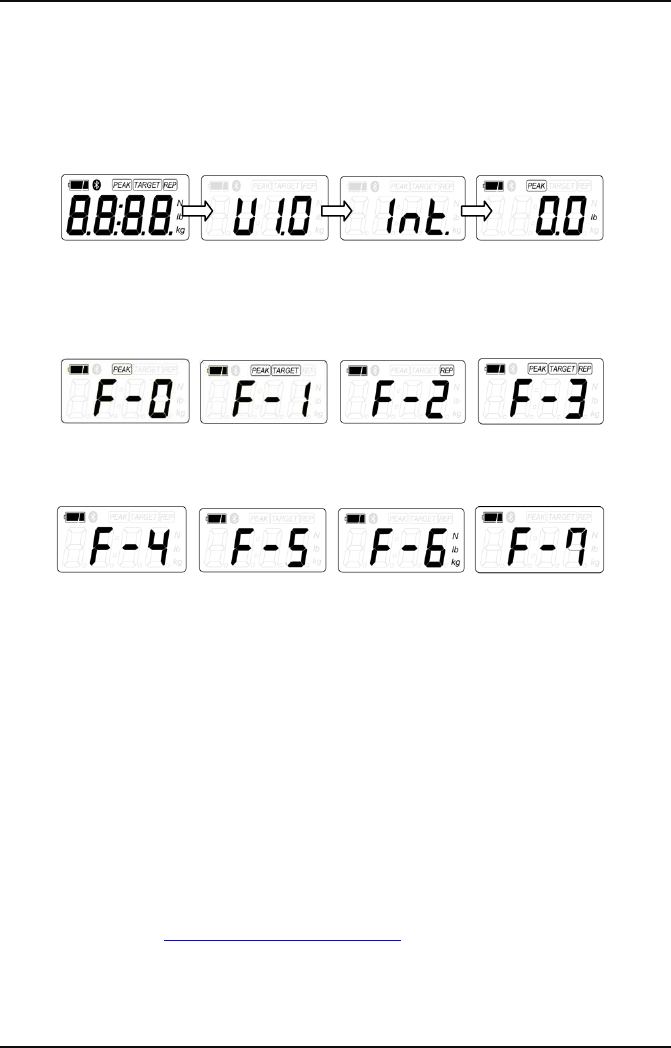

Step1: Press the POWER button for 2 seconds to power on the device.

The LCD display will show the software version, initialize data, and and

when complete, default then turn to measurement display status.

Step2: Press and hold the MENU button for 2 seconds to enter into the mode

selection. Press UP/DOWN button to select the desired training mode or

setting mode.

o Training Mode

Peak Force

Training

Target Force

Training

Repetition

Training

Rep & Target

Training

o Setting Mode

Wireless

Transmission

PC/BT Printer

Volume Control Unit Setting ID Setting

Step3: Start the band exercise. After the user completes a full repetition,

concentric force e.g.“pull (>1kg)-and eccentric release(<0.5kg)” as a cycle,

the device will beep, and display the peak force value and show the force

on the LCD display.

(Note: Maximum recording: 1000 cycles per each exercise)

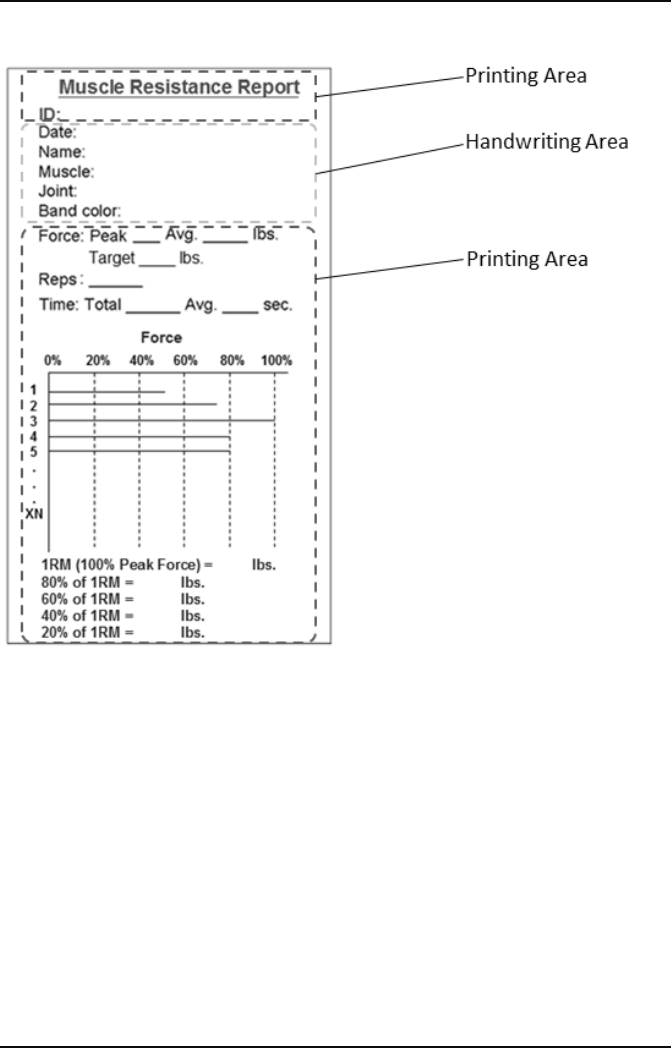

Step4: When a set of exercises is complete, to print the exercise data press and

hold the PRINT button for 2 seconds. The data of the last set is transmitted

via wireless Bluetooth to the Bluetooth printer.

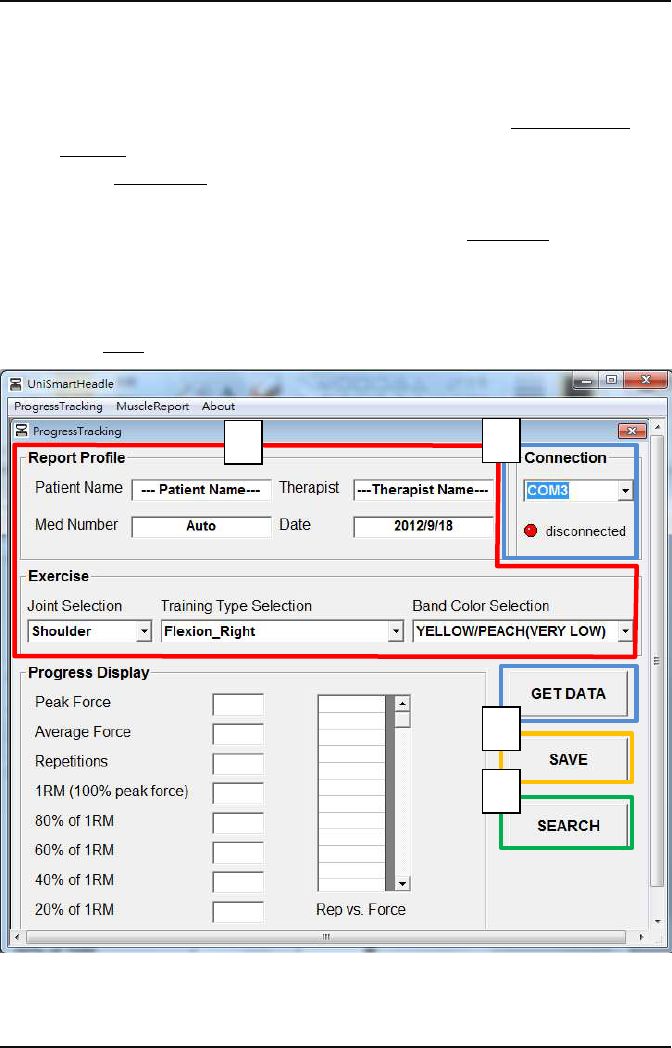

*Note: The PC (current version for Windows® PC Only) must have the

Bluetooth Chip/Dongle and install the designate software for

transmission. Download it and go through the detailed guideline

from www.unismartuniversity.com

*Note: The Bluetooth printer or PC must be turned on before transmission.

Once the PRINT button is pressed, the device will show the Bluetooth

UNISMART

TM

HANDLE USER MANUAL

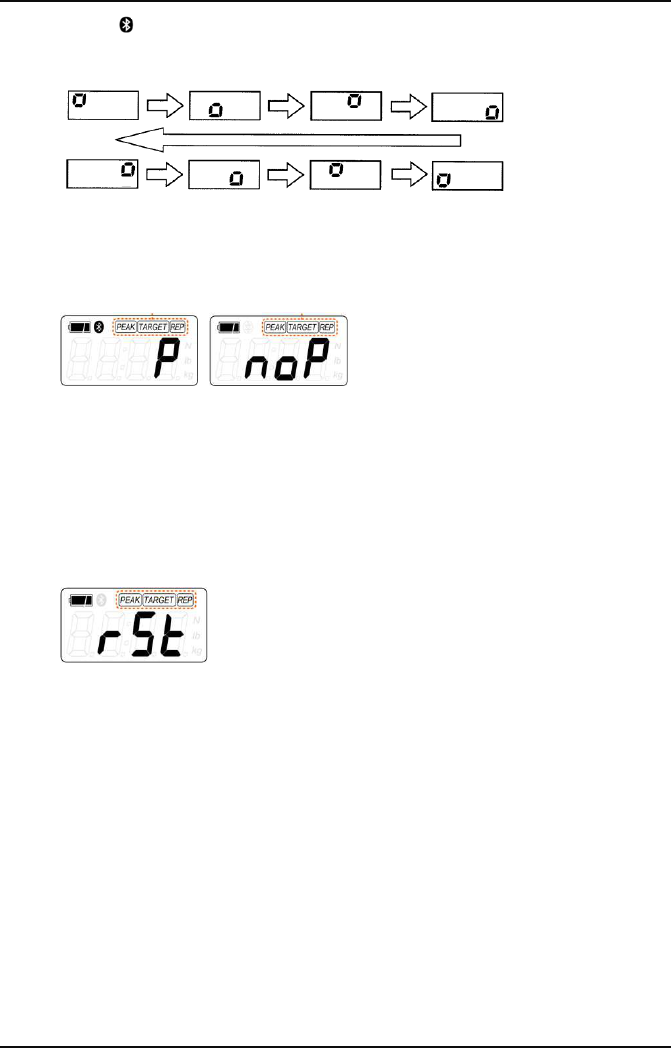

symbol and enter into Bluetooth printer search mode. The LCD displays

the sequence as below.

Once the report has been printed, the LCD displays “P” and then returns

to the default display. If the report fails to print, the LCD displays “noP”

and returns to the default screen.

Step5: After the report has been printed and before starting a new set of exercises,

press the SET/RESET button to clear previously recorded data. Repeat the

Step2 to Step5 for each new exercise.

Note: To save battery power, when the device idles for over 30 seconds,

the LCD backlight will dim but the unit is still active. When the device idles

for over 2 minutes, the unit will automatically shut down.

UNISMART

TM

HANDLE USER MANUAL

HOW TO APPLY THE VARIOUS MODES TO CLINICAL PRACTICE

MODE F-0: Use to calculate specific exercise intensity dosage (lbs, kgs, Nm)

Perform a single repetition through the full range of motion (ROM). The peak

force is displayed, wherever it occurs in the ROM. Multiply that figure by the

desired strength exercise intensity to calculate the target peak force.

*Example - Peak force during the repetition is 22.2 lbs. The exercise intensity is

80% of 1 RM. Therefore, the exercise-specific resistance dosage is: 22.2

x 0.80 = 17.8 lbs (approximately 18#).

MODE F-1: Use to provide feedback to patient that target force is achieved

This mode enables the patient and you to receive audio (and/or visual) feedback

each time the specific strength exercise resistance dosage is met or exceeded. This

mode is particularly beneficial when the peak force occurs toward the maximum

elongation of the elastic band. Therefore, the patient is prompted to move

through his/her full ROM while exercising.

*Example – Using the same exercise data as in MODE F0, chose the color elastic

band that offers around 15 to 20 lbs of resistance. Anchor the ends of the

band so that a single repetition provides 18 lbs of force (NOTE: use Mode

F0 to determine this). Once the band color and length is determined, using

Mode F1, enter the peak force target of 18 lbs. Have the patient exercise to

momentary fatigue or for a set number of repetitions (SEE: Mode F2 and

Mode F3).

MODE F-2: Use to set repetition targets

Enter the number of repetitions you want your patient to perform for the set of

exercise. This mode is used when you want a particular limit on the number of

repetitions a patient performs and do not want them to exercise to momentary

fatigue.

UNISMART

TM

HANDLE USER MANUAL

MODE F-3: Use to set both target force and repetition

This mode enables you to set both the target force and the repetition goal for the

specific exercise. This mode is used when you want a particular limit on the

number of repetitions, do not want them to exercise to momentary fatigue, but

do want motivate them to achieve a specific peak force target for each repetition.

UNISMART

TM

HANDLE USER MANUAL

PC TRANSMISSION

Before usage, make sure your PC is being plugged in the Bluetooth Dongle and

paired with UniSmart Handle. (PIN Code: 0000)

Step1: Open the “Progress Tracking” program and edit the Report Profile and

Exercise parameters.

Step2: Select Connection COM Port Number on the screen (given by Windows®

OS after Bluetooth pairing), press PRINT button on the Omnismart Handle;

it will beep for 2 min and wait for pairing. Press GET DATA on the screen

before Omnismart Handle beeps off. Force data will be automatically

transmitted from Omnismart Handle and shown in the program.

Note: when the Omnismart Handle shows “noP”, please try Step2 again.

Step3: Press SAVE to save the data into database

1

2

3

4

UNISMART

TM

HANDLE USER MANUAL

Step4: Press SEARCH to open a search screen to find and select the data that

needs to be printed.

Step5: Press printer icon to generate the report. Print it if needed.

Press excel icon to export the report in excel format.

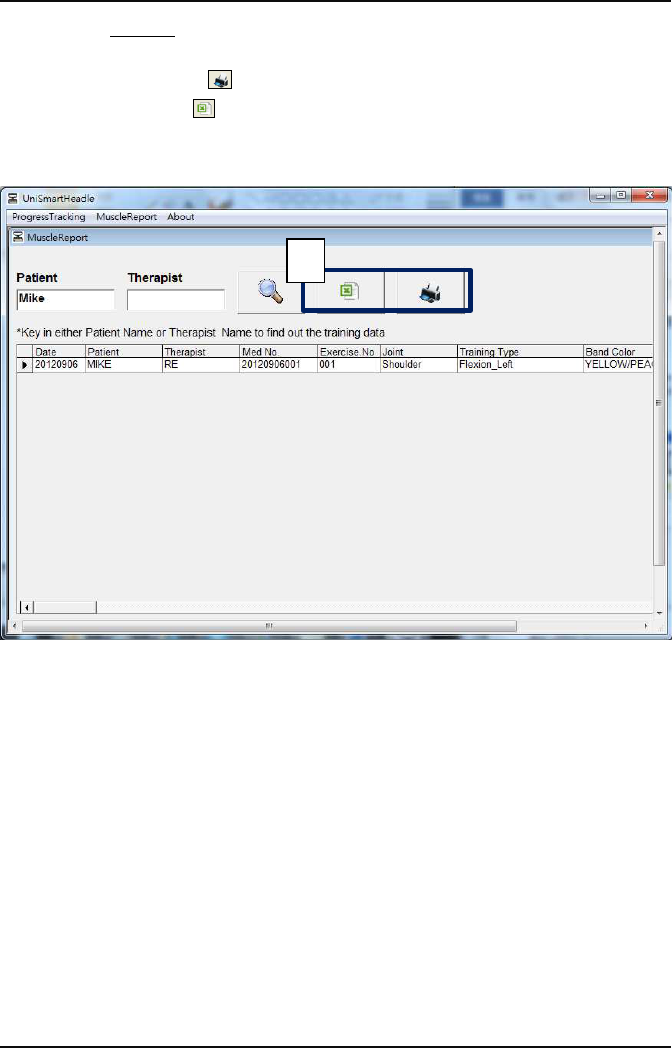

*Search Window

5

UNISMART

TM

HANDLE USER MANUAL

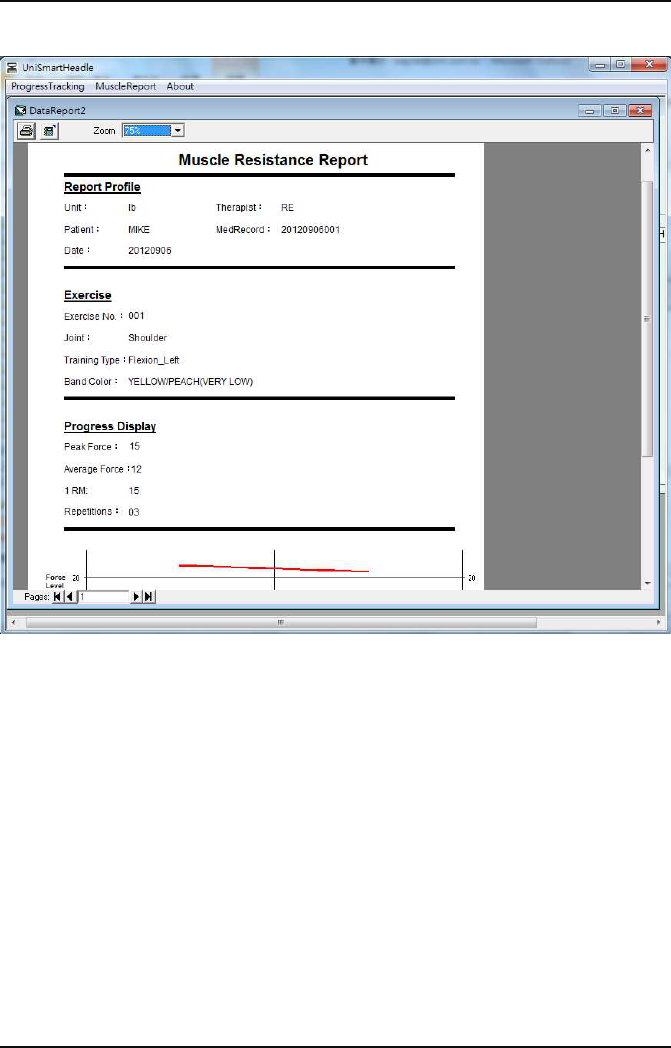

*Report Format

UNISMART

TM

HANDLE USER MANUAL

BLUETOOTH PRINTER (*OPTIONAL ACCESSORY)

Note: The Bluetooth Thermal Printer is an optional item and not supplied as a

standard part of the UniSmart Handle package.

Step 1: Turn on the power by pressing the POWER button on the printer.

Note: Make sure the printer battery has been charged before use or plug

the DC adaptor into the printer for power supply. Fully charged the

printer should last for up to 40 hours.

Step 2: Make sure there is a paper roll inside the Bluetooth printer.

Step 3: Press the FEED button to feed out a short length of paper. (This is to

prevent the paper getting stuck inside the cover during printing.)

Step 4: When the Bluetooth printer receives a command from the UniSmart

Handle, the wireless connection is made automatically.

*Note: The best transmitted distance is <5 m

Step 5: Once the connection is made to the device, the Bluetooth printer will

then print the report. (The *Report Format is shown below)

Step 6: Tear off the report from the Bluetooth printer using the built-in paper

cut.

Step 7: When finished printing, turn off the printer by pressing the POWER

button.

UNISMART

TM

HANDLE USER MANUAL

*Report Format

UNISMART

TM

HANDLE USER MANUAL

7. SPECIFICATION

Trade Name UniSmart Handle™

Model Name ZSH-BK

Software Version V1.0

Power Supply 3.7 V/900mAh Lithium-

ion Battery (charge with 6VDC AC/DC

adaptor; The exercise functions being designed not for use

when charging)

Dimension L6.02”xW5.31”xH0.98” (L153mmx135mmx25mm)

Weight: UniSmart™ Handle: 324 g

Dumb Handle: 229 g

Battery Life: New lithium-

ion battery operates the system for over 100

hours at normal uses. (A battery unit shall be repeated 500

charge/discharge cycles)

Battery Capacity Indicator

: ≧50%

: 50%-20%

: 20%-5% (flashing)

: ≦5% (flashing)

LCD White Backlight L1.02”xW0.49” (L26mmxW12.5mm)

Force Range 0-50 lb (0-22.7 kg/0-222.5N) with high accuracy &

resolution

Unit Selection lb/kg/N

Grip Thickness 0.17mm ~ 1.2mm (single layer to double layer)

Maximum Recording 1000 cycles per each exercise

Calibration Internal: Auto-calibration by pressing the RESET button

External: Plug in the calibration unit through the DATA port

Power Saving If idle for 30 sec, the LCD backlight automatically turns off

If idle for 2 min, the system automatically turns off

Wireless Transmission

Distance

Bluetooth Printer <5 m ; PC Bluetooth Dongle<10m

Attachment

Configuration

Fast Band change/Fast Accessory change

Compliances IEC60601-1:2005, IEC60601-1-2:2007,

FCC ID: PDSZSH00201200YPM

Operation Condition 0~40°C/0~90 %R.H

Storage Condition -20~60°C/0~90%R.H

UNISMART

TM

HANDLE USER MANUAL

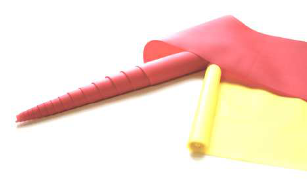

8. LIST OF RESISTIVE EXERCISE BANDS FOR USE WITH UNISMART

HANDLE™

UNISMART

TM

HANDLE USER MANUAL

9. TROUBLESHOOTING

Error Message Action

E-1

Internal Power Failure Restart the system, if the error still

happens, call local agent for repair.

E-2

Wireless Transmission Failure

Make sure the F-4 transmission

setting (PC/Bluetooth Printer) is

correct.

*for detailed troubleshooting, please refer to the service manual.

UNISMART

TM

HANDLE USER MANUAL

10. MANUFACTURER & AUTHORIZED REPRESENTATIVE &

DISTRIBUTOR

Manufacturer

ZMI Electronics, Ltd.

6F-1, No. 286-4 Shin Ya Road, Kaohsiung, Taiwan 806

Telephone: +886-7-815-0053

Fax: +886-7-815-0057

Email: mail@zmi-electronics.com

ZMI Electronics, Ltd. is a participant in Good Manufacturing Practices and is

qualified as ISO 13485 supplier.

Authorized Representative in the European Union

Medserve Limited

Office No.4, 1

st

Floor Broad March

Long March Industrial Estate

Daventry Northamptonshire NN11 4HE, England

Telephone: +44-1327 310310

Fax: +44-1327 310311

Email: info.medserve@btconnect.com

Distributor

ZMI Electronics ZSH00201200YPM UniSmart Handle User Manual

ZMI Electronics, Ltd UniSmart Handle

User Manual

Navigation menu

Namespaces

Views

Navigation
