User Manual

31



Distributors

PattersonMedicalANZ 

Unit3,3BasaltRoad 

PemulwuyNSW 

Australia2145



PattersonMedicalCanada

6675MillcreekDr,Unit3

Mississauga,ONL5N5M4

Canada



PattersonMedicalFrance

ZoneIndustrielledeMontjoly

11Avenuedel’Industrie–CS40712

08013Charleville‐MézièresCedex,France



Warranty

TheRolyansmarthandlesarefullyself‐containedunitswhichprovidemanyyearsof

accurate,dependableservicetotheuser.TheRolyansmarthandlesarewarrantedfor

12months(1year)fromdateofpurchaseagainstfaultyworkmanshipormaterials.

Thewarrantyislimitedtorepairorreplacementofdefectiveproduct.Patterson

Medicalisnotresponsibleforanydamageorinjurycausedbymisuseor

non‐observanceoftheinstructionssetoutinthismanual.



Shouldyouexperienceanyquestionsorproblemsregardingthisinstrument,please

contactPattersonMedical,yourdistributororanapprovedagent.



ShoulditbenecessarytoreturntheRolyansmarthandle,itisessentialitis

adequatelypackedtoprotectitintransit,preferablyinitsownpurposemadeoriginal

box,otherwisePattersonMedicalcannotacceptanyresponsibilityfortransitdamage

totheunit.



FulldetailsofyourPattersonMedicalcountryofficecanbefoundonpage31to32of

thismanual.



Rolyan®SmartHandlePro

UserManual









1



TABLEOFCONTENTS



1. INTRODUCTION2

2. THERAPYADVANTAGES3

OBJECTIVITY3

BIOFEEDBACK5

CONTROL5

DEFENDABLEDOCUMENTATION6

CLINICALBENEFITS7

3. SAFETY8

PRECAUTIONS9

MAINTENANCE10

4. PRODUCTCOMPOSITION11

ROLYANSMARTHANDLE11

PRIMARYCOMPONENTS12

CONTROLPANEL13

LCDDISPLAY14

BANDGRIPRANGE15

LABELLING16

5. INSTALLATIONFORUSE17

INSTALLATIONOFACCESSOIRES17

INSTALLATIONOFBAND19

6. OPERATIONINSTRUCTIONS20

ROLYANSMARTHANDLE20

HOWTOAPPLYTHEVARIOUSMODESTOCLINICALPRACTICE22

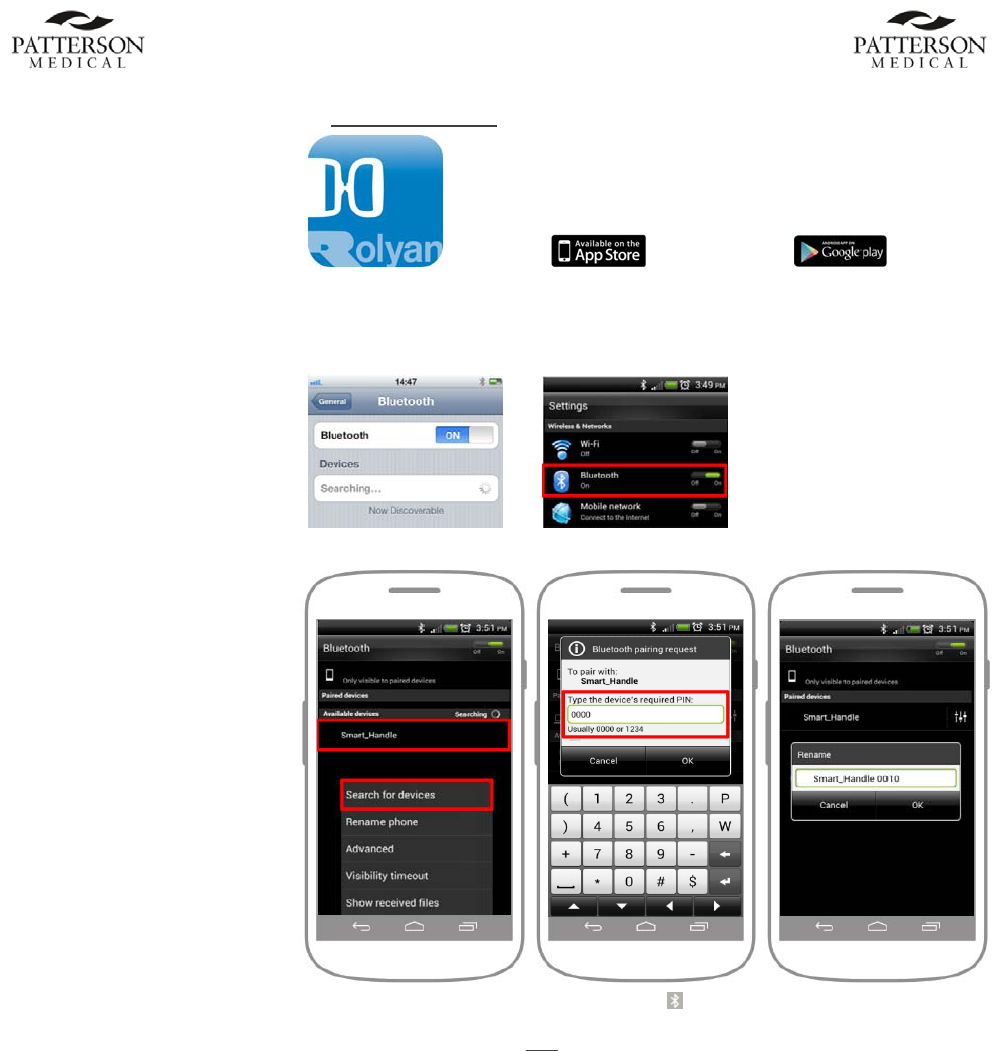

BLUETOOTH®TRANSMISSION24

7. SPECIFICATIONS28

8. TROUBLESHOOTING29

9. MANUFACTUREDFOR,EUREPRESENTATIVE,

DISTRIBUTORS&WARRANTY

30





30



9.MANUFACTUREDFOR,EUREPRESENTATIVE,DISTRIBUTORS&

Warranty



Manufacturedfor:



PattersonMedicalSupply,Inc.

W68N158EvergreenBlvd.,

Cedarburg.WI53012,USA

Telephone:800‐228‐3693

Fax:262‐387‐8748

Web:www.pattersonmedical.com

Email:customersupport@pattersonmedical.com



AuthorisedRepresentativeintheEuropeanUnion



PattersonMedicalLtd

NunnBrookRoad

Huthwaite,Sutton‐in‐Ashfield

Nottinghamshire

NG172HU,UK

UKtelephone:08444124330

Internationaltelephone:+441623448706

Web:www.pattersonmedical.co.uk



29



8.TROUBLESHOOTING



ErrorMessage Action

E‐1InternalPowerFailure

Restartthesystem,iftheerrorstill

happens,callyourlocaldistributor,

oragentforrepair.

E‐2BluetoothModuleFailure

Restartthesystem,iftheerrorstill

happens,callyourlocaldistributor,

oragentforrepair.

*Fordetailedtroubleshooting,pleaserefertotheservicemanual.

2

1. INTRODUCTION



TheRolyansmarthandleisdesignedtopromotehigh‐qualitytherapeuticexercisefor

physiotherapypatients,membersoffitness/wellnesscentersandthoseexercisingat

home.UsedwithelasticexercisebandstheRolyansmarthandleisapracticaland

simpledigitalinterfaceforresistiveexercise.



WhenusedbytherapiststheRolyansmarthandlesprovidesreal‐timefeedbackby

displayingforceandrepetitiondata.Thisenablestherapiststoseeandrecordthe

specificdataneededforreliable,evidence‐basedexerciseprogramsthathelp

maximizepatientstrengthandfunctionintheshortestperiodoftimepossible.



UsetheRolyansmarthandleto:



o Guidestrengtheningexercises.

o Objectivelymeasureandsetpreciseresistancelevels.  

o Countandindicatethenumberofrepetitionsofaspecificexercise.

o Encouragequalityexercisebysettingresistancetargetsandusingimmediate

audio&visualsignalstocuerangeofmotionandresistancetargets.

o WirelesslytransmitperformancedatafromtheRolyansmarthandletoyour

Bluetooth®enabledcomputer.

o Recorddetailedexerciseinformationtodocumentskilledtherapyservices.



Foradditionalinformationandonlineeducation,pleasevisitwww.pattersonmedical.com



3

2. THERAPYADVANTAGES



OBJECTIVITY

Therapistsconstantlyfacechallengesthatlimittheirabilitytohelppatientsachieve

therapygoals.Limitedtreatmenttimes,aninsufficientnumberofpatientvisitsand

cappedpaymentscanallaffectsuccessfulpatientoutcomes.Itisthereforevitalthat

thetherapistprovidesevidence‐basedtreatmentsthataredesignedtomaximize

patientoutcomeintheshortestperiodoftime.



Resistanceexerciseswithelasticbandsdesignedtoimprovemusclestrengthareone

ofthemostessentialandfrequentlyprovidedformsofphysiotherapytreatment.

Researchdemonstratesthatexcellentmusclestrengtheningisachievedwhenspecific

exerciseparameters,includingbody/limbpositionandrangeofmotion,areprecisely

replicatedeachtimetheexerciseisperformed.Mostcritically,theintensityofthe

exercise(resistancelevel)mustbesufficientlychallengingtothepatient,andasthe

patientstrengthensovertime,theresistanceincreased.Inotherwords,tobe

effectivetheexercisemustbebothconsistentandprogressive;thetermProgressive

ResistanceExercise,(PRE),awell‐knownmethodofincreasingtheabilityofmuscles

togenerateforce,hasbeenalsodemonstratedtobeasafeandefficacious

interventionformanypatientswithmuscleforcedeficitscontributingtotheirmotor

disabilityinphysicaltherapy.



Keepingtrackofspecificexerciseresistancesiseasywhenusingcuffweights,

dumbbells,andweightmachinesbecausetheamountofresistance,orweight,is

usuallyclearlylabeled.However,thisobjectivitycurrentlydoesnotexistwhenusing

resistiveelasticbands.



Whenhavingpatientsexercisewithelasticbands,theRolyansmarthandlehelps

therapistssimplyandquicklydeterminespecificexerciseresistancebydisplayingthe

actualforcesgeneratedduringeachexercise.



Whenattachedtotheresistiveelasticband,theRolyansmarthandledisplaysthe

peakforcegeneratedbythepatient(ortherapist)duringasinglerepetition.This

informationprovidesthetherapistwithdetailedinformationneededtodetermine

theoptimalresistanceappropriateforthatexerciseandpatient.

28



7.SPECIFICATIONS

TradeNameRolyan®SmartHandlePro

ModelNameZSH‐RP(Pro)

SoftwareVersionV1.0

PowerSupply3.7V/900mAhLithium‐ionBattery

chargedbyUSBtoDCJackchargingcable

Adaptor

(Optional)

GlobTek,GTM41078‐0605‐USB

100‐240V,50‐60Hz,0.3A

Output:5VDC,1.2A(6W)

Dimension L6.02”xW5.31”xH0.98”(L153mmx135mmx25mm)

Weight:MainHandle:324g

DumbHandle:229g

BatteryLife:upto100hoursofuseonafullcharge

CapacityIndicator

:≧50%

:50%‐20%

:20%‐5%(flashing)

:≦5%(flashing)

LCDWhiteBacklightL1.02”xW0.49”(L26mmxW12.5mm)

ForceRange0‐50lb/0‐22.7kg/0‐222.5N

Unitlb/kg/N

BandThicknessLimit0.17mm~‐1.2mm

MaximumRecording1000cyclesperexercise

PowerSavingIfidlefor30sec,theLCDbacklightautomaticallyturnsoff

Ifidlefor2min,thesystemautomaticallyturnsoff

WirelessTransmission<10m

foriOSdevices,Bluetooth4.0isrequired

forAndroiddevice,Bluetooth2.0oraboveisrequired

CompliancesMDD93/42/EECClassI

IEC60601‐1:2005,IEC60601‐1‐2:2007,

FCCID:PDSZSHRP201400YPM

OperationCondition0to40°C(32to104°F)/90%R.Hunder(Non‐condensing)

StorageCondition‐10to40°C(14to104°F)/90%R.Hunder(Non‐condensing)

40to50°C(104to122°F)/70%R.Hunder(Non‐condensing)



27

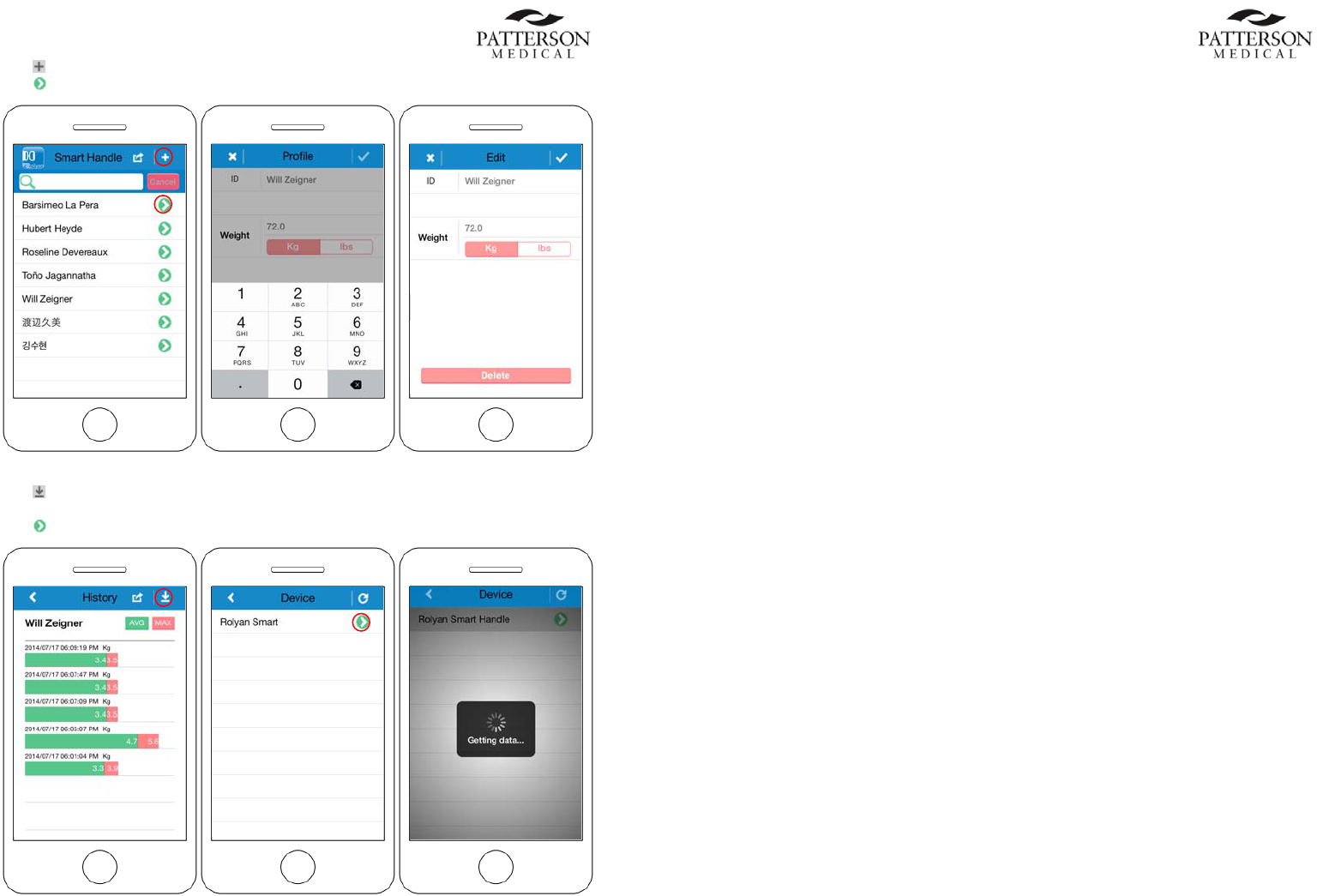

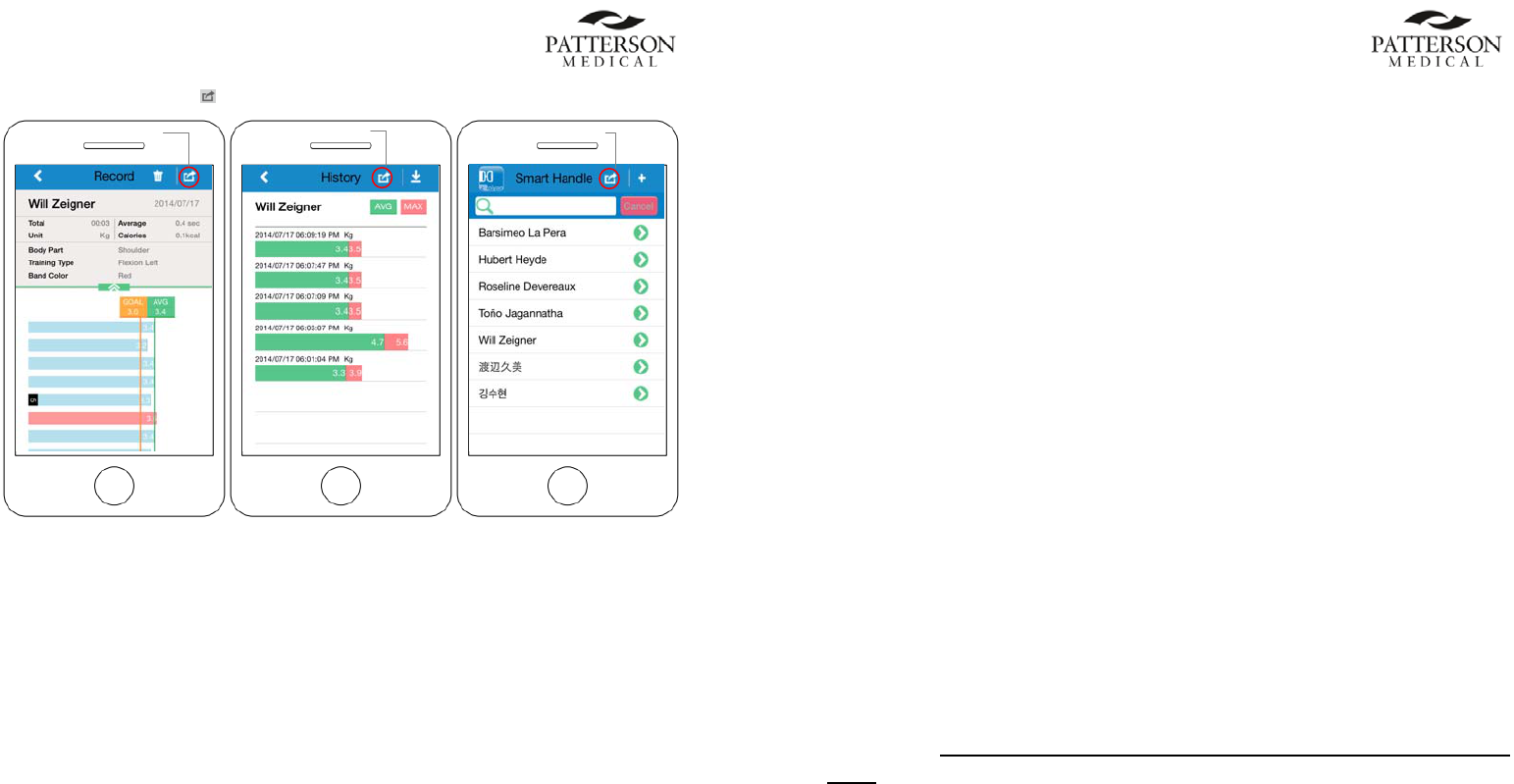

ExportData

Therearethreewaystoexportdata(singleusersingledataset,singleusermultipledatasets,andmultiple

usersmultipledatasets).Clickicontoexportdatainexcelorphotoformat.



ForAppsupportintheUS,pleasecontactPattersonMedicalON800‐343‐9742.Forall

othercountries,pleasecontactyourlocalPattersonMedicalcountryoffice



Single‐usersingle‐dataSingle‐usermultiple‐dataMultiple‐usermultiple‐data

4



Strengthexerciseresearchsuggeststhatwhenapatientmomentarilyfatiguesa

musclegroupbetween8to12repetitionsofastrengthexercise,theresistanceis

roughly70%to80%ofonerepetitionmaximum(1RM).Thisintensityis

recommendedinmanyclinicalexerciseguidelinesasitrepresentsalevelofdifficulty

thatisnottoostressfultopatientsyetsufficienttogeneraterapidstrengthgains.The

Rolyansmarthandlehelpstherapiststodetermineanactual1RMvalueusedto

calculatethespecifictargetedexerciseintensity.



Forexample,ifthepatient’s1RMis5kg(11lbs)andtheprescribedexerciseintensity

is80%ofRM,thentheinitialresistanceloadis4kg(9lbs).



Inaddition,researchdemonstratesthatresistancemustbeprogressedformusclesto

strengthen.So,progressiveincreasesinresistancelevelsarenecessaryover

subsequentexercisesessions.TheRolyansmarthandleenablestheseincreasestobe

madesystematicallyandaccurately.Letuslookathowthisisaccomplished.



70%to80%ofa1RMischallengingenoughsothatwhenexercisingatthatintensity

mostpeopleexperiencemomentarymusclefatiguebetween8and12repetitions.If

exercisingtomomentaryfatigue,apatientdemonstratesincreasedstrengthwhen

theyperformmorerepetitionsatthesameresistancelevel.Ifinitiallyapatient

fatiguesbetween8and12repetitionsandduringasubsequentexercisesession

performsmorethan12repetitions,theintensityisthenlessthanthetargetintensity

of70%to80%ofa1RM.Thereforeafter12ormorerepetitionstheresistanceshould

beincreased.Thechallengeistoknowwhentoincreasetheresistanceandbyhow

much.



Researchsuggeststhatwhenprogressingresistanceforthoseexercisingfrom70%to

80%ofa1RMtheappropriateamountofanincreaseis5%.Anincreaseof5%usually

resultsinpatientsperformingnofewerthan8repetitionsduringthesubsequent

exercisesession.Limitingtheincreaseto5%helpsprotectpatientsfromover‐exertion

andensuresthattheycontinuetoexerciseattheresistancerange/dosageof70%to

80%of1RM.



5



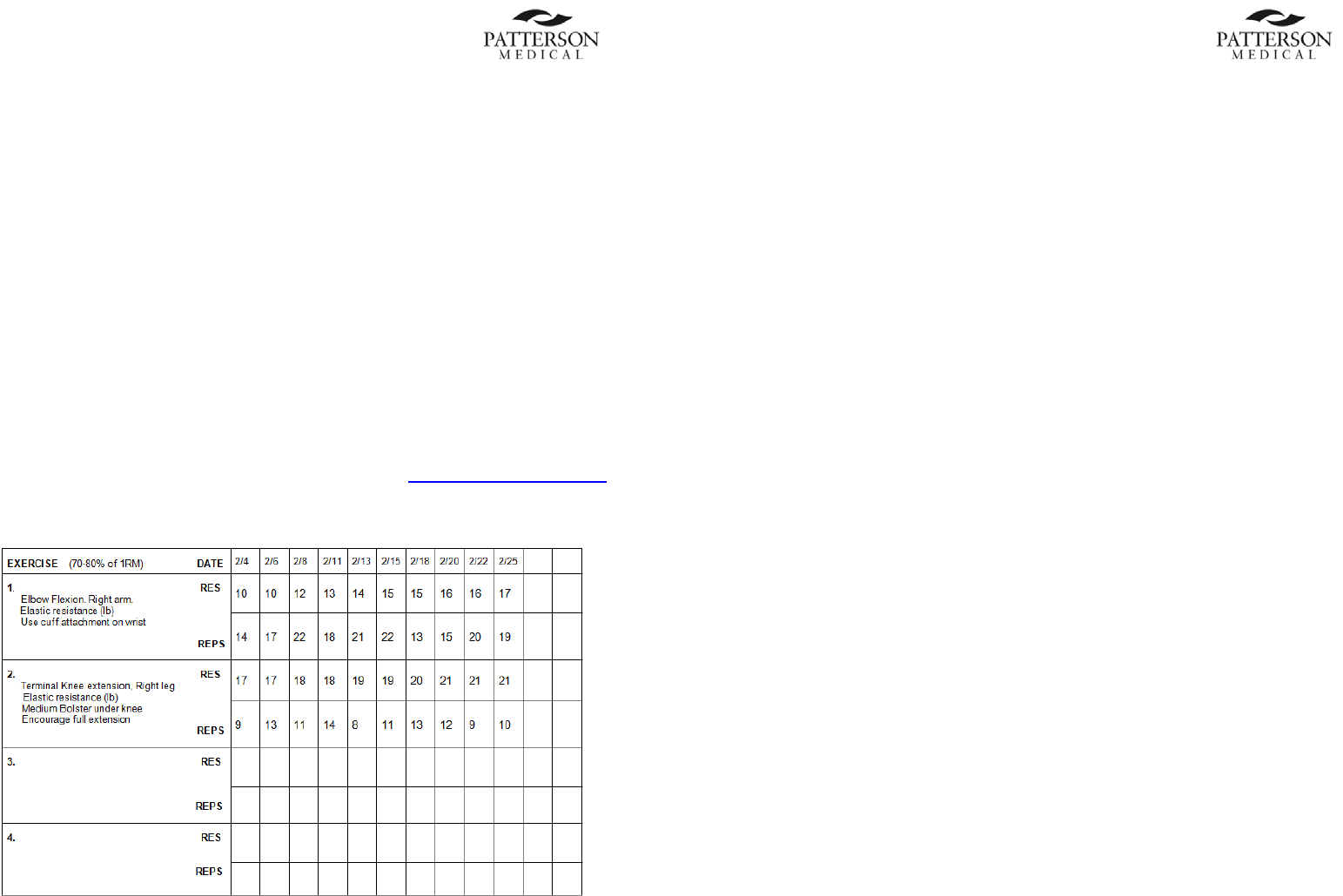

Here’sanexampleofhowobjectivedatafromtheRolyansmarthandlecanprovide

theobjectivitynecessarytopresenthigh‐quality,evidencebasedstrengthexercise.

ApatientperformselbowflexionwiththeRolyansmarthandle.Duringthe

initialexercisesession,thetherapistdeterminesthattheappropriateresistance

forthepatientis5kg(11lbs).Thepatientfatiguesduringthe11threpetition.

Becausethisisfewerthan12repetitionstheresistanceiskeptthesameat5kg

(11lbs)duringthenextexercisesession.Whenperformingthesameexercise

duringthesecondexercisesession,thepatientfatiguesduringthe14th

repetition.Sincethisismorethanthe12repsforthethirdexercisesession;the

resistancefortheexerciseisincreasedby5%(.x1.05)to5.25kg(11.5lbs).The

therapistchooseseitherastrongerlevelofbandorsetsthelengthoftheband

withintheRolyansmarthandlesothenewresistanceislevelcanbesetat5.25

kg.Thisisprecisedosingofresistancehelpsoptimizebothpatientsafetyand

treatmentoutcomes.



BIOFEEDBACK

Peopletypicallyperformatahighercapacitywhentheyreceiveusefulfeedback

relevanttotheirperformance.Therapypatientsarenodifferent.TheRolyansmart

handleprovidespatientswithspecificfeedback:



(a)Thepeakforceofeachrepetition.

(b)Thenumberofrepetitionsperformed.

(c)Adjustableaudiosignals&synchronouslyvisualsignalstocuethepatientwhen

repetitionorpeakforcetargetsareachieved.



Furthermore,patientsarenaturallyengagedandmotivatedbytechnology.While

resistiveelasticbandsare‘low‐tech’productsandmaybeperceivedbysomepatients

asverysimpleformofexercise,theyarenone‐the‐lessaveryeconomicaland

user‐friendlyexercisetool.TheRolyansmarthandlenotonlyaddsclinicalvalue,but

sophisticationtobandexercise,therebyinfluencingpatientperceptionsand

enhancingtheprofessionalismofatherapyclinic.



26

EditData

Whenthedataissuccessfullyreceived,selectthetrainingdetail(includingbodypart,trainingtype,and

bandcolor),andclicktosave.



ViewData

Whenthetrainingdetailhasbeenset,usercanviewthedatasetonthescreen.Click  icontodeletethe

data.Clickicontoexportdataeitherinexcelorphotoformat.



Maximumforce

Repetitionindex

25

AddProfile

Click  icontocreateanewuser’sprofile;Inputtheuseridentifier(ID)andWeight.

Clickicontoeditordeletetheprofile.



GetData

Click  icontoestablishtheconnectionwithdevice(makesuretheBluetooth®buttononRolyansmart

handleisbeingpressed),andselectthedevicetowirelesslygetthetrainingdataviaBluetooth®.

Clickicontoeditdevicename.



6



CONTROL

Withoutcloseoversightanddetailedmonitoring,patientsperformingstrength

exerciseswithresistiveelasticbandsoftenusepoortechnique:thiscanbeintheform

ofincompleterangeofmotion,inadequate(orexcessive)resistance,and/orimproper

body/limbpositionandsubstitutemovements.TheRolyansmarthandletechnology,

alongwiththebandattachments,inherentlyencouragestheperformanceof

good‐qualityexercise.TheRolyansmarthandleprovidespatientswithexercise

targets,guidingthemwithaudiocueswhenresistanceand/orrepetitiongoalsare

achieved,thuspromotinghigh‐qualityresistanceexercise.



DEFENDABLEDOCUMENTATION

HealthServices,governmentalagenciesandmedicalinsurancecompanieshave

steadilyincreasedtherapydocumentationrequirements.Theywanttoseeobjective

datathatreflectsprogress,orlackthereof.Thisincludesanincreasedfocuson

TherapeuticExercisetherapyprocedureswithreviewerscloselyscrutinizingif

exercisesareskilledinnature,versusroteunskilledactivities.TheRolyansmart

handleprovidesessential,detailedresistancedataandrepetitionfiguresthatcanbe

recordedateachtherapysessiontoreflectthemindfulandskilledtherapyservices

providedtogovernstrengthexercise.ThereportsproducedbytheRolyansmart

handleclearlyshowthepatient’sprogressandcanbeprintedoutandwhenrequired

attachedtothepatient’srecord.



TheresultsofeachstrengthexercisecanbedownloadedfromtheRolyansmart

handledirectlytoaBluetooth®enableddevicesuchmobilephoneortablet.The

capturedinformationefficientlyandeffectivelyguidestherapiststobettertailora

patient’streatmentplanbasedonthelogicalprogressionofstrengthexercises.This

levelofdetailcanresultinoptimaltherapyresults,shortertimetomaximalpatient

functionandbetterclinicalpatientoutcomesoverall.



7



Forexample:Comparethesetwopatienttherapynotesdescribingasinglestrength

exercise:

1. Elbowflexionperformedwithgreenband.2setsof10.Increasedresistance

fromredbandlastweek.

2. Elbowflexionperformedwithbluebandusing3.15kg(6.9lbs)ofresistance.

Patientreceivingcuestoinsurefullrepetitioneachrepetition.Resistance

increasedfrom3kg(6.6lbs)lastweek.



CLINICALBENEFITS



TheRolyansmarthandlecanbeusedaspartofanexerciseprogramto:



o Improvemusclestrengtho Improvegait

o Improvemusclepowero Enhancegripstrength

o Improverangeofmotiono Improvecardiovascularfunction

o Improveposture o Increasebloodcirculation

o Improvebalanceand

proprioception



24

BLUETOOTHTRANSMISSION

DownloadApp

FindRolyanSmartHandleProAPPontheGooglePlay/APPStore,andinstalltheAPPonthedevice.

  



TurnBluetoothon

iOSiiii:GetintogeneralsettingstoturnBluetooth®on.TapAPPtoopenitandgetstarted.

Android:GetintogeneralsettingstoturnBluetooth®on,andpairwithRolyansmarthandlefirst(*).

 

(*)PairRolyansmarthandlewithyoursmartphone/pad/tablet(forAndroidsystemonly)



Forthefirstpairing,pressandholdBluetoothbutton  ontheRolyansmarthandlefor2secondsto

makeitsearchable.Findandclickthefunctionof“Searchfordevices”tosearchavailabledevices.Click

“SmartHandle”andtypethePIN:0000topairwithyoursmartphone/tablet.Oncethedevicepaired,tap

APPtoopenitandgetstarted.

RequiredAndroid

4.0.3orabove

RequiredBluetooth

2.0orabove

RequirediOS

6.0orabove

RequiredBluetooth

4.0

23



Tip:IntheF‐2Repmode,thetensionmustbecompletelyremoved(<0.5kg)to

wesuggestfirsttestpatient’srangeofmotiontoadjusttheproperlengthof

band,andtheninstallthebandontheRolyansmarthandletoavoidrepeated

bandinstallation.



MODEF‐3:Usetosetbothtargetforceandrepetition



Thismodeenablesyoutosetboththetargetforceandtherepetitiongoalforthe

specificexercise.Thismodeisusedwhenyouwantaparticularlimitonthenumber

ofrepetitions,donotwantpatienttoexercisetomomentaryfatigue,butdowantto

motivatethemtoachieveaspecificpeakforcetargetforeachrepetition.



ExampleofEvaluationSheet

Forsomeclinicalenvironments,whichdon’thavethesmartphone/tablet,theblank

evaluationsheetisalsonowavailabletodownloadatwww.pattersonmedical.com

Usercanprintthissheettorecordeachexerciseprotocolindifferentprescriptions

anddates.



8

3. SAFETY



o TheRolyansmarthandleshouldonlybeusedwithgoodqualityresistivebands

designedtowithstandtheforcesbeingapplied.Checkwiththeband

manufacturertoensureyourbandisappropriateforyourintendeduse.

o Alwaysfollowthespecificsafetydirectionsissuedbyexerciseband

manufacturer.

o Beextracautiouswhenusingexercisesthatinvolvestretchingtheresistiveband

towardthefaceandheadassuddenreleaseoftensioncouldcauseinjurytothe

faceoreyes.Protectiveeyewearshouldbewornifperformingthistypeof

exercise.

o Avoidanyexercisethatcouldcausethepatientorbandusertolosebalanceand

fallifthebandattachedtotheRolyansmarthandleshouldsuddenlysnaporslip

duringtheexercise.

o Avoidanyexercisethatcouldcausethepatient’slimbstomovebackrapidlyand

hitacloseobjectorpersonshouldthebandattachedtotheRolyansmarthandle

suddenlysnaporslipduringtheexercise.

o TheRolyansmarthandleismeanttobeusedasanattendedtherapy.The

therapistshouldbepresenttoassuretherapyregimensarefollowedaswellas

safetyprotocols.

o TheRolyansmarthandleisnotatoyandshouldnotbeleftalonewithchildren

present.

o TheRolyansmarthandleanditsaccessoriescanactasprojectileswhentheband

isstretched.Makesurenooneisindirectproximitywhiletheproductisbeing

usedtoavoidinjury.LettinggooftheRolyansmarthandlewhileisusecan

damagethedevice.

o Inspecttheresistivebandbeforeuseforsmallnicks,tears,orpuncturesthatmay

causethebandtobreak.Ifyoufindanysuchdamageintheresistiveband,

discarditandreplacewithanewbandbeforeperforminganyexercises.Always

examinethesurfaceofthebandsforsignsofdamage(i.e.cracksortears)before

use.

o Ensureaproperlengthofbandtoprovidebetterusercontrolandtoavoidhigh

pullforces.

o Neverusebandsthathavebeencutdowninwidth.

o MakesuretheresistivebandissecurelygrippedandlockedintheRolyansmart

handleoritsattachmentbeforeuse.(i.e.youwillheara”click”soundwhenthe

clipislocked.)

9



o Whenusingtheaccessoriessuchasthedooranchorortheextremitycuff,make

suretheaccessoryisfixedsecurelybetweenthedoorandthedoorframe.Always

positiontheexercisersothatthedooropensawayfromtheuser.Ifthedoor

hasalock,lockittopreventunexpecteddooropeningbyanotherperson.Tugon

theanchortotestforstabilitybeforeexercisetomakesuretheanchordoesnot

slipduringexercise.

o Alwaysuseafreshpieceofbandforeachandeveryexercisesession.

o Toavoidexcessivelyhighresistancelevelsdonotuseabandthatistooshort.The

minimumbandlengthbetweenthegripsshouldalwaysbegreaterthan30cm

(12”).

o Somebrandsofexercisebandshaveafinewaxbloomorpowdercoatingonthe

surface(thisistopreservetheband)andthiscoatingcanaffectthegrip.Follow

thebandmanufacturer’sinstructionsforcleaninganysurfacecontamination

fromtheband.

o Iftheresistancebandisslippingfromthebandclamp,usealightwipewith

alcohol(isopropanol)tocleantheinsidefaceoftheclampgrips.NEVERAPPLY

ALCOHOLOROTHERORGANICSOLVENTSDIRECTLYONTHEBANDS,onlyonthe

clampgripsurfaces.Iftheclampmechanismortheclampfacesaredamagedin

anywaycontactyourlocalRolyansmarthandleagentforrepair.

o Donotoverstretchbandsbymorethan3timesitsrestinglength.Example:a

30cm(12”)bandshouldnotbestretchedtomorethan90cm(35”)totallength.

o DonotusetheRolyansmarthandlewhilechargingthebattery.Thesystemwill

beepandautomaticallyturnoffwhenthechargesignalisdetected

o Donottamperwiththecasingorchange/removeanyoforiginalparts.Thiswill

VOIDthewarranty.

o Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.



FCCCaution:

1. ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.

2. Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.

3. Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuserauthoritytooperatetheequipment.



IMPORTANTNOTE:(ForPortableDeviceConfiguration)

FederalCommunicationCommission(FCC)RadiationExposureStatementThisEUTiscompliancewith

SARforgeneralpopulation/uncontrolledexposurelimitsinANSI/IEEEC95.1‐1999andhadbeen

testedinaccordancewiththemeasurementmethodsandproceduresspecifiedinOETBulletin65

SupplementC.

22



HOWTOAPPLYTHEVARIOUSMODESTOCLINICALPRACTICE



MODEF‐0:Usetocalculatespecificexerciseintensitydosage(lb,kg,N)



Performasinglerepetitionthroughthefullrangeofmotion(ROM).Thepeakforceis

displayed,whereveritoccursintheROM.Multiplythatfigurebythedesiredstrength

exerciseintensitytocalculatethetargetpeakforce.



*Example‐Peakforceduringtherepetitionis22.2lbs.Theexerciseintensityis80%

of1RM.Therefore,theexercise‐specificresistancedosageis:22.2x0.80

=17.8lbs(approximately18lbs).



MODEF‐1:Usetoprovidefeedbacktopatientthattargetforceisachieved



Thismodeenablesthepatientandyoutoreceiveaudio(and/orvisual)feedbackeach

timethespecificstrengthexerciseresistancedosageismetorexceeded.Thismodeis

particularlybeneficialwhenthepeakforceoccurstowardthemaximumelongationof

theelasticband.Therefore,thepatientispromptedtomovethroughhis/herfull

ROMwhileexercising.



*Example–UsingthesameexercisedataasinMODEF‐0,chosethecolorelastic

bandthatoffersaround15to20lbsofresistance.Anchortheendsofthe

bandsothatasinglerepetitionprovides18lbsofforce(NOTE:useMode

F0todeterminethis).Oncethebandcolorandlengthisdetermined,

usingModeF‐1,enterthepeakforcetargetof18lbs.Havethepatient

exercisetomomentaryfatigueorforasetnumberofrepetitions(SEE:

ModeF‐2andModeF‐3).



MODEF‐2:Usetosetrepetitiontargets



Enterthenumberofrepetitionsyouwantyourpatienttoperformforthesetof

exercise.Thismodeisusedwhenyouwantaparticularlimitonthenumberof

repetitionsapatientperformsanddonotwantthemtoexercisetomomentary

fatigue.



21



OncetheBLUETOOTH®buttonisbeingpressedandheld,thedevicewillshow

theBluetooth®symbol andmaketheRolyansmarthandlesearchable.The

LCDdisplaysthesequenceasbelow.



OncetheBluetooth®Devicehasbeenconnected,theLCDdisplays“P”and

thenreturnstothedefaultdisplaywhenthetransmissioniscomplete.Ifthe

connectionfails,theLCDdisplays“noP”andreturnstothedefaultscreenin

fewseconds.



Step5:AlwayspressandholdtheSET/RESETbuttontocleanpreviouslyrecorded

databeforestartinganewsetofexercises.Thedisplayshows“rSt”(reset)

whenthedataisbeingcleaned.

Note:

Whenthedeviceidlesover30seconds,theLCDbacklightwilldimbuttheunit

isstillactive.Whenthedeviceidlesover2minutes,theunitwillautomatically

shutdowntosavebatterypowerandcleantherecordeddata.

Besuretoexportthedatatomobilephone/tablettoavoiddataloss.

10



PRECAUTIONS

Alwaysconsultaphysicianortherapistbeforestartinganyexercise

program.

U.S.FoodandDrugAdministrationwarnsthatRadioFrequency

IdentificationDevicescancausemalfunctionsinPacemakersand

Cardioverter‐Defibrillators.TheRolyansmarthandlecanwirelessly

transferexercisedataviaBluetoothtransmissionatRadioFrequency.

Pleasekeepaminimumseparationdistanceof2.5cmwhenusingthe

Bluetoothtransmission.

Topreventpossibledisruptionoffunction,keepRolyansmarthandle

atleast10feetfrommicrowaveorshortwavediathermyequipment.

Forpatients,yourphysicianortherapistshoulddevelopan

individualizedexerciseprogramtomeetyourneedsandabilities.

Rolyansmarthandleandresistiveelasticbandsarenottoys;consulta

physicianortherapistbeforeallowingchildrentoexercisewithelastic

resistancebands.

Withanyexerciseprogram,musclesorenessmaybeexperiencedover

thefirstfewdays.Ifconsiderablemusclesorenesspersistsformore

than3‐4days,consultyourphysicianortherapist.Donotexerciseif

experiencingpain.

Ifyouexperiencesharppain,shortnessofbreath,dizzinessor

light‐headednesswithanyoftheseexercises,stopimmediatelyand

contactyourhealthcareprovider.



MAINTENANCE

o Alwaysinspectthebandbeforeuseforsmallnicks,tears,orpuncturesthatmay

causethebandtobreak.Ifyoufindanyflaws,discardtheproductandreplace

beforeperforminganyexercises.Forbandmaintenance,pleasefollowits

manufacturer’sinstructions.

o StoretheRolyansmarthandleandaccessoriesoutofdirectsunlightandaway

fromextremetemperatures.

o Aftereachuse,wipetheRolyansmarthandlewithacleandampcloth.



11



4. PRODUCTCOMPOSITION



ROLYANSMARTHANDLEPRO

1‐ControlPanel

2‐BandClamp

3‐LockingClip

4‐ChargeIndicator

5‐OperationIndicator

6‐AttachmentConnector

7‐LCDIndicator

8‐Up/DownButton

9‐DataConnector

10‐ChargeConnector



20



6.OPERATIONINSTRUCTIONS

 MAKESURETHEBATTERYISFULLYCHARGEDPRIORTOFIRSTUSE.



ROLYANSMARTHANDLE

Step1:PressandholdthePOWERbuttonfor2secondstopoweronthedevice.

TheLCDdisplaywillshowthesoftwareversionandinitializesettings,when

complete,defaultthenturntomeasurementdisplaystatus.



Step2:PressandholdtheMENUbuttonfor2secondstoaccessthemodeselection.

PressUP/DOWNbuttontoselectthedesiredtrainingmodeorsettingmode.

o TrainingMode

PeakForce

Training

TargetForce

Training

Repetition

Training

Rep&TargetForce

Training

o SettingMode

Wireless

Transmission

(factoryuseonly)

VolumeControlUnitSettingIDSetting



Step3:Starttheresistanceexercise.Aftertheusercompletesafullrepetition,

concentricforcee.g.“pull(>1kg)‐andeccentricrelease(<0.5kg)”asacycle,

thedevicewillbeepandkeepthepeakforceonthedisplay.



Step4:Whenasetofexercisesiscomplete,totransmittheexercisedatapressand

holdtheBLUETOOTH®buttonfor2seconds.Thedataofthelastsetis

transmittedviaBluetooth®tothesmartphone/tablet.

*MakesuretheBluetooth®functionisopenoniOS/Androidsystempriorto

use.SeeBLUETOOTH®TRANSMISSIONsectionforfurthersettings.



19



INSTALLATIONOFELASTICBAND

Step1:LocatethelockingclipontheRolyansmarthandleanduseyourthumbto

openuptheLockingClip.

 

Step2:Placetheresistantbandbetweentheclampandlockingclip.Forsafety,the

bandshouldalwaysextendbeyondtheclampbyatleastthewidthofapalm.

ClosetheLockingClipbyindexfingertolocktheclampuntilhearingitclick.

 



Step3:Repeatthesameprocedureforthedumbhandle.



Open

Click

12



PRIMARYCOMPONENTS

1‐DoorAnchor

2‐ExtremityStrap

3‐DumbHandle

4‐USBtoDCJackchargingcable

5‐DCCharger…(*optional)

6‐Webbinghandles(*optional)



*Forsafety,pleaseselecttheDCchargerrecognizedincomplianceswithIEC60601‐1

RequirementsofMedicalElectricalEquipmentorIEC60950‐1Requirementsof

InformationTechnologyequipment.



123



456

13



CONTROLPANEL



1POWER Pressandholdthebuttontopoweronandoff.

2MENU

ModeSetting

F‐0:PeakResistance

F‐1:TargetResistance

F‐2:RepetitionResistance

F‐3:Combo(Target,Rep)

F‐4:BluetoothSetting

F‐5:VolumeControl(0,1‐5)

F‐6:Unit(N,lb,kg)

F‐7:IDsetting(0000‐9999)

3SET/RESET

Pressandholdthebuttontosettheparametersforeach

mode,orclearpreviouslyrecordeddataandreset(zero)the

transducer.

4BLUETOOTH

SendthelastcaptureddatasetviaBluetooth®. Pressandhold

theBluetooth®buttonfor2secondstostartthesequencefor

smartphoneortabletidentification.

5DATAUpgradethefirmwareandcalibratethetransducerthrough

DATAportifnecessary.

6CHARGE Chargethebattery,the“CHARGE”indicatorislitwhencharge

isactivatedthroughtheUSBchargingcableorDCcharger.

7UP/DOWN Press+/‐toselectup/downtheMODEandParameters.



18



o DoorAnchor

 



*Forsafety,placethedooranchorbetweenthedoorandthedoorframe.Always

positiontheexercisersothatthedooropensawayfromtheuser.Ifthedoor

hasalock,lockittopreventunexpecteddooropeningbyanotherperson.Tugon

theanchortotestforstabilitybeforeexercisetomakesuretheanchordoesnot

slipduringexercise.



o Upper/LowerExtremityStrap

 



*Forsafety,pleasemakesurethehookandlooparefirmlyattached.Forthe

peoplewhosufferfrommusculardystrophies,diseases,ormuscleweakness,itis

highlyrecommendedtouseextremitystrapinsteadofhandletoholdthedevice.

17



5.INSTALLATIONFORUSE

INSTALLATIONOFACCESSORIES



Eachattachmenthasa“Y‐shaped”KEYstructure(seepicturesbelow).Usercaneasily

findthearrowmarkonthekeyandthesurfaceofsocket.

Y‐shapedKeySocket

 

o Installation:

Plugthe“key”(arrowpin)intothe“Socket”fromeitherstartendofarrow,and

thenpressandrotate(60°)tolocktheKEYalongthedirectionofarrow.

o Uninstallation:

Pressandrotate(60°)toreleasetheKEY,andthenpulluptheattachment.



Tip:Usingpalminsteadoffingerstopressandrotatethehardpieceofattachmentis

easier.

 

14



LCDDISPLAY



BatteryIndicator



PEAK:Displayinreal‐timeandpeakforce

TARGET:Targetforcesetting

REP:RepetitionSetting

TARGET+REP:Targetforce+RepetitionSettings

Bluetooth®Indicator(Statusforwirelessconnection)



Newtonincrementby1N

Poundsincrementby0.1lb

Kilogramsincrementby0.1kg



Digitaldisplayofmeasuredforce

15



BANDGRIPRANGE

o TheRolyansmarthandlehasbeendesignedtogripresistantbandswithaspecific

thicknessbetween0.17to1.2mmtoperformtheprogresstraining.

o TheRolyansmarthandlehasbeendesignedtogripsinglelayerresistantband,the

thicknessshouldremainbetween0.17to1.2mm.

o Thebandcanbefoldedattheedge,ifthewidthexceeds11cm(41/3 ” ) . Ensurethe

bandissecureandtheclipislocked.

o Toavoidslippingriskduetobandoverstretchmakesuretoretainasafegrip

length(aboutthewidthofahandpalm)ontheloseendofthebandwhen

fasteningthebandintothegrip.

o Note:Donotoverstretchtheelasticbandbymorethan3timesitsrestinglength.

Example:a30cm(12”)bandshouldnotbestretchedtomorethan90cm(35”)

totallength.

o 

16



LABELLING



Attention

Consultinstructionsforuse

Bluetooth®Inside

BFtypeappliedpart(grip)

ManufacturerandManufacturingDate

EuropeanUnionDirectiveonWastefromElectricaland

ElectronicEquipment

CEcompliancemark

EUAuthorizedRepresentative

RoHScompliance



32



33



34



ZMI Electronics ZSHRP201400YPM Smart Handle User Manual

ZMI Electronics, Ltd Smart Handle

User Manual

Navigation menu

Namespaces

Views

Navigation
