ZMODO Technology CCADC Smart Doorlight User Manual revised

ZMODO Technology Shenzhen Corp. Ltd. Smart Doorlight revised

User Manual-revised

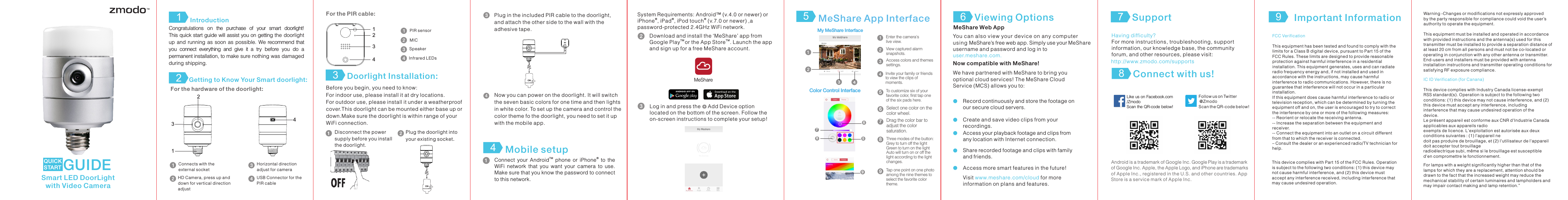

Congratulations on the purchase of your smart doorlight!This quick start guide will assist you on getting the doorlight up and running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent installation, to make sure nothing was damaged during shipping.For the hardware of the doorlight:Connects with the external socketUSB Connector for the PIR cableHD Camera, press up and down for vertical direction adjustHorizontal direction adjust for cameraIntroduction Getting to Know Your Smart doorlight:12For the PIR cable:Before you begin, you need to know:For indoor use, please install it at dry locations.For outdoor use, please install it under a weatherproof cover.This doorlight can be mounted either base up or down.Make sure the doorlight is within range of your WiFi connection.Disconnect the power supply before you install the doorlight.Plug the doorlight into your existing socket. PIR sensorMICSpeakerInfrared LEDs3 Doorlight Installation:13241234Now you can power on the doorlight. It will switch the seven basic colors for one time and then lights in white color. To set up the camera and control the color theme fo the doorlight, you need to set it up with the mobile app. Plug in the included PIR cable to the doorlight, and attach the other side to the wall with the adhesive tape.Mobile setup4TM ®Connect your Android phone or iPhone to the WiFi network that you want your camera to use. Make sure that you know the password to connect to this network. You can also view your device on any computer using MeShare’s free web app. Simply use your MeShare username and password and log in to user.meshare.com. System Requirements: Android™ (v.4.0 or newer) or ® ® ®iPhone , iPad , iPod touch (v.7.0 or newer) ,a password-protected 2.4GHz WiFi network.Download and install the ‘MeShare’ app from TM TMGoogle Play or the App Store . Launch the app and sign up for a free MeShare account. MeShareLog in and press the Add Device option located on the bottom of the screen. Follow theon-screen instructions to complete your setup!MeShare App Interface5Tap one point on one photo among the nine themes to select the favorite color theme.9 View captured alarm snapshots.Enter the camera's live view. My MeShare Interface Access colors and themes settings.Invite your family or friends to view the clips of moments.To customize six of your favorite color, first tap one of the six pads here.5Select one color on the color wheel.6 Drag the color bar to adjust the color saturation.7 Three modes of the button: Grey to turn off the lightGreen to turn on the lightAuto will turn on or off the light according to the light changes.8 Color Control Interface 56 8 7 9 We have partnered with MeShare to bring you optional cloud services! The MeShare Cloud Service (MCS) allows you to: Visit for more www.meshare.com/cloudinformation on plans and features. MeShare Web AppNow compatible with MeShare!Create and save video clips from your recordings.Access your playback footage and clips from any location with Internet connection. Share recorded footage and clips with family and friends. Access more smart features in the future! Record continuously and store the footage on our secure cloud servers. Viewing Options69Having difficulty?For more instructions, troubleshooting, support information, our knowledge base, the community forum, and other resources, please visit: http://www.zmodo.com/supportsLike us on Facebook.com/Zmodo Scan the QR-code below!Follow us on Twitter @Zmodo Scan the QR-code below! Android is a trademark of Google Inc. Google Play is a trademark of Google Inc. Apple, the Apple Logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.Connect with us!8Important Information 9Support7Smart LED DoorLight with Video CameraQUICK START GUIDEONONFCC VerificationThis equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmfulinterference to radio communications. However, there is noguarantee that interference will not occur in a particularinstallation.If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment andreceiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician forhelp.This device complies with Part 15 of the FCC Rules. Operationis subject to the following two conditions: (1) this device maynot cause harmful interference, and (2) this device mustaccept any interference received, including interference thatmay cause undesired operation.IC ID Verification (for Canana)This device complies with Industry Canada license-exemptRSS standard(s). Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2)this device must accept any interference, includinginterference that may cause undesired operation of thedevice.Le présent appareil est conforme aux CNR d'Industrie Canadaapplicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deuxconditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptibled'en compromettre le fonctionnement.For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaires and lampholders and may impair contact making and lamp retention.” Warning -Changes or modifications not expressly approvedby the party responsible for compliance could void the user’sauthority to operate the equipment.This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
