Z-B96 Stereo Bluetooth Headset Operation Manual
Thank you for using our company’s sport Bluetooth headset product, for your fast, skilled operate of this
product. Please read this manual carefully.

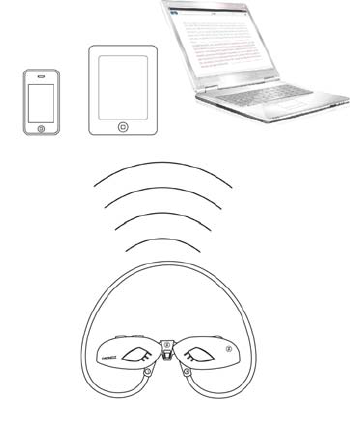

A.Use range:
1. Pair with the Bluetooth mobile, wireless enjoy mobile phone music and incoming call.
2.Pair with PC (with Bluetooth function or connect USB adapter), wireless enjoy network music;
3.Pair with PC (with Bluetooth function or connect USB adapter) wireless remote chat (support QQ,
SKYPE, MSN, etc.).
4.Support for Bluetooth mobile phone like iPhone, or tablet pc like iPad, enjoy music and voice
transmission wirelessly.
B．Accompanying accessories
1. Z-B96 wireless stereo buletooth headset 1pc
2.USB Charging cable 1pc
3.Operation manual 1pc
4.Warranty card 1pc Optional Card
5. Silica gel 1 pair
C．Start Use
1. Charge Bluetooth headset
Headset has built-in rechargeable lithium battery. The first time using it, please charge it at least 4 hours
to let it full of energy. After the first time using, charge it 1 -2 hours will be enough. When charging the red
light is bright,when the battery is saturated the blue light is bright. Fully charged battery can support about
5 hours of continuous working hours.
Connecting USB cable directly to computer to charge (Suggest:Don’t use the car charger at first time).

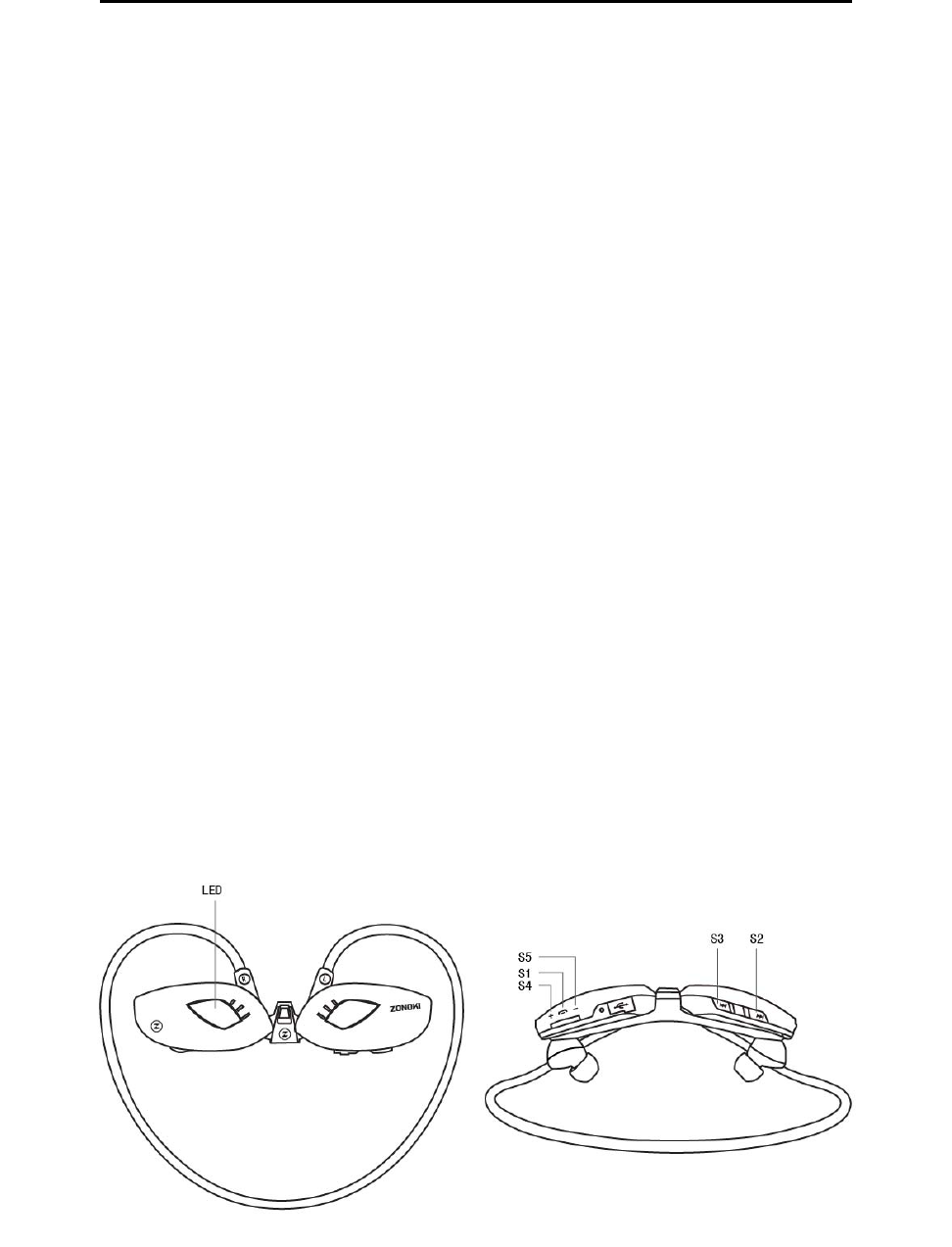

2.Button Definition and Function
S1.Multifunction key: Play/Pause(stereo status),on/off, answer/end the calls, reject a call(incoming call
status), Redial and pairing to other Bluetooth devices.
S2. Previous key: Play Previous (stereo status), speaker silent(phone state)
S3.Next key: Play next (stereo status), mobile/Bluetooth switch( phone state)
2
S4. Volume “+”
S5.Volume “-”
LED: work indicator
（3）Connect to bluetooth device
Z-B96 should be paired to mobile phone(or other Bluetooth devices) before operating.
(1).First step:
Shutdown status: Press S1 key for 5 seconds→red & blue lights flash twice at the same time→
headset with"de" sound→ red & blue lights start flashing alternately, →headset with “bi,bi...”sound→enter
into pairing status.
2).Second step:
Begin to pairing on your mobile(Please refer to mobile user manual).After searching you will get
“Z-B97” in your mobile equipment list.
3).Third step:
You will be required to enter Pin-Code→Password 0000 is needed to enter→Pairing successfully.
(Note: 0000 is a default pairing Pin-Code for bluetooth headset, some mobile phones support simple
pairing do not need to enter Pin-Code, now most of the new mobile phones are support simple pairing)
4).Fourth step:
Pairing successfully→headset with “bi,bi...”sound→ blue light flash per 4 seconds. If pairing
unsuccessfully, its' need to re- pairing.
Note:
If headset cannot find the pairing equipment in 3 minutes will automatically shutdown.
If headset isn’t in pairing status,your mobile and other bluetooth equipments cannot search
headset,please set the headset on pairing status then your mobile can begin to search.
4. Start-up & Shutdown
1. Start-up headset
Shutdown status: Press S1 key for 5 seconds→red & blue lights flash →headset with “bi,bi...”sound→
3
stop press S1 key→start-up headset successfully, begin to connecting mode→automatic search has
been paired device→connected to stereo while the blue light flash once per second. If not connected,
then enter into the standby mode, the red light flashes continuously, 3 minutes later will automatically
shutdown.
2. Shutdown headset
1）Start-up status: Press S1 key for 3 seconds→red & blue lights flash quickly for one time→headset with
“de”sound→shutdown.
2）When Searching the equipment or without the receive range of headset, it will automatically shutdown
after not get any connection in 3 minutes.
Wireless status indicator:
Battery status
D.
Ba
sic
Us
e Method
Dial，Talk & Finish calls
After the bluetooth headset finish pairing with your mobile,you can use the headset to answer the
phone or enjoy the mobile stereo music.
1. Mobile dial,talk and finish calls
Dial a call
Dial-up using the phone's keypad
1).Using your phone, dial numbers as usual in the same manner, during connecting , headphones with
vibration ring tones. When getting calls, sound will be automatic in the Bluetooth headset, after getting
the calls,the blue light flash 2 times per second. If you want to hang up, just press S1 key once.
2).Press the S1 key twice, can automatic to dial the telephone No. last time,when getting call,sound will
be automatic in the bluetooth headset,after getting the calls,the blue flash 2 times per second.If you
want to hang up, just press S1 key once.
Talk & finish calls
When the calls comes,you can hear the alarm sound“Di,Di....”，the headset red light keep lighting.
Blue light flash slowly Bluetooth:Connection has been established, the headset
can start operating.
Red&blue light flash alternately Bluetooth: Quickly flashing indicate the headset can be
connected, but not connected.
No indicator Power off
Indicator Battery Note
Red light flash with alarm <10% Left less than 30 minutes using time
Stable red light Charging
Stable blue light Finish charging
4
a.The mobile ringing→press shortly the S1 key or press the receiver key on mobile→ blue light
flashes 2 times per second. If need to hang up, press S1 key once.
b.Call: Press shortly the S3 key,go to the mobile phone, and then press the S3 key again to answer
the call. (Some phones may not support this feature, the call forwarding can not be completed)
c.When call coming, if you want to refuse, you can press S1 key twice shortly.
d.During talking,press S4 key,volume +,press S5 key,volume -. Press long time ,can control the
Volume（from low to high total 15 levels,you can hear “Bi ,Bi”when on low or on hight）.
e． Press S1 key shortly,off key on mobile or the order side hang up the call to finish calls, after finish,
blue light flash four times per second.
Speaker silent(phone state)
During the calling, if you need to talk with other people around you, but don't want to hang up, and
also don't want the other side hear the conversation, you can press S2 key, after you hear beep sound in
the headset, you can talk with other people around you safely, no need to worry about the conversation
be heard by the other side.Re-press S2 key shortly, to restore speaker calling function.
2. Mobile Stereo Music Play Mode(default state after connected with bluetooth headset)
Need the pairing mobile phone support stereo music playing.
a．Playing music, press S3 key quickly to Backward.
b．Playing music, press S2 key quickly to Upward.
c．Playing music, press S1 PLAY key quickly,music stops.Press S1 PLAY key quickly,music playing.
Note：Base on different design for different mobiles,during the headset stand-by mode,the bluetooth
connection may be automatically cut off.
3. PC or PDA connect with headset
The bluetooth headset can be also connected with PC or PDA,please refer to your PC or PDA user
manual.
4．Pairing with USB computer bluetooth dongle
(1)、Stereo music play mode:
1).USB dongle insert into computer USB port,put the CDR into computer’s CD room,setting
program,after setting,re-start the computer,then setting successful.
2). Pairing：
First step：Plug the USB dongle into the computer’s USB port
Second step：Headset into pairing status(red& blue lights flashing alternately)
Third step:Start-up“My bluetooth”in the computer,searching the bluetooth equipment,then you can find
the “Z-B96”in equipment list.
Fourth step: Choose“Z-B96” in the list，input the Pin-Code “0000” in computer.
（Note：“0000” is the fixation pairing Pin-Code for bluetooth headset.）
Fifth step: Pairing successfully, blue light flash slowly(around 1 time per 4 seconds).
Note：
If the bluetooth headset isn’t on pairing status,the USB bluetooth dongle cannot search the
headset.Please set up the headset on pairing status then begin to use the USB bluetooth dongle to
search.
5
3）.Start-up the headset,after pairing successfully,start-up the computer’s media player to play musics.
a．Playing music,press S3 to next song.
b．Playing music,press S2 to previous.
c．Playing music,press S1,music stopped,press S1 again,music played.
2). SKYPE：
1). Start-up the headset,after pairing successfully,start-up SKYPE on computer.
2).Sound communicate function:When the call coming from SKYPE,can hear “Di…”sound in the
headset→press S1 to answer the phone(or press the answer key on SKYPE directly) →Enter into
communicate status.
3).Finish /Refuse the call：
After communicate on SKYPE→press S1 to finish the call(or press the finish key on SKYPE directly).
4). When the call coming from SKYPE，if you don’t want to answer the phone,you can press the refuse
key on SKYPE directly.
5).After finish the call,the headset can automatically enter into the stereo mode to enjoy the musics.
(3). QQ：
1）．Start-up the headset,after pairing successfully,start-up QQ on computer.
2）．QQ setup：press the audio setup,choose the input and output to “bluetooth audio” →Finish.
3)．Dial number function: this operation can be only progress on QQ by mouse.
4)．Answer the phone：During the call coming from QQ，you can hear “Di…”sound in the headset,press
the answer key on QQ by mouse→Enter into communicate status.
5)．Finish /Refuse the call：
a.After communicate on QQ→ press the finish key on QQ directly
b. When the call coming from QQ，if you don’t want to answer the phone,you can press the refuse key
on QQ directly.
6)．After finish the call,the headset can automatically enter into the stereo mode to enjoy the music.
Note:
a.when using the headset with the internet for long-distance call, the bluetooth adapter driver software is
different ,the operation ways are also different.
b.when using the headset with the internet for long-distance call ,if it’s a silent call, please set the audio
input and output of the conversation tool in Bluetooth status.
E. FAQ
1. Red light flashes quickly,and "di di.."sound in the headset.
→The bluetooth headset is low power,please charge it as quick as possible.
2. The headset can not be start-up after charge for 20 minutes.
→The bluetooth headset need to be charged for 40 minutes at least for start-up,suggest to charge
enough power consumingly before using.
3.No indication during charge
If the battery was used out of power completely or didn’t use for long time,when you use at the first
time,may be no indication light,but need to wait for a few minutes,then blue light will be flash for
charge indication, after full charged,the blue light is brighten.
6
4. No sound on the headset:
—Make sure the headset had been paired successfully with the mobile.
—Make sure the headset had been started up.
—Make sure the distance between the headset and mobile don’t exceed 10 meters.
—Make sure your mobile is in the strong enough signal range.
—Some of mobiles only support one of bluetooth headsets,if more than one bluetooth headset pairing
with the mobile,the connection may be interrupted.
5. After charging has been finished, why does my headset can’t work with my mobile?
— Your mobile’s Bluetooth has to be activated first and paired with your headset.
6. Does my bluetooth headset can work with any mobile?
—No, it doesn't.It can only work with mobile which has bluetooth fuchtion or hands-free function,but
there are a few mobile phones support call function, can not support music playing function.
7. What is the effective distance for headset and Bluetooth mobile ?
—About 10 meters.
8. When my mobile is searching the headphone,why do several bluetooth equipment appear?
—Within the effective distance,most Bluetooth mobiles will search several Bluetooth
equipments(like PDA,Notebook…) after their Bluetooth has been activated. When your mobile
found them,“Z-B97” (or Unknown Equipment) will appear on your mobile.
9. Why does my mobile can’t find Bluetooth equipment?
—If your headset isn’t under the pairing status, your mobile can not find any Bluetooth equipment.
Before using your mobile to search any equipment, make sure the headset is under the pairing
status.(Refer to user manual for detailed instructions)
10. Should I need every time paired the headset when using it?
—No. The headset and the mobile only required one time pairing when first time using it.
11. Why do noises arise?
Bluetooth equipments’ performance is affected by any one of the following factors:
—Whether mobile is within a strong-signal area or not. If the mobile is within a weak-signal area, its
effect will be worse.
—Whether mobile is within the effective distance or not.
—The communication effect of QQ & SKYPE depend on the network.
12. What should I do if my headset can not receive well ?
—Adjust the volume button or press “Volume+” on your mobile to increase the volume and test if
mobile is within a strong-signal area.
13. Why does my headset can’t work suddenly?
—No power. When battery is low, red indicator will flash, “di,di…”can be heard on the headset.
14. Why does my mobile can’t show the incoming call No.?
—It maybe the people hide the incoming phone No. or your mobile don’t support show caller ID.
7
15. Why does different mobile have different answering way?
—Different mobile maker use different bluetooth software.For example,for T610,only need to press
S4 gently to answer the call,however,for P800 and P900,you should press S4 for 3 seconds then
can answer the phone.That cause by P800 and P900 are intelligent mobile,so a little different
definition for using keys. Commonly,the way of answer phones are “press the key gently” or “press
the key for 3 seconds”.
F. Attentions:
1. If headset can’t be opened, that might lack of power, please charge power at first.
2. If long time no using,please turn off the headset and put it into box to avoid damage, scratches or
bracket deformation.In order to prolong the battery service life,please charge every 6 months.
3. Please charge power at first if the headset is not used for long time.
4. The battery of headset is original and please don’t change it by yourself.
5. Please don’t put the headset in wet place or rainy place.
6. The operating temperature is 5℃ to 35 ° C.Please don’t put the headset into fire to avoid battery blast
accident.
7. When using please don’t bent or twist the bracket to avoid deformation.
8. Please don’t tear down headset by un-professional person.
9. Audiologist suggest that don’t adjust the volume to a very high level and continued play on high level.
If tinnitus occurs, please turn the volume down or stop playing, do not turn the volume up
suddenly.Please slowly turn up the volume to avoid hearing damage caused by high volume.
10. Please do not use in dangerous place or the place which you can't hear the outside sound.
G. No waterproof function notes: (read before using)
This product is not waterproof device!
• Do not use any liquid, including room temperature water or tap water to wash, dripping or splashing
penetration.
• Prohibit to use when jogging or walking in rain.
•Please don't use if sweat.
• Depending on the way to use, water enter may result in fire, electric shock or failure.
Under all of the above cases, please use headset in the case of the USB jack covered completely.
G. Headset maintenance
—If use non-original accessories,it may cause capability comes down,body hurted, short circuit or
8
abate the maintain.
—If disassembly your bluetooth headset,it may cause the headset shatter or abate the maintain.
—Don’t place the headset on more dust range.
—Use the clean,soft and dry fabric to clean your headset.
—When you don’t want to use the headset,please put it into the packing.
—Don’t let children play headset,they may hurt themselves or break the headset.
—Don’t put headset on more hot or more cold environment,otherwise the headset may not be used
for a while.
Travel charger：
·The charger only designed for using indoor,don’t use it outdoor.
·The charger can be only used within the indication voltage range.
·When pull out the charger from the socket,don’t pull it strongly,otherwise it may attaint the charger.
Interrelated information for battery:
New battery: At first time to use the product,charge the headset battery for 4 hours at least.
Batteries maintenance:
—Please take down or replacing the battery on some qualified maintain center.
—If use it carefully,the life for it will be long.
—Temperature for charge power is 10 to 45 .℃℃
—If use under room temperature,can get the largest capability of battery.
—If use at outdoor low temperature,may cause the capability reduce.
H. Features and Specifications
z Unique portable, lighter and sport design, humanized key anti stay and bulge design.
z Professional electroacoustic debugging, enhance the low frequency and volume effect, ensure high
fidelity quality;
z Embedded earplugs design to ensure good nosise cancelling effect;
z Bluetooth terminal full compatibility, from now on wireless unrestraint.
z Listening to the stereo music wireless, dial out, answering the telephone automatic switching,
z Remote control music playback status (remote control music play, pause, up and down selections,
volume control)
z High sensitivity, omni-directional microphone design, voice clarity, no echo.
Specification
Edition Bluetooth V2.1+EDR
Frequency coverage 2.402GHZ~2.480GHZ ISM Band
Transmit Range <=10M
Frequency Response 20HZ-20KHZ
Status Indication LED indicator
Pairing products AD2P, ACVRP Bluetooth protocol of the computer,
USB Bluetooth adapter, Bluetooth cell phones
Battery Lion. 3.7V 150mA
9
Charge Time 1-2H
Charge Power DC 5V 300mA
Operate hours more than 5 hours (battery saturation)
Standy time(connect mobile) More than 100 hours (battery saturation state)
Size 15.5cmx13cmx5cm
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
