ZTE AC2787 CDMA 2000 Wireless Data Terminal User Manual
ZTE Corporation CDMA 2000 Wireless Data Terminal
ZTE >
User Manual
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
CDMA2000 1X EV-DO
Wireless Data Terminal
User Guide
This User Guide is used for Wireless Data Terminal of AC2787.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Copyright Statement
Copyright © 2009 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print errors or update specifications
in this manual without prior notice.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 1 http://www.zte.com.cn
1. Introduction
Thank you for choosing ZTE Corporation‟s CDMA2000 Wireless Data Terminal (hereinafter
referred to as Data Terminal).
Data Terminal supports both CDMA2000 1X EV-DO and CDMA2000 1X network. In the area
where there is signal, it allows you to go surfing on the Internet, send & receive short messages,
and make & receive phone calls.
The pictures in this help are only used to demonstrate your Data Terminal‟s functions, so they are
maybe different from what you see on your Data Terminal. Please refer to your Data Terminal if
they are differences.
2. Precautions
Use the original accessories or those authenticated by the manufacturer. Using any
unauthenticated accessories may affect the data terminal‟s performance, violate the warranty
provisions or relevant national regulations about telecom terminals, or even cause body
injury.
Do not disassemble, modify, frequently pull/plug the antenna, stretch, rotate or bend the
antenna with great force.
Before pulling out the data terminal, please use Windows safely removing the hardware and
make sure to exit the application. Do not directly pull out the terminal to avoid the damage of
data terminal or the influence on the normal operation of operating system.
Do not forcefully plug/pull the data terminal to avoid the damage of connector.
Do not use your data terminal near weak signal or high-precision electronic devices. Radio
wave interference may cause misoperation of electronic devices or other problems.
Turn off your data terminal on airplane where it‟s forbidden to use it. The data terminal may
affect the normal operation of electronic devices, therefore please follow the relevant
regulations when using your mobile phone on airplane.
Turn off your data terminal in hospital where it‟s forbidden to use it. The data terminal may
affect the normal operation of medical apparatus, therefore please follow the relevant
regulations when using your mobile phone in hospital.
Please do not use the data terminal near flammable or explosive materials; otherwise it might
cause failure or fire.
Keep your data terminal away from water. This may cause overheating or failure if water or
any other kind of liquid enters your mobile phone. Please do not use your data terminal near
high temperature, damp or dusty place.
Keep your data terminal away from children to avoid shock, plunge or impact. It may cause
body injury when the data terminal is used as a toy.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 2 http://www.zte.com.cn
3. Appearance
3.1 Introduction

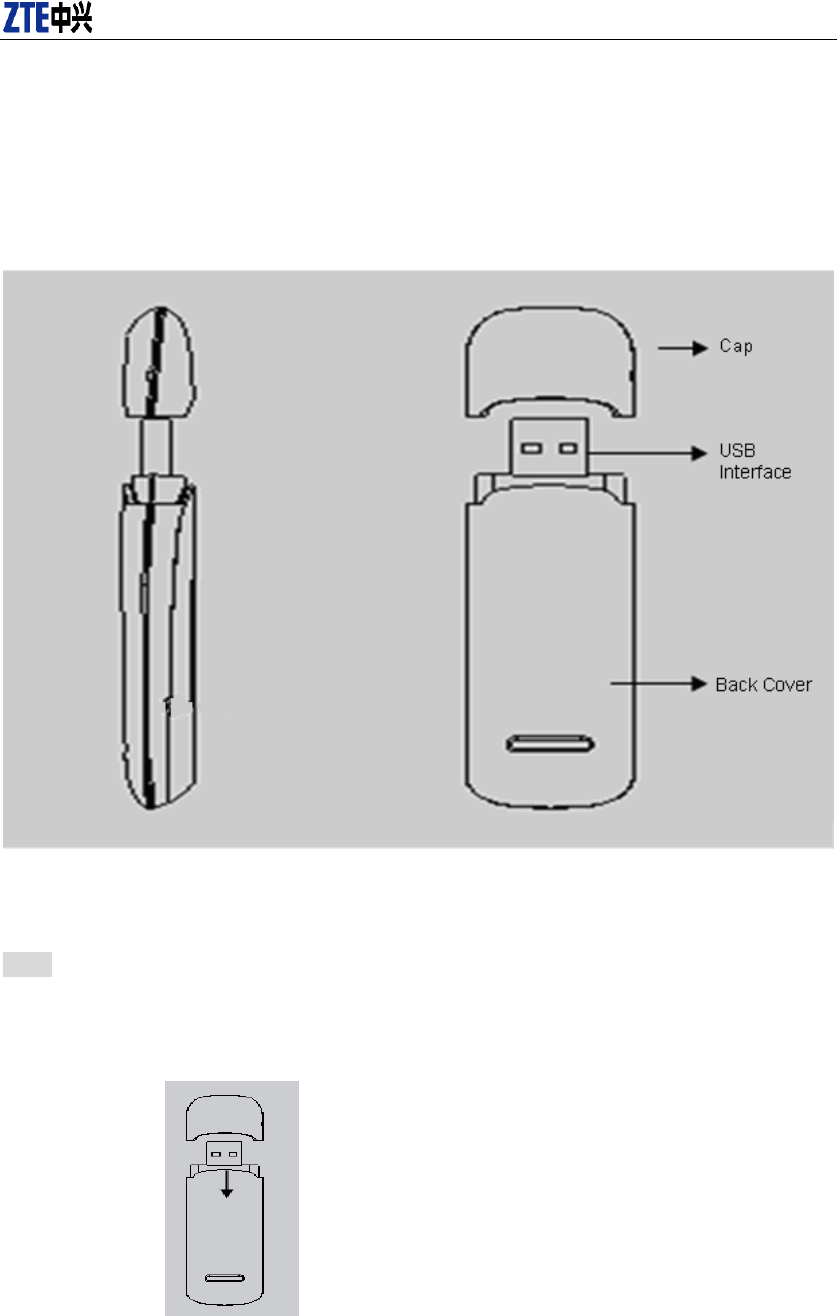

3.2 Insert R-UIM Card
Note: If your data terminal doesn‟t need R-UIM card, please skip this section.
1. Pull out the tap；
2. Take out the R-UIM card cover in the direction indicated by the arrow；

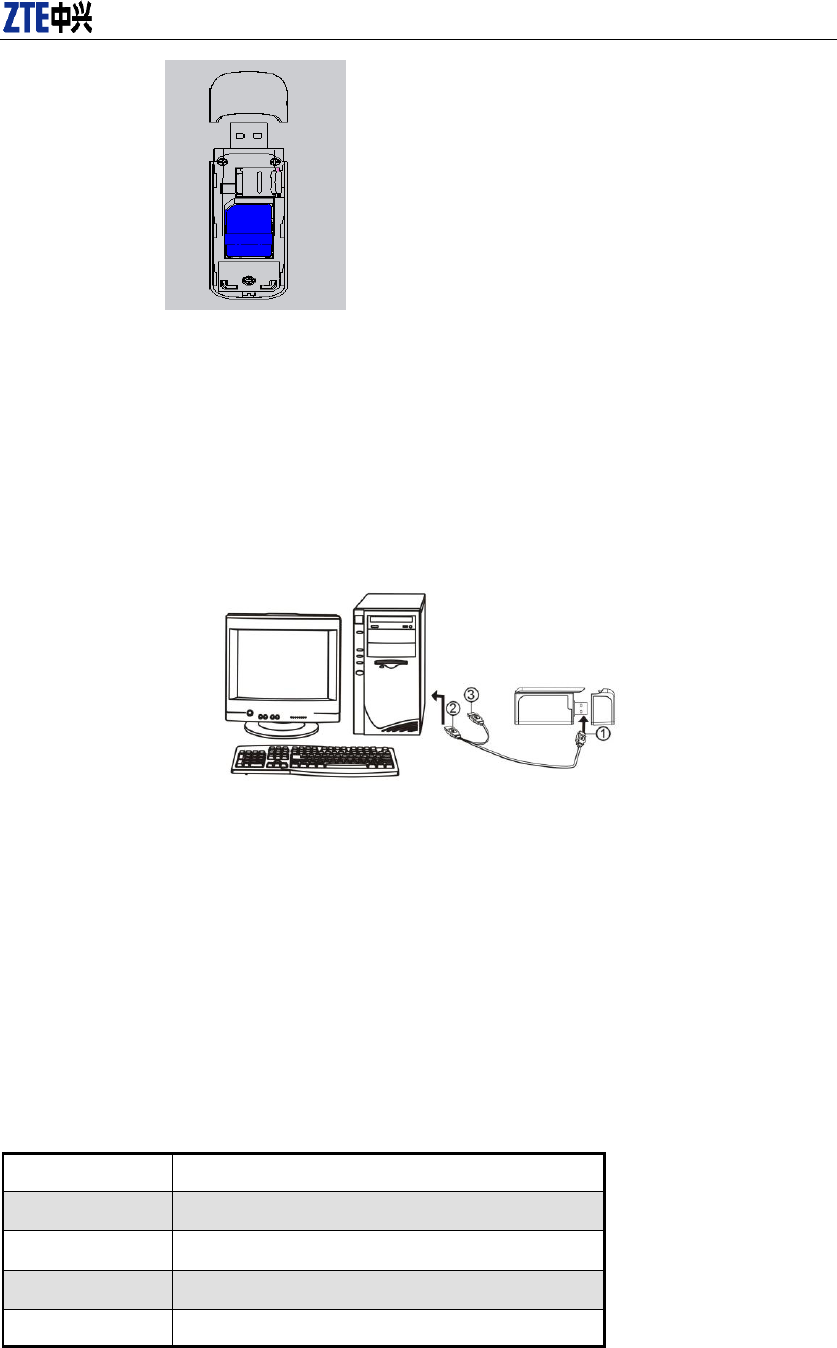

3. Insert R-UIM card as below figure；
Side View
Rear View
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 3 http://www.zte.com.cn
4. Push back R-UIM card cover.
3.3 Operation Guide of Data Cable
Generally, the Data Terminal could be directly connected with USB port. You could also connect
the Data Terminal with PC by using the accompanying data cable, as shown in the following
figure. Connect Interface ① with Data Terminal, and interface ② with PC's USB port. If the
power supply from USB port is insufficient, connect both interface ② and ③ with USB port
together.
4. Install and Uninstall
4.1 System Requirements
The Data Terminal supports the following operating system:
Windows 2000
Windows XP
Windows Vista
PC minimum configurations:
CPU
Pentium-II/233MHz
USB interface
2.0 (USB1.0 and 1.1 compatible)
Optical Drive
CD-ROM (for installation only)
Memory
64 MB
Disk Space
50 MB (used for installation of application)
4.2 Installation Guide
Take Windows XP for example. Under other operating systems, please refer to the installation
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 4 http://www.zte.com.cn
under Windows XP. Do not insert the Data Terminal before installation.
4.2.1 Install
1. Please connect Data Terminal to PC through USB interface. You could use the data cable to
connect.
2. The installation driver will automatically run. Please install according to the installation wizard.
3. The system will automatically find new hardware and install the driver. Wait for a while. Click
"Finish" after the installation is completed.
Note:
Please connect the Data Terminal and PC with USB extension cable under weak
signal to obtain the optimal performance. If necessary, adjust the Data Terminal's
position.
4.2.2 Uninstall
1. Select Start All Programs ZTEMT Uninstall ZTEMT UI, and you will be asked if you
want to remove the program. Click “Yes”.
2. Please wait and then click “OK” when un-installation is completed.
5. Run the Application
After the application is installed successfully, the application icon will appear on your desktop.
Double-click this icon or select from Start Programs ZTEMT ZTEMT. UI Run
the application to display the user interface.

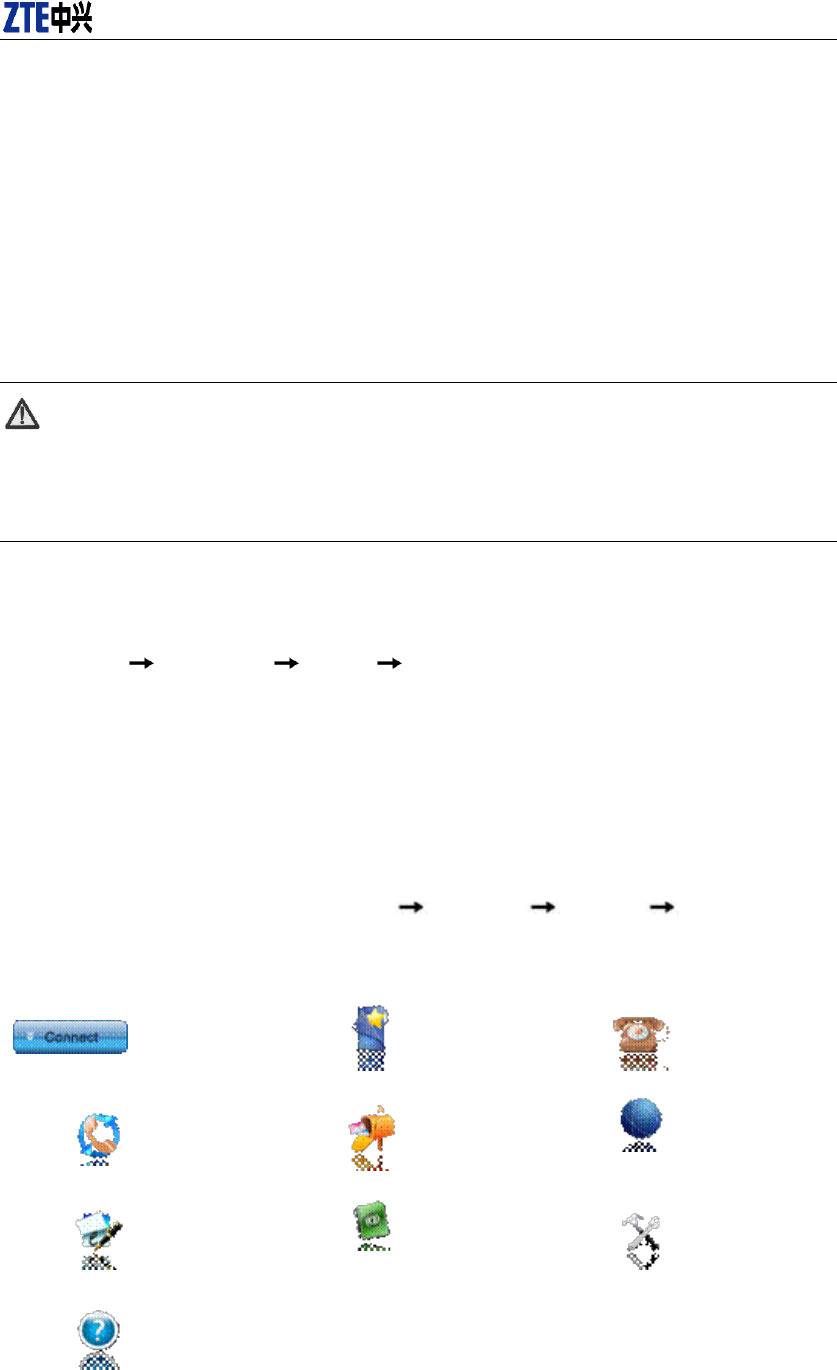

The icons on the interface are used to access the function, which indicate as below:
Connect
Value Add
Voice Call
Voice Log
Short Message
Net Connect
Net Log
Phone book
Setting
Help
Status Bar:
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 5 http://www.zte.com.cn
1X indication
Call indication
EV-DO indication
Missed call indication
Signal strength indication. The more
bars there are, the stronger signals are.
Unread message
indication
CDMA network unavailable
Inbox full indication
Connection indication
No R-UIM card
inserted indication
Sleep indication
R-UIM card inserted
indication
Roaming indication
Note:
Some features like Voice Call, Call History, Short Message, and Phone Book may
not be supported by your Data Terminal; the corresponding icons will not appear in
the main window.
6. Connect/Disconnect
Connect
Click icon to set the relevant parameters. For details, please refer to 12
“Setting” for details.
Click to enter the interface.
Click .
After connecting to Internet, the current network information will appear on the
interface. Double-click any place in the display area to view the connection
drawing.
Please connect the Data Terminal and PC with USB extension cable under weak
signal to obtain the optimal performance. If necessary, adjust the Data Terminal's
position and the antenna's direction.
Disconnect
After connecting to Internet, click .
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 6 http://www.zte.com.cn
7. Connection Records
Click icon to view connection records. Connection records save the previous relevant
information including Start at, Duration and Transmit bytes, which will help you know the status
easily.
By switching among “List”, “Monthly” and “Statistic”, you could inquire the records every time,
by month or by time.
Note:
The relevant information contained in connection records are just for user’s
reference rather than the charging basis.
Delete Connection Records
Click button to delete the records you have selected on the interface.
Clear Connection Records
Click button to delete all the records.
Note: If your data terminal doesn‟t support Voice Call, Call History, Short Message, and Phone
Book features, please skip 8-11 sections.
8. Voice Call
(If this feature is not supported by your Data Terminal, please skip over this chapter.)
Click to enter voice call interface.

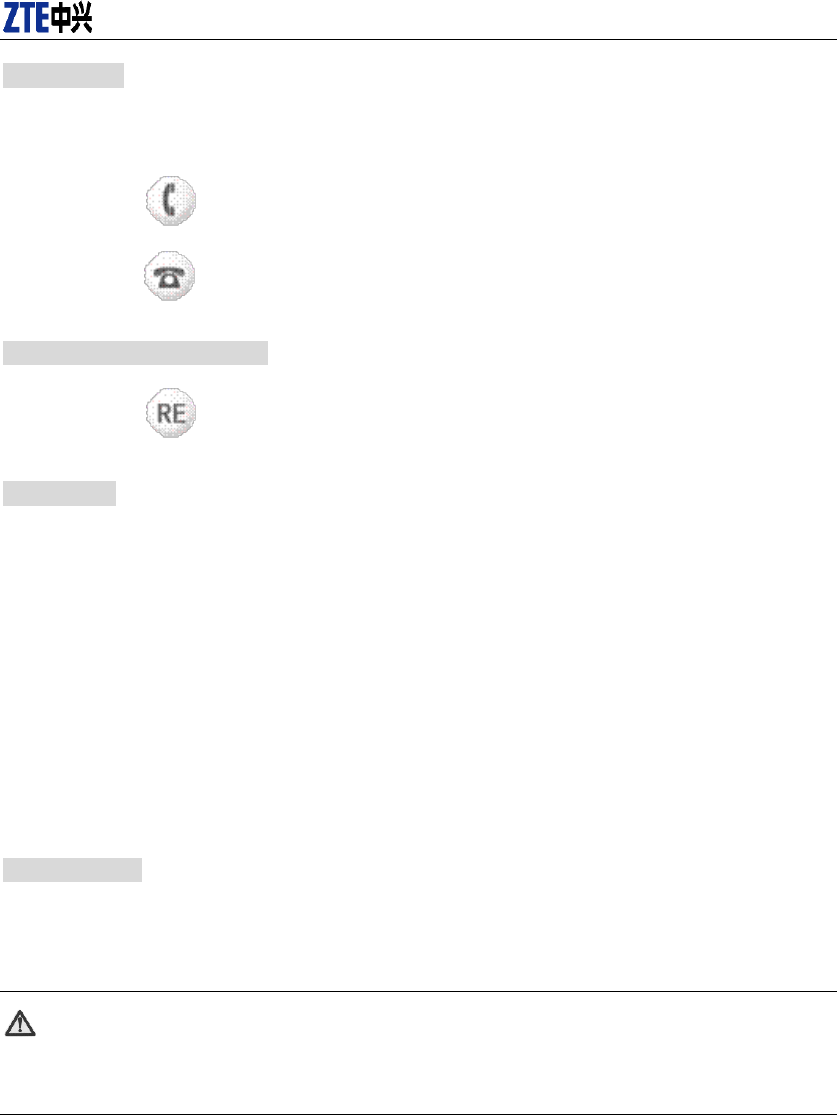

Make a call
Click the digits in the right side of the interface, or input the digits directly from
keyboard. Press button or press “Backspace” to delete the previous input digit;
press button or press “Esc” to clear all the inputs.
Click button in the right side of the interface or press “Enter” to make a call.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 7 http://www.zte.com.cn
Receive a call
When there is an incoming call, your computer will alert and the incoming caller ID will
appear on the interface.
Click button in the right side of the interface or press “Enter” to receive the call.
Press button or press “Esc” to reject the call.
Redial the latest outgoing call
Click button in the right side of the interface.
Call Waiting
During a call, you could select to answer the second incoming call, and then you could switch
between the two incoming calls.
Please firstly apply for this service from your local telecom operator.
During a call, if there is a new incoming call; a pop-up window will prompt you that
you have the second incoming call.
If you select to answer, please click “Accept waiting call” button. The previous call
won‟t be ended, but temporarily paused.
You could switch between two incoming calls by clicking “Switch call”.
Three-way Call
This function allows for the call among three parties. Please firstly apply for this service from
your local telecom operator.
Note:
You need set “Show 3 way call button during calling”. Please perform the setting
according to “Setting”.
You could click “Dial second call” button during a call, input the third-party number in
the pop-up window, and then press “OK” button to call the third party. In this case, the
original call won‟t be ended, but temporarily paused.
If the third party answers the call, click “Start conference” to enter the conference call.
During three-way conference call, click “Hangup second call” button to end the
conference call, and return to the original call.
9. Call History
(If this feature is not supported by your Data Terminal, please skip over this chapter.)
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 8 http://www.zte.com.cn

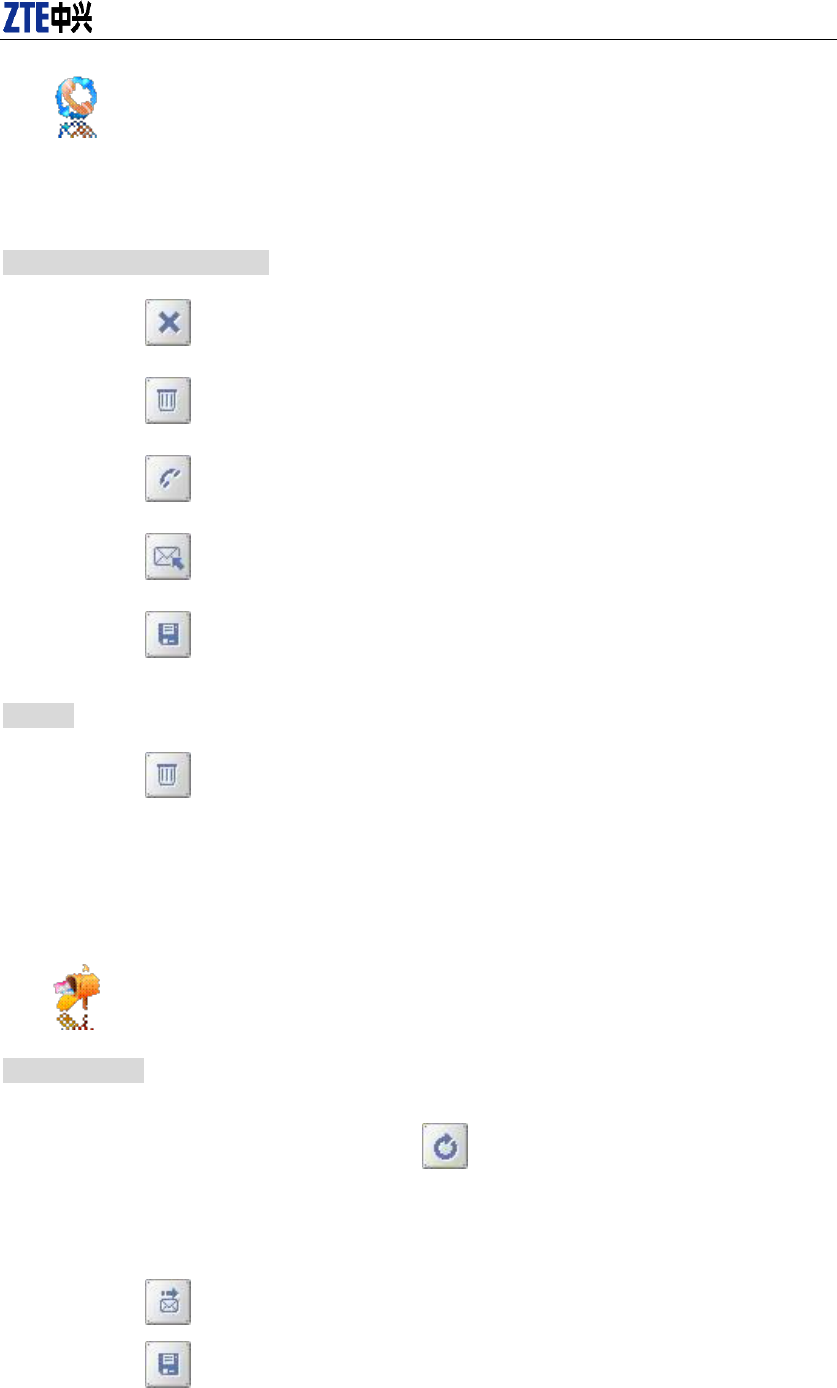

Click icon to view the call history. The outgoing/incoming calls are saved in call history,
including missed calls, incoming calls, outgoing calls, and talk duration. You could select the type
you want to view.
Missed/Accepted/Called Calls
Click button to delete your selected record.
Click button to delete all records in Missed/ Accepted/Called catalog.
Click button to dial the number.
Click button to send a short message to this number.
Click button to save this number to the phone book.
Statistic
Click button to clear the talk duration.
10. Short Message
(If this feature is not supported by your Data Terminal, please skip over this chapter.)
Click icon to enter Short message interface.
Send a Message
Input the text and the recipient‟s number.
Input the recipient‟s number or click button to select the recipient from phone
book.
Add more recipients if you like.
Select priority.
Click button to send a message.
Click button to save the text into Draftbox.
The received messages will be saved in the Data Terminal In-box.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 9 http://www.zte.com.cn
You could copy the messages from the Data Terminal In-box to PC In-box by selecting Copy or
Copy All; you could also copy the messages from PC In-box to the Data Terminal In-box by
selecting Copy.
Take Data Terminal In-box as an example:
Reply
Click to reply to the sender.
Forward
Click to forward this message to other recipients.
Dial Sender’s Number
Click to dial the sender‟s phone number.
Save Sender’s Number
Click to save the sender‟s number into phone book.
Delete
Click to delete your selected records.
Clear
Click to delete all the records in the inbox..
Copy
Click to copy your selected record into PC.
Copy All
Click to copy all the records from the data terminal to PC.
11. Phone Book
(If this feature is not supported by your Data Terminal, please skip over this chapter.)
Click to view the Phone book. You could select to save the contacts in the PC, Normal
(Data Terminal), R-UIM and Emergent.
Take “Save the call history in PC” for example in the following:
Add
Click then input the contents and select “OK” to add a new contact.
Edit
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 10 http://www.zte.com.cn
Click then edit the contents and select “OK” to edit the contact information.
Search for contacts
Click to search for the contacts by name or number.
Delete
Click to delete your selected contact.
Delete All
Click to delete all the contacts.
Send messages from the phone book
Click to compose the text. You could send the message to multiple recipients.
Dial from the phone book
Click to dial your selected phone number.
Copy
Click to copy your selected contacts to other storage location.
Copy All
Click to copy all contacts to other storage location.
Import the call history
Click to import the phone book (*.txt format) in PC to the terminal.
Export the call history
Click to export the phone book (*.txt format) in the terminal to PC.
12. Setting
Click to enter the setting interface.
Network Connection Setting
Set the network parameters (phone number, username, password), work mode, etc.
After the setting, click “Apply” button to save the settings on the current interface.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 11 http://www.zte.com.cn
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Note:
The default network setup parameters are as below. Different regions may have
different network setup parameters, so please consult your local telecom operator.
Phone: #777
User: card
Password: card
If your Data Terminal does not support some following functions, please neglect relevant
description.
Other Setting
Click “Options” to switch the interface, and you could set URL and language, etc. If
you want to use conference call, please select “Show 3 way call button during calling”;
After the setting, click “Apply” button to save the settings on the current interface.
Click “Change Password” button to set lock device. The password is required when
you start the application. The setting has nothing to do with "Default" button.
Click the button “Enable Pin”. PIN code is needed when the application is started. The
setting has nothing to do with "Default" button.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Select ring tone
After clicking “Ring”, you could set different ring tones for Unconditional forwarding,
No answer forwarding, Busy forwarding and Call waiting.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Supplementary Services
After clicking “Service”, you could set “Busy Forwarding”, “No answer forwarding”,
“Unconditional forwarding”, “Call waiting”, etc. Double-click the selected option to
modify the service number and forwarding number.
After the setting, click “call” button to send the corresponding request to the network
system.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 12 http://www.zte.com.cn
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Update
Select Manual Upgrade or Auto Upgrade for the software.
13. Help
Click button to view the help file.
Click “Help” button to view the relevant help file; click “Online service” to enter our
company‟s website.
You could view the software version information under “About”.

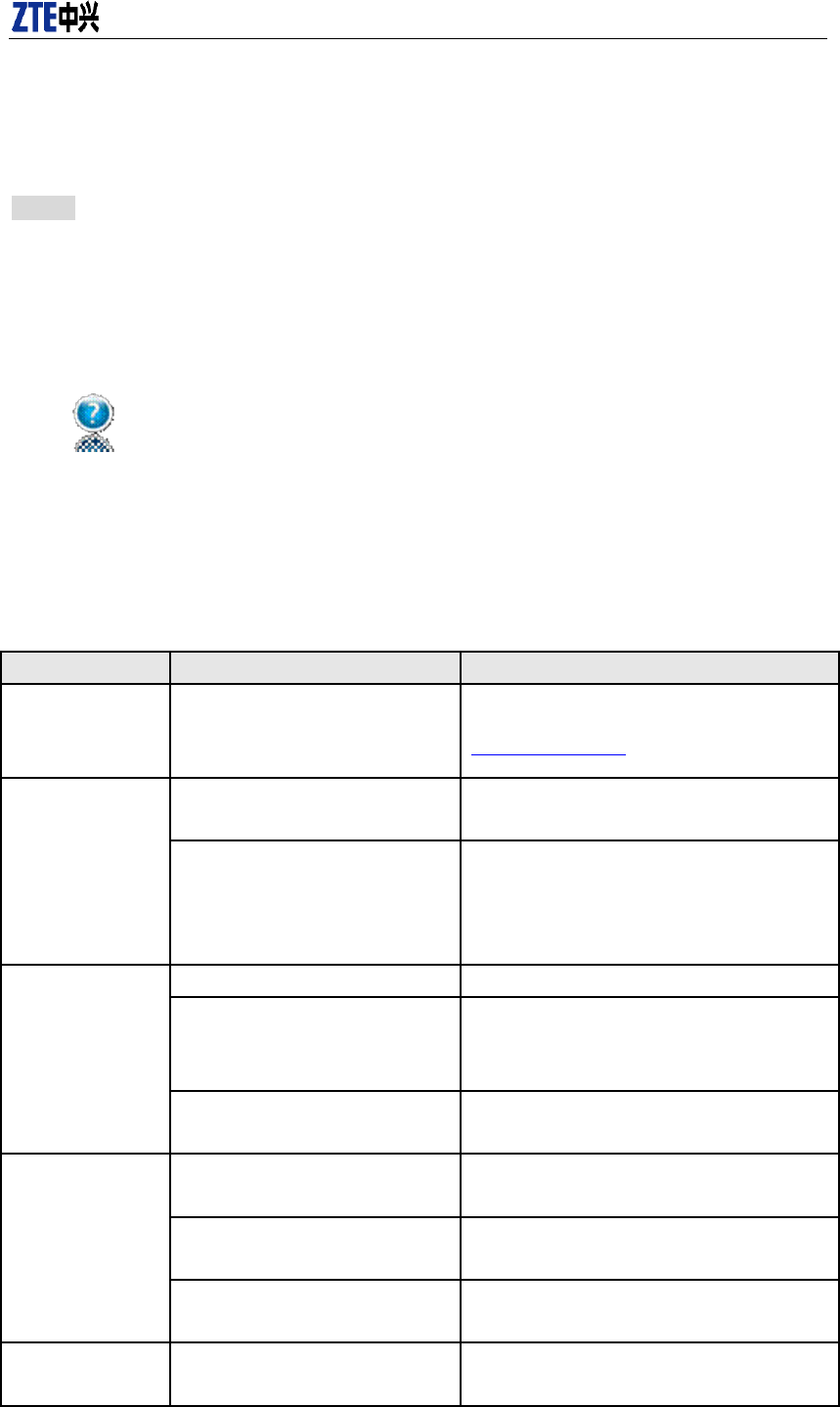

14. Trouble-shooting
Failures
Causes
Solutions
Error occurs during
the program
installation.
The setup file may be damaged.
Please download the program on our website
WWW.ZTEMT.COM and reinstall it.
Open port failed.
Directly run the software before the
Data Terminal is plugged in.
Close the software, plug in the Data Terminal and
run it again.
The port is occupied by other
applications, such as “Hyper
terminal”, or the software is already
run.
Close relevant software and run the software
again.
No R-UIM card.
R-UIM card is not inserted.
Insert R-UIM card.
R-UIM card is not inserted properly.
Sometimes the front side and back
side are confused.
Please refer to User Guide. Properly insert R-UIM
card.
R-UIM card is damaged. Validate by
using a CDMA terminal.
Replace R-UIM card.
No signal indicated.
Antenna is not connected to the
Access Box.
Insert the antenna into the Data Terminal.
Out of the network service area.
Make sure it is in the CDMA network service
area.
The antenna or RF component is
damaged.
Replace relevant damaged parts.
Dialing failed
Wrong setting of parameters. (Phone,
User, Password.)
Correct the parameter settings. Consult your
service provider for details.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 13 http://www.zte.com.cn
Not enough money.
Consult your service provider for details.
Network congestion or failure.
Try again later.
Internet connection
failure.
The Data Terminal is being
connected. (It usually occurs when
the Internet connection is
immediately made after the call is
dialed.)
Reconnect.
Poor network signal.
View signal strength indication and check if the
antenna is properly inserted.
The installation
program can't auto
set up. (If the Data
Terminal supports
auto setup function.)
The program has already been
installed in current system.
Firstly remove the original program and insert the
terminal again.
Autorun function in CD-ROM is
disabled because of installation of
anti-virus software in the system, or
Windows Vista system itself disabled
Autorun function in CD-ROM in
default.
Open "My Computer" to enter CD-ROM disk
ordinal, and double-click Setup.exe to install
manually.
No CD-ROM disk
ordinal in "My
Computer".
CD-ROM will automatically
disappear once the program is
installed successfully.
This is normal. If you want to display CD-ROM
disk ordinal, you could firstly remove the program
and then insert the terminal again.
The program is not yet installed, and
no other previous version was
installed in the system.
Please restart your computer. Please contact your
local operator or product technical support center
if CD-ROM disk ordinal doesn't appear after your
computer is restarted.
The driver might be
unable to work and
the application is
unable to run
normally if the
terminal is pulled
out and plugged in
again when the
application is being
used under Win2000
(SP4) operating
system .In this case,
the device in device
manager will be
marked with yellow
exclamation mark,
and the system must
be restarted to run
normally.
The operating system needs installing
Update Roll 1 patch for Win2K SP4.
Please download the patch from the following
web site and install it.
http://www.microsoft.com/downloads/details.aspx
?familyid=B54730CF-8850-4531-B52B-BF28B3
24C662&displaylang=en
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 14 http://www.zte.com.cn
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user„s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
CDMA2000 1X EV-DO Wireless Data Terminal User Guide
ZTE Corporation 15 http://www.zte.com.cn
RF Exposure Information (SAR)
This product meets the government‟s requirements for exposure to radio waves.
This product is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for this product employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting at
its highest certified power level in all tested frequency bands. Although the SAR is determined
at the highest certified power level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the product is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
The highest SAR value for the model product as reported to the FCC when worn on the body, as
described in this user guide, Is 1.23 W/kg (Body-worn measurements differ among devices,
depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of various products and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model product with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on
this model product is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-AC2787
For body worn operation, this product has been tested and meets the FCC RF exposure guidelines
for use with an accessory that contains no metal and the positions the handset a minimum of
0.5cm from the body. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn accessory and are not holding the product at
the ear, position the handset a minimum of 0.5 cm from your body when the product is switched
on.
Please make sure the temperature for adapter and device will be between 0-40 ˚C
