CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
CDMA2000 1X
Wireless Data Terminal
User Guide
This User Guide is used for Wireless Data Terminal of AC8720.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Copyright Statement
Copyright © 2009 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print errors or update specifications
in this manual without prior notice.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Table of Contents
1. Introduction.............................................................................................................................1
2. Precautions..............................................................................................................................1
3. Appearance .............................................................................................................................2
3.1 Introduction.........................................................................................................................2
3.2 Insert R-UIM Card ..............................................................................................................2
3.3 Operation Guide of Data Cable...........................................................................................3
4. Install and Uninstall................................................................................................................4
4.1 System Requirements..........................................................................................................4
4.2 Installation Guide...............................................................................................................4
4.3 Uninstall..............................................................................................................................4
5. Run the Application ................................................................................................................5
6. Connect/Disconnect................................................................................................................6
7. Connection Records................................................................................................................7
8. Voice Call...................................................................................................................................7
9. Call History ...............................................................................................................................9
10. Short Message..........................................................................................................................9
11. Phone Book............................................................................................................................10
12. Setting....................................................................................................................................11
13. Help .......................................................................................................................................13
14. Connect to the Website ..........................................................................................................13
15. RF Exposure Information (SAR)...........................................................................................13
16. Trouble-shooting....................................................................................................................14
17. FCC Regulations....................................................................................................................16
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 1 http://www.zte.com.cn
1. Introduction
Thank you for choosing AC8720 CDMA2000 1X Wireless Data Terminal (hereinafter referred to as Data
Terminal) of ZTE Corporation.
The Data Terminal equips with a standard USB interface and supports CDMA2000 1X network. In the area where
there is signal, it allows you to go surfing on the Internet, send & receive short messages, and make & receive phone
calls.
The Data Terminal adopts two designing options: R-UIM and Built-in UIM, which make your operation more
flexible.
The pictures in this guide are only used to demonstrate your Data Terminal’s functions, so they are maybe
different from what you see on your Data Terminal. Please refer to your Data Terminal if they are differences.
2. Precautions
z Use the original accessories or those authenticated by the manufacturer. Using any unauthenticated
accessories may affect the data terminal’s performance, violate the warranty provisions or relevant national
regulations about telecom terminals, or even cause body injury.
z Do not disassemble, modify, frequently pull/plug the antenna, stretch, rotate or bend the antenna with great
force.
z Before pulling out the data terminal, please use Windows safely removing the hardware and make sure to exit
the application. Do not directly pull out the terminal to avoid the damage of data terminal or the influence on
the normal operation of operating system.
z Do not forcefully plug/pull the data terminal to avoid the damage of connector.
z Do not use your data terminal near weak signal or high-precision electronic devices. Radio wave interference
may cause misoperation of electronic devices or other problems.
z Turn off your data terminal on airplane where it’s forbidden to use it. The data terminal may affect the normal
operation of electronic devices, therefore please follow the relevant regulations when using your mobile
phone on airplane.
z Turn off your data terminal in hospital where it’s forbidden to use it. The data terminal may affect the normal
operation of medical apparatus, therefore please follow the relevant regulations when using your mobile
phone in hospital.
z Please do not use the data terminal near flammable or explosive materials; otherwise it might cause failure or
fire.
z Keep your data terminal away from water. This may cause overheating or failure if water or any other kind of
liquid enters your mobile phone. Please do not use your data terminal near high temperature, damp or dusty
place.
z Keep your data terminal away from children to avoid shock, plunge or impact. It may cause body injury when
the data terminal is used as a toy.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 2 http://www.zte.com.cn

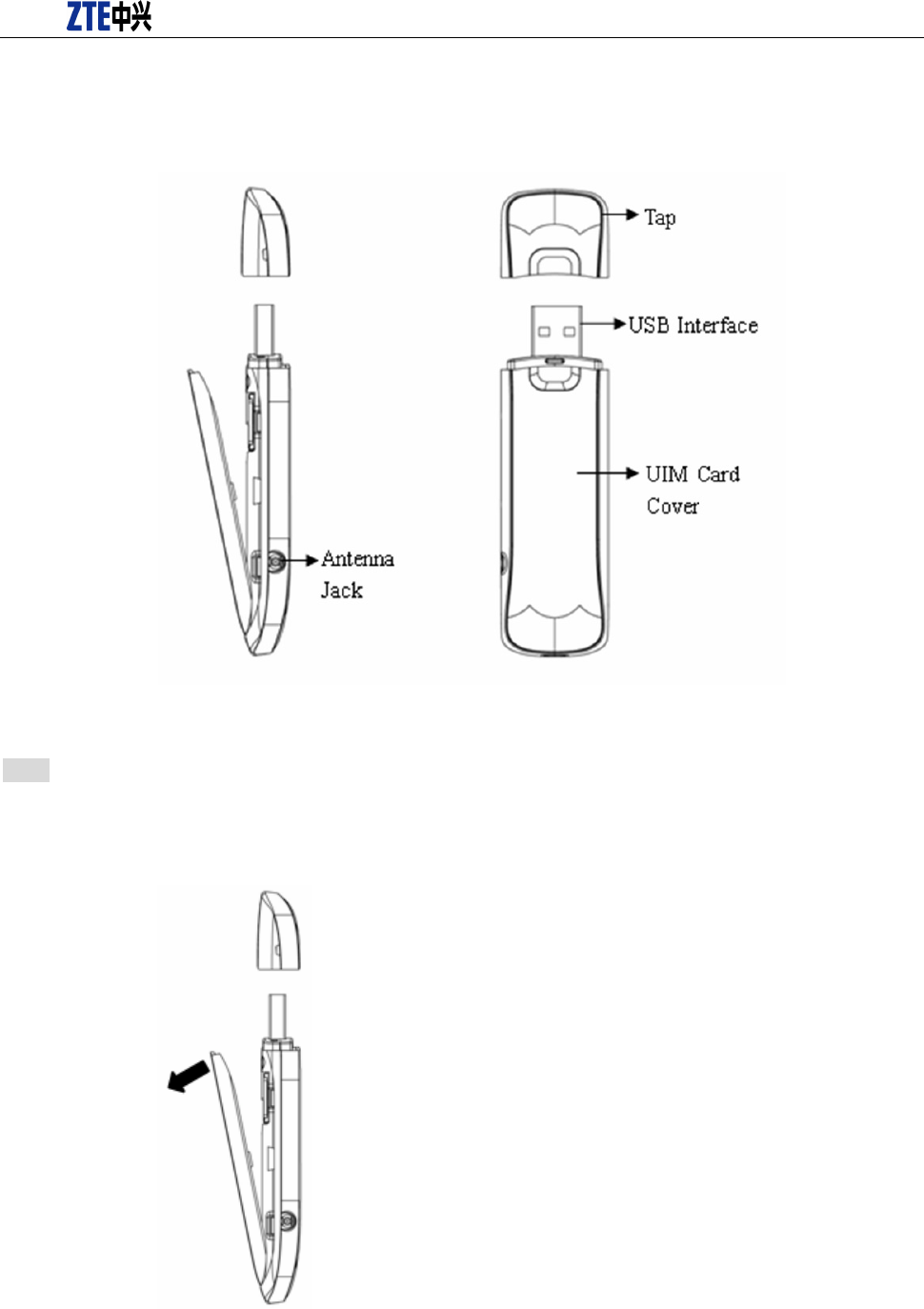

3. Appearance
3.1 Introduction
3.2 Insert R-UIM Card
Note: If your data terminal doesn’t need R-UIM card, please skip this section.
1. Pull out the tap；
2. Take out the R-UIM card cover in the direction indicated by the arrow；
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 3 http://www.zte.com.cn

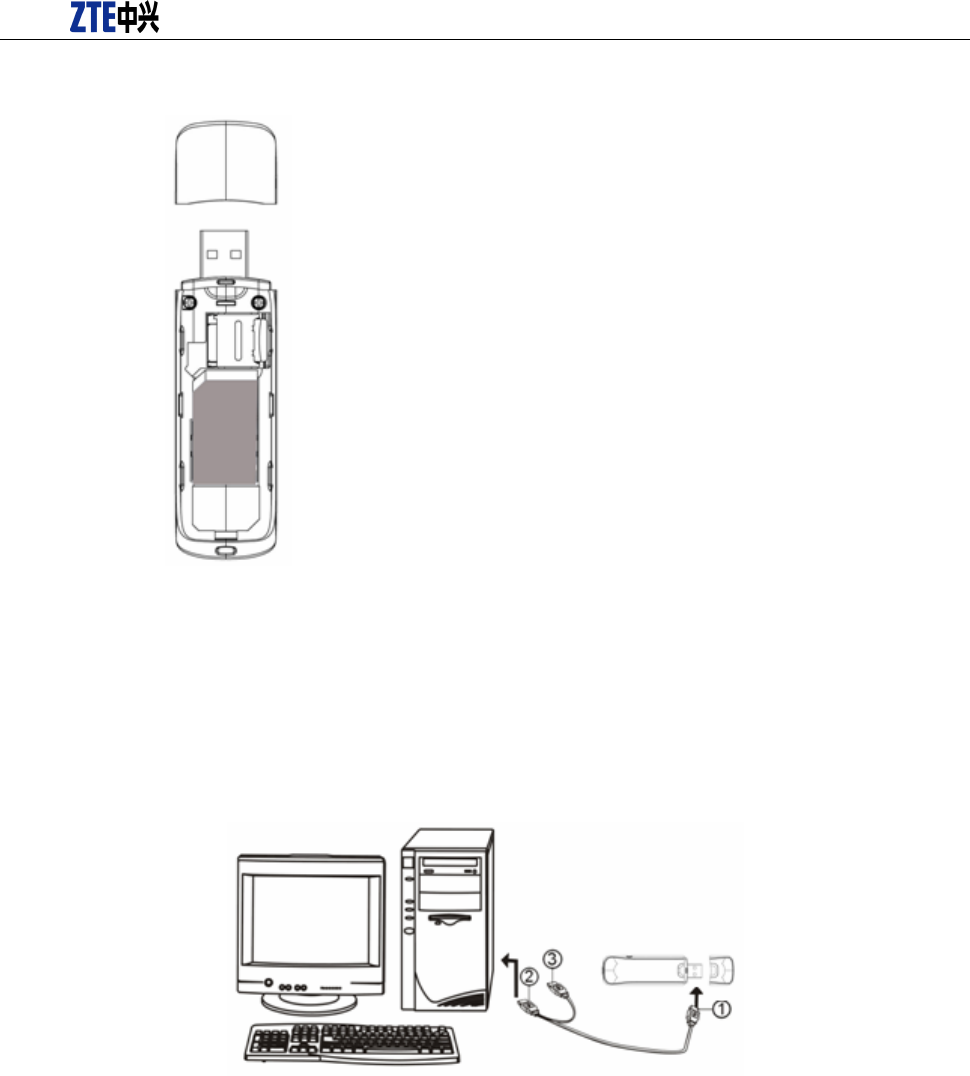

3. Insert R-UIM card as below figure；
4. Push back R-UIM card cover .
3.3 Operation Guide of Data Cable
Generally, the Data Terminal could be directly connected with USB port. You could also connect the Data
Terminal with PC by using the accompanying data cable, as shown in the following figure. Connect Interface ①
with Data Terminal, and interface ② with PC's USB port. If the power supply from USB port is insufficient,
connect both interface ② and ③ with USB port together.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 4 http://www.zte.com.cn
4. Install and Uninstall
4.1 System Requirements
The Data Terminal supports the following operating system:
¾ Windows 2000
¾ Windows XP
¾ Windows Vista
PC minimum configurations:
CPU Pentium-II/233MHz
USB interface 2.0 (USB1.0 and 1.1 compatible)
Optical Drive CD-ROM (for installation only)
Memory 64 MB
Disk Space 50 MB (used for installation of application)
4.2 Installation Guide
Take Windows XP as an example.
1. Please connect Data Terminal to PC through USB interface. You could also use data cable to connect.
2. The installation will automatically start. Please follow installation wizard.
3. The system will automatically find new hardware and install the driver. Wait for a while. Click "Finish"
to complete installation.
4.3 Uninstall
1. Select Start Programs (Appropriate Uninstall), and you will be asked if you want to remove
the program. Click “Yes” to uninstall.
2. Please wait and then click “OK” to complete uninstall.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 5 http://www.zte.com.cn

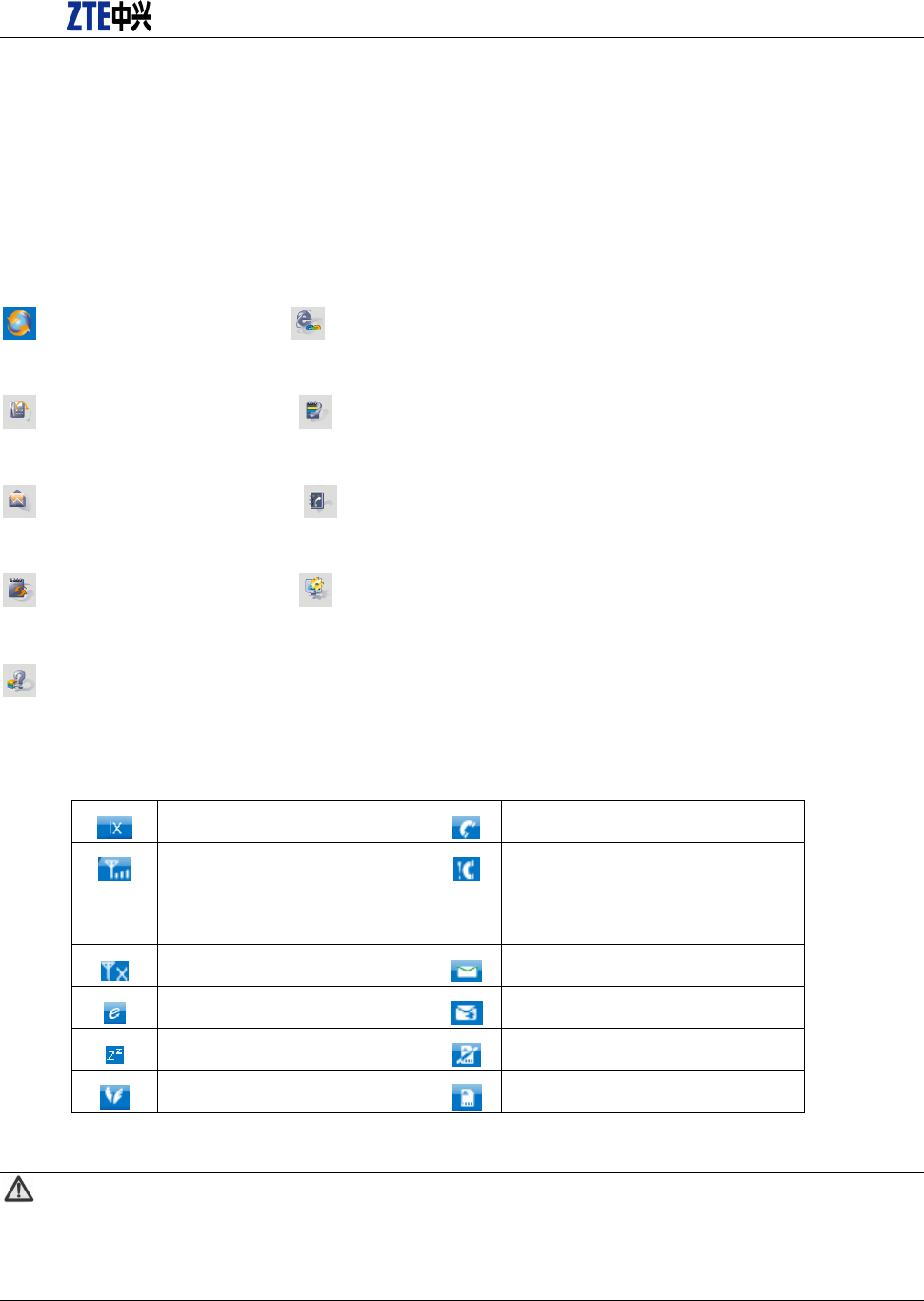

5. Run the Application
After the application is installed successfully, the application icon will appear on your desktop. Double-click this
icon or select from Start -> Programs ->(Appropriate Application). Run the application to display the user
interface.
The icons on the interface are used to access the function, which indicate as below:
Connect / Disconnect Open URL
Voice Call Call History
Short Message Phone Book
Connection Record Setting
Help
Status Bar:
1X indication Call indication
Signal strength indication. The
more bars there are, the
stronger signals are.
Missed call indication
CDMA network unavailable Unread message indication
Connection indication Inbox full indication
Sleep indication No R-UIM card inserted indication
Roaming indication R-UIM card inserted indication
Note:
Some features like Voice Call, Call History, Short Message, and Phone Book may not be supported
by your Data Terminal; the corresponding icons will not appear in the main window.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 6 http://www.zte.com.cn

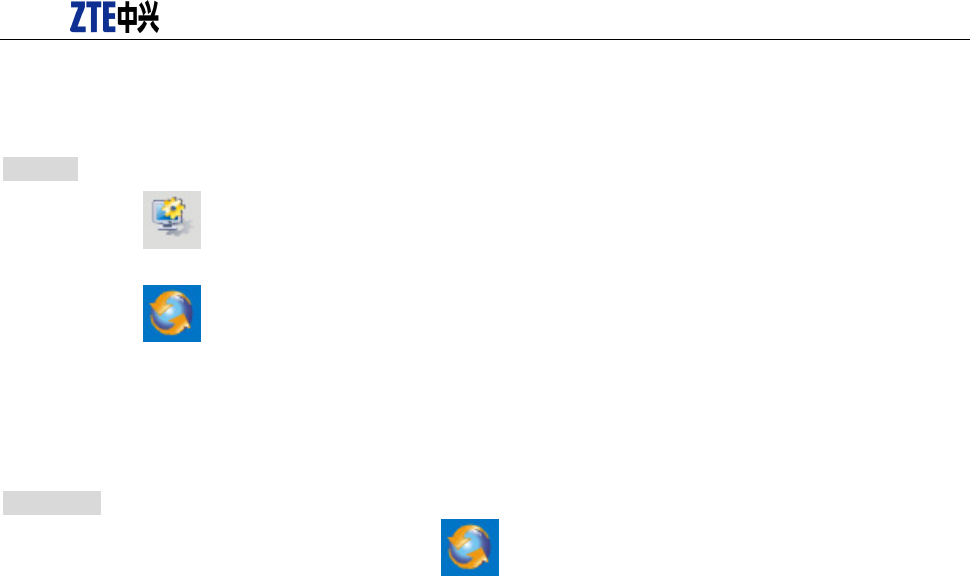

6. Connect/Disconnect
Connect
Click icon to set the relevant parameters. For details, please refer to Chapter 12 “Setting” for
details.
Click icon at the left-up corner of the interface.
After connecting to Internet, the current network information will appear on the interface. Double-click
any place in the display area to view the connection drawing.
Please connect the Data Terminal and PC with USB extension cable under weak signal to obtain the
optimal performance. If necessary, adjust the Data Terminal's position and the antenna's direction.
Disconnect
After connecting to Internet, click the rotating icon at the left-up corner of the interface.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 7 http://www.zte.com.cn

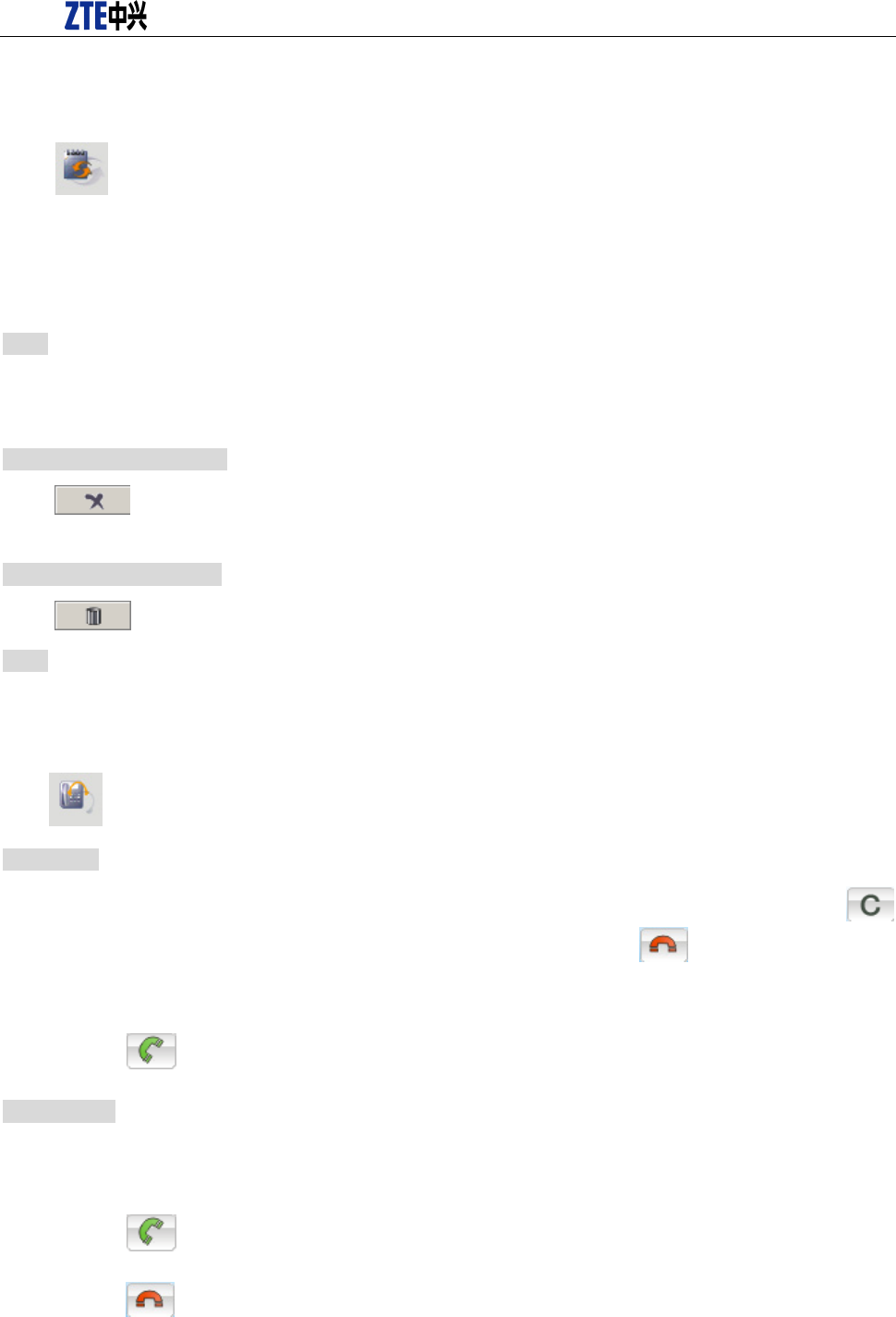

7. Connection Records
Click icon to view connection records. Connection records save the previous relevant information
including Start at, Duration and Transmit bytes, which will help you know the status easily.
By switching among “List”, “Monthly” and “Statistic”, you could inquire the records every time, by month or by
time.
Note:
The relevant information contained in connection records are just for user’s reference rather than the charging
basis.
Delete Connection Records
Click button to delete the records you have selected on the interface.
Clear Connection Records
Click button to delete all the records.
Note: If your data terminal doesn’t support Voice Call, Call History, Short Message, and Phone
Book features, please skip 8-11 sections.
8. Voice Call
Click to enter voice call interface.
Make a call
Click the digits in the right side of the interface, or input the digits directly from keyboard. Press
button or press “Backspace” to delete the previous input digit; press button or press “Esc” to
clear all the inputs.
Click button in the right side of the interface or press “Enter” to make a call.
Receive a call
When there is an incoming call, your computer will alert and the incoming caller ID will appear on the
interface.
Click button in the right side of the interface or press “Enter” to receive the call.
Press button or press “Esc” to reject the call.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 8 http://www.zte.com.cn
Redial the latest outgoing call
Click button in the right side of the interface.
Call Waiting
During a call, you could select to answer the second incoming call, and then you could switch between the two
incoming calls.
Please firstly apply for this service from your local telecom operator.
During a call, if there is a new incoming call, a pop-up window will prompt you that you have the second
incoming call.
If you select to answer, please click “Accept waiting call” button. The previous call won’t be ended, but
temporarily paused.
You could switch between two incoming calls by clicking “Switch call”.
Three-way Call
This function allows for the call among three parties. Please firstly apply for this service from your local telecom
operator.
Note:
You need set “Show 3 way call button during calling”. Please perform the setting according to chapter 12.
You could click “Dial second call” button during a call, input the third-party number in the pop-up
window, and then press “OK” button to call the third party. In this case, the original call won’t be ended,
but temporarily paused.
If the third party answers the call, click “Start conference” to enter the conference call.
During three-way conference call, click “Hangup second call” button to end the conference call, and
return to the original call.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 9 http://www.zte.com.cn

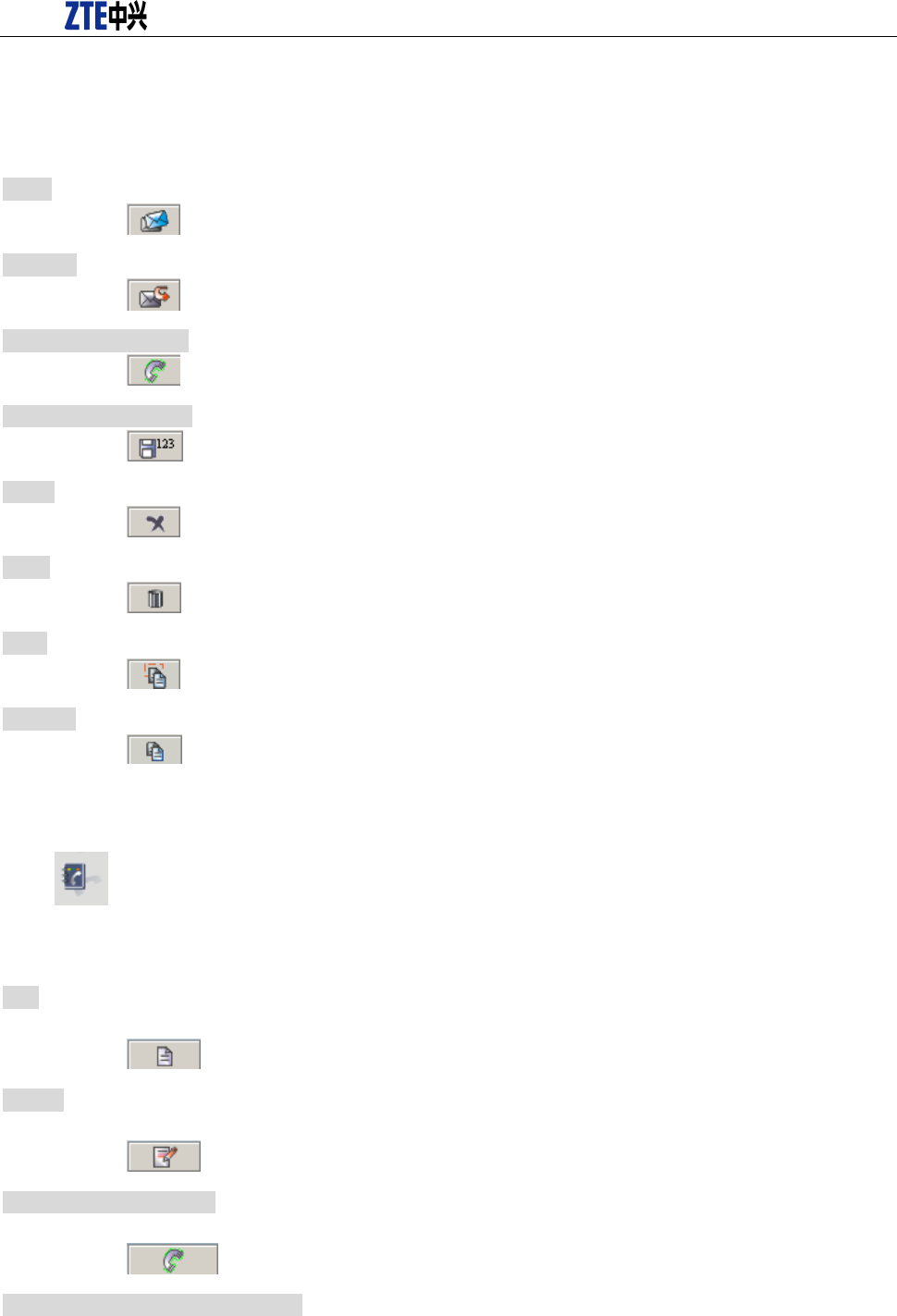

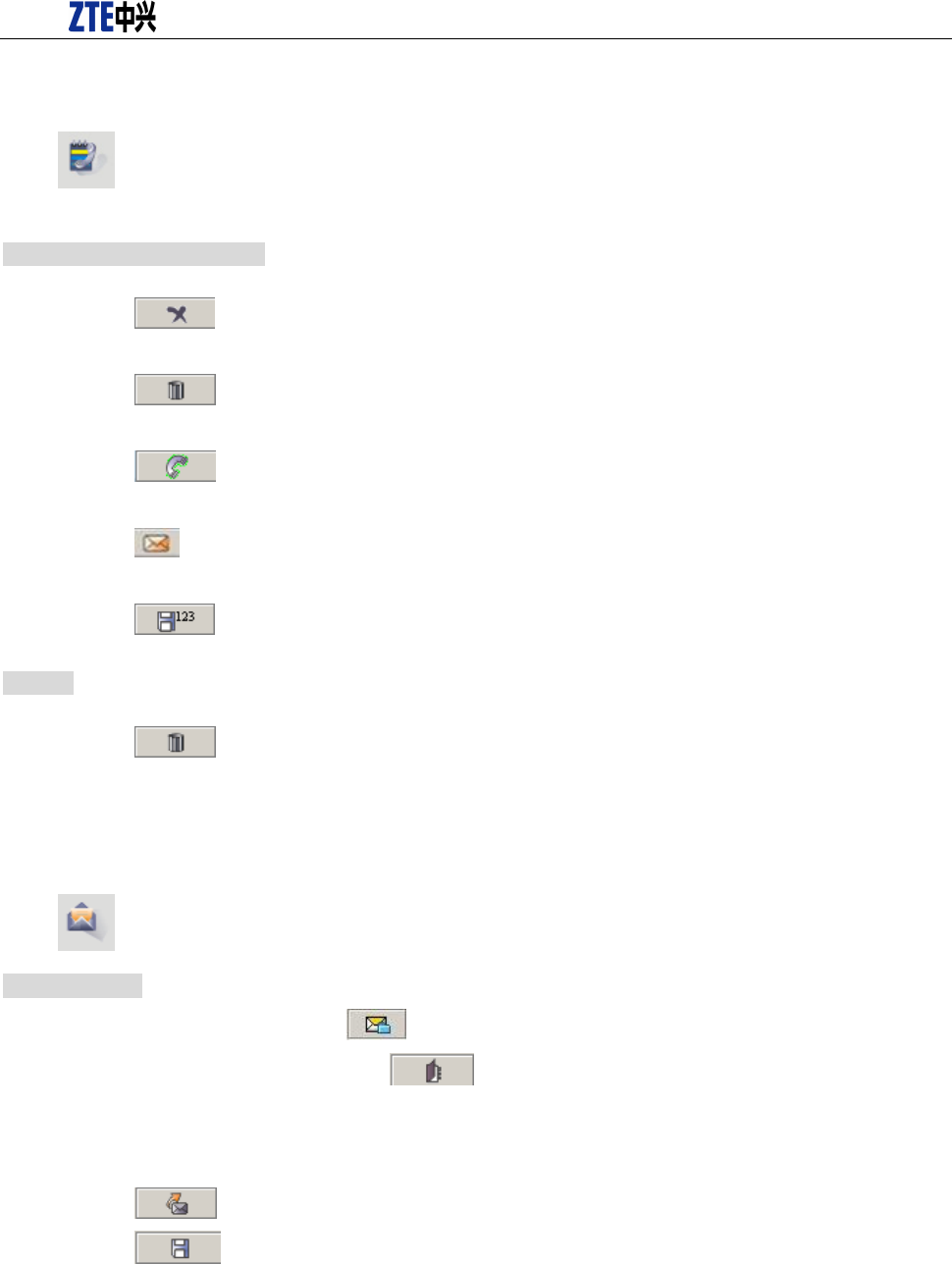

9. Call History
Click icon to view the call history. The outgoing/incoming calls are saved in call history, including
missed calls; incoming calls, outgoing calls, and talk duration. You could select the type you want to view.
Missed/Accepted/Called Calls
Click button to delete your selected record.
Click button to delete all records in Missed/Incoming/Outgoing catalog.
Click button to dial the number.
Click button to send a short message to this number.
Click button to save this number to the phone book.
Statistic
Click button to clear the talk duration.
10. Short Message
Click icon to enter Short message interface.
Send a Message
Input the text to send，or click button to select the preset message to send.
Input the recipient’s number or click button to select the recipient from phone book.
Add more recipients if you like.
Select priority.
Click button to send a message.
Click button to save the text into outbox.

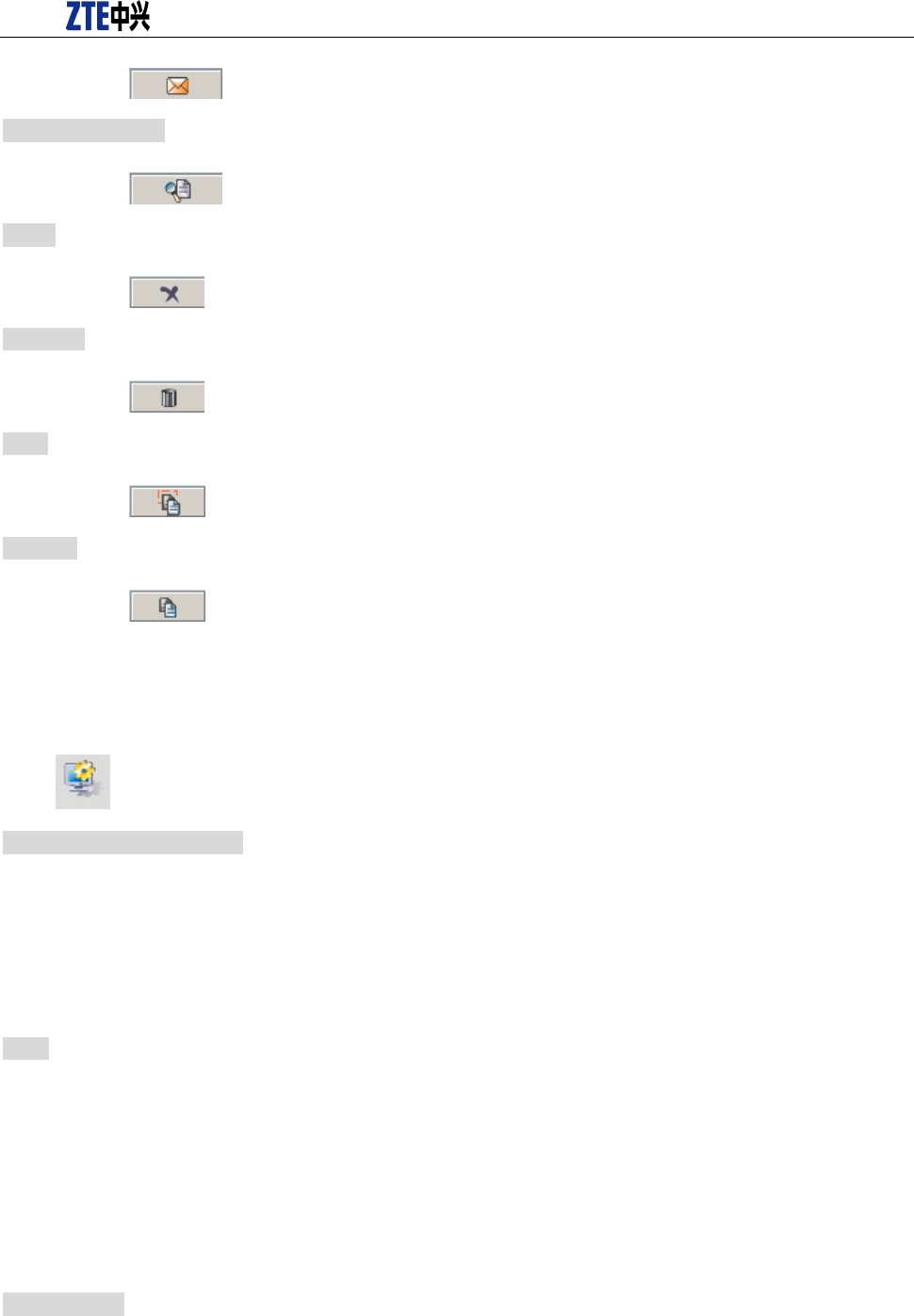

The received messages will be saved in the Data Terminal In-box. After the Data Terminal In-box is full, the
system will automatically move the messages in the Data Terminal In-box to the PC In-box, and clean out the
Data Terminal In-box.
You could copy the messages from the Data Terminal In-box to PC In-box by selecting Copy or Copy All; you
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 10 http://www.zte.com.cn
could also copy the messages from PC In-box to the Data Terminal In-box by selecting Copy.
The sent messages and unsent but saved messages will be all saved in the Out-box.
Take Data Terminal In-box as an example:
Reply
Click to reply to the sender.
Forward
Click to forward this message to other recipients.
Dial Sender’s Number
Click to dial the sender’s phone number.
Save Sender’s Number
Click to save the sender’s number into phone book.
Delete
Click to delete your selected records.
Clear
Click to delete all the records in the inbox.
Copy
Click to copy your selected record into PC.
Copy All
Click to copy all the records from the data terminal to PC.
11. Phone Book
Click to view the Phone book. You could select to save the contacts either in the PC(computer)、Normal
（data terminal）、R-UIM Card（If your data terminal needs R-UIM card） or in the Emergent. Click the pull-down
menu to select the storage location.
Add
Click then input the contents and select “OK” to add a new contact.
Modify
Click then modify the contents and select “OK” to modify the contact information.
Dial from the phone book
Click to dial your selected phone number.
Send messages from the phone book
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 11 http://www.zte.com.cn
Click to compose the text. You could send the message to multiple recipients.
Search for contacts
Click to search for the contacts by name or number.
Delete
Click to delete your selected contact.
Delete All
Click to delete all the contacts.
Copy
Click to copy your selected contacts to other storage location.
Copy All
Click to copy all contacts to other storage location.
12. Setting
Click to enter the setting interface.
Network Connection Setting
Set up the relevant parameters, work mode on the “Network” interface.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current interface to factory
default.
Note:
The default network setup parameters are as below. Different regions may have different network setup
parameters, so please consult your local telecom operator.
Phone: #777
User: card
Password: card
Other Setting:
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 12 http://www.zte.com.cn
Click “Options” to switch the interface, and you could set URL and select the skin, language, etc. If you
want to use conference call, please select “Show 3 way call button during calling”;
After the setting, click “Apply” button to save the settings on the current interface.
Click “Change Password” button to set lock device. The password is required when you start the
application. The setting has nothing to do with "Default" button.
If your data terminal needs R-UIM card, please click the button “Enable Pin”. PIN code is needed when
the application is started. The setting has nothing to do with "Default" button.
Click “Default” button and then “Apply” button to restore the settings on the current interface to factory
default.
Select ring tone
After clicking “Ring”, you could set different ring tones for Call coming, New message, Call connected,
Call disconnected and Waiting call.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current interface to factory
default.
Supplementary Services
After clicking “Service”, you could set “Unconditional forwarding”, “Busy Forwarding”, “No answer
forwarding”, “Call waiting”, etc. Double-click the selected option to modify the service number and
forwarding number.
After the setting, click button to send the corresponding request to the network system.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current interface to factory
default.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 13 http://www.zte.com.cn
13. Help
Click button to view the help file.
Click “Help” button to view the relevant help file; click “Online service” to enter our company’s
website.
You could view the software version information under “About”.
14. Connect to the Website
Click button to directly connect the website you set. For details on the website setting, please refer to
Chapter 12 “Setting”.
15. RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of
the phone while operating can be well below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for body, as described in this user guide,
is 0.895 W/kg for CDMA 850 band.
While there may be differences between the SAR levels of various phones and at various positions, they all meet
the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and
can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
Q78-AC8720.
For body operation, this device has been tested and meets the FCC RF exposure guidelines for use the positions
the device a minimum of 0.5cm from the body. Use of other enhancements may not ensure compliance with
FCC RF exposure guidelines.
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 14 http://www.zte.com.cn
16. Trouble-shooting
Failures Causes Solutions
Error occurs during the program
installation. The setup file may be damaged.
Please download the program at
website WWW.ZTEMT.COM and
reinstall it.
Directly run the software before the Data
Terminal is plugged in.
Close the software, plug in the Data
Terminal and run it again.
Open port failed. The port is occupied by other applications,
such as “Hyper terminal”, or the software
is already running.
Close relevant software and run the
software again.
Antenna is not connected to the Modem. Insert the antenna into the Data
Terminal.
Out of the network service area. Make sure it is in the CDMA network
service area.
No signal indicated.
The antenna or RF component is damaged. Replace relevant damaged parts.
Wrong setting of parameters. (Phone, User,
Password.)
Correct the parameter settings.
Consult your service provider for
details.
Dialing failed
Network congestion or failure. Try again later.
The Data Terminal is already connected. Disconnect and Reconnect.
Internet connection failure. Poor network signal.
View signal strength indication or
change antenna orientation to get
optimal performance.
The program has already been installed in
current system.
Firstly remove the
original program and
insert the modem again.
The installation program can't auto run. (If
the Data Terminal supports auto setup
function.)
Autorun function in CD-ROM is disabled
because of installation of anti-virus
software in the system, or Windows Vista
system itself disables Autorun function by
CD-ROM by default.
Open "My Computer" to enter
CD-ROM disk icon, and double-click
Setup.exe to install manually.
CD-ROM icon will automatically
disappear once the program is installed
successfully.
This is normal. If you want to display
CD-ROM disk icon, you could firstly
remove the program and then insert
the modem again.
No CD-ROM disk icon in "My
Computer". The program is not yet installed, and no
other previous version was installed in the
system.
Please restart your computer. Please
contact your local operator or product
technical support center if CD-ROM
disk icon doesn't appear after your
computer is restarted.
The driver might be unable to work and
the application is unable to run normally if
the modem is pulled out and plugged in
The operating system needs installing
Update Roll 1 patch for Win2K SP4.
Please download the patch from the
following web site and install it.
http://www.microsoft.com/downloads
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 15 http://www.zte.com.cn
Failures Causes Solutions
again when the application is being used
under Win2000 operating system (SP4).In
this case, the device in device manager
will be marked with yellow exclamation
mark, and the system must be restarted to
run normally.
/details.aspx?familyid=B54730CF-88
50-4531-B52B-BF28B324C662&dis
playlang=en
CDMA2000 1X Wireless Data Terminal User Guide
ZTE Corporation 16 http://www.zte.com.cn
17. FCC Regulations
z This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
z This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
