ZTE AD3812 WCDMA WIRELESS DATA TERMINAL User Manual
ZTE Corporation WCDMA WIRELESS DATA TERMINAL Users Manual
ZTE >
Users Manual
WCDMA Module
This manual is applicable for AD3812 module.
AT Command Manual
For ZTE Corporation’s AD3812 Module
Version: V1.0
WCDMA Module
1
Copyright Statement
Copyright © 2010 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
is the registered trademark of ZTE Corporation. All other trademarks appeared in this
manual are owned by the relevant companies.
ZTE Corporation reserves the right to make modifications on print errors or update specifications in
this manual without prior notice.
ZTE Corporation keeps the right to make the final explanation to this manual.
WCDMA Module
2
Table of Contents
1 Definitions and abbreviations......................................................................................5
1.1 Command line ....................................................................................................................5
1.2 Information responses and result codes.............................................................................5
1.3 Abbreviations......................................................................................................................6
2 General commands ....................................................................................................7
2.1 +CGMI Request manufacturer identification ....................................................................7
2.2 +CGMM Request model identification ................................................................................7
2.3 +CGMR Request revision identification..............................................................................7
2.4 +CGSN Request product serial number identification......................................................8
2.5 +CSCS Select TE character set .........................................................................................8
2.6 +CIMI Request international mobile subscriber identity......................................................9
2.7 +WS46 select wireless network..........................................................................................9
2.8 +GCAP Capabilities List +GCAP......................................................................................10
2.9 +CMEE Repor Mobile Equipment Errors..........................................................................10
2.10 +ZHWV Request hardware revision identification.............................................................10
2.11 +ZDRNT Request status of dormant ................................................................................11
2.12 +ZSSPA Request System Status and System Parameter................................................11
2.13 +ZMDS Request System Set Network Mode....................................................................11
2.14 +ZGMS Request System Service Type ............................................................................11
2.15 +ZUCT Request System Service Type.............................................................................12
2.16 +ZGVT Request UE Voice channel Type .........................................................................12
3 Call control commands and methods........................................................................ 13
3.1 ATD\ATA\ATH\ATS0 ........................................................................................................13
3.2 +CSTA Select type of address..........................................................................................13
3.3 +CMOD Call mode ...........................................................................................................14
3.4 +CHUP Hangup call .........................................................................................................14
3.5 +CBST Select bearer service type....................................................................................15
3.6 +CRLP Radio link protocol ...............................................................................................16
3.7 +CR Service reporting control...........................................................................................17
3.8 +CEER Extended error report ..........................................................................................18
3.9 +CRC Cellular result codes ..............................................................................................18
3.10 +CVHU Voice Hangup Control .........................................................................................20
3.11 +VGR Receive gain selection...........................................................................................20
3.12 +CMUT Mute control ........................................................................................................20
3.13 +VTD Tone duration .........................................................................................................21
3.14 +VTS DTMF and tone generation.....................................................................................21
3.15 +CLCC List current calls...................................................................................................21
3.16 S<X> Basic S-Register ..................................................................................................23
3.17 +ZFLSH Send Flash/Flash with Information .....................................................................24
3.18 +VGT Transmit gain selection ..........................................................................................24
3.19 +ZCORG ORIGINATE CALL............................................................................................25
WCDMA Module
3
3.20 +ZCCNT: CALL CONNECT..............................................................................................25
3.21 +ZCEND: CALL END........................................................................................................26
3.22 +CCWA: Call waiting +CCWA ..........................................................................................27
3.23 +CHLD: Call related supplementary services +CHLD ......................................................28
3.24 +CCFC: Call forwarding number and conditions +CCFC .................................................29
4 Network service related commands..........................................................................31
4.1 +CNUM Subscriber number .............................................................................................31
4.2 +CREGNetwork registration .............................................................................................31
4.3 +COPS PLMN selection ...................................................................................................32
4.4 +CLCK Facility lock ..........................................................................................................34
4.5 +CPWD Change password...............................................................................................35
4.6 +CLIP Calling line identification presentation ...................................................................36
4.7 +CLIR Calling line identification restriction .......................................................................37
4.8 +COLP Connected line identification presentation ...........................................................38
4.9 +CDIP Called line identification presentation....................................................................38
4.10 +CPOL Preferred PLMN list .............................................................................................39
4.11 +CPLS Selection of preferred PLMN list...........................................................................41
4.12 +COPN Read operator names..........................................................................................41
4.13 +CGREG GPRS network registration status ....................................................................42
4.14 +IPR Fixed DTE Rate ....................................................................................................43
4.15 +FCLASS Select mode..................................................................................................43
5 Mobile Termination control and status commands.................................................... 44
5.1 +CPAS Phone activity status............................................................................................44
5.2 +CFUN Set phone functionality ........................................................................................45
5.3 +CPIN Enter PIN ..............................................................................................................46
5.4 +CSQ Signal quality .........................................................................................................47
5.5 +CCLK Clock....................................................................................................................47
5.6 +CSIM ..............................................................................................................................48
5.7 +CRSM.............................................................................................................................48
5.8 +CLAC..............................................................................................................................49
5.9 +CTZU..............................................................................................................................49
5.10 +CTZR..............................................................................................................................50
5.11 +CLVL Loudspeaker volume level....................................................................................50
5.12 +ECHO Echo Cancellation.............................................................................................51
5.13 +SIDET Side Tone Modification........................................................................................51
6 SMS command .........................................................................................................52
6.1 +CMGC: Send Command.................................................................................................52
6.2 6.2 +CMGD: Delete Message...........................................................................................52
6.3 +CMGF: Message Format................................................................................................53
6.4 +CMGL: List Messages ....................................................................................................53
6.5 +CMGR: Read Message ..................................................................................................54
6.6 +CMGS: Send Message...................................................................................................54
6.7 +CMGW: Write Message to Memory................................................................................55
6.8 +CMSS: Send Message from Storage..............................................................................56
WCDMA Module
4
6.9 +CNMI: New Message Indications to TE..........................................................................56
6.10 +CPMS: Preferred Message Storage ...............................................................................59
6.11 +CSCA: Service Centre Address......................................................................................59
6.12 +CSCB: Select Cell Broadcast Message Types ...............................................................60
6.13 +CSMP Set Text Mode Parameters .................................................................................60
6.14 +CSMS Select Message Service......................................................................................61
6.15 +CNMA New Message Acknowlegement.........................................................................62
6.16 +CMMS More Messages to Send.....................................................................................62
6.17 +CGSMS Select Service for MO SMS Messages.............................................................63
6.18 +CMT Incoming Message Directly Displayed ...................................................................63
6.19 +CMTI Incoming Message Stored in Memory...................................................................64
6.20 +ZMGF：Message Full ....................................................................................................64
7 Phonebook commands.............................................................................................65
7.1 +CPBS Select Phonebook memory storage.....................................................................65
7.2 +CPBR Read Phonebook Entries.....................................................................................66
7.3 +CPBF Find Phonebook Entries.......................................................................................68
7.4 +CPBW Write Phonebook Entry.......................................................................................69
WCDMA Module
5
1 Definitions and abbreviations
1.1 Command line

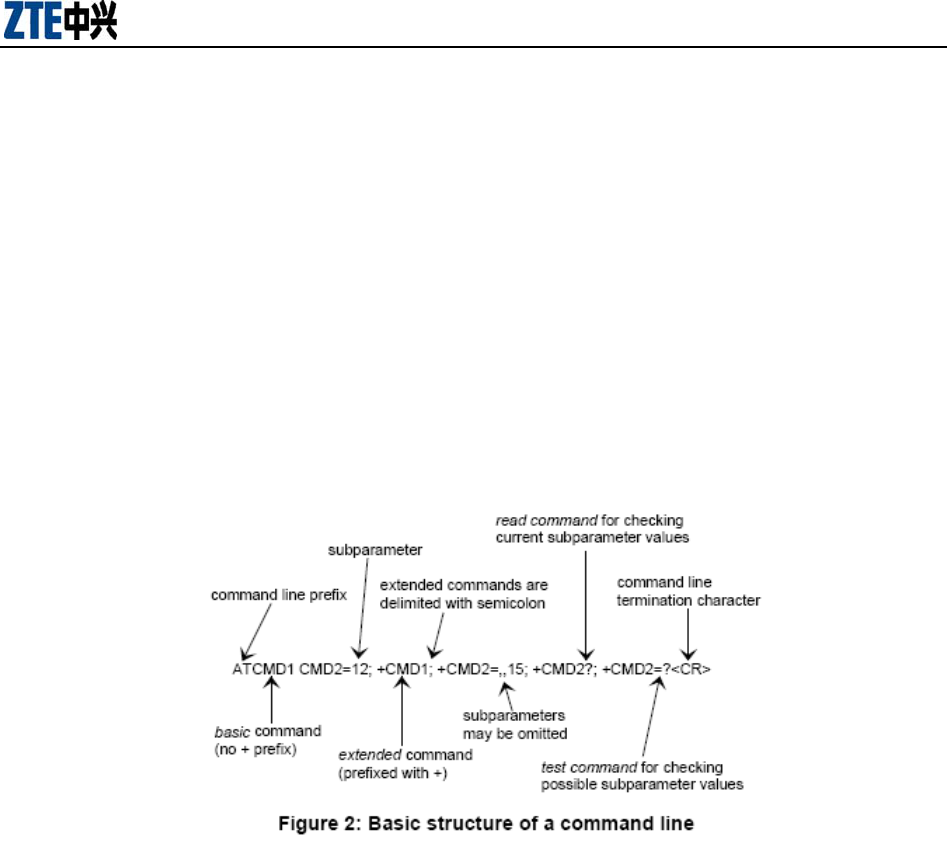

See figure 2 for general structure of a command line. Standardized basic commands are found only in
V.250 [14].
GSM/UMTS commands use syntax rules of extended commands. Every extended command has a
test command
(trailing =?) to test the existence of the command and to give information about the type of its
subparameters.
Parameter type commands also have a read command (trailing ?) to check the current values of
subparameters. Action
type commands do not store the values of any of their possible subparameters, and therefore do not
have a read
command.
If verbose responses are enabled with command V1 and all commands in a command line has been
performed
successfully, result code <CR><LF>OK<CR><LF> is sent from the TA to the TE. If numeric
responses are enabled
with command V0, result code 0<CR> is sent instead.
If verbose responses are enabled with command V1 and subparameter values of a command are not
accepted by the TA
(or command itself is invalid, or command cannot be performed for some reason), result code
<CR><LF>ERROR<CR><LF> is sent to the TE and no subsequent commands in the command line
are processed. If
numeric responses are enabled with command V0, result code 4<CR> is sent instead. ERROR (or 4)
response may be
replaced by +CME ERROR: <err> (refer clause 9) when command was not processed due to an error
related to MT
operation.

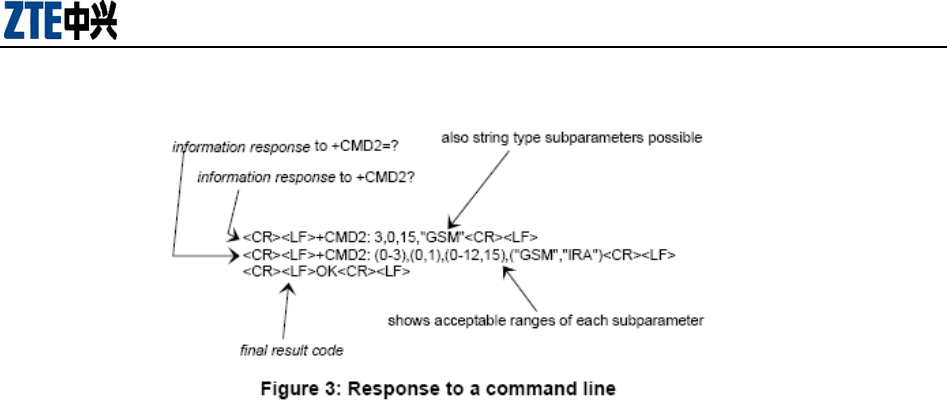

1.2 Information responses and result codes
The TA response for the example command line of figure 2 could be as shown in figure 3. Here,
verbose response
format is enabled with command V1. If numeric format V0 would have been used, <CR><LF> headers
WCDMA Module
6
of information
responses would have been left out and final result code changed to 0<CR>.
So called intermediate result codes inform about progress of TA operation (e.g. connection
establishment CONNECT),
and so called unsolicited result codes indicate occurrence of an event not directly associated with
issuance of a
command from TE (e.g. ring indication RING).
1.3 Abbreviations
AT ATtention; this two-character abbreviation is always used to start a command line to be sent from
TE to TA
ASCI Advanced Speech Call Items, including VGCS, VBS and eMLPP
BCD Binary Coded Decimal
eMLPP Enhanced Multi-Level Precedence and Pre-emption Service
ETSI European Telecommunications Standards Institute
FTM Frame Tunnelling Mode (refer 3GPP TS 27.001 [41] and 3GPP TS 29.007[42])
HSCSD High Speed Circuit Switched Data
IMEI International Mobile station Equipment Identity
IRA International Reference Alphabet (ITU-T T.50 [13])
IrDA Infrared Data Association
ISO International Standards Organization
ITU-T International Telecommunication Union - Telecommunications Standardization Sector
ME Mobile Equipment
MoU Memorandum of Understanding (GSM operator joint)
MT Mobile Termination
PCCA Portable Computer and Communications Association
PTT Push to Talk
RDI Restricted Digital Information
RLP Radio Link Protocol
SIM Subscriber Identity Module
TA Terminal Adaptor, e.g. a GSM data card (equal to DCE; Data Circuit terminating Equipment)
TE Terminal Equipment, e.g. a computer (equal to DTE; Data Terminal Equipment)
TIA Telecommunications Industry Association
UDI Unrestricted Digital Information
UE User Equipment
WCDMA Module
7
UICC Universal Integrated Circuit Card
USIM Universal Subscriber Identity Module
VBS Voice Broadcast Service
VGCS Voice Group Call Service
2 General commands
2.1 +CGMI Request manufacturer identification
Description
Execution command causes the TA to return one or more lines of information
text <manufacturer>, determined by
the MT manufacturer, which is intended to permit the user of the TA to identify
the manufacturer of the MT to which it
is connected to. Typically, the text will consist of a single line containing the
name of the manufacturer, but
manufacturers may choose to provide more information if desired. Refer
subclause 9.2 for possible <err> values.
+CGMI
<manufacturer>
+CME ERROR: <err>
Command
+CGMI=?
Defined values
<manufacturer>: the total number of characters, including line terminators, in
the information text shall not exceed 2048 characters.
2.2 +CGMM Request model identification
Description
Execution command causes the TA to return one or more lines of information
text <model>, determined by the MT
manufacturer, which is intended to permit the user of the TA to identify the
specific model of the MT to which it is
connected to. Typically, the text will consist of a single line containing the name
of the product, but manufacturers may
choose to provide more information if desired. Refer to subclause 9.2 for
possible <err> values.
+CGMM <model>
+CME ERROR: <err>
Command
+CGMM=?
Defined values
<model>: the total number of characters, including line terminators, in the
information text shall not exceed 2048 characters.
2.3 +CGMR Request revision identification
Description
Execution command causes the TA to return one or more lines of information
text <revision>, determined by the
MT manufacturer, which is intended to permit the user of the TA to identify the
WCDMA Module
8
version, revision level or date, or other
pertinent information of the MT to which it is connected to. Typically, the text will
consist of a single line containing
the version of the product, but manufacturers may choose to provide more
information if desired. Refer subclause 9.2
for possible <err> values.
+CGMR
<revision>
+CME ERROR: <err>
Command
+CGMR=?
Defined values
<revision>: the total number of characters, including line terminators, in the
information text shall not exceed 2048 characters.
2.4 +CGSN Request product serial number identification
Description
Execution command causes the TA to return one or more lines of information
text <sn>, determined by the MT
manufacturer, which is intended to permit the user of the TA to identify the
individual MT to which it is connected to.
Typically, the text will consist of a single line containing the IMEI (International
Mobile station Equipment Identity;
refer 3GPP TS 23.003 [7]) number of the MT, but manufacturers may choose to
provide more information if desired.
Refer subclause 9.2 for possible <err> values.
+CGSN
<sn>
+CME ERROR: <err>
Command
+CGSN=?
Defined values
<sn>: the total number of characters, including line terminators, in the
information text shall not exceed 2048 characters.
2.5 +CSCS Select TE character set
Description
Set command informs TA which character set <chset> is used by the TE. TA is
then able to convert character strings
correctly between TE and MT character sets.
When TA-TE interface is set to 8-bit operation and used TE alphabet is 7-bit, the
highest bit shall be set to zero.
+CSCS=[<chset>]
+CSCS?
+CSCS: <chset>
Command
+CSCS=?
+CSCS: (list of supported <chset>s)
Defined values
<chset> (conversion schemes not listed here can be defined by manufacturers):
"GSM" GSM 7 bit default alphabet (3GPP TS 23.038); this setting causes easily
software flow control
WCDMA Module
9
(XON/XOFF) problems
"HEX" character strings consist only of hexadecimal numbers from 00 to FF; e.g.
"032FE6" equals three 8-bit
characters with decimal values 3, 47 and 230; no conversions to the original MT
character set shall be
done.
"IRA" international reference alphabet (ITU-T T.50 [13])
"PCCPxxx" PC character set Code Page xxx
"PCDN" PC Danish/Norwegian character set
"UCS2" 16-bit universal multiple-octet coded character set (ISO/IEC10646 [32]);
UCS2 character strings are
converted to hexadecimal numbers from 0000 to FFFF; e.g. "004100620063"
equals three 16-bit
characters with decimal values 65, 98 and 99
"8859-n" ISO 8859 Latin n (1-6) character set
"8859-C" ISO 8859 Latin/Cyrillic character set
"8859-A" ISO 8859 Latin/Arabic character set
"8859-G" ISO 8859 Latin/Greek character set
"8859-H" ISO 8859 Latin/Hebrew character set
2.6 +CIMI Request international mobile subscriber identity
Description
Execution command causes the TA to return <IMSI>, which is intended to
permit the TE to identify the individual
SIM card or active application in the UICC (GSM or USIM) which is attached to
MT. Refer subclause 9.2 for possible
<err> values.
+CIMI
<IMSI>
+CME ERROR: <err>
Command
+CIMI=?
Defined values <IMSI>: International Mobile Subscriber Identity (string without double quotes)
2.7 +WS46 select wireless network
Description
Set command selects the WDS side stack <n> to be used by the TA. Read
command shows current setting and test
command displays side stacks implemented in the TA.
+WS46=[<n>]
+WS46? <n>
Command
+WS46=? (list of supported <n>s)
Defined values
<n>:
12 GSM Digital Cellular Systems (GERAN only)
22 UTRAN only
25 3GPP Systems (both GERAN and UTRAN)
WCDMA Module
10
2.8 +GCAP Capabilities List +GCAP
Description This command gets the complete list of capabilities.
AT+GCAP
+GCAP: +CGSM, +CIS707-A, +MS, +ES,
+DS, +FCLASS
OK
Command
+ CGREG =?
+CGREG: (list of supported <n>s)
Defined values
2.9 +CMEE Repor Mobile Equipment Errors
Description This command disables or enables the use of the “+CME ERROR : <xxx>” or
“+CMS
ERROR :<xxx>” result code instead of simply “ERROR”. See chapter 20 (MS
Error Result
Codes) for +CME ERROR result codes description and chapter 20 (Message
Service Failure
Result Codesfor +CMS ERROR result codes.
+ CMEE =[<n>]
OK
+ CGREG =?
CMEE: (0,1,2)
Command
+ CGREG? +CMEE: 2
OK
Defined values
0 Disable MS error reports, use only « ERROR »
1 Disable MS error reports, use only « ERROR »
2.10 +ZHWV Request hardware revision identification
Description Execution command causes the TA to return hardware revision identification
+ ZHWV
<revision>
+ ZHWV: <err>
Command
+ ZHWV=?
Defined values
WCDMA Module
11
2.11 +ZDRNT Request status of dormant
Description Execution command causes the TA to return status of dormant
+ ZDRNT
1
+CME ERROR: <err>
Command
+ ZDRNT = ?
Defined values
0: MT is dormant
1: MT is not dormant
2.12 +ZSSPA Request System Status and System Parameter
Description Execution command causes the TA to return system status and system
parameter
+ ZSSPA
ROAM:,RSSI:,SIM:,SRV:
+CME ERROR: <err>
Command
+ ZSSPA = ?
Defined values
ROAM:ROAM_STATUS_OFF(0),ROAM_STATUS_ON(1),ROAM_STATUS_BL
INK(2),
RSSI: 0－5
SIM: SIM_STATE_AVAILABLE(1), SIM_STATE_NOT_AVAILABLE(0)
SRV: 0:No service,1:Limited service, 2:Service available,3:Limited regional
service ,4:MS is in power save or deep sleep
2.13 +ZMDS Request System Set Network Mode
Description Execution command causes the TA to select system mode:AUTOMATIC,GSM
OLNY,WCDMA OLNY
+ ZMDS=<MOEE>
+ZMDS:OK
+CME ERROR: <err>
+ ZMDS = ?
(list of supported <n>s)
Command
+ ZMDS?
n
ok
Defined values
4:automatic network mode
13:gsm olny
14:wcdma olny
2.14 +ZGMS Request System Service Type
Description Execution command causes the TA to return me to surport the service type
Command +ZGMS
+ZGMS: DS:1,VS:1,SS:1,PS:1
+CME ERROR: <err>
WCDMA Module
12
+ ZGMS = ?
OK
Defined values
DS: data service: 1 support, 0 not support
VS: voice service: 1 support, 0 not support
SS: sms service: 1 support, 0 not support
PS: pbk service: 1 support, 0 not support
2.15 +ZUCT Request System Service Type
Description Execution command causes the TA to return the card type and initial processing
state
+ZUCT
+ZUCT:<card_type>,<sim_state>
+CME ERROR: <err>
Command
+ ZUCT = ?
+ZUCT:(0,1,2,3)
OK
Defined values
Card_type: 0: NONE CARD or NONE INIT
1: USIM
2: SIM
3: SIM_USIM
sim_state:
0:not initialize
1:initialized
2.16 +ZGVT Request UE Voice channel Type
Description Execution command causes the TA to return the voice channel type , it by PC or no
PC
+ZGVT
+ZGVT:<voice_type>
+CME ERROR: <err>
Command
+ ZGVT = ?
Defined values
voice_type: 0: by PC
1: not by PC
WCDMA Module
13
3 Call control commands and methods
3.1 ATD\ATA\ATH\ATS0
V.250 [14] dial command D lists characters that may be used in a dialling string for making a call or
controlling
supplementary services in accordance with 3GPP TS 22.030 [19]. Their use in GSM/UMTS is listed in
this subclause,
as well as new dial modifiers applicable only to GSM/UMTS are introduced. For a MT supporting AT
commands only,
it is mandatory to support the control of supplementary services in accordance with 3GPP TS 22.030
[19] through the
dial command or through the specific supplementary service commands (+CCFC, +CLCK, etc.),
where 3GPP TS 22.030
[19] identifies the supplementary services as mandatory.
V.250 dialling digits
1 2 3 4 5 6 7 8 9 0 * # + A B C (implementation of these characters is mandatory for GSM/UMTS)
D (implementation of this character is optional for GSM/UMTS, and it is ignored)
V.250 modifier characters
, (implementation of this character is mandatory for GSM/UMTS, but it may be ignored)
T P (implementation of these characters is mandatory for GSM/UMTS, but they are ignored)
! W @ (implementation of these characters is optional for GSM/UMTS, and they are ignored)
V.250 semicolon character
In GSM/UMTS, when semicolon character is given after dialling digits (or modifiers), a voice call
originated to the
given address. TA returns to command state immediately (or after possible +COLP result code; refer
subclause
"Connected line identification presentation +COLP"). Refer Annex G for a detailed example.
GSM/UMTS modifier characters
> (refer subclause "Direct dialling from phonebooks")
I or i (override the CLIR supplementary service subscription default value for this call; I = invocation
(restrict CLI
presentation) and i = suppression (allow CLI presentation); refer subclause "Calling line identification
restriction
+CLIR")
G or g (control the CUG supplementary service information for this call; uses index and info values set
with command
+CCUG; refer subclause "Closed user group +CCUG")
3.2 +CSTA Select type of address
Description
Set command selects the type of number for further dialling commands (D)
according to GSM/UMTS specifications.
Test command returns values supported a compound value.
WCDMA Module
14
+CSTA=[<type>]
+CSTA?
Command
+CSTA=?
Defined values
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7); default 145 when dialling
string includes international access code character "+", otherwise 129
3.3 +CMOD Call mode
Description
Set command selects the call mode of further dialling commands (D) or for next
answering command (A). Mode can be
either single or alternating (in the present document, terms "alternating mode"
and "alternating call" refer to all
GSM/UMTS bearer and teleservices that incorporate more than one basic
service (voice, data, fax) within one call).
When single mode is selected the call originating and hangup procedures are
similar to procedures specified in ITU-T
Recommendations V.250 [14], T.31 [11] and T.32 [12]. In GSM/UMTS there can
be voice followed by data (refer
3GPP TS 22.002 [1]), alternating voice/data (refer 3GPP TS 22.002 [1]) and
alternating voice/fax calls (refer 3GPP TS
22.003 [2]). Refer next two subclauses for alternating call control methods.
+CMOD=[<mode>]
+CMOD?
Command
+CMOD=? +CMOD: (list of supported <mode>s)
Defined values
<mode>:
0 single mode
1 alternating voice/fax (teleservice 61)
2 alternating voice/data (bearer service 61)
3 voice followed by data (bearer service 81)
also all other values below 128 are reserved by the present document
3.4 +CHUP Hangup call
Description
Execution command causes the TA to hangup the current GSM/UMTS call of
the MT.
+CHUP Command
+CHUP=?
WCDMA Module
15
3.5 +CBST Select bearer service type
Description
Set command selects the bearer service <name> with data rate <speed>, and
the connection element <ce> to be used
when data calls are originated (refer 3GPP TS 22.002 [1]). Values may also be
used during mobile terminated data call
setup, especially in case of single numbering scheme calls (refer +CSNS).
+CBST=[<speed>[
+CBST?
Command
+CBST=? +CBST: (list of supported <speed>s),(list
of
supported <name>s),(list of supported
<ce>s)
Defined values
<speed>:
0 autobauding (automatic selection of the speed; this setting is possible in case
of 3.1 kHz modem
and non-transparent service)
1 300 bps (V.21)
2 1200 bps (V.22)
3 1200/75 bps (V.23)
4 2400 bps (V.22bis)
5 2400 bps (V.26ter)
6 4800 bps (V.32)
7 9600 bps (V.32)
12 9600 bps (V.34)
14 14400 bps (V.34)
15 19200 bps (V.34)
16 28800 bps (V.34)
17 33600 bps (V.34)
34 1200 bps (V.120)
36 2400 bps (V.120)
38 4800 bps (V.120)
39 9600 bps (V.120)
43 14400 bps (V.120)
47 19200 bps (V.120)
48 28800 bps (V.120)
49 38400 bps (V.120)
50 48000 bps (V.120)
51 56000 bps (V.120)
65 300 bps (V.110)
66 1200 bps (V.110)
68 2400 bps (V.110 or X.31 flag stuffing)
70 4800 bps (V.110 or X.31 flag stuffing)
71 9600 bps (V.110 or X.31 flag stuffing)
WCDMA Module
16
75 14400 bps (V.110 or X.31 flag stuffing)
79 19200 bps (V.110 or X.31 flag stuffing)
80 28800 bps (V.110 or X.31 flag stuffing)
81 38400 bps (V.110 or X.31 flag stuffing)
82 48000 bps (V.110 or X.31 flag stuffing)
83 56000 bps (V.110 or X.31 flag stuffing; this setting can be used in conjunction
with asynchronous
non-transparent UDI or RDI service in order to get FTM)
84 64000 bps (X.31 flag stuffing; this setting can be used in conjunction with
asynchronous nontransparent
UDI service in order to get FTM)
115 56000 bps (bit transparent)
116 64000 bps (bit transparent)
120 32000 bps (PIAFS32k)
121 64000 bps (PIAFS64k)
130 28800 bps (multimedia)
131 32000 bps (multimedia)
132 33600 bps (multimedia)
133 56000 bps (multimedia)
134 64000 bps (multimedia)
also all other values below 128 are reserved by the present document.
<name>:
0 data circuit asynchronous (UDI or 3.1 kHz modem)
1 data circuit synchronous (UDI or 3.1 kHz modem)
2 PAD Access (asynchronous) (UDI)
3 Packet Access (synchronous) (UDI)
4 data circuit asynchronous (RDI)
5 data circuit synchronous (RDI)
6 PAD Access (asynchronous) (RDI)
7 Packet Access (synchronous) (RDI)
also all other values below 128 are reserved by the present document.
<ce>:
0 transparent
1 non-transparent
2 both, transparent preferred
3 both, non-transparent preferred
3.6 +CRLP Radio link protocol
Description
Radio link protocol (RLP) parameters used when non-transparent data calls are
originated may be altered with set
command. Available command subparameters depend on the RLP versions
implemented by the device (e.g. <ver>
may not be available if device supports only versions 0 and 1).
WCDMA Module
17
+CRLP=[<iws>[,<mws>[,<T1>[,<N2
>[,<ver>[,<T4>]]]]]]
+CRLP? +CRLP:
<iws>,<mws>,<T1>,<N2>[,<ver1>[,<T4>
]]
[<CR><LF>+CRLP:
<iws>,<mws>,<T1>,<N2>[,<ver2>[,<T4>
]]
[...]]
Command
+CRLP=?
+CRLP: (list of supported <iws>s),(list of
supported <mws>s),
(list of supported <T1>s),(list of
supported <N2>s)[,<ver1>
[,(list of supported <T4>s)]]
[<CR><LF>+CRLP: (list of supported
<iws>s),(list of supported
<mws>s),(list of supported <T1>s),(list of
supported <N2>s)
[,<ver1>[,(list of supported <T4>s)]]
[...]]
Defined values
<ver>, <verx>: RLP version number in integer format; when version indication is
not present
NOTE 2: Versions 0 and 1 share the same parameter set. Read and test
commands shall return
set (where <verx> is not present).
<iws>, <mws>, <T1>, <N2>, <T4>: IWF to MS window size, MS to IWF window
size, acknowledgement
T1, retransmission attempts N2, re-sequencing period T4 in integer format
(default values
depend on RLP version; refer 3GPP TS 24.022 [18]): T1 and T4 are in units of
10 ms.
3.7 +CR Service reporting control
Description
Set command controls whether or not intermediate result code +CR: <serv> is
returned from the TA to the TE. If
enabled, the intermediate result code is transmitted at the point during connect
negotiation at which the TA has
determined which speed and quality of service will be used, before any error
control or data compression reports are
transmitted, and before the intermediate result code CONNECT is transmitted.
+CR=[<mode>] +CR?
+CR=? +CR: <mode>
Command
+CR? +CR: (list of supported <mode>s)
Defined values <mode>:
WCDMA Module
18
0 disables reporting
1 enables reporting
<serv>:
ASYNC asynchronous transparent
SYNC synchronous transparent
REL ASYNC asynchronous non-transparent
REL SYNC synchronous non-transparent
GPRS [<L2P>] GPRS
The optional <L2P> proposes a layer 2 protocol to use between the MT and the
TE. It is defined in the Enter GPRS
Data Mode (+CGDATA) command.
3.8 +CEER Extended error report
Description
Execution command causes the TA to return one or more lines of information
text <report>, determined by the MT
manufacturer, which should offer the user of the TA an extended report of the
reason for
- the failure in the last unsuccessful call setup (originating or answering) or
in-call modification;
- the last call release;
- the last unsuccessful GPRS attach or unsuccessful PDP context activation;
- the last GPRS detach or PDP context deactivation.
Typically, the text will consist of a single line containing the cause information
given by GSM/UMTS network in
textual format.
+CEER +CEER: <report> Command
+CEER=?
Defined values
<report>: the total number of characters, including line terminators, in the
information text shall not exceed 2041 characters.
3.9 +CRC Cellular result codes
Description
Set command controls whether or not the extended format of incoming call
indication or GPRS network request for
PDP context activation or notification for VBS/VGCS calls is used. When
enabled, an incoming call is indicated to the
TE with unsolicited result code +CRING: <type> instead of the normal RING.
Test command returns values supported as a compound value.
+CRC=[<mode>]
+CRC? +CRC=[<mode>]
Command
+CRC=? +CRC: (list of supported <mode>s)
WCDMA Module
19
Defined values
<mode>:
0 disables extended format
1 enables extended format
<type>:
ASYNC [,<priority>[,<subaddr>,<satype>]] asynchronous transparent
SYNC [,<priority>[,<subaddr>,<satype>]] synchronous transparent
REL ASYNC [,<priority>[,<subaddr>,<satype>]] asynchronous non-transparent
REL SYNC [,<priority>[,<subaddr>,<satype>]] synchronous non-transparent
FAX [,<priority>[,<subaddr>,<satype>]] facsimile (TS 62)
VOICE [,<priority>[,<subaddr>,<satype>]] normal voice (TS 11)
VOICE/XXX [,<priority>[,<subaddr>,<satype>]] voice followed by data (BS 81)
(XXX is
ASYNC, SYNC, REL ASYNC or REL SYNC)
ALT VOICE/XXX [,<priority>[,<subaddr>,<satype>]] alternating voice/data,
voice first (BS 61)
ALT XXX/VOICE [,<priority>[,<subaddr>,<satype>]] alternating voice/data, data
first (BS 61)
ALT VOICE/FAX [,<priority>[,<subaddr>,<satype>]] alternating voice/fax, voice
first (TS 61)
ALT FAX/VOICE [,<priority>[,<subaddr>,<satype>]] alternating voice/fax, fax
first (TS 61)
GPRS <PDP_type>, <PDP_addr>[, [<L2P>][,<APN>]] GPRS network request
for PDP context
VGC <GCA>, <GId>, <ackflag> [,<priority>] voice group call (TS 91)
VBC <GCA>, <GId>, <ackflag> [,<priority>] voice broadcast call (TS 92)
The optional <priority> indicates the eMLPP priority level of the incoming call by
paging, notification or setup
message. The priority level values are as defined in eMLPP specification 3GPP
TS 22.067 [54].
<subaddr>: string type subaddress of format specified by <satype>
<satype>: type of subaddress octet in integer format (refer 3GPP TS 24.008 [8]
subclause 10.5.4.8)
<PDP_type> ,<PDP_addr> and <APN> are as defined in the Define PDP
Context (+CGDCONT) command. The
optional <L2P> proposes a layer 2 protocol to use between the MT and the TE.
It is defined in the Enter GPRS Data
Mode (+CGDATA) command. If the MT is unable to announce to the TE the
network's request (for example it is in
V.250 online data state) the MT shall reject the request. No corresponding
unsolicited result code shall be issued when
the MT returns to a command state.
<GCA> is a part of the group call reference as specified in 3GPP TS 23.003 [7]
and indicates group call area.
<GId> is a part of the group call reference as specified in 3GPP TS 23.003 [7]
and indicates group call
identification.The <ackflag>=1 proposes that a predefined confirmation
procedure is to be used after the call is ended.
For <ackflag>=0 no confirmation procedure is required.
WCDMA Module
20
3.10 +CVHU Voice Hangup Control
Description
Set command selects whether ATH or "drop DTR" shall cause a voice
connection to be disconnected or not. By voice
connection is also meant alternating mode calls that are currently in voice mode.
(See subclause 6.6).
+CVHU=[<mode>]
+CVHU? +CVHU:<mode>
Command
+CVHU=? +CVHU:(list of supported <mode>s)
Defined values
<mode>:
0 "Drop DTR" ignored but OK response given. ATH disconnects.
1 "Drop DTR" and ATH ignored but OK response given.
2 "Drop DTR" behaviour according to &D setting. ATH disconnects.
3.11 +VGR Receive gain selection
Description
This refers to the amplification by the TA of audio samples sent from the TA to
the computer. The command operates
on an integer <n>, range 0...255. Values larger than 128 indicate a larger gain
than nominal. Values less than 128
indicate a smaller gain than nominal. The entire range of 0...255 does not have
to be provided. A value of zero implies
the use of automatic gain control by the TA.
+VGR=<n> +VGR? <n>
+VGR=? (list of supported <n>s)
Command
+VGR=<n> +VGR? <n>
3.12 +CMUT Mute control
Description
This command is used to enable and disable the uplink voice muting during a
voice call. Refer subclause 9.2 for
possible <err> values.
Test command returns supported values as compound value.
+CMUT=<n> +CME
+CMUT? +CMUT:
Command
+CME ERROR:
Defined values
<n>:
0 mute off
1 mute on
WCDMA Module
21
3.13 +VTD Tone duration
Description
This refers to an integer <n> that defines the length of tones emitted as a result
of the +VTS command. This does not
affect the D command. A value different than zero causes a tone of duration
<n>/10 seconds. The value zero causes a
"manufacturer specific" value.
+VTD=<n> +VTD? <n>
+VTD=? (list of supported <n>s)
Command
+VTD=<n> +VTD? <n>
Defined values
<n>:
0 mute off
1 mute on
3.14 +VTS DTMF and tone generation
Description
This command allows the transmission of DTMF tones and arbitrary tones (see
note). These tones may be used (for
example) when announcing the start of a recording period. The command is
write only. In this profile of commands,
this command does not operate in data or fax modes of operation
(+FCLASS=0,1,2-7).
+VTS=as above Command
+VTS=? (list
Defined values
1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted
as a single ACSII character whose
duration is set by the +VTD command.
NOTE 2: In GSM this operates only in voice mode.
2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of
frequencies <tone1> and <tone2>,
lasting for a time <duration> (in 10 ms multiples).
NOTE 3: This does not operate in GSM.
3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different
duration from that mandated by the
+VTD command.
3.15 +CLCC List current calls
Description
Returns list of current calls of MT. If command succeeds but no calls are
available, no information response is sent to
WCDMA Module
22
TE. Refer subclause 9.2 for possible <err> values.
+CLCC [+CLCC:
<id1>,<dir>,<stat>,<mode>,<mpty>[
,
<number>,<type>[,<alpha>[,<priority>]]] Command
[<CR><LF>+CLCC:
<id2>,<dir>,<stat>,<mode>,<mpty>[
,
<number>,<type>[,<alpha>[,<priority>]]]
Defined values
<idx>: integer type; call identification number as described in 3GPP TS 22.030
[19] subclause 4.5.5.1; this number
can be used in +CHLD command operations
<dir>:
0 mobile originated (MO) call
1 mobile terminated (MT) call
<stat> (state of the call):
0 active
1 held
2 dialing (MO call)
3 alerting (MO call)
4 incoming (MT call)
5 waiting (MT call)
<mode> (bearer/teleservice):
0 voice
1 data
2 fax
3 voice followed by data, voice mode
4 alternating voice/data, voice mode
5 alternating voice/fax, voice mode
6 voice followed by data, data mode
7 alternating voice/data, data mode
8 alternating voice/fax, fax mode
9 unknown
<mpty>:
0 call is not one of multiparty (conference) call parties
1 call is one of multiparty (conference) call parties
<number>: string type phone number in format specified by <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<alpha>: string type alphanumeric representation of <number> corresponding to
the entry found in phonebook;
used character set should be the one selected with command Select TE
Character Set +CSCS
<priority>: optional digit type parameter indicating the eMLPP priority level of the
call, values specified in
3GPP TS 22.067 [54]
WCDMA Module
23
3.16 S<X> Basic S-Register
Description
The S-registers store configuration parameters that are used for dialing or
during an
established call. The value of an S-register may be set by using the syntax:
ATSn=<value>
where n is the register number and <value> is a decimal value.
ATS<X>= <value>
+CME ERROR: <err>
ATS<X>?
ATS<X>: <value>
+CME ERROR: <err>
Command
Defined values
ATS0?
Note: Disable or enable automatic answering (value: 0-255)
0: Disable;
1-255: Enable after [(value-1)x6 sec.]
ATS3?
Note: Carriage return character
ATS4?
Note: Line feed character
ATS5?
Note: Backspace character
ATS6?
Note: Pause before blind dialing (value: 2-10)
ATS7?
Note: Number of seconds to establish end-to-end data connection
(value: 1-255)
Note: Number of seconds to pause when “,” is encountered in dial
string (value: 0-255)
ATS9?
Note: Carrier detect threshold in increments of 0.1 seconds
(value: 0-255)
ATS10?
Note: Number of tenths of a second from carrier loss to
disconnect (value: 1-254)
Value 255: disable carrier detect
ATS11?
Note: DTMF tone duration and spacing in milliseconds (value: 50-
255)
WCDMA Module
24
3.17 +ZFLSH Send Flash/Flash with Information
Descriptions
The command is used to send a Flash/Flash with information to the base station,
and it is usually used for call waiting and conference call. When receiving a call from a
third party, use AT+ZFLSH command to send FLASH signals to switch between two
differenct lines. If one FLASH signal is sent to the base station, the module will return
with +ZFLSH. Please note that this doesn’t guarantee the switching between two lines
for CDMA network because the network does not return the confirmation to the
module. In a conference call, define the first called party as the first party, dial the first
party, use AT+ZFLSH=< second called party’s number to call the second party, and
the first party would automatically enter the call held status; once the second call is
connected, use AT+ZFLSH command to realize the conference call. If you send a
FLASH signal again, it will disconnect the call from the second party. Use ATH
command to hang up all calls.
Format AT+ZFLSH
AT+ZFLSH=<phone number>
ATD13333333333；
Originate a voice call
OK
+ZCORG：13333333333
+ZCCNT：3
+CCWA：”26010681”,129 the second incoming
call
AT+ZFLSH
Send a FLASH signal to
switch to the second call
OK
+ZFLSH
Not every switching is always successful
Example
ATH
Release all calls
OK
+ZCEND：10
ATD13316819064；
Connect the first voice call
OK
+ZCORG：13316819064
+ZCCNT：3
AT+ZFLSH=26010681
Hold the first call and dial the
second call
OK
+ZFLSH
AT+ZFLSH
Realize a conference call
OK
+ZFLSH
AT+ZFLSH
Hold the second call and
switch to the first call
OK
+ZFLSH （parameter is a must）
ATH
Hang up all calls
OK
+ZCEND：10
3.18 +VGT Transmit gain selection
Description The command is used to set MIC gain of currently selected audio path.
Format AT+VGT=<MicGain>
Example AT+VGT=2 OK
WCDMA Module
25
AT+VGT？
Check current settings
(FYI, no actual meaning)
+VGT：2
OK
AT+VGT=？
Check the parameters
+VGT：（0-3）
OK
Parameter Check the volume range, 0 minimum
3.19 +ZCORG ORIGINATE CALL
Description This indicates a one-time call orgination.
Format +ZCORG:<call_type>,<call_x>
Example ATD18005551212;
OK
+ZCORG:0,1
+ZCCNT:0，1
OK
Parameter
<number> telephone number
Call_type: call type, voice all（0）,OTA call (standard OTASP numbers)(7),OTA call
（none standard otasp numgbers）（8）emergency call（9）
Call_type: call ID
3.20 +ZCCNT: CALL CONNECT
Description This indicates a one-time call termination or origination.
Format +ZCCNT: <call_type>,<call_x>
Example ATD18005551212;
OK
+ZCORG:0，1
+ZCCNT:0，1
Call connection service 3
WCDMA Module
26
3.21 +ZCEND: CALL END
Description This indicates the end of a voice call end or tryting to end a voice call.
Format +ZCEND: <call_X>,<duration>,<end_status>[,<cc_cause]
Example
ATD18005551212;
ATH
OK
+ZCORG:0，1
+ZCCNT:0，1
+ZCEND:1,30,0,0
Parameter
<call_x>: call ID
<duration>: call duration
<end_status>: end status
<cc_cause>: call control information
end_status：
0： phone is offline
21：phone has no service （Backwards compatibility）
25：received release from BS
27：received incoming call from BS
29：client ended the call
34：RUIM is not present
35：Access attempt already in progress
36：Access failure for reason other than the above
38：Concurrent servive is not supported by base station
39：No response recived from base station
100：rxd a reason from lower layer
101：call orig request failed
102：client rejected the incoming call
103：client rejected the setup_ind
104：network ended the call
106：Phone has no service
Other value reserved
WCDMA Module
27
3.22 +CCWA: Call waiting +CCWA
Description
This command allows control of the Call Waiting supplementary service
according to 3GPP TS 22.083 [5]. Activation, deactivation and status query are
supported. When querying the status of a network service (<mode>=2) the
response line for 'not active' case (<status>=0) should be returned only if service
is not active for any <class>. Parameter <n> is used to disable/enable the
presentation of an unsolicited result code +CCWA:
<number>,<type>,<class>,[<alpha>][,<CLI validity>[,<subaddr>,<satype>
[,<priority> ]]] to the TE when call waiting service is enabled. Command should
be abortable when network is interrogated.
The interaction of this command with other commands based on other
GSM/UMTS supplementary services is described in the GSM/UMTS standards.
Test command returns values supported as a compound value.
+CCWA=[<n>[,<mode>[,<class>]]] +CME ERROR: <err>
when <mode>=2 and command
successful
+CCWA: <status>,<class1>
[<CR><LF>+CCWA: <status>,<class2>
[...]]
+CCWA? +CCWA: <n>
Command
+CCWA=? +CCWA: (list of supported <n>s)
Defined values
<n> (sets/shows the result code presentation status to the TE):
0 disable
1 enable
<mode> (when <mode> parameter is not given, network is not interrogated):
0 disable
1 enable
2 query status
<classx> is a sum of integers each representing a class of information
(default 7):
1 voice (telephony)
2 data (refers to all bearer services; with <mode>=2 this may refer only to
some bearer service if TA does not support values 16, 32, 64 and 128)
4 fax (facsimile services)
8 short message service
16 data circuit sync
32 data circuit async
64 dedicated packet access
WCDMA Module
28
128 dedicated PAD access
<status>:
0 not active
1 active
<number>: string type phone number of calling address in format specified
by <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<alpha>: optional string type alphanumeric representation of <number>
corresponding to the entry found in phonebook; used character set should
be the one selected with command Select TE Character Set +CSCS
<CLI validity>:
0 CLI valid
1 CLI has been withheld by the originator.
2 CLI is not available due to interworking problems or limitations of originating
network.
When CLI is not available (<CLI validity>=2), <number> shall be an empty string
("") and <type> value will not be significant. Nevertheless, TA may return the
recommended value 128 for <type> ((TON/NPI unknown in accordance with TS
24.008 [8] subclause 10.5.4.7).
When CLI has been withheld by the originator, (<CLI validity>=1) and the CLIP
is provisioned with the "override category" option (refer 3GPP TS 22.081[3] and
3GPP TS 23.081[40]), <number> and <type> is provided. Otherwise, TA shall
return the same setting for <number> and <type> as if the CLI was not available.
<subaddr>: string type subaddress of format specified by <satype>
<satype>: type of subaddress octet in integer format (refer TS 24.008 [8]
subclause 10.5.4.8)
<priority>: optional digit type parameter indicating that the eMLPP priority level
of the incoming call. The priority level values are as defined in eMLPP
specification 3GPP TS 22.067 [54].
3.23 +CHLD: Call related supplementary services +CHLD
Description
This command allows the control of the following call related services:
- a call can be temporarily disconnected from the MT but the connection is
retained by the network;
- multiparty conversation (conference calls);
- the served subscriber who has two calls (one held and the other either
active or alerting) can connect the other parties and release the served
subscriber's own connection.
Calls can be put on hold, recovered, released, added to conversation, and
transferred similarly as defined in 3GPP TS 22.030 [19]. Refer subclause 9.2 for
possible <err> values.
WCDMA Module
29
This is based on the GSM/UMTS supplementary services HOLD (Call Hold;
refer 3GPP TS 22.083 [5] clause 2), MPTY (MultiParty; refer 3GPP TS 22.084
[22]) and ECT (Explicit Call Transfer; refer 3GPP TS 22.091 [29]). The
interaction of this command with other commands based on other GSM/UMTS
supplementary services is described in the GSM/UMTS standards.
NOTE: Call Hold, MultiParty and Explicit Call Transfer are only applicable to
teleservice 11.
It is recommended (although optional) that test command returns a list of
operations which are supported. The call number required by some operations
shall be denoted by "x" (e.g. +CHLD: (0,1,1x,2,2x,3)).
+CHLD=[<n>] +CME ERROR: <err> Command
+CHLD=? [+CHLD: (list of supported <n>s)]
Defined values
<n>: integer type; equals to numbers entered before SEND button in 3GPP
TS 22.030 [19] subclause 4.5.5.1
NOTE: The "directory number" case shall be handled with dial command D,
and the END case with hangup command H (or +CHUP). The
4*"directory number" case is handled with +CTFR command.
3.24 +CCFC: Call forwarding number and conditions +CCFC
Description
This command allows control of the call forwarding supplementary service
according to 3GPP TS 22.082 [4].
Registration, erasure, activation, deactivation, and status query are supported.
When querying the status of a network
service (<mode>=2) the response line for 'not active' case (<status>=0) should
be returned only if service is not
active for any <class>.
+CCFC=<reason>,<mode>
[,<number>[,<type>
[,<class>
[,<subaddr>[,<satype>
[,<time>]]]]]]
+CME ERROR: <err>
when <mode>=2 and command
successful:
+CCFC:
<status>,<class1>[,<number>,<type>
[,<subaddr>,<satype>[,<time>]]][
<CR><LF>+CCFC:
<status>,<class2>[,<number>,<type>
[,<subaddr>,<satype>[,<time>]]]
[...]]
Command
+CCFC=? +CCFC: (list of supported <reason>s)
Defined values
<reason>:
0 unconditional
1 mobile busy
2 no reply
3 not reachable
WCDMA Module
30
4 all call forwarding (refer 3GPP TS 22.030 [19])
5 all conditional call forwarding (refer 3GPP TS 22.030 [19])
<mode>:
0 disable
1 enable
2 query status
3 registration
4 erasure
<number>: string type phone number of forwarding address in format specified
by <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7); default 145 when dialling
string includes international access code character "+", otherwise 129
<subaddr>: string type subaddress of format specified by <satype>
<satype>: type of subaddress octet in integer format (refer TS 24.008 [8]
subclause 10.5.4.8); default 128
<classx> is a sum of integers each representing a class of information (default
7):
1 voice (telephony)
2 data (refers to all bearer services; with <mode>=2 this may refer only to some
bearer service if TA does not
support values 16, 32, 64 and 128)
4 fax (facsimile services)
8 short message service
16 data circuit sync
32 data circuit async
64 dedicated packet access
128 dedicated PAD access
<time>:
1...30 when "no reply" is enabled or queried, this gives the time in seconds to
wait before call is forwarded,
default value 20
<status>:
0 not active
1 active
WCDMA Module
31
4 Network service related commands
4.1 +CNUM Subscriber number
Description
This command allows the transmission of DTMF tones and arbitrary tones (see
note). These tones may be used (for
example) when announcing the start of a recording period. The command is
write only. In this profile of commands,
this command does not operate in data or fax modes of operation
(+FCLASS=0,1,2-7).
+VTS=as above Command
+VTS=? (list
Defined values
1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted
as a single ACSII character whose
duration is set by the +VTD command.
NOTE 2: In GSM this operates only in voice mode.
2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of
frequencies <tone1> and <tone2>,
lasting for a time <duration> (in 10 ms multiples).
NOTE 3: This does not operate in GSM.
3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different duration
from that mandated by the
+VTD command.
4.2 +CREGNetwork registration
Description
This command allows the transmission of DTMF tones and arbitrary tones (see
note). These tones may be used (for
example) when announcing the start of a recording period. The command is
write only. In this profile of commands,
this command does not operate in data or fax modes of operation
(+FCLASS=0,1,2-7).
+VTS=as above Command
+VTS=? (list
Defined values
1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted
as a single ACSII character whose
duration is set by the +VTD command.
NOTE 2: In GSM this operates only in voice mode.
2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of
frequencies <tone1> and <tone2>,
lasting for a time <duration> (in 10 ms multiples).
NOTE 3: This does not operate in GSM.
3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different
WCDMA Module
32
duration from that mandated by the
+VTD command.
4.3 +COPS PLMN selection
Description
Set command forces an attempt to select and register the GSM/UMTS network
operator. <mode> is used to select
whether the selection is done automatically by the MT or is forced by this
command to operator <oper> (it shall be
given in format <format>) to a certain access technology, indicated in <AcT>. If
the selected operator is not
available, no other operator shall be selected (except <mode>=4). If the
selected access technology is not available,
then the same operator shall be selected in other access technology. The
selected operator name format shall apply to
further read commands (+COPS?) also. <mode>=2 forces an attempt to
deregister from the network. The selected
mode affects to all further network registration (e.g. after <mode>=2, MT shall
be unregistered until <mode>=0 or 1 is
selected). Refer subclause 9.2 for possible <err> values. This command should
be abortable when
registration/deregistration attempt is made.
Read command returns the current mode, the currently selected operator and
the current Access Technology. If no
operator is selected, <format>, <oper> and < AcT> are omitted.
Test command returns a set of five parameters, each representing an operator
present in the network. A set consists of
an integer indicating the availability of the operator <stat>, long and short
alphanumeric format of the name of the
operator, numeric format representation of the operator and access technology.
Any of the formats may be unavailable
and should then be an empty field. The list of operators shall be in order: home
network, networks referenced in SIM or
active application in the UICC (GSM or USIM) in the following order: HPLMN
selector, User controlled PLMN
selector, Operator controlled PLMN selector and PLMN selector (in the SIM or
GSM application), and other networks.
+COPS=[<mode>[,<format>
[,<oper>[,< AcT>]]]]
+CME ERROR: <err>
Command
+COPS?
+COPS: <mode>[,<format>,<oper>[,<
AcT>]]
+CME ERROR: <err>
WCDMA Module
33
+COPS=?
+COPS: [list of supported (<stat>,long
alphanumeric <oper>
,short alphanumeric <oper>,numeric
<oper>[,< AcT>])s]
[,,(list of supported <mode>s),(list of
supported <format>s)]
+CME ERROR: <err>
Defined values
<mode>：
0 automatic (<oper> field is ignored)
1 manual (<oper> field shall be present, and <AcT> optionally)
2 deregister from network
3 set only <format> (for read command +COPS?), do not attempt
registration/deregistration (<oper> and <
AcT> fields are ignored); this value is not applicable in read command response
4 manual/automatic (<oper> field shall be present); if manual selection fails,
automatic mode (<mode>=0) is
entered
<format>:
0 long format alphanumeric <oper>
1 short format alphanumeric <oper>
2 numeric <oper>
<oper>: string type; <format> indicates if the format is alphanumeric or numeric;
long alphanumeric format can
be upto 16 characters long and short format up to 8 characters (refer GSM MoU
SE.13 [9]); numeric format is
the GSM Location Area Identification number (refer TS 24.008 [8] subclause
10.5.1.3) which consists of a three
BCD digit country code coded as in ITU-T E.212 Annex A [10], plus a two BCD
digit network code, which is
administration specific; returned <oper> shall not be in BCD format, but in IRA
characters converted from
BCD; hence the number has structure: (country code digit 3)(country code digit
2)(country code digit 1)(network
code digit 3)(network code digit 2)(network code digit 1)
<stat>:
0 unknown
1 available
2 current
3 forbidden
<AcT> access technology selected:
0 GSM
1 GSM Compact
2 UTRAN
WCDMA Module
34
4.4 +CLCK Facility lock
Description
Execute command is used to lock, unlock or interrogate a MT or a network
facility <fac>. Password is normally
needed to do such actions. When querying the status of a network service
(<mode>=2) the response line for 'not active'
case (<status>=0) should be returned only if service is not active for any
<class>. Refer subclause 9.2 for possible
<err> values. This command should be abortable when network facilities are set
or interrogated.
Call barring facilities are based on GSM/UMTS supplementary services (refer
3GPP TS 22.088 [6]). The interaction of
these with other commands based on other GSM/UMTS supplementary
services is described in the GSM/UMTS
standard.
Test command returns facility values supported as a compound value.
Command
AT+CLCK+CLCK=<fac>,<mode>[,<passwd>[,<class>]]
Defined values <fac> values reserved by the present document:
"CS" CNTRL (lock CoNTRoL surface (e.g. phone keyboard))
"PS" PH-SIM (lock PHone to SIM/UICC card) (MT asks password when other
than current SIM/UICC card
inserted; MT may remember certain amount of previously used cards thus not
requiring password when they
are inserted)
"PF" lock Phone to the very First inserted SIM/UICC card (also referred in the
present document as PH-FSIM)
(MT asks password when other than the first SIM/UICC card is inserted)
"SC" SIM (lock SIM/UICC card) (SIM/UICC asks password in MT power-up and
when this lock command
issued)
"AO" BAOC (Barr All Outgoing Calls) (refer 3GPP TS 22.088 [6] clause 1)
"OI" BOIC (Barr Outgoing International Calls) (refer 3GPP TS 22.088 [6] clause
1)
"OX" BOIC-exHC (Barr Outgoing International Calls except to Home Country)
(refer 3GPP TS 22.088 [6] clause
1)
"AI" BAIC (Barr All Incoming Calls) (refer 3GPP TS 22.088 [6] clause 2)
"IR" BIC-Roam (Barr Incoming Calls when Roaming outside the home country)
(refer 3GPP TS 22.088 [6] clause
2)
"NT" barr incoming calls from numbers Not stored to TA memory
"NM" barr incoming calls from numbers Not stored to MT memory
"NS" barr incoming calls from numbers Not stored to SIM/UICC memory
"NA" barr incoming calls from numbers Not stored in Any memory
"AB" All Barring services (refer 3GPP TS 22.030 [19]) (applicable only for
<mode>=0)
WCDMA Module
35
"AG" All outGoing barring services (refer 3GPP TS 22.030 [19]) (applicable only
for <mode>=0)
"AC" All inComing barring services (refer 3GPP TS 22.030 [19]) (applicable only
for <mode>=0)
"FD" SIM card or active application in the UICC (GSM or USIM) fixed dialling
memory feature (if PIN2
authentication has not been done during the current session, PIN2 is required
as <passwd>)
"PN" Network Personalization (refer 3GPP TS 22.022 [33])
"PU" network sUbset Personalization (refer 3GPP TS 22.022 [33])
"PP" service Provider Personalization (refer 3GPP TS 22.022 [33])
"PC" Corporate Personalization (refer 3GPP TS 22.022 [33])
<mode>:
0 unlock
1 lock
2 query status
<status>:
0 not active
1 active
<passwd>: string type; shall be the same as password specified for the facility
from the MT user interface or with
command Change Password +CPWD
<classx> is a sum of integers each representing a class of information (default
7):
1 voice (telephony)
2 data (refers to all bearer services; with <mode>=2 this may refer only to some
bearer service if TA does not
support values 16, 32, 64 and 128)
4 fax (facsimile services)
8 short message service
16 data circuit sync
32 data circuit async
64 dedicated packet access
128 dedicated PAD access
4.5 +CPWD Change password
Description
Action command sets a new password for the facility lock function defined by
command Facility Lock +CLCK. Refer
subclause 9.2 for possible <err> values.
Test command returns a list of pairs which present the available facilities and
the maximum length of their password.
Command
+CPWD=<fac>,<oldpwd>,<newpwd
> +CME ERROR: <err>
WCDMA Module
36
+CPWD=?
+CPWD: list of supported
(<fac>,<pwdlength>)s
+CME ERROR: <err>
Defined values
<fac>:
"P2" SIM PIN2
refer Facility Lock +CLCK for other values
<oldpwd>, <newpwd>: string type; <oldpwd> shall be the same as password
specified for the facility from the
MT user interface or with command Change Password +CPWD and <newpwd>
is the new password; maximum
length of password can be determined with <pwdlength>
<pwdlength>: integer type maximum length of the password for the facility
4.6 +CLIP Calling line identification presentation
Description
This command refers to the GSM/UMTS supplementary service CLIP (Calling
Line Identification Presentation) that
enables a called subscriber to get the calling line identity (CLI) of the calling
party when receiving a mobile terminated
call. Set command enables or disables the presentation of the CLI at the TE. It
has no effect on the execution of the
supplementary service CLIP in the network.
When the presentation of the CLI at the TE is enabled (and calling subscriber
allows), +CLIP:
<number>,<type>[,<subaddr>,<satype>[,[<alpha>][,<CLI validity>]]] response is
returned
after every RING (or +CRING: <type>; refer subclause "Cellular result codes
+CRC") result code sent from TA to
TE. It is manufacturer specific if this response is used when normal voice call is
answered.
Read command gives the status of <n>, and also triggers an interrogation of the
provision status of the CLIP service
according 3GPP TS 22.081 [3] (given in <m>).Test command returns values
supported as a compound value.
+CLIP=[<n>]
+CLIP? +CLIP: <n>,<m>
Command
+CLIP=? +CLIP: (list of supported <n>s)
Defined values <n> (parameter sets/shows the result code presentation status to the TE):
0 disable
1 enable
<m> (parameter shows the subscriber CLIP service status in the network):
0 CLIP not provisioned
1 CLIP provisioned
WCDMA Module
37
2 unknown (e.g. no network, etc.)
<number>: string type phone number of format specified by <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<subaddr>: string type subaddress of format specified by <satype>
<satype>: type of subaddress octet in integer format (refer TS 24.008 [8]
subclause 10.5.4.8)
<alpha>: optional string type alphanumeric representation of <number>
corresponding to the entry found in
phonebook; used character set should be the one selected with command
Select TE Character Set +CSCS
<CLI validity>:
0 CLI valid
1 CLI has been withheld by the originator.
2 CLI is not available due to interworking problems or limitations of originating
network.
4.7 +CLIR Calling line identification restriction
Description
This command refers to CLIR-service according to 3GPP TS 22.081 [3] that
allows a calling subscriber to enable or
disable the presentation of the CLI to the called party when originating a call.
Set command overrides the CLIR subscription (default is restricted or allowed)
when temporary mode is provisioned as
a default adjustment for all following outgoing calls. This adjustment can be
revoked by using the opposite command..
If this command is used by a subscriber without provision of CLIR in permanent
mode the network will act according
3GPP TS 22.081 [3].
Read command gives the default adjustment for all outgoing calls (given in <n>),
and also triggers an interrogation of
the provision status of the CLIR service (given in <m>). Test command returns
values supported as a compound value.
+CLIR=[<n>]
+CLIR? +CLIR: <n>,<m>
Command
+CLIR=?
+CLIR: (list of supported <n>s)
Defined values
<n> (parameter sets the adjustment for outgoing calls):
0 presentation indicator is used according to the subscription of the CLIR
service
1 CLIR invocation
2 CLIR suppression
<m> (parameter shows the subscriber CLIR service status in the network):
0 CLIR not provisioned
WCDMA Module
38
1 CLIR provisioned in permanent mode
2 unknown (e.g. no network, etc.)
3 CLIR temporary mode presentation restricted
4 CLIR temporary mode presentation allowed
4.8 +COLP Connected line identification presentation
Description
This command refers to the GSM/UMTS supplementary service COLP
(Connected Line Identification Presentation)
that enables a calling subscriber to get the connected line identity (COL) of the
called party after setting up a mobile
originated call. The command enables or disables the presentation of the COL
at the TE. It has no effect on the
execution of the supplementary service COLR in the network.
When enabled (and called subscriber allows), +COLP:
<number>,<type>[,<subaddr>,<satype> [,<alpha>]] intermediate result code is
returned from TA to
TE before any +CR or V.250 [14] responses. It is manufacturer specific if this
response is used when normal voice call
is established.
Read command gives the status of <n>, and also triggers an interrogation of the
provision status of the COLP service
according 3GPP TS 22.081 [3] (given in <m>).
Test command returns values supported as a compound value.
+COLP=[<n>]
+COLP?
+COLP: <n>,<m>
Command
+COLP=?
+COLP: (list of supported <n>s)
Defined values
<n> (parameter sets/shows the result code presentation status to the TE):
0 disable
1 enable
<m> (parameter shows the subscriber COLP service status in the network):
0 COLP not provisioned
1 COLP provisioned
2 unknown (e.g. no network, etc.)
<number>, <type>, <subaddr>, <satype>, <alpha>: refer +CLIP
4.9 +CDIP Called line identification presentation
Description
This command related to a network service that provides "multiple called
numbers (called line identifications) service"
to an MT. This command enables a called subscriber to get the called line
identification of the called party when
WCDMA Module
39
receiving a mobile terminated call. Set command enables or disables the
presentation of the called line identifications at
the TE.
When the presentation of the called line identification at the TE is enabled,
+CDIP:<number>,<type>[,<subaddr>,<satype>] response is returned after
every RING (or +CRING:
<type>; refer subclause "Cellular result codes +CRC") result code sent from TA
to TE. It is manufacturer specific if
this response is used when normal voice call is answered.
Read command gives the status of <n>, and also triggers an interrogation of the
provision status of the "multiple called
numbers" service. Test command returns values supported as a compound
value.
+CDIP=[<n>]
+CDIP?
+CDIP: <n>,<m>
Command
+CDIP=?
+CDIP: (list of supported <n>s)
Defined values
<n> (parameter sets/shows the result code presentation status to the TE):
0 disable
1 enable
<m> (parameter shows the subscriber "multiple called numbers" service status
in the network):
0 "multiple called numbers service" is not provisioned
1 "multiple called numbers service" is provisioned
2 unknown (e.g. no network, etc.)
<number>: string type phone number of format specified by <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<subaddr>: string type subaddress of format specified by <satype>
<satype>: type of subaddress octet in integer format (refer TS 24.008 [8]
subclause 10.5.4.8)
4.10 +CPOL Preferred PLMN list
Description This command is used to edit the PLMN selector with Access Technology lists in
the SIM card or active application in
the UICC(GSM or USIM).
Execute command writes an entry in the SIM/USIM list of preferred PLMNs,
previously selected by the command
+CPLS. If no list has been previously selected, the User controlled PLMN
selector with Access Technology,
EFPLMNwAcT, is the one accessed by default. If <index> is given but <oper> is
left out, entry is deleted. If <oper> is
WCDMA Module
40
given but <index> is left out, <oper> is put in the next free location. If only
<format> is given, the format of the
<oper> in the read command is changed. The Access Technology selection
parameters, <GSM_AcT>,
<GSM_Compact_AcT> and <UTRAN_AcT>, are required when writing User
controlled PLMN selector with Access
Technology, EF EFPLMNwAcT, Operator controlled PLMN selector with Access
Technology EFOPLMNwAcT and HPLMN
selector with Access Technology EFHPLMNwAcT, see TS 31.102. Refer
subclause 9.2 for possible <err> values.
+CPOL=[<index>][,
<format>[,<oper>[,<GS
M_AcT>,<GSM_Compact_A
cT>,<UTRAN_AcT>]]]
+CME ERROR: <err>
+CPOL?
+CPOL:
<index1>,<format>,<oper1>[,<GSM_AcT1
>,<GSM_Com
pact_AcT1>,<UTRAN_AcT1>]
[<CR><LF>+CPOL:
<index2>,<format>,<oper2>[,<GSM_AcT2
>,<GSM_Com
pact_AcT2>,<UTRAN_AcT2>]
[...]]
+CME ERROR: <err>
Command
+CPOL=?
+CPOL: (list of supported <index>s),(list of
supported
<format>s)
+CME ERROR: <err>
Defined values
<indexn>: integer type; the order number of operator in the SIM/USIM preferred
operator list
<format>:
0 long format alphanumeric <oper>
1 short format alphanumeric <oper>
2 numeric <oper>
<opern>: string type; <format> indicates if the format is alphanumeric or numeric
(see +COPS)
<GSM_AcTn>: GSM access technology:
0 access technology not selected
1 access technology selected
<GSM_Compact_AcTn>: GSM compact access technology:
0 access technology not selected
1 access technology selected
WCDMA Module
41
<UTRA_AcTn>: UTRA access technology:
0 access technology not selected
1 access technology selected
4.11 +CPLS Selection of preferred PLMN list
Description This command is used to select one PLMN selector with Access Technology list
in the SIM card or active application
in the UICC(GSM or USIM), that is used by +CPOL command.
Execute command selects a list in the SIM/USIM. Refer subclause 9.2 for
possible <err> values.
Read command returns the selected PLMN selector list from the SIM/USIM
Test command returns the whole index range supported lists by the SIM./USIM
+CPLS=<list>
+CME ERROR: <err>
+CPLS?
+CPLS: <list>
+CME ERROR: <err>
Command
+CPLS=?
+CPLS: (list of supported <list>s)
+CME ERROR: <err>
Defined values
<list>:
0 User controlled PLMN selector with Access Technology EFPLMNwAcT, if not
found in the SIM/UICC then PLMN
preferred list EFPLMNsel (this file is only available in SIM card or GSM
application selected in UICC)
1 Operator controlled PLMN selector with Access Technology EFOPLMNwAcT
2 HPLMN selector with Access Technology EFHPLMNwAcT
4.12 +COPN Read operator names
Description Execute command returns the list of operator names from the MT. Each
operator code <numericn> that has an
alphanumeric equivalent <alphan> in the MT memory shall be returned. Refer
subclause 9.2 for possible <err>
values.
WCDMA Module
42
+COPN
+COPN: <numeric1>,<alpha1>
[<CR><LF>+COPN: <numeric2>,<alpha2>
[...]]
+CME ERROR: <err>
+COPN=?
Command
Defined values
<numericn>: string type; operator in numeric format (see +COPS)
<alphan>: string type; operator in long alphanumeric format (see +COPS)
4.13 +CGREG GPRS network registration status
Description The set command controls the presentation of an unsolicited result code
+CGREG: <stat> when <n>=1 and there is
a change in the MT's GPRS network registration status, or code +CGREG:
<stat>[,<lac>,<ci>] when <n>=2
and there is a change of the network cell.
The read command returns the status of result code presentation and an integer
<stat> which shows whether the
network has currently indicated the registration of the MT. Location information
elements <lac> and <ci> are
returned only when <n>=2 and MT is registered in the network.
+CGREG=[<n>]
+CGREG: <n>,<stat>[,<lac>,<ci>]
+CME ERROR: <err>
+ CGREG =?
+CGREG: (list of supported <n>s)
Command
+ CGREG? +CGREG: <n>,<stat>[,<lac>,<ci>]
+CME ERROR: <err>
Defined values
0 disable network registration unsolicited result code
1 enable network registration unsolicited result code +CGREG: <stat>
2 enable network registration and location information unsolicited result code
+CGREG:
<stat>[,<lac>,<ci>]
<stat>:
0 not registered, MT is not currently searching an operator to register to
The UE is in GMM state GMM-NULL or GMM-DEREGISTERED-INITIATED.
The GPRS service is disabled, the UE is allowed to attach for GPRS if
requested by the user.
1 registered, home network
The UE is in GMM state GMM-REGISTERED or
GMM-ROUTING-AREA-UPDATING-INITIATED
INITIATED on the home PLMN.
WCDMA Module
43
2 not registered, but MT is currently trying to attach or searching an operator to
register to
The UE is in GMM state GMM-DEREGISTERED or
GMM-REGISTERED-INITIATED. The GPRS service is
enabled, but an allowable PLMN is currently not available. The UE will start a
GPRS attach as soon as an
allowable PLMN is available.
3 registration denied
The UE is in GMM state GMM-NULL. The GPRS service is disabled, the UE is
not allowed to attach for GPRS
if requested by the user.
4 unknown
5 registered, roaming
The UE is in GMM state GMM-REGISTERED or
GMM-ROUTING-AREA-UPDATING-INITIATED on a
visited PLMN.
<lac>: string type; two byte location area code in hexadecimal format (e.g.
"00C3" equals 195 in decimal)
<ci>: string type; two byte cell ID in hexadecimal format
4.14 +IPR Fixed DTE Rate
Description This command specifies the data rate at which the DCE will accept commands.
+ IPR=[<n>]
+CME ERROR: <err>
+ IPR =?
+ ECHO: <level>
+CME ERROR: <err>
Command
+ IPR? + SIDET: (list of supported <level>s)
+CME ERROR: <err>
Defined values
0 Enable autobaud
38400 Disable autobaud and set rate to
38400 bps
4.15 +FCLASS Select mode
Description This command puts the TA into a particular mode of operation (data, fax, voice
etc.). This causes the TA to process
information in a manner suitable for that type of information (rather than for other
types of information).
Voice mode is of particular interest here, and has an additional result code
+VCON. Specifically, +VCON indicates that
the TA is entering the voice command mode and there is a voice connection to
at least one audio input or output. This
WCDMA Module
44
presupposes that some mechanism has previously initiated a connection to that
audio I/O.
+ FCLASS=[<n>]
+CME ERROR: <err>
+ FCLASS =?
+ ECHO: <level>
+CME ERROR: <err>
Command
+ FCLASS? + SIDET: (list of supported <level>s)
+CME ERROR: <err>
Defined values
0 data
1 fax class 1 (TIA-578-A)
1.0 fax class 1 (ITU-T T.31 [11])
2 fax (manufacturer specific)
2.0 fax class 2 (ITU-T T.32 [12] and TIA-592)
3...7 reserved for other fax modes
8 voice
9...15 reserved for other voice modes
16..79 reserved
80 VoiceView (Radish)
5 Mobile Termination control and status commands
5.1 +CPAS Phone activity status
Description
Execution command returns the activity status <pas> of the MT. It can be used
to interrogate the MT before requesting
action from the phone. Refer subclause 9.2 for possible <err> values.
Test command returns values supported by the MT as a compound value.
+CPAS
+CPAS: <pas>
+CME ERROR: <err>
command
+CPAS=?
+CPAS: (list of supported <pas>s)
+CME ERROR: <err>
Defined values
<pas>:
0 ready (MT allows commands from TA/TE)
1 unavailable (MT does not allow commands from TA/TE)
2 unknown (MT is not guaranteed to respond to instructions)
3 ringing (MT is ready for commands from TA/TE, but the ringer is active)
4 call in progress (MT is ready for commands from TA/TE, but a call is in
WCDMA Module
45
progress)
5 asleep (MT is unable to process commands from TA/TE because it is in a low
functionality state)
also all other values below 128 are reserved by the present document.
5.2 +CFUN Set phone functionality
Description Set command selects the level of functionality <fun> in the MT. Level "full
functionality" is where the highest level of
power is drawn. "Minimum functionality" is where minimum power is drawn.
Level of functionality between these may
also be specified by manufacturers. When supported by manufacturers, MT
resetting with <rst> parameter may be
utilized. Refer subclause 9.2 for possible <err> values.
+CFUN=[<fun>[,<rst>]]
+CME ERROR: <err>
+CFUN?
+CFUN: <fun>
+CME ERROR: <err>
command
+CFUN=?
+CFUN: (list of supported <fun>s), (list of
supported <rst>s)
+CME ERROR: <err>
Defined values
<fun>:
0 minimum functionality
1 full functionality
2 disable phone transmit RF circuits only
3 disable phone receive RF circuits only
4 disable phone both transmit and receive RF circuits
5...127 reserved for manufacturers as intermediate states between full and
minimum functionality
<rst>:
0 do not reset the MT before setting it to <fun> power level
NOTE: This shall be always default when <rst> is not given.
1 reset the MT before setting it to <fun> power level
WCDMA Module
46
5.3 +CPIN Enter PIN
Description Set command sends to the MT a password which is necessary before it can be
operated (SIM PIN, SIM PUK, PH-SIM
PIN, etc.). If the PIN is to be entered twice, the TA shall automatically repeat the
PIN. If no PIN request is pending, no
action is taken towards MT and an error message, +CME ERROR, is returned to
TE. Refer subclause 9.2 for possible
<err> values.
If the PIN required is SIM PUK or SIM PUK2, the second pin is required. This
second pin, <newpin>, is used to
replace the old pin in the SIM.
+CPIN=<pin>[,<newpin>] +CME ERROR: <err>
+CPIN?
+CPIN: <code>
+CME ERROR: <err>
command
+CPIN=?
Defined values
<pin>, <newpin>: string type values
<code> values reserved by the present document:
READY MT is not pending for any password
SIM PIN MT is waiting SIM PIN to be given
SIM PUK MT is waiting SIM PUK to be given
PH-SIM PIN MT is waiting phone-to-SIM card password to be given
PH-FSIM PIN MT is waiting phone-to-very first SIM card password to be given
PH-FSIM PUK MT is waiting phone-to-very first SIM card unblocking password
to be given
SIM PIN2 MT is waiting SIM PIN2 to be given (this <code> is recommended to
be returned only when the
last executed command resulted in PIN2 authentication failure (i.e. +CME
ERROR: 17); if PIN2
is not entered right after the failure, it is recommended that MT does not block its
operation)
SIM PUK2 MT is waiting SIM PUK2 to be given (this <code> is recommended to
be returned only when the
last executed command resulted in PUK2 authentication failure (i.e. +CME
ERROR: 18); if
PUK2 and new PIN2 are not entered right after the failure, it is recommended
that MT does not
block its operation)
PH-NET PIN MT is waiting network personalization password to be given
PH-NET PUK MT is waiting network personalization unblocking password to be
given
PH-NETSUB PIN MT is waiting network subset personalization password to be
given
PH-NETSUB PUK MT is waiting network subset personalization unblocking
password to be given
PH-SP PIN MT is waiting service provider personalization password to be given
PH-SP PUK MT is waiting service provider personalization unblocking password
WCDMA Module
47
to be given
PH-CORP PIN MT is waiting corporate personalization password to be given
PH-CORP PUK MT is waiting corporate personalization unblocking password to
be given
5.4 +CSQ Signal quality
Description Execution command returns received signal strength indication <rssi> and
channel bit error rate <ber> from the
MT. Refer subclause 9.2 for possible <err> values.
+CSQ
+CSQ: <rssi>,<ber>
+CME ERROR: <err>
command
+CSQ=?
+CSQ: (list of supported <rssi>s),(list of
supported <ber>s)
Defined values
<rssi>:
0 -113 dBm or less
1 -111 dBm
2...30 -109... -53 dBm
31 -51 dBm or greater
99 not known or not detectable
<ber> (in percent):
0...7 as RXQUAL values in the table in TS 45.008 [20] subclause 8.2.4
99 not known or not detectable
5.5 +CCLK Clock
Description
Set command transmits to the MT the <command> it then shall send as it is to
the SIM.
+CCLK=<time> +CME ERROR: <err>
+CCLK?
+CCLK: <time>
+CME ERROR: <err>
Command
+CCLK=?
Defined values
<time>: string type value; format is "yy/MM/dd,hh:mm:ss zz", where characters
indicate year (two last digits),
month, day, hour, minutes, seconds and time zone (indicates the difference,
expressed in quarters of an hour,
between the local time and GMT; range -96...+96). E.g. 6th of May 1994,
WCDMA Module
48
22:10:00 GMT+2 hours equals to
"94/05/06,22:10:00+08"
5.6 +CSIM
Description
Set command transmits to the MT the <command> it then shall send as it is to
the SIM.
Command
at+CSIM=<length>,<command>
Defined values
<length> : integer type; length of the characters that are sent to TE in
<command> or <response> (two times
the actual length of the command or response)
<command> : command passed on by the MT to the SIM in the format as
described in GSM 51.011 [28]
(hexadecimal character format; refer +CSCS)
<response> : response to the command passed on by the SIM to the MT in the
format as described in
GSM 51.011 [28] (hexadecimal character format; refer +CSCS)
5.7 +CRSM
Description
By using this command instead of Generic SIM Access +CSIM TE application
has easier but more limited access to the
SIM database. Set command transmits to the MT the SIM <command> and its
required parameters. MT handles
internally all SIM-MT interface locking and file selection routines. As response to
the command, MT sends the actual
SIM information parameters and response data. MT error result code +CME
ERROR may be returned when the
command cannot be passed to the SIM, but failure in the execution of the
command in the SIM is reported in <sw1>
and <sw2> parameters. Refer to subclause 9.2 for <err> values.
Coordination of command requests to SIM and the ones issued by GSM/UMTS
application inside the MT is
implementation dependent. However the TE should be aware of the precedence
of the GSM/UMTS application
commands to the TE commands.
Command
+CRSM=<command>[,<fileid>
[,<P1>,<P2>,<P3>
[,<data>[,<pathid>]]]]
WCDMA Module
49
Defined values <command> (command passed on by the MT to the SIM; refer GSM 51.011
[28]):
176 READ BINARY
178 READ RECORD
192 GET RESPONSE
214 UPDATE BINARY
220 UPDATE RECORD
242 STATUS
203 RETRIEVE DATA
219 SET DATA
5.8 +CLAC
Description
Execution command causes the MT to return one or more lines of AT
Commands.
+CLAC
+CLAC
<AT Command1> [<CR> <LF> <AT
Command2>[…]]
+CME ERROR: <err>
Command
+CLAC=?
+CME ERROR: <err>
Defined values <command> (command passed on by the MT to the SIM; refer GSM 51.011
[28]):
176 READ BINARY
178 READ RECORD
192 GET RESPONSE
214 UPDATE BINARY
220 UPDATE RECORD
242 STATUS
203 RETRIEVE DATA
219 SET DATA
5.9 +CTZU
Description
Set command enables and disables automatic time zone update via NITZ. If
setting fails in an MT error, +CME
ERROR: <err> is returned. Refer subclause 9.2 for <err> values.
Read command returns the current settings in the MT.
Test command returns supported on- and off-values.
+CTZU=<onoff> +CME ERROR: <err> Command
+CTZU? +CTZU: <onoff>
+CME ERROR: <err>
WCDMA Module
50
+CTZU=? +CTZU: (list of supported <onoff>s)
+CME ERROR: <err>
Defined values <onoff>: integer type value indicating:
0 – Disable automatic time zone update via NITZ (default).
1 – Enable automatic time zone update via NITZ.
5.10 +CTZR
Description
This set command enables and disables the time zone change event reporting.
If the reporting is enabled the MT returns
the unsolicited result code +CTZV: <tz> whenever the time zone is changed. If
setting fails in an MT error, +CME
ERROR: <err> is returned. Refer subclause 9.2 for <err> values.
Read command returns the current reporting settings in the MT.
Test command returns supported <onoff>-values.
+CTZR=<onoff>
+CME ERROR: <err>
+CTZR?
+CTZR: <onoff>
+CME ERROR: <err>
Command
+CTZR=?
+CTZR: (list of supported <onoff>s)
+CME ERROR: <err>
Defined values
<onoff>: integer type value indicating:
0 – disable time zone change event reporting (default).
1 – Enable time zone change event reporting.
5.11 +CLVL Loudspeaker volume level
Description
This command is used to select the volume of the internal loudspeaker of the
MT. Refer subclause 9.2 for possible
<err> values.
Test command returns supported values as compound value.
+CLVL=<level> +CME ERROR: <err>
+ CLVL?
+CLVL: <level>
+CME ERROR: <err>
Command
+ CLVL =?
+CLVL: (list of supported <level>s)
+CME ERROR: <err>
WCDMA Module
51
Defined values
<level>: integer type value with manufacturer specific range (smallest value
represents the lowest sound level)
5.12 +ECHO Echo Cancellation
Description
This command is used to enable, disable or configure the Echo Cancellation
functions for
voice calls (in rooms, in cars, etc.). The +SPEAKER function automatically sets
echo
cancellation based upon handset or headset choice and this command allows
non-standard
operation.
+ECHO=<level> +CME ERROR: <err>
+ ECHO?
+ ECHO: <level>
+CME ERROR: <err>
Command
+ ECHO =?
+ ECHO: (list of supported <level>s)
+CME ERROR: <err>
Defined values
0: Vocoder Echo Cancellation Off
1: Ear Seal Echo Cancellation
2: Head Set Echo Cancellation
3: AEC
4: Speaker Echo Cancellation for car kit operation
5: Default Echo Cancellation for current path settings
5.13 +SIDET Side Tone Modification
Description
This command is used to set the level of audio feedback in the speaker
(microphone
feedback in the speaker).
AT+SIDET=1,0 +CME ERROR: <err>
+ SIDET?
+ SIDET: <level>
+CME ERROR: <err>
Command
+ SIDET=?
+ SIDET: (list of supported <level>s)
+CME ERROR: <err>
Defined values
<val1>
0: Sidetone is disabled
1: Sidetone is enabled
<val2>
0: No side tone
1: Handset Sidetone levels
2: Headset Sidetone levels
3: Max Sidetone level
WCDMA Module
52
6 SMS command
6.1 +CMGC: Send Command
Description
Execution command sends a command message from a TE to the network
(SMS-COMMAND). The entering of PDU is
done similarly as specified in command Send Message +CMGS. Message
reference value <mr> is returned to the TE on
successful message delivery. Optionally (when +CSMS <service> value is 1
and network supports) <ackpdu> is
returned. Values can be used to identify message upon unsolicited delivery
status report result code. If sending fails in a
network or an ME error, final result code +CMS ERROR: <err> is returned. See
chapter Message Service Failure
Result Code for a list of <err> values. This command should be abortable.
Command
if PDU mode (+CMGF=0):
+CMGC=<length><CR>
PDU is given<ctrl-Z/ESC>
if PDU mode (+CMGF=0) and sending
successful:
+CMGC: <mr>[,<ackpdu>]
if sending fails:
+CMS ERROR: <err>
Defined values
6.2 6.2 +CMGD: Delete Message
Description
Execution command deletes message from preferred message storage
<mem1> location <index>. If <delflag> is
present and not set to 0 then the ME shall ignore <index> and follow the rules
for <delflag> shown below. If deleting
fails, final result code +CMS ERROR: <err> is returned. See chapter Message
Service Failure Result Code for
<err> values.
Test command shows the valid memory locations and optionally the supported
values of <delflag>.
Command
Defined values
<delflag>: an integer indicating multiple message deletion request as follows:
0 (or omitted) Delete the message specified in <index>
1 Delete all read messages from preferred message storage, leaving unread
messages and stored
mobile originated messages (whether sent or not) untouched
2 Delete all read messages from preferred message storage and sent mobile
WCDMA Module
53
originated messages,
leaving unread messages and unsent mobile originated messages untouched
3 Delete all read messages from preferred message storage, sent and unsent
mobile originated
messages leaving unread messages untouched.
4 Delete all messages from preferred message storage including unread
messages.
6.3 +CMGF: Message Format
Description
Set command tells the TA, which input and output format of messages to use.
<mode> indicates the format of messages
used with send, list, read and write commands and unsolicited result codes
resulting from received messages. Mode can
be either PDU mode (entire TP data units used) or text mode (headers and body
of the messages given as separate
parameters). Text mode uses the value of parameter <chset> specified by
command Select TE Character Set +CSCS
to inform the character set to be used in the message body in the TA-TE
interface.
Test command returns supported modes as a compound value.
+CMGF=[<mode>]
+CMGF?
+CMGF: <mode>
Command
+CMGF=?
+CMGF: (list of supported <mode>s)
Defined values
<mode>:
0 PDU mode (default when implemented)
1 text mode
6.4 +CMGL: List Messages
Description
Execution command returns messages with status value <stat> from preferred
message storage <mem1> to the TE.
Entire data units <pdu> are returned. If status of the message is 'received
unread', status in the storage changes to
'received read'. If listing fails, final result code +CMS ERROR: <err> is returned.
See chapter Message Service
Failure Result Code for <err> values.
Test command shall give a list of all status values supported by the TA.
WCDMA Module
54
+CMGL[=<stat>]
if PDU mode (+CMGF=0) and
command successful:
+CMGL:
<index>,<stat>,[<alpha>],<length><CR>
<LF><pdu>
[<CR><LF>+CMGL:<index>,<stat>,[<alp
ha>],<length><CR><LF><pdu>
[...]]
otherwise:
+CMS ERROR: <err>
Command
+CMGL=?
+CMGL: (list of supported <stat>s)
Defined values
6.5 +CMGR: Read Message
Description
Execution command returns message with location value <index> from
preferred message storage <mem1> to the TE.
Status of the message and entire message data unit <pdu> is returned. If status
of the message is 'received unread',
status in the storage changes to 'received read'. If reading fails, final result code
+CMS ERROR: <err> is returned.
See chapter Message Service Failure Result Code for <err> values.
+CMGR=<index>，<mode>
if PDU mode (+CMGF=0) and
command successful:
+CMGR:
<stat>,[<alpha>],<length><CR><LF><pd
u>
otherwise:
+CMS ERROR: <err>
Command
+CMGR=?
Defined values
Mode:
0:changed the unread flag
1:not changed the unread flag
6.6 +CMGS: Send Message
Description
Execution command sends message from a TE to the network (SMS-SUBMIT).
Message reference value <mr> is
returned to the TE on successful message delivery. Optionally (when +CSMS
WCDMA Module
55
<service> value is 1 and network
supports) <ackpdu> is returned. Values can be used to identify message upon
unsolicited delivery status report result
code. If sending fails in a network or an ME error, final result code +CMS
ERROR: <err> is returned. See chapter
Message Service Failure Result Code for a list of <err> values. This command
should be abortable.
- <length> must indicate the number of octets coded in the TP layer data unit to
be given (i.e. SMSC address
octets are excluded)
- the TA shall send a four character sequence
<CR><LF><greater_than><space> (IRA 13, 10, 62, 32)
after command line is terminated with <CR>; after that PDU can be given from
TE to ME/TA
- the DCD signal shall be in ON state while PDU is given
- the echoing of given characters back from the TA is controlled by V.25ter echo
command E
- the PDU shall be hexadecimal format (similarly as specified for <pdu>) and
given in one line; ME/TA converts
this coding into the actual octets of PDU
- when the length octet of the SMSC address (given in the PDU) equals zero, the
SMSC address set with command
Service Centre Address +CSCA is used; in this case the SMSC
Type-of-Address octet shall not be present in the
PDU, i.e. TPDU starts right after SMSC length octet
- sending can be cancelled by giving <ESC> character (IRA 27)
- <ctrl-Z> (IRA 26) must be used to indicate the ending of PDU
if PDU mode (+CMGF=0):
+CMGS=<length><CR>
PDU is given<ctrl-Z/ESC>
if PDU mode (+CMGF=0) and sending
successful:
+CMGS: <mr>[,<ackpdu>]
if sending fails:
+CMS ERROR: <err>
Command
+CMGS=?
Defined values
6.7 +CMGW: Write Message to Memory
Description
Execution command stores a message to memory storage <mem2>. Memory
location <index> of the stored message is
returned. By default message status will be set to 'stored unsent', but parameter
<stat> allows also other status values
to be given. (ME/TA manufacturer may choose to use different default <stat>
WCDMA Module
56
values for different message types.)
The entering of PDU is done similarly as specified in command Send Message
+CMGS. If writing fails, final result code
+CMS ERROR: <err> is returned. See chapter Message Service Failure Result
Code for <err> values.
if PDU mode (+CMGF=0):
+CMGW=<length>[,<stat>]<CR>PD
U is given<ctrl-Z/ESC>
+CMGW: <index>
+CMS ERROR: <err>
Command
+CMGW=?
Defined values
6.8 +CMSS: Send Message from Storage
Description
Execution command sends message with location value <index> from message
storage <mem2> to the network (SMSSUBMIT
or SMS-COMMAND). If new recipient address <da> is given for SMS-SUBMIT,
it shall be used instead of
the one stored with the message. Reference value <mr> is returned to the TE on
successful message delivery. Optionally
(when +CSMS <service> value is 1 and network supports) <ackpdu> is
returned. Values can be used to identify
message upon unsolicited delivery status report result code. If sending fails in a
network or an ME error, final result
code +CMS ERROR: <err> is returned. See chapter Message Service Failure
Result Code for a list of <err> values.
This command should be abortable.
+CMSS=<index>[,<da>[,<toda>]]
if PDU mode (+CMGF=0) and sending
successful:
+CMSS: <mr>[,<ackpdu>]
if sending fails:
+CMS ERROR: <err>
Command
+CMSS=?
Defined values
6.9 +CNMI: New Message Indications to TE
Description Set command selects the procedure, how receiving of new messages from the
network is indicated to the TE when TE is
WCDMA Module
57
active, e.g. DTR signal is ON. If TE is inactive (e.g. DTR signal is OFF),
message receiving should be done as specified
in GSM 03.38.
+CNMI=[<mode>[,<mt>[,<bm>[,<ds
>[,
<bfr>]]]]]
+CMS ERROR: <err>
+CNMI?
+CNMI: <mode>,<mt>,<bm>,<ds>,<bfr>
Command
+CNMI=?
+CNMI: (list of supported <mode>s),(list
of
supported <mt>s),(list of supported
<bm>s),(list of
supported <ds>s),(list of supported
<bfr>s)
Defined values
<mode>
0 Buffer unsolicited result codes in the TA. If TA result code buffer is full,
indications can be buffered in some
other place or the oldest indications may be discarded and replaced with the
new received indications.
1 Discard indication and reject new received message unsolicited result codes
when TA-TE link is reserved (e.g. in
on-line data mode). Otherwise forward them directly to the TE.
2 Buffer unsolicited result codes in the TA when TA-TE link is reserved (e.g. in
on-line data mode) and flush them
to the TE after reservation. Otherwise forward them directly to the TE.
3 Forward unsolicited result codes directly to the TE. TA-TE link specific inband
technique used to embed result
codes and data when TA is in on-line data mode.
<mt> (the rules for storing received SMs depend on its data coding scheme
(refer GSM 03.38 [2]), preferred
memory storage (+CPMS) setting and this value; refer table 1;
NOTE: If AT command interface is acting as the only display device, the ME
must support storing of class 0
messages and messages in the message waiting indication group (discard
message); refer table 2):
0 No SMS-DELIVER indications are routed to the TE.
1 If SMS-DELIVER is stored into ME/TA, indication of the memory location is
routed to the TE using unsolicited
result code:
+CMTI: <mem>,<index>
2 SMS-DELIVERs (except class 2 messages and messages in the message
waiting indication group (store
message)) are routed directly to the TE using unsolicited result code:
+CMT: [<alpha>],<length><CR><LF><pdu> (PDU mode enabled)
WCDMA Module
58
or
+CMT: <oa>, [<alpha>],<scts>[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>,
<length>]<CR><LF><data> (text mode enabled; about parameters in italics,
refer command Show
Text Mode Parameters +CSDH)
If ME has its own display device then class 0 messages and messages in the
message waiting indication group
(discard message) may be copied to both ME display and to TE. In this case,
ME shall send the
acknowledgement to the network (refer table 2).
Class 2 messages and messages in the message waiting indication group
(store message) result in indication as
defined in <mt>=1.
3 Class 3 SMS-DELIVERs are routed directly to TE using unsolicited result
codes defined in <mt>=2. Messages
of other data coding schemes result in indication as defined in <mt>=1.
<bm> (the rules for storing received CBMs depend on its data coding scheme
(refer GSM 03.38 [2]), the setting of
Select CBM Types (+CSCB) and this value; refer table 3):
0 No CBM indications are routed to the TE.
1 If CBM is stored into ME/TA, indication of the memory location is routed to the
TE using unsolicited result
code:
+CBMI: <mem>,<index>
2 New CBMs are routed directly to the TE using unsolicited result code:
+CBM: <length><CR><LF><pdu> (PDU mode enabled)
or
+CBM: <sn>,<mid>,<dcs>,<page>,<pages><CR><LF><data> (text mode
enabled)
If ME supports data coding groups which define special routing also for
messages other than class 3 (e.g. SIM
specific messages), ME may choose not to route messages of such data coding
schemes into TE (indication of a
stored CBM may be given as defined in <bm>=1).
3 Class 3 CBMs are routed directly to TE using unsolicited result codes defined
in <bm>=2. If CBM storage is
supported, messages of other classes result in indication as defined in <bm>=1.
<ds>:
0 No SMS-STATUS-REPORTs are routed to the TE.
1 SMS-STATUS-REPORTs are routed to the TE using unsolicited result code:
+CDS: <length><CR><LF><pdu> (PDU mode enabled)
or
+CDS: <fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st> (text mode enabled)
2 If SMS-STATUS-REPORT is stored into ME/TA, indication of the memory
location is routed to the TE using
unsolicited result code:
+CDSI: <mem>,<index>
WCDMA Module
59
<bfr>:
0 TA buffer of unsolicited result codes defined within this command is flushed to
the TE when <mode> 1...3 is
entered (OK response shall be given before flushing the codes).
1 TA buffer of unsolicited result codes defined within this command is cleared
when <mode> 1...3 is entered.
6.10 +CPMS: Preferred Message Storage
Description
Set command selects memory storages <mem1>, <mem2> and <mem3> to be
used for reading, writing, etc. If chosen
storage is not appropriate for the ME (but is supported by the TA), final result
code +CMS ERROR: <err> shall be
returned. See chapter Message Service Failure Result Code for a list of possible
<err> values.
Test command returns lists of memory storages supported by the TA.
+CPMS=<mem1>[,
<mem2>[,<mem3>]]
+CPMS:
<used1>,<total1>,<used2>,<total2>,<us
ed3>,<total3>
+CMS ERROR: <err>
+CPMS?
+CTZR: <onoff>
+CME ERROR: <err>
Command
+CTZR=?
+CTZR: (list of supported <onoff>s)
+CME ERROR: <err>
Defined values
6.11 +CSCA: Service Centre Address
Description
Set command updates the SMSC address, through which mobile originated
SMs are transmitted. In text mode, setting is
used by send and write commands. In PDU mode, setting is used by the same
commands, but only when the length of
the SMSC address coded into <pdu> parameter equals zero.
+CSCA=<sca>[,<tosca>]
Command
+CSCA?
+CSCA: <sca>,<tosca>
WCDMA Module
60
+CSCA=?
Defined values
6.12 +CSCB: Select Cell Broadcast Message Types
Description
Set command selects which types of CBMs are to be received by the ME.
Test command returns supported modes as a compound value.
+CSCB=[<mode>[,<mids>[,<dcss>]]
]
+CSCB?
+CSCB: <mode>,<mids>,<dcss>
Command
+CSCB=?
+CSCB: (list of supported <mode>s)
Defined values
<mode>:
0 message types specified in <mids> and <dcss> are accepted
1 message types specified in <mids> and <dcss> are not accepted
<mids>: string type; all different possible combinations of CBM message
identifiers (refer <mid>) (default is
empty string); e.g. "0,1,5,320-478,922"
<dcss>: string type; all different possible combinations of CBM data coding
schemes (refer <dcs>) (default is
empty string); e.g. "0-3,5"
6.13 +CSMP Set Text Mode Parameters
Description
Set command is used to select values for additional parameters needed when
SM is sent to the network or placed in a
storage when text format message mode is selected. It is possible to set the
validity period starting from when the SM is
received by the SMSC (<vp> is in range 0... 255) or define the absolute time of
the validity period termination (<vp>
is a string). The format of <vp> is given by <fo>. If TA supports the enhanced
validity period format ($(EVPF)$, see
GSM 03.40), it shall be given as a hexadecimal coded string (refer e.g. <pdu>)
with double quotes.
+CSMP=[<fo>[,<vp>[,<pid>[,<dcs>]]
]]
Command
+CSMP?
+CSMP: <fo>,<vp>,<pid>,<dcs>
WCDMA Module
61
+CSMP=?
Defined values
<mode>:
0 message types specified in <mids> and <dcss> are accepted
1 message types specified in <mids> and <dcss> are not accepted
<mids>: string type; all different possible combinations of CBM message
identifiers (refer <mid>) (default is
empty string); e.g. "0,1,5,320-478,922"
<dcss>: string type; all different possible combinations of CBM data coding
schemes (refer <dcs>) (default is
empty string); e.g. "0-3,5"
6.14 +CSMS Select Message Service
Description
Set command selects messaging service <service>. It returns the types of
messages supported by the ME: <mt> for
mobile terminated messages, <mo> for mobile originated messages and <bm>
for broadcast type messages. If chosen
service is not supported by the ME (but is supported by the TA), final result code
+CMS ERROR: <err> shall be
returned. See chapter Message Service Failure Result Code for a list of <err>
values.
Also read command returns supported message types along the current service
setting.
Test command returns a list of all services supported by the TA.
+CSMS=<service>
+CSMS: <mt>,<mo>,<bm>
+CMS ERROR: <err>
Command
+CSMS=?
+CSMS: (list of supported <service>s)
Defined values
<service>:
0 GSM 03.40 and 03.41 (the syntax of SMS AT commands is compatible with
GSM 07.05 Phase 2 version
4.7.0; Phase 2+ features which do not require new command syntax may be
supported (e.g. correct routing
of messages with new Phase 2+ data coding schemes))
1 GSM 03.40 and 03.41 (the syntax of SMS AT commands is compatible with
GSM 07.05 Phase 2+
version; the requirement of <service> setting 1 is mentioned under
corresponding command
descriptions)
2...127 reserved
128... manufacturer specific
<mt>, <mo>, <bm>:
0 type not supported
1 type supported
WCDMA Module
62
6.15 +CNMA New Message Acknowlegement
Description
Execution command confirms correct reception of a new message
(SMS-DELIVER or SMS-STATUS-REPORT) which
is routed directly to the TE (refer command +CNMI tables 2 and 4). This
acknowledgement command (causing ME to
send RP-ACK to the network) shall be used when +CSMS parameter <service>
equals 1. TA shall not send another
+CMT or +CDS result code to TE before previous one is acknowledged.
If ME does not get acknowledgement within required time (network timeout), ME
should send RP-ERROR to the
network. ME/TA shall automatically disable routing to TE by setting both <mt>
and <ds> values of +CNMI to zero.
If command is executed, but no acknowledgement is expected, or some other
ME related error occurs, final result code
+CMS ERROR: <err> is returned. See chapter Message Service Failure Result
Code for a list of <err> values.
if text mode (+CMGF=1):
+CNMA
+CMS ERROR: <err>
+CNMA?
+CSMS: <service>,<mt>,<mo>,<bm>
Command
+CSMS=?
+CSMS: (list of supported <service>s)
Defined values
This AT command is not designed for input of the command into the Hyper
terminal by
hand since the acknowledgement will not be quick enough to be received by the
network.
However, it is possible for the client system to automatically send this command
when the
+CNMI is set to “2,2,0,0,0”.
6.16 +CMMS More Messages to Send
Description
Set command controls the continuity of SMS relay protocol link. When feature is
enabled (and supported by network)
multiple messages can be sent much faster as link is kept open.
Test command returns supported values as a compound value.
+CMMS=[<n>]
+CMMS?
+CMMS: <n>
Command
+CMMS=?
+CMMS: (list of supported <n>s)
Defined values
0 disable
1 keep enabled until the time between the response of the latest message send
command (+CMGS, +CMSS, etc.) and
WCDMA Module
63
the next send command exceeds 1-5 seconds (the exact value is up to ME
implementation), then ME shall close
the link and TA switches <n> automatically back to 0
2 enable (if the time between the response of the latest message send
command and the next send command
exceeds 1-5 seconds (the exact value is up to ME implementation), ME shall
close the link but TA shall not
switch automatically back to <n>=0)
6.17 +CGSMS Select Service for MO SMS Messages
Description
The set command is used to specify the service or service preference that the
MT will use to send MO SMS messages.
The read command returns the currently selected service or service preference.
The test command is used for requesting information on the currently available
services and service preferences.
+CGSMS= [<service>] OK
ERROR
+ CGSMS?
+CGSMS: <service>
Command
+ CGSMS =?
+CGSMS: (list of currently available
<service>s)
Defined values
<service>: a numeric parameter which indicates the service or service
preference to be used
0 Packet Domain
1 circuit switched
2 Packet Domain preferred (use circuit switched if GPRS not available)
3 circuit switched preferred (use Packet Domain if circuit switched not available)
Other values are reserved and will result in an ERROR response to the set
command.
6.18 +CMT Incoming Message Directly Displayed
Description
This response indicates that an incoming message has been received and
according to themessage storage preferences (+CNMI), is to be directly
displayed.
Command
+CMT：<oa>, [<alpha>],<scts> [,<t
ooa>,<fo>,<pid>,<dcs>,<sca>,<tosc
a>,<length>]<CR><LF><data> (text
mode enabled; about parameters
in italics, refer command Show
Text Mode Parameters +CSDH)
or +CMT：
[<alpha>],<length><CR><LF><pdu
> (PDU mode enabled)
OK
ERROR
WCDMA Module
64
Defined values
<oa> Originator Address.
<scts> Service Center Time Stamp in string format : “yy/MM/dd,hh :mm :ss±zz”
(Year/Month/Day,Hour:Min:Seconds±TimeZone)
<tooa> Type-of-Address of <oa>
<lang> Language
<encod> Encoding method
<priority>: Message priority:
0 – Normal
1 – Interactive
2 – Urgent
3 – Emergency
<cbn> Call Back Number
<length> The number of characters in the following <data> field
<data> Message contents
6.19 +CMTI Incoming Message Stored in Memory
Description
This response indicates that an incoming message has been received and
according to the
message storage preferences (+CNMI), is to be stored in memory.
+CMTI: <mem>,<index> OK
ERROR
Command
Defined values
<mem> NVRAM storage area (always “MT” for this response)
<index> location of message within storage area
6.20 +ZMGF：Message Full
Description This indicates that the message center is trying to send a short message to the
module but is rejected because the message memory is full. Need use AT+CMGD
command to delete some messages.
Format +ZMGF:n
Example +ZMGF
Indicates there is a new message, but it’s rejected
Parameter
n: indicates that message memory is full
1: WMS_MEMORY_STORE_RAM_GW
2: WMS_MEMORY_STORE_SIM
3: WMS_MEMORY_STORE_NV_GW
Among the above, 1 and 3 might be viewed as mobile phone, 2 might be viewed as
Module
WCDMA Module
65
7 Phonebook commands
7.1 +CPBS Select Phonebook memory storage
Description
Set command selects phonebook memory storage <storage>, which is used by
other phonebook commands. If
setting fails in an MT error, +CME ERROR: <err> is returned. Refer subclause
9.2 for <err> values.
Read command returns currently selected memory, and when supported by
manufacturer, number of used locations and
total number of locations in the memory.
Test command returns supported storages as compound value.
+CPBS=<storage>
[,<password>]
+CME ERROR: <err>
+CPBS?
+CPBS: <storage>[,<used>,<total>]
+CME ERROR: <err>
Command
+CPBS =?
+CPBS: (list of supported <storage>s)
Defined values
"DC" MT dialled calls list (+CPBW may not be applicable for this storage)
"EN" SIM/USIM (or MT) emergency number (+CPBW is not be applicable for
this storage)
"FD" SIM/USIM fixdialling-phonebook. If a SIM card is present or if a UICC with
an active GSM application
is present, the information in EFFDN under DFTelecom is selected. If a UICC
with an active USIM
application is present, the information in EFFDN under ADFUSIM is selected.
"LD" SIM/UICC last-dialling-phonebook
"MC" MT missed (unanswered received) calls list (+CPBW may not be
applicable for this storage)
"ME" MT phonebook
"MT" combined MT and SIM/USIM phonebook
"ON" SIM (or MT) own numbers (MSISDNs) list (reading of this storage may be
available through +CNUM
also). When storing information in the SIM/UICC, if a SIM card is present or if a
UICC with an active
GSM application is present, the information in EFMSISDN under DFTelecom is
selected. If a UICC with an
active USIM application is present, the information in EFM SISDN
under ADFUSIM is selected.
"RC" MT received calls list (+CPBW may not be applicable for this storage)
"SM" SIM/UICC phonebook. If a SIM card is present or if a UICC with an active
GSM application is present,
the EFADN under DFTelecom is selected. If a UICC with an active USIM
application is present, the global
WCDMA Module
66
phonebook, DFPHONEBOOK under DFTelecom is selected.
"TA" TA phonebook
"AP" Selected application phonebook. If a UICC with an active USIM application
is present, the application
phonebook, DFPHONEBOOK under ADFUSIM is selected.
<password>: string type value representing the PIN2-code required when
selecting PIN2-code locked
<storage>s above, e.g. "FD" or the hidden key to be verified in order to access
to the hidden phonebook
entries in the UICC/USIM or any other phonebook with hidden entries.
If the combined phonebook is selected, "MT", the <password> will correspond
to the hidden key of the USIM phonebook.
<used>: integer type value indicating the number of used locations in selected
memory
<total>: integer type value indicating the total number of locations in selected
memory
"MC" and "RC" is not needed so no function
7.2 +CPBR Read Phonebook Entries
Description
Execution command returns phonebook entries in location number range
<index1>... <index2> from the current
phonebook memory storage selected with +CPBS. If <index2> is left out, only
location <index1> is returned. Entry
fields returned are location number <indexn>, phone number stored there
<number> (of format <type>), text
<text> associated with the number, if the selected phonebook supports hidden
entries, <hidden> indicating if the
entry is hidden, <group> indicating a group the entry may belong to,
<adnumber> an additional number (of
format <adtype>), <secondtext> a second text field associated with the number
and <email> an email
field. If all queried locations are empty (but available), no information text lines
may be returned. If listing fails in an
MT error, +CME ERROR: <err> is returned. Refer subclause 9.2 for <err>
values.
Test command returns location range supported by the current storage as a
compound value and the maximum lengths
of <number>, <text>, <group>, <secondtext> and <email> fields. In case of
(U)SIM storage, the lengths
may not be available. If MT is not currently reachable, +CME ERROR: <err> is
returned. Refer subclause 9.2 for
<err> values.
WCDMA Module
67
+CPBR=<index1>
[,<index2>]
[+CPBR:
<index1>,<number>,<type>,<text>
[,<hidden>][,<group>][,<adnumber>][,<adt
ype>][,<secondte
xt>][,<email>]] [[...]
<CR><LF>+CPBR:
<index2>,<number>,<type>,<text>
[,<hidden>][,<group>][,<adnumber>][,<adt
ype>][,<secondte
xt>][,<email>]]]
+CME ERROR: <err>
Command
+CPBR =?
+CPBR: (list of supported
<index>s),[<nlength>],[<
],[<elength>]+CME ERROR: <err>
Defined values
<index1>, <index2>, <index>: integer type values in the range of location
numbers of phonebook memory
<number>: string type phone number of format <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<text>: string type field of maximum length <tlength>; character set as specified
by command Select TE
Character Set +CSCS
<group>: string type field of maximum length <glength>; character set as
specified by command Select TE
Character Set +CSCS
<adnumber>: string type phone number of format <adtype>
<adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<secondtext>: string type field of maximum length <slength>; character set as
specified by command Select
TE Character Set +CSCS
<email>: string type field of maximum length <elength>; character set as
specified by command Select TE
Character Set +CSCS
<nlength>: integer type value indicating the maximum length of field <number>
<tlength>: integer type value indicating the maximum length of field <text>
<glength>: integer type value indicating the maximum length of field <group>
<slength>: integer type value indicating the maximum length of field
<secondtext>
<elength>: integer type value indicating the maximum length of field <email>
<hidden>: indicates if the entry is hidden or not
0: phonebook entry not hidden
1: phonebook entry hidden
WCDMA Module
68
7.3 +CPBF Find Phonebook Entries
Description
Execution command returns phonebook entries (from the current phonebook
memory storage selected with +CPBS)
which alphanumeric field start with string <findtext>. Entry fields returned are
location number <indexn>, phone
number stored there <number> (of format <type>), text <text> associated with
the number, if the selected
phonebook supports hidden entries, <hidden> indicating if the entry is hidden,
<group> indicating a group the entry
may belong to, <adnumber> an additional number (of format <adtype>),
<secondtext> a second text field
associated with the number and <email> an email field. If listing fails in an MT
error, +CME ERROR: <err> is
returned. Refer subclause 9.2 for <err> values.
Test command returns the maximum lengths of <number>, <text>, <group>,
<secondtext> and <email>
fields. In case of (U)SIM storage, the lengths may not be available. If MT is not
currently reachable, +CME ERROR:
<err> is returned. Refer subclause 9.2 for <err> values.
+CPBF=<findtext> [+CPBF: <index1>,<number>,<type>,<text>
[,<hidden>][,<group>][,<adnumber>][,<adtype>][,<
se
condtext>][,<email>][[...]
<CR><LF>+CBPF:
<index2>,<number>,<type>,<text>
[,<hidden>][,<group>][,<adnumber>][,<adtype>][,<
se
condtext>][,<email>]]]
+CME ERROR: <err>
Command
+CPBF =?
+CPBF:
[<nlength>],[<tlength>],[<glength>],[<slength>],[<e
length>]
+CME ERROR: <err>
Defined values
<index1>, <index2>: integer type values in the range of location numbers of
phonebook memory
<number>: string type phone number of format <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<group>: string type field of maximum length <glength>; character set as
specified by command Select TE
Character Set +CSCS
<adnumber>: string type phone number of format <adtype>
<adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<secondtext>: string type field of maximum length <slength>; character set as
specified by command Select
TE Character Set +CSCS
WCDMA Module
69
<email>: string type field of maximum length <elength>; character set as
specified by command Select TE
Character Set +CSCS
<findtext>, <text>: string type field of maximum length <tlength>; character set
as specified by command
Select TE Character Set +CSCS
<nlength>: integer type value indicating the maximum length of field <number>
<tlength>: integer type value indicating the maximum length of field <text>
<glength>: integer type value indicating the maximum length of field <group>
<slength>: integer type value indicating the maximum length of field
<secondtext>
<elength>: integer type value indicating the maximum length of field <email>
<hidden>: indicates if the entry is hidden or not
0: phonebook entry not hidden
1: phonebook entry hidden
7.4 +CPBW Write Phonebook Entry
Description
Execution command writes phonebook entry in location number <index> in the
current phonebook memory storage
selected with +CPBS. Entry fields written are phone number <number> (in the
format <type>), text <text>
associated with the number, if the selected phonebook supports hidden entries,
<hidden> parameter, which indicates if
the entry is hidden or not, <group> indicating a group the entry may belong to,
<adnumber> an additional
number (of format <adtype>), <secondtext> a second text field associated with the
number and <email>
an email field. If those fields are omitted, phonebook entry is deleted. If <index> is
left out, but <number> is given,
entry is written to the first free location in the phonebook (the implementation of
this feature is manufacturer specific).
If writing fails in an MT error, +CME ERROR: <err> is returned. Refer subclause
9.2 for <err> values.
Test command returns location range supported by the current storage as a
compound value, the maximum length of
<number> field, supported number formats of the storage, the maximum length of
<text> field, the maximum
length of <group>, the maximum length of <secondtext>, and the maximum length
of <email>. In case of SIM
storage, the lengths may not be available. If MT is not currently reachable, +CME
ERROR: <err> is returned. Refer
subclause 9.2 for <err> values. If storage does not offer format information, the
format list should be empty parenthesis
WCDMA Module
70
+CPBW=[<index>][,<numbe
r>
[,<type>[,<text>[,<group>[,<
a
dnumber>[,<adtype>[,<seco
ndte
xt>[,<email>[,<hidden>]]]]]]]]
]
+CME ERROR: <err>
Command
+CPBW=?
+CPBW: (list of supported
<index>s),[<nlength>],(list of
supported<type>s),[<tlength>],[<glength>],[<sleng
th>],[<elength>]
+CME ERROR: <err>
Defined
values
<index>: integer type values in the range of location numbers of phonebook
memory
<number>: string type phone number of format <type>
<type>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7) ; default 145 when dialling
string includes international access code character "+", otherwise 129
<text>: string type field of maximum length <tlength>; character set as specified
by command Select TE
Character Set +CSCS
<group>: string type field of maximum length <glength>; character set as specified
by command Select TE
Character Set +CSCS
<adnumber>: string type phone number of format <adtype>
<adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause
10.5.4.7)
<secondtext>: string type field of maximum length <slength>; character set as
specified by command Select
TE Character Set +CSCS
<email>: string type field of maximum length <elength>; character set as specified
by command Select TE
Character Set +CSCS
<nlength>: integer type value indicating the maximum length of field <number>
<tlength>: integer type value indicating the maximum length of field <text>
<glength>: integer type value indicating the maximum length of field <group>
<slength>: integer type value indicating the maximum length of field <secondtext>
<elength>: integer type value indicating the maximum length of field <email>
<hidden>: indicates if the entry is hidden or not
0: phonebook entry not hidden
1: phonebook entry hidden
