User Manual

Precautions

z Do not subject the device to severe impact or drop it from high position.

z Do not use the player in extreme hot or cold, dusty or damp field. Do not

expose it to direct sunshine.

z Excessive sound pressure from earphones and headphones can cause

hearing loss.

z Avoid using the player in strong magnetic field.

z Keep the device away from water or other liquids. In the event that water or

other liquids enter the device, power off the product immediately, and clean

the device.

z Do not use chemical solution to clean the device in order to avoid corrosion.

Clean it with a dry cloth.

z We are not responsible for the damages or lost data caused by malfunction,

misusing, repairing the device or battery replacement.

z Do not attempt to disassemble, repair or modify the product. This will

invalidate guarantee.

z When not using the device for an extended period of time, please charge

the battery at least once per month to extend the battery life.

z Do not use the device in extremely hot, cold, dusty or damp environments.

z Avoid dropping or striking the unit .This may cause external and internal

physical damage to the player.

z Charge the battery if:

a) The battery level icon displays (An empty battery)

b) The device powers off automatically and off again when restarted.

c) No response when pressing keys with keys unlocked and battery

installed.

z To prevent damage from static shock, never use the device in very dry

conditions.

z When the device is being formatted or transferring a file, do not interrupt

the connection. Otherwise, data may be corrupt of lost.

z When the device is used as a portable HD, please use only per instructions.

Otherwise, permanent data loss could occur.

z This manual may not reflect the actual device’s operation since it is subject

to change without prior notification. Please comply with your actual

device’s operations always.

Table of Content

Introduction..........................................................................................................3

Feature Summary................................................................................................ 3

Package Content.................................................................................................3

Buttons & Ports....................................................................................................3

Charging Battery..................................................................................................4

Installing Memory card ........................................................................................4

Transferring Files.................................................................................................5

Turning On/Off .....................................................................................................5

Home Screen.......................................................................................................6

Using the Touch Screen ......................................................................................8

Using the Virtual Keyboard..................................................................................9

Access Internet....................................................................................................9

Playing Music ....................................................................................................12

Playing Video.....................................................................................................16

Viewing Photos..................................................................................................17

Using the Camcorder.........................................................................................18

Using the Camera..............................................................................................19

File Explorer ......................................................................................................19

E-mail ................................................................................................................20

Manage Applications .........................................................................................22

System Settings.................................................................................................23

Troubleshooting.................................................................................................24

Specifications ....................................................................................................25

Listening Cautions.............................................................................................27

Introduction

MID is a mobile device that gives you an amazing Internet experience --

allowing you to communicate with others, enjoy your favorite entertainment, and

access information on the Internet at anytime and anywhere. This latest

generation of small, powerful, highly portable Internet-connected devices

combines many great capabilities with the convenience of a pocket-sized

solution for your life on-the-go.

Feature Summary

z Built-in Android Operating System

With the built-in Android OS, your MID supports most of popular

applications. You can install or uninstall applications such as MSN,

YouTube, g-email etc. on your MID.

z Wi-Fi / 3G Connectivity

With the latest Wi-Fi and 3G technology, your MID can connect you to the

Internet wherever you are.

z 7-inch Touch Screen

Touch or slide your finger in the screen, the screen responds instantly.

z Entertainment

Allows you to enjoy music, movie or pictures any time and any where.

Package Content

z Main Unit

z Stereo earphones

z USB cable

Buttons & Ports

Front View

z AC Adaptor

z User Manual

z Warranty Card

b c

a. LCD Display

b. Camera Lens

c. Home: Go to the Home

Screen.

d. Menu: Display an overlay

menu.

e. SCROLL button: roll in all

ways to make selection; press

to confirm selection.

f. ESC: Return

Top View

Bottom View

Side View

Charging Battery

The device has built-in rechargeable battery. No extra battery installation is

required. Just charge the device when it indicates low battery.

To charge the battery, connect the device to any standard wall outlet through

the AC adaptor via the DC-IN port. It takes about 3 hours to fully charge the

battery.

Note:

a. You can operate the device even when it is being charged. But for extending the battery

life, you are suggested NOT to use the device when it is in charge.

b. You are recommended to charge the battery when you use the device for the first time.

c. For maximum performance, lithium-ion batteries need to be used often. If you don’t use

the device often, be sure to recharge the battery at least once per month.

Installing Memory card

In addition to the built-in memory, your MID features a memory card slot to

extend its memory space. You can read e-book, music, image or video files

from a SD card directly.

To install a memory card, find the card slot at the bottom of the machine, and

g. USB Port: connect to computer, USB flash drive, mouse or keyboard

through USB cable.

h. Power button: press and hold to turn on or off the device; briefly

press to turn on or off the screen.

i. Micro-SD Card Slot

j. Earphone Jack

k. DC-IN Port: connect to

any standard electronic

outlet through AC

adaptor.

l. Reset pin hole

m. Built-in microphone

n. 3G Card Slot: open to

insert a 3G network

card.

then insert a Micro-SD card into the slot with the correct direction.

To access the memory card, enter the Explorer mode and then select the

“SDCard”directory.

Transferring Files

Before reading or playing files, make sure your MID’s internal memory or the

external memory card has media files. If not, transfer files from computer to

your MID.

(1) Connect your MID to a computer with the supplied USB cable.

(2) Once connected, two removable disk drives appear in your computer. One

represents the internal memory of your MID, and the other represents the

memory card inserted into your MID. Now you can copy files from or to these

disk drives.

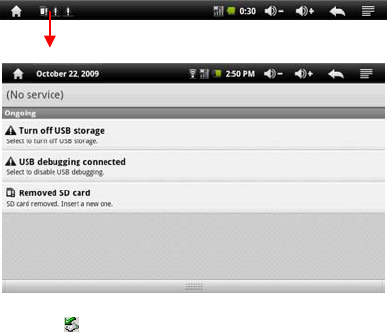

(3) Once the data transfer completes, drag from the top bar downwards to

display the USB notification message. Choose “Turn off USB Storage” and

then tap on “Turn Off” to disconnect the device from computer.

(4) Remove the player from the PC safely.

a) Left-click the icon at the right bottom corner of the computer

desktop.

b) Click the pop-up mini-window with message of “Stop the USB Mass

Storage Device – Drive (X)”.

c) Remove the player from the computer.

Turning On/Off

To turn on the device, press and hold the Power button on the unit until you see

the boot-up screen. It may take a few minutes to start up the system, please

Drag downwards

wait before you proceed.

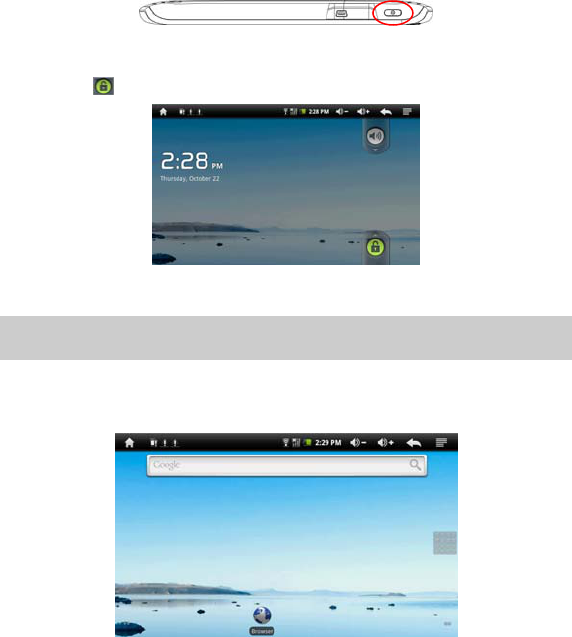

You should see the following locked screen once the device turns on. Before you

start using the device, you need to unlock the screen first. To unlock the screen, drag

the lock icon upward.

To turn off the device, press and hold the Power button until you see the option

“Power Off”, tap on “Power Off” and then tap on “OK”.

Tip: Your MID will sleep with the screen off if it stays inactive for a few seconds. You can

briefly press the Power button to turn on the screen and wake it up.

Home Screen

Indications

a. Home: Go back to the Home Screen wherever you are in the interface.

b. Memory Card: the exclamation mark indicates no available memory card,

and it should disappear once a memory card is available.

c. Wi-Fi Network

d. 3G Network

e. Battery Charge

f. Current Time

g. Volume Down: Tap briefly or continuously to decrease the volume.

h. Volume Up: Tap briefly or continuously to increase the volume.

a b c d e f g h i j

i. Return: Return to the previous directory.

j. Menu: Tap to display an overlay setting menu.

k. Address Inputting Area. You can input the website address by tapping

this field. A virtual keyboard should appear. Use the keyboard to type in

letters. Tapping will hide the keyboard.

l. Applications Tab: Tap on this icon to reveal all applications installed on

your MID (alarm clock, calculator, GlobalTime etc.).

- You can copy the applications onto the Home screen by pressing and

holding on their icons.

- You can delete the application from the Home Screen by dragging

their icons to the Application Tab. To delete a Home screen item, hold

your finger onto it until it is highlighted, then drag it to the Application

Tab which has become a trash icon.

m. Default shortcuts (“Browser”, “Video Player”, “Audio Player”, etc.)

- Tap on an icon to open the corresponding application.

- Roll the SCROLL button on the unit to select an item.

- You can customize the Home Screen by adding/removing shortcuts

and widgets, changing the wallpaper, etc.

z Customizing the Home screen items

- To add a Home screen item (shortcuts, widgets, folders etc.), tap on the

Menu icon and then select “Add” , or hold your tap on the Home

Screen until a pop-up menu displays.

- To move a Home screen item, hold your finger onto it until it is highlighted,

then drag it to the desired location, and release it.

z Changing the wallpaper

Tap on the Menu icon , and then tap on “Wallpaper”. Tap on one picture

and then tap on “Set Wallpaper” to confirm.

z Go to the extended Home Screen

Slide your finger horizontally on the screen OR roll the SCROLL button to go to

the left or right panel of the extended Home Screen.

You may see the following extended Home Screen in which you have some

useful shorcuts. Tapping on these shorcuts can activate their function.

z Changing the System Settings

Tap on the Menu icon , and then tap on “Settings” . Choose a category:

“Wireless& networks”, “Sound & Display”, “Date & Time”, etc. For more

information on the different settings, see the System Settings section.

Using the Touch Screen

Your MID is equipped with a touch-screen. Below are a few tips on how to use

the touch screen.

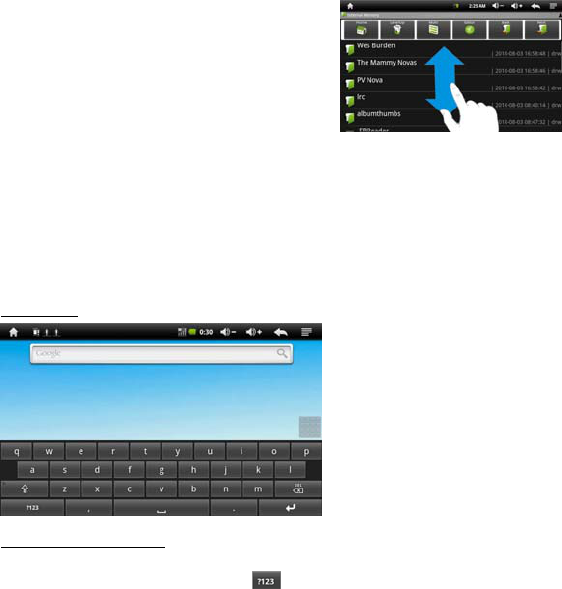

Main Touch Screen Actions

y In different applications, you can go back one level in the interface by

tapping on the Back icon (at the top right corner of the screen).

y Wherever you are in the interface, you can go back directly to the Home

Screen by tapping on the Home icon (in the top left corner of the

screen).

Other Touch Screen Actions

y When watching a video or listening to music,

you can tap on the progression bar to go

directly to a different location in the video or

a b c a. Connect to available Wi-Fi

network

b. Refresh the media library

c. Adjust the screen brightness

song. You can also use your finger to

drag the cursor in the progression bar to

another location in the video or song.

y In the different browsers (File, Music,

Video, Photo, etc.), you can drag your

finger up and down to scroll the file list up

and down.

y In the Web browser, you can scroll up and down by tapping on the page and

dragging it up or down (be careful however not to tap on a link!).

y Tap on the link to open the page.

Using the Virtual Keyboard

Tapping on any text input field can show up the virtual board. With the virtual

keyboard, you can enter website address or any text if required.

Indications

Selecting Input Method

If you have installed more than one input method on your MID, you can select one

method by a) holding your tap on the button until the Android keyboard settings

appear; b) choosing “Input Method” and then choosing your desired one.

Access Internet

You can surf on the Internet with your slim MID.

You MID features built-in Wi-Fi technology and 3G card slot so that you can

access the internet via Wi-Fi and 3G network.

First of all, you need to configure a Wi-Fi or 3G network. For the Wi-Fi

configuration procedure to work, you need to be in a Wi-Fi zone that will allow

you to connect to it. Every time Your MID is in range of a network that you have

already configured once, it will attempt to make a connection. For the 3G

network configuration to work, you need to insert a 3G card into the device.

a. Caps Lock

b. Backspace.

c. Number and Characters

/Letter keyboard.

d. Space

e. Enter

Making WIFI Connection

(1) Go on the Home screen, tap on the Menu icon and then select

“Settings”.

(2) In the “Settings” screen, select “Wireless & Networks”.

(3) If the WiFi is off, tap on the “Wi-Fi” setting to turn it on. Then select “Wi-Fi

settings”. Your MID will scan automatically for available WiFi networks

and display them. The list of available networks shows all the wireless

networks in range of your device.

- The list is constantly refreshed automatically.

- When the WiFi is enabled, Your MID will connect automatically to your

configured networks when they are in range.

- If Your MID finds a network that has never been configured, it will display

a notification icon.

(4) Tap on the network you want to connect to, enter the required network

information (password) and then tap on “Connect”. Your MID will now

attempt to establish a connection to that WiFi hot spot with the network

parameters you entered. If the connection is successful, the message

Connected to XXX will appear under the WIFI setting.

Note:

a) The available network list is constantly refreshed automatically.

b) When the Wi-Fi is enabled, Your MID will connect automatically to your configured

networks when they are in range.

c) If Your MID finds a network that has never been configured, it will display a notification

icon.

Advanced Connection

To manually scan for available Wi-Fi networks,

(1) In the “Wi-Fi settings” screen, tap on the Menu icon , and then tap on

“Scan”.

(2) If the Wi-Fi network you want to connect to does not appear in the list, scroll

down the screen, then tap on “Add a Wi-Fi network”. Enter the required

settings, then tap on “Save”.

To access the advanced network parameters (“Regulatory domain”, “IP

address”, etc), tap on the Menu icon , and then tap on “Advanced”. Other

parameters will appear. The required information can be obtained from the

person who manages the network.

Making 3G Network Connection

(1) Go on the Home screen, tap on the Menu icon and then select

“Settings”.

(2) In the “Settings” screen, select “Wireless & Networks”.

(3) If the 3G is off, tap on the “3G” setting to turn it on. Select “3G settings” to

set up the Access Point. Fill in all required parameters and then tap on

to save or discard the settings.

Launching the WEB browser

Tap on the “Browser” icon in the Home Sreen to launch the WEB browser.

If you are already connected to a network, the Web browser will simply open

and you can start browsing the Web.

Note: Not all wireless networks offer access to the Internet. Some WiFi networks only link

several computers together, without any Internet connection.

Using WEB Browser

y You can scroll up and down the screen by tapping on the page and dragging

it up or down (be careful however not to tap on a link!).

y To open a link, simply tap on it.

y You can open several web pages at a time, view them all at once on the

screen, and then tap on one of them to view it in full screen.

y To go back to the previous page that you browsed, tap on the Back icon .

y To display the available menu items, tap on the Menu icon .

y To go back directly to the Home screen, tap on the Home icon .

y Depending on where you are in the web browser, holding down on an item

will give you access to more options.

y To fill in a text field, tap in the field, then use the virtual keyboard to type in

the required text.

WEB Browser Menu Items

When you are viewing page, you can tap on the menu icon to display the

menu items.

Go Allows you to enter the address of a Web site you’d like to

visit. Enter the address with the virtual keyboard. Select “Go”

to open the website in the current window.

Bookmarks Will open the “Bookmarks” manager. You will see three tabs:

“Bookmarks”, “Most visited”, and “History”.

“Bookmarks” show you a list of bookmarks. Just tap on one

of them to open it in the current window. Holding down on a

bookmark will give you access to several options (you will be

able to edit it, rename it, delete it, etc.). You can also use the

Menu icon which will allow you to bookmark the

last-viewed page.

“Most visited” and “History” allow you to access your “Most

visited” sites and your “History”. In the “History” tab, the Menu

icon allows you to clear the history.

New

window/

Windows

Allows you to open new windows. When you have several

windows currently opened, tap on “Windows” to display them

all at once on the screen. Just tap on one of the small

windows to view it in full screen, or tap on the Close icon in

the small window to close the window.

Refresh/

Stop

“Stop” will stop loading the web page, if it is currently loading.

“Refresh” will refresh the current web page, if it has stopped

Forward Will go to the next page that you browsed.

More Will give you access to other options (“Find on page”, “Select

text”, “Page info”, “Downloads”, “Settings” etc.).

Playing Music

Your MID provides two applications for you to play music files: Audio Player and

Music. You can choose “Music” or “Audio Player” in the Home Screen to enter

the music player mode. Let’s take the Audio Player as example to explain how

to play music.

Music Library

You should enter the music library once you start up the music player. The

Music Library shows your music files sorted by categories (Artist, Album, Genre,

etc.) if your music files contain these song information tags. If some of your

music files do not contain information tags, they will be classified as (Unknown)

in the Music Library. When new music is copied to Your MID, the Music Library

will be updated automatically.

y You can drag your finger up and down on the file list to scroll through the list.

y Tap on a track to play a track.

y To return to the Home Screen, tap on / / .

Music Library Menu

Once you enter the music library, you should see the toolbar at the bottom of

the screen. Tap and hold your finger on the icon and you should see its name.

All Music List all music files.

Internet Search

Allows you to search for a specific song on

Internet by entering a few letters or a word and

download the song from the Internet.

Artist List music files by artist.

Album List music files by album.

Genre List music files by genre.

Playlist Display playlists.

Directory Browsing Navigate through music files and folders stored

in the internal memory and memory card.

Enter Play Interface Go to the Now Playing screen.

Return Return to Home Screen.

Search for Tracks

You can search for tracks in the internal memory or memory card by inputting a

few key words.

(1) In the music library, tap on the Directory Browsing icon in the menu.

(2) Choose the memory device in which you want to search for tracks.

(3) Tap on the Search icon , and then input a few key words of the track.

(4) Tap on to start searching. The track should be listed if found.

Sort Tracks/Folders

You can sort all tracks/folders by their leading leters in order of A to Z, the

creation time of the track/folder, the file size or the file type.

(1) In the music library, tap on the Directory Browsing icon in the menu.

(2) Choose the memory device to be sorted.

(3) Tap on the Sort icon (by file size) / (by file type) / (by leading

letter)/ (by creation time) to sort the tracks/folders stored in the selected

memory device.

Set EQ Mode Manually

When you are listening to the music, tap on the Menu icon which allows

you to customize your equalizer setting. Your MID features a 7-band equalizer.

(1) Select a band, then drag your finger up/ down on the band to change the

gain level for these frequency ranges.

(2) Tap on “Save Effect” to confirm or tap on to return.

Playback Screen

y Slide your finger vertically on the screen or roll the SCROLL button to

browse through the music list.

y Tap on the track or press the SCROLL button to play it.

y To pause/resume the song, tap on the Pause / Play icon.

y To play the previous/next song, tap on / .

y You can tap on the progression bar to go directly to a different location in

the song. You can also drag the cursor in the progression bar to another

location in the song.

y Tap on / to adjust the volume.

y To change the EQ mode, tap on “EQ”.

y To play the specified section from A to B, tap on “A-B”.

y To change the repeat mode, tap on .

y To add current track to playlist, tap on .

y To display lyric/ID3 information, tap on .

y To define the equalizer mode manually, tap on .

y Tapping continuously on the ID3 information tag will search for the

information about the track from the Internet.

y To go back to the music library, tap on .

y To go back directly to the Home screen, tap on the Home icon or

Return icon .

a. Track title

b. ID3 Information (artist, album etc.)

c. Search for information about the

track from Internet.

d. Progression bar

e. Previous track

f. Play/Pause

g. Next track

h. Change EQ mode

i. A-B Section Repeat

j. Change repeat mode

k. Add the track to playlist

l. Display lyric

m. Decrease volume

n. Increase volume

o. Return

e f g

h i j k l m n o

Playlist

A playlist is a list of audio tracks that the music player will automatically play

one after the other. On your MID, you can play, create and edit as many

playlists as you want.

Create a Playlist

(1) While you are in the music list, select the Playlist menu item “ ”, a playlist

panel will open. You can now start modifying the playlist.

(2) Tap on the New Playlist icon to create a new playlist.

(3) Tap on the Edit icon beside the playlist name to add songs to the

playlist.

(4) Tap on the songs you would like to add to your playlist. A check mark

“√”should appear before the song if selected.

(5) When you are satisfied with your new playlist, tap on the “ ” icon to save

the playlist.

Edit a Playlist

You can add track to or delete track from the playlist.

(1) In the Music Library, tap on the Playlist icon to display the playlists.

(2) Tap on the icon beside the playlist that you want to edit. You can now

add tracks to or delete tracks from the playlist.

(3) Tap on the songs you would like to add or delete, a check mark should

appear or disappear before the song. The song with check mark will be

added to the playlist, while the song without check mark will be deleted from

the playlist.

(4) When you are satisfied with your playlist, tap on the icon to save the

playlist.

Delete a Playlist

To delete an existing playlist,

(1) In the Music Library, tap on the Playlist icon to display the playlists.

(2) Tap on the icon beside the playlist that you want to delete, and then the

playlist will be deleted.

Note: You cannot delete the Recently Played playlist since a track is playing.

Playing a Playlist

(1) In the Music Library, tap on the Playlist icon to display the playlists.

(2) Tap on a playlist to open it. A panel showing the contents of the playlist will

open.

(3) Tap on the first item in the playlist to start playing from the first track.

Playing Video

Tap on the Application Tab to display all applications, and then select “Video

Player” to enter the video mode.

Navigate through Video Files

You should see the video list when you enter the video player.

y You can drag your finger up and down on the video list to scroll the video list

up and down.

y Tap on a video to start playing.

y You can go back directly to the Home screen by tapping on the Return icon

or Home icon .

Playback Screen

y Tap on the / icon to pause/resume the video,

y Tap on “ ” to display the menu items.

y Tap on the progression bar to go directly to a different location in the video.

You can also use your finger to drag the cursor in the progression bar to

another location in the video.

y Tap on / to adjust the volume.

y Tap on “ ” to set a bookmark at the current spot in the video. Please

note only one bookmark can be set for one video, and the new bookmark

should cover the old one. To resume playing a video from the bookmark,

go to the Home Screen, enter the Video Player, and tap on the

bookmarked video. You should be prompted to “Play from beginning” and

“Play from bookmark”. Select “Play from bookmark”. In default, the video

plays from beginning. To remove the bookmark, tap on “ ” to display the

menu, and then choose “Delete Bookmark”.

y Tap on to adjust the brightness of screen.

y Tap on / to play the previous or next video.

a b

d e f g h i j k

a. Decrease volume

b. Progression bar

c. Increase volume

d. Bookmark

e. Brightness

f. Previous video

g. Play/Pause icon

h. Next video

i. Change View Mode

j. Return

k. Video settings

y Tap on to change the aspect ratio of screen.

y Tap on to stop playing and return the video list.

Video Playback Settings

Tap on the icon to display the video settings.

Play from beginning(this

will delete bookmark)

Delete bookmark and play from beginning.

Delete Bookmark Delete the video bookmark.

Help Get instructions on playing video.

Repeat Single – plays the current video and then

stops ater playing.

Repeat One – Repeat the current video.

Repeat All – Repeat all videos.

Return Exit from the menu.

Viewing Photos

Tap on the Application Tab to display all applications, and then select “Photo

Viewer” to enter the photo mode.

Photo Thumbnails

The first screen of the Photo mode

shows all the photos and subfolders

located in your MID or memory card

in thumbnails.

To view a photo, tap on its thumbnail

to open it. If a photo is in a subfolder,

open the subfolder, and you will see

your photo.

Viewing Photo

When you are viewing picture, you can tap on the screen to show a floating

toolbar at the bottom of the screen.

y To start/pause a slideshow, tap on the Slideshow icon .

y To display the previous/next picture, tap on the left / right arrow

beside the picture.

y To rotate the picture 90° counterclockwise, tap on the Rotate Left icon .

To rotate the picture 90° clockwise, tap on the Rotate Right icon .

y To magnify the current picture, tap on the Zoom In icon . When the

picture is enlarged, you can drag the picture vertically or horizontally to

move the picture. To decrease the picture size, tap on the Zoom Out icon

y To set brightness of the screen, tap on .

y To display the available menu items, tap on the Setting icon .

y To go back to the photo browser, tap on the Back icon .

Using the Camcorder

Your MID features built-in VCR which allows you make video clips. Tap on the

Application Tab to display all applications, and then select “Camcorder” to

enter the VCR mode.

z To make video clips, tap on the Start/Stop button to start video recording.

Once you finish recording, tap on the Start/Stop button again to stop. A

video is then created and previewed it in the Preview Window.

z To play the video clip that you have made, enter the Video Player, choose

the video clip and then play it (see “Playing Video” for details).

z You can take photos in the VCR mode. Slide the Mode Switch button to the

camera mode , and then tap on the Start/Stop button to start

capturing picture. Once you finish, tap on the Start/Stop button again to

stop. A photo is then created and previewed it in the Preview Window.

z To view the photo that you have taken, enter the Photo Viewer mode,

choose the photo and then view it (see “Viewing Photo” for details).

a. Mode Switch button

b. Start/stop button

c. Preview Window

Using the Camera

Instructions of using the camera are similar to using camcorder. Please refer to

the “Using the Camcorder” for details.

File Explorer

The file browser gives you the possibility to navigate the file system of your MID

internal memory and memory card. Tap on the Application Tab to display all

applications, and then select “Explorer” to enter the file explorer mode.

Navigate through Files and Folders

y You can drag your finger up and

down to scroll the file list up and

down.

y To open a file or folder, tap on

the file/folder.

y Tap on the menu icon , you

can manage the applications (see

details in the “Manage

Application” section).

y You can go back or forward one level in the interface by tapping on the Back

icon or Next icon .

y You can go back one level in the directory by tapping on the LevelUp button

y Wherever you are in the interface, you can go back directly to the Home

screen by tapping on the Return icon or Home icon .

y Tap on the Home icon to go to the root directory.

Using the Toolbar

You can use the toolbar to navigate through your device’s internal memory/

memory card, delete or copy files.

Home Go to the Home Screen.

LevelUp Go back one level in the directory.

Multi Select more than one file together.

Editor Copy, delete, move, paste or rename the file or folder.

Back Go back one level in the interface.

Next Go forward one level in the interface.

Tapping on the grey area can hide/display the toolbar.

Copy/Move Files and Folders

(1) In the file list, scroll up and down by sliding your finger to

select the file/folder that you want to copy or move.

(2) Hold your tap on the selected file/folder until a pop-up

menu appears.

(3) Select “Copy” or “Move” from the pop-up menu.

(4) Navigate to the location where you wish to copy or move

the file/folder to.

(5) Select the Editor icon from the toolbar and then choose “Paste”.

Delete Files and Folders

(1) In the file list, scroll up and down the list by sliding finger to select the

file/folder that you want to delete.

(2) Hold your tap on the selected file/folder until a pop-up menu appears.

(3) Select “Delete” from the pop-up menu, then select “Delete”to confirm or

“Cancel”to quit.

Rename Files and Folders

(1) In the file list, scroll up and down the list by sliding finger to select the

file/folder that you want to rename.

(2) Hold your tap on the selected file/folder until a pop-up menu appears.

(3) Select “Rename” from the pop-up menu.

(4) Tap on the inputting field to display the virtual keyboard, and then choose

letters from the virtual keyboard to rename the file/folders.

(5) Tap on “OK” to confirm the new name.

Select Multiple Items

You can select more than one file or folder together.

(1) In the top toolbar, tap on the Multi icon “ ”.

(2) Tap the files/folders you want to choose. The file/folder name turns red

when selected. Tapping it again can cancel the selection. Once you

finished selection, you can delete, copy or move the selected files together

by tapping on the Editor icon .

E-mail

Your MID has pre-installed an E-mail application. You can send or receive

e-mails from the Internet at any time with Your MID. Make sure you have an

internet connection before using the email service.

Tap on the Application Tab to display all applications, and then select “Email”

to launch the email application. You should enter the inbox if you have set up

an email account. Otherwise, set up an account first.

Setup a Email Account

First you need to setup an E-mail account for receiving or sending emails.

(1) You are prompted to setup an account once you start up the email

application. Tap on “Next” to continue.

(2) Input your email address and login password. You can set the account as

default by selecting the option “Send email from this account by default”.

Then tap on “Next” to continue.

(3) Type in required information for setting up the PO3/IMAP server. You can

get the information from the service provider, network administrator or the

Internet.

(4) Tap on “Next” to continue after you set up the POP3 server. Your MID will

check the server settings and will proceed to the IMAP server setting if the

setting is correct. Setup the IMAP server as you do to POP3 server. Please

note in the “IMAP Server” field, you should input “imap.+ domain name”.

(5) Your MID will check the settings. When it prompts you that “Your account is

set up, and email is on its way”, your account is set up successfully.

(6) Input your name to be displayed in every email and then tap on “Done” to

finish.

Note: If you have more than one account, every time when you start up the email

application, you enter the default email account.

Manage Accounts

You can setup more than one account and manage these accounts by checking

information about the account, adding another account or deleting an account.

Add another Account

Following these steps to add another account if you want.

(1) Launch the email application and then tap on the Menu icon to display

the menu item. Choose “Accounts” to display accounts.

(2) Tap on the Menu icon to display the menu item, and then choose “Add

account”.

(3) Follow the steps of setting up a Email Account to add an account.

Delete a Email Account

(1) When you are in the email box, tap on the Menu icon to display the

menu items.

(2) Tap on “Accounts” to display all email accounts.

(3) Hold your tap on the account that you want to delete until a menu pop up.

(4) Tap on “Remove Account”，and then tap on “OK” to confirm.

Check the Account Setting

(1) When you are in the email box, tap on the Menu icon to display the

menu items.

(2) Tap on “Accounts” to display all email accounts.

(3) Hold your tap on the account that you want to delete until a menu pop up.

(4) Tap “Account settings”，and then you should see all setting information about

the account. You can edit these settings as you want.

View Emails

You should enter your mailbox when you start up the email application.

y In the mailbox, you can slide your finger up and down to scroll through the

email list.

y Tap on an email to open it.

y Holding your tap on the email can display a menu. With the menu, you can

open, reply, forward or delete the email.

Email Menu Items

In the email list, tap on the Menu icon to display the menu.

Refresh Refresh the emails.

Compose Compose a new email.

Accounts View all email accounts.

Account Settings Check your account settings.

Manage Applications

Your MID provides support to many useful third-party applications. You can

purchase the applications to add more functions to your device. They are

available online at the Internet or directly on your product.

Pre-installed Applications

The device has pre-installed applications when it was manufactured. You can

see them by tapping Application Tab. They are video player, audio player,

photo viewer, alarm clock, calculator, calendar etc.

Install Applications

You can install applications manually following these steps:

(1) Download the installation file to your computer. Make sure the file is in

format of .apk which is supported by Your MID system.

(2) Connect Your MID to computer with the USB cable.

(3) Copy the installation file to your MID.

(4) Disconnect your MID form the computer.

(5) Turn on your MID and enter the file explorer mode with the Explorer.

(6) Locate the installation file and open it.

(7) Follow the on-screen instructions to install the application.

(8) Once the application is installed successfully, you can find it in the

application tab.

Uninstall Applications

(1) Display all applications by tapping on Application Tab.

(2) Select “Settings”, and then select “Applications”.

(3) Select “Manage Applications”.

(4) Tab on the application that you want to uninstall.

(5) Tab on “Uninstall” to uninstall the application.

Note: You cannot uninstall the pre-installed applications.

System Settings

In the Home screen, tap on “Settings” and choose a category: “Networks

Controls”, “Sound & Display”, “Date & Time”, etc.

y When a down arrow appears on the right of a parameter, this means that

this setting includes sub-parameters. Tap on it to reveal the list of

sub-parameters.

y When a check box appears on the right of a parameter, tap on it to enable or

disable this option.

y When it is possible, you can use your finger to scroll the screen up and down

to reveal settings that you don’t initially see.

y When you have finished adjusting your settings, tap on the Back icon to

go back to the list of settings, or tap on the Home icon to go directly to

the Home screen. Your settings are saved instantly.

Wireless &

networks

This menu allows you to manage your Wi-Fi and Bluetooth

connections as well as set up the Airplane mode.

Wi-Fi – tap on this line to enable or disable the Wi-Fi

connection.

Wi-Fi settings – allows you to set up and manage your Wi-Fi

networks.

Sound &

Display

Sound settings:

Media volume –Sets the volume for music and videos. You

can also adjust the sound by using the Volume buttons, on

the top of the device.

Notification Ringtone –Set your default notification ringtone.

Audible selection –enables/disables the touchscreen click

sound.

SD card notifications –Disable SD card notification sounds.

Display settings:

Animation –enables/disables the display of animations when

opening and closing applications.

Brightness –allows you to adjust the brightness of the

screen.

Screen timeout –allows you to adjust the delay before the

screen automatically turns off and locks itself. To turn the

screen back on, press the Power button once, and press it

again to unlock the screen.

Location &

Security

This screen gives you the possibility to allow certain

Android™ applications to determine your current location via

the WiFi or the GPS. You can also define a screen unlock

pattern and other security parameters.

Applications This screen allows you to manage your Android™

applications. You can view information about all the

applications installed on your device.

SD card & MID

Storage

This setting allows you un-mount the SD card or check SD

card and internal storage space.

Language &

keyboard

Set your preferred language and region, and configure text

settings for faster and more accurate text input.

Date & Time This setting allows you set up the date, time, time zone and

formats.

Touch Panel

calibration

If the touch-screen is not responding properly, use this setting

and follow the instructions on the screen.

USB Mode

Select

Select this option if you connect to a USB flash drive with

built-in 3G technology instead of a 3G network card.

Update Media

Library

Update the media library of your MID manually.

About Device Display information about Your MID system.

Troubleshooting

Reset your MID

y In the event that your MID freezes, you can force the device to shut down by

holding the Power button for 15 seconds.

y Only if the Power button does not reset your device, then should you use

the “pinhole reset” button, located on the back the device.

Touch-screen Problems

If the touch-screen is not responding properly try to go to the “Touch-Screen

Calibration” settings screen.

Specifications

MID Configurations

CPU

Based on ARM926EJ (dual-core)

Main CPU frequency：600MHz

Auxiliary CPU Frequency（DSP digital command control）：550MHz

SDRAM 2X64MB

Built-in

operating

system

Android OS 2.2

Hardware IBM PC or compatible PC, Note-book or Macintosh with USB port

Internal

Memory NAND Flash: 512MB,1GB,2GB,4GB,8GB,16GB(optional)

Memory Card

type

SD card: 1GB, 2GB, 4GB (SDHC), 8GB(SDHC),

16GB(SDHC)(optional)

System Requirements

Operation

System Windows2000/XP/Vista/windows 7and MAC OS 10.4 or above

USB Interface USB2.0 High speed

Features

Output Port 3.5mm earphone port, built-in speakers

Audio

MP3(MPEG1/2/2.5 Audio Layer 1/2/3)；

WMA(Version 4,4.1,7,8,9)

WAV(MS-ADPCM，IMA-ADPCM，PCM)

APE(Version 3.95,3.97,3.98,3.99,normal and fast except high and

extra high)

FLAC(FLAC Audio)

AAC(ADIF ,ATDS Header AAC-LC and AAC-HE ) (For license)

OGG

Video Format

AVI(Xvid, Divx 4/5/6 except GMC&QPEL, Divx for License, Audio

Codec：MP3, AC3)

RM/RMVB(Real Video Codec 8/9/10 except G2, Audio Codec: Real

Audio)

FLV( Sonnati H.263, H.264 except O2 VP6) (For license)

MKV(H.264, MPEG4, XVID, DIVX4/5/6)

MOV(MPEG4, H.264, Audio Codec:MP3)

Photo Format JPEG, BMP, GIF

Language Multinational languages

Technical Parameter

Read speed 8.7-9MB/S(MLC flash)

Write speed 4.5-4.8MB/S(MLC flash)

SD read/write

speed Read speed:2.5-4MB/S; Write speed:1.5-3MB/S

Audio Bit Rate

MP3: 8～320Kbps

WMA: 8～320Kbps

OGG: Q1- Q10

Video

Resolution

AVI(Max.1280X720);RM/RMVB(Max.1280X720);FLV(Max.1280*720);

MKV(Max. 1280X720);MOV(Max. 1280X720)

Video Bit rate

Max. 6Mbps (MPEG4, XVID, DIVX4/5/6);

Max. 2.5Mbps (H.264, Real video 8/9/10);

Max. 2Mbps (Sorenson H.263).


Resolution JPEG(Baseline)(Max.8000*8000),GIF(Static)(Max.1000*1000)

Recording

format 3gpp(general quality:6kbps/8kHz)

Network

Connection

Media

WiFi (802.11 b/g)

Battery Charge

Time About 5 Hours

Battery Life

About10 hours of music playback;

About 6 hours of video playback;

About 6 hours of web browsing.

Display 7-inch TFT LCD, Touchpad (resistive touch pad), 800X480 pixel.

SNR 90dB above

Frequency

Response

Range

20Hz—20KHz

Power Supply Rechargeable lithium-ion polymer battery;

AC Adapter: AC Input 100-240V～50/60Hz, DC Output 5V/2A

Physical Parameters

Storage Temp. -20 ℃～ +65℃

Ambient Temp. 0 ℃～ +50℃

Operation

Relative

Humidity

20% ～ 90%（40℃）

Storage

Relative

Humidity

20% ～ 93%（40℃）

Listening Cautions

z Do not play your earphones or headphones at a high volume. Hearing experts

advise against continuous extended play.

z If you experience a ringing in your ears, reduce volume or discontinue use.

z Do not use while operating a motorized vehicle. It may create a traffic hazard

and is illegal in many areas.

z You should use extreme caution or temporarily discontinue use in potentially

hazardous situations.

z Even if your headphones or earphones are the open-air type designed to let

you hear outside sounds, don’t turn up the volume so high that you can’t hear

what’s around you.

z Sound can be deceiving. Over time you hearing “comfort level” adapts to

higher volumes of sound. So what sounds “normal” can actually be loud and

harmful to your hearing. Guard against this by setting your equipment at a safe

level BEFORE your hearing adapts.

To establish a safe level:

a. Start your volume control at a low setting.

b. Slowly increase the sound until you can hear it comfortably and clearly,

and without distortion. Once you have established a comfortable

sound level, leave it there.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The

device can be used in portable exposure condition without restriction.

ZTE AD8000 Mobile Internet Device User Manual AD8000 Manual

ZTE Corporation Mobile Internet Device AD8000 Manual

User Manual

Navigation menu

Namespaces

Views

Navigation
