User Manual
1
BGH Joy X3
Quick Start Guide
2
LEGAL INFORMATION
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted,
reproduced, translated or used in any form or by any
means, electronic or mechanical, including
photocopying and microfilm, without the prior written
permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make
modifications on print errors or update specifications
in this guide without prior notice.
We offer self-service for our smart terminal device
users. Please visit the ZTE official website
(at www.ztedevice.com) for more information on
self-service and supported product models.
Information on the website takes precedence.
Disclaimer
ZTE Corporation expressly disclaims any liability for
faults and damages caused by unauthorized
modifications of the software.
Images and screenshots used in this guide may
differ from the actual product. Content in this guide
may differ from the actual product or software.
Trademarks
ZTE and the ZTE logos are trademarks of
ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by
the Bluetooth SIG, Inc. and any use of such
trademarks by ZTE Corporation is under license.
3
microSDHC Logo is a trademark of
SD-3C, LLC.
Other trademarks and trade names are the property
of their respective owners.
Version No.: R1.1
Edition Time : December 3, 2015
4
Getting to Know Your Phone
Indicator light
Proximity&Light
Sensor
Earpiece
Front Camera
Volume Key
Power Key
Touch Screen
Back Key
Home Key
Menu Key
5
Back Camera Headset Jack
Flash
Battery Cover
Speaker Charging/micro-USB
Jack
Main Microphone
6
Key Function
Power Key ● Press and hold to turn on or off
airplane mode, enable no
interruptions mode, priority
interruptions only mode, silent
mode with vibration, disable silent
mode, power off or reboot the
phone.
● Press to turn off or on the screen
display.
Home Key ● Touch to return to the home screen.
● Touch and hold to open Google
Search.
Back Key Touch to go to the previous screen.
Menu Key ● Touch to view the options for the
current screen.
● Touch and hold to see recently
used applications.
Volume
Key
Press or hold either end of the key to
turn the volume up or down.
NOTE:
You can exchange the positions of the Back Key
and the Menu Key. Touch Settings > Hard Key
from the home screen and select one case.
Installing the micro-SIM Card
Power off your phone before installing or removing
7
the micro-SIM card.
WARNING!
To avoid damage to the phone, do not use any other
kind of SIM cards, or any non-standard micro-SIM
card cut from a SIM card. You can get a standard
micro-SIM card from your service provider.

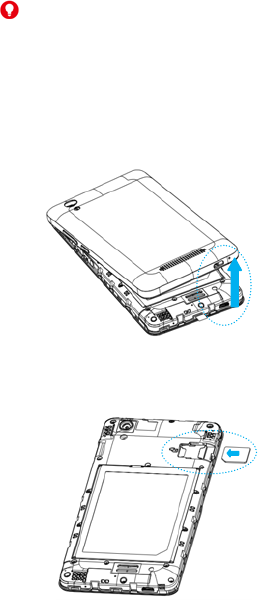

1. Insert your fingernail into the charging/micro-USB
jack at the bottom of the back cover and lift it up
gently.
2. Hold the micro-SIM cards with the cut corner
oriented as shown and slip it into the card slots
until you hear a click.
Card Slot
8
3. Align the back cover with the back of the phone
and press the cover back into place. Ensure that
all the tabs are secure and there are no gaps
around the cover.
Installing the microSDHC™ Card (Not
Included)
A microSDHC card can be installed or removed
while the phone is turned on. You need to unmount
the microSDHC card before removing it.

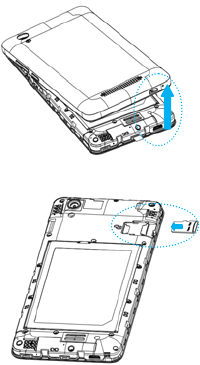

1. Insert your fingernail into the charging/micro-USB
jack at the bottom of the back cover and lift it up
gently.
2. Hold your microSDHC card with the metal
contacts facing down and slide it in.
9
3. Replace the back cover.
NOTE:
Some applications may require a microSDHC card
to work normally or may store certain data on it.
Therefore, it is recommended that you keep a
microSDHC card installed and not remove or
replace it randomly.
Charging the Battery
Your phone’s battery should have enough power for
the phone to turn on, find a signal, and make a few
calls. You should fully charge the battery as soon as
possible.
WARNING!
Use only ZTE-approved chargers and cables. The
use of unapproved accessories could damage your
phone or cause the battery to explode.
CAUTION:
Do not remove or change the built-in rechargeable
battery in your phone by yourself. The battery can
only be changed by ZTE or ZTE authorised service
provider.

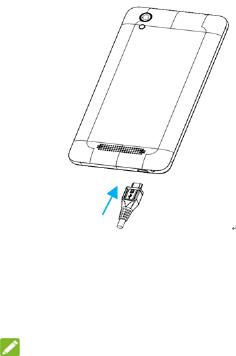

1. Connect the adapter to the charging jack. Ensure
that the adapter is inserted in the correct
direction. Do not force the connector into the
charging jack.
10
2. Connect the charger to a standard AC power
outlet.
3. Disconnect the charger when the battery is fully
charged.
NOTE:
If the battery is extremely low, you may be unable to
power on the phone even when it is being charged.
In this case, try again after charging the phone for at
least 20 minutes. Contact the customer service if
you still cannot power on the phone after prolonged
charging.
Powering On/Off Your Phone
Ensure that the battery is charged.
● Press and hold the Power Key to turn on your
11
phone.
● To turn it off, press and hold the Power Key to
open the options menu. Touch Power off and
then touch OK.
You can also press and hold the Power Key for
about 10 seconds to turn off your phone.
Waking Up Your Phone
Your phone automatically goes into sleep mode
when it is not in use for some time. The display is
turned off to save power and the keys are locked to
prevent accidental operations.
You can wake up your phone by turning on the
display and unlocking the keys.
1. Press the Power Key to turn the screen on.
2. Swipe up to unlock.
NOTE:
If you have set an unlock pattern, a PIN or a
password for your phone, you’ll need to draw the
pattern, or enter the PIN/password to unlock your
phone.
Using the Touch Screen
Your phone’s touch screen enables you to control
actions through a variety of touch gestures.
● Touch
When you want to type using the onscreen
keyboard, select items on the screen such as the
application and settings icons, or press the
onscreen buttons, simply touch them with your
12
finger.
● Touch and Hold
To open the available options for an item (for
example, a message or link in a web page),
touch and hold the item.

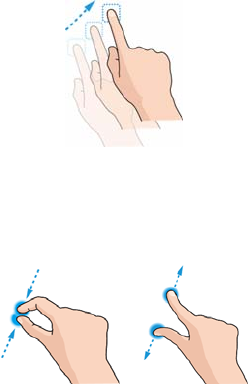

● Swipe or Slide
To swipe or slide means to quickly drag your
finger vertically or horizontally across the screen.
● Drag
To drag, press and hold your finger with some
pressure before you start to move your finger.
While dragging, do not release your finger until
13
you have reached the target position.
● Pinch
In some apps (such as Maps, Browser, and
Gallery), you can zoom in and out by placing two
fingers on the screen at once and pinching them
together (to zoom out) or spreading them apart
(to zoom in).
● Rotate the screen
For most screens, you can automatically change
the screen orientation from portrait to landscape
by turning the phone sideways.
14
Product Safety Information
Don’t make or receive phone calls while
driving. Never text while driving.
For body-worn operations, maintain a
separation of 10 mm.
Small parts may cause choking.
Your phone can produce a loud sound.
To prevent possible hearing damage, do
not listen at high volume levels for long
periods.
Avoid contact with anything magnetic.
Keep away from pacemakers and other
electronic medical devices.
Turn off when asked to in hospitals and
medical facilities.
Turn off when told to on aircraft and at
airport.
Turn off when near explosive materials
or liquids.
Don’t use at gas stations.
Your phone may produce a bright or
flashing light.
Don’t dispose of your phone in fire.
Avoid extreme temperatures.
15
Avoid contact with liquids. Keep your
phone dry.
Do not attempt to disassemble your
phone.
Only use approved accessories.
Don’t rely on your phone as a primary
device for emergency communications.
Radio Frequency (RF) Exposure
General Statement on RF Energy
Your phone contains a transmitter and a receiver.
When it is ON, it receives and transmits RF energy.
When you communicate with your phone, the
system handling your call controls the power level at
which your phone transmits.
Body Worn Operation
Important safety information regarding radio
frequency radiation (RF) exposure:
To ensure compliance with RF exposure guidelines
the phone must be used with a minimum of 15 mm
separation from the body.
Failure to observe these instructions could result in
your RF exposure exceeding the relevant guideline
limits.
Limiting Exposure to Radio Frequency (RF)
Fields
For individuals concerned about limiting their
16
exposure to RF fields, the World Health
Organization (WHO) provides the following advice:
Precautionary measures: Present scientific
information does not indicate the need for any
special precautions for the use of mobile phones. If
individuals are concerned, they might choose to limit
their own or their children’s RF exposure by limiting
the length of calls, or using ‘hands-free’ devices to
keep mobile phones away from the head and body.
Further information on this subject can be obtained
from the WHO home page
http://www.who.int/peh-emf (WHO Fact sheet 193:
June 2000).
Distraction
Driving
Full attention must be given to driving at all times in
order to reduce the risk of an accident. Using a
phone while driving (even with a hands free kit) can
cause distraction and lead to an accident. You must
comply with local laws and regulations restricting the
use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating machinery
in order to reduce the risk of an accident.
17
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your
phone and any consequences of its use.
You must always turn off your phone wherever the
use of a phone is prohibited. Use of your phone is
subject to safety measures designed to protect
users and their environment.
● Always treat your phone and its accessories with
care and keep it in a clean and dust-free place.
● Keep the screen and camera lens clean. Unclean
screen or camera lens may slow down the
phone's reaction to your operations or lower
image quality.
● Clean the device and its accessories with a soft
material such as cleaning cloth for eyeglass
lenses. Do not use alcohol or other corrosive
substances for cleaning or allow them to get
inside.
● Do not expose your phone or its accessories to
open flames or lit tobacco products.
● Do not expose your phone or its accessories to
liquid, moisture or high humidity.
● Do not drop, throw or try to bend your phone or
its accessories.
● Do not paint your phone or its accessories.
● Do not attempt to disassemble your phone or its
accessories. Only authorized personnel can do
so.
18
● Do not expose or use your phone or its
accessories in an environment with or that can
reach extreme temperatures, minimum - [15] and
maximum + [60] degrees Celsius.
● Do not place your phone inside or near heating
equipments or high pressure containers, such as
water heaters, microwave ovens, or hot cooking
utensils. Otherwise, your phone may be
damaged.
● Please check local regulations for disposal of
electronic products.
● Do not carry your phone in your back pocket as it
could break when you sit down.
Small Children
Do not leave your phone and its accessories within
the reach of small children or allow them to play with
it.
They could hurt themselves or others, or could
accidentally damage the phone.
Your phone contains small parts with sharp edges
that may cause an injury or may become detached
and create a choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow
electronic devices or magnetic media to be close to
your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the micro-SIM card’s metal connectors.
19
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your
phone to your ear, with the bottom towards your
mouth.
Air Bags
Do not place a phone in the area over an air bag or
in the air bag deployment area as an airbag inflates
with great force and serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A
small percentage of people may be susceptible to
blackouts or seizures (even if they have never had
one before) when exposed to flashing lights or light
patterns such as when playing games or watching
video. If you have experienced seizures or blackouts
or have a family history of such occurrences, please
consult a physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI)
when texting or playing games with your phone:
● Do not grip the phone too tightly.
● Press the buttons lightly.
● Use the special features which are designed to
minimize the times of pressing buttons, such as
20
Message Templates and Predictive Text.
● Take many breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, which cannot guarantee connection in
all conditions. Therefore, you must never rely solely
on any wireless phone for emergency
communications.
Loud Noise
This phone is capable of producing loud noises,
which may damage your hearing. Turn down the
volume before using headphones, Bluetooth stereo
headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and
during normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or
accessories.
Take care not to touch or allow metal objects, such
as coins or key rings, to contact or short-circuit in the
battery terminals.
Never puncture the surface of the battery with sharp
objects.
21
Connection to a Car
Seek professional advice when connecting a phone
interface to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its
accessories.
Only qualified personnel can service or repair the
phone or its accessories.
If your phone (or its accessories) has been
submerged in water, punctured, or subjected to a
severe fall, do not use it until you have taken it to be
checked at an authorized service center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close
proximity to personal medical devices, such as
pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a
minimum separation of 15 cm be maintained
between a mobile phone and a pacemaker to avoid
potential interference with the pacemaker. To
achieve this, use the phone on the opposite ear to
your pacemaker and do not carry it in a breast
pocket.
22
Hearing Aids
People with hearing aids or other cochlear implants
may experience interfering noises when using
wireless devices or when one is nearby.
The level of interference will depend on the type of
hearing device and the distance from the
interference source. Increasing the separation
between them may reduce the interference. You
may also consult your hearing aid manufacturer to
discuss alternatives.
Medical Devices
Please consult your doctor and the device
manufacturer to determine if operation of your
phone may interfere with the operation of your
medical device.
Hospitals
Turn off your wireless device when requested to do
so in hospitals, clinics or health care facilities. These
requests are designed to prevent possible
interference with sensitive medical equipment.
Aircraft
Turn off your wireless device whenever you are
instructed to do so by airport or airline staff.
Consult the airline staff about the use of wireless
devices onboard the aircraft. If your device offers a
‘flight mode’, this must be enabled prior to boarding
an aircraft.
23
Interference in Cars
Please note that because of possible interference
with electronic equipment, some vehicle
manufacturers forbid the use of mobile phones in
their vehicles unless a hands-free kit with an
external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres,
obey all posted signs to turn off wireless devices
such as your phone or other radio equipment.
Areas with potentially explosive atmospheres
include fueling areas, below decks on boats, fuel or
chemical transfer or storage facilities, and areas
where the air contains chemicals or particles, such
as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device
when in a blasting area or in areas posted power off
“two-way radios” or “electronic devices” to avoid
interfering with blasting operations.
Labelling requirements
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
24
undesired operation.
Information to user.
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
Information to the user.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
25
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's
requirements for exposure to radio waves. The
guidelines are based on standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of
scientific studies. The standards include a
substantial safety margin designed to assure the
safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The
SAR limit of USA (FCC) is 1.6 W/kg averaged over
one gram of tissue. Device types: BGH Joy X3 (FCC
ID: SRQ-BLADEA452) has also been tested against
this SAR limit. The highest SAR value reported
under this standard during product certification for
use close to head is 0.794W/kg and close to human
body is 1.129 W/kg. This device was tested for
typical body operations at 10mm from the body. The
use of accessories that do not satisfy these
requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body Operation
This device was tested for typical body support
operations. To comply with RF exposure
requirements, a minimum separation distance of
26
10mm must be maintained between the user’s body
and the device, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by
this device should not contain any metallic
components. Body accessories that do not meet
these requirements may not comply with RF
exposure requirements and should be avoided. Use
only the supplied or an approved antenna.
