ZTE GR228 GSM (GPRS) Dual-Mode Digital Mobile Phone User Manual
ZTE Corporation GSM (GPRS) Dual-Mode Digital Mobile Phone
ZTE >
User Manual
ZTE-G R228
Mobile Phone
User Manual
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice.
Version No. : R1.0
Edition Time : 03.30, 2011
Manual No. : 07958450****
Table of Contents
SECURITY ........................................ 4
SAFETY PRECAUTIONS ............ 4
FCC COMPLIANCE .....................13
LIMITATION OF LIABILITY ......17
KEY FUNCTIONS .........................18
TURNING ON / OFF OR
WAKING UP YOUR PHONE ....20
LOCKING / UNLOCKING THE
KEYPAD ...........................................20
STATUS BAR ICONS ..................21
WRITING TEXT .............................22

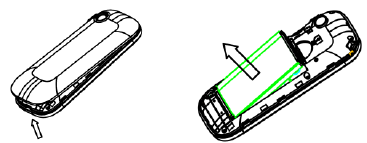

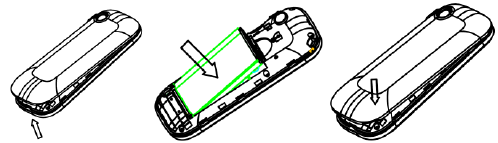

BATTERY ........................................24
INSERTING THE SIM CARD ...27
INSERTING THE MEMORY
CARD ................................................29
PHONEBOOK ................................31
MAKING AND RECEIVING
CALLS.............................................. 32
CALL CENTER ............................. 34
SENDING AND RECEIVING
MESSAGES ................................... 36
SENDING AND RECEIVING
EMAIL............................................... 39
USE PROFILES ............................ 41
SETTINGS ...................................... 42
ORGANISER ................................. 45
BLUETOOTH ................................. 47
MULTIMEDIA ................................. 49
JAVA MIDLETS............................. 53
USING SERVICES ....................... 53
4
Security
To protect your mobile phone from illegal use, take the security
measures as follows:
Set PIN codes of the SIM card.
Set handset lock code.
Set call restrictions.
Safety Precautions
This section includes some important information on safe and efficient
operation. Please read this information before using the phone.
Operational Precautions
Please use your phone properly. When making or receiving a call,
please hold your phone as holding a wireline telephone. Make sure
that the phone is at least one inch (about two point five centimeters)
from your body when transmitting.
Do not touch the antenna when the phone is in use. Touching the
5
第5页
antenna area affects call quality and may cause the phone to operate
at a higher power level than needed.
Some people may be susceptible to epileptic seizures or blackouts when
exposed to flashing lights, such as when watching television or playing
video games. If you have experienced seizures or blackouts, or if
you have a family history of such occurrences, please consult your
doctor before playing video games on your phone or enabling a
flashing-light feature on your phone. (The flashing-light feature is not
available on all products.)
Keep the phone out of the reach of small children. The phone may
cause injury if used as a toy.
Precautions While Driving
Please pay attention to the traffic safety. Check the laws and regulations
on the use of your phone in the area where you drive. Always obey
them.
Use hands-free function of the phone, if available.
Pull off the road and park before making or answering a call if conditions
6
require.
Precautions for Medical Devices and Facilities
When using your phone near pacemakers, please always keep the
phone more than eight inches (about twenty centimeters) from the
pacemaker when the phone is switched on. Do not carry the phone in
the breast pocket. Use the ear opposite the pacemaker to minimize the
potential for interference. Switch off the phone immediately if necessary.
Some phones may interfere with some hearing aids. In the event
of such interference, you may consult your hearing aids manufacturer
to discuss alternatives.
If you use any other personal medical device, please consult the
manufacturer of your device to determine if it is adequately shielded
from RF energy.
In those facilities with special demand, such as hospital or health care
facilities, please pay attention to the restriction on the use of mobile
phone. Switch off your phone if required.
Mobile Phone
7
第7页
Please use original accessories or accessories approved by the
phone manufacturer. Using any unauthorized accessories may
affect your mobile phone‟s performance, damage your phone or even
cause danger to your body and violate related local regulations about
telecom terminals.
Turn off your phone before you clean it. Use a damp or anti-static
cloth to clean the phone. Do not use a dry cloth or electrostatically
charged cloth. Do not use chemical or abrasive cleaners as these
could damage the phone.
As your mobile phone can produce electromagnetic field, do not place it
near magnetic items such as computer disks.
Using the phone near electrical appliances such as TV, telephone,
radio and personal computer can cause interference.
Do not expose your mobile phone to direct sunlight or store it in hot
areas. High temperatures can shorten the life of electronic devices.
Keep the environment temperatures within the range of -20ºC ~60ºC
Keep your phone dry. Any liquid may damage your phone.
8
Do not drop, knock or harshly treat the phone. Rough handling can
break internal circuit boards.
Do not connect the phone with any incompatible enhancement.
Do not attempt to disassemble the mobile phone or battery.
Do not store the phone with flammable or explosive articles.
Do not charge the mobile phone without battery.
Some electronic devices are susceptible to electromagnetic interference
sent by phone if inadequately shielded. Please use phone at least 20
cm or as far away as you can from TV set, radio and other automated
office equipment so as to avoid electromagnetic interference.
Operating phone may interfere with medical devices like hearing aides
and pacemakers, or other medical devices in hospital. Consult a physician
or the manufacturer of the medical device before using phone.
Be aware of the usage limitation when using phone at places such as
oil warehouses, or chemical factories, where there are explosive
gases or explosive products being processed, because even if your
phone is in idle state, it still transmits radio frequency (RF) energy.
Therefore, power off your phone if required.
9
第9页
Do not touch the antenna while calling. Otherwise it will affect the
quality of calling and waste battery energy. The damaged antenna
will cause slight burn while touching your skin.
Keep phone out of the reach of small children. Phone may cause
injury if used as a toy.
Do not put other things on the terminal to avoid overlaying radiator.
Keep the antenna free from obstructions and position the antenna
straight up. This will ensure best call quality.
Precautions for Potentially Explosive Atmospheres
Switch off your phone prior to entering any area with potentially
explosive atmospheres, such as fueling areas, fuel or chemical transfer
or storage facilities.
Do not remove, install, or charge batteries in such areas. Spark in a
potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
To avoid possible interference with blasting operations, switch off
your phone when you are near electrical blasting caps, in a blasting
10
area, or in areas posted “Turn off electronic devices.” Obey all signs
and instructions.
Precautions for Electronic Devices
Some electronic devices are susceptible to electromagnetic interference
sent by mobile phone if inadequately shielded, such as electronic
system of vehicles. Please consult the manufacturer of the device before
using the phone if necessary.
Safety and General Use in Vehicles
Safety airbag, brake, speed control system and oil eject system
shouldn‟t be affected by wireless transmission. If you do meet problems
above, please contact your automobile provider. Do not place your
phone in the area over an airbag or in the airbag deployment area.
Airbags inflate with great force. If a phone is placed in the airbag
deployment area and the airbag inflates, the phone may be propelled
with great force and cause serious injury to occupants of the vehicle.
Please turn off your mobile phone at a refueling point, and the same
to the place where the use of two-way radio is prohibited.
11
第11 页
Aircraft Safety
Please turn off your mobile phone before the airplane takes off. In
order to protect airplane‟s communication system from interference,
it is forbidden to use mobile phone in flight. Safety regulations require
you to have permission from a crew member to use your phone while
the plane is on the ground.
If the mobile phone has the function of automatic timing power-on,
please check your alarm setting to make sure that your phone will not
be automatically turned on during flight.
Battery Use
Do not short-circuit the battery, as this can cause the unit to overheat
or ignite.
Do not store battery in hot areas or throw it into fire. Otherwise, it will
cause explosion.
Do not disassemble or refit the battery. Otherwise, it will cause liquid
leakage, overheating, explosion and ignition of the battery.
Please store the battery in a cool dry place if you don‟t use it for a
12
long period.
The battery can be recharged for hundreds of times, but it will eventually
wear out. When the operating time (talk time and standby time) is
noticeably shorter than normal, it is time to replace it with a new one.
Please stop using the charger and battery when they are damaged or
show evidence of aging.
Return the worn-out battery to the provider or dispose of it in accordance
with environment regulations. Do not dispose of it in household rubbish.
Please use original batteries or batteries approved by the phone
manufacturer. Using any unauthorized battery may affect your handset
performance or may cause danger of explosion, etc.
Warning: If the battery is damaged, do not discharge it. If the leakage
does come into contact with the eyes or skin, wash thoroughly in clean
water and consult a doctor.
13
第13 页
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user‟s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
14
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Health and safety information
Radio Frequency (RF) Energy
This model phone meets the government‟s requirements for exposure to
radio waves.
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government:
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
15
第15 页
using standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when
tested for use at the ear is 1.2 W/kg and when worn on the body, as
described in this user guide, is 1.0 W/kg (Body-worn measurements differ
among phone models, depending upon available enhancements and
FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file
16
with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on
FCC ID: Q78-GR228.
For body worn operation, this phone has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the handset a minimum of 1.5 cm from the body. Use
of other enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn accessory and are
not holding the phone at the ear, position the handset a minimum of 1.5
cm from your body when the phone is switched on.
17
第17 页
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental
or consequential damages resulting from or arising out of or in connection
with using this product, whether or not ZTE had been advised, knew or
should have known the possibility of such damages. The user should
refer to the enclosed warranty card for full warranty and service information.
Note: The pictures and icons shown in the manual are just schematic
drawings for function demonstration. If they are inconsistent with your
handset, please take your handset as the standard. If the inconsistency
exits in the manual because of the handset function updating, please
refer to the follow-up public information from ZTE CORPORATION.
18
Key Functions
Send key
Left soft key
* key
Earpiece
Alpha numeric keys
End/Power key
4-Way Navigation
keys and Center key
# key
Charger interface
Right soft key
19
第19 页
Function
Description
Left soft key
Performs the function indicated at the left bottom of the
screen.
Right soft key
Performs the function indicated at the right bottom of the
screen.
Center key
Press to confirm actions and make selections.
4-Way
Navigation keys
These keys (UP, DOWN, LEFT and RIGHT) allow for
navigation through menu options and quick access to
some function menus.
Send key
Press to dial a phone number or answer a call, or view
the call history.
End/Power key
Press to exit to the standby mode.
Hold to switch on/off the phone.
# key
Hold to change the current profile to Silent profile.
Alpha numeric keys
Press to enter characters 0-9 and the alphabets from a-z.
20
Turning On / Off or waking up your phone
Hold the Power key to turn your phone on or off.
In Menu→Settings→Phone settings→Misc. settings→LCD
backlight, set the LCD backlight time. If the phone is not operated within
this time, the screen will turn black.
Press any key to wake up your phone.
Locking / unlocking the keypad
In Menu→Settings→Security settings→Auto keypad lock, set the
auto keypad lock time. If the phone is not operated in the standby mode
within this time, the keypad will be locked.
In the standby mode, press the Left soft key and then press the * key
within two seconds to lock the keypad. The unlock method is the same.
Note: In this User Manual, “press a key” means to press the key and
release it, while “hold a key” means to press the key for at least two
seconds and then release it. Locking the keypad can prevent
21
第21 页
unintentional operations on it. You can answer an incoming call with the
regular operation when the keypad is locked.
Status bar icons
Indicator
What it means
Indicator
What it means
Signal strength
New SMS, message box full
when blinking
New voicemail
New MMS
Missed call
Call forwarding
Silent
GPRS
Indoor
Battery status
Outdoor
Alarm clock set
Meeting
Keypad locked
22
Writing text
You can use the keyboard to enter text messages, contact information,
notes, and more.
Change input mode: Press the # key to change the input mode. (input
modes: eZi ABC, eZi abc, eZi Abc, ABC, abc, Abc, eZi ES, eZi es, eZi
Es, ES, es, Es and 123).
Input letters: In ABC/abc/Abc/ES/es/Es mode, press the
corresponding letter key till the letter appears.
Input words: In eZi ABC/eZi abc/eZi Abc/eZi ES/eZi es/eZi Es mode,
input any letter with a single key press. Press each key only once for
every letter. The word changes after each key stroke. Predictive text
input is based on a built-in dictionary. When you have finished writing
the word and it is correct, confirm it by pressing the 0 key or the Center
key. If the word is incorrect, press the Left/Right keys to view other
matching words found in the dictionary.
Input digits: In 123 mode, press digit key once to input a digit. In eZi
ABC/eZi abc/eZi Abc/eZi ES/eZi es/eZi Es mode, press the digit key,
23
第23 页
and select the number by pressing the Navigation keys. You cannot
input 0 in eZi ABC/eZi abc/eZi Abc/eZi ES/eZi es/eZi Es mode. In
ABC/abc/Abc/ES/es/Es mode, constantly press the digit key until the
number appears.
Input symbol: Press the * key to enter symbol mode, select the
required symbol (common symbols) by pressing the Navigation keys
and then press the Left soft key or Center key to confirm it. In eZi
ABC/eZi abc/eZi Abc/eZi ES/eZi es/eZi Es mode, press the 1 key, and
select the required symbol (common symbols) by pressing the Navigation
keys. In ABC/abc/Abc/ES/es/Es mode, constantly press the 1 key
until the required symbol (common symbols) appears.
Input space: Press the 0 key to input space. It does not work in 123
mode.
Delete character: Press the Right soft key to clear a character. Hold
the Right soft key to delete all characters and clear the display.
Move cursor to left or right: Among the text, press the Left/Right
navigation keys to move the cursor to left or right.
24
Battery
The lithium ion battery of the mobile phone can be immediately used after
unpacking.
Installing the battery
1. Pull the battery cover from the notch on the bottom left edge and
remove the cover.
2. Insert the battery by aligning the gold-coloured contacts with the
contacts in the battery slot.
3. Push down the upper section of the battery until it clicks into place.
4. Replace the battery cover and close it gently until you hear a click.
25
第25 页
Removing the battery
1. Make sure that your mobile phone is switched off.
2. Remove the battery cover.
3. Pull the battery up and remove it from the mobile phone.
26
Charging the battery
Your phone is powered by a rechargeable battery. For maximum battery
performance, it is recommended that you first use up the battery power
and then charge it completely. A new battery‟s full performance is achieved
only after three complete charge and discharge cycles.
Connect your travel adapter to the side of your mobile phone as
shown in the diagram.
Connect the other end of the travel adapter to the mains socket.
When you charge the battery, the battery charging indicator appears.
27
第27 页
When the battery is fully charged, disconnect the charger.
Inserting the SIM card
You want a mobile phone that is sophisticated yet easy to use and here
it is in your hands! Naturally you are eager to start using it, but first you
need to insert the SIM card.
28
Insert the SIM card as follows.
1. Make sure that the phone is switched off and the charger is
disconnected from the phone.
2. Turn the phone over and remove the battery cover.
3. Remove the battery if it is already installed.
4. Hold your SIM card with the cut corner oriented as shown and then
slide it into the card holder with the gold-coloured contacts facing
downward.
5. Replace the battery.
6. Replace the battery cover.
29
第29 页
Every mobile phone has a SIM card (Subscriber Identity Module).
This is a micro-chip that holds your personal information such as names
and phone numbers. Your phone won‟t work without it. If you already
have contacts on your SIM card, they can be transferred in most cases.
Inserting the Memory Card
You can use a Memory card to expand the storage of the phone. You can
store or copy files such as videos, photos, music, and so on.
Do not take out the card or switch off the phone while transmitting or
30
storing data, which may cause data loss or damage to the phone or the
card.
Insert the Memory card as follows:
The Memory card slot is on the side of the SIM card holder. Insert the
card with the metal contacts facing down until it clicks to the right
position.
31
第31 页
Phonebook
There are some numbers that you may want to call again and again, so it
makes sense to add these numbers to your Phonebook. You can then
access these numbers quickly and easily.
Add new contact
Go to Menu→Phonebook→Add new contact. (Select a storage
location if you have selected Both in Preferred storage.) Edit the
information and select Done, and then select Yes to save.
Save number to Phonebook
You can also save a number right after you‟ve made or received a
phone call or a text message from someone who is not yet in your
Phonebook list.
Quick search
To quickly search for the contacts, enter the first letter of your desired
contact on the screen.
Delete one record
32
To delete someone from your Phonebook list, first select the
name, then select Options→Delete.
Copy or move records
You can copy or move the records to SIM or to phone. You can also
copy the records to file. Select Options→Copy or Move.
Mark several records
Select Options→Mark several and then select the records you want to
mark. It supports Send message, Delete marked and so on.
View memory status
Select Options→Phonebook settings→Memory status to check
the memory status of both phone and SIM.
Making and receiving calls
Basic way to make a call
In the standby mode, press the Alpha numeric keys to input the
number and then press the Send key to dial.
33
第33 页
Dial from the Contacts
Go to Menu→Phonebook. Find the name of the person you want to
call, and press the Send key.
Make an emergency call
You can make emergency calls with the SIM card being inserted as
long as you are in an area with network coverage.
Answer a call
Press the Send key.
End a call
Press the End key.
Use call options
During a call, you can select Options to enter the call options.
You can use the speakerphone by pressing the H-Free button.
You can put a call on hold, make a new call, and use applications
such as Messaging & Phonebook while you‟re on a call.
34
Call center
Go to Menu→Call center.
Call history
Dialled calls, Received calls and Missed calls are saved in Call
history. If the records are full, the earliest saved records will be
deleted. Select Options to enter the submenu.
View: View the details of call record.
Call: Call the record again.
Send message: Send a message to the record.
Save to Phonebook: Save the current number to Phonebook.
Edit before call: Edit the number before you call.
Delete: Delete the current call record.
Delete all: Delete all your call records.
Advanced: View call timers, call cost, text msg. counter and
GPRS counter.
35
第35 页
Call settings
Caller ID: You can select to Set by network, Hide ID or Send ID.
Call waiting: After this function is activated, the system will
inform you if there is another incoming call. Please contact your
network provider for details.
Call divert: The call divert service enables you to divert an
incoming call from a service to a specified telephone number in
preset conditions. You can contact the network provider to
activate this service. You can set the call divert service so that
voice calls and data calls are diverted to a preset number under
different conditions.
Call barring: You can bar outgoing and incoming calls.
Line switching: Switch the call line.
Closed user group: You can create groups and numbers in one
group can call each other, but can not call numbers in other
groups.
Advance settings: You can set auto redial, call time display and
36
call time reminder.
Sending and receiving messages
Write a new message
You can use your mobile phone to send and receive messages.
1. Go to Menu→Messaging→Write message.
2. Write your message. For more information on input method, see
section „Writing text‟. The default message type is SMS.
3. If you want to change to MMS, you can press Options and choose
Switch to MMS; or you can press Options and choose Add
picture, Add sound, Add video or Add subject to directly insert
multimedia contents to the message and it will be switched to MMS
automatically.
4. You can select Options→Slide options to add a new slide.
5. When you finish writing, press Options→Send to to enter
numbers or add from Phonebook. If you are writing an MMS, after
37
第37 页
adding recipients, then you can select Options→Change to Cc or
Change to Bcc to change the current contact to Cc or Bcc.
6. Select Options→Send to send the message out. If you want to
save the MMS as a draft, select Options→Save to Drafts. If you
are writing a SMS, select Options→Save.
View messages
Upon receiving a message, the mobile phone will alert you with a
ringtone, prompt, or a new message icon.
1. Press View to open the Inbox. You can also go to Inbox through
the main menu to read the message.
2. While the message is open, use Options to reply, delete, or
forward the message. You can also call back the sender.
You can view the message boxes in the Messaging interface.
Select Inbox to view received messages.
Select Drafts to view unsent messages.
Select Outbox to view messages that failed to send.
38
Select Sent messages to view messages been successfully
sent and saved.
Select Archive to view archive messages.
Select Broadcast message to view Broadcast messages.
Select Templates to view message templates.
Messages settings
Go to Menu→Messaging→Message settings→Text message.
Profile settings: This is automatically set by the service
provider, but please contact us if this is not available.
Common settings: You can set Delivery report and Reply path on
or off. You can select to save sent messages or not.
Memory status: View the SIM and phone memory status.
Preferred storage: Set the preferred storage to SIM or Phone.
Preferred connection: Set the preferred connection to GPRS,
GSM or GSM only.
Go to Menu→Messaging→Message settings→Multimedia
39
第39 页
message.
Profiles: You can activate a preset profile or add new ones.
Common settings: In Compose, you can set Slide time,
Creation mode, Picture resizing, Auto signature and Signature.
In Sending, you can set Validity period, Delivery report, Read
report, Priority, Delivery time, Hide sender and Send and save.
In Retrieval, you can set Home network, Roaming, Filters,
Read report and Delivery report. In Preferred storage, you can
set the preferred storage to Phone or Memory card. In Memory
status, you can view memory status.
Sending and receiving email
Set up accounts
First you have to setup your email accounts. If the account is not
properly set or activated, you cannot send or receive any emails.
Go to Menu→Messaging→Email→Email accounts.
40
1. Select Options, and then select New account.
2. Select a mail server, then enter your email address, user name
and password. Or you can select Others Email accounts, then
enter your email address, protocol, data account, and server
information, etc.
3. Activate your email account.
Send an email
Go to Menu→Messaging→Email→Write Email. When you finish
writing, select to send or save the email.
Send and receive emails
If you want to receive emails, go to Menu→Messaging→Email.
Press Send and receive, and the emails in your mailbox will be
downloaded to your phone and the emails in the Outbox will be sent
out. Go to Inbox to view your received emails.
41
第41 页
Use profiles
Go to Menu→User Profiles. You can select your preferred profile in this
menu. The profile options are: General, Meeting, Outdoor, Indoor, Silent,
Headset and Bluetooth. The default settings for each individual profile are
preset at the factory. You can change them in the Options→Personalize
menu.
Tone settings: Set the tone for various conditions.
Volume: Set the Ringtone and Key tone, etc.
Alert type: Choose among six modes.
Ring type: Choose among Single, Repeat and Ascending.
Extra tone: Let the phone alert when warning, error, camp on or
connect.
Answer mode: Select Any key to answer a call.
Note: The Headset mode can only be activated with the headset
connected. And the Bluetooth mode can only be activated when the
Bluetooth headset is connected.
42
Settings
You can adjust various settings of your phone. Go to Menu→Settings.
Phone settings
Time and date: You can set home city, time and date and format.
Schedule power on/off: Set auto power on and off time.
Language: You can set the language.
Pref. input methods: You can set the preferred input method.
Display: You can set Wallpaper, Screen saver, Show date and
time and Show owner number.
Shortcuts: Select the functions for shortcut.
Dedicated Key: Set shortcuts for 4-Way Navigation keys.
Flight mode: You can select to use flight mode. In flight mode, all
wireless functions are disabled.
Misc. settings: You can set the LCD backlight brightness and time.
Key backlight: Set the Key backlight On or Off.
43
第43 页
Network settings
In this menu, you can select Automatic/Manual to select the network
service provider according to requests. If you have selected a
service provider manually, you have to manually select again or
return to the Automatic option to select the service provider when
you switch to the SIM card of another network.
The GPRS connection can be set to When needed or Always.
Security settings
PIN lock: If PIN Lock is currently set Off, select it again then input
a PIN code to turn it on. You need to input the correct PIN code to
unlock your SIM card when you turn on your mobile phone next
time.
Note: The PUK code is required to unlock the SIM card if you have
incorrectly input the PIN code for three consecutive times. The PIN
code and the PUK code may be supplied along with the SIM card.
If not, contact the network provider.
Phone lock: Phone lock can prevent your mobile phone from
44
unauthorized use. Select On/Off to enable or disable the handset
lock protection.
Auto keypad lock: Select a time for auto keypad lock, and the
phone will automatically lock the keypad to prevent unintended
touch.
Change password: You can change the PIN, PIN2 and phone
password here.
Note: You may be required to input the phone lock code in some of the
security settings interfaces. The default lock code is 1234. Go to
Security settings→Change password→Phone password to
change the phone lock code.
Connectivity
Bluetooth: See chapter “Bluetooth”.
Data account: You can add and view your GSM and GPRS data
usage.
Restore factory settings
You need to input the correct phone password, and press OK→Yes
45
第45 页
to restore factory settings.
Organiser
go to Menu→Organiser.
Calendar
Enter Calendar, the calendar of the current month will be displayed
on the screen and the current date will be marked by a box.
You can browse the dates, and press the 4-Way Navigation keys to
switch the year and month; the information on the screen will also
change consequently.
Tasks
You can add tasks.
Alarm
You can view, and edit the alarm clocks settings. You can also
enable or disable the alarms. By pressing Edit, you can set the
corresponding features of the alarm according to instructions: Repeat ,
46
Alert time, Snooze, etc.
Calculator
You can perform simple calculations. You can add, subtract, multiply or
divide, and select M+, M-, MR, and MC to perform relevant
operations.
Note: This calculator has limited accuracy and rounding errors may
occur especially in long division.
Unit converter
Your mobile phone has a unit converter to convert weight and length.
Input the value to perform the conversions, such as from Pound to Kg,
from Ounce to Kg, from Km to Mile, from Inch to Cm and from M to
Foot.
World clock
You can view the time in different cities.
Games
Your mobile phone has classic games pre-loaded. For further
47
第47 页
information on this, access the menu and view game Help.
Bluetooth
Go to Menu→Settings→Connectivity→Bluetooth. The Bluetooth
devices must be paired before the communication is performed.
Turn on or off the Bluetooth on your phone
Go to Power, you can turn on or off Bluetooth.
Make your phone visible
Go to Bluetooth→Visibility, you can choose to be visible or not.
When your phone is visible, and the Bluetooth is turned on, all other
Bluetooth-enabled devices within range can detect your phone.
Create a Bluetooth partnership
1. Go to Bluetooth→My device→Search new device to search
other Bluetooth-enabled devices and list them.
2. Select the desired device name in the list and press Pair.
48
3. Then press Yes, the connection will be established.
Beam information using Bluetooth
After the Bluetooth partnership is established, you can beam
information, such as contacts, and calendar items, as well as files
from your phone to another Bluetooth-enabled device.
For example, if you want to send an item from the Phonebook list to
the opposite party, find that item, press Options→Send
contact→Via Bluetooth, and then select the device name. If you
want to send a multimedia file, find the file from the media folder and
then press Options→Send→Via Bluetooth, and then select the
device name.
Connect a Bluetooth hands-free or stereo headset
For hands-free phone conversations or to listen to music, you can use
a Bluetooth hands-free or stereo headset.
Go to Bluetooth→Search audio device to search for the Bluetooth
hands-free or stereo headset.
49
第49 页
Multimedia
Go to Menu→Multimedia.
Camera
Take a photo
Go to Camera to take a photo.
Aim the camera at the object and then press the Center key to take
the shot.
Before capturing a photo, press the Left/Right key to adjust
brightness.
Configure your camera
Go to Camera. Press the Left soft key to configure your camera.
Image viewer
The images you want to view in Image viewer must be put in the ..
\Photos folder in the phone or memory card, and in
Options→Storage, the storage must be set to phone or memory card
50
correspondingly.
You can select an image and view it.
Album supports: jpeg, jpg, bmp, gif, png.
Video recorder
Take a video
Go to Video recorder to record a scene. You need to insert a
memory card before taking a video.
Aim the camera at the object and then press the Center key to start,
press it again to pause, and press the Right soft key to finish
recording.
Before recording a video, press the 4-Way Navigation keys to adjust
brightness and zoom to the right size.
Configure your video recorder
Go to Video recorder. Press the Left soft key to configure your video
recorder.
Video player
51
第51 页
The videos you want to play in Video player must be put in
the ..\Videos folder in the phone or memory card, and in
Options→Storage, the storage must be set to phone or card
correspondingly.
You can then select a video and play it.
Audio player
You can play the audio in your phone or memory card.
The music you want to play in Audio player must be put in the ..\ My
Music folder in the phone or memory card, and in
List→Options→Settings→Pre. playlist, the storage must be set to
phone or memory card correspondingly.
In List, you can refresh your playlist, set storage, or make personal
settings.
Sound recorder
Go to Options→New record to record a sound clip. Go to
Options→Settings to set preferred storage and file format. Go to
Options→List to view the sound clips you recorded.
52
FM radio
With the radio, you can search for radio channels, listen to them,
and save them on your device. Note that the quality of the radio
broadcast depends on the coverage of the radio station in that
particular area. In the FM radio interface, you can press the Up/Down
keys to adjust volume, press the Left/Right keys to tune the
frequency. When you receive an incoming call while listening to the
radio, the radio will switch off. Select Options to enter the submenu.
Note: The wired headset works as an antenna, so always connect the
headset when using the radio.
Files manager
You can check all the folders in the phone or memory card, create new
ones, rename, delete or sort, etc. The files you download from the
internet will be stored in these folders.
Note: When you select Format, the data will be lost, so please be
careful with this function.
53
第53 页
Java MIDlets
Go to Menu→Java MIDlets.
MIDlets are Java™-based applications that can run on your phones. It
supports Java 2 Edition, J2ME™. Java allows you to download
Java-based applications, such as games and tools that are specifically
designed for mobile phones. Java gives you the flexibility of installing and
managing additional J2ME applications from the Internet.
Using Services
Go to Menu→Services.
Services allows you to view internet content. In Services, you can use
the STK and Internet service, and you can select Licence manager to
manage the licences.
STK
SIM card Toolkit (STK) services are value-added services provided by
54
your network provider.
Your mobile phone supports STK service, but if your SIM card and
network provider do not support the service, these functions can‟t be
used.
Internet service
Your phone supports Wireless Application Protocol (WAP). You can
get access to this service through your network provider. Internet
service lets you get information about news, weather forecasts and
more.
You can perform the following operations:
Homepage: Homepage is a WAP site you set in
Settings→Profiles.
Bookmarks: Access your phone‟s preset websites. Select a
bookmark and press Options→Go to to load the website.
Input address: Input a URL and press Options→Done to visit
the site.
Recent pages: Display the pages you‟ve visited recently.
55
第55 页
Select an item and choose Options→Go to to visit the page
again.
Settings: You can set Profiles, Browser options and
Preferences.
Licence manager
Licence list: Display the list of Licences.
Status: Check the version and time.
Advance: Select Sweep to remove useless licences and reboot
your phone.
