K4201 Z User Manual HTML Version

TempConfidential_K4201-Z_UM_Rev1

User Guide

Vodafone Mobile

Broadband USB Stick

K4201-Z

Designed

by Vodafone

Welcome

to theworld of mobile communications

1 Welcome

2 Set up your USB Stick

dnanoitallatsni8swodniW3 user experience

4 Connection window

5 QuickStart window layout

6 QuickStart view: Current

network panel

7 SMS view

8 Account view

9 USB Stick LED lights

10 Hints and tips

15 Glossary

16 FCC Compliance

16 Radio Frequency (RF) Energy

Your new Vodafone Mobile Broadband USB Stick connects your

computer to the internet over the Vodafone mobile phone

network. The Vodafone QuickStart technology built into the

device lets you connect quickly, simply and easily.

Browse the web

You can now access the web and any other internet service

wherever there’s a mobile phone network.

Pick up emails

Keep up to date with your emails, wherever you are.

Send and receive SMS text messages

You can send and receive SMS text messages straight from your

computer. The SMS application provides an easy way to view

messages, write new ones, and manage them.

System Requirements

To use this USB Stick and the Vodafone Mobile Broadband

application, you need:

A computer running Microsoft– ® Windows® 8, Windows® 7

(SP1 recommended), Windows Vista™ (SP2 recommended), or

Windows® XP (SP3 recommended), or an Apple Mac running

Mac OS® X 10.5 (Intel®), 10.6 or 10.7 (all with latest updates),

or a computer running Linux Ubuntu 11.10/10.10/10.04,

openSUSE 11.4/11.3, Fedora 16/14, Debian 6.0/5.0, Mandriva

2010.2, Red Flag 7.0. There may be some limitations in the

Linux implementation.

A USB socket–

Administrator rights on your computer.–

Welcome

Note:

Linux users can access

the Vodafone Mobile

Broadband application

by entering either of the

following addresses into

your browser: http://

VodafoneMobile.vmb or

http://192.168.9.1.

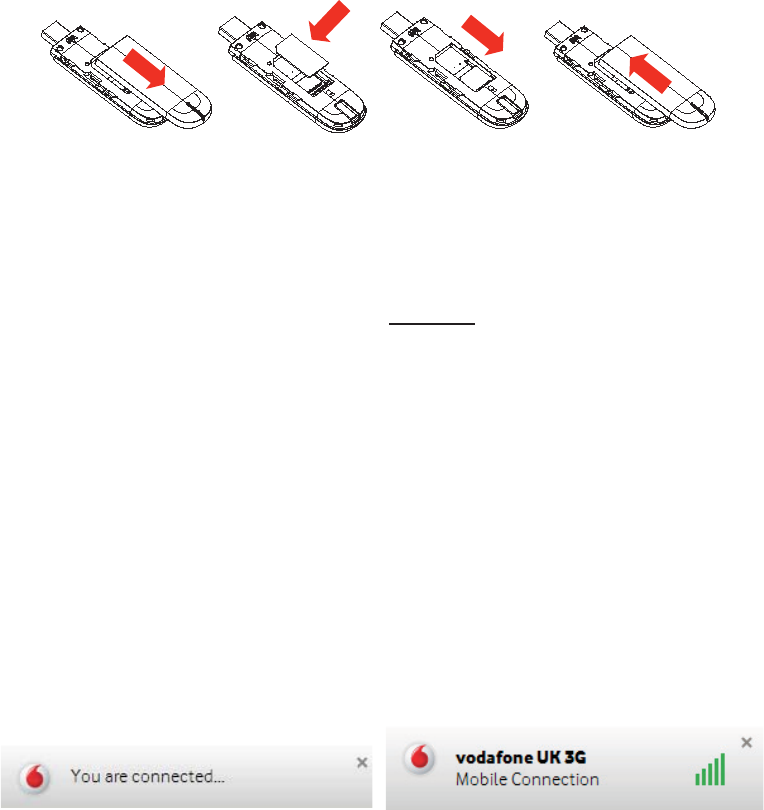

Step 1

Slide the front cover off the USB Stick, and insert your SIM as

shown.

Step 2

Important. If you have an earlier version of the VMB software

on your computer, you must un-install the VMB software

completely and re-boot your PC before inserting this USB Stick.

Step 3

Plug the USB Stick ﬁ rmly into your computer’s USB port.

You should see a progress bar whilst the Vodafone Mobile

Broadband service is installed on your computer from the

USB Stick. Once setup is complete, the Vodafone Mobile

Broadband application is started automatically, and you are

connected to the Vodafone network (if a PIN is required you

will see a popup screen requesting it before you can connect).

The LED on the USB Stick will change from ﬂ ashing to solid, and

you will see 2 popup screens.

Set up your

USB Stick

Note: Some computers

may be set up to

prevent automatic

installation of the VMB

Lite service from your

USB Stick. In this case,

follow the steps in the

hints and tips section

to manually install the

VMB Lite service on your

computer.

On a Windows 8 PC

the user experience is

slightly different. This is

explained on the next

page.

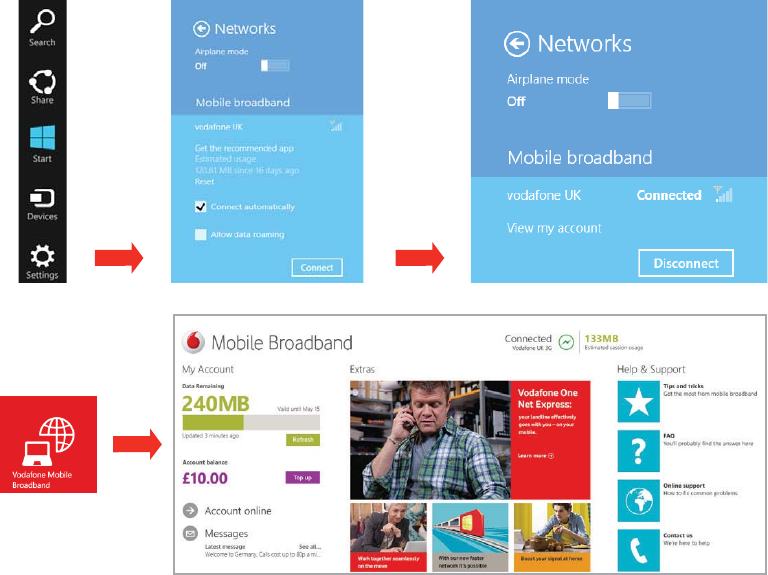

On a Windows 8 PC the Mobile Broadband user experience is

slightly different as the mobile network connectivity is managed

within the Windows 8 operating system. When you plug in the

USB Stick, you need to open the ‘charms’ (Search, Share, Start,

Device and Settings), and select Settings > Networks (or Your

Wi-Fi Network Name) > Mobile Broadband.

Select Connect Automatically if required, then click Connect.

Initially the Connection Manager will show ‘Get recommended

app’ and this will change to ‘View my account’ when the Mobile

Broadband application has been automatically downloaded by

Windows 8.

Windows 8

installation

and user

experience

Note:

The Mobile Broadband

application can be

launched by selecting

the application Tile or

View My Account Link in

the Networks area of the

Settings charm

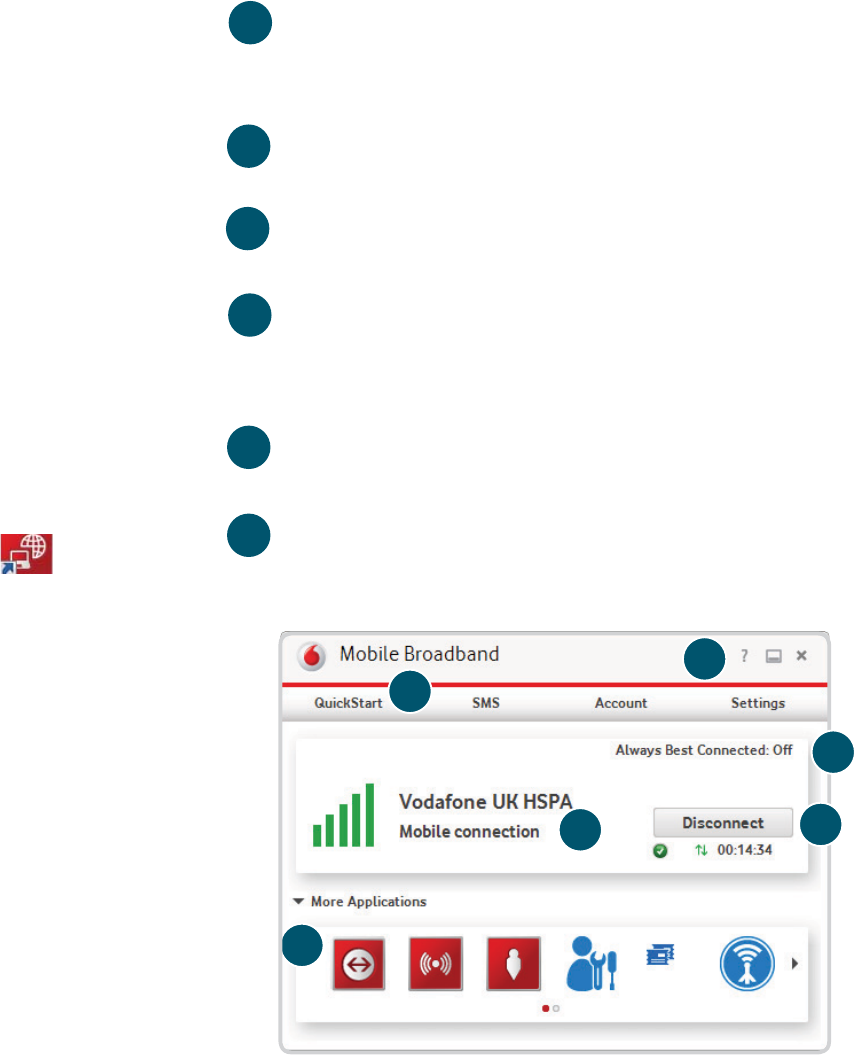

Connection

window

Connect/Disconnect

Connect to the internet via the mobile phone network or

Wi-Fi, to browse the web or use email

Status

Check the status of the current connection

Shortcuts

Select services, applications and tools

Menu bar

Device and network settings and diagnostics, SMS

functionality, manage your account.

Help

View Help topics

Always Best Connected

Conﬁ gure connection preferences

Note: Once setup

is complete, you

can always access

the Vodafone

Mobile Broadband

application when

your USB Stick

is inserted into

your computer by

clicking the desktop

icon

Note: Every window

in the QuickStart

application has this

same standard layout.

Context-sensitive

help for each window

is always available

at the bottom of the

window.

Sometimes an

additional Menu bar

will appear on the left

of the window

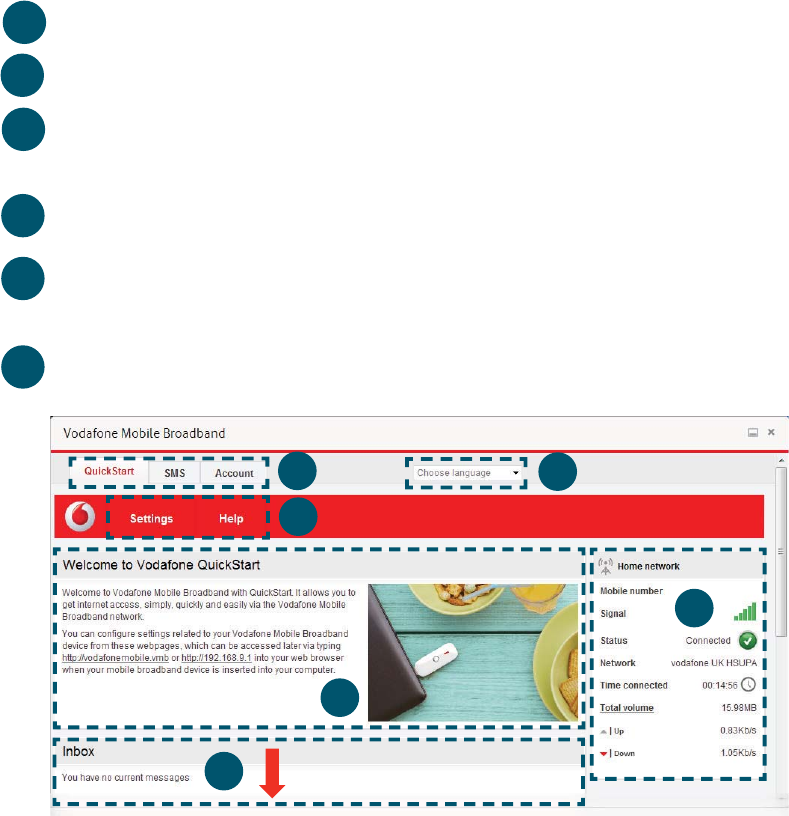

Navigation tabs – Select QuickStart, SMS or Account view

Navigation bar – Select an area within each view

Current network panel – Status of mobile broadband

network connection

Content area – Content for current area

Context help – Context-sensitive help for current area

(scroll down)

Language selection – Defaults to browser language

QuickStart

window

layout

In the QuickStart view Settings area you can:

Set options for automatic connection to the mobile network–

Specify the SIM PIN number (if required by your network)–

Set other options via the Menu bar on the left-hand side of the –

window.

Note: Whenever you

insert your USB Stick

into your computer

you are connected to

the mobile network.

If you are running

Linux you will need

to open the browser

manually.

Automatic network

connection can be

disabled from the

Settings area in the

QuickStart view.

The QuickStart

application can also

be accessed from

the Vodafone Mobile

Broadband desktop

icon.

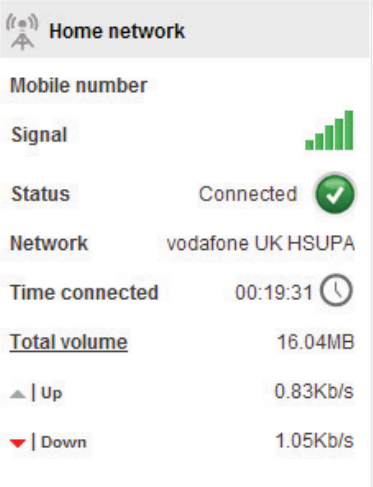

The Current network panel appears on the right-hand side

of every screen within the QuickStart application. ‘Roaming

network’ is displayed when you are roaming on another

operator’s network, or ‘Home network’.

Mobile number – Shown if permitted by your network operator

Signal – More bars indicates better mobile broadband network

signal

Status – Tick when connected to network; Cross when not

connected

Network – Name and type of currently connected network

Time connected – For current connection to network

Total volume – Approximate cumulative data usage

Up / Down – Approximate connection speed: ‘Up’ to the

network from your computer, and ‘Down’ from the network

QuickStart

view: Current

network panel

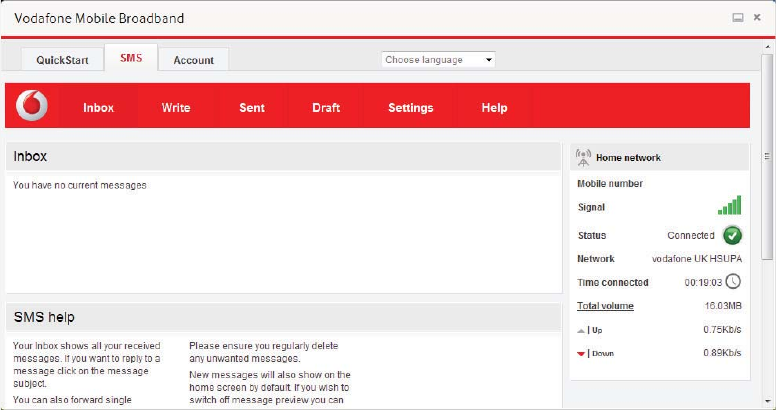

The SMS view has six options on the Navigation bar covering

all messaging functions: Inbox, Write, Sent, Draft, Settings

and Help.

Note: When you

select the checkbox

in the title bar of the

Inbox, Sent folder

or Draft folder, all

messages in that

folder are selected.

This is useful if

you want to delete

multiple messages.

It is not possible to

forward multiple

messages.

In the Settings area

you can select or

de-select the SMS

preview in the

QuickStart view.

SMS view

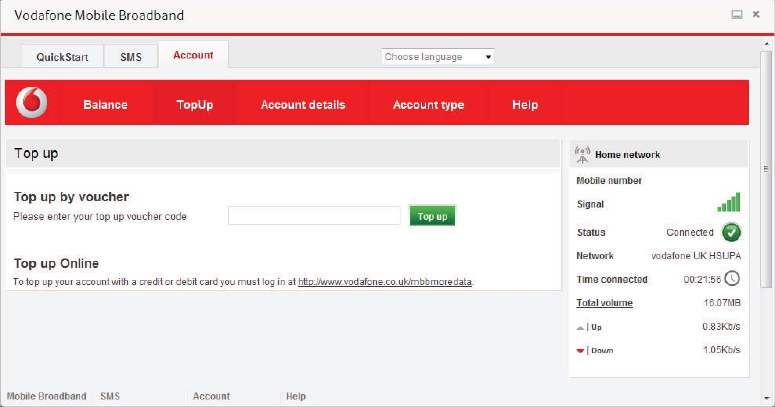

The Account view has three options on the Navigation bar:

Account details, Account type and Help. For prepaid account

customers there are two additional options: Balance and

TopUp.

For prepaid accounts, the Balance area shows your current

account balance. Click the Refresh button to update the

balance value. The TopUp area allows you to top up a prepaid

account balance using either a voucher, or a credit or debit card.

Note: The options

that are displayed on

the Navigation bar

are dependent on the

account type selected.

Account

view

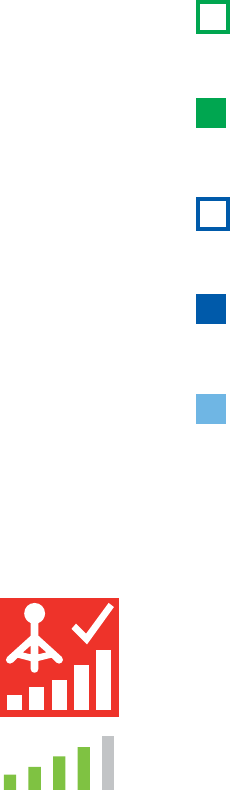

Signal strength

The LED light on your USB Stick shows which kind of mobile

network has been found, and whether the USB Stick is

connected to that network.

Green blinking

A GPRS network has been found – you could connect

Green solid

Connected via GPRS

Blue blinking

A 3G network has been found – you could connect

Blue solid

Connected via 3G

Light blue solid

Connected via 3G Broadband.

The strength of the mobile or Wi-Fi network signal is shown

by the symbol to the left of the Connect button, and by the

icon in the Windows Notiﬁ cation area.

The more bars that are ﬁ lled in, the better the signal quality.

At least one bar must be ﬁ lled in order to connect.

USB Stick LED

lights

Install problems on PC with older version of VMB

If you had a problem installing the software (the symptoms

could be any of the following):

– a new desktop icon for VMB was not created on your

desktop, or

– when you run VMB from the desktop shortcut you do not

get a new software splash screen displayed which says

“Vodafone Mobile Broadband with QuickStart”, or

– when you insert the device you do not see it appear as a CD

ROM device on your computer, or

– when running VMB you receive a “Device Not Detected”

message.

The cause of the problem could be an issue with an

incomplete un-install of an earlier version of the Vodafone

Mobile Broadband software already installed for an older

device. This problem may appear on all PCs with Windows

operating systems. It should not occur on Apple devices.

Vodafone have developed a clean-up tool to remove the old

version of the software correctly, it is available from

www.support.vodafone.com/vmb_cleanup.

Download the clean-up tool and unzip the ﬁ les. After

removing the current VMB software (remove using Windows),

run the clean-up tool (VmbCleanup.exe) and select all

3 options –Settings, Data and Device Registration. Re-boot

your PC and then insert your new USB Stick, and the correct

VMB software should install automatically.

Hints and tips

Note: The correct

software has the

“Vodafone Mobile

Broadband with

QuickStart” splash-

screen, and you

should be able

to access all the

functions referenced

in this QSG by clicking

on the Vodafone

Mobile Broadband

desktop icon.

Vodafone Mobile Broadband software manual installation

On Microsoft Windows computers

Plug your USB Stick into your computer

Right-click on the VMB Lite 10.* drive in ‘My Computer’ –

(Start menu>Computer on Vista and Windows 7)

Select ‘Open’ or ‘Explore’–

Double-click the ﬁ le called setup_vmb_lite.exe on your –

USB Stick

You will see a progress bar.–

It may take a few minutes to set up your USB Stick, but

once setup is complete, the Vodafone Mobile Broadband

application will start and automatically connect you to the

mobile network. If for some reason the application does not

start, select Vodafone Mobile Broadband from the Windows

Start menu, or double-click the Vodafone Mobile Broadband

desktop icon.

On Mac OS X computers

When you plug your USB stick in for the ﬁ rst time, a disk

named Vodafone Mobile Broadband will popup on your

desktop. Double click on the Vodafone Mobile Broadband

app to start installation. You will be asked to select your

account type during this process. Vodafone Mobile

Broadband will start automatically after installation.

The application won’t install on Windows

If the software does not install, or the install progress bar

keeps looping

From the Windows Start menu, select – Settings>

Control Panel>System>Hardware>Device Manager

Expand ‘Universal Serial Bus Controllers’–

Right-click ‘USB Mass Storage Device’ and select ‘Uninstall’–

If your devices are not reloaded, select ‘Scan for Hardware –

changes’ from the ‘Action’ menu.

Cannot open QuickStart application window

The following things may prevent you from opening the

Vodafone QuickStart application window by double-clicking

the desktop shortcut:

Your computer already has a connection via an ethernet –

LAN cable

Your computer already has a connection via a Wi-Fi network–

You may be using a VPN (Virtual Private Network).–

Unplugging the LAN cable, switching off Wi-Fi on your

computer, or exiting your VPN , and then re-inserting the

USB Stick, or re-starting the PC may solve the problem.

No network can be found

Change your physical location: in a building, move closer to a

window, move higher up, or go outside

Open the QuickStart application window–

Select the Settings heading on the Navigation bar–

Select the Network entry in the Menu bar on the left–

Click ‘Search’ to search for available networks–

See if you can connect to one of the allowed networks –

listed

Click ‘Save’ to save your change–

If you are abroad, contact Support, and check that data –

services and roaming are enabled on your account.

Re-installing the software

If you want to re-install the software from the USB Stick, you

need to ﬁ rst delete the Vodafone Mobile Broadband Service

software from your computer.

From the Windows Start menu, select Settings> –

Control Panel>Add or Remove Programs (XP) or Programs

and Features (Windows 7)

Run the Vodafone Mobile Broadband Uninstaller–

Re-insert your USB Stick and the software will re-install.–

Note: If you can

see the application

window in your

browser, you can

find more hints

and tips in the Help

area. Selecting the

Help option on the

Navigation bar in

any view, and then

‘Diagnostics’ in

the Menu bar, may

help you to identify

a problem. This

area also shows

information that

may be required if

you need to contact

Support at your

mobile network

operator. Select

‘Support’ from the

Menu bar for more

information and local

support.

No connection can be opened (1)

Check the device status (click on desktop shortcut, select –

the QuickStart tab, Help on Settings bar, and select

Diagnostics from the menu). This may indicate the source

of the problem.

No connection can be opened (2)

Wait a few minutes and try to connect again. This is most

often a temporary problem, especially if an ‘Error 631’ or

‘Error 619’ isreferenced. If the problem persists, please call

Support.

Close the application window and then re-open it–

Re-start your computer–

Open the QuickStart application window–

Select the Settings heading on the Navigation bar–

Select the Network entry in the Menu bar on the left–

Check which option is selected. If the option is set to a –

‘Preferred’ option, set it to an ‘Only’ option

Click ‘Save’ to save your change–

If you are using a VPN (Virtual Private Network), contact the –

administrator of your VPN

Select the Account tab–

Select the Account type heading in the Navigation bar–

Check that the type of account you have with your mobile –

network operator is selected in the drop-down menu.

Bearer Communication method used for data transport over the mobile

network, eg. 3G Broadband, HSPA, 3G, etc.

Built-in data card Mobile data card built into notebook computer. Enables data

connections over the mobile phone network.

USB stick A device for your computer that you can use to open a data

connection over the mobile phone network.

EDGE An enhancement to the GPRS bearer offering higher speeds,

although not as fast as 3G Broadband.

GPRS The General Packet Radio Service is a bearer offering higher data

speeds than GSM, on which it is based.

GSM Global System for Mobile Communication.

Home network The network of the mobile operator who provided your SIM.

HSPA High-Speed Packet Access bearer, enhancing 3G, including both

HSUPA (Uplink) and HSDPA (Downlink).

HSUPA High-Speed Uplink Packet Access bearer.

3G The third-generation mobile phone service, as UMTS (Universal

Mobile Telecommunications System) is also known, is a bearer

providing higher data speeds.

3G broadband The latest enhancement to the 3G bearer.

Roaming You can use your mobile device on any other mobile network

that has a roaming agreement with your operator, whether in

your country or abroad.

SIM Your Subscriber Identity Module is the postage-stamp-sized chip

that you will have received together with your mobile contract.

Your SIM has gold contacts on one side.

Glossary

FCC

Compliance

Radio

Frequency

(RF) Energy

This device has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiated radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user‘s authority to operate

the equipment.

This device meets the government’s requirements for exposure to radio

waves. This device is designed and manufactured not to exceed the

emission limits for exposure to radio frequency (RF) energy set by the

Federal Communications Commission of the U.S. Government. The

exposure standard for wireless device employs a unit of measurement

Note：

This Device can

not be used in

conjunction

with any other

transmitter

device.

known as the Specific Absorption Rate, or SAR. The SAR limit set by the

FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating

positions accepted by the FCC with the device transmitting at its

highest certified power level in all tested frequency bands. Although

the SAR is determined at the highest certified power level, the actual

SAR level of the device while operating can be well below the

maximum value. This is because the device is designed to operate at

multiple power levels so as to use only the poser required to reach the

network. In general, the closer you are to a wireless base station

antenna, the lower the power output. SAR compliance has been

established in the host product(s) (laptop computers), tested at 5mm

separation distance to the human body, and tested with USB slot

configurations including Horizontal-UP, Horizontal-Down,

Vertical-Front, Vertical-Back. This device can be used in host product(s)

with substantially similar physical dimensions, construction, and

electrical and RF characteristics. The highest SAR value, tested per FCC

RF exposure guidelines for USB dongle, as described in this user guide,

is 1.029W/kg. The FCC has granted an Equipment Authorization for this

device with all reported SAR levels evaluated as in compliance with the

FCC RF exposure guidelines. SAR information on this device is on file

with the FCC and can be found under the Display Grant section of

http://www.fcc.gov/oet/ea/fccid/ after searching on FCC ID:

Q78-K4201-Z

Product Code:

K4201-Z 01/13_en_GB

Vodafone logos are trade marks of

the Vodafone Group. Any product or

company names mentioned herein

may be the trade marks of their

respective owners.

The term Mobile Broadband together with the

‘birds’ design is a trademark of GSMC Limited.

ZTE K4201-Z HSPA USB Stick User Manual K4201 Z QSG 1301 110x110 en GB indd

ZTE Corporation HSPA USB Stick K4201 Z QSG 1301 110x110 en GB indd

TempConfidential_K4201-Z_UM_Rev1

Navigation menu

Namespaces

Views

Navigation
