ZTE K85 Mobile Broadband Internet Device User Manual K85 FCC 201505x
ZTE Corporation Mobile Broadband Internet Device K85 FCC 201505x
ZTE >
User Manual
Tablet
User Manual
The manual is applicable for the K85.
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced, translated
or used in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this manual without prior notice.
The Bluetooth word and logos are registered trademarks of the
Bluetooth SIG, Inc., and any use of such marks by ZTE
Corporation is under license.
Google, Android, Android Market, Google Mail are trademarks of
Google, Inc.
Other trademarks and trade names are the property of their
respective owners.
Third-party Software Statement
When you install the software from a third-party, the tablet might be
restarted repeatedly or the software might not be used normally
due to the incompatibility of the software itself. It is not the fault of
the tablet itself.
Version 1.0 in May 2015
-1-
Using your tablet
Thanks for choosing the K85. Powered by AndroidTM, the tablet
supports 3G high-speed Internet access, which brings you brand
new experiences.
Don’t worry if the pictures we use to demonstrate your tablet’s
functions look a little different from what you see on the screen.
It’s the functions that matter.
-2-
Before getting started

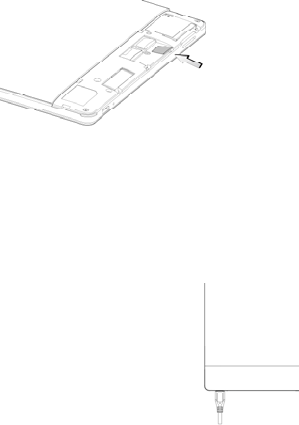

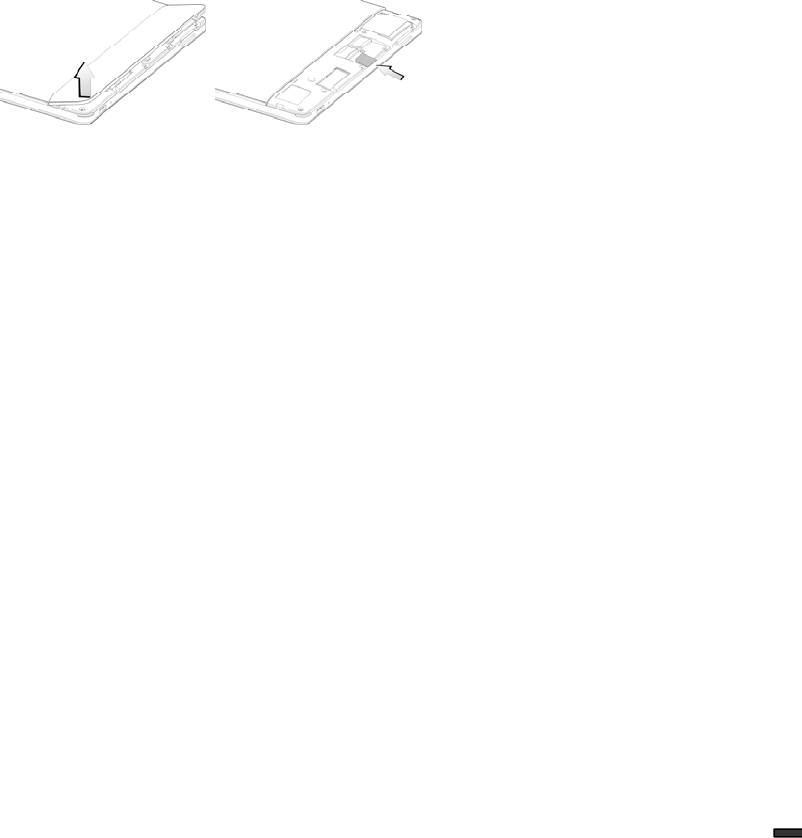

Inserting and removing the SIM
1. Switch off your tablet and disconnect any external power.
2. Remove the back cover.
3. Hold your SIM on the cut corner, and slide it face down into
the card holder.
4. Replace the back cover.
Inserting a memory card
1. Remove the back cover.
2. Push tightly until the card is installed in the correct position
and replace the back cover.
-3-
Charging the battery
The battery is not fully charged when you unpack it for the first
time. Please exhaust the capacity of the battery before you
recharge it for the first time.To ensure the battery is always in its
best condition, please charge the battery 8
hours for the first time and recharge it later
at least 2 hours each time.
1. Connect the charger to the tablet, and
insert the charger to the standard power
socket.
2. Please disconnect the charger from the
power socket after the charging is completed.
Tips:
To charge the battery, you can also connect the tablet to the
PC through the USB cable.
-4-
During charging, the tablet and charger may normally
become hot.
-5-
Came
r
Headset Front
Power key
Volume
key
s
Touch
Speak
Microphone
USB
t
Getting to know your tablet
-6-
Descriptions of Keys
Keys Functions
Menu key Touch it to open a menu with items that affect
the current screen or application.
Home key
Touch it to open the home screen. If you’re
viewing the left or right extended home
screen, Press it to open the central home
screen.
Back key
Touch it to open the previous screen you were
working in.
If the onscreen keyboard is open, touch it to
close the keyboard.
Power key
Press it to turn on/off the display.
Long press it to open a menu with options for
Airplane mode, for Silent mode, for Vibration
mode, and for powering off and for rebooting
the tablet.
Volume
keys
Adjust the volume.
Long press it to quickly adjust the ring tone
volume to maximum or minimum.
Onscr
e
Icon
s
e
en icons
Descriptions
Full battery
You have an u
n
E-mail.
Alarm clock on
Vibration mode
Wi-Fi function
o
-7-
Icon
s
n
read
o
n
Descriptions
Charging
Music playing
Airplane mode
Silent mode
Bluetooth® functio
n
on
n
is
-8-
Power on/off
Powering on
Long press the Power key until the power-on animation appears.
Powering off
Long press the Power key to display the tablet options and
select Power off.
-9-
Screen Control
You can control your tablet through a series of operations on the
screen.
- Tap: tap once on an item on the screen to select it or open
whatever you tap.
- Slide to scroll: slide your fingers on the screen to move
through what’s on the screen.
- Press & hold: press your finger down and leave it there for a
few seconds to open a menu specific to what you're doing.
- Drag: drag an item on the screen to perform certain operations.
- Pinch or stretch: In some applications (e.g., Gallery, Browser),
touch the screen with two or more fingers, and then pinch your
fingers together on the screen or stretch them apart to zoom out
or in.
-10-
- Rotate: In most screens, rotate your tablet sideways to switch
the screen from portrait mode to landscape mode.
Home screen
The home screen appears as the tablet is in idle mode. On the
home screen, you can check the status of the tablet and access
applications.
Extend home screen
The home screen can be extended to exceed the width of the
screen to provide more space for newly added applications,
shortcuts, widgets, etc.
Slide to scroll the home screen to move to the left or right side
of the home screen.
Tap the small dot at the lower part of the screen to directly
move to the corresponding screen. Press & hold the small dot
area and drag to quickly start navigation.
-11-
Quick Launch Toolbar
There are icons at the bottom of the screen. You can move the
applications or shortcuts that you need access most frequently
into the quick launch toolbar.
1. Press & hold an icon at the toolbar and drag it to the area
outside the toolbar.
2. Press & hold another icon on the screen you want to move,
and then drag it to an empty area inside the toolbar.
Show/hide notification bar
As a new notification icon appears in the notification bar, you can
pull down the notification bar to view the list of notifications, and
touch a notification to perform detailed operation.
Swipe up from any place on the screen to hide the notification
bar.
Move icons on home screen
To move an icon on the home screen, press & hold the icon you
-12-
want to move, drag it to your desired position on the screen and
release it. Drag the icon to the navigation bar to quickly switch to
other screen.
Press & hold the icon you want to move and release it, the icon
shall jump to the bottom of the screen; slide left or right to the
target screen, and touch the icon at the bottom of the screen to
jump to the target screen.
Delete icons on home screen
To uninstall an application or remove a widget, press & hold the
Application or Widget icon and drag it to the Remove/Uninstall
icon at the top of the screen.
Note:
The preinstalled system applications cannot be removed.
Change desktop wallpaper
On the home screen, press Wallpapers to choose a wallpaper.
-13-
Use shortcuts panel
On the home screen or in the process of using an application,
pull down the notification bar to open the shortcuts panel. Touch
the shortcuts icons to perform relevant settings.
Create a folder and add items into the folder
1. On the home screen, press & hold an icon and drag it to
another icon on the screen to create a folder containing these two
icons.
2. Press & hold other icons and drag them to the folder to add
items into the folder.
Arrange Icons
On the Home screen, press and hold an empty area to select
“Arrange Icons” and touch the icons you want to arrange to move
them to the bottom of the screen.
Swipe right to the target screen and touch the icons at the bottom
of the screen to move to the target screen.
Touch
current s
c
Lock an
d
Lock th
e
As the ta
b
screen. T
used for
a
Lockscr
e
As the sc
screen.
Unlock
t
1. Press
t
2. Swipe
unlock th
e
the came
to add a ne
w
c
reen as the Ho
m
d
unlock the s
c
e
screen
b
let is powered
o
he tablet shall a
u
a
while.
e
en photo
reen is locked,
p
t
he screen
t
he Power key t
o
up from the bott
o
e
screen; slide ri
ra interface.
-14-
w
screen and tou
c
m
e screen.
c
reen
o
n, press the Po
w
u
tomatically lock
p
ress the Power
o
light up the sc
r
o
m of the scree
n
ght to the icon
C
c
h to set t
h
w
er ke
y
to lock
t
the screen after
ke
y
to light up t
h
r
een.
n
to the icon Unl
o
C
amera to directl
y
h
e
t
he
it’s not
h
e
o
ck to
y
enter
-15-
Change screen lock method
1. On the home screen, press Settings> Security & location >
Screen lock.
2. Choose the screen lock method.
-16-
Text Input
Your tablet supports the GoogleTM voice typing input method.
On the home screen, touch the Settings >More >Language &
input. Look under Default to select Google voice typing input
method.
Google voice typing
You can use voice input to type text. This feature uses Google's
speech-recognition service, so you must have a data connection
on a mobile or Wi-Fi network to use it. You can continue entering
text, keep it, or delete it. You can speak to enter text in most
places where you can enter text with the onscreen keyboard.
1. Touch a text field, or a location in text you've already entered
in a text field.
2. Touch the Microtablet key on the onscreen keyboard.
3. When you see the microtablet image, speak what you want to
be typed.
-17-
safety information
Using your tablet safely
On the road
- Using a tablet while driving is illegal in many countries. Please
follow local laws and drive safely at all times.
Near sensitive electronics
- Don’t use your tablet near sensitive electronic equipment –
particularly medical devices such as pacemakers – as it could
cause them to malfunction. It can also interfere with the operation
of fire detectors and other automatic-control equipment.
- For more information about how your tablet affects pacemakers
or other electronic equipment, please contact the manufacturer
or your local distributor.
- Your tablet may cause interference when used near TVs, radios
or automated office equipment.
While flying
- Your tablet can cause interference with aircraft equipment. So
it’s essential you follow airline regulations. And if airline
-18-
personnel ask you to switch off your tablet, or disable its wireless
functions, please do as they say.
In hospital
- Your tablet may interfere with the normal operation of medical
equipment. Follow all hospital regulations and turn it off when
you’re asked to by posted warnings or medical staff.
At a petrol station
- Don’t use your tablet at petrol stations. In fact, it’s always best to
switch off whenever you’re near fuels, chemicals or explosives.
Around water
- Keep your tablet away from water (or any other liquid). It’s not a
waterproof model.
Making repairs
- Never take your tablet apart. Please leave that to the
professionals. Unauthorized repairs could break the terms of
your warranty.
Broken antenna
-19-
- Don’t use your tablet if the antenna is damaged, as it could
cause injury.
Around children
- Keep your tablet out of children’s reach. It should never be used
as a toy and it might not be good for their health.
Original accessories
- Only use the original accessories supplied with your tablet or
those approved by the manufacturer. Using unapproved
accessories may affect performance, make the warranty void,
break national regulations on the use of tablets, or even cause
injury.
Near explosives
- Turn off your tablet in or near areas where explosive materials
are used. Always obey local laws and turn off your tablet when
requested.
Emergency calls
- To make an emergency call your tablet must be turned on and
in an area where there’s network coverage. Dial the national
emergen
c
where yo
u
W
o
- The w
o
40℃. Pl
e
tablet u
n
problems
Battery
c
- Althoug
h
its ability
it’s time t
o
- Please
You’ll fin
d
points. A
n
recycling
- Never t
h
could ex
p
- Never
overheati
c
y number and
u
are and don’t
h
o
rking tempera
o
rking temperat
u
e
ase don’t use t
h
n
der too high
o
.
At very high vol
u
damage your h
e
c
are and safet
y
h
the battery is r
e
to recharge. If
y
o
replace it.
don’t throw old
d
there are spec
i
n
d some high s
t
service too.
h
row the battery
p
lode, hurting yo
u
take the batter
y
ng, explosion or
-20-
touch the Sen
d
h
ang up until hel
p
ture
u
re for the tabl
e
h
e tablet outsid
e
o
r too low tem
u
me, prolonged
e
aring.
y
e
chargeable, it’ll
y
ou find that the
batteries into y
o
i
al bins for batte
r
t
reet electrical s
t
into a fire – it’s
u
or somebody
e
y
apart. This
m
fire.
d
icon. Explain
p
has arrived.
e
t is between 0
℃
e
the range. Us
perature might
listening to a ta
b
eventually start
battery won’t re
c
o
ur household r
u
r
ies at refuse co
t
ores provide a
highly inflamma
b
e
lse.
m
ay result in l
e
exactly
℃
and
ing the
cause
b
let can
to lose
c
harge,
u
bbish.
llection
battery
b
le and
e
akage,
-21-
- If the battery becomes hot, changes colour or shape at any time
(when in use, charging or even while in storage) please stop
using it immediately and replace.
- Keep the battery dry. Damp or wet conditions can cause it to
overheat or corrode.
- Don’t charge the battery continuously for 24 hours.
Overcharging is not good for it.
Note:
Please avoid contact with the materials inside a damaged or
leaking battery. If they get on your skin, wash with lots of water
and seek medical assistance if required.
Charger care and safety
- Only plug into voltages between 110VAC and 240VAC. Using a
voltage outside that range can damage the tablet/charger – and
cause the battery to leak or catch fire.
- Never short-circuit the charger – this may cause electrocution,
overheating or damage.
- Don’t charge the tablet in direct sunlight or in an area where it’s
damp, dusty, or on a vibrating surface. And charging your tablet
near – or on – a TV or radio could interfere with transmission.
- Don’t use the charger if the power cable is damaged. It may
cause a fire or give someone an electric shock.
-22-
- Keep water well away from the charger. If the charger does get
splashed by water, or any other kind of liquid, immediately unplug
it to avoid overheating, fire or electrocution.
- Don’t take the charger apart. It could cause injury, give you an
electric shock or catch fire.
- Never touch any charger, electric cable or socket with wet
hands.
- Don’t place heavy objects on the electric cable.
- If the cable is damaged, don’t try to mend it yourself – it could
cause a fire or electrocute you.
- Always unplug the charger before you clean it.
- When unplugging the charger, hold the plug itself, rather than
pulling on the cable. A damaged cable can cause electrocution or
fire.
Appendix
Care and maintenance
Your tablet is a delicate device. The following advice will help you
to keep it looking goodand performing well…
- Use a soft dry cloth to clean your tablet, battery and charger.
Don’t use liquids such as alcohol, dilution agents or benzene.
- From time-to-time, clean the socket where the charger cable
connects to the tablet. Dust tends to gather there. This will
ensure a really good connection.
-23-
- Don’t use needles, pen points or other sharp objects on the
keypad or screen.
- Don’t use your tablet with wet hands – it could injure you and
damage the tablet.
- Don’t use your tablet in dusty or dirty environment.
- Keep your tablet away from extremes of heat – like radiators or
ovens. It may explode if it gets too hot.
- If your tablet gets wet and the colour of the label on it changes,
the warranty will be void, even if the warranty period hasn’t
expired.
- If there’s anything wrong with the tablet, battery, charger, or any
accessory, please send them to your nearest service centre for
inspection.
-24-
Health and safety
RF exposure information (SAR)
This mobile tablet meets the government’s requirements for
exposure to radio waves.
This tablet is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 1.6
watts/kilogram (W/kg) averaged over 1 gram of tissue. Tests for
SAR are conducted using standard operating positions with the
device transmitting at its highest certified power level in all tested
frequency bands. The actual SAR level of an operating device
can be below the maximum value because the device is
designed to use only the power required to reach the network.
That amount changes depending on a number of factors such as
how close you are to a network base station.
Use of device accessories and enhancements may result in
different SAR values. SAR values may vary depending on
national reporting and testing requirements and the network
band.
Your mobile device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada.
These requirements set a SAR limit of 1.6 W/kg averaged over
-25-
one gram of tissue. The highest SAR value reported under this
standard during product certification for use when properly worn
on the body is 1.334 W/Kg.
(Body-worn measurements differ among tablet models,
depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of
various tablets and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model
tablet with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model tablet is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID: SRQ-K85.
For body worn operation, this tablet has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of
0mm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. If you do no t use
a body-worn accessory and are not holding the tablet at the ear,
position the handset a minimum of 0mm from your body when the
tablet is switched on.
This device is compliance with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had
been tested in accordance with the measurement methods and
procedures specified in OET Bulletin 65 Supplement C.
-26-
This device complies with Part 15 of the FCC Rules and with
RSS-247 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le
fonctionnement.
-27-
Changes or modifications made to this equipment not expressly
approved by ZTE Cooperation may void the FCC authorization to
operate this equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-28-
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à
la norme NMB-003 du Canada.
-29-
IMPORTANT NOTE:
IC Radiation Exposure Statement This EUT is compliance with
SAR for general population/uncontrolled exposure limits in IC
RSS-102 and had been tested in accordance with the
measurement methods and procedures specified in IEEE 1528
and IEC 62209. This equipment should be installed and operated
with minimum distance 0mm between the radiator & your body.
The highest SAR value is 1.334 W/kg for the model tablet as
reported to the IC.
IC: 5200E-K85
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
-30-
Declaration of RoHS compliance
We’re determined to reduce the impact we have on the environment
and take responsibility for the earth we live on. So this document
allows us to formally declare that K85, manufactured by ZTE
CORPORATION, fully complies with the European Parliament’s
RoHS (Restriction of Hazardous Substances) Directive 2002/95/EC,
with respect to all the following substances:
(1) Lead (Pb)
(2) Mercury (Hg)
(3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyl (PBB)
(6) Polybrominated diphenyl ether (PBDE)
Our compliance is witnessed by written declaration from our suppliers.
This confirms that any potential trace contamination levels of the
substances listed above are below the maximum level set by EU
2002/95/EC, or are exempt due to their application.
The K85 manufactured by ZTE CORPORATION, meets all the
requirements of EU 2002/95/EC.
-31-
Disposal of your old tablet
1. When the wheelie bin symbol is attached to a
product, it means the product is covered by the
European Directive 2002/96/CE.
2. All electrical and electronic products should be
disposed of separately from normal household waste
via designated collection points provided by
government or local authorities.
3. The correct disposal of electrical and electronic
products will help protect the environment and
human health.
