User Manual
1
ZTE Blade L130
Quick Start Guide
2
LEGAL INFORMATION
Copyright © 2018 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on
print errors or update specifications in this guide without prior
notice.
We offer self-service for our smart terminal device users.
Please visit the ZTE official website (at www.ztedevices.com)
for more information on self-service and supported product
models. Information on the website takes precedence.
Visit http://www.ztedevices.com to download the user
manual. Just click Support from the home page and then
select your location, product type, and name to search for
related support information.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the
software.
Images and screenshots used in this guide may differ from the
actual product. Content in this guide may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Android is a trademark of Google LLC.
The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by ZTE Corporation is under license.
microSDXC Logo is a trademark of SD-3C, LLC.
Other trademarks and trade names are those of their
respective owners.
Version No.: R1.0
Edition Time : December 06, 2018
Manual No.: 07958451xxxx
3
Getting to Know Your Phone
* Supports CTIA headsets only.
Front
camera
Touch screen
Earpiece
/S
p
eaker Volume up key
Power key
Flash
Charging/
micro-USB jack
Headset jack*
Back camera
Indicator light
Back key Recent apps key
Microphone
Volume down key
Home key
4
Installing the nano-SIM Card and the
microSDHC™ Card (Optional)
Power off your phone before installing or removing the
nano-SIM card.
Power off your phone before removing or replacing the
battery.
WARNING!
To avoid damage to the phone, do not use any other kind of
SIM cards, or any non-standard nano-SIM card cut from a SIM
card. You can get a standard nano-SIM card from your service
provider.

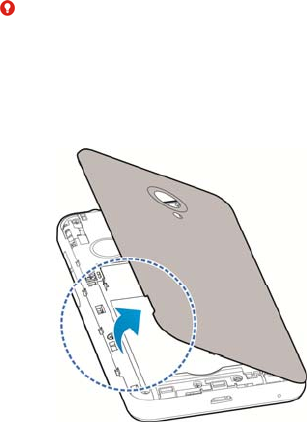

1. Place your finger into the slot at the bottom of the back
cover, and gently lift and remove the cover.
5

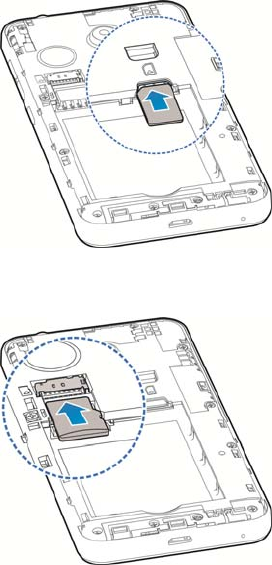

2. Install the nano-SIM card as shown.
3. Install the microSDXC™ card (not included) as shown.
6
4. Insert the battery, making sure the connectors align.
Gently push down on the battery until it clicks into place.
5. Replace the back cover.
7

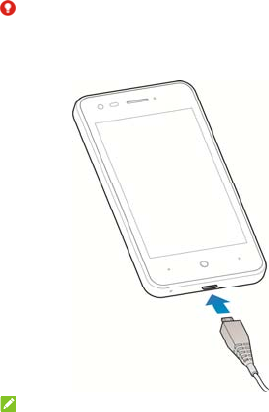

Charging the Phone
Your phone’s battery should have enough power for the phone
to turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
WARNING!
Use only ZTE-approved chargers and USB cables. The use of
unapproved accessories could damage your phone or cause
the battery to explode.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try
again after charging the phone for at least 20 minutes. Contact
the customer service if you still cannot power on the phone
after prolonged charging.
8
Product Safety Information
Don’t make or receive phone calls while driving.
Never text while driving.
Keep your phone at least 10 mm away from your
body while making calls.
Small parts may cause choking.
Your phone can produce a loud sound.
To prevent possible hearing damage, do not listen
at high volume levels for long periods. Exercise
caution when holding your phone near your ear
while the loudspeaker is in use.
Avoid contact with anything magnetic.
Keep away from pacemakers and other electronic
medical devices.
Turn off when asked to in hospitals and medical
facilities.
Turn off when told to on aircraft and at airports.
Turn off when near explosive materials or liquids.
Don’t use at gas stations.
Your phone may produce a bright or flashing light.
Don’t dispose of your phone in fire.
Avoid extreme temperatures.
Avoid contact with liquids. Keep your phone dry.
Do not attempt to disassemble your phone.
Only use approved accessories.
9
Don’t rely on your phone as a primary device for
emergency communications.
FCC RF Exposure Information (RF)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency bands, and
placed in positions that simulate RF exposure in usage
against the head with no separation, and near the body with
the separation of 10 mm. Although the SAR is determined at
the highest certified power level, the actual SAR level of the
device while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit
of measurement is known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6 W/kg.
This device is complied with SAR for general
population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and had been tested in accordance with the
measurement methods and procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-L130.
For this device, the highest reported SAR value for usage
against the head is 1.02 W/kg, and for usage near the body is
1.08 W/kg.
10
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to
maintain a separation of 10 mm between this device and your
body.
RF exposure compliance with any body-worn accessory,
which contains metal, was not tested and certified, and using
such body-worn accessory should be avoided.
Accessory must be used to maintain 10 mm distance from
phone to body in order to achieve Body-worn RF exposure
Compliance
FCC Regulations
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This mobile phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
11
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAUTION:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
