User manual
ZTE Blade L315
User Manual
1
Your phone at a glance
Receiver
Menu key
Home key
Back
key
Touch Screen
Front
camera
Headset
jack
Noise
-
reduction
MIC
Volume
up/down
key
Microphone
Speaker
USB port
Back
camera
Flash
Power
/lock
key
2

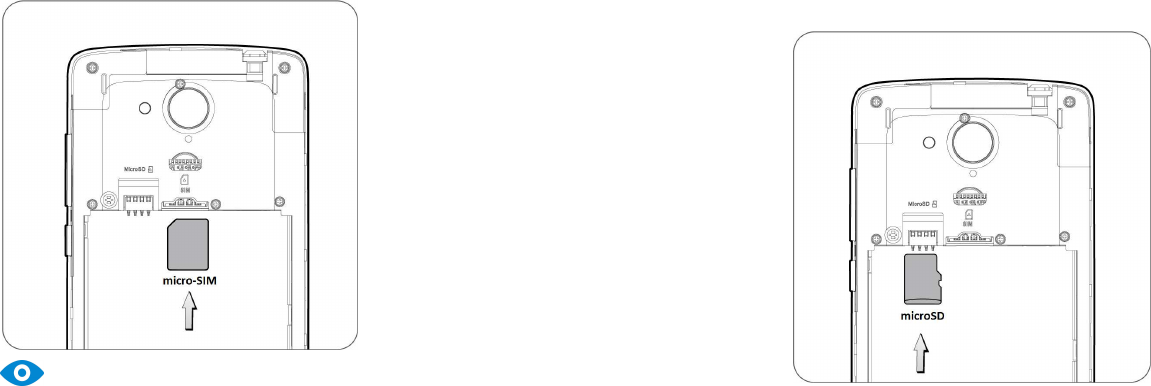

Inserting the SIM card
Please make sure that the phone is powered off
before proceeding.
1. Place your finger in the slot at the bottom of
the back cover to lift and remove the cover.
2. Hold your micro-SIM card with the metal
contacts facing down and slide it into the SIM
card slot.
3. Press the cover gently back into place until you
hear a click.
Note
Your phone supports a micro-SIM card ONLY.
Dimensions of a micro-SIM card:
12mm*15mm.
3
Inserting the memory card
The microSD card can be installed and removed
while the phone is turned on. Unmount the
microSD card before removing it.
1. Place your finger in the slot at the bottom of
the back cover to lift and remove the cover.
2. Hold your microSD card with the metal
contacts facing down and slide it into the
microSD card slot.
3. Press the cover gently back into place until you
hear a click.
4
Charging the battery
Connect the phone to the power outlet using the
included USB cable and power adapter.
Note
Your phone and power adapter might heat
up while charging.
Using other USB cable or power adapter
might shorten the life span of your phone or
cause fire, explosion and other hazards.
5
Declaration of RoHS Compliance
We’re determined to reduce the impact we have on
the environment and take responsibility for the earth
we live on. So this document allows us to formally
declare that the L315, manufactured by ZTE
Corporation, fully complies with the European
Parliament’s RoHS (Restriction of Hazardous
Substances) Directive 2002/95/EC, with respect to all
the following substances:
(1) Lead (Pb)
(2) Mercury (Hg)
(3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyl (PBB)
(6) Polybrominated diphenyl ether (PBDE)
Our compliance is witnessed by written declaration
from our suppliers. This confirms that any potential
trace contamination levels of the substances listed
above are below the maximum level set by EU
2002/95/EC, or are exempt due to their application.
The L315 manufactured by ZTE Corporation meets all
the requirements of EU 2002/95/EC.
Disposal of your old phone
1. When the wheelie bin symbol is
attached to a product, it means the
product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately from
normal household waste via designated collection
points provided by government or local authorities.
3. The correct disposal of electrical and electronic
products will help protect the environment and
human health.
6
Health and safety
4FCC Regulations:
This mobile phone complies with part 15 of the
FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.
This mobile phone has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiated radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
7
FCC Note:
Caution: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user‘s authority to operate the
equipment.
4RF exposure information (SAR)
This phone is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal
Communications Commission of the United
States.
During SAR testing, this device was set to
transmit at its highest certified power level in all
tested frequency bands, and placed in positions
that simulate RF exposure in usage against the
head with no separation, and near the body with
the separation of 10 mm. Although the SAR is
determined at the highest certified power level,
the actual SAR level of the device while operating
can be well below the maximum value. This is
because the phone is designed to operate at
multiple power levels so as to use only the power
required to reach the network. In general, the
closer you are to a wireless base station antenna,
the lower the power output.
The exposure standard for wireless devices
employing a unit of measurement is known as
the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general
population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and had been tested in
8
accordance with the measurement methods and
procedures specified in IEEE1528. This device has
been tested and meets the FCC RF exposure
guidelines when tested with the device directly
contacted to the body.
The FCC has granted an Equipment Authorization
for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this
model phone is on file with the FCC and can be
found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC
ID: SRQ-L315.
For this device, the highest reported SAR value
for usage against the head is 0.52W/kg, for usage
near the body is 1.05W/kg.
While there may be differences between the SAR
levels of various phones and at various positions,
they all meet the government requirements.
SAR compliance for body-worn operation is
based on a separation distance of 10 mm
between the unit and the human body. Carry this
device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to
the reported level. To support body-worn
operation, choose the belt clips or
holsters, which do not contain metallic
components, to maintain a separation of 10
mm between this device and your body.
RF exposure compliance with any body-worn
accessory, which contains metal, was not tested
and certified, and use such body-worn accessory
should be avoided.
Note:
This device does not support V.O.I.P. function. It
means that the functions of WLAN and Bluetooth
do not have voice capability in the held to ear
mode for phone service.
9
Legal notice
Copyright Statement
Copyright © 2016 by ZTE Corporation
All the copyrights of this document herein belong to
ZTE Corporation. Without the written permission of
copyright owner, no part of this publication may be
excerpted, reproduced, translated by any person or
entity in any form or by any means.
This document is subject to change without prior
notice.
ZTE Corporation keeps the right to make the final
explanation to this document.
Trademarks
Android is a trademark of Google, Inc.
All other trademarks remain the property of their
respective owners.
Statement of Third-party Applications
During the installation process of some third-party
applications, the issues of repeated restart or
abnormal use of software might be caused by
incompatibility of the third-party applications, rather
than the phone itself.
