iCarPlay® Wireless 300
Car Stereo FM Transmitter
User Guide & Warranty Information
*Depending on variable environmental factors
iCarPlay® Wireless 300 Features
For quick tuning to a clear frequency
Low power design uses iPod® or iPhone™ battery
Easy to read day or night
For use in the car, home and office
Lets you charge iPod or iPhone while listening
For convenient iPod and iPhone charging
and synching with iTunes®
INSTRUCTIONS

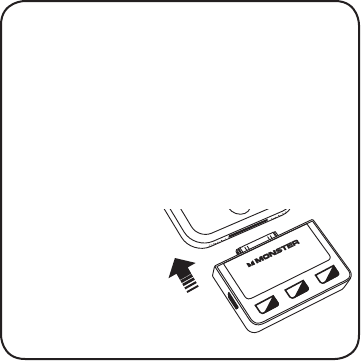

Connecting to iPod® or iPhone™
1. Plug the iCarPlay Wireless 300 dock connector into
your iPod or iPhone.
2. Press Play on iPod/iPhone if it does not start
automatically.
Music must be playing to power on the
iCarPlay Wireless 300.
3. The iCarPlay
Wireless 300’s
LCD screen will light
up and display
the most recently
used channel pre-set.
Illustrations may vary in appearance from actual product.
P2 P3
M
–
+
P1
Manual Tuning
1. Press and hold button until the LCD
display blinks.
2. Press and release the or button to adjust
the channel up or down.
3. Once the display stops flashing, the iCarPlay Wireless
300 will broadcast on the station displayed.
For best results, before programming and using the iCarPlay Wireless
300, find FM channels that have the weakest signals in your area. Channels with
only static are most ideal (try lower channels, like 88.1). Traveling to different
areas may require using alternative channels.
P2 P3
M
–
+
P1
+
P1
M
P3
P2
+
P1
M
P3
P2
+
P1
M
P3
P2
Setting Presets
1. First, manually tune to the channel you want to store
to memory as described in the Manual Tuning section.
2. While the LCD display is still flashing the current
frequency, press and hold down (P1, P2, or P3) for
several seconds until the display stops flashing.
3. The preset station is now stored at that location.
P2 P3
M
–
+
P1
Recalling Presets
1. Simply press any of the three preset buttons (P1, P2,
or P3) to select the pre-programmed frequency.
2. The iCarPlay Wireless 300 will automatically tune
to the channel that you have stored in memory.
Playing your iPod or iPhone with
iCarPlay Wireless 300
1. Press play on your iPod or iPhone as you normally
would.
2. Choose and push one of the pre-set buttons on the
iCarPlay Wireless 300.
3. Turn on your radio and tune it to the same FM
channel that is displayed on the iCarPlay Wireless
300’s LCD display.
4 . Your music selection should begin to play through
your audio system’s speakers.
Charging or syncing your iPod
or iPhone to iTunes while using
iCarPlay Wireless 300
You can charge your iPod or iPhone through the iCarPlay
Wireless 300 with the included USB cable. You can also
use the cable to sync to iTunes on your computer.

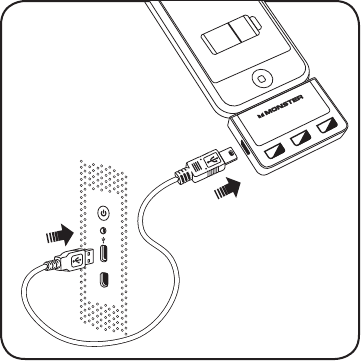

1. Make sure the iCarPlay Wireless 300 is plugged in
and operating. Plug the smaller mini USB end of the
cable into the side of the iCarPlay Wireless 300.
2. Plug the USB end of the wire into the available USB
2.0 port. Your iPod or iPhone should show that it is
charging. If you are plugging into a computer with
iTunes, you will also be synced.
P2 P3
M
–
+
P1
While syncing
with iTunes, the LED
display will turn off.
iCarPlay Wireless Display Settings
Please note that in order to preserve the battery life
of your iPod and iPhone the display of the iCarPlay
Wireless 300 will automatically shut off after a period
of time when no buttons have been pushed. To “wake
up” the display, simply press any button.
Performance Tip
In some areas where clear reception is a challenge,
connect the included USB cable to the iCarPlay wireless
300. The cable will act as an antenna and may improve
the performance of the iCarPlay Wireless 300.
The USB cable does not need to be connected to another
device to act as an antenna.
Performance & Safety Tips:
• Connectingand/orsettingiCarPlay® Wireless 300 while
drivingmaycauseseriousinjuryand/ordeath.Drive
responsibly—connect and set iCarPlay Wireless 300
BEFORE operating your vehicle and pay attention to
the road while driving.
• Forbestperformance,selectaniCarPlayWireless300
channel that is not occupied by a strong local FM
radio station.
• Certaincarradiosmayexperiencemoredifculty
receiving clear signals than others. Location of the
antenna can affect signal strength. Some vehicles
have a metallic film in the windows that can also
make it harder to receive clear signals from the
iCarPlay Wireless 300.
• Indensemetropolitanareas,therearecaseswhere
all iCarPlay Wireless 300 pre-set stations are occupied
by local radio stations. Sometimes a station setting
nexttoalocalstationmaybestrongenoughto‘bleed’
over to the adjacent frequencies. Use manual tuning
to eliminate interference.
• Radiofrequenciesfromlocalstationscan‘bounce’
from hills and buildings and may cause momentary
interference.
• Asteelbridgeorparkinggaragemayactlikean
antenna, strengthening local and distant radio station
signals. You may need to wait until you are over the
bridge or out of the structure for clearest reception.
• TheiCarPlayWireless300transmitterstrengthis
regulated and limited by the FCC. iCarPlay Wireless
300 transmits at the power allowable by law.
• iCarPlayWireless300isdesignedtotransmitwithin
yourcar’sperimeterwhilenotinterferingwiththe
surrounding public airwaves.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by Monster Cable Products, Inc. may void the users authority
to operate this device.
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by tuning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna
• Increasetheseparationbetweentheequipmentandreceiver
• Connecttheequipmentintoanoutletonacircuitdifferent
from that to which the receiver is connected
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp
FCCID:RJE178065-00
Monster Cable Products, Inc., 455 Valley Drive, Brisbane,
CA 94005, USA, (415) 840-2000 (“Monster”) extends
You this Limited Warranty. Statutory or common law may
provide You with additional rights or remedies, which shall
not be affected by this Limited Warranty.
means use of the Product (i) within a home or
dwelling, (ii) for private (as opposed to commercial) purposes, (iii) in
conformance with all applicable local, state or federal law, code or
regulations (including without limitation building and/or electrical
codes), (iv) in accordance with manufacturer recommendations and/
or instructions in the materials and documentation that accompany
the Product, and (v) if applicable, with proper electrical grounding.
means any distributor, reseller or retailer
that (i) was duly authorized to do business in the jurisdiction where
it sold the Product to You, (ii) was permitted to sell You the Product
under the laws of the jurisdiction where You bought the Product,
and (iii) sold You the Product new and in its original packaging.
means a claim made in accordance
with the section “Formal Warranty Claims” herein.
means a Product (i) that is listed in the Specifications
Table below, (ii) that You bought from an Authorized Dealer new
and in its original packaging, and (iii) whose serial number, if any,
has not been removed, altered, or defaced.
means an inadequacy of the Product that
existed at the time when You received the Product from an
Authorized Dealer and that causes a failure of the Product
to perform in accordance with Monster’s documentation
accompanying the Product, unless such failure has been caused
completely or partly by (a) any use other than Adequate Use, (b)
transportation, neglect, misuse or abuse by anyone other than
Monster’s employees; (c) alteration, tampering or modification of
the product by anyone other than a Monster employee; (d) accident
(other than a malfunction that would otherwise qualify as a Product
Defect); (e) maintenance or service of the Product by anyone other
than a Monster employee; (f) exposure of the Product to heat, bright
light, sun, liquids, sand or other contaminants; or (g) acts outside
the control of Monster, including without limitation acts of God, fire,
storms, earthquake or flood.
means the time period during which Monster
must have received Your Formal Warranty Claim. The different
Warranty Periods related to Product Defects are defined in the
Specifications Table below. The Warranty Period commences on
the date when You purchased or received (whichever occurs
later) the Product from an Authorized Dealer as evidenced by the
Authorized Dealer’s invoice, sales receipt or packing slip. If You
do not have written proof of the date of purchase or receipt, then
the Warranty Period commences three (3) months after the date
when the Product left Monster’s or its factory as evidenced by
Monster’s records. The Warranty Period ends after the time defined
in the Specifications Table has expired or after You have transferred
ownership of the Product, whichever occurs earlier. Also, You
mustcallMonsterandobtainaReturnAuthorizationNumber(as
described under “How to Make a Claim”) within two (2) months
after You discover a Product Defect (or should have discovered it,
if such Product Defect was obvious).
means the first individual person that purchased the Product
in its original packaging from an Authorized Dealer. This Limited
Warranty does not apply to persons or entities that bought the
Product (i) in used or unpackaged form, (ii) for resale, lease
or other commercial use, or (iii) from someone other than an
Authorized Dealer.
If a Product contained a Product Defect when You
bought it from an Authorized Dealer and Monster receives a Formal
Warranty Claim from You within two (2) months after You discover
such Product Defect (or should have discovered it, if such Product
Defect was obvious) and before the end of the Warranty Period for
Product Defects applicable to the affected Product, then Monster
will provide You with one of the following remedies: Monster will
(1) repair or, at Monster’s sole discretion, replace the Product, or (2)
refund to You the purchase price You paid to the Authorized Dealer
for the affected Product if repair or replacement is not commercially
practicableorcannotbetimelymade.NOTE:MONSTERDOESNOT
ASSUMEANYLIABILITYFORANYINCIDENTAL,CONSEQUENTIAL
ORINDIRECTDAMAGESUNDERTHISLIMITEDWARRANTY.
This Limited Warranty and
any disputes arising out of or in connection with this Limited
Warranty (“Disputes”) shall be governed by the laws of the
State of California, USA, excluding conflicts of law principles and
excluding the Convention for the International Sale of Goods. The
courts located in the State of California, USA shall have exclusive
jurisdiction over any Disputes.
THISLIMITEDWARRANTYGIVESYOUSPECIFIC
LEGALRIGHTS,ANDYOUMAYALSOHAVEOTHERRIGHTS,WHICH
VARYFROMSTATETOSTATEANDJURISDICTIONTOJURISDICTION,
ANDWHICHSHALLNOTBEAFFECTEDBYTHISLIMITEDWARRANTY.
THISWARRANTYEXTENDSONLYTOYOUANDCANNOTBE
TRANSFERREDORASSIGNED.IfanyprovisionofthisLimited
Warranty is unlawful, void or unenforceable, that provision shall be
deemed severable and shall not affect any remaining provisions. In
case of any inconsistency between the English and other versions
of this Limited Warranty, the English version shall prevail.
Please register Your Product at
www.monstercable.com. Failure to register will not diminish Your
warranty rights.
Monster iCarPlay® Wireless 300 One (1) Year
In the event damage has occurred to
Products, You must follow these instructions: (1) Call Monster within
two (2) months after You discover a Product Defect (or should
have discovered it, if such Product Defect was obvious); (2) Give
a detailed explanation of how the damage occurred; (3) Obtain
aReturnAuthorizationNumber;(4)Uponreceiptofaclaimform
(which may be sent to You after You filed Your Formal Warranty
Claim),llouttheclaimformentirely;(5)ReturntheProducts,
shipping prepaid by You (to be refunded if You are entitled to a
remedy under the Scope of this Limited Warranty), to Monster
for verification of damage, along with a copy of Your original
sales receipts and proof of purchase (UPC label or packing slip)
forsuchProducts,thecompletedclaimform,andprintedReturn
AuthorizationNumberontheoutsideofthereturnpackage(the
claim form will include instructions for return).
If you bought the product in the United
States, Latin America, or Asia Pacific, contact Monster Cable
Products,Inc.(455ValleyDrive,Brisbane,CA94005)at1877
800-8989.Ifyouboughttheproductanywhereelse,contact
Monster Cable International Ltd., Ballymaley Business Park, Ennis,
Co. Clare, Ireland. You can write or use one of the following
telephonenumbers:Canada866-348-4171,Ireland353656869
354,Belgium0800-79201,CzechRepublic800-142471,Denmark
8088-2128,Finland800-112768,France0800-918201,Germany
0800-1819388,Greece00800-353-12008,Italy800871479,
Netherlands0800-0228919,Norway800-10906,Russia810-800-
20051353,Spain900-982-909,Sweden020-792650,United
Kingdom0800-0569520
Monster will determine whether a Product
Defect existed. Monster may, at its discretion, direct You to obtain
a repair estimate at a service center. If a repair estimate is required,
You will be instructed on how to properly submit the estimate and
the resulting invoice to Monster for payment. Any fees for repairs
may be negotiated by Monster.
If You bring a Formal Warranty Claim and fully comply with
all terms and conditions of this Limited Warranty, Monster will use
its best efforts to provide You with a remedy within thirty (30) days
after receipt of Your Formal Warranty Claim (if You reside in the
United States - forty-five (45) days if You reside elsewhere), unless
obstacles outside Monster’s control delay the process.
Ver.112003–US/iCarPlayWireless300©2009MonsterCableProducts,Inc.
Get All the Performance You Paid For ™
We invite you to visit the Monsters at
MonsterCable.com
© 2009 Monster Cable Products, Inc
455 Valley Drive
Brisbane, CA 94005, USA
rm 195305
