Getting to know your device
Your device supports data and SMS services through the mobile phone network, enabling you to
communicate anytime and anywhere.
The following figure is only for your reference. The actual product may be different.

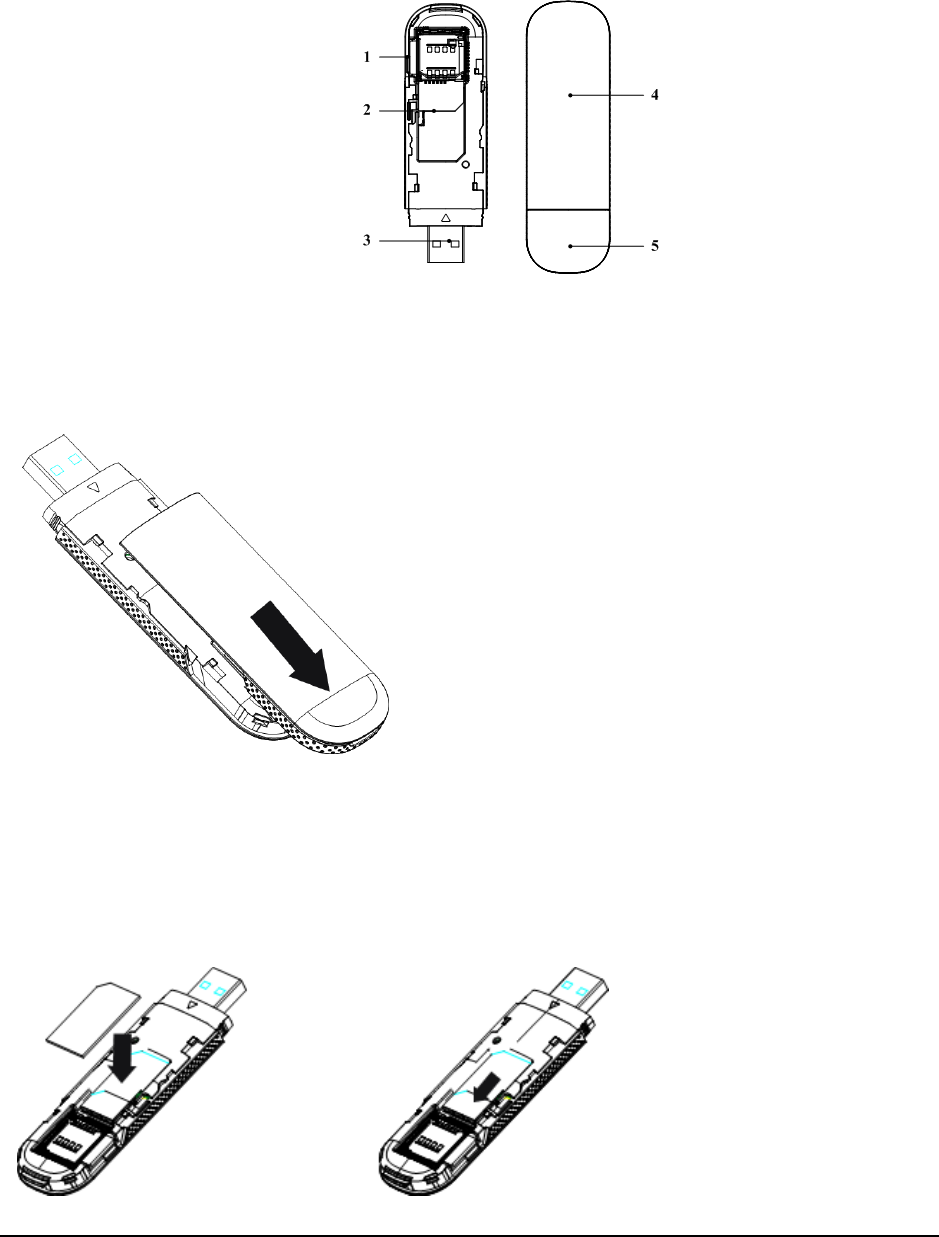

1. microSD card slot
2. SIM/USIM card slot
3. USB Connector
4. Front Cover
5. Modem Cap
Installation Guide
Installing Hardware
1. Press and push the front cover and remove it.
NOTE:
Do not open the front cover rudely so as to avoid the damage of the front cover.
2. Insert the SIM/USIM card into the SIM/USIM card slot.
Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push the
SIM/USIM card as far as possible, as shown below.
2 Con fid e nt ia l a nd Propr ie t a ry I nform at ion of ZTE CORPORATI ON

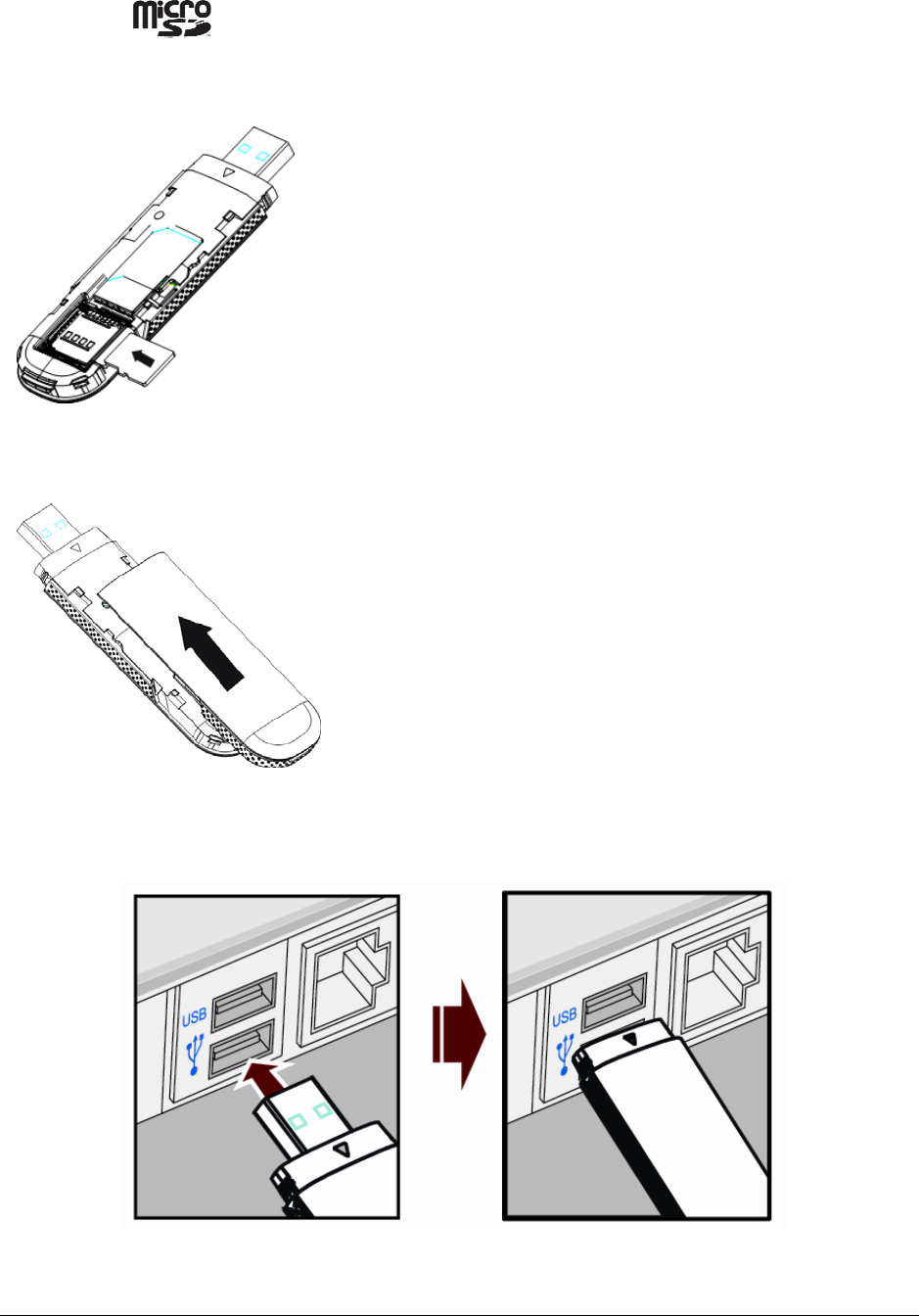

3. Insert the microSD card into the microSD card slot.
NOTE:
This modem only supports microSD card.
microSD is a trademark of SD Card Association.
Insert your microSD card into the microSD card slot, as shown below.
4. Put the front cover flatly upon the body of modem and push the front cover to lock the cover in its
place.
Connecting the Modem to Your PC
1. Plug the USB connector into the USB port and make sure it is tightly inserted.
2. The OS automatically detects and recognizes new hardware and starts the installation wizard.
Con f ident ia l a nd Propr ie t a r y I nfor m a t ion of ZTE CORPORATI ON 3
Installing Software
On different operating systems, the installation procedures may be difference. Follow the system prompts
during operation.
For Windows OS
Your system will start the software setup process automatically when you connect the modem to your
computer correctly. Follow the system prompts to complete the software installation.
Notes:
If the system does not launch installation automatically, you can run the installation program in path of
My Computer > ZTEMODEM > Windows > AutoRun.exe.
For Mac OS
The system will automatically display a ZTEMODEM CD-ROM icon on the desktop, when you connect
the modem to your computer correctly. Double click the installation software package in the
ZTEMODEM, and follow the system prompts to complete the software installation.
Removing the Modem From Your PC
Please close the application software, and then you can pull out the USB Modem safely.
How to Use Your Modem
Various icons are presented to enable quick operation of the following functions:
Connect Connect to the Internet.
SMS Click the New button, enter recipient’s number and content, and then click the Send
button to send new message.
Phonebook Click the New button to fill in a new contact person and contact details.
Settings Set the configuration for the USB modem.
Data records Show the connection information.
