ZTE MF197 MF197 HSPA USB Stick User Manual MF197 UserMan
ZTE Corporation MF197 HSPA USB Stick MF197 UserMan
ZTE >
user manual
MF197
MF197 HSPA USB Stick
Quick Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time: 2012.08
Manual No. :
Confidential and Proprietary Information of ZTE CORPORATION 1
Quick Guide
Introduction
The ZTE MF197 USB modem is a multi-mode USB modem, working in
HSPA+/HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface
connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile
phone (SMS), and combines mobile communication with Internet perfectly. It supports data and
SMS services through the mobile phone network, enabling you to communicate anytime and
anywhere.
Getting to know your device

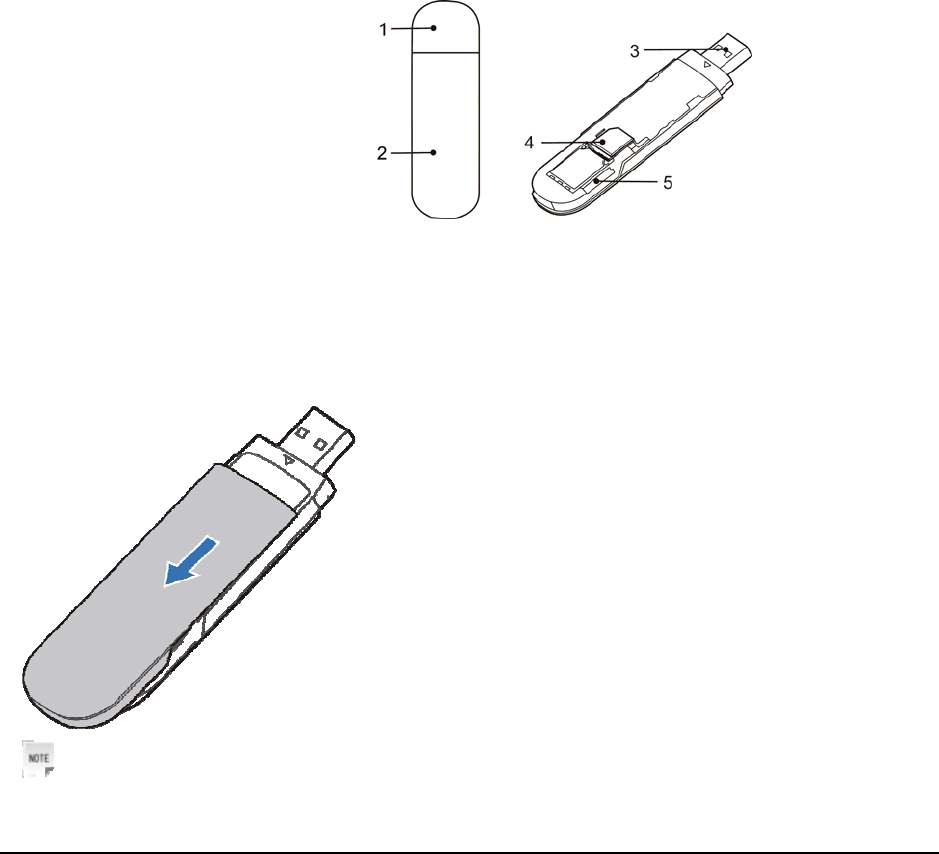

The following figure shows the appearance of the MF197. It is only for your reference. The
actual product may be different.
1. Modem Cap
2. Front Cover
3. USB Connector
4. (U)SIM card slot
5. microSD card slot
Hardware Installation
1. Press and push the front cover and remove it.
Notes:
Do not open the front cover rudely so as to avoid the damage of the front cover.
2 Confidential and Proprietary Information of ZTE CORPORATION

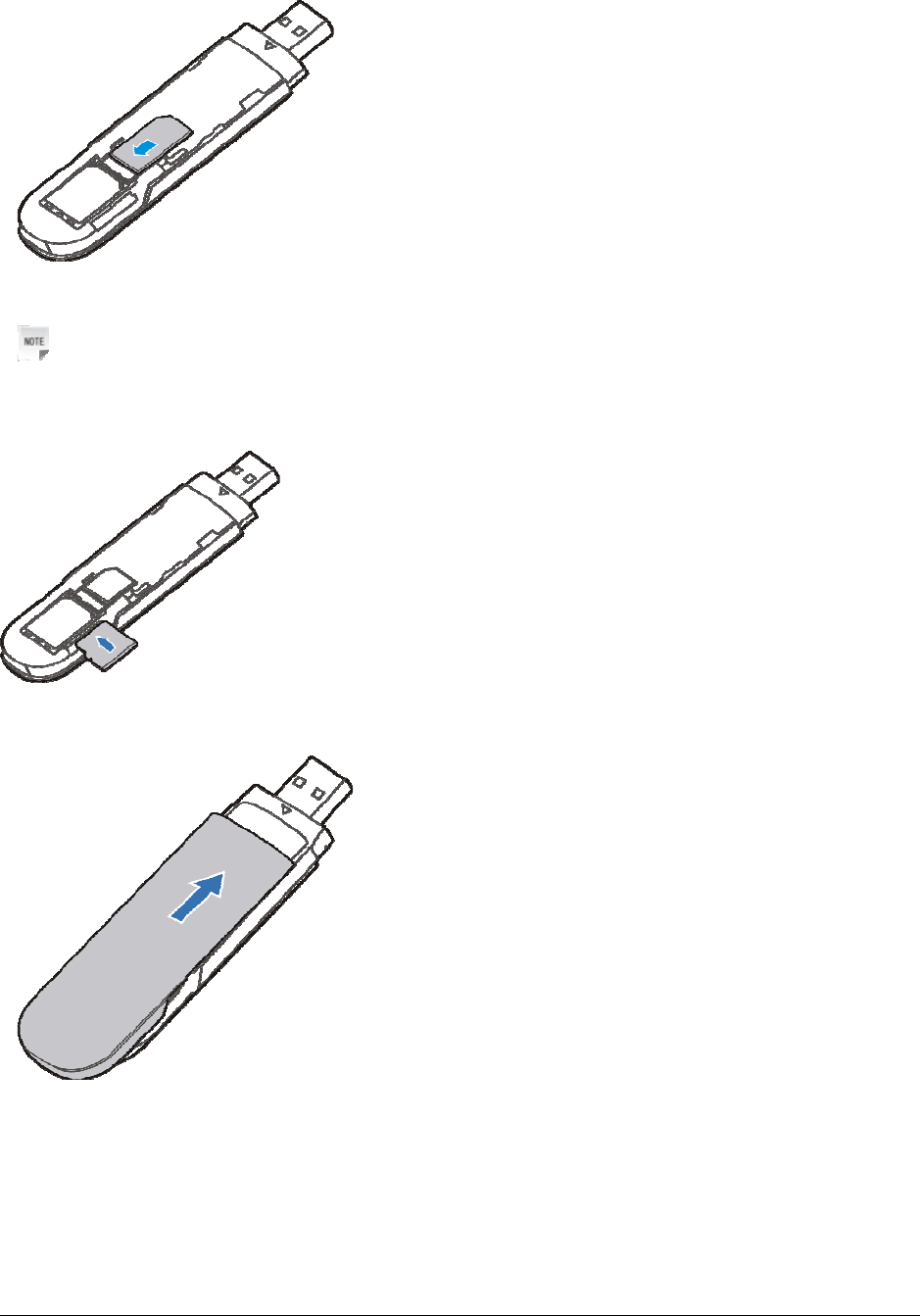

2. Insert the SIM/USIM card into the SIM/USIM card slot.
Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push
SIM/USIM card as far as possible, shown as the following picture.
3. Insert the microSD card into the microSD card slot.
Notes:
This modem only supports microSD card.
Insert your microSD card into the microSD card slot, shown as the following picture.
4. Put the front cover flatly upon the body of modem and push the front cover to lock the cover in its
place.

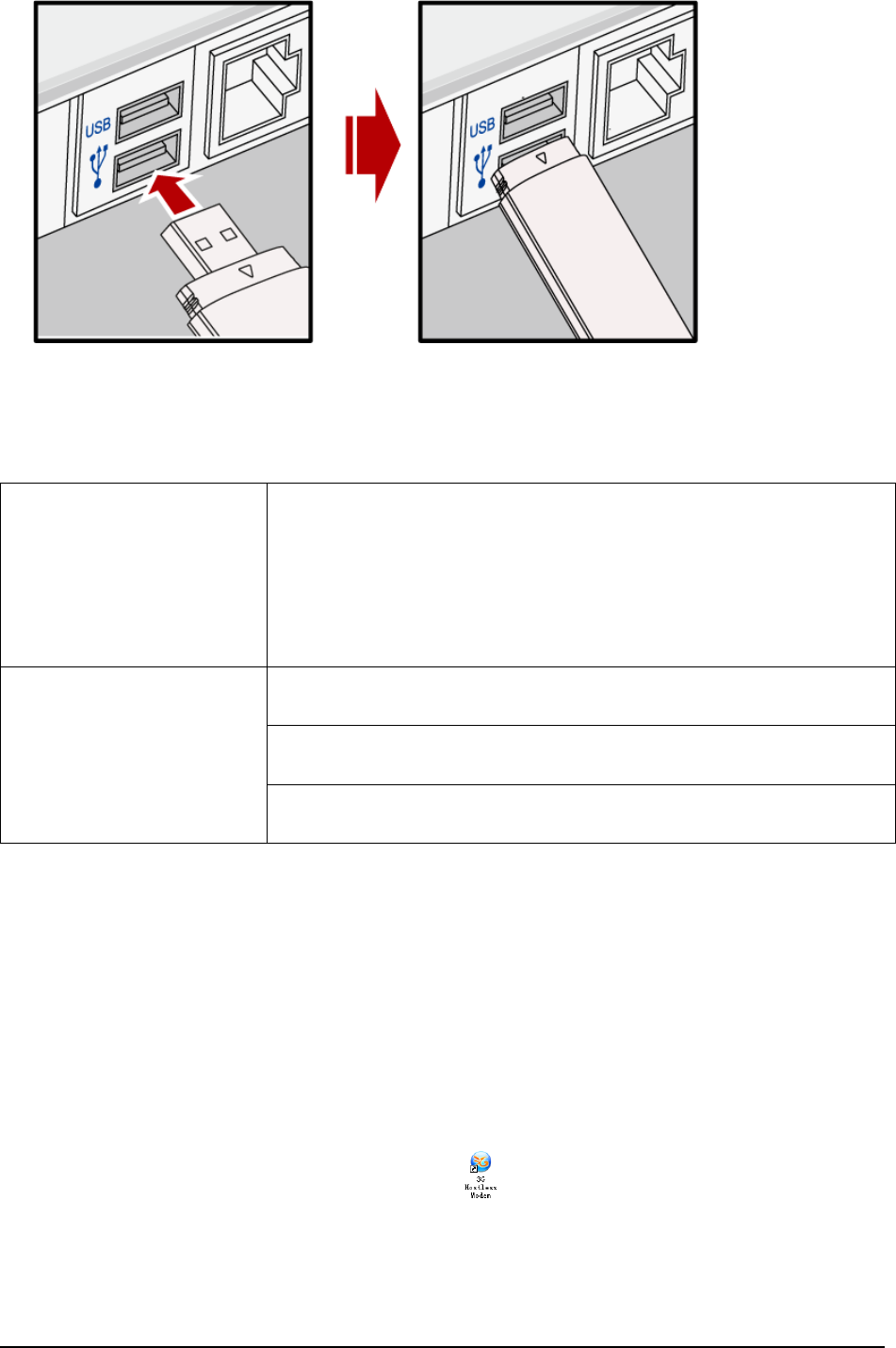

5. Connect the Modem to your laptop or desktop PC.
Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted.
Confidential and Proprietary Information of ZTE CORPORATION 3
The OS automatically detects and recognizes new hardware and starts the installation wizard.
System Requirements
Operating System Windows XP (SP3 and later), Vista, Windows 7
MAC 10.4.11 and later
Linux (Kernel 2.6.20 later)
USB 2.0 HIGH SPEED
Configuration
(Recommended)
CPU: 1 GHz Pentium or above
Hard Disk: 50 M or above
RAM: 512 M or above
The performance of the modem may be influenced if configuration is under the recommended
requirement.

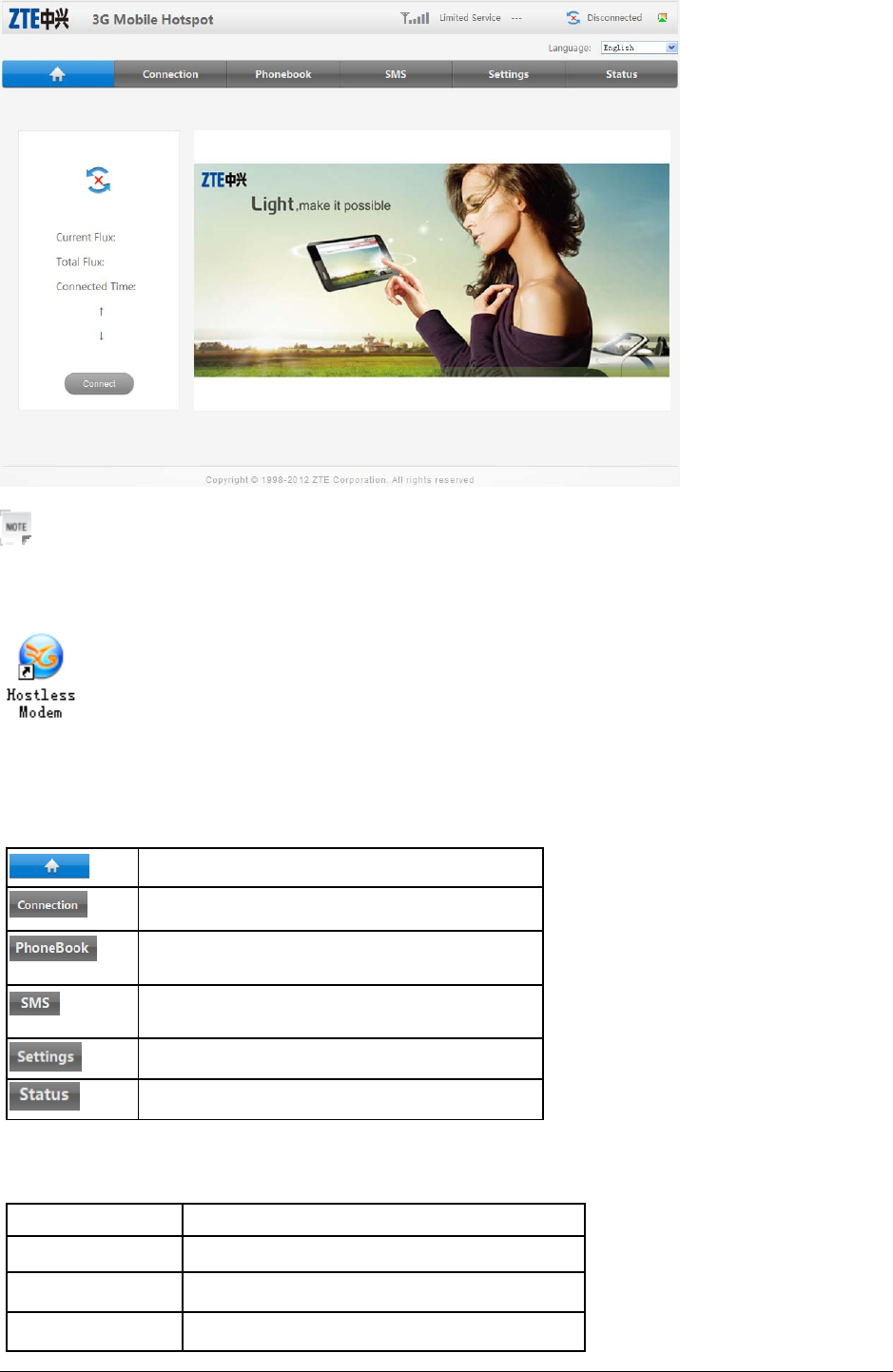

Access the management software
Following example based on Windows System is only reference.
1.Exit other Windows programs.
2.Connect the device with your computer.
3. When you connect properly, the system will automatically detect and recognize the new
hardware. After a few seconds, the new icon is show on the desktop, and then the
management software interface will display as the following picture:
4 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
If the system does not launch installation automatically, you can run the installation program in
path of My Computer > ZTEMODEM > Windows > AutoRun.exe. Then double click
icon.
How to Use Your Modem
Various icons are presented to enable quick operation of the following functions:
Connect to the Internet.
Set WAN connection mode and APN.
Manage the contacts information.
Send and receive text messages.
Configure the USB modem.
View the network related information.
LED Lights
Indication Modem Status
Re
d
Power on, but not re
g
istered to a networ
k
Green bright Register to 2G/3G network
Green twinkling Connect to 2G/3G network
Confidential and Proprietary Information of ZTE CORPORATION 5
Warning and Notice
To the Owner
• Some electronic devices are susceptible to electromagnetic interference sent by modem if
inadequately shielded, such as the electronic system of vehicles. Please consult the
manufacturer of the device before using the modem if necessary.
• Operating the modem may interfere with medical devices like hearing aids and pacemakers.
Please always keep them more than 20 centimeters away from such medical devices when they
are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the
medical device before using the modem.
• Be aware of the usage limitation when using a modem at places such as oil warehouses or
chemical factories, where there are explosive gases or explosive products being processed.
Turn off your modem if required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in
hospitals. Please observe and obey all warning signs and switch off your modem in these
conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s
performance.
• Store the modem out of the reach of little children. The modem may cause injury if used as a
toy.
• Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is
working.
Use Your USB Modem
• Please use original accessories or accessories that are authorized. Using any unauthorized
accessories may affect your modem’s performance, and violate related national regulations
about telecom terminals.
• Avoid using the modem near or inside metallic structures or establishments that can emit
electromagnetic waves. Otherwise it may influence signal reception.
• The modem is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use the modem immediately after a sudden temperature change. In such case, it will
6 Confidential and Proprietary Information of ZTE CORPORATION
produce dew inside and outside the modem, so don’t use it until it becomes dry.
• Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be
damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of -10 ℃ ~ +50 ℃ and humidity range of 5% ~ 95% are
recommended.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or
procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside
ZTE’s reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided
that such defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product
from ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or
nonconforming items, and is in lieu of all other warranties, expressed, implied or statutory,
including but not limited to the implied warranties of merchantability and fitness for a
particular purpose, unless otherwise required under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential
damages resulting from or arising out of or in connection with using of this product, whether or
not ZTE had been advised, knew or should have known of the possibility of such damages,
Confidential and Proprietary Information of ZTE CORPORATION 7
including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute
facilities or product, or any downtime cost.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that
this device does not cause harmful interference.
Caution: Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Radio Frequency (RF) Energy
This device meets the government’s requirements for exposure to radio waves. This device is
designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government. The exposure
standard for wireless device employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the
8 Confidential and Proprietary Information of ZTE CORPORATION
highest certified power level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output. SAR compliance has been established
in the host product(s) (laptop computers), tested at 5mm separation distance to the human body,
and tested with USB slot configurations including Horizontal-UP, Horizontal-Down,
Vertical-Front, Vertical-Back. This device can be used in host product(s) with substantially
similar physical dimensions, construction, and electrical and RF characteristics. The highest SAR
value, tested per FCC RF exposure guidelines for USB dongle, as described in this user guide, is
1.18W/kg. The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information
on this device is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-MF197.
How to Get Help
You can get Help by:
• Clicking Help on the software.
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
The device complies with RF specifications when the device used at 0.5cm form your body
