ZTE MF275R Rogers HSPA/LTE CPE User Manual ZTE MF60
ZTE Corporation Rogers HSPA/LTE CPE ZTE MF60
ZTE >
User manual
Rogers Rocket Hub MF275R
User Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: www.ztedevice.com
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time: June 9, 2015
Contents
Getting Started .................................................................................................................. 1
Appearance.................................................................................................................... 1
Indicators ....................................................................................................................... 2
Installation Guide .............................................................................................................. 3
Installing the micro-SIM Card and battery ................................................................... 3
Connecting Your Device ............................................................................................... 4
Switching on Your Device ............................................................................................ 5
Power Supply ................................................................................................................ 5
About micro-SIM Card ................................................................................................. 5
Internet Access .................................................................................................................. 5
Configuring Your PC .................................................................................................... 5
Wireless Connection ..................................................................................................... 7
Accessing the Internet ................................................................................................... 9
Calling ............................................................................................................................... 9
Making a Call ................................................................................................................ 9
Three-Way Calling ........................................................................................................ 9
Call Waiting ................................................................................................................ 10
Call Forwarding .......................................................................................................... 10
Voicemail ........................................................................................................................ 11
Setup ........................................................................................................................... 11
Message Waiting ......................................................................................................... 11
Retrieving Messages ................................................................................................... 12
WebUI Configuration ..................................................................................................... 12
Accessing the Configuration Page .............................................................................. 12
Login ........................................................................................................................... 13
Settings ............................................................................................................................ 13
Network Settings ......................................................................................................... 13
Wi-Fi Settings ............................................................................................................. 17
Device Settings ........................................................................................................... 20

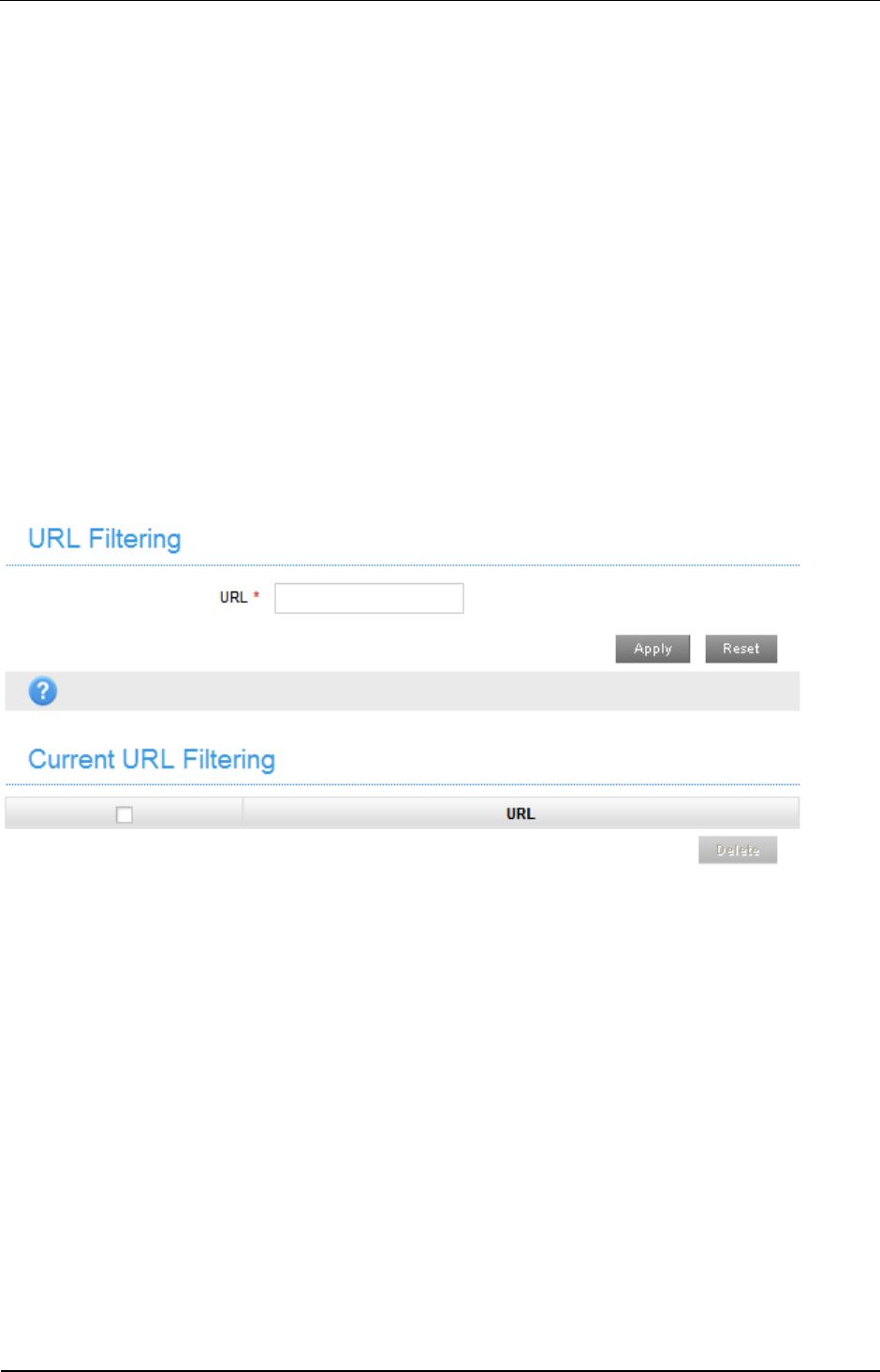

Firewall ....................................................................................................................... 23

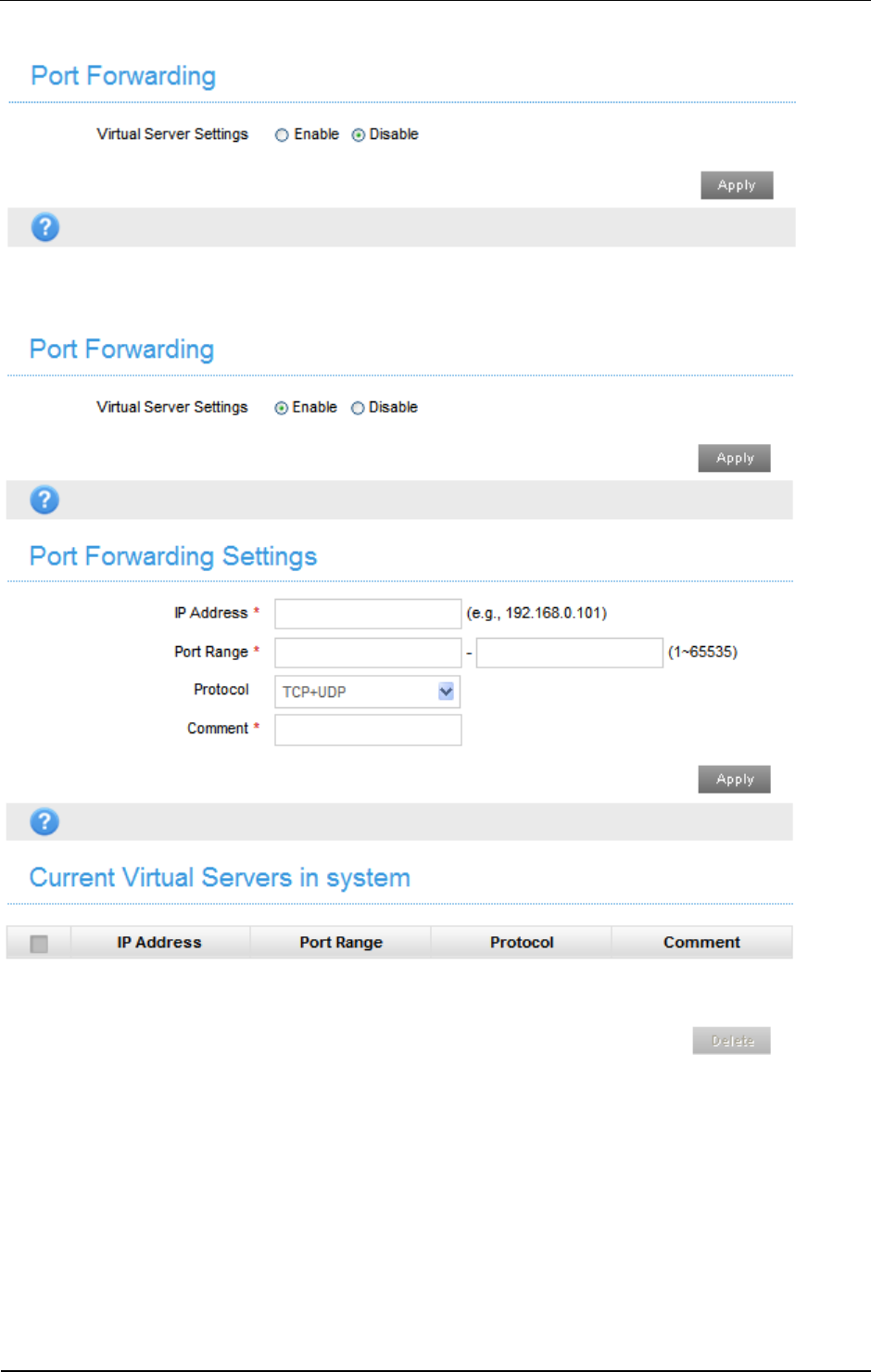

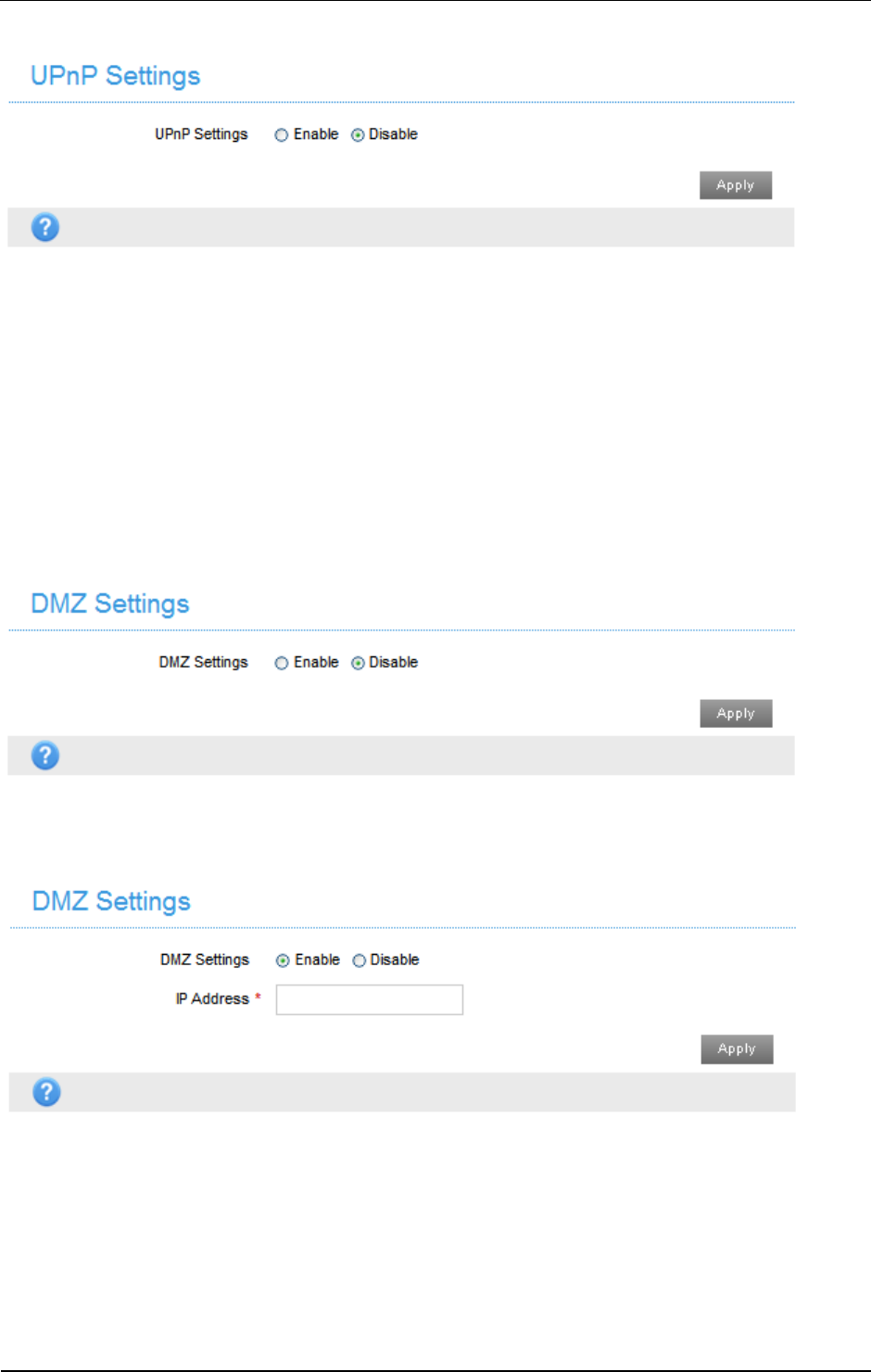

Router Settings ............................................................................................................ 28
Information...................................................................................................................... 29
Device Information ..................................................................................................... 29
Statistics ...................................................................................................................... 30
Data Limit Settings ..................................................................................................... 30
SMS ................................................................................................................................. 31
Operating Messages in Native .................................................................................... 31
Operating Messages in micro-SIM Card .................................................................... 32
Configuring Messages ................................................................................................ 32
Warning and Notice ............................................................................................................ 33
Safety Precautions ....................................................................................................... 33
Cleaning and Maintaining ........................................................................................... 33
Limited Warranty ........................................................................................................ 33
Limitation of Liability ................................................................................................. 34
Confidential and Proprietary Information of ZTE CORPORATION 1
Getting Started
The device operates on the 4G/LTE networks and supports voice and data service.
Appearance
1. SIM Card slot
Insert your micro-SIM Card.
2. Reset button
Reset your device.
3. External antenna
connector
To get strength signal.
4. WPS button
To activate the WPS function.
5. Phone
Standard RJ11 connector for the telephone.
6. LAN
Ethernet connector to computer.
7. Power Socket
Connector to the external power supply.
8. Power Switch
Turn your device on or off.
9. Indicators
Indicate the status of your device.
ZTE MF275R User Guide
2 Confidential and Proprietary Information of ZTE CORPORATION
Indicators
Indicator
State
Description
Power
Green steady
AC power present
Off
No AC power
Voicemail
Green blinking
New voicemail waiting
Off
No new voicemail
Battery
Green steady
More than 50% discharging (charger not present)
Green blinking
More than 50% charging (charger present)
Yellow steady
20%-50% discharging (charger not present)
Yellow blinking
20%-50% charging (charger present)
Red steady
Less than 20% discharging(charger not present)
Red blinking
Less than 20% charging (charger present)
Off
Battery not present
Wi-Fi
Green steady
Wi-Fi on
Blinking
Active data connection or FOTA
Off
Wi-Fi off
Network
Green steady
Connected to the LTE network
Green blinking
Roaming (LTE network)
Yellow steady
Connected to the 4G network
Yellow blinking
Roaming (4G network)
Red steady
No service, limited service, searching for network, no SIM Card
or other abnormal status
Signal
Strength
Green steady
Strong signal
Yellow steady
Weak signal
Red steady
No service, limited service, or searching for signal
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 3
Installation Guide

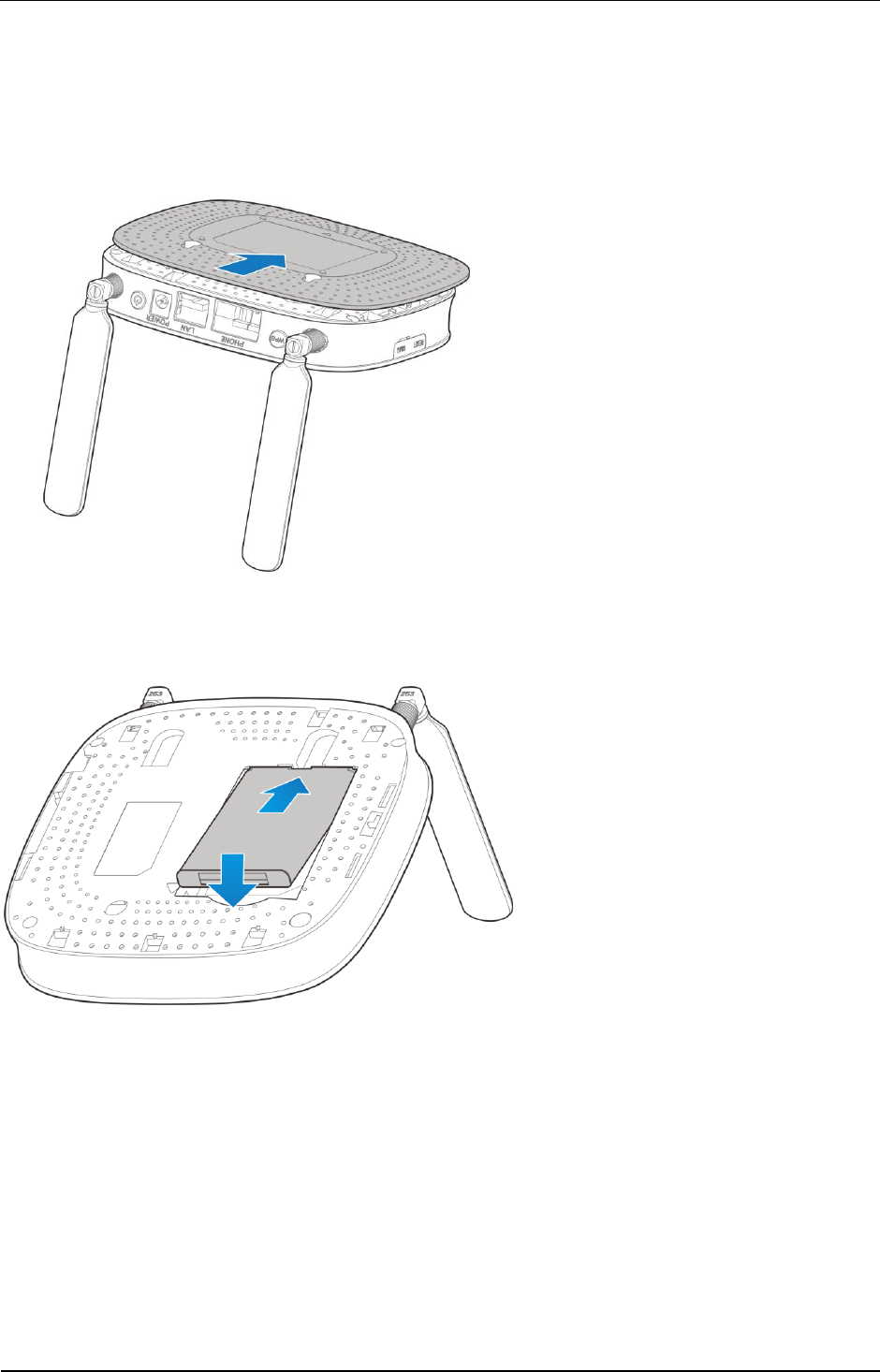

Installing the micro-SIM Card and battery
1. Slide the back cover and remove it
2. Insert the battery.
3. Install the SIM Card.
ZTE MF275R User Guide
4 Confidential and Proprietary Information of ZTE CORPORATION
WARNING!
Switch off your device before installing or replacing the micro-SIM card. Your device do not support
place or insert the micro-SIM Card while working.
Your device only supports the micro-SIM Card. To avoid damaging the device, please use the card
that comes installed or included in the box of the device.
Connecting Your Device
Please refer to the following picture for connecting to your device. If you want to use the mobile
network to connect to the Internet or use your land line phone, you need to insert your micro-SIM card
first.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 5
Switching on Your Device
Press and hold the Power Switch to get started. Make sure that the phone is on hook before you power is
on.
NOTE:
Do not put anything on the top of the device. Do not lay devices to overlap each other during usage.
Power Supply
For normal operation, connect the device to the external power adapter. In case of power failure or when
there is no available external power supply, the device will not work.
About micro-SIM Card
Avoid handling the micro-SIM card unnecessarily. Hold the card by the edges to prevent static damage.
Keep the micro-SIM card away from electrical and magnetic appliances.
If you cannot get service, make sure that：
• You are in an area which has network coverage.
• You are using the correct micro-SIM card.
Internet Access
Configuring Your PC
The following procedure describes how to configure the Internet Protocol in the Windows 7 operating
system for your Wi-Fi connection.
1. Right-click Network and select Properties.
2. Select Chang adapter settings.
ZTE MF275R User Guide
6 Confidential and Proprietary Information of ZTE CORPORATION
3. Right-click Wireless Network Connection and select Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 7

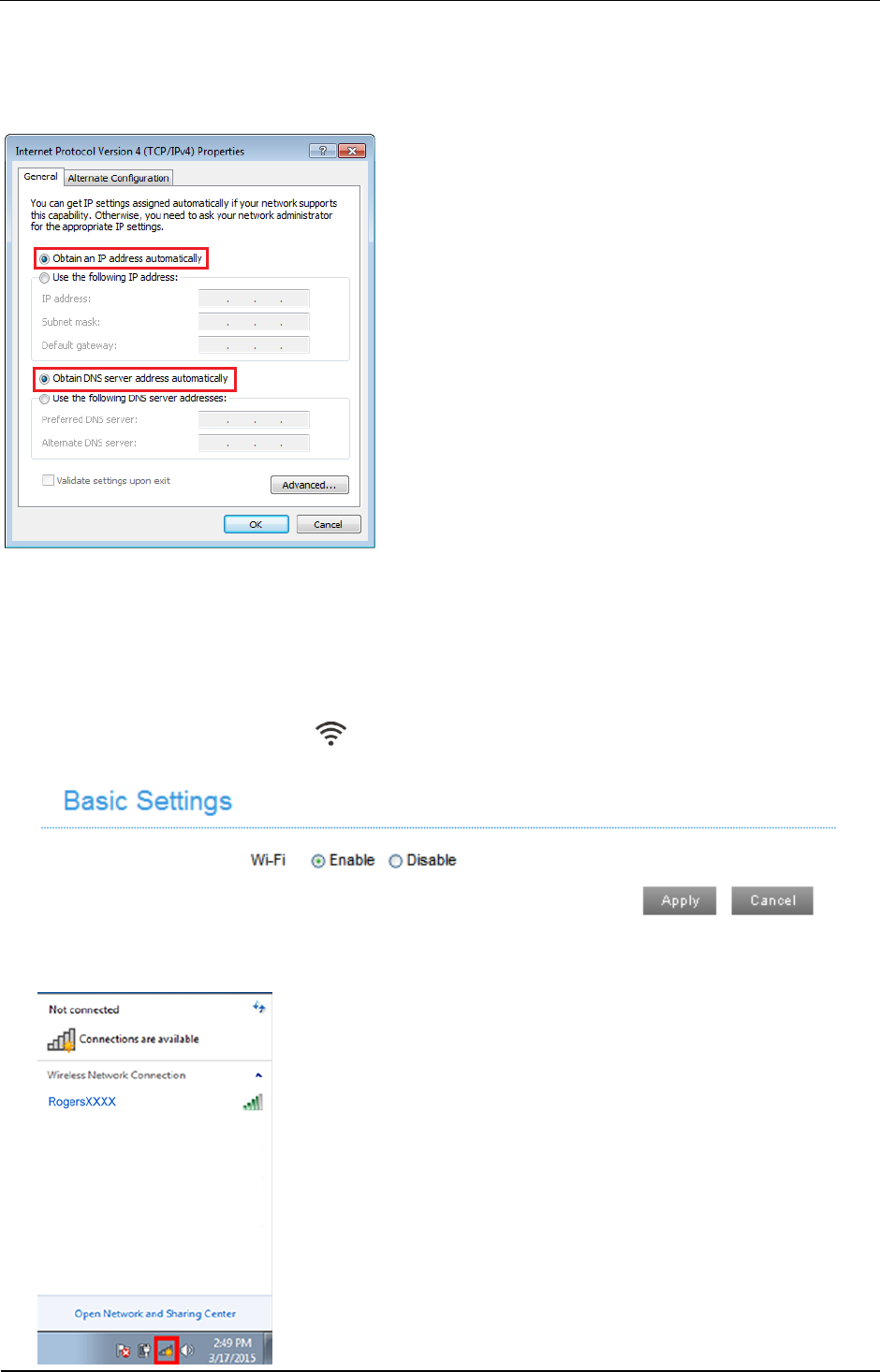

5. Select Obtain an IP address automatically and Obtain DNS server address automatically, and
click OK.
Wireless Connection
If you want to use Wi-Fi to connect to your device, please refer to the following steps.
1. Make sure that the Wi-Fi works normal. Please check the Wi-Fi Setting on the WebUI Configuration
page or check the Wi-Fi indicator .
2. Use your normal Wi-Fi application on the client to search for the available wireless networks.
ZTE MF275R User Guide
8 Confidential and Proprietary Information of ZTE CORPORATION
NOTE:
Please set the client to obtain an IP address automatically, and the client will get an IP address
like “192.168.0.100”.

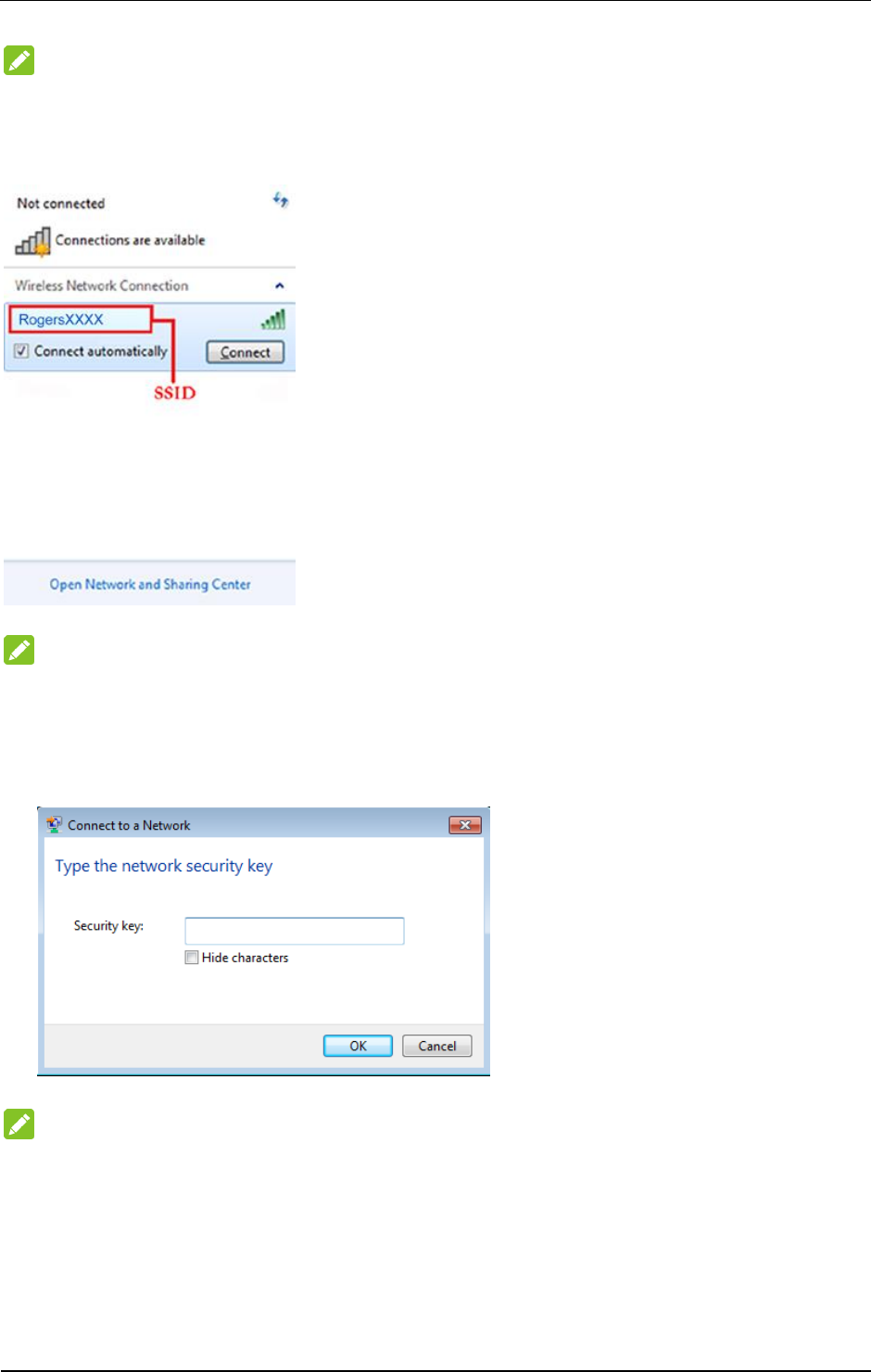

3. Select the SSID of your device, and then click Connect.
NOTE:
Please check the label on your device to get the default SSID.
4. Input the password, and then click OK.
NOTE:
You may need to input the password for Wi-Fi connection. Please check the label on your device to get
the default password.
5. Wait a moment, and then the client will connect to your device successfully.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 9
If you want to use WPS function to get the Wi-Fi connection, please:
1. Power on your device, and enable the Wi-Fi function on your device.
2. Enable WPS function. Please check the WPS Setting on the WebUI Configuration page.
3. Press the WPS button on your device to start Wi-Fi Protected Setup authentication process.
4. Enable the WPS function on your client to respond this authentication process.
5. Follow the system prompts on your client to finish the connection.
Accessing the Internet
After the client is connected to your device successfully, you can access the Internet in the
Automatic or Manual mode. The default mode is Automatic.
Mode
Operations
Automatic
Your device will connect to the Internet automatically, and your
clients can surf on the Internet directly.
Manual
1. Log in the WebUI configuration page.

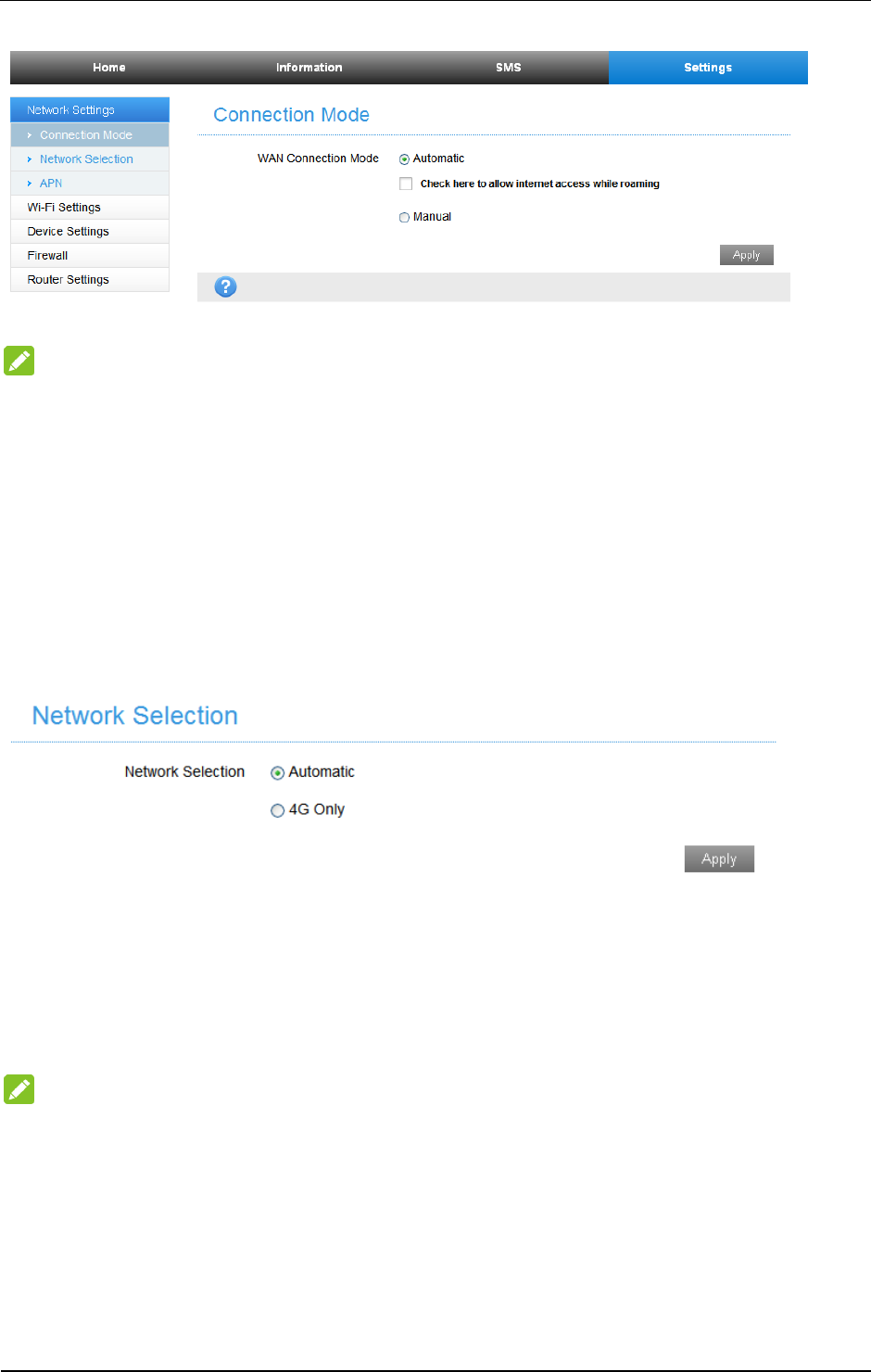

2. Select Settings > Network Settings > Connection Mode >
WAN Connection Mode > Manual, and then click Apply.
3. Select Home, and then click Connect or Disconnect.

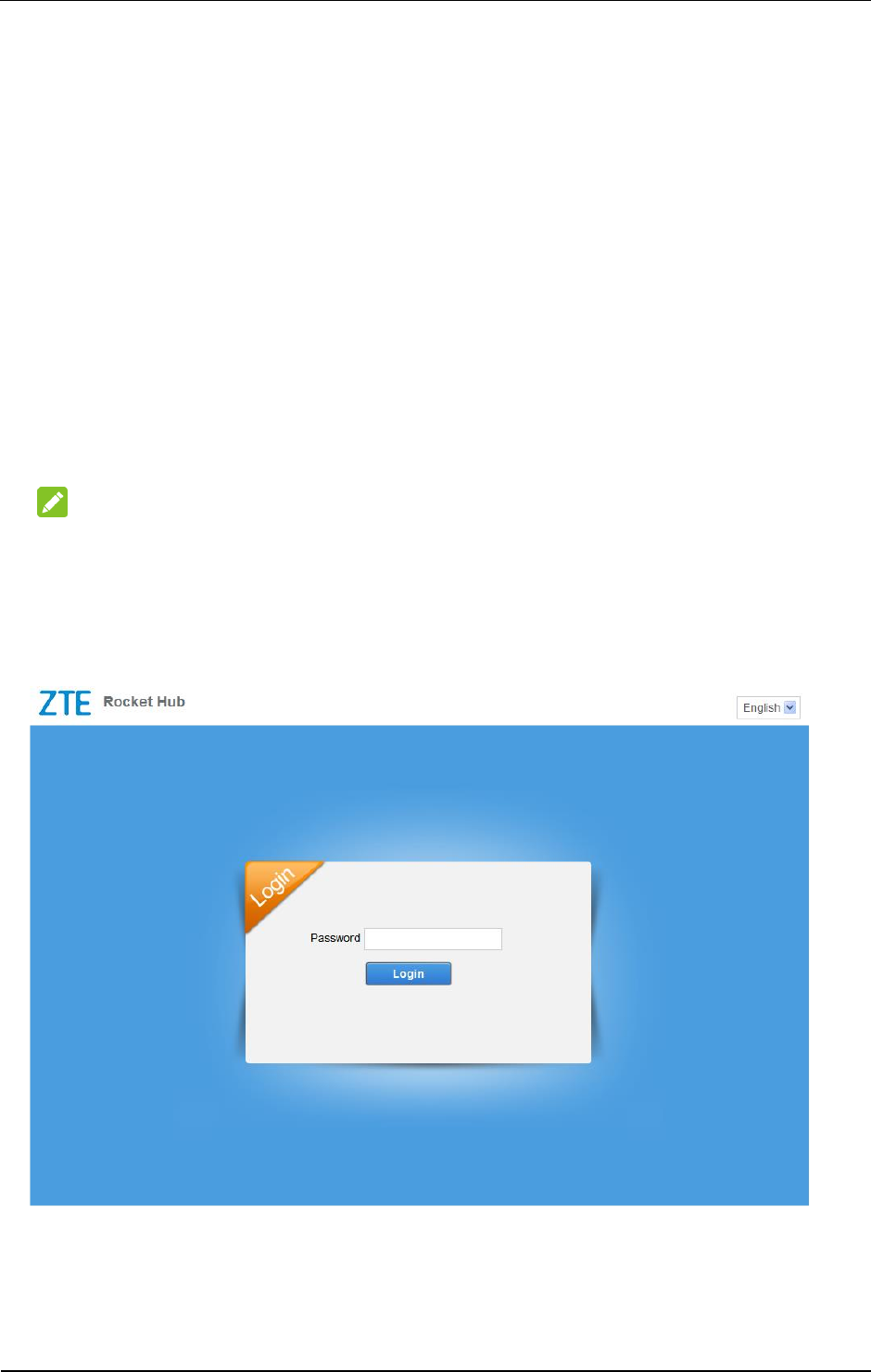

NOTE:
If you want to modify the detailed parameters of your device, please log in the WebUI configuration
page by visiting http://192.168.0.1 or http://rogers.rockethub. The default password is admin.
Calling
Making a Call
Using a phone connected to your device, place and receive calls as you normally would. The
device supports both cordless and corded phone dialing methods.
Note: Make sure to dial the 10-digit phone number, including area code.
Three-Way Calling
While on an existing call, press the Flash (or Talk) key on your phone to put the first party on
hold. When you hear a dial tone, dial the second party’s number (wait up to four seconds).
When the second party answers, press the Flash (or Talk) key again to complete the three-way
connection. If the second party does not answer, press the Flash (or Talk) key to end the
connection and return to the first party.
ZTE MF275R User Guide
10 Confidential and Proprietary Information of ZTE CORPORATION
Note: If your phone does not have a Flash (or Talk) key, use the off-hook mechanism supported
by your phone instead.
Call Waiting
Press *43# or #43# to enable or disable Call Waiting features.
You will hear two tones if someone calls while you are already on a call.
To hold the current call and accept the waiting call, press the Flash (or Talk) key. You can press
the Flash (or Talk) key anytime to switch back and forth between calls.
To end the current call and accept the waiting call, enter “1” and press the Flash (or Talk) key.
To reject (User Busy) the waiting call, enter “0” and press the Flash (or Talk) key.
Notes:
Your device comes with standard three-way calling and call waiting. Operation of these
features will vary depending on your home phone equipment.
If your phone does not have a Flash (or Talk) key, then use the off-hook mechanism
supported by your phone.
Call Forwarding
With Call Forwarding you can forward calls to another phone number.
Always forward
1. Press *21* on your connected phone.
2. Dial the 10-digit number to which you wish to forward your calls.
3. Press “#” key.
(Example: *21*1234567890# forwards your calls to the phone number 123-456-7890)
4. Wait for 3 seconds and until you hear a confirmation tone for the forwarding to complete
before hanging up.
Note:
To un-forward calls, press #21#, please wait for 3 seconds and until you hear a confirmation tone
for the un-forwarding to complete before hanging up.
Forward when busy
1. Press *67* on your connected phone.
2. Dial the 10-digit number to which you wish to forward your calls.
3. Press “#” key.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 11
4. Wait for 3 seconds and until you hear a confirmation tone for the forwarding to complete
before hanging up.
Note: Press #67# to un-forward calls.
Forward when unanswered
1. Press *61* on your connected phone.
2. Dial the 10-digit number to which you wish to forward your calls.
3. Press “#” key. Or press ** [DelaySec] #.
Note: [DelaySec] represents the duration of no answer.
(Example: *61*1234567890**10# forwards your calls to the phone number 123-456-7890, if
you don't answer the calls for 10 seconds.)
4. Wait for 3 seconds and until you hear a confirmation tone for the forwarding to complete
before hanging up.
Note: Press #61# to un-forward calls.
Forward when unreachable
1. Press *62* on your connected phone.
2. Dial the 10-digit number to which you wish to forward your calls.
3. Press “#” key.
4. Wait for 3 seconds and until you hear a confirmation tone for the forwarding to complete
before hanging up.
Note: Press #62# to un-forward calls.
Voicemail
Your device comes with standard wireless voicemail. Follow the steps below to set up and use
your voicemail.
Setup
Dial 1 on any home phone connected to your device and wait for four seconds to connect to your
wireless voicemail. Simply follow the voice prompts to complete setup.
Message Waiting
There are two indicators for a new message waiting: 1) the voicemail indicator ; and 2) an
intermittent dial tone.
The voicemail indicator on your device flashes when a voicemail message is waiting. You will
also hear an intermittent dial tone on any connected phone handset before placing a call.
ZTE MF275R User Guide
12 Confidential and Proprietary Information of ZTE CORPORATION
Retrieving Messages
To retrieve voice messages, dial 1 on any home phone connected to your device and wait for four
seconds to connect to your wireless voicemail box. Simply follow the voice prompts to listen to
and manage your messages. (Alternately, you may dial your 10-digit home phone number to
access your voicemail box.)
WebUI Configuration
Accessing the Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the Internet browser and enter http://192.168.0.1 or http://rogers.rockethub in the
address bar.
NOTE:
It is recommended that you use IE (8.0 or later), Firefox (31.0 or later), Opera (23.0 or later), Safari
(6.2 or later) or Google Chrome (36.0 or later).
3. The login page appears as follows.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 13
Login
In the WebUI Configuration page, select the desired language and input the password (the default
Password is admin).
Click Login to log in the device.

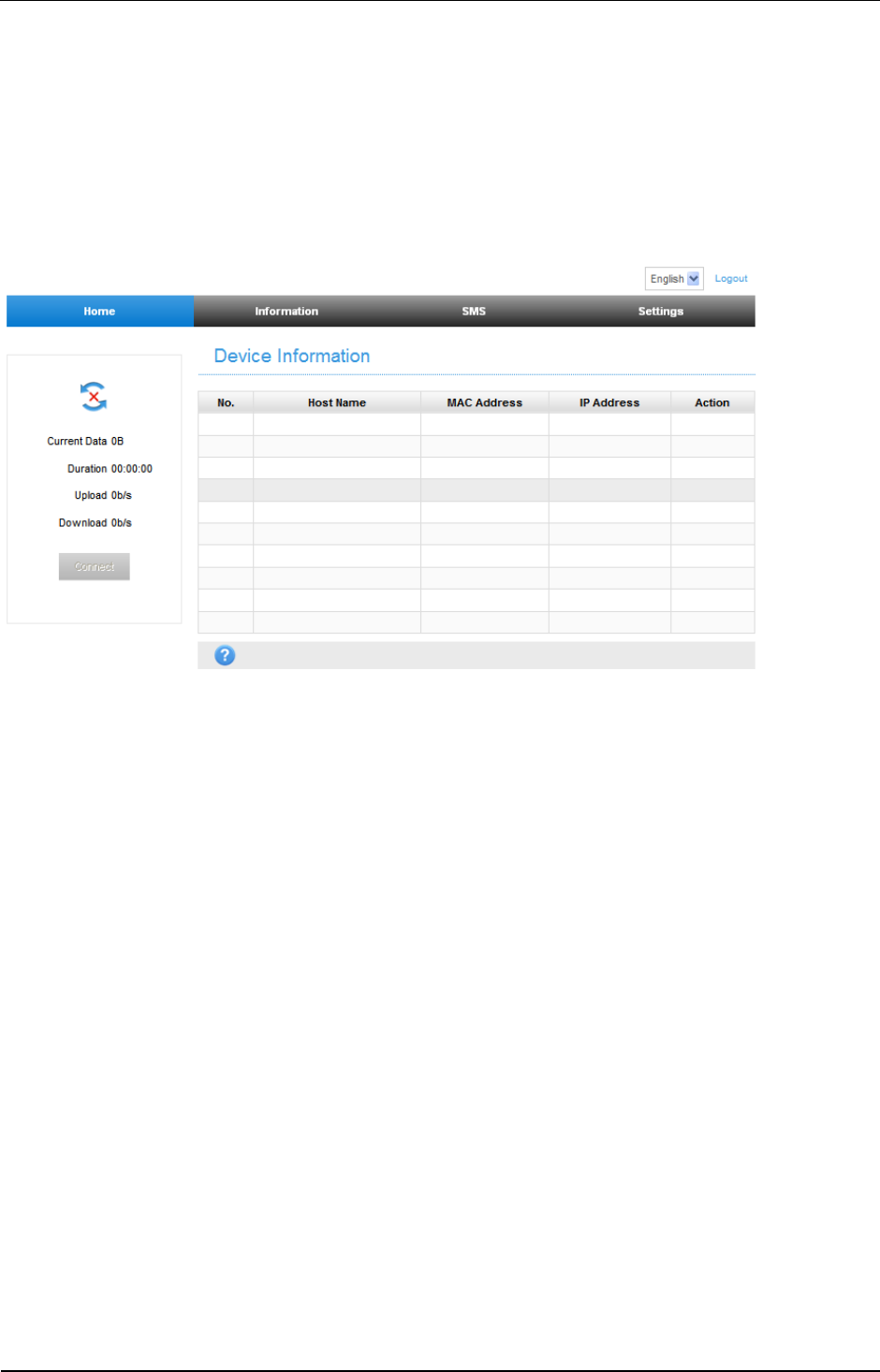

When you log in, the following interface appears:
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
Index area: Show the configuration list for your device.
Content area: Show the detailed configuration.
System information area: Show the system status and different kinds of tips.
Settings
Do not modify any settings unless instructed by your service provider.
Please disconnect the device from the network before changing the settings.
Network Settings
Connection Mode
Select Settings > Network Settings > Connection Mode. You can set the WAN connection mode here.
The default mode is Automatic.
ZTE MF275R User Guide
14 Confidential and Proprietary Information of ZTE CORPORATION
NOTE:
To change the current settings, please disconnect from the network first.
After changing the connection mode to Manual, you need to go to the Home page and click Connect
to connect to the Internet.
Network Selection
Select Settings > Network Settings > Network Selection. You can set the device to search network
automatically.
Automatic: The device will search for the available network automatically.
4G Only: The device searches for 4G network only.
Click Apply to confirm your configuration.
NOTE:
To change the current settings, please disconnect from the network first.
APN Setting
Select Settings > Network Settings > APN. The APN parameters are shown in the following figure.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 15
Set as default: Click to set current profile as the default profile.
To add a new APN profile, follow the steps below:
1. Select Manual mode in the figure above.
2. Click Add New to access the following figure.
ZTE MF275R User Guide
16 Confidential and Proprietary Information of ZTE CORPORATION
3. Enter the related parameters (please see following table), and then click Apply to add a new profile.
Parameter
Function
Mode
If a fixed APN is provided by your service provider, select Manual APN.
Otherwise, please select Auto APN, and the device will automatically
obtain parameters.
Profile
Shows the profile.
Profile Name
Type the profile name.
APN
Type the APN string.
Authentication
Password Authentication Protocol (PAP) provides a simple method without
encryption for the peer to establish its identity using a 2-way handshake.
Challenge-Handshake Authentication Protocol (CHAP) is used to
periodically verify the identity of the peer using a 3-way handshake.
User Name
User name is used to obtain authentication from the ISP when the
connection is established.
Password
Password is used to obtain authentication from the ISP when the connection
is established.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 17
NOTES:
The Profile Name and APN are mandatory, others are optional.
If the Authentication is set to NONE, you don’t need to set the User Name and Password.
Wi-Fi Settings
Basic Settings
Select Settings > Wi-Fi Settings > 2.4GHz / 5.0GHz, the wireless network basic parameters are shown
in the following figure.
2.4GHz SSID Switch: Enable or disable 2.4GHz SSID function.
Network Name (SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the
name for your wireless local area network (WLAN).
Broadcast Network Name (SSID): Disable or Enable (Default) this function. If Enable is selected,
the device broadcasts the SSID, and other devices can search and connect to it. When you select
Disable, other devices cannot search out the SSID. If you want someone to connect, you need to tell
them the SSID, and let them setup manually.
ZTE MF275R User Guide
18 Confidential and Proprietary Information of ZTE CORPORATION
AP Isolation: When Enabled is selected, each of your wireless clients will not be able to
communicate with each other. When Disable is selected, each of your wireless clients will be able to
communicate with each other.
Security Mode: The security modes are described below:
Mode
Description
OPEN
Authentication and encryption won't be performed. There are risks that private
info will be intercepted or network will be used by unauthorized individuals.
WPA2(AES)-PSK
It is the securer version of WPA with implementation of the 802.11i standard.
WPA-PSK/WPA2-PSK
Apply both the WPA-PSK and WPA2-PSK scheme.
Pass Phrase: Set the password for your wireless local area network.
Frequency (Channel): Choose the appropriate channel to optimize the performance and coverage of
your wireless network.
Max Station Number: Choose the maximum number of the stations which connect to the Wi-Fi
hotspot simultaneously.
Click Apply to confirm your configuration.
NOTE:
Your device has two Wi-Fi SSIDs, select Settings > Wi-Fi Settings > 2.4GHz / 5.0GHz, and you can
set the band selection, network mode, channel bandwidth and other Wi-Fi advanced settings.
Black List
Select Setting > Wi-Fi Settings > Black List, the Black List page is shown in the following figure.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 19
All the clients connected to your device are shown in the Device Information area. Click Block behind
the device you want to block and then it will be added to the black list.
Click Delete to delete the device from the black list and then the device is unblocked.
WPS
Select Settings > Wi-Fi Settings > WPS, You can enable Wi-Fi Protected Setup (WPS) by PIN (PIN
code) or PBC (push-button) mode, the two modes are described below:
PIN：Enter the client PIN.
PBC：Press the WPS button of the device or select PBC, and then click Apply. Press the WPS
button on the client wireless adapter within two minutes, and the negotiation process will be
established.
NOTE:
Your device has two WPS selections to configure the two Wi-Fi SSIDs.
ZTE MF275R User Guide
20 Confidential and Proprietary Information of ZTE CORPORATION
Device Settings
Account Management

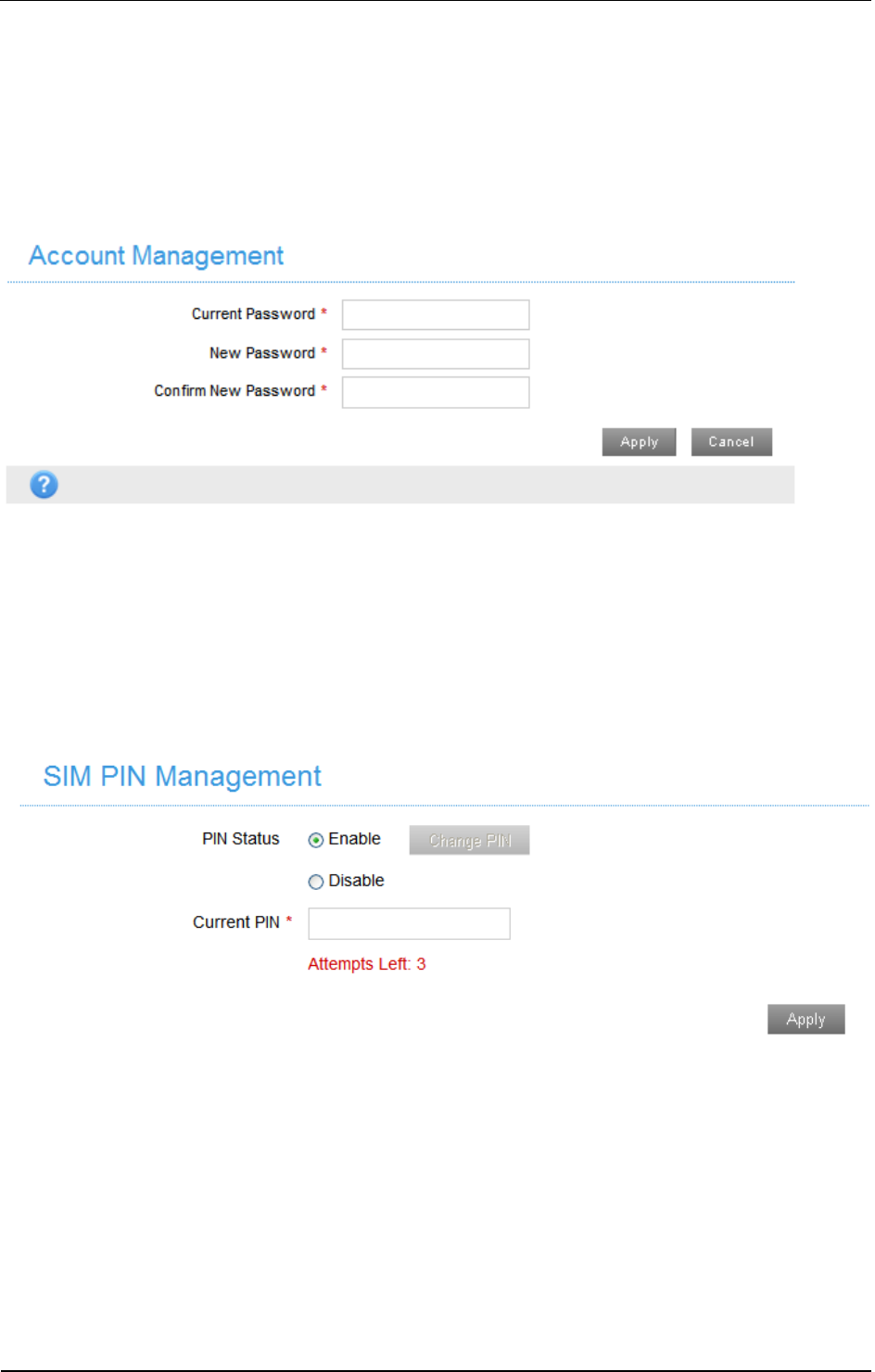

Select Settings > Device Settings > Account Management, and the administrator settings
information is shown in the following figure.
You can change the administrator’s password. Click Apply to confirm your configuration.
SIM PIN Management
Select Settings > Device Settings > SIM PIN Management and the PIN management is shown in the
following figure.
• PIN Status: Shows the current PIN status and allows you to select PIN status.
• Current PIN: Type the PIN code.

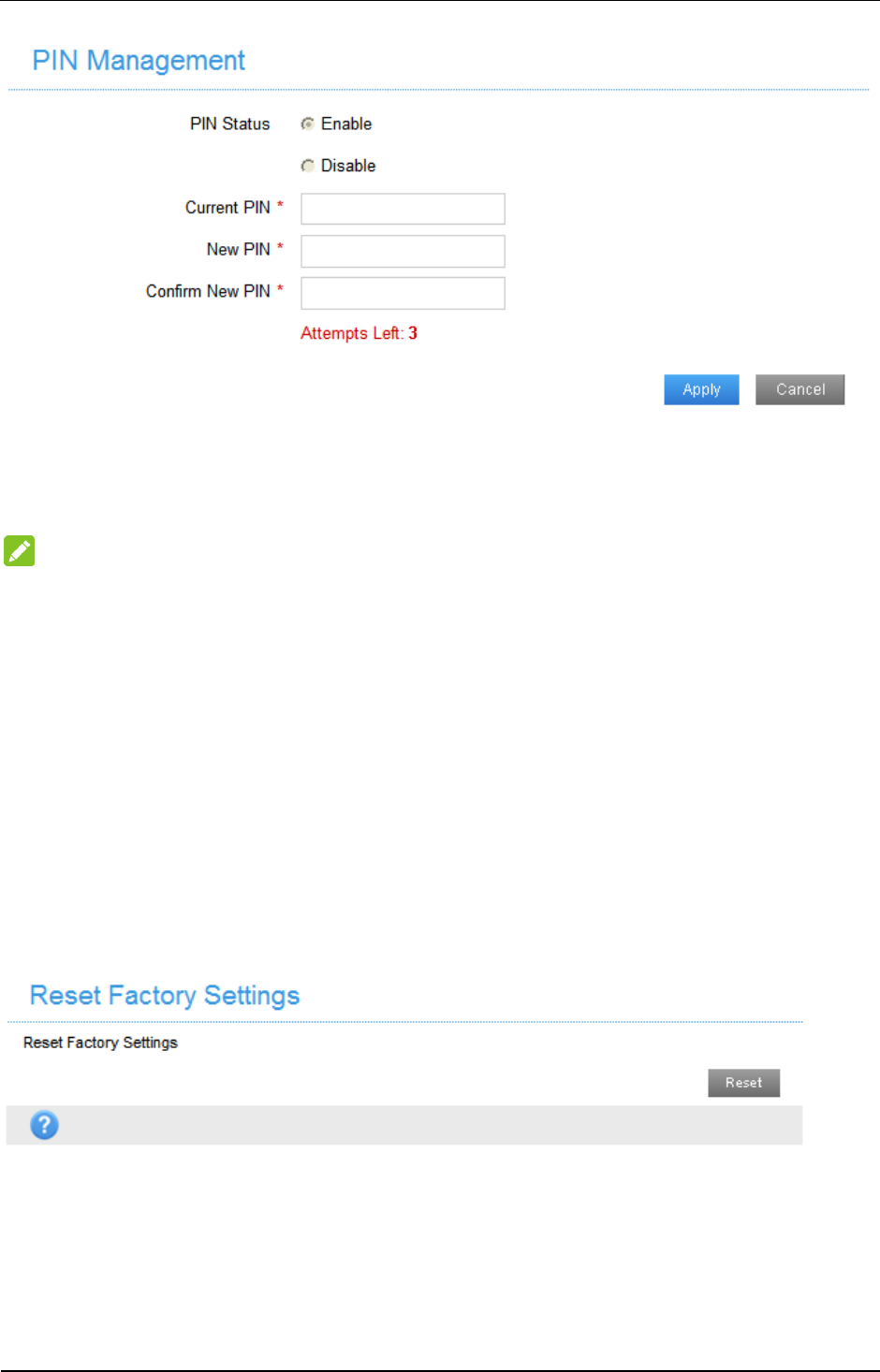

If you select Change PIN, the modification parameters are shown in the following figure:
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 21
Type the old PIN code, and then type twice the new PIN code. Click Apply to confirm your
configuration.
NOTES:
• Three times consecutive wrong PIN code entries will block the micro-SIM card.
• When you manage your PIN code, you need to disconnect the Internet first.
• After you changed the PIN code, you don’t need to input the PIN code again. It is required after the
device restarted.
Reset
Select Settings > Device Settings > Reset, click Reset to set all the settings to their factory default values,
and then the device will restart automatically.
Restart

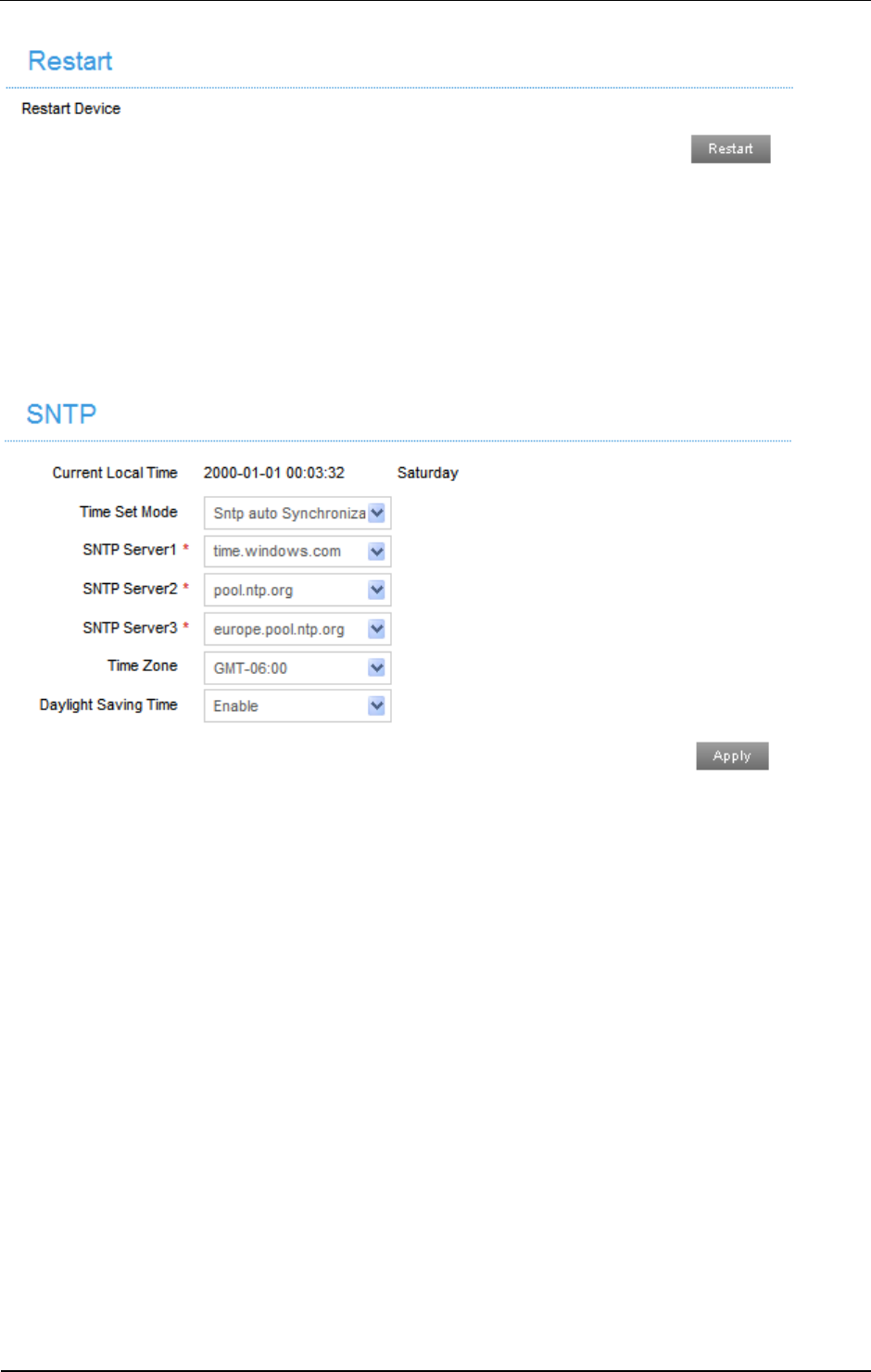

Select Settings > Device Settings > Restart, click Restart to restart your device manually.
ZTE MF275R User Guide
22 Confidential and Proprietary Information of ZTE CORPORATION
SNTP
Select Settings > Device Settings > SNTP and then you can set the device’s time manually or set the
device to obtain time from SNTP server automatically. The default time set mode is Sntp auto
Synchronization.
Current Local Time: Shows current local time.
Time Set Mode: Choose to set the time automatically or manually from the drop-down list.
SNTP server 1/2/3: Choose SNTP server from the drop-down list.
Time Zone: Choose your time zone from the drop-down list.
Daylight Saving Time: Enable or disable the Daylight Saving Time.
Click Apply to confirm your configuration.
To set the device’s time manually, follow the steps below.

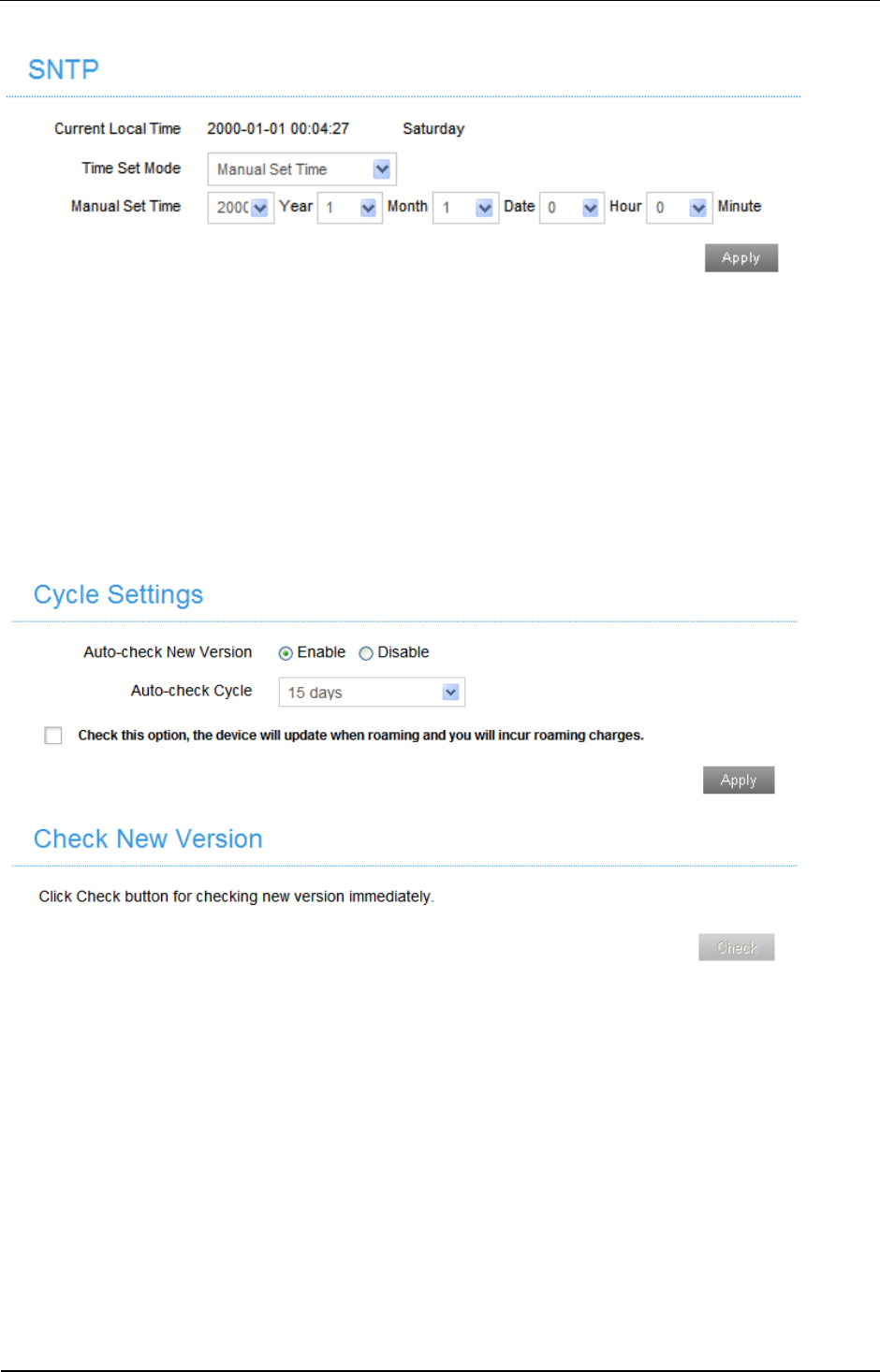

1. Choose Manual Set Time from the Time Set Mode drop-down list.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 23
2. Set the time and then click Apply to confirm your configuration.
Update Management
Select Settings > Device Settings > Update Management and the update management is shown in the
following figure. If there is new update, please click Check button for checking new software
immediately.
Firewall
A firewall protects your connected devices against malicious incoming traffic from the Internet. The
firewall cannot be disabled, but the following settings are available.
Port Filtering
Select Settings > Firewall > Port Filtering. The MAC/IP/Port Filtering is shown in the following figure.
ZTE MF275R User Guide
24 Confidential and Proprietary Information of ZTE CORPORATION
If you select Enable, the filter settings will appear as shown below:
Default Policy: Set how to handle the packet if none of the rules matches.
Accepted: Internet traffic is allowed by default. Only traffic from the selected applications will be
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 25
blocked from accessing the Internet. Traffic is identified by port numbers. In particular, you need to
know the port numbers and the protocol (TCP, UDP) used by outgoing traffic.
Dropped: Internet traffic is blocked by default. Only traffic from the selected pre-defined or custom
applications is allowed to access the Internet.
MAC Address: Set the MAC address that will be filtered.
Source IP Address: Set the source IP address that will be filtered.
Dest. IP Address: Set the destination IP address that will be filtered.
Protocol: Set which protocol will be used for filtering.
Action: Set how to handle the packet if it matches with the rule.
Comment: Type comment for the filter settings.
NOTE:
Filtering rules are matched one by one, if met this provision, it will not continue to match the rules listed
below.
Click Apply to confirm your configuration.
Click Delete to delete the rule which you selected.
To add a new rule:
1. Select Enable in the Port Filtering area.
2. Click Apply.
3. Input the detail information in the MAC/IP/Port Filtering Settings area.
4. Click Apply in the MAC/IP/Port Filtering Settings area.
Port Forwarding
You can set up virtual servers to provide services on the Internet. Select Settings > Firewall > Port
Forwarding, the virtual server settings is shown in the following figure.
ZTE MF275R User Guide
26 Confidential and Proprietary Information of ZTE CORPORATION
If you select Enable, the Virtual Server Settings will appear.
IP Address: Set IP address for the virtual server.
Port Range: Set port numbers for the virtual server.
Protocol: Set protocol for the virtual server.
Comment: Type comment for the virtual server settings.
Click Apply to confirm your configuration.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 27
Click Delete to delete the rule which you selected.
To add a new rule:
1. Select Enable in the Port Forwarding area.
2. Click Apply.
3. Input the detail information in the Port Forwarding Settings area.
4. Click Apply in the Port Forwarding Settings area.
URL Filtering
You can set up content filter to restrict the improper content access. Select Settings > Firewall > URL
Filtering, the URL Filtering is shown in the following figure:
Type URL address, and then click Apply to add the URL address into the filtering list. The new URL
filtering item will be shown in the Current Webs URL Filters field.
UPnP
Universal Plug Play (UPnP) is a set of networking protocols that allows network devices, such as PC,
printers, Internet gateways, Wi-Fi access points and mobile devices, to seamlessly discover each other’s
presence on the network and establish functional network services for data sharing, communications, and
entertainment.
Select Settings > Firewall > UPnP and the UPnP settings page is shown in the following figure.
ZTE MF275R User Guide
28 Confidential and Proprietary Information of ZTE CORPORATION
Check Enable and click Apply to enable the function.
DMZ
The DMZ, or De-Militarized Zone, is a selected internal IP address of a device that allows full access and
connectivity from outside traffic, through the firewall, to a specific internal device without being filtered
or blocked by your device.
Select Settings > Firewall > DMZ and the following page will appear:
If you select Enable, the DMZ Settings will appear:
Enter the IP address of the device you want to communicate with the Internet, and then click Apply to
save the settings.
Router Settings

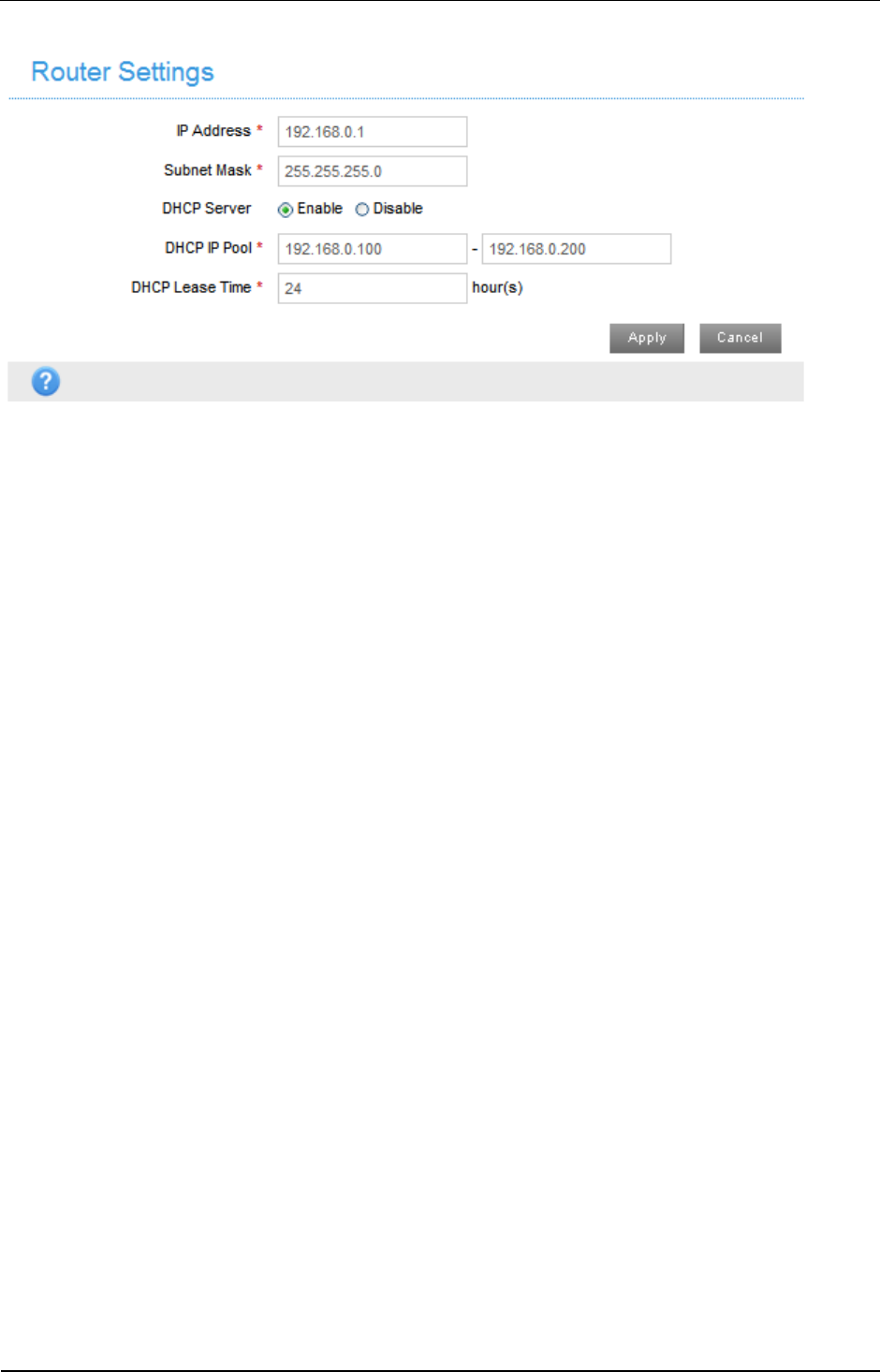

Select Settings > Router Settings, and the router information is shown in the following figure:
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 29
IP Address: IP address for LAN interface.
Subnet Mask: Subnet mask for the IP address.
DHCP Server: Enable or disable DHCP Server function.
DHCP IP Pool: Allocate begin and end IP address for IP pool.
DHCP Lease Time: Define how long the leased IP address will be expired. The new IP address
will be relocated after the IP address is expired.
Click Apply to confirm your configuration.
Information
This function allows you to view system information.
Device Information
Select Information > Device Information and then you can view the device information.
ZTE MF275R User Guide
30 Confidential and Proprietary Information of ZTE CORPORATION
Statistics
Select Information > Statistics and then the statistics information is shown in the following figure:
Data Limit Settings
Select Information > Data Limit Settings and then the following page is shown.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 31
If you select Enable, the Data Limit Settings will appear.
Limit by: Select a way to limit the data use, by data or time.
Monthly: Set data limit for a month. If you set the limit by data, you need to select the data unit
from the drop-down list; if you set the limit by time, you need to enter the time directly.
Remind me: Set a percentage to remind you when the data/time reaches the specified percentage.
SMS
This function allows you to receive messages from your ISP.
Operating Messages in Native
You can check the messages saved in your device.
Device SMS
Select Messages > Device SMS to access the following figure:
All the received messages saved in your device will be displayed here.
Click Delete to delete the selected messages.
Check the checkbox next to Delete to select all the messages saved in your device and then click Delete to
delete them.
ZTE MF275R User Guide
32 Confidential and Proprietary Information of ZTE CORPORATION
Click Refresh to refresh manually.
Operating Messages in micro-SIM Card
You can check the messages saved in your micro-SIM card.
SIM SMS
Select Messages > SIM SMS to access the following figure:
All the received messages saved in the micro-SIM card will be displayed here.
Click Delete to delete the selected messages.
Check the checkbox next to Delete to select all the messages in micro-SIM card and then click Delete to
delete them.
Configuring Messages
Select Messages > SMS Settings to access the following figure. You are allowed to set the SMS centre
number here.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 33
Warning and Notice
Safety Precautions
• Some electronic devices may be susceptible to electromagnetic interference. Locate the device away
from TV set, radio and other electronic equipment to avoid electromagnetic interference.
• The device may interfere with medical devices like hearing aids and pacemakers. Consult a physician or
the manufacturer of the medical device before using the device.
• Please keep yourself at least 20 centimeters away from device.
• Do not use your device in dangerous environments such as oil terminals or chemical factories where
there are explosive gases or explosive products being processed.
• Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may
affect the device performance, damage the device or cause danger to you.
• Do not attempt to dismantle the device. There are no user serviceable parts.
• Do not allow the device or accessories to come into contact with liquid or moisture at any time. Do not
immerse the device in any liquid.
• Do not place objects on top of the device. This may lead to overheating of the device.
• The device must be placed in ventilated environment for use.
• Do not expose the device to direct sunlight or store it in hot areas. High temperature can shorten the life
of electronic devices.
• Do not allow children to play with the device or charger.
• Keep the length of the cable between the device and the phone less than 10 meters.
• The device is for indoor use only. Do not use the device outside. Do not connect telephone extensions
which run outside of the building. These can result in lightning damage to your unit.
Cleaning and Maintaining
• Use an antistatic cloth to clean the device. Do not use chemical or abrasive cleanser as these could
damage the plastic case. Turn off your device before you clean it.
• Use the device within the temperature range of -10℃ ～ +55℃, and the storage temperature range is
-20℃ ～+65℃. The humidity range is 5%~95%.
• Do not use your device during a thunderstorm. Remove the mains power pack from the wall socket.
• Do not take out your micro-SIM card unnecessarily. The micro-SIM card may be easily lost or it can be
damaged by static electricity.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
ZTE MF275R User Guide
34 Confidential and Proprietary Information of ZTE CORPORATION
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 35
RF Exposure
Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy.
When you communicate with your device, the system handling your connection controls the power level
at which your device transmits.
Important safety information regarding radiofrequency radiation (RF) exposure. To ensure compliance
with RF exposure guidelines the device must be used with a separation from the body. Failure to observe
these instructions could result in your RF exposure exceeding the relevant guideline limits.
The maxim permissible exposure is defined in 47 CFR 1.1310 with 1mW/cm2. The transmitter is using
external antenna that operate at 20cm or more from nearby persons. The maxim power density is
0.041mW/cm2.
The FCC grant can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: SRQ-MF275R.
IC
This radio transmitter (identify the device by certification number, or model number if Category II) has
been approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type，are strictly
prohibited for use with this device.
Immediately following the above notice, the manufacturer shall provide a list of all antenna types
approved for use with the transmitter, indicating the maximum permission antenna gain（in dBi）and
required impedance for each.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC : 5200E-MF275R
IC Radiation Exposure Statement
ZTE MF275R User Guide
36 Confidential and Proprietary Information of ZTE CORPORATION
This device complies with IC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the IC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC CNR-102 définies pour un
environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites d'exposition aux
fréquences radio de la IC CNR-102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm
(8 pouces) pendant le fonctionnement normal.
Troubleshooting
Internet Related Problems
Problem
Recommended Action
The device cannot access the Internet at all.
Please check your configuration settings.
Please wait 1~ 2 minutes for the device to initialize.
Check your service indicator LED’s.
The download or upload speeds are very slow.
The speed is dependent on signal strength. Check your
signal strength and network type.
Failing to visit the WebUI configuration page
Enter the correct address. The default address is
http://192.168.0.1 or http://rogers.rockethub.
Only use one network adapter in your PC.
Do not use any proxy server.
Failing to establish a connection between your device and a
client through Wi-Fi
Make sure the Wi-Fi function is active.
Refresh network list and select the correct SSID.
Check the IP address to make sure your client can
obtain an IP address automatically in the Internet
protocol (TCP/IP) properties.
Type the correct network key (Wi-Fi password)
when you connect to the device.
About the password
For the Wi-Fi connection password, please check
the label on the device.
The default password of the WebUI configuration
page is admin.
If you changed the password and forgot the new
password, you need to restore the device to the
factory default settings.
ZTE MF275R User Guide
Confidential and Proprietary Information of ZTE CORPORATION 37
For more assistance, please:
• Send an E-mail to mobile@zte.com.cn
• Visit www.ztedevice.com
• Call the Service Hotline: +86–755–26779999
