User manual
1
MF970
User Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, Shenzhen, P.R.China
Postcode: 518057
2
Getting to Know Your Device

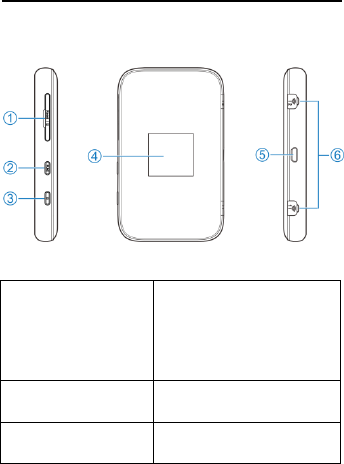

Appearance
The following figure is for your reference only.
Left Side Front Right Side
1. micro-SIM Card Slot
Cover and Reset
Hole
Insert your micro-SIM
card.
Restore your device to
the factory default
settings.
2. FUNC Key
Press the FUNC Key to
access the options menu.
3. Power Key
Press the Power Key to
power on/off your device.
3
4. Screen
It indicates the signal type,
signal strength, battery, Wi-Fi,
etc.
5. Charging/micro-USB
Jack
Charge your device.
Connect the client to your
device via the USB cable.
6. External Antenna
Connector
It is used to connect an
external antenna to enhance
the signal strength.
Getting to Know Your Device
Indicators
When the device is powered on, the following icons may be
displayed on the LCD screen. For a description of the icons,
refer to the following table.

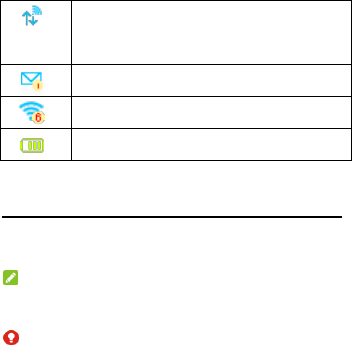

Icon
Description
Network signal strength
/
Network type
The user is in roaming status.
Connected to the Internet.
4
Connected to the Internet in the Internet Wi-Fi
mode.
New message (s)
Wi-Fi status and the number of connected users
Battery level
Installing the micro-SIM Card
1. Open the micro-SIM card slot cover, and install a micro-SIM
card to the micro-SIM card slot.
NOTE:
Do not remove the cover entirely, because it is connected with
the device.
WARNING!
To avoid damage to the device, do not use any other kind of SIM
cards, or any non-standard micro-SIM card cut from a SIM card.
You can get a standard micro-SIM card from your service
provider.
5
2. Close the micro-SIM card slot cover.

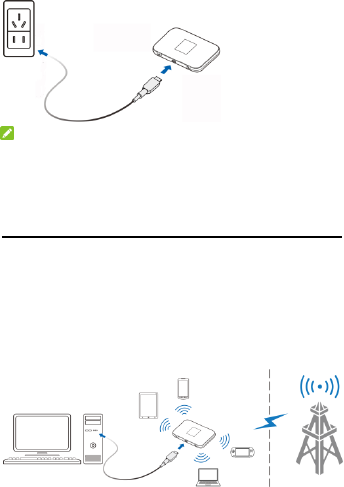

Charging Your Device
You can charge your device by using the USB cable or adapter.
Use the USB cable to connect your device and PC directly.
Use the adapter and USB cable to connect the wall outlet
and your device.
6
NOTE:
The plug only fits one way to connect your device. Do not use
excessive force to insert the plug.
Internet Access
Connection Scenarios
The device can access the Internet in two ways and it allows
multiple clients to surf on the Internet at the same time. The
following figures are for your reference only.
Cellular network mode: A micro-SIM card can be used to
access the Internet.
7

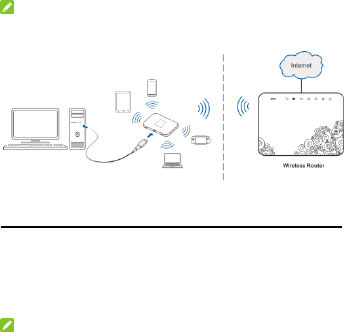

Internet Wi-Fi Mode: Your device can be connected to a
WLAN device (such as a hotspot device or wireless router)
through Wi-Fi to access the Internet. The WLAN device must
be already connected to the Internet.
NOTE:
Your device and the WLAN device must be in different subnets.
Connecting to Your Device
Using Wi-Fi
1. Power on your device.
2. Ensure that your computer or other client devices have
enabled Wi-Fi, and search for available wireless networks.
NOTE:
Refer to your Wi-Fi-enabled client device manual for further
details on how to search for wireless networks. If you use a
computer, you need to set your computer to obtain an IP
address automatically.
8
3. Select the Wi-Fi name (SSID) of your device, and click
Connect.
4. Enter the Wi-Fi password if necessary, and click OK.
NOTE:
Refer to the chapter Getting to Know the Wi-Fi SSID and
Password to get the default Wi-Fi SSID and password.
5. Wait until the client device is connected to your device
successfully.
Using a USB Cable
1. Connect a computer to your device with a USB cable.

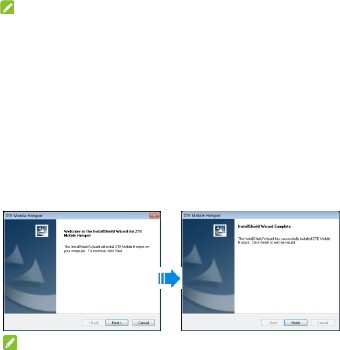

2. Power on your device. Follow the system prompts to
complete the software installation.
NOTES:
If the system does not automatically launch installation, you
can double-click the device installation icon in My Computer
to install the software.
The driver of your device will be installed at the same time.
9
3. Wait until the computer is connected to your device
successfully.
Using the WPS(Optional)
If your client device supports WPS, you don’t have to input the
password manually after WPS has been available. Please do
the following steps:
1. Power on your device, and enable the Wi-Fi function on your
device.
2. Enable WPS function. Please press the FUNC Key.
3. Select WPS to start Wi-Fi Protected Setup authentication
process.
4. Enable the WPS function on your client to respond this
authentication process.
5. Follow the system prompts on your client to finish the
connection.
NOTES:
The device will wait for receiving the access request of
wireless access client within 2 minutes.
For the detailed operations about the client, please refer to
the client’s instruction.
10
Getting to Know the Wi-Fi SSID and
Password
You can use the following methods to get the default Wi-Fi SSID
and password.
View the label on the device.
Press the FUNC Key to access the options menu. Select
Device Info and the Wi-Fi SSID and password are
displayed on the screen.
Logging in to the ZTE Mobile
Hotspot Configuration Page
1. Ensure that the connection between your device and the
client device is correct.
2. Launch the Internet browser and enter http://192.168.0.1 or
http://rogers.rockethub in the address bar.
3. Enter the password to log in to the ZTE Mobile Hotspot
configuration page. The login page appears as follows. The
following figure is only for your reference.
11
NOTE: The default password is admin.
Changing the Wi-Fi SSID or
Password
1. Log in to the ZTE Mobile Hotspot configuration page.
2. Select Wi-Fi Settings > Main SSID.
3. Change the Network Name (SSID) or the Password in the
Main SSID area.
4. Click Apply.
12
Accessing the Internet
Cellular network mode
After a client device is successfully connected to your device,
you can access the Internet in Automatic or Manual mode. The
default mode is Automatic.
Mode
Operation
Automatic
Your device is automatically connected to the
Internet, and you can surf on the Internet
through the client.
Manual
1. Log in to the ZTE Mobile Hotspot
configuration page.
2. Select Settings > Connection Mode >
Manual, and then click Apply.
3. Click to back to the home page, and
click or .
You can also press the FUNC Key and
select Data Connection. Select Yes or
No.
NOTE:
To modify the parameters of your device, log in to the ZTE
Mobile Hotspot configuration page.
13
Accessing the Internet
Internet Wi-Fi Mode
1. Log in to the ZTE Mobile Hotspot configuration page.
2. Select Wi-Fi Settings > Internet Wi-Fi.
3. Set the Internet Wi-Fi Switch to Enable, and click Apply.
Then set the Preferred Network to Wi-Fi, and click Apply.
4. Connect to the Wi-Fi hotspot.
The following two methods are for your reference.
Click Connect next to the Wi-Fi hotspot you want to
connect to in the Wi-Fi Hotspot area, enter a password in
the Password text box and click Yes.
Click Add Network, enter the Wi-Fi hotspot information in
the Add Wi-Fi Hotspot area, and click Apply.
14
After the client device is connected to the Wi-Fi hotspot
successfully, you can access the Internet.

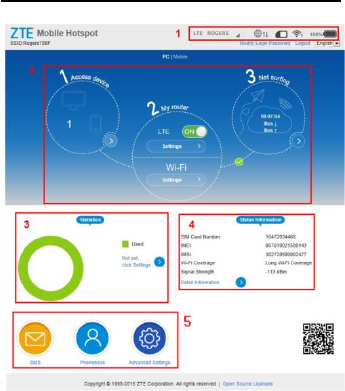

ZTE Mobile Hotspot Configuration
Page screen
When you log in, the following interface appears.
15
1. Status Check the status of the current connection.
2. Current network panel Check status of mobile network
connection, connected devices, upload and download data
speed, or change related settings.

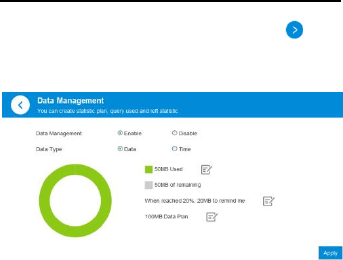

3. Statistic Check your approximate cumulative data usage,
and left statistic.

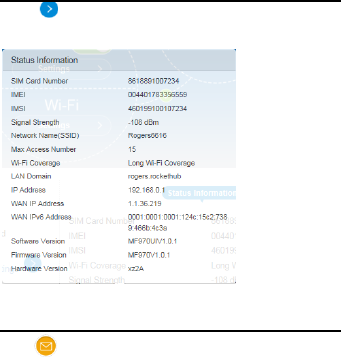

4. Status information Check device status information.
5. Index bar Select the function to be used from the index bar.

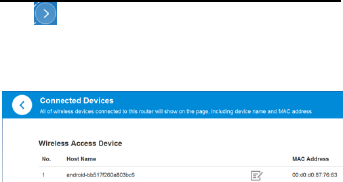

Connected Device View
Click on Access device.
All of wireless devices connected to your device will show on the
connected device window, including device name and MAC
address.
16

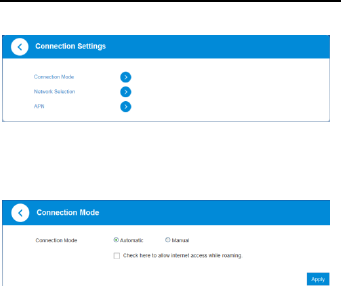

Connection Settings View
Click Settings on My router.
Connection mode
Select Connection Mode. The connection mode information is
shown in the following figure.
Automatic: The device will automatically connect to network
when it is powered on.
Manual: The device will connect to network manually.
Network selection
Select Network Selection. The network selection information is
shown in the following figure.
17
Automatic: The device will search available network
automatically.
Manual: The device will search available network manually.
APN
1. Select APN.
2. Select Manual. You can set the Access Point Name (APN) in
the following figure.
18
Mode: If a fixed APN is provided by your service provider,
select Manual APN. Otherwise, please select Auto APN, and
the device will automatically obtain parameters.
Profile: It contains one or more profile names.
PDP Type: IPv4/IPv6/IPv4&IPv6.
Profile Name: It refers to the name that you assign to the
new profile.
APN: Access Point Name. The APN contains 0-9 a-z A-Z . -
and it can't start with and end with .or -.
Authentication: It is provided by your Internet Service
Provider(ISP).Password Authentication Protocol (PAP)
provides a simple method without encryption for the peer to
establish its identity using a 2-way handshake.
Challenge-Handshake Authentication Protocol (CHAP) is
used to periodically verify the identity of the peer using a
3-way handshake.
User Name: User name is used to obtain authentication from
the ISP when the connection is established.
Password: Password is used to obtain authentication from
the ISP when the connection is established.
Click "Set as default" to set this profile as the default profile.
NOTE:
Please disconnect the device from the network before changing
the settings.
19
Wi-Fi Settings
You can set up wireless hotspot so that your mobile phone or
laptop could access network via it. Click Wi-Fi Settings on My
router.

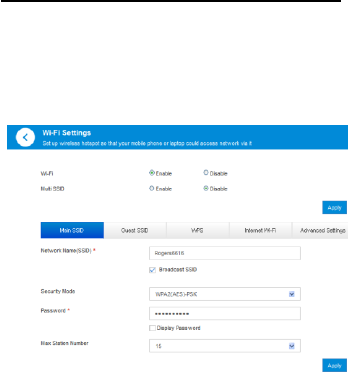

Main SSID
Select Main SSID.
Multi SSID: 2 SSID can be used at the same time.
Network Name(SSID): SSID can be understood as network
name. When change the SSID, please enter a string less than
32 characters as the name for your Wi-Fi. The string contains
numbers, letters (a-z, A-Z), special characters
20
(!#()+-./%=?@^_{|}~) and space, and it cant start and end
with space.
Broadcast Network Name(SSID): If enable this function, the
device will broadcast SSID. Other wireless devices will
discover and connect to this device.
Security Mode:
OPEN: Unencrypted mode. There are risks that
network will be used by unauthorized individuals. This
encryption mode isn’t recommended.
WPA2(AES)-PSK: It is the secure version of WPA
with implementation of the 802.11i standard.
WPA-PSK/WPA2-PSK: WPA Pre-Shared Key
(WPA-PSK). WPA2-PSK is the secure version of
WPA with implementation of the 802.11i standard.
Password: The pass-phrase contains 0-9 a-z A-Z ! # ( ) + - . / %
= ? @ ^ _ { | } ~
Max Station Number: You can select the maximum number
of wireless terminals which can connect to the device.

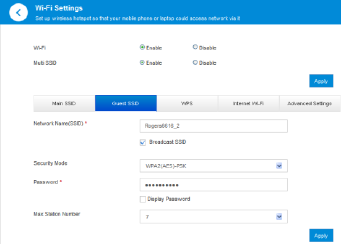

Guest SSID
Select Guest SSID, and set Multi SSID to Enable.
21
WPS
Select WPS. WPS (Wi-Fi Protected Setup) is a standard that
allows users to set up a wireless network in an easy and secure
way without specific configuration, such as: SSID, security mode
and password.
22
PIN: You need to enter the PIN that is generated by the
access client.
PBC: You can select the PBC (Push Button Configuration) on
the web page to enable WPS function.
Internet Wi-Fi
Select Internet Wi-Fi.
23
Refer to the chapter Internet Wi-Fi Mode.
Advance Settings
Select Advance Settings.
Band Selection: You can select the suitable band for your
device.
24
Network Mode: Select the suitable Wi-Fi network mode, the
device Wi-Fi performance will be improved.
Channel Bandwidth: Select the channel bandwidth for your
device.
Country/Region Code: You can select the suitable
Country/Region Code for your device.
Frequency (Channel): Select appropriate channel to
optimize the performance and coverage of your wireless
network.
Data Management View
If the data that web page displayed is not in agreement with the
actual used, you can modify the used data by click in the
statistic view. It can remind you when used data/time reaches
specified percentage.
25
Status Information View
Click next to Detail Information to check detail
information about your device.
SMS View
Click . The SMS is shown in the following figure.
The received message can be read from the Device SMS or SIM
SMS in the main SMS window.
You can send and receive SMS text messages straight from
your computer. The SMS window provides an easy way to view
26
messages, write new ones, and manage contact details.
Phonebook View
Click . The phonebook is shown in the following figure.
You can save your contacts in Device or SIM card.
Up to 350 contacts can be saved on your device. Number of
contacts that can be saved on the SIM card depends on the SIM
card’s capacity to save contacts.
27
Advanced View
Power-save
Click > Power-save. The power-save will appear as
shown below.
Wi-Fi Coverage
Short Wi-Fi Coverage: Coverage and launch small power
consumption, it is the best battery life.
Medium Wi-Fi Coverage: Coverage and emission power
consumption is half of equipment support ability, normal
power consume.
Long Wi-Fi Coverage: Maximum emission power and
28
coverage, if the terminal device still connect to your Wi-Fi
network, which will decrease battery life.
Wi-Fi Sleep
Sleep after: When there's no Wi-Fi connection in specific time,
Wi-Fi will be unavailable, and the system will turn to sleep mode
for power-saving.
Router

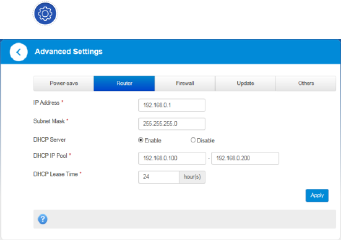

Click > Router. The router will appear as shown below.
IP Address: LAN IP address of the router. You can access
page management on device via this IP address.
Subnet Mask: Subnet mask for IP address.
DHCP Server Enable: If the Dynamic Host Configuration
29
Protocol (DHCP) service is enabled, the device allocates IP
addresses to clients connected to it.
DHCP Server Disable: If the Dynamic Host Configuration
Protocol (DHCP) service is disabled, the device does not
allocate IP addresses to clients connected to it and IP
addresses must be entered manually from each client.
DHCP IP Pool: Starting and Ending IP address specify IP
address range which is assigned by DHCP server to access
devices. The IP address out of this range cannot be assigned
by DHCP server.
DHCP Lease Time: Lease Time specifies how long a
computer can use IP address. If the device will continue to
use IP address, it must initiate request again before lease
time expires. This IP address will not assign to other device
until the old device initiates no request when its lease time
expires
Firewall

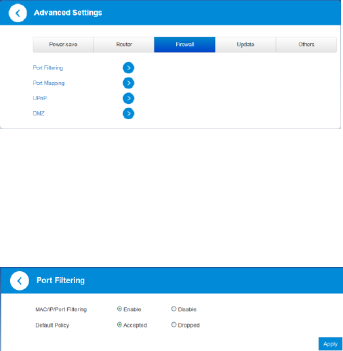

Click > Firewall. The firewall will appear as shown below.
30
Port Filtering
Select Port Filtering. You can set firewall policies to protect
your network from viruses, worms and malicious activities on the
Internet.
If you select MAC/IP/Port Filtering to Enable, the filter settings
will appear as shown below:
Default Policy: Set how to handle the packet if none of the rules
matches.

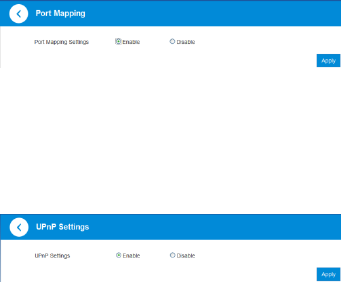

Port Mapping
Select Port Mapping. Configure a Port Mapping to enable
external computers to access WWW, FTP or other services
31
provided by LAN.
UpnP
Select UpnP. Universal Plug and Play (UPnP) is a set of
networking protocols that allows networked devices to
seamlessly discover each other's presence on the network
and establish functional network services for data sharing,
communications, and entertainment.
DMZ
If you want access the services such as ftp and http which
installed on the local PC from internet, you need put the
PC's IP address to the DMZ address. Select DMZ, and set
DMZ settings to Enable.
32
Update
Click > Update. The update will appear as shown below.
You can check for new version, enable or disable Auto-check for
New Version function, or set Auto-check Frequency.
Others
Click > Others.
33

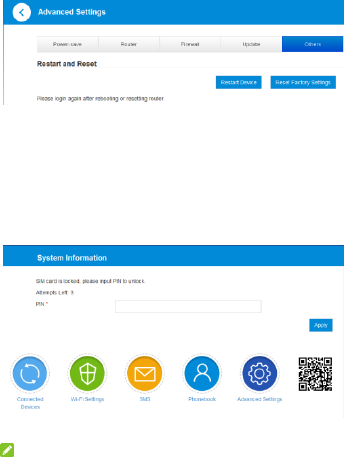

Restart and Reset
Restart your device or reset it to factory settings.
SIM PIN Management
If the PIN code of your SIM card is enabled, you will need to
input the PIN code when you log in at the first time.
NOTE:
The SIM card will be locked if you enter wrong PIN code
34
consecutively for three times.

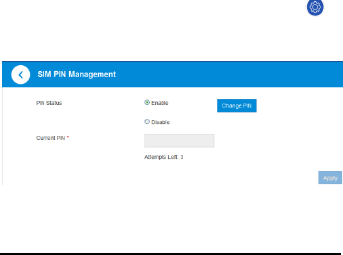

If you want to modify the PIN Status, please Select >
Others > SIM PIN Management. The PIN management will
appear as shown below:
Using the FUNC Key
When the screen is off:
Press the FUNC Key to turn on the screen.
When the screen is on:
Press the FUNC Key to access the options menu. You can
connect or disconnect with the Internet, view device
information or Wi-Fi QR code, activate WPS function,
change language or enable/disable global roaming without
logging in to the ZTE Mobile Hotspot Configuration Page.
35
Configuring Your PC
The following describes how to configure the Internet Protocol in
the Windows 7 operating system for your Wi-Fi connection.
1. Right-click Network and select Properties.
2. Select Change adapter settings.
3. Right-click Wireless Network Connection and select
Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4), and click
Properties.
5. Select Obtain an IP address automatically and Obtain
DNS server address automatically, and click OK.
Warning and Notice
To the Owner
• If inadequately shielded, some electronic devices, for
example, the electronic system of vehicles, may be affected
by the electromagnetic interference caused by the device.
Consult the manufacturers of such devices before using the
device if necessary.
• Operating the device may interfere with medical instruments
such as hearing aids and pacemakers. Always keep the
device more than 20 centimeters away from such medical
instruments when your device is powered on. Power off the
device if necessary. Consult a physician or the manufacturers
of medical instruments before using the device if necessary.
36
• Be aware of the usage limitation when using the device at
places such as oil warehouses or chemical factories, where
there are explosive gases or explosive products being
processed. Power off the device if necessary.
• Do not use electronic transmission devices in aircrafts, at
petrol stations or in hospitals. Observe and obey all warning
signs, and power off the device in these conditions.
• Do not touch the inner antenna area unless necessary.
Otherwise the performance of the device may be affected.
• Do not use the device in an enclosed environment or where
heat dissipation is poor. Prolonged work in such space may
cause excessive heat and raise ambient temperature, which
may lead to automatic shutdown of the device for your safety.
In the case of such event, cool the device in a well-ventilated
place before turning on for normal use.
• Keep the device out of the reach of small children. The device
may cause an injury if used as a toy.
• When the device is operating, do not touch the metallic parts.
Failing to do so may cause burns.
To the Users
• Use original accessories or accessories that are authorized.
Using any unauthorized accessories may affect the
performance of the device and violate the related national
regulations about telecom terminals.
• Avoid using the device near or inside metallic constructions or
establishments that can emit electromagnetic waves,
because signal reception may be affected.
• The device is not waterproof. Keep the device dry and store it
in a shady and cool place.
• Do not use the device immediately after a sudden
temperature change, because dew may be generated inside
37
and outside the device. Do not use it until it becomes dry.
• Handle the device carefully. Do not drop, bend or strike it.
Otherwise the device may be damaged.
• Only qualified personnel can dismantle and repair the device.
• An operating temperature between -10°C and +60°C and
humidity between 5% and 95% are recommended.
Using Battery
Do not change the built-in rechargeable battery in your device
by yourself. The battery can only be changed by ZTE or ZTE
authorized service provider.
Limited Warranty
This warranty does not apply to defects or errors in the product
caused by:
i. Reasonable abrasion.
ii. End users’ failure to follow ZTE’s installation, operation or
maintenance instructions or procedures.
iii. End users’ mishandling, misuse, negligence, or improper
installation, disassembly, storage, servicing or operation of
the product.
iv. Modifications or repairs not provided by ZTE or a
ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, and actions of
third parties or other events outside ZTE’s reasonable
control.
vi. Usage of third-party products or usage in conjunction with
third-party products if such defects are due to the
combined usage.
vii. Any other cause beyond the range of normal usage
intended for the product.
End users have no right to reject or return the product, or
38
receive a refund for the product from ZTE under the
above-mentioned situations.
This warranty is end users’ sole remedy and ZTE’s sole liability
for defective or nonconforming items, and is in lieu of all other
warranties, expressed, implied or statutory, including but not
limited to the implied warranties of merchantability and fitness
for a particular purpose, unless otherwise required under the
mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special,
incidental or consequential damages resulting from or arising
out of or in connection with using of this product, no matter
whether or not ZTE had been advised, knew or should have
known of the possibility of such damages, including, but not
limited to lost profits, interruption of business, cost of capital,
cost of substitute facilities or product, or any downtime cost.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
39
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
FCC Note:
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user‘s
authority to operate the equipment.
RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device is set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage near the body with
the separation of 10 mm. Although the SAR is determined at the
highest certified power level, the actual SAR level of the while
operating can be well below the maximum value. This is
because the device is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
40
station antenna, the lower the power output.
The exposure standard for wireless employs a unit of
measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg.
The FCC has granted an Equipment Authorization for this model
device with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model device is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: SRQ-MF970.
For this device, the highest reported SAR value for usage near
the body is 1.44 W/kg.
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirement.
SAR compliance for body operation is based on a separation
distance of 10 mm between the unit and the human body. Carry
this device, at least 10 mm away from your body to ensure RF
exposure level compliant or lower to the reported level.
IC Notice
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
41
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
IC: 5200E-MF970
IC Radiation Exposure Statement
This EUT is compliance with SAR for general
population/uncontrolled exposure limits in IC RSS-102 and had
been tested in accordance with the measurement methods and
procedures specified in IEEE 1528 and IEC 62209. This
equipment should be installed and operated with minimum
distance 1.0 cm between the radiator and your body. This device
and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS
incontrôlée pour la population générale de la norme CNR-102
d'Industrie Canada et a été testé en conformité avec les
méthodes de mesure et procédures spécifiées dans IEEE 1528
et IEC 62209. Cet appareil doit être installé et utilisé avec une
distance minimale de 1.0 cm entre l’émetteur et votre corps. Cet
appareil et sa ou ses antennes ne doivent pas être co-localisés
ou fonctionner en conjonction avec tout autre antenne ou
transmetteur.
42
LEGAL INFORMATION
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced,
translated or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the
right to make modifications on print errors or update
specifications without prior notice.
Version No.: R1.0
Edition Time: July 10, 2015
43
Troubleshooting
Problem
Recommended Action
The
connection
between your
device and a
PC through a
USB cable
cannot be
established.
Install the software, and run the
installation program in the path of My
Computer.
If the driver of your device is
abnormal, reinstall the software. You
need to uninstall the software first.
The
connection
between your
device and a
client through
Wi-Fi cannot
be
established.
Ensure that the Wi-Fi function is
enabled.
Refresh the network list and select
the correct SSID.
Check the IP address, and ensure
that your client can automatically
obtain an IP address.
Enter the correct network key (Wi-Fi
password) when you connect the
client to your device.
44
Troubleshooting
Problem
Recommended Action
The client
connected to
the device
cannot access
the Internet.
Ensure that your micro-SIM card is
available.
Change the location and find a place
with good signal.
Check the settings of the WAN
connection mode.
Contact your service provider and
confirm your APN settings.
The client
cannot access
the Internet in
Internet Wi-Fi
mode.
Ensure that the WLAN device has
already been connected to the
Internet.
Ensure that your device and the
WLAN device are in different
subnets.
The ZTE
Mobile
Hotspot
configuration
page cannot
be visited.
Enter the correct address. The
default address is http://192.168.0.1
or http://rogers.rockethub.
Use only one network adapter in
your PC.
Do not use any proxy server.
45
Getting More Help
You can get help by:
• Sending an email to mobile@zte.com.cn
• Visiting www.ztedevice.com
• Calling the service hotline: +86-755-26779999
