User manual
ZTE Unite III
User Manual
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: www.ztedevice.com
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : 1.0
Edition Time: August 11, 2015
NOTE:
Do not use the device in an enclosed environment or where heat dissipation is poor. Prolonged
work in such space may cause excessive heat and raise ambient temperature, which may lead to
automatic shutdown of the device for your safety. In the case of such event, cool the device in a
well-ventilated place before turning on for normal use.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 1
Contents
Getting Started ............................................................................................................................. 2
Introduction .............................................................................................................................. 2
Outline and Parts ...................................................................................................................... 2
Indicators .................................................................................................................................. 3
Installing Your Device ............................................................................................................. 3
Powering On/Off Your Device ................................................................................................ 5
Sleep Mode ............................................................................................................................... 5
Charging Your Device ............................................................................................................. 5
About micro-SIM Card ............................................................................................................ 6
Internet Access ............................................................................................................................. 6
Connection Scenario ................................................................................................................ 6
Configuring Your PC ............................................................................................................... 7
Connecting to Your Device ...................................................................................................... 9
Accessing the Internet ............................................................................................................ 10
Disconnecting from the Internet ............................................................................................. 10
WebGUI Configuration .............................................................................................................. 11
Accessing the Configuration Page ......................................................................................... 11
Login ...................................................................................................................................... 11
Settings ....................................................................................................................................... 12
Quick Settings ........................................................................................................................ 12
Network Settings .................................................................................................................... 14
Wi-Fi Settings ........................................................................................................................ 17
Device Settings ....................................................................................................................... 22
Firewall .................................................................................................................................. 23
Router Settings ....................................................................................................................... 27
Dial *228 ................................................................................................................................ 28
Information ................................................................................................................................. 28
Device Information ................................................................................................................ 28
Statistics ................................................................................................................................. 28
Data Usage Limit ................................................................................................................... 29
Messages .................................................................................................................................... 30
Operating Messages in Native ............................................................................................... 30
Operating Messages in SIM Card .......................................................................................... 30
Configuring Messages ............................................................................................................ 30
Warning and Notice ................................................................................................................... 31
To the Owner .......................................................................................................................... 31
Using Your Device ................................................................................................................. 31
Using Battery ......................................................................................................................... 31
Limited Warranty ................................................................................................................... 32
Limitation of Liability ............................................................................................................ 32
Disposal of Your Old Appliance ............................................................................................ 33
Troubleshooting ......................................................................................................................... 34
ZTE Unite III User Manual
2 Confidential and Proprietary Information of ZTE CORPORATION
Getting Started
Introduction
ZTE Unite III is a 4G mobile hotspot device, working in LTE/CDMA network. The client devices can
connect to it via Wi-Fi. The device supports data services, enabling you to communicate anytime and
anywhere.
Outline and Parts
The following figure shows the appearance of the device. It is only for your reference. The actual device
may be different.
Part
Description
Display
View device status. Use touchscreen gestures (tap, swipe, flick,
etc.) to access menus and additional screens.
SIM Card Slot
Install the micro-SIM card.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 3
Micro USB Port
Connect the micro USB cable for charging or tethered
connections.
Battery Cover
Remove the battery cover to remove or insert the battery.
Power Key
Toggle power on or off.
Lock Key
Press to lock or unlock the LCD screen.
Indicators
When the device is powered on, the following icons will appear on the LCD screen, with the
corresponding indicators listed in the table below:
Icon
Indication
Icon
Indication
Network signal strength.
Roaming network indication.
Network type. 1X/3G/4G LTE icons will
appear on the LCD screen according to the
network being connected.
The device has been connected to
the Internet.
Wi-Fi Status and number of the connected
users.
There are new messages or unread
messages.
Battery is low.
Battery is full.
Installing Your Device
Inserting the micro-SIM Card
1. Open the micro-SIM card slot.
ZTE Unite III User Manual
4 Confidential and Proprietary Information of ZTE CORPORATION
2. Insert the micro-SIM card into the card slot.
Inserting the battery
1. Remove the battery cover.
2. Insert the battery as shown with the contacts located against the metal springs, and press the battery
down into the case.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 5

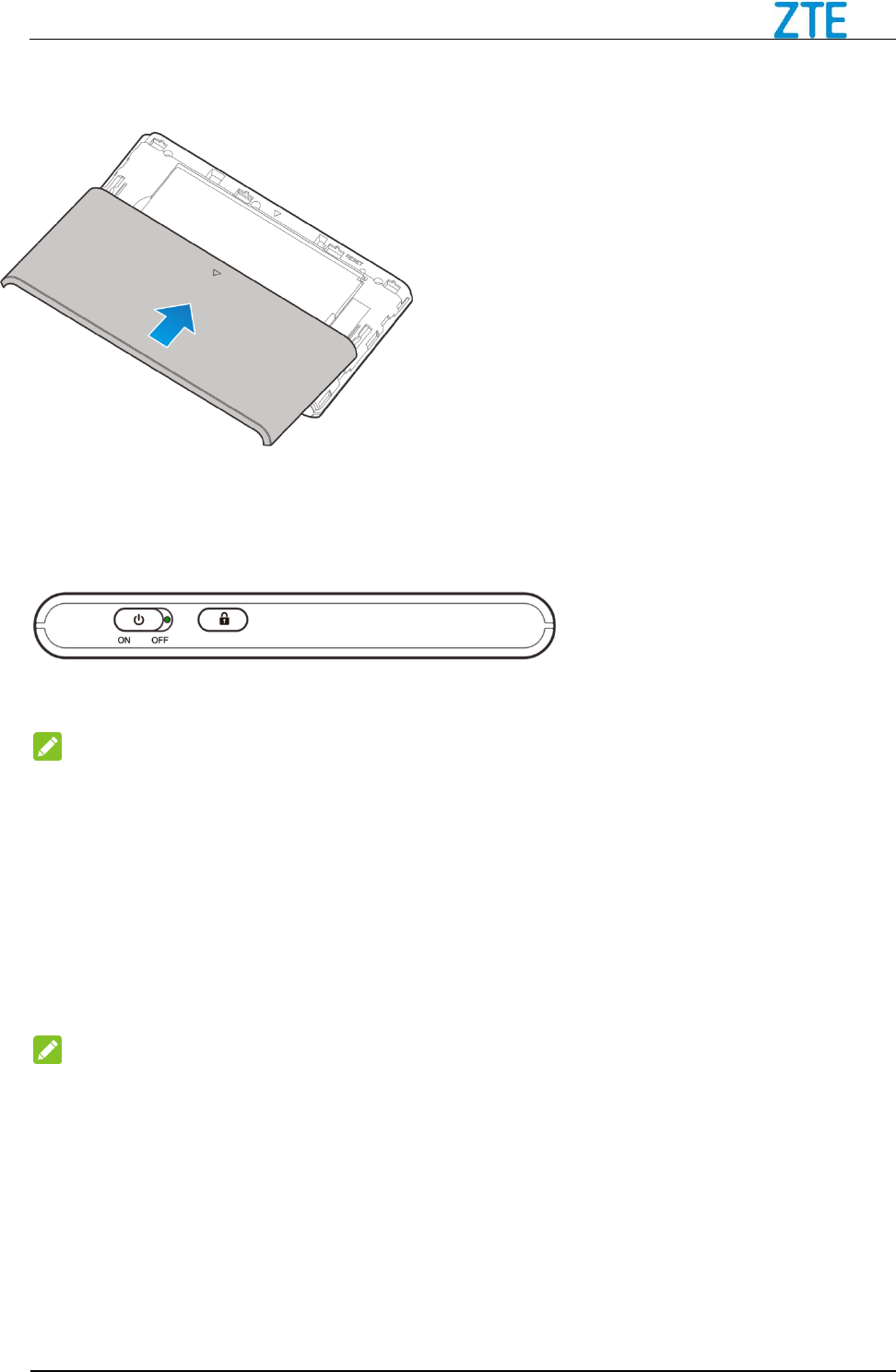

4. Replace the back cover.
Powering On/Off Your Device
Slide the Power key to ON/OFF position.
NOTE:
The device is powered on when the LCD screen lights up.
Sleep Mode
When you enable the Wi-Fi function and use the battery to supply power to the device, once no
user connects to the device within specified time, the device will enter the sleep mode，and the
LCD screen will be turned off. In the sleep mode, the Wi-Fi function will be disabled. Press the
Lock key to wake up the device and enable the Wi-Fi function, and the LCD screen will be
turned on.
NOTE:
With USB connection if no Wi-Fi user connects to the device within specified time, only the
Wi-Fi function will be disabled. Press the Lock key to enable this function.
Charging Your Device

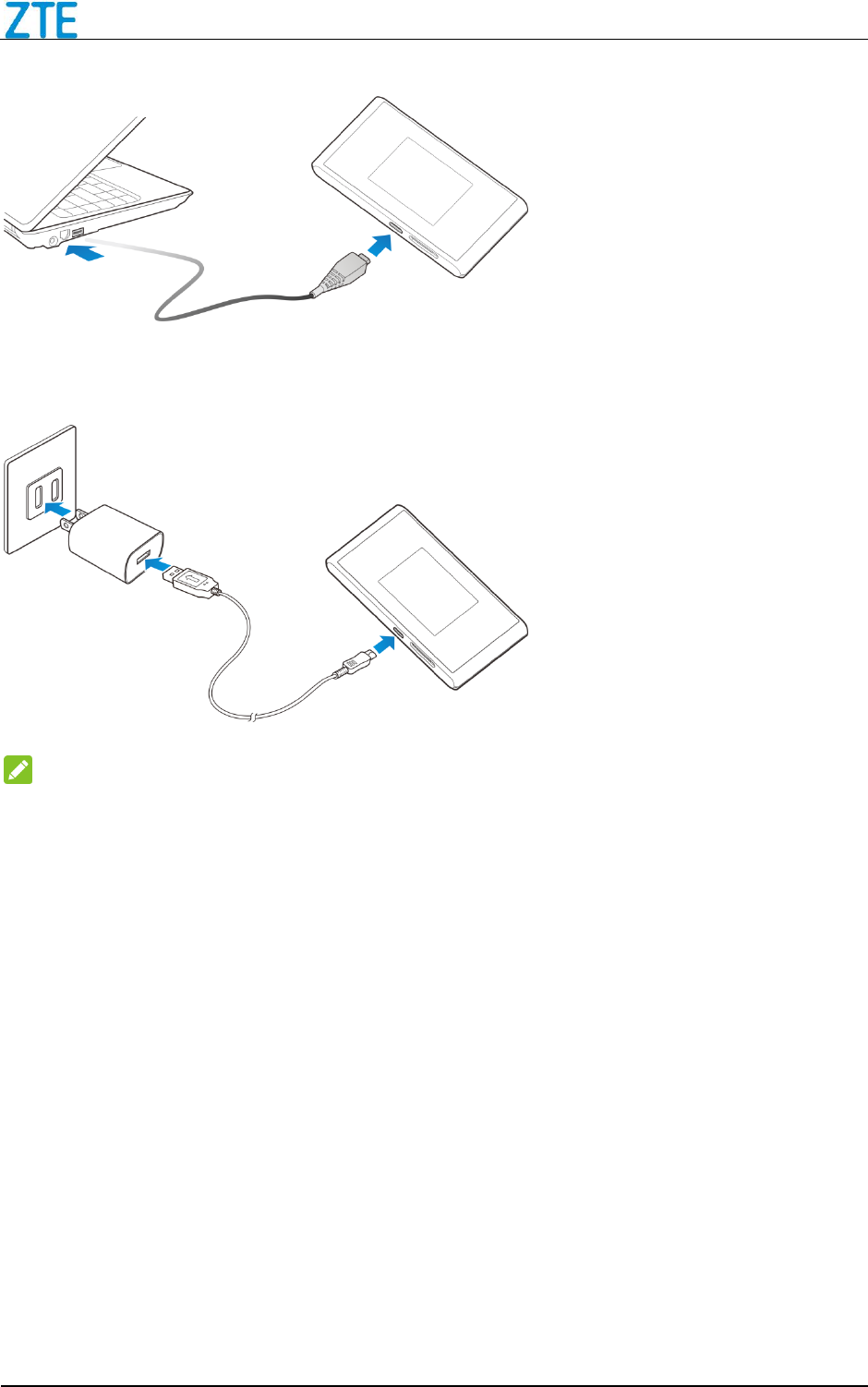

You can charge your device by using the USB cable or adapter.
ZTE Unite III User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
Use the USB cable to connect your device and PC directly.
Use the adapter and USB cable to connect the wall outlet and your device.
NOTE:
The plug only fits one way to connect your device. Do not use excessive force to insert the plug.
About micro-SIM Card
Avoid handling the micro-SIM card unnecessarily. Hold the card by the edges to prevent static damage.
Keep the micro-SIM card away from electrical and magnetic appliances.
If you cannot get service, make sure that：
• You are in an area which has network coverage.
• You are using the correct micro-SIM card.
Internet Access
Connection Scenario

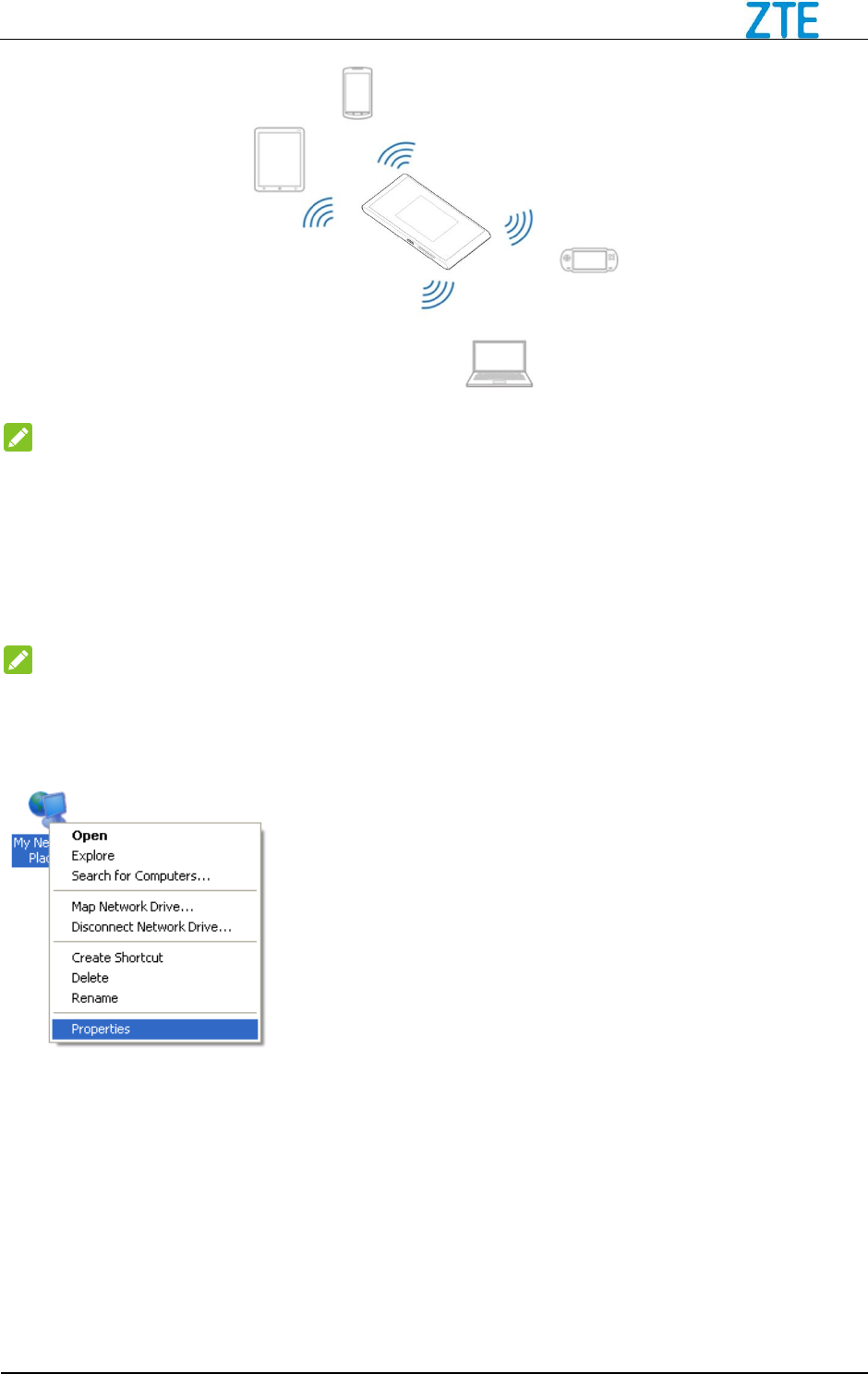

The following picture is the application example. All of the client devices can surf on the Internet at the
same time.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
NOTE:
You can only use Wi-Fi to connect to this device and make sure the client supports the Wi-Fi function.
Configuring Your PC
Follow the following steps and figures for Windows XP to configure the Wireless Internet
Protocol for your connection.
NOTE:
Wireless Network Connection is used for Wi-Fi connection.
1. Right-click My Network Places and then select Properties.

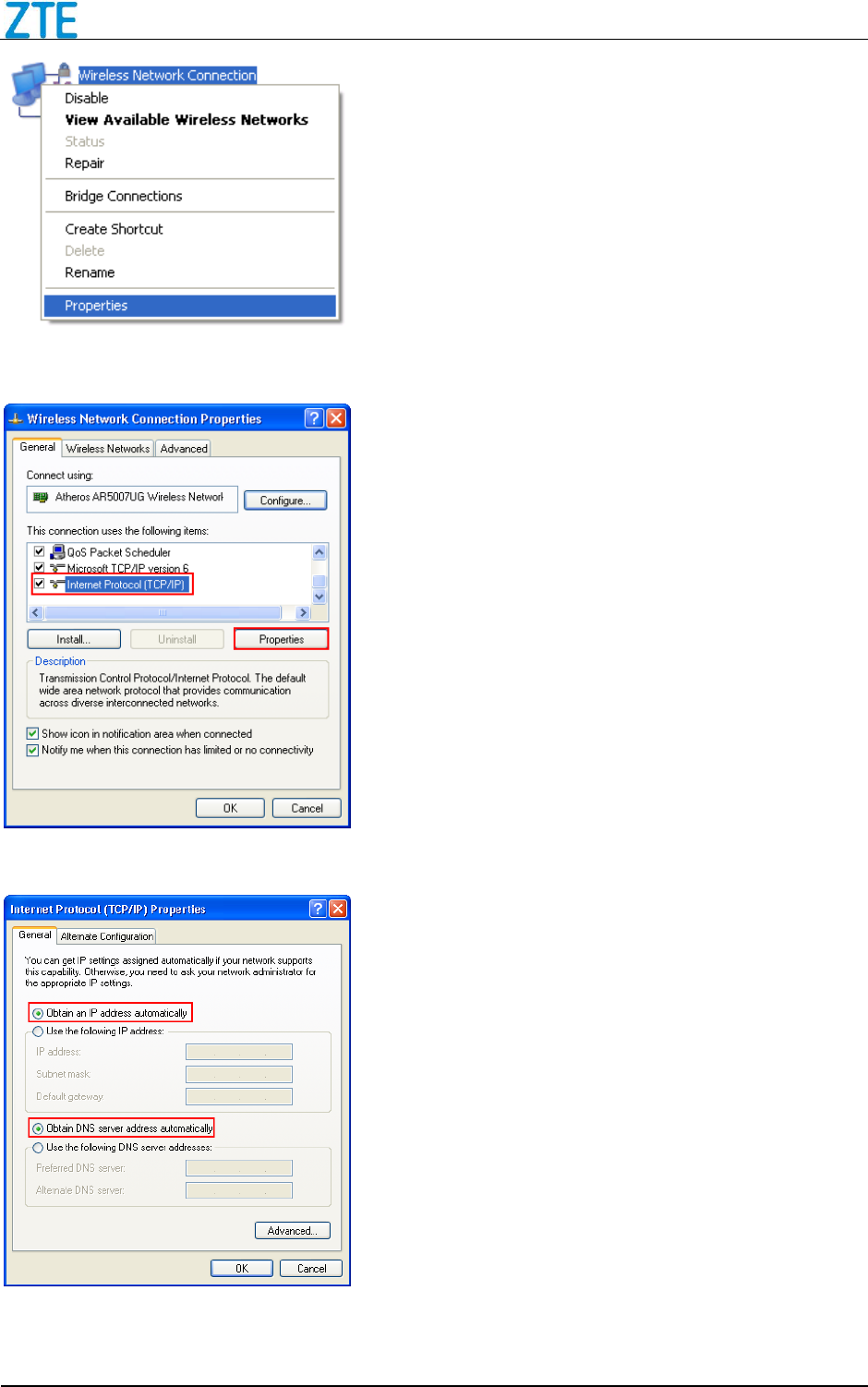

2. Right-click the Wireless Network Connection, and then select Properties.
ZTE Unite III User Manual
8 Confidential and Proprietary Information of ZTE CORPORATION
3. Select Internet Protocol (TCP/IP), and then click Properties.
4. Select these two items, and then click OK to finish the configuration.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9

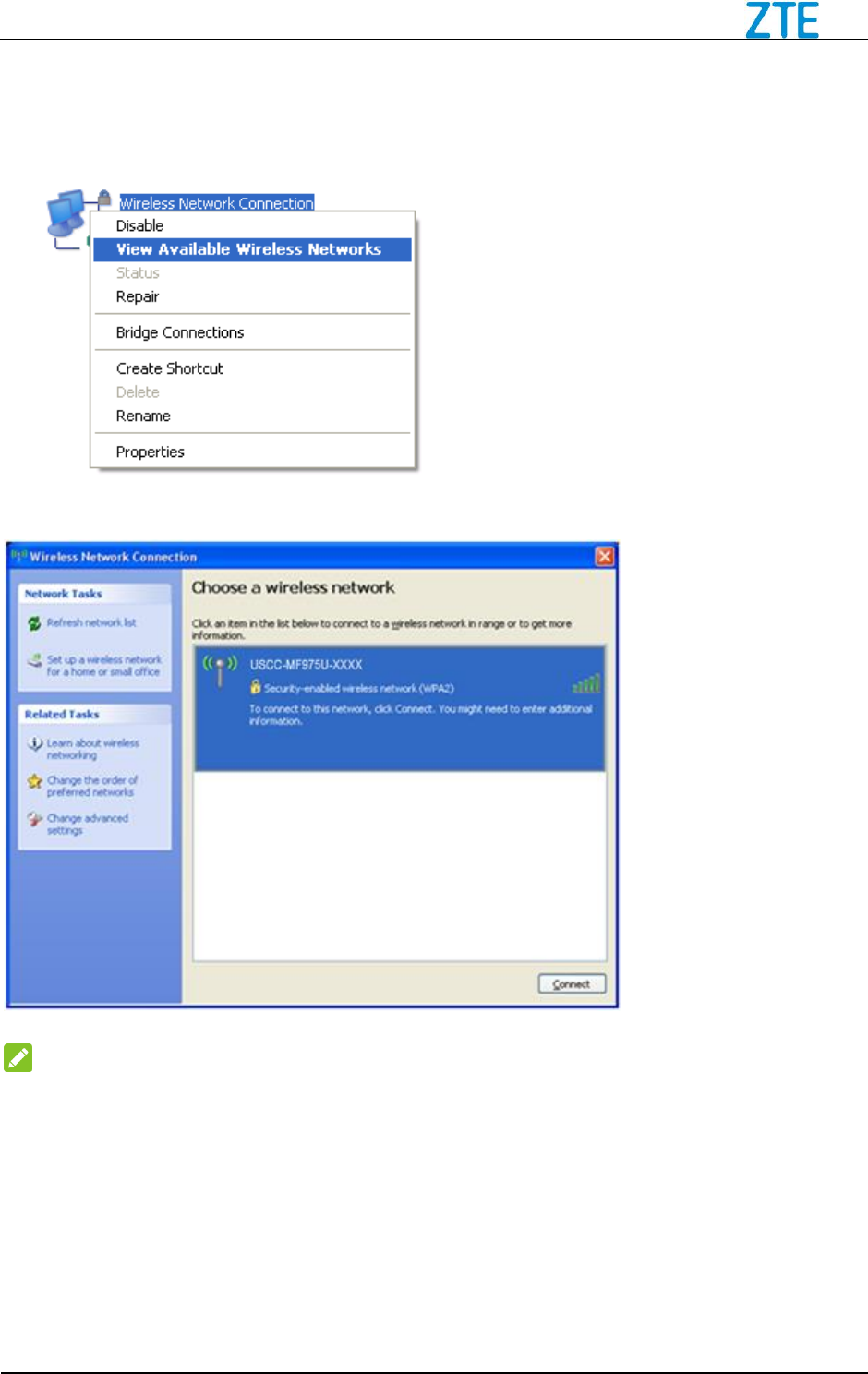

Connecting to Your Device
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for available wireless networks.
3. Select the SSID of your device, and then click Connect.
NOTE:
Please check the label on your device to get the default SSID and password.

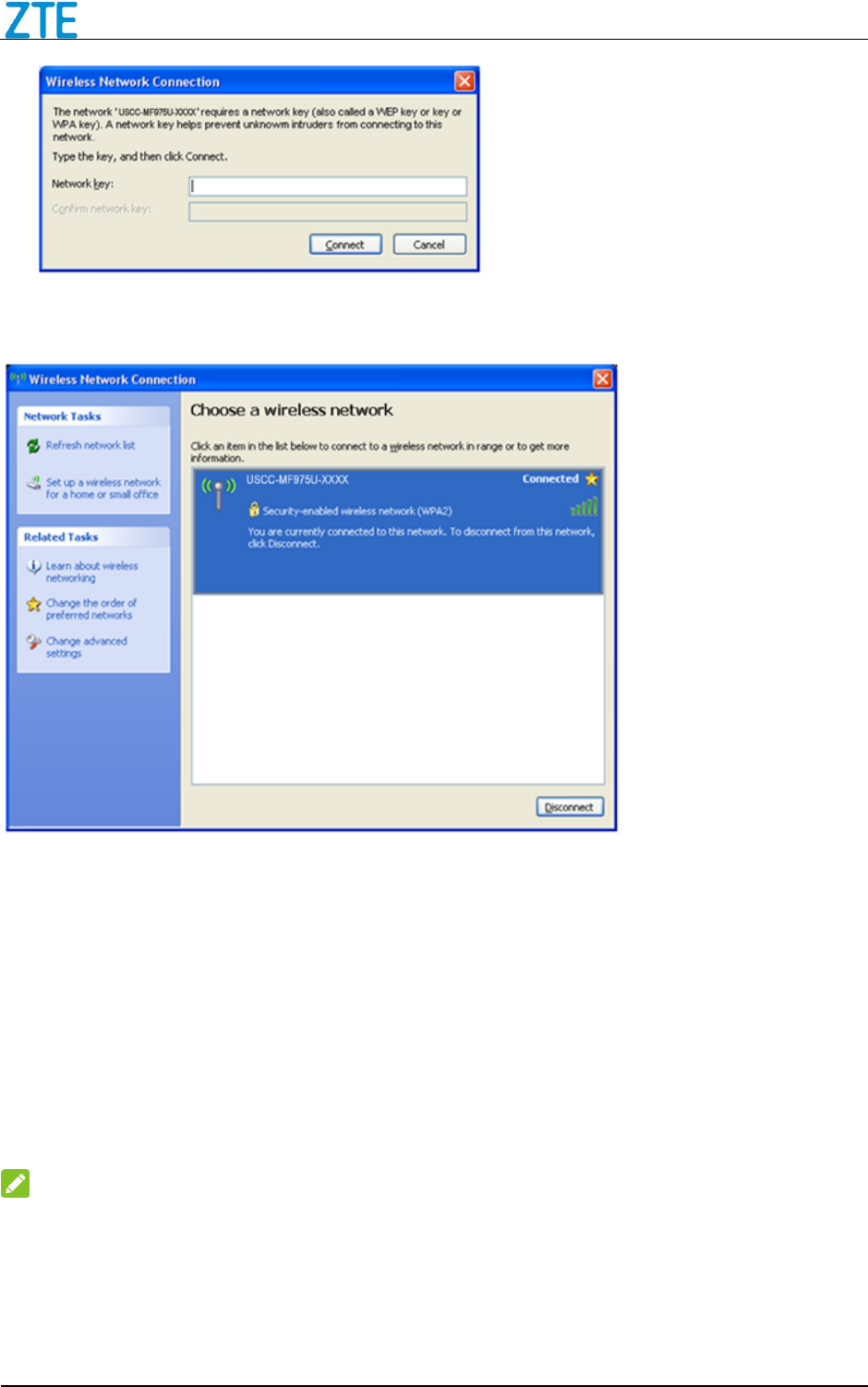

4. Input the password, and then click Connect.
ZTE Unite III User Manual
10 Confidential and Proprietary Information of ZTE CORPORATION
5. Wait a moment, and then the client will connect to your device successfully.
Accessing the Internet
1. Switch on the device.
2. Connect the client to your device.
3. After the client is connected to your device successfully, you can access the Internet
automatically.
Disconnecting from the Internet
Log in the WebGUI Configuration page, and click the Disconnect button at the Home page.
NOTE:
Powering off the device can also terminate the Internet connection.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
WebGUI Configuration
Accessing the Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the Internet browser and enter http://192.168.1.1 or http://uscc.hotspot in the address
bar.

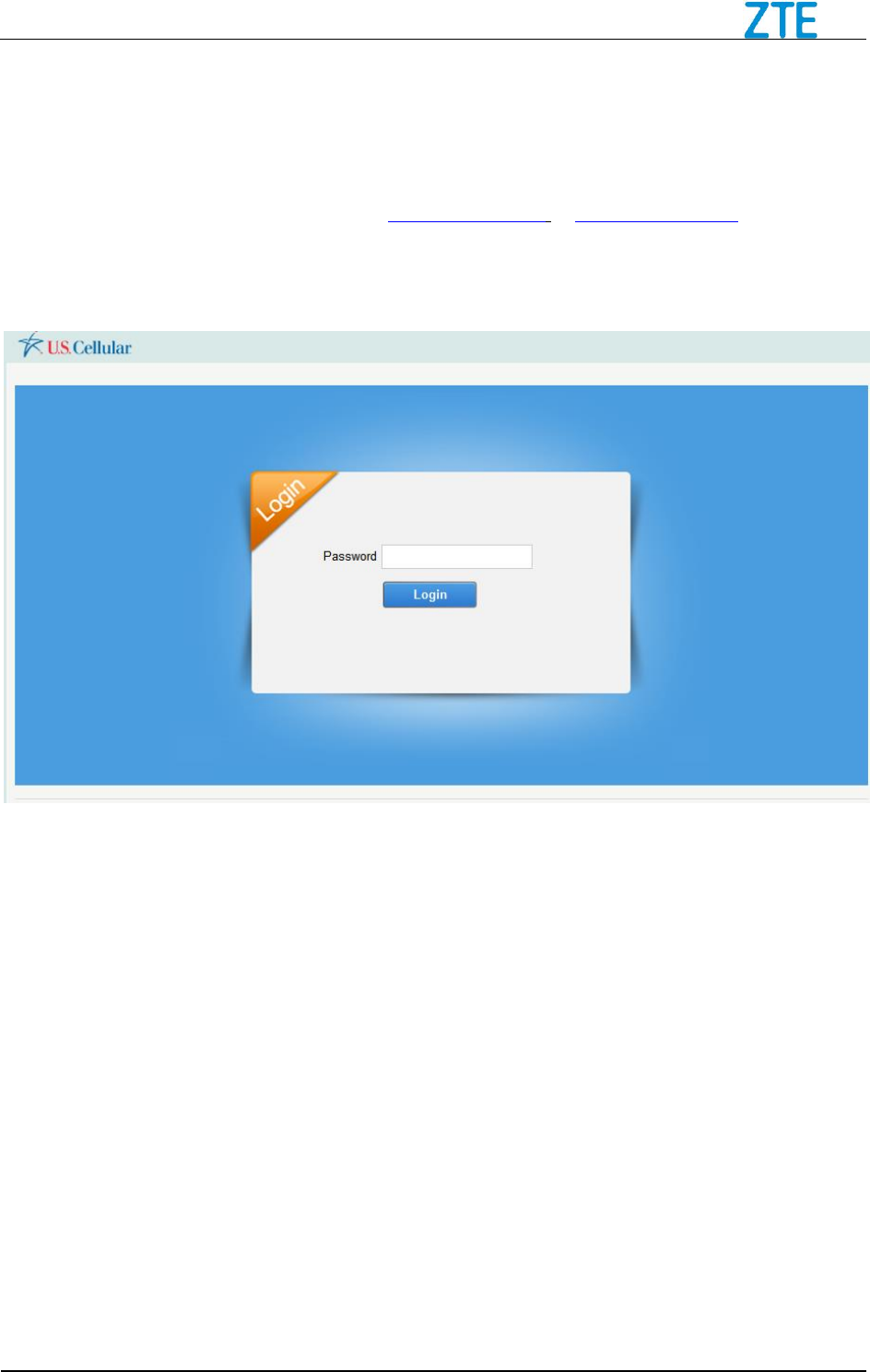

3. The login page appears as follows. The following figure is only for your reference.
Login
In the Web GUI Configuration page, select the desired language and input the password. Click Login to
log in the device.
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
• Index area: Shows the configuration list for your device.
• Content area: Shows the detailed configuration.
• System Information Area: Shows the system status and different kinds of tips.
ZTE Unite III User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION
Battery
indicator
: Shows the battery level, 4 stages from none to high .
Signal
strength
: Shows the network signal intensity, 5 stages from none to strong .
Internet status
: Connected to the Internet.
: Disconnected from the Internet.
Wi-Fi
strength
: Wi-Fi status and number of the connected users. The maximum number is 10 in
LTE network and 5 in CDMA network.
Settings
• Do not modify any settings unless instructed by your service provider.
• Please disconnect the device from the network before changing the settings.
Quick Settings
1. In the WebGUI Configuration page, click Settings > Quick Settings.
2. Read the guide carefully, and then click Next.

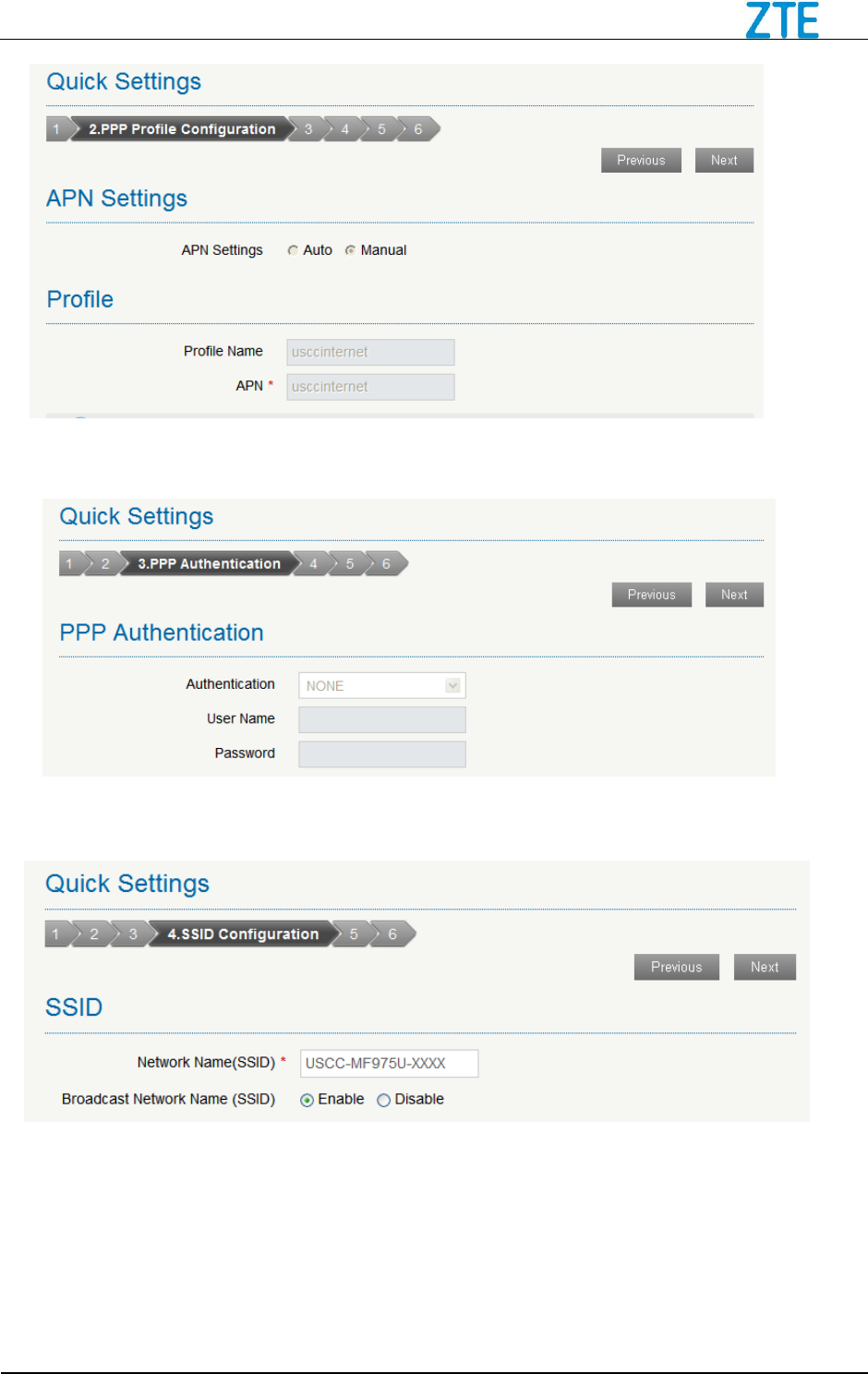

3. Set PPP Profile Configuration in the following figure and then click Next.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 13
4. Set PPP Authentication in the following figure and then click Next.
5. Set SSID Configuration in the following figure and then click Next.
Service Set Identifier (SSID) is used to uniquely identify your WLAN. If you enable Broadcast
Network Name (SSID), the gateway will broadcast the SSID, and other devices can detect and connect
to it.

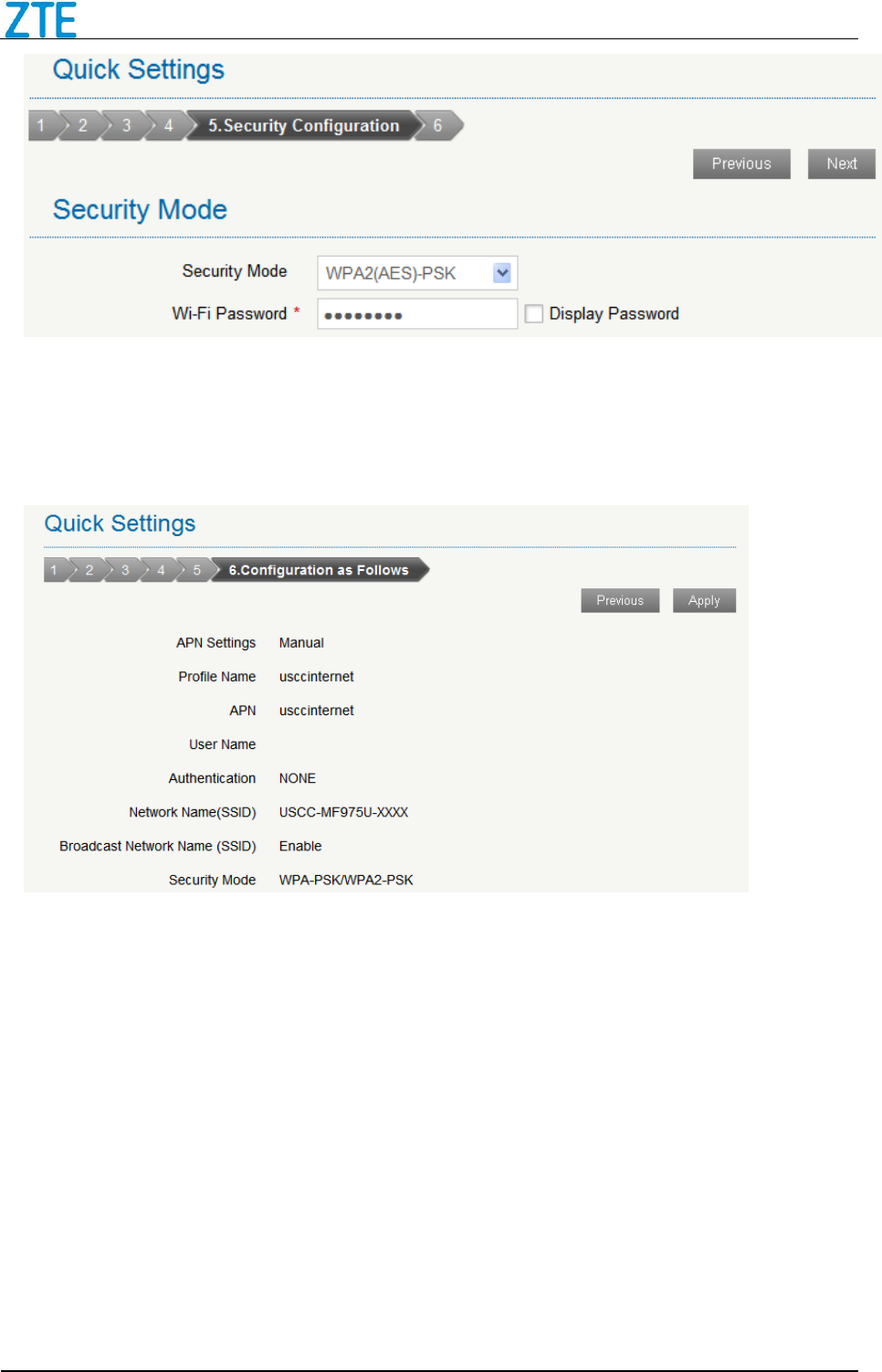

6. Set Security Configuration in the following figure and then click Next.
ZTE Unite III User Manual
14 Confidential and Proprietary Information of ZTE CORPORATION
Encryption will keep your traffic from being unauthorized monitored and accessed, select one
encryption mode from the list, and then set key and/or algorithm for it.
7. Show the configuration in the following figure:
Make sure that all the parameters shown in the figure are correct, and then click Apply.
Network Settings
Data Settings

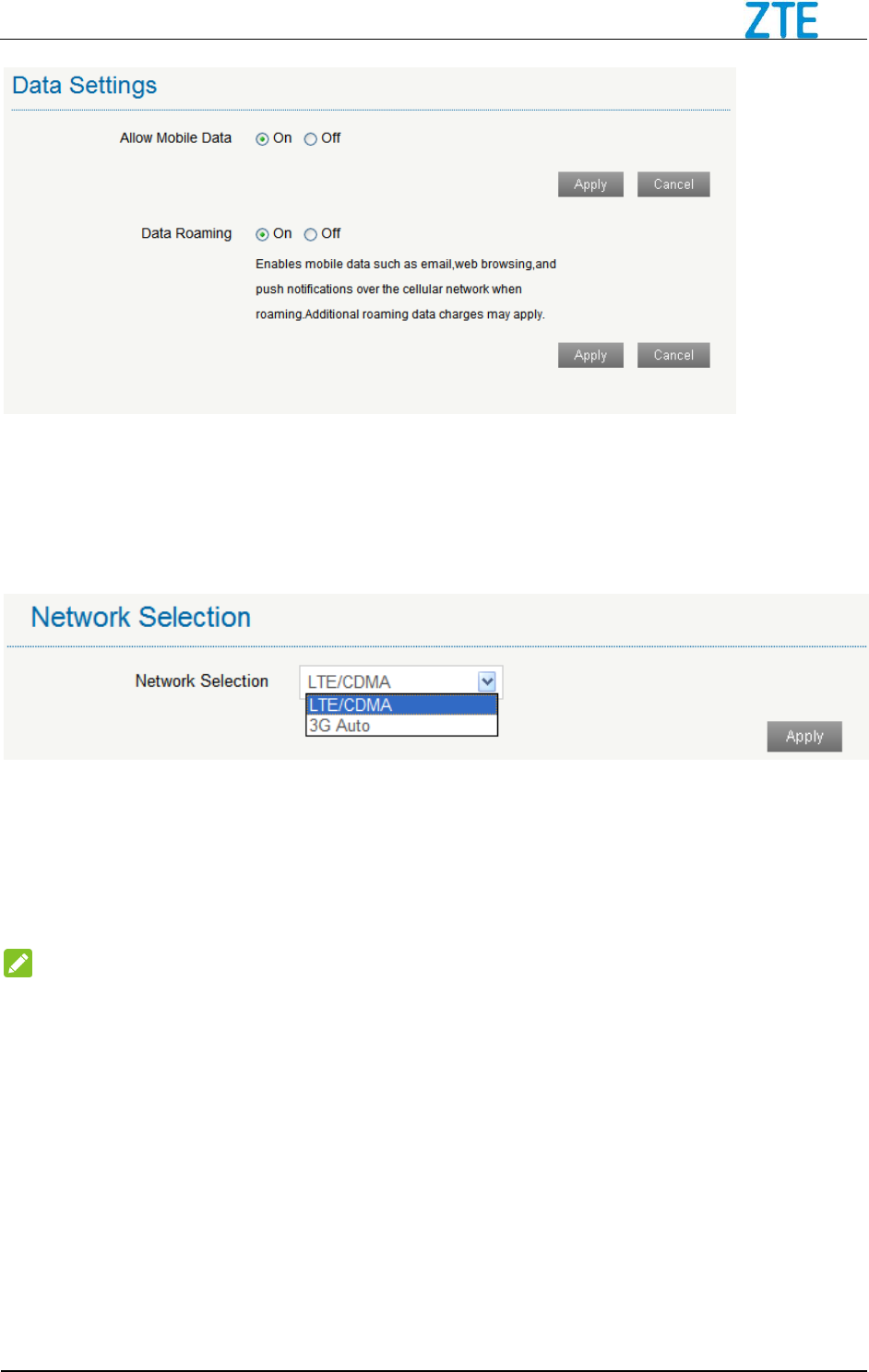

Select Settings > Network Settings > Data Settings. The Data Settings page is shown in the following
figure. You can allow mobile data and data roaming on.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 15
Network Selection
Select Settings > Network Settings > Network Selection. The Network Selection page is shown in the
following figure.
• LTE/CDMA: Device connects to LTE/CDMA network.
• 3G Auto: Device connects to 3G network.
Click Apply to confirm your configuration.
NOTE:
To change the current settings, please disconnect from the network first.
APN Setting

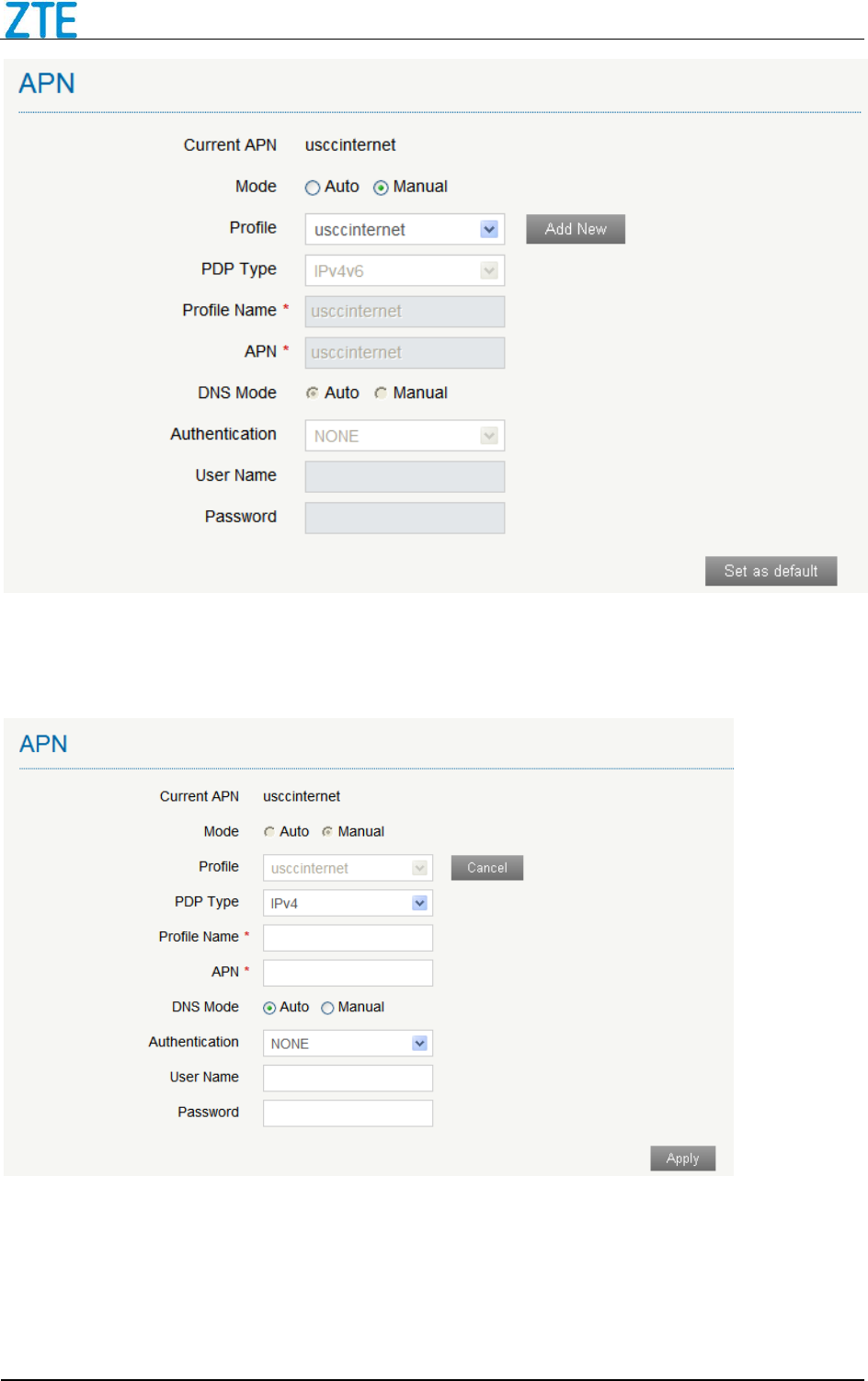

Select Settings > Network Settings > APN Setting. The APN parameters are shown in the following
figure.
ZTE Unite III User Manual
16 Confidential and Proprietary Information of ZTE CORPORATION
• Click Set as default to set current profile as the default profile.
• Click Add New to access the following figure:
Enter the related parameters (details please see following table), and then click Apply to add one new
profile.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 17
Parameter
Function
Mode
If a fixed APN is provided by your service provider, select Manual APN.
Otherwise, please select Auto APN, and the device will automatically obtain
parameters
Profile
Choose one profile from the list.
PDP Type
Choose a PDP type from the drop-down list, IPv4 / IPv6 / IPv4&IPv6.
Profile Name
Type the profile name.
APN
Type the APN string.
DNS Mode
Set DNS mode.
Authentication
Password Authentication Protocol (PAP) provides a simple method without
encryption for the peer to establish its identity using a 2-way handshake.
Challenge-Handshake Authentication Protocol (CHAP) is used to periodically
verify the identity of the peer using a 3-way handshake.
User Name
User name is used to obtain authentication from the ISP when the connection is
established
Password
Password is used to obtain authentication from the ISP when the connection is
established.
Wi-Fi Settings
Basic

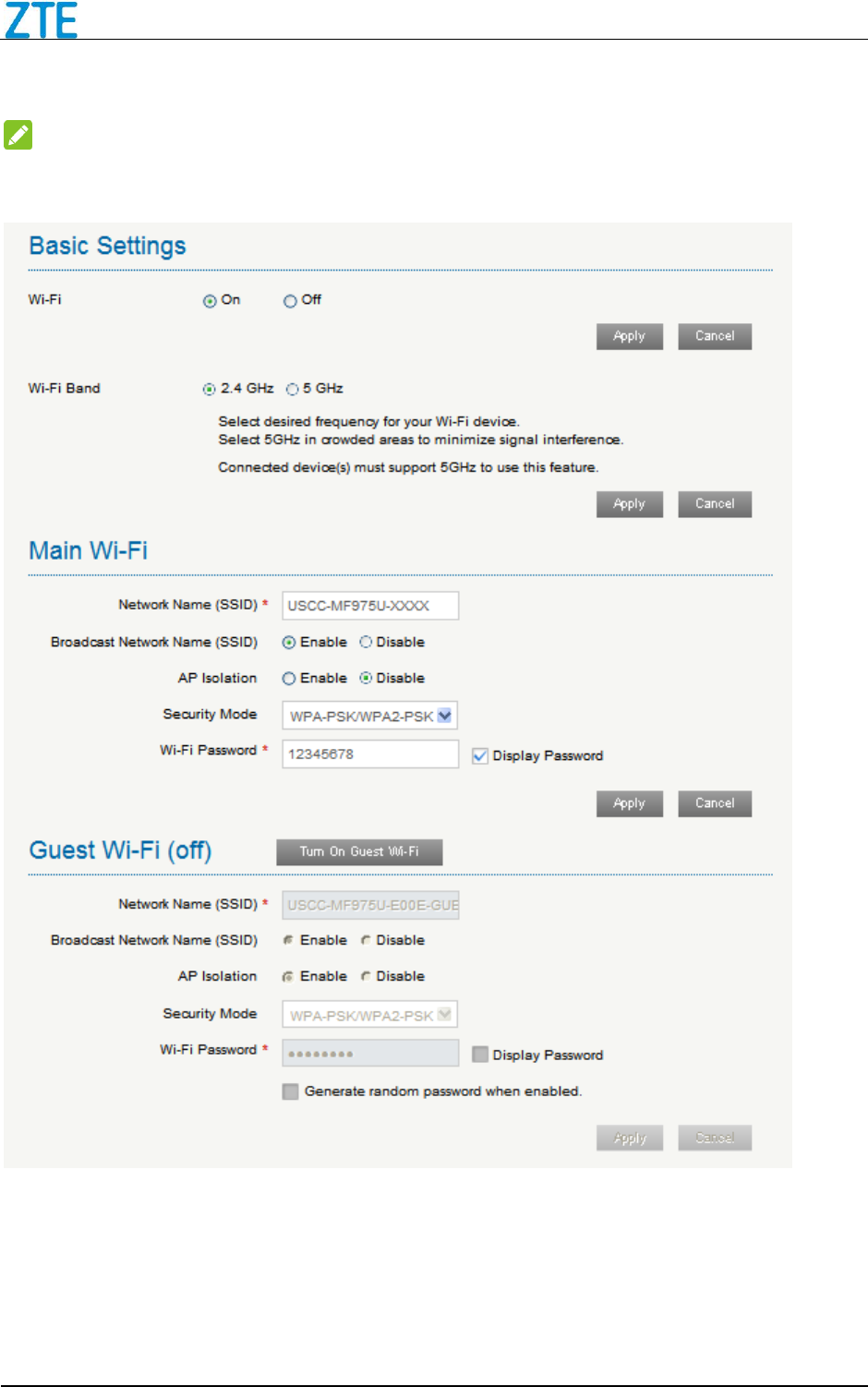

Select Settings > Wi-Fi Settings > Basic Settings, the wireless network basic parameters are shown in
the following figure:
ZTE Unite III User Manual
18 Confidential and Proprietary Information of ZTE CORPORATION
NOTE:
Your device support dual band Wi-Fi, you can select the desired frequency for your device.
Wi-Fi: Turn on or off the Wi-Fi function. The default mode in on.
Wi-Fi Band: Multi SSID Switch, select the desired frequency for your device.
Network Name (SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the
name for your wireless local area network (WLAN).
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 19
Broadcast Network Name (SSID): Disable or Enable (Default) this function. If Enable is selected,
the device broadcasts the SSID, and other devices can search and connect to it. When you select
Disable, other devices cannot search out the SSID. If you want someone to connect, you need to tell
them the SSID, and let them setup manually.
AP Isolation: Enable or disable this function. If Enable is selected, the wireless devices connected to
your device will be unable to communicate with each other.
Security Mode: The security modes are described below:
Mode
Description
OPEN
You can authenticate successfully with a SSID, whether it is valid or empty.
WPA2(AES)-PSK
It is the securer version of WPA with implementation of the 802.11i standard.
WPA-PSK/WPA2-PSK
Apply both the WPA-PSK and WPA2-PSK scheme.
Wi-Fi Password: Enter the password manually.
Max Wi-Fi Station Number: Choose the maximum number of the stations which connect to the
network simultaneously.
Click Apply to confirm your configuration.
Advanced Settings

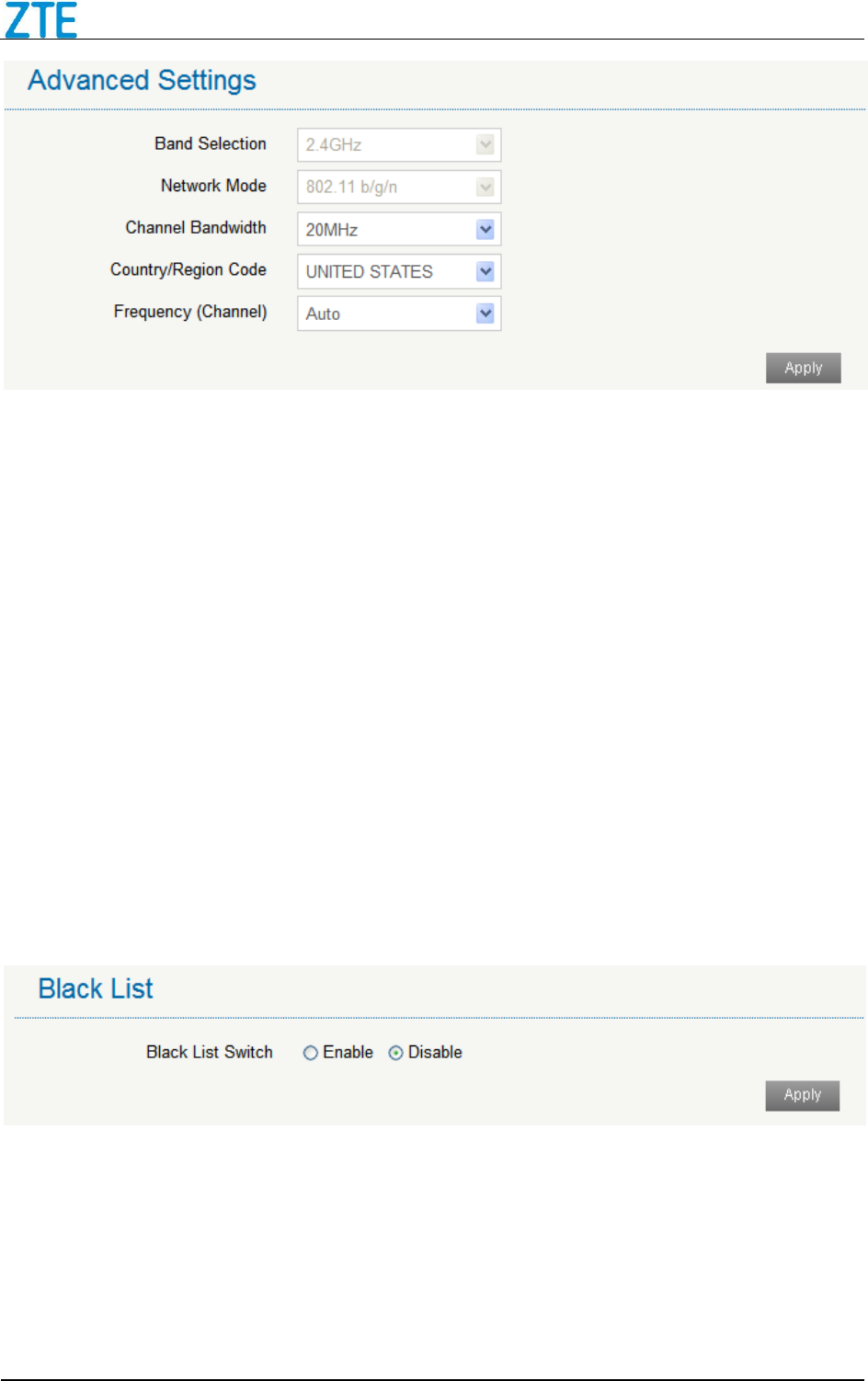

Select Settings > Wi-Fi Settings > Advanced Settings, the parameters are shown in the following figure:
ZTE Unite III User Manual
20 Confidential and Proprietary Information of ZTE CORPORATION
Band Selection: Select a band from the drop-down list.
Network Mode: If all of the wireless devices connect with this device in the same transmission
mode, the performance will be improved when you choose the appropriate wireless mode.
Channel Bandwidth: Select a channel bandwidth from the drop-down list.
Country/Region Code: Select the right country code. When using the device internationally,
please change the country/region code.
Frequency (Channel): Select the appropriate channel to optimize the performance and coverage
of your wireless network.
Black List
Select Setting > Wi-Fi Settings > Black List, the Black List configuration is shown in the following
figure:

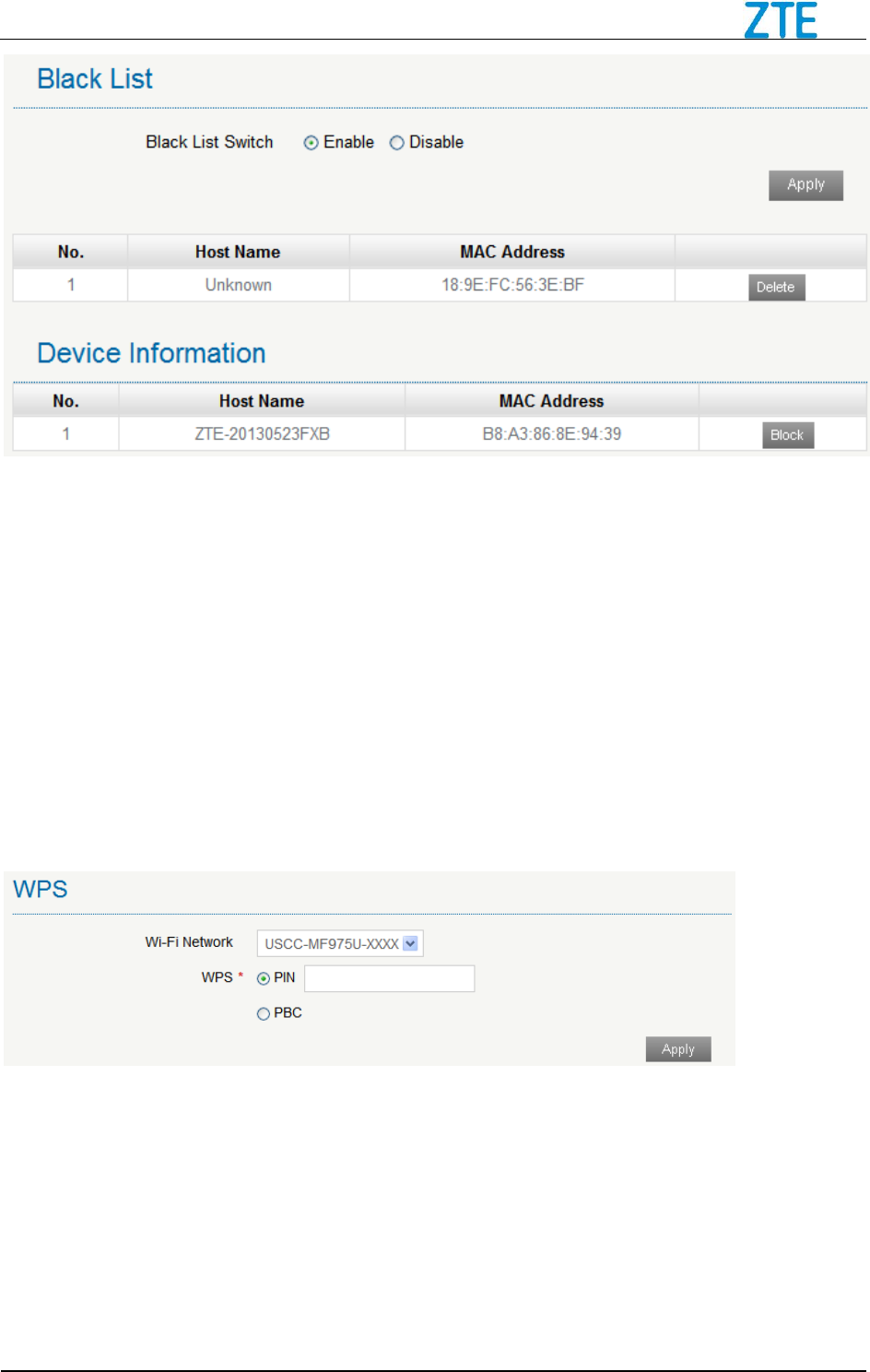

If you select Enable, the black list page will appear.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 21
All the clients connected to your device are shown in the Device Information area. Click Block behind
the device you want to block and then it will be added to the black list.
Click Delete to delete the device from the black list.
WPS
You can enable Wi-Fi Protected Setup (WPS) by PIN (PIN Code) or PBC (push-button) mode on this
page. If your client device supports WPS, there’s no need to enter password manually when WPS is
available.
Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure:
Wi-Fi Network: Select the wireless network name that you want to connect to.
PIN：Enter the PIN that is generated by wireless access client.
PBC：Select the PBC mode in the client WPS UI.
ZTE Unite III User Manual
22 Confidential and Proprietary Information of ZTE CORPORATION
Device Settings
Web Portal Passwords

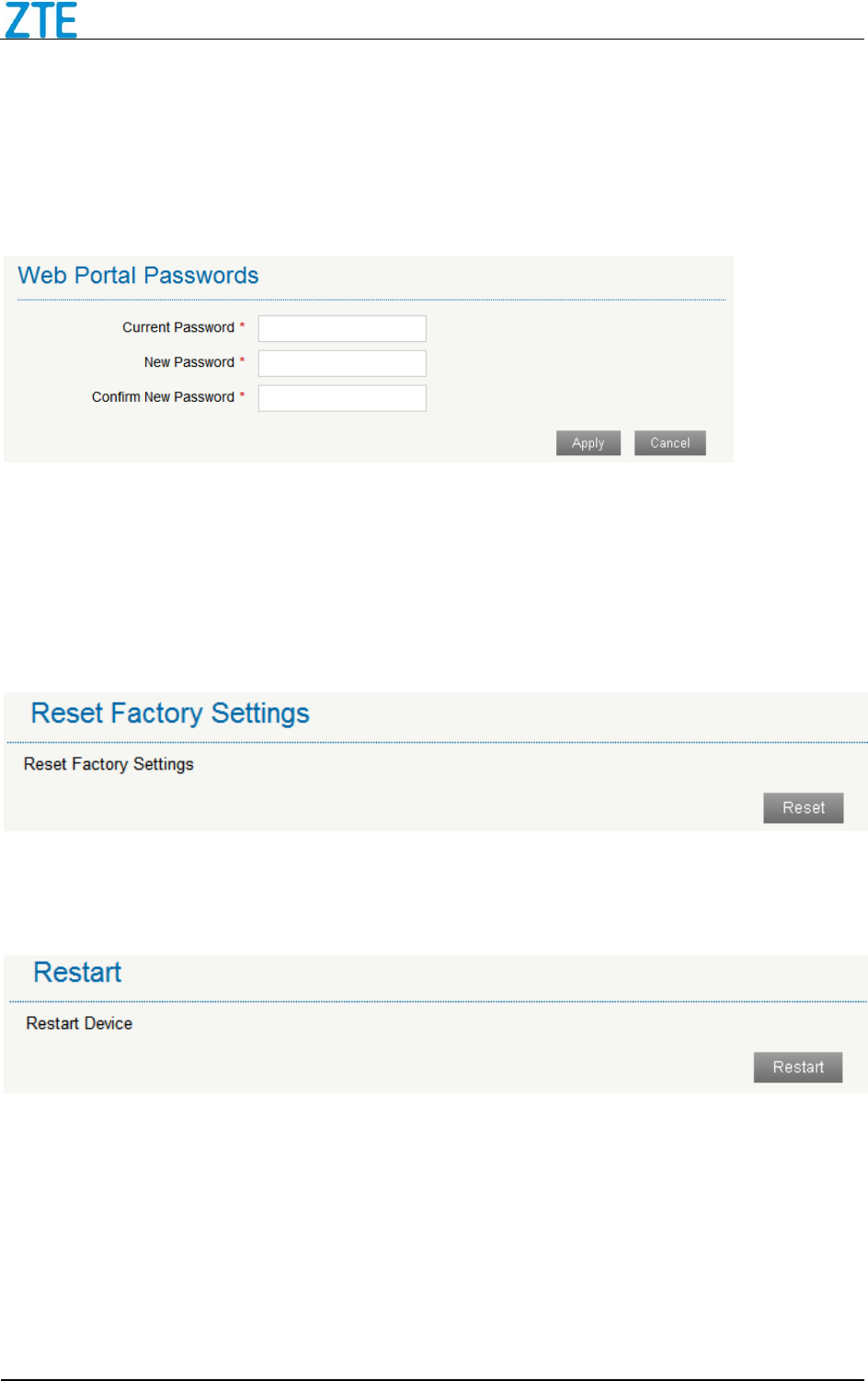

Select Settings > Device Settings > Web Portal Passwords, and the administrator settings
information is shown in the following figure:
You can change the administrator’s password. Click Apply to confirm your configuration.
Reset
Select Settings > Device Settings > Reset, click Reset to set all the settings to their factory default values,
and then the device will restart automatically.
Restart
Select Settings > Device Settings > Restart. Click Restart to restart the device.
Power Save
Select Settings > Device Settings > Power Save. You can set Wi-Fi performance and Wi-Fi sleep to save
power.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 23

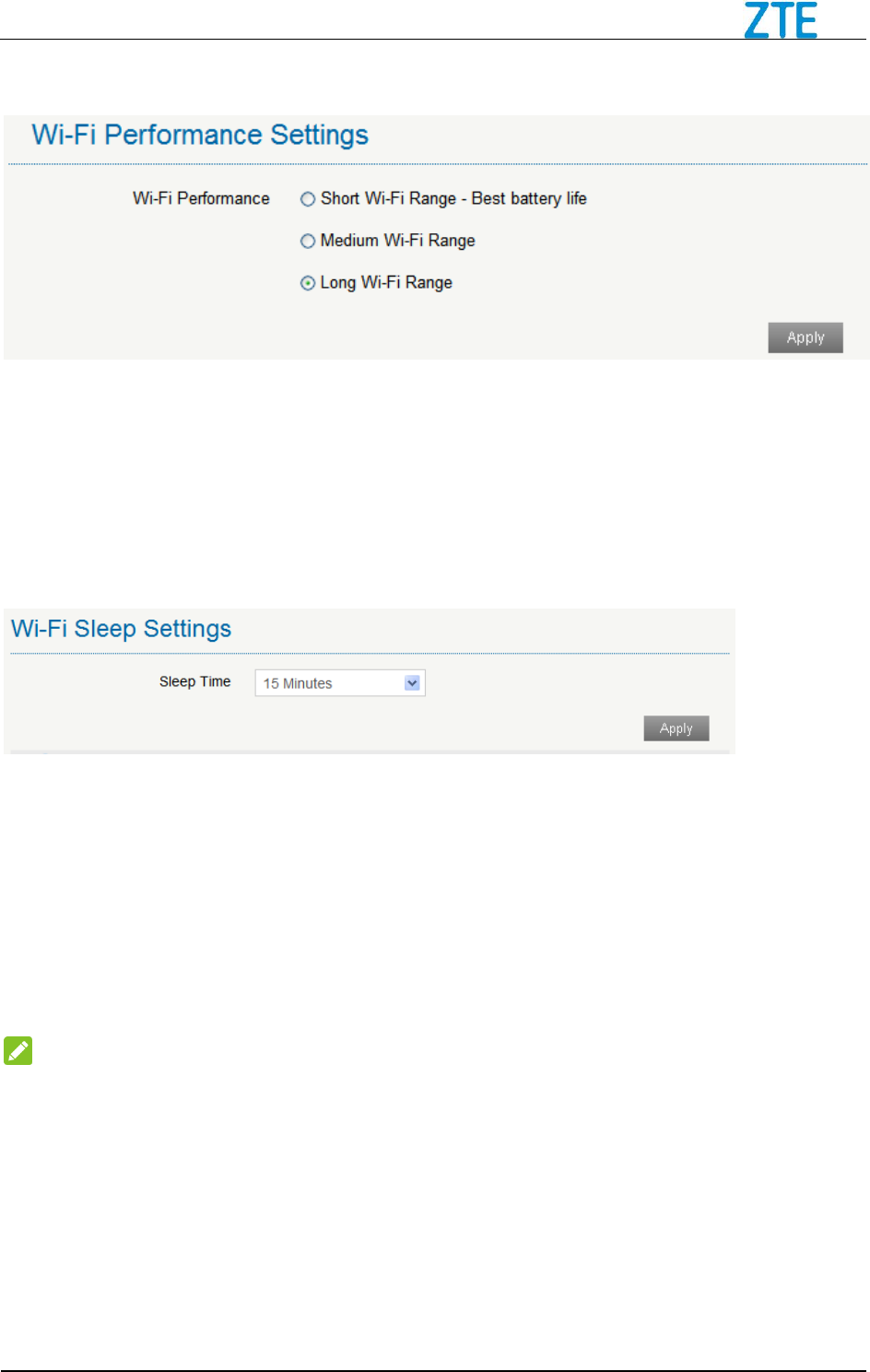

Wi-Fi Performance Settings
Short Wi-Fi Range: Increases battery life.
Medium Wi-Fi Range: Intermediates battery life and Wi-Fi range.
Long Wi-Fi Range: Extends coverage of mobile hotspot, which will decrease battery life.
Wi-Fi Sleep Settings
Sleep Time: Select a time from the drop-down list. When there’s no Wi-Fi connection in the
specified time, Wi-Fi will be unavailable and the system will turn to sleep mode for power-saving.
Firewall
You may set up firewall rules to protect your network from virus, worm and malicious activity on the
Internet.
NOTE:
You can set the maximum 10 filtering items for MAC/IP/Port Filtering and Port Forwarding.
Port Filtering

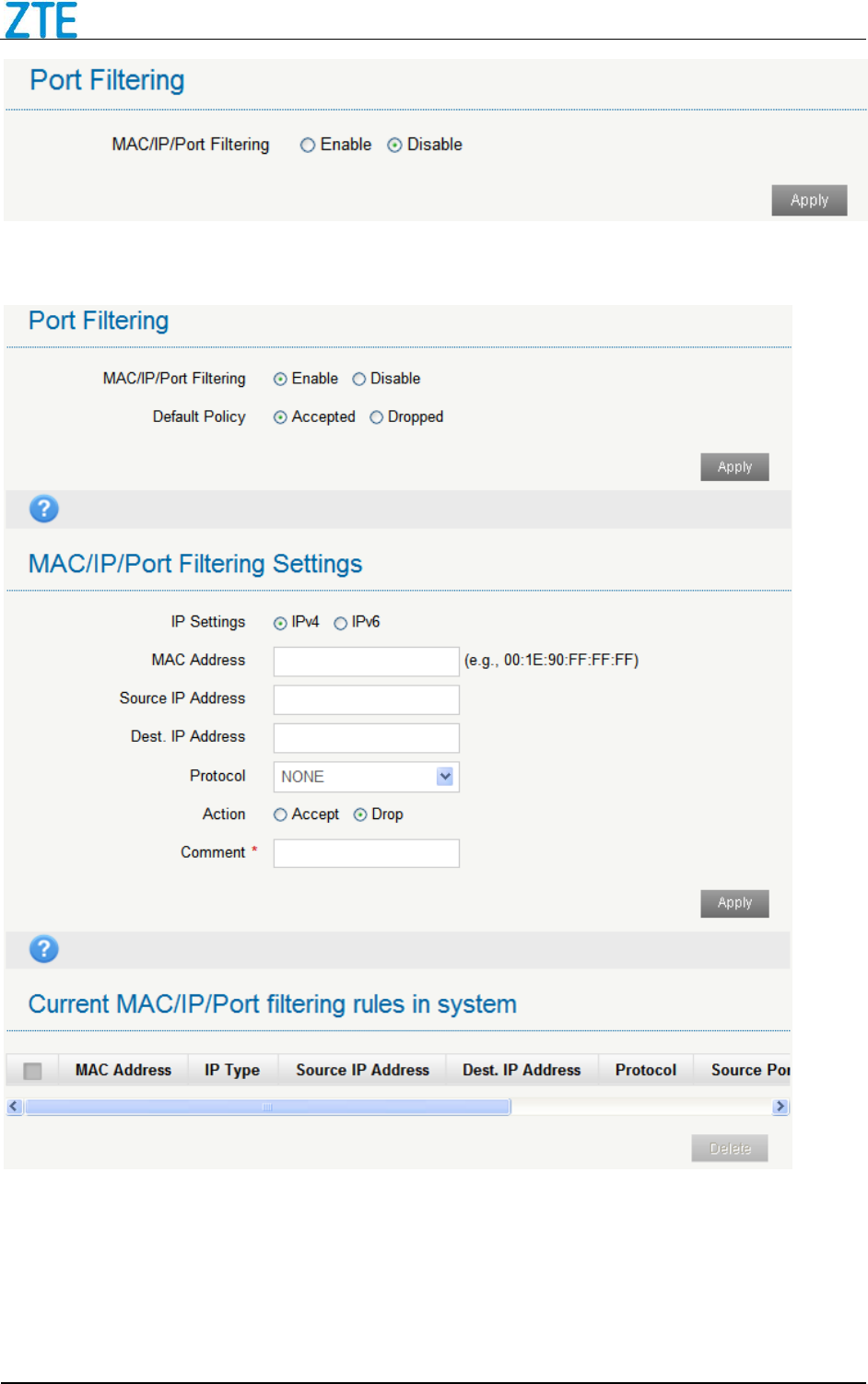

Select Settings > Firewall > Port Filtering. The MAC/IP/Port Filtering is shown in the following figure:
ZTE Unite III User Manual
24 Confidential and Proprietary Information of ZTE CORPORATION
If you select Enable, the filter settings will appear as shown below:
Default Policy: Set how to handle the packet if none of the rules matches.
IP Settings: Select IPv4 or IPv6.
MAC Address: Set the MAC address that will be filtered.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 25
Source IP Address: Set the source IP address that will be filtered.
Dest. IP Address: Set the destination IP address that will be filtered.
Protocol: Set which protocol will be used for filtering.
Action: Set how to handle the packet if it matches with the rule.
Comment: Type comment for the filter settings.
NOTE:
Filtering rules are matched one by one, if met this provision, it will not continue to match the rules listed
below.
Click Apply to confirm your configuration.
Click Delete to delete the rule which you selected.
To add a new rule:
1. Select Enable in the Port Filtering area.
2. Click Apply.
3. Input the detail information in the MAC/IP/Port Filtering Settings area.
4. Click Apply in the MAC/IP/Port Filtering Settings area.

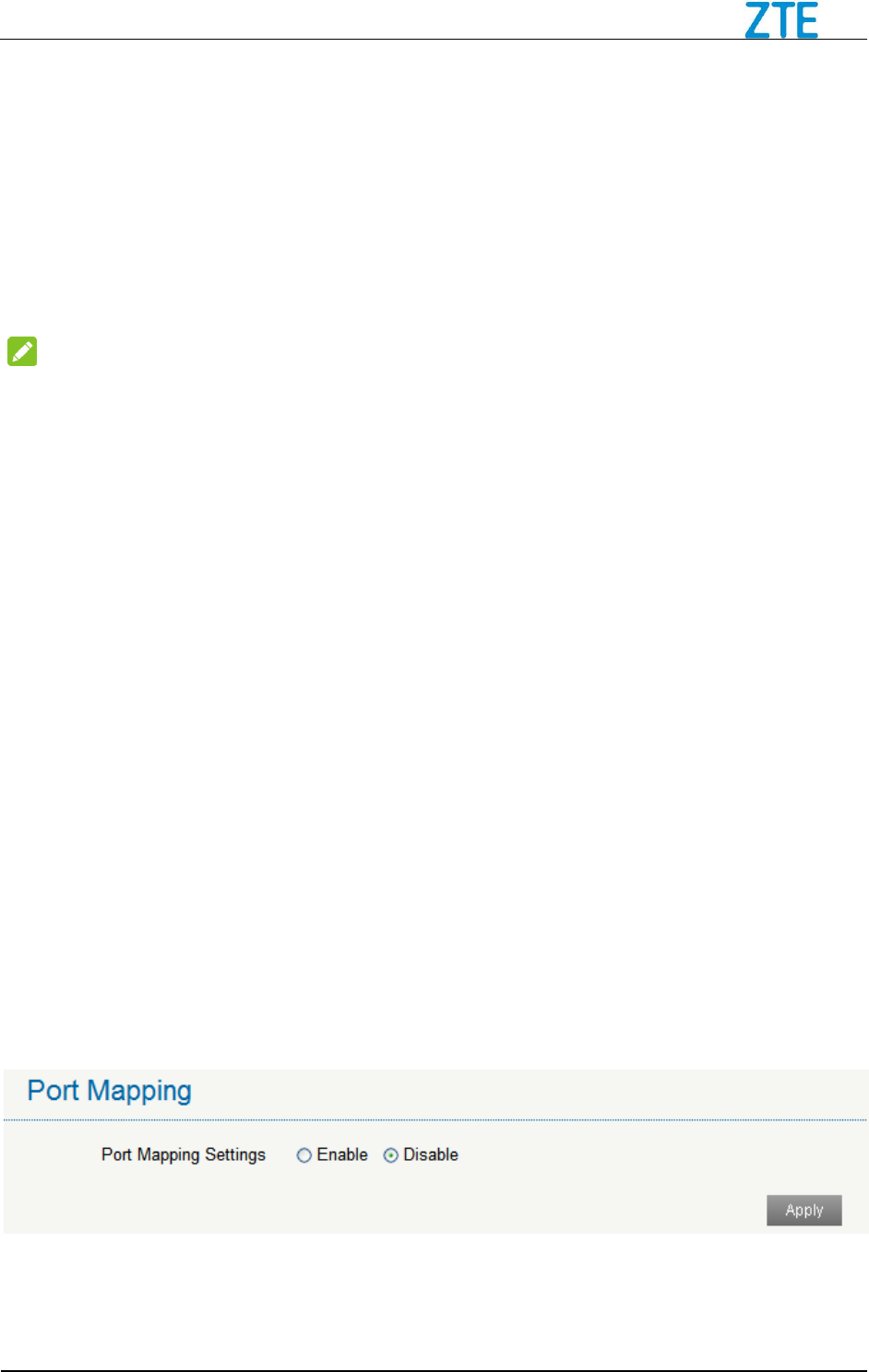

Port Mapping
You can set up Port Mapping to enable external computers to access www, FTP or other services provided
by LAN. Select Settings > Firewall > Port Mapping and the Port Mapping page is shown in the
following figure:

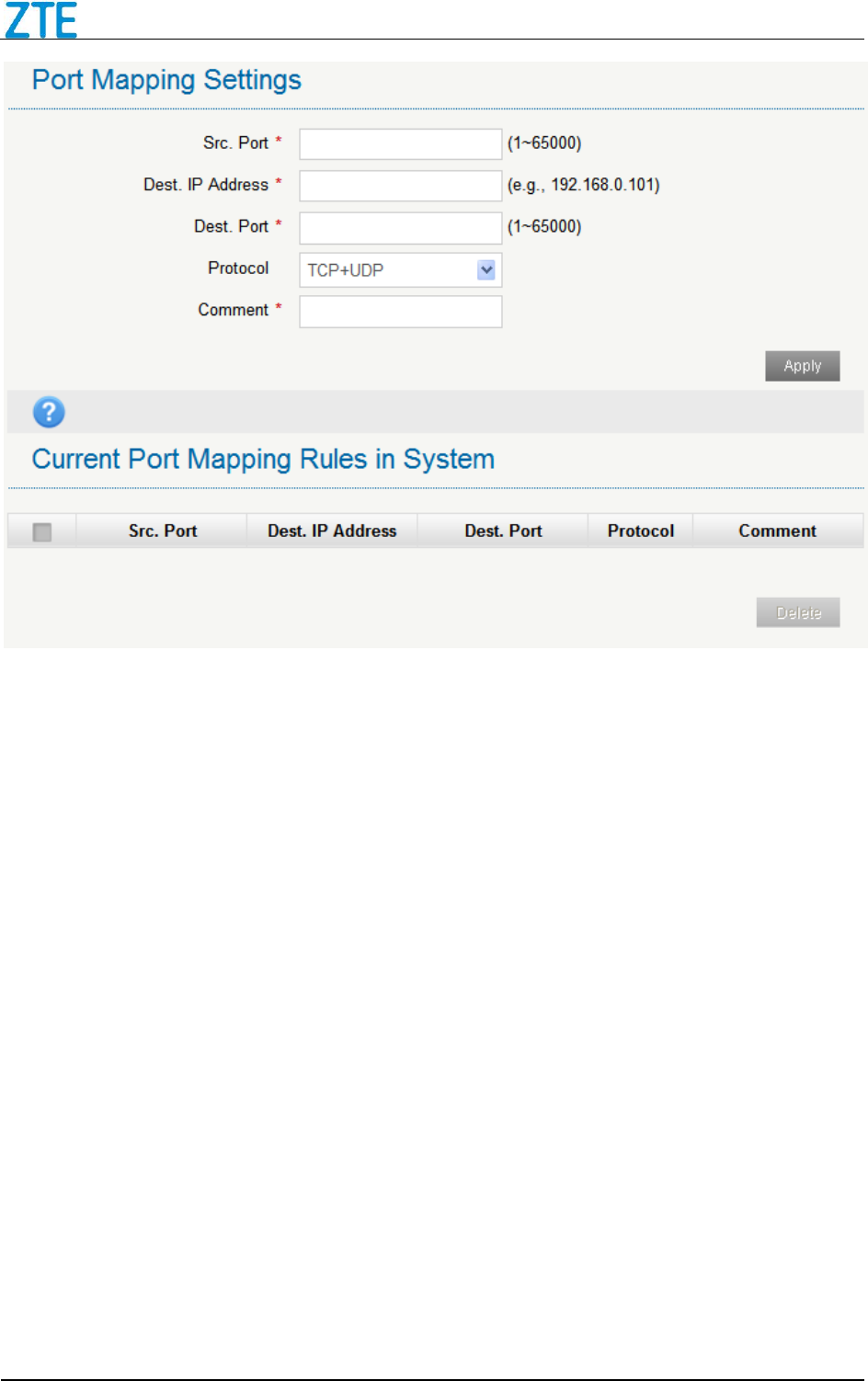

If you select Enable, the Port Mapping Settings will appear:
ZTE Unite III User Manual
26 Confidential and Proprietary Information of ZTE CORPORATION
• Src. Port: Set the source port of the computer that provides services.
• Dest. IP Address: Specify a computer located at LAN to provide services.
• Dest. Port: Set the destination port of the computer that provides services.
• Protocol: Set which protocol will be applied by services.
• Comment: Type comment for the port mapping settings.
Click Apply to add a new rule.
Click Delete to delete the rule which you selected.
UPnP
Universal Plug Play (UPnP) is a set of networking protocols that allows network devices, such as PC,
printers, Internet gateways, Wi-Fi access points and mobile devices, to seamlessly discover each other’s
presence on the network and establish functional network services for data sharing, communications, and
entertainment.

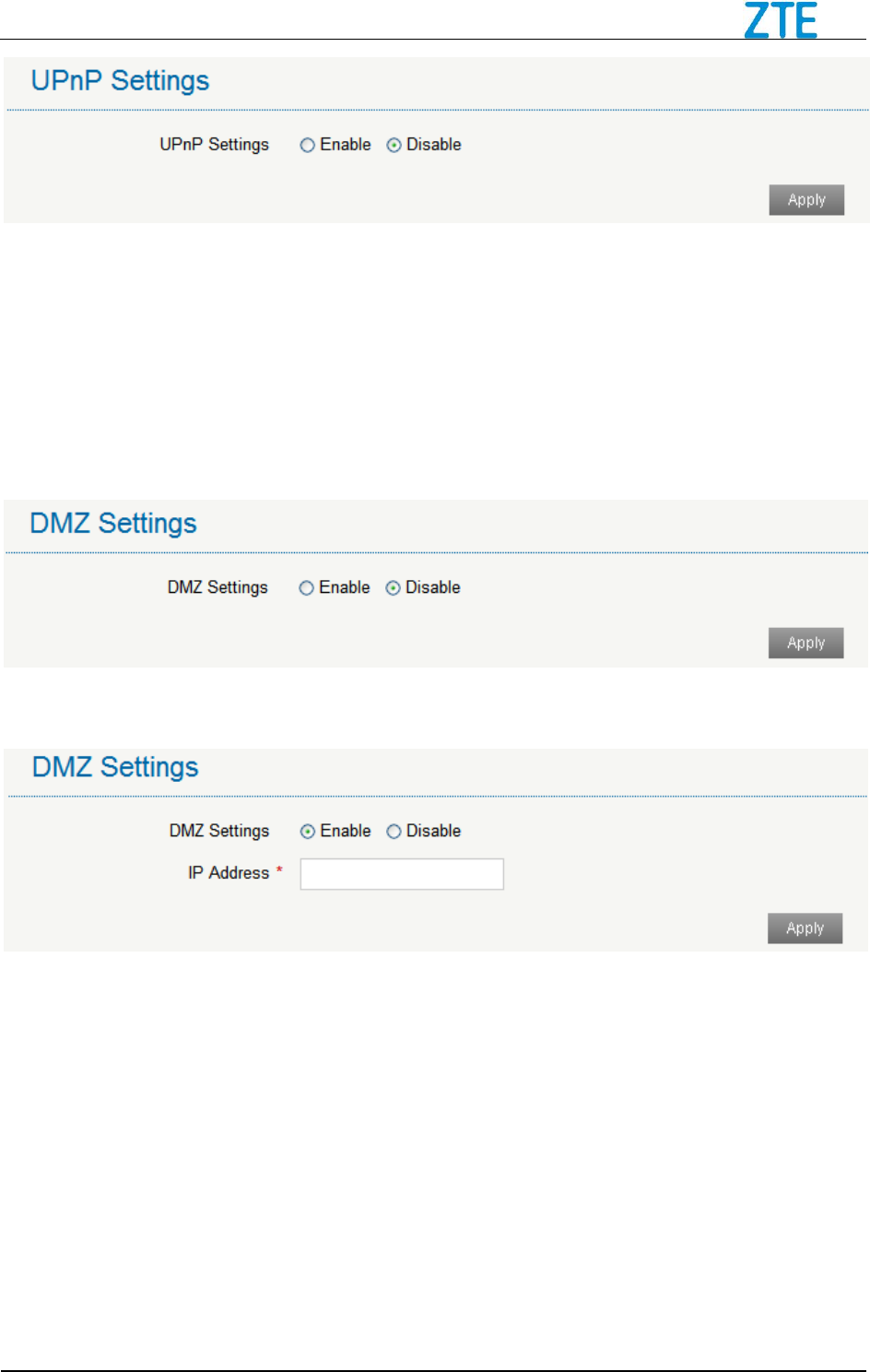

Select Settings > Firewall > UPnP and the UPnP settings page is shown in the following figure:
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 27
Check Enable and click Apply to enable the function.
DMZ
The DMZ host feature allows one local host be exposed to the Internet for a special-purpose service such
as Internet gaming.
Select Settings > Firewall > DMZ and the following page will appear:
If you select Enable, the DMZ Settings will appear:
Enter the IP address of the device you want to communicate with the Internet, and then click Apply to
save the settings.
Router Settings
Select Settings > Router Settings and the router information is shown in the following figure:
ZTE Unite III User Manual
28 Confidential and Proprietary Information of ZTE CORPORATION
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
• DHCP Server: Enable or disable DHCP Server function.
• DHCP IP Pool: Allocate begin and end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired. The new IP address will be
relocated after the IP address is expired.
Click Apply to confirm your configuration.
Dial *228
This function allows you to active your SIM card manually in 1X network.
Select Dial *228 and the following page will appear. Click Dial *228 to active your SIM card.
Information
This function allows you to view system information.
Device Information
Select Information > Device Information and then you can view the device information.
Statistics

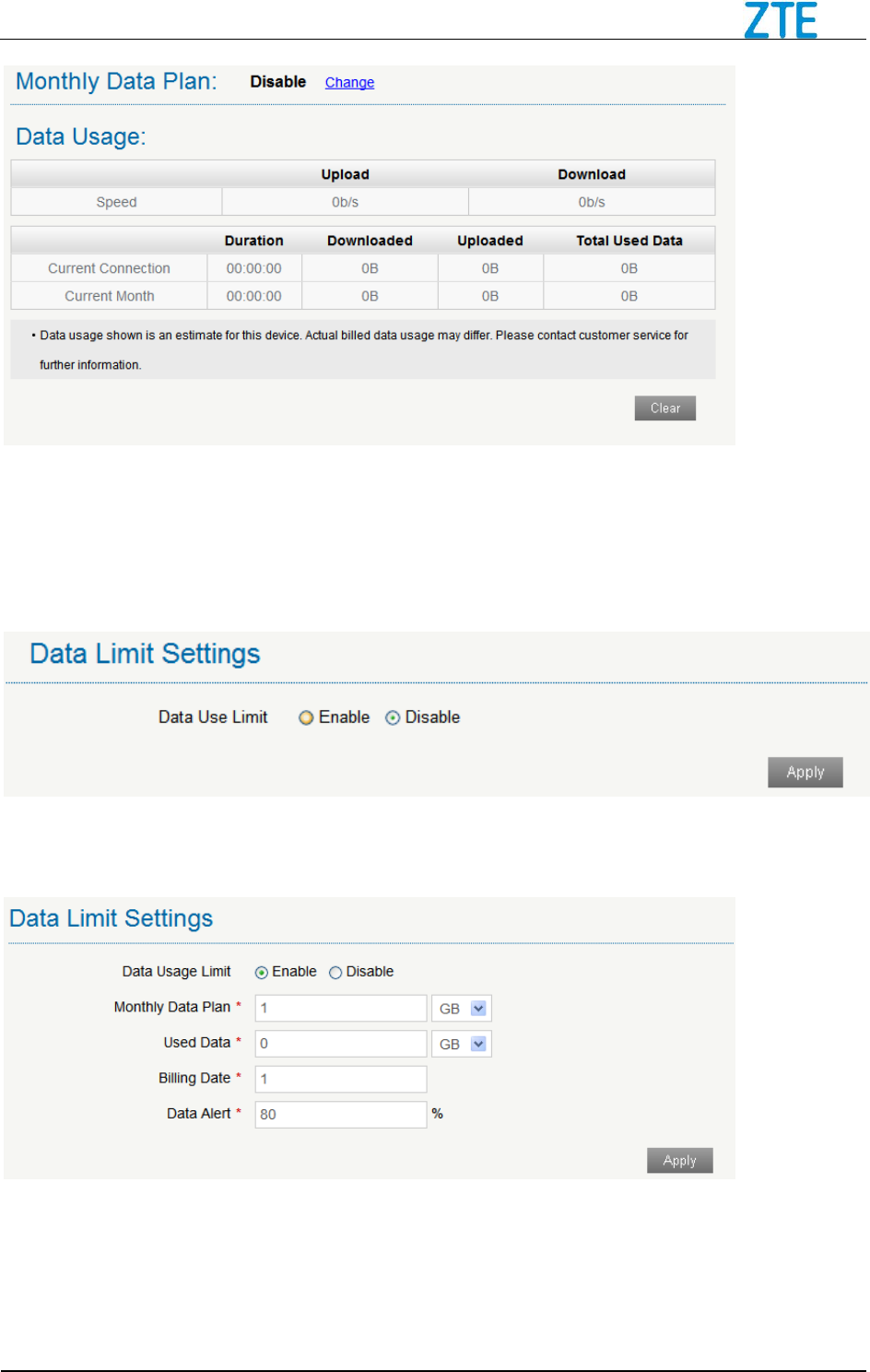

Select Information > Data Usage and then the statistics information is shown in the following
figure:
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 29
Click Clear to clear the information.
Data Usage Limit
Select Information > Data Usage Limit and then the following page is shown.
If you select Enable, the Data Limit Settings will appear:
Limit by: Select a way to limit the data use, by data or time.
Monthly Data Plan: Set data limit for a month. You can select unit from the drop-down list behind.
Used Data: Set data limit.
ZTE Unite III User Manual
30 Confidential and Proprietary Information of ZTE CORPORATION
Billing Date: Set the data billing date.
Data Alert: Set a percentage to remind you when the data/time use reaches the specified percentage.
Messages
This function allows you to receive messages from your ISP.
Operating Messages in Native
You can check the messages saved in your device.
Device Messaging
Select Messages > Device Messaging to access the following figure:
All the received messages saved in your device will be displayed here.
Click Delete to delete the selected messages.
Click Refresh to refresh manually.
Operating Messages in SIM Card
You can check the messages saved in your SIM card.
Configuring Messages
Set your device to power up when there are new messages received.
Select Messages > Messaging Settings to access the following figure:
Select Enable and click Apply to enable this function.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 31
Warning and Notice
To the Owner
• Some electronic devices are susceptible to electromagnetic interference sent by your device if
inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of your
device before using if necessary.
• Operating your device may interfere with medical devices like hearing aids and pacemakers. Please
always keep them more than 20 centimeters away from such medical devices when they are turned on.
Turn your device off if necessary. Consult a physician or the manufacturer of the medical device before
using your device.
• Be aware of the usage limitation when using your device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your device if
required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your device in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s performance.
• Store your device out of the reach of little children. Your device may cause injury if used as a toy.
• Do not touch the metallic parts of your device so as to avoid a burn, when your device is working.•
Using Your Device
• Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your device’s performance, and violate related national regulations about telecom terminals.
• Avoid using your device near or inside metallic structures or establishments that can emit
electromagnetic waves. Otherwise it may influence signal reception.
• Your device is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use your device immediately after a sudden temperature change. In such case, it will produce dew
inside and outside your device, so don’t use it until it becomes dry.
• Handle your device carefully. Do not drop, bend or strike it. Otherwise your device will be damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of 0℃ ~ +35℃ and humidity range of 5% ~ 95% are recommended.
Using Battery
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from your device and store it in a cool dry place.
• Never use any charger or battery damaged or worn out.
ZTE Unite III User Manual
32 Confidential and Proprietary Information of ZTE CORPORATION
• Return the wear-out battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
WARNING!
If the battery is broken, keep away from it. If it taints your skin, wash your skin with abundant fresh water
and ask doctor for help if necessary.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 33
Disposal of Your Old Appliance
When this crossed-out wheeled bin symbol is attached to a product, it
means the product is covered by the European Directive 2002/96/EC.
All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
For this product’s recycling information based on WEEE directive, please send an e-mail to
weee@zte.com.cn
ZTE Unite III User Manual
34 Confidential and Proprietary Information of ZTE CORPORATION
Troubleshooting
Problem
Suggested Solution
Cannot establish the Wi-Fi
connection between your device
and client.
Refresh network list and select the correct SSID.
Check the IP address to make sure your client can obtain an IP address
automatically in the Internet protocol (TCP/IP) properties.
Type the correct network key (Wi-Fi password) when you connect to the
device.
The client connected to the device
cannot access the Internet.
Make sure your SIM card is available.
Change the location to find a place with good signal.
Contact your service provider.
Cannot visit the webGUI
configuration page.
Enter the correct address. The default address is http://192.168.1.1 or
http://uscc.hotspot. .
Only use one network adapter in your PC.
Do not use any proxy server.
About the password
Check the SSID on the LCD screen and Wi-Fi connection password or check the
label on the device to get them.
Check the default login password on the LCD screen or check the label on the
device to get it.
If you changed the password and forgot the new password, you need to restore
the device to the factory default settings.
For more assistance, please:
• Send an E-mail to mobile@zte.com.cn
• Visit www.ztedevice.com
• Call the Service Hotline: +86–755–26779999
.
ZTE Unite III User Manual
Confidential and Proprietary Information of ZTE CORPORATION 35
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
ZTE Unite III User Manual
36 Confidential and Proprietary Information of ZTE CORPORATION
RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device is set to transmit at its highest certified power level in all tested
frequency bands, and placed in positions that simulate RF exposure in usage near the body with
the separation of 10 mm. Although the SAR is determined at the highest certified power level,
the actual SAR level of the while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
The exposure standard for wireless employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
The FCC has granted an Equipment Authorization for this model device with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on
this model device is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-MF975U.
For this device, the highest reported SAR value for near the body is 1.45 W/kg.
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement.
SAR compliance for body operation is based on a separation distance of 10 mm between the unit
and the human body. Carry this device, at least 10 mm away from your body to ensure RF
exposure level compliant or lower to the reported level.
