ZTE MF993 LTE Ufi ( wireless router with WCDMA/LTE/WIFI) User Manual
ZTE Corporation LTE Ufi ( wireless router with WCDMA/LTE/WIFI)
ZTE >
Contents
- 1. user manual
- 2. User manual
user manual
1
802ZT
Quick Start Guide
ZTE CORPORATION
ZTE Plaza, #55 Keji Road South, Hi-Tech, Industrial Park, Nanshan
District,Guangdong,P.R.China
Postcode: 518057
2
Getting to Know Your Device

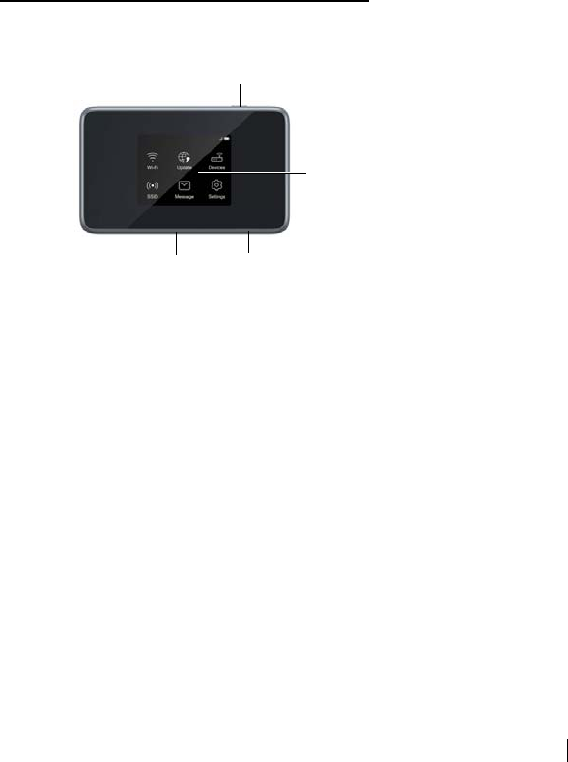

Appearance
1. Power key
2. Screen
3. nano-SIM card tray
4. Charging/USB Type-C jack
1
2
3
4
3

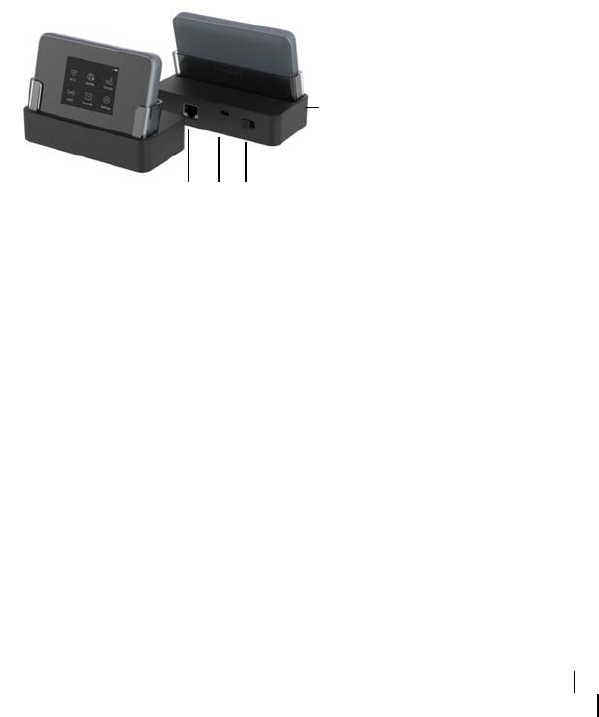

5. Extended base
6. WAN/LAN switch
7. Charging/USB Type-C jack
8. WAN/LAN(RJ45) port
8 7 6
5
4
Getting to Know Your Device

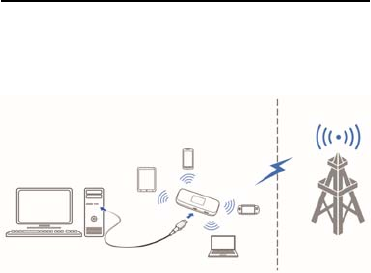

Connection Scenarios
The device allows multiple clients to surf on the Internet at the same
time. The following figure is for your reference only.
LTE Mode: A nano-SIM card can be used to access the Internet.
Extended Base: You can use this base to charge your device and
connect to the Internet by connecting WAN to the WAN/LAN port.
5

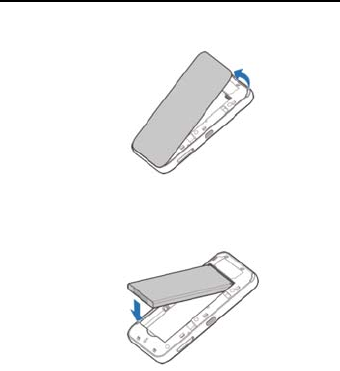

Installing the Battery
1. Remove the back cover.
2. Install the battery.
3. Replace the back cover.
6

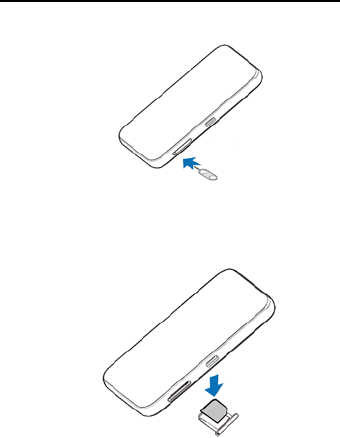

Installing the nano-SIM Card
1. Insert the tip of the tray eject tool into the hole.
2. Pull out the card tray and place the nano-SIM card on the tray.
Carefully slide the tray back into place.
7
Connecting to Your Device
Using Wi-Fi
1. Power on your device.
2. Ensure that your computer or other client devices have enabled
Wi-Fi, and search for available wireless networks.
NOTE: Refer to your Wi-Fi-enabled client device manual for
further details on how to search for wireless networks. If you use a
computer, you need to set your computer to obtain an IP address
automatically.
3. Select the Wi-Fi name (SSID) of your device, and click Connect.
4. Enter the Wi-Fi password if necessary, and click OK.
NOTE: Refer to the chapter Getting to Know the Wi-Fi SSID
and Password to get the default Wi-Fi SSID and password.
5. Wait until the client device is connected to your device successfully.
Using a USB
Type-C Cable
1. Connect a computer to your device with a USB Type-C cable.
2. Power on your device. The operating system detects and identifies
new hardware, and automatically installs the software.
3. Wait until the computer is connected to your device successfully.
8
Getting to Know the Wi-Fi SSID and
Password
You can view the label/Screen on the device to get the default Wi-Fi
SSID and password.
9
Warning and Notice
To the Users
• If inadequately shielded, some electronic devices, for example, the
electronic system of vehicles, may be affected by the electromagnetic
interference caused by the device. Consult the manufacturers of such
devices before using the device if necessary.
• Operating the device may interfere with medical instruments such as
hearing aids and pacemakers. Always keep the device more than 20
centimeters away from such medical instruments when your device is
powered on. Power off the device if necessary. Consult a physician or the
manufacturers of medical instruments before using the device if
necessary.
• Be aware of the usage limitation when using the device at places such as
oil warehouses or chemical factories, where there are explosive gases or
explosive products being processed. Power off the device if necessary.
• Do not use electronic transmission devices in aircrafts, at petrol stations
or in hospitals. Observe and obey all warning signs, and power off the
device in these conditions.
• Do not touch the inner antenna area unless necessary. Otherwise the
performance of the device may be affected.
• Do not use the device in an enclosed environment or where heat
dissipation is poor. Prolonged work in such space may cause excessive
heat and raise ambient temperature, which may lead to automatic
shutdown of the device for your safety. In the case of such event, cool the
device in a well-ventilated place before turning on for normal use.
• Keep the device out of the reach of small children. The device may cause
an injury if used as a toy.
• When the device is operating, do not touch the metallic parts. Failing to
do so may cause burns.
• Use original accessories or accessories that are authorized. Using any
unauthorized accessories may affect the performance of the device and
10
violate the related national regulations about telecom terminals.
• Avoid using the device near or inside metallic constructions or
establishments that can emit electromagnetic waves, because signal
reception may be affected.
• The device is not waterproof. Keep the device dry and store it in a shady
and cool place.
• Do not use the device immediately after a sudden temperature change,
because dew may be generated inside and outside the device. Do not
use it until it becomes dry.
• Handle the device carefully. Do not drop, bend or strike it. Otherwise the
device may be damaged.
• Only qualified personnel can dismantle and repair the device.
• An operating temperature between -10°C and +55°C and humidity
between 5% and 95% are recommended.
Using Battery
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid
explosion.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from your device
and store it in a cool dry place.
• Never use any charger or battery damaged or worn out.
• Return the wear-out battery to the provider or put it in the appointed
recycle place. Do not put it in familial rubbish.
WARNING!
If the battery is broken, keep away from it. If it taints your skin, wash
your skin with abundant fresh water and ask doctor help if necessary
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
11
Dispose of used batteries according to the instructions.
Limited Warranty
This warranty does not apply to defects or errors in the product caused by:
i. Reasonable abrasion.
ii. End users’ failure to follow ZTE’s installation, operation or
maintenance instructions or procedures.
iii. End users’ mishandling, misuse, negligence, or improper installation,
disassembly, storage, servicing or operation of the product.
iv. Modifications or repairs not provided by ZTE or a ZTE-certified
individual.
v. Power failures, surges, fire, flood, accidents, and actions of third
parties or other events outside ZTE’s reasonable control.
vi. Usage of third-party products or usage in conjunction with third-party
products if such defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the
product.
End users have no right to reject or return the product, or receive a refund
for the product from ZTE under the above-mentioned situations.
This warranty is end users’ sole remedy and ZTE’s sole liability for defective
or nonconforming items, and is in lieu of all other warranties, expressed,
implied or statutory, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose, unless otherwise
required under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or
consequential damages resulting from or arising out of or in connection with
using of this product, no matter whether or not ZTE had been advised, knew
12
or should have known of the possibility of such damages, including, but not
limited to lost profits, interruption of business, cost of capital, cost of
substitute facilities or product, or any downtime cost.
LEGAL INFORMATION
Copyright © 2018 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice.
Label location: Main UI - Idle - About
FCC ID：SRQ-MF993
Radio Frequency (RF) Energy
13
This device meets the government’s requirements for exposure to radio
waves.
This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government:
The exposure standard for wireless mobile devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate at
multiple power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
14
The highest SAR value for the device as reported to the FCC when tested
for use at hotspot is 1.12W/kg and when worn on the body, as described in
this user guide, is 1.09W/kg (Body-worn measurements differ among device
models, depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices
and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this device is on file with the FCC and can
be found under the Display Grant section
of http://www.fcc.gov/oet/ea/fccid/ after searching on:
FCC ID:SRQ-MF993
For body worn operation, this device has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the device to keep minimum of 10mm from the body.
15
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
16
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This LTE Ufi works in at least one European countries.
Specification
EUT supports radios application
17
WCDMA Band 1,8 ,2,4
FDD LTE Band1,3,8,28,42;Band 2,4,12,17,41;Band 11
802.11 a/b/g/n/ac UNII-1:5150-5250MHz
WCDMA Version Rel.10
LTE Version Rel.10
Maximum RF output power Tolerance
Bands Max Power
WCDMA B1 24.0
dBm+1dB/-3dB
WCDMA B8 24.0
dBm+1dB/-3dB
WCDMA B2 24.0
dBm+1dB/-3dB
WCDMA B4 24.0
dBm+1dB/-3dB
18
LTE B1 23±2dBm
LTE B3 23±2dBm
LTE B8 23±2dBm
LTE B28 23±2dBm
LTE B42 23±2dBm
LTE B2 23±2dBm
LTE B4 23±2dBm
LTE B12 23±2dBm
LTE B17 23±2dBm
LTE B41 23±2dBm
LTE B11 23±2dBm
2.412-2.462GHz (FCC)
2.412-2.472GHz(CE)
≤20dBm
5150-5250MHz ≤20dBm
19
The guidelines use a unit of measurement known as Specific Absorption
Rate, or SAR. The SAR limit for the devices is 2 W/kg and the highest SAR
value for this device when tested at the body was 1.35W/kg* with 5 mm
distance.
As SAR is measured utilizing the device’s highest transmitting power, the
actual SAR of this device while operating is typically below that indicated
above. This is due to automatic changes to the power level of the device to
ensure it only uses the minimum power required to communicate with the
network.
This phone works in at least one European countries.
Regulatory Information
EU DECLARATION OF CONFORMITY
Hereby, Vodafone declares that the radio equipment type Smart E9
is in compliance with Directive 2014/53/EU.
20
The full text of the EU declaration of conformity is available at the
following Internet address: http://certification.ztedevices.com
Version No.: R1.0
Edition Time: November 14, 2018
Manual No.:
