ZTE MG880 CDMA2000 1X Wireless Data Terminal User Manual MG880 user guide V1 0 for FCC
ZTE Corporation CDMA2000 1X Wireless Data Terminal MG880 user guide V1 0 for FCC
ZTE >
User Manual
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
CDMA2000 1X
Wireless Data Terminal
User Guide
This User Guide is used for Wireless Data Terminal of MG880.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Copyright Statement
Copyright © 2007 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print errors or update specifications
in this manual without prior notice.
V1.0, Apr, 2007
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Table of Contents
1. Introduction.............................................................................................................................1
2. Precautions..............................................................................................................................1
3. Appearance .............................................................................................................................2
3.1 Introduction.........................................................................................................................2
3.2 Insert R-UIM Card..............................................................................................................3
3.3 Operation Guide of Data Cable...........................................................................................3
4. Install and Uninstall................................................................................................................4
4.1 Windows 2000 ...................................................................................................................5
4.1.1 Install........................................................................................................................5
4.1.2 Uninstall...................................................................................................................9
4.2 Windows XP ....................................................................................................................10
4.2.1 Install......................................................................................................................10
4.2.2 Uninstall.................................................................................................................14
4.3 Windows Vista .................................................................................................................15
4.3.1 Install......................................................................................................................15
4.3.2 Uninstall.................................................................................................................19
5. Run the Application ..............................................................................................................20
6. Connect/Disconnect..............................................................................................................22

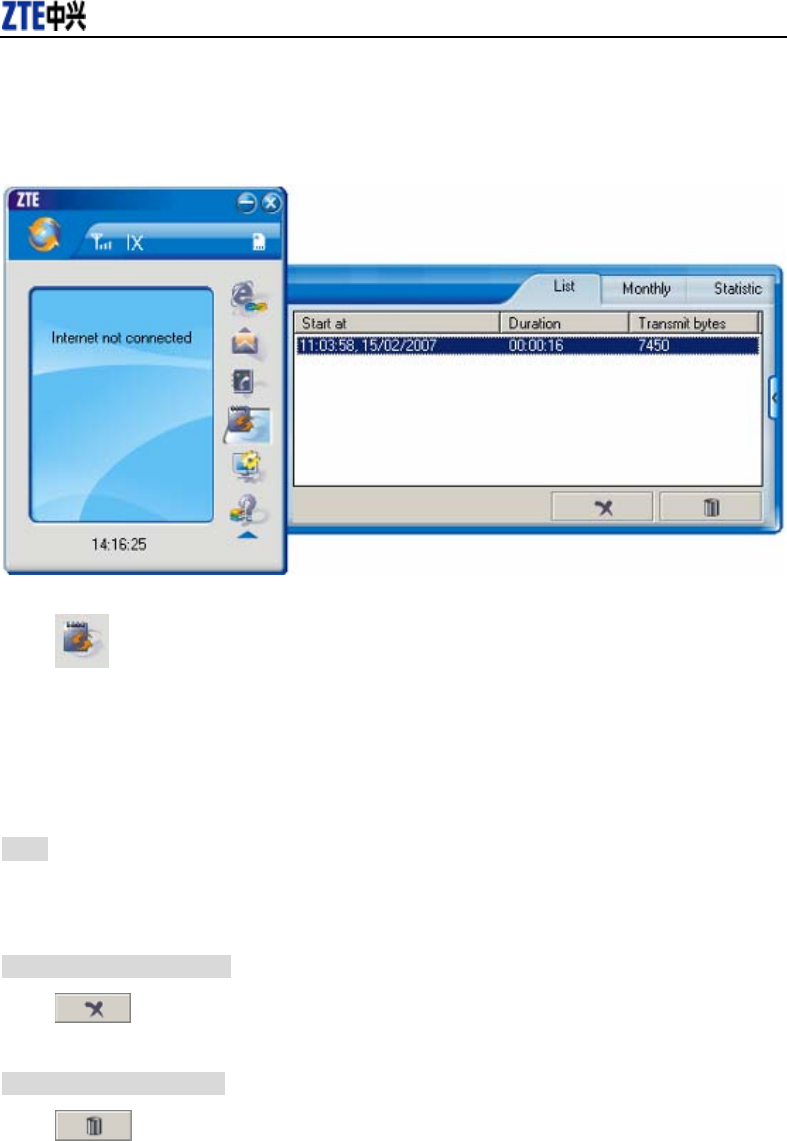

7. Connection Records..............................................................................................................23

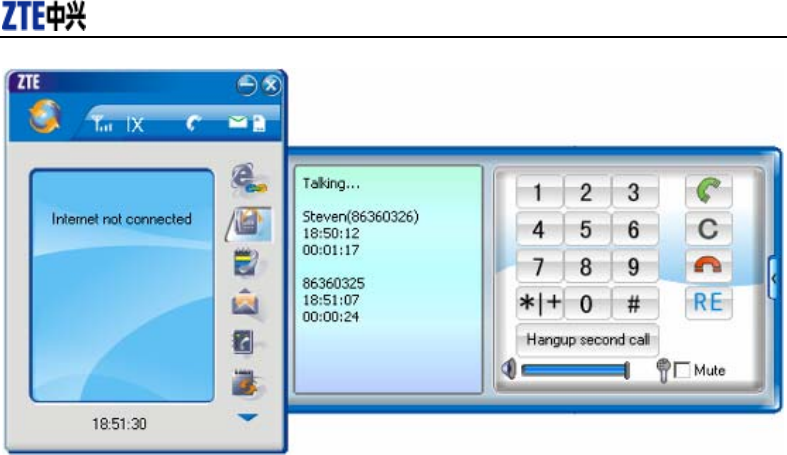

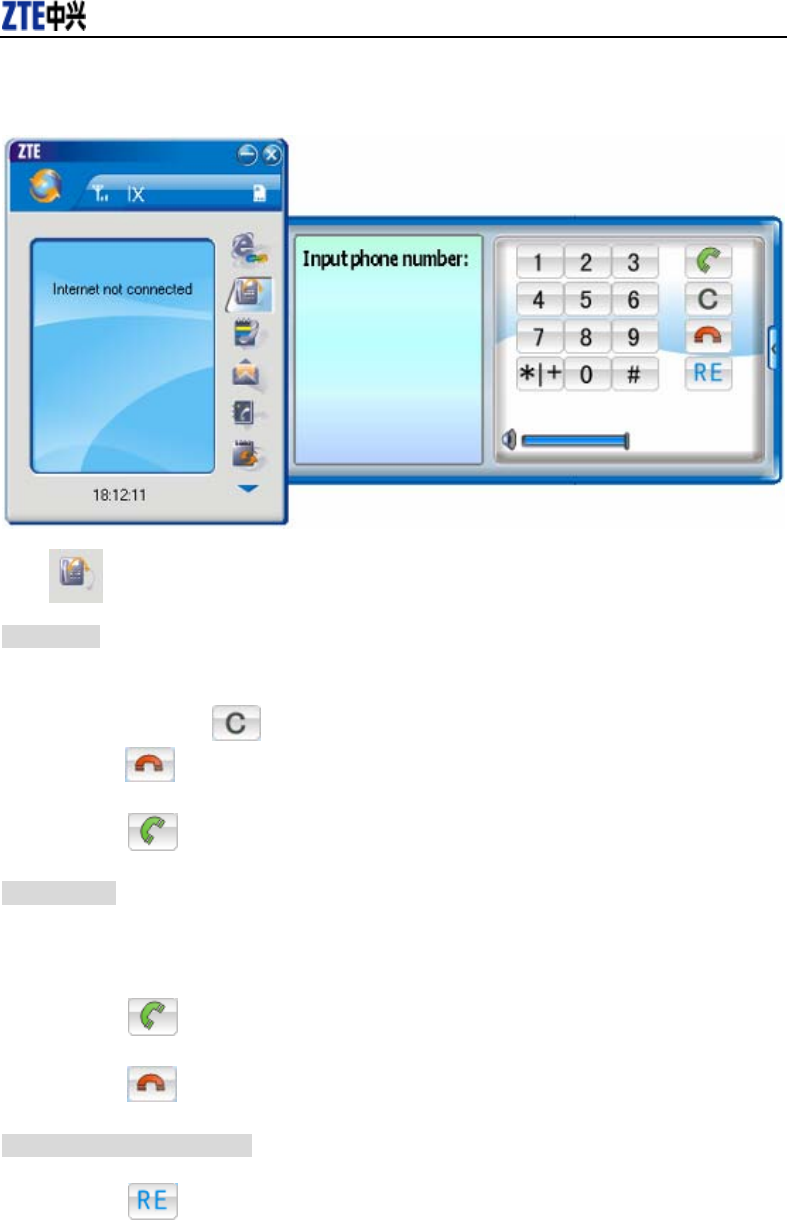

8. Voice Call..............................................................................................................................24

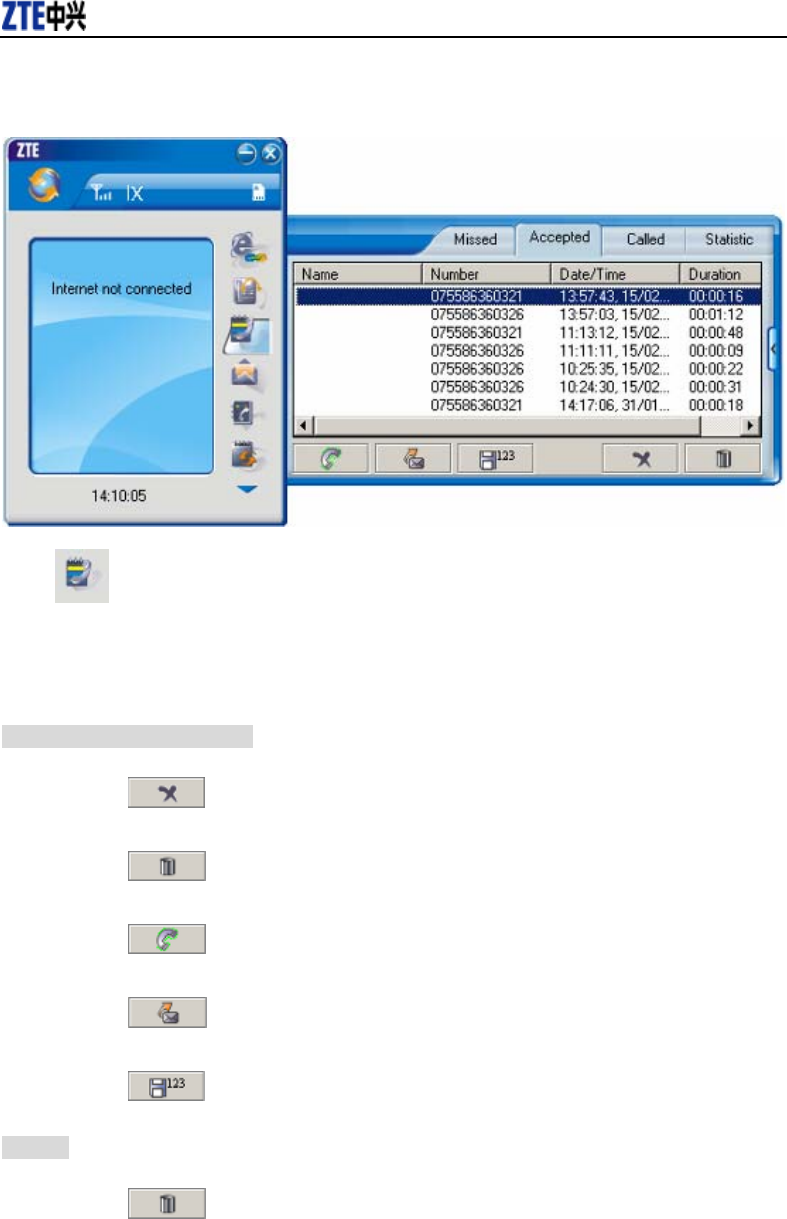

9. Call History...........................................................................................................................28

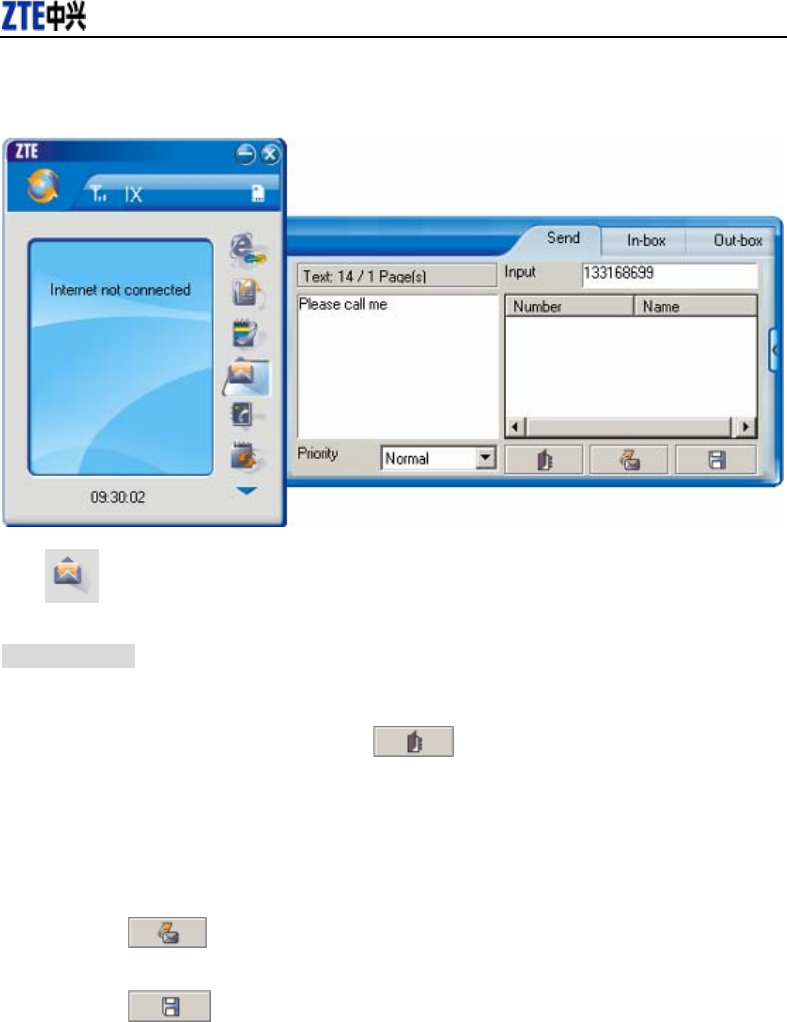

10. Short Message.......................................................................................................................29
11. Phone Book...........................................................................................................................32
12. Setting...................................................................................................................................34
13. Help ......................................................................................................................................37
14. Connect to the Website .........................................................................................................37
15. Trouble-shooting...................................................................................................................38
16. Health and Safety Information – RF Exposure Information.................................................40
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
1. Introduction
Thank you for choosing MG880 CDMA2000 1X Wireless Data Terminal (hereinafter referred to
as Data Terminal) of ZTE Corporation.
Through a standard USB interface, Data Terminal supports CDMA2000 1X network. In the area
where there is signal, it allows you to go surfing on the Internet, send & receive short messages,
and make & receive phone calls.
2. Precautions
¾ Please don’t use the product near flammable or explosive materials because it might cause
failure or fire.
¾ Keep the product away from high temperature, humidity, or dust because it might cause
failure.
¾ Avoid shock, cast or impact. Please keep the product well when you don’t use it.
¾ Do not unplug the antenna. Damage cause by misuse is not covered by this warranty.
¾ Don’t use the product near the place where is weak signal or high-precision electronic device
because the magnetic interference might cause the misoperation of electronic device or other
problems.
¾ Please make sure to quit the application before unplugging the terminal, otherwise it would
damage the terminal or affect the normal operation of the system.
¾ Please don’t insert or pull out the card with great force to avoid damaging the interface.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

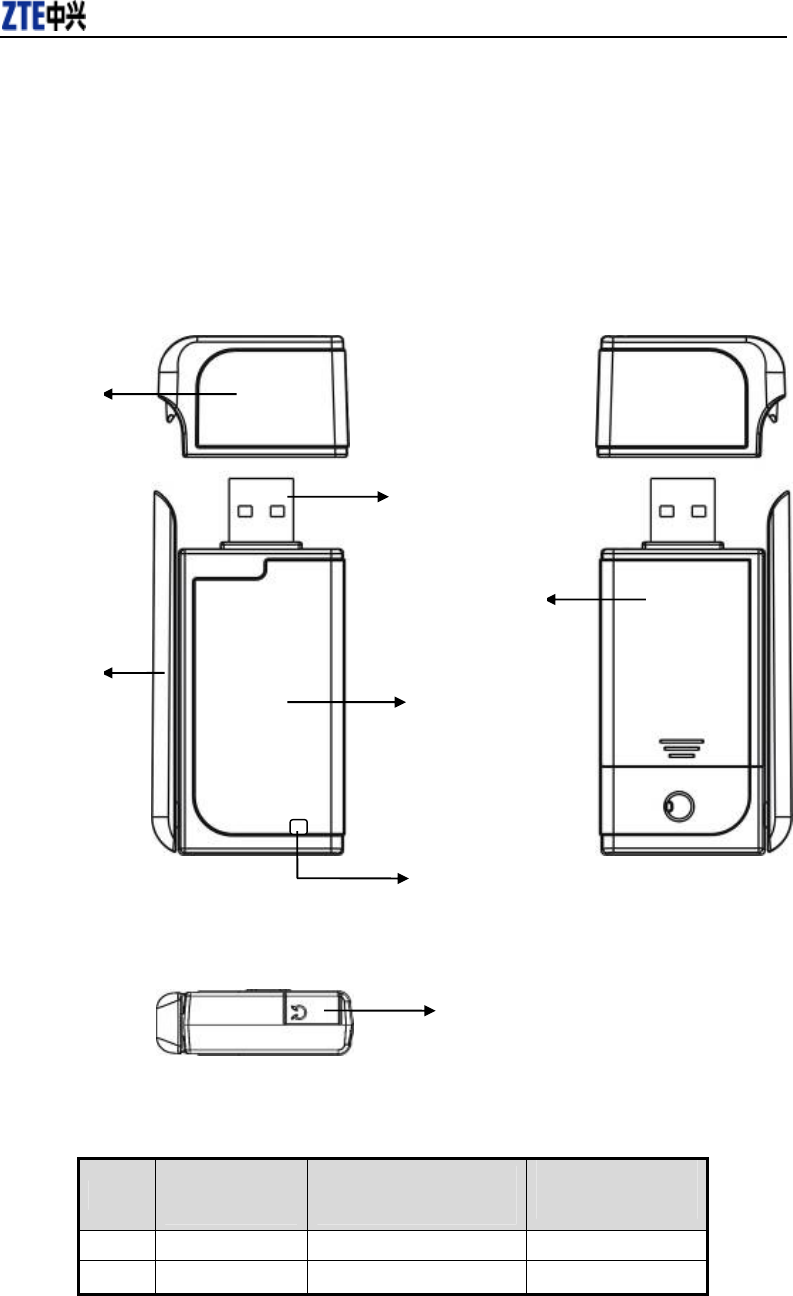

3. Appearance
3.1 Introduction
Top View Rear View
LED status descriptions:
LED Inserting the
data terminal
The data terminal is
working
Upon an incoming
call
Yellow OFF OFF Flash
Green OFF Always ON Always ON
USB Interface
Host
Tap
Antenna
LED
R-UIM Card Cover
BottomView
Earphone Jack
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

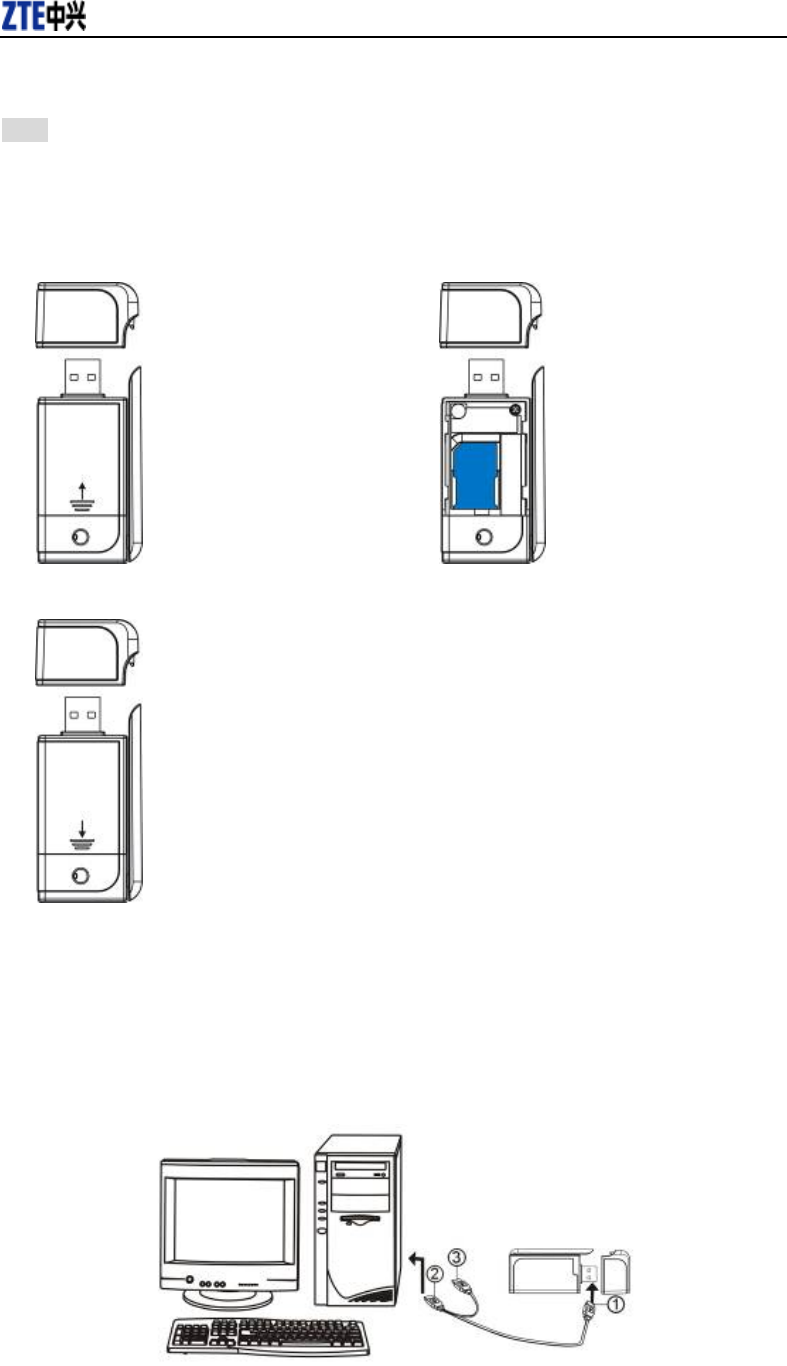

3.2 Insert R-UIM Card
Note: If your data terminal doesn’t need R-UIM card, please skip this section.
1. Pull out the tap
2. Take out the R-UIM card cover in the
direction indicated by the arrow 3. Insert R-UIM card as below figure
4. Push back R-UIM card cover in the direction indicated by the arrow
3.3 Operation Guide of Data Cable
Generally, the Data Terminal could be directly connected with USB port. You could also connect
the Data Terminal with PC by using the accompanying data cable, as shown in the following
figure. Connect Interface ① with Data Terminal, and interface ② with PC's USB port. If the
power supply from USB port is insufficient, connect both interface ② and ③ with USB port
together.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4. Install and Uninstall
System Requirements:
The Data Terminal supports the following operating system:
¾ Windows 2000
¾ Windows XP
¾ Windows Vista
PC minimum configurations:
CPU Pentium-II/233MHz
USB interface 2.0 (USB1.0 and 1.1 compatible)
Optical Drive CD-ROM (for installation only)
Memory 64 MB
Disk Space 50 MB (used for installation of application)
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4.1 Windows 2000
4.1.1 Install
Note: Do not insert the Data Terminal before installation.

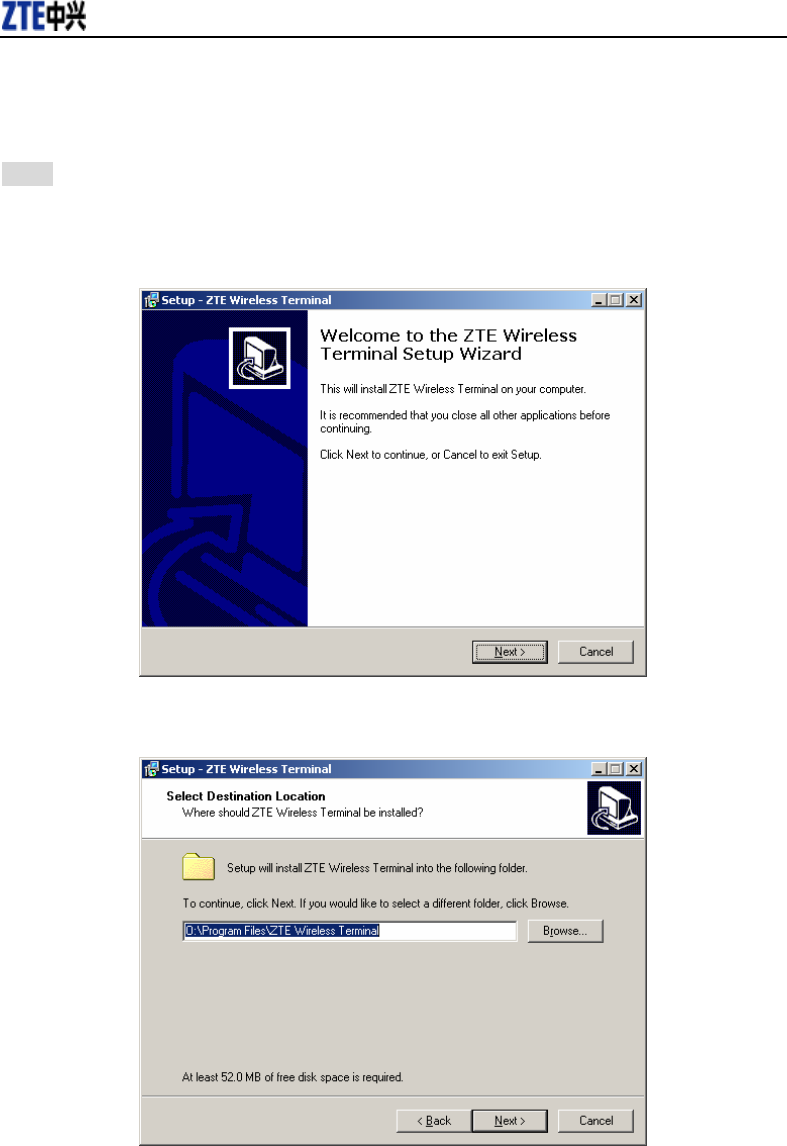

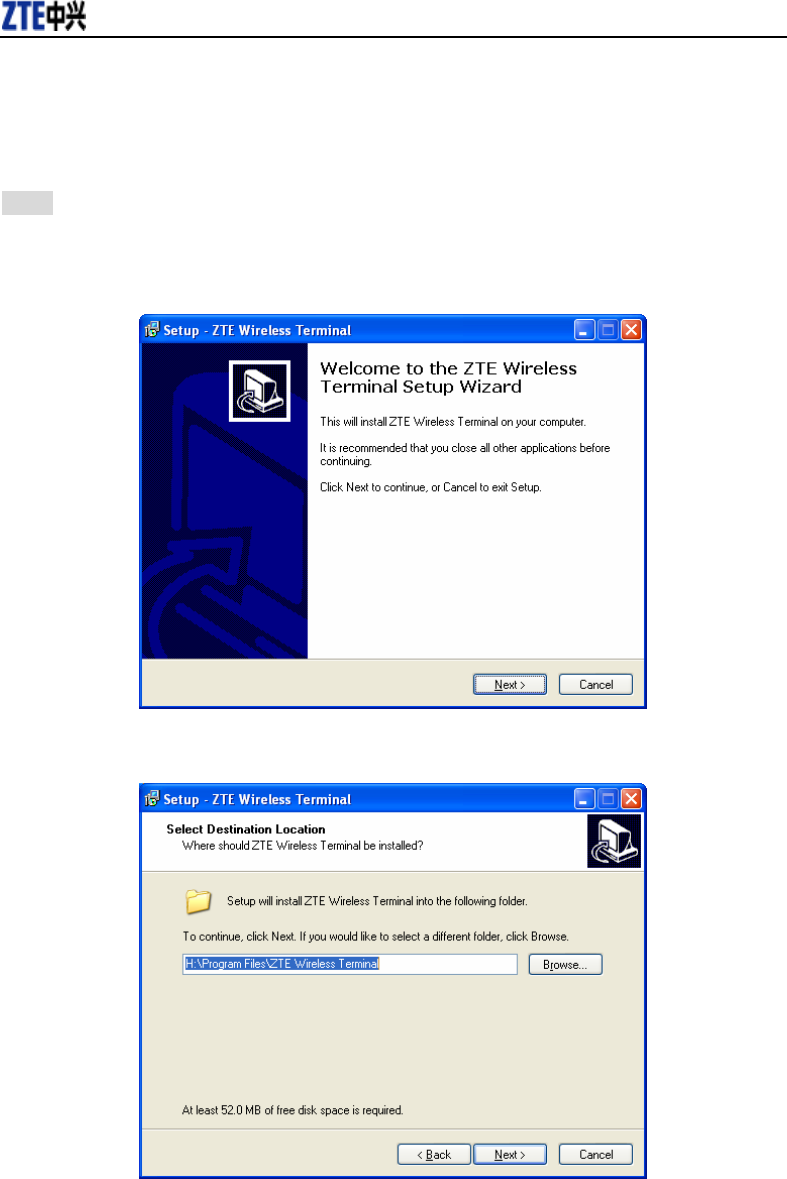

1、Find “Setup.exe” firstly in Data Terminal CD-ROM, double-click it to display the Welcome
picture, and then click “Next”;
2、Select the location where you want the program to be installed, and then click “Next”;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

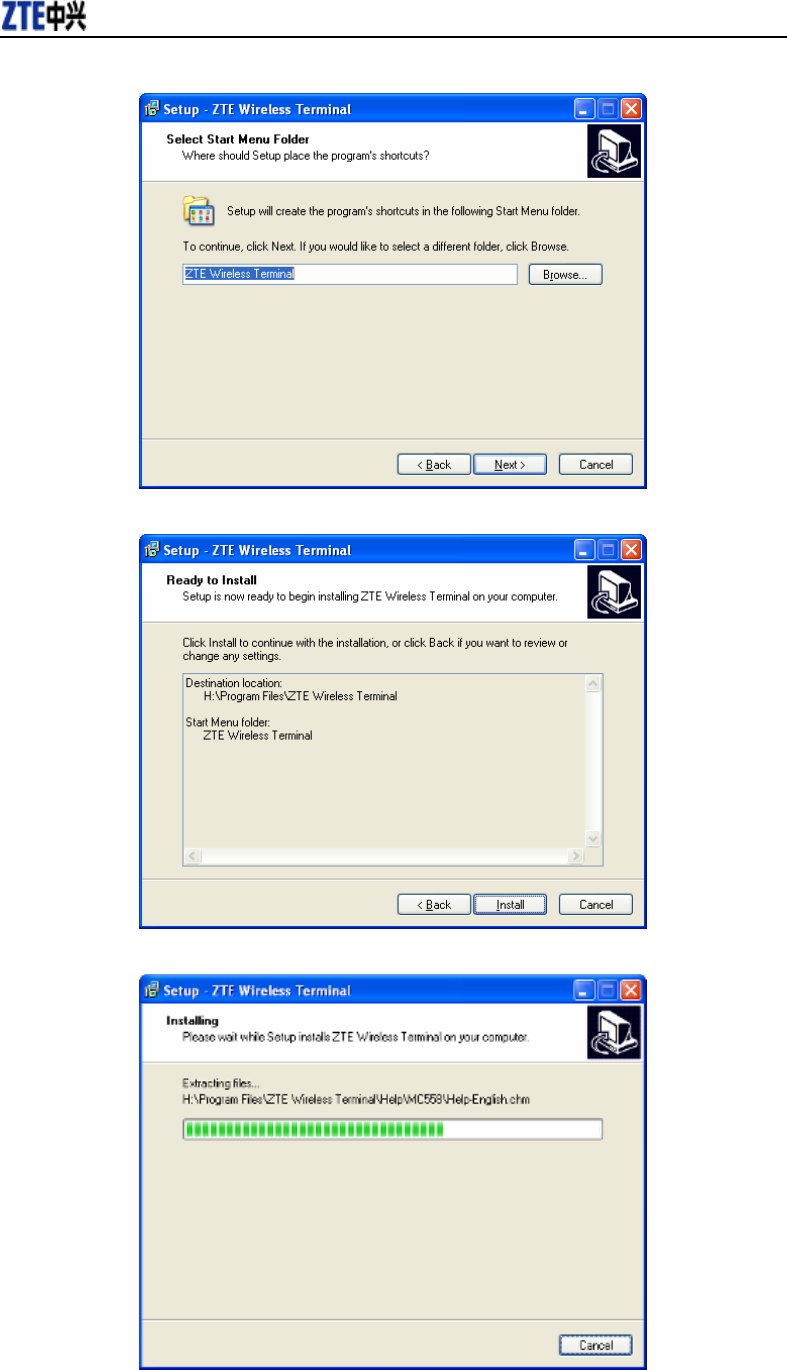

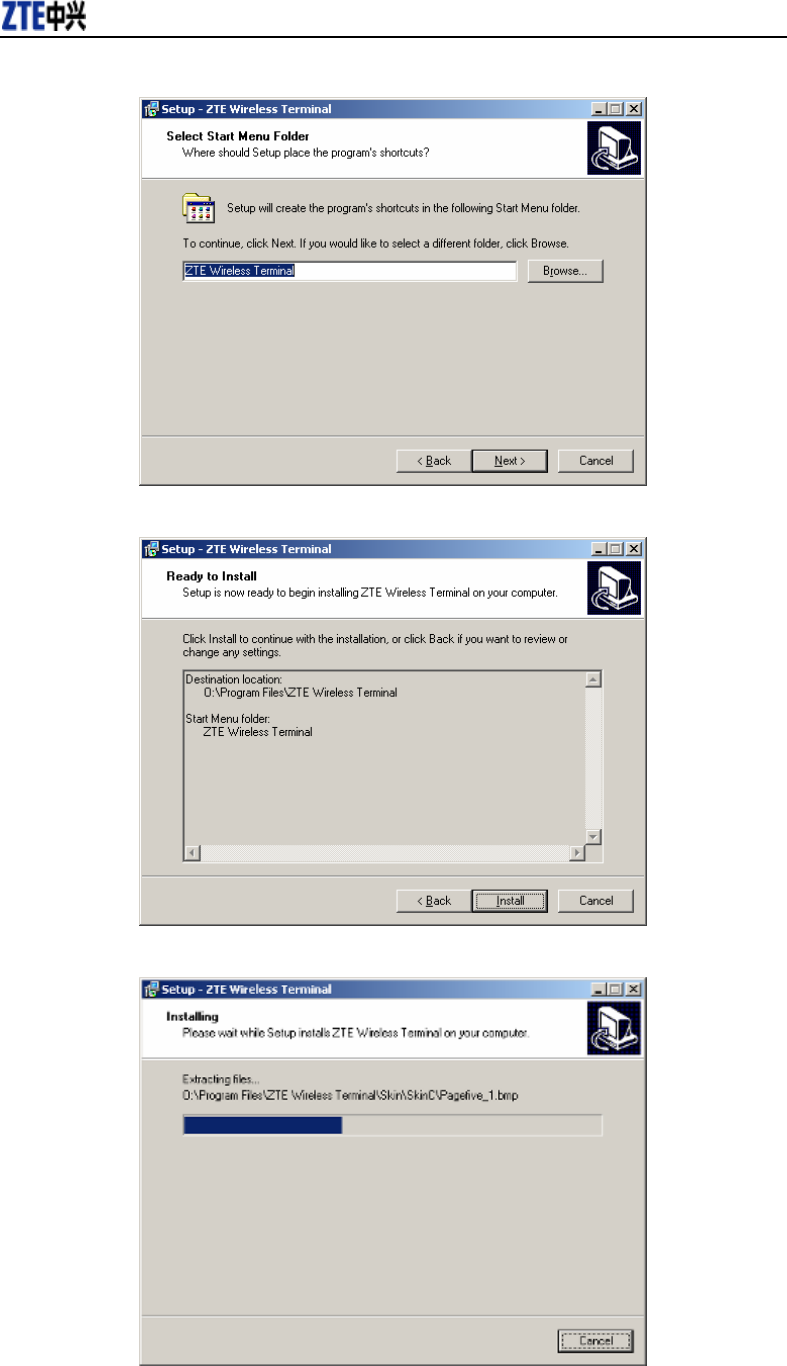

3、Select Start Menu folder, and then click “Next”;
4、When you see the window below, please click “Install”;
5、Please wait for installation.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

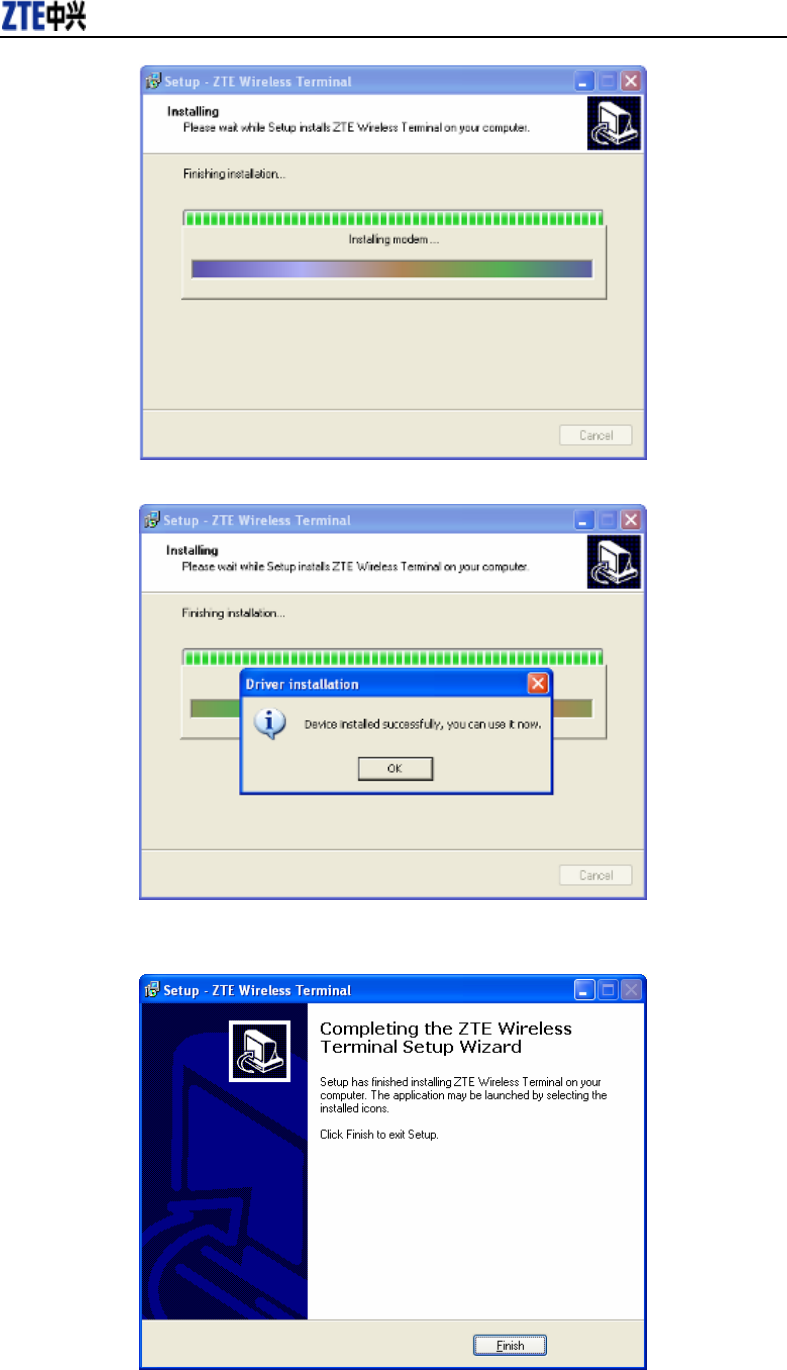

6、Please insert the Data Terminal into USB interface if the system prompts you to insert the
hardware (If it has been inserted, please unplug it and insert again.)

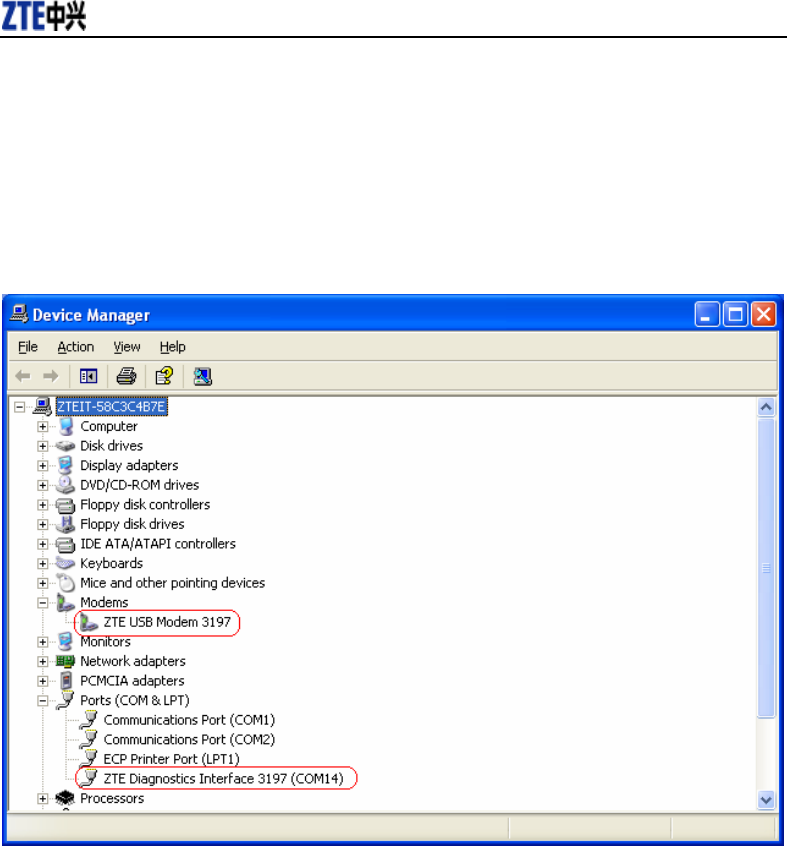

7、The system shall find the new hardware and install the driver automatically. Just wait a minute;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

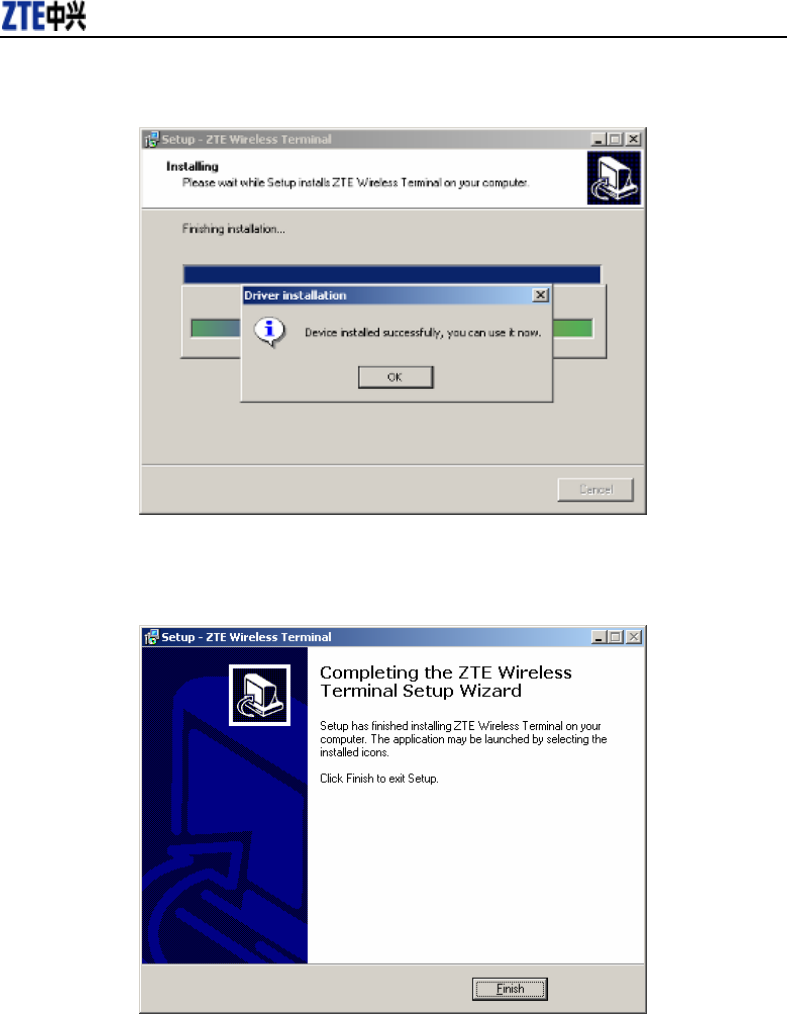

8、The driver is installed successfully. Pleas click “OK”;
9、Click “Finish” to close the last screen of the wizard. Now you can start the application for Data
Terminal.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

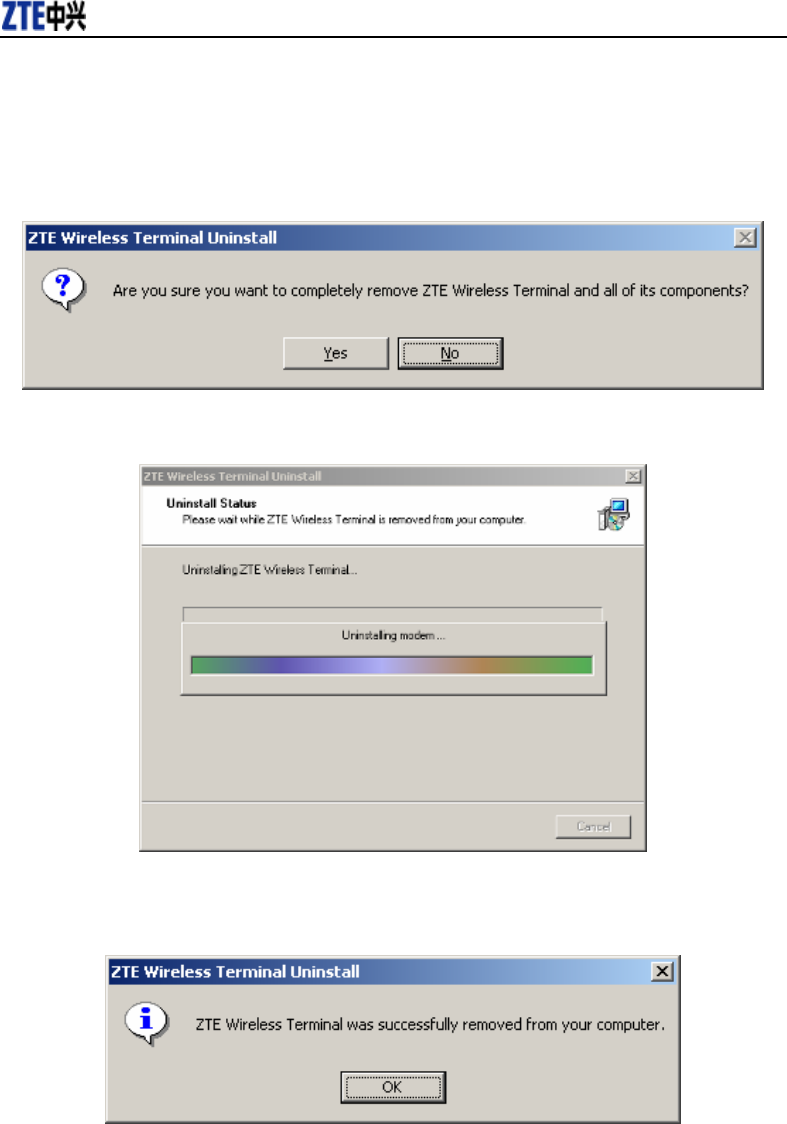

4.1.2 Uninstall

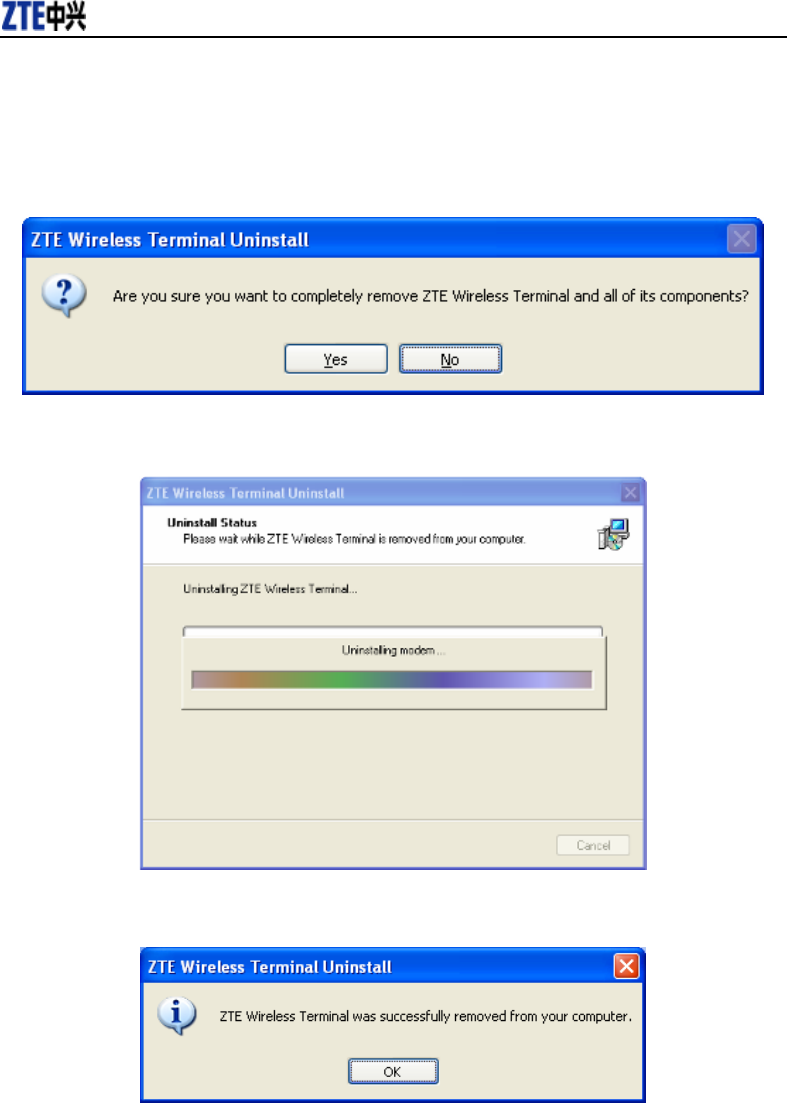

1、Select Start -> Programs -> ZTE Wireless Terminal -> Uninstall ZTE Wireless Terminal. Click
“Uninstall ZTE Wireless Terminal”, and you will be asked if you want to remove the program.
Click “Yes”;
2、Please wait;
3、Click “OK” when un-installation is completed;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4.2 Windows XP
4.2.1 Install
Note: Do not insert the Data Terminal before installation.
1、Find “Setup.exe” firstly in the Data Terminal CD-ROM, double-click it to display the Welcome
picture, and then click “Next”;
2、Select the location where you want the program to be installed, and then click “Next”;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
3、Select Start Menu folder, and then click “Next”;
4、When you see the window below, please click “Install”;
5、Please wait for installation;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

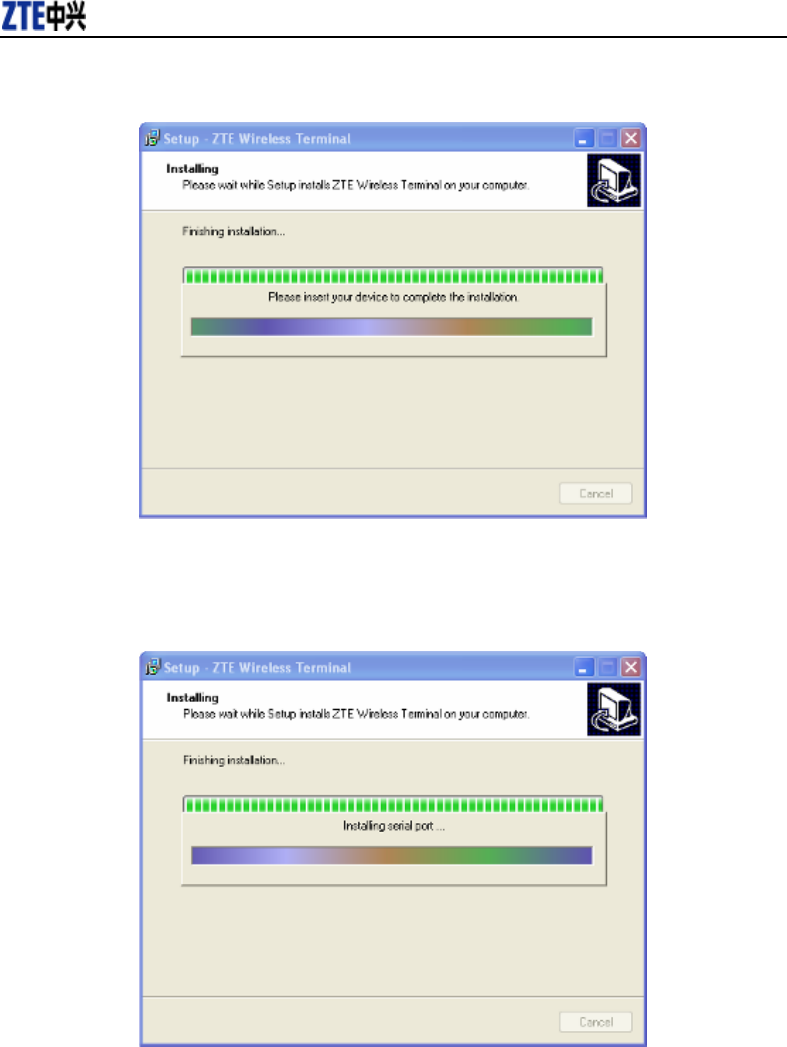

6、Please insert the Data Terminal into USB interface if the system prompts you to insert the
hardware (If it has been inserted, please unplug it and insert again.)
7、The system shall find the new hardware and install the driver automatically. Just wait a
minute.(Please ignore the prompt during the installation, such as “USB device not recognized” or
“Your hardware might not be able to work normally because there is an error during the hardware
installation.”)
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
8、The driver is installed successfully. Pleas click “OK”;
9、Click “Finish” to close the last screen of the wizard. Now you can start the application for data
terminal.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4.2.2 Uninstall
1、Select Start -> Programs -> ZTE Wireless Terminal -> Uninstall ZTE Wireless Terminal. Click
“Uninstall ZTE Wireless Terminal”, and you will be asked if you want to remove the program.
Click “Yes”;
2、Please wait;
3、Click “OK” when un-installation is completed.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4.3 Windows Vista
4.3.1 Install
Note: Do not insert the Data Terminal before installation.
1、Find “Setup.exe” firstly in the Data Terminal CD-ROM, double-click it to display the Welcome
picture, and then click “Next”;
2、Select the location where you want the program to be installed, and then click “Next”;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

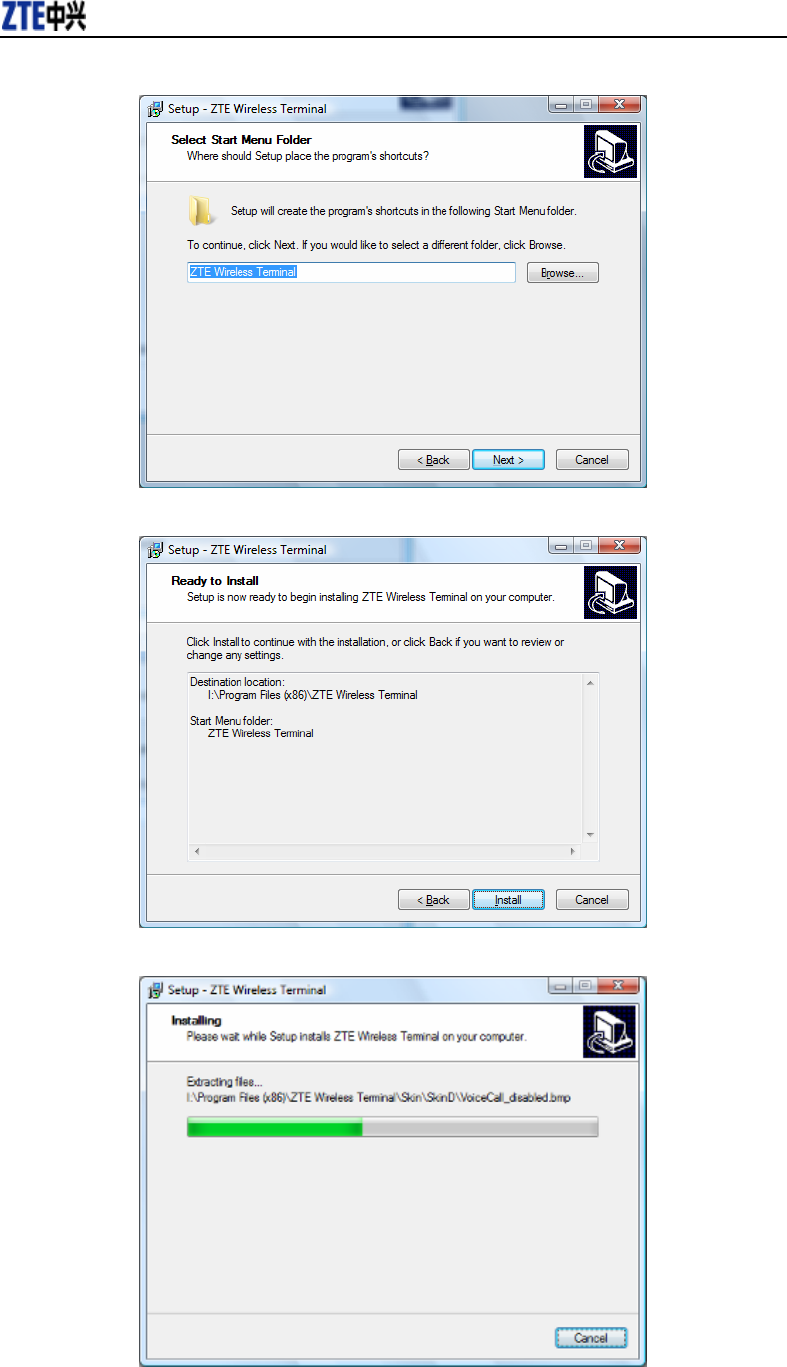

3、Select Start Menu folder, and then click “Next”;
4、When you see the window below, please click “Install”;

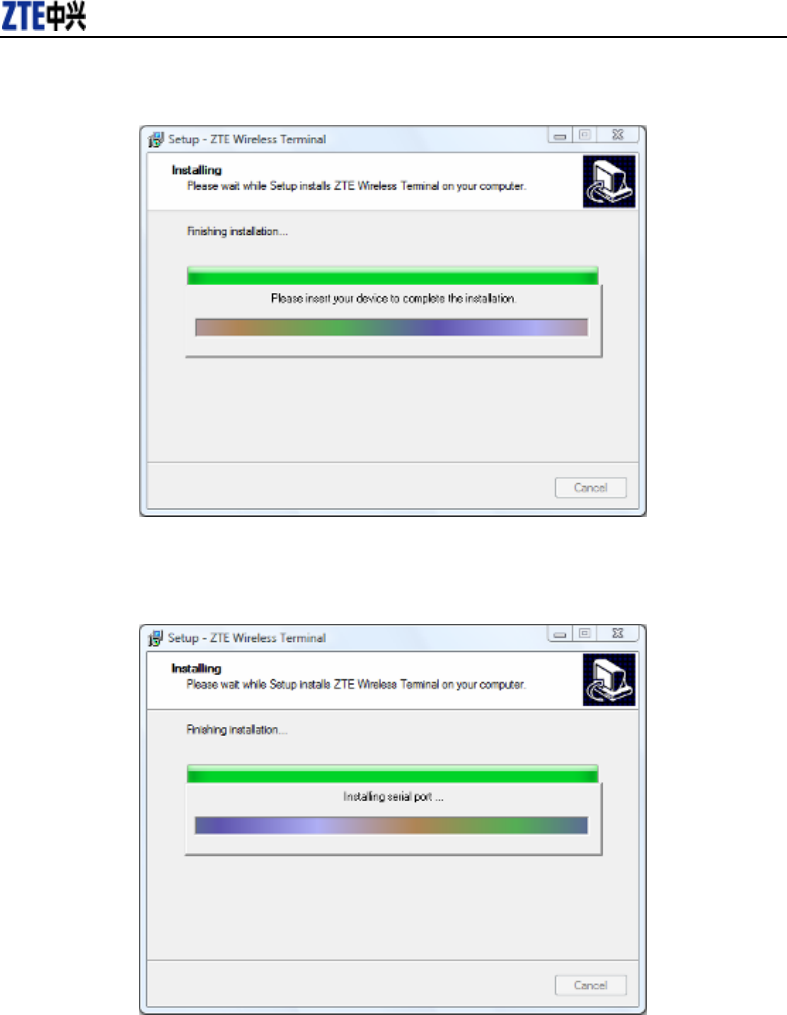

5、Please wait for installation;
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
6、Please insert the Data Terminal into USB interface if the system prompts you to insert the
hardware (If it has been inserted, please unplug it and insert again.)

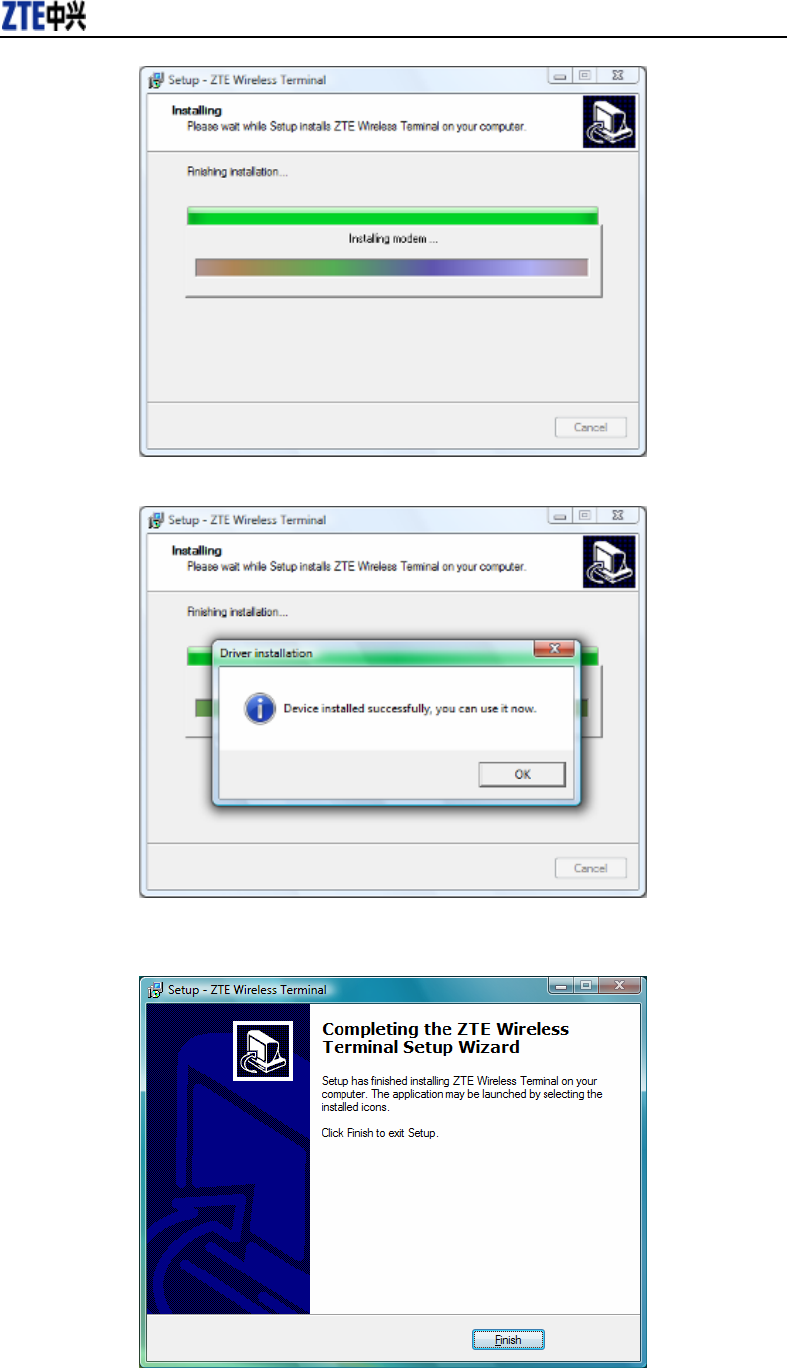

7、The system shall find the new hardware and install the driver automatically. Just wait a
minute.(Please ignore the prompt during the installation, such as “Device driver was not
successfully installed” )
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
8、The driver is installed successfully. Pleas click “OK”;
9、Click “Finish” to close the last screen of the wizard. Now you can start the application for data
terminal.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
4.3.2 Uninstall
1、Select Start -> All Programs -> ZTE Wireless Terminal -> Uninstall ZTE Wireless Terminal.
Click “Uninstall ZTE Wireless Terminal”, and you will be asked if you want to remove the
program. Click “Yes”;
2、Please wait;
3、Click “OK” when un-installation is completed.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

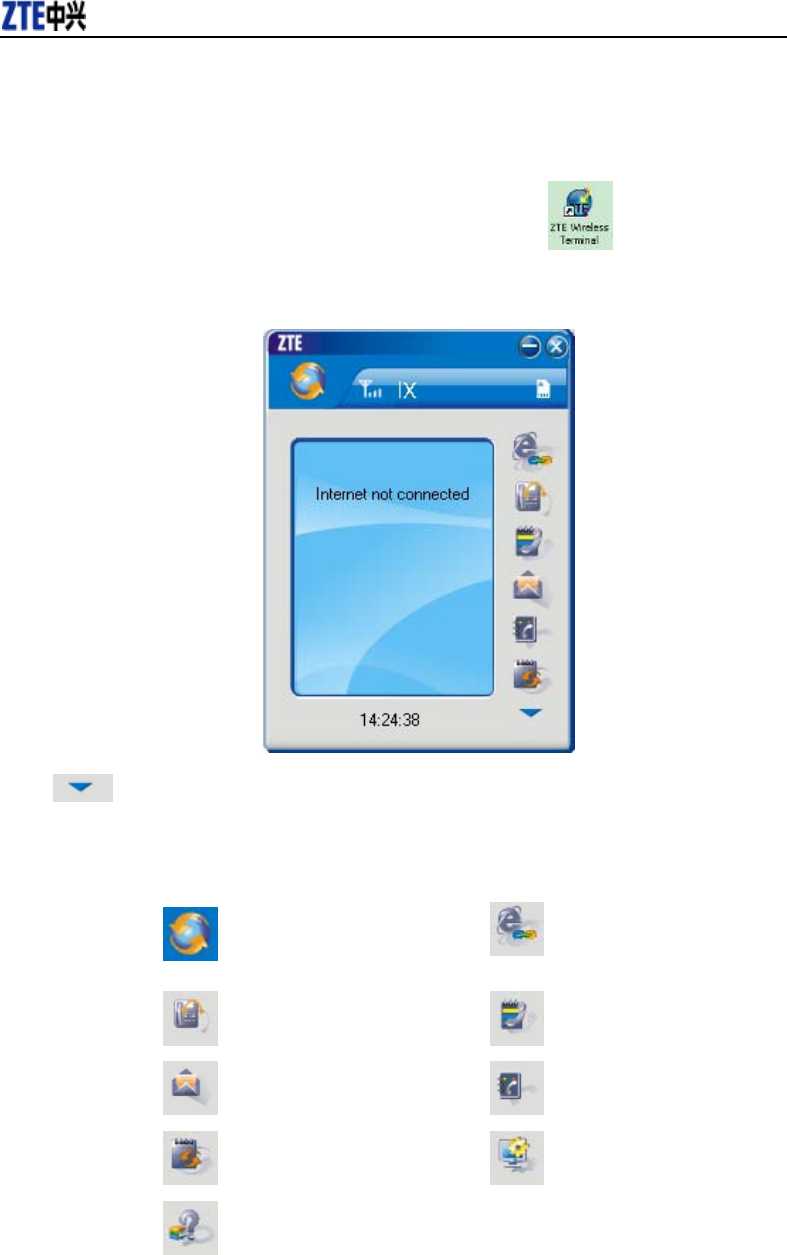

5. Run the Application
After the application is installed successfully, the application icon will appear on your
desktop. Double-click this icon or select from Start -> Programs ->ZTE Wireless Terminal -> ZTE
Wireless Terminal. Run the application to display the following user interface.
Press to display other icons. The icons on the interface are used to access the function,
which indicate as below:
Connect/Disconnect
URL
Voice Call
Call History
Short message Phone book
Connection
Records Setting
Help
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

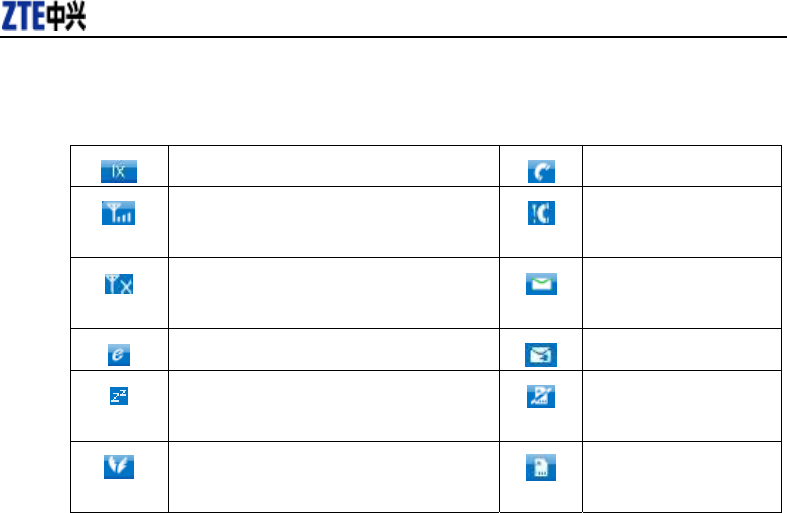

Status Bar:
1X indication Call indication
Signal strength indication. The more
bars there are, the stronger signals are.
Missed call indication
CDMA network unavailable Unread message
indication
Connection indication Inbox full indication
Sleep indication No R-UIM card
inserted indication
Roaming indication R-UIM card inserted
indication
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

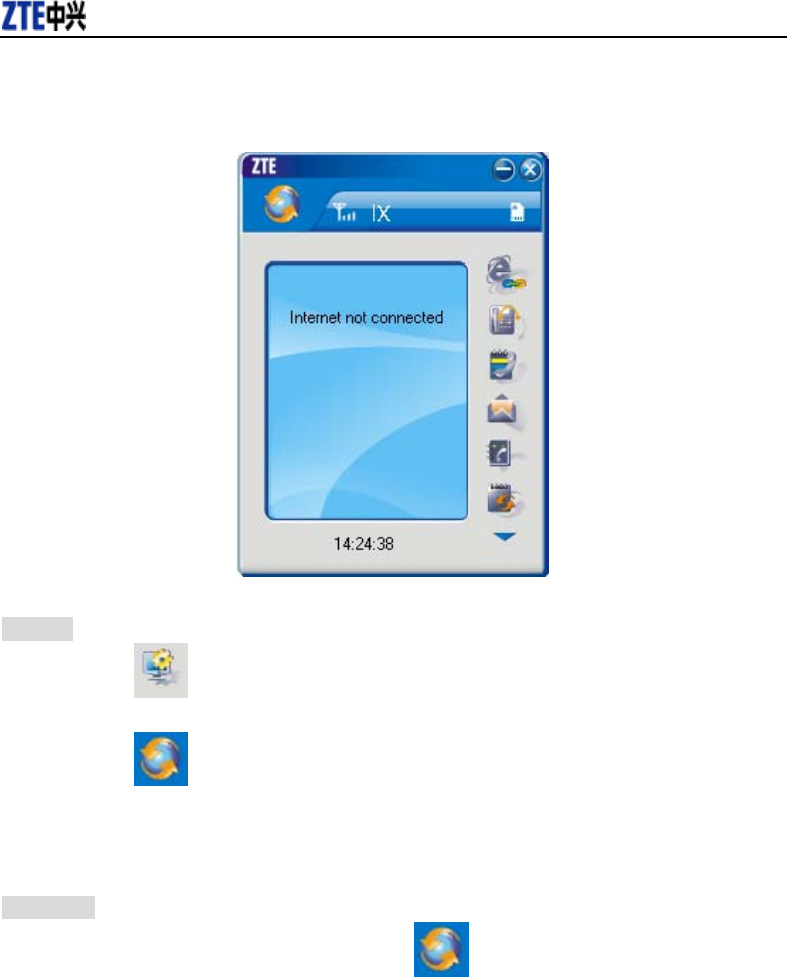

6. Connect/Disconnect
Connect

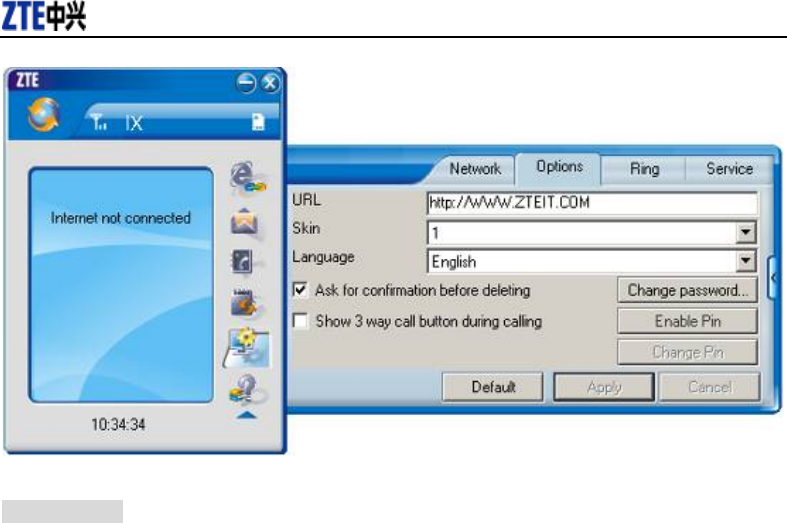

Click icon to set the relevant parameters. For details, please refer to Chapter 12
“Setting” for details.
Click icon at the left-up corner of the interface.
After connecting to Internet, the current network information will appear on the
interface. Double-click any place in the display area to view the connection drawing.
Disconnect
After connecting to Internet, click the rotating icon at the left-up corner of the interface.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
7. Connection Records
Click icon to view connection records. Connection records save the previous relevant
information including Start at, Duration and Transmit bytes, which will help you know the status
easily.
By switching among “List”, “Monthly” and “Statistic”, you could inquire the records every time,
by month or by time.
Note:
The relevant information contained in connection records are just for user’s reference rather than
the charging basis.
Delete Connection Records
Click button to delete the records you have selected on the interface.
Clear Connection Records
Click button to delete all the records.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
8. Voice Call
Click to enter voice call interface.
Make a call
Click the digits in the right side of the interface, or input the digits directly from
keyboard. Press button or press “Backspace” to delete the previous input digit;
press button or press “Esc” to clear all the inputs.
Click button in the right side of the interface or press “Enter” to make a call.
Receive a call
When there is an incoming call, your computer will alert and the incoming caller ID will
appear on the interface.
Click button in the right side of the interface or press “Enter” to receive the call.
Press button or press “Esc” to reject the call.
Redial the latest outgoing call
Click button in the right side of the interface.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

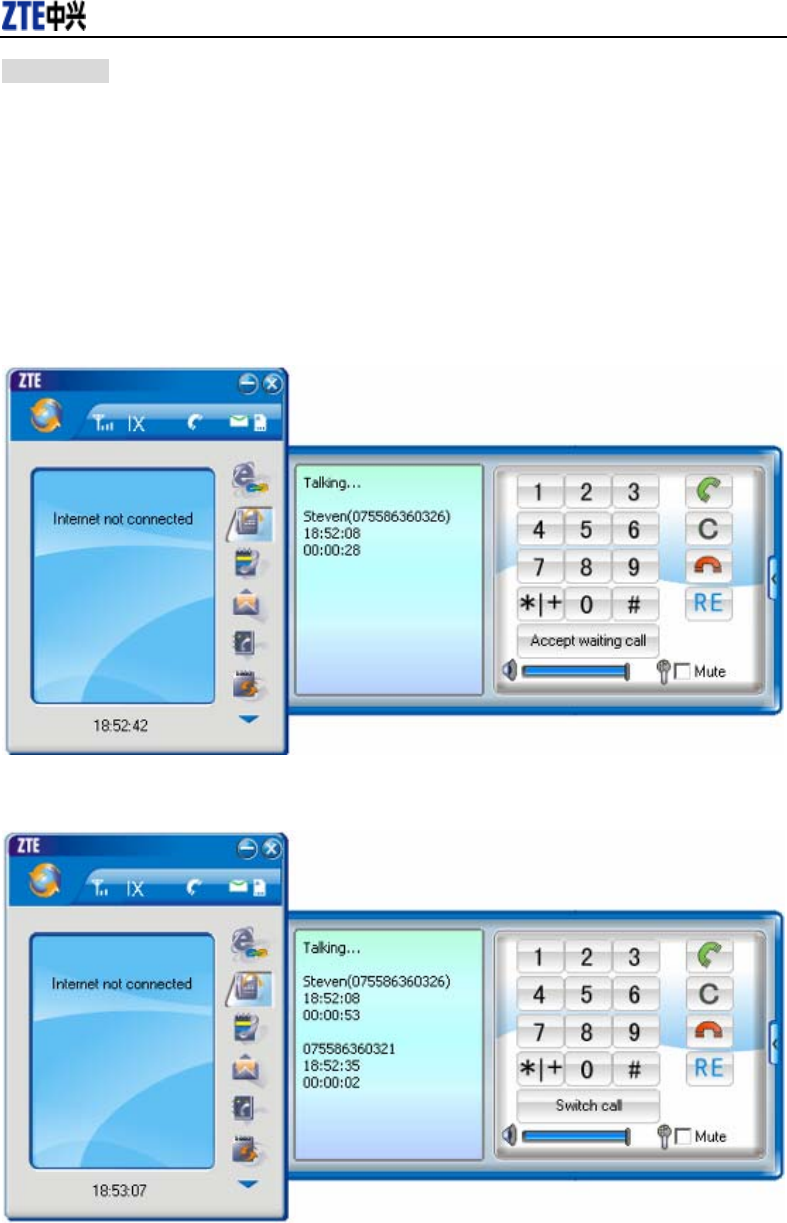

Call Waiting
During a call, you could select to answer the second incoming call, and then you could switch
between the two incoming calls.
Please firstly apply for this service from your local telecom operator.
During a call, if there is a new incoming call, a pop-up window will prompt you that you
have the second incoming call.
If you select to answer, please click “Accept waiting call” button. The previous call
won’t be ended, but temporarily paused.
You could switch between two incoming calls by clicking “Switch call”.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

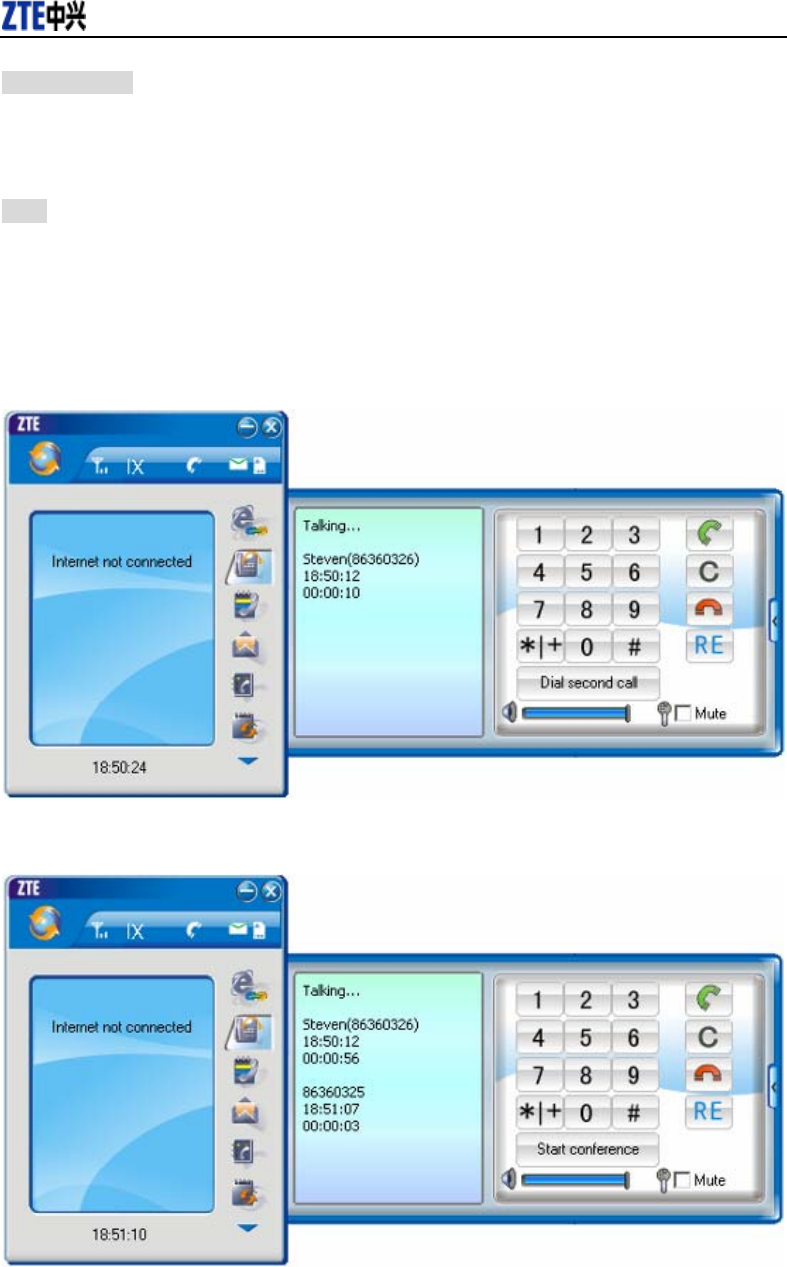

Three-way Call
This function allows for the call among three parties. Please firstly apply for this service from
your local telecom operator.
Note:
You need set “Show 3 way call button during calling”. Please perform the setting according to
chapter 12.
You could click “Dial second call” button during a call, input the third-party number in
the pop-up window, and then press “OK” button to call the third party. In this case, the
original call won’t be ended, but temporarily paused.
If the third party answers the call, click “Start conference” to enter the conference call.
During three-way conference call, click “Hangup second call” button to end the
conference call, and return to the original call.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
9. Call History
Click icon to view the call history. The outgoing/incoming calls are saved in call history,
including missed calls, incoming calls, outgoing calls, and talk duration. You could select the type
you want to view.
Missed/Accepted/Called Calls
Click button to delete your selected record.
Click button to delete all records in Missed/Incoming/Outgoing catalog.
Click button to dial the number.
Click button to send a short message to this number.
Click button to save this number to the phone book.
Statistic
Click button to clear the talk duration.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
10. Short Message
Click icon to enter Short message interface.
Send a Message
Input the text.
Input the recipient’s number or click button to select the recipient from phone
book.
Add more recipients if you like.
Select priority.
Click button to send a message.
Click button to save the text into outbox.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

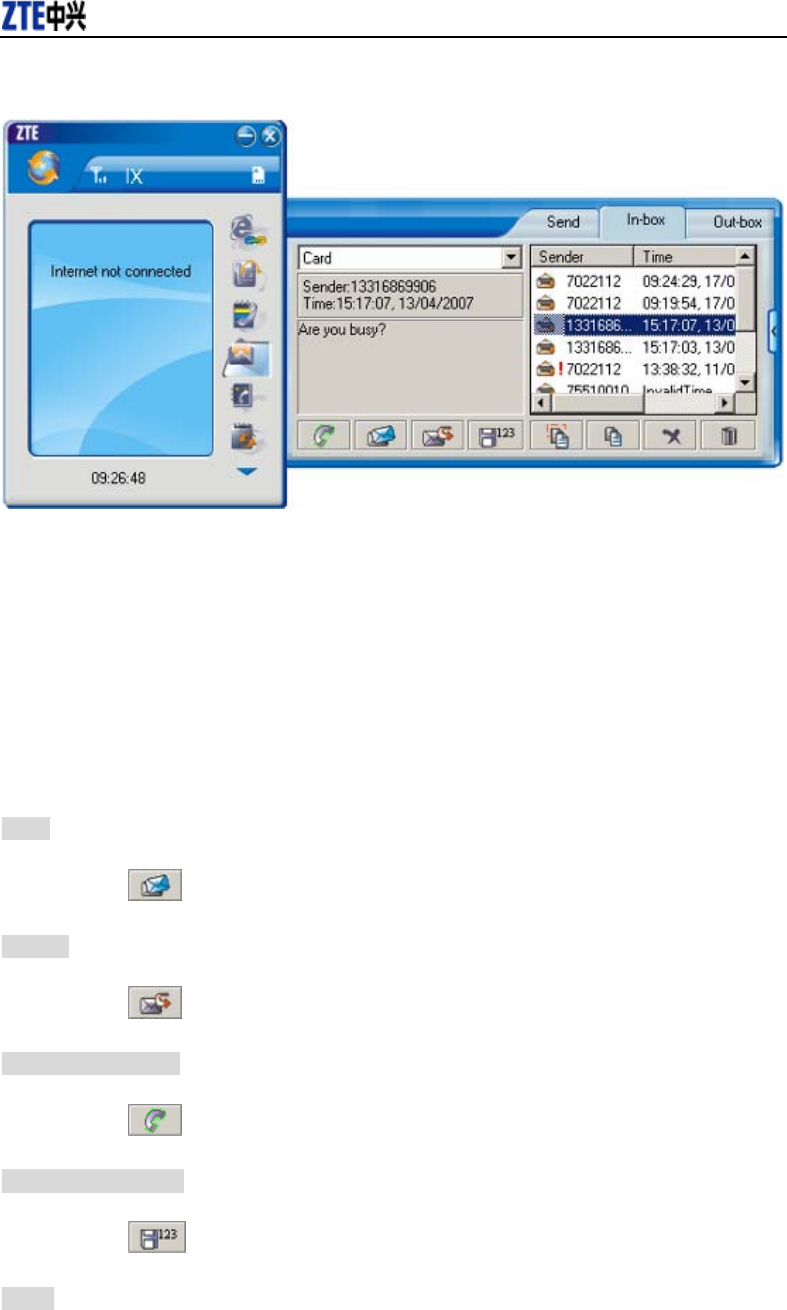

The received messages will be saved in the Data Terminal In-box. After the Data Terminal In-box
is full, the system will automatically move the messages in the Data Terminal In-box to the PC
In-box, and clean out the Data Terminal In-box.
You could copy the messages from the Data Terminal In-box to PC In-box by selecting Copy or
Copy All; you could also copy the messages from PC In-box to the Data Terminal In-box by
selecting Copy.
The sent messages and unsent but saved messages will be all saved in the Out-box.
Take Data Terminal In-box as an example:
Reply
Click to reply to the sender.
Forward
Click to forward this message to other recipients.
Dial Sender’s Number
Click to dial the sender’s phone number.
Save Sender’s Number
Click to save the sender’s number into phone book.
Delete
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Click to delete your selected records.
Clear
Click to delete all the records in the inbox..
Copy
Click to copy your selected record into PC.
Copy All
Click to copy all the records from the data terminal to PC.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

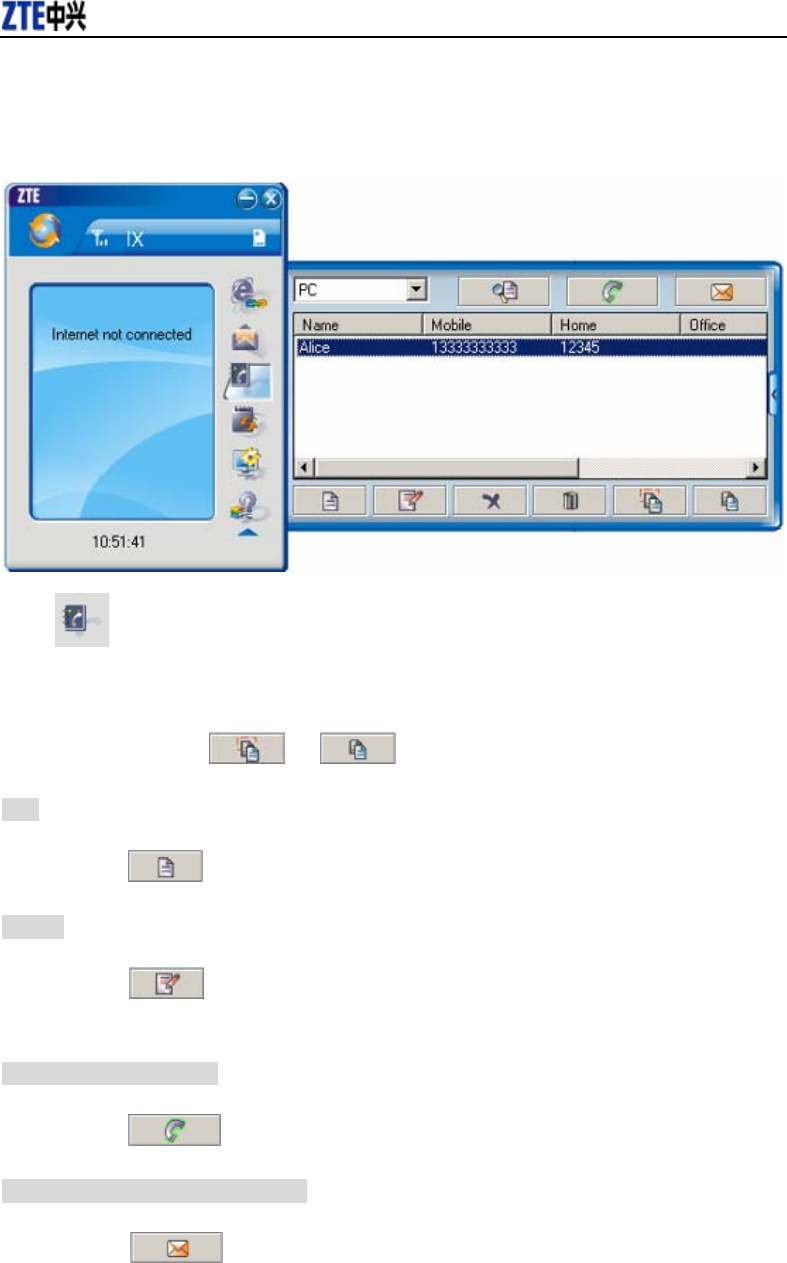

11. Phone Book
Click to view the Phone book. You could select to save the contacts either in the data
terminal or in the computer. Click the pull-down menu to select the storage location.
You could copy the contacts from the data terminal to your computer or from the computer to the
data terminal by clicking or .
Add
Click then input the contents and select “OK” to add a new contact.
Modify
Click then modify the contents and select “OK” to modify the contact
information.
Dial from the phone book
Click to dial your selected phone number.
Send messages from the phone book
Click to compose the text. You could send the message to multiple
recipients.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

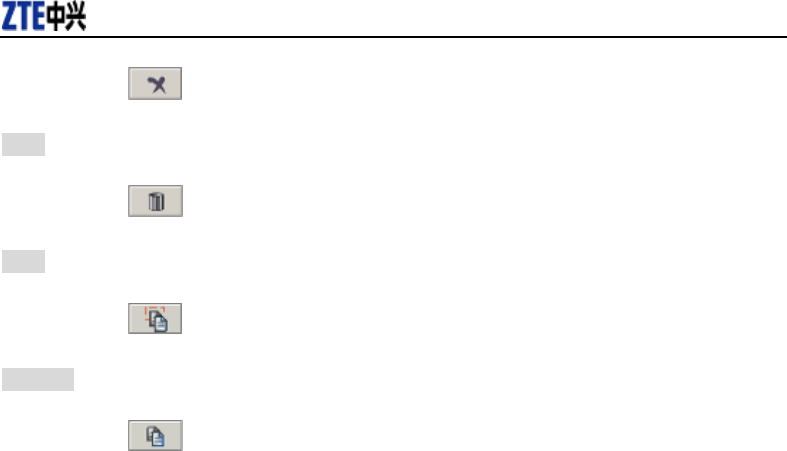

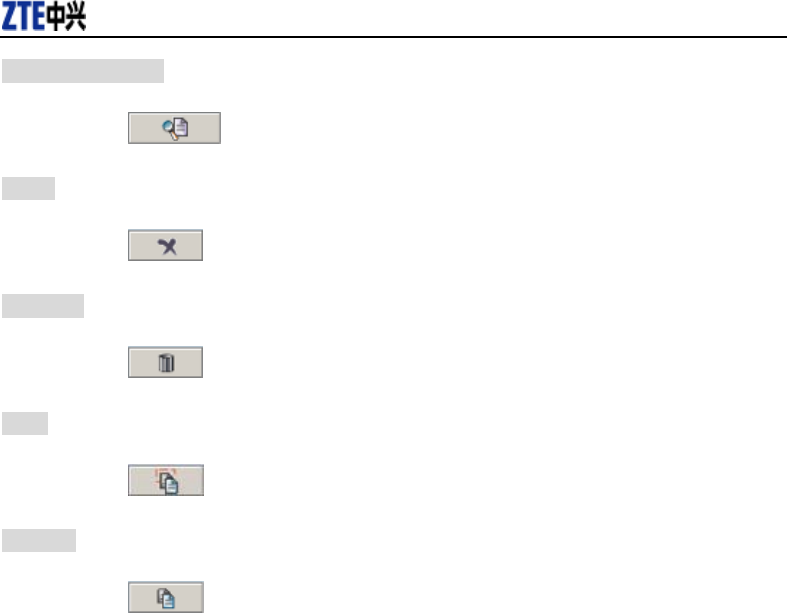

Search for contacts
Click to search for the contacts by name or number.
Delete
Click to delete your selected contact.
Delete All
Click to delete all the contacts.
Copy
Click to copy your selected contacts to other storage location.
Copy All
Click to copy all contacts to other storage location.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
12. Setting
Click to enter the setting interface.

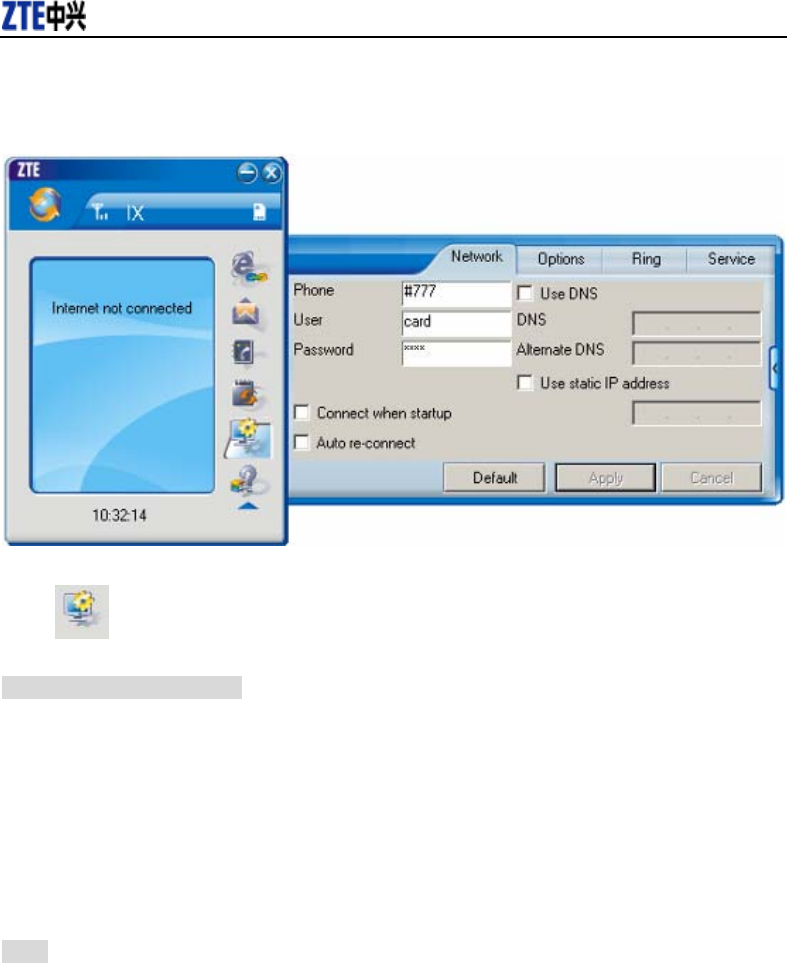

Network Connection Setting
Set up the relevant parameters on the “Network” interface.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Note:
The default network setup parameters are as below. Different regions may have different network
setup parameters, so please consult your local telecom operator.
Phone: #777
User: card
Password: card
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Other Setting:
Click “Options” to switch the interface, and you could set URL and select the skin,
language, etc. If you want to use conference call, please select “Show 3 way call button
during calling”;
After the setting, click “Apply” button to save the settings on the current interface.
Click “Change Password” button to set lock device. The password is required when you
start the application. The setting has nothing to do with "Default" button.
If your data terminal needs R-UIM card, please click the button “Enable Pin”. PIN code
is needed when the application is started. The setting has nothing to do with "Default"
button.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn

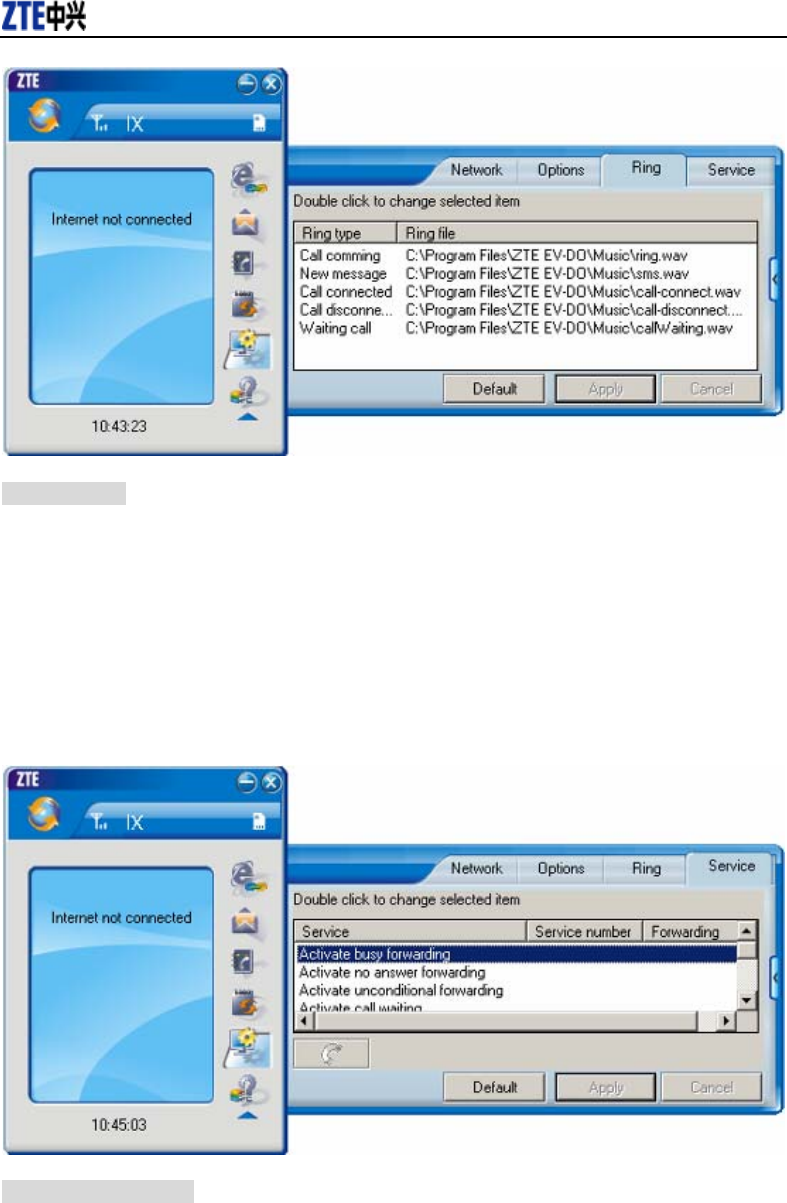

Select ring tone
After clicking “Ring”, you could set different ring tones for Call coming, New message,
Call connected, Call disconnected and Waiting call.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.
Supplementary Services
After clicking “Service”, you could set “Unconditional forwarding”, “Busy Forwarding”,
“No answer forwarding”, “Call waiting”, etc. Double-click the selected option to modify
the service number and forwarding number.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
After the setting, click button to send the corresponding request to the
network system.
After the setting, click “Apply” button to save the settings on the current interface.
Click “Default” button and then “Apply” button to restore the settings on the current
interface to factory default.

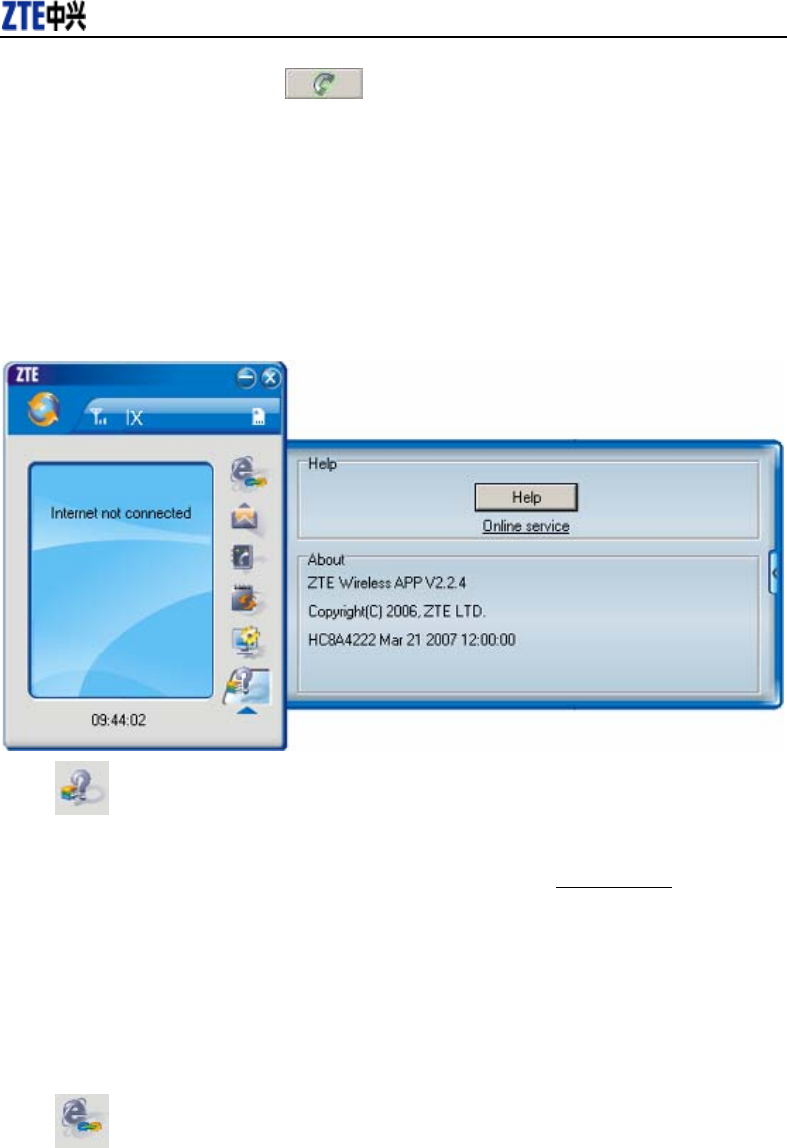

13. Help
Click button to view the help file.
Click “Help” button to view the relevant help file; click “Online service” to enter our
company’s website.
You could view the software version information under “About”.
14. Connect to the Website
Click button to directly connect the website you set. For details on the website setting,
please refer to Chapter 12 “Setting”.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
15. Trouble-shooting
After the installation, go to device manager and find “ZTE USB Modem 3197” under “Modem”
and “ZTE Diagnostics Interface 3197” under “Port”. If they are not found, please remove the
software and reinstall.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
Common Failures Table:
Failures Causes Solutions
Error occurs when running
setup.exe file. The setup file may be damaged.
Please download the program on
our website WWW.ZTEMT.COM
and reinstall it.
Directly run the software before the Data
Terminal is plugged in.
Close the software, plug in the
Data Terminal and run it again.
Open port failed. The port is occupied by other applications,
such as “Hyper terminal”, or the software is
already run.
Close relevant software and run
the software again.
R-UIM card is not inserted. Insert R-UIM card.
R-UIM card isn’t inserted properly.
Sometimes the front side and back side are
confused.
Please refer to section 3.2.
Properly insert R-UIM card.
No R-UIM card.
R-UIM card is damaged. Validate by using
a CDMA terminal.
Replace R-UIM card.
Antenna is not connected to the Access
Box.
Insert the antenna into the Data
Terminal.
Out of the network service area. Make sure it is in the CDMA
network service area.
No signal indicated.
The antenna or RF component is damaged. Replace relevant damaged parts.
Wrong setting of parameters (Phone, User,
Password)
Correct the parameter settings.
Consult your service provider for
details.
Not enough money in R-UIM card. Consult your service provider for
details.
Dialing failed
Network congestion or failure. Try again later.
The Data Terminal is being connected. (It
usually occurs when the Internet connection
is immediately made after the call is dialed)
Reconnect.
Internet connection failure.
Poor network signal. View signal strength indication
and check if the antenna is
properly inserted.
The driver might be unable
to work and the application
is unable to run normally if
the terminal is pulled out
and plugged in again when
the application is being used
under Win2000 operating
system (SP4).In this case,
the device in device
manager will be marked
with yellow exclamation
mark, and the system must
be restarted to run normally.
The operating system needs installing
Update Roll 1 patch for Win2K SP4.
Please download the patch from
the following web site and install
it.
http://www.microsoft.com/do
wnloads/details.aspx?familyi
d=B54730CF-8850-4531-B5
2B-BF28B324C662&display
lang=en
If the problems cannot be solved after the above handling, please call 86-755-26010555 or feed
back your information directly by sending emails to zte_mobile@zte.com.cn for customer service.
We will reply to you as soon as possible and provide you with high quality after-sales services.
Wireless Data Terminal User Guide
ZTE Corporation http://www.zte.com.cn
16. Health and Safety Information – RF Exposure Information
THIS DEVUCE MEETS THE GOVERNMENT’S REQUIREMENTS
FOR EXPOSURE TO RADIO WAVES.
This device is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. government. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The guidelines are based on
standards that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Before a mobile phone is available for sale to the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the government adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC.
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement. The FCC has granted an Equipment
Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on the mobile phone is on file with the FCC
and can be found under the Display Grant section of http://www.gov/oet/fccid after searching on
FCC ID stock on the label on the device.
Note: In the United States and Canada, the SAR limit recommended by international guidelines
for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one grams of
tissue. The limit incorporates a substantial margin for safety to give additional protection for the
public and to account for any variations in measurements.
