ZTE MO-01J LTE/WCDMA Dual -Mode Digital Mobile Phone User Manual MO 01J
ZTE Corporation LTE/WCDMA Dual -Mode Digital Mobile Phone MO 01J
ZTE >
User Manual
1
MO-01J
Quick Start Guide
2
LEGAL INFORMATION
Copyright © 2016 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced, translated or
used in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
ZTE Corporation reserves the right to make modifications on print errors or
update specifications in this guide without prior notice.
Notice
We offer self-service for our smart terminal device users. Please visit the
ZTE official website (at www.ztedevice.com) for more information on
self-service and supported product models. Information on the website
takes precedence.
Visit http://www.ztedevice.com to download the user manual. Just click
Support > Manuals from the home page and then select your location,
product type, and name to search for related support information.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and damages
caused by unauthorized modifications of the software.
Images and screenshots used in this guide may differ from the actual
product. Content in this guide may differ from the actual product or
software.
3
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation. Google and
Android are trademarks of Google, Inc. The Bluetooth® trademark and
logos are owned by the Bluetooth SIG, Inc. and any use of such
trademarks by ZTE Corporation is under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of Qualcomm
Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated,
registered in the United States and other countries. Used with
permission.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Audio, and the double-D symbol are trademarks of Dolby Laboratories.
Other trademarks and trade names are the property of their respective
owners.
Version No.: R1.0
Edition Time :February 16, 2016
Manual No. : 07958450xxxx
4
Product Safety Information
Don’t make or receive phone calls while driving. Never text while
driving.
For body-worn operations, maintain a separation of 10 mm.
Small parts may cause choking.
Your phone can produce a loud sound.
To prevent possible hearing damage, do not listen at high volume
levels for long periods.
Avoid contact with anything magnetic.
Keep away from pacemakers and other electronic medical devices.
Turn off when asked to in hospitals and medical facilities.
Turn off when told to on aircraft and at airport.
Turn off when near explosive materials or liquids.
Don’t use at gas stations.
5
Your phone may produce a bright or flashing light.
Don’t dispose of your phone in fire.
Avoid extreme temperatures.
Avoid contact with liquids. Keep your phone dry.
Do not attempt to disassemble your phone.
Only use approved accessories.
Don’t rely on your phone as a primary device for emergency
communications.
6
Getting to Know Your Phone
Front camera Proximity & Light
sensor
Earpiece
Charging / micro-USB
jack
Volume key
Power key
nano-SIM/
microSDHC card tray
Touch screen
Main
microphone
3.5mm Headset
j
ac
k
Auxiliary
Microphone
Mute button
7
Flash
Back camera
Speaker
8
Before Getting Started
Installing the nano-UIM / nano-SIM / microSDHC Card
Power off your phone before installing or removing the nano-SIM or
microSDHC card.

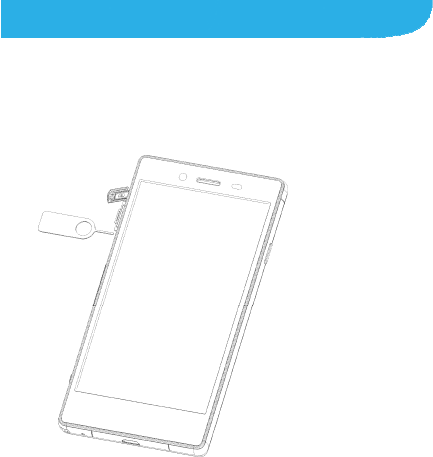

1. Insert the tip of the tray eject tool into the hole on the card tray.

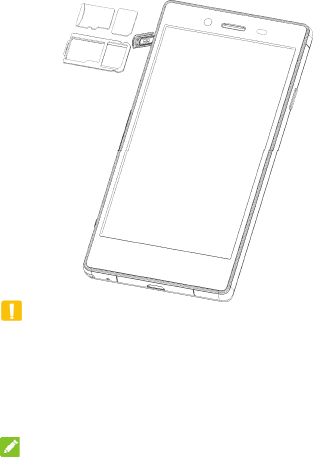

2. Pull out the card tray and place the nano-SIM card or microSDHC card
on the tray, as shown. Then carefully install the tray back.
9
CAUTION:
To avoid damage to the phone, please do not use other kinds of nano-UIM /
nano-SIM cards, and do not use a non-standard nano-UIM / nano-SIM /
card cut from a (U)SIM card. You can get the standard nano-UIM /
nano-SIM card from your service provider.
NOTE
Slot2 only supports microSDHC card.
10
Charging the Battery
Your phone’s battery should have enough power for the phone to turn on,
find a signal, and make a few calls. You should fully charge the battery as
soon as possible.
WARNING!
Use only ZTE-approved chargers and cables. The use of unapproved
accessories could damage your phone or cause the battery to explode.
CAUTION:
Do not change the built-in rechargeable battery in your phone by yourself.
The battery can only be changed by ZTE or ZTE authorised service
provider.

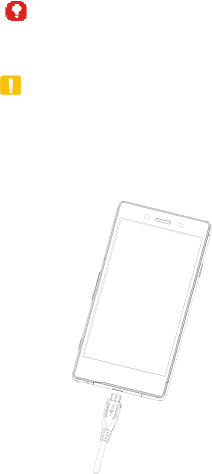

1. Connect the adapter to the charging jack. Ensure that the adapter is
inserted in the correct direction.
11
2. Connect the charger to a standard AC power outlet.
3. Disconnect the charger when the battery is fully charged.
NOTES:
If the battery is extremely low, you may be unable to power on the
phone even when it is being charged. In this case, try again after
charging the phone for at least 30 minutes. Contact customer
service if you still cannot power on the phone after prolonged
charging.
The battery is not removable and do not remove the rear cover
please.
Press and hold the Power key for about 10 seconds to force the
mobile phone restart.
Enqueiring the E-lable
In home screen, touch > Settings > About phone > E-label
certificate.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
12
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's requirements for exposure
to radio waves. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons
13
regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA
(FCC) is 1.6 W/kg averaged over one gram of tissue. Device types:
MO-01J(FCC ID: SRQ-MO-01J) has also been tested against this SAR
limit. The highest SAR value reported under this standard during product
certification for use close to human ear is 0.595W/kg, body-worn is
0.641W/kg, hotspot mode is 0.711W/kg. This device was tested for
typical body operations at 1.0cm from the body. The use of accessories
that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body Operation
This device was tested for typical body support operations. To comply
with RF exposure requirements, a minimum separation distance of 1.0
cm must be maintained between the user’s body and the device,
including the antenna. Third-party belt-clips, holsters, and similar
accessories used by this device should not contain any metallic
components. Body accessories that do not meet these requirements may
not comply with RF exposure requirements and should be avoided. Use
only the supplied or an approved antenna.
FCC RF exposure information (SAR)
This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg.
14
Although the SAR is determined at the highest certified power level, the
actual SAR level of the device while operating can be well below the
maximum value.
While there may be differences between the SAR levels of various
devices and at various positions, they all meet the government
requirements.
The FCC has granted an Equipment Authorization for this model device
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model device is on file with
the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on the FCC ID for your
device, which can be found on the back of the device.
