ZTE MO-01K LTE/WCDMA Dual-Mode Digital Mobile Phone User Manual SRQ MO 01K Quick Guide
ZTE Corporation LTE/WCDMA Dual-Mode Digital Mobile Phone SRQ MO 01K Quick Guide
ZTE >
Users Manual
1
MO-01K
Quick Start Guide
2
LEGAL INFORMATION
Copyright © 2017 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on
print errors or update specifications in this guide without prior
notice.
We offer self-service for our smart terminal device users.
Please visit the ZTE official website (at www.ztedevice.com)
for more information on self-service and supported product
models. Information on the website takes precedence.
Visit http://www.ztedevice.com to download the user manual.
Just click Support from the home page and then select your
location, product type, and name to search for related support
information.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the
software.
Images and screenshots used in this guide may differ from the
actual product. Content in this guide may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the
Bluetooth SIG, Inc. and any use of such trademarks by ZTE
Corporation is under license.
microSDXC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other
countries. Used with permission.
Other trademarks and trade names are the property of their
respective owners.
3
Getting to Know Your Phone
Earpiece
Proximity &
light sensor
Volume key
Power key
Indicator light
Front camera
microSDXC
/nano-SIM card
slot
Touch screen
Ring/Silent
switch
A
uxiliary
micro
p
hone
Headset jack
4
Charging/
micro-USB jack
Speake
r
Main
microphone
Back camera
Flash
5
Setting up Your Phone
Power off your phone before removing or replacing the battery.
Power off your phone before installing or removing the
nano-SIM card. The microSDXC card can be installed or
removed while the phone is turned on, but you need to
unmount it before removing it.
WARNING!
To avoid damage to the phone, do not use any other kind of
SIM cards, or any non-standard nano-SIM card cut from a SIM
card. You can get a standard nano-SIM card from your service
provider.

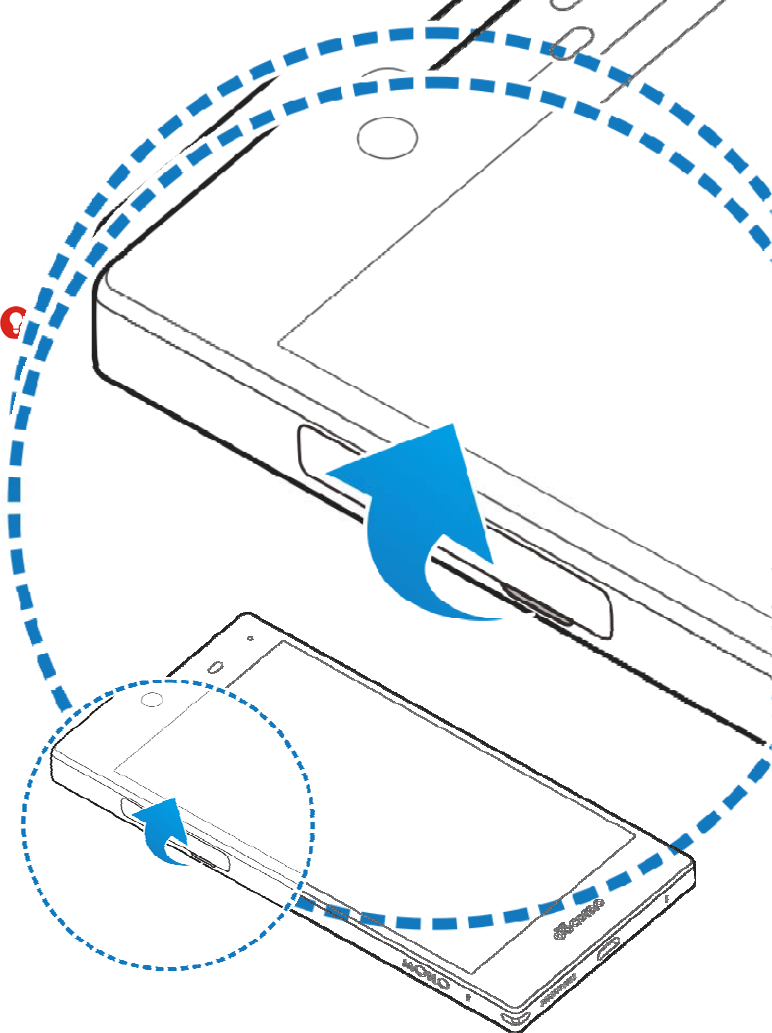

1. Insert your fingernail into the slot at the left of the phone
and lift it up gently.

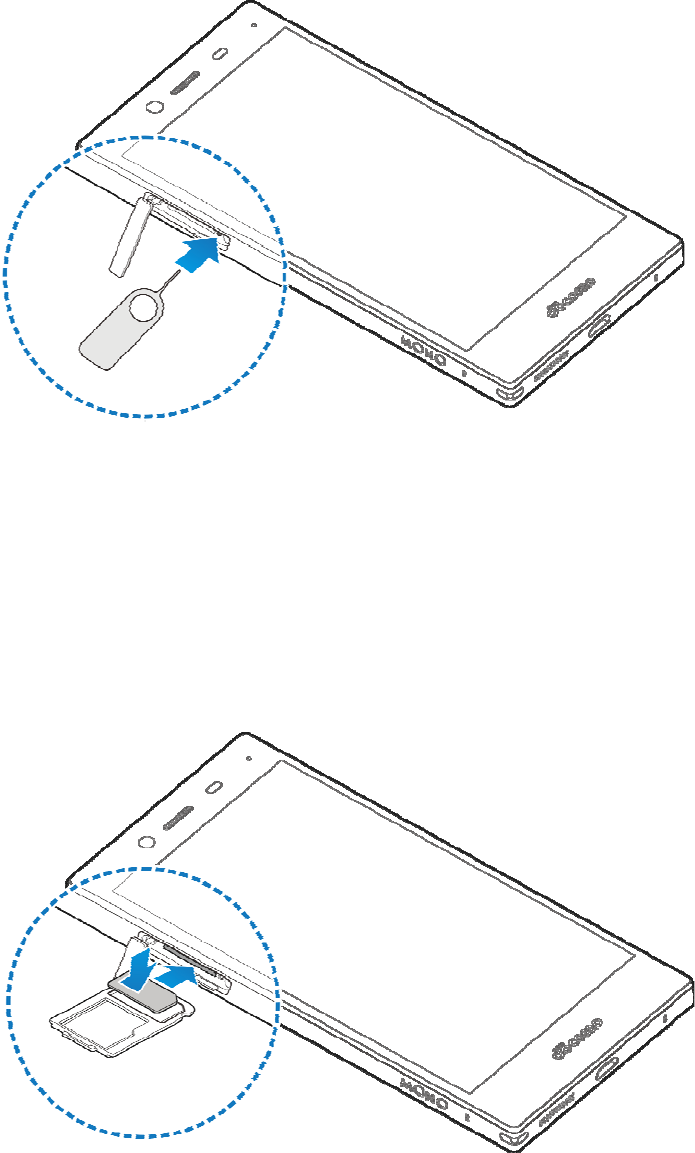

2. Insert the tip of the tray eject tool into the hole on the
nano-SIM / microSDXC card tray.
6

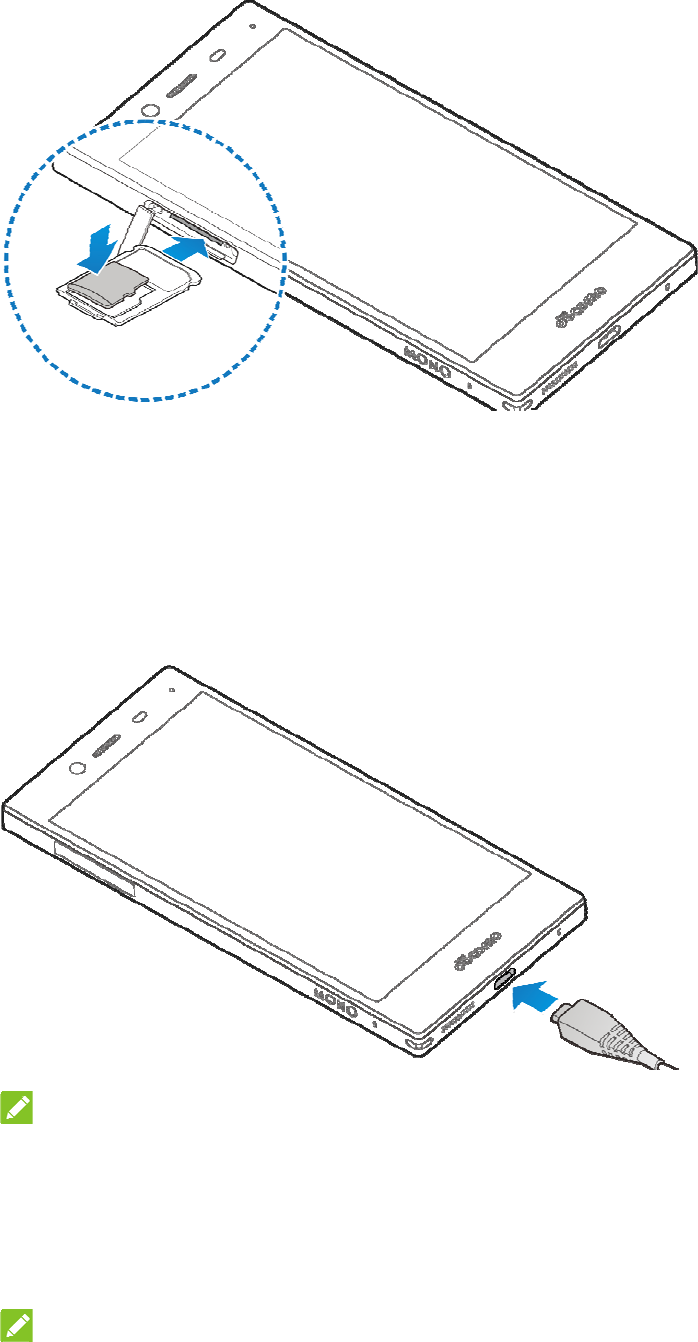

3. Pull out the nano-SIM card tray or microSDXC card tray
and place the nano-SIM card or microSDXC card on the
tray, as shown. Then carefully install the tray back.
microSDXC card is not included in the package and is sold
separately.
Slide the nano-SIM card into the card holders.
Hold the microSDXC card with the cut corner
oriented as shown and slip it into the card slot.
7
Charging the Phone
Your phone’s battery should have enough power for the phone
to turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try
again after charging the phone for at least 20 minutes. Contact
the customer service if you still cannot power on the phone
after prolonged charging.
NOTE:
If the screen freezes or takes too long to respond, try pressing
and holding the Power key for about 10 seconds to restart the
phone.
8
Product Safety Information
Don’t make or receive phone calls while driving.
Never text while driving.
The device could be used with a separation
distance of 5 mm to the human body.
Small parts may cause choking.
Your phone can produce a loud sound.
To prevent possible hearing damage, do not listen
at high volume levels for long periods.
Avoid contact with anything magnetic.
Keep away from pacemakers and other electronic
medical devices.
Turn off when asked to in hospitals and medical
facilities.
Turn off when told to on aircraft and at airport.
Turn off when near explosive materials or liquids.
Don’t use at gas stations.
Your phone may produce a bright or flashing light.
Don’t dispose of your phone in fire.
Avoid extreme temperatures.
Avoid contact with liquids. Keep your phone dry.
Do not attempt to disassemble your phone.
Only use approved accessories.
Don’t rely on your phone as a primary device for
emergency communications.
9
CE Caution
Battery Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
USB Port
This product shall only be connected to a USB interface of
version USB 2.0.
Proper Use
As described in this guide, your device can be used only in
right location. If possible, please do not touch the antenna
area on your device.
Do not expose your device to extreme temperatures lower
than – 10 °C and higher than + 55 °C.
Hereby, ZTE Corporation declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
10
Disposal of Your Old Appliance
1. When this crossed-out wheeled bin symbol
is attached to a product, it means the
product is covered by the European
Directive 2012/19/EU.
2.
A
ll electrical and electronic products should
be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.
For this product’s recycling information based on WEEE
directive, please send an e-mail to weee@zte.com.cn
EC DECLARATION OF CONFORMITY
Hereby, ZTE Corporation declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
The full text of the EC declaration of conformity is available at
the following internet address:
http://certification.ztedevice.com
11
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's requirements for
exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
12
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons regardless
of age or health.
FCC RF Exposure Information and Statement The SAR limit of
USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types: MO-01K (FCC ID: SRQ-MO-01K) has also
been tested against this SAR limit. The highest SAR value
reported under this standard during product certification for
use close to human body is 0.872W/kg, for against the head is
0.974W/kg. This device was tested for typical body operations
at 10mm from the body. The use of accessories that do not
satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body Operation
This device was tested for typical body support operations. To
comply with RF exposure requirements, a minimum separation
distance of 10mm must be maintained between the user’s
body and the device, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device
should not contain any metallic components. Body accessories
that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
FCC RF exposure information (SAR)
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be
well below the maximum value.
13
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirements.
The FCC has granted an Equipment Authorization for this
model device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model device is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on the FCC ID:
SRQ-MO-01K.

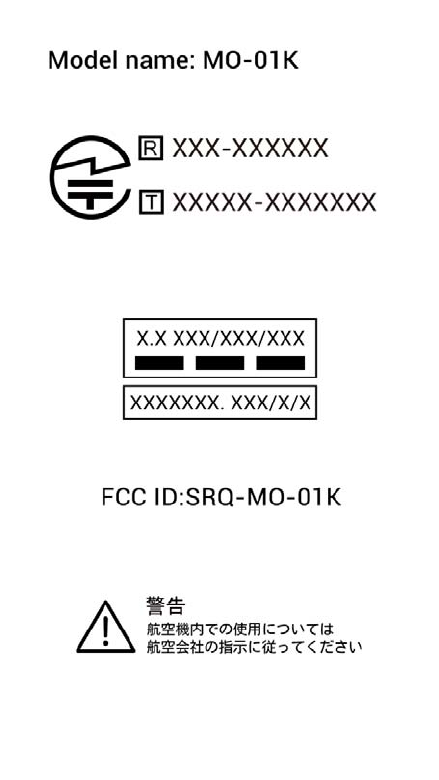

Enquiring the E-label
From the home screen, touch Settings > About phone >
E-label certificate.
