Vodafone Mobile Wi-Fi
R212
Let’s go
Getting started with your device.
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
2
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors
or update specifications without prior notice.
Version No. : R1.0
Edition Time : 2012.12
NOTE:
Do not use the device in an enclosed environment or where heat dissipation is poor. Prolonged work in
such space may cause excessive heat and raise ambient temperature, which may lead to automatic
shutdown of the device for your safety. In the case of such event, cool the device in a well-ventilated
place before turning on for normal use.
3
Getting to Know Your Device

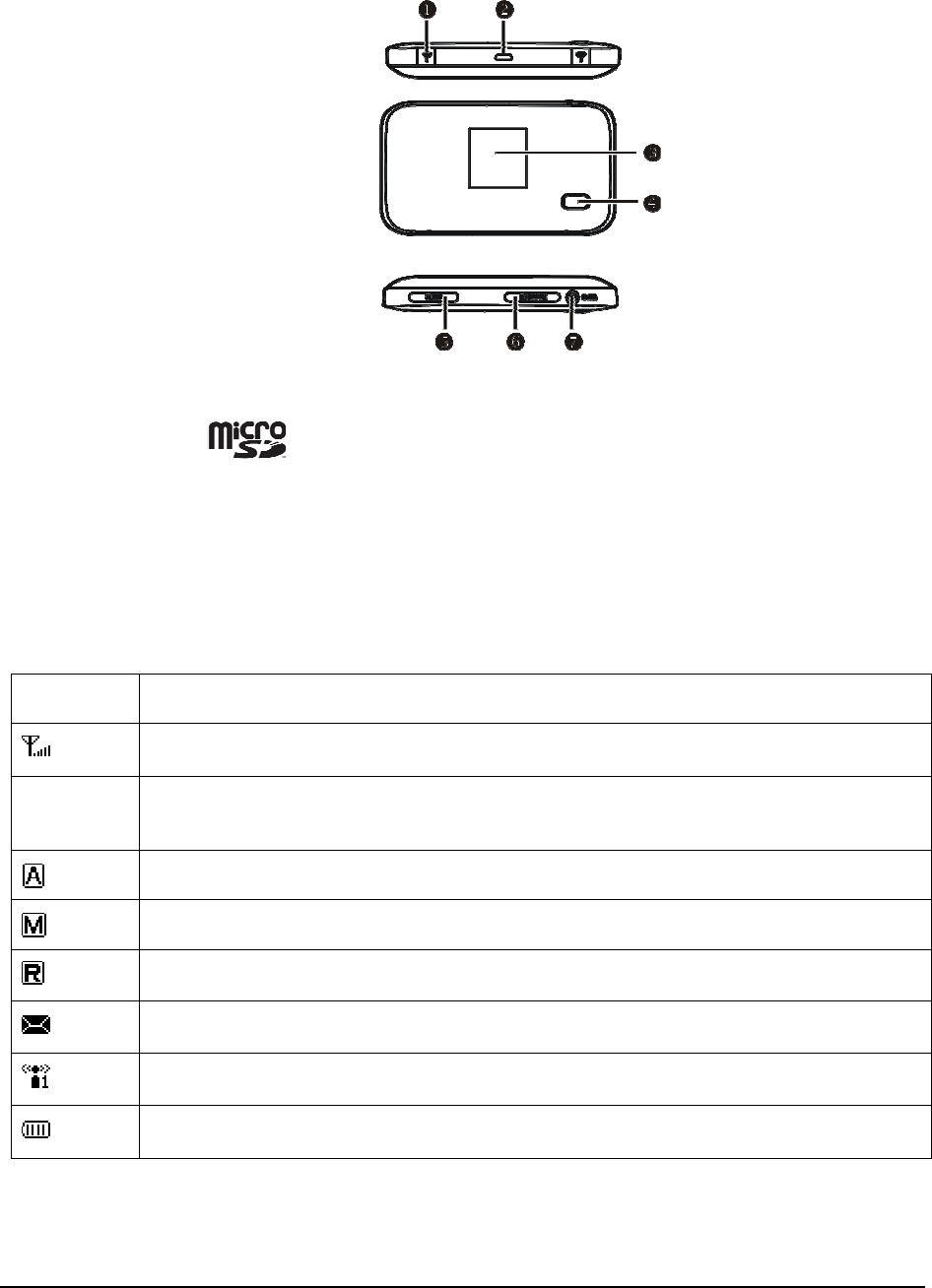

Appearance
The following figure is only for your reference. The actual product may be different.
External Antenna Connector
Micro USB Port
OLED Screen
Power Switch
(U)SIM Card Slot
RESET Button / microSD Card Slot
WPS Button
NOTES:
microSD logo is a trademark of SD Card Association.
Please use the original external antenna if necessary.
Indicators
When the device is powered on, the following icons will appear on the OLED screen, with the
corresponding indicates listed in the table below:
Icon Indication
Network signal strength.
2G/3G/4G Network type. 2G, 3G, 4G icon will appear on the OLED screen according to the
network being connected.
Connect to the Internet automatically.
Connect to the Internet manually.
Roaming network indication.
New message received.
Wi-Fi Status and number of the connected users.
Battery power indication.
4

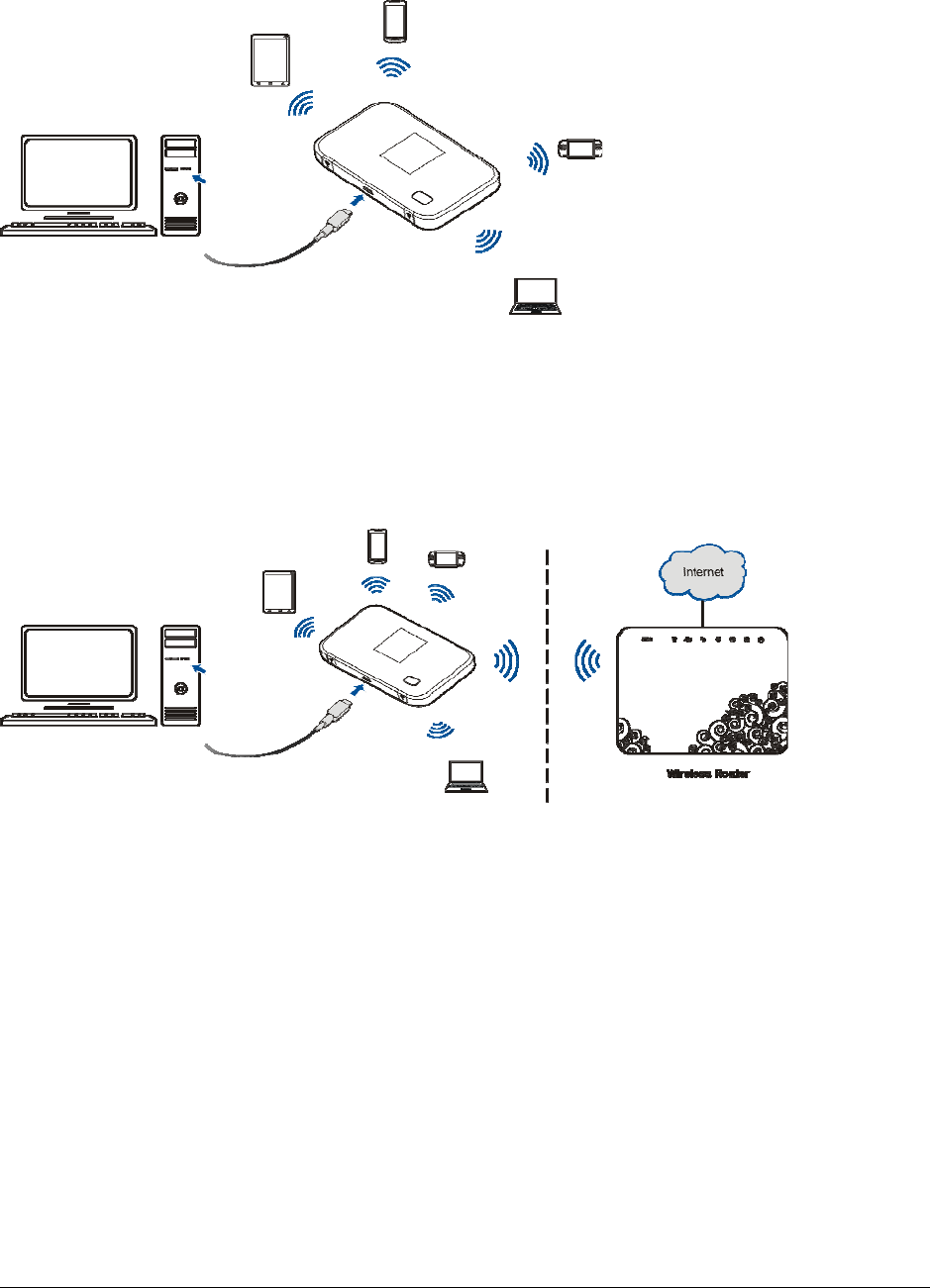

Connection Scenario
Your device supports two methods to go to Internet and supports multi-clients for surfing on the
Internet at the same time. The following figure is only for your reference.
4G Mode: Use your (U)SIM card to access the Internet.
AP Station Mode: Your device will connect to other WLAN device (hotspot device,
wireless router, etc.) via Wi-Fi to access the Internet. The WLAN device has already
connected to the Internet.
NOTE:
The subnet must be deferent between your device and other WLAN device.
5
Installing Your Device
1. Insert the SIM card.
2. Insert the microSD card.
1) Open the microSD card cover.
NOTE:
Do not pull the cover rudely, as it is connected with the device.
2) Insert the microSD card into the microSD slot. The following picture shows the correct inserting
direction. You will hear a click when the microSD card locks in place.
3) Close the microSD card cover.
6
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the available wireless networks.
NOTE: Please set the client to obtain an IP address automatically referring to the chapter
“Configuring Your PC”, and then the client will get an IP address like “192.168.0.100”.

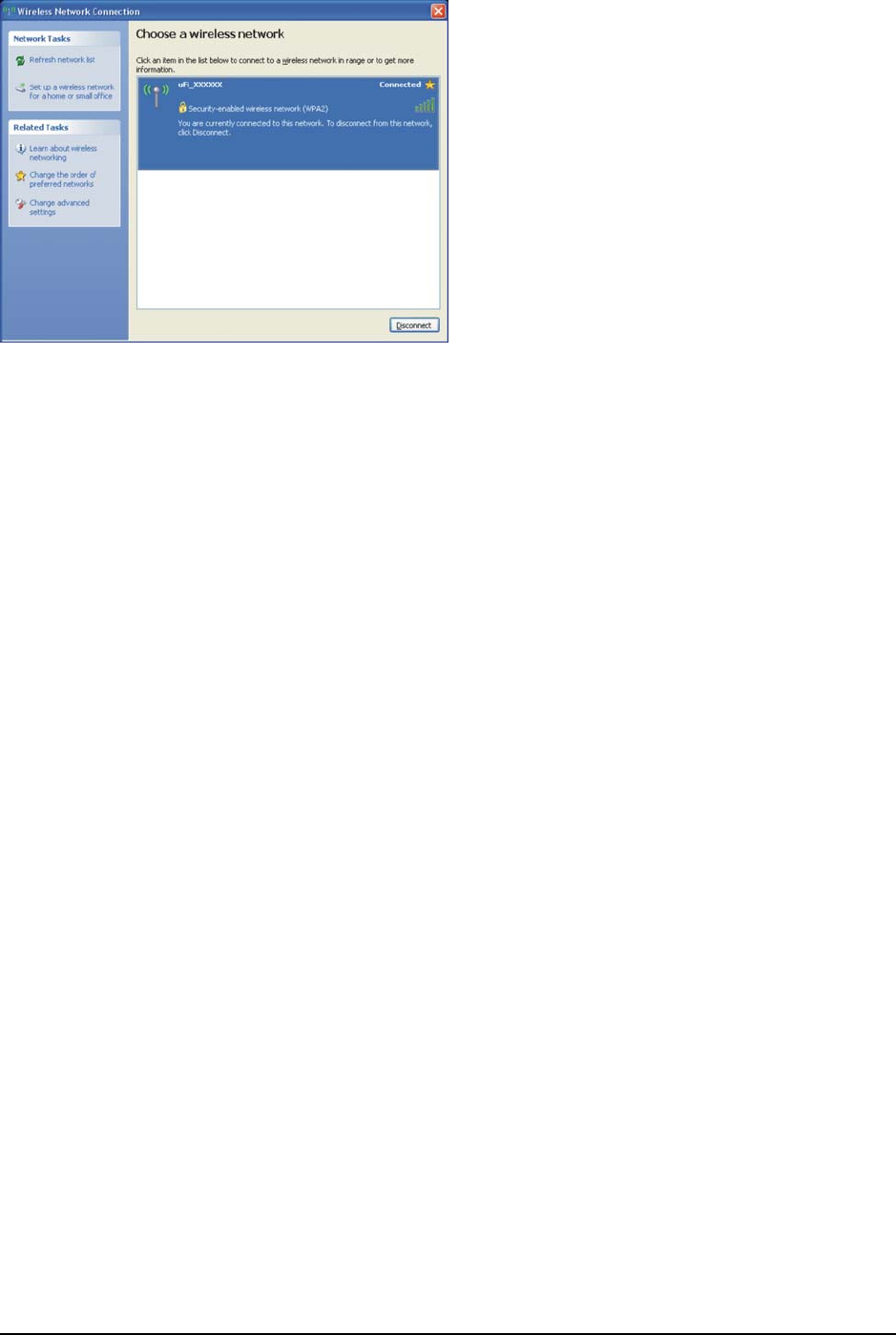

3. Select the SSID of your device, and then click Connect. The following picture is only for
your reference.
4. Input the password, and then click Connect.
NOTE:
There may require the password for Wi-Fi connection, please check the label on your device to get
the default.
Double press the WPS button, and then the SSID and Wi-Fi key will display on the OLED
screen.
7
5. Wait a moment, and then the client will connect to your device successfully.
8
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. The OS detects and recognizes new hardware and finishes the installation automatically.
NOTE: If the Windows operating system does not launch installation automatically, you can run the
installation program in path of My Computer > ZTEMODEM.
4. Wait a moment, and then the client will connect to your device successfully.
9
Accessing the Internet
4G Mode
After the client connected to your device successfully, you can access the Internet in the
Automatic or Manual mode. The default mode is Automatic.
Mode Operations
Automatic Your device will connect to the Internet automatically, and your
clients can surf on the Internet directly.
Manual
Login the webGUI configuration page, and select Settings >
Network Settings > Dial-up Settings > Manual, and then click
Home > Connect / Disconnect.
NOTE:
If you want to modify the detailed parameters of your device, please login the webGUI configuration
page by visiting http://192.168.0.1 or http://m.home. The default password is admin.
AP Station Mode
1. Login the webGUI configuration page.
2. Select Settings > AP Station.
3. Set the AP Station Switch and Preferred Network, and then click Apply.
NOTE:
You need to Enable the AP Station Switch and select Wi-Fi.
4. Connect to the WLAN device.
There are two methods for your reference.
Select the listed SSID, and then click Connect.

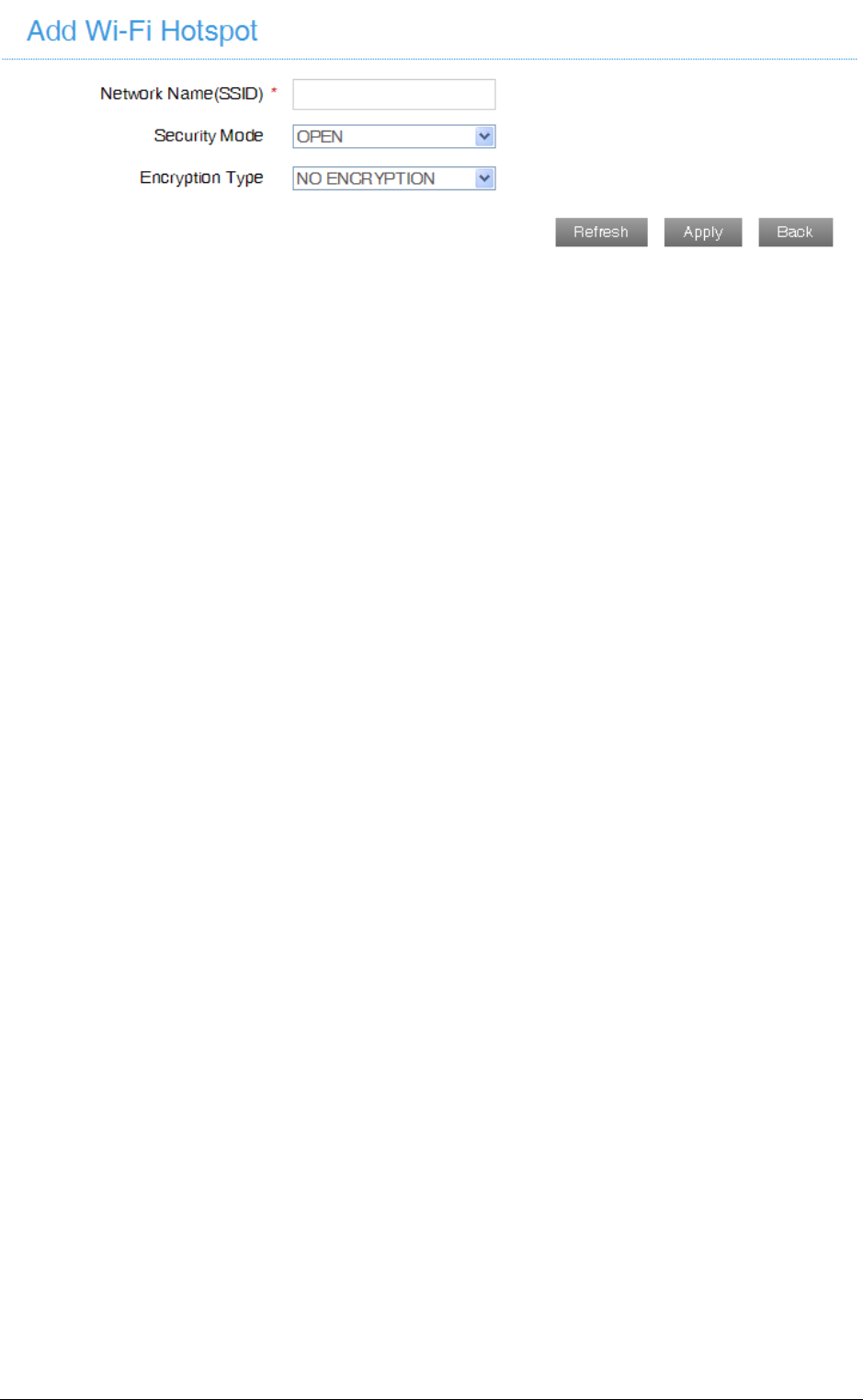

Click Add, input the WLAN device information in the Add Wi-Fi Hotspot area, and
then click Apply.
10
5. After your device connected to the WLAN device successfully, you can access the Internet.
1 1
Configuring Your PC
Follow the following steps and figures for Windows XP to configure the Internet Protocol for
your Wi-Fi connection.
.

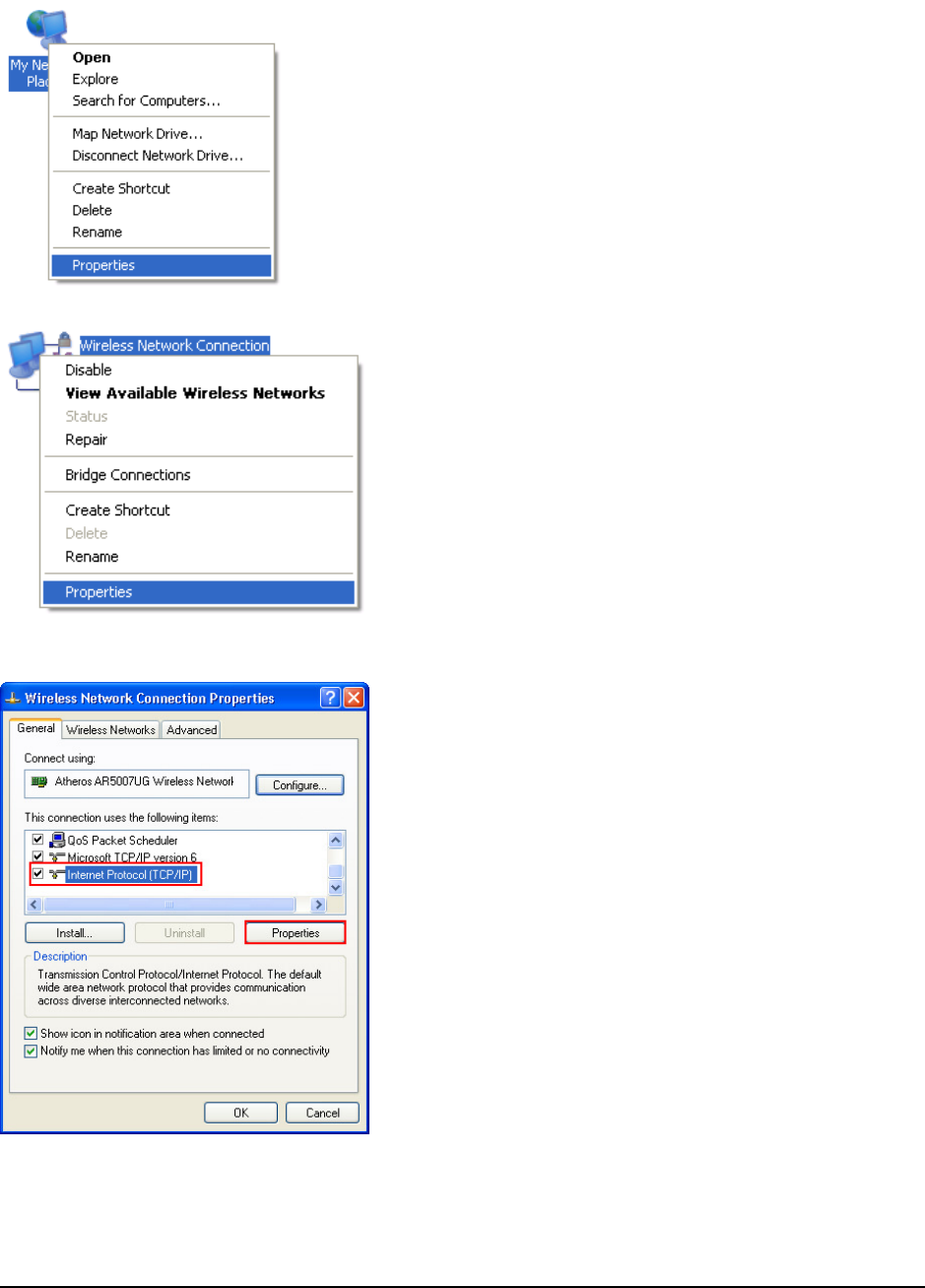

1. Right-click My Network Places, and then select Properties.
2. Right-click Wireless Network Connection, and then select Properties.
3. Select Internet Protocol(TCP/IP), and then click Properties.
4. Select Obtain an IP address automatically and Obtain DNS server address
automatically, and then click OK to finish the configuration.
12
1 3
Warning and Notice
To the Owner
Some electronic devices are susceptible to electromagnetic interference sent by your device if
inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of
your device before using if necessary.
Operating your device may interfere with medical devices like hearing aids and pacemakers. Please
always keep them more than 20 centimeters away from such medical devices when they are turned on.
Turn your device off if necessary. Consult a physician or the manufacturer of the medical device
before using your device.
Be aware of the usage limitation when using your device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your
device if required.
The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your device in these conditions.
Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s
performance.
Store your device out of the reach of little children. Your device may cause injury if used as a toy.
Do not touch the metallic parts of your device so as to avoid a burn, when your device is working.
Using Your Device
Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your device’s performance, and violate related national regulations about telecom
terminals.
Avoid using your device near or inside metallic structures or establishments that can emit
electromagnetic waves. Otherwise it may influence signal reception.
Your device is not waterproof. Please keep it dry and store in a shady and cool place.
Do not use your device immediately after a sudden temperature change. In such case, it will produce
dew inside and outside your device, so don’t use it until it becomes dry.
Handle your device carefully. Do not drop, bend or strike it. Otherwise your device will be damaged.
No dismantling by non-professionals and only qualified technicians can undertake repair work.
Operating temperature range of 0℃ ~ +35℃ and humidity range of 5% ~ 95% are recommended.
The frequency range 5150 to 5250 MHz is limited used in indoor.
Using Battery
Do not short-circuit the battery, as this can cause excessive heat and fire.
Do not store the device in hot areas or dispose of it in a fire to avoid explosion.
Do not disassemble or modify the battery.
Never use any charger or battery damaged or worn out.
Return the wear-out battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
14
WARNING:
If the battery is broken, keep away from it. If it taints your skin, wash your skin with abundant fresh water
and ask doctor help if necessary.
Limited Warranty
This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or
procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that
such defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming
items, and is in lieu of all other warranties, expressed, implied or statutory, including but not limited
to the implied warranties of merchantability and fitness for a particular purpose, unless otherwise
required under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
1 5
Troubleshooting
Problem Suggested Solution
Can not establish the USB
connection between your
device and PC
You need to install the software. Run the installation program in
path of My Computer > ZTEMODEM.
If the driver of your device is abnormal, please reinstall the
software. You need uninstall the software first.
Can not establish the Wi-Fi
connection between your
device and client
Make sure the Wi-Fi function is active. Press the WPS button to
enable or disable Wi-Fi function.
Refresh network list and select the correct SSID.
Check the IP address to make sure your client can obtain an IP
address automatically in the Internet protocol (TCP/IP) properties.
Type the correct network key (Wi-Fi password) when you
connect to the device.
The client connected to the
device can not access the
Internet
Make sure your (U)SIM card is available.
Change the location to find a place with good signal.
Check WAN Connection mode setting.
Contact with your service provider and confirm your APN
settings.
When I use AP Station
mode, the client cannot
access the Internet.
Make sure the other WLAN device has already connected to the
Internet.
Make sure that the subnet of your device and the other WLAN
device is different
Can not visit the webGUI
configuration page
Enter the correct address. The default address is
http://192.168.0.1 or http://m.home.
Only use one network adapter in your PC.
Do not use any proxy server.
About the password Press the WPS button twice, and then the SSID and Wi-Fi
connection password appear on the screen.
The default password of the webGUI configuration page is
admin.
If you changed the password and forgot the new password, you
need to restore the device to the factory default settings.
About the device Press the reset button, the device will reset to the default
settings.
If there is any exception while using the device, please press and
hold the Power Button for about 10 s, and the device will restart.
For more assistance, please:
• Send E-mail to mobile@zte.com.cn
• Visit http://www.zte.com.cn
16
• Call Service Hotline: +86–755–26779999
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This may not cause harmful interference, and (2) this must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
This device has been tested and found to comply with the limits for a Class B digital , pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
FCC RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested
frequency bands, and placed in positions that simulate RF exposure in usage near the body with the
separation of 10 mm. Although the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the maximum value. This is because the
device is designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power output.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model
device is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-R212.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
1 7
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE
C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified
in OET Bulletin 65 Supplement C. This device has been tested, and meets the FCC, when tested with the
device directly contacted to the body.
For this device for usage near the body is 1.40W/kg.
While there may be differences between the SAR levels of various devices and at various positions, they
all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit
and the human body. Carry this at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this and
your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and
certified, and use such body-worn accessory should be avoided.
