ZTE R800 Industry Wireless Router User Manual

I

NDUSTRIAL

LTE

R

OUTER

Q

UICK

S

TART

G

UIDE

R800

Website: www.ztewelink.com

E-mail: ztewelink@zte.com.cn

2

R800

Quick Start Guide

L

EGAL

I

NFORMATION

By receiving the document from Shenzhen ZTEWelink Technology Co., Ltd (shortly referred to as ZTEWelink), you are deemed

to have agreed to the following terms. If you don’t agree to the following terms, please stop using the document.

proprietary information. Without the prior written permission of ZTEWelink, no entity or individual is allowed to reproduce, transfer,

distribute, use and disclose this document or any image, table, data or other information contained in this document.

ZTEWelink is a holding subsidiary of ZTE Corporation, dedicate to cellular M2M communication modules and M2M solutions.

is the registered trademark of ZTE Corporation and ZTEWelink is granted to use ZTE Corporation’s registered

trademarks. The name and logo of ZTEWelink are ZTEWElink’s trademark or registered trademarks. The other products or company

names mentioned in this document are the trademark or registered trademark of their respective owner. Without the prior written

permission of ZTEWelink or the third-party oblige, no entity or individual is allowed to use any company name, trademark, logo, label

or other information contained in this document.

The product meets the design requirements of environmental protection and personal security. The storage, use or disposal of

products should abide by the product manual, relevant contract or the laws and regulations of relevant country.

ZTEWelink reserves the right to make modifications on the product described in this document without prior notice, and keeps

the right to revise or retrieve the document any time.

If you have any question about the manual, please consult the company or its distributors promptly.

A

PPLICATION

R

ANGE

Industrial Wireless Router

R800

3

R800

Quick Start Guide

R

EVISION

H

ISTORY

VERSION DATE DESCRIPTION

V1.0 2016-08-10 First release

A

BOUT

T

HIS

D

OCUMENT

Reading Note

The symbols below are the reading notes you should pay attention on:

: Warning or Attention

: Note or Remark

NOTE:

Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades,

troubleshooting tips, and press releases

C

ONTACT

I

NFORMATION

Post 9/F, Tower A, Hans Innovation Mansion,

North Ring Rd., No.9018, Hi-Tech Industrial Park,

Nanshan District, Shenzhen.

Web www.ztewelink.com

Phone +86-755-26902600

E-Mail ztewelink@zte.com.cn

Note: Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips,

and press releases

Besides, ZTEWelink provides various technical support ways to the customers, such as support by phone, website, instant

messaging, E-mail and on-site.

4

R800

Quick Start Guide

C

ONTENTS

1. PRODUCT INTRODUCTION .................................................................................................................................................... 5

2. PACKING LIST ...................................................................................................................................................................... 5

3. BEFORE INSTALLATION ......................................................................................................................................................... 6

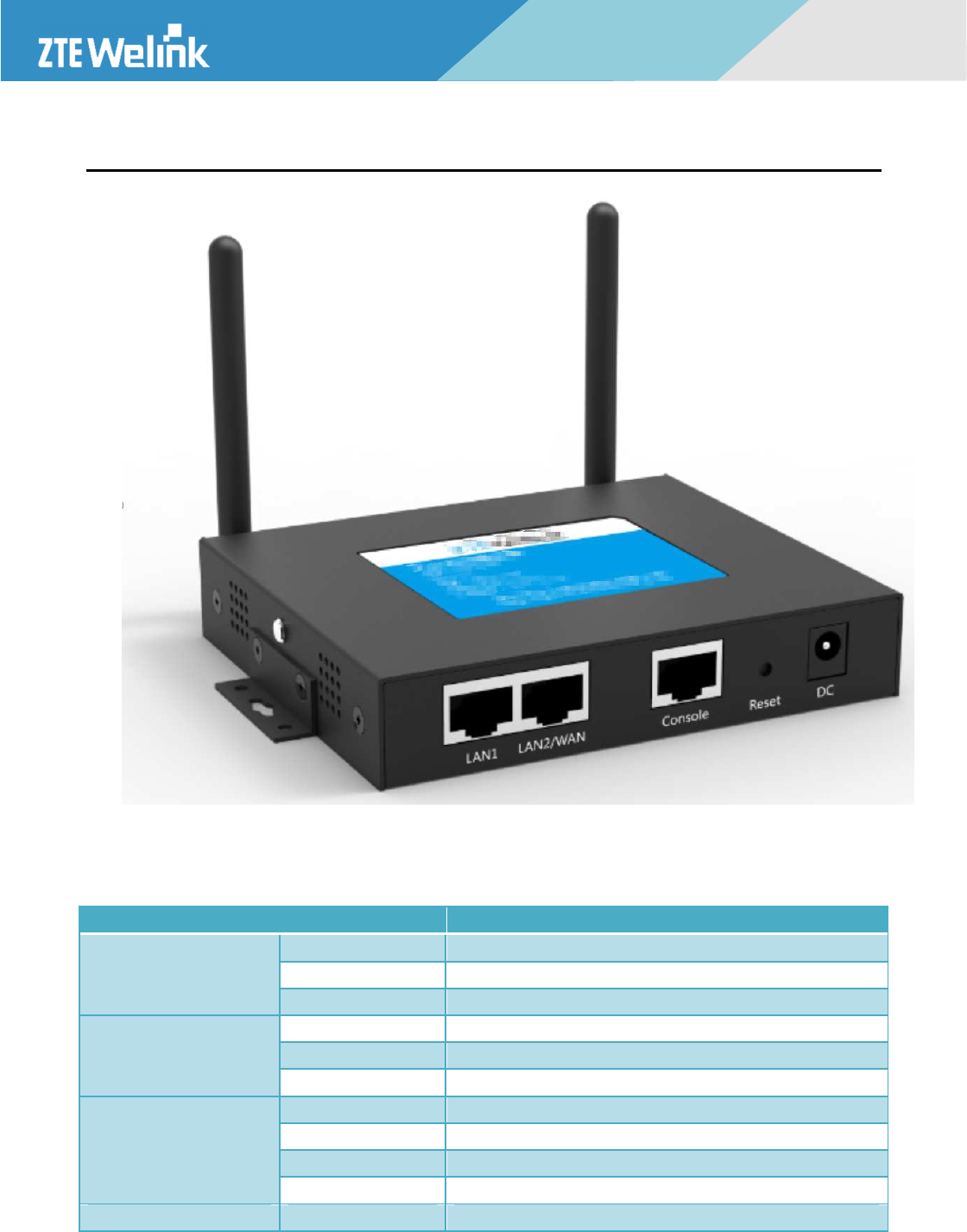

3.1. R800

P

RODUCT

E

XTERIOR

V

IEW

..................................................................................................................................................................... 6

3.2. I

NDICATOR

L

IGHT

D

ESCRIPTION

........................................................................................................................................................................ 6

3.3. PC

C

ONNECTION

........................................................................................................................................................................................... 7

4. COMPUTER CONFIG (WINDOWS OS) ..................................................................................................................................... 7

5. ROUTER PARAMETER CONFIG .............................................................................................................................................. 9

5.1. B

RIEF

I

NTRODUCTION

..................................................................................................................................................................................... 9

6. ROUTER SYSLOG ILLUSTRATION .......................................................................................................................................... 12

7. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ................................................................................ 14

8. INDUSTRY CANADA STATEMENT ......................................................................................................................................... 15

5

R800

Quick Start Guide

1. P

RODUCT

I

NTRODUCTION

R800 3G/4G LTE IoT industrial wireless communication router takes the advantage of public 4G network to provide data

transmission through long distance.

The product uses high-performance 32-bit industrial grade communications processor and industrial grade wireless module,

Software platform is an embedded real-time operating system,While providing an RS232 interface,2 Ethernet LAN (one of which can

be configured as WAN),At the same time,connect a serial port and Ethernet equipment,implement the data transparent transmission

and routing functions.

The product has been widely used in the networking industry chain in the M2M industry,Such as smart grid,smart

transportation,smart home,finance,mobile POS terminals,supply chain automation,industrial automation,intelligent building,fire,

public safety,environmental protection,meteorology,digital medical,telemetry,space exploration,agriculture,forestry,water,coal,

petrochemical and other fields.

2. P

ACKING

L

IST

Please kindly check the packing list, if there are omissions, please contact the dealer.

Name of Accessory Quantity Remark

R800 LTE Router Main Machine 1 Packed as per customer order

configurations

WLAN Antenna(The cable length is 1m) 1 piece Packed as per customer order

configurations

3G/4G Antenna 2 pieces Packed as per customer order

configurations

RJ45 Cable 1 piece Packed as per customer order

configurations

Installation Hardware 1 pair Packed as per customer order

configurations

Quick Start Guide 1 Packed as per customer order

configurations

12VDC Power Adapter 1 Packed as per customer order

configurations

6

R800

Quick Start Guide

3. B

EFORE

I

NSTALLATION

3.1. R800

P

RODUCT

E

XTERIOR

V

IEW

Figure 3-1

3.2. I

NDICATOR

L

IGHT

D

ESCRIPTION

Table 3-2

Indicator Light Status Description

PWR ON Power ON

OFF Power OFF

Flash Temperature anomalies

SYS ON System operating normally

OFF Abnormal system operation

Flash Temperature anomalies

PPP ON Network connection

OFF No dial

Fast Flash Dialing

Slow Flash Allocated on a non-4G network

VPN ON Any VPN turned on

7

R800

Quick Start Guide

OFF Disconnect

Flash Connecting

SIG ON 21～31

Slow Flash 11～20

Fast Flash 1～10

OFF No service

BAK ON WAN as the primary link, and lte work

Flash Exception, none of access

OFF WAN works, LTE not working

3.3. PC

C

ONNECTION

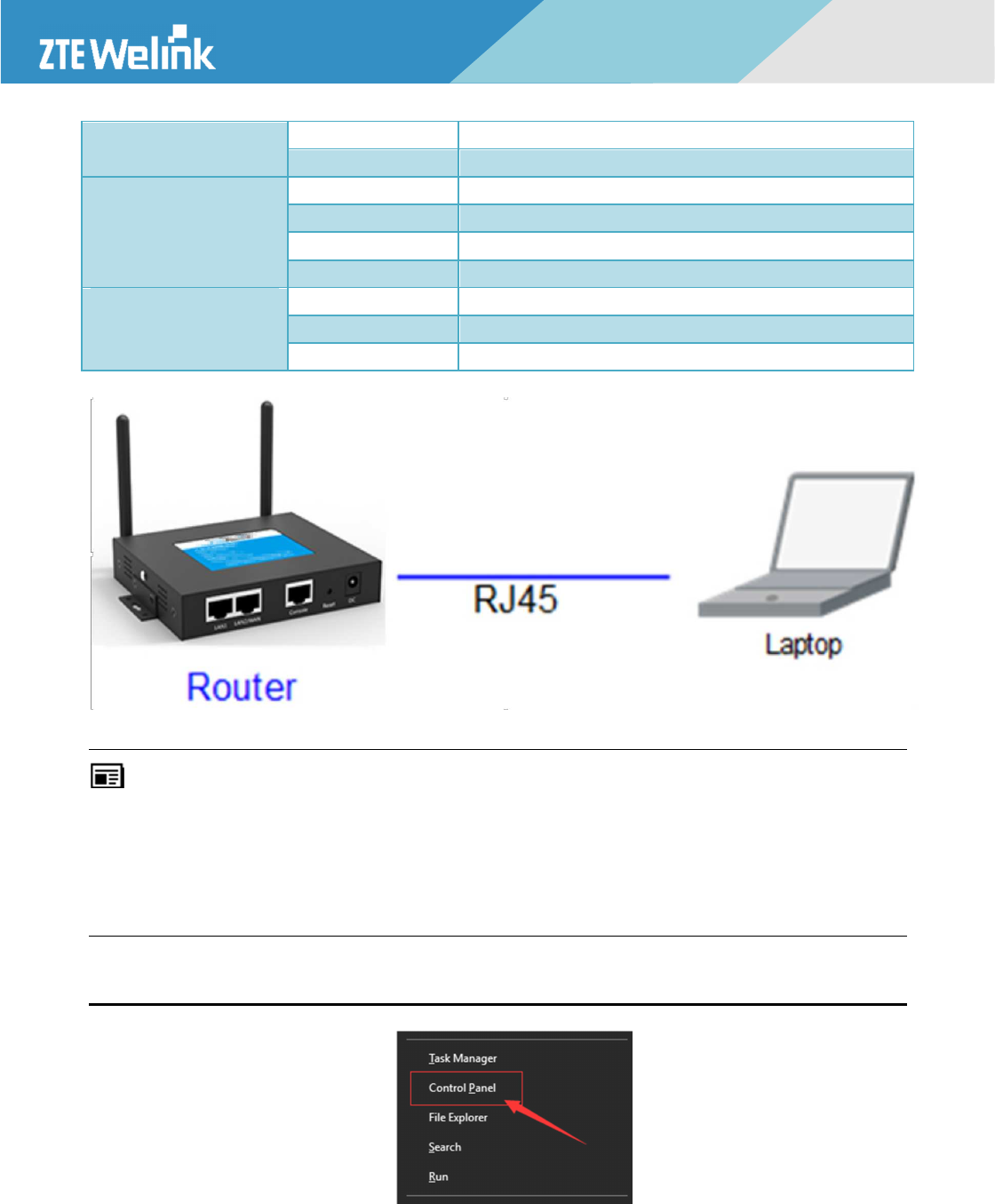

Figure 3-2 PC Connection

NOTE (Back of the device):

 Router antenna interface is SMA female socket. The matching antenna SMA male antenna screwed to the router interface and ensure

tightened so as not to affect the signal quality.

 Insert the SIM card holder the right of small yellow dots with spikes, SIM card sets to pop up. When installing the SIM card, the first SIM card

into the card holder and ensure that the SIM card metal contacts facing down, and then insert the SIM card holder in the drawer and make sure it

clicks into place.

4. C

OMPUTER

C

ONFIG

(W

INDOWS

OS)

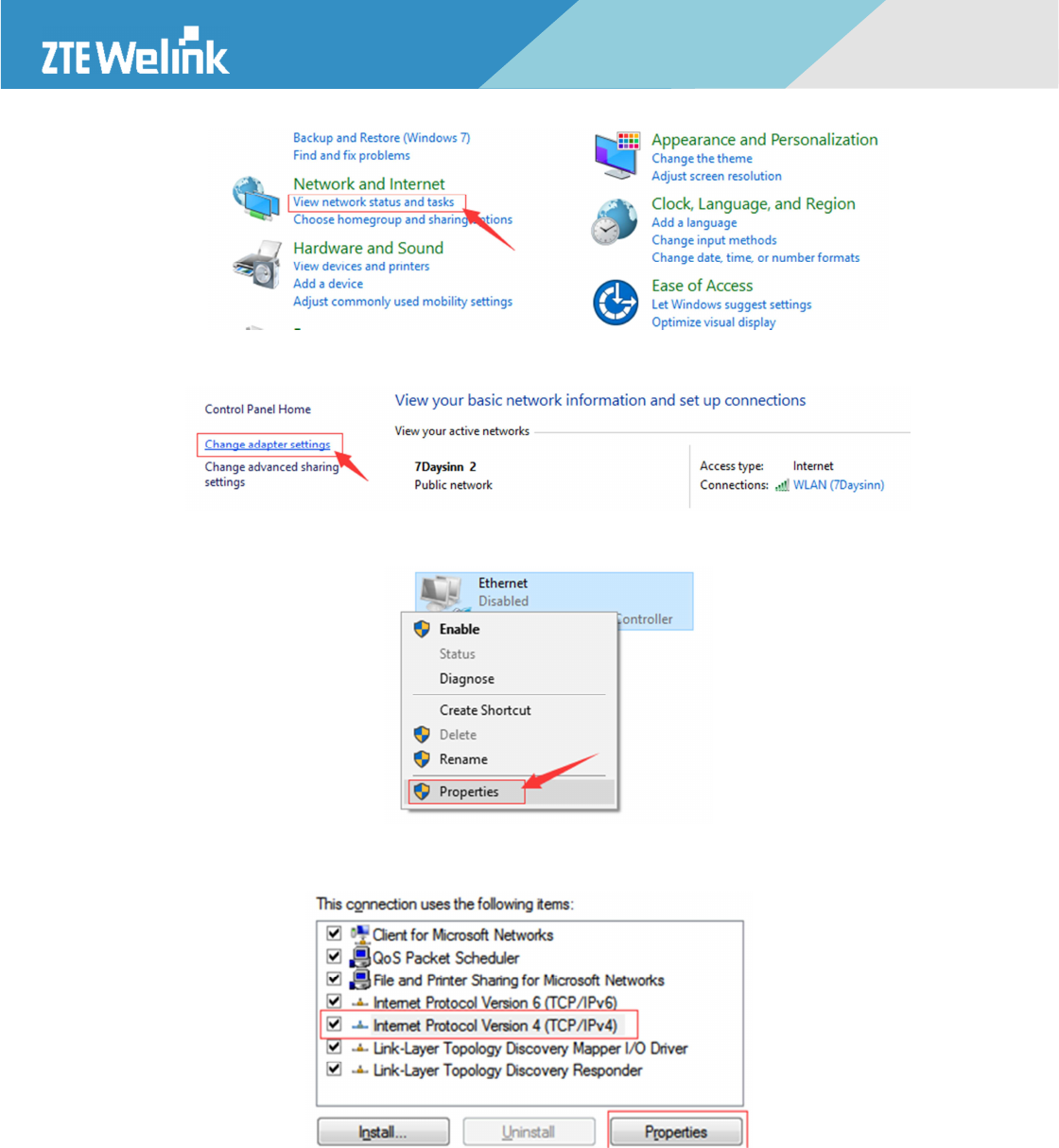

Press “WINDOWS + X” to open the menu, select “Control panel”.

Figure 4-1

Open “View network status and tasks”.

8

R800

Quick Start Guide

Figure 4-2

Open “Change adapter settings”,

Figure 4-3

Open Ethernet Properties.

Figure 4-4

Select the internet protocol version 4 (TCP / IPv4) and click Properties.

Figure 4-5

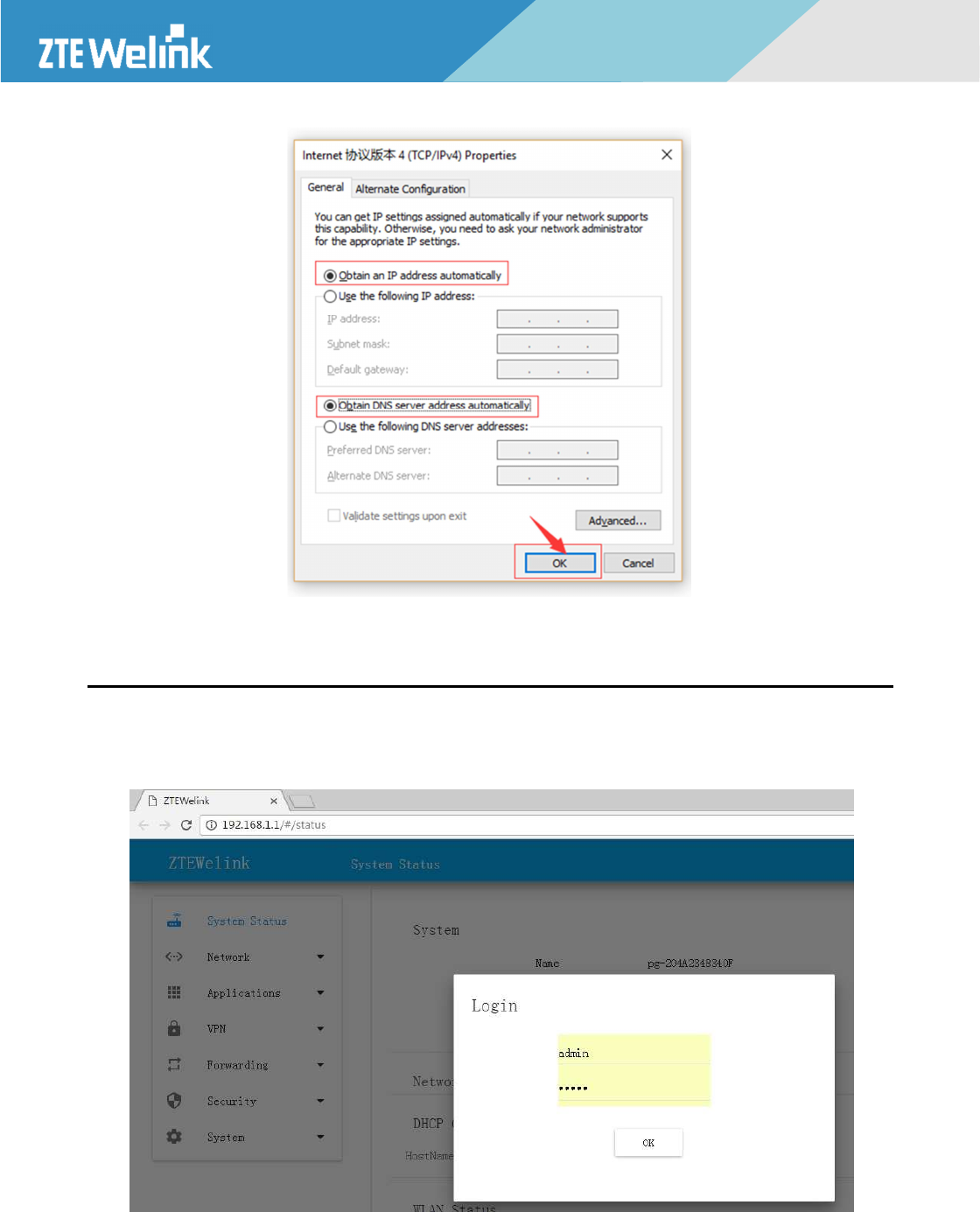

Select the Obtain an IP address automatically and Obtain DNS server address automatically.

9

R800

Quick Start Guide

Figure 4-6

5. R

OUTER

P

ARAMETER

C

ONFIG

5.1. B

RIEF

I

NTRODUCTION

Open the Chrome browser, enter 192.168.1.1 in the address bar to open the configuration screen and enter your password.

User name: admin

Password: admin

Figure 5-1

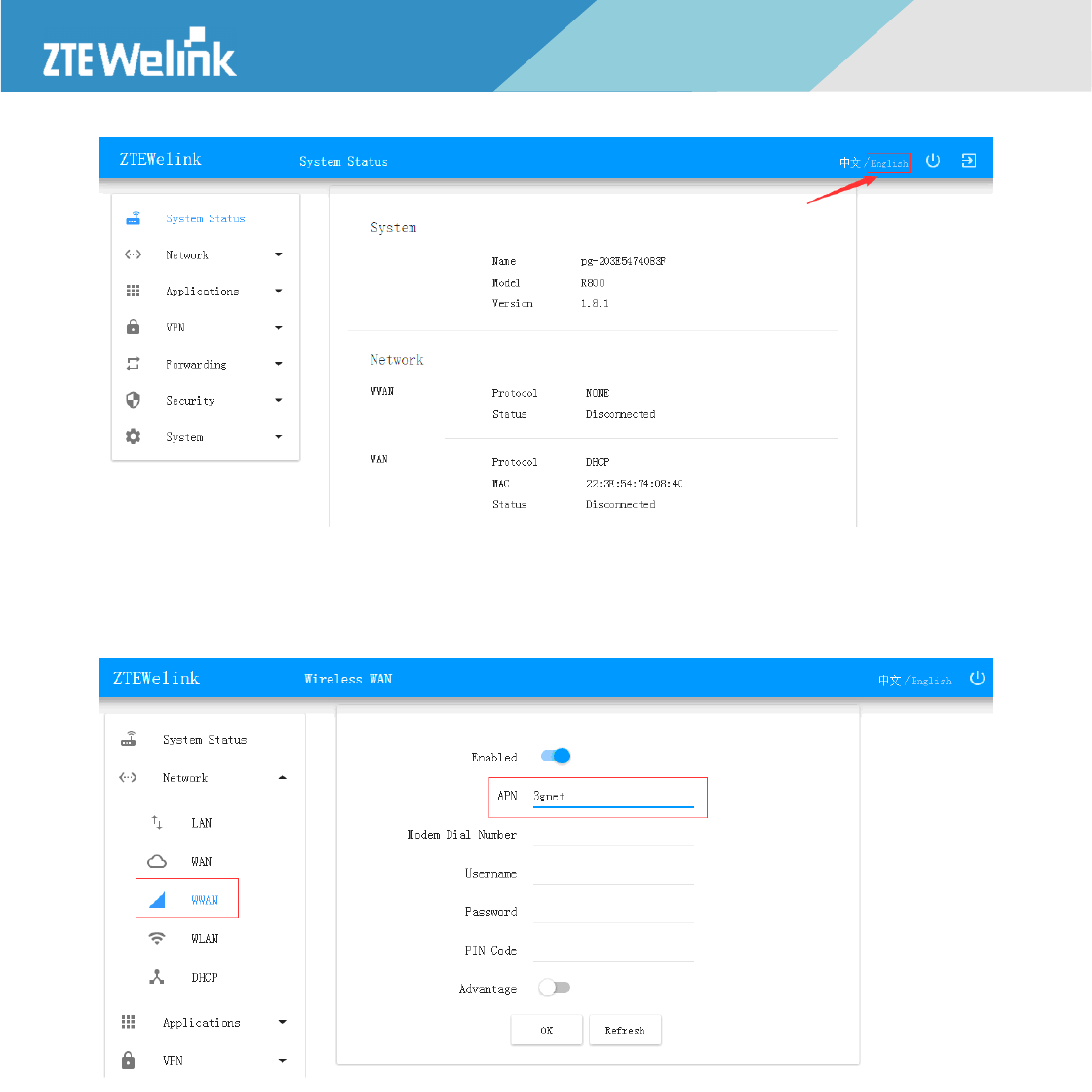

Click on "English" to select English language .

10

R800

Quick Start Guide

Figure 5-2

Connected to the Internet, there are two ways, one is a mobile network, and the other is connected through the Ethernet WAN.

Mobile Network:

Open the Network configuration WWAN, Fill SIM card operator APN.

Figure 5-3

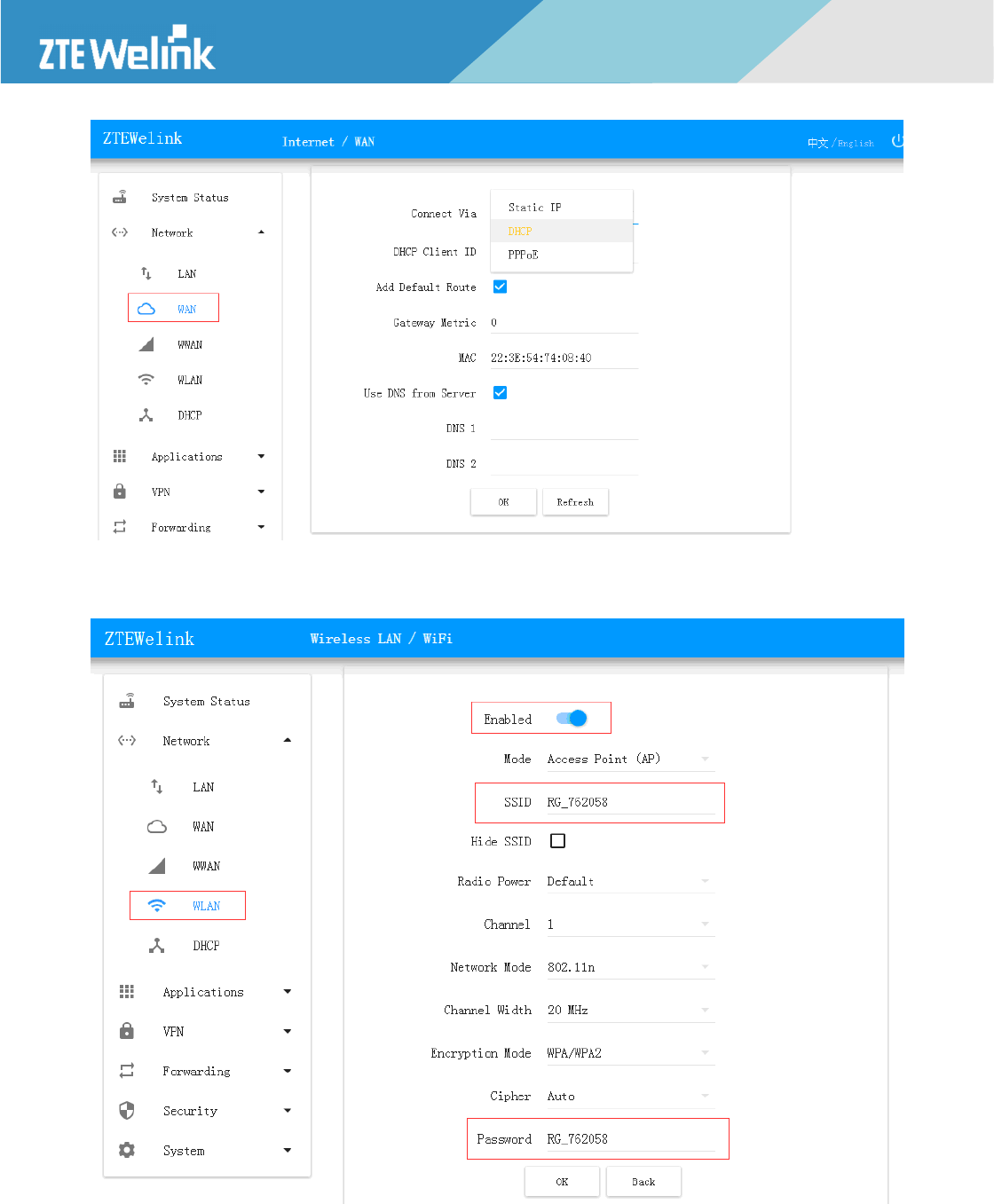

Ethernet WAN:

Open the "WAN" in the network configuration menu, in the "Connect Via" You can select the network mode.

11

R800

Quick Start Guide

Figure 5-4

WLAN Configuration:

Select "WLAN" option in the network configuration, turn on the wireless status, set SSID number and password.

Figure 5-5

12

R800

Quick Start Guide

6. R

OUTER

S

YSLOG

I

LLUSTRATION

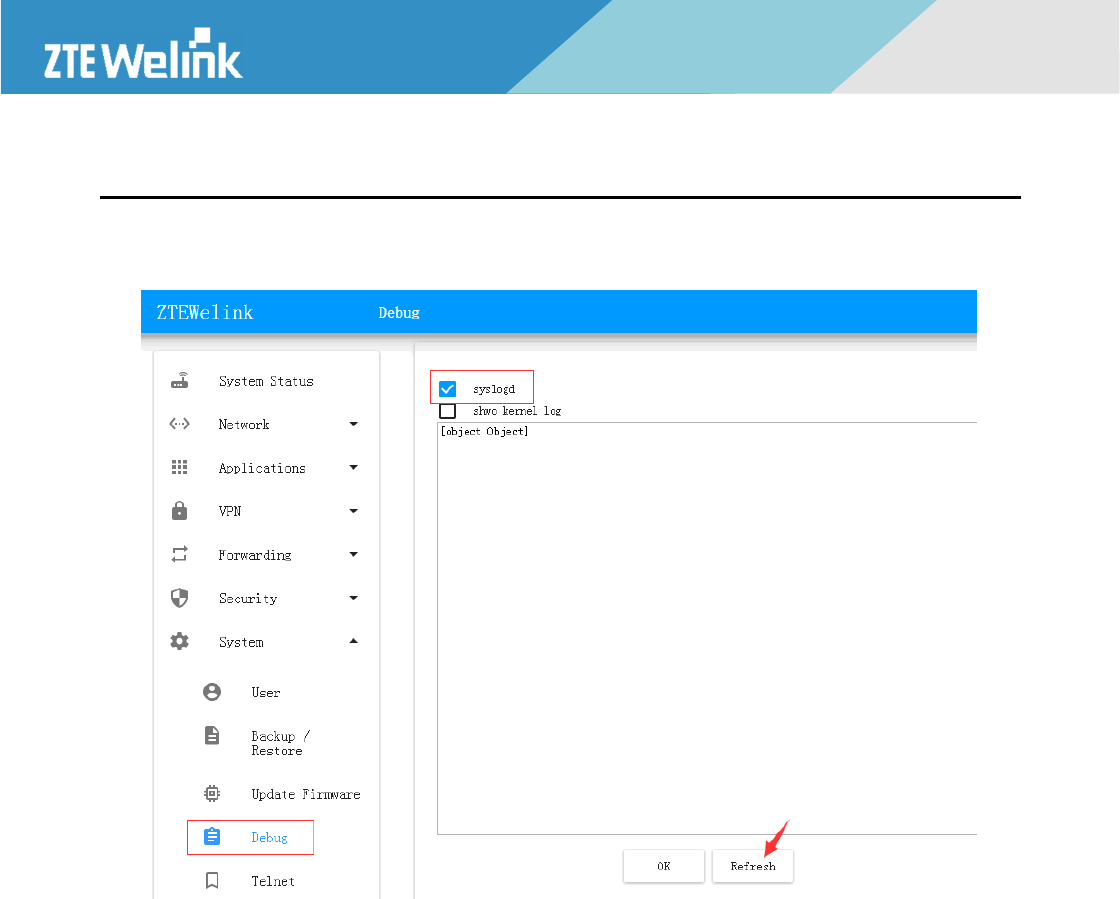

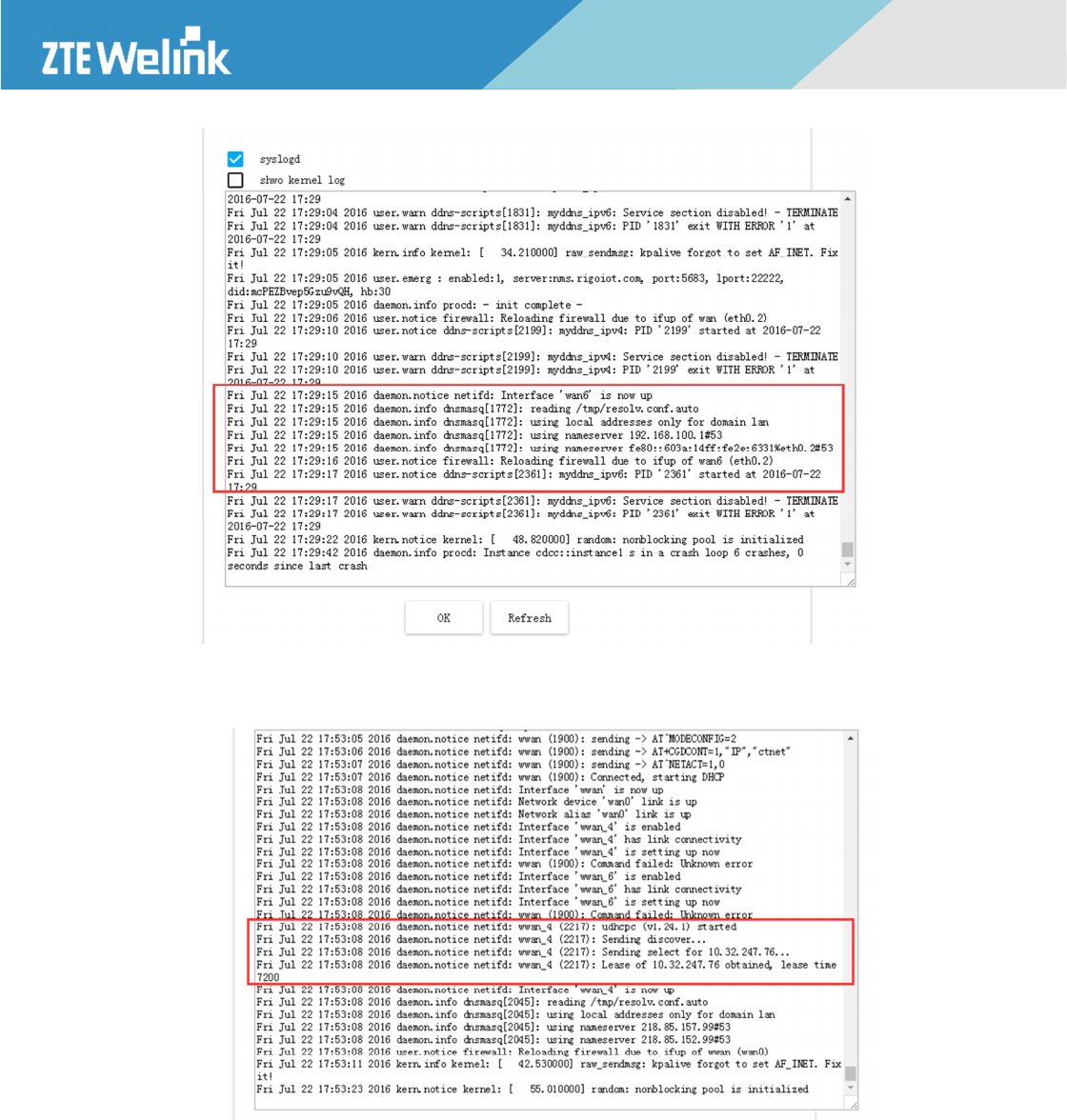

System debugging: Select the "Debug" option in the "System" menu, after checking the syslogd click Refresh.

Check the "syslogd" is all log information, check the "Show kernel log" is the only check kernel information, This part describes

the router dial log and Ethernet interface activation log.

Figure 6-1

Log WAN interface：

13

R800

Quick Start Guide

Figure 6-2

Mobile Network Dial log：

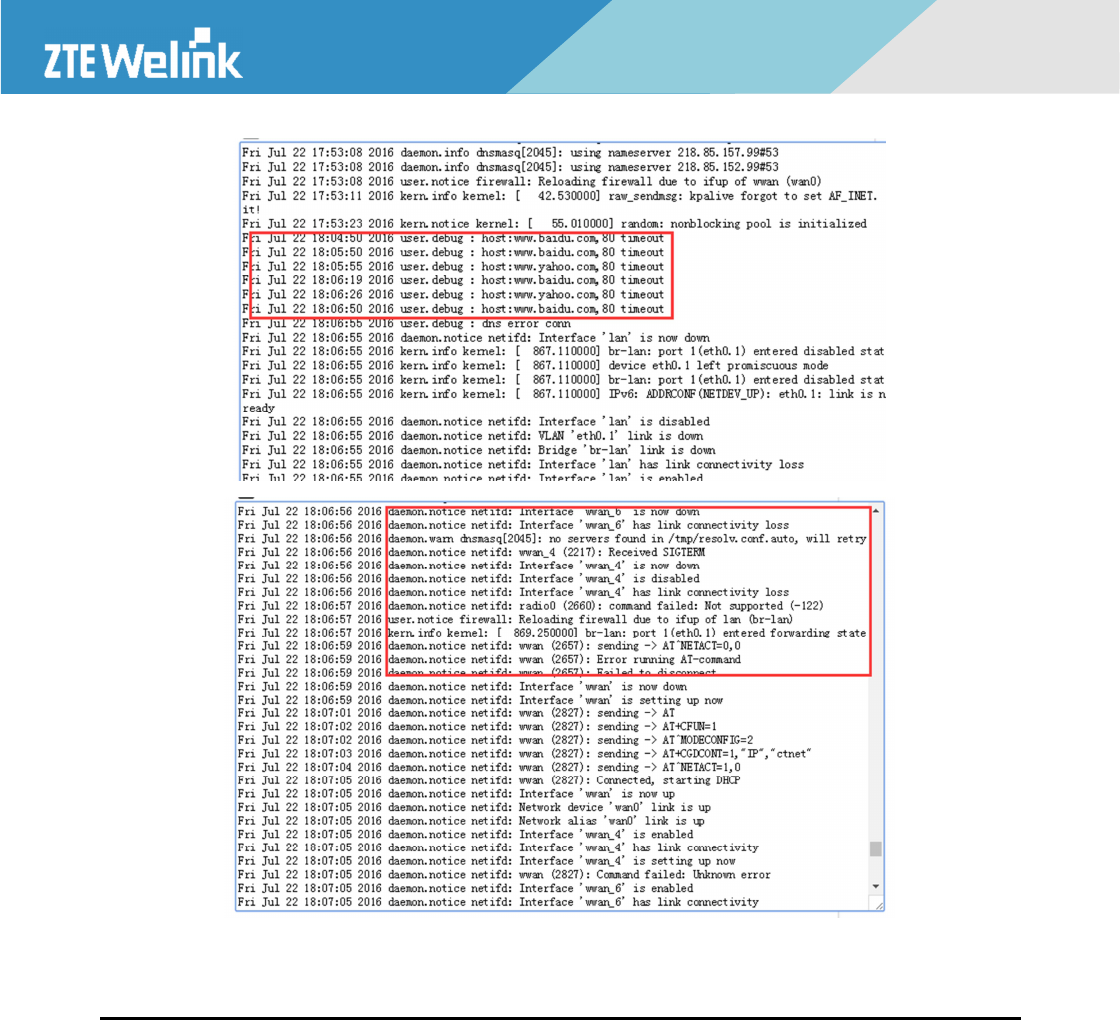

Wireless dial-up log is shown in Fig., The red box after successfully dialing line information.

Figure 6-3

When the network is dropped, there will be detected www.baidu.com and ping www.yahoo.com timeout, this time re-dial.

14

R800

Quick Start Guide

Figure 6-4

7. F

EDERAL

C

OMMUNICATION

C

OMMISSION

I

NTERFERENCE

S

TATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

15

R800

Quick Start Guide

 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate this equipment.

 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should

be installed and operated with minimum distance 20cm between the radiator & your body.

FCC ID: SRQ-R800

8. I

NDUSTRY

C

ANADA STATEMENT

 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two

conditions:

1) this device may not cause interference, and

2) this device must accept any interference, including interference that may cause undesired operation of the device.

 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes:

1) l'appareil ne doit pas produire de brouillage, et

2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

 This Class B digital apparatus complies with Canadian ICES-003.

 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

 This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause

harmful interference.

 Cet appareil est conforme à la norme RSS-310 d'Industrie Canada. L'opération est soumise à la condition que cet appareil ne

provoque aucune interférence nuisible.

 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter,

except tested built-in radios.

 Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou un autre

émetteur, exception faites des radios intégrées qui ont été testées.

 The County Code Selection feature is disabled for products marketed in the US/ Canada.

 La fonction de sélection de l'indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au Canada.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should

be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.

Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre

corps.

IC: 5200A-R800
