ZTE UV760 WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone User Manual ZTE U V760

ZTE Corporation WCDMA/GSM (GPRS) Dual-Mode Digital Mobile Phone ZTE U V760

ZTE-U V760 User manual

1
ZTE-U V760
WCDMA/GSM Mobile Phone
User Manual
2
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without
the prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on
print errors or update specifications in this guide without prior
notice.
Version No.: R1.0
Edition Time: 20120201
3
Contents
Basic Knowledge ..................................................... 8
Introduction ...................................................................... 8
Your Safety ............................................................... 8
Operational Precautions .................................................. 8
Distraction ...................................................................... 12
Driving ...................................................................... 12
Operating Machinery ................................................ 12
Product Handling ........................................................... 13
General Statement on Handling and Use ................. 13
Small Children .......................................................... 15
Demagnetization ...................................................... 15
Electrostatic Discharge (ESD) .................................. 15
Antenna .................................................................... 15
Air Bags .................................................................... 15
Seizures/ Blackouts .................................................. 16
Repetitive Motion Injuries ......................................... 16
Emergency Calls ...................................................... 16
Loud Noise ............................................................... 16
Precautions for Electrical Devices ................................. 17
Interference .................................................................... 17
General Statement on Interface ............................... 17
Pacemakers ............................................................. 17
Hearing Aids ............................................................. 17
Medical Devices ....................................................... 18
4
Hospitals .................................................................. 18
Aircraft ...................................................................... 18
Interference in Cars ................................................. 19
Explosive Environments ................................................ 19
Battery Use .................................................................... 19
Getting Start ........................................................... 21
Overview ....................................................................... 21

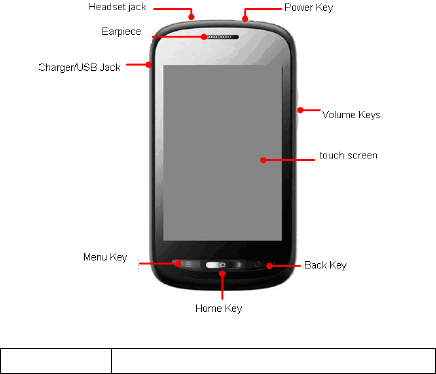

Keys Explained .............................................................. 21
Starting up ..................................................................... 22
Installing the SIM/microSD Card and Battery .......... 22
Removing the Battery and SIM/microSD Card ........ 24
Charging the Battery ................................................ 24
Switching Your Phone On/Off ....................................... 25
Setting Up Your Phone for the First Time ................ 25
Switching to Sleep Mode ......................................... 26
Waking Up Your Phone ........................................... 26
Getting Around Your Phone .......................................... 27
Touch Control .......................................................... 27
Home Screen ........................................................... 27
Status and Notification Icons ................................... 28
Using the Notification Panel ..................................... 29
Phone Calls ............................................................ 30
Making Calls .................................................................. 30
Calling from the Phone ............................................ 30
Calling from Your Contacts ...................................... 30
5
Calling from Your Call History .................................. 31
Calling from a Text Message .................................... 31
Receiving Calls .............................................................. 31
Answering a Call ...................................................... 31
Muting a Call ............................................................ 32
Turning the Speakerphone On/Off ........................... 32
Ending a Call ............................................................ 32
Contacts ................................................................. 32
Creating a Contact ......................................................... 32
Searching for a Contact ................................................. 33
Messaging .............................................................. 33
The Message Box .......................................................... 33
Sending an Message ..................................................... 33
Message Settings .......................................................... 34
Touch Input Settings ...................................................... 34
Getting Connected to the Internet ........................ 35
Adding a New Network Connection ............................... 35
Turning On Wi-Fi............................................................ 35
Connecting to a Wi-Fi Network ...................................... 36
Checking the Wi-Fi Network Status ............................... 36
Using the Phone as a Modem ....................................... 36
Enabling USB tethering ............................................ 37
Disabling USB tethering ........................................... 37
Enabling the Wi-Fi Hotspot ....................................... 37
Disabling the Wi-Fi Hotspot ...................................... 37
6
Browsing the Internet ............................................ 38
Browsing Options .......................................................... 38
Using Bookmarks .......................................................... 38
Changing Browser Settings ........................................... 39
Bluetooth ................................................................ 39
Making the Most of Multimedia ............................. 40
Taking Pictures with Your Camera ................................ 40
Shooting Video with Your Camcorder ........................... 40
Listening to Your FM Radio ........................................... 40
Playing Your Music ........................................................ 41
Opening Your Gallery .................................................... 41
Making Voice Memos .................................................... 41
Using Your Google™ Applications ...................... 42
Gmail ............................................................................. 42
Using Google Talk ......................................................... 43
Opening Google Talk ............................................... 43
Adding a New Friend ............................................... 43
Starting a Chat ......................................................... 43
Places ............................................................................ 43
Latitude .......................................................................... 44
Sorting out Your Phone Settings .......................... 44
Setting Date and Time ................................................... 44
Display Settings ............................................................. 44
Sound Settings .............................................................. 45
Language Settings ........................................................ 45
7
Mobile Network Services ............................................... 45
Disabling Data Services ........................................... 46
Switching Network Modes ........................................ 46
Switching Networks .................................................. 46
Setting Access Point Names .................................... 46
Security Settings ............................................................ 47
Protecting Your Phone with a Screen Unlock Pattern
................................................................................. 47
Protecting Your Phone with a PIN or Password ....... 47
Disabling Screen Unlock Security ............................ 48
Protecting Your SIM Card with a PIN ....................... 48
Setting up Credential Storage .................................. 49
Managing Your Device Memory .................................... 49
Privacy: Reset to Factory Settings ................................. 50
Managing Applications ................................................... 50
Installing an Application ............................................ 50
Removing an Application .......................................... 51
Moving an Application .............................................. 51
Managing Other Settings ...................................... 52
Voice Input and Output ............................................. 52
Accessibility .............................................................. 52
Other Applications ................................................. 52
Clock .............................................................................. 52
Calculator ....................................................................... 53
8
Basic Knowledge
Introduction
Thank you for purchasing ZTE products. Please read the
user manual carefully in order to make the products in best
condition.
Images we use in this manual are only used to demonstrate
the mobile phone’s functions, so they might be a bit different
from what you see on your phone. Please take your handset
as the standard. If content of brochure have some different
from actual item caused by updating, ZTE Corporation
reserves the right to make modifications on print errors or
update specifications in this guide without prior notice.
Your Safety
This section includes some important information on safe
and efficient operation. Please read this information before
using the phone.
Operational Precautions
• Please use your phone properly. When making or
receiving a call, please hold your phone as holding
a wire telephone. Make sure that the phone is at
least one inch (about two point five centimeters)
from your body when transmitting.
• Do not touch the antenna when the phone is in use.
Touching the antenna area affects call quality and
9
may cause the phone to operate at a higher power
level than needed.
• Some people may be susceptible to epileptic
seizures or blackouts when exposed to flashing
lights, such as when watching television or playing
video games. If you have experienced seizures or
blackouts, or if you have a family history of such
occurrences, please consult your doctor before
playing video games on your phone or enabling a
flashing-light feature on your phone. (The flashing
-light feature is not available on all products.)
FCC Compliance
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does not
cause harmful interference.
Caution: Changes or modifications not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
10
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician
for help.
Health and safety information
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government:
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. *Tests for SAR are conducted using standard
operating positions accepted by the FCC with the phone
11
transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum
value. This is because the phone is designed to operate at
multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 1.16 W/kg and when
worn on the body, as described in this user guide, is 1.14
W/kg (Body-worn measurements differ among phone
models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on
FCC ID: Q78-UV760
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
12
accessory that contains no metal and the positions the
handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do not use a body-worn
accessory and are not holding the phone at the ear, position
the handset a minimum of 1.5 cm from your body when the
phone is switched on.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
13
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
• Always treat your phone and its accessories with care
and keep it in a clean and dust-free place.
• Do not expose your phone or its accessories to open
flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid,
moisture or high humidity.
• Do not drop, throw or try to bend your phone or its
accessories.
• Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its
accessories, only authorized personnel can do so.
• Do not expose your phone or its accessories to extreme
temperatures, minimum - [5] and maximum + [50]
degrees Celsius.
14
• Please check local regulations for disposal of electronic
products.
• Do not carry your phone in your back pocket as it could
break when you sit down.
• Please use original accessories or accessories
approved by the phone manufacturer. Using any
unauthorized accessories may affect your mobile
phone’s performance, damage your phone or even
cause danger to your body and violate related local
regulations about telecom terminals.
• Some electronic devices are susceptible to
electromagnetic interference sent by phone if
inadequately shielded. Please use phone at least 20
cm or as far away as you can from TV set, radio and
other automated office equipment so as to avoid
electromagnetic interference.
• Operating phone may interfere with medical devices
like hearing aids and pacemakers, or other medical
devices in hospital. Consult a physician or the
manufacturer of the medical device before using
phone.
• Be aware of the usage limitation when using phone at
places such as oil warehouses, or chemical factories,
where there are explosive gases or explosive
products being processed, because even if your
phone is in idle state, it still transmits radio frequency
(RF) energy. Therefore power off your phone if
required.
15
• Keep the antenna free from obstructions and position
the antenna straight up. This will ensure best call
quality.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Air Bags
Do not place a phone in the area over an air bag or in the air
16
bag deployment area.
Store the phone safely before driving your vehicle.
Seizures/ Blackouts
The phone can produce a bright or flashing light.
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games
with your phone:
• Do not grip the phone too tightly.
• Press the buttons lightly.
• Use the special features which are designed to minimize
the times of pressing buttons, such as Message
Templates and Predictive Text.
• Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
17
devices.
Precautions for Electrical Devices
Some electronic devices are susceptible to electromagnetic
interference sent by mobile phone if inadequately shielded,
such as electronic system of vehicles. Please consult the
manufacturer of the device before using the phone if
necessary.
Interference
General Statement on Interface
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
18
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‘flight mode’, this
must be enabled prior to boarding an aircraft.
19
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
Explosive Environments
• Switch off your phone prior to entering any area with
potentially explosive atmospheres, such as fueling areas,
fuel or chemical transfer or storage facilities.
• Do not remove, install, or charge batteries in such areas.
Spark in a potentially explosive atmosphere can cause an
explosion or fire resulting in bodily injury or even death.
• To avoid possible interference with blasting operations,
switch off your phone when you are near electrical blasting
caps, in a blasting area, or in areas posted “Turn off
electronic devices.” Obey all signs and instructions.
Battery Use
• Do not short-circuit the battery, as this can cause the
unit to overheat or ignite.
• Do not store battery in hot areas or throw it into fire.
Otherwise, it will cause explosion.
• Do not disassemble or refit the battery. Otherwise, it
will cause liquid leakage, overheating, explosion and
20
ignition of the battery.
• Please store the battery in a cool dry place if you
don’t use it for a long period.
• The battery can be recharged for hundreds of times,
but it will eventually wear out. When the operating time
(talk time and idle time) is noticeably shorter than normal,
it is time to replace it with a new one.
• Please stop using the charger and battery when they
are damaged or show evidence of aging.
• Return the worn-out battery to the provider or
dispose of it in accordance with environment regulations.
Do not dispose of it in household rubbish.
• Please use original batteries or batteries approved
by the phone manufacturer. Using any unauthorized
battery may affect your handset performance or may
cause danger of explosion, etc.
• Return the worn-out battery to the provider or
dispose of it in accordance with environment regulations.
Do not dispose of it in household rubbish.
Warning:
If the battery is damaged, do not discharge it. If the leakage
does come into contact with the eyes or skin, wash
thoroughly in clean water and consult a doctor.
21
Getting Start
Overview
Keys Explained
Key Function
22
Key Function
Power Key • Hold to turn on or off Silent or Airplane
mode, or to power off.
• Press to switch your phone to Sleep
mode.
• Press to wake up your phone.
Home Key • Press to return to the Home Screen from
any application or screen.
• Hold to see recently used applications.
Menu Key Press to get the options for the current
screen.
Back Key Press to go to the previous screen.
Volume Keys Press or hold to turn the volume up or down.
Starting up
Installing the SIM/microSD Card and Battery
Switch off your phone before installing or replacing the battery,
SIM, or memory card.
1. Remove the back cover.
23
2. Hold the SIM card with the cut corner oriented as shown
and slip it into the card holder.
3. Follow the OPEN arrow to push the metal slot, and flip it
up. Insert the memory card into the metal slot with the
metal contacts facing down until it clicks to the right
position. Flip the metal slot back and lock it.
4. Insert the battery by aligning the gold contacts on the
battery with the gold contacts in the battery compartment.
Gently push down on the battery until it clicks into place.
24
5. Press the cover gently back into place until you hear a
click.
Removing the Battery and SIM/microSD Card
1. Make sure that your mobile phone is off.
2. Remove the back cover.
3. Lift the battery up and out.
4. Slide the SIM card out.
5. Slide the microSD card out.
Charging the Battery
When you first get your new phone you’ll need to charge the
battery.
1. Connect the adapter to the charger jack. Ensure that the
adapter is inserted with the correct orientation. Do not
force the connector into the charger jack.
25
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
Switching Your Phone On/Off
Make sure the SIM card is in your device and the battery is
charged.
• Hold Power Key to switch on your phone.
• To switch it off, hold Power Key to get the phone options.
Select Power off, and then tap OK.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Sorting out Your Phone
Settings – Privacy: Factory data reset), you need to do some
settings before using it.
26
Tap Menu Key on the idle screen, then select Settings >
Language & keyboard > Select language to change the
language you want to use, if needed.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to
a low-power-consumption state while the display is off. Your
device also goes into Sleep Mode by itself when the display
is automatically turned off after a certain period of time. You
can start sleep mode by the following method:
Press Power Key to switch to Sleep Mode.
Waking Up Your Phone
1. Press Power Key to activate your screen display.
2. Drag the icon to the right as follows to unlock
screen.
NOTE: If you have set an unlock pattern, PIN or password for
your phone (see chapter Sorting out Your Phone Settings –
Security Settings) you’ll need to draw the pattern or enter the
PIN/password to unlock your screen.
27
Getting Around Your Phone
Touch Control
You can use finger gestures to control your phone. The
controls on your touch-screen change dynamically
depending on the tasks you’re performing.
1. Tap the buttons, icons, or applications to select items or
to open applications.
2. Flick the screen to scroll up, down, left or right.
3. Point, drag and drop to move particular items across the
screen.
NOTE: You can view the phone screen in portrait or
landscape orientation simply by holding it upright or turning it
on its side. Not all screens are viewable in landscape.
Home Screen
You choose what is shown on your Home Screen. Add the
widgets or application shortcuts you need, or remove them
as you like.
Extended Home Screen
The Home Screen extends beyond the screen width, giving
you loads more space to add more stuff. Simply slide your
finger to the left or right.
28
Choosing Your Wallpaper
1. Press Home Key to return to the Home Screen.
2. Press Menu Key and select Wallpaper.
3. Tap Gallery, Live wallpapers, or Wallpapers and
choose the image or animation you want to use as the
wallpaper.
4. Tap Set wallpaper.
Adding Items to Your Home Screen
1. Press Home Key > tap .
2. Hold any icon until the background become home
screen.
3. Hold the icon and drag to the application page then
release your finger.
Or you can press Menu Key and select Add to add the
items you want to use.
Removing Items from Your Home Screen
1. Press Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the
icon appears on the screen.
3. Drag the item to and release your finger when the
item turns red.
Status and Notification Icons
Your phone will tell you exactly what’s going on by showing
29
you simple icons. Here’s what they mean.
New mail New message
Signal strength Connected to a Wi-Fi network
USB connected Alarm set
Battery very low earphone insert
Battery low Data Conn off
Battery status Airplane mode
Bluetooth icon Signal searching
Silent mode New Wi-Fi network detected
Using the Notification Panel
Flick the status bar downwards from across the top of the
screen to open the Notification Panel, where you can see
your calendar events, new Messaging, and current settings
– such as call forwarding or call status. From here you can
also open new Messaging, reminders, etc.
TIPS: You can also open the Notification Panel by tapping
Menu Key > Notifications from the Home Screen.
30
Open Recently-Used Applications
1. Hold Home Key from any screen. The phone will display
icons of applications you used recently.
2. Tap the application you want to open.
Phone Calls
Making Calls
There are many ways to make a call with your phone. And
they’re all easy to do.
Calling from the Phone
1. Press Home Key > tap > Phone or tap on the
Home Screen.
2. Enter the phone number using the on-screen keypad.
Tap to delete wrong digits.
3. Tap the dial icon.
TIPS: To make international calls, hold to enter the
“+”.
Calling from Your Contacts
1. Press Home Key >tap > Contacts.
2. Slide your finger to scroll the contacts list and tap the
contact you want to call.
You can search for a contact by tapping on the top of
31
the screen.
3. Tap the dial icon.
Calling from Your Call History
1. Press Home Key >tap > Call Log.
2. Tap the call log to dial the number.
Calling from a Text Message
If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.
1. Press Home Key >tap > Messaging.
2. Tap the conversation and then the message that contains
the phone number you need.
3. Tap the message, the phone will list the numbers.
4. Tap the number you want to dial the number.
Receiving Calls
Answering a Call
When there is an incoming call, the phone will ringing,
vibrating alert or animation (depending on the current mode
your settings).
Answering calls by slipping the relevant icon to right.
32
Muting a Call
During a call, you can mute your microphone so that the
person you are speaking to cannot hear you, but you can still
hear them.
Tap Mute to turn your microphone off. The mute icon will
appear on the status bar. To turn your microphone back on,
tap Mute again.
Turning the Speakerphone On/Off
Tap Speaker during a call to turn the speakerphone on. Tap
Speaker again to turn off the speakerphone.
Ending a Call
Tap to finish a call.
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, press Home Key > tap > Contacts.
From there, you can tap the tabs at the bottom to quickly
switch to Phone, call log, contacts, or favorites.
Creating a Contact
1. Tap or Menu Key > New contact from the Contacts
Screen.
33
2. Choose where to save the contact.
3. Enter the contact name, phone numbers, and other
information, and then save it.
Searching for a Contact
1. Tap on the top of the Contacts Screen.
2. Input the contact name you want to search for.The
contacts matched will be listed.
Messaging
Your SMS (text message) and MMS (multimedia messaging
service) are combined into one menu in Home Key > >
Messaging.
The Message Box
Instead of an inbox and outbox, your phone organizes all
Messaging you sent and received into one box, where
Messaging exchanged with the same number are grouped
into one message thread in the Messaging Screen. You can
tap a thread to see the conversation you have had with
someone.
Sending an Message
1. Press Home Key > Tap > Messaging.
2. Tap Compose new message.
34
3. Enter the recipient’s number or name. As you type,
matching contacts will appear. Tap a suggested contact
to add as a recipient.
4. Tap Type to compose and type your message.
• Tap Menu Key> to insert quick text, smiley, or
contact.
• If you are sending an MMS, press Menu Key to add a
subject, or attach pictures, videos, audio, or
slideshows.
5. Tap Send to send your message.
NOTE: Add an attachment to text message and it will be
converted into an MMS automatically. Likewise if you remove
all attachments and the subject from an MMS, it’ll
automatically become a text message.
Message Settings
The phone’s message settings are pre-configured for you to
use immediately. To change them, press Menu Key >
Settings from the Messaging Screen.
NOTE: From SMS settings screen press Menu Key >
Restore default settings to change all the message settings
back to the original.
Touch Input Settings
Choose the touch input settings by pressing Menu Key >
35
Settings > Language & keyboard from Home Screen.
In the Keyboard settings section, you can choose the
settings for Android keyboard and XT9 text input.
Getting Connected to the Internet
Your phone’s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.
You can use default connection settings to connect to the
Internet via your mobile networks or Wi-Fi.
The networks connection can be enabled / disabled manually.
Just select > Settings > Wireless & networks >
Mobile networks from the Home Screen and tick or clear
the Data enabled check box.
Adding a New Network Connection
To get connected via your mobile network you need a data
plan with your service provider. Also if the networks settings
are not pre-configured on your phone, please contact your
provider to get the necessary information.
1. Press Home Key > tap > Settings > Wireless &
networks > Mobile networks > Access Point Names.
2. Tap Menu Key > New APN.
Turning On Wi-Fi
Wi-Fi provides wireless Internet access over distances of up
36
to about 300 feet.
1. Press Home Key >tap > Settings > Wireless &
networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Press Home Key > Tap > Settings > Wireless &
networks > Wi-Fi settings.
The Wi-Fi access points, or “hotspots”, that your phone
has detected are displayed with their names and
security settings.
2. Tap an access point to connect to it.
If security features are implemented, you’ll need to enter a
password.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by looking at the icon
in the status bar.
Using the Phone as a Modem
You can access the Internet on your PC via your phone as a
modem. Note the function may result in data charges from
your mobile phone carrier. Please contact them for detail.
37
Enabling USB tethering
TIPS: The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the networks connection correctly
before you try to use the phone as a modem.
Press on the phone Home Key >tap Menu Key >
Settings > Wireless & networks > Tethering & portable
hotspot and tick the USB tethering check box. A new
network connection will be created on your PC.
Disabling USB tethering
Press Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
USB tethering check box.
You can also just pull out the USB cable.
Enabling the Wi-Fi Hotspot
1. Press Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and tick the
Portable Wi-Fi hotspot check box.
2. Tap Portable Wi-Fi hotspot settings > Configure WI-FI
hotspot to set up & manage portable WI-FI hotspot.
3. Tap Save. Now you can find the hotspot on other devices
and connect to it.
Disabling the Wi-Fi Hotspot
Press Home Key >Menu Key > Settings > Wireless &
38
networks > Tethering & portable hotspot and clear the
Portable Wi-Fi hotspot check box.
Browsing the Internet
You can use your phone to get on the Internet via a network
or Wi-Fi connection.
Press Home Key > tap > Browser.
There are different ways to open web pages:
Tap the address bar to enter the website you want to browse.
Then tap .
Press Menu Key > Bookmarks. Select a bookmark to open.
Browsing Options
Press Menu Key to access the following options when
browsing web pages.
• Open a Windows for web browsing.
• Close the Browser application.
• Access Bookmarks, most visited web sites, and
browsing history.
• Tap More to do more operations (such as add bookmarks,
downloads, or configure browser settings etc.).
Using Bookmarks
To bookmark a web page, open it and press Menu Key >
39
Bookmarks. Then tap Add bookmark. Give the bookmark a
name and save it.
Changing Browser Settings
Tap Menu Key > More > Settings from a browser window to
change browser settings.
Bluetooth
Bluetooth is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can
exchange information wirelessly within a distance of about 10
meters. The Bluetooth devices must be paired before the
communication is performed.
1. Press Home Key > Tap > Settings > Wireless &
networks and tick the check box by Bluetooth to turn on
Bluetooth.
When Bluetooth is on, the icon will appear in the
status bar.
2. Tap Bluetooth settings > Scan for devices. Your
phone will show all visible Bluetooth devices in range.
3. Tap the device you want to pair with and, if required, enter
your PIN and tap OK.
If a PIN is required, the same PIN should be entered on
the other device. Refer to the document for the other
Bluetooth device for information on pairing mode and
40
PIN.
Making the Most of Multimedia
Taking Pictures with Your Camera
Your phone has camera function. Open it by pressing Home
Key > tap > Camera.
Tap to take a shot. To view it, just tap the picture in the
right corner of the screen. Or select Menu Key > Gallery to
view all your pictures.
Shooting Video with Your Camcorder
Open the camcorder by pressing Home Key > >
Camera. Slide the icon to change to Camcorder mode.
Then tap to start shooting, and tap to stop. Select
the picture in the right corner of the screen to view the video
you’ve just shot. Or press Menu Key > Gallery to see all
your video clips.
Notes: You must insert the memory card before you use the
camera and camcorder.
Listening to Your FM Radio
With the FM Radio, you can search for radio channels, listen
to them, and save them on your phone. Note that the quality
of the radio broadcast depends on the coverage of the radio
41
station in your area. The wired headset works as an antenna,
so always connect the headset when using the radio.
• To tune in, plug your headset into your phone. Press
Home Key > tap > FM Radio.
Playing Your Music
You can play digital audio files from your phone’s memory
card in Music.
1. Press Home Key > tap > Music to open the Music
Screen.
2. Tap a song from the list to start playing.
3. Adjust the volume with Volume Keys.
Opening Your Gallery
Press Home Key > tap > Gallery. You can use Gallery
to view pictures and play videos. You can also do some
basic editing of your pictures – such as setting them as
wallpaper or contact icons, and sharing with friends.
Making Voice Memos
Sound Recorder enables you to record your voice memos.
You need a microSD card to use it.
1. Press Home Key > Tap > Sound Recorder.
42
2. Tap to start recording.
3. Tap to stop recording.
4. Tap to play back the voice recording.
5. Save the voice recording after stop, or tap Cancel to
delete the recording.
Using Your Google™ Applications
Signing in to your Google Account lets you synchronize
Gmail, Calendar, and Contacts between your phone and the
web. And if you don’t have an account, you can easily create
one.
1. You must add an account to the device before using
Google application, such as Market.
2. Read the instructions and select Next.
3. If you’ve got a Google account, tap Sign in. Enter your
user name and password. Then tap Sign in. (Or tap
Create if you don’t have a Google account.)
Gmail
Gmail is a web-based email service that’s configured when
you sign in to your Google account. Depending on your
synchronization settings, the Gmail on your phone can be
automatically synchronized with your Gmail account on the
web. This is how to enter Gmail:
43
Open Gmail by pressing Home Key > tap > Gmail.
Using Google Talk
Google Talk is Google’s instant messaging program, which
enables you to communicate with other people who also use
it.
Opening Google Talk
Press Home Key >tap > Talk.
Adding a New Friend
You can only add people who have a Google Account.
1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google email address of the friend you want to
add.
Starting a Chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Tap Send.
Places
Google Places helps you find all kinds of businesses near
you. Please enable GPS or wireless networks in settings
application, under location settings.
44
1. Press Home Key >tap > Places.
2. Select a business category and the information of that
type of business near you will be displayed.
3. Tap a result you are interested in and check out the
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.
Latitude
Google’s Latitude service is a social tool for sharing your
location information with selected friends.
Press Home Key >tap > Latitude to enable Latitude
service.
Sorting out Your Phone Settings
Setting Date and Time
1. Press Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic check box if you want to set the time
and date by yourself.
3. Set date, time and change other options.
Display Settings
By pressing Home Key > Menu Key > Settings > Display,
you can adjust the display settings as you like:
45
• Brightness: Adjust brightness of the screen.
• Auto-rotate screen: Rotate the screen display as you
rotate the phone.
• Animation: Choose window animation.
• Screen timeout: Set the delay for the screen to
automatically turn off.
Sound Settings
By pressing Home Key > Menu Key > Settings > Audio
profiles, you can select the profile, adjust the sound settings,
such as ringtones, volume and vibrate.
Language Settings
You can change the language of your phone system in two
simple steps.
1. Press Home Key > Tap > Settings > Language &
keyboard > Select language.
2. Select a language from the list given.
Mobile Network Services
Press Home Key > Tap > Settings > Wireless &
networks > Mobile networks to enable or disable data
service, allow data services when roaming, or set access
point names for data access.
46
Disabling Data Services
1. Press home key > Menu Key > Settings > Wireless &
networks > Mobile networks.
2. Clear the Data enabled check box.
Switching Network Modes
1. Press home key > Menu Key > Settings > Wireless &
networks > Mobile networks > Network Mode.
2. Select one of the following: GSM/ WCDMA (auto mode),
WCDMA only, or GSM only.
Switching Networks
1. Press home key > Menu Key > Settings > Wireless &
networks > Mobile networks > Network operators. The
phone automatically searches for all available networks.
2. Tap a network to register manually, or tap Select
automatically.
Setting Access Point Names
To connect to the Internet you can use the default Access
Point Names (APN). And if you want to add a new APN,
please contact the service provider to find out more.
Press home key > Menu Key > Settings > Wireless &
networks > Mobile networks > Access Point Names.
47
Security Settings
Here’s how to protect your phone and SIM card from
unauthorized use.
Protecting Your Phone with a Screen Unlock
Pattern
Creating Your Screen Unlock Pattern
1. Press Menu key> tap > Settings > Security > Set
up screen lock > Pattern.
2. Read the instructions and according to this instruction to
set screen unlock pattern.
Unlocking the Screen with Your Pattern
1. Press Power Key to wake up the screen.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Protecting Your Phone with a PIN or
Password
Creating a PIN or Password
1. Press Home Key > tap > Settings > Security > Set
up screen lock.
2. Tap PIN or Password.
48
Unlocking the Screen with Your PIN or Password
1. Press Power Key to wake up the phone.
2. Drag the icon to the right.
3. Enter the PIN or password you set.
Disabling Screen Unlock Security
If you have created an unlock pattern, PIN or password, you
can disable it.
1. Press Home Key >tap > Settings > Security >
Change screen lock.
2. Draw the screen unlock pattern or enter your PIN/
password you have created.
3. Tap None.
Protecting Your SIM Card with a PIN
Every SIM card comes with a PIN. The initial PIN is provided
by your mobile phone carrier. It’s best to lock your SIM card
as soon as you can.
1. Press Home Key > tap > Settings > Security > Set
up SIM card lock.
2. Tick the Lock SIM card check box.
3. Enter the PIN you’ve been given and tap OK.
Changing Your SIM PIN
You can change the PIN you’ve been given to one easier for
49
you to remember and harder for others to guess.
1. Press Home Key >tap > Settings > Security > Set
up SIM card lock.
2. Make sure you already tick the Lock SIM card check box.
3. Tap Change SIM PIN.
Setting up Credential Storage
This lets you select applications to access secure certificates
and other credentials.
Enabling Secure Credentials
1. Press Home Key > tap > Settings > Security.
2. Tap Set password and create a password for the
credential storage.
3. Tick the Use secure credentials box.
Deleting Secure Credentials
1. Press Home Key > tap > Settings > Security.
2. Tap Clear storage to clear credentials.
Managing Your Device Memory
Press Home Key >tap > Settings > Storage.
You can view the space information of the microSD card as
well as the phone storage.
• Unmount SD card: You can unmount the microSD card
50
to safely remove it.
• Erase SD card: Erase all data on the microSD card.
Privacy: Reset to Factory Settings
Press Home Key >tap > Settings > Privacy > Factory
data reset > Reset phone > Erase everything.
WARNING: All your personal information and downloaded
applications on your phone will be erased after the resetting.
Managing Applications
Press Home Key > tap > Settings > Applications.
Installing an Application
You can install an application from the Android Market
(Home Key > > Market) by selecting the item you want
to download and tapping Install.
You can also install a non-Marketing application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.
1. Copy the application file to the microSD card and install
the card on your phone.
2. Press Home Key > Tap > File Manager, and open
the folder where the application file is.
51
3. Tap the file to start installation.
4. Read the installation instructions that come with the
application and follow it to complete the setup.
NOTE: please take your handset as the standard.
Removing an Application
1. Press Home Key > Tap > Settings >
Applications > Manage applications.
2. Select the application you want to delete.
3. Tap Uninstall and OK to confirm.
Moving an Application
You can move the applications downloaded or installed on
your phone to the memory card when the phone memory is
full. You can also move applications to your phone if the
memory card is getting full.
NOTE: Not all applications can be move to your phone or
memory card.
1. Press Home Key > Tap > Settings >
Applications > Manage applications.
2. Tap the application you want to move under Manage
applications.
52
Managing Other Settings
Voice Input and Output
You can set the text-to-speech and voice recognition options
by pressing Home Key > tap > Settings > Voice input &
output.
NOTE: You need to download voice data in order to use the
text-to-speech function.
Accessibility
You can configure accessibility options for
accessibility-related applications by pressing Home Key > tap
> Settings > Accessibility.
Other Applications
Clock
1. Press Home Key > Tap > Clock.
2. Tap the alarm icon.
3. Tap the default alarm to configure it. Or, to create a new
alarm, press Menu Key > Add alarm.
4. Tick the Turn alarm on box and set up the alarm options.
53
Calculator
Press Home Key > Tap > Calculator.
TIPS: Press Menu Key > Advanced panel to use scientific
calculation.

Navigation menu
