ZTE V6020
User Manual
-1-
Using your phone
Thanks for choosing the ZTE V6020. It’s a WCDMA digital mobile
phone, which we’ll simply call ‘phone’ from now on.Under Android
operating system, the mobile phone supports 3G high-speed
Internet access, which brings you brandnew experiences.
And don’t worry if the pictures we use to demonstrate your phone’s
functions look a little different from what you see on its screen. It’s
the functions they show that matter.
This quick start guide is designed to help you familiarise yourself
with the mobile phone’s basic functions. For details, please refer to
the User Manual.
-2-
Starting Up

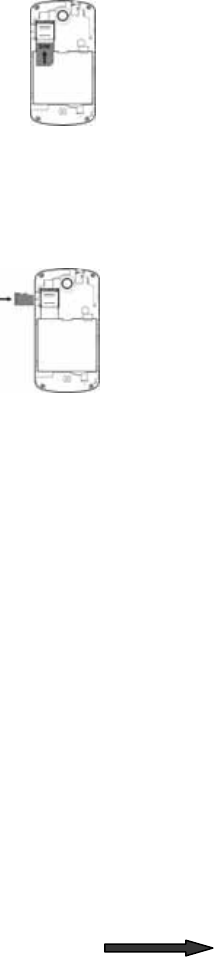

How to insert the SIM card
Insert the SIM card as follows:
1. Switch off your phone and disconnect any
external power.
2. Remove the back cover and then the battery.
3. Hold your SIM on the cut corner, and slide it
face down into the card holder.
4. Insert the battery.
5. Replace the back cover.
Inserting and removing a memory card
Note: Removing or inserting a memory card when your phone is
turned on could not only damage it and your phone, but also
destroy any data saved on the card.
1. Remove the back cover and insert the
memory card at the side of the phone.
2. Push tightly until the card is installed in the
right position and replace the back cover.
3. Before you take out the card, please open
the back cover and press the card inward
to unlock.
-3-
Battery
The lithium ion battery of the mobile phone can be immediately
used after unpacking. A new battery performs best after perfoming
a full charge/discharge 3 times.

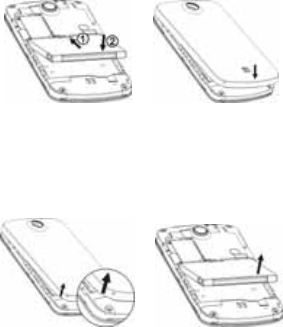

Installing the battery
1. Open the battery cover on the back of your phone.
2. Align the battery's contact points with those of the phone and
gently press the battery down into place.
3. Replace the battery cover clicking it back into position.
Removing the battery
1. Switch off your phone.
2. Open the battery cover.
3. Lift the battery up and out of your phone.
-4-
How to charge the battery
The rechargeable Li-ion battery that comes with
your phone is ready to use, but is not charged.
That’s easy to do. We’ll show you how below.
1. Connect the charger to your phone, and plug
it into an 110V/220V socket.
2. The battery indicator in the corner of the screen will scroll to
show you it’s charging.
3. When fully charged, the battery indicator will stop scrolling.
Disconnect the charger from your mobile, and unplug.
Powering On/Off
Powering On
Press the End/Power key until the power-on icon appears.
Note:You may need to enter the Personal Identification Number
(PIN) or Draw unlock pattern if you have set a PIN or unlock
pattern.
Powering Off
Long press the End/Power key to display the menu Phone options
and select Power off.
-5-
My Phone
Receiver
SYM key
Fn ke
y
Home key Back key
Menu key
Open the current interface.
OK key
Delete key
Camera
Speaker
USB interface Headset jack
End/power ke
y
Press the key to turn
on/off the display, and
hold the key to turn
on/off the phone.
Side keys
A
djust the
volume
-6-
Idle screen
When you turn on the phone, it enters the idle screen. The
following indicators notify you with the phone status and alerts.
Icons Descriptions Icons Descriptions
Signal strength No signal
Full battery Charging
Low battery In a call
Connected on 3G You have an unread
message.
Speakerphone on You have an unheard
voicemail.
Call forwarding on You have an unread E-mail.
No memory card You have an unread
G-mail.
Call held Connected to a PC
Vibration mode Music playing
Silence mode New calendar reminder
Flight mode Alarm clock on
Missed calls Wi-Fi function on
Bluetooth® function
is on
Receiving location data
from GPS
Roaming
-7-
Text Input
Using the keypad
As the slide is opened, you could use the keypad to input.
Switch input method: Press the key.
Insert a space: Press the key.
Delete: Press the key to delete the input before the
cursor.
Switch caps lock: Press the key.
Line feed: Press the key.
Input letters and common symbols: There are two symbols
on the keys. In abc/Abc/ABC method, press the key to input
the symbol located on the left part of the key; press the
key and then press the key to input the symbol located on the
right part of the key; press the key twice and then press
the key to continuously input the symbol located on the right
part of the key.
In Smart abc/Abc/ABC method, your phone predicts the word
as you enter it, so you need input only the first few letters of
the word.
Input numbers: In 123 method, press the numeric keys to
input the corresponding numbers.
Input symbols: During the text input, press key to display
symbol lists, press the Navigation keys to select the symbol,
and press OK to confirm.
-8-
Using Virtual keyboard
Your phone supports the Android keyboard input method and the
TouchPal keyboard input method. Android keyboard supports
multiple language inputs; TouchPal keyboard supports English
and Spanish.
On the text screen, touch and hold the space where you usually
write your text until the Input method is displayed,and touch it
and select the input options.
Android Keyboard
TouchPal Keyboards
Delete a character
before the cursor.
Insert a smiley.
Change between lowercase and
uppercase.
Change to symbol/number mode.
T
ap again to change back.
Select input method
Insert space
-9-
Basic Operation
Make and answer calls
Make a call
Directly make a call
On the home screen, press the button to display the dialing
keypad. Press the numeric buttons to input the telephone number
and press the button to make the call.
Make the call from Contacts
In the main menu, press the Contacts icon to display the list of
contacts, press the desired contact and press the button
that is located next to the number to make the call.
Make the call from Call log
In the main menu, press Contacts > Call log to select the call
log, then press the button that is located next to the number
to make the call.
Make an international call
On the home screen, press the button to display the
dialing keypad. Long press the “0” key until “+” appears on
the screen, then dial the country code or region code, city
code and phone number.
-10-
Dial from Messaging
1. In the Main menu, press the Messaging icon to open the
message interface.
2. Select and open one message or conversation.
3. Long press the message text to pop up the Message options.
If the message contains other numbers, the Message options
will list all numbers. You can select the number you want to
dial.
Answer a call
Your phone will ring or vibrate (depends on the current mode and
settings) upon an incoming call.
- Drag the button to the right to answer the call.
- If the earphone is inserted, press the key on the earphone to
answer the call.
Reject a call
Drag the button to the left to reject the call.
End a call
Press the button to hang up the call.
Adjust the volume
In a call, you can raise or lower the volume by using the volume
keys.
Turn the speaker on or off
-11-
In a call, press the button to turn on the speaker, and press
it again to turn off speaker.
Add one call
In a call, press the button to add one call and put the current
caller on hold. This function requires the support of the network
operator.
Open the dialing keypad
In a call, you can press the button to open the dialing
keypad to input additional numbers.
Contacts
In Contacts you can view or manage your contacts.
In the Main menu, press the Contacts icon to open Contacts.
The contacts interface can be divided into the following tab
pages:
- Phone: Display the dialing keypad.
- Call log: View all call logs.
- Contacts: View the list of contacts.
- Favorites: Display the list of favorites.
All of your contacts are displayed alphabetically in a scrolling list.
You can slide your finger up or down to scroll quickly. A tab
briefly appears to the right of the list, which you can drag up and
down to scroll very quickly.
Add new contact
-12-
1. In Contacts, press the Menu key to select New contact.
2. Input all contact information. Slide up to move to the next field.
Press the button to add more than one entry for that
category.
3. Press Done to save your contact.
Delete a contact
1. In Contacts, tap the contact you want to delete.
2. Press the Menu key and then select Delete contact.
3. Press OK on the pop-up menu.
Tip:
You can also long press the contact you want to delete and then
select Delete contact from the pop-up menu.
Delete contacts
1. In Contacts, press the Menu key and then select Delete
contacts.
2. Select the contacts you want to delete, then press Delete
contacts > OK.
Edit contact details
1. In Contacts, press and hold the contact whose details you
want to edit.
2. In the menu that opens, press Edit contact.
3. Edit the contact information.
-13-
Search contacts
1. In Contacts, press the Menu key and then select Search.
2. Input a key word of a contact name. The phone will
automatically list all matched contacts.
Add to favorites
1. In Contacts, scroll the list to find your desired contact.
2. Long press the contact until the contact’s shortcut menu
appears.
3. Press Add to favorites.
Tip:
You can also tap the contact you want to add to favorites in the
contact interface, then press in the upper right corner to add
it to Favorites directly.
Accounts
You can synchronize contacts information to your phone from
multiple Google Accounts, Microsoft Exchange ActiveSync
accounts or other kinds of accounts, depending on the
applications installed on your phone.
In Contacts, press the Menu key and then select Accounts.
Import/Export contacts
1. In Contacts, press the Menu key to select Import/Export.
2. You can select Import/Export contacts, Import from SD
card, Export to SD card, or Share visible contacts.
-14-
Share a contact
You can share a contact with someone.
1. In Contacts, tap the contact you want to share.
2. Press the Menu key and then press Share.
3. Select share with message or share with application (Bluetooth,
Email, or Gmail).
Messaging
In Messaging, you can send or receive text messages and
multimedia messages.
On the home screen or in the Main menu, press the Messaging
icon to open.
Send messages
1. In Messaging, press compose new message.
2. Input your desired telephone number in To.
You can also press the button to select a phone number
from the Contacts.
3. Input some text in Type to compose. You can press the Menu
key to select:
- Add subject: Convert to multimedia message and add a
subject for the message.
- Attach: Convert to multimedia message and add an attachment
to the message. You could send Pictures, Videos, Audio, etc.
- Insert quick text: Insert a preset message.
- Insert smiley: Insert a smiley.
-15-
4. After that, press Send to send the message.
Receive messages
1. In idle mode, you will be reminded about the new messages in
the notification area. Slide down to open the notification panel
to view.
2. Touch the message.
3. Directly input text to reply to the message.
4. Long press the text to pop up the Message options menu to
directly call back, call the number in the text message, delete
the message, etc.
Message thread
The messages from one contact or number will be aligned in one
message thread in chronological order. You can manage these
threads in the messaging interface.
Press one thread on the Messaging screen, then press the
Menu key to select:
- Call: Call the sender’s number.
- Add subject: Add a message subject.
- Attach: Open a menu where you can touch the kind of media
file you wish to attach to the message.
- Insert quickly text: Insert a preset message.
- Insert smiley: Insert a smiley.
- Delete Message: Delete the message.
- More: You can select to delete thread, delete all threads, etc. If
the sender’s number is not saved in your contacts, you can add
the number to Contacts.
-16-
Settings
In Messaging, press the Menu key and then press Settings to
perform relevant settings.
Network Applications
Network connection
Your phone can connect to the Internet, so you may need to pay
for some data service. For details, please consult your network
service provider.
Ways of Connecting to the Internet
Your phone’s networking capabilities allow you to access the
Internet via the mobile network’s 3G connection and Wi-Fi.
Data connection
The icons on the Status bar indicate which kind of data network
you’re connected to.
On the home screen, press the Menu key and then press
Settings > Wireless & networks > Mobile networks to perform
relevant settings.
Wi-Fi
Turn on/off Wi-Fi
1. On the home screen, press the Menu key and then press
Settings > Wireless & networks.
2. Check the box for Wi-Fi to turn on Wi-Fi. Uncheck to turn off
Wi-Fi.
-17-
Connect to Wi-Fi
1. On the home screen, press the Menu key and then press
Settings > Wireless & networks.
2. Check the box for Wi-Fi to turn on Wi-Fi.
3. Press Wi-Fi settings. Your phone will automatically search for
all nearby Wi-Fi networks.
4. Select the network you would like to connect to from the list.
- If you’ve selected an open network, your phone will
automatically connect to it.
- If you’ve selected a security network, you need to input the
password.
Browser
You can use Browser/Mobile Web to view web pages and to
search for information on the web.
Open Browser
1. On the home screen or in the Main menu, press the Browser
icon.
2. Press the URL field at the top to input a web address.
3. Press .
You can press the Menu key > Bookmarks to select the
bookmark you want to open, and press Most visited or History
to open other web pages.
Browse web
-18-
After opening a web page, you could slide your finger on the
screen to view other parts of the page.
Quickly zoom
1. Double-tap on the section of the web page, the web page
zooms in.
2. To return to the default zoom level, double-tap again.
Browse options
When you’re browsing web pages, press the Menu key to select:
-Backword: Go to the previous page.
-Forward: Go to the next page.
-Windows: View opened windows.
-Bookmarks: Enter the bookmarks interface to bookmark web
pages.
-Close: Close the opened page.
-More: You can perform more operations such as Select text,
Page info, Share page, Downloads, etc.
Settings
You can choose settings that will affect how page content is
displayed and privacy and security preferences to suit your
browse style.
On the Browser screen, press the Menu key > More > Settings
to enter the Settings interface.
Switch to sleep mode
-19-
Sleep mode is a kind of power-saving mode, which
prevents against inadvertent operations.
If your phone has been in idle mode for a while, it will
automatically switch to the sleep mode.
You can also press the End/Power key to turn off the
screen and enable the sleep mode.
Wake up your phone
After the phone switches to the sleep mode, the screen
will be turned off and locked. In this case please awake
your phone and unlock the screen if you want to use your
phone.
Press the End/Power key to turn on the screen.
Hold the bottom of the screen and drag it to the up to
unlock the screen. If you’ve set unlock pattern, you need
draw the unlock pattern to unlock. (For details, please
see Settings > Security >Set up screen lock >
Pattern).
Screen control
You can control your phone through a series of operations on
the screen.
Press: you can press the items on the screen to select,
open the applications, or use the keyboard to input
characters.
Slide: you can scroll up/down the page or scroll the page
left/right by sliding vertically or horizontally on the screen.
Long press: you can long press some items to get its
-20-
available menu. Long press the application icons to add
the shortcuts of these applications to the home page.
Drag: you can drag some items on the screen to realize
some operations.
Switch between landscape mode and portrait mode:
you can switch to the landscape mode by rotating your
phone to the left. The landscape mode is only valid under
some interfaces, such as text input interface, message
viewing interface, etc.
Enter the menu
Enter main menu
In idle mode, press the key to enter the main menu and
press the key to return.
Enter submenu
After entering the main menu, press the icon to enter the
corresponding submenu, press the Back key to return to the
previous menu and press Home key to return to the idle mode.
Homepage
Add icons on the homepage
Long press the empty area on the homepage to pop up Add
to Home screen menu. Select Shortcuts, Widgets,
Folders, and Wallpapers.
-21-
You can copy icons from the main menu to the homepage by
long pressing an icon in the main menu until the icon
enlarges and the phone vibrates.
Move icons on the homepage
1. Long press an icon until the icon enlarges and the phone
vibrates.
2. Drag the icon to your desired position and then release.
Delete icons on the homepage
1. Long press an icon until the icon enlarges and the phone
vibrates.
2. Drag the icon into at the lower part of the screen to
delete.
Change wallpaper
1. Press the Menu key to open the menu.
2. Press Wallpaper > Gallery/Live wallpapers to enter the
image library.
3. Select one image and press Set wallpaper.
-22-
Using your phone safely
on the road
Using a phone while driving is illegal in many countries.
Please follow local laws and drive safely at all times.
near sensitive electronics
Don’t use your phone near sensitive electronic equipment
– particularly medical devices such as pacemakers – as it
could cause them to malfunction. It can also interfere with
the operation of fire detectors and other automatic-control
equipment.
For more information about how your phone affects
pacemakers or other electronic equipment, please
contact the manufacturer or your local distributor.
Your phone may cause interference when used near TVs,
radios or automated office equipment.
while flying
Your phone can cause interference with aircraft
equipment. So it’s essential you follow airline regulations.
And if airline personnel ask you to switch off your phone,
or disable its wireless functions, please do as they say.
in hospital
-23-
Your phone may interfere with the normal operation of
medical equipment. Follow all hospital regulations and
turn it off when you’re asked to by posted warnings or
medical staff.
at a petrol station
Don’t use your phone at petrol stations. In fact, it’s always
best to switch off whenever you’re near fuels, chemicals
or explosives.
around water
Keep your phone away from water (or any other liquid).
It’s not a waterproof model.
making repairs
Never take your phone apart. Please leave that to the
professionals. Unauthorised repairs could break the
terms of your warranty.
broken antenna
Don’t use your phone if the antenna is damaged, as it
could cause injury.
around children
Keep your mobile out of children’s reach. It should never
-24-
be used as a toy and it might not be good for their health.
original accessories
Only use the original accessories supplied with your
phone or those approved by the manufacturer. Using
unapproved accessories may affect performance, make
the warranty void, break national regulations on the use
of mobile phones, or even cause injury.
near explosives
Turn off your phone in or near areas where explosive
materials are used. Always obey local laws and turn off
your phone when requested.
emergency calls
To make an emergency call your phone must be turned
on and in an area where there’s network coverage. Dial
the national emergency number and press ‘send’. Explain
exactly where you are and don’t hang up until help has
arrived.
working temperature
The working temperature for the phone is between 0℃
and 40℃. Please don’t use the phone outside the range.
Using the phone under too high or too low temperature
-25-
might cause problems.
At very high volume, prolonged listening to a mobile
phone can damage your hearing.
-26-
Battery care and safety
Keep the battery in a cool, ventilated place and out of
direct sunlight.
Although the battery is rechargeable, it’ll eventually start
to lose its ability to recharge. If you find that the battery
won’t recharge, it’s time to replace it.
Please don’t throw old batteries into your household
rubbish. You’ll find there are special bins for batteries at
refuse collection points. And some high street electrical
stores provide a battery recycling service too.
Never throw the battery into a fire – it’s highly inflammable
and could explode, hurting you or somebody else.
When you put the battery into your phone, there’s no need
to use force. Exerting too much pressure could make it
leak, overheat, explode or burst into flame.
Never take the battery apart. This may result in leakage,
overheating, explosion or fire.
If the battery becomes hot, changes colour or shape at
any time (when in use, charging or even while in storage)
please stop using it immediately and replace.
Keep the battery dry. Damp or wet conditions can cause it
to overheat or corrode.
Don’t leave the battery in direct sunlight or anywhere really
-27-
hot, like in a car on a summer’s day. That could make it leak
or overheat, while lowering its performance and shortening
its life.
Don’t charge the battery continuously for 24 hours.
Overcharging is not good for it.
Note: Please avoid contact with the materials inside a
damaged or leaking battery. If they get on your skin, wash
with lots of water and seek medical assistance if required.
-28-
Charger care and safety
Only plug into voltages between 110VAC and 220VAC.
Using a voltage outside that range can damage the
phone/charger – and cause the battery to leak or catch fire.
Never short-circuit the charger – this may cause
electrocution, overheating or damage.
Don’t charge the phone in direct sunlight or in an area
where it’s damp, dusty, or on a vibrating surface. And
charging your phone near – or on – a TV or radio could
interfere with transmission.
Don’t use the charger if the power cable is damaged. It
may cause a fire or give someone an electric shock.
Keep water well away from the charger. If the charger
does get splashed by water, or any other kind of liquid,
immediately unplug it to avoid overheating, fire or
electrocution.
Don’t take the charger apart. It could cause injury, give
you an electric shock or catch fire.
Never touch any charger, electric cable or socket with wet
hands.
Don’t place heavy objects on the electric cable.
If the cable is damaged, don’t try to mend it yourself – it
could cause a fire or electrocute you.
Always unplug the charger before you clean it.
When unplugging the charger, hold the plug itself, rather
than pulling on the cable. A damaged cable can cause
electrocution or fire.
-29-
Health and safety
4RF exposure information (SAR)
This mobile phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs
a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to
the FCC, described in this user guide, is
Position SAR(W/Kg)
Head 1.167W/Kg
Body 1.116W/Kg
-30-
(Body-worn measurements differ among phone models,
depending upon available accessories and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC
ID:Q78-V6020.
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the
handset a minimum of 1.5 cm from the body. Use of other
accessories may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn
accessory and are not holding the phone at the ear, position
the handset a minimum of 1.5cm from your body when the
phone is switched on.
This device is compliance with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and
had been tested in accordance with the measurement
methods and procedures specified in OET Bulletin 65
Supplement C.
-31-
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or
TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
-32-
- Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help
-33-
Declaration of RoHS compliance
We’re determined to reduce the impact we have on the
environment and take responsibility for the earth we live on.
So this document allows us to formally declare that the
V6020, manufactured by ZTE CORPORATION, fully
complies with the European Parliament’s RoHS (Restriction
of Hazardous Substances) Directive 2002/95/EC, with
respect to all the following substances:
(1) Lead (Pb)
(2) Mercury (Hg)
(3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyl (PBB)
(6) Polybrominated diphenyl ether (PBDE)
Our compliance is witnessed by written declaration from our
suppliers. This confirms that any potential trace
contamination levels of the substances listed above are
below the maximum level set by EU 2002/95/EC, or are
exempt due to their application.
The V6020 manufactured by ZTE CORPORATION, meets all
the requirements of EU 2002/95/EC.
-34-
Disposal of your old phone
1. When the wheelie bin symbol is attached to
a product, it means the product is covered by
the European Directive 2002/96/CE.
2. All electrical and electronic products should
be disposed of separately from normal
household waste via designated collection
points provided by government or local
authorities.
3. The correct disposal of electrical and
electronic products will help protect the
environment and human health.
