Users Manual
1
V66
User Manual
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.
Google and the Google logo are trademarks of Google Inc.
Version No. : R1.0
Edition Time : Oct 2011
3
Contents
Getting Started ........................................................................ 11
Overview ........................................................................................... 11
Key Definition .................................................................................... 13
Starting up......................................................................................... 13
How to slot your SIM/memory card ............................................. 13
How to charge your Tablet .......................................................... 16
Powering On/Off Your Device ........................................................... 17
How to power on/off your device ................................................. 17
How to switch your device to sleep mode ................................... 17
How to wake up your device from sleep mode............................ 18
Getting Around Your Device ............................................................. 18
Using Finger Gestures ................................................................ 18
Home Screen .............................................................................. 20
Applications and Settings Preview .............................................. 23
Contacts .................................................................................. 31
Starting to use Contacts ................................................................... 31
4
Managing Contacts ........................................................................... 31
Importing/Exporting Contacts ...................................................... 31
Creating a Contact ...................................................................... 32
Searching for a Contact ............................................................... 33
Editing a Contact ......................................................................... 33
Deleting Contacts ........................................................................ 34
Synchronize Contacts ............................................................ 34
Entering Text ........................................................................... 35
Using the On-screen Keyboard ........................................................ 35
Input Options..................................................................................... 37
Touch Input Settings ......................................................................... 37
Using Email ............................................................................. 40
Creating an Email account .......................................................... 40
Composing and sending an Email ............................................... 41
Reply to or Forward an Email ...................................................... 42
Email Settings ............................................................................. 42
5
Getting Connected .................................................................. 45
Connecting to the Internet ................................................................ 45
Ways of Connecting to the Internet ............................................. 45
CDMA/EvDo/LTE ........................................................................ 45
Wi-Fi ............................................................................................ 46
Virtual Private Networks (VPNs) ................................................. 48
Using the Device as a Modem .......................................................... 50
Enabling the Device as a Modem ................................................ 50
Disabling the Modem Function .................................................... 52
Using the Device as a Wi-Fi Hotspot ................................................ 52
Enabling the Wi-Fi Hotspot .......................................................... 53
Disabling the Wi-Fi Hotspot ......................................................... 53
Using Browser................................................................................... 54
Opening Browser ......................................................................... 54
Opening Web Pages ................................................................... 54
Browsing Options ........................................................................ 55
Using Bookmarks ........................................................................ 58
Browser Settings ......................................................................... 59
6
Bluetooth® ......................................................................................... 62
Turning on/off Bluetooth .............................................................. 62
Making your device visible .......................................................... 63
Change your device name .......................................................... 64
Pair with another Bluetooth device .............................................. 64
Experiencing Multimedia ....................................................... 66
Camera ............................................................................................. 66
Opening Camera ......................................................................... 66
Taking Pictures ............................................................................ 66
Camera Settings .......................................................................... 67
Camcorder ........................................................................................ 68
Opening Camcorder .................................................................... 68
Shooting Videos .......................................................................... 68
Video Settings ............................................................................. 69
Music ................................................................................................. 70
Opening Music ............................................................................ 70
Playing Music .............................................................................. 70
7
Creating Playlists ......................................................................... 71
Managing Your Playlists .............................................................. 71
Gallery ............................................................................................... 72
Sound Recorder ................................................................................ 72
Opening Sound Recorder ................................................................. 72
Record Your Memo ..................................................................... 73
Google™ Applications ........................................................... 74
Signing In to Your Google Account ................................................... 74
Using Gmail ...................................................................................... 74
Open Gmail ................................................................................. 75
Creating and sending an gmail .................................................... 75
Using Google Calendar .................................................................... 75
Using Google Talk ............................................................................ 76
Opening Google Talk .................................................................. 76
Adding a new friend ..................................................................... 76
Viewing and accepting an invitation ............................................ 77
Starting a chat ............................................................................. 77
8
Places ............................................................................................... 78
Navigation ......................................................................................... 79
Latitude ............................................................................................. 79
Settings ................................................................................... 81
Basic Settings ................................................................................... 81
Setting the Time and Date ........................................................... 81
Screen Settings ........................................................................... 82
Sound Settings ............................................................................ 83
Language Settings ...................................................................... 85
Mobile Network Services ............................................................. 86
Security Settings ............................................................................... 87
Protecting Your Tablet with a Screen Lock ................................. 87
Protecting Your UIM Card with a PIN .......................................... 90
Setting Up Credential Storage ..................................................... 91
Managing Memory ............................................................................ 92
Managing Your Memory Card ..................................................... 92
Managing Internal Storage .......................................................... 93
9
Reset to factory settings .............................................................. 93
Application Settings .......................................................................... 93
Managing Applications ................................................................ 93
Removing an Application ............................................................. 94
Moving an Application to or from the Memory Card .................... 95
Other Settings ................................................................................... 96
Speech Synthesis Settings .......................................................... 96
Other Applications .................................................................. 97
Alarming ............................................................................................ 97
Set alarms ................................................................................... 97
Calculator .......................................................................................... 97
Specifications ......................................................................... 99
Health and Safety Information ............................................. 101
Distraction ....................................................................................... 101
Electrical Safety .............................................................................. 106
Explosive environments .................................................................. 110
10
Vehicles Equipped with an Airbag ...................................... 110
Third Party Equipment ......................................................... 111
Efficient Use .......................................................................... 111
Radio Frequency (RF) Exposure ......................................... 112
FCC Compliance ................................................................... 114
11
Getting Started

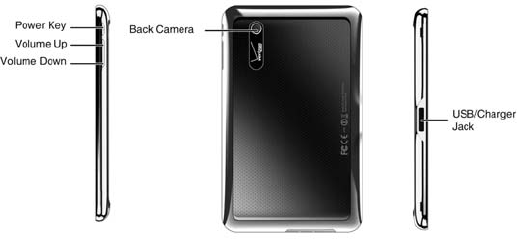

Overview
12
13
Key Definition
Key Function
Power Key
Press and hold to power on your Tablet.
Press to switch to sleep mode.
Press to wake up your Tablet.
Volume Keys Use to control the volume Up or Down.
Starting up

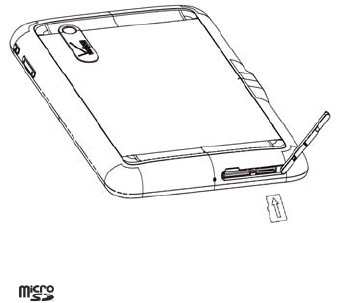

How to slot your SIM/memory card
Power off your device before installing or replacing the UIM card.

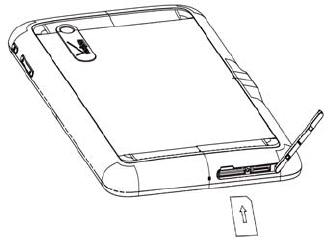

1. Open the cover of UIM slot, and insert your UIM card into the UIM slot.
14
There is a diagram showing the correct orientation of the card printed
above the SIM slot.
2. Insert your memory card into the memory card slot. There is a
diagram showing the correct orientation of the card printed above the
memory card slot.
15
Notes:
microSD logo ( ) is a trade mark of SD Card Association.
16

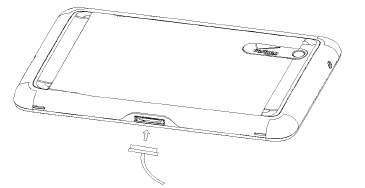

How to charge your Tablet
Your device comes with a wall adapter and a USB cable which connect
together to charge your device. To charge your device:
1. Connect the USB cable to the wall adapter. When connecting the logo
on the USB cable should face toward you.
2. Plug the USB cable into the device’s USB/Charger’s port.
3. Disconnect the charger when the battery is fully charged.
17
Notes:
Use only the USB cable and wall adapter that came with your tablet when
charging your tablet.
Powering On/Off Your Device
How to power on/off your device
Make sure your UIM card is inserted and the battery is fully charged
before turning on your device.
1. Press and hold the Power Key to power on your device.
2. To switch it off, hold Power Key and tap OK.
How to switch your device to sleep mode
Press the Power Key.
Sleep Mode suspends your device to a low-power-consumption state while
the display is off to save battery power. Your device also goes into Sleep
18
Mode automatically when you leave it idle after a certain period of time.

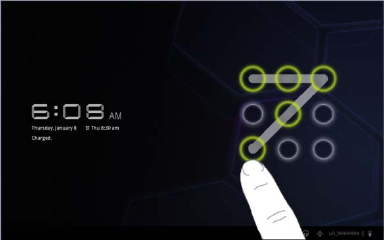

How to wake up your device from sleep mode
If your device is switched to sleep mode, you need to wake it up:
1. Press the Power Key to activate your screen display.
2. Press the lock icon out of the circle.
Notes:

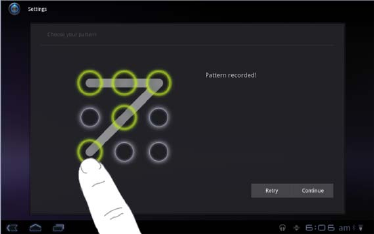

If you have set an unlock pattern for your device (refer to Settings ->
Location & security -> Set up screen lock -> Pattern), you need to draw
the pattern to unlock your screen.
Getting Around Your Device
Using Finger Gestures
You can use finger gestures to control your device. The controls on your
touch screen change dynamically depending on the tasks you are performing.
19
1. Tap the buttons, icons, or applications to select items or to open
applications.
2. Hold a certain item to get available options.
3. Slide on the screen, you can scroll up/down. From Home Screen, you
can also slide left/right to browse the extended Home Screen.
4. Drag a certain item to move it or to do some other corresponding
operations.
5. In some apps (such as Maps, Browser, and Gallery), you can zoom in
and out by placing two fingers on the screen at once and pinching
them together (to zoom out) or spreading them apart (to zoom in).
Tips:
Besides using finger gestures to control your device, you can also switch
your device screens (such as text input screen, gallery screen, etc.) between
portrait or landscape mode by holding the device upright or sideways.
20
Home Screen
You can add or remove home items in your Home Screen.
21
How to extend the Home Screen
Beyond the screen width, the Home Screen extends to provide more
space for adding items. Slide your finger to the left or right to get the
extended Home Screen.
Customize the Home Screen Wallpaper
To change the wallpaper
1. Tap to open Customize home screen.
Or touch and hold on the home screen.
2. Tap Wallpaper to open the wallpaper menu.
3. Select the wallpaper you want to use from Gallery, Live wallpapers,
or Wallpapers.
4. Tap Save or Set wallpaper.
To add a Home Screen item
1. Tap open Customize home screen.
Or touch and hold on the home screen.
22
2. Tap Widgets, Apps or More to select an item. And move the item to
Home Screen.
To remove a Home Screen item
1. Tap to return to Home Screen.
2. Tap and hold the item you want to delete until the remove icon
appears on the screen.
3. Drag the item into .
23
How to open the notifications and quick settings panel
From the Notifications and quick settings panel, you can get the
information of tablet status, app notification, and quick settings from the
Notification Panel.
To see a specific notification, touch the icon. To open a panel, touch the
digital clock.
Applications and Settings Preview
Programs Preview
Your Tablet has lots of functions. Tap to get the following
24
programs that are pre-installed on your device.
Applications Description
Books Enables you to view books.
Browser Enables you to browse the internet.
Calculator Enables you to perform the calculation.
Calendar Enables you to schedule appointments, including
meetings and other events.
Camcorder Enables you to enter camcorder and shoot the
video clips you like.
Camera Enables you to enter the camera screen directly and
use the camera features.
Clock Set alarms.
Contacts Enables you to manage the information of your
friends and colleagues.
Downloads Access useful applications and fun games to download.
25
Applications Description
Email Enables you to enter the Email screen, where you
can setup Email, send or receive Emails.
Facebook Connect to facebook.
File Manager Manage files on your microSD card and your
device.
Gallery Enables you to organize and manage your
multimedia files.
Gmail Enables you to access your Gmail account and
check your email on your mobile device.
Google Search Search for information online or on your deivce.
Latitude See your friends’ locations and share yours with them.
Maps
Enables you to track your current location, view
real-time traffic situations, and receive detailed
directions to your destination.
26
Applications Description
Market
Enables you to access to useful applications and
fun games which you can download and install on
your device.
Movie Studio Make movie.
Music Enables you to browse your audio files and listen to
them in the Music player.
Navigation Enables you to use Google Maps Navigation.
Places Enables you to find restaurants, ATMs, and other
places of interest near you.
Settings Enables you to adjust the device settings.
Sound Recorder Enables you to record audio clips.
Talk
Enables you to send and receive instant messages
and voice over internet protocol (VOIP), offered by
Google Inc.
27
Applications Description
Videos Enable you to play videos.
Voice Search Enables you to search or dial by voice instead of
typing.
YouTube Enables you to watch YouTube videos and upload
your own.
Settings Preview
You can adjust the device settings. Tap the > Settings to view
all the settings on your device.
Wireless &
networks
Enables you to configure and manage your device’s
wireless connections, such as Wi-Fi, Bluetooth,
mobile networks, and Virtual Private Networks. You
can also enable the Airplane mode.
Sound Enables you to set sound settings, such as
notification ringtone, and so on.
28
Screen Enables you to set display settings such as screen
brightness and so on.
Location & security
Enables you to set the Lock screen, Encryption.
You can also select the sources to use when
determining locations from My Location.
Applications Enables you to manage applications and installation
of new programs.
Account & sync Enables you to manage your account and configure
general sync settings.
Privacy Enables you to configure privacy settings, such as
personal data.
Storage Enables you to check the available memory of the
external card and the internal storage.
Language & input
Enables you to set the locale (operating system
language and region), and text input options.
Enables you to configure the text-to-speech settings
29
if you have installed a text-to-speech (voice data)
application.
Accessibility Enables you to manage accessibility options.
Date & time
Enables you to set the date, time, time zone, and
date/time format. If the network supports, you can
also enable automatic time update.
About tablet
Enables you to view the device status, battery level,
and legal information and you can make system
updates.
How to open recently used applications
1. Tap from any screen and the following recently used
applications interface appears.
30
2. Tap the application you want to open.
31
Contacts
Starting to use Contacts
You can add new contacts along with their information. Setting up
communication information for the contact will allow you to contact the
person quickly or browse the contact's information..
Tap the > > Contacts to enter the Contacts Screen.
Managing Contacts
Importing/Exporting Contacts
You can import/export contacts from/to you SIM card or microSD card.
Import/export contacts from/to SIM card
1. Tap > Import/Export from the Contacts Screen.
2. Select Import from SIM card.
32
Your tablet will automatically read the contacts.
3. Select the contacts you want to import.
Tips:
If you want to impor all contacts, tap the > Select all.
4. Tap Done.
Import/export contacts from/to memory card
1. Tap the > Import/Export from the Contacts Screen.
2. Select to import or export contacts from/to storage.
If you want to import contacts from microSD card, you should have
vCard files saved in the microSD card. If there is more than one vCard
file, you need to select the vCard file.
3. Tap OK.
Creating a Contact
1. Tap New from the Contacts Screen.
33
2. Enter the name and phone numbers. You can also set the Group,
Email addresses, IM addresses, Postal addresses, Organizations etc.
if you select to create a phone contact.
3. Tap Done to save the contact.
Searching for a Contact
1. Tap Find contacts from the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Editing a Contact
1. Select the contact you want to edit from the Contacts Screen.
2. Tap .
3. Edit the contact and tap Done.
34
Deleting Contacts
1. Tap > Delete contacts.
2. Select the contacts you want to delete.
3. Tap Done.
Synchronize Contacts
All your contacts from your email and social networking accounts are
automatically synched and backed up. When you change a contact for
one account, your tablet updates you other accounts.
35
Entering Text
Using the On-screen Keyboard
Tap any text field to open the touch keypad. To close keypad keyboard,
tap Back .
Android Keyboard is a keyboard layout similar to a desktop computer
keyboard. You can choose to use the landscape orientation of the
on-screen keyboard, by turning the Tablet sideways.
36
Tips:
If you want to use the landscape keyboard, you need to select the
Auto-rotate screen check box in Settings > Screen.
Hold and select the text, tap Cut or Copy.
Hold location to paste, then touch Paste. You can paste the cut or
copied text.
37
Input Options
To change input options, tap and you can select Input languages
or Android keyboard settings.
Input languages
Under Android keyboard, select Use system language. Or deselect
Use system language and select an active input method.
Android keyboard settings
General: Select Auto-capitalization, vibrate on keypress or sound on
keypress.
Text correction: Select Always show, Show on portrait mode or
always hide in Show correction suggestions.
Touch Input Settings
You can configure the touch input settings by tapping the >
> Settings > Language & input.
38
Language settings
Select language
User dictionary
Voice input
Voice recognizer settings
Voice output
Text-to speech settings
Keyboard settings
Current input method: Enables vibration feedback as you touch on
the keyboard.
Input method selector: Enables the sound feedback as you touch on
the keyboard.
Configure input methods: Select the check box to capitalize the fist
letter of each sentence automatically.
Mouse an trackpad settings
39
Pointer speed: Set the pointer speed.
40
Using Email
Tap the > > Email. You can enter the Email Screen to setup
your Email account and exchange Emails.
Creating an Email account
1. Enter your Email address and password, then tap Manual setup or
Next when you enter the Email Screen for the first time.
2. Select the type of your account and tap Next.
3. Edit the incoming server settings and then tap Next.
Your device will check the incoming server settings and finish the
setup automatically. If you are notified that setup could not be finished,
you might need to correct some settings to finish it. If there is any
problem, please contact your mobile service provider and Email
service provider.
4. Edit the outgoing server settings and tap Next.
Your device will check the outgoing server settings and finish the
41
setup automatically.
5. Set the Email checking frequency, select whether to use this account
by default or be notified when Email arrives, and then tap Next.
6. Give your account a name and set a name displayed on outgoing
message, and then tap Done.
Composing and sending an Email
After creating an Email account, you can compose and send Email
messages.
1. Tap the from the Email Screen.
2. Tap the To field and enter the recipient’s address.
When you enter the address, the matching addresses saved in your
Contacts will be displayed. You can tap the recipient from the list.
Tips:
You can also tap the > Add Cc/Bcc to add recipients.
3. Enter the subject and the content of your Email.
42
4. Tap Send.
Reply to or Forward an Email
1. Open the Email you want to reply to or forward from Email Screen.
2. Enter your response in the text box at the bottom. To forward a text
message, tap and hold the message in the conversation, then touch
Forward message.
Email Settings
Tap the account you want to set from the Email Screen and tap the >
Account settings. You can get the Email settings.
General settings
Account name: Set your account name.
Your name: Set the name displayed on outgoing message.
Email address: View or edit the email address.
Use signature: Select to use signature.
43
Signature: Edit your signature.
Email check frequency: Set the email checking frequency.
Power-saving mode: Enable the email synchronization time
intelligent adjustment.
Default account: Select the check box to send email from this
account by default.
Sync deleted message:
Notification settings
Email notifications: Select to be notified in status bar when Email
arrives.
Select ringtone: Select the ringtone for incoming Email notification.
Vibrate: Select to be notified by vibration with ringtones when Email
arrives.
Server settings
Incoming settings: Set the incoming server settings.
44
Outgoing settings: Set the outgoing server settings.
45
Getting Connected
Connecting to the Internet
Your device’s networking capabilities allow you to access the Internet or
your corporate network.
Ways of Connecting to the Internet
You can use the default connection settings to connect to the Internet
through your mobile network (CDMA/EvDo/LTE), or Wi-Fi.
CDMA/EvDo/LTE
Use CDMA/EvDo/LTE to connect to the Internet and to send and receive
Email messages on your Tablet. You will need a data plan to use your
wireless service provider’s CDMA/EvDo/LTE network. Check with your
wireless service provider for CDMA/EvDo/LTE rates.
46
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet
(100 meters).
Turn on Wi-Fi
1. Tap the > > Settings > Wireless & networks.
2. Select the Wi-Fi check box to turn Wi-Fi on.
Add a Wi-Fi network
1. Tap the > > Settings > Wireless & networks > Wi-Fi
settings.
The Wi-Fi network names and security settings (open network or
secured network) of detected Wi-Fi networks are displayed in the
Wi-Fi networks section.
2. Tap a network to connect.
If you select an open network, you will be automatically connected
to the network.
47
If you select a secured network, you will need to input the wireless
password.
Check the Wi-Fi network status
You can check the Wi-Fi network status from the wireless controls.
Tap the > > Settings > Wireless & networks > Wi-Fi
settings, then tap the wireless network that the device is currently
connected to.
48
You can check the network status from the pop-up window.
Virtual Private Networks (VPNs)
Virtual private networks (VPNs) allow you to connect to the resources
inside a secured local network, from outside that network. VPNs are
commonly deployed by corporations, schools, and other institutions so
that their users can access local network resources when not on campus,
or when connected to a wireless network.
To configure VPN access from your tablet, you must obtain the details
from your network administrator.
Add a VPN
1. Tap the > > Wireless & networks > VPN settings.
2. Tap Add VPN.
3. Tap VPN type and input the content follow the instructions from your
network administrator to configure each component of the VPN
settings.
49
ADD PPT VPN: Set up a connection to a VPN with Point-to Point
tunneling protocol.
ADD L2TP VPN: Set up a connection to a VPN with Layer 2
tunneling protocol.
Add L2TP/IPSec PSK VPN: Set up a connection to a VPN with
preshared key-based layer 2/IPsec tunneling protocol.
Add L2TP/IPSec CRT VPN: Set up a connection to a VPN with
Certificate-based Layer 2/IPSec tunneling protocol.
3. Touch the Menu button in the top-right of the Application bar and
touch Save.
The VPN is added to the list on the VPN settings screen.
Connect to a VPN
1. Open the Settings application.
2. Touch Wireless & networks > VPN settings.
50
The VPNs you’ve added are listed on the VPN settings screen.
3. Touch the VPN to which you want to connect.
4. In the dialog that opens, enter any requested credentials and touch
Connect.
When you’re connected to a VPN, you receive an ongoing notification
in the System bar, to the left of the time. If you are disconnected, you
receive a notification that you can use to return to the VPN settings
screen so that you can reconnect to it.
Using the Device as a Modem
You can access the Internet on your PC via your device as a modem.
Note the function may result in data charges from your device carrier.
Please contact them for detail.
Enabling the Device as a Modem
TIPS:
51
The PC accesses the Internet via the device ’s mobile network.
Therefore, set u p the CDMA/EvDo/LTE connection correctl y bef ore
you try to use the device as a modem.
1. When you connect your device to your PC with the provided USB
cable for the first time, a window will pop up and prompt you to install
the driver.
2. Double click the executable file (.exe) in the window and follow the
prompt to finish the driver installation.
NOTES: If the window doesn’t pop up automatically for some reason,
please open the new CD-ROM drive on your PC manually and find
the executable file to run it.
3. Tap > > Settings > Wireless & networks >
Tethering & portable hotspot and tick the USB tethering check box.
A new network connection will be created on your PC.
4. Go to Control Panel > Network on your PC to enable the new
network connection.
Now you can launch the Inter net bro wser on your PC a nd start
52
surfing.
Disabling the Modem Function
Tap > > Settings > Wireless & networks > Tethering &
portable hotspot and clear the USB tethering check box.
You can also just pull out the USB cable.
Using the Device as a Wi-Fi Hotspot
You can use th e device as a p ortable WLAN r outer, providing Wi-Fi
connection for o ne or multiple PC or other devices. The fu nction nee d
data connection on a mobile network and may result in data charges.
TIPS:
The PC accesses the Internet via the device ’s mobile network.
Therefore, set u p the CDMA/EvDo/LTE connection correctl y bef ore
you try to use the device as a Wi-Fi hotspot.
When the po rtable Wi-Fi hotsp ot function is enabled, you ca nnot
access the internet with an y application on y our device via its Wi-Fi
53
connection.
Enabling the Wi-Fi Hotspot
5. Tap > > Settings > Wireless & networks > Tethering
& portable hotspot and tick the Portable Wi-Fi hotspot check box.
6. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi hotspot.
7. Change the name of the hotspot and its security setting, if necessary.
The default hotspot is set as an open one. You can tap Open and
choose WPA2 PSK or WPA PSK to set up a password. The
password must have at least 8 characters.
8. Tap Save. Now you can find the hotspot on other devices and
connect to it.
Disabling the Wi-Fi Hotspot
Tap > > Settings > Wireless & networks > Tethering &
portable hotspot and clear the Portable Wi-Fi hotspot check box.
54
Using Browser
You can use your Browser to browse most of the websites. Your device will
automatically create an CDMA/EvDo/LTE connection for you while browsing
web pages.
Opening Browser
Tap the > > Browser to start this function.
Opening Web Pages
In Browser, you can open web pages through the following ways.
1. Tap the address bar to enter the website you want to browse, and tap
.
2. Tap the to enter bookmarks screen and select an item to open.
3. Select an item from History tab of bookmarks screen.
55
Browsing Options
When browsing web pages, you can do some operations.
1. Tap the to refresh the page.
2. Tap the > New tab to open a new tab in the same browser
window.
3. Tap the > New incognito tab to open a new blank tab in the
browser window to prevent the browser from storing information about
your browsing session.
4. Tap the > Find on page to enter the search item to view the
search result.
5. Tap the > Share page to send the page by Bluetooth, Email,
Gmail, or Facebook.
6. Tap the > Save page to save the page.
7. Tap the > Page info to view the page information.
56
8. Tap the > Downloads to view and manage the download
information.
9. Tap the > Settings to set the browser.
10. Rotate your device sideways to view the landscape Browser Screen if
you select the Auto-rotate screen check box in Screen settings by
tapping > > Settings > Display.
Open a new browser window
1. Tap the or > New tab to open a new browser window in
browser.
2. Tap the address bar to enter the website you want to browse.
Switch between different browser tab
You can open several web pages in the same window to multiply your
web surfing fun. Touch to open a new tab. To see a web page, just
touch its tab. Touch on the tab to close it.
57
Open links in web pages
1. Open a web page that contains a link.
2. Tap a link to open the page.
You can also hold on the link to open the shortcut menu:
Open: Open the web page.
Open in new tab: Open the web page in a new tab.
Save link: Download the linked web page to your LIGHT.
Copy link URL: Copy the link to the clipboard.
Select text: Select text to copy, share, find web search or select all.
Download applications from web pages
1. Open a web page that contains an application link.
2. Tap the link or hold on the link and select Save link to download the
application to your Tablet.
58
Using Bookmarks
You can save your frequently-used pages as bookmarks on your Tablet.
Add a new bookmark
1. Open a web page.
2. Tap the .
3. Enter a name of the bookmark and tap OK.
Edit a bookmark
1. Open a Browser window.
2. Tap the .
3. Select an item you want to edit and hold on it until the shortcut menu
pops up.
4. Select Edit bookmark.
5. Edit the label or address, and then tap OK to save it.
59
Delete a bookmark
1. Open a Browser window.
2. Tap the .
3. Select an item you want to delete and hold on it until the shortcut
menu pops up.
4. Select Delete bookmark and tap OK to confirm the deletion.
Browser Settings
You can set the Browser text size, home page etc. by tapping the >
Settings from a browser window.
General
Set homepage: Select to edit the home page web site.
Sync with Google Chrome: Share bookmarks & other data between
Android browser and Google Chrome.
Form auto-fill: fill out web forms in a single click.
60
Auto-fill data: Enter and save data for auto-filling web from fields.
Privacy & security
Show security warnings: Select to show warnings if there is a
problem with a site’s security.
Clear history: Clear the browser navigation history.
Accept cache: Allow tablet to save and read cache data.
Clear cache: Delete all the cached page contents.
Accept cookies: Select to allow sites to save and read cookies.
Clear all cookie data: Clear the browser cookies.
Remember form data: Select to remember the data you type in
forms for later use.
Clear form data: Clear the saved form data.
Enable location: Select to allow sites to request access to your location.
Clear location access: Select to clear access for all websites.
61
Remember passwords: Select to save usernames and passwords
for web sites.
Clear passwords: Clear the saved passwords.
Advanced settings
Set search engine: Select a search engine.
Open in background: Select to open new windows behind the
current one.
Enable JavaScript: Select to enable JavaScript.
Enable plug-ins: Select to enable plug-ins.
Website settings: Advanced settings for individual websites.
Text size: Adjust the browser text size.
Default zoom: Set the browser default zoom.
Open pages in overview: Select to show overview of newly opened
pages.
Labs
62
Quick controls: Swipe thumb from left or right edge to access quick
controls and hide application and URL bars.
Most-visited homepage: Your homepage displays your most-visited
webpages.
Google Instant: Use Google Instant when you use Google Search.
Bluetooth®
Bluetooth is a short-range wireless communication technology. Wireless
devices with Bluetooth capabilities can exchange information within a
distance of about 10 meters without any physical connection. The
Bluetooth devices must be paired before the communication is
performed.
Turning on/off Bluetooth
1. Tap the > > Settings > Wireless & networks.
2. Select the Bluetooth check box to turn Bluetooth on.
63
The icon will be displayed in the status bar. If you want to turn
Bluetooth off, clear the Bluetooth check box.
Notes:
By default, Bluetooth is turned off. If you turn it on, and then turn off your
device, Bluetooth is also turned off. When you turn on your device again,
Bluetooth turns on automatically.
Making your device visible
Other devices with Bluetooth capabilities can detect your device,
establish a partnership, or use a Bluetooth service.
1. Tap the > > Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
3. Select the Discoverable check box to make your device visible.
4. Select the Discoverable timeout to set how long device will be
discoverable.
64
Change your device name
1. Tap the > > Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
3. Tap Device name.
4. Enter the name and tap OK.
Pair with another Bluetooth device
You can pair your device with another device that has Bluetooth
capabilities. Once you do this, the two devices must have Bluetooth
turned on but do not need to be visible for you to exchange information
between them.
1. Tap the > > Settings > Wireless & networks >
Bluetooth settings.
2. Tap Find nearby devices.
Your Tablet will display all reachable Bluetooth devices in the Found
65
devices section.
3. Tap the device you want to pair with.
4. If necessary, type your PIN to pair and tap OK.
Tips: The same PIN should be entered on the other device.
66
Experiencing Multimedia
Camera
Your Tablet comes with a 3.2–megapixel camera that lets you capture
sharp pictures.
Opening Camera
Tap the > > Camera to open the camera.
Notes:
You can switch from the camera to the camcorder quickly. Drag the
sw itch up.
Tap to change to front camera or back camera.
Taking Pictures
Aim the camera at the subject and then tap to take the shot.
67
After you take the photo, tap the picture at the bottom of left corner
(portrait mode) of your Camera Screen to open the gallery. Tap the photo
to open it.
Tap to start a slideshow.
Tap to send the photo in a messaging, transfer it using Bluetooth
wireless, or post it online.
Tap to delete the photo.
Tap to see details, rotate, crop or set as a contact photo or
wallpaper.
Camera Settings
Tap to adjust the camera settings, like focus mode, exposure,
picture size and so on.
Tap to select color effect.
Tap to adjust the white balance.
Tap / to zoom in or zoom out the image.
68
Camcorder
Camcorder enables you to shoot video clips.
Opening Camcorder
Tap the > > Camcorder to open the camcorder.
Notes:
You can switch from the camcorder to the camera quickly:
Drag the sw itch down.
Shooting Videos
1. Tap to start shooting.
2. Tap to stop shooting.
After you take the video, tap the video at the bottom of left corner (portrait
mode) of your Camera Screen to open the gallery. Tap the photo to open
it.
69
Tap to start a slideshow.
Tap to send the photo in a messaging, transfer it using Bluetooth
wireless, or post it online.
Tap to delete the photo.
Tap to see details.
Video Settings
Tap to adjust the camera settings, like video quality, video duration,
and so on.
Tap to set video quality.
Tap to select color effect.
Tap to adjust the white balance.
Tap to zoom in or zoom out the image.
70
Music
You can play digital audio files in Music.
Opening Music
You need to copy the audio files you want to play to your memory card or
your device first.
1. Tap the > > Music to open Music Screen.
2. Select a file to open.
Playing Music
1. Tap the list heading to see your music grouped your way-like by
Artist, by Albums, or Songs.
2. Tap a song from the list to start playing.
Notes:
Press the Volume Keys to adjust the volume.
71
Creating Playlists
You can create some playlists to organize your music files.
1. Select a music file you want to add to a new playlist.
2. Tap the file and select Add to playlist.
3. Tap New and enter the playlist name and tap Save.
The playlist is created and the file you selected is added to the playlist.
Managing Your Playlists
1. Tap Playlists from the Music Screen to view all playlists.
2. Tap and hold the Playlist and a shortcut menu pops up.
i. Tap Play to play the playlist.
ii. Tap Delete to delete the playlist.
ⅲ. Tap Rename to rename the playlist.
Add songs to your playlist
72
1. Open the folder where the song you want to add to a playlist is.
2. Tap and hold it and select Add to playlist.
3. Select a playlist from the list.
Gallery
Gallery helps you view pictures and play back videos. For pictures, you
can also do some basic editing tasks. For instance, set them as your
wallpaper or contact icon, and share with your friends.
Sound Recorder
Sound Recorder enables you to record your voice memos that you can
set as ringtone.
Opening Sound Recorder
Tap the > > Sound Recorder to open the sound recorder.
73
Record Your Memo
1. Get the microphone near to your mouth.
1. Tap to start recording.
2. Tap to stop recording.
3. Tap to play back the voice recording.
4. Tap Save record to save the voice recording, or tap Discard to
discard the recording.
Notes:
You can find your recordings in > > Music > Playlist > My
recordings.
74
Google™ Applications
Signing In to Your Google Account
Signing in to your Google Account enables you to synchronize Gmail,
Calendar, web album, and contacts between your device and the web.
1. Tap a Google application, such as Talk.
2. Read the instructions and tap Next.
3. Tap Sign in if you have a Google account. Enter your user name and
password, and then tap Sign in.
Tap Create if you do not have a Google account.
Using Gmail
Gmail is Google’s web-based email service. Gmail is configured when
you sign in to your Google account. Depending on your synchronization
settings, Gmail on your device is automatically synchronized with your
75
Gmail account on the web.
Open Gmail
Tap the > > Gmail.
Creating and sending an gmail
1. In the Inbox, press the Menu Key and then tap Compose.
2. Enter the message recipient’s email address in the To field. If you are
sending the email to several recipients, separate the email addresses
with a comma. You can add as many message recipients as you
want.
3. Enter the email subject, and then compose your email.
4. After composing your email, tap the Send.
Using Google Calendar
Tap the > > Calendar to use Google Calendar, Google’s
76
time management application. You can use the calendar to schedule
appointments, including meetings and other events. Your appointments
will be displayed on the screen as are scheduled. All your appointments
are synchronised to your Google account, which enables you to share
your schedule, get your entire calendar on the go, and receive Email
reminder for your upcoming events.
Using Google Talk
Google Talk is Google’s instant messaging program, which enables you
to communicate with other people that also use Google Talk.
Opening Google Talk
Tap the > > Talk.
Adding a new friend
You can only add people who have a Google account.
77
1. In the Friends list, press the > Invite a friend to chat.
2. Enter the Google Talk instant messaging ID or Google email address
of the friend you want to add.
Viewing and accepting an invitation
1. In the Friends list, press the > Invite a friend to chat.
All chat invitations you have sent or received are listed on the pending
invitations screen.
2. Tap a received pending invitation, and then tap Accept or Decline.
Starting a chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text using the on-screen keyboard.
3. After entering your message, tap .
78
Places
Google Places helps you find all kinds of businesses near you.
1. Tap the > > Settings > Location & security > Use GPS
satellites.
2. Tap the > > Places. Wait while you are being located.
Your location, when found, is displayed at the bottom of the screen.
3. Select a business category and the information of that type of
business near you will be displayed.
You can also use the Find places search box on the top to find the
business you need.
Note: Tap Add to add new business categories.
4. Tap a result you are interested in and check out the details and
reviews about that place. You can also see the place on Google Maps,
find out how to get there, or give that business a call.
79
Navigation
You can use Google Navigation to get turn-by-turn driving directions,
both spoken and displayed on your screen.
1. Tap the > > Settings > Location & security > Use
GPS satellites.
2. Tap the > > Navigation. Wait while you are being
located.
Your location, when found, is displayed at the bottom of the screen.
Latitude
Google’s Latitude service is a social tool for sharing your location
information with selected friends.
If you join Google Latitude, you can view your friends’ locations on your
maps and share your location and other information with them.
80
1. Tap the > > Latitude.
2. After signing in to your Google account, tap the Menu Key > Join
Latitude to enable Latitude service.
Each time you launch Maps application, your location will be determined
using GPS and your Latitude status will be updated. You can tap the
Menu Key > Latitude in Maps or > > Latitude to see your
status as well as that of your selected friends.
In Latitude, tap the Menu Key to refresh the friends’ status, see them on
Maps, add new friends, or change privacy settings.
81
Settings
Basic Settings
Setting the Time and Date
1. Tap the > > Settings > Date & time.
2. Clear the Automatic check box if you want to set time and date by
yourself.
3. Configure the time and date settings:
– Tap Automatic date & time to use network-provided time.
– Tap Automatic time zone to use network-provided time zone.
– Tap Set date to adjust the date, and tap Set to save it.
– Tap Set time to adjust the time, and tap Set to save it.
– Tap Select time zone and tap the area where you are.
82
– Tap the check box behind Use 24–hour format to change the time
format.
– Tap Select date format and select the type you like.
Screen Settings
By tapping the > > Settings > Screen, you can configure
the display settings, such as brightness, auto-rotate screen, animation,
and screen timeout.
Adjust the screen brightness
1. Tap Brightness.
2. Adjust the brightness and tap OK.
Adjust the delay before the screen turns off
1. Tap Timeout.
2. Select the time from the list.
83
Switch the screen orientation automatically
You can select to switch your screen orientation to landscape or portrait
mode automatically when rotating your LIGHT.
Select the Auto-rotate screen check box.
Show animation when opening/closing windows
You can select to show an animation when opening or closing windows.
1. Tap Animation.
2. Select the animation type you’d like to use.
If you want to disable this function, select No animations.
Sound Settings
By tapping the > > Settings > Sound, you can configure the
sound settings, such as ringtones and notifications.
Set the default notification ringtone
1. Select Notification ringtone in Notifications section.
84
2. Scroll the ringtone list and select one to set as the default notification
ringtone.
3. Tap OK to save.
Adjust the ringtone, media and alarm volume
If you want to set the ringer volume, make sure your device is not in silent
mode.
1. Tap Volume in the General section.
2. Adjust the volume and tap OK to save.
Tips:
You can adjust the volume quickly by pressing the Volume Keys from
any screen.
Enable the haptic feedback
You can get the vibration feedback while pressing the soft keys and on
certain UI interfaces if you have enabled haptic feedback.
1. Tap the > > Settings > Sound.
85
2. Select the Haptic feedback check box.
Enable the screen selection tones
You can set your device to play sound while making a selection by
touching the screen.
Select the Audible selection check box in the Feedback section.
Enable the screen lock sounds
You can set your device to play sound when locking and unlocking the
screen.
Select the Screen lock sound check box in the Feedback section.
Language Settings
You can change the system language of your device.
Change the language of your operating system
1. Tap the > > Settings > Language & input > Select
language.
86
2. Select a language from the locale list to set it as the system language.
Mobile Network Services
The CDMA and EvDo services are supported by your device. You can
configure the network settings according to your device service.
Enable data roaming
1. Tap the > > > Settings > Wireless & networks >
Mobile networks.
2. Select the Data roaming check box to enable data roaming.
Switch the network mode
1. Tap the > > Settings > Wireless & networks > Mobile
networks > Network Mode.
2. Select your preferred network mode to switch the network mode.
87
Security Settings
You can protect your device and SIM/UIM card from unauthorized use.
Protecting Your Tablet with a Screen Lock
Set the screen unlock pattern
You can protect your Tablet from unauthorized use by creating a
personal screen unlock pattern.
1. Tap the > > Settings > Location & security >
Configure lock screen.
2. Tap Pattern.
3. Read the instructions and tap Next.
4. Draw your own pattern and tap Continue.
88
5. Draw the pattern again and tap Confirm.
Lock the screen
Press the Power Key to lock the screen.
89
Unlock the screen with a pattern
1. Press the Power Key.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your device will ask you to try again.
90
Protecting Your UIM Card with a PIN
You can set the PIN password to prevent others from using the SIM
function. The initial PIN code is provided by your service operator.
1. Tap the > > Settings > Location & security > Set up
SIM card lock.
2. Select the Lock SIM card check box.
3. Enter the PIN code and tap OK.
Change SIM PIN
Before changing SIM PIN, you need to enable it.
1. Tap the > > Settings > Location & security > Set up
SIM card lock.
2. Tap Change SIM PIN.
3. Enter the old PIN code and tap OK.
4. Enter a new PIN code and tap OK.
5. Re-enter the new PIN code and tap OK.
91
Setting Up Credential Storage
You can select to allow applications to access secure certificates and
other credentials.
Enable secure credentials
1. Tap the > > Settings > Location & security.
2. Tap Set password to create a password.
Tips:
You can also install encrypted certificates from microSD card by
tapping Install from storage.
Delete credentials
1. Tap the > > Settings > Location & security.
2. Tap Clear credentials to clear credentials.
92
Managing Memory
Managing Your Memory Card
View the space information
Tap the > > Settings > storage.
You can view the Total space/Available space information in the SD
card section.
Unmount your memory card
1. Tap the > > Settings > storage.
2. Tap Unmount shared storage.
Erase the data of your memory card
1. Tap the > > Settings > storage.
2. Tap Erase USB storage.
3. Tap Erase USB storage to confirm.
93
Managing Internal Storage
View the device space information
1. Tap the > > Settings > storage.
2. Scroll down to view the Available in the Internal storage section.
Reset to factory settings
1. Tap the > > Settings > Privacy.
2. Tap Factory data reset.
3. Tap Reset tablet.
4. Tap Erase everything.
Application Settings
Managing Applications
You can view and manage the applications installed in your device.
94
View the applications installed in your device
Tap the > > Settings > Applications > Manage
applications.
Your tablet will show you the applications in a list.
Allow the installation of non-Market applications
1. Tap the > > Settings > Applications.
2. Select the Unknown sources check box.
Install an application
You can install an application from the Android Market by selecting the
item you want to download and tap Install.
Removing an Application
1. Tap > > Settings > Applications > Manage
applications.
2. Select the application you want to delete.
95
3. Tap Uninstall and OK to confirm.
TIPS: Market applications can also be removed by going to the Downloads
page in Market, selecting the unwanted application, and tapping
Uninstall.
Moving an Application to or from the Memory Card
You can move the applications downloaded or installed on your device to
the memory card when the device memory is full. You can also move
applications to your device if the memory card is getting full.
NOTE: Not all applications can be move to your device or memory card.
1. Tap > > Settings > Applications > Manage
applications.
2. Tap the application you want to move on the Downloaded tab.
3. Tap Move to tablet or Move to SD card.
96
Other Settings
Speech Synthesis Settings
You can set the text-to-speech options by tapping the > >
Settings > Language & input > Voice output > Text-to-speech
settings. Before you use this function, you should install the voice data.
97
Other Applications
Alarming
Set alarms
1. Tap the > > Clock.
2. Tap the Alarm set and tap to create a new alarm, then enter
alarm details.
3. Tap one alarm and select the Turn alarm on check box to enable
alarm. You can edit the alarm items such as Time, Repeat, Ringtone,
vibrate, and Label.
Calculator
Open Calculator
98
Tap the > > Calculator.
Your calculator has basic and advanced views.
99
Specifications
Dimension Approx.
194mm×120mm×11.5mm
Weight Approx. 400g (with battery)
Bearer CDMA/EvDo/LT E support
Main Display dimension,
resolution, color space 7inch, 1280*800, 260K
Back Camera
Sensor Type CMOS
Still Image Capture
Resolution 5M Pixels
Front Camera
Sensor Type CMOS
Still Image Capture 2M Pixels
100
Resolution
Total internal memory 1GB RAM + 16GB ROM
Removable memory card Support microSD card
Maximum Capacity of memory card 32GB
Battery
Capacity 4000mAh
Standby time Approx. 350h (subject to
network status)
WAP browser version Support webkit
101
Health and Safety Information
Distraction
Driving
Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a wireless device while driving (even with a
hands free kit) causes distraction and can lead to an accident. You must
comply with local laws and regulations restricting the use of wireless
devices while driving.
Operating machinery
Full attention must be given to operating the machinery in order to reduce
the risk of an accident.
Product Handling
You alone are responsible for how you use your device and any
consequences of its use.
102
You must always switch off your device wherever the use of such device
is prohibited. Use of your device is subject to safety measures designed
to protect users and their environment.
Always treat your device and its accessories with care and keep it in a
clean and dust-free place.
Do not expose your device or its accessories to open flames or lit
tobacco products.
Do not expose your device or its accessories to liquid, moisture or
high humidity.
Do not drop, throw or try to bend your device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean
the device or its accessories.
Do not paint your device or its accessories.
Do not attempt to disassemble your device or its accessories, only
authorised personnel must do so.
103
Charge your device within 0 degree Celsius and 50 degree Celsius,
use your device within a temperature range between -10 and +60
degree Celsius, Do not expose your device or its accessory outside
the range of minimum –10 till maximum +60.
Please check local regulations for disposal of electronic products.
Small Children
Do not leave your device and its accessories within the reach of small
children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the
device.
Your device contains small parts with sharp edges that may cause an
injury or which could become detached and create a choking hazard.
Demagnetisation
To avoid the risk of demagnetisation, do not allow electronic devices or
magnetic media close to your device for a long time.
104
Electrostatic discharge (ESD)
Do not touch the SIM card’s metal connectors.
Power supply
Do not connect your device to the power supply or switch it on until
instructed to do so in the installation instructions.
Car Air Bags
Do not place the device in the area over an air bag or in the air bag
deployment area.
Store the device safely before driving your vehicle.
Seizures/Blackouts
This device is capable of producing bright flashing lights.
Repetitive Motion Injuries
To minimise the risk of RSI, when texting or playing games with your
device:
105
Do not grip the device too tightly.
Press the icons and touch screen lightly.
Use the special features which are designed to minimize the times of
pressing the icons and touch screen buttons, such as Message
Templates and Predictive Text.
Take lots of breaks to stretch and relax.
Loud Noise
This device is capable of producing loud noises which may damage your
hearing.
MP3 and video player function
When listening to pre-recorded music or watching videos on your device,
with headphones or earphones at high volumes, you run the risk of
permanent damage to your hearing. Even if you are used to listening to
music at a high volume and it seems acceptable to you, you still risk
damaging your hearing. Reduce the sound volume to a reasonable level
106
and avoid using headphones for an excessive period of time to avoid
hearing damage.
Different headphones, earphones or ear buds may deliver a higher or
lower volume, at the same volume setting on your device. Always start at
a low volume setting.
Do not listen to music or video with headphones while driving.
Device Heating
Your device may become warm during charging and during normal use.
Electrical Safety
Accessories
Use only ZTE approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,
107
to contact or short-circuit the battery terminals.
Faulty and Damaged Products
Do not attempt to disassemble the device or its accessory.
Only qualified personnel must service or repair the device or its
accessory.
If your device or its accessory has been submerged in water, punctured,
or subjected to a severe fall, do not use it until you have taken it to be
checked at an authorised service centre.
Battery Handling & Safety
Only use the charger supplied, or manufacturer approved replacements
intended for use with your device. Using other chargers could be
dangerous.
The Smart Tab is using a non removable build in battery, do not
disassemble the device nor the battery.
Improper battery use may result in a fire, explosion, or other hazard. If
108
you believe the battery has been damaged, do not use it, take it to a
service centre for testing.
Interference
Care must be taken when using the device in close proximity to personal
medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15
cm be maintained between a mobile device and a pacemaker to avoid
potential interference with the pacemaker.
Hearing Aids
People with hearing aids or other cochlear implants may experience
interfering noises when using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and
the distance from the interference source, increasing the separation
between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
109
Medical devices
Please consult your doctor and the device manufacturer to determine if
operation of your device may interfere with the operation of your medical
device.
Hospitals
Switch off your wireless device when requested to do so in hospitals,
clinics or health care facilities. These requests are designed to prevent
possible interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.
Consult the airline staff about the use of wireless devices on board the
aircraft, if your device offers a ‘flight mode’ this must be enabled prior to
boarding an aircraft.
110
Explosive environments
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey all posted signs
to turn off wireless devices such as your device or other radio equipment.
Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage facilities, areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders.
Blasting Caps and Areas
Turn off your m device or wireless device when in a blasting area or in
areas posted turn off “two-way radios” or “electronic devices” to avoid
interfering with blasting operations.
Vehicles Equipped with an Airbag
An airbag inflates with great force. Do not place objects, including either
installed or portable wireless equipment, in the area over the airbag or in
111
the airbag deployment area. If in-vehicle wireless equipment is
improperly installed and the airbag inflates, serious injury could result.
Third Party Equipment
The use of third party equipment, cables or accessories, not made or
authorized by ZTE, may invalidate the warranty of the device and also
adversely affect the device’s operation. For example, use only the ZTE
charger supplied with the device.
Efficient Use
For optimum performance with minimum power consumption, do not
cover the device with anything. Covering the device may cause the
device to operate at higher power levels than needed, and may shorten
the using time of the battery.
112
Radio Frequency (RF) Exposure
This device meets the government’s requirements for exposure to radio
waves.
This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government:
The exposure standard for wireless mobile devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
113
The highest SAR value for the device as reported to the FCC is 1.44
W/kg (Body-worn measurements differ among device models, depending
upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various
devices and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this device with all
reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on file with the
FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after searching on:
FCC ID: Q78- V66
For body worn operation, this device has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the handset a minimum of 0 cm from the body. Use of
other enhancements may not ensure compliance with FCC RF exposure
guidelines. If you do no t use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 0 cm from your
body when the device is switched on.
114
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
115
the user is encouraged to try to correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
CITA Requirements
a) Do not disassemble or open crush, bend or deform, puncture or shred.
b) Do not modify or remanufacture, attempt to insert foreign objects into
the battery, immerse or expose to water or other liquids, expose to fire,
explosion or other hazard.
c) Only use the battery for the system for which it is specified.
d) Only use the battery with a charging system that has been qualified
with the system per this standard. Use of an unqualified battery or
charger may present a risk of fire, explosion, leakage, or other hazard.
116
e) Do not short circuit a battery or allow metallic conductive objects to
contact battery terminals.
f) Replace the battery only with another battery that has been qualified
with the system per this standard, IEEE-Std-1725-2006. Use of an
unqualifed battery may present a risk of fre, explosion, leakage or
other hazard.
g) Promptly dispose of used batteries in accordance with local
regulations
h) Battery usage by children should be supervised.
i) Avoid dropping the phone or battery. If the device or battery is
dropped, especially on a hard surface, and the user suspects damage,
take it to a service center for inspection.
j) Improper battery use may result in a fre, explosion or other hazard.
For those host devices that utilize a USB port as a charging source, the
host device's user manual shall include a statement that the phone shall
only be connected to CTIA certified adapters, products that bear the
USB-IF logo or products that have completed the USB-IF compliance
117
program.
Consumer Limited Warranty
ZTE (“Seller”) offers you a limited warranty that the enclosed product or
products (the “Product”) will be free from defects in material and
workmanship for a period that expires one year from the date of sale of
the Product to you, provided that you are the original end-user purchaser
of the Product and provided that your purchase was made from a supplier
authorized by the Seller. Transfer or resale of a Product will automatically
terminate warranty coverage with respect to that Product. This limited
warranty is not transferable to any third party, including but not limited to
any subsequent purchaser or owner of the Product. This limited warranty
is applicable only to end users in the United States.
Seller will, at its sole and absolute discretion, either repair or replace a
Product (for which Seller may use refurbished parts of similar quality and
functionality) if found by Seller to be defective in material or workmanship,
or if Seller determines that it is unable to repair or replace such Product,
Seller will refund the purchase price for such Product, provided that the
subject Product (i) is returned to a Seller authorized service center within
118
the one year warranty period, and (ii) is accompanied by a proof of
purchase in the form of a bill of sale or receipted invoice which evidences
that the subject Product is within the one year warranty period. After the
one year warranty period, you must pay all shipping, parts and labor
charges. In the event that the Product is deemed un-repairable or has
been removed from the list of products supported by the Seller, you will
only be liable for shipping and labor charges.
This limited warranty does not cover and is void with respect to the
following: (i) any Product which has been improperly installed, repaired,
maintained or modified; (ii) any Product which has been subjected to
misuse (including any Product used in conjunction with hardware
electrically or mechanically incompatible or used with accessories not
approved by Seller), abuse, accident, physical damage, abnormal
operation, improper handling, neglect, exposure to fire or liquid; (iii) any
Product operated outside published maximum ratings; (iv) cosmetic
damage; (v) any Product on which warranty stickers or Product serial
numbers have been removed, altered, or rendered illegible; (vi) cost of
installation, removal or reinstallation; (vii) signal reception problems
(unless caused by defects in material and workmanship); (viii) damage as
119
a result of fire, flood, acts of God or other acts which are not the fault of
Seller and which the Product is not specified to tolerate, including
damage caused by mishandling, shipping and blown fuses; (ix)
consumables (such as fuses); or (x) any Product which has been opened,
repaired, modified or altered by anyone other than Seller or a Seller
authorized service center.
USE ONLY SELLER APPROVED ACCESSORIES WITH SELLER
DEVICES. USE OF ANY UNAUTHORIZED ACCESSORIES MAY BE
DANGEROUS AND WILL INVALIDATE THE DEVICE WARRANTY IF
SAID ACCESSORIES CAUSE DAMAGE OR A DEFECT TO THE
DEVICE.
SELLER SPECIFICALLY DISCLAIMS LIABILITY FOR ANY AND ALL
DIRECT, INDIRECT, SPECIAL, GENERAL, PUNITIVE, EXEMPLARY,
AGGRAVATED, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES,
WHETHER FORESEEABLE OR UNFORESEEABLE OF ANY KIND
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF
PROFITS, UNANTICIPATED BENEFITS OR REVENUE, ANTICIPATED
PROFITS ARISING OUT OF USE OF OR INABILITY TO USE ANY
120
PRODUCT (FOR EXAMPLE, WASTED AIRTIME CHARGES DUE TO
THE MALFUNCTION OF A PRODUCT) OR CONTRIBUTION OR
INDEMNITY IN RESPECT OF ANY CLAIM RELATED TO A PRODUCT.
REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR
REFUND OF THE PURCHASE PRICE RELATING TO A DEFECTIVE
PRODUCT, AS PROVIDED UNDER THIS WARRANTY, ARE YOUR
SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF THE LIMITED
WARRANTY, AND SUBJECT TO THIS WARRANTY, THE PRODUCTS
ARE APPROVED AND ACCEPTED BY YOU “AS IS”. SELLER MAKES
NO OTHER WARRANTIES, REPRESENTATIONS OR CONDITIONS
OF ANY KIND, ORAL OR VERBAL, EXPRESS OR IMPLIED,
STATUTORY OR OTHERWISE, WITH RESPECT TO THE PRODUCTS,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR AGAINST INFRINGEMENT OR ANY
IMPLIED WARRANTY OR CONDITION ARISING OUT OF TRADE
USAGE OR OUT OF A COURSE OF DEALING OR COURSE OF
PERFORMANCE. NO DEALER, DISTRIBUTOR, AGENT OR
121
EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION OR
ADDITION TO THIS WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or allow limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to
you. This limited warranty gives you specific legal rights, and you may
also have other rights which vary from jurisdiction to jurisdiction.
For warranty service information, please call the following telephone
number:
or return to the point of sale for the products.
