User Manual
V9A
User Manual
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.
Version No. : 1.0
Edition Time : 01 16, 2012
Contents
For Your Safety ....................................................................... 14
Product Safety Information ............................................................... 14
RF Exposure ..................................................................................... 18
General Statement on RF Energy ............................................... 18
Specific Absorption Rate (SAR) .................................................. 18
Body-worn Operation .................................................................. 19
Limiting Exposure to Radio Frequency (RF) Fields..................... 20
Regulatory Information ................................................................ 20
Distraction ......................................................................................... 21
Driving ......................................................................................... 21
Operating Machinery ................................................................... 21
Product Handling .............................................................................. 21
General Statement on Handling and Use .................................... 21
Small Children ............................................................................. 23
Demagnetization ......................................................................... 23
Electrostatic Discharge (ESD) ..................................................... 24
Air Bags ....................................................................................... 24
Seizures/Blackouts ...................................................................... 24
Repetitive Motion Injuries ............................................................ 24
Emergency Calls ......................................................................... 25
Loud Noise .................................................................................. 25
Device Heating ............................................................................ 25
Electrical Safety ................................................................................ 26
Accessories ................................................................................. 26
Connection to a Car .................................................................... 26
Faulty and Damaged Products .................................................... 26
Interference ....................................................................................... 27
General Statement on Interference ............................................. 27
Pacemakers ................................................................................ 27
Hearing Aids ................................................................................ 28
Medical Devices .......................................................................... 28
Hospitals ...................................................................................... 28
Aircraft ......................................................................................... 29
Interference in Cars ..................................................................... 29
Explosive Environments ................................................................... 29
Petrol Stations and Explosive Atmospheres ............................... 29
Blasting Caps and Areas ............................................................. 30
Getting Started ........................................................................ 31
Overview ........................................................................................... 31
Key Definition .................................................................................... 33
Starting up......................................................................................... 34
How to slot your SIM/memory card ............................................. 34
How to pop in your battery .......................................................... 37
How to charge your device .......................................................... 38
Powering On/Off Your Device ........................................................... 40
How to power on your device ...................................................... 40
How to switch your device to sleep mode ................................... 40

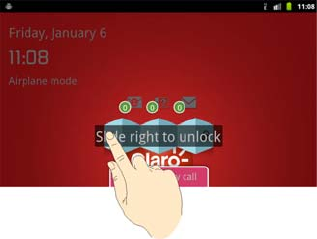

How to wake up your device from sleep mode............................ 41
Getting Around Your Device ............................................................. 43
Using Finger Gestures ................................................................ 43
Home Screen .............................................................................. 44
Device Status and Notifications ................................................... 47
Settings Preview .......................................................................... 51
Phone Calls ............................................................................. 55
Making a Call .................................................................................... 55
Making a Call from Dialer ............................................................ 55
Making a Call from Contacts ....................................................... 55
Making a Call from Call History ................................................... 56
Making a Call from a Text Message ............................................ 57
Making an Emergency Call ......................................................... 57
Making an International Call ........................................................ 58
Receiving a Call ................................................................................ 58
Answering an Incoming Call ........................................................ 58

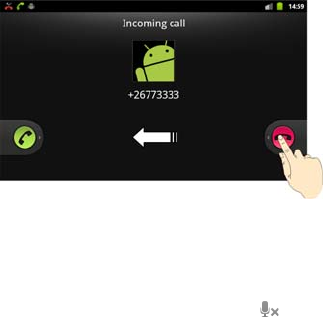

Rejecting an Incoming Call .......................................................... 59
Muting a Call ............................................................................... 60
Putting a Call on Hold .................................................................. 61
Ending a Call ............................................................................... 61
Call Settings ...................................................................................... 61
Contacts .................................................................................. 64
Starting to use Contacts ................................................................... 64

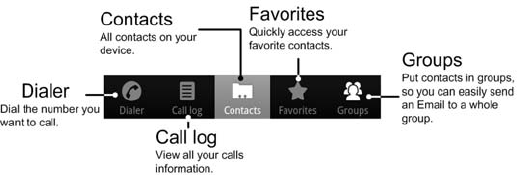

Contacts Screen .......................................................................... 64
Managing Contacts ........................................................................... 65
Importing/Exporting Contacts ...................................................... 65
Creating a Contact ...................................................................... 66
Adding a Contact to Favorites ..................................................... 67
Searching for a Contact ............................................................... 67
Editing a Contact ......................................................................... 68
Deleting a Contact ....................................................................... 68
Entering Text ........................................................................... 69

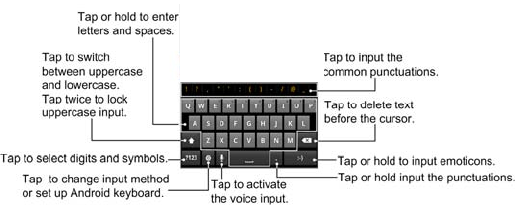

Using the On-screen Keyboard ........................................................ 69
Android Keyboard ........................................................................ 69

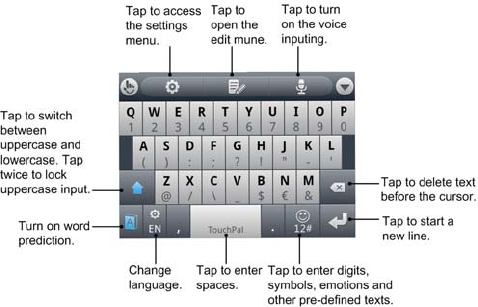

TouchPal keyboard ..................................................................... 71
Entering Text through the On-screen Keyboard.......................... 72
Entering Numbers or Symbols .................................................... 72
Input Settings .................................................................................... 72
Messages ................................................................................ 73
Exchanging Messages ...................................................................... 73
Composing an SMS .................................................................... 73
Composing an MMS .................................................................... 74
Managing Messages and Messages Threads ............................. 76
Message Settings ........................................................................ 77
Using Email ....................................................................................... 79
Creating an Email account .......................................................... 79
Composing and sending an Email ............................................... 81
Reply to or Forward an Email ...................................................... 82
Email Settings ............................................................................. 82
Getting Connected .................................................................. 83
Connecting to the Internet ................................................................ 83
Ways of Connecting to the Internet ............................................. 83
GPRS/3G/EDGE ......................................................................... 83
Wi-Fi ............................................................................................ 85
Using Browser................................................................................... 87
Opening Browser ......................................................................... 87
Opening Web Pages ................................................................... 87
Browsing Options ........................................................................ 88
Using Bookmarks ........................................................................ 91
Browser Settings ......................................................................... 92
Bluetooth ........................................................................................... 95
Turning on/off Bluetooth .............................................................. 95
Making your device visible .......................................................... 96
Change your device name .......................................................... 96
Pair with another Bluetooth device .............................................. 97
Experiencing Multimedia ....................................................... 98
Camera ............................................................................................. 98
Opening Camera ......................................................................... 98
Taking Pictures ............................................................................ 98
Camera Settings .......................................................................... 99
Camcorder ...................................................................................... 100
Opening Camcorder .................................................................. 100
Shooting Videos ........................................................................ 100
Video Settings ........................................................................... 101
FM Radio ........................................................................................ 102
Opening FM Radio .................................................................... 102
Listening to FM Radio ............................................................... 104
Music ............................................................................................... 104
Opening Music .......................................................................... 104
Playing Music ............................................................................ 105
Creating Playlists ....................................................................... 105
Managing Your Playlists ............................................................ 106
Setting a Song as Ringtone ....................................................... 107
Videos ............................................................................................. 107
Opening Videos ......................................................................... 107
Playing Videos ........................................................................... 108
Gallery ............................................................................................. 108
Sound Recorder .............................................................................. 108
Opening Sound Recorder ............................................................... 109
Record Your Memo ................................................................... 109
Google Applications ............................................................. 110
Signing In to Your Google Account ................................................. 110
Using Gmail .................................................................................... 110
Open Gmail ............................................................................... 111
Creating and sending an gmail .................................................. 111
Using Google Calendar .................................................................. 111
Using Google Talk .......................................................................... 112
Opening Google Talk ................................................................ 112
Adding a new friend ................................................................... 112
Viewing and accepting an invitation .......................................... 113
Starting a chat ........................................................................... 113
Settings ................................................................................. 114
Basic Settings ................................................................................. 114
Setting the Time and Date ......................................................... 114
Display Settings ......................................................................... 115
Sound Settings .......................................................................... 116
Language Settings .................................................................... 120
Mobile Network Services ........................................................... 120
Security Settings ............................................................................. 122
Protecting Your V9A with a Screen Lock .................................. 122
Protecting Your SIM Card with a PIN ........................................ 125
Setting Up Credential Storage ................................................... 126
Managing Memory .......................................................................... 127
Managing Your Memory Card ................................................... 127
Managing Internal Storage ........................................................ 128
Reset to factory settings ............................................................ 128
Application Settings ........................................................................ 129
Managing Applications .............................................................. 129
Speech Synthesis Settings ............................................................. 131
Other Applications ................................................................ 132
Alarming .......................................................................................... 132
Set alarms ................................................................................. 132
Note pad ......................................................................................... 132
Calculator ........................................................................................ 133
Task Manager ................................................................................. 133
Stopwatch ....................................................................................... 134
Maps ............................................................................................... 134
Places ............................................................................................. 135
Navigation ....................................................................................... 136
Latitude ........................................................................................... 136
Specifications ....................................................................... 138
14
For Your Safety
Product Safety Information
Read the Safety
Information section of this
user guide on this page
Do not use while
re-fuelling
Do not use hand-held
while driving This device may produce
a bright or flashing light
Small parts may cause a
choking hazard Do not dispose of it in a
fire
This device may produce
a loud sound Avoid contact with
magnetic media
Keep away from
pacemakers and other Avoid Extreme
Temperatures
15
personal medical devices
Switch off when
instructed in hospitals
and medical facilities
Avoid any contact with
liquid, keep it dry
Switch off when instructed
in aircrafts and airports Do not attempt to
disassemble
Switch off in explosive
environments
Do not rely on this device
for emergency
communications
Only use approved
accessories
16
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
17
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the
equipment.
RF Exposure Information (SAR)
This device has been tested and meets the FCC RF exposure guideline,
and tested directly contacted to the human body. The highest SAR
value, as reported to the FCC, is 0.762 W/kg. Use of other
enhancements or accessories (ex: book covers) that contains metal, may
not ensure compliance with FCC RF exposure guidelines.
18
RF Exposure
General Statement on RF Energy
Your mobile device contains a transmitter and a receiver. When it is ON,
it receives and transmits RF energy. When you communicate with your
device, the system handling your call controls the power level at which
your device transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is designed not
to exceed the limits for exposure to radio waves recommended by
international guidelines. These guidelines were developed by the independent
scientific organization ICNIRP and include safety margins designed to
assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as Specific Absorption
Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest
SAR value for this device when tested at the ear was （to be confirmed）
19
*. As mobile devices offer a range of functions, they can be used in other
positions, such as on the body as described in this user guide**.
As SAR is measured utilizing the device's highest transmitting power, the
actual SAR of this device while operating is typically below that indicated
above. This is due to automatic changes to the power level of the device
to ensure it only uses the minimum power required to communicate with
the network.
* The tests are carried out in accordance with EN 62311, EN 62209-1,
IEC 62209-2.
** Please see body worn operation.
Body-worn Operation
Important safety information regarding radio frequency radiation (RF)
exposure:
Failure to observe these instructions could result in your RF exposure
exceeding the relevant guideline limits.
20
Limiting Exposure to Radio Frequency (RF) Fields
For individuals concerned about limiting their exposure to RF fields, the
World Health Organization (WHO) provides the following advice:
Precautionary measures: Present scientific information does not indicate
the need for any special precautions for the use of mobile devices. If
individuals are concerned, they might choose to limit their own or their
children’s RF exposure by limiting the length of calls, or using
‘hands-free’ devices to keep mobile devices away from the head and
body.
Further information on this subject can be obtained online from the WHO
fact sheet N°193 at http://www.who.int/mediacentre/factsheets/fs193/en/
Regulatory Information
The following approvals and notices apply in specific regions as noted.
Please find the Declaration of RoHS Compliance, and EC Declaration of
Conformity in Appendix.
21
Distraction
Driving
Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a mobile device while driving (even with a hands
free kit) can cause distraction and lead to an accident. You must comply
with local laws and regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating the machinery in order to reduce
the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your mobile device and any
22
consequences of its use.
You must always switch off your mobile device wherever the use of a
phone is prohibited. Use of your device is subject to safety measures
designed to protect users and their environment.
Always treat your device and its accessories with care and keep it in a
clean and dust-free place.
Do not expose your device or its accessories to open flames or lit
tobacco products.
Do not expose your device or its accessories to liquid, moisture or
high humidity.
Do not drop, throw or try to bend your device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean
the device or its accessories.
Do not paint your device or its accessories.
Do not attempt to disassemble your device or its accessories, only
authorized personnel should do so.
23
Do not expose your device or its accessories to extreme temperatures,
minimum - [5] and maximum + [50] degrees Celsius.
Please check local regulations for disposal of electronic products.
Do not carry your mobile device in your back pocket as it could break
when you sit down.
Small Children
Do not leave your mobile device and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the
device.
Your mobile device contains small parts with sharp edges that may cause
an injury or may become detached and create a choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic devices or
magnetic media close to your device for a long time.
24
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Air Bags
Do not place the device in the area over an air bag or in the air bag
deployment area.
Store the device safely before driving your vehicle.
Seizures/Blackouts
The device can produce a bright or flashing light.
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games with your device:
Do not grip the device too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the times of
pressing buttons, such as Message Templates and Predictive Text.
25
Take lots of breaks to stretch and relax.
Emergency Calls
This mobile device, like any wireless phone, operates using radio signals,
which cannot guarantee connection in all conditions. Therefore, you must
never rely solely on any wireless device for emergency communications.
Loud Noise
This mobile device is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using headphones,
Bluetooth stereo headsets or other audio devices.
Device Heating
Your device may become warm during charging and during normal use.
26
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,
to contact or short-circuit the battery terminals.
Connection to a Car
Seek professional advice when connecting a mobile device interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the device or its accessory.
Only qualified personnel should service or repair the device or its
accessory.
27
If your device or its accessory has been submerged in water, punctured,
or subjected to a severe fall, do not use it until you have taken it to be
checked at an authorized service center.
Interference
General Statement on Interference
Care must be taken when using the mobile device in close proximity to
personal medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15
cm be maintained between a mobile device and a pacemaker to avoid
potential interference with the pacemaker. To achieve this, use the
mobile device on the opposite ear to your pacemaker and do not carry it
in a breast pocket.
28
Hearing Aids
People with hearing aids or other cochlear implants may experience
interfering noises when using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and
the distance from the interference source, increasing the separation
between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to determine if
operation of your mobile device may interfere with the operation of your
medical device.
Hospitals
Switch off your wireless device when requested to do so in hospitals,
clinics or health care facilities. These requests are designed to prevent
possible interference with sensitive medical equipment.
29
Aircraft
Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.
Consult the airline staff about the use of wireless devices on board the
aircraft, if your device offers a ‘flight mode’ this must be enabled prior to
boarding an aircraft.
Interference in Cars
Please note that because of possible interference to electronic equipment,
some vehicle manufacturers forbid the use of mobile phones in their vehicles
unless a hands-free kit with an external antenna is included in the installation.
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all posted signs
to turn off wireless devices such as your phone or other radio equipment.
30
Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage facilities, areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a blasting area
or in areas posted power off “two-way radios” or “electronic devices” to
avoid interfering with blasting operations.
31
Getting Started
Overview
Headset Jack Speaker
Light Sensor
Touch Screen
Home Key
Menu Key Speaker
Indicator
Back Key
Front Camera
32
Back Camera
Back Cover
Charger/ USB Jack
Power Key
Volume Keys
33
Key Definition
Ke
y
Function
Power Key
Press and hold to power on your V9A.
Press to switch to sleep mode.
Press to wake up your V9A.
Hold on for phone options: silent mode, airplane
mode or power off.
Home Key Tap to return to the Home Screen from any screen.
Hold to see the recently used applications.
Menu Key Tap to get menu options for the current screen.
Back Key Tap to go to the previous screen.
Volume Keys Use to control the volume up or down.
34
Starting up
How to slot your SIM/memory card
Power off your V9A before installing or replacing the battery, SIM card, or
memory card.
1. Remove the back cover.
Locate and open the thumb catch on
the lower left hand corner (viewed
from the back)
35
Lift the back cover up to open
2. Insert your SIM card into the SIM slot. There is a diagram showing the
correct orientation of the card printed above the SIM slot.
36
3. Insert your memory card into the memory card slot. There is a
diagram showing the correct orientation of the card printed above the
memory card slot.
37
Notes:
microSD logo ( ) is a trade mark of SD Card Association.
How to pop in your battery
1. Insert the battery with the contacts located against the metal springs.
2. Push the battery down into place.
38
How to charge your device
The new battery is not fully charged. To charge the battery, you need to:
1. Connect the adapter to the charger jack.
2
1
39
2. Connect the charger to a standard AC wall outlet.
Notes:
If the battery is low, there will be a pop-up message on the screen and
the indicator light will be red.
When you charge your device, the indicator light will change according
to the battery level:
Indicator color Battery level
Red Less than 10% of the total battery level
Orange More than 10%, but less than 90% of the total battery
level
40
Green More than 90% of the total battery level
If the device is powered on and the battery is charging, the icon will
appear on the status bar. When charging is completed, the battery
indicator appears on the status bar.
3. Disconnect the charger when the battery is fully charged.
Powering On/Off Your Device
How to power on your device
1. Make sure your SIM card and the battery are inserted.
2. Press and hold the Power Key to power on your device.
To power off your device, press and hold the Power Key to get the tablet
options, select Power off, and then tap OK.
How to switch your device to sleep mode
Press the Power Key.
41
Sleep mode suspends your device to a low-power-consumption state while
the display is off to save battery power. Your device also goes into sleep
mode automatically when you leave it idle after a certain period of time.
How to wake up your device from sleep mode
If your device is switched to sleep mode, you need to wake it up.
1. Press the Power Key to activate your screen display.
2. Drag icon to the right.
42
Notes:
If you have set an unlock pattern for your device (refer to Settings ->
Location & Security -> Setup screen lock -> Pattern), you need to draw
the pattern to unlock your screen.
43
Getting Around Your Device
Using Finger Gestures
You can use finger gestures to control your device. The controls on your
touch screen change dynamically depending on the tasks you are performing.
1. Tap the buttons, icons, or applications to select items or to open
applications.
2. Hold a certain item to get available options.
3. Slide on the screen, you can scroll up/down. From Home Screen, you
can also slide left/right to browse the extended Home Screen.
4. Drag a certain item to move it or to do some other corresponding
operations.
Tips:
Besides using finger gestures to control your device, you can also switch
your device screens (such as text input screen, gallery screen, etc.) between
portrait or landscape mode by holding the device upright or sideways.
44
Home Screen
You can add or remove home items in your Home Screen.
Notifications Displays the reminders and status icons of
your device. Flick down to open the
notifications panel.
Bars
Notification icons
Shortcuts &
Widgets
Status icons
A
pplications
Dialer
Contacts
Messages
Email
45
Bars Shows you which part of the Home Screen
you are looking at.
Shortcuts & Widgets Tap to start related applications.
Applications Tap to open the main menu.
How to extend the Home Screen
Beyond the screen width, the Home Screen extends to provide more
space for adding items. Slide your finger to the left or right to get the
extended Home Screen.
46
Customize the Home Screen Wallpaper
To change the wallpaper
1. Tap the Home Key to return to the Home Screen.
2. Tap the Menu Key and select Wallpaper.
3. Select the wallpaper you want to use from Gallery, Live wallpapers,
or Wallpapers.
4. Tap Save or Set wallpaper.
To add a Home Screen item
1. Tap the Home Key to return to Home Screen.
2. Slide left or right to find an extended Home Screen where there is
space to add an item.
3. Tap the Menu Key and select Add.
You can also tap and hold the blank area of the Home Screen to get
the Add to Home screen shortcut menu.
4. Select an item type and the item you want to add to Home Screen.
47
To remove a Home Screen item
1. Tap the Home Key to return to Home Screen.
2. Tap and hold the item you want to delete until the icon appears on
the screen.
3. Drag the item into .
Device Status and Notifications
Your V9A will tell you exactly what’s going on by showing you simple
icons. Here’s what they mean.
48
Status Icons
Connected to GPRS mobile
network Mobile network signal strength
GPRS in use No signal
Connected to EDGE mobile
network Roaming
EDGE in use Light speaker is mute
Connected to 3G mobile
network Light microphone is mute
3G in use No SIM card installed
Connected to HSPA mobile
network GPS is on
49
HSPA in use Receiving location data from
GPS
Battery is very low Connected to a Wi-Fi network
Battery is low Alarm is set
Battery is full Bluetooth is on
Battery is charging Connected to a Bluetooth
device
Vibrate mode Speaker is on
A
irplane mode Wired microphone headset
Notification Icons
New Mail New Google Talk message
New SMS/MMS Upcoming event
50
New voicemail Song is playing
Missed call Downloading data
Call in progress Uploading data
Call on hold Data is syncing
Call forwarding is on USB is connected
Problem with SMS/MMS
delivery
How to open the notification panel
From the Notifications Panel, you can get the information of calendar
events, new messages, and ongoing settings such as call forwarding or
the current call status. You can open the message, reminder, event
notification etc. from the Notification Panel.
1. Tap and hold the notifications bar until appears on the top
51
of the Screen.
2. Drag the downwards.
Tips:
You can also open the Notifications Panel from the Home Screen by
tapping the Menu Key > Notifications.
Settings Preview
You can adjust the device settings. Tap the Home Key > > Settings
to view all the settings on your device.
Tips:
You can also tap the Menu Key > Settings from the Home Screen.
Wireless &
networks
Enables you to configure and manage your device’s
wireless connections, such as Wi-Fi, Bluetooth,
mobile networks, and Virtual Private Networks. You
can also enable the Airplane mode.
Call settings Enables you to set up fixed dialing numbers, voicemail,
52
call forwarding, call waiting, and caller ID etc.
Sound Enables you to set sound settings, such as
ringtones, notifications and so on.
Display Enables you to set display settings such as screen
brightness and so on.
Location & security
Enables you to set the Screen unlock pattern, SIM
card lock, Passwords, Device administration, or
manage the device’s Credential storage. You can
also select the sources to use when determining
locations from My Location.
Applications Enables you to manage applications and installation
of new programs.
Account & sync Enables you to manage your account and configure
general sync settings.
Privacy Enables you to configure privacy settings, such as
Location, back up Settings, and Personal data.
53
Storage Enables you to check the available memory of the
external card and the internal storage.
Language &
keyboard Enables you to set the locale (operating system
language and region) and text input options.
Voice input &
output
Enables you to configure the text-to-speech settings
if you have installed a text-to-speech (voice data)
application.
Accessibility Enables you to manage accessibility options.
Date & time Enables you to set the date, time, time zone, and
date/time format. If the network supports, you can
also enable automatic time update.
About device Enables you to view the device status, battery level,
and legal information.
54
How to open recently used applications
1. Tap and hold the Home Key from any screen until the following
recently used applications interface appears.
2. Tap the application you want to open.
55
Phone Calls
Making a Call
Making a Call from Dialer
1. Tap from the Home Screen.
2. Enter the phone number you want to call.
Tap to erase the wrong entry, hold this key to clear all digits. Your
device automatically lists the matching contacts. You can tap to
hide the keypad and to see if there are more matching numbers or
contacts.
3. Tap .
Making a Call from Contacts
1. Tap from the Home Screen.
56
2. Slide your finger to scroll the contacts list and tap the contact you
want to call.
Tips:
You can search for a contact by tapping the icon at the bottom of the
Contacts Screen.
3. Tap .
Making a Call from Call History
1. Tap from the Home Screen to open the Dialer.
2. Tap to switch to the Call log tab.
Tips:
You can also open call history by tapping the > Call log from the
Home Screen.
3. Tap a recently dialed or received call from the list. You can scroll
down the list to see more call history.
4. Tap .
57
Making a Call from a Text Message
If a text message contains a phone number that you want to call, you can
make the call while viewing the text message.
1. Tap the Home Key > and tap the message conversation you
need.
2. Tap the message you need in the conversation.
3. Select the number and tap .
Making an Emergency Call
1. Enter the emergency number for your location from Dialer.
2. Tap .
Notes:
It is possible to dial emergency numbers when the SIM card is not inserted.
Contact your service provider for the emergency numbers they support.
58
Making an International Call
Notes:
This function is subject to your service operator and the network status.
1. Tap and hold from the dialer to enter “+”.
2. Enter the full phone number.
For example: +49-123-12345678 in the following format: + country
code-area code-phone number.
3. Tap .
Receiving a Call
Answering an Incoming Call
When there is an incoming call, the V9A will display the information on
the screen.
Drag to the right to answer the call.
59
Rejecting an Incoming Call
Drag to the left to reject the call.
60
Muting a Call
During a call, you can tap Mute to turn off the microphone so that the
person with whom you are speaking cannot hear you, but you can still
hear him or her.
When the microphone is turned off, the mute icon appears on the
screen.
61
Putting a Call on Hold
During a call, you can use the following methods to put the call on hold.
Tap . The icon will be displayed if a call is on hold.
Ending a Call
Tap to end a call.
Call Settings
You can adjust the call settings of your phone. To open the call settings
menu, press the Menu Key > Settings > Call settings from the Home
Screen.
Fixed Dialing
Numbers
Enables you to restrict outgoing calls to a fixed set of
numbers. To enable this feature you must know your
SIM card’s PIN2 code.
Voicemail
service Enables you to select a voicemail service provider.
62
Voicemail
settings Enables you to specify a voicemail number.
Speed dial Enables you to set a speed dial number.
Call Barring
Settings
Enable or disable receipt of cell broadcast messages.
You can also select languages and manage channels.
This function needs network support. Please consult
your service provider.
Call forwarding
Enables you to forward incoming calls to a different
number. You can select when to forward: Always
forward, Forward when busy, Forward when
unanswered, or Forward when unreachable.
Additional
Settings
Caller ID Enables you to choose whether to display
your number in outgoing calls.
Call waiting Enables you to choose whether to be
notified of new incoming calls while you
are already on a call.
63
Accounts Set up Internet calling (SIP) accounts.
Use Internet
calling Choose when to use the Internet calling function.
64
Contacts
Starting to use Contacts
You can add new contacts along with their information. Setting up
communication information for the contact will allow you to call the
person quickly or browse the contact's information. Contacts are saved in
the internal memory or in the SIM card. If you store the information in the
SIM card, you can fill the name and a number. If you store the information
in the internal memory, you can also fill out more information including
Email, Postal address, pictures, Nickname, website, etc.
Tap the Home Key > to enter the Contacts Screen.
Contacts Screen
There are five tabs in the Contacts Screen: Dialer, Call log, Contacts,
Favorites, and Groups.
65
Managing Contacts
Importing/Exporting Contacts
You can import/export contacts from/to you SIM card or microSD card.
Import/export contacts from/to SIM card
1. Tap the Menu Key > Import/Export from the Contacts Screen.
2. Select to import or export contacts from/to your SIM card.
66
Your V9A will automatically read the contacts.
3. Select the contacts you want to import/export.
Tips:
If you want to import/export all contacts, tap the Menu Key > .
4. Tap .
Import/export contacts from/to memory card
1. Tap the Menu Key > Import/Export from the Contacts Screen.
2. Select to import or export contacts from/to microSD card.
If you want to import contacts from microSD card, you should have
vCard files saved in the microSD card. If there is more than one vCard
file, you need to select the vCard file.
3. Tap OK.
Creating a Contact
1. Tap the icon at the bottom of the Contacts Screen.
2. Select the location to save your contact.
67
3. Enter the name and phone numbers. You can also set the Group,
Email addresses, IM addresses, Postal addresses, Organizations etc.
if you select to create a phone contact.
4. Tap Done to save the contact.
Adding a Contact to Favorites
1. Select the contact you want to add to Favorites from your Contacts
Screen.
2. Hold the contact until a shortcut menu appears.
3. Tap Add to favorites.
Searching for a Contact
1. Tap the icon at the bottom of the Contacts Screen.
2. Input the contact name you want to search for.
3. The contacts matched will be listed.
68
Editing a Contact
1. Select the contact you want to edit from the Contacts Screen.
2. Tap the icon at the bottom of the contact details screen.
Tips:
You can also edit a contact by holding it in the Contacts Screen and
select Edit contact from the pop-up shortcut menu.
3. Edit the contact and tap Done.
Deleting a Contact
1. Select the contact you want to delete from the Contacts Screen.
2. Tap the icon at the bottom of the contact details screen.
Tips:
You can also delete a contact by holding it in the Contacts Screen and
select Delete contact from the pop-up shortcut menu.
3. Tap OK.
69
Entering Text
Using the On-screen Keyboard
When you enter a field that needs text or numbers, hold the input box and
select Input method from the pop-up menu to change input method.
Android Keyboard
Android Keyboard is a keyboard layout similar to a desktop computer
keyboard. You can choose to use the landscape orientation of the
on-screen keyboard, by turning the V9A sideways.
70
Tips:
If you want to use the landscape keyboard, you need to select the
Auto-rotate screen check box in Settings > Display.
71
TouchPal keyboard
72
Entering Text through the On-screen Keyboard
1. Enter a field that needs text or numbers.
2. Tap or hold the letters on the keyboard to enter your text.
Entering Numbers or Symbols
1. Enter a field that needs text or numbers.
2. Tap / to open the number panel.
3. Select the numbers or symbols.
Input Settings
You can configure the touch input settings by tapping the Menu Key >
Settings > Language & keyboard from Home Screen.
73
Messages
Messaging is where all of your SMS and MMS accounts are located.
To access your message accounts, tap the Home Key > .
Exchanging Messages
From Messages, you can receive and send an SMS or MMS.
When you receive a new message, you can open it from the Notifications
Panel, or from Messages Screen. Simply tap on the new message to
read it.
The device will alert you for the unread message(s) with the icon in
the status bar.
Composing an SMS
1. Tap the Home Key > .
2. Tap New message.
74
3. Tap To field and enter the recipient’s number. In Android keyboard
input method, you can also enter the first letter of the recipient; the
contact which matches the first letter of the recipient name is listed,
and then you can select a recipient from the list.
4. Tap Type to compose field and enter the message.
5. Tap Send to send your SMS.
Composing an MMS
1. Tap the Home Key > .
2. Tap New message.
3. Tap To field and enter the recipient’s number. In Android keyboard
input method, you can also enter the first letter of the recipient, the
contact which match the first letter of the recipient name is listed, and
then select a recipient from the list.
4. Tap the Menu Key > Add subject to enter the subject of your MMS.
5. Tap Type to compose field and enter the message.
6. Tap the Menu Key > Attach to add an attachment to your MMS:
75
Pictures: Select a picture to add to your MMS.
Capture picture: Take a photo and add to your MMS.
Videos: Select a video clip to attach to your MMS.
Capture video: Shoot a video clip and add to your MMS.
Audio: Select an audio file to add to your MMS.
Record audio: Record an audio file and add to your MMS.
Slideshow: Edit a slideshow and add to your MMS.
7. Tap Send to send your MMS.
Tips:
If you add a subject or an attachment to your SMS, the SMS will be
converted to an MMS automatically.
If you remove the subject and attachment of your MMS, the MMS will
be converted to an SMS automatically.
76
Managing Messages and Messages Threads
SMS and MMS messages which are sent to and received are grouped
into message threads in the Messages screen. Threaded messages
show you exchanged messages (similar to a chat program) with a specific
contact on the screen. Message threads are sorted by the time when you
received them, with the latest one on the top.
Reply to a message
1. Tap the message you want to reply to from the Messages Screen.
2. Tap Type to compose and enter the contents of your message.
3. Tap Send.
Delete a message (thread)
1. Tap the Menu Key > Delete threads from the Messages Screen.
2. Select the messages or threads you want to delete.
3. Tap Delete.
77
Message Settings
Tap the Menu Key > Settings from the Messages Screen. You can
configure your message settings.
Storage settings
Delete old messages: Select to delete old messages as limits are
reached.
Text message limit: Set the maximum number of text messages
allowed in a single thread.
Multimedia message limit: Set the maximum number of multimedia
messages allowed in a single thread.
Text message (SMS) settings
Delivery reports: Request a delivery report for each SMS message
you send.
Manage SIM card messages: Manage messages stored on your
SIM card.
SMS validity: Set a period time of SMS validity.
78
SMS priority: Set the priority for SMS.
Service Center: Enables you to view and edit the service center.
Multimedia message (MMS) settings
Delivery reports: Request a delivery report for each MMS message
you send.
Read reports: Request a read report for each MMS message you send.
Auto-retrieve: Select to retrieve MMS messages automatically.
Roaming auto-retrieve: Select to retrieve MMS messages
automatically when you are roaming.
MMS validity: Set a period time of MMS validity.
MMS creation mode: Enables you to create the MMS correctly.
Notifications settings
Notifications: Select to display message notifications in the status bar.
Select ringtone: Select a ringtone for your incoming messages.
Vibrate: Select to make your V9A vibrate when receiving a new
message.
79
Signature settings
Edit signature: Edit your signature.
Add signature: Create a new signature.
Using Email
Tap the Home Key > . You can enter the Email Screen to setup your
Email account and exchange Emails.
Creating an Email account
1. Enter your Email address and password, and then tap Next when you
enter the Email Screen for the first time.
80
2. Tap Manual setup to add new email account. Select a type of
account and tap Next.
3. Edit the incoming server settings and then tap Next/Next[Check].
If you tap Next[Check], your device will check the incoming server
settings and finish the setup automatically. If you are notified that
setup could not be finished, you might need to correct some settings
to finish it. If there is any problem, please contact your mobile service
provider and Email service provider.
4. Edit the outgoing server settings and tap Next/Next[Check].
81
If you tap Next[Check], your device will check the outgoing server
settings and finish the setup automatically.
5. Set the Email checking frequency, select whether to use this account
by default or be notified when Email arrives, and then tap Next.
6. Set up the download options and the message number per download.
7. Give your account a name and set a name displayed on outgoing
message, and then tap Done.
Composing and sending an Email
After creating an Email account, you can compose and send Email
messages.
1. Tap the Menu Key > Compose from the Email Screen.
2. Tap the To field and enter the recipient’s address.
When you enter the address, the matching addresses saved in your
Contacts will be displayed. You can tap the recipient from the list.
82
Tips:
You can also tap the Menu Key > Add Cc/Bcc to add recipients.
3. Enter the subject and the content of your Email.
4. Tap Send.
Reply to or Forward an Email
1. Open the Email you want to reply to or forward from Email Screen.
2. Tap Reply or the Menu Key > Forward to reply to/forward the Email.
You can also tap Reply all to reply to all recipients of the Email.
3. Enter the contents/recipients of your Email.
4. Tap Send.
Email Settings
Tap the account you want to set from the Accounts Screen and tap Menu
Key > More > Account settings. You can get the settings for the Email
account. You can also tap Menu Key > More > System settings to set
up storage, exchange and other settings.
83
Getting Connected
Connecting to the Internet
Your device’s networking capabilities allow you to access the Internet or
your corporate network.
Ways of Connecting to the Internet
You can use the default connection settings to connect to the Internet
through your mobile network (GPRS/3G/EDGE), or Wi-Fi.
GPRS/3G/EDGE
Use GPRS/3G/EDGE to connect to the Internet and to send and receive
MMS/Email messages on your V9A. You will need a data plan to use
your wireless service provider’s GPRS/3G/EDGE network. Check with
your wireless service provider for GPRS/3G/EDGE rates. If the
GPRS/3G/EDGE settings are not pre-configured on your device, contact
your operator for the parameters. Do not change the settings as this may
cause services to stop working.
84
Add a new GPRS/3G/EDGE connection
Before you begin, get the following information from your service
provider:
Access Point Name (APN)
Your user name and password if needed.
Server IP and the port number if the network uses a proxy server.
1. Tap the Home Key > > Settings > Wireless & networks >
Mobile networks > Access Point Names.
2. Tap the Menu Key > New APN.
3. Tap Name to enter you APN name (You can name it as you like).
4. Tap APN to enter the APN you want to add.
5. Tap Proxy and Port to enter the Server IP and port if the network
uses a proxy server.
6. Tap and enter Username and Password (If there is no User name
and Password, leave them blank).
7. Tap and set other parameters if needed.
85
8. Tap the Menu Key > Save to complete.
Notes:
If you want to set the APN to default settings, tap the Menu Key > Reset
to default.
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet
(100 meters).
Turn on Wi-Fi
1. Tap the Home Key > > Settings > Wireless & networks.
2. Select the Wi-Fi check box to turn Wi-Fi on.
Add a Wi-Fi network
1. Tap the Home Key > > Settings > Wireless & networks > Wi-Fi
settings.
The Wi-Fi network names and security settings (open network or
secured network) of detected Wi-Fi networks are displayed in the
86
Wi-Fi networks section.
2. Tap a network to connect.
If you select an open network, you will be automatically connected
to the network.
If you select a secured network, you will need to input the wireless
password.
Check the Wi-Fi network status
You can check the Wi-Fi network status from the status bar and wireless
controls.
1. Check the icon in the status bar.
2. Tap the Home Key > > Settings > Wireless & networks > Wi-Fi
settings, then tap the wireless network that the device is currently
connected to.
You can check the network status from the pop-up window.
87
Using Browser
You can use your Browser to browse most of the websites. Some web pages
may not be displayed properly as some specific web page technologies,
such as Flash, are not supported by the browser. Your V9A will
automatically create an EDGE or GPRS/3G connection for you while
browsing web pages.
Opening Browser
Tap the Home Key > > Browser to start this function.
Opening Web Pages
In Browser, you can open web pages through the following ways.
1. Tap the address bar to enter the website you want to browse, and tap
the icon.
2. Tap the Menu Key > Bookmarks and select an item to open.
3. Select an item from Most visited/History tab of Bookmarks Screen.
88
Browsing Options
When browsing web pages, you can do some operations.
Tap the Menu Key > Refresh to refresh the page.
Tap the Menu Key > More > Forward to go to the next page.
Tap the Menu Key > More > Add bookmark to set the current page
as bookmark.
Tap the Menu Key > More > Find on page to enter the search item
to view the search result.
Tap the Menu Key > More > Select text and slide your on the page
to select the text you want to copy.
Your V9A automatically copies the selected text to the clipboard.
Tap the Menu Key > More > Page info to view the page information.
Tap the Menu Key > More > Share page to send the page by
Bluetooth, Email, Gmail, Google+, or Messages.
Tap the Menu Key > More > Downloads to view the download
information.
89
Tap the Menu Key > More > Settings to set the browser.
Rotate your device sideways to view the landscape Browser Screen if
you select the Auto-rotate screen check box in Display settings by
tapping Home Key > > Settings > Display.
Open a new browser window
1. Tap the Menu Key > New window to open a new browser window in
browser.
2. Tap the address bar to enter the website you want to browse.
Switch between different browser windows
If you have more than one browser window opened, you can switch
between these windows.
1. Tap the Menu Key > Windows to view all the windows you opened.
2. Tap the page you want to browse.
Tips:
You can also tap to close a window.
90
Open links in web pages
1. Open a web page that contains a link.
2. Tap a link to open the page.
You can also hold on the link to open the shortcut menu:
Open: Open the web page.
Open in new window: Open the web page in a new window.
Bookmark link: Save the link to your Bookmarks.
Save link: Download the linked web page to your V9A.
Share link: Send the link by Bluetooth, Email, Gmail, Google+, or
Messages.
Copy link URL: Copy the link to the clipboard.
Download applications from web pages
1. Open a web page that contains an application link.
2. Tap the link or hold on the link and select Save link to download the
application to your V9A.
91
Notes:
Downloaded applications are saved in your microSD card.
Using Bookmarks
You can save your frequently-used pages as bookmarks on your V9A.
Add a new bookmark
1. Open a web page.
2. Tap the Menu Key > Bookmarks.
3. Tap Add.
4. Enter a name of the bookmark and tap OK.
Edit a bookmark
1. Open a Browser window.
2. Tap the Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the shortcut menu
pops up.
92
4. Select Edit bookmark.
5. Edit the name or location, and then tap OK to save it.
Delete a bookmark
1. Open a Browser window.
2. Tap the Menu Key > Bookmarks.
3. Select an item you want to delete and hold on it until the shortcut
menu pops up.
4. Select Delete bookmark and tap OK to confirm the deletion.
Browser Settings
You can set the Browser text size, home page etc. by tapping the Menu
Key > More > Settings from a browser window.
Page content settings
Text size: Adjust the browser text size.
Default zoom: Set the browser default zoom.
93
Open pages in overview: Select to show overview of newly opened
pages.
Text encoding: Select a text encoding type.
Block pop-up windows: Select to block pop-up windows.
Load images: Select to show the images of web pages.
Auto-fit pages: Select to format the web pages to fit the screen.
Landscape-only display: Display the web pages only in landscape
screen orientation.
Enable JavaScript: Select to enable JavaScript.
Enable plug-ins: Select to enable plug-ins.
Open in background: Select to open new windows behind the
current one.
Set home page: Select to edit the home page web site.
Privacy settings
Clear cache: Delete all the cached page contents.
Clear history: Clear the browser navigation history.
94
Accept cookies: Select to allow sites to save and read cookies.
Clear all cookie data: Clear the browser cookies.
Remember form data: Select to remember the data you type in
forms for later use.
Clear form data: Clear the saved form data.
Enable location: Select to allow sites to request access to your location.
Clear location access: Select to clear access for all websites.
Security settings
Remember passwords: Select to save usernames and passwords
for web sites.
Clear passwords: Clear the saved passwords.
Show security warnings: Select to show warnings if there is a
problem with a site’s security.
Advanced settings
Set search engine: Select Google, Yahoo! or Bing as your search
engine.
95
Website settings: View advanced settings for individual websites.
Only available for some websites.
Reset to default: Clear all browser data and reset all settings to
default.
Bluetooth
Bluetooth is a short-range wireless communication technology. Wireless
devices with Bluetooth capabilities can exchange information within a
distance of about 10 meters without any physical connection. The
Bluetooth devices must be paired before the communication is
performed.
Turning on/off Bluetooth
1. Tap the Home Key > > Settings > Wireless & networks.
2. Select the Bluetooth check box to turn Bluetooth on.
The icon will be displayed in the status bar. If you want to turn
Bluetooth off, clear the Bluetooth check box.
96
Notes:
By default, Bluetooth is turned off. If you turn it on, and then turn off your
device, Bluetooth is also turned off. When you turn on your device again,
Bluetooth turns on automatically.
Making your device visible
Other devices with Bluetooth capabilities can detect your V9A, establish
a partnership, or use a Bluetooth service.
1. Tap the Home Key > > Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
3. Select the Discoverable check box to make your device visible.
Change your device name
1. Tap the Home Key > > Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
97
3. Tap Device name.
4. Enter the name and tap OK.
Pair with another Bluetooth device
You can pair your device with another device that has Bluetooth
capabilities. Once you do this, the two devices must have Bluetooth
turned on but do not need to be visible for you to exchange information
between them.
1. Tap the Home Key > > Settings > Wireless & networks >
Bluetooth settings.
2. Tap Scan for devices.
Your V9A will display all reachable Bluetooth devices in the
Bluetooth devices section.
3. Tap the device you want to pair with.
4. If necessary, type your PIN to pair and tap OK.
Tip: The same PIN should be entered on the other device.
98
Experiencing Multimedia
Camera
Your V9A has two digital cameras, front camera and back camera.
Opening Camera
Tap the Home Key > > Camera to open the camera.
Notes:
You can switch from the camera to the camcorder quickly: Drag the
switch up.
Taking Pictures
Aim the camera at the subject and then tap to take the shot.
Tap the picture at the bottom of right corner (portrait mode) of your
Camera Screen to view the picture just captured.
Tap the Menu Key > Gallery to view all of your pictures.
99
Camera Settings
From the Camera Screen tap to set up focus mode, exposure, picture
size/quality, color effect, ISO, anti-banding, saturation, contrast, sharpness,
and restore the default camera settings.
Tap or to choose whether to save photo’s geographic location.
Tap to change white balance.
Tap 1x to zoom in or out.
Tap to select front camera or back camera.
Tip: To change quickly from camera to camcorder or vice versa, use the
switch icon. Use the bar to adjust the brightness.
100
Camcorder
Camcorder enables you to shoot video clips.
Opening Camcorder
Tap the Home Key > > Camcorder to open the camcorder.
Notes:
You can switch from the camcorder to the camera quickly:
Drag the switch down.
Shooting Videos
1. Tap to start shooting.
2. Tap to stop shooting.
Notes:
Tap the picture at the bottom of right corner (portrait mode) of your
camcorder screen to view the video clip just shot.
Tap the Menu Key > Gallery to view all of your video clips.
101
Video Settings
From the Camcorder Screen, tap to adjust color effect, video quality,
video/audio encoder, video duration, and restore the default camera settings.
Tap to adjust the white balance. White balance enables the camera
to capture colors more accurately by adjusting to the current lighting
environment.
Tap to change white balance setting.
Tap /High/Low/MMS/YouTube to select preset video shooting mode, or
customize your own.
Tap to select front camera or back camera.
Notes:
Under the preset High, Low, MMS, or YouTube mode, the settings for video
quality, video encoder, audio encoder, and video duration cannot be
changed.
102
FM Radio
With the FM Radio, you can search for radio channels, listen to them, and
save them on your device. Note that the quality of the radio broadcast
depends on the coverage of the radio station in that particular area. The
wired headset works as an antenna, so always connect the headset
when using the radio. When you receive an incoming call while listening
to the radio, the radio will be turned off during the call.
Opening FM Radio
You need to insert a headset to your V9A before opening the FM radio.
Tap the Home Key > > FM Radio to open the FM radio.
After opening the FM radio, you will see the icon in the status bar.
103
104
Listening to FM Radio
Press the Volume Keys to adjust the volume.
Tap the Menu Key > Scan to scan the radio station.
Tap the Menu Key > Settings to set up the Regional Band, Audio
Output Mode, Alternate Frequency and Revert to Factory
Defaults.
Tap the Menu Key > Sleep to set the FM radio sleep timer.
Tap the Menu Key > Enable Speaker to enable or disable the
speaker.
Music
You can play digital audio files from your memory card in Music.
Opening Music
You need to copy the audio files you want to play to your memory card
first.
105
1. Tap the Home Key > > Music to open Music Screen.
2. Select a file to open.
Playing Music
1. Tap Artists/Albums/Songs/Playlists to get the songs you want to play.
2. Tap a song from the list to start playing.
Notes:
Press the Volume Keys to adjust the volume.
Creating Playlists
You can create some playlists to organize your music files.
1. Select a music file you want to add to a new playlist.
2. Tap and hold on the file until a shortcut menu pops up.
3. Tap Add to playlist.
4. Tap New.
5. Enter the playlist name and tap Save.
106
The playlist is created and the file you selected is added to the playlist.
Managing Your Playlists
1. Tap Playlists from the Music Screen to view all playlists.
2. Hold on the playlist you want to play or edit until a shortcut menu pops
up.
i. Tap Play to play the playlist.
ii. Tap Delete to delete the playlist.
iii. Tap Rename to edit the playlist name.
Add songs to your playlist
1. Open the folder where the song you want to add to a playlist is.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist from the list.
107
Setting a Song as Ringtone
1. Open the folder where the song you want to set as ringtone is.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.
Tips:
You can also set a song as ringtone when you are playing it by tapping
the Menu Key > Use as ringtone.
Videos
You can use Videos to play your video files.
Opening Videos
Tap the Home Key > > Videos to open the video player.
Your device will show you all video files saved on your memory card.
108
Playing Videos
Copy the video file to your memory card before playing it.
1. Tap the video file you want to play from the Videos Screen.
2. Tap on the screen to show the control bar. You can pause, rewind,
fast forward, or jump to any part of the video with the time bar.
Gallery
Gallery helps you view pictures and play back videos. For pictures, you
can also do some basic editing tasks. For instance, set them as your
wallpaper or contact icon, and share with your friends.
Sound Recorder
Sound Recorder enables you to record your voice memos that you can
set as ringtone.
109
Opening Sound Recorder
Tap the Home Key > > Sound Recorder to open the sound
recorder.
Notes: You need to install a memory card to use Sound Recorder.
Record Your Memo
1. Get the microphone near to your mouth.
1. Tap to start recording.
2. Tap to stop recording.
3. Tap to play back the voice recording.
4. Tap OK to save the voice recording, or tap Discard to discard the
recording.
Notes:
You can find your recordings in Home Key > > Music > Playlists >
My recordings. If you want to set a recording as ringtone, hold the recording
and select Use as phone ringtone from the pop-up shortcut menu.
110
Google Applications
Signing In to Your Google Account
Signing in to your Google Account enables you to synchronize Gmail,
Calendar, web album, and contacts between your device and the web.
1. Tap a Google application, such as Talk.
2. Read the instructions and tap Next.
3. Tap Sign in if you have a Google account. Enter your user name and
password, and then tap Sign in.
Tap Create if you do not have a Google account.
Using Gmail
Gmail is Google’s web-based email service. Gmail is configured when
you sign in to your Google account. Depending on your synchronization
settings, Gmail on your V9A is automatically synchronized with your
Gmail account on the web.
111
Open Gmail
Tap the Home Key > > Gmail.
Creating and sending an gmail
1. In the Inbox, press the Menu Key and then tap Compose.
2. Enter the message recipient’s email address in the To field. If you are
sending the email to several recipients, separate the email addresses
with a comma. You can add as many message recipients as you
want.
3. Enter the email subject, and then compose your email.
4. After composing your email, tap the Menu Key > Send.
Using Google Calendar
Tap the Home Key > > Calendar to use Google Calendar,
Google’s time management application. You can use the calendar to
schedule appointments, including meetings and other events. Your
112
appointments will be displayed on the screen as are scheduled. All your
appointments are synchronized to your Google account, which enables
you to share your schedule, get your entire calendar on the go, and
receive Email reminder for your upcoming events.
Using Google Talk
Google Talk is Google’s instant messaging program, which enables you
to communicate with other people that also use Google Talk.
Opening Google Talk
Tap the Home Key > > Talk.
Adding a new friend
You can only add people who have a Google account.
1. In the Friends list, press the Menu Key > Add friend.
2. Enter the Google Talk instant messaging ID or Google email address
of the friend you want to add.
113
Viewing and accepting an invitation
1. In the Friends list, press the Menu Key > Invites.
All chat invitations you have sent or received are listed on the pending
invitations screen.
2. Tap a received pending invitation, and then tap Accept or Decline.
Starting a chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text using the on-screen keyboard.
3. After entering your message, tap Send.
114
Settings
Basic Settings
Setting the Time and Date
1. Tap the Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic check box if you want to set time and date by
yourself.
3. Configure the time and date settings:
– Tap Set date. Adjust the date, and tap Set to save it.
– Tap Select time zone and tap the area where you are.
– Tap Set time. Adjust the time, and tap Set to save it.
– Tap the check box behind Use 24–hour format to change the time
format.
– Tap Select date format and select the type you like.
115
Display Settings
By tapping the Home Key > Menu Key > Settings > Display, you can
configure the display settings, such as brightness, auto-rotate screen,
animation, and screen timeout.
Adjust the screen brightness
1. Tap Brightness.
2. Adjust the brightness and tap OK.
Adjust the delay before the screen turns off
1. Tap Screen timeout.
2. Select the time from the list.
Switch the screen orientation automatically
You can select to switch your screen orientation to landscape or portrait
mode automatically when rotating your V9A.
Select the Auto-rotate screen check box.
116
Show animation when opening/closing windows
You can select to show an animation when opening or closing windows.
1. Tap Animation.
2. Select the animation type you’d like to use.
If you want to disable this function, select No animations.
Sound Settings
By tapping the Home Key > Menu Key > Settings > Sound, you can
configure the sound settings, such as ringtones and notifications.
Set the ringtone
1. Tap Phone ringtone in Incoming calls section.
2. Select the ringtone you want to use from the pop-up list.
Tips:
You can also set an audio file as the ringtone while browsing the music
list.
117
1. Open the songs list by tapping the Home Key > > Music >
Songs.
2. Hold the song you like until the shortcut menu pops up.
3. Select Use as phone ringtone.
Set the default notification ringtone
1. Select Notification ringtone in Notifications section.
2. Scroll the ringtone list and select one to set as the default notification
ringtone.
3. Tap OK to save.
Switch your device to silent mode
Select the Silent mode check box in General section.
Switch your device to vibration mode
Tap Vibrate and select vibration mode in the General section.
If your V9A is already in silent mode, the vibration icon will appear in
the status bar.
118
Enable the haptic feedback
You can get the vibration feedback while pressing the soft keys and on
certain UI interfaces if you have enabled haptic feedback.
1. Tap the Home Key > > Settings > Sound.
2. Select the Haptic feedback check box.
Adjust the ringtone, media and alarm volume
If you want to set the ringer volume, make sure your device is not in silent
mode.
1. Tap Volume in the General section.
2. Adjust the Ringtone, Media and Alarm volume and tap OK to save.
Tips:
You can adjust the ringer volume quickly by pressing the Volume Keys
from any screen.
Notes:
If you want to adjust the notification volume together with ringer volume,
select the Use incoming call volume for notifications check box.
119
Enable the touch tones
You can set your V9A to play tones when touching the keys of Dialer.
Select the Audible touch tones check box in the Feedback section.
Enable the screen selection tones
You can set your V9A to play sound while making a selection by touching
the screen.
Select the Audible selection check box in the Feedback section.
Enable Dolby Mobile
You can enable Dolby Mobile for better sound quality.
When you playing a song, tap to enable Dolby. At this time, you can
tap the Menu Key > Dolby Mobile Settings to select a music mode
when playing the music track.
120
Language Settings
You can change the system language of your device.
Change the language of your operating system
1. Tap the Home Key > > Settings > Language & keyboard >
Select language.
2. Select a language from the locale list to set it as the system language.
Mobile Network Services
The GSM and WCDMA services are supported by your device. You can
configure the network settings according to your phone service.
Enable data roaming
1. Tap the Home Key > > Settings > Wireless & networks >
Mobile networks.
2. Select the Data roaming check box to enable data roaming.
121
Switch the network mode
1. Tap the Home Key > > Settings > Wireless & networks >
Mobile networks > Network Mode.
2. Select GSM/WCDMA auto, WCDMA only or GSM only to switch the
network mode.
Set the Access Point Names
You can use the default Access Point Names (APN) to connect to the
internet. If you want to add a new APN, please contact your network
operator to get detailed information.
1. Tap the Home Key > > Settings > Wireless & networks >
Mobile networks > Access Point Names.
2. Tap the Menu Key > New APN.
3. Set the necessary parameters (see Getting Connected -> Connecting
to the Internet -> GPRS/3G/Edge -> Add a new GPRS/3G/EDGE
connection.)
4. Tap the Menu Key > Save.
122
Security Settings
You can protect your device and SIM card from unauthorized use.
Protecting Your V9A with a Screen Lock
Set the screen unlock pattern
You can protect your V9A from unauthorized use by creating a personal
screen unlock pattern.
1. Tap the Home Key > > Settings > Location & security > Set
up screen lock.
2. Tap Pattern.
3. Read the instructions and tap Next.
4. Watch the example pattern and tap Next.
5. Draw your own pattern and tap Continue.
123
6. Draw the pattern again and tap Confirm.
Lock the screen
Press the Power Key to lock the screen.
Unlock the screen with a pattern
1. Press the Power Key.
2. Draw the pattern you set to unlock the screen.
124
If you make a mistake, your V9A will ask you to try again.
125
Protecting Your SIM Card with a PIN
You can set the PIN password to prevent others from using the SIM
function. The initial PIN code is provided by your service operator.
1. Tap the Home Key > > Settings > Location & security > Set up
SIM card lock.
2. Select the Lock SIM card check box.
3. Enter the PIN code and tap OK.
Change SIM PIN
Before changing SIM PIN, you need to enable it.
1. Tap the Home Key > > Settings > Location & security > Set up
SIM card lock.
2. Tap Change SIM PIN.
3. Enter the PIN code and tap OK.
4. Enter a new PIN code and tap OK.
5. Re-enter the new PIN code and tap OK.
126
Setting Up Credential Storage
You can select to allow applications to access secure certificates and
other credentials.
Enable secure credentials
1. Tap the Home Key > > Settings > Location & security.
2. Tap Set password to create a password.
Tips:
You can also install encrypted certificates from microSD card by tapping
Install from SD card.
Delete credentials
1. Tap the Home Key > > Settings > Location & security.
2. Tap Clear storage to clear credentials.
127
Managing Memory
Managing Your Memory Card
View the space information
Tap the Home Key > > Settings > Storage.
You can view the Total space/Available space information in the SD
card section.
Unmount your memory card
1. Tap the Home Key > > Settings > Storage.
2. Tap Unmount SD card.
Notes:
The icon will appear in the status bar.
Erase your memory card
1. Unmount your memory card.
2. Tap Erase SD card.
128
3. Tap Erase SD card to confirm.
Managing Internal Storage
View the phone space information
1. Tap the Home Key > > Settings > Storage.
2. Scroll down to view the Available space in the Internal phone
storage section.
Reset to factory settings
1. Tap the Home Key > > Settings > Privacy.
2. Tap Factory data reset.
3. Tap Reset phone.
4. Tap Erase everything.
129
Application Settings
Managing Applications
You can view and manage the applications installed in your device.
View the applications installed in your device
Tap the Home Key > > Settings > Applications > Manage
applications.
Your V9A will show you the applications in a list.
Allow the installation of non-Market applications
1. Tap the Home Key > > Settings > Applications.
2. Select the Unknown sources check box.
Install an application
You can install an application from the Android Market by selecting the
item you want to download and tap Install.
You can also install a non-Marketing application if you have allowed the
130
installation of it. Make sure that you select an application developed for
your device and processor type before installing it.
1. Tap the Home Key > > Filer, and open the folder where the
application you want to install is.
2. Tap the application to start installation.
3. Read the installation instructions that come with the application and
follow it to complete the setup.
Remove an application
You can uninstall any application that you have downloaded and installed
from Android Market.
1. Tap the Downloaded tab.
2. Tap the application you want to uninstall, then tap Uninstall.
3. When prompted, tap OK to remove the application from your device.
4. Choose the reason for removing the application, then tap OK.
131
Uninstall third-party applications
1. Tap the Home Key > > Settings > Applications > Manage
applications.
2. Tap on the application you want to remove.
3. Tap Uninstall, and tap OK to confirm.
Speech Synthesis Settings
You can set the text-to-speech options by tapping the Home Key > >
Settings > Voice input & output > Text-to-speech settings. Before
you use this function, you should install the voice data.
132
Other Applications
Alarming
Set alarms
1. Tap the Home Key > > Alarm.
2. Tap the default alarm set to configure it or tap the Menu Key > Add
alarm to create a new alarm.
3. Tap one alarm and select the Turn on alarm check box to enable
alarm. You can edit the alarm items such as Name, Time, Repeat,
Snooze, Duration, Vibrate, Ringtone, Volume, Volume crescendo,
and Delay.
Note pad
Note pad is used to take down some memos.
133
Calculator
Open Calculator
Tap the Home Key > > Calculator.
Calculator function introduction
1. Enter a number.
2. Tap +/-/×/÷.
3. Enter another number.
4. Tap =.
5. Tap CLEAR to reset the calculator.
Tips:
Tap the Menu Key > Advanced panel to use scientific calculation.
Task Manager
You can use Task Manager to view and stop running applications.
134
Stopwatch
1. Tap the Home Key > > Stopwatch.
2. Tap Start to start timing.
3. Tap Pause to pause time and tap Resume to continue.
4. Tap Reset to reset the stopwatch.
Maps
You use Maps to find your current location; to view real-time traffic
conditions; to get detailed directions by foot, public transportation,
bicycle, or car.
1. Tap the Home Key > > Maps.
2. Tap the Search Maps search box on the top to find the location you
need.
3. Tap to find the place you need.
135
Places
Google Places helps you find all kinds of businesses near you.
1. Tap the Home Key > > Settings > Location & security > Use
GPS satellites.
2. Tap the Home Key > > Places. Wait while you are being located.
Your location, when found, is displayed at the bottom of the screen.
3. Select a business category and the information of that type of
business near you will be displayed.
You can also use the Find places search box on the top to find the
business you need.
Note: Tap Add to add new business categories.
4. Tap a result you are interested in and check out the details and
reviews about that place. You can also see the place on Google Maps,
find out how to get there, or give that business a call.
136
Navigation
You can use Google Navigation to get turn-by-turn driving directions,
both spoken and displayed on your screen.
1. Tap the Home Key > > Settings > Location & security > Use
GPS satellites.
2. Tap the Home Key > > Navigation. Wait while you are being
located.
Your location, when found, is displayed at the bottom of the screen.
Latitude
Google’s Latitude service is a social tool for sharing your location
information with selected friends.
If you join Google Latitude, you can view your friends’ locations on your
maps and share your location and other information with them.
137
1. Tap the Home Key > > Latitude.
2. After signing in to your Google account, tap the Menu Key > Join
Latitude to enable Latitude service.
Each time you launch Maps application, your location will be determined
using GPS and your Latitude status will be updated. You can tap the
Menu Key > Latitude in Maps or > Latitude to see your status as
well as that of your selected friends.
In Latitude, tap the Menu Key to refresh the friends’ status, see them on
Maps, add new friends, or change privacy settings.
138
Specifications
Dimension Approx. 192.8 mm × 121.8
mm × 12.75 mm
Weight Approx. 402 g
Bearer GSM/WCDMA support
Main Display dimension,
resolution, color space TFT 1024*600
Front Camera 0.3 M Pixels
Back Camera
Sensor Type CMOS
Still Image Capture
Resolution 3.0 M Pixels
Removable memory card Support microSD card
139
Maximum Capacity of memory card 32 GB
Battery
Capacity 3400mAh
Standby time Approx. 300h (subject to
network status)
Voice talk time Approx. 16h (subject to
network status)
WAP browser version WAP2.0
