ZTE Z233VL LTE/CDMA Multi-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation LTE/CDMA Multi-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
1
Z233VL
User Manual
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2016 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced, translated
or used in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.zteusa.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
3
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other countries.
Used with permission.
LTE is a trademark of ETSI.
Other trademarks and trade names are the property of their
respective owners.
4
Version No.: R1.0
Edition Time: September 22, 2016
Manual No.:
WARNING: This product contains a chemical known to the
State of California to cause cancer, birth defects or other
reproductive harm.
5
Contents
Getting Started ....................................................... 10
Getting to Know Your Phone ............................................ 10
Knowing the Keys ............................................................ 12

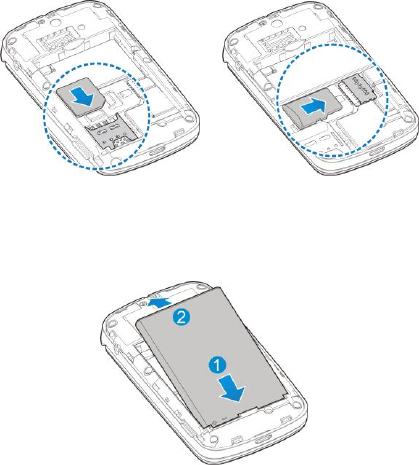

Installing the micro-UIM Card and microSDHC Card (Not
Included) .......................................................................... 13
Removing the micro-UIM Card and microSDHC Card ....... 16
Charging the Battery ........................................................ 16
Extending the Battery Life ................................................ 18
Powering On/Off .............................................................. 18
Setting Up for the First Time ............................................. 18
Getting to Know the Home Screen ................................... 19
Personalizing ......................................................... 20
Changing the System Language ...................................... 20
Setting the Date and Time ................................................ 20
Changing Ringtone and Notification Sound ...................... 21
Turning On/Off System Sounds ........................................ 21
Adjusting Volume ............................................................. 22
Switching to Silent or Vibration Mode ............................... 22
Applying New Wallpapers ................................................. 23
Changing Screen Brightness ............................................ 23
Protecting Your Phone With Screen Lock ......................... 23
Protecting Your Phone With the Anti-Theft Feature ........... 24
Knowing the Basics ............................................... 27
6
Monitoring the Phone Status ............................................ 27
Checking Notification Icons .............................................. 28
Checking External Screen Icons ...................................... 28
Entering Text ................................................................... 29
Opening and Switching Apps ........................................... 31
Connecting to Networks and Devices .................. 32
Connecting to Mobile Networks ........................................ 32
Connecting to Bluetooth Devices ..................................... 33
Connecting to Your Computer via USB ............................. 36
Phone Calls ............................................................ 38
Placing and Ending Calls ................................................. 38
Answering or Rejecting Calls ........................................... 39
Working With the Call History ........................................... 40
Calling Your Contacts ....................................................... 41
Checking Voicemail ......................................................... 41
Using Options During a Call ............................................. 42
Managing Multi-party Calls ............................................... 43
Adjusting Your Call Settings ............................................. 44
Contacts .................................................................. 49
Checking Contact Details ................................................. 49
Searching for a Contact ................................................... 49
Adding a New Contact ..................................................... 49
Setting Up Your Own Profile ............................................. 50
Importing, Exporting, and Sharing Contacts ..................... 51
7
Editing Contacts ............................................................... 52
Working With Groups ....................................................... 54
Messages ............................................................... 57
Opening the Messages Screen ........................................ 57
Sending a Message ......................................................... 57
Replying to a Message ..................................................... 58
Forwarding a Message ..................................................... 59
Copying a Message ......................................................... 59
Changing Message Settings ............................................. 59
Calendar ................................................................. 60
Viewing Your Calendars and Events ................................. 60
Creating an Event ............................................................ 61
Editing, Deleting or Sharing an Event ............................... 61
Changing Calendar Settings ............................................. 61
Web Browser .......................................................... 62
Opening the Browser ....................................................... 62
Setting the Homepage ...................................................... 62
Adding a Website to Bookmarks ....................................... 63
Viewing the Browsing History ........................................... 63
Changing Browser Settings .............................................. 64
Camera ................................................................... 65
Capturing a Photo ............................................................ 65
Recording a Video ............................................................ 66
Customizing Camera/Camcorder Settings ........................ 67
8
Gallery ..................................................................... 68
Opening Gallery ............................................................... 68
Working With Albums ....................................................... 68
Working With Pictures ...................................................... 69
Playing Videos ................................................................. 70
Music ....................................................................... 71
Viewing Your Music Library .............................................. 71
Playing Music .................................................................. 71
Managing Playlists ........................................................... 73
Video Player ........................................................... 74
Opening the Video Library ............................................... 74
Playing and Controlling Videos ........................................ 74
Managing Video Files ...................................................... 75
FM Radio ................................................................. 76
Scanning and Saving Channels ....................................... 76
Listening to FM Radio ...................................................... 76
Deleting a Saved Channel ............................................... 77
Other Options .................................................................. 77
Sound Recorder ..................................................... 78
Recording a Voice Memo ................................................. 78
Playing a Voice Memo ..................................................... 78
More Apps............................................................... 79
Clock ............................................................................... 79
9
Calculator ........................................................................ 80
Weather ........................................................................... 80
Downloads ....................................................................... 81
File Manager .................................................................... 81
Settings .................................................................. 83
Profiles............................................................................. 83
General Settings .............................................................. 83
Device ............................................................................. 86
Personal .......................................................................... 88
Troubleshooting ..................................................... 90
For Your Safety ...................................................... 95
General Safety ................................................................. 95
Radio Frequency (RF) Energy .......................................... 96
FCC Regulations .............................................................. 98
Hearing Aid Compatibility (HAC) Regulations for Mobile
Phones ............................................................................ 99
CTIA Requirements ........................................................ 101
Distraction ...................................................................... 103
Product Handling ........................................................... 103
Electrical Safety ............................................................. 107
Radio Frequency Interference ........................................ 108
Explosive Environments ................................................. 110
Specifications ...................................................... 111
10
Getting Started
Getting to Know Your Phone
Earpiece
Internal screen
Navigation keys
(Up/Down/Left/Right
key)
Right soft key
Center key
Left soft key
Send key
Power/end key
Recent apps key
Clear key
Camera key
Vibration mode key
Main microphone
Charging/
micro-USB jack
* key
11
Volume key
Camera
External screen
Auxiliary
microphone
Speaker
Headset jack
Back cover
12
Knowing the Keys
Key
Function
Power/end key
Press and hold to turn on or off airplane
mode, power off or restart the phone.
Press to end a call, reject an incoming call or
cancel dialing.
Press to return to the home screen.
Left soft key /
Right soft key
Press to select the options at the left/right
corner of the bottom line of the display. The
options change depending on the
application/function being used.
Navigation keys
(Up/Down/Left/
Right key)
Press in the home screen to access
designated functions.
Press to navigate options on the display or
move the cursor in a text field.
Center key
Press to make selections or perform the
command displayed at the bottom center of the
display.
Send key
Press in the home screen to view recent
calls.
Press to place or answer a call.
Recent apps
key
Press to see recently used applications.
13
Key
Function
Camera key
Press in the home screen or app list screen to
activate the camera.
Clear key
Press or hold to delete characters on the left of
the cursor when entering text or numbers.
Vibration mode
key (# key)
Press and hold in the home screen to
activate/deactivate vibration mode.
In a text editing screen: press or hold to
change input mode.
* key
Press and hold in the home screen to enter
+.
In a text editing screen: press and hold to
change the input language.
Volume key
Press or hold either end of the key to turn the
volume up or down.
Installing the micro-UIM Card and
microSDHC Card (Not Included)
Power off your phone before installing or removing the micro-UIM
card and microSDHC card.
WARNING!
To avoid damage to the phone, do not use any other kind of UIM
14
cards, or any non-standard micro-UIM card cut from a UIM card.
You can get a standard micro-UIM card from your service
provider.
1. Insert your fingernail into the slot at the bottom left of the back
cover and lift it up gently.
2. Install the micro-UIM card and the microSDHC card with the
cut corner oriented as shown.
15
3. Insert the battery by aligning the metal contacts on the battery
with the metal contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
4. Replace the back cover.
16
Removing the micro-UIM Card and
microSDHC Card
Power off your phone before installing or removing the micro-UIM
card and microSDHC card.
1. Open the back cover and remove the battery.
2. A soft block beside the card slot keeps the card in place.
Press the soft block down and slide the micro-UIM card or
microSDHC card out.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
17
WARNING!
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging jack.
2. Connect the charger to a standard AC power outlet. If the
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
18
after charging the phone for at least 20 minutes. Contact the
customer service if you still cannot power on the phone after
prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth usage
and GPS functionality can drain your battery. You can follow the
helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Bluetooth off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location, and each query drains your battery.
Powering On/Off
Press and hold the Power/end key to turn on your phone.
To turn it off, press and hold the Power/end key to open the
options menu and then select Power off > OK.
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Reset), you need to do some
19
settings before using it.
Select the language and then follow the prompts to set up your
phone.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus.
Status bar
Contacts
Open the
app list
Messages
20
Personalizing
Changing the System Language
1. From the home screen, select > Settings > General
settings > Language & input > Language.
2. Select the language you need.
Setting the Date and Time
1. From the home screen, select > Settings > General
settings > Date & time.
2. Set the date, time, time zone, and time format.
To adjust the date and time automatically, turn on
Automatic date & time.
To adjust the date and time manually, turn off Automatic
date & time and select Set date / Set time to change the
date and time.
To adjust the time zone automatically, turn on Automatic
time zone.
To adjust the time zone manually, turn off Automatic
time zone and select Select time zone to set the correct
time zone.
To adjust the time format, turn on or off Use 24-hour
format.
21
Changing Ringtone and Notification
Sound
You can customize the default incoming call ringtone and the
default notification sound.
1. From the home screen, select > Settings > Profiles.
2. Select General and press the Left soft key.
3. Select Phone ringtone or Default notification ringtone and
press the Center key.
4. Select the ringtone you want to use and press the Center
key.
5. Press the Left soft key to save the setting.
NOTE:
See Adding a New Contact for how to assign a special ringtone to
an individual contact.
Turning On/Off System Sounds
1. From the home screen, select > Settings > Profiles.
2. Select General and press the Left soft key.
3. Select Silent power-on/off, Vibrate, or Key tone and press
the Center key to turn on or off the switch.
22
Adjusting Volume
1. From the home screen, select > Settings > Profiles.
2. Select General and press the Left soft key.
3. Select the slider below Media volume, Alarm volume, Ring
volume or Notification volume.
4. Press the Left/Right key to adjust the volume.
NOTE:
You can adjust the media volume when a media application is in
use by pressing the Volume key. If no media application is active,
press the Volume key to adjust ringtone volume (or the earpiece
volume during a call).
Switching to Silent or Vibration Mode
You can set the phone to silent or vibration mode by using one of
the following methods.
Press the Volume key when no media application is active to
show the volume management window. Keep pressing the
Volume down key to switch the phone to vibration mode.
Press the key again in vibration mode to switch the phone to
silent mode.
From the home screen, select > Settings > Profiles and
select Silent only or Vibrate only to switch to silent or
vibration mode.
Press and hold the Vibration key in the home screen to
activate/deactivate vibration mode.
23
NOTE:
To restore normal sound settings, press or hold the Volume up
key.
Applying New Wallpapers
You can set the wallpaper for the home screen.
1. From the home screen, select > Settings > General
settings > Display > Wallpaper.
2. Select Gallery or Wallpapers to choose the image you want
to use as the wallpaper.
Changing Screen Brightness
1. From the home screen, select > Settings > General
settings > Display > Brightness level.
2. Press the Left/Right key to adjust the screen brightness.
Protecting Your Phone With Screen
Lock
You can protect your phone by creating a screen lock. When it is
enabled, you need to enter a numeric PIN to unlock the phone’s
screen and keys.
1. From the home screen, select > Settings > Personal >
Security > Screen lock.
2. Select None to disable the screen lock, or select PIN to set a
numeric PIN that you must enter to unlock the screen.
24
CAUTION:
Remember the PIN you set. Otherwise, you will have to contact
the customer service and upgrade the phone software to use the
phone.
Protecting Your Phone With the
Anti-Theft Feature
If your phone is lost or stolen, you can use the Anti-Theft feature
to lock your phone, erase all data in your phone, or make the
phone sound the alarm remotely.
To use this feature, a micro-UIM card should be installed in your
phone, and you should remember the Anti-Theft password and
the trusted email address you set.
To turn on the Anti-Theft feature:
1. From the home screen, select > Settings > Personal >
Security > Anti-Theft.
2. Select the on/off switch and press the Center key.
3. Enter your screen lock PIN and press the Center key. If the
PIN has not been set, you must set one.
4. Enter the Anti-Theft password and enter again to confirm it.
Press the Center key to continue.
5. Enter your trusted email address and enter again to confirm it.
Press the Center key to continue.
NOTE:
25
The trusted email address can receive the new number if the
micro-UIM card on your lost phone is changed. It can also
control the lost phone remotely by sending certain
commands.
6. Enter your name in the security email content and press the
Center key. When the micro-UIM card on your lost phone is
changed, the email content with the new number will be sent
to your trusted email address.
NOTE:
You can change the Anti-Theft password, trusted email and your
name after the Anti-Theft feature is enabled. Press the Left soft
key and select Configuration from the Anti-Theft screen, input
the Anti-Theft password, and then change the options.
To control your lost phone remotely:
You can use your trusted email address to send the following
commands to phonenumber@vtext.com to control your lost
phone remotely.
NOTE:
phonenumber is your lost phone number or the new number.
The new number will be sent to your trusted email address when
the micro-UIM card in your phone is changed.
Lock: Lock your phone remotely with your Anti-Theft
password to prevent other person from using your phone.
Alarm: Make your phone sound the alarm.
Factory data reset: Erase the data on your phone remotely.
26
NOTE:
The command must be listed in the email subject.
To turn off the Anti-Theft feature:
1. From the home screen, select > Settings > Personal >
Security > Anti-Theft.
2. Select the on/off switch and press the Center key.
3. Select OK and press the Center key.
4. Input the Anti-Theft password and press the Center key.
27
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
3G connected
No signal
LTE connected
Signal strength
Vibration mode
Mobile data in use
Silent mode
Airplane mode
Battery extremely low
Bluetooth on
Battery low
Speaker on
Battery partially drained
Phone microphone off
Battery full
GPS on
/
Battery charging
Alarm set
28
Checking Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
New SMS
New MMS
USB connected
Missed call
Wired headset
connected
Call in progress
Song playing
Checking External Screen Icons
You can also check the phone status and notification alerts with
different icons on the external screen. Below are some of the
icons and their meanings.
New message
No signal
Missed call
Signal strength
Battery level
Airplane mode
Alarm set
29
Entering Text
Change Input Mode or Language
When you are in a field that allows characters to be entered, the
text input mode indicator is shown on the right side of the status
bar.
You can enter text using the following input modes: T12 abc, T12
Abc, T12 ABC, abc, Abc, ABC, and number input.
To change input mode, press and hold the Vibration mode key
and select one mode.
To switch the input language, press and hold the * key.
Use Predictive Text Mode (T12 abc / T12 Abc /
T12 ABC)
The predictive text mode (T12 abc / T12 Abc / T12 ABC) is based
on a built-in dictionary and generates words from the combination
of letters pressed.
Press each key once that corresponds to the letter you want
to enter. The letters are shown on the display as they are
entered. The list of candidate words changes as each key is
pressed. When the candidate words are displayed, use the
Navigation keys to highlight a candidate word and then press
the Center key.
Press the 0 key to insert a space or press the * key to select
symbols.
Press the Clear key to delete the letter to the left of the cursor.
30
Hold the Clear key to delete all entered text to the left of the
cursor.
Enter Letters (abc / Abc / ABC)
Press a number key (2 ~ 9) multiple times until the preferred
letter is shown on the screen. Press once to enter the first
letter on the keypad; press twice quickly to enter the second
letter, and so on.
Press the 0 key to insert a space or press the * key to select
symbols.
NOTE:
When using "Abc" mode, only the first letter will be capitalized.
After entering the first capital letter, "Abc" mode will be changed
to "abc" mode automatically.
Enter Numbers
In numeric mode (123), you can enter numbers directly using the
number keys.
Enter Symbols
1. Press the * key.
2. Use the Navigation keys to select a symbol.
3. Press the Center key.
31
Opening and Switching Apps
Open an App
1. Press the Power/end key if the current screen is not the
home screen.
2. Select by pressing the Center key.
3. Use the Navigation keys and the Center key to select and
open an app.
Switch Between Recently Opened Apps
1. Press the Recent apps key. The apps you’ve used recently
are displayed in a series of tabs. Use the Navigation keys to
scroll up and down to see all the tabs.
2. Select a tab and press the Center key to open that app.
NOTE:
Select Clear all to remove all tabs.
32
Connecting to Networks and
Devices
Connecting to Mobile Networks
Control Mobile Data Use
To enable or disable data access:
1. From the home screen, select > Settings > General
settings > Mobile networks.
2. Select Mobile Data and press the Center key to turn on or off
the switch.
To get data services when roaming:
1. From the home screen, select > Settings > General
settings > Mobile networks.
2. Select Data roaming and press the Center key to turn on the
switch if it is turned off.
NOTE:
Data roaming may incur significant roaming charges.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
33
1. From the home screen, select > Settings > General
settings > Mobile networks > Access Point Names.
2. Select > New APN.
3. Select each item to enter the information you get from your
service provider.
4. Select > Save to complete.
NOTE:
To set the APN to default settings, select > Reset to default.
Connecting to Bluetooth Devices
Bluetooth is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 30 feet. The
Bluetooth devices must be paired before the communication is
performed.
Turn Bluetooth On/Off
1. From the home screen, select > Settings > General
settings > Bluetooth.
2. Select the Bluetooth switch and press the Center key to
turn it on or off.
When Bluetooth is on, the icon appears in the status bar.
34
Change the Device Name
1. From the home screen, select > Settings > General
settings > Bluetooth.
2. Turn on the Bluetooth switch if Bluetooth is off.
3. Select > Rename this device.
4. Edit the name and press the Center key.
Pair With Another Bluetooth Device
1. From the home screen, select > Settings > General
settings > Bluetooth.
2. Turn on the Bluetooth switch if Bluetooth is off.
Your phone automatically scans for and displays the IDs of
all available Bluetooth devices in range. You could select
> Refresh if you want to scan again.
3. Select the device you want to pair with and press the
Center key.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and press the Center key. Alternately,
enter a Bluetooth passkey and press the Center key.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as
headsets and hands-free car kits. You can try entering 0000 or
1234 (the most common passkeys), or refer to the documents for
35
that device.
Forget (Unpair With) a Bluetooth Device
You can make your phone forget its pairing connection with
another Bluetooth device. To connect to the device again, you
need to search it and enter or confirm a passkey again.
1. From the home screen, select > Settings > General
settings > Bluetooth and ensure that Bluetooth is turned on.
2. In the list of paired devices, select the icon beside the
Bluetooth device you want to forget, and then press the
Center key.
3. Press the Right soft key.
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Select a Bluetooth device the phone has paired with or wait
for it to search for new devices and select one of them.
4. Press the Center key to send the data.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
2. When the phone prompts there is an incoming file, press the
Center key to start receiving the data.
Depending on your storage setting and whether a microSDHC
36
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance). You can access them
with the File Manager app.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in the phone storage or on a removable
microSDHC card.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Install the driver needed for some USB
connection modes (such as MTP). You only need to install
the driver on the same PC once.
NOTE:
You can also install the driver on PC by running the
executable file in the new CD-ROM drive.
Media device (MTP): Transfer files on Windows® or
Mac®.
NOTE:
For Windows XP, please install the drivers and Media
Player 11 (or later version) when you use Media device
(MTP) for the first time.
37
NOTE:
To make your phone connect to the computer automatically using
the selected connection type, select Don’t ask me again and
press the Center key to check it.
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Erase the microSDHC Card
1. From the home screen, select > Settings > Device >
Storage.
2. Select Erase SD card > OK.
CAUTION:
The formatting procedure erases all the data on the microSDHC
card, after which the files CANNOT be retrieved.
38
Phone Calls
You can place calls from the Recent Calls app, the Contacts app,
or other apps that display contact information.
Placing and Ending Calls
Place a Call by Dialing
1. Press the Power/end key to access the home screen.
2. Enter the phone number with the dialpad. The phone will
display matching information from your contact list and call
history. Press the Clear key to delete any incorrect digits.
3. Press the Send key to call the number you entered. Or select
the matching record and press the Send key to call the
contact or history number.
NOTES:
To make an international call, press and hold the * key to
enter the plus (+) symbol. Next, enter the country code,
followed by the city/area code and then the phone number.
To call an extension, enter the phone number first, and then
select > Add 2-sec pause or > Add wait before
entering the extension number.
End a Call
During a call, press the Power/end key.
39
Answering or Rejecting Calls
When you receive a phone call, you can answer or reject the call,
or reject it with a text message.
Answer a Call
When you receive a phone call, press the Send key or the
Center key to answer the call.
NOTE:
You can also answer a call by opening the phone flip. See Set
Phone Flip Action.
NOTE:
To silence the ringer before answering the call, you can press
either end of the Volume key.
Reject a Call
When you receive a phone call, press the Power/end key or the
Right soft key to reject the call.
Select > Message reject to reject the call and send a text
message to the caller.
NOTE:
You can also reject a call by closing the phone flip. See Set
Phone Flip Action.
NOTE:
To edit the preset text response, select > Settings >
Device > Call settings > Quick responses from the home
40
screen.
Working With the Call History
The call history is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your contacts.
To open the call history, select > Recent Calls or press the
Send key from the home screen.
Place a Call From the Call History
1. Open the call history.
2. Select a listing and press the Send key to call back.
NOTE:
You can use the Navigation keys to select (missed),
(outgoing), or (incoming) to filter the records by call type.
Add a Number From Call History as a Contact
1. Open the call history.
2. Select a phone number and press the Center key.
3. To add the number to an existing contact, select >
Update existing contact and choose a contact in the list.
To add a new contact, select > Create new contact.
Take Other Actions on a Call History Entry
Open the call history, select a listing and then press the Center
41
key to view more call information. While viewing the call details,
you can:
Select > Remove from call log to delete the entry.
Select > Edit number before call to edit the number in the
dialer before calling it.
Select > Send Message to send a message to the contact
or number.
NOTE:
Select > Clear call log in the call history screen to delete all
history records.
Calling Your Contacts
1. From the home screen, select > Contacts.
2. Select the tab to view all your contacts.
3. Select a contact and press the Center key.
4. Select the contact number and press the Send key to make a
call.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
1. Press the Power/end key to access the home screen.
2. Press and hold the 1 key. If prompted, enter your voicemail
42
password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
See Set Voicemail for how to set your voicemail service. For
detailed information, please contact the service provider.
Using Options During a Call
During a call, the following options are available.
Press the Center key to turn on or off the speaker.
Press the Right soft key to mute or unmute your
microphone.
Select > Add call to make another call separately from the
first call, which is put on hold.
Select > Swap to put the caller you are speaking to on
hold, and switch to the other call that has been put on hold.
Select > Merge calls to merge the separate calls into a
single conference call.
Select > End Call or press the Power/end key to end the
current call.
WARNING!
Because of higher volume levels, do not place the phone near
your ear during speakerphone use.
43
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Press the Send key or the Center key to answer the call.
(This puts the first caller on hold and answers the second
call.)
Press the Power/end key or the Right soft key to reject the
second call.
Select > Message reject to reject the second call and
send a text message to the caller.
To switch between two calls:
Select > Swap to switch back to the other call.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
44
1. Place the first call.
2. Once you have established the connection, select > Add
call and dial the second number. (This puts the first caller on
hold.)
3. When you’re connected to the second party, select >
Merge calls.
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, press the Power/end key.
Adjusting Your Call Settings
Set Speed Dials
You can press and hold the 1 ~ 9 keys in the home screen to call
the corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
1. From the home screen, select > Settings > Device >
Call settings > Speed dial.
2. Select a speed dial key and press the Center key.
3. Select a contact number from the contact list and press the
Center key.
45
Set Voicemail
1. From the home screen, select > Settings > Device >
Call settings > Carrier Setting > Voicemail.
2. Configure the following voicemail settings.
Service: Select the voicemail service provider. Your
carrier is the default.
Setup > Voicemail number: View the voicemail number.
Sound: Set the notification sound for new voicemails.
Vibrate: Check to enable vibration for notification.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. From the home screen, select > Settings > Device >
Call settings > Carrier Setting > Call forwarding.
2. Select an available option to enable it.
Other Options
1. From the home screen, select > Settings > Device >
Call settings > Carrier Setting > Additional settings.
2. The following options are available.
Voice privacy: Enable or disable enhanced privacy
mode.
Plus code dialing setting: The phone can automatically
dial the international access code for your location when
46
you press and hold the * key in the dialer. Check Setup
Plus Code Replacement to enable this feature, and
select Replace Code of Plus Code to change the code.
Set Phone Flip Action
You can answer or end/reject a call by opening or closing the
phone flip.
1. From the home screen, select > Settings > Device >
Call settings.
2. Check Open to answer or Close to end call.
Set TTY Mode
Your phone is a TTY compatible device. A TTY device can allow
people who have hearing or speech disabilities to communicate
by telephone. Simply connect the TTY device to the phone’s
headset jack.
Select a TTY mode for your phone to work with a TTY device, or
turn TTY off.
1. From the home screen, select > Settings > Device >
Call settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through TTY
device.
47
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party, and
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Set Hearing Aids
Your phone supports the Hearing Aid Compatibility (HAC)
function. When you turn on the hearing aid compatibility and use
a hearing aid with a telecoil to answer the phone, it will help you
hear more clearly during the phone call.
1. From the home screen, select > Settings > Device >
Call settings.
2. Check Hearing aids to turn on hearing aid compatibility.
CAUTION:
Do not turn on the Hearing aids option unless you use a hearing
aid with a telecoil. Using this setting without a hearing aid or with
a hearing aid without a telecoil may be harmful to your hearing.
Enable Auto Answer
You can set your phone to answer the incoming call
automatically when a wired or Bluetooth headset is connected to
the phone.
1. From the home screen, select > Settings > Device >
Call settings.
2. Switch on Auto answer.
48
3. Select Call duration and press the Center key to set the wait
time before the phone answers the call automatically; Select
Auto answer conditions and press the Center key to set the
auto answer condition for your wired or Bluetooth headset.
Edit Quick Response to Rejected Callers
1. From the home screen, select > Settings > Device >
Call settings > Quick responses.
2. Select a text message and press the Center key to edit it.
49
Contacts
To see your contacts, select > Contacts from the home
screen. From there, you can select the tabs on the top of the
screen to quickly switch to contact groups.
Checking Contact Details
1. From the home screen, select > Contacts and select
the tab to access your contact list.
2. Scroll through the list to view all your contacts.
3. Select a contact and press the Center key to view its
details.
Searching for a Contact
1. From the home screen, select > Contacts and select the
tab to access your contact list.
2. In the search field below, input the contact name, phone
number or any information the contact has to search for it.
The contacts matched will be listed.
Adding a New Contact
1. From the home screen, select > Contacts and select
the tab to access your contact list.
50
2. Select > New contact to add a new contact. If the
contacts list is empty, select CREATE A NEW CONTACT.
3. Enter the contact name, phone number and other
information.
NOTE:
You can select below RINGTONE or NOTIFICATION
RIGNTONE to set a special ringtone or notification ringtone
to the contact.
4. Select ADD ANOTHER FIELD at the bottom and press the
Center key to enter more information.
5. Select > Done to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. From the home screen, select > Contacts and select
the tab to access your contact list.
2. Select Set up my profile and press the Center key.
3. Edit your profile information.
4. Select > Done.
51
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to the phone storage or the
microSDHC card. This is especially useful when you need to
transfer contacts between different devices. You can also quickly
share contacts using messages or Bluetooth.
Import Contacts From the Phone Storage or
the microSDHC Card
1. From the home screen, select > Contacts.
2. Select > Import/Export > Import from storage.
3. If prompted, choose to import one, multiple, or all vCard files
in the microSDHC card or the phone storage.
4. If prompted, press the Center key to import the contacts.
Export Contacts to the Phone Storage or the
microSDHC Card
1. From the home screen, select > Contacts.
2. Select > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file and
the directory in which the file will be saved. Press the Center
key to create the file.
52
Share Contacts
1. From the home screen, select > Contacts.
2. Select > Import/Export > Share visible contacts.
3. Choose to share the contacts via messages or Bluetooth. The
phone will export all your visible contacts into a vCard file.
4. Follow the onscreen prompts to send the vCard file.
Editing Contacts
Edit Contact Details
1. From the home screen, select > Contacts.
2. Select a contact you need to edit and press the Center key.
3. Press the Center key.
4. Edit the contact and select > Done.
Delete Contacts
1. From the home screen, select > Contacts and select the
tab to access your contact list.
2. Select > Multi-Select.
3. Check the contact you want to remove and then select >
Delete.
4. Press the Center key to confirm.
53
Join Contacts
You can merge all the separate information of a contact into one
entry in the contacts list.
1. From the home screen, select > Contacts.
2. Select a contact you need to edit and press the Center key.
3. Press the Center key.
4. Select > Join.
5. Select the contact whose information you want to join with the
first entry and press the Center key.
6. Select > Done.
The information from the second contact is added to the first
contact, and the second contact is no longer displayed in the
contacts list.
You can repeat these steps to join another contact to the main
contact.
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. From the home screen, select > Contacts.
2. Select a contact you have merged and want to separate, and
then press the Center key.
3. Press the Center key.
54
4. Select > Separate.
5. Press the Center key to confirm.
Working With Groups
View Your Contact Groups
1. From the home screen, select > Contacts and select
the tab.
2. Scroll through the list to view the preset groups and any
groups you have created.
3. Select a group and press the Center key to view its
members.
NOTE:
To send a message to all or some of the group members, you
can select > Send Group message after you open the group.
Set Up a New Group
1. From the home screen, select > Contacts and select
the tab.
2. Select > Create group to create a new group.
3. Select the Group’s name field and enter the group name.
4. Select below MEMBER and press the Center key, and
55
then check the contacts you wish to be the group members.
5. Select > Add member to group.
6. Select below RINGTONE and press the Center key.
7. Select the ringtone for incoming calls from the group
members and press the Left soft key.
8. Select > Save to save the group.
Delete a Group
1. From the home screen, select > Contacts and select
the tab.
2. Select a group and press the Center key.
3. Select > Delete Group.
4. Press the Center key to disband the group. The contacts in
the group will not be deleted.
Edit a Group
1. From the home screen, select > Contacts and select
the tab.
2. Select a group and press the Center key.
3. Select > Edit group.
4. Select the group name to edit it, or select below
MEMBER or RINGTONE to add more members or change
56
the ringtone.
5. Select > Save.
NOTE:
To remove group members, open a group in the tab and
select > Multi-Select to choose members. Then select >
Delete member > OK.
57
Messages
You can use Messages to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messages Screen
From the home screen, select > Messages.
The Messages screen opens, where you can create a new
message or open an ongoing message thread.
Select > New message to write a new text or multimedia
message.
Open an existing message thread to view the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messages screen, select > New message.
2. Add recipients by one of the following ways.
Select the To field and manually enter the recipient’s
number or the contact name. If the phone presents a few
suggestions, select the one you want to add.
Select the To field and press the Center key to select
recipients from your contacts, call history, or contact
groups.
NOTE:
58
To remove a recipient, press the Clear key.
3. Select the text box at the bottom and enter the content of
your text message.
4. If you want to send a multimedia message, select >
Insert attach or > Add subject to attach a file or subject
to the message.
5. Press the Center key or select SEND and then press the
Center key to send the message.
NOTE:
Do not add any attachment if you want to send a text message.
Otherwise you may be charged for a multimedia message.
Replying to a Message
Messages you receive are appended to existing threads of the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messages screen, open the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can select
> Insert attach or > Add subject if you want to reply
with an MMS.
3. Press the Center key or select SEND and then press the
Center key.
59
Forwarding a Message
1. On the Messages screen, open the thread that has the
message you want to forward.
2. Select the message and press the Center key.
3. Select Forward in the menu that opens and press the
Center key.
4. Enter a recipient for the message and edit the content if you
want.
5. Press the Center key or select SEND and then press the
Center key.
Copying a Message
You can copy text messages from the micro-UIM card to the
phone storage.
1. On the Messages screen, select > Settings > Text
message(SMS) > Manage SIM card messages.
2. Select a message and select > Copy to phone memory.
Changing Message Settings
Select > Settings in the Messages screen to change the
message settings.
60
Calendar
To open Calendar, select > Calendar from the home
screen. You can use the calendar, set appointments, and view
events.
Viewing Your Calendars and Events
Change Calendar Views
You can view your calendars in different forms. The app offers
three view types: Month, Week and Agenda.
To change calendar views, select > View by and select the
view you prefer. You can also select a day block in Month view
and press the Center key to switch to Agenda view.
In Month view, scroll up and down to see previous and
future months.
In Week or Agenda view, scroll left and right to see previous
and future weeks/days.
When you are viewing past or future days, weeks, or
months, select > Today to quickly switch to today.
View Event Details
In Agenda or Week view, select an event and press the Center
key to view its details.
In Month view, select a day block and press the Center key to
61
switch to Agenda view. Then open an event to view its details.
Creating an Event
1. In any Calendar view, select > New event.
2. Enter the event details and press the Left soft key.
Editing, Deleting or Sharing an Event
1. Find the event you want to edit, delete or share.
2. Open its details screen (see View Event Details in this
chapter).
3. Do one of the following as you need.
To edit the event, select > Edit. Press the Left soft
key to save your changes.
To delete the event, select > Delete and press the
Center key.
To share the event, select > Share and choose how
to share.
Changing Calendar Settings
To change the calendar settings, open a calendar view (Week,
Month or Agenda), and select > Settings > General
settings.
62
Web Browser
Use Browser to view web pages and search for information.
Opening the Browser
From the home screen, select > Browser to launch the
web browser.
The browser also opens when you open a web link - for
example, in a text message.
To visit a website:
1. Open the Browser app.
2. Select > Type URL to highlight the address box.
3. Enter the address (URL) of a web page or enter terms you
want to search for.
4. Press the Center key to open the web page or search
results.
NOTE:
Press the Right soft key if you want to stop opening the page.
You can also press the Right soft key to go back to the
previous opened web page.
Setting the Homepage
Your home page opens when you start Browser after restarting
your phone. You can also open the home page by selecting
63
> Homepage in the Browser screen.
1. Open the Browser app.
2. Select > Settings > Set homepage.
3. Enter the URL and press the Center key to set it as the
homepage.
Adding a Website to Bookmarks
1. Open the Browser app.
2. Open the website you want to add to bookmarks.
3. Select > Add to bookmarks.
4. Edit the title and URL if needed.
5. Select Ok and press the Center key.
NOTE:
To view the bookmarks, select > Bookmarks in the Browser
screen.
Viewing the Browsing History
1. Open the Browser app.
2. Select > History to view all the websites you have visited.
You can select one and press the Center key to open it.
64
Changing Browser Settings
You can configure a number of settings to customize the way
you browse the web.
To open the Browser settings screen, select > Settings in
the browser screen.
65
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the microSDHC card you have
installed or in the phone storage. You can copy them to your
computer or access them in the Gallery app.
Capturing a Photo
1. From the home screen, press the Camera key or select
> Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
66
To use the filter, select > Filter and choose one.
To change white balance scenario, photo brightness or
ISO, select > White balance/Brightness/ISO and
make the adjustment.
To set the camera and camcorder options, select >
Settings.
To view pictures and videos you have taken, press the
Right key.
To switch between the camera and camcorder, press the
Left key.
NOTE:
You can press the Volume key to zoom in or out before
taking pictures.
3. Press the Center key or the Camera key to take a picture.
Recording a Video
1. From the home screen, press the Camera key or select
> Camera.
2. Press the Left key to switch to the camcorder. The shutter
button at the bottom of the display turns red.
3. Aim the camera at the subject.
NOTE:
You can press the Volume key to zoom in or out before and
67
during recording.
4. Press the Center key or the Camera key to start recording.
You can also press the Left soft key to pause or resume
recording.
5. Press the Center key or the Camera key again to stop
recording.
Customizing Camera/Camcorder
Settings
Before capturing a photo or a video, you can select >
Settings to set the following camera and camcorder options.
Picture size: Set the image size for your photo.
Video quality: Set the quality for your video.
Shutter tone: Turn on or off the shutter sound.
Photo auto review: Select whether to review the picture
after you shot it.
68
Gallery
Opening Gallery
From the home screen, select > Gallery to view albums of
your pictures and videos.
Working With Albums
When you open the Gallery, all pictures and videos on your
phone are displayed in a number of albums by default. Scroll up
and down to see them all.
To view album contents:
Select an album and press the Center key to view the pictures
and videos it contains.
To share pictures or videos:
1. Open an album.
2. Select > Multi-select.
3. Select the pictures or videos you want to share and press
the Center key to highlight them.
4. Select > Share and select how you want to share them.
To delete albums, pictures, or videos:
1. Open the Gallery to view the albums or open an album.
69
2. Select > Multi-select.
3. Select the items you want to delete and press the Center
key to highlight them.
4. Select > Delete.
5. Press the Center key to confirm.
Working With Pictures
Select a picture in an album and press the Center key to view
it.
70
When viewing a picture, the following features are available.
Press the Center key to view the picture in full screen.
Press the Left key or the Right key to see more pictures or
videos.
Select > Delete to delete the picture.
Select > Share to share the picture.
Select > Details to check file details.
Select > Slideshow to browse the album contents in a
slideshow.
Playing Videos
1. Open an album in the Gallery.
2. Select the thumbnail of a video and press the Center key.
3. Press the Center key again to start playing.
71
Music
From the home screen, select > Multimedia > Music to
play audio files stored on your phone.
Viewing Your Music Library
From the home screen, select > Multimedia > Music and
your music library is displayed. All your audio files are
cataloged according to the information stored in the files.
Now Playing: If an audio file is being played, select this
option to open the playback screen.
All Songs: View all music files on your phone.
Playlists: View all music playlists you have created.
Albums: Browse music files on your phone organized by the
album name.
Playing Music
Select a song in the music library and press the Center key to
open the playback screen and listen to it.
72
The playback screen shows the track information and album
artwork (if available). The following options are available.
To pause or resume the playback, press the Center key.
To skip songs, press the Left key or the Right key.
To rewind or fast forward, press and hold the Left key or the
Right key.
To toggle repeat mode, select > Repeat and choose one
mode.
To turn on or off shuffle, select > Shuffle and select On
or Off.
To see the current playlist, select > Now Playing List.
73
To check the track information, select > Track Info.
To return to the music screen, press the Right soft key.
To close the Music app, select > Exit.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Select a song and then select > Add to playlist to add
the song to a playlist or create a new playlist.
Select a playlist and then select > Delete to delete it.
Select a playlist and then select > Rename to rename it.
Open a playlist to view its content. You can select > Add
Songs to add more songs to the playlist, or select a song
and select > Remove to delete it from the playlist.
74
Video Player
Use the Video app to manage your video library and watch
videos.
Opening the Video Library
From the home screen, select > Multimedia > Video to
view your video library, where your video files are displayed in a
list. Scroll up or down to find the video you want.
Playing and Controlling Videos
Select a video in the video library and press the Center key to
play it. You can control the video or carry out other operations.
To pause or resume the playback, press the Center key.
To skip to the previous or the next video, press the Left key
or the Right key.
To rewind or fast forward, press and hold the Left key or the
Right key.
To adjust the screen brightness, select > Brightness and
then press the Up key or the Down key.
To delete the video, select > Delete and press the Center
key.
To share the video, select > Share and choose a method.
75
To view the file details, select > Details.
Managing Video Files
Delete Video Clips
1. Select > Multi-Select in the video library.
2. Check the videos you want to delete.
3. Select > Delete and press the Center key to confirm.
Share Video Clips
1. Select > Multi-Select in the video library.
2. Check the videos you want to share.
3. Select > Share and choose how you want to share them.
76
FM Radio
With the FM radio, you can search for radio channels, listen to
them, and save them on your phone. Note that the quality of the
radio broadcast depends on the coverage of the radio station in
your area. The wired headset works as an antenna, so always
connect the headset when using the radio. When you receive
an incoming call while listening to the radio, the radio will be
turned off.
Scanning and Saving Channels
1. Plug in a wired headset and select > Multimedia > FM
Radio from the home screen.
2. Select > Scan. Your phone scans for all available
channels and saves them to the All channels list.
NOTE:
When you open the FM Radio app for the first time, it will
automatically scan for channels and show the All channels list.
You can also select > All channels to view the list.
Listening to FM Radio
1. Select > Multimedia > FM Radio from the home
screen while the headset is connected.
2. Select > All channels.
77
3. Select a channel and press the Center key to listen to it.
In the main FM radio screen, you can press the Up key or the
Down key to adjust the channel frequency, or press the Left
key or the Right key to switch to other channels.
Deleting a Saved Channel
1. Open the FM Radio app and select > All channels.
2. Select a channel and select > Delete.
3. Press the Center key to delete it from the list.
Other Options
To set your radio region:
FM radio frequency ranges differ in different regions.
Select > FM frequency range to select the range you need.
NOTE:
If you change the frequency range, previously saved channels
are not shown until you switch back to the original frequency
range.
To turn off FM radio:
Select > Exit.
78
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. From the home screen, select > Multimedia > Sound
Recorder.
2. Press the Center key to start recording. During recording,
press the Center key to pause or continue the recording.
3. Press the Left soft key to stop recording. The memo is
automatically saved.
Playing a Voice Memo
1. Select > All Recordings from the Sound Recorder
screen to see all recordings.
2. Select a memo and press the Center key to play it.
NOTE:
Choose a memo and select > Share/Delete/Rename/Details
to share, delete or rename it, or check its file information.
79
More Apps
Clock
From the home screen, select > Clock. The Clock app
allows you to check local time in places around the world, set
alarms, and use timers.
Set a New Alarm
1. Select the tab in the Clock app.
2. Select an existing alarm and select > Edit to configure it,
or select > New alarm to create a new alarm.
3. Set up the alarm options, such as time, alarm days, repeat,
snooze, and alarm ringtone.
4. Press the Left soft key to save and exit.
NOTE:
To enable or disable an existing alarm directly, select the alarm
and press the Center key to turn on or off the switch on the right
side.
Check World Time
Select the tab in the Clock app to check local time around
the world.
Select > Add City to add a new city or country.
80
Use the Stopwatch and Countdown
Select the or tab in the Clock app to use the
stopwatch or the countdown timer.
Stopwatch allows you to record lap times, while countdown
allows you to set a time and count down to zero.
Calculator
From the home screen, select > Tools > Calculator for
simple calculation. You can enter the operation for your
calculation by pressing the Navigation keys and view the result
by pressing the Center key.
NOTES:
Press the Clear key to clear inputs and results.
Press the Left soft key to reset all inputs and results.
Press the * key to enter a decimal point.
Press the Vibration mode (#) key to toggle the number
between positive and negative.
Weather
From the home screen, select > Tools > Weather to check
the weather of your city or around the world.
To let the phone locate your GPS city, you need to turn GPS on.
Open the Weather app, select > Settings > GPS and press
81
the Center key to turn on the switch.
To add a city:
1. Select > Manage city in the Weather app.
2. Select > Add city.
3. Enter the city name and press the Center key.
4. Select the city you need from the search results and press
the Center key.
NOTE:
In the main screen of Weather, scroll left or right to view the
weather of your city and all added cities. Press the Center key
to refresh the weather.
Downloads
The Downloads app keeps a record of the files you have
downloaded.
From the home screen, select > Tools > Downloads to
check the record.
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone storage and the microSDHC card.
From the home screen, select > File Manager. You can
select the / tab to browse folders and files on the
phone storage and the microSDHC card.
82
Select folders and files and press the Center key to access
stored items.
Select an item and select to access more options.
Select > New folder to create a new folder in the current
directory.
83
Settings
From the home screen, select > Settings. The Settings
app contains most of the tools for customizing and configuring
your phone.
Profiles
You can set and edit an appropriate profile depending on your
current environment.
1. From the home screen, select > Settings > Profiles.
2. Select a profile and press the Center key to enable it.
If you select the General profile, you can edit it by pressing the
Left soft key. You can adjust different types of volume (see
Adjusting Volume), set up ringtone and notification sound (see
Changing Ringtone and Notification Sound), or set system
sounds (see Turning On/Off System Sounds).
General Settings
Airplane Mode
From the home screen, select > Settings > General
settings > Airplane mode and press the Center key to turn
airplane mode on or off. All the phone’s radios that transmit
voice or data are turned off when airplane mode is on.
84
Bluetooth
From the home screen, select > Settings > General
settings > Bluetooth. You can turn Bluetooth on or off and
configure your Bluetooth connections. See Connecting to
Bluetooth Devices.
Location
From the home screen, select > Settings > General
settings > Location to manage location services, which help
your phone and apps determine your location. To use
location-related applications, you must have location services
enabled on your phone.
1. Select the switch and press the Center key to turn location
services on or off.
2. When location is enabled, select Mode and press the Center
key to select location sources you want to use. To get your
accurate location, choose High accuracy. To save battery
power and get approximate location, choose Battery saving.
To use only GPS to pinpoint your location, choose Device
only.
NOTE:
Switch on Accelerated location to use Qualcomm® IZat™
hardware accelerated location to determine your location.
Mobile Networks
From the home screen, select > Settings > General
85
settings > Mobile networks to control mobile data use or set
access point names. See Connecting to Mobile Networks.
Display
From the home screen, select > Settings > General
settings > Display to configure the following options.
Brightness level: Set the brightness of the display.
Wallpaper: Select a background image for the home
screen.
Sleep: Set the length of time of inactivity before the screen
turns off automatically.
Keypad light: Adjust how long the backlight for the keypad
remains on.
Font size: Set the font size of the text on the screen.
Date and Time
From the home screen, select > Settings > General
settings > Date & time to set date, time, time zone, and the
time format. You can also use network-provided data.
Navigation Key Shortcuts
From the home screen, select > Settings > General
settings > Navigation key shortcuts to assign the
Up/Down/Left/Right key as a shortcut for a function, such as
the calendar.
86
Language and Input
From the home screen, select > Settings > General
settings > Language & input to configure options related to
system language, input methods and speech output.
Language: Select a language for your system.
Keyboard & input methods: Configure text input settings.
Text-to-speech output:
Preferred engine: Select the speech synthesis engine
you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Default language status: Check whether the
text-to-speech output feature supports the current
system language.
Device
Data Usage
From the home screen, select > Settings > Device > Data
usage to manage mobile data use.
Check or uncheck Restrict background data to restrict
background data or not.
87
You can check how much data has been used during the time
cycle you set, set data usage warning and limit, see what apps
have been using mobile data, or restrict background data for
individual apps.
NOTE:
The data usage is measured by your phone, and your carrier’s
data usage accounting may differ.
Storage
From the home screen, select > Settings > Device >
Storage to view the memory information of the internal phone
storage and the microSDHC card.
Save location: You can choose the default location for new
data, such as photos captured and voice recorded. Select
Phone or SD card to store items in the phone storage or
the installed microSDHC card.
Erase SD card: Format the installed microSDHC card.
Connect to PC
From the home screen, select > Settings > Device >
Connect to PC to select your USB connection type between
your phone and PC. See Connecting to Your Computer via
USB.
Call Settings
From the home screen, select > Settings > Device > Call
88
settings to set the call options. See Adjusting Your Call
Settings.
Accessibility
From the home screen, select > Settings > Device >
Accessibility to configure accessibility plug-ins and services
on your phone.
About Phone
From the home screen, select > Settings > Device >
About phone to view the phone status and other information,
or select Software Update to check for the phone software
updates.
Personal
Security
From the home screen, select > Settings > Personal >
Security to configure options that help keep your phone and
data safe.
Screen lock: Disable the screen lock or enable it with PIN.
See Protecting Your Phone With Screen Lock.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off. This
option is available when unlock PIN is set.
Owner info: Set the text that you may display on the lock
89
screen.
Set up SIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the micro-UIM card.
Change SIM PIN: Change the PIN used to access the
micro-UIM card.
NOTE:
Put all your confidential passwords in a safe place for future
use. If you enter the wrong UIM PIN more times than
allowed, your micro-UIM card will be locked and you cannot
access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the micro-UIM card.
Anti-Theft: If your phone is lost or stolen, you can use this
feature to lock your phone, erase all data in your phone, or
make the phone sound the alarm remotely. See Protecting
Your Phone With the Anti-Theft Feature.
Reset
From the home screen, select > Settings > Personal >
Reset > Factory data reset to reset your phone to factory
default settings. All your data in the internal storage will be
erased during the process. You can also erase the data on the
microSDHC card.
90
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
cannot effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
91
Problem
Possible causes
Possible solution
Echo or
noise
The network link quality
is poor on the part of
your service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
The quality of the phone
line that you are calling
is poor
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Cannot
charge the
battery
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s temperature
is below 0 °C or higher
than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
The contact between the
battery and charger is
poor.
Check all connectors to
ensure that all
connections have been
properly made.
92
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted.
In high temperature
environments, battery
life will be shortened.
Contact the dealer to
change a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
93
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-UIM
card error
The micro-UIM card
malfunctions or is
damaged.
Take the micro-UIM card
to your service provider
for testing.
The micro-UIM card is
inserted improperly.
Insert the micro-UIM
card properly.
There is debris on the
micro-UIM card
contacts.
Use a soft dry cloth to
clean the micro-UIM
card contacts.
Unable to
connect to
the network
The micro-UIM card is
invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
The signal is poor.
Move to an open space,
or if you are inside a
building, move closer to
a window.
94
Problem
Possible causes
Possible solution
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro-UIM card’s PUK
code, use the PUK code
to unlock the micro-UIM
card.
95
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your body while
making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
96
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
Turn off when asked to
in hospitals and
medical facilities.
Do not attempt to
disassemble your
phone.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone as a primary
device for emergency
communications.
Radio Frequency (RF) Energy
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
in positions that simulate RF exposure in usage against the
head with no separation, and near the body with the separation
97
of 15 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
had been tested in accordance with the measurement methods
and procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-Z233VL.
For this device, the highest reported SAR value for usage
against the head is 0.85 W/kg, and for usage near the body is
1.03 W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
98
SAR compliance for body-worn operation is based on a
separation distance of 15 mm between the unit and the human
body. Carry this device at least 15 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain
a separation of 15 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and using such
body-worn accessory should be avoided.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
NOTE:
This equipment has been tested and found to comply with the
99
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Hearing Aid Compatibility (HAC)
Regulations for Mobile Phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
100
interference with hearing aids or cochlear implants, digital
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
101
about return or exchange policies, consult your service provider
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M4/T4 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
CTIA Requirements
Do not disassemble or open, crush, bend or deform, puncture
or shred the battery.
Do not modify or remanufacture, attempt to insert foreign
objects into the battery, immerse or expose to water or other
liquids, expose to fire, explosion or other hazard.
Only use the battery for the system for which it is specified.
Only use the battery with a charging system that has been
102
qualified with the system per CTIA Certification Requirements
for Battery System Compliance to IEEE 1725. Use of an
unqualified battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Do not short circuit a battery or allow metallic conductive
objects to contact the battery terminals.
Replace the battery only with another battery that has been
qualified with the system per this standard, IEEE-Std-1725.
Use of an unqualified battery may present a risk of fire,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local
regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is
dropped, especially on a hard surface, and the user suspects
damage, take it to a service center for inspection.
Improper battery use may result in a fire, explosion or other
hazard.
The phone shall only be connected to CTIA certified adapters,
products that bear the USB-IF logo or products that have
completed the USB-IF compliance program.
103
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of the use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep them in a clean place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
104
operations or lower image quality.
Clean your phone and its accessories with a soft material
such as cleaning cloth for eyeglass lenses. Do not use
alcohol or other corrosive substances for cleaning or allow
them to get inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to
clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories,
only authorized personnel can do so.
Do not expose or use your phone or its accessories in an
environment with or that can reach extreme temperatures,
minimum 23 ℉ and maximum 122 ℉ (minimum - 5 ℃ and
maximum + 50 ℃).
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
105
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the metallic connectors of the micro-UIM card.
Antenna
Do not touch the antenna unnecessarily.
106
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom toward your mouth.
Air Bags
Do not place your phone in the area over an air bag or in the air
bag deployment area as an airbag inflates with great force and
serious injury could occur.
Place your phone safely before driving your vehicle.
Seizures/Blackouts
Your phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching videos. If you have experienced seizures or blackouts
or have a family history of such occurrences, please consult a
physician. To reduce the risk of blackouts or seizures, you can
use your phone in a well-lit room and take frequent breaks.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
107
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take frequent breaks to stretch and relax.
Emergency Calls
This phone, like any other wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you should not rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch metallic objects, such as coins or key
108
rings, or allow them to contact or short-circuit the charging jack
terminals.
Never puncture the surface of the phone with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its
accessories.
If your phone (or its accessories) has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using your phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
Please consult your doctor and the device manufacturers to
determine if the operation of your phone may interfere with the
operation of your medical devices.
109
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Equipment
Switch off your wireless device when you are requested to do
so in hospitals, clinics or health care facilities. These requests
are designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to
do so by airport or airline staff.
110
Consult the airline staff about the use of wireless devices on
board the aircraft and enable airplane mode of your phone
when boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of
mobile phones in their vehicles unless a hands-free kit with an
external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas where signs are posted to power off
“two-way radios” or “electronic devices” to avoid interfering with
blasting operations.
111
Specifications
Handset specifications are shown in the following table.
Handset standard
LTE/CDMA
Dimensions
4.26" (H) x2.18" (W) x 0.73" (D)
Weight
4.59 oz. (with battery)
Display
2.8 inch 240×320
Camera
2 MP
Internal memory
ROM: 4 GB, RAM: 512 MB
Removable
memory card
Supports microSDHC card up to
32GB
Battery
1500 mAh
Continuous idle
time
Up to 20 days
Continuous talk
time
Up to 8 hours
WAP browser
version
2.0
HAC
M4 /T4
112
Bluetooth
4.0
NOTE:
The phone’s talk time and idle time are based on ideal working
environments. The use of extended backlighting, browser, and
network conditions can reduce battery life and talk/idle time.
