Users Manual
Z288L
User Manual
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: www.ztedevice.com
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Qualcomm® Gobi technologies are products of Qualcomm Technologies, Inc.™
Version No. : 1.0
Edition Time: 04.2014
NOTE:
Do not use the device in an enclosed environment or where heat dissipation is poor. Prolonged
work in such space may cause excessive heat and raise ambient temperature, which may lead to
automatic shutdown of the device for your safety. In the case of such event, cool the device in a
well-ventilated place before turning on for normal use.
Confidential and Proprietary Information of ZTE CORPORATION 1
Getting Started
Introduction
ZTE Z288L is a 4G hotspot device, working in 1X/HRPD/eHRPD/LTE network. The client devices can
connect to it via Wi-Fi. The device supports data services, enabling you to communicate anytime and
anywhere.

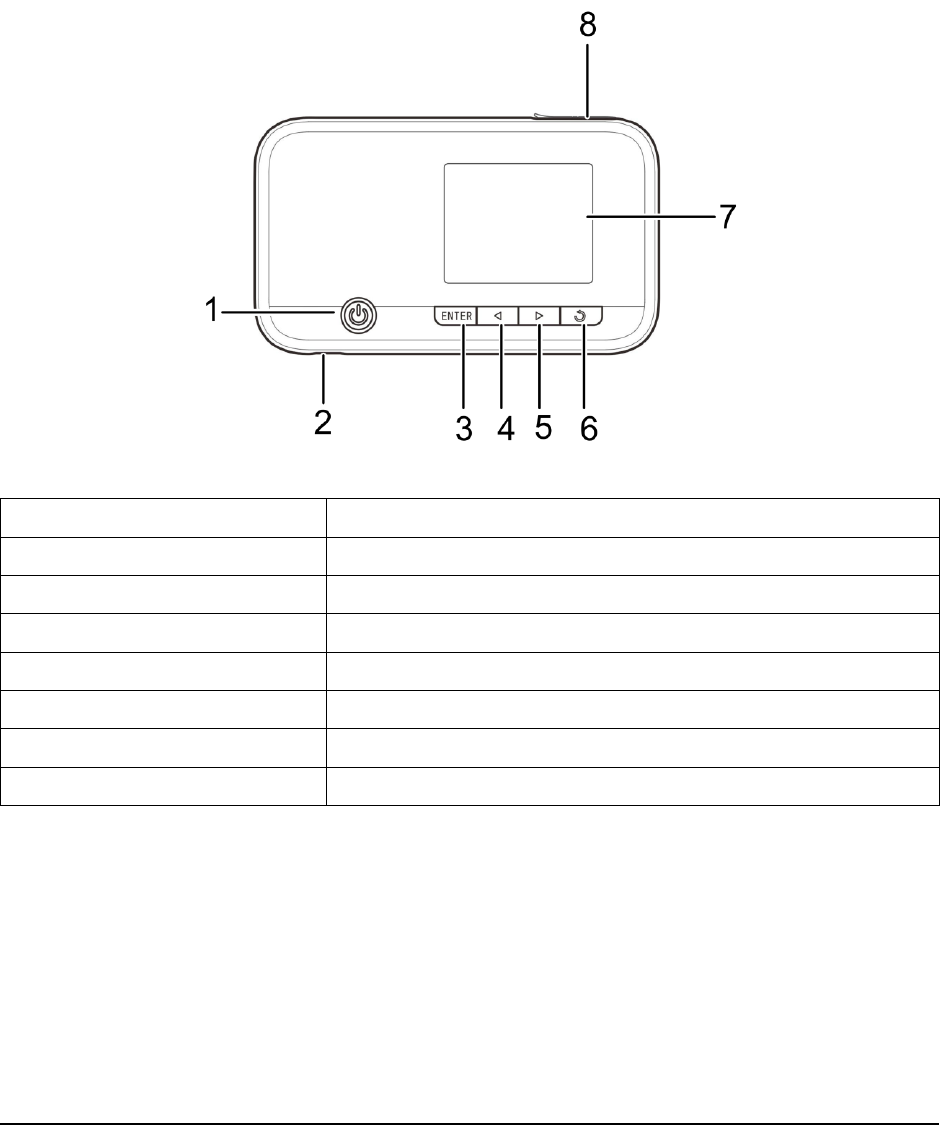

Outline and Parts
The following figure shows the appearance of the device. It is only for your reference. The actual device
may be different.
1.Power Button
Press and hold the Power button to switch on/off the device.
2.Charger/USB port
Charge your device.
3.ENTER Key
Enter or select an item.
4.Left Key
Check the on-screen menu from right to left.
5.Right Key
Check the on-screen menu from left to right.
6.Back Key
Go back to the previous screen.
7. LCD Screen
It indicates the signal type, signal strength, battery, Wi-Fi, etc.
8.microSDHC card slot
It is where you insert the microSDHC card.

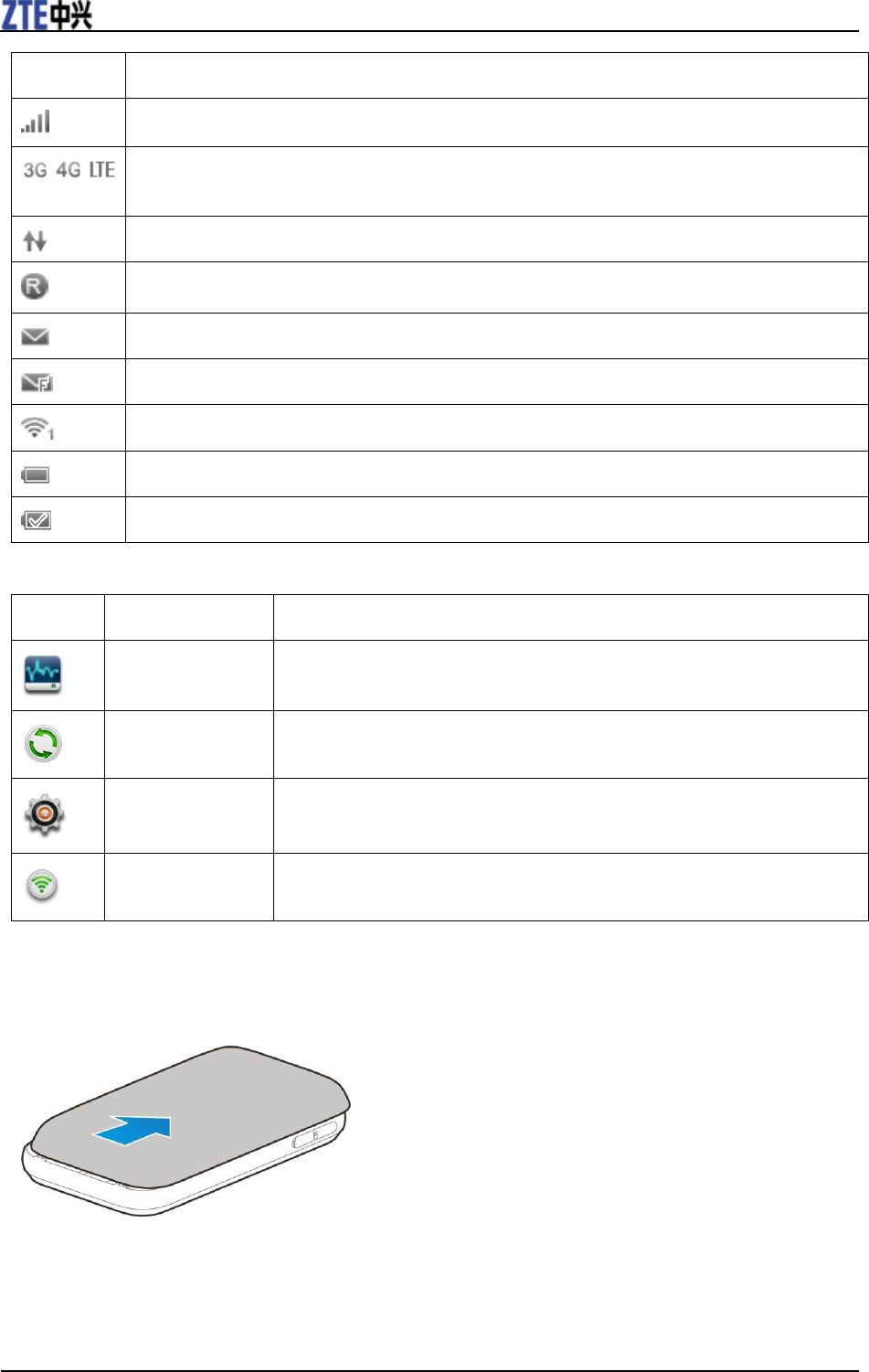

Indicators
When the device is powered on, the following icons will appear on the LCD screen, with the
corresponding indicators listed in the table below:
ZTE Z288L User Manual
2 Confidential and Proprietary Information of ZTE CORPORATION
Icon
Indication
Network signal strength.
/ /
Network type. 3G/4G/LTE icon will appear on the LCD screen according to the network
being connected.
The device has been connected to the Internet.
Roaming network indication.
New message received.
The message inbox is full.
Wi-Fi Status and number of the connected users.
Battery power indication.
The battery is full.
Function Icons
Icon
Name
Description
Device Info
Show and check the device information.
Connected Device
Show and check the clients connected to your device.
Settings
Set your device.
WPS
Set the WPS function.
Installing Your Device
Inserting the SIM Card and Battery

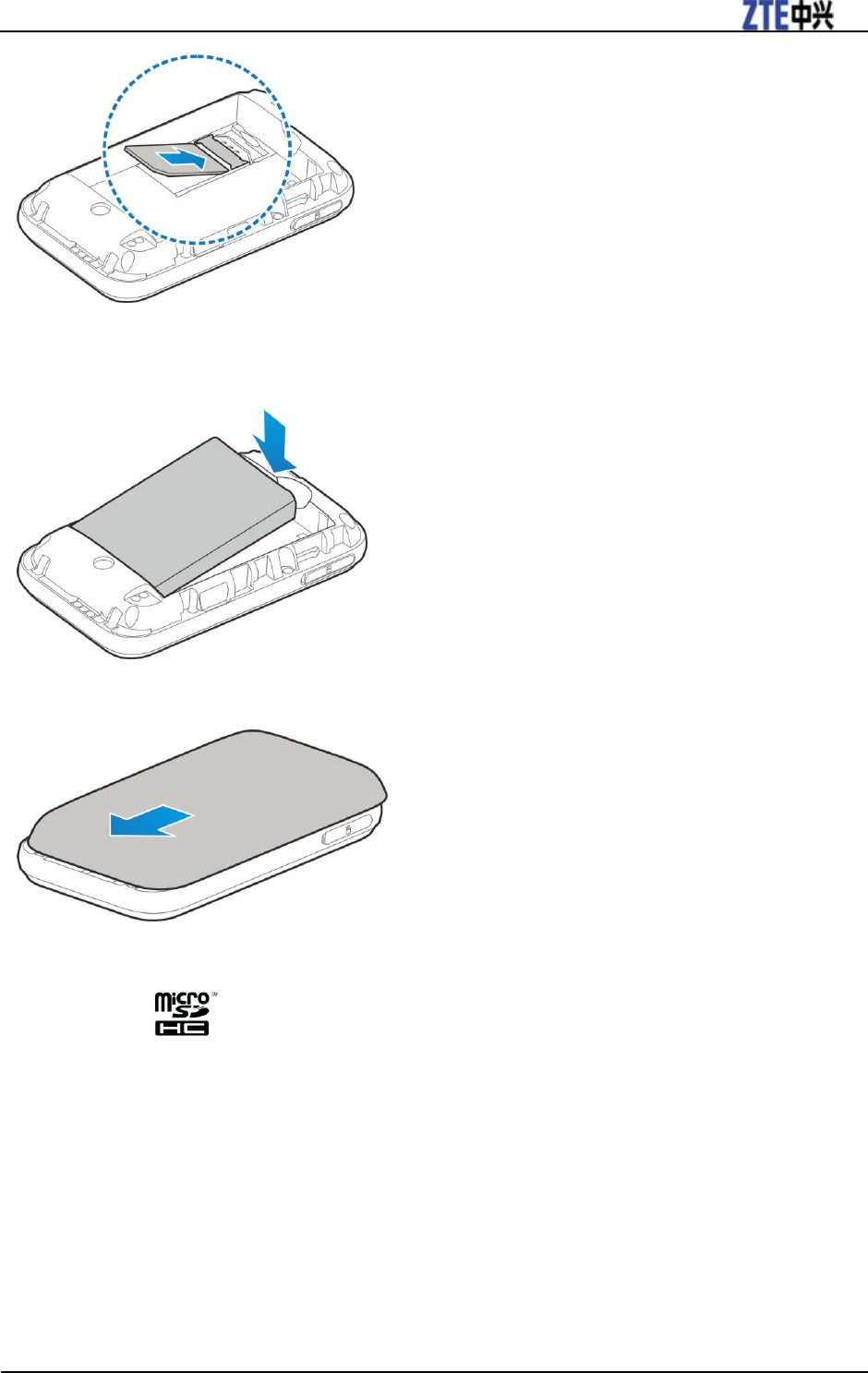

1. Remove the back cover.
2. Insert the SIM card into the SIM card slot.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 3
3. Insert the battery as shown with the contacts located against the metal springs, and press the battery
down into the case.
4. Close the back cover.
Inserting the microSDHC Card
NOTE:
microSDHC logo is a trademark of SD-3C, LLC.
1. Pull the microSDHC card cover out of the card slot.
NOTE:
Do not pull the cover rudely, as it is connected with the device.

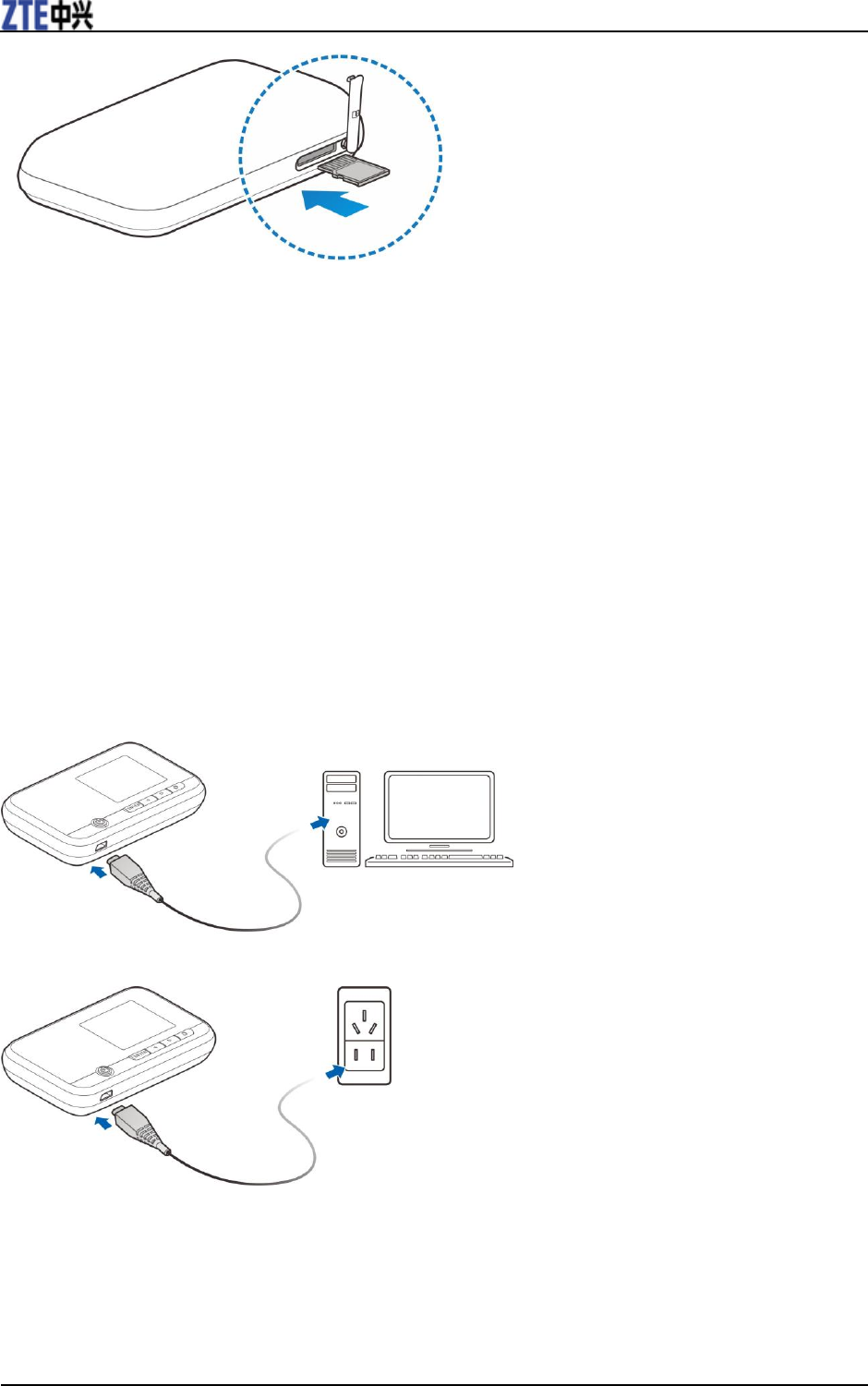

2. Insert the microSDHC card into the microSDHC card slot. The following picture shows the correct
inserting direction. You will hear a click when the microSDHC card locks in place.
ZTE Z288L User Manual
4 Confidential and Proprietary Information of ZTE CORPORATION
3. Close the microSDHC card cover.
Powering On/Off Your Device
Press and hold the Power button to switch on/off the device.
NOTE:
The device is powered on when the LCD screen lights up.
Sleep Mode
When you enable the Wi-Fi function and use the battery to supply power to the device, once no
user connects to the device within specified time, the device will enter the sleep mode. In the
sleep mode, the Wi-Fi function will be disabled. Press the Power button to wake up the device
and Wi-Fi function.
Charging Your Device
You can charge your device by using the USB cable or adapter. Please charge your device for more than
two hours when you use it at the first time or when you haven’t used it for a long time.
Use the USB cable to connect your device and PC directly.
Use the adapter and USB cable to connect the wall outlet and your device.
NOTE:
The plug only fits one way to connect your device. Do not use excessive force to insert the plug.
Resetting Your Device
There are two ways to reset your device.
Reset your device on web UI.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 5
Please refer to the section Settings - Device Settings – Reset in this user manual.
Reset your device by pressing and holding the Reset button.
1. Remove battery cover
2. Find a hole with a mark Reset on right side of the device bottom surface.
3. Press and hold the Reset button hidden in the hole with a needle for 3 seconds or longer.
4. Factory reset will take effect and then the device will restart.

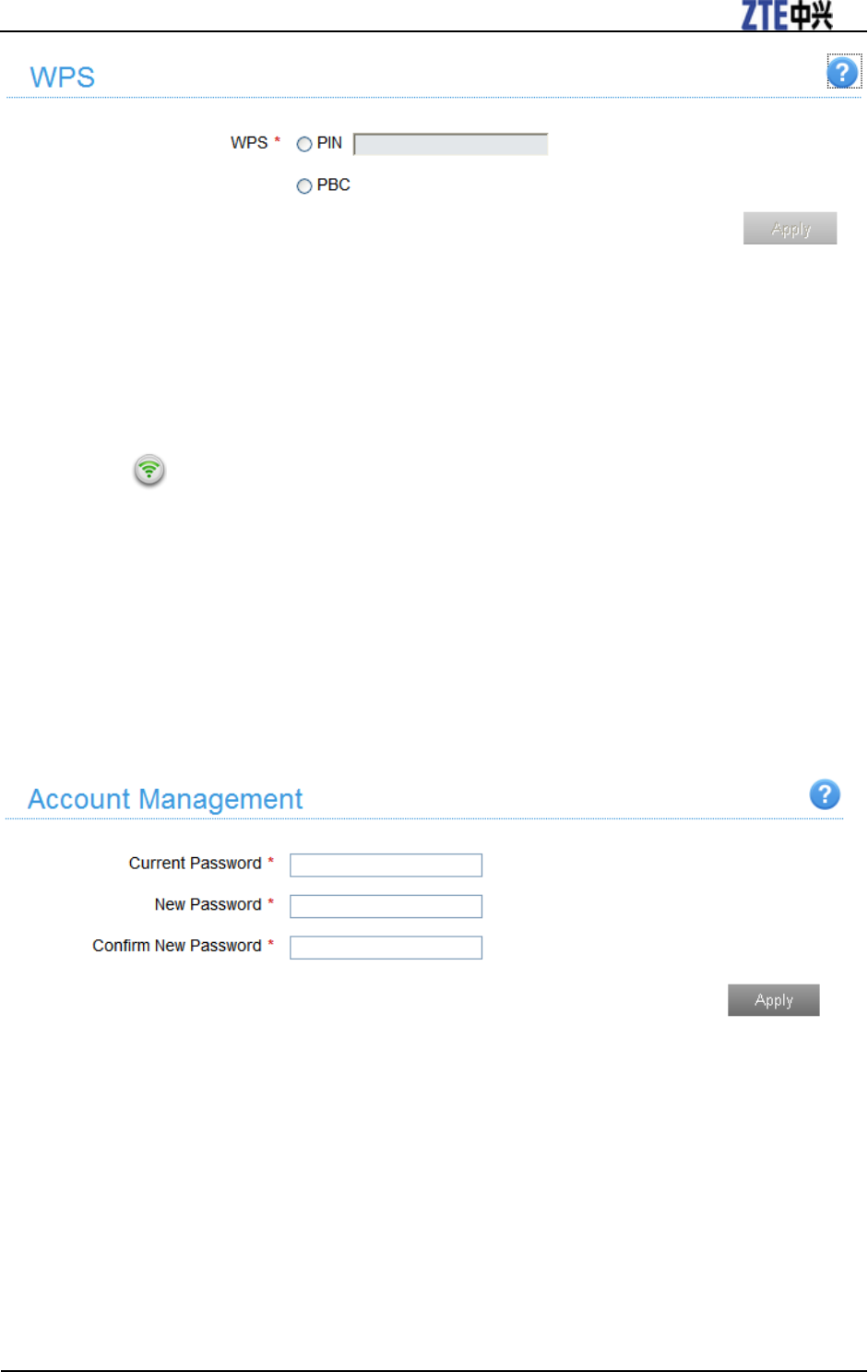

Using the WPS (Optional)
If your client device supports WPS, you don’t have to input the password manually after WPS
has been available. Please do the following steps:
1. Log into the web UI by visiting http://192.168.0.1 or http://mobile.hotspot. Please select Device
Info on the LCD screen or check the label on your device to get the default password.
2. Select Settings > Wi-Fi Settings > Basic Settings to enable the Broadcast Network Name
(SSID) and to set the Security Mode.
NOTE: If the current security mode is OPEN and encryption type is WEP, the WPS function is
useless.
3. Set a Wi-Fi password in WPA2 (AES)-PSK mode and WPA-PSK/WPA2-PSK mode and then
click Apply to confirm the settings.
4. Select on your device’s LCD screen to start Wi-Fi Protected Setup authentication process.
5. Enable the WPS function on your client to respond this authentication process.
6. Follow the system prompts on your client to finish the connection.
NOTE: For the detailed operations about the client, please refer to the client’s instruction.
Internet Access

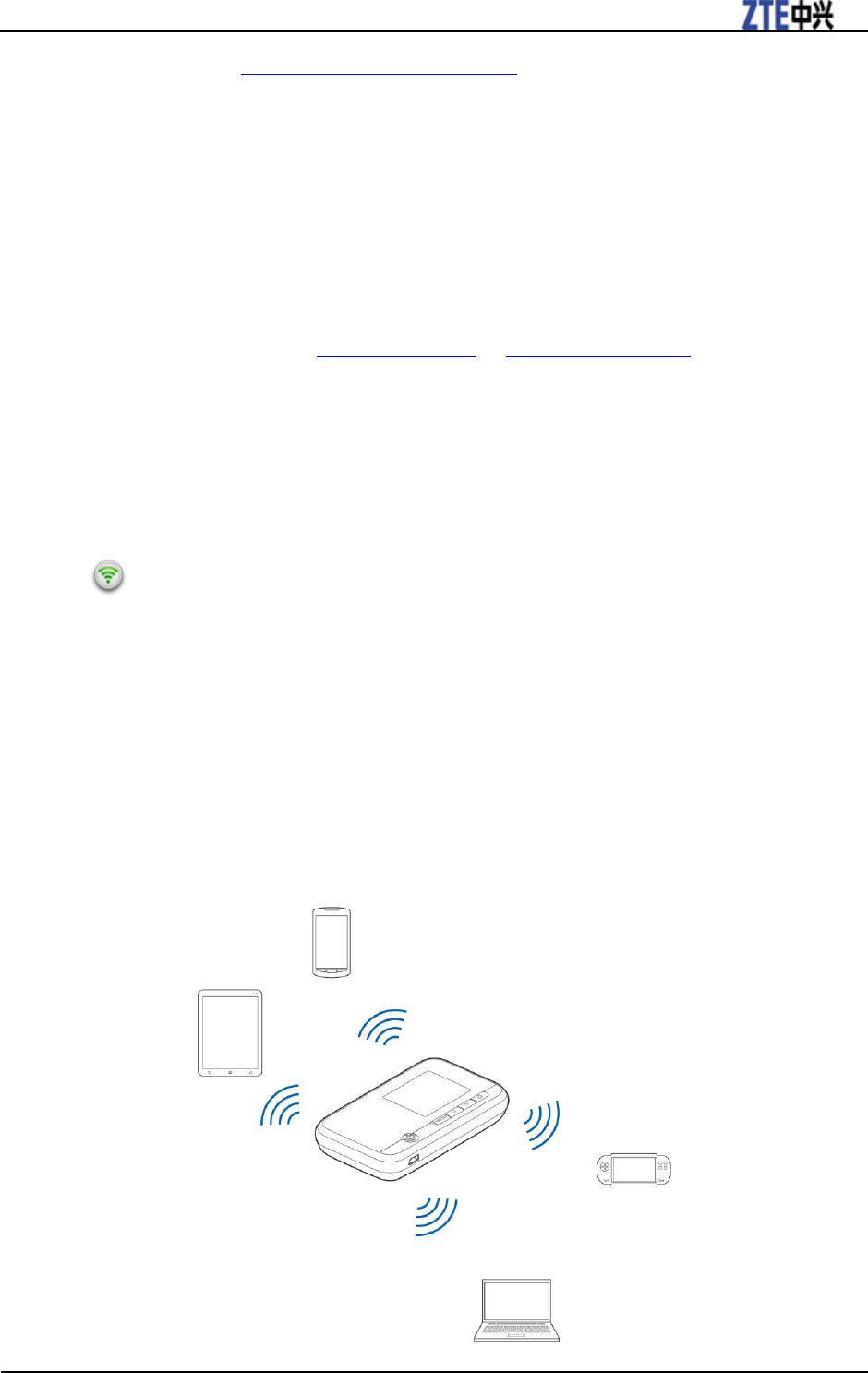

Connection Scenario
The following picture is the application example. All of the client devices can surf on the Internet at the
same time.
ZTE Z288L User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
NOTES:
You can only use Wi-Fi to connect to this device and make sure the client supports the Wi-Fi function.
Configuring Your PC
Follow the following steps and figures for Windows XP to configure the Wireless Internet
Protocol for your connection.
NOTE:
Wireless Network Connection is used for Wi-Fi connection.

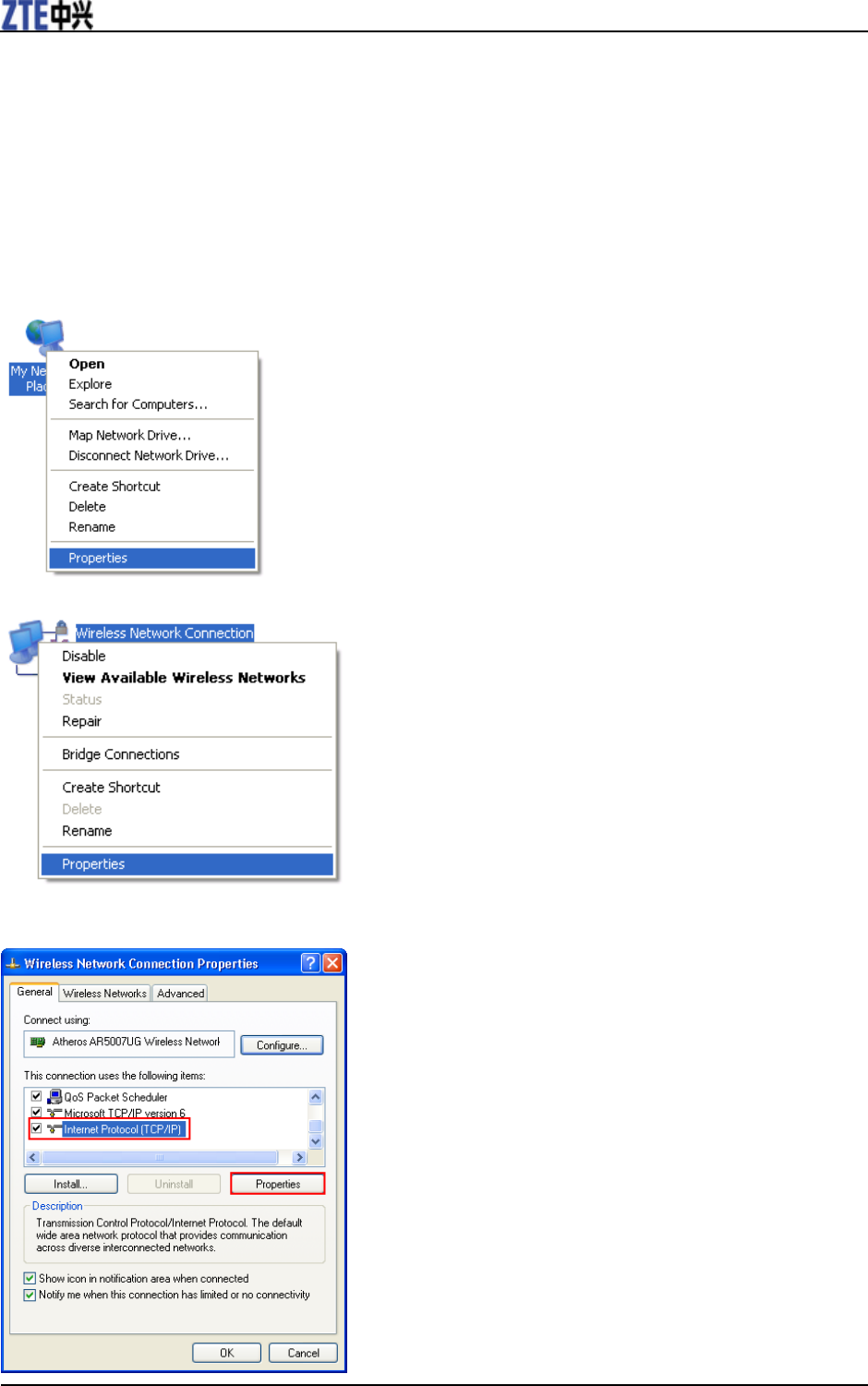

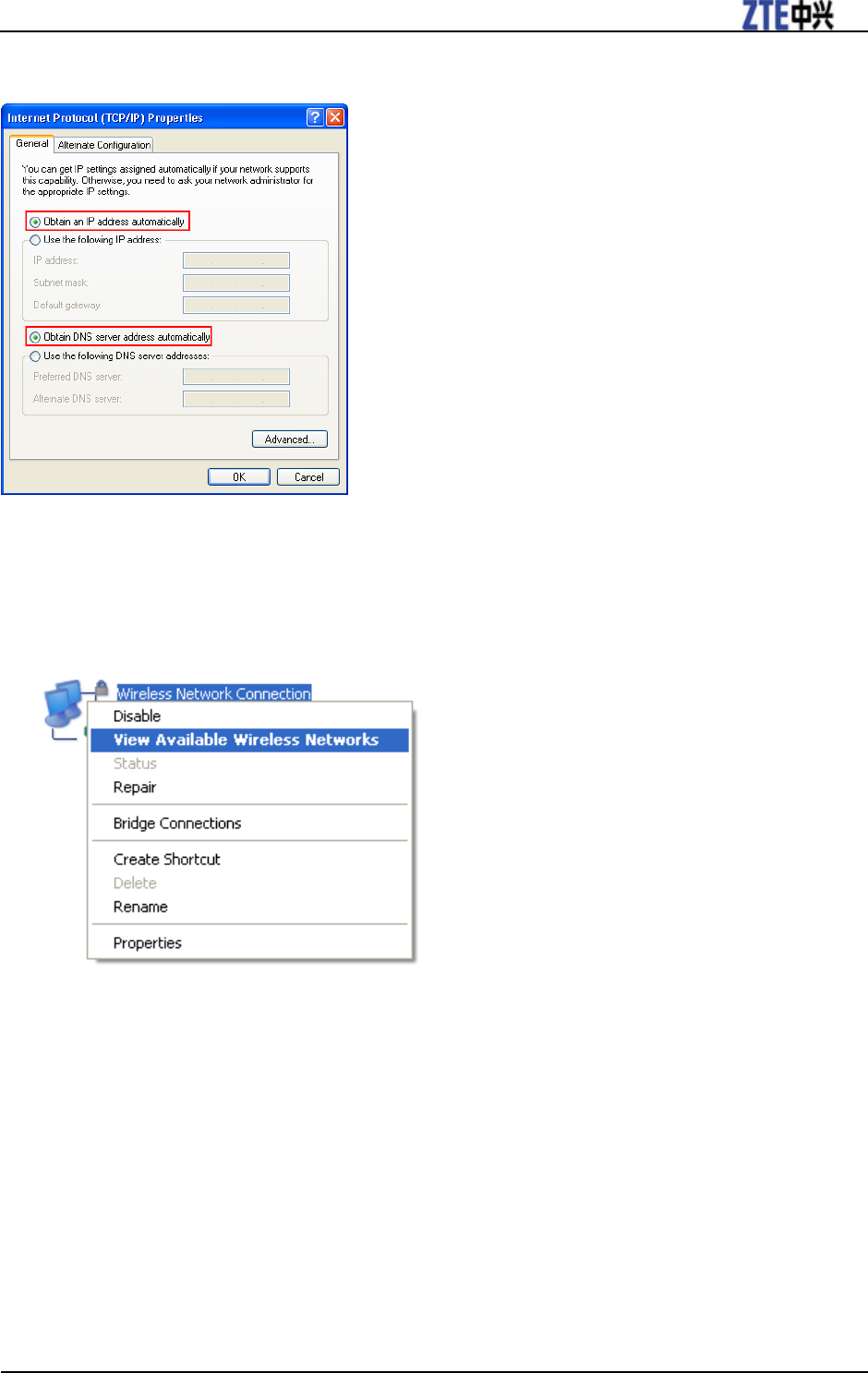

1. Right-click My Network Places, and then select Properties.
2. Right-click the Wireless Network Connection, and then select Properties.
3. Select Internet Protocol (TCP/IP), and then click Properties.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
4. Select these two items, and then click OK to finish the configuration.
Connecting to Your Device
1. Power on your device directly. It will take 1~2 minutes to initialize.

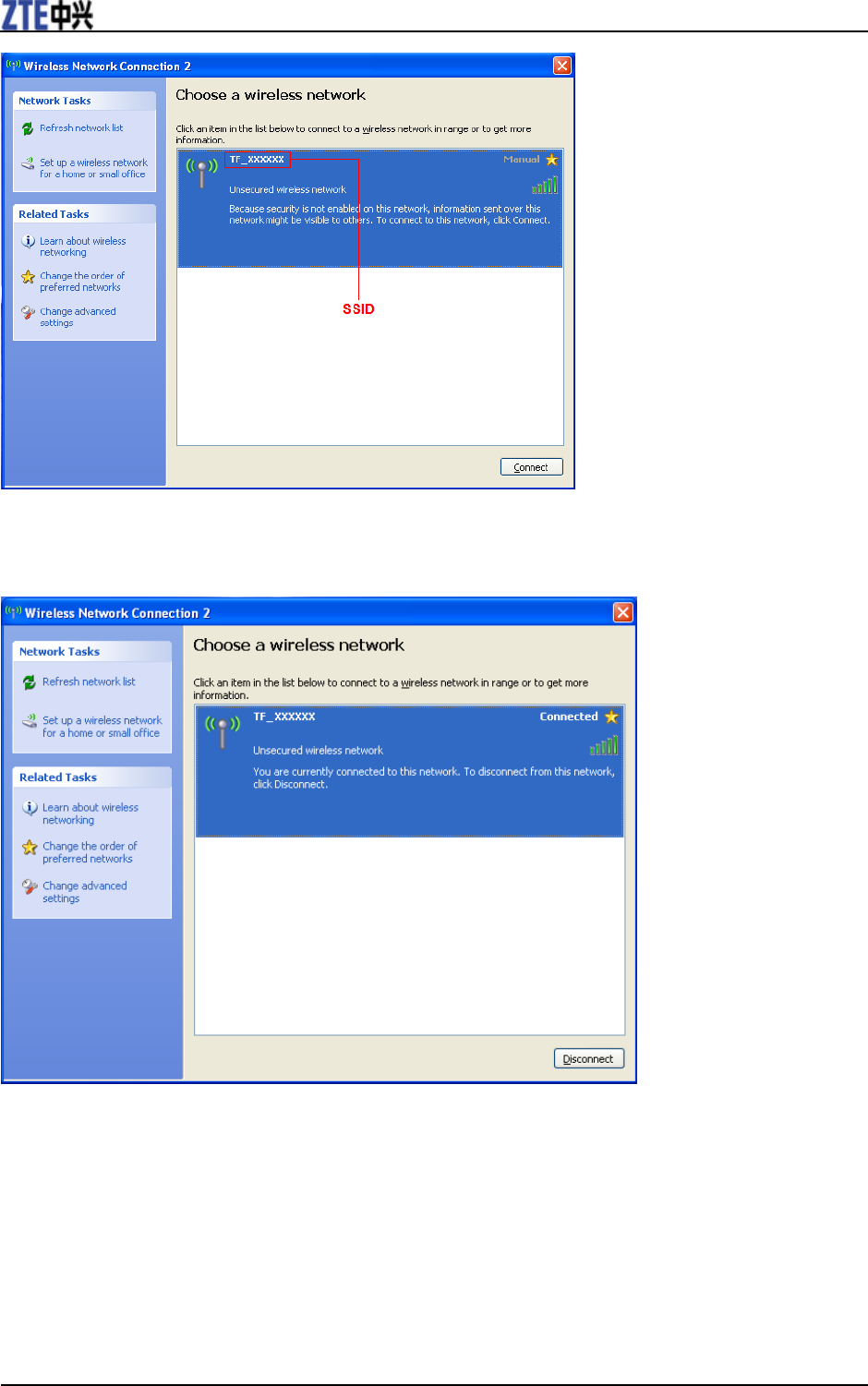

2. Use your normal Wi-Fi application on the client to search for available wireless networks.
3. Select the SSID of your device, and then click Connect.
ZTE Z288L User Manual
8 Confidential and Proprietary Information of ZTE CORPORATION
NOTE:
Please check the label on your device or select Device Info on the LCD screen to get the default SSID.
4. Wait a moment, and then the client will connect to your device successfully.
Accessing the Internet
1. Switch on the device.
2. Connect the client to your device.
3. After the client is connected to your device successfully, you can access the Internet
automatically.
Navigating the Device

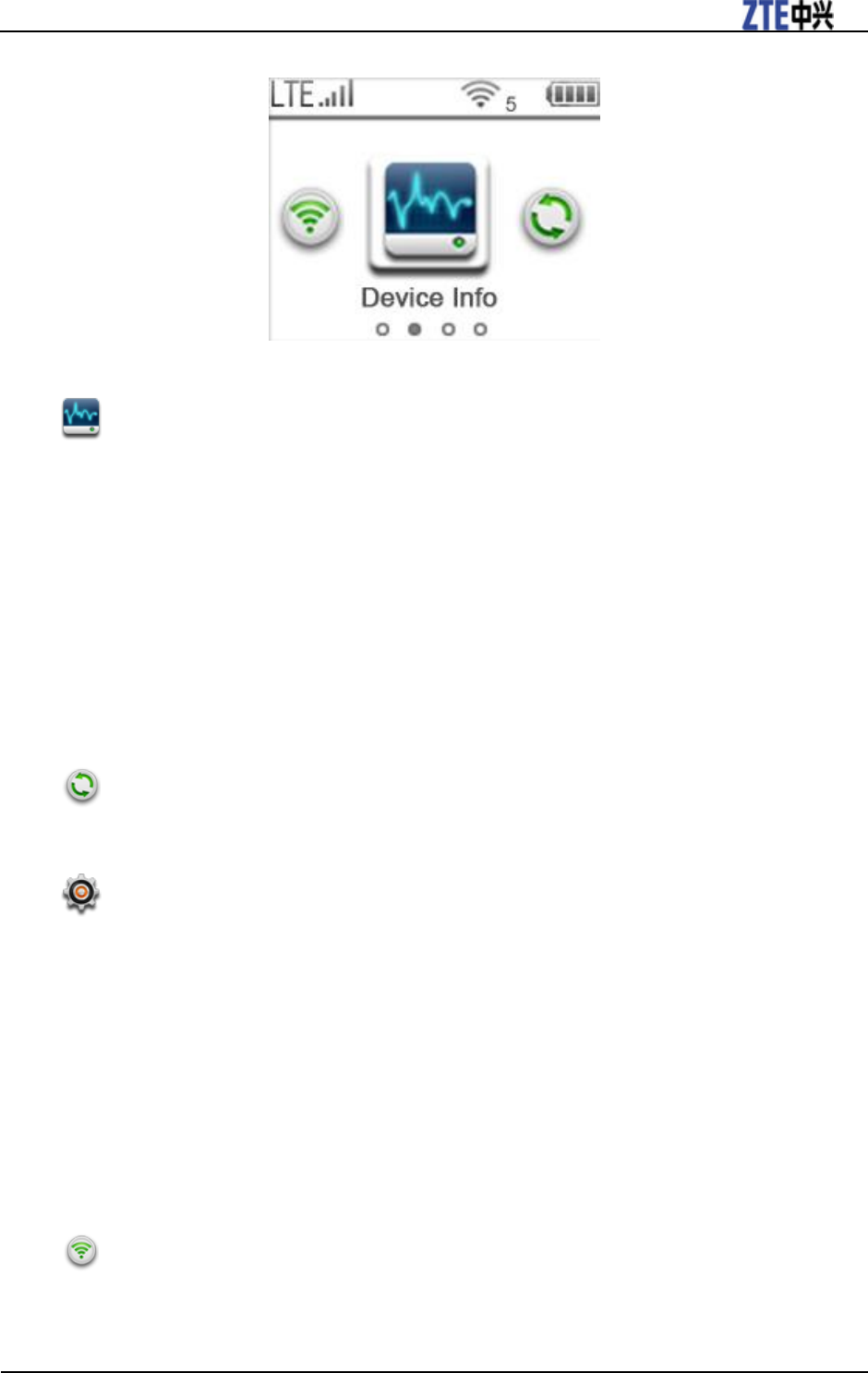

Press and hold the Power button to turn on the device. The screen lights up to indicate the device
has turned on and the following icons will appear after initialization.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9
Device Info
Select and press the ENTER Key to check the WAN information. Use the Left and Right key to
view the following information:
Network Name: Displays the default SSID.
Password: There is no password by default.
Web Login Screen: Displays the login URL of the web UI.
Admin Password: Displays the default login password of the web UI.
My Phone Number: Displays your phone number.
Serial Number: Displays the serial number of your phone.
SIM Number: Displays the SIM number.
Connected Device
Select and press the ENTER Key to check the information of the devices connected to your device.
Settings
Select and press the ENTER Key to check the settings. Use the Left and Right key to scroll to the
desired menu.
Software Update: Update the software.
Sound Alert: Turn on or off the sound alert. It is on by default, so you will hear an alert when there are
device connected to your device.
Screen Timeout: Set time for screen timeout.
Language: Select the language you want.
Wi-Fi: Set whether to display the Wi-Fi password or not.
WPS
Select and press the ENTER Key to launch the Wi-Fi Protection Setup.
ZTE Z288L User Manual
10 Confidential and Proprietary Information of ZTE CORPORATION
Web UI Configuration
Accessing the Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the Internet browser and enter http://192.168.0.1 or http://mobile.hotspot in the
address bar.
NOTE:
It is recommended that you use IE (7.0 or later), Firefox (15.0 or later), Opera (10.0 or later), Safari (4.0
or later), Google Chrome (10.0 or later).

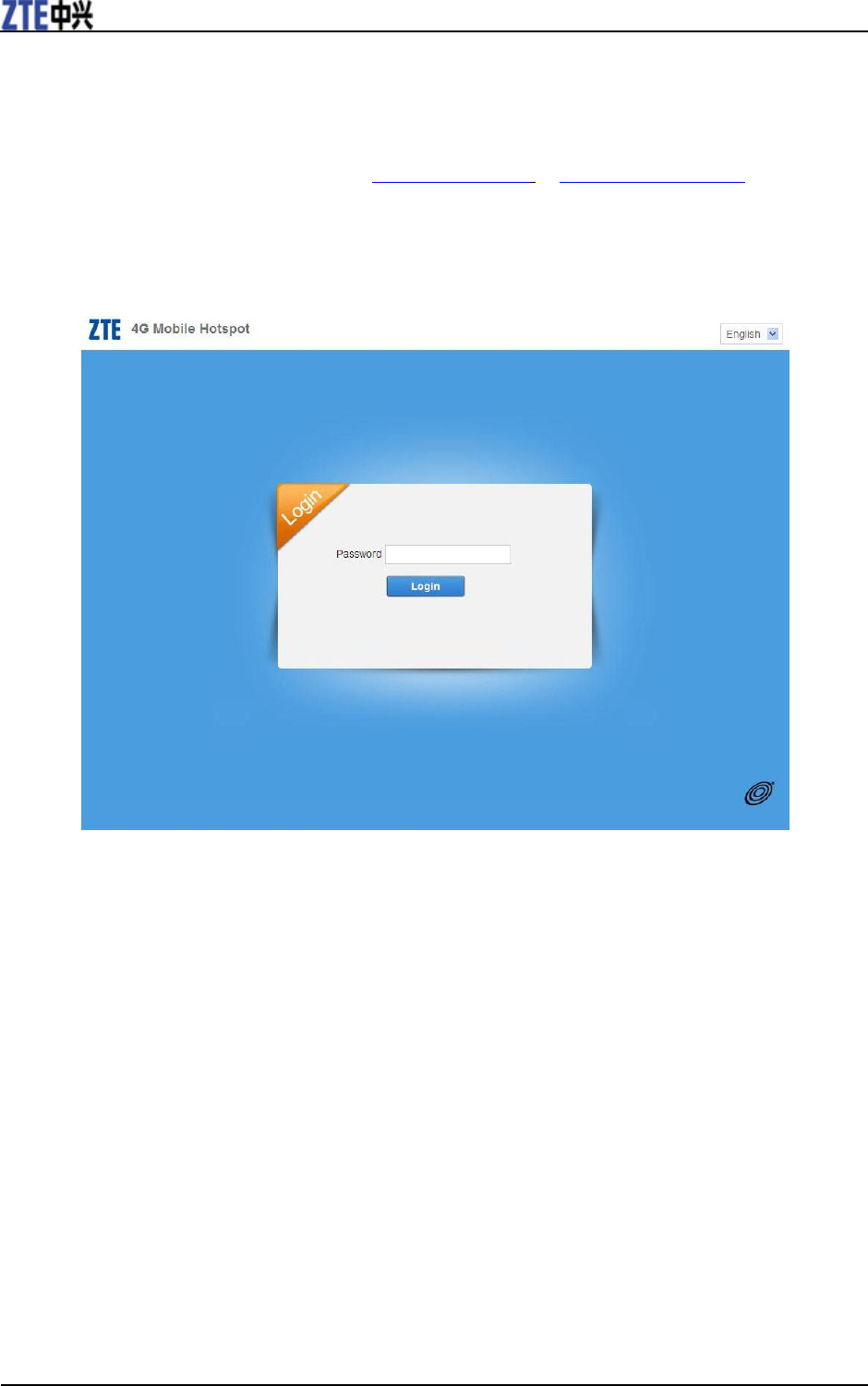

3.The login page appears as follows. The following figure is only for your reference.
Login
In the web UI Configuration page, input the password (please select Device Info on the LCD screen, or
check the label on your device to get the default password). Click Login to log into the device.
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
• Index area: Shows the configuration list for your device.
• Content area: Shows the detailed configuration.
• System Information Area: Shows the system status and different kinds of tips.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
Battery indicator
: Shows the battery level, 4 stages from none to high .
Signal strength
: Shows the network signal intensity, 5 stages from none to strong .
Internet status
: Connected to the Internet.
: Disconnected from the Internet.
Wi-Fi strength
: Wi-Fi status and number of the connected users. And the maximum number is 5.
Settings
• Do not modify any settings unless instructed by your service provider.

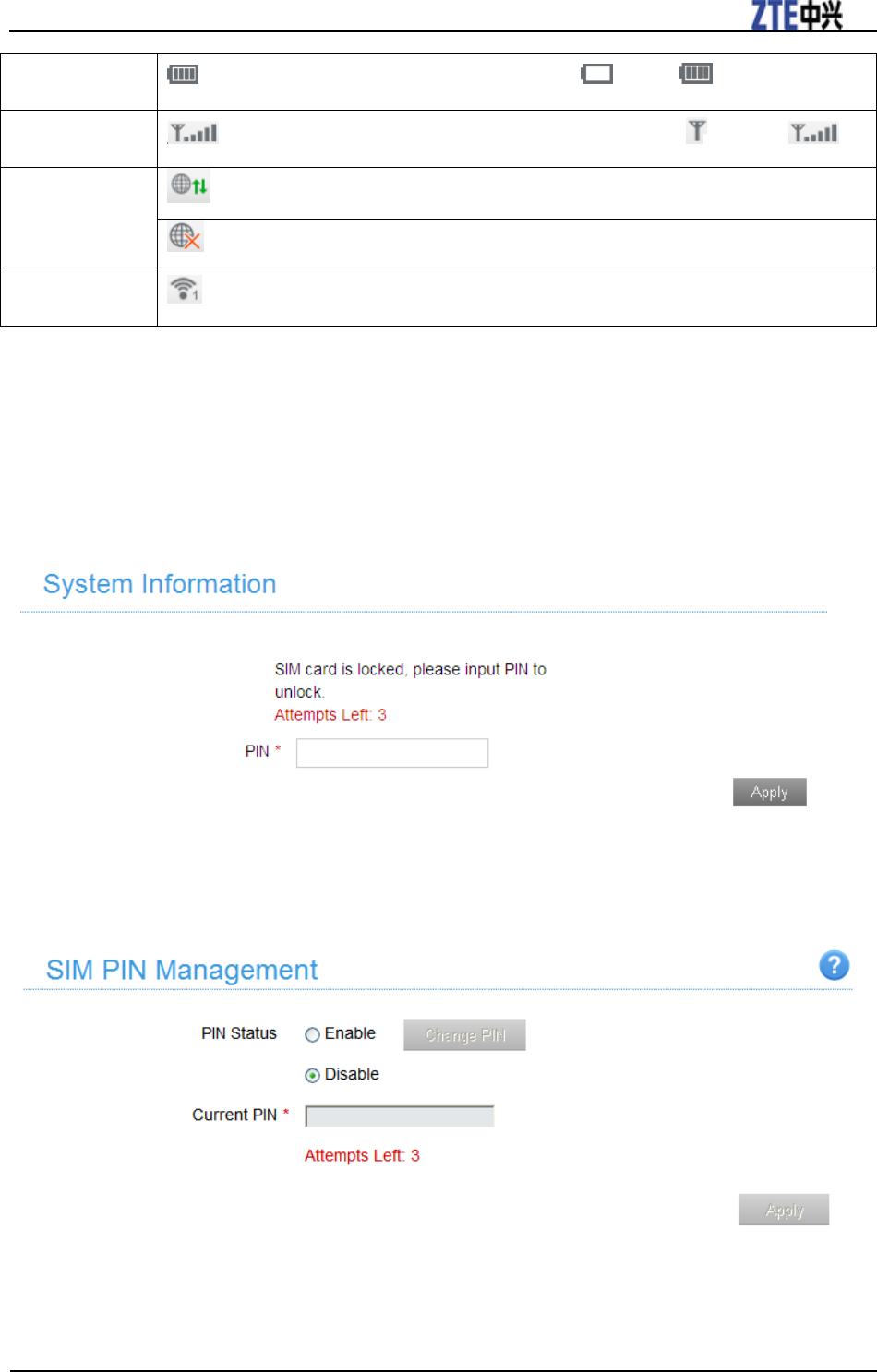

Verifying the PIN Code
If the PIN code of your SIM card is enabled, you will need to input the PIN code when you log in at the
first time.
NOTE:
The SIM card will be locked if you enter wrong PIN code consecutively for three times.

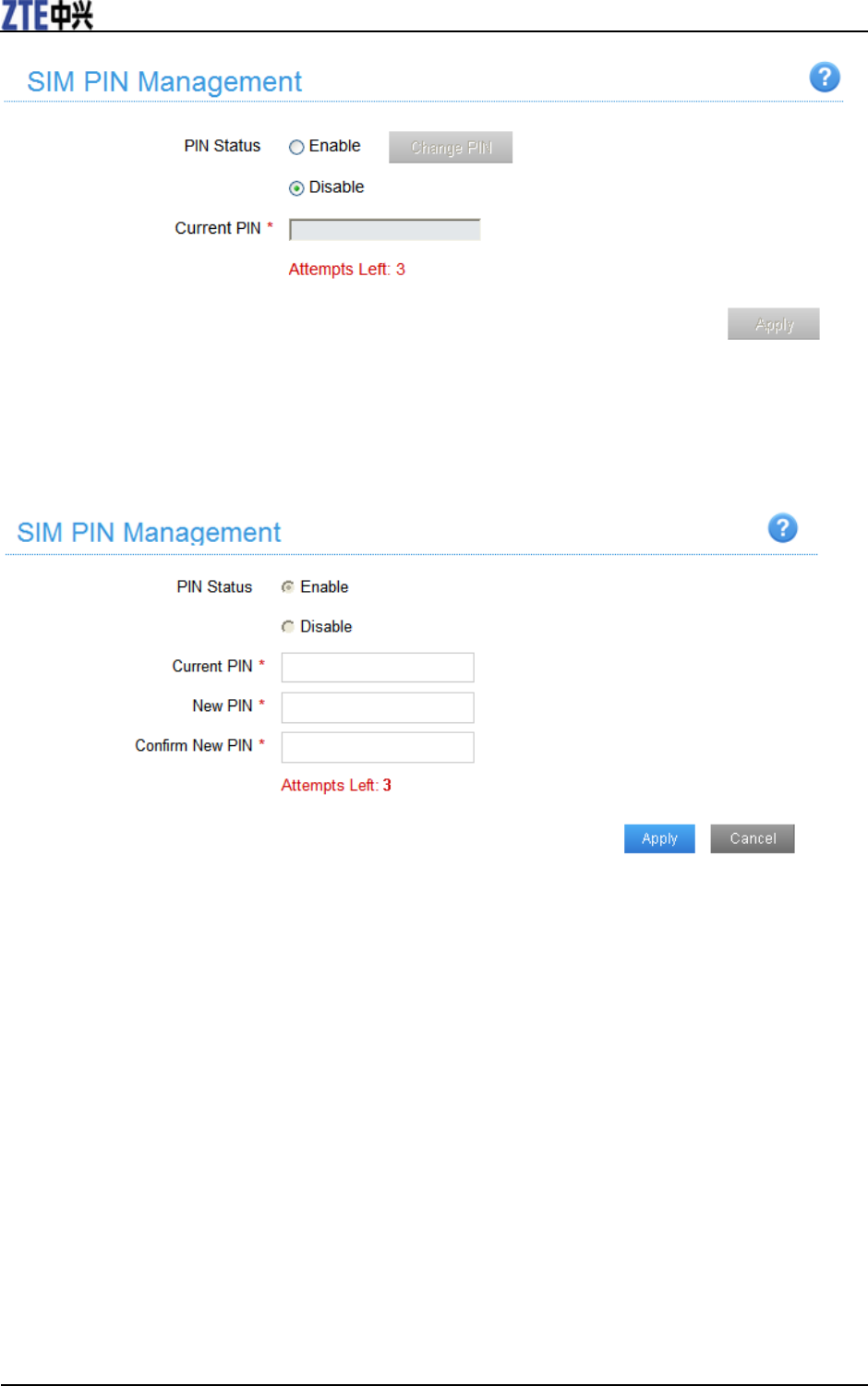

If you want to modify the PIN Status, please select Settings > Device Settings > SIM PIN
Management to do the actions.

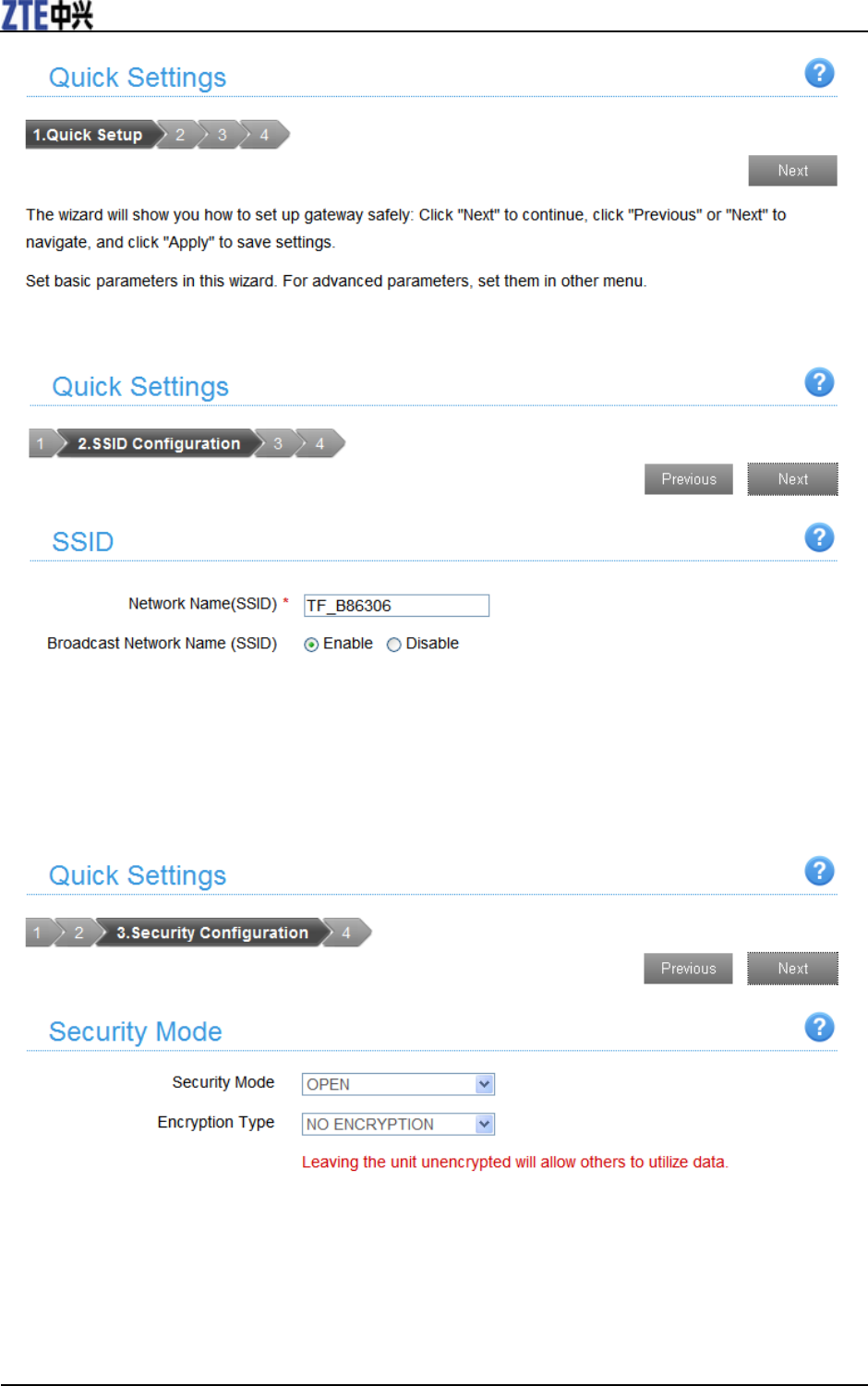

Quick Setups
1.In the main interface click Settings > Quick Settings.
2. Read the guide carefully, and then click Next.
ZTE Z288L User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION
3.Set SSID Configuration in the following figure:
Service Set Identifier (SSID) is used to uniquely identify your WLAN. If you enable Broadcast
Network Name (SSID), the gateway will broadcast the SSID, and other devices can detect and connect
to it.
4.Set Security Configuration in the following figure:
Encryption will keep your traffic from being unauthorized monitored and accessed, select one
encryption mode from the list, and then set key and/or algorithm for it.

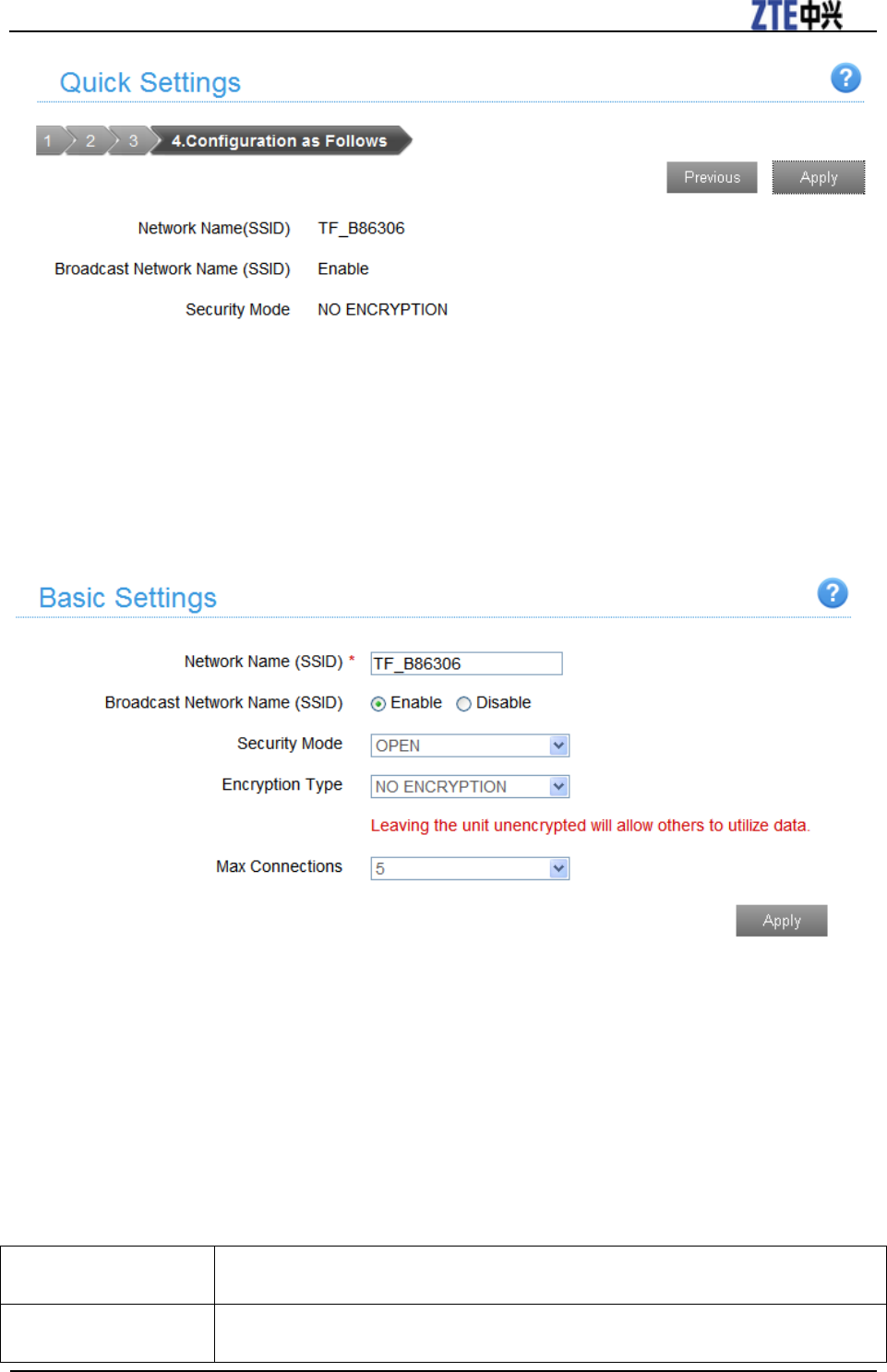

5.Show the Configuration in the following figure:
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 13
Make sure that all the parameters shown in the figure are correct, and then click Apply.
Wi-Fi Settings
Basic
Select Settings > Wi-Fi Settings > Basic Settings, the wireless network basic parameters are shown in
the following figure:
Network Name (SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the name
for your wireless local area network (WLAN).
Broadcast Network Name (SSID): Disable or Enable (Default) this function. If Enable is selected, the
device broadcasts the SSID, and other devices can search and connect to it. When you select Disable,
other devices cannot search out the SSID. If you want someone to connect, you need to tell them the
SSID, and let them setup manually.
Security Mode: The security modes are described below:
Mode
Description
OPEN
Authentication and encryption won't be performed. There are risks that private
ZTE Z288L User Manual
14 Confidential and Proprietary Information of ZTE CORPORATION
info will be intercepted or network will be used by unauthorized individuals.
WPA2(AES)-PSK
It is the securer version of WPA with implementation of the 802.11i standard.
WPA-PSK/WPA2-PSK
Apply both the WPA-PSK and WPA2-PSK scheme.
Encryption Type: Select an encryption type from the drop-down list.
Max Connections: Choose the maximum number of the stations which connect the AP simultaneously.
Click Apply to confirm your configuration.

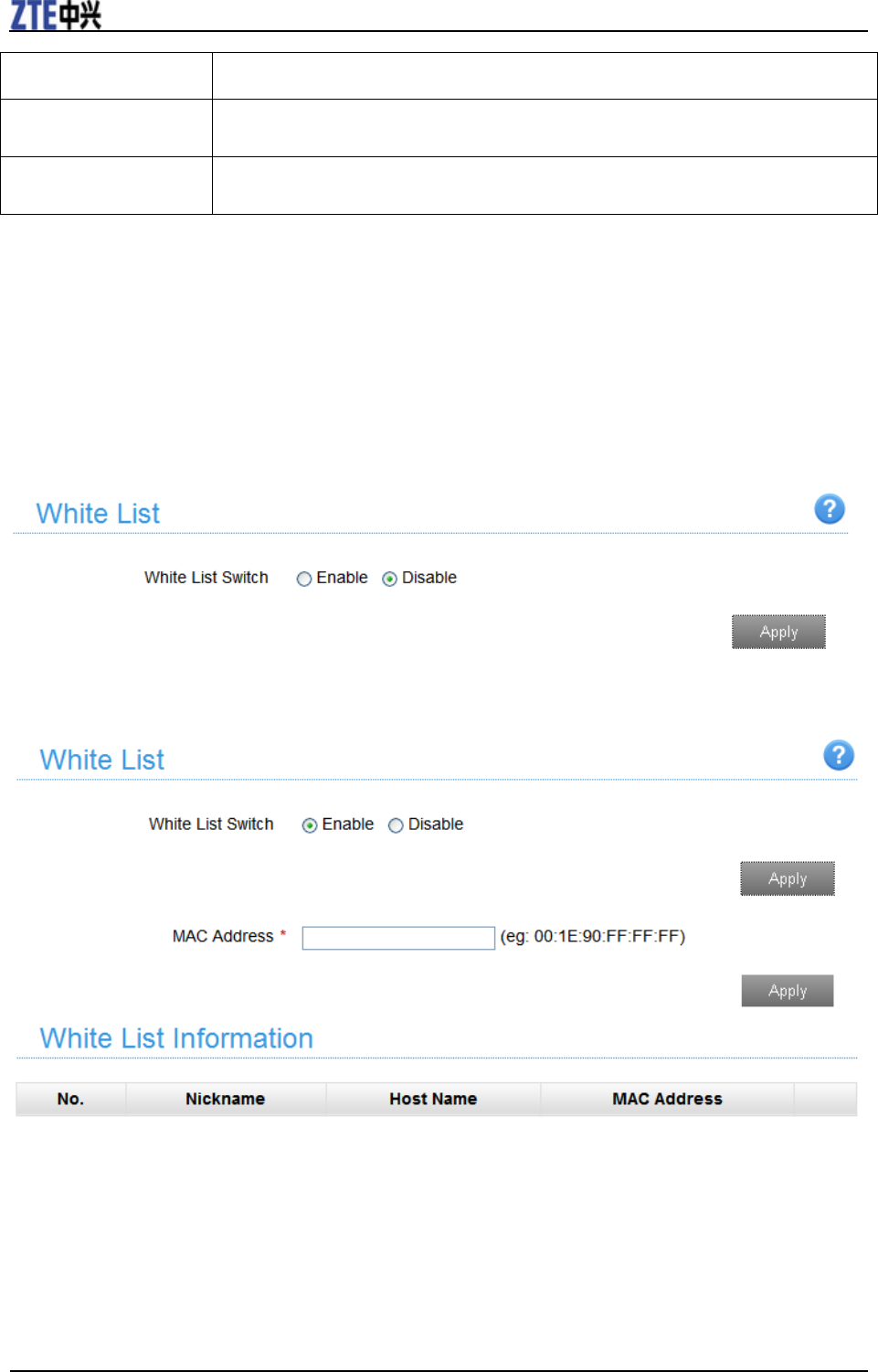

White List
A white list is a list of Wi-Fi devices that are approved to connect to this Wi-Fi hotspot. Select Settings >
Wi-Fi Settings > White List, the White List configuration is shown in the following figure:
If you select Enable, the white list settings will appear as shown below:
MAC Address: Set the MAC address that are approved to connect to this Wi-Fi hotspot
Click Apply to confirm your configuration.
WPS
Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure:
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 15
PIN：Enter the client PIN.
PBC：
1.1. Select the PBC mode in the client WPS UI.
2. Select PBC mode in the WPS page of the device and then click Apply.
3. Select on the device screen and press the OK button to active your device’s WPS.
4. Please press the "next" button on the Client WPS UI. After a few seconds the client can access
the WLAN, and the result will be shown in the Client WPS UI.
Device Settings
Account Management
Select Settings > Device Settings > Account Management, and the administrator settings
information is shown in the following figure:
You can change the administrator’s password. Click Apply to confirm your configuration.
SIM PIN Management
Select Settings > Device Settings > SIM PIN Management and the PIN management is shown in the
following figure:
ZTE Z288L User Manual
16 Confidential and Proprietary Information of ZTE CORPORATION
• PIN Status: Shows the current PIN status and allows you to select PIN status.
• Current PIN: Type the PIN code.
If you select Change PIN, the modification parameters are shown in the following figure:
Type the old PIN code, and then type twice the new PIN code. Click Apply to confirm your
configuration.
NOTES:
• Three times consecutive wrong PIN code entries will block the SIM card.
• After you changed the PIN code, you don’t need to input the PIN code again. It is required after the
device is reset.

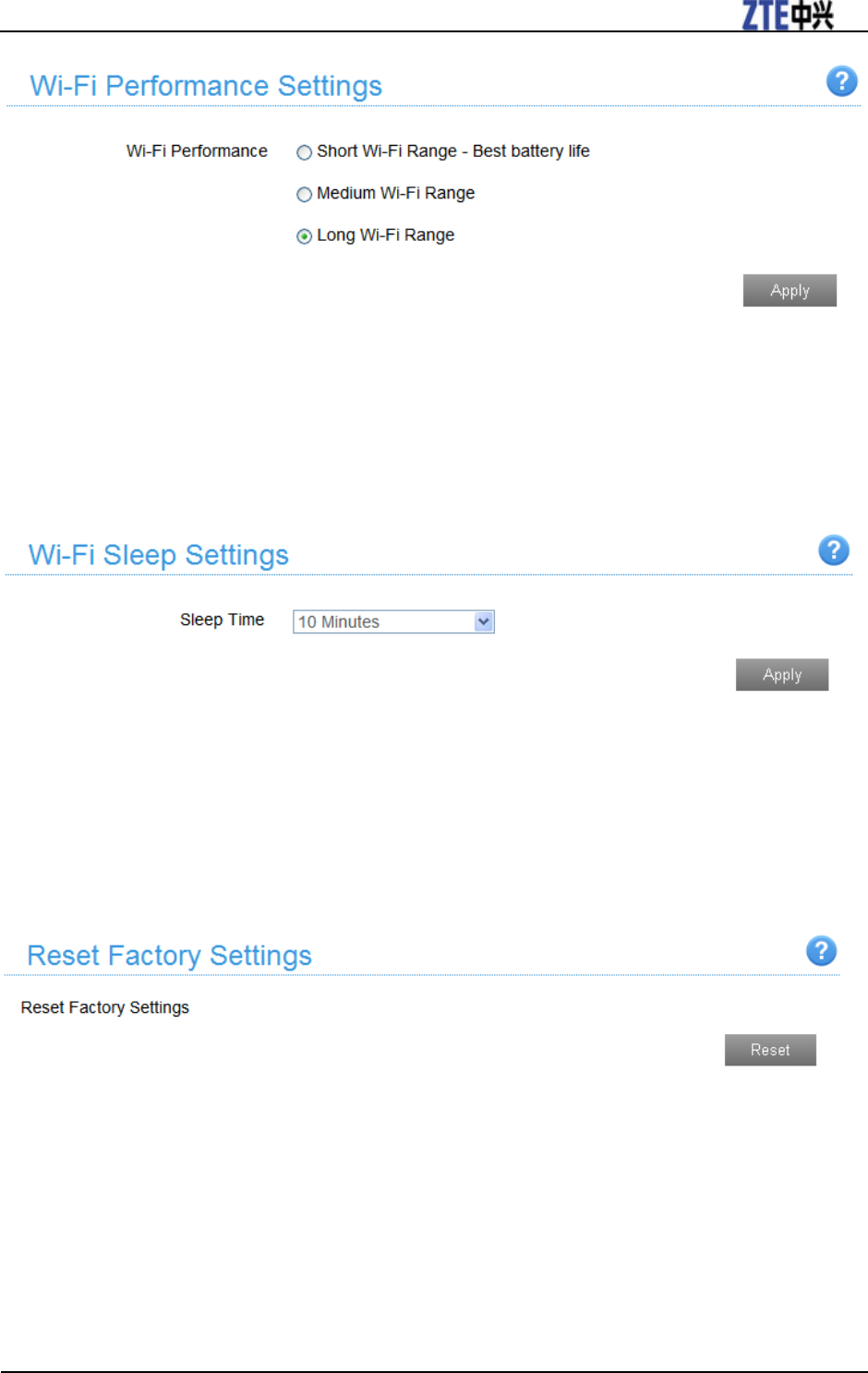

Power Save
Select Settings > Device Settings > Power Save. You can set Wi-Fi performance and Wi-Fi sleep to save
power.
Wi-Fi Performance Settings
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 17
Short Wi-Fi Range: Increases battery life.
Medium Wi-Fi Range: Intermediates battery life and Wi-Fi range.
Long Wi-Fi Range: Extends coverage of mobile hotspot, which will decrease battery life.
Wi-Fi Sleep Settings
Sleep Time: Select a time from the drop-down list. When there’s no Wi-Fi connection in the specific
time, Wi-Fi will be unavailable and the system will turn to sleep mode for power-saving.
Reset
Select Settings > Device Settings > Reset, click Reset to set all the settings to their factory default values,
and then the device will restart automatically.
Firewall
You may set up firewall rules to protect your network from virus, worm and malicious activity on the
Internet.

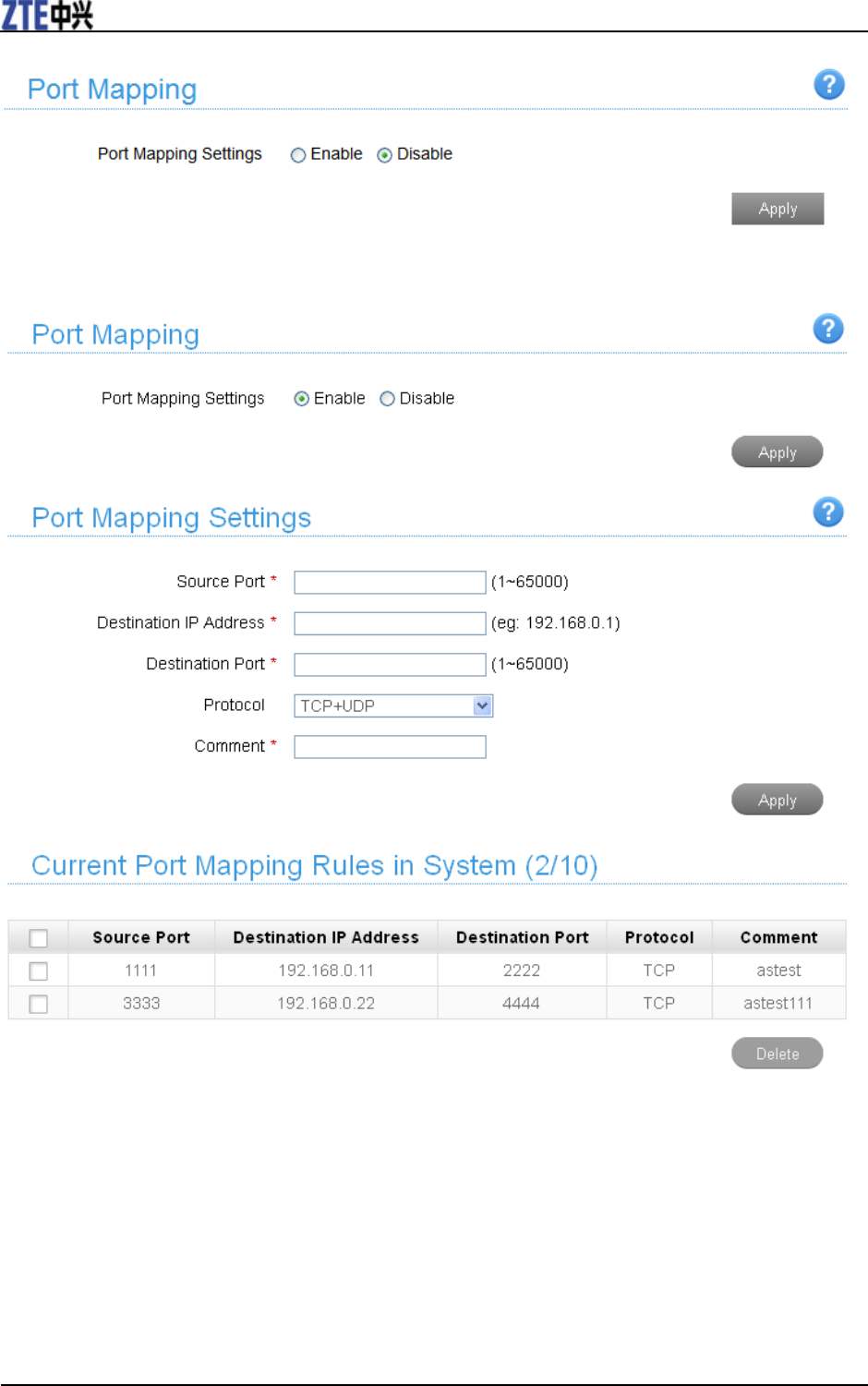

Port Mapping
You can set up Port Mapping to enable external computers to access www, FTP or other services provided
by LAN. Select Settings > Firewall > Port Mapping and the Port Mapping page is shown in the
following figure:
ZTE Z288L User Manual
18 Confidential and Proprietary Information of ZTE CORPORATION
If you select Enable, the Port Mapping Settings will appear:
• Source Port: Set the source port of the computer that provides services.
• Destination IP Address: Specify a computer located at LAN to provide services.
• Destination Port: Set the destination port of the computer that provides services.
• Protocol: Set which protocol will be applied by services.
• Comment: Type comment for the port mapping settings.
Click Apply to add a new rule.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 19
Click Delete to delete the rule which you selected.

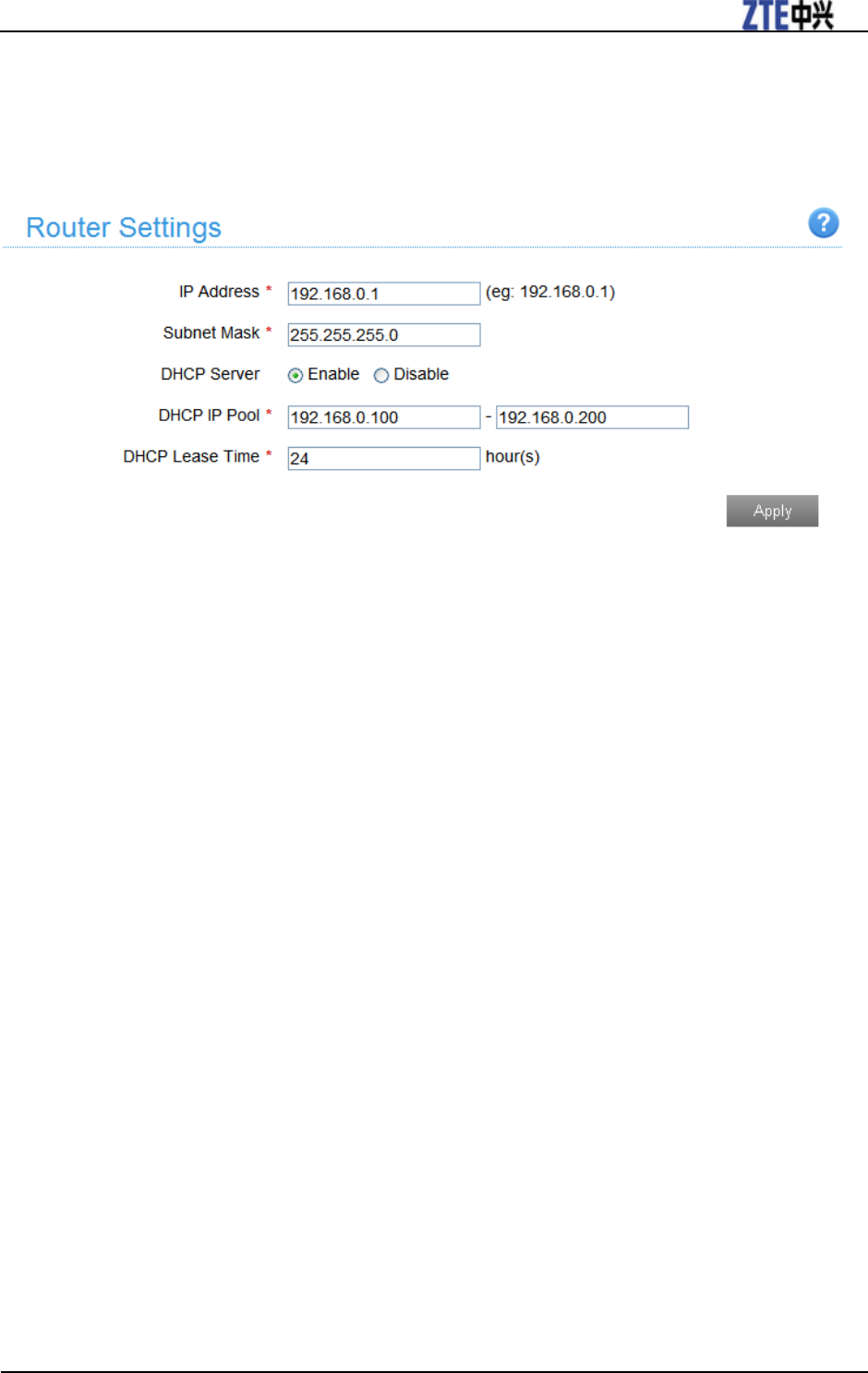

Router Settings
Select Settings > Router Settings, and the router information is shown in the following figure:
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
• DHCP Server: Enable or disable DHCP Server function.
• DHCP IP Pool: Allocate begin and end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired. The new IP address will be
relocated after the IP address is expired.
Click Apply to confirm your configuration.
Information
This function allows you to check system information.
SMS.
This function allows you to receive messages from your ISP.
Operating Messages in Inbox
You can check the messages saved in your device.

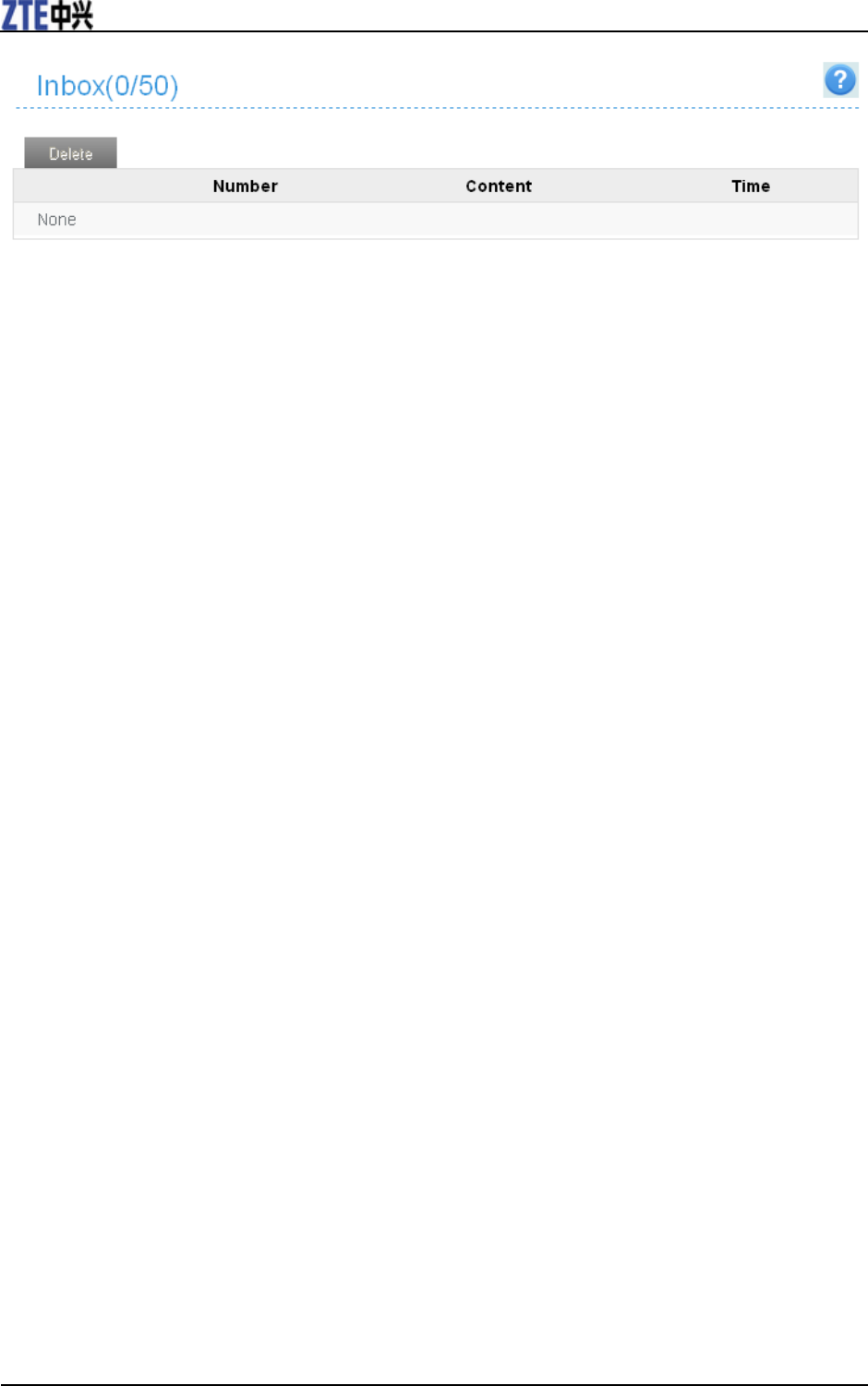

Inbox
Select SMS > Inbox to access the following figure:
ZTE Z288L User Manual
20 Confidential and Proprietary Information of ZTE CORPORATION
All the received messages saved in your device will be displayed here.
Click Delete to delete the selected messages.
Warning and Notice
To the Owner
•If inadequately shielded, some electronic devices may be affected by the electromagnetic interference
caused by the device, such as the electronic system of vehicles. Consult the manufacturers of such
devices before using the device if necessary.
•Operating the device may interfere with medical instruments such as hearing aids and pacemakers.
Always keep the device more than 20 centimeters away from such medical instruments when your
device is turned on. Turn the device off if necessary. Consult a physician or the manufacturers of
medical instruments before using the device if necessary.
•Be aware of the usage limitation when using the device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off the device if
necessary.
•Do not use electronic transmission devices in aircrafts, at petrol stations or in hospitals. Observe and
obey all warning signs, and turn off the device in these conditions.
•Do not touch the inner antenna area unless it is necessary. Otherwise the performance of the device may
be affected.
•Keep the device out of the reach of little children. The device may cause an injury if used as a toy.
•When the device is operating, do not touch the metallic parts. Failing to do so may cause burns.
Using Your Device
•Use original accessories or accessories that are authorized. Using any unauthorized accessories may
affect the performance of the device and violate the related national regulations about telecom terminals.
•Avoid using the device near or inside metallic structures or establishments that can emit electromagnetic
waves, because signal reception may be affected.
•The device is not waterproof. Keep the device dry and store it in a shady and cool place.
•Do not use the device immediately after a sudden temperature change. In such case, dew may be
generated inside and outside the device, so do not use it until it becomes dry.
•Handle the device carefully. Do not drop, bend or strike it. Otherwise the device may be damaged.
•Only qualified personnel can dismantle and repair the device.
•An operating temperature between -10°C and +60°C and a humidity between 5% and 95% are
recommended.
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 21
Using the Battery
•Do not connect the battery in a short circuit, because a short circuit may cause excessive heat and fire.
•Do not store the battery in a hot area or put it in a fire. This avoids an explosion.
•Do not disassemble or modify the battery.
•If the battery is not used for a long period, remove it from your device and store it in a cool dry place.
•Never use a damaged charger and exhausted battery.
•Return the exhausted battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
WARNING:
If the battery is broken, keep away from it. If it taints your skin, wash your skin with abundant fresh water
and ask doctor help if necessary.
Limited Warranty
•This warranty does not apply to defects or errors in the product caused by:
i. Reasonable abrasion.
ii. End users’ failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End users’ mishandling, misuse, negligence, or improper installation, disassembly, storage, servicing
or operation of the product.
iv. Modifications or repairs not provided by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, and actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products if such defects are
due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the product.
End users have no right to reject or return the product, or receive a refund for the product from ZTE
under the above-mentioned situations.
•This warranty is end users’ sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, no matter whether or not ZTE
had been advised, knew or should have known of the possibility of such damages, including, but not
limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or
any downtime cost.
Radio Frequency (RF) Energy(Only for America)
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure in usage near the body with the separation of 10
ZTE Z288L User Manual
22 Confidential and Proprietary Information of ZTE CORPORATION
mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the
while operating can be well below the maximum value. This is because the device is designed to operate
at multiple power levels so as to use only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
The exposure standard for wireless employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device
is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: SRQ-Z288L.
For this device, the highest reported SAR value for near the body is 1.41 W/kg.
While there may be differences between the SAR levels of various devices and at various positions, they
all meet the government requirement.
SAR compliance for body operation is based on a separation distance of 10 mm between the unit and the
human body. Carry this device, at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level.
FCC Compliance (Only for America)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Disposal of Your Old Appliance
ZTE Z288L User Manual
Confidential and Proprietary Information of ZTE CORPORATION 23
When this crossed-out wheeled bin symbol is attached to a product, it
means the product is covered by the European Directive 2002/96/EC.
All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
For this product’s recycling information based on WEEE directive, please send an e-mail to
weee@zte.com.cn
Troubleshooting
Problem
Suggested Solution
Failing to establish a
connection between your
device and a client through
Wi-Fi
Ensure that the Wi-Fi function is enabled.
Refresh the network list and select the correct SSID.
Check the IP address, and ensure that your client can automatically
obtain an IP address.
Enter the correct network key (Wi-Fi password) when you connect
the client to your device.
The client connected to the
device cannot access the
Internet.
Ensure that your UIM card is available.
Change the location and find a place with good signal.
Check the setting of the WAN connection mode.
Contact your service provider and confirm your APN settings.
Failing to visit the web UI
configuration page
Enter the correct address. The default address is http://192.168.0.1 or
http://mobile.hotspot.
Use only one network adapter in your PC.
Do not use any proxy server.
About the password
Select Device Info on the LCD screen to check the default login
password or check the label on the device to get it.
If you set the Wi-Fi connection password or change the web UI
password and forgot the new one, select Device Info on the LCD
screen to check the password.
For more assistance, please:
• Send E-mail to mobile@zte.com.cn
• Visit www.ztedevice.com
• Call Service Hotline: +86–755–26779999
