User manual
1
Z819L
User Manual
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2015 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.zteusa.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
3
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
LTE is a trademark of ETSI.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other countries.
Used with permission.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
4
Other trademarks and trade names are the property of their
respective owners.
Version No.: R1.0
Edition Time: March 18, 2015
Manual No. : 079584507117
5
Contents
Getting Started ....................................................... 12
Getting to Know Your Phone .............................................. 12
Knowing the Keys .............................................................. 14

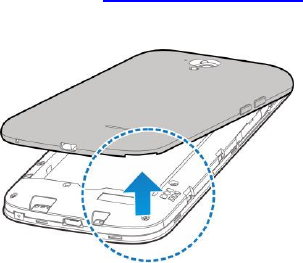

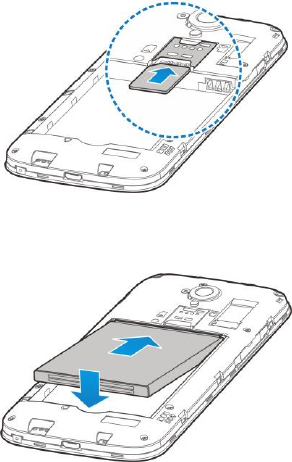

Installing the micro-UIM Card and Battery ......................... 14
Installing the microSDHC™ Card (Not Included) ............... 17
Charging the Battery .......................................................... 18
Extending the Battery Life .................................................. 20
Powering On/Off ................................................................ 20
Setting Up for the First Time .............................................. 21
Locking/Unlocking the Screen and Keys ........................... 21

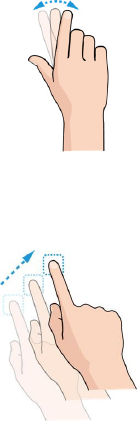

Using the Touch Screen ..................................................... 22
Getting to Know the Home Screen .................................... 25
Personalizing ......................................................... 28
Changing the System Language ........................................ 28
Setting the Date and Time ................................................. 28
Changing Ringtone and Notification Sound ....................... 29
Turning On/Off System Sounds ......................................... 29
Adjusting Volume ............................................................... 29
Switching to Silent Mode ................................................... 30
Applying New Wallpapers .................................................. 31
Changing Screen Brightness ............................................. 31
Setting the Theme ............................................................. 32
Setting the Home Screen Transition Effect ........................ 32
6
Protecting Your Phone With Screen Locks ........................ 32
Protecting Your Phone With Encryption ............................. 33
Protecting Your Phone With Screen Pinning ..................... 35
Knowing the Basics ............................................... 37
Monitoring the Phone Status ............................................. 37
Managing Notifications ...................................................... 37
Managing Shortcuts and Widgets ...................................... 40
Organizing With Folders .................................................... 42
Rearranging the Primary Shortcuts ................................... 42
Entering Text...................................................................... 43
Editing Text ........................................................................ 47
Opening and Switching Apps ............................................. 48
Uninstalling or Disabling an App ........................................ 49
Connecting to Networks and Devices .................. 50
Connecting to Mobile Networks ......................................... 50
Connecting to Wi-Fi® ......................................................... 51
Connecting to Bluetooth® Devices ..................................... 55
Connecting to Your Computer via USB.............................. 57
Connecting to Virtual Private Networks ............................. 60
Phone Calls ............................................................ 62
Placing and Ending Calls ................................................... 62
Answering or Rejecting Calls ............................................. 63
Working With the Call History ............................................ 64
Calling Your Contacts ........................................................ 65
7
Checking Voicemail ........................................................... 65
Using Options During a Call............................................... 66
Managing Multi-party Calls ................................................ 67
Adjusting Your Call Settings ............................................... 68
Contacts ................................................................. 76
Checking Contact Details ................................................... 76
Adding a New Contact ....................................................... 76
Setting Up Your Own Profile .............................................. 77
Importing, Exporting, and Sharing Contacts ...................... 77
Working With Favorite Contacts......................................... 80
Working With Groups ......................................................... 81
Searching for a Contact ..................................................... 82
Editing Contacts ................................................................. 83
Accounts ................................................................ 86
Adding or Removing Accounts ........................................... 86
Configuring Account Sync .................................................. 87
Email ....................................................................... 89
Setting Up the First Email Account .................................... 89
Checking Your Emails ........................................................ 89
Responding to an Email ..................................................... 90
Writing and Sending an Email ............................................ 91
Adding and Editing Email Accounts ................................... 92
Changing General Email Settings ...................................... 93
Messaging .............................................................. 94
8
Opening the Messaging Screen ........................................ 94
Sending a Message ........................................................... 94
Replying to a Message ...................................................... 95
Forwarding a Message ...................................................... 96
Copying a Message ........................................................... 96
Changing Message Settings .............................................. 97
Calendar ................................................................. 98
Viewing Your Calendars and Events .................................. 98
Creating an Event .............................................................. 99
Editing or Deleting an Event ............................................ 100
Changing Calendar Settings ............................................ 100
Browser ................................................................ 101
Opening the Browser ....................................................... 101
Using Multiple Browser Tabs ........................................... 102
Downloading Files ........................................................... 103
Changing Browser Settings ............................................. 103
Camera .................................................................. 104
Capturing a Photo ........................................................... 104
Recording a Video ........................................................... 107
Customizing Camera and Video Settings ........................ 108
Gallery ................................................................... 110
Opening Gallery .............................................................. 110
Working With Albums ...................................................... 110
Working With Pictures ......................................................111
9
Retouching Your Pictures ................................................ 113
Making a GIF Picture or a Collage ................................... 114
Playing Videos ................................................................. 115
Music .................................................................... 116
Copying Music Files to Your Phone ................................. 116
Viewing Your Music Library .............................................. 117
Setting a Song as the Default Ringtone ........................... 118
Playing Music ................................................................... 118
Managing Playlists ........................................................... 120
Video Player ......................................................... 121
Opening the Video Library ............................................... 121
Playing and Controlling Videos ........................................ 121
Managing Video Files ...................................................... 122
More Apps ............................................................ 124
Calculator ........................................................................ 124
Clock ................................................................................ 124
Dolby ............................................................................... 125
Downloads ....................................................................... 125
File Manager .................................................................... 126
Mi-Moment ....................................................................... 126
Sound Recorder ............................................................... 127
Task Manager .................................................................. 128
Voice Dialer...................................................................... 128
Google Apps .................................................................... 129
10
Google Play™ Store ............................................ 131
Browsing and Searching for Apps .................................... 131
Downloading and Installing Apps ..................................... 131
Creating a Google Wallet™ Account ............................... 132
Managing Your Downloads .............................................. 133
Settings ................................................................. 134
General Settings .............................................................. 134
Wireless and Networks .................................................... 137
Device ............................................................................. 138
Personal .......................................................................... 140
Accounts .......................................................................... 143
System ............................................................................ 144
Upgrading the Phone Software ........................... 146
Troubleshooting ................................................... 147
For Your Safety..................................................... 152
General Safety ................................................................ 152
Radio Frequency (RF) Energy ......................................... 153
FCC Regulations ............................................................. 155
Hearing Aid Compatibility (HAC) regulations for Mobile
phones ............................................................................. 156
Turning on the HAC Setting ............................................. 158
Distraction ....................................................................... 159
Product Handling ............................................................. 160
Electrical Safety ............................................................... 164
12
Getting Started
Getting to Know Your Phone
Earpiece
Proximity & Light
Sensor
Volume Key
Back Key
Home Key
Touch Screen
Front Camera
Indicator Light
Recent Apps Key
13
Back Cover
Speaker
Charging/
micro-USB Jack
Headset Jack
Back Camera
Flash
Power Key
14
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off airplane mode,
restart, or power off.
Press to turn off or on the screen display.
Home Key
Touch to return to the home screen from any
application or screen.
Touch and hold to open Google Search.
Back Key
Touch to go to the previous screen.
Recent Apps Key
Touch to see recently used applications.
Volume Key
Press or hold either end of the key to turn the
volume up or down.
Press when no media or phone call is in session to
manage interruption settings.
Installing the micro-UIM Card and
Battery
Power off your phone and remove the battery before installing or
removing the micro-SIM card. And power off your phone before
removing or replacing the battery.
WARNING!
To avoid damage to the phone, do not use any other kind of SIM
15
cards, or any non-standard micro-UIM card cut from a SIM card.
You can get a standard micro-UIM card from your service
provider.
1. Insert your fingernail into the slot at the bottom right of the
back cover and lift it up gently.
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card holder.
16
3. Insert the battery by aligning the metal contacts on the battery
with the metal contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
4. Align the back cover with the back of the phone and press the
cover back into place. Ensure that all the tabs are secure and
there are no gaps around the cover.
18
NOTE:
Some applications may require a microSDHC card to work
normally or may store certain data on it. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it randomly.
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING!
19
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging/micro-USB jack. Ensure
that the adapter is inserted with the correct orientation. Do not
use force.
2. Connect the charger to a standard AC power outlet. If the
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE:
20
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 20 minutes. Contact the
customer service if you still cannot power on the phone after
prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi
usage and GPS functionality can drain your battery. You can
follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Wi-Fi, Bluetooth and auto-sync off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location, and each query drains your battery.
Powering On/Off
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu and touch Power off.
21
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Backup and Reset), you need to
do some settings before using it.
Touch the language field to select the language and touch Start.
Then follow the prompts to set up Wi-Fi, Google account, Google
location and other options.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone to sleep mode) when not in use and to turn the screen
back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE:
To save battery power, the phone automatically turns off the
screen after a certain period of time when you leave it idle. You
will still be able to receive messages and calls while the phone
screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen.
22
- or -
On the blank area of the screen, swipe left from the right edge
to open the Camera app.
- or -
Touch a notification twice consecutively to open the related
app.
NOTE:
If you have set an unlock pattern, a PIN or a password for your
phone (see Protecting Your Phone With Screen Locks), swipe up
on the screen and draw the pattern or enter the PIN or password
to unlock your phone.
Using the Touch Screen
Your phone’s touch screen enables you to control actions
through a variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
items on the screen such as the application and settings
icons, or press the onscreen buttons, simply touch them with
your finger.
23
Touch and Hold
To open the available options for an item (for example, a
message or link in a web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
24
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
25
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
NOTE:
The auto-rotate feature needs to be enabled for the screen
orientation to automatically change. Touch the Home Key >
> Settings > Display > Auto-rotate screen and select
Rotate the contents of the screen.
You can also access the screen rotation control by sliding
down the status bar and touch Auto Rotate.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding shortcuts, folders, widgets, and more.
26
Extended Home Screen Panels
Your home screen is extendable, providing more space for
shortcuts, widgets, and more. Simply swipe left or right on the
home screen to see the extended panels. You can add or remove
home screen panels, or adjust their order.
To add a new home screen panel:
1. Touch the Home Key > , or touch and hold an empty area
of the home screen and select Widgets.
Status bar
Primary shortcuts
Shortcut
Folder
Google Search
27
2. Touch and hold an application icon or a widget and drag it to
the right edge of the screen to create a new home screen
panel and put the icon or widget on it.
To delete a home screen panel:
1. Touch and hold an empty area of the home screen and slide
left or right to view the home screen thumbnails.
2. Touch on the top right corner of a thumbnail.
3. Touch OK. The items on the panel will also be removed.
NOTE:
When there are only three home screen panels, you cannot
delete any of them.
To adjust the order of a home screen panel:
1. Touch and hold an empty area of the home screen and slide
left or right to view the home screen thumbnails.
2. Touch and hold a thumbnail and drag it left or right to the
place you need.
NOTE:
Touch at the bottom of a home screen thumbnail to set it as
the main home screen.
28
Personalizing
Changing the System Language
1. Touch the Home Key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > > Settings > Date & time.
2. Set the date, time, time zone, and date/time format.
To adjust the date and time automatically, check
Automatic date & time.
To adjust the date and time manually, uncheck
Automatic date & time and touch Set date / Set time to
change the date and time.
To adjust the time zone automatically, check Automatic
time zone.
To adjust the time zone manually, uncheck Automatic
time zone and touch Select time zone to set the correct
time zone.
To adjust the format of time and date, touch Use 24-hour
format or Choose date format.
29
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound.
1. Touch the Home Key > > Settings > Sound &
notifications.
2. Touch Phone ringtone or Default notification ringtone.
3. Select the ringtone you want to use and touch OK.
NOTE:
See Set a Ringtone for a Contact for how to assign a special
ringtone to an individual contact.
Turning On/Off System Sounds
1. Touch the Home Key > > Settings > Sound &
notifications > Other sounds.
2. Touch Dial pad tones, Screen locking sounds, Touch
sounds, or Vibrate on touch, or set the emergency tone.
Adjusting Volume
1. Touch the Home Key > > Settings > Sound &
notifications.
2. Drag the sliders below Media volume, Alarm volume, Ring
volume, and Notification volume to adjust the volume for
30
each type of audio..
NOTE:
You can adjust the media volume when a media application is in
use by pressing the Volume Key. If no media application is
active, press the Volume Key to adjust ringtone volume (or the
earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Press the Volume Key when no media application is active to
show the ringtone sound management window. Touch ALL
and drag the slider to the left to switch the phone to silent
mode with vibration. Touch NONE to switch the phone to
silent mode.
Swipe down from the top of the screen to open the notification
panel and drag the panel downwards. Touch Sound when it
is highlighted to switch the phone to silent mode.
NOTE:
The Sound button is not highlighted when the phone is in
silent mode or silent with vibration mode.
Touch the Home Key > > Settings > Sound &
notifications > Notification mode and select Vibrate or
Mute to switch to silent mode with or without vibration.
Touch the Home Key > > Settings > Sound &
31
notifications > Interruptions > When calls and
notifications arrive, and touch Don’t interrupt to switch the
phone to silent mode.
NOTE:
In addition to silent mode and vibration, you can also allow
priority apps to send out notifications when you switch the phone
to priority interruption mode.
Applying New Wallpapers
You can set the wallpaper for the home screen and lock screen.
1. Touch and hold an empty place on the home screen and then
touch Wallpaper.
2. Slide left or right on the wallpaper panel to select a wallpaper,
or touch GALLERY or LIVE WALLPAPER to choose the
image or animation you want to use as the wallpaper. Some
cropping may be needed for Gallery and Photos images.
NOTE:
In addition, you can touch the Home Key > > Settings >
Display > Wallpaper to pick an image from Gallery, Photos or
Wallpapers, or an animation from Live Wallpapers.
Changing Screen Brightness
1. Touch the Home Key > > Settings > Display >
Brightness level.
2. Drag the slider to manually adjust the screen brightness.
32
NOTE:
Your phone can automatically adjust the screen brightness for
available light. Touch Adaptive brightness in the Display
settings screen to turn the feature on or off.
Setting the Theme
1. Touch and hold an empty place on the home screen.
2. In the window that appears at the bottom, touch Theme.
3. Select a theme you like.
Setting the Home Screen Transition
Effect
1. Touch and hold an empty place on the home screen.
2. In the window that appears at the bottom, touch Effect.
3. Pick an effect and the phone will demonstrate how it works.
Touch other effects until you find the favourite one.
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is
enabled, you need to touch and hold on the screen, draw a
pattern or enter a numeric PIN or password to unlock the phone’s
screen and keys.
33
1. Touch the Home Key > > Settings > Security > Screen
lock.
2. Touch None, Long press, Pattern, PIN or Password.
Touch None to disable the screen lock.
Touch Long press to enable screen lock and allow
unlock with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding on the blank area of the
screen.
Touch Pattern to create a pattern you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password that you must enter to unlock your screen.
NOTE:
If you forget the pattern you set, you can also upgrade the phone
software. See Upgrading the Phone Software.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or a
password each time you power on your phone.
WARNING!
Encryption is irreversible. The only way to revert to an
unencrypted phone is to perform a factory data reset, which
erases all your data.
Encryption provides additional protection in case your phone is
34
stolen, and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
● Set a lock screen PIN or password.
● Charge the battery.
● Keep the phone connected to the charger.
● Schedule an hour or more for the encryption process: you
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch the Home Key > > Settings > Security >
Encrypt phone.
2. Read the information about encryption carefully.
The ENCRYPT PHONE button is dimmed if your battery is
not charged or your phone's not plugged in.
If you change your mind about encrypting your phone, touch
the Back Key.
WARNING!
If you interrupt the encryption process, you will lose data.
3. Touch ENCRYPT PHONE.
4. Enter your lock screen PIN or password and touch NEXT.
5. Touch ENCRYPT PHONE again.
The encryption process starts. Encryption can take an hour or
more, during which time your phone may restart several times.
35
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently, you must enter your PIN or password each time
you power on your phone in order to decrypt it.
Protecting Your Phone With Screen
Pinning
You can use the screen pinning feature to keep an app in view,
so others cannot switch to other apps or access your personal
information.
Turn On Screen Pinning
1. Touch the Home Key > > Settings > Security > Screen
pinning.
2. Touch the On/Off switch.
Pin a Screen
1. Ensure that screen pinning is turned on.
2. Open the app you want to keep in view.
3. Touch the Recent Apps Key.
4. If there are many app tabs, swipe up to find on the
front-most tab.
5. Touch .
6. If you have set a screen lock, check Ask for unlock pattern /
PIN / password before unpinning. You will need to draw the
36
pattern or enter the PIN/password to unpin the screen.
7. Touch START.
Unpin the Screen
To unpin the screen and return to normal use, touch and hold the
Recent Apps Key.
If you have checked Ask for unlock pattern / PIN / password
before unpinning when pinning the screen, swipe up on the lock
screen and draw the pattern or enter the PIN/password.
37
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
3G connected
No signal
4G LTE connected
Signal strength
Silent mode
Airplane mode
Vibration mode
Bluetooth on
Priority mode
Connected to a Wi-Fi® network
Battery low
Wi-Fi in use
Battery full
Speaker on
/
Battery charging
Phone microphone off
Alarm set
GPS on
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
38
New SMS
Upcoming event
New MMS
New Wi-Fi network detected
New message(s)
from the Email app
Downloading data
/
New message(s)
from the Gmail app
Sending data
Missed call
Updates available
Call in progress
USB connected
/
Song playing
Wired headset connected
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events, such as when
you are playing music. You can open the notification panel to
view the details of notifications.
To open the notification panel, swipe your finger down on the
home screen or from the top of the screen.
To close the notification panel, swipe your finger up on the
screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
39
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
Slide down with one finger to expand certain notifications.
You can also swipe two fingers vertically or pinch-zoom to
expand or collapse certain notifications.
To remove a notification, swipe it left or right.
To remove all notifications, touch below all the
notifications.
To manage notifications you have received, touch and hold a
notification to identify the application that created it. You can
then touch and select Block to hide future notifications
from this app, or touch Priority to show them in priority mode.
NOTE:
If you block notifications for an app, you may miss its important
alerts and updates. The notifications of some apps cannot be
blocked.
Use Quick Settings
The Quick Settings make it convenient to view or change the
most common settings for your phone.
Open the notification panel and drag the panel downwards to find
the following Quick Settings on the screen.
Sync: Touch to turn on or off auto-sync of accounts data.
40
Sound: Touch to switch between mute and sound.
Vibrate: Touch to turn on or off vibration.
Battery: Touch to turn on or off power saving mode.
GPS: Touch to turn on or off the GPS function.
Airplane: Touch to turn on or off airplane mode.
Flashlight: Touch to turn on or off the flash.
Wi-Fi: Touch to turn on or off Wi-Fi.
Auto Rotate: Touch to turn on or off the auto-rotate screen
feature.
Data: Touch to enable or disable data access over the mobile
network.
Bluetooth: Touch to turn on or off Bluetooth.
Brightness: Uncheck Auto and drag the brightness slider to
adjust the screen brightness.
NOTE:
In the Quick Settings screen, touch at the top to get to the
Settings menu; touch the battery icon to open the battery
settings screen; touch to manage users or switch between
them; touch EDIT at the bottom to change control switch position.
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch the Home Key > .
- or -
41
To add widgets, touch and hold an empty area of the home
screen and select Widgets.
2. Slide left or right to browse the available applications or
widgets.
3. Touch and hold a widget or an application icon and drag it to
a home screen panel.
NOTE:
While holding the item, you can drag it to the right edge of the
screen to create a new home screen panel and put the item on it.
Move Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to (Remove) to remove it.
NOTE:
When there are more than three home screen panels, empty
panels are automatically deleted.
Adjust Widget Size
1. Touch and hold a widget on the home screen and then
release it.
2. An outline appears around the widget. Drag the outline to
42
resize the widget.
NOTE:
Not all widgets can be resized.
Organizing With Folders
You can create folders on the home screen and add several
shortcuts to a folder.
You can move or remove folders the same way as moving or
removing shortcuts.
1. Touch and hold the shortcut on the home screen you want to
add into a folder until (Folder) appears.
2. Drag the shortcut to (Folder) and release it. A new folder
will be created and the shortcut is added into the folder.
3. To add more shortcuts into the folder, touch and hold each
shortcut and drag it over the folder before releasing it.
NOTES:
Touch the folder and then touch the name field to rename the
folder.
Drag the folder to (Extract) to delete the folder and
replace its shortcuts on the home screen.
Rearranging the Primary Shortcuts
The home screen includes a customizable primary shortcuts area
at the bottom visible from all home screens. You can keep at
43
most four items in the primary shortcuts area. Drag shortcuts or
folders in or out of the area to rearrange the area.
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. Touch the Back Key to hide the onscreen
keyboard. You can also enter text by speaking with the Google
voice typing feature.
Change Input Methods
1. When you use the onscreen keyboard to enter text, the icon
appears on the status bar.
2. Open the notification panel and touch Change keyboard.
3. Select the input method you need.
NOTE:
The icon appears only when more than one input method is
installed.
Google Keyboard
The Google Keyboard provides a layout similar to a desktop
computer keyboard. When screen auto-rotation is enabled, turn
44
the phone sideways and the keyboard will change from portrait to
landscape. The landscape keyboard is not supported in all
applications.
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter È, touch and hold and
the available accented letters and number 3 appear. Then
slide to choose È.
As you enter a word, candidates appear above the keyboard.
Touch to select the correct one; touch and hold to see more
possible options.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
case you are using: for lowercase, for uppercase,
and when locked in uppercase.
45
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more.
Touch to enter miniature icons, such as expressions,
horoscopes, and animals.
Touch to use Google voice typing.
Touch and hold to change the input languages or set up
the Google keyboard.
Gesture Typing
The Google keyboard supports the gesture typing feature. You
use this feature to input a word by sliding through the letters.
To enable and use gesture typing:
1. Touch and hold on the Google keyboard and then touch
Google Keyboard Settings.
2. Touch Gesture Typing and then touch Enable gesture
typing if this feature is turned off.
3. Move your finger from letter to letter on the keyboard to trace
a word without lifting the finger until you reach the end of the
word.
46
NOTES:
Touch when you want to. If you want to enter a single letter,
go ahead and touch.
Lift your finger at the end of the word. A space is added
automatically when you begin to input the next word.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text.
1. Flick down the status bar when entering text and touch
Change keyboard, and then select Google voice typing.
Or touch to access the voice typing feature when you are
using the Google keyboard.
Start of
the word
End of the
word
47
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
NOTE:
Say "comma," "period," "question mark," "exclamation mark," or
"exclamation point" to enter punctuation.
Input Method Settings
Choose the input method settings by touching > Settings >
Language & input from the home screen.
In the Keyboard & input methods section, you can set the
current input method and choose the settings for input methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut / or Copy / button to cut or
copy the text to the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch , or PASTE.
48
Opening and Switching Apps
Open an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch the Recent Apps Key. The apps you’ve used recently
are displayed in a series of tabs. Slide up and down to see all
the tabs.
2. Touch a tab to open that app.
NOTE:
You can swipe a tab sideways to remove it from the screen, or
touch Clear all to remove all tabs.
49
Uninstalling or Disabling an App
1. Touch the Home Key > to open the application list
screen.
2. Touch and hold an application icon and drag the icon to
(Uninstall) or (Disable) at the top of the screen.
3. Touch on an application icon to uninstall the application.
Touch on an application icon to disable the application.
4. Touch OK to uninstall or disable the app.
NOTES:
Pre-installed apps cannot be uninstalled.
To find the disabled applications, touch the Home Key >
> Settings > Apps > DISABLED. You can then touch an
application and touch ENABLE to restore it.
50
Connecting to Networks and
Devices
Connecting to Mobile Networks
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home Key > > Settings > Mobile networks.
2. Touch the Mobile Data switch to enable or disable mobile
data use.
To get data services when roaming:
1. Touch the Home Key > > Settings > Mobile networks.
2. Touch the Data roaming switch if it is turned off.
NOTE:
Data roaming may incur significant roaming charges.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > > Settings > Mobile networks >
Access Point Names.
2. Touch > New APN.
51
3. Touch each item to enter the information you get from your
service provider.
4. Touch > Save to complete.
NOTE:
To set the APN to default settings, touch > Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
CONNECT.
NOTE:
Your phone automatically connects to previously used Wi-Fi
networks when they are in range.
Get Notified of Open Networks
1. Touch the Home Key > > Settings > Wi-Fi.
52
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced.
4. Slide the Network notification switch.
When Wi-Fi is on, you receive notifications in the status bar when
your phone detects an open Wi-Fi network. Uncheck the option to
turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Add network.
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch SAVE.
Connect to a WPS Network
Wi-Fi Protected Setup (WPS) is a feature that makes it easy to
add your phone to the access points which support WPS.
You can use one of the following methods to connect your phone
to a wireless network using WPS.
53
Method one: WPS button (Recommended)
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced > WPS Push Button.
4. Press the WPS button on the wireless router and the access
point will recognize your phone and add it to the network.
Method two: PIN number
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced > WPS Pin Entry.
4. The WPS PIN number displays on the screen. Enter the PIN
number into the access point's setup page.
After entering the PIN number, your phone automatically finds
the access point and configures the connection.
NOTE:
For detailed information about the WPS feature of the access
point, please refer to its user documents.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
54
longer use.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch the Wi-Fi network name and then touch FORGET.
Adjust Advanced Wi-Fi Settings
1. Touch the Home Key > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
Avoid poor connections: Only use Wi-Fi networks that
have good Internet connection.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
WPS Push Button: Connect to a WPS network via the
push button method.
WPS Pin Entry: Connect to a WPS network via the
phone PIN method.
MAC address: Check the MAC address.
55
IP address: Check the phone’s IP address.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters (32.8
feet). The Bluetooth devices must be paired before the
communication is performed.
Turn Bluetooth On/Off
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On or Off position.
When Bluetooth is on, the icon will appear in the status bar.
Change the Device Name
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On position if Bluetooth is
off.
3. Touch > Rename this device.
4. Edit the name and touch RENAME.
Pair With Another Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On position if Bluetooth is
off.
56
Your phone automatically scans for and displays the IDs of
all available Bluetooth devices in range. You could touch
> Refresh if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch PAIR. Alternately, enter a
Bluetooth passkey and touch PAIR.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as
headsets and hands-free car kit. You can try entering 0000 or
1234 (the most common passkeys), or refer to the documents for
that device.
Forget (Unpair With) a Bluetooth Device
You can make your phone forget its pairing connection with
another Bluetooth device. To connect to the device again, you
need to search it and enter or confirm a passkey again.
1. Touch the Home Key > > Settings > Bluetooth and
ensure that Bluetooth is turned on.
2. In the list of paired devices, touch the icon beside the
Bluetooth device you want to forget.
3. Touch FORGET.
57
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
2. Flick down the status bar and touch .
3. Touch ACCEPT to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC card. You can access them with the File Manager
app.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in the phone storage or on a removable
microSDHC card.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
58
2. Open the notification panel and touch .
3. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Install the driver needed for some USB
connection modes (such as MTP). You only need to install
the driver on the same PC once.
NOTE:
You can also install the driver on PC by running the
executable file in the new CD-ROM drive.
Media device (MTP): Transfer files on Windows® or
Mac®.
NOTE:
For Windows XP, please install the drivers and Media
Player 11 (or later version) when you use Media device
(MTP) for the first time.
Camera (PTP): Transfer photos using camera software.
NOTE:
To make your phone connect to the computer automatically using
the selected connection type, check Don’t ask me again.
Connect With Windows Media® Player
You can sync music, picture, and video files on your phone and
the computer installed with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
59
2. Open Windows Media Player and synchronize music, picture,
and video files.
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you must unmount it first.
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Unmount SD card > OK.
3. The icon appears in the status bar and you can now
safely remove the microSDHC card from the phone.
NOTE:
If you unmount the microSDHC card, some apps that you are
using will stop and may be unavailable until you remount the
microSDHC card.
Erase the microSDHC Card
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Erase external SD card > ERASE
SD CARD > ERASE EVERYTHING.
CAUTION:
60
The formatting procedure erases all the data on the microSDHC
card, after which the files CANNOT be retrieved.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch at the top right and fill in the information
provided by your network administrator.
3. Touch SAVE.
The VPN is added to the list on the VPN screen.
NOTE:
You must set a lock screen pattern, PIN or password before
using VPN.
Connect to a VPN
1. Touch the Home Key > > Settings > More > VPN.
61
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch CONNECT.
Modify a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch and hold the VPN that you want to modify.
3. Touch Edit profile and edit the VPN settings you want.
4. Touch SAVE.
62
Phone Calls
You can place calls from the Phone app, the Contacts app, or
other apps or widgets that display contact information. Wherever
you see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home Key > .
2. Touch and enter the phone number or the contact name
with the dialpad. Touch to delete incorrect digits.
NOTE:
As you enter the phone number or the contact name, your
phone searches for matching information in your contacts. If
you see the number and contact you want to call, touch it to
place the call immediately.
3. Touch below the keypad to dial.
You can also touch the search box at the top of the Phone app
screen and enter the phone number or contact name you want to
call. Touch the matching contact or Call [number] to place the
call.
NOTE:
To make an international call, touch and hold the 0 key to enter
the plus (+) symbol. Next, enter the country code, followed by the
city/area code and then the phone number.
63
NOTE:
To redial the last call you made, just touch the Home Key >
> > and touch again.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the incoming call screen opens,
displaying the caller ID or the information about the caller that
you've entered in the Contacts app. You can answer or reject the
call, or reject it with a text message.
Answer a Call
When you receive a phone call, slide down the green bar to
answer the call.
NOTE:
To silence the ringer before answering the call, press either end
of the Volume Key.
Reject a Call
When you receive a phone call, slide up the red bar to reject the
call.
You can also slide up to reject the call and select a preset
text message or edit one to send to the caller.
NOTE:
64
To edit the preset text response from within the Phone app, touch
in the top search field and select Settings > General
settings > Quick responses.
Working With the Call History
The call history is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your contacts.
To open the call history, you can touch the Home Key > >
(in the top search field) > Call History.
Place a Call From the Call History
1. Open the call history.
2. Touch beside a number to call back.
NOTE:
You can touch MISSED, OUTGOING, or INCOMING to filter the
records by call type.
Add a Number From Call History as a Contact
1. Open the call history.
2. Touch the contact icon in front of a number.
3. Touch on the contact information tab.
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch at the top right
corner.
65
Take Other Actions on a Call History Entry
Open the call history and touch a number to view more call
information.
Touch to delete the entry.
While viewing the call details, touch > Edit number before
call to edit the number in the dialer before calling it.
Touch the contact icon in front of the entry to open the contact
information tab from the bottom, where you can send a
message, call back, edit the contact, add the contact to
favorites, or add the number to contacts.
NOTE:
You can touch > Clear call log in the call history screen to
delete all history records.
Calling Your Contacts
1. Touch the Home Key > . Your favourite contacts and
frequently called contacts are displayed in the SPEED DIAL
tab.
2. Touch a contact to place the call, or touch or swipe to the
CONTACTS tab to view all your contacts and touch
beside a contact to make a call.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
66
how to check the messages they left.
1. Touch the Home Key > > .
2. Touch and hold the 1 key in the dialer. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
See Set Voicemail for how to set your voicemail service. For
detailed information, please contact the service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to view all call options.
Touch to switch to the keypad when you need to enter a
code (for example, the PIN for your voicemail or bank
account) during the call.
Touch / to mute or unmute your microphone.
Touch / to turn on or off the speaker.
Touch to make another call separately from the first call,
which is put on hold.
Touch to open the Contacts app.
Touch to open the Messaging app.
67
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold.
Touch to merge the separate calls into a single
conference call.
Touch to end the current call.
WARNING!
Because of higher volume levels, do not place the phone near
your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Touch (Hold current and answer) to answer the call.
(This puts the first caller on hold and answers the second
call.)
68
Touch (End current and answer) to answer the
second call and end the first one.
Touch to reject the second call.
Touch to reject the second call and select a preset text
message or edit one to send to the caller.
To switch between two calls:
Touch on the screen.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. Place the first call.
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Set Contact Display Options
You can set the order of the contacts displayed in the
69
CONTACTS tab of the Phone app.
1. Touch the Home Key > > (in the top search field) >
Settings > General settings.
2. Touch Sort by or Name format to set the order of the
contacts and the format of the contact names.
Set Sound and Vibration
Set the sound and vibration for incoming calls as well as dialpad
sounds.
1. Touch the Home Key > > (in the top search field) >
Settings > General settings.
2. In the Sounds and vibrate section, touch the option you
want to configure.
Touch Phone ringtone to select the ringtone for incoming
call notification.
Check Dialpad tones to play sounds when you touch the
dialpad keys.
Check Also vibrate for calls to enable vibration for
incoming call notification.
NOTE:
You can set the vibration pattern for incoming call notification.
Touch the Home Key > > (in the top search field) >
Settings > Call settings > Vibrate pattern and select one.
Edit Quick Response to Rejected Callers
1. Touch the Home Key > > (in the top search field) >
70
Settings > General settings > Quick responses.
2. Touch a text message to edit it.
Set Voicemail
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Touch Voicemail to configure voicemail settings.
Touch Service to select the voicemail service provider.
Your carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number.
Touch Sound to select the notification sound for new
voicemails.
Check Vibrate to enable vibration for notification.
Set TTY Mode
Your phone is a TTY compatible device. A TTY device can allow
people who have hearing or speech disabilities to communicate
by telephone. Simply connect the TTY device to the phone’s
headset jack.
Select a TTY mode for your phone to work with a TTY device, or
turn TTY off.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
71
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through TTY
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party, and
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Set Hearing Aids
Your phone supports HAC (Hearing Aid Compatibility) function.
When you turn on the hearing aid compatibility and use a hearing
aid with a Telecoil to answer the phone, it will help you hear more
clearly during the phone call.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Check Hearing aids to turn on hearing aid compatibility.
Set Speed Dials
You can touch and hold the 1 ~ 9 keys from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
72
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Speed dial.
2. Touch a speed dial key.
3. Enter a phone number or select one from the contact list.
4. Touch OK.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > DTMF tones.
2. Touch Normal or Long.
Call Ended Operation Tips
When this feature is enabled, the phone will prompt you to call
back, send a message to the contact, or add the new number to
your contacts after you finish a call.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Check Call ended operations tips to enable this feature.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home Key > > (in the top search field) >
73
Settings > Call settings > Call forwarding.
2. Touch an available option (Always forward, Forward when
busy, Forward when unanswered, or Forward when
unreachable) to enable it.
Voice Privacy
This option allows you to enable enhanced privacy mode.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Additional settings.
2. Check Voice privacy to enable this feature.
Plus Code Dialing Setting
Plus Code Dialing allows the phone to automatically dial the
international access code for your location when you touch and
hold the 0 key in the dialer.
To activate Plus Code Dialing:
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Additional settings > Plus code
dialing setting.
2. Check Setup Plus Code Replacement to enable this
feature.
To change the international dialing code:
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Additional settings > Plus code
dialing setting > Replace Code of Plus Code.
74
2. Input a new code and touch OK.
Internet Call Settings
To add an Internet calling account:
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Phone account settings.
2. Touch SIP accounts > ADD ACCOUNT.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch SAVE.
To configure which calls use Internet calling:
You can configure your phone to place all calls using Internet
calling (when you’re connected to a Wi-Fi network), just calls to
Internet calling addresses, or to ask each time you place a call.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Phone account settings.
2. Touch Use SIP calling.
3. Touch the Internet calling option you want.
To configure your phone to receive Internet calls:
By default, your phone is configured to make Internet calls, but
not to ensure that you will receive them. But you can configure
your phone to listen for Internet calls made to an Internet calling
account you added to your phone.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Phone account settings.
75
2. Check Receive incoming calls. Checking this setting will
reduce your battery life between charges.
Other Options
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Additional settings.
2. Touch Call waiting > ENABLE to get notified of incoming
calls during a call, or touch Caller number display to choose
whether your number is displayed when someone receives
your outgoing call.
NOTE:
Please contact the service provider to check whether the caller
number display and call waiting features are available.
76
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > . From there,
you can touch the tabs on the top of the screen to quickly switch
to the contact groups or favorite contacts.
Checking Contact Details
1. Touch the Home Key > and touch the CONTACTS tab
to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
NOTE:
If you have a lot of contacts stored, you'll see a slider on the right
side of the screen. Drag the slider to the initial letter you need.
Adding a New Contact
1. Touch the Home Key > and touch the CONTACTS
tab.
2. Touch to add a new contact.
77
3. Touch the account field near the top of the screen to choose
where to save the contact. If a sync account is selected, the
contacts will be synced automatically with your account
online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch the Home Key > and touch the CONTACTS
tab.
2. Touch Set up my profile.
If a profile has already been set up, touch the listing below
ME and touch .
3. Edit your profile information. Touch ADD ANOTHER FIELD
to add more information if you want.
4. Touch .
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your micro-UIM card, the
78
phone storage, or the microSDHC card. This is especially useful
when you need to transfer contacts between different devices.
You can also quickly share your contacts using Bluetooth, email,
messages, etc.
Import Contacts From the micro-UIM Card
1. Touch the Home Key > .
2. Touch > Import/Export > Manage SIM card contacts.
3. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
4. Touch > Import SIM Contacts.
5. Check the contacts you need and then touch .
Import Contacts From the microSDHC Card
or Phone Storage
1. Touch the Home Key > .
2. Touch > Import/Export > Import from storage.
3. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
4. Select the vCard file(s) in the microSDHC card or the phone
storage and touch OK.
NOTE:
If the microSDHC card is not installed in the phone, you can
79
import vCard file(s) in the phone storage.
Export Contacts to the micro-UIM Card
1. Touch the Home Key > .
2. Touch > Import/Export > Export to SIM card.
3. Check the contacts you need and then touch .
NOTE:
If the micro-UIM card is full, you cannot export contacts to the
card.
Export Contacts to the microSDHC Card or
Phone Storage
1. Touch the Home Key > .
2. Touch > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file and
the directory in which the file will be saved. Touch OK to
create the file.
NOTE:
If the microSDHC card is not installed in the phone, you can
export vCard file(s) into the phone storage.
Share Contacts
1. Touch the Home Key > and touch the CONTACTS tab.
80
2. Touch > Multi-Select.
3. Check the contacts you want to share and then touch .
4. Choose how to share the contacts. Options depend on the
applications and services installed.
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite contacts
and frequently contacted contacts.
Add a Contact to Favorites
You can add the contacts you use frequently to FAVORITES so
that you can find them quickly.
1. Touch the Home Key > and touch the CONTACTS tab.
2. Touch a contact and then touch at the top.
Remove a Contact From Favorites
1. Touch the Home Key > and touch the FAVORITES tab.
2. Touch a favorite contact and then touch at the top.
81
Working With Groups
View Your Contact Groups
1. Touch the Home Key > and touch the GROUPS tab.
2. Scroll through the list to view the preset groups and any
groups you have created.
3. Touch a group to view its members.
NOTE:
To send a message or an email to the group members, you can
touch > Send Group message / Send Group email after you
open the group.
Set Up a New Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch to create a new group.
3. Touch to choose an account for the new group.
4. Touch the Group’s name field and enter the group name.
5. Touch Add member and select the contacts you wish to be
the group members.
6. Touch .
7. If necessary, touch Default below RINGTONE to set a
special ringtone for incoming calls from the group members.
82
8. Touch to save the group.
Delete a Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch a group and then touch > Delete.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Edit a Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch a group and then touch .
3. Touch Edit to edit the group name, add more members, or
change the ringtone. Or touch Multi-Select to select the
members you don’t need and remove them from the group.
Searching for a Contact
1. Touch the Home Key > .
2. Touch at the top of the screen.
3. Input the contact name or any information the contact has
to search for it. The contacts matched will be listed.
83
Editing Contacts
Edit Contact Details
1. Touch the Home Key > .
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch .
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
calling when you hear the ringtone.
1. Touch the Home Key > .
2. Touch a contact you want to set a ringtone for and then
touch > Set ringtone.
3. Select a ringtone you like and touch OK.
Delete Contacts
1. Touch the Home Key > and touch the CONTACTS tab.
2. Touch > Multi-Select.
3. Check the contacts you want to remove and then touch .
4. Touch OK to confirm.
84
Join Contacts
As your phone synchronizes with multiple online accounts, you
may see duplicate entries for the same contact. You can merge
all the separate information of a contact into one entry in the
contacts list.
1. Touch the Home Key > .
2. Touch a contact entry to display the contact’s details and then
touch .
3. Touch > Join.
4. Touch the contact whose information you want to join with the
first entry.
5. Touch .
The information from the second contact is added to the first
contact, and the second contact is no longer displayed in the
contacts list.
You can repeat these steps to join another contact to the main
contact.
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. Touch the Home Key > .
2. Touch a contact entry you have merged and want to
85
separate.
3. Touch > > Separate.
4. Touch OK to confirm.
86
Accounts
Adding or Removing Accounts
You can add multiple Google accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts, depending on the apps installed on your phone.
Add an Account
1. Touch the Home Key > > Settings > Accounts.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
ACCOUNTS section in the Settings menu.
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. Touch the Home Key > > Settings.
2. Touch the account category in the ACCOUNTS section and
then touch the account.
87
3. Touch > Remove account > REMOVE ACCOUNT.
Configuring Account Sync
Configure Auto Sync Setting
1. Open the notification panel and drag the panel downwards
to find the Quick Settings on the screen.
2. Touch Sync to enable or disable the auto sync feature.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When automatic sync is turned off, you need to sync
manually to collect emails, updates, or other recent
information.
Sync Manually
1. Touch the Home Key > > Settings.
2. In the ACCOUNTS section, touch the account category and
then the account you want to sync.
3. Touch > Sync now. Or touch the types of information you
want to sync.
88
Change an Account’s Sync Settings
1. Touch the Home Key > > Settings.
2. In the ACCOUNTS section, touch the account category and
then the account. The Sync screen appears, showing a list
of information the account can sync.
3. When auto-sync is enabled, check or uncheck items as you
need. Checked types of information on the phone and the
web will be kept in auto-sync.
89
Email
Touch in the home screen and select Email. Use it to
receive and send emails from your webmail or other accounts
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. Touch the Home Key > > Email.
2. Select an email server and enter the email address and
password.
3. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE:
You can also enter these details manually by touching
Manual setup or when automatic setup fails.
4. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the
interval you set when setting up the account.
You can also check new emails manually by dragging down on
90
the message list.
To check earlier emails for your IMAP or POP3 accounts, swipe
upwards to the bottom of the message list and touch Load
more.
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from the Inbox.
2. Do the following as you need:
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
To forward the email to someone else, touch .
3. Edit your message and touch .
Mark an Email as Unread
You can return a read email to the unread state - for example, to
remind yourself to read it again later. You can also mark a batch
of emails as unread.
While reading a message, touch > Mark as unread.
91
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch > OK.
While in a message list (for instance, the Inbox), touch the
checkboxes before the messages and then touch > OK.
Writing and Sending an Email
1. Open your email inbox and touch .
NOTE:
If you have more than one email account added on the
phone, touch the sender line to select the account you want
to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
to select recipients from your contacts.
NOTE:
Touch > Add Cc/Bcc to send a carbon copy or blind
carbon copy to other recipients.
3. Enter the email subject and compose the email text.
4. Touch > Attach file to add audio files, images, videos
92
and other types of files as attachments.
5. Touch at the top right of the screen to send the
message.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Setting Up the
First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch ADD ACCOUNT at the top
right of the screen.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch the account whose settings
you want to change.
3. Make the changes and touch the Back Key when you
93
finish.
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch > Settings > General.
3. Make the changes and touch the Back Key when you
finish.
94
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch the Home Key > .
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the To field and manually enter the recipient’s
number or the contact name. If the phone presents a few
suggestions, touch the one you want to add.
Select recipients from your contacts or call log by
touching .
95
3. Touch the Type message field and enter the message text.
4. If you want to send a multimedia message, touch > Add
subject to add a message subject or touch to attach a
file or a slideshow to the message.
5. Touch or SEND.
NOTE:
You can also include email addresses as recipients for
multimedia messages.
NOTE:
Do not add a message subject or any attachment if you want to
send a text message. Otherwise you may be charged for a
multimedia message.
Replying to a Message
Messages you receive are appended to existing threads for the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
if you want to reply with an MMS.
3. Touch or SEND.
96
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch the message and then touch Forward in the menu
that opens.
3. Enter a recipient for the message and edit the content if you
want.
4. Touch or SEND.
Copying a Message
You can copy text messages in the phone storage to the
micro-UIM card, or vice versa.
To copy a text message from the phone to the micro-UIM card:
1. On the Messaging screen, touch the thread that has the
message you want to copy.
2. Touch the message and then touch Copy to SIM card.
To copy a text message from the micro-UIM card to the phone:
1. On the Messaging screen, touch > Settings > Manage
UIM card messages.
2. Touch and hold a message and then touch Copy to phone
memory.
97
Changing Message Settings
Touch > Settings in the Messaging screen to change
messaging settings.
98
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the home screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch > Calendars to display.
3. Touch the calendars to check the ones you want to see or
uncheck the ones you’d like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four view types: Month, Week, Day, and Agenda.
To change calendar views, touch the current view at the top left
and select the view you prefer. You can also change to Day
99
view from Month view by touching any day block in the monthly
calendar.
In Month view, swipe vertically to see previous and future
months.
In Week or Day view, swipe horizontally to see previous and
future weeks/days.
When you are viewing past or future days, weeks, or
months, touch the icon at the top right to quickly switch
to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view or Agenda
view. Then touch an event to view its details.
Creating an Event
1. In any Calendar view, touch .
You can also touch a spot in Day or Week view twice to add
an event to that time block.
2. If you have more than one calendar account, touch the
current account above the Event name line to choose one.
3. Enter the event details and touch SAVE at the bottom.
100
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see View Event Details in this
chapter).
3. Do one of the following as you need.
To edit the event, touch . Touch SAVE to save your
changes.
To delete the event, touch > OK.
Changing Calendar Settings
To change the calendar settings, open a calendar view (Day,
Week, Month, or Agenda), and touch > Settings.
You can change General settings, which apply to all accounts,
or other settings that only apply to specific accounts.
101
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the home screen to launch the web browser.
The browser also opens when you touch a web link - for
example, in an email or a text message.
Open a Web Page or Search the Web
1. Open the Browser app.
2. Touch the address box at the top of the web page. If the
address box isn’t visible, scroll to the top of the page to
show it.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for.
4. Touch a URL or search suggestion or touch the enter key on
the keyboard to open the web page or search results.
NOTE:
Touch next to the address box if you want to stop opening
the page.
102
Set the Homepage
Your home page opens when you open a new browser tab, and
when you start Browser after restarting your phone.
1. Touch > Settings > Set Homepage.
2. Select the option you want.
Touch Use the New Tab Page to set the New tab page
as the homepage.
NOTE:
The New tab page allows you to quickly access your
favorite websites through a list of speed dial icons. To add
new websites to the New tab page, just touch in front
of the address box and select Add speed dial.
Touch Open this Page and enter the URL in the field
below to set the URL as the homepage.
Using Multiple Browser Tabs
You can open several web pages at the same time (one page in
each tab) and switch between them freely.
To open a new browser tab:
Touch at the top right of the screen. A new browser window
opens and the homepage is loaded.
To switch between tabs:
1. Slide left or right on the top of the browser screen to view all
103
opened browser tabs.
2. Touch the tab you want to view.
NOTE:
Touch a tab twice to close it. Touch and hold a tab to get more
options.
Downloading Files
1. Touch and hold an image or a link to a file or to another
webpage.
2. In the menu that opens, touch Save image or Save link.
The downloaded files are saved to your phone or the
microSDHC card. You can view or open the downloaded files in
the Downloads app ( > Downloads).
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings in
the web page screen.
104
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the microSDHC card you have
installed or in the phone storage. You can copy them to your
computer or check them out in the Gallery app.
Capturing a Photo
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject and make any necessary
adjustment. Auto camera mode is used by default.
105
Number
Function
1
Change the camera settings.
2
Change flash mode (only available for the back camera).
3
Switch to Auto camera mode (only available for the back
camera).
4
Switch to Manual camera mode (only available for the back
camera).
5
View photos and videos you have taken.
6
Capture a photo.
7
Record a video.
8
Switch to use HDR, panorama, interval, smile, or
multi-exposure modes or special effects (only available for
the back camera).
9
Set a time delay before the camera takes a picture
automatically after you touch the shutter icon, or turn off this
feature.
10
Switch between the front and the back camera.
WARNING!
Keep a safe distance when using the flash. Do not point the
flash toward people or animals’ eyes.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before taking pictures.
106
3. You can either let the camera autofocus on the center of the
screen, or touch another area on the screen that you want
to focus on.
4. Touch the shutter icon to take the photo.
To use manual camera mode:
You can use manual camera mode to adjust more camera
options for you photo such as ISO, white balance, exposure,
etc.
1. Touch the Home Key > > Camera.
2. Touch Manual.
3. Aim the camera at the subject and you can make the
following adjustments.
Drag to any area on the screen that you want to focus
on.
Drag to any area on the screen where you want the
camera to meter exposure so as to adjust the photo
brightness.
When white balance is set as Independent, drag to
adjust the color temperature of the photo.
Touch to show the grid or the golden spiral, or hide it.
Touch to enable or disable the gradienter.
107
Touch to change white balance scenario or leave it at
Auto.
Touch to select ISO level or leave it at Auto.
Touch to adjust the photo exposure.
4. Touch the shutter icon to take the photo.
Recording a Video
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject. You can touch any area on
the screen that you want the camcorder to focus on before
and during recording.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before and during recording.
3. Touch to start recording. You can also touch / to
pause or resume recording.
4. Touch to stop recording.
NOTE:
While the recording is in progress, you can touch to save
the frame as a separate photo.
108
Customizing Camera and Video
Settings
Before capturing a photo or video, you can touch to open
the following camera and video setting options.
CAMERA
Picture size: Set the image size for your photo.
Full screen: Set the viewfinder screen as full screen or
not when the back camera is in use.
Point-and-shoot: When this feature is enabled, you can
touch the viewfinder screen to take a photo using the front
camera.
Shutter tone: Change the shutter tone.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Review: Select whether to review the picture after you
shot it. You can also set the review time.
Storage location: Touch Save location to change the
storage location for captured photos and videos.
Restore defaults: Restore default camera and video
settings.
VIDEO
Video quality: Set the quality for your video.
Time lapse: Set the time interval between each frame
when you shot time lapse videos using the back camera.
109
Focus lock when recording: Select whether to lock the
focus point on the center of the screen during video
recording using the back camera.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Storage location: Touch Save location to change the
storage location for captured photos and videos.
Restore defaults: Restore default camera and
camcorder settings.
NOTE:
Some camera and video options will change in different camera
modes.
110
Gallery
Opening Gallery
Touch the Home Key > > Gallery to view albums of your
pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to delete.
111
3. Touch > OK.
To hide albums:
1. Touch and hold an album to select it.
2. Touch more albums that you want to hide.
3. Touch > OK.
NOTE:
To show the hidden albums again, touch > Settings >
Manage hidden albums. Touch the albums you want to restore
and touch Show at the bottom.
Working With Pictures
Touch a picture in an album to view the picture in full screen.
When viewing a picture in full screen, the following features are
available.
112
Swipe horizontally to see more pictures or videos.
Pinch a picture or video to make it smaller. You'll then see a
filmstrip-style view of all your pictures and videos in a row.
Swipe left or right to scan through them all.
NOTE:
You can delete a picture or video by swiping it up or down in
the filmstrip view. If you accidentally delete one, touch
UNDO to retrieve it.
Double-tap the picture, or pinch two fingers together or
113
spread them apart to zoom out or in.
Touch to share or edit the picture, set it as wallpaper or
contact photo, edit its tag, check file details, or browse the
album contents in a slideshow.
Touch to manage picture tags.
Touch / to rotate the picture.
NOTE:
Some options may not be available for certain albums or
pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery.
1. Touch > Edit while viewing a picture in full screen to open
the Photo Editor interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
NOTE:
Slide left or right on the bottom of the screen to find all icons.
Apply filters and old photo effects.
Crop, straighten, rotate, or flip (mirror) the picture.
Adjust exposure, saturation, hue, sharpness, and other
colour options.
114
Add a frame to the picture.
Decorate people in the picture with comical
moustaches, eye glasses, hats and more.
Apply a blur effect to the picture.
Select a color and draw anything on the picture.
Add some text to the picture and adjust its effect.
3. Touch to keep the change or to cancel it.
4. Touch to save the new picture.
NOTE:
Touch in the Photo Editor screen to see the edits you have
made and undo or redo them.
Making a GIF Picture or a Collage
You can put together a few pictures in the same album to make
an animated GIF picture or a collage of pictures.
1. Open the Gallery app and touch > Gif maker or
Collage maker.
2. Touch an album.
3. Touch the pictures you need.
To make a GIF, touch 2 to 50 pictures in the order or
reverse to the order that you want them to appear in the
GIF.
115
To make a collage, touch 2 to 9 pictures.
The pictures you touched are displayed along the bottom.
Touch to remove the pictures you do not need.
4. Touch Next. The GIF or collage is displayed.
5. Touch the options along the bottom to adjust the final
picture.
For GIF, you can adjust the speed, order, and size.
For collage, touch Template, Free, or Mosaic and then
select a border, shading and style.
6. When you are satisfied with the final picture, touch to
save the GIF or touch to save the collage.
Depending on your storage setting, the picture is saved to the
zte_editor/save folder in your phone storage or your
microSDHC card.
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center and select a player to start playing.
Touch the video to view the playback controls.
In the Video Player, you can touch to play the video in a
small floating window and continue with other tasks on the
phone.
116
Music
Touch the Home Key > > Music to play audio files stored
on your phone. Music supports a wide variety of audio formats,
so it can play music you purchase from online stores, music you
copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Open the notification panel and touch .
3. Touch Media device (MTP). See Connect Your Phone to a
Computer via USB.
4. Copy the music files from the PC and paste them to the
phone storage or the microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Downloading Files.
117
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
See Receive Data via Bluetooth.
Viewing Your Music Library
Touch the Home Key > > Music and your music library is
displayed. All your audio files are cataloged, according the
information stored in the files.
Touch All Songs to view all music files on your phone.
Touch Artists/Albums to browse music files on your phone
organized by the artist or album name.
Touch Folders to find music files through the folders they are
stored in.
Touch Favorites to browse music files you have marked as
favorites.
Touch Playlists to view all music playlists you have created.
NOTE:
If an audio file is being played, its name and player controls are
displayed at the bottom of the screen. Touch the area to open
the playback screen.
118
Setting a Song as the Default
Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see Set a Ringtone for a Contact).
1. Touch the Home Key > > Music to see the music
library.
NOTE:
If you are in the playback screen, touch to return to the
music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Set as ringtone.
NOTE:
If the song is being played and you’re in the playback screen,
you can touch > Set as ringtone.
Playing Music
Touch a song in the music library to listen to it. Touch the
bottom of the screen to open the following playback screen.
119
Number
Function
1
Return to the music library.
2
Album artwork. Swipe left to see lyrics (if available) and right
the current playlist.
3
Check the track information.
4
Toggle repeat mode: no repeat, repeat the current track, or
repeat the current playlist.
5
Playback control: Skip songs or pause and resume playback.
Drag the progress bar to jump to any part of the track.
120
6
Turn on or off shuffle.
7
Add the track to the Favorites playlist.
8
Share the track.
9
Track name, artist, and album information.
10
Access additional options.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to next to a song to add it to a playlist or
create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch > Rename next to a playlist to rename the
playlist.
Touch a playlist to view its content. You can touch and hold
a song to select multiple songs for removal from the playlist.
121
Video Player
Use the Video Player app to manage your video library and to
watch videos.
Opening the Video Library
Touch in the home screen and select Video Player to view
your video library, where your video files are displayed in a list.
Swipe up or down to find the video you want. You can also
touch to search for video files, or touch > View by or
Sort by to change the display mode or sort the list.
Playing and Controlling Videos
Touch a video in the video library to play it. Touch the screen to
show the playback controls. You can control the video and
audio or carry out other operations.
Touch the play/pause button at the bottom to pause or
resume the playback.
Slide horizontally on the video to rewind or fast forward.
Slide vertically on the right or left part of the screen to adjust
volume or brightness.
Touch or to skip to the previous or the next video.
Touch or to change the video ratio.
122
Touch to rotate the video.
Touch to hide the control panel.
Touch to play the video in a small window and continue
with other tasks on the phone.
Touch to capture a screenshot.
Touch to share, trim or delete the video, or configure
player settings.
Managing Video Files
Delete Video Clips
1. Touch and hold a video in the video library.
2. Check other videos you want to delete.
3. Touch > OK.
Share Video Clips
1. Touch and hold a video in the video library.
2. Touch other videos you want to share.
3. Touch and select how you want to share them.
Trim a Video Clip
1. Touch a video to start playing it.
2. Touch > Trim.
123
3. Drag the two tabs on the progress bar to select the portion
you want to keep.
If necessary, touch to preview the selected portion.
4. Touch . The trimmed video is saved as a new video file.
124
More Apps
Calculator
Touch the Home Key > > Calculator to use the phone’s
convenient built-in calculator for some basic as well as advanced
mathematical equations. Touch to calculate tips.
NOTE:
Slide left while holding the phone upright, or hold the phone
on its side, to access advanced buttons.
Clock
Touch the Home Key > > Clock. The Clock app allows
you to check local time in places around the world, set alarms,
and use timers.
Set a New Alarm
1. Touch the tab in the Clock app.
2. Touch an existing alarm to configure it, or touch at the
bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, alarm days, snooze,
and alarm ringtone.
4. Touch SAVE to save and exit.
NOTES:
125
To enable or disable existing alarms directly, just slide the
switches on the right side.
Touch in the tab to configure alarm settings,
including ringtone volume, vibration, alarm duration, volume
crescendo, and alarm in silent mode.
Check World Time
Touch the tab in the Clock app to check local time around
the world.
Touch at the bottom to add a new city or country.
Use the Stopwatch and Countdown
Touch the or tab in the Clock app to use the stopwatch
or the countdown timer.
Stopwatch allows you to record lap times (20 laps at most),
while countdown allows you to set a time and count down to
zero.
Dolby
Touch the Home Key > > Dolby to select or customize a
Dolby profile. You can also touch to turn off Dolby.
Downloads
The Downloads app keeps a record of the files you have
126
downloaded using apps such as Browser or Email.
Touch the Home Key > > Downloads to check the record.
Touch a file to open it with the appropriate application.
Touch and hold a file to delete or share it.
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone storage and the microSDHC card.
Touch the Home Key > > File Manager. You can touch
to find the file you need by category, or touch or to
browse folders and files on the phone storage or the
microSDHC card.
Touch folders and files to access stored items.
Touch and hold an item to access option icons such as Copy,
Move, Share, or Delete.
To copy or move an item, navigate to a new location and
touch PASTE.
Touch to create a new folder in the current directory.
Mi-Moment
Touch the Home Key > > Mi-Moment to create, view and
manage your notes. You can add audios, pictures, videos and
other types of files to your notes, and store the notes in different
127
folders.
NOTE:
Touch > Settings to set up a lock password. You can lock
your notes with the password to protect your personal
information.
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Record a Voice Memo
1. Touch the Home Key > > Sound Recorder.
2. Touch to start recording. During recording, you can do
the following:
Touch / to pause or continue the recording.
Touch to cancel the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
> OK to delete it.
Play a Voice Memo
To play a memo you just recorded:
128
Touch at the bottom of the screen.
To play any saved memo:
1. Touch at the top right of the screen to see all
recordings.
2. Touch the title of a memo to play it.
NOTE:
You can also touch next to a memo to delete, rename,
share, trim it, check its file information, add a tag, or set it as
your phone ringtone.
Task Manager
Touch the Home Key > > Task Manager to view or stop
applications.
Touch a task in the TASKS tab to check the details of the
application or force it to stop.
Touch the APPS tab to manage all the apps on your phone.
Touch the RESOURCES tab to view the real-time use of the
system resources (CPU, RAM and storages).
Voice Dialer
Voice Dialer is speech recognition software. You can use it to
dial a phone number in your contacts, open menus or launch
phone functions.
129
1. Touch the Home Key > > Voice Dialer.
2. When you see "Listening", follow the onscreen examples to
speak "Call...", "Dial...", or "Open..." to make phone calls or
open phone menus and applications.
Google Apps
Open the Google apps to use Google services.
NOTE:
Some contents or Google services may not be available in your
region.
Chrome: Use the Chrome app to browse the Internet and
get your bookmarks, browsing history, and more synced
with your Google account.
Drive: Store files on Google servers for free after you sign
in to your Google account. You can access them on your
computers, your phones and other devices, share them, or
collaborate with others.
Gmail: Send and receive emails via your Gmail account or
other personal email accounts.
Google: Use Google search or get information when you
need it with Google Now.
Google+: Socialize with friends on the Google+ online
community.
Hangouts: Chat with Google+ friends or send text or
130
multimedia messages.
Maps: Find your place and find your way in the world.
Photos: Manage photos on the phone and your Google
account.
Play Games: Buy and play games from the Google Play
Store. Share your gaming experience and progress with
your friends.
Play Music: Play music on the phone and on your Google
account.
Play Newsstand: Purchase and read newspapers and
magazines.
Voice Search: Search for information with your voice.
YouTube: Watch video clips from YouTube.com, or upload
your own and share with the world.
131
Google Play™ Store
Touch the Home Key > . You can buy or rent music, books,
movies, apps, and download them to your phone.
NOTE:
The content you can access in Google Play Store depends on
your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category. Touch a top-level category,
such as GAMES and touch the app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch and enter
the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch INSTALL (free apps) or the price (paid apps). If the
app is not free, you need to sign in to your Google Wallet™
account and select a payment method.
132
CAUTION:
Once installed, some apps can access many functions or a
significant amount of your personal data. The Play Store will
show you what the app can access. Touch ACCEPT to
proceed, or touch the Back Key to cancel.
2. For paid apps, touch CONTINUE and follow additional
on-screen instructions for payment.
3. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when appears in the
status bar. You can find the new app (the icon with a badge)
after touching the Home Key > .
Creating a Google Wallet™ Account
You must have a Google Wallet account associated with your
Google account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to wallet.google.com to create a
Google Wallet account.
The first time you use your phone to buy an item from
Google Play Store, you’re prompted to enter your billing
information to set up a Google Wallet account.
WARNING!
133
When you’ve used Google Wallet once to purchase items from
the Google Play Store app, the phone remembers your
password so you don’t need to enter it the next time. For this
reason, you should secure your phone to prevent others from
using it without your permission.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
View Your Downloaded Apps
1. In the Play Store screen, touch > My apps.
2. Your list of installed apps opens, you can touch one to rate it,
uninstall it, request a refund, and so on.
Uninstall an App
1. In the Play Store screen, touch > My apps.
2. Touch an app to open its details screen.
3. Touch UNINSTALL > OK.
134
Settings
Touch the Home Key > > Settings. The Settings app
contains most of the tools for customizing and configuring your
phone.
General Settings
Airplane Mode
Touch the Home Key > > Settings and slide the switch
beside Airplane mode to turn airplane mode on or off. All the
phone’s radios that transmit voice or data are turned off when
airplane mode is on.
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Wi-Fi.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Bluetooth Devices.
Mobile Networks
Control mobile data use and set access point names. See
Connecting to Mobile Networks.
135
Sound & Notifications
Adjust different types of volume (see Adjusting Volume), toggle
sound, vibration and mute (see Switching to Silent Mode), set
up ringtone and notification sound (see Changing Ringtone and
Notification Sound), set Dolby sound effects, select system
sounds (see Turning On/Off System Sounds), or control
notification display.
Display
Brightness level: Set the brightness of the display.
Adaptive brightness: Automatically adjust screen
brightness.
Wallpaper: Select a background image or animation for the
home screen.
Sleep: Set the length of time of inactivity before the screen
turns off automatically.
Daydream: Manage the Daydream function. When
Daydream is enabled, photos or animations will be
displayed as a screensaver.
Ambient display: Turn on the display automatically when
the device is picked up or notifications arrive.
Font size: Set the font size of the text on the screen.
Auto-rotate screen: Select whether the screen contents
should rotate when the phone is rotated.
Pulse notification light: Flash the indicator light to notify
you of missed calls, new messages, and other events.
136
Navigation key light duration: This feature lets you control
the backlight of the touch keys (the Home Key, the Back
Key, and the Recent Apps Key). Choose one of the
following options to set the backlight duration.
Always off: Turn off the touch keys backlight.
Always on: Keep the touch keys backlight on while the
screen is turned on.
2 seconds / 5 seconds: The touch keys light for 2 or 5
seconds each time you touch the screen or touch keys
while the screen is turned on.
Auto: Let your phone turn on or off the touch keys
backlight automatically.
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data. See Setting the Date
and Time.
Language and Input
Language: Select a language and region for your system.
Spell checker: Use Google Spell Checker to check for
spelling errors when entering text.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
Keyboard & input methods: Configure text input settings.
137
See Input Method Settings.
Voice input: Select and configure voice input services.
Text-to-speech output:
Preferred engine: Select the speech synthesis engine
you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Default language status: Check whether the
text-to-speech output feature supports the current
system language.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Wireless and Networks
Data Usage
Touch the Cellular data or Set cellular data limit switches to
turn on or off mobile data or mobile data limit.
You can check how much data has been used during the time
cycle you set, set mobile data limit and warning, see what apps
have been using mobile data, or restrict background data for
individual apps.
138
NOTE:
The data usage is measured by your phone, and your carrier’s
data usage accounting may differ.
VPN
Set up and connect to virtual private networks. See Connecting
to Virtual Private Networks.
Default SMS App
Touch the Home Key > > Settings > More and touch
Default SMS app to choose the preferred application for
sending and receiving messages.
Device
Storage
The Storage settings menu lets you check memory information
for your microSDHC card and internal storage.
You can choose the default location for new data, such as files
downloaded, photos captured, and voice recorded. Touch Save
location and select Phone or SD card to store items in the
phone storage or the installed microSDHC card.
Touch Unmount SD card to unmount the microSDHC card
from your phone so that you can safely remove the card while
the phone is on. Touch Erase external SD card to delete all
data on the microSDHC card.
139
Power Manager
The Power manager menu allows you to view the battery level,
check what has been using the battery, and enable power
saving modes.
BATTERY: View the battery level and available time for
different items such as voice call, music playing, or web
browsing.
USAGE: Check the battery status and what has been using
the battery.
NOTE:
You can touch an app to adjust its settings in order to save
battery life. For example, touch Screen > DISPLAY to
change screen brightness and sleep.
MODE: Enable the power saving mode you need. Touch a
mode to get its detailed information.
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop or disable/uninstall the app, or
clear data and cache.
NOTE:
Not all applications can be uninstalled.
140
Connect to PC
Select your USB connection type between your phone and PC.
See Connecting to Your Computer via USB.
Call Settings
Configure the call options. See Adjusting Your Call Settings.
Personal
Location
Activate location services to determine your location. To use
location-related applications, such as finding your location on
Google Maps, you must have location services turned on on
your phone.
1. Touch the Home Key > > Settings > Location.
2. Slide the Location switch at the top to turn location services
on or off.
3. When location is enabled, touch Mode to select location
sources you want to use.
High accuracy: Get accurate location using both GPS
and Wi-Fi as well as mobile networks.
Battery saving: Use only Wi-Fi and mobile networks to
get your approximate location. This will drain less power
from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
141
Accelerated location: Use Qualcomm® Izat™ hardware
accelerated location.
Security
Screen lock: Disable the screen lock or enable it with long
press, pattern, PIN, or password. See Protecting Your
Phone With Screen Locks.
Make pattern visible: Show the pattern as you draw it. This
option is available when unlock pattern is set.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off. This
option is available when pattern, PIN or password is set.
Power button instantly locks: Lock protection is activated
immediately when you press the Power Key. This option is
available when pattern, PIN or password is set.
Owner info: Set the text that you may display on the lock
screen.
Smart Lock: Keep the phone unlocked when connected to
trusted devices, in trusted places, or unlocked by trusted
faces.
NOTE:
You need to sign in to your Google account on the phone to
use the Smart Lock feature.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Protecting Your Phone With Encryption.
Set up SIM/RUIM card lock:
142
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the micro-UIM card.
Change SIM PIN: Change the PIN used to access the
micro-UIM card.
NOTE:
Put all your confidential passwords in a safe place for future
use. If you enter the wrong UIM PIN more times than
allowed, your micro-UIM card will be locked and you cannot
access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the micro-UIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Enable this option to permit installation
of apps from sources other than the Play Store.
Storage type: Check the credential storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the phone
storage or the microSDHC card.
Clear credentials: Delete all certificates.
Trust agents: View or deactivate trust agents.
Screen pinning: Keep a screen of your choice in view, so
that others cannot switch to other apps and access your
personal information. See Protecting Your Phone With
Screen Pinning.
143
Apps with usage access: Turn on or off some apps’
access to your phone usage information.
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Backup account: Set the Google account that the data is
backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
microSDHC card during the process.
Accounts
Manage your accounts and synchronization. Touch Accounts
to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
144
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
You can manage Google Cloud Print service or other printer
plug-ins installed from the Google Play Store or your printer
manufacturer.
Software Update
You can view the current software version and check for the
software updates.
Developer Options
Developer options contains settings that are useful when
developing Android applications. The menu is hidden until you
touch Build number in the About phone menu 7 times.
WARNING!
The developer option settings are intended for development
use only. They can cause your phone and applications on it to
break or misbehave.
145
About Phone
View important phone information and legal information.
146
Upgrading the Phone Software
There are several ways to upgrade your phone software.
Use the online upgrade tool for mobile terminal products.
Use the one-press upgrade package offered by your mobile
service provider.
Use the upgrade package on your microSDHC card.
NOTE:
Visit the ZTE official handset service support website
(http://www.ztedevice.com/support) and click your country or
region to learn more about the above upgrade methods, as well
as which phones and methods are supported.
147
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
cannot effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
148
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charge
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s temperature
is below 0 °C or higher
than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the phone and charger.
Check all connectors to
ensure that all
connections have been
properly made.
149
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Contact the dealer to
change a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
150
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-UIM
card error
micro-UIM card
malfunction or damage
Take the micro-UIM card
to your service provider
for testing.
micro-UIM card inserted
improperly
Insert the micro-UIM
card properly.
Debris on the micro-UIM
card contacts
Use a soft, dry cloth to
clean the micro-UIM
card contacts.
Unable to
connect to
the network
The micro-UIM card is
invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
The signal is poor.
Move to an open space,
or if you are inside a
building, move closer to
a window.
151
Problem
Possible causes
Possible solution
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro-UIM card’s PUK
code, use the PUK code
to unlock the micro-UIM
card.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Uninstall the software
that may cause the
problem.
Upgrade the phone
software.
Reset the phone to
factory status.
152
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
153
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
Turn off when asked to
in hospitals and
medical facilities.
Do not attempt to
disassemble your
phone.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone as a primary
device for emergency
communications.
Radio Frequency (RF) Energy
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
in positions that simulate RF exposure in usage against the
head with no separation, and near the body with the separation
154
of 10 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-Z819L.
For this device, the highest reported SAR value for usage
against the head is 0.46W/kg, for usage near the body is
1.14W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
155
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain
a separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
156
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
157
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
158
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M4/T4 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
Turning on the HAC Setting
To turn on the HAC function, touch the Home Key > >
Settings > Call settings and check Hearing aids.
This section applies to T-Rating only and hearing aids that
contain telecoils. When the HAC setting is on, your Z936L
sends the audio from your phone calls to the telecoil rather than
to the microphone of your hearing aid. You are likely to hear
calls much better because volume is increased and background
noise and feedback are diminished. The HAC setting improves
159
only the calls you listen to through the earpiece. It does not
affect calls heard on the speaker or with a headset. HAC
requires extra battery power, so watch your battery
consumption when it's turned on.
CAUTION:
Do not turn on the HAC setting unless you use a hearing aid
with a telecoil. Using this setting without a hearing aid or with a
hearing aid without a telecoil may be harmful to your hearing.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
160
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean your phone and its accessories with a soft material
such as cleaning cloth for eyeglass lenses. Do not use
alcohol or other corrosive substances for cleaning or allow
them to get inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to
161
clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories,
only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum 23 ℉ and maximum 122 ℉
(minimum - 5 ℃ and maximum + 50 ℃).
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
162
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the micro-UIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
163
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician. To reduce the risk of blackouts or seizures, you can
use your phone in a well lit room and take frequent breaks.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as message templates and
predictive text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio devices.
164
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the charging jack
terminals.
Never puncture the surface of the phone with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or its
accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
165
have taken it to be checked at an authorized service center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
166
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Equipment
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to
do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft and enable the airplane mode of your phone
when boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of
mobile phones in their vehicles unless a hands-free kit with an
external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
167
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting
operations.
168
Specifications
Handset specifications are shown in the following table.
Operating System
Android 5.0 (Lollipop)
Handset standard
LTE/CDMA
Dimensions
5.69" (H) x 2.87" (W) x 0.40" (D)
Weight
6.07 oz. (with battery)
Display
5 inch
Camera
5 MP rear camera and 2MP front
camera
Internal memory
ROM: 8 GB, RAM: 1 GB
Removable
memory card
Supports microSDHC card up to 32 GB
Battery
2300 mAh
Continuous idle
time
Up to xx days
Continuous talk
time
Up to xx hours
WAP browser
2.0
169
version
HAC
M4/T4
Bluetooth
4.0
NOTE:
The phone’s talk time and idle time are based on ideal working
environments. The use of extended backlighting, browser, and
network conditions can reduce battery life and talk/idle time.
