ZTE Z826 WCDMA/LTE Multi-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation WCDMA/LTE Multi-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
1
ZTE GRAND X Plus
User Manual
![](/img.php?id=2441867&img=bg2.png)
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2014 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.ztedevice.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
![](/img.php?id=2441867&img=bg3.png)
3
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
is a trademark of SRS Labs, Inc. TruMedia
technology is incorporated under license from SRS Labs, Inc.
SRS TruMedia™, a feature-rich audio solution tuned specifically
for mobile devices, provides a cinema-like surround headphone
performance with deep, rich bass.
Other trademarks and trade names are the property of their
respective owners.
Version No.: R1.0
Edition Time: October 20, 2014
![](/img.php?id=2441867&img=bg4.png)
4
Contents
Getting Started ....................................................... 12
Getting to Know Your Phone ............................................ 12
Knowing the Keys ............................................................ 14

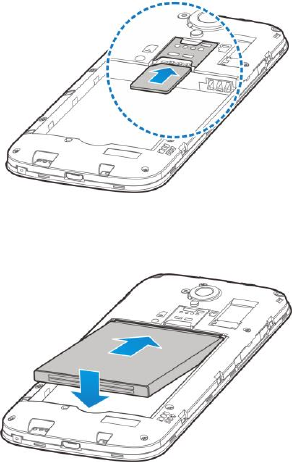

Installing the micro-SIM Card and Battery ........................ 14
Installing the microSDHC™ Card (Not Included) .............. 17
Charging the Battery ........................................................ 18
Extending the Battery Life ................................................ 20
Powering On/Off .............................................................. 20
Setting Up for the First Time ............................................ 21
Locking/Unlocking the Screen and Keys .......................... 21

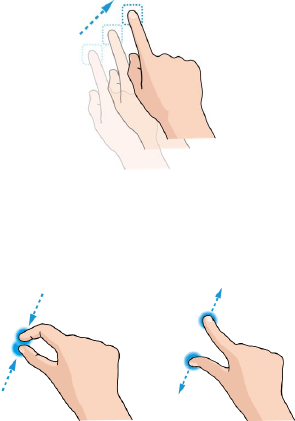

Using the Touch Screen ................................................... 22
Getting to Know the Home Screen ................................... 25
Personalizing.......................................................... 27
Changing the System Language ...................................... 27
Setting the Date and Time................................................ 27
Changing Ringtone and Notification Sound ...................... 28
Turning On/Off System Sounds ........................................ 28
Adjusting Volume ............................................................. 28
Switching to Silent Mode .................................................. 29
Applying New Wallpapers ................................................ 29
Changing Screen Brightness ........................................... 30
Protecting Your Phone With Screen Locks ....................... 31
Protecting Your Phone With Encryption ............................ 32
5
Knowing the Basics ............................................... 34
Monitoring the Phone Status ............................................ 34
Managing Notifications ..................................................... 35
Managing Shortcuts and Widgets ..................................... 38
Organizing With Folders ................................................... 39
Setting the Home Screen Transition Effect ....................... 40
Application List Screen ..................................................... 40
Rearranging the Primary Shortcuts ................................... 41
Entering Text .................................................................... 42
Editing Text ...................................................................... 46
Opening and Switching Apps ............................................ 47
Connecting to Networks and Devices .................. 48
Connecting to Mobile Networks ........................................ 48
Connecting to Wi-Fi® ........................................................ 50
Using Wi-Fi Direct® .......................................................... 54
Connecting to Bluetooth® Devices .................................... 55
Connecting to Your Computer via USB ............................. 58
Sharing Your Mobile Data Connection .............................. 61
Connecting to Virtual Private Networks ............................. 64
Phone Calls ............................................................ 66
Placing and Ending Calls ................................................. 66
Answering or Rejecting Calls ............................................ 67
Working With the Call History ........................................... 68
Calling Your Contacts ....................................................... 69
Checking Voicemail .......................................................... 69
6
Using Options During a Call ............................................. 70
Managing Multi-party Calls ............................................... 71
Adjusting Your Call Settings ............................................. 72
Contacts .................................................................. 79
Checking Contact Details ................................................. 79
Adding a New Contact ..................................................... 80
Setting Up Your Own Profile ............................................. 80
Importing, Exporting, and Sharing Contacts ..................... 81
Working With Favorite Contacts ....................................... 83
Working With Groups ....................................................... 84
Searching for a Contact ................................................... 86
Editing Contacts............................................................... 86
Accounts ................................................................. 89
Adding or Removing Accounts ......................................... 89
Configuring Account Sync ................................................ 90
Email ....................................................................... 92
Setting Up the First Email Account ................................... 92
Checking Your Emails ...................................................... 92
Responding to an Email ................................................... 93
Writing and Sending an Email .......................................... 94
Adding and Editing Email Accounts .................................. 95
Changing General Email Settings .................................... 96
Gmail™ .................................................................... 97
Opening Your Gmail Inbox ............................................... 97
7
Switching Accounts .......................................................... 97
Writing and Sending a Message ....................................... 98
Replying to or Forwarding a Message .............................. 98
Working With Received Attachments ................................ 99
Working With Labels ........................................................ 99
Changing Gmail Settings ................................................ 100
Messaging ............................................................ 101
Opening the Messaging Screen ..................................... 101
Sending a Message ....................................................... 101
Replying to a Message ................................................... 102
Forwarding a Message ................................................... 103
Copying a Message ....................................................... 103
Changing Message Settings ........................................... 104
Calendar ............................................................... 105
Viewing Your Calendars and Events ............................... 105
Creating an Event .......................................................... 106
Editing or Deleting an Event ........................................... 107
Changing Calendar Settings ........................................... 107
Google+™ ............................................................. 108
Getting Started With Google+ ......................................... 108
Signing out of Google+ ................................................... 109
Browser ................................................................ 111
Opening the Browser ..................................................... 111
Using Multiple Browser Tabs .......................................... 112
8
Downloading Files ......................................................... 113
Changing Browser Settings ............................................ 113
Maps ...................................................................... 114
Activating Location Services .......................................... 114
Getting Your Location .................................................... 114
Searching for a Location ................................................ 115
Getting Directions to Your Destination ............................ 115
Searching for Local Places ............................................ 116
Google Search ...................................................... 118
Searching With Text ....................................................... 118
Searching by Speaking .................................................. 118
Changing Search Settings ............................................. 119
Camera .................................................................. 120
Capturing a Photo .......................................................... 120
Recording a Video ......................................................... 123
Customizing Camera and Camcorder Settings ............... 124
Gallery ................................................................... 126
Opening Gallery ............................................................. 126
Working With Albums ..................................................... 126
Working With Pictures .................................................... 127
Retouching Your Pictures ............................................... 128
Playing Videos ............................................................... 129
Music ..................................................................... 131
9
Copying Music Files to Your Phone ................................ 131
Viewing Your Music Library ............................................ 132
Setting a Song as the Default Ringtone .......................... 133
Playing Music ................................................................. 133
Managing Playlists ......................................................... 135
Play Music ............................................................ 136
Playing Your Music ......................................................... 136
Managing Playlists ......................................................... 138
Video Player ......................................................... 140
Playing and Controlling Videos ....................................... 140
Managing Video Files ..................................................... 140
Sound Recorder ................................................... 142
Recording a Voice Memo ............................................... 142
Playing a Voice Memo .................................................... 142
More Apps ............................................................ 144
Backup and Restore ....................................................... 144
Calculator ...................................................................... 144
Chrome™ ...................................................................... 144
Clock ............................................................................. 145
Downloads ..................................................................... 146
Drive .............................................................................. 147
File Manager .................................................................. 147
Note ............................................................................... 147
System Updates ............................................................. 148
10
Task Manager ................................................................ 148
Unlock Shortcuts ........................................................... 148
Voice Dialer ................................................................... 149
Google Play™ Store ............................................ 150
Browsing and Searching for Apps .................................. 150
Downloading and Installing Apps .................................... 150
Creating a Google Wallet™ Account .............................. 151
Managing Your Downloads ............................................ 152
Settings ................................................................. 153
General Settings ............................................................ 153
Wireless and Networks .................................................. 157
Device ........................................................................... 158
Personal ........................................................................ 160
Accounts ....................................................................... 163
System .......................................................................... 163
Upgrading the Phone Software ........................... 165
Troubleshooting ................................................... 166
For Your Safety .................................................... 171
General Safety............................................................... 171
Radio Frequency (RF) Energy ....................................... 172
FCC Regulations ........................................................... 174
IC Notice ....................................................................... 176
Hearing Aid Compatibility (HAC) Regulations for Mobile
11
Phones .......................................................................... 177
Turning on the HAC Setting ............................................ 179
Distraction ...................................................................... 179
Product Handling ........................................................... 180
Electrical Safety ............................................................. 184
Radio Frequency Interference ........................................ 185
Explosive Environments ................................................. 186
![](/img.php?id=2441867&img=bgc.png)
12
Getting Started
Getting to Know Your Phone
Earpiece
Proximity & Light
Sensor
Volume Key
Back Key
Home Key
Touch Screen
Front Camera
Indicator Light
Recent Apps Key
![](/img.php?id=2441867&img=bgd.png)
13
Back Cover
Speaker
Charging/
micro-USB Jack
Headset Jack
Back Camera
Flash
Power Key
![](/img.php?id=2441867&img=bge.png)
14
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off the airplane
mode, enable or disable sound or vibration,
restart, or power off.
Press to turn off or on the screen display.
Home Key
Touch to return to the home screen from any
application or screen.
Touch and hold to open Google Search.
Back Key
Touch to go to the previous screen.
Recent Apps
Key
Touch to see recently used applications.
Volume Key
Press or hold either end of the key to turn the
volume up or down.
Installing the micro-SIM Card and
Battery
Power off your phone and remove the battery before installing or
removing the micro-SIM card. And power off your phone before
removing or replacing the battery.
![](/img.php?id=2441867&img=bgf.png)
15
WARNING!
To avoid damage to the phone, do not use any other kind of SIM
cards, or any non-standard micro-SIM card cut from a SIM card.
You can get a standard micro-SIM card from your service
provider.
1. Insert your fingernail into the slot at the bottom right of the
back cover and lift it up gently.
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card holder.
![](/img.php?id=2441867&img=bg10.png)
16
3. Insert the battery by aligning the metal contacts on the battery
with the metal contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
4. Align the back cover with the back of the phone and press the
cover back into place. Ensure that all the tabs are secure and
there are no gaps around the cover.
![](/img.php?id=2441867&img=bg12.png)
18
NOTE:
Some applications may require a microSDHC card to work
normally or may store certain data on it. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it randomly.
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
![](/img.php?id=2441867&img=bg13.png)
19
WARNING!
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging/micro-USB jack. Ensure
that the adapter is inserted in the correct direction. Do not
force the connector into the charging jack.
2. Connect the charger to a standard AC power outlet. If the
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
![](/img.php?id=2441867&img=bg14.png)
20
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 20 minutes. Contact the
customer service if you still cannot power on the phone after
prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi
usage and GPS functionality can drain your battery. You can
follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Wi-Fi, Bluetooth and auto-sync off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location; each query drains your battery.
Powering On/Off
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off and then touch OK.
![](/img.php?id=2441867&img=bg15.png)
21
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Settings – Personal – Backup &
Reset), you need to do some settings before using it.
Flick the language field to select the language and touch .
Then follow the prompts to set up Wi-Fi, Google Account, Google
location and other options.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone to sleep mode) when not in use and to turn the screen
back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE:
To save battery power, the phone automatically turns off the
screen after a certain period of time when you leave it idle. You
will still be able to receive messages and calls while the phone
screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen.
![](/img.php?id=2441867&img=bg16.png)
22
- or -
Touch and hold an application shortcut at the bottom of the
screen to unlock the screen and open the application quickly.
NOTE:
If you have set face unlock, an unlock pattern, a PIN or a
password for your phone (see Personalizing – Protecting Your
Phone With Screen Locks), you will be prompted to look at the
front camera, draw the pattern or enter the PIN or password to
unlock your phone.
Using the Touch Screen
Your phone’s touch screen enables you to control actions
through a variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
items on the screen such as the application and settings
icons, or press the onscreen buttons, simply touch them with
your finger.
![](/img.php?id=2441867&img=bg17.png)
23
Touch and Hold
To open the available options for an item (for example, a
message or link in a web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
![](/img.php?id=2441867&img=bg18.png)
24
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
![](/img.php?id=2441867&img=bg19.png)
25
NOTE:
The Auto-rotate screen check box needs to be selected for
the screen orientation to automatically change. Touch the
Home Key > > Settings > Display > Auto-rotate
screen.
You can also access the screen rotation control by sliding
down the status bar and touch > AUTO ROTATE.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding shortcuts, folders, widgets, and more.
Status bar
Primary shortcuts
Shortcut
Folder
Google Search
All apps
![](/img.php?id=2441867&img=bg1a.png)
26
Extended Home Screen Panels
Your home screen is extendable, providing more space for
shortcuts, widgets, and more. Simply swipe left or right on the
home screen to see the extended panels.
To create, delete or set the home screens:
1. Pinch or spread two fingers on the home screen.
2. Touch + on the blank screen to create new home screens;
touch x on the corner of a screen to delete it; touch on
the bottom of a screen to set it as the main home screen;
touch and hold a screen and drag it to adjust its place.
![](/img.php?id=2441867&img=bg1b.png)
27
Personalizing
Changing the System Language
1. Touch the Home Key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > > Settings > Date & time.
2. Set the date, time, time zone, and date/time format.
To adjust the date and time automatically, check
Automatic date & time.
To adjust the date and time manually, uncheck
Automatic date & time and touch Set date / Set time to
change the date and time.
To adjust the time zone automatically, check Automatic
time zone.
To adjust the time zone manually, uncheck Automatic
time zone and touch Select time zone to set the correct
time zone.
To adjust the format of time and date, touch Use 24-hour
format or Choose date format.
![](/img.php?id=2441867&img=bg1c.png)
28
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound.
1. Touch the Home Key > > Settings > Sound.
2. Touch Phone ringtone or Default notification sound.
3. Select the ringtone you want to use and touch OK.
NOTE:
See People – Editing Contacts – Set a Ringtone for a Contact for
how to assign a special ringtone to an individual contact.
Turning On/Off System Sounds
1. Touch the Home Key > > Settings > Sound.
2. Check or uncheck Dial pad touch tones, Touch sounds,
Screen lock sound, or Vibrate on touch.
Adjusting Volume
1. Touch the Home Key > > Settings > Sound >
Volumes.
2. Drag the sliders to adjust the volume for each type of audio.
3. Touch OK to save.
NOTE:
![](/img.php?id=2441867&img=bg1d.png)
29
You can adjust the media volume when a media application is in
use by pressing the Volume Key. If no media application is
active, press the Volume Key to adjust ringtone volume (or the
earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Press and hold the Power Key and then touch to enable
silent mode, touch to enable silent mode with vibration,
or touch to disable silent mode.
Keep pressing the Volume Down Key when no media
application is active. When the icon appears in the status
bar, the phone is set to silent mode with vibration. When the
icon appears in the status bar, the phone is in silent
mode.
Touch the Home Key > > Settings > Sound > Silent
mode, and touch Vibrate or Mute.
Applying New Wallpapers
You can set the wallpaper for the home screen and lock screen.
1. Touch and hold an empty place on the home screen and then
touch Wallpaper.
2. Touch Wallpaper for home screen or Wallpaper for lock
![](/img.php?id=2441867&img=bg1e.png)
30
screen.
3. Select a wallpaper source from Gallery, Live, Photos, or
Wallpapers and choose the image or animation you want to
use as the wallpaper. Some cropping may be needed for
Gallery images.
4. Crop the Gallery or Photos images or touch Set wallpaper.
NOTE:
Live and Photos are not available for the lock screen.
NOTE:
To change the home screen wallpaper blur effect, swipe up on
the home screen and drag the Wallpaper Blurriness bar to
adjust it.
Changing Screen Brightness
1. Touch the Home Key > > Settings > Display >
Brightness.
2. Touch AUTO to turn on or off automatic brightness
adjustment. You can also drag the slider to turn off
auto-adjustment and change the screen brightness manually.
NOTE:
You can turn on or off automatic adjustment without going to the
Settings menu. Just swipe down the status bar at the top of the
screen, touch and touch the BRIGHTNESS button. See Use
Quick Settings for more information.
![](/img.php?id=2441867&img=bg1f.png)
31
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is
enabled, you need to touch and hold certain icon, look at the front
camera, draw a pattern or enter a numeric PIN or password to
unlock the phone’s screen and keys.
1. Touch the Home Key > > Settings > Security > Screen
lock.
2. Touch Long press, Face Unlock, Pattern, PIN or
Password.
Touch Long press to enable screen lock and allow
unlock with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding on the blank area of the
screen.
Touch Face Unlock to let the phone capture your face.
You can unlock the screen by looking at the front camera.
You also need to set a pattern or PIN in case the phone
cannot recognize your face.
Touch Pattern to create a pattern you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password that you must enter to unlock your screen.
NOTE:
If you forget the pattern you set, try five times and touch Forgot
Pattern to sign in to the Google account you have added on the
![](/img.php?id=2441867&img=bg20.png)
32
phone and reset the screen lock. You need an active Internet
connection. You can also upgrade the phone software. See
Upgrading the Phone Software.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or a
password each time you power on your phone.
WARNING!
Encryption is irreversible. The only way to revert to an
unencrypted phone is to perform a factory data reset, which
erases all your data.
Encryption provides additional protection in case your phone is
stolen, and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
● Set a lock screen PIN or password.
● Charge the battery.
● Keep the phone connected to the charger.
● Schedule an hour or more for the encryption process: you
must not interrupt it or you will lose some or all of your data.
![](/img.php?id=2441867&img=bg21.png)
33
When you're ready to turn on encryption:
1. Touch the Home Key > > Settings > Security >
Encrypt phone.
2. Read the information about encryption carefully.
The Encrypt phone button is dimmed if your battery is not
charged or your phone's not plugged in.
If you change your mind about encrypting your phone, touch
the Back Key.
WARNING!
If you interrupt the encryption process, you will lose data.
3. Touch Encrypt phone.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt phone again.
The encryption process starts. Encryption can take an hour or
more, during which time your phone may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently, you must enter your PIN or password each time
you power on your phone in order to decrypt it.
![](/img.php?id=2441867&img=bg22.png)
34
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
EDGE connected
No signal
3G connected
Signal strength
4G connected
Mobile data in use
Airplane mode
Ringer off
Battery low
Vibrate mode
Battery partially drained
Speaker on
Battery full
Phone microphone off
/
Battery charging
Bluetooth on
Alarm set
Connected to a Wi-Fi®
network
Wired headset
connected
Wi-Fi in use
![](/img.php?id=2441867&img=bg23.png)
35
GPS on
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
New SMS/MMS
Upcoming event
New Email
New Wi-Fi network detected
New Gmail™
message
Downloading data
Missed call
Sending data
Call in progress
USB tethering on
Call on hold
Portable Wi-Fi hotspot on
/
Song playing
Updates available
USB connected
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events, such as when
![](/img.php?id=2441867&img=bg24.png)
36
you are playing music. You can open the notification panel to
view the details of notifications.
To open the notification panel, swipe your finger down from
the top of the screen.
To close the notification panel, swipe your finger up from the
bottom of the screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
Slide down with one finger to expand certain notifications.
You can also swipe two fingers vertically or pinch-zoom to
expand or collapse certain notifications.
To remove a notification, swipe it left or right.
To remove all notifications, touch in the top right corner.
Touch and hold a notification and then touch App info to
identify the application that created it. To turn off notifications
from that application if needed, uncheck Show notifications
in the App info screen.
Most apps that send notifications, such as Gmail and
Calendar, have notification settings that you can adjust.
NOTE:
If you turn off notifications for an app, you may miss its important
![](/img.php?id=2441867&img=bg25.png)
37
alerts and updates. The notifications of some apps cannot be
turned off.
Use Quick Settings
The Quick Settings in the notification panel make it convenient to
view or change the most common settings for your phone.
Open the notification panel and touch to find the following
Quick Settings.
OWNER: Touch the contact icon to open your profile in the
Contacts app.
BRIGHTNESS: Touch to turn on or off automatic brightness
adjustment.
SETTINGS: Touch to open the Settings app.
WI-FI: Touch to turn on or off Wi-Fi.
DATA: Touch to turn on or off data service over mobile
networks.
AUTO ROTATE: Touch to turn on or off the auto-rotate
screen feature.
BATTERY: Display the current battery status. Touch to open
the Battery menu in Settings.
AIRPLANE MODE: Touch to turn on or off airplane mode.
BLUETOOTH: Touch to turn on or off Bluetooth.
LOCATION / LOCATION OFF: Touch to turn on or off
location services.
![](/img.php?id=2441867&img=bg26.png)
38
SOUND: Touch to turn on or off the silent mode.
SYNC: Touch to turn on or off the auto-sync feature.
MOBILE HOTSPOT: Touch to turn on or off the portable
Wi-Fi hotspot feature.
FLASHLIGHT: Touch to turn on or off the flash.
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch and hold an empty place on the home screen, and
then touch Apps or Widgets.
2. Slide left or right to browse the available applications or
widgets.
3. Touch and hold an item and drag it to a home screen
thumbnail at the bottom of the screen.
Move Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to (Delete) to remove it.
![](/img.php?id=2441867&img=bg27.png)
39
Adjust Widget Size
1. Touch and hold a widget on the home screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE:
Not all widgets can be resized.
Organizing With Folders
You can create folders on the home screen and add several
shortcuts to a folder.
You can move or remove folders the same way as moving or
removing shortcuts.
1. Touch and hold the shortcut on the home screen you want to
add into a folder until (Folder) appears.
2. Drag the shortcut to (Folder) and release it. A new
folder will be created and the shortcut is added into the folder.
3. To add more shortcuts into the folder, touch and hold each
shortcut and drag it over the folder before releasing it.
- or -
Open the folder, touch and check the applications you
want to add into the folder, and then touch DONE.
NOTE:
Touch the folder and then touch the name field to rename the
![](/img.php?id=2441867&img=bg28.png)
40
folder.
Setting the Home Screen Transition
Effect
1. Touch and hold an empty place on the home screen and
touch Effect.
2. Check one effect you like.
Application List Screen
Touch the Home Key > to access the application list screen
and find all your applications on the phone. You can uninstall or
disable the applications, or hide the application icons.
Hiding Application Icons
1. Touch the Home Key > to open the application list
screen.
2. Touch > Hide apps.
3. Touch the application icons you want to hide and then touch
DONE.
NOTE:
To find the hidden application icons, touch > Display hidden
apps. You can then touch the icons and touch DONE to display
them again in the application list screen.
![](/img.php?id=2441867&img=bg29.png)
41
Uninstalling or Disabling an Application
1. Touch the Home Key > to open the application list
screen.
2. Touch and hold an application icon and then release it.
3. Touch on an application icon to uninstall the application.
Touch on an application icon to disable the application.
4. Touch the Back Key to finish.
NOTE:
To find the disabled applications, touch the Home Key > >
Settings > Apps > DISABLED. You can then touch an
application and touch Enable to enable it.
Not all applications can be uninstalled or disabled.
Rearranging the Primary Shortcuts
The home screen includes a customizable primary shortcuts area
at the bottom visible from all home screens. You can keep at
most four items in the primary shortcuts area. Drag shortcuts or
folders in or out of the area to rearrange the area.
![](/img.php?id=2441867&img=bg2a.png)
42
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. Touch the Back Key to hide the onscreen
keyboard. You can also enter text by speaking with the Google
voice typing feature.
Change Input Methods
1. When you use the onscreen keyboard to enter text, the icon
appears on the status bar.
2. Open the notification panel and touch Choose input
method.
3. Select the input method you need.
NOTE:
The icon appears only when more than one input method is
installed.
Google Keyboard
The Google keyboard provides a layout similar to a desktop
computer keyboard. When screen auto-rotation is enabled, turn
the phone sideways and the keyboard will change from portrait to
landscape. The landscape keyboard is not supported in all
applications.
![](/img.php?id=2441867&img=bg2b.png)
43
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter è, touch and hold and the
available accented letters and number 3 appear. Then slide
to choose è.
As you enter a word, candidates appear above the keyboard.
Touch to select the correct one; touch and hold to see more
possible options.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
case you are using: for lowercase, for uppercase,
and when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
![](/img.php?id=2441867&img=bg2c.png)
44
touch to find more.
Touch to enter miniature icons.
Touch to use Google’s networked voice input.
Touch and hold to change the input languages or set up
the Google keyboard.
Gesture Typing
The Google keyboard supports gesture typing feature. You use
this feature to input a word by sliding through the letters.
To enable and use gesture typing:
1. Touch and hold on the Google keyboard and then touch
Google Keyboard Settings.
2. Check Enable gesture typing.
3. Move your finger from letter to letter on the keyboard to trace
a word without lifting the finger until you reach the end of the
word.
Start of
the word
End of the
word
![](/img.php?id=2441867&img=bg2d.png)
45
NOTE:
Touch when you want to. If you want to enter a single letter, go
ahead and touch.
Lift your finger at the end of the word. A space is added
automatically when you begin to input the next word.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text.
1. Flick down the status bar when entering text and touch
Choose input method, and then select Google voice
typing.
Or touch to access the voice typing feature when you are
using the Google keyboard.
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
NOTE:
Say "comma," "period," "question mark," "exclamation mark," or
"exclamation point" to enter punctuation.
Input Method Settings
Choose the input method settings by touching > Settings >
Language & input from the home screen.
In the KEYBOARD & INPUT METHODS section, you can set
the default input method and choose the settings for input
![](/img.php?id=2441867&img=bg2e.png)
46
methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut or Copy button to cut or copy the text to
the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch or PASTE.
Insert text from the clipboard: Move cursor to the insertion
point and then touch and hold the tab below the cursor.
Release the finger and touch PASTE.
![](/img.php?id=2441867&img=bg2f.png)
47
Opening and Switching Apps
Open an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch the Recent Apps Key.
A list of the names and thumbnails of apps you’ve used
recently opens. If you’ve been using more apps recently than
can fit on the screen, you can scroll the list up and down.
2. Touch a thumbnail to open that app.
NOTE:
You can swipe a thumbnail sideways to remove it from the list.
![](/img.php?id=2441867&img=bg30.png)
48
Connecting to Networks and
Devices
Connecting to Mobile Networks
Select Network Operator
1. Touch the Home Key > > Settings > Mobile
networks > Network operators.
2. Touch Search networks to search for all available networks.
3. Touch a network in the network list to register manually.
You can also touch Choose automatically to select
preferred network automatically.
Select Preferred Network Type
1. Touch the Home Key > > Settings > Mobile
networks > Preferred network type.
2. Touch the type of network you prefer to connect to.
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Data enabled to enable data access over the mobile
network. Clear the check box to disable data access.
![](/img.php?id=2441867&img=bg31.png)
49
To enable always-on data access:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Always-on mobile data to allow applications to
update data automatically.
NOTE:
When you enable this option, more data traffic will be generated
for automatic updates of applications data. And your phone will
consume more power.
To get data services when roaming:
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Data roaming.
NOTE:
Data roaming may incur significant roaming charges.
Use 2G Network Only to Save Power
1. Touch the Home Key > > Settings > Mobile networks.
2. Check Use only 2G networks to save battery power.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > > Settings > Mobile
networks > Access Point Names.
![](/img.php?id=2441867&img=bg32.png)
50
2. Touch .
3. Touch each item to enter the information you get from your
service provider.
4. Touch > Save to complete.
NOTE:
To set the APN to default settings, touch > Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
Connect.
NOTE:
Your phone automatically connects to previously used Wi-Fi
networks when they are in range.
NOTE:
To connect to a Wi-Fi router that supports WPS, touch on
![](/img.php?id=2441867&img=bg33.png)
51
the phone’s Wi-Fi menu and press the WPS button on your
router.
Get Notified of Open Networks
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > Advanced.
4. Check Network notification.
When Wi-Fi is on, you receive notifications in the status bar
when your phone detects an open Wi-Fi network. Uncheck
the option to turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch .
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch Save.
![](/img.php?id=2441867&img=bg34.png)
52
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
longer use.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Wi-Fi network name and then touch Forget.
Connect to a WPS Network
Wi-Fi Protected Setup (WPS) is a feature that makes it easy to
add your phone to the access points which support WPS.
You can use one of the following methods to connect your phone
to a wireless network using WPS.
Method one: WPS button (Recommended)
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch .
4. Press the WPS button on the wireless router and the access
point will recognize your phone and add it to the network.
Method two: PIN number
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
![](/img.php?id=2441867&img=bg35.png)
53
3. Touch > WPS Pin Entry.
4. The WPS PIN number displays on the screen. Enter the PIN
number into the access point's setup page.
After entering the PIN number, your phone automatically finds
the access point and configures the connection.
NOTE:
For detailed information about the WPS feature of the access
point, please refer to its user documents.
Adjust Advanced Wi-Fi Settings
1. Touch the Home Key > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
Avoid no internet connections: Only use Wi-Fi
networks that have Internet connection.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
Wi-Fi optimization: Minimize battery usage when Wi-Fi
is on.
![](/img.php?id=2441867&img=bg36.png)
54
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
Using Wi-Fi Direct®
Wi-Fi Direct allows Wi-Fi devices to connect to each other
without the need for wireless access points (hotspots).
Connect to Another Device via Wi-Fi Direct
1. Touch the Home Key > > Settings > Wi-Fi.
2. If Wi-Fi is off, slide the Wi-Fi switch to the ON position.
3. Touch > Wi-Fi Direct. Your phone will search for other
devices enabled with Wi-Fi direct connections.
4. Touch a device name under PEER DEVICES to connect with
it.
The other device will receive a connection prompt and need
to accept the request for connection. Both devices may need
to enter a common PIN.
5. Once connected the device is displayed as “Connected” in
the PEER DEVICES list.
Send Data via Wi-Fi Direct
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Wi-Fi Direct. The method
may vary by application and data type.
![](/img.php?id=2441867&img=bg37.png)
55
3. Touch a device the phone has connected with or wait for it to
search for new devices and touch one of them.
Receive Data via Wi-Fi Direct
When an attempt to transfer data via Wi-Fi Direct is received, you
can see a notification in the status bar. Open the notification
panel, touch the notification and select Accept to start receiving
the data.
Received files are stored automatically in a dedicated folder
(WiFiShare, for instance). You can access them with the File
Manager app.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters. The
Bluetooth devices must be paired before the communication is
performed.
Turn Bluetooth On/Off
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON or OFF position.
When Bluetooth is on, the icon will appear in the status bar.
![](/img.php?id=2441867&img=bg38.png)
56
Make Your Phone Visible
In order to work with other phones or devices that have Bluetooth,
you need to make your phone ‘visible’ to them.
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
3. Touch your device name on the top of the screen to make
your phone visible or invisible.
NOTE:
Touch > Visibility timeout to set the Bluetooth visibility
timeout of your phone.
Change the Device Name
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
3. Touch > Rename phone.
4. Edit the name and touch Rename.
Pair With Another Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
Your phone automatically scans for and displays the IDs of
![](/img.php?id=2441867&img=bg39.png)
57
all available Bluetooth devices in range. You could touch
SEARCH FOR DEVICES if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch Pair. Alternately, enter a
Bluetooth passkey and touch Pair.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as
headsets and hands-free car kit. You can try entering 0000 or
1234 (the most common passkeys), or refer to the documents for
that device.
Unpair From a Bluetooth Device
You can make your phone forget its pairing connection with
another Bluetooth device. To connect to the device again, you
may need to enter or confirm a passkey again.
1. Touch the Home Key > > Settings > Bluetooth and
ensure that Bluetooth is turned on.
2. In the list of paired devices, touch the icon beside the
Bluetooth device you want to unpair from.
3. Touch Unpair.
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
![](/img.php?id=2441867&img=bg3a.png)
58
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
NOTE:
If the phone has not been paired with the sending device, you
may need to touch Bluetooth > [your phone’s name] in
Settings to keep the phone detectable through Bluetooth.
2. Flick down the status bar and touch .
3. Touch Accept to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC. You can access them with the File Manager app.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in the phone storage or on a removable
microSDHC card. For more information, see Storage.
If you are using USB tethering, you must turn that off before you
can use USB to transfer files between your phone and computer.
![](/img.php?id=2441867&img=bg3b.png)
59
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Open the notification panel and touch .
3. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Install the driver needed for some USB
connection modes (such as MTP). You only need to install
the driver on the same PC once.
NOTE:
You can also install the driver on PC by running the
executable file in the new CD-ROM drive.
Media device (MTP): Transfer files on Windows® or
Mac®.
NOTE:
For Windows XP, please install the drivers and Media
Player 11 (or later version) when you use Media device
(MTP) for the first time.
Camera (PTP): Transfer photos using camera software.
Connect With Windows Media® Player
You can sync music on your phone and the computer installed
with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
![](/img.php?id=2441867&img=bg3c.png)
60
2. Open Windows Media Player and synchronize music files.
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you must unmount it first.
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Unmount SD card > OK.
3. When the Unmount SD card menu changes to Mount SD
card, you can now safely remove the microSDHC card from
the phone.
NOTE:
If you unmount the microSDHC card, some apps that you are
using will stop and may be unavailable until you remount the
microSDHC card.
Erase the microSDHC Card
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Erase external SD card > Erase SD
card > Erase everything.
CAUTION:
The formatting procedure erases all the data on the microSDHC
![](/img.php?id=2441867&img=bg3d.png)
61
card, after which the files CANNOT be retrieved.
Sharing Your Mobile Data Connection
You can share your phone’s data capabilities through tethering or
by activating the mobile hotspot feature to create a portable Wi-Fi
hotspot.
Share Your Mobile Data Connection via USB
You can access the Internet on your computer via the USB
tethering feature of your phone. The feature needs data
connection on a mobile network and may result in data charges.
NOTE:
You cannot transfer files between the phone and the PC when
the phone is USB tethered.
1. Connect your phone to your computer with a USB cable.
2. Touch the Home Key > > Settings > More.
3. Check USB tethering. A new network connection will be
created on your computer.
NOTE:
To stop sharing your data connection, uncheck USB tethering or
disconnect the USB cable.
Share Your Mobile Data Connection via
Bluetooth
If your computer can obtain an Internet connection via Bluetooth,
you can configure your phone to share its mobile data connection
![](/img.php?id=2441867&img=bg3e.png)
62
with your computer.
1. Pair your phone with your computer via Bluetooth.
2. Configure your computer to obtain its network connection via
Bluetooth. For more information, please see your computer's
documentation.
3. Touch the Home Key > > Settings > More.
4. Check Bluetooth tethering. Your computer is now sharing
your phone's data connection.
NOTE:
To stop sharing your data connection, uncheck Bluetooth
tethering.
Share Your Mobile Data Connection as a
Wi-Fi Hotspot
You can share your phone’s data connection with other devices
by turning your phone into a portable Wi-Fi hotspot. The feature
needs data connection on a mobile network and may result in
data charges.
NOTE:
When the portable Wi-Fi hotspot feature is enabled, you cannot
use your phone’s applications to access the Internet via its Wi-Fi
connection. You still remain connected to the Internet via your
mobile data network.
1. Touch the Home Key > > Settings > Mobile Hotspot.
2. Slide the Wi-Fi hotspot switch to the ON position to turn the
feature on.
![](/img.php?id=2441867&img=bg3f.png)
63
After a moment, the phone starts broadcasting its Wi-Fi
network name (SSID).
3. On another device, locate your phone via Wi-Fi and connect
with it to start using the phone’s mobile data.
Or, if the device supports Wi-Fi Protected Setup, touch the
WPS icon on the device, and then touch WPS BUTTON on
your phone.
NOTE:
To stop sharing your data connection, slide the Wi-Fi hotspot
switch to the OFF position.
Set Your Wi-Fi Hotspot
You can change the name of your phone's Wi-Fi network (SSID),
secure your portable Wi-Fi hotspot, and set other options.
1. Touch the Home Key > > Settings > Mobile Hotspot.
2. Touch HOTSPOT SETTINGS and set the following options
as follows.
Network SSID: Enter or edit a network SSID (name) that
other devices see when scanning for Wi-Fi networks.
Security: Choose a security option: None (not
recommended) or WPA2 PSK (other users can access
your mobile hotspot only if they enter the correct
password). When you select WPA2 PSK, touch the
Password field to edit the security password.
Broadcast network name (SSID): Broadcast or hide
your network SSID. If the broadcast is disabled, other
![](/img.php?id=2441867&img=bg40.png)
64
users need to get your network SSID to find the Wi-Fi
hotspot.
3. Touch Save to save your settings.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch Add VPN profile and fill in the information provided
by your network administrator.
3. Touch Save.
The VPN is added to the list on the VPN screen.
NOTE:
You must set a lock screen pattern, PIN or password before
using VPN.
![](/img.php?id=2441867&img=bg41.png)
65
Connect to a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch Connect.
Modify a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch and hold the VPN that you want to modify.
3. Touch Edit profile and edit the VPN settings you want.
4. Touch Save.
![](/img.php?id=2441867&img=bg42.png)
66
Phone Calls
You can place calls from the Phone app, the Contacts app, or
other apps or widgets that display contact information. Wherever
you see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home Key > .
2. Touch and enter the phone number or the contact name
with the dialpad. The phone will display matching information
from your contact list.
To make an international call, touch and hold the 0 key to
enter the plus (+) symbol. Next, enter the country code,
followed by the city/area code and then the phone number.
3. Touch the matching contact to call the contact or touch
to call the number.
NOTE:
You can also touch the search box at the top of the Phone app
screen and enter the phone number or contact name you want to
call. Touch the matching contact or Call [number] to place the
call.
NOTE:
To redial the last call you made, just touch the Home Key >
![](/img.php?id=2441867&img=bg43.png)
67
> > and touch again.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the incoming call screen opens,
displaying the caller ID or the information about the caller that
you've entered in the Contacts app. You can answer or reject the
call, or reject it with a text message.
Answer a Call
When you receive a phone call, slide down to answer the
call.
NOTE:
To silence the ringer before answering the call, press the either
end of the Volume Key.
Reject a Call
When you receive a phone call, slide up to reject the call.
You can also slide up to reject the call and select a preset
text message or edit one to send to the caller.
NOTE:
To edit the preset text response from within the Phone app, touch
> Settings > Quick responses.
![](/img.php?id=2441867&img=bg44.png)
68
Working With the Call History
The call history is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your contacts.
To open the call history, you can touch the Home Key > >
.
Place a Call From the Call History
1. Open the call history.
2. Touch a number for more information about the call, or
touch beside it to call back.
Add a Number From Call History as a Contact
1. Open the call history.
2. Touch a number to view more call information.
3. Touch .
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch Create new contact.
Take Other Actions on a Call History Entry
1. Open the call history.
2. Touch a number to view more call information. While
viewing the call details, you can:
Touch Call [number] to make a call.
Touch > Edit number before call to edit the number
![](/img.php?id=2441867&img=bg45.png)
69
in the dialer before calling it.
Touch to send a message.
If the number belongs to a contact you have, touch
to view contact details.
Touch > Remove from call log to delete the call log
entry.
Calling Your Contacts
1. Touch the Home Key > . Your favorite contacts and
frequently called contacts are displayed.
2. Touch a contact to place the call, or touch All Contacts to
view all your contacts with phone numbers and select one to
make the call.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
1. Touch the Home Key > > .
2. Touch and hold on the dialpad. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
See Set Voicemail for how to set your voicemail service. For
![](/img.php?id=2441867&img=bg46.png)
70
detailed information, please contact the service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to view all call options.
Touch to switch to the keypad when you need to enter a
code (for example, the PIN for your voicemail or bank
account) during the call.
Touch to mute or unmute your microphone.
Touch to turn on or off the speaker.
Touch to put the call on hold.
Touch to make another call separately from the first call,
which is put on hold.
Touch to open the Contacts app.
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold.
Touch to merge the separate calls into a single
conference call.
Touch to end the current call.
WARNING!
Because of higher volume levels, do not place the phone near
![](/img.php?id=2441867&img=bg47.png)
71
your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Touch (Hold current and answer) to answer the call.
(This puts the first caller on hold and answers the second call.)
Or touch (End current and answer) to answer the second
call and end the first call.
NOTE:
Touch to reject the second call and select a preset text
message or edit one to send to the caller.
To switch between two calls:
Touch on the screen.
![](/img.php?id=2441867&img=bg48.png)
72
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. On the dialpad, enter a number and touch .
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Select Default Ringtone and Vibration
1. Touch the Home Key > > > Settings.
2. Touch Phone ringtone to select the default ringtone for
incoming calls, touch Vibrate pattern to set the vibration type,
or check Vibrate when ringing to enable vibration when the
phone is ringing.
Set Voicemail
1. Touch the Home Key > > > Settings > Voicemail.
2. Touch Service to select the voicemail service provider.
3. Touch Setup > Voicemail number to edit the voicemail
![](/img.php?id=2441867&img=bg49.png)
73
number if necessary.
NOTE:
You can touch Sound to set the notification sound for new
voicemails or check Vibrate to let the phone vibrate when
receiving new voicemails.
Enable/Disable Phone Dial Pad Sound
1. Touch the Home Key > > > Settings.
2. Check or uncheck Dialpad touch tones.
Edit Quick Response to Rejected Callers
1. Touch the Home Key > > > Settings > Quick
responses.
2. Touch a text message to edit it.
3. Touch OK to save it.
Use Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of phone numbers.
1. Touch the Home Key > > > Settings > Fixed Dialing
Numbers.
2. The following options are available.
Enable FDN: Input the PIN2 code to enable the FDN
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
![](/img.php?id=2441867&img=bg4a.png)
74
NOTE:
The PIN2 code is provided by your carrier. Entering an incorrect
PIN2 code more times than allowed can get your micro-SIM card
locked. Contact the service provider for assistance.
Set TTY Mode
Your phone is a TTY compatible device. A TTY device can allow
people who have hearing or speech disabilities to communicate
by telephone. Simply connect the TTY device to the phone’s
headset jack.
Select a TTY mode for your phone to work with a TTY device, or
turn TTY off.
1. Touch the Home Key > > > Settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through TTY
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party, and
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
![](/img.php?id=2441867&img=bg4b.png)
75
Set Hearing Aids
Your phone supports HAC (Hearing Aid Compatibility) function.
When you turn on the hearing aid compatibility and use a hearing
aid with a Telecoil to answer the phone, it will help you hear more
clearly during the phone call.
1. Touch the Home Key > > > Settings.
2. Check Hearing aids to turn on hearing aid compatibility.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home Key > > > Settings > DTMF tones.
2. Touch Normal or Long.
Set Speed Dials
You can touch and hold the 1 ~ 9 keys from the dialpad to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
1. Touch the Home Key > > > Settings > Speed dial.
2. Touch a speed dial key.
3. Enter a phone number or select one from the contact list.
4. Touch OK.
![](/img.php?id=2441867&img=bg4c.png)
76
Call Ended Operation Tips
When this feature is enabled, the phone will prompt you to call
back, send a message to the contact, or add the new number to
your contacts after you finish a call.
1. Touch the Home Key > > > Settings.
2. Check Call ended operations tips to enable this feature.
Bar Certain Calls
Call barring feature allows you to forbid certain types of calls from
your phone.
1. Touch the Home Key > > > Settings > Call Barring
Settings.
2. Set the restriction of specific types of calls from your phone.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home Key > > > Settings > Call
forwarding.
2. Touch an available option ( Always forward, Forward when
busy, Forward when unanswered, or Forward when
unreachable) to enable it.
Set Caller ID and Call Waiting
1. Touch the Home Key > > > Settings > Additional
![](/img.php?id=2441867&img=bg4d.png)
77
settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE:
Please contact the service provider to check whether the caller
ID and call waiting features are available.
Internet Call Settings
To add an Internet calling account:
1. Touch the Home Key > > > Settings > Accounts.
2. Touch Add account.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch Save.
To configure which calls use Internet calling:
You can configure your phone to place all calls using Internet
calling (when you’re connected to a Wi-Fi network), just calls to
Internet calling addresses, or to ask each time you place a call.
1. Touch the Home Key > > > Settings.
2. Touch Use Internet calling.
3. Touch the Internet calling option you want.
To configure your phone to receive Internet calls:
By default, your phone is configured to make Internet calls, but
not to ensure that you will receive them. But you can configure
![](/img.php?id=2441867&img=bg4e.png)
78
your phone to listen for Internet calls made to an Internet calling
account you added to your phone.
1. Touch the Home Key > > > Settings > Accounts.
2. Check Receive incoming calls. Checking this setting will
reduce your battery life between charges.
![](/img.php?id=2441867&img=bg4f.png)
79
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > > Contacts.
From there, you can touch the tabs on the top of the screen to
quickly switch to the contact groups or favorite contacts
.
Checking Contact Details
1. Touch the Home Key > > Contacts and touch the all
contacts tab to access your contacts list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
NOTE:
If you have a lot of contacts stored, you'll see a slider when you
touch the right side of the screen. To go directly to a letter, touch
and hold the slider and drag it to a letter.
![](/img.php?id=2441867&img=bg50.png)
80
Adding a New Contact
1. Touch the Home Key > > Contacts and touch the all
contacts tab .
2. Touch to add a new contact.
3. Touch the account to choose where to save the contact. If a
web account is selected, the contacts will be synced
automatically with your account online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch DONE to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch the Home Key > > Contacts and touch the all
contacts tab .
2. Touch Set up my profile.
If a profile has already been set up, touch the listing under
ME and touch Edit.
3. Edit your profile information and touch DONE.
![](/img.php?id=2441867&img=bg51.png)
81
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your micro-SIM card, the
phone storage, the microSDHC card or your online accounts.
This is especially useful when you need to transfer contacts
between different devices. You can also quickly share your
contacts using Bluetooth, email, messages, etc.
Import Contacts From the micro-SIM Card
1. Touch the Home Key > > Contacts.
2. Touch > Import/export > Manage SIM card contacts.
3. Touch > Export to phone.
4. Check the contacts you want to import and touch .
5. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
Import Contacts From the microSDHC Card
or Phone Storage
1. Touch the Home Key > > Contacts.
2. Touch > Import/export > Import from storage.
3. If you have added contact accounts other than the phone,
select an account in which to save the contacts.
![](/img.php?id=2441867&img=bg52.png)
82
4. Select the vCard file(s) in the microSDHC card or the phone
storage and touch OK.
NOTE:
If the microSDHC card is not installed in the phone, you can
import vCard file(s) in the phone storage.
Export Contacts to the micro-SIM Card
1. Touch the Home Key > > Contacts.
2. Touch > Import/export > Manage SIM card contacts.
3. Touch > Import from phone.
4. Check the contacts you want to export and then touch .
Export Contacts to the microSDHC Card or
Phone Storage
1. Touch the Home Key > > Contacts.
2. Touch > Import/export > Export to storage.
3. The phone will prompt you with the name of the vCard file and
the directory in which the file will be saved. Touch OK to
create the file.
NOTE:
If the microSDHC card is not installed in the phone, you can
export vCard file(s) into the phone storage.
![](/img.php?id=2441867&img=bg53.png)
83
Share Contacts
1. Touch the Home Key > > Contacts and touch the all
contacts tab .
2. Touch > Multi-Select.
3. Touch to select the contacts you want to share and then
touch .
4. Choose how to share the contacts. Options depend on the
applications and services installed.
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite
contacts and frequently contacted contacts.
Add a Contact to Favorites
You can add the contacts you use frequently to favorites so that
you can find them quickly.
1. Touch the Home Key > > Contacts and touch the all
contacts tab .
2. Touch a contact and then touch next to the contact
name.
![](/img.php?id=2441867&img=bg54.png)
84
Remove a Contact From Favorites
1. Touch the Home Key > > Contacts and touch the
favorite contacts tab .
2. Touch a favorite contact and then touch next to the
contact name.
Working With Groups
View Your Contact Groups
1. Touch the Home Key > > Contacts and touch the
contact groups tab .
2. Scroll through the list to view the groups.
3. Touch a group to view its members.
NOTE:
To send a message or an email to the group members, you can
touch > Send Group message / Send Group email after you
open the group.
![](/img.php?id=2441867&img=bg55.png)
85
Set Up a New Group
1. Touch the Home Key > > Contacts and touch the
contact groups tab .
2. Touch New group to create a new group.
3. Touch to choose an account for the new group.
4. Touch the Group’s name field and enter the group name.
5. Touch Add member and select the contacts you wish to be
the group members.
6. Touch .
7. If necessary, touch Default below RINGTONE to set a
special ringtone for incoming calls from the group members.
8. Touch DONE.
Delete a Group
1. Touch the Home Key > > Contacts and touch the
contact groups tab .
2. Touch a group and then touch > Delete.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Edit a Group
1. Touch the Home Key > > Contacts and touch the
![](/img.php?id=2441867&img=bg56.png)
86
contact groups tab .
2. Touch a group and then touch .
3. Touch Edit to edit the group name, add more members, or
change the ringtone. Or touch Multi-Select to select the
members you don’t need and remove them from the group.
Searching for a Contact
1. Touch the Home Key > > Contacts.
2. Touch on the top of the contacts list.
3. Input the contact name or any information the contact has
to search for it. The contacts matched will be listed.
Editing Contacts
Edit Contact Details
1. Touch the Home Key > > Contacts.
2. Touch a contact you need to edit and then touch Edit.
3. Edit the contact and touch DONE.
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
![](/img.php?id=2441867&img=bg57.png)
87
calling when you hear the ringtone.
1. Touch the Home Key > > Contacts.
2. Touch a contact you want to set a ringtone for and then
touch > Set ringtone.
3. Select a ringtone you like and touch OK.
Join Contacts
As your phone synchronizes with multiple online accounts, you
may see duplicate entries for the same contact. You can merge
all the separate information of a contact into one entry in the
contacts list.
1. Touch the Home Key > > Contacts.
2. Touch a contact entry to display the contact’s details.
3. Touch Edit > > Join.
4. Touch the contact whose information you want to join with the
first entry.
5. Touch DONE.
The information from the second contact is added to the first
contact, and the second contact is no longer displayed in the
contacts list.
You can repeat these steps to join another contact to the main
contact.
![](/img.php?id=2441867&img=bg58.png)
88
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. Touch the Home Key > > Contacts.
2. Touch a contact entry you have merged and want to
separate.
3. Touch Edit > > Separate.
4. Touch OK to confirm.
![](/img.php?id=2441867&img=bg59.png)
89
Accounts
Adding or Removing Accounts
You can add multiple Google accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts, depending on the apps installed on your phone.
Add an Account
1. Touch the Home Key > > Settings > Add account.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
ACCOUNTS section in the Settings menu.
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. Touch the Home Key > > Settings.
2. Touch the account category in the ACCOUNTS section and
then touch the account.
![](/img.php?id=2441867&img=bg5a.png)
90
3. Touch > Remove account > Remove account.
Configuring Account Sync
Configure Auto Sync Setting
1. Touch the Home Key > > Settings > Data usage.
2. Touch and check or uncheck Auto-sync data.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When auto sync is turned off, you need to sync manually
to collect emails, updates, or other recent information.
Sync Manually
1. Touch the Home Key > > Settings.
2. In the ACCOUNTS section, touch the account category and
then the account you want to sync.
3. Touch > Sync now. Or touch the types of information you
want to sync.
![](/img.php?id=2441867&img=bg5b.png)
91
Change an Account’s Sync Settings
1. Touch the Home Key > > Settings.
2. In the ACCOUNTS section, touch the account category and
then the account. The Sync screen appears, showing a list
of information the account can sync.
3. When auto-sync is enabled, check or uncheck items as you
need. Checked types of information on the phone and the
web will be kept in auto-sync.
![](/img.php?id=2441867&img=bg5c.png)
92
Email
Touch in the home screen and select Email. Use it to
receive and send emails from your webmail or other accounts,
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. When you open Email for the first time, enter your email
address and password.
2. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE:
You can also enter these details manually by touching
Manual setup or when automatic setup fails.
3. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the
interval you set when setting up the account.
You can also check new emails manually by touching in
any of the email account’s boxes. Touch Load more messages
![](/img.php?id=2441867&img=bg5d.png)
93
at the bottom of the email list to download earlier messages.
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from the Inbox.
2. Do the following as you need:
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
To forward the email to someone else, touch .
3. Edit your message and touch .
Mark an Email as Unread
You can return a read email to the unread state - for example, to
remind yourself to read it again later. You can also mark a batch
of emails as unread.
While reading a message, touch > Mark as unread.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
![](/img.php?id=2441867&img=bg5e.png)
94
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch > OK.
While in a message list (for instance, the Inbox), touch the
checkboxes before the messages and then touch >
OK.
Writing and Sending an Email
1. Open your email inbox and touch .
NOTE:
If you have more than one email account added on the
phone, touch the sender line to select the account you want
to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
NOTE:
Touch > Add Cc/Bcc to send a carbon copy or blind
carbon copy to other recipients.
3. Enter the email subject and compose the email text.
4. Touch > Attach file to add audio files, images, videos
and other types of files as attachments.
![](/img.php?id=2441867&img=bg5f.png)
95
5. Touch at the top right of the screen to send the
message.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Email – Setting Up
the First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the inbox screen.
2. Touch > Settings and touch ADD ACCOUNT at the top
right of the screen.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the inbox screen.
2. Touch > Settings and touch the account whose settings
you want to change.
3. Make the changes you want and touch the Back Key when
![](/img.php?id=2441867&img=bg60.png)
96
you finish.
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the inbox screen.
2. Touch > Settings > General.
3. Make the changes you want and touch the Back Key when
you finish.
![](/img.php?id=2441867&img=bg61.png)
97
Gmail™
After you sign in to your Google account on the phone, you can
send and retrieve Gmail messages with the Gmail app.
NOTE:
This feature may not be available in certain regions or with
certain service providers.
Opening Your Gmail Inbox
Touch the Home Key > > Gmail. The inbox screen
appears. If you haven’t signed in, you will be prompted to do so
or create a new account.
Touch > Refresh to refresh your inbox and download new
messages.
Switching Accounts
Gmail displays conversations, messages, and settings from
one Google account at a time. If you have signed in to more
than one Google account on your phone, you can switch
accounts and view information in each account.
1. From your inbox, touch the current account at the top of the
screen.
2. From the menu that appears, touch the account you want to
see. The account’s inbox will open.
![](/img.php?id=2441867&img=bg62.png)
98
Writing and Sending a Message
1. Open your Gmail inbox and switch to the account you
want to use for sending the message.
2. Touch .
3. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
4. Enter the email subject and compose the email text.
5. To add an attachment, touch > Attach file.
6. Touch at the top right of the screen to send the
message.
Replying to or Forwarding a Message
1. Open the Gmail message you want to reply to or forward
to another person.
2. Do the following as you need:
To reply to the sender, touch .
To reply to the sender and all recipients of the original
message, touch > Reply all.
To forward the message, touch > Forward.
3. Edit your message and touch .
![](/img.php?id=2441867&img=bg63.png)
99
Working With Received Attachments
When a message has an attachment, Gmail displays
information about it in the ATTACHMENTS section of the email.
Depending on the attachment type, the applications installed on
your phone as well as your settings, you may preview, view, or
save the attachment.
Working With Labels
Message labels include both labels you create and default
labels such as Sent, Starred, and Outbox. You can organize
your emails by labeling them or adding stars to them. Labels
also help you sort your messages, similar to folders.
To label or change labels:
1. Open the Gmail app and touch in the message list the
sender images at the left side of the messages you want
to label.
![](/img.php?id=2441867&img=bg64.png)
100
2. At the top right of the screen, touch > Change labels.
3. Check or uncheck labels in the new screen and touch OK.
To add stars to messages:
1. Open the Gmail app and touch in the message list the
sender images in front of the messages you want to star.
2. At the top right of the screen, touch > Add star.
To view messages by label:
1. Open the Gmail app and touch the current account at the
top of the screen without checking any message.
2. Touch a label below ALL LABELS to view messages with
that label.
Changing Gmail Settings
1. From your inbox, touch the current account at the top of the
screen.
2. Scroll down and touch SETTINGS to change General
settings, which apply to all Gmail accounts, or other
settings that only apply to specific accounts.
![](/img.php?id=2441867&img=bg65.png)
101
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch the Home Key > > Messaging.
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the recipient line and manually enter the
recipient’s number or the contact name. If the phone
presents a few suggestions, touch the one you want to
add.
Select recipients from your contacts by touching .
![](/img.php?id=2441867&img=bg66.png)
102
3. Touch the Type message field and enter the message text.
4. If you want to send a multimedia message, touch > Add
subject to add a message subject or touch to attach a
file or a slideshow to the message.
5. Touch or Send.
NOTE:
You can also include email addresses as recipients for
multimedia messages.
NOTE:
Do not add a message subject or any attachment if you want to
send a text message. Otherwise you may be charged for a
multimedia message.
Replying to a Message
Messages you receive are appended to existing threads of the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
if you want to reply with an MMS.
3. Touch or Send.
![](/img.php?id=2441867&img=bg67.png)
103
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch the message and then touch Forward in the menu
that opens.
3. Enter a recipient for the message and edit the content if you
want.
4. Touch or Send.
Copying a Message
You can copy text messages in the phone storage to the
micro-SIM cards, or vice versa.
To copy a text message from the phone to the micro-SIM cards:
1. On the Messaging screen, touch the thread that has the
message you want to copy.
2. Touch the message and then touch Copy to SIM card.
To copy a text message from the micro-SIM card to the phone:
1. On the Messaging screen, touch > Settings > Manage
SIM card messages.
2. Touch and hold a message and then touch Copy to phone
memory.
![](/img.php?id=2441867&img=bg68.png)
104
Changing Message Settings
Touch > Settings in the Messaging screen to change the
messaging settings.
![](/img.php?id=2441867&img=bg69.png)
105
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the home screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch > Calendars to display.
3. Touch the calendars to check the ones you want to see or
uncheck the ones you’d like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four view types: Month, Week, Day, and Agenda.
![](/img.php?id=2441867&img=bg6a.png)
106
To change calendar views, touch the view you want at the
bottom of the screen. You can also change to Day view from
Month view by touching any day in the monthly calendar.
In Month view, swipe vertically to see previous and future
months.
In Week or Day view, swipe horizontally to see previous and
future weeks/days.
When you are viewing past or future days, weeks, or
months, touch the icon at the top right to quickly switch
to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view or Agenda
view. Then touch an event to view its details.
Creating an Event
1. In any Calendar view, touch .
You can also touch a spot in Day or Week view twice to add
an event to that time spot.
2. If you have more than one calendar account, touch the
current account above the Event name box to choose one.
3. Enter the event details and touch Save.
![](/img.php?id=2441867&img=bg6b.png)
107
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see Viewing Your Calendars and
Events – View Event Details in this chapter).
3. Do one of the following as you need.
To edit the event, touch . Touch Save to save your
changes.
To delete the event, touch > OK.
Changing Calendar Settings
To change the calendar settings, open a calendar view (Day,
Week, Month, or Agenda), and touch > Settings.
You can change General settings, which apply to all accounts,
or other settings that only apply to specific accounts.
![](/img.php?id=2441867&img=bg6c.png)
108
Google+™
Google+ is a social networking service offered by Google. The
Google+ application on your phone enables you to manage your
data, chat with online contacts, organize them in different circles,
and share your selected information.
Touch in the home screen and select Google+. The first
time you open the Google+ app, you may need to set up your
photo avatar, configure contact sync and photo/video backup
options.
NOTE:
For detailed guide for Google+, open Google+ and touch >
Help to view the online instructions.
Getting Started With Google+
Open the Google+ app to use the following features:
Check out new posts: Touch near the top right corner
and select Everything to see posts people have shared
with you, a circle or community you are in, or everyone. You
can filter the posts displayed by selecting a circle under My
Circles, a community under My Communities, a hot topic
below Explore, What’s Hot, or Nearby.
Write a post: Touch to write a post. You can select the
people or circles you want to share the post with, and add
pictures, your location, URLs, or your mood in the post.
![](/img.php?id=2441867&img=bg6d.png)
109
Manage your social calendar: Touch and select Events
at the bottom of the screen to add events, invite people, and
then share photos in real time from the event by enabling
Party Mode.
See friends’ locations on a map: Touch and select
Locations at the bottom of the screen. You’ll see a map that
shows everyone who shares their location with you. Touch
the photo of a person to display their location details.
Check out photos of you: Touch and select Photos at
the bottom of the screen to open the Photos app. Then
touch the Photos icon at the top left and select Photos of
you.
Manage your friends and circles: Touch to find new
people and add them to your circles.
Search for people, posts, and photos: Touch and enter
the information you want to search for.
Manage your own information: Touch your photo avatar and
name at the top left to view and edit your basic information,
view your posts and photos.
Signing out of Google+
If you are already signed in to the app, you can sign out by
following these steps.
1. Touch the Home Key > > Google+.
2. Touch > Settings and then touch your account.
![](/img.php?id=2441867&img=bg6e.png)
110
3. Touch > Sign out.
![](/img.php?id=2441867&img=bg6f.png)
111
Browser
Use Internet to view web pages and search for information.
Opening the Browser
Touch in the home screen and select Internet to use the
web browser.
The browser also opens when you touch a web link - for
example, in an email or a text message.
Open a Web Page or Search the Web
1. Open the Internet app.
2. Touch the address box at the top of the web page. If the
address box isn’t visible, scroll up the screen to show it.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for.
4. Touch a URL or search suggestion or touch the enter key on
the keyboard to open the web page or search results.
NOTE:
Touch beside the address box if you want to stop opening
the page.
![](/img.php?id=2441867&img=bg70.png)
112
Set the Homepage
Your home page opens when you restart the Internet app.
1. Open the Internet app.
2. Touch > Settings > Set Homepage.
3. Check Open this Page and touch the website box below to
type a URL as the homepage.
Using Multiple Browser Tabs
You can open several web pages at the same time (one page in
each tab) and switch between them freely.
To open a new browser tab:
Touch at the top right of the browser screen and then a new
browser window opens.
To switch between tabs:
1. Slide left or right on the top of the browser screen to view all
opened browser tabs.
2. Touch one tab you want to view.
NOTE:
Touch a tab twice to close it. Touch and hold a tab to get more
options.
![](/img.php?id=2441867&img=bg71.png)
113
Downloading Files
1. Touch and hold an image or a link to a file or to another
webpage.
2. In the menu that opens, touch Save image or Save link.
The downloaded files are saved to your phone or the
microSDHC card. You can view or open the downloaded files
by touching > Downloads.
Changing Browser Settings
You can configure a number of browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the browser settings screen, touch > Settings in the
web page screen.
![](/img.php?id=2441867&img=bg72.png)
114
Maps
Activating Location Services
To use location-related applications, such as finding your
location on Google Maps™, you must have location services
turned on on your phone.
1. Touch the Home Key > > Settings > Location.
2. Slide the Location switch at the top to turn location services
on or off.
3. When location is enabled, touch Mode to select location
sources you want to use.
High accuracy: Get accurate location using both GPS
and Wi-Fi as well as mobile networks.
Battery saving: Use only Wi-Fi and mobile networks to
get your approximate location. This will drain less power
from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
Getting Your Location
1. Touch the Home Key > > Maps.
2. Touch at the bottom.
The map centres on a circle and an arrow that indicates your
location and the direction the phone is facing.
![](/img.php?id=2441867&img=bg73.png)
115
Searching for a Location
1. Touch the Home Key > > Maps.
2. Touch the search box on the top.
3. Enter the address or the type of business or establishment
you’re looking for in the search box. If suitable suggestions
appear below the search box, touch one to search for it.
NOTE:
You can also touch beside the search box to use voice
search.
4. Touch the search key on the keyboard. Red points
indicating search results appear on the map.
5. Touch a red point to open a card at the bottom with
summary information about the location. You can also swipe
the bottom card left or right to see other results.
Slide the card up to find more information about the location
as well as options for getting directions and more.
Getting Directions to Your Destination
Maps can provide directions for travel by foot, public
transportation, or car.
1. Touch the Home Key > > Maps.
2. Touch beside the search box.
![](/img.php?id=2441867&img=bg74.png)
116
3. Select the mode of transportation and then enter a start and
end point. If your location is found, it will appear in the start
point field by default.
4. As suggested routes appear, touch one to see it on the map.
You can also swipe the bottom card left or right to choose
other routes.
Slide the bottom card up to see the route directions in a list.
NOTE:
Touch (Start) to use Google Maps Navigation (beta) and get
turn-by-turn voice directions.
Searching for Local Places
Google Maps helps you find all kinds of businesses and
establishments around you. You can rate these places and get
recommendations
1. Touch the Home Key > > Maps.
2. Navigate the map view to the area you'd like to explore. You
can explore nearby locations or pan the map to another
location.
3. Touch the search box at the top.
4. Touch the Explore nearby card and choose one option in
the new screen. Results will appear on cards.
![](/img.php?id=2441867&img=bg75.png)
117
5. Touch a location to see it on the map or get directions.
You can also slide up the bottom card to find out more
information, such as the street address, website, and street
view, or to call that place, save it to your Google account, or
share it with others.
NOTE:
The "Explore nearby" feature is not available for all areas.
![](/img.php?id=2441867&img=bg76.png)
118
Google Search
You can search for information on the web or on your phone
using Google Search or perform certain tasks by speaking.
Searching With Text
You can search for information on the Internet or on the phone
(such as music, apps and contacts) by entering text.
1. Touch the Home Key > > Google.
2. Enter the terms you want to search for in the search box
and touch the enter key on the keyboard, or touch a search
suggestion that appears below the search box.
Searching by Speaking
You can also search the web or perform certain tasks by
speaking.
1. Touch the Home Key > > Google.
2. Touch the microphone icon to the right of the search box, or
just say ‘OK, Google’.
NOTE:
You can also touch the Home Key > > Voice Search.
3. Speak the terms you want to search for or the question you
want to ask. When you’re finished speaking, your speech is
analyzed and the search is initiated.
![](/img.php?id=2441867&img=bg77.png)
119
Changing Search Settings
Open the Google app and touch > Settings to set phone
search options, voice recognition and output settings, and to
change privacy settings for your account.
![](/img.php?id=2441867&img=bg78.png)
120
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the microSDHC card you have
installed or in the phone storage. You can copy them to your
computer or check them out in the Gallery app.
Capturing a Photo
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
![](/img.php?id=2441867&img=bg79.png)
121
Number
Function
1
Switch between the front and the back camera.
2
Change the flash mode (only available for the back
camera).
3
Select color effect (only available for the back
camera).
4
Change the camera settings.
5
Change the camera modes including normal,
manual, HDR (High Dynamic Range), panorama,
smile, group, straighten, blink detect and interval
(only available for the back camera).
6
Record a video.
7
Capture a photo.
8
View photos and videos you have taken.
WARNING!
Keep a safe distance when using the flash. Do not point the
flash toward people or animals’ eyes.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before taking picture.
![](/img.php?id=2441867&img=bg7a.png)
122
3. You can either let the camera autofocus on the center of the
screen, or touch another area on the screen that you want
to focus on.
4. Touch the shutter icon to take the photo.
To use the manual camera mode:
You can use the manual camera mode to adjust more camera
options for you photo such as ISO, white balance, exposure,
contrast, saturation, sharpness, etc.
1. Touch the Home Key > > Camera.
2. Touch and select Manual.
3. Aim the camera at the subject and you can make the
following adjustments.
Drag to any area on the screen that you want to focus
on.
Drag to any area on the screen where you want the
camera to meter exposure so as to adjust the photo
brightness.
Touch to select the exposure meter mode.
NOTE:
The icon is only available in the Spot metering
mode.
![](/img.php?id=2441867&img=bg7b.png)
123
Touch to select ISO level or leave it at Auto.
Touch to change white balance scenario or leave it at
Auto.
Touch to adjust the photo exposure.
Touch to adjust the photo contrast.
Touch to adjust the photo saturation.
Touch to adjust the photo sharpness.
Touch to hide the camera options.
4. Touch the shutter icon to take the photo.
Recording a Video
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject. You can touch any area on
the screen that you want the camcorder to focus on before
and during recording.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before and during recording.
3. Touch to start recording.
4. Touch to stop recording.
![](/img.php?id=2441867&img=bg7c.png)
124
NOTE:
While the recording is in progress, you can touch to save
the frame as a separate photo.
Customizing Camera and Camcorder
Settings
Before capturing a photo or video, you can touch to open
the following camera and camcorder setting options.
NOTE:
Not all options are available for the front camera.
Camera options
Grid: Show or hide the composition line.
Self-timer: Set a time delay before the camera takes a
picture automatically after you touch the shutter icon, or
turn off this feature.
Auto-review: Set whether to review the picture after you
shot it. You can also select the review time.
Picture size: Set the image size for your photo.
Shutter tone: Change the shutter tone.
Camcorder options
Video quality: Set the quality for your video.
Time lapse: Set the time interval between each frame
when you shot time lapse videos.
![](/img.php?id=2441867&img=bg7d.png)
125
Silence camcorder: Enable this option if you want to
capture silent video clips.
Other options
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Storage location: Change the storage location for
captured photos and videos.
Restore defaults: Restore default camera and
camcorder settings.
![](/img.php?id=2441867&img=bg7e.png)
126
Gallery
Opening Gallery
Touch the Home Key > > Gallery to view albums of your
pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > OK.
![](/img.php?id=2441867&img=bg7f.png)
127
Working With Pictures
Touch a picture in an album to view the picture in full screen.
When viewing a picture in full screen, the following features are
available.
Swipe horizontally to see more pictures or videos.
Pinch a picture or video to make it smaller. You'll then see a
filmstrip-style view of all your pictures and videos in a row.
Swipe left or right to scan through them all.
![](/img.php?id=2441867&img=bg80.png)
128
NOTE:
You can delete a picture or video by swiping it up or down in
the filmstrip view. If you accidentally delete one, touch
UNDO to retrieve it.
Double-tap the picture, or pinch two fingers together or
spread them apart to zoom out or in.
Touch to rotate or rename the picture, check file details, or
change slideshow setting
Touch to browse the album contents in a slideshow.
Touch to return to the album.
NOTE:
Some options may not be available for certain albums or
pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery.
1. Touch while viewing a picture in full screen to open the
PhotoEditor interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
NOTE:
Slide left or right on the bottom of the screen to find all icons.
![](/img.php?id=2441867&img=bg81.png)
129
Apply filters and old photo effects.
Crop, straighten, rotate, or flip (mirror) the picture.
Adjust exposure, saturation, hue, sharpness, and other
colour options.
Add a frame to the picture.
Decorate people in the picture with comical
moustaches, eye glasses, hats and more.
Apply a blur effect to the picture.
Select a color and draw anything on the picture.
Add some text to the picture and adjust its effect.
3. Touch to keep the change or to cancel it.
4. Touch Save to save the new picture.
NOTE:
Touch History in the PhotoEditor screen to see the edits you
have made and undo or redo them.
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
![](/img.php?id=2441867&img=bg82.png)
130
2. Touch at the center and select a player to start playing.
Touch the video to view the playback controls.
In the Video Player, you can touch to play the video in a
small floating window and continue with other tasks on the
phone.
![](/img.php?id=2441867&img=bg83.png)
131
Music
Touch the Home Key > > Music to play audio files stored
on your phone. Music supports a wide variety of audio formats,
so it can play music you purchase from online stores, music you
copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Open the notification panel and touch .
3. Touch Media device (MTP). See Connect Your Phone to a
Computer via USB.
4. Copy the music files from the PC and paste them to the
phone storage or microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Downloading Files.
![](/img.php?id=2441867&img=bg84.png)
132
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
See Receive Data via Bluetooth.
Receive via Wi-Fi Direct
You can receive music files from other devices via Wi-Fi Direct.
See Receive Data via Wi-Fi Direct.
Viewing Your Music Library
Touch the Home Key > > Music and your music library is
displayed. All your audio files are cataloged, according the
information stored in the files.
Touch the tabs at the top of the screen to view your music
library organized by Albums, Artists, Songs, Playlists,
Folders, or Genre. You can also touch RECENTLY PLAYED or
FAVORITE to browse songs you recently played or you have
added as favorites.
NOTE:
If an audio file is being played, its summary information is
displayed at the bottom of the music library screen. Touch
to open the playback screen.
![](/img.php?id=2441867&img=bg85.png)
133
Setting a Song as the Default
Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see Contacts – Editing Contacts – Set a Ringtone for
a Contact).
1. Touch the Home Key > > Music to see the music
library.
NOTE:
If you are in the playback screen, touch to return to the
music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Use as ringtone.
NOTE:
If the song is being played and you’re in the playback screen,
you can touch > Use as ringtone.
Playing Music
Touch a song in the music library to listen to it. The following
playback screen appears.
![](/img.php?id=2441867&img=bg86.png)
134
Number
Function
1
Song, album, and artist information.
2
Album artwork and lyrics (if available).
3
Touch to return to the music library.
4
Add the song to your favorites.
![](/img.php?id=2441867&img=bg87.png)
135
5
Playback control. Skip songs or pause and resume
playback. Drag the slider to jump to any part of the
song.
6
Touch to shuffle the songs in the playlist or toggle
repeat modes.
7
Touch for more options.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to playlist next to a song to add it to a
playlist or create a new playlist.
Touch > Delete Playlist next to a playlist to delete the
playlist.
Touch > Rename Playlist next to a playlist to rename
the playlist.
Touch a playlist to view its content. You can touch > Multi
Select to select the songs you want to remove from the
playlist.
![](/img.php?id=2441867&img=bg88.png)
136
Play Music
The Play Music application ( ) works with Google Music,
Google’s online music store and streaming service. You can
stream via mobile data or Wi-Fi and listen to your favorite songs
that you’ve added to your online Google Music library. You can
also play audio files you’ve copied directly to your phone from a
computer.
NOTE:
The availability of Google Music is dependent on your region. If
it is not available, or you don’t have a mobile data or Wi-Fi
connection, you can only play music stored on your phone.
Playing Your Music
Touch the Home Key > > Play Music. If you are
prompted, select an account to access its online music library.
The app searches your online library and your phone for music
and playlists before displaying your combined music library,
organized by GENRES, ARTISTS, ALBUMS and SONGS. You
can touch > My Library / Playlists to view all the music
and playlists. To changes views of your library, swipe left or
right.
![](/img.php?id=2441867&img=bg89.png)
137
Touch a song to play it. When the song is playing, touch the
summary information at the bottom to display the playback
screen.
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.
2
Album artwork (if available). Slide left/right to switch to
the next/previous song in the playlist.
3
Give the song a thumbs-up.
![](/img.php?id=2441867&img=bg8a.png)
138
Number
Function
4
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress bar to
jump to any part of the song.
5
Give the song a thumbs-down.
6
Touch to see the current playlist (queue).
7
Get more options.
You can still control the music when you are not in the playback
screen.
In the music library of the Play Music app, touch the
summary information at the bottom of the screen to restore
the playback screen.
In other apps, flick down the notification panel. Touch the
song title to restore the playback screen, or just pause/
resume playback or skip songs.
When the screen is locked, the song information, album
cover as well as playback control is displayed on the top of
the screen. You can pause/resume playback or skip songs.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
To create a playlist or add a song to a playlist:
Touch next to a song and select Add to playlist.
![](/img.php?id=2441867&img=bg8b.png)
139
To remove a song from a playlist:
1. Touch > Playlists in the Play Music app and open a
playlist.
2. Touch next to a song in the playlist.
3. Touch Remove from playlist.
To delete a playlist:
1. Touch > Playlists in the Play Music app.
2. Touch next to the playlist you want to delete.
3. Touch Delete > OK.
NOTE:
Certain automatically created playlists such as Last added
cannot be deleted.
![](/img.php?id=2441867&img=bg8c.png)
140
Video Player
Touch in the home screen and select Video Player to view
your video library and play various kinds of videos.
Playing and Controlling Videos
Touch a video in the video library to play it. Touch the screen to
show the playback controls. Touch to play the video in a
small floating window and continue with other tasks on the
phone.
Managing Video Files
Delete Video Clips
1. Touch and hold a video in the video library.
2. Check the videos you want to delete.
3. Touch > OK.
Trim a Video Clip
1. Touch a video in Video player to start playing it.
2. Touch > Trim.
3. Drag the two tabs on the progress bar to select the portion
you want to keep.
![](/img.php?id=2441867&img=bg8d.png)
141
If necessary, touch to preview the selected portion.
4. Touch . The trimmed video is saved as a new video file.
![](/img.php?id=2441867&img=bg8e.png)
142
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch the Home Key > > Sound Recorder.
2. Touch to start recording. During recording, you can do
the following:
Touch / to pause or continue the recording.
Touch to cancel the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
> OK to delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
1. Touch at the top right of the screen to see all
recordings.
![](/img.php?id=2441867&img=bg8f.png)
143
2. Touch the title of a memo to play it.
NOTE:
You can also touch next to a memo to delete, rename,
share, trim it, check its file information, add a tag, or set it as
your phone ringtone.
![](/img.php?id=2441867&img=bg90.png)
144
More Apps
Backup and Restore
Touch the Home Key > > Backup & Restore. You can
back up your user data, such as contacts, messages, and
installed applications to the microSDHC card regularly. If the
data get lost, restore it from the microSDHC card.
Touch > Help to view detailed guide.
Calculator
Touch the Home Key > > Calculator to use the phone’s
convenient built-in calculator for some basic as well as advanced
mathematical equations.
NOTE:
Touch or to switch between different panels.
Chrome™
Touch the Home Key > > Chrome to browse the Internet.
Chrome on your phone can sync bookmarks, browsing history,
and opened tabs from your Google account, so that you can
maintain the same experience across your phone, your PC, your
tablet and other devices.
![](/img.php?id=2441867&img=bg91.png)
145
Clock
The Clock app allows you to check local time and time in other
cities in the world, set alarms, and use timers.
Set a New Alarm
1. Touch the Alarm tab in the Clock app.
2. Touch an existing alarm to configure it, or touch Add alarm
at the bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, repeat, and alarm
sound.
4. Touch SAVE to save and exit.
NOTE:
To enable or disable existing alarms directly, just touch or
.
Use Bed Clock
You can use the phone as a bedside clock.
1. Touch the Alarm tab in the Clock app.
2. If necessary, touch > Bed Clock Preferences to set up
the following bed clock options. Then touch the Back Key to
return to the Alarm tab.
Enable bed clock: Turn on or off the bed clock function.
Bed clock never sleeps: Keep the bed clock screen
![](/img.php?id=2441867&img=bg92.png)
146
turned on when charging the phone.
3. Touch > Bed Clock to open the bed clock screen.
Check World Time
Touch the World time tab in the Clock app to check local time
for cities around the world.
Touch at the bottom to add a new city or country.
Use the Stopwatch and Countdown
Touch the Stopwatch or Countdown tab in the Clock app to
use the stopwatch or the countdown timer.
Stopwatch allows you to record lap times, while Countdown
allows you to set a time and count down to zero.
Downloads
The Downloads app keeps a record of the files you have
downloaded using apps such as Browser, Email, or Gmail.
Touch the Home Key > > Downloads to check the
record.
Touch a file to open it with the appropriate application.
Touch and hold a file to delete or share it.
![](/img.php?id=2441867&img=bg93.png)
147
Drive
Touch the Home Key > > Drive. The Drive app allows
you to store files on Google servers for free after you sign in to
your Google account. You can access them on your computers,
your phones and other devices, share them, or collaborate with
others.
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone storage and the microSDHC card.
Touch the Home Key > > File Manager. You can find the
file you need by category in the Category tab, or touch Phone
or SD Card to browse folders and files on the phone storage or
the microSDHC card.
Touch folders and files to access stored items.
Touch and hold an item to access option icons such as Copy,
Move, Share, or Delete.
To copy or move an item, navigate to a new location and
touch Paste.
Touch to create a new folder in the current directory.
Note
Touch the Home Key > > NotePad to create, view and
![](/img.php?id=2441867&img=bg94.png)
148
manage your notes. You can add audios, pictures, videos and
other types of files to your notes. You can also sort your notes
and set cover for them.
System Updates
Touch the Home Key > > System updates. You can
check your system’s software status, check for updates, or
change update settings.
Task Manager
Touch the Home Key > > Task Manager to view or stop
applications.
Touch a task in the Tasks tab to check the details of the
application or force it to stop.
Touch the Apps tab to manage all the apps on your phone.
Touch the Resources tab to view the real-time use of the
system resources (CPU, RAM and storage).
Unlock Shortcuts
You can change or delete the application shortcuts at the
bottom of the lock screen.
1. Touch the Home Key > > Unlock Shortcuts.
![](/img.php?id=2441867&img=bg95.png)
149
2. Touch an application icon to delete its shortcut on the lock
screen, or touch + and then select an application from the
list to add it as the shortcut.
Voice Dialer
Voice Dialer is speech recognition software. You can use it to
dial a phone number in your contacts, open menus or launch
phone functions.
1. Touch the Home Key > > Voice Dialer.
2. When you see "Listening", follow the onscreen examples to
speak "Call...", "Dial...", or "Open..." to make phone calls or
open phone menus and applications.
![](/img.php?id=2441867&img=bg96.png)
150
Google Play™ Store
Touch the Home Key > > Play Store. You can buy or rent
music, books, movies, apps, and download them to your phone.
NOTE:
The content you can access in Google Play Store depends on
your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category. Touch a top-level category,
such as GAMES and touch the app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch and enter
the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch INSTALL (free apps) or the price (paid apps). If the
app is not free, you need to sign in to your Google Wallet™
account and select a payment method.
![](/img.php?id=2441867&img=bg97.png)
151
CAUTION:
Once installed, some apps can access many functions or a
significant amount of your personal data. The Play Store will
show you what the app can access. Touch ACCEPT to
proceed, or touch the Back Key to cancel.
2. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when a notification icon
appears in the status bar. You can find the new app after
touching the Home Key > .
Creating a Google Wallet™ Account
You must have a Google Wallet account associated with your
Google Account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to checkout.google.com to create a
Google Wallet account.
The first time you use your phone to buy an item from
Google Play Store, you’re prompted to enter your billing
information to set up a Google Wallet account.
WARNING!
When you’ve used Google Wallet once to purchase items from
the Google Play Store app, the phone remembers your
![](/img.php?id=2441867&img=bg98.png)
152
password so you don’t need to enter it the next time. For this
reason, you should secure your phone to prevent others from
using it without your permission.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
View Your Downloaded Apps
1. In the Play Store screen, touch > My apps.
2. Your list of installed apps opens, you can touch one to rate it,
uninstall it, request a refund, and so on.
Uninstall an App
1. In the Play Store screen, touch > My apps.
2. Touch an app to open its details screen.
3. Touch UNINSTALL > OK.
![](/img.php?id=2441867&img=bg99.png)
153
Settings
Touch the Home Key > > Settings. The Settings app
contains most of the tools for customizing and configuring your
phone.
General Settings
Airplane Mode
Touch the Home Key > > Settings and swipe the ON/OFF
switch beside Airplane mode to turn airplane mode on or off.
All the phone’s radios that transmit voice or data are turned off
when the airplane mode is on.
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Networks and Devices – Connecting to Wi-Fi®.
When Wi-Fi is on, touch > Wi-Fi Direct in the Wi-Fi menu to
share data between two devices via Wi-Fi directly. See
Connecting to Networks and Devices – Using Wi-Fi Direct®.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Networks and Devices –
Connecting to Bluetooth® Devices.
![](/img.php?id=2441867&img=bg9a.png)
154
Mobile Networks
Control mobile data use, set network type, select mobile
network and set access point names. See Connecting to
Networks and Devices – Connecting to Mobile Networks.
Sound
Adjust volumes (see Personalizing – Adjusting Volume), toggle
sound and mute (see Switching to Silent Mode), set SRS sound
enhancement, set up ringtone and notification sound (see
Personalizing – Changing Ringtone and Notification Sound),
and select system sounds.
Display
Brightness: Set the brightness of the display.
Wallpaper: Select a background image for the home screen
and lock screen.
Auto-rotate screen: Check this option to let the phone
automatically change the orientation of some onscreen
content based on the position of the phone.
Sleep: Set the length of time of inactivity before the screen
turns off automatically.
Daydream: Manage the Daydream function. When
Daydream is enabled, photos or animations will be
displayed as a screensaver.
Font size: Set the font size of the text on the screen.
Pulse notification light: Flash the LED light to notify you of
155
missed calls, new messages, and other events.
Touch key light duration: This feature lets you control the
backlight of the touch keys (the Home Key, Back Key, and
Recent Apps Key). Choose one of the following options to
set the backlight duration.
Always off: Turn off the touch keys backlight.
Always on: Keep the touch keys backlight on while the
screen is turned on.
2 seconds / 5 seconds: The touch keys light for 2 or 5
seconds each time you touch the screen or touch keys
while the screen is turned on.
Auto: Let your phone turn on or off the touch keys
backlight automatically.
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Language and Input
Language: Select a language and region for your system.
Spell checker: Use Android spell checker to check for
spelling errors when entering text.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
![](/img.php?id=2441867&img=bg9c.png)
156
KEYBOARD & INPUT METHODS: Configure text input
settings. See Knowing the Basics – Entering Text – Input
Method Settings.
Voice Search:
Language: Select the language you use when entering
text by speaking or searching by speaking.
Speech output: Control when the phone should output
speeches.
“OK Google” Detection: When this is enabled, you can
say “OK Google” when using the Google app rather than
touching the microphone icon to initiate a voice search
or action.
Offline speech recognition: Download one or more
additional language packages so you can use speech
recognition when you do not have a network connection.
Block offensive words: Hide offensive words when
you use Google voice typing to transcribe your voice into
text.
Bluetooth headset: Listen for your voice input through
a Bluetooth headset when it is connected to your phone.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
![](/img.php?id=2441867&img=bg9d.png)
157
speech synthesizer, using your current settings.
Default language status: Check whether the
text-to-speech output feature supports the current
system language.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Wireless and Networks
Data Usage
Touch the ON/OFF switch to turn on or off mobile data.
You can check how much data has been used during the time
circle you set, set mobile data limit and warning, see what app
has been using mobile data, allow data roaming or restrict
background data for individual apps.
NOTE:
The data usage is measured by your phone, and your carrier’s
data usage accounting may differ.
Touch > Mobile Hotspots to select Wi-Fi networks that are
mobile hotspots. Data usage on recognized mobile hotspots will
be restricted to avoid high mobile data bills.
![](/img.php?id=2441867&img=bg9e.png)
158
Tethering and Portable Hotspot
Touch the Home Key > > Settings > More and then check
USB tethering or Bluetooth tethering to share your phone’s
mobile data connection with PCs or other devices via USB or
Bluetooth, or touch the Home Key > > Settings > Mobile
Hotspot to share your phone’s mobile data connection via
Wi-Fi. See Connecting to Networks and Devices – Sharing Your
Mobile Data Connection.
VPN
Touch the Home Key > > Settings > More > VPN to set
up and connect to virtual private networks. See Connecting to
Networks and Devices – Connecting to Virtual Private
Networks.
Default SMS App
Touch the Home Key > > Settings > More and touch
Default SMS app to choose the preferred application for
sending and receiving messages.
Device
Storage
Check memory information for your microSDHC card and
![](/img.php?id=2441867&img=bg9f.png)
159
internal storage.
You can choose the default location for new data, such as files
downloaded, photos captured, and voice recorded. Touch Save
location and select Phone or SD card to store items in the
phone storage or the installed microSDHC card.
Touch Unmount SD card to unmount the microSDHC card
from your phone so that you can safely remove the card while
the phone is on. Touch Erase external SD card to delete all
data on the microSDHC card.
Power Saving Mode
Touch the Home Key > > Settings > Power saving mode
to view the battery level, check what has been using the battery,
and enable the power saving mode.
BATTERY: View the battery level and available time for
different items such as voice call, music play, or web
browsing.
USAGE: Check the battery status and what has been using
the battery.
NOTE:
You can touch an app to adjust its settings in order to save
battery life. For example, touch Screen > Display to change
screen brightness and sleep.
MODE: Enable the power saving mode you need. Touch a
mode to get its detailed information.
![](/img.php?id=2441867&img=bga0.png)
160
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop the app, uninstall or disable
the app, or clear data and cache.
NOTE:
Not all applications can be uninstalled.
Connect to PC
Select your USB connection type between your phone and PC.
See Connecting to Networks and Devices – Connecting to Your
Computer via USB.
Call Settings
Configure the call options. See Adjusting Your Call Settings.
Personal
Location
Activate location services to determine your location. See Maps
– Activating Location Services.
Security
Screen lock: Disable the screen lock or enable it with long
press, face unlock, pattern, PIN, or password. See
![](/img.php?id=2441867&img=bga1.png)
161
Personalizing – Protecting Your Phone With Screen Locks.
Improve face matching: Have your face captured in
different conditions to improve face matching. This option is
available when face unlock is enabled.
Liveness check: Check this option to require eye blink
while unlocking the screen with face unlock. This option is
available when face unlock is enabled.
Make pattern visible: Show the pattern as you draw it. This
option is available when unlock pattern is set.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off. This
option is available when face unlock, unlock pattern, PIN or
password is set.
Power button instantly locks: Lock protection is activated
immediately when you press the Power Key. This option is
available when face unlock, unlock pattern, PIN or
password is set.
Owner info: Set the text that you may display on the lock
screen.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Personalizing – Protecting Your Phone
With Encryption.
Set up SIM/RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the micro-SIM card.
Change SIM PIN: Change the PIN used to access the
![](/img.php?id=2441867&img=bga2.png)
162
micro-SIM card.
NOTE:
Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than
allowed, your micro-SIM card will be locked and you cannot
access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the micro-SIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Check this option to permit installation
of apps from sources other than the Play Store.
Verify apps: Disallow or display a warning before you install
applications that may cause harm.
Storage type: Check the credential storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the phone
storage.
Clear credentials: Delete all certificates.
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Back up account: Set the Google account that the data is
163
backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
microSDHC card during the process.
Accounts
Manage your accounts and synchronization. Touch Add
account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
You can install printer plug-ins from the Google Play Store or
your printer manufacturer and configure cloud printing service
options, manage print jobs and more.
![](/img.php?id=2441867&img=bga4.png)
164
Developer Options
Developer options contains settings that are useful when
developing Android applications. The menu is hidden until you
touch Build Number in the About phone menu 7 times.
WARNING!
The developer option settings are intended for development
use only. They can cause your phone and applications on it to
break or misbehave.
About Phone
View phone status, legal information and other information. You
can also upgrade your phone system.
![](/img.php?id=2441867&img=bga5.png)
165
Upgrading the Phone Software
There are several ways to upgrade your phone software.
Use the online upgrade tool for mobile terminal products.
Use the one-press upgrade package offered by your mobile
service provider.
Use the upgrade package on your microSDHC card.
NOTE:
Visit the ZTE official handset service support website
(http://www.ztedevice.com/support) and click your country or
region to learn more about the above upgrade methods, as well
as which phones and methods are supported.
![](/img.php?id=2441867&img=bga6.png)
166
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
cannot effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
![](/img.php?id=2441867&img=bga7.png)
167
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charge
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s temperature
is below 0 °C or higher
than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the battery and charger.
Check all connectors to
ensure that all
connections have been
properly made.
![](/img.php?id=2441867&img=bga8.png)
168
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Use a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
![](/img.php?id=2441867&img=bga9.png)
169
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-SIM
card error
micro-SIM card
malfunction or damage
Take the micro-SIM card
to your service provider
for testing.
micro-SIM card inserted
improperly
Insert the micro-SIM
card properly.
Debris on the micro-SIM
card contacts
Use a soft, dry cloth to
clean the micro-SIM
card contacts.
Unable to
connect to
the network
The micro-SIM card is
invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
The signal is poor.
Move to an open space,
or if you are inside a
building, move closer to
a window.
Cannot
answer
incoming
calls
You have activated the
Call barring feature.
Disable this feature. See
Bar Certain Calls.
![](/img.php?id=2441867&img=bgaa.png)
170
Problem
Possible causes
Possible solution
Cannot
make
outgoing
calls.
You have activated the
Call barring feature.
Disable this feature. See
Bar Certain Calls.
You have activated the
Fixed dialing numbers
feature.
Disable this feature. See
Use Fixed Dialing
Numbers.
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro-SIM card’s PUK
code, use the PUK code
to unlock the micro-SIM
card.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Uninstall the software
that may cause the
problem.
Upgrade the phone
software.
Reset the phone to
factory status.
![](/img.php?id=2441867&img=bgab.png)
171
For Your Safety
General Safety
Don’t make or receive
phone calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
![](/img.php?id=2441867&img=bgac.png)
172
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
Turn off when asked to
in hospitals and
medical facilities.
Don’t take your phone
apart.
Turn off when told to
on aircraft and at
airport.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone for emergency
communications.
Radio Frequency (RF) Energy
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States, Industry Canada of Canada.
173
During SAR testing, this device is set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head
with no separation, and near the body with the separation of 10
mm. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the
power output.
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg, and 1.6 W/kg by
Industry Canada.
This device is compliance with SAR for general
population/uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and Canada RSS 102 and had been tested in
accordance with the measurement methods and procedures
specified in IEEE1528, and Canada RSS 102. This device has
been tested, and meets the FCC, IC RF exposure guidelines
when tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching
on FCC ID: SRQ-Z826.
![](/img.php?id=2441867&img=bgae.png)
174
For this device, the highest reported SAR value for usage against
the head is 0.78 W/kg, for usage near the body is 1.34 W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported level.
To support body-worn operation, choose the belt clips or holsters,
which do not contain metallic components, to maintain a
separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and using such
body-worn accessory should be avoided.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
![](/img.php?id=2441867&img=bgaf.png)
175
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
176
IC Notice
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
IC: 5200E-Z826
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/
uncontrolled exposure limits in IC RSS-102 and had been tested
in accordance with the measurement methods and procedures
specified in IEEE 1528 and IEC 62209. This equipment should
177
be installed and operated with minimum distance 1.0 cm between
the radiator and your body.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS
incontrôlée pour la population générale de la norme CNR-102
d'Industrie Canada et a été testé en conformité avec les
méthodes de mesure et procédures spécifiées dans IEEE 1528
et IEC 62209. Cet appareil doit être installé et utilisé avec une
distance minimale de 1.0 cm entre l’émetteur et votre corps. Cet
appareil et sa ou ses antennes ne doivent pas être co-localisés
ou fonctionner en conjonction avec tout autre antenne ou
transmetteur.
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
178
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
179
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M4/T3 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands-free kit) can cause distraction and lead to
an accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
180
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of the use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep them in a clean place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean your phone and its accessories with a soft material
such as cleaning cloth for eyeglass lenses. Do not use
alcohol or other corrosive substances for cleaning or allow
them to get inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone accessories to liquid, moisture or
high humidity.
181
Do not drop, throw or try to bend your phone or its
accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories.
Only authorized personnel can do so.
Do not expose or use your phone or its accessories in an
environment with or that can reach extreme temperatures,
minimum - [5] and maximum + [50] degrees Celsius.
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
182
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the metallic connectors of the micro-SIM card.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom toward your mouth.
Air Bags
Do not place your phone in the area over an air bag or in the air
bag deployment area as an airbag inflates with great force and
serious injury could occur.
Place your phone safely before driving your vehicle.
Seizures/Blackouts
Your phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
183
to flashing lights or light patterns such as when playing games or
watching videos. If you have experienced seizures or blackouts
or have a family history of such occurrences, please consult a
physician. To reduce the risk of blackouts or seizures, you can
use your phone in a well-lit room and take frequent breaks.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take frequent breaks to stretch and relax.
Emergency Calls
This phone, like any other wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you should not rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth headsets or other audio devices.
184
Phone Heat
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch metallic objects, such as coins or key
rings, or allow them to contact or short-circuit the battery
terminals.
Never puncture the surface of the battery with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its
accessories.
If your phone (or its accessories) has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
take it to an authorized service center.
185
Radio Frequency Interference
General Statement on Interference
Care must be taken when using your phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
Please consult your doctor and the device manufacturers to
determine if the operation of your phone may interfere with the
operation of your medical devices.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference depends on the type of the hearing
device and the distance from the interference source. Increasing
the separation between them may reduce the interference. You
may also consult your hearing aid manufacturer to discuss
alternatives.
186
Medical Equipment
Switch off your wireless device when you are requested to do
so in hospitals, clinics or health care facilities. These requests
are designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do
so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft and enable the airplane mode of your phone
when boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid the
use of mobile phones in their vehicles unless a hands-free kit
with an external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmosphere
In locations with potentially explosive atmosphere, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
187
Areas with potentially explosive atmosphere include fueling areas,
below decks on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas where signs are posted to power off
“two-way radios” or “electronic devices” to avoid interfering with
blasting operations.
