ZTE Z837VL LTE/CDMA Multi-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation LTE/CDMA Multi-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
1
Z837VL
User Manual
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2016 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.zteusa.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
3
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
LTE is a trademark of ETSI.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other countries.
Used with permission.
4
Version No.: R1.0
Edition Time: December 21, 2016
Manual No. : 079584508294
WARNING: This product contains a chemical known to the
State of California to cause cancer, birth defects or other
reproductive harm.
5
Contents
Getting Started ....................................................... 11
Getting to Know Your Phone ............................................ 11
Knowing the Keys ............................................................ 13

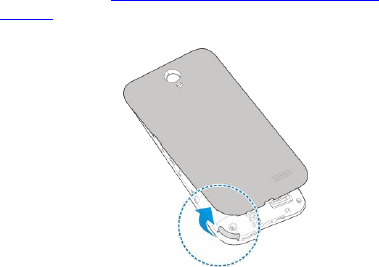

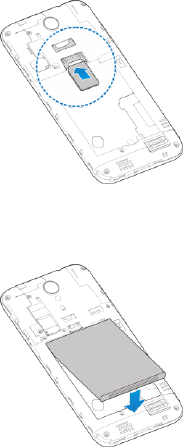

Installing the nano-SIM Card and Battery ......................... 14
Installing the microSDHC™ Card (Not Included) ............... 16
Charging the Battery ........................................................ 17
Extending the Battery Life ................................................ 19
Powering On/Off .............................................................. 19
Setting Up for the First Time ............................................. 19
Locking/Unlocking the Screen and Keys ........................... 20

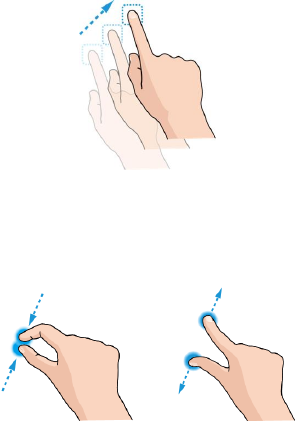

Using the Touch Screen ................................................... 21
Getting to Know the Home Screen ................................... 24
Personalizing ......................................................... 27
Changing the System Language ...................................... 27
Setting the Date and Time ................................................ 27
Changing Ringtone and Notification Sound ...................... 28
Turning On/Off System Sounds ........................................ 28
Adjusting Volume ............................................................. 28
Switching to Silent Mode .................................................. 29
Applying New Wallpapers ................................................. 30
Changing Screen Brightness ............................................ 31
Setting the Theme ............................................................ 31
Setting the Home Screen Transition Effect ....................... 31
6
Protecting Your Phone With Screen Locks ....................... 32
Protecting Your Phone With Screen Pinning ..................... 33
Knowing the Basics ............................................... 35
Monitoring the Phone Status ............................................ 35
Managing Notifications ..................................................... 36
Managing Shortcuts and Widgets ..................................... 39
Organizing With Folders .................................................. 41
Rearranging the Primary Shortcuts .................................. 41
Entering Text ................................................................... 42
Editing Text ...................................................................... 51
Opening and Switching Apps ........................................... 52
Uninstalling or Disabling an App ....................................... 52
Connecting to Networks and Devices .................. 54
Connecting to Mobile Networks ........................................ 54
Connecting to Wi-Fi® ....................................................... 55
Connecting to Bluetooth® Devices .................................... 58
Connecting to Your Computer via USB ............................. 61
Using the microSDHC Card as Portable Storage .............. 63
Sharing Your Mobile Data Connection .............................. 64
Connecting to Virtual Private Networks ............................ 65
Phone Calls ............................................................ 68
Placing and Ending Calls ................................................. 68
Answering or Rejecting Calls ........................................... 69
Working With the Call History ........................................... 70
7
Calling Your Contacts ....................................................... 71
Checking Voicemail .......................................................... 71
Using Options During a Call ............................................. 72
Managing Multi-party Calls ............................................... 73
Adjusting Your Call Settings ............................................. 74
Contacts ................................................................. 80
Checking Contact Details ................................................. 80
Adding a New Contact ...................................................... 80
Importing, Exporting, and Sharing Contacts ...................... 81
Working With Favorite Contacts ....................................... 82
Working With Groups ....................................................... 83
Searching for a Contact .................................................... 85
Editing Contacts ............................................................... 86
Web Accounts ........................................................ 89
Adding or Removing Accounts .......................................... 89
Configuring Account Sync ................................................ 90
Email ....................................................................... 92
Setting Up the First Email Account ................................... 92
Checking Your Emails ...................................................... 92
Responding to an Email ................................................... 93
Writing and Sending an Email .......................................... 94
Adding and Editing Email Accounts .................................. 95
Changing General Email Settings ..................................... 96
Messaging .............................................................. 97
8
Opening the Messaging Screen ....................................... 97
Sending a Message ......................................................... 97
Replying to a Message .................................................... 98
Forwarding a Message .................................................... 99
Copying a Message ......................................................... 99
Changing Message Settings ............................................ 99
Calendar ............................................................... 100
Viewing Your Calendars and Events ............................... 100
Creating an Event .......................................................... 101
Editing, Deleting or Sharing an Event ............................. 101
Changing Calendar Settings .......................................... 102
Browser ................................................................ 103
Opening the Browser ..................................................... 103
Using Multiple Browser Tabs .......................................... 104
Downloading Files ......................................................... 104
Changing Browser Settings ............................................ 105
Camera .................................................................. 106
Capturing a Photo .......................................................... 106
Recording a Video ......................................................... 110
Customizing Camera and Video Settings ....................... 110
Gallery ................................................................... 113
Opening Gallery ............................................................. 113
Working With Albums ..................................................... 113

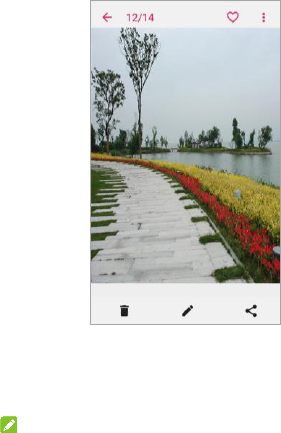

Working With Pictures .................................................... 114
9
Retouching Your Pictures ............................................... 116
Making a GIF Picture or a Collage .................................. 117
Playing Videos ............................................................... 118
Music .................................................................... 119
Copying Music Files to Your Phone ................................ 119
Viewing Your Music Library ............................................ 120
Setting a Song as the Default Ringtone .......................... 121
Playing Music ................................................................. 121
Managing Playlists ......................................................... 123
Video Player ......................................................... 124
Opening the Video Library .............................................. 124
Playing and Controlling Videos ....................................... 124
Managing Video Files ..................................................... 125
More Apps ............................................................ 127
Calculator ...................................................................... 127
Clock ............................................................................. 127
Downloads ..................................................................... 128
File Manager .................................................................. 129
Sound Recorder ............................................................. 129
Google Apps .................................................................. 130
Google Play™ Store ............................................ 132
Browsing and Searching for Apps ................................... 132
Downloading and Installing Apps .................................... 132
Creating a Google Wallet™ Account ............................... 133
10
Managing Your Downloads ............................................ 134
Settings ................................................................. 135
Wireless and Networks .................................................. 135
Personal ........................................................................ 137
Device ........................................................................... 142
Accounts ....................................................................... 145
System .......................................................................... 146
Upgrading the Phone Software ........................... 147
Troubleshooting ................................................... 148
For Your Safety .................................................... 153
General Safety............................................................... 153
Radio Frequency (RF) Energy ....................................... 154
FCC Regulations ........................................................... 156
Hearing Aid Compatibility (HAC) regulations for Mobile
Phones .......................................................................... 157
Turning on the HAC Setting ........................................... 159
Distraction ..................................................................... 160
Product Handling ........................................................... 161
Electrical Safety ............................................................. 165
CTIA Requirements ....................................................... 166
Radio Frequency Interference ........................................ 167
Explosive Environments ................................................. 169
Specifications ....................................................... 170
11
Getting Started
Getting to Know Your Phone
Volume key
Proximity &
light sensor
Light indicator
Touch screen
Home key
Back key
Auxiliary
microphone
Front camera
Earpiece
Power key
Recent
apps key
Main
microphone
12
Headset
jack
Flash
Speaker
Back
camera
Back
cover
Charging/
micro-USB jack
13
Knowing the Keys
Key
Function
Power key
Press and hold to turn on or off airplane mode,
restart, or power off.
Press to turn off or on the screen display.
Home key
Touch to return to the home screen from any
application or screen.
Touch and hold to use Google Search or Now on
Tap.
Back key
Touch to go to the previous screen.
Recent apps key
Touch to see recently used applications.
Volume key
Press or hold either end of the key to turn the volume
up or down.
NOTES:
The positions of the Recent apps key and the Back key are
interchangeable through Settings > Navigation key.
Press and hold the Power key and the bottom end of the
Volume key to take a screenshot.
14
Installing the nano-SIM Card and
Battery
Power off your phone and remove the battery before installing or
removing the nano-SIM card. And power off your phone before
removing or replacing the battery.
WARNING!
To avoid damage to the phone, do not use any other kind of SIM
cards, or any non-standard nano-SIM card cut from a SIM card.
You can get a standard nano-SIM card from your service
provider.
1. Insert your fingernail into the slot at the bottom left of the back
cover and lift it up gently.
2. Hold the nano-SIM card with the cut corner oriented as shown
15
and slip it into the card holder.
3. Insert the battery by aligning the metal contacts on the battery
with the metal contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
4. Align the back cover with the back of the phone and press the
cover back into place. Ensure that all the tabs are secure and
16
there are no gaps around the cover.
Installing the microSDHC™ Card (Not
Included)
A microSDHC card can be installed or removed while the phone
is turned on. You need to unmount the microSDHC card before
removing it (see Using the microSDHC Card as Portable
Storage).
1. Remove the back cover.
2. Hold your microSDHC card with the metal contacts facing
down and slide it in.
17
NOTE:
Some applications may require a microSDHC card to work
normally or may store certain data on it. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it randomly.
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
screen. As you char ge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING!
Use only ZTE-approved chargers and cables. The use of
18
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging/micro-USB jack. Ensure
that the adapter is inserted with the correct orientation. Do not
use force.
2. Connect the charger to a standard AC power outlet. If the
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 30 minutes. Contact the
customer service if you still cannot power on the phone after
19
prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi
usage and GPS functionality can drain your battery. You can
follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Wi-Fi, Bluetooth and auto-sync off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location, and each query drains your battery.
Use the battery saver feature.
Powering On/Off
Press and hold the Power key to turn on your phone.
To turn it off, press and hold the Power key to open the
options menu and touch Power off > OK.
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Backup & Reset), you need to do
some settings before using it.
20
Touch the language field to select the language. Then touch
and follow the prompts to set up Wi-Fi, name, screen lock,
Google services and other options.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone to sleep mode) when not in use and to turn the screen
back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
key.
NOTE:
To save battery power, the phone automatically turns off the
screen after a certain period of time when you leave it idle. You
will still be able to receive messages and calls while the phone
screen is off.
To unlock the screen and keys:
1. Press the Power key to turn the screen on.
2. Touch and hold any blank area of the screen.
- or -
On the blank area of the screen, touch and hold at the
bottom right of the screen to open the Camera app, or touch
and hold to open the Google app.
21
- or -
Touch a notification twice consecutively to open the related
app.
NOTE:
If you have set an unlock pattern, a PIN or a password for your
phone (see Protecting Your Phone With Screen Locks), touch
and hold on the screen and draw the pattern or enter the PIN or
password to unlock your phone.
Using the Touch Screen
Your phone’s touch screen enables you to control actions
through a variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
items on the screen such as the application and settings
icons, or press the onscreen buttons, simply touch them with
your finger.
22
Touch and Hold
To open the available options for an item (for example, a
message or link in a web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
23
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
24
NOTE:
The auto-rotate feature needs to be enabled for the screen
orientation to automatically change. Touch the Home key >
> Settings > Display and check Auto-rotate screen.
You can also access the screen rotation control by sliding
down the status bar from the top of the screen by your two
fingers and touch Auto-rotate/Portrait.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding shortcuts, folders, widgets, and more.
Status bar
Primary shortcuts
Shortcut
Folder
Widgets
25
Extended Home Screen Panels
Your home screen is extendable, providing more space for
shortcuts, widgets, and more. Simply swipe left or right on the
home screen to see the extended panels. You can add or remove
home screen panels, or adjust their order.
To add a new home screen panel:
1. Touch the Home key > , or touch and hold an empty area
of the home screen and select Widgets.
2. Touch and hold an application icon or a widget and drag it to
the right edge of the screen to create a new home screen
panel and put the icon or widget on it.
To delete a home screen panel:
1. Touch and hold an empty area of the home screen and slide
left or right to view the home screen thumbnails.
2. Touch on the top right corner of a thumbnail.
3. Touch OK. The items on the panel will also be removed.
NOTE:
When there are only three home screen panels, you cannot
delete any of them.
To adjust the order of a home screen panel:
1. Touch and hold an empty area of the home screen and slide
left or right to view the home screen thumbnails.
2. Touch and hold a thumbnail and drag it left or right to the
place you need.
NOTE:
26
Touch at the bottom of a home screen thumbnail to set it as
the main home screen.
27
Personalizing
Changing the System Language
1. Touch the Home key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home key > > Settings > Date & time.
2. Set the date, time, time zone, and time format.
To adjust the date and time automatically, turn on
Automatic date & time.
To adjust the date and time manually, turn off Automatic
date & time and touch Set date / Set time to change the
date and time.
To adjust the time zone automatically, turn on Automatic
time zone.
To adjust the time zone manually, turn off Automatic
time zone and touch Select time zone to set the correct
time zone.
To adjust the format of time, turn on/off Use 24-hour
format.
28
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound.
1. Touch the Home key > > Settings > Sound &
notification.
2. Touch Phone ringtone or Default notification ringtone.
3. Select the ringtone you want to use and touch OK.
NOTE:
See Set a Ringtone for a Contact for how to assign a special
ringtone to an individual contact.
Turning On/Off System Sounds
1. Touch the Home key > > Settings > Sound &
notification > Other sounds.
2. Touch Dial pad tones, Screen locking sounds, Charging
sounds, Touch sounds, or Vibrate on touch to turn on/off
the sounds.
Touch Emergency tone and select Alert to turn on the sound;
select Vibrate/Silent to turn off the sound.
Adjusting Volume
1. Touch the Home key > > Settings > Sound &
29
notification.
2. Drag the sliders below Media volume, Alarm volume, Ring
volume, and Notification volume to adjust the volume for
each type of audio.
NOTE:
You can adjust the volume levels any time by pressing the
Volume key. Then touch and drag a volume slider.
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Press the Volume key and touch . Drag the ringtone slider
to the minimum to switch the phone to silent mode with
vibration.
Press and hold the lower end of the Volume key when no
media or phone call is active. When the phone vibrates, it is
switched to silent mode with vibration; press the Volume key
again to switch to silent mode.
Swipe down from the top of the screen to open the notification
panel and drag the panel downwards. Touch the
Sound/Vibrate button to switch the phone to silent mode.
See Use Quick Settings.
Touch the Home key > > Settings > Sound &
notification > Notification mode and select Vibrate or Mute
to switch to silent mode with or without vibration.
30
Touch the Home key > > Settings > Sound &
notification > Do not disturb > Do not disturb > Always >
Disturb rules > Total silence to switch the phone to silent
mode.
NOTES:
Total silence blocks all sounds and vibrations, including from
alarms, music, videos and games.
In addition to Total silence, you can select Priority only or
Alarms only to limit sound and vibration to alarms, reminders,
events, and calls and messages from specified contacts.
Applying New Wallpapers
You can set the wallpaper for the home screen and lock screen.
1. Touch and hold an empty place on the home screen and then
touch Wallpapers.
2. Slide left or right on the wallpaper panel to select a wallpaper,
or touch GALLERY or LIVE WALLPAPER to choose the
image or animation you want to use as the wallpaper. For
Gallery and Photos images, move, pinch, or spread to
choose the area you want to use.
NOTE:
In addition, you can touch the Home key > > Settings >
Display > Wallpaper to pick an image from Gallery, Photos or
Wallpapers, or an animation from Live Wallpapers.
31
Changing Screen Brightness
1. Touch the Home key > > Settings > Display >
Brightness level.
2. Drag the slider to manually adjust the screen brightness.
NOTE:
Your phone can automatically adjust the screen brightness for
available light. Touch Adaptive brightness in the Display
settings screen to turn the feature on or off.
NOTE:
You can also use the Quick Settings to manage the screen
brightness. See Use Quick Settings.
Setting the Theme
1. Touch and hold an empty place on the home screen.
2. In the window that appears at the bottom, touch Themes.
3. Select a theme you like.
Setting the Home Screen Transition
Effect
1. Touch and hold an empty place on the home screen.
2. In the window that appears at the bottom, touch Effects.
3. Pick an effect and the phone will demonstrate how it works.
Touch other effects until you find the favourite one.
32
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is
enabled, you need to touch and hold on the screen, draw a
pattern or enter a numeric PIN or password to unlock the phone’s
screen and keys.
1. Touch the Home key > > Settings > Security > Screen
lock.
2. Touch None, Long press, Pattern, PIN or Password.
Touch None to disable the screen lock.
Touch Long press to enable screen lock and allow
unlock with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding on the blank area of the
screen.
Touch Pattern to create a pattern you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password that you must enter to unlock your screen.
NOTE:
You can also choose to protect your phone before it starts up
by requiring your unlock pattern, PIN or password. This helps
you to protect data in case your phone is lost or stolen.
3. For Pattern, PIN, or Password, select how you want
notifications and their contents to show when the phone is
locked.
33
NOTE:
If you forget the pattern you set, you can also upgrade the phone
software. See Upgrading the Phone Software.
Protecting Your Phone With Screen
Pinning
You can use the screen pinning feature to keep an app in view,
so others cannot switch to other apps or access your personal
information.
Turn On Screen Pinning
1. Touch the Home key > > Settings > Security > Screen
pinning.
2. Touch the On/Off switch.
3. If you want to ask for the unlock pattern, PIN or password
before unpinning the screen, touch Lock device when
unpinning to set one, or switch on Ask for unlock pattern /
PIN / password before unpinning when the screen lock has
been set.
Pin a Screen
1. Ensure that screen pinning is turned on.
2. Open the app you want to keep in view.
3. Touch the Recent apps key.
4. If there are many app tabs, swipe up to find on the
34
front-most tab.
5. Touch .
Unpin the Screen
To unpin the screen and return to normal use, touch and hold the
Recent apps key.
If you have asked for the unlock pattern, PIN or password before
unpinning the screen, touch and hold on the lock screen and
draw the pattern or enter the PIN/password.
35
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
3G connected
No signal
4G LTE connected
Signal strength
Do not disturb mode on
(Alarms only or Priority
only)
No SIM card
Do not disturb mode on
(Total silence)
Airplane mode
Vibration only mode on
Bluetooth on
Silent mode/no
interruptions
Connected to a Wi-Fi®
network
/
Battery low
Wi-Fi in use
Battery partially drained
Speaker on
Battery full
Phone microphone off
/
Battery charging
GPS on
Alarm set
Portable Wi-Fi hotspot on
36
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
The notifications depend on the apps installed and you can touch
and drag the status bar down to see more information.
New SMS
Upcoming event
New MMS
New Wi-Fi network
detected
New message(s) from
the Email app
Downloading data
/
New message(s) from
the Gmail™ app
Sending data
Missed call
USB connected
Call in progress
Wired headset
connected
Call on hold
/
Song playing
Low battery
37
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events, such as when
you are playing music. You can open the notification panel to
view the details of notifications.
To open the notification panel, swipe your finger down on the
home screen or from the top of the screen.
To close the notification panel, swipe your finger up on the
screen or touch the Back key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
Slide down with one finger to expand certain notifications.
You can also swipe two fingers vertically or pinch-zoom to
expand or collapse certain notifications.
To remove a notification, swipe it left or right.
To remove all notifications, touch below all the
notifications.
To manage notifications you have received, touch and hold a
notification to identify the application that created it. You can
then touch to configure notification options for this app.
38
NOTE:
If you block notifications for an app, you may miss its important
alerts and updates. The notifications of some apps cannot be
blocked.
Use Quick Settings
The Quick Settings make it convenient to view or change the
most common settings for your phone.
Open the notification panel and drag the panel downwards to find
the following Quick Settings on the screen.
Auto-rotate/Portrait: Touch to turn on or off the auto-rotate
screen feature.
Battery Saver: Touch to turn on or off the battery saver
feature. Touch and hold to manage detailed battery saver
options.
Hotspot: Touch to turn on or off the Wi-Fi hotspot feature.
Touch and hold to open the Wi-Fi hotspot menu.
Sound/Vibrate/Silent: Touch to switch between sound,
vibration and mute.
Airplane mode: Touch to turn on or off airplane mode.
Flashlight: Touch to turn on or off the flash.
Sync: Touch to turn on or off auto-sync of accounts data.
Touch and hold to open the Accounts menu. See Web
Accounts.
Do not disturb / Priority only / Alarms only / Total silence:
Touch to open the Do not disturb menu.
39
Bluetooth: Touch to turn on or off Bluetooth. Touch and hold
to open the Bluetooth menu. See Connecting to Bluetooth
Devices
Wi-Fi: Touch to turn on or off Wi-Fi. Touch and hold to open
the Wi-Fi settings menu. See Connecting to Wi-Fi.
Data: Touch to enable or disable data access over the mobile
network. Touch and hold to open the Data usage menu. See
Data Usage.
Location: Touch to turn location services on or off. Touch
and hold to open the Location menu. See Location.
Brightness: Uncheck AUTO and drag the brightness slider
to adjust the screen brightness.
NOTE:
In the Quick Settings screen, touch at the top to get to the
Settings menu; touch to view your own contact profile in the
Contacts app; touch to change the positions of the Quick
Setting buttons.
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch the Home key > .
- or -
To add widgets, touch and hold an empty area of the home
screen and select Widgets.
2. Swipe up or down to browse available applications, or left or
40
right to browse widgets.
3. Touch and hold a widget or an application icon and drag it to
a home screen panel.
NOTE:
While holding the item, you can drag it to the right edge of the
screen to create a new home screen panel and put the item on it.
Move Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the home screen.
2. Drag it to (Remove) to remove it.
NOTE:
When there are more than three home screen panels, empty
panels are automatically deleted.
Adjust Widget Size
1. Touch and hold a widget on the home screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE:
Not all widgets can be resized.
41
Organizing With Folders
You can create folders on the home screen and add several
shortcuts to a folder.
You can move or remove folders the same way as moving or
removing shortcuts.
1. Touch and hold the shortcut on the home screen you want to
add into a folder until (Folder) appears.
2. Drag the shortcut to (Folder) and release it. A new folder
will be created and the shortcut is added into the folder.
3. To add more shortcuts into the folder, touch and hold each
shortcut and drag it over the folder before releasing it.
NOTES:
Touch the folder and then touch the name field to rename the
folder.
Drag the folder to (Extract) to delete the folder and replace
its shortcuts on the home screen.
Rearranging the Primary Shortcuts
The home screen includes a customizable primary shortcuts area
at the bottom visible from all home screens. You can keep at
most four items in the primary shortcuts area. Drag shortcuts or
folders in or out of the area to rearrange the area.
42
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. Touch the Back key to hide the onscreen
keyboard. You can also enter text by speaking with the Google
voice typing feature.
Enable or Disable Input Methods
1. Touch the Home key > > Settings > Language &
input > Current Keyboard.
2. Touch CHOOSE KEYBOARDS at the bottom.
3. Slide the switches beside the input methods to enable or
disable them.
Change Input Methods
1. When you use the onscreen keyboard to enter text, the icon
appears on the status bar.
2. Open the notification panel and touch Change keyboard.
3. Select the input method you need.
NOTE:
43
The icon appears only when more than one input method is
installed and enabled for use.
Google Keyboard
The Google Keyboard provides a layout similar to a desktop
computer keyboard. When screen auto-rotation is enabled, turn
the phone sideways and the keyboard will change from portrait to
landscape. The landscape keyboard is not supported in all
applications.
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter È, touch and hold and
the available accented letters and number 3 appear. Then
slide to choose È.
As you enter a word, candidates appear above the keyboard.
Touch to select the correct one.
44
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
case you are using: for lowercase, for uppercase,
and when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more.
Touch to enter miniature icons, such as expressions,
horoscopes, and animals.
Touch to use Google voice typing.
Touch and hold to change the input languages or set up
the Google keyboard.
Touch and hold and slide right to change the keyboard
position for one-hand use.
Gesture Typing
The Google keyboard supports the gesture typing feature. You
use this feature to input a word by sliding through the letters.
To enable and use gesture typing:
1. Touch and hold on the Google keyboard and then touch
Google Keyboard settings.
2. Touch Gesture typing and then touch Enable gesture
typing if this feature is turned off.
3. Move your finger from letter to letter on the keyboard to trace
a word without lifting the finger until you reach the end of the
45
word.
NOTES:
Touch when you want to. If you want to enter a single letter,
go ahead and touch.
Lift your finger at the end of the word. A space is added
automatically when you begin to input the next word.
TouchPal Keyboard
TouchPal Keyboard offers three layouts: FULL, PHONEPAD and
T+. You can touch to select a layout or an input language.
You can also use Curve® and Wave™ to speed up text input by
moving your finger from letter to letter or word from word without
lifting the finger.
Start of
the word
End of
the word
46
The FULL Layout
The FULL layout offers an input experience similar to a computer
keyboard.
The alphabetic keys: Touch the keys to enter letters. Touch a
key and slide if necessary to choose more characters.
The shift key: Touch to use uppercase. Double-tap
to lock uppercase. This key also changes to indicate the
current case you are using: for lowercase, for
uppercase, and when locked in uppercase.
Word prediction: Touch and hold or and tap the
prediction switch to turn on or off prediction.
Pre-defined texts: Touch to enter digits, symbols, and
other pre-defined texts. You can touch the arrow keys to turn
pages, or touch to go back to the alphabetic keys. Slide up
on the space key or touch to enter Emoji and emoticons.
47
The delete key: Touch to delete text before the cursor.
You can also slide left on the key to delete an entire word.
More options: Touch to access additional functions of
TouchPal, use voice input, edit text, change keyboard themes,
and more.
The PHONEPAD Layout
The layout in this mode is similar to a phonepad.
Touch an alphabetic key repeatedly until the desired letter
appears. You can also touch and hold the key and slide left or
right to choose the letter or number you need.
If word prediction is enabled ( ), just touch the keys once and
choose the right word.
The T+ Layout
48
Touch to enter the left letter on the key; double-tap or flick right to
enter the right letter/symbol on the key. You can also touch and
hold a key and slide left or right to choose more letters and
symbols.
If word prediction is enabled ( ), just touch the keys and choose
the right word.
Curve Word Gesture
Curve allows you to enter text by moving your finger on the
screen from letter to letter to enter each word.
To enable and use Curve:
1. On the TouchPal keyboard, touch > Settings > Smart
input and check Curve® - Word gesture.
2. Touch the Back key to return to the text field. Open the
TouchPal keyboard and switch to the Full layout.
3. Move your finger from letter to letter on the keyboard to trace
a word without lifting the finger, until you reach the end of the
word.
49
NOTES:
Curve is only available in the Full layout.
Touch when you want to. If you want to enter a single letter,
go ahead and touch.
Lift your finger at the end of the word. A space is added
automatically when you begin to trace the next word.
Wave Sentence Gesture
Wave allows you to enter words by dragging candidate words to
the space key.
To enable and use Wave:
1. On the TouchPal keyboard, touch > Settings > Smart
input and check WaveTM - Sentence gesture.
2. Touch the Back key to return to the text field. Open the
TouchPal keyboard and switch to the Full layout.
End of
the word
Start of
the word
50
3. Touch or use Curve to enter the first word. As the first word
appears on the text field, candidate words appear on the
keyboard for you to choose from as the following word.
4. Drag the correct candidate word to the space key to add the
word to the text field. If no candidate word is correct, you can
go on enter the words normally.
NOTE:
Wave is only available in the Full layout.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text.
1. Flick down the status bar when entering text and touch
Change keyboard, and then select Google voice typing.
51
Or touch to access the voice typing feature when you are
using the Google keyboard.
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
NOTE:
Say "comma," "period," "question mark," "exclamation mark," or
"exclamation point" to enter punctuation.
Input Method Settings
Choose the input method settings by touching > Settings >
Language & input from the home screen.
In the Keyboard & input methods section, you can set the
current input method and choose the settings for input methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch CUT or COPY to cut or copy the text to the clipboard.
Replace text with the clipboard text: Select the text you
52
want to replace. Then touch PASTE.
Insert clipboard text to the text field: Touch and hold the
tab below the cursor and then select PASTE.
Opening and Switching Apps
Open an App
1. Touch the Home key > .
2. Swipe up or down on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch the Recent apps key. The apps you’ve used recently
are displayed in a series of tabs. Slide up and down to see all
the tabs.
2. Touch a tab to open that app.
NOTE:
You can swipe a tab sideways to remove it from the screen, or
touch Clear all to remove all tabs.
Uninstalling or Disabling an App
1. Touch the Home key > to open the application list
screen.
2. Touch and hold an application icon and drag the icon to
(Uninstall) or (Disable) at the top of the screen.
3. Touch OK to uninstall or disable the app.
53
NOTES:
Pre-installed apps cannot be uninstalled.
To find the disabled applications, touch the Home key > >
Settings > Apps. You can then touch the application and touch
ENABLE to restore it.
54
Connecting to Networks and
Devices
Connecting to Mobile Networks
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home key > > Settings > Mobile networks.
2. Touch the Mobile Data switch to enable or disable mobile
data use.
To get data services when roaming:
1. Touch the Home key > > Settings > Mobile networks >
Data roaming.
2. Touch the Mobile Data switch if it is turned off.
NOTE:
Data roaming may incur significant roaming charges.
Reset Access Point Names
To use mobile data, you need the correct Access Point Names
(APN). The APNs have been pre-configured on your phone and
ready for use. If you have any problem connecting with the
Internet, try reset the APN settings to the default.
1. Touch the Home key > > Settings > Mobile networks >
Access Point Names.
55
2. Touch > Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 300 feet, depending on the
Wi-Fi router and your surroundings.
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position to turn on Wi-Fi.
Your phone starts to search for available networks. You could
touch > Refresh if you want to scan again.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
CONNECT.
NOTE:
Your phone automatically connects to previously used Wi-Fi
networks when they are in range.
Get Notified of Open Networks
1. Touch the Home key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced.
56
4. Slide the Network notification switch.
When Wi-Fi is on, you receive notifications in the status bar when
your phone detects an open Wi-Fi network. Uncheck the option to
turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Add network.
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch SAVE.
Connect to a WPS Network
Wi-Fi Protected Setup (WPS) is a feature that makes it easy to
add your phone to the access points which support WPS.
You can use one of the following methods to connect your phone
to a wireless network using WPS.
Method one: WPS button (Recommended)
1. Touch the Home key > > Settings > Wi-Fi.
57
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced > WPS Push Button.
4. Press the WPS button on the wireless router and the access
point will recognize your phone and add it to the network.
Method two: PIN number
1. Touch the Home key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch > Advanced > WPS Pin Entry.
4. The WPS PIN number displays on the screen. Enter the PIN
number into the access point's setup page.
After entering the PIN number, your phone automatically finds
the access point and configures the connection.
NOTE:
For detailed information about the WPS feature of the access
point, please refer to its user documents.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
longer use.
1. Touch the Home key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
58
3. Touch > Saved networks.
4. Touch the Wi-Fi network name and then touch FORGET.
Adjust Advanced Wi-Fi Settings
1. Touch the Home key > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
WPS Push Button: Connect to a WPS network via the
push button method.
WPS Pin Entry: Connect to a WPS network via the
phone PIN method.
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
59
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters (30
feet). The Bluetooth devices must be paired before the
communication is performed.
Turn Bluetooth On/Off
1. Touch the Home key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On or Off position.
-or-
Swipe down from the top of the screen with two fingers to open
Quick Settings. Touch to turn on or off Bluetooth.
When Bluetooth is on, the icon will appear in the status bar.
Change the Device Name
1. Touch the Home key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On position if Bluetooth is
off.
3. Touch > Rename this device.
4. Edit the name and touch RENAME.
Pair With Another Bluetooth Device
1. Touch the Home key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the On position if Bluetooth is
off.
60
Your phone automatically scans for and displays the IDs of all
available Bluetooth devices in range. You could touch >
Refresh if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch PAIR. Alternately, enter a
Bluetooth passkey and touch PAIR.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as
headsets and hands-free car kit. You can try entering 0000 or
1234 (the most common passkeys), or refer to the documents for
that device.
Forget (Unpair With) a Bluetooth Device
You can make your phone forget its pairing connection with
another Bluetooth device. To connect to the device again, you
need to search it and enter or confirm a passkey again.
1. Touch the Home key > > Settings > Bluetooth and
ensure that Bluetooth is turned on.
2. In the list of paired devices, touch the icon beside the
Bluetooth device you want to forget.
3. Touch FORGET.
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
61
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
2. Touch ACCEPT to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC card. You can access them with the File Manager
app.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in the phone storage or on a removable
microSDHC card.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Open the notification panel and touch .
3. Choose one of the following options:
Charge only: Charge your phone via USB.
62
Install driver: Install the driver needed for some USB
connection modes (such as MTP). You only need to install
the driver on the same PC once.
NOTE:
You can also install the driver on PC by running the
executable file in the new CD-ROM drive.
Media device (MTP): Transfer files on Windows® or
Mac®.
NOTE:
For Windows XP, please install the drivers and Media
Player 11 (or later version) when you use Media device
(MTP) for the first time.
Camera (PTP): Transfer photos using camera software.
NOTE:
To make your phone connect to the computer automatically using
the selected connection type, check Don’t ask me again.
Connect With Windows Media® Player
You can sync music, picture, and video files on your phone and
the computer installed with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
2. Open Windows Media Player and synchronize music, picture,
and video files.
63
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Using the microSDHC Card as Portable
Storage
You can use your microSDHC card as portable storage to save
photos, music, videos, downloaded files, and more.
To remove the microSDHC card from your phone:
If you need to remove the microSDHC card while the phone is on,
you must unmount it first.
1. Touch the Home key > > Settings > Storage.
2. Touch next to the card name in the Portable storage
section.
3. When the screen prompts the card is safely ejected, you can
now remove it from the phone.
To erase and format the microSDHC card:
1. Touch the Home key > > Settings > Storage.
2. Touch the card name in the Portable storage section.
3. Touch Format > ERASE & FORMAT.
4. Touch DONE.
CAUTION:
The formatting procedure erases all the data on the microSDHC
card, after which the files CANNOT be retrieved.
64
Sharing Your Mobile Data Connection
Share Mobile Data Through a Wi-Fi Hotspot
You can share your phone’s data connection with other devices
by turning your phone into a portable Wi-Fi hotspot. The feature
needs data connection on a mobile network and may result in
data charges.
NOTE:
When the portable Wi-Fi hotspot feature is enabled, you cannot
use your phone’s applications to access the Internet via its Wi-Fi
connection. You still remain connected to the Internet via your
mobile data network.
1. Touch the Home key > > Settings > Wi-Fi hotspot.
2. Slide the switch to the On position to turn the feature on.
After a moment, the phone starts broadcasting its Wi-Fi
network name (SSID).
3. On another device, locate your phone via Wi-Fi and connect
with it to start using the phone’s mobile data.
NOTE:
To stop sharing your data connection, slide the switch to the Off
position.
Set Your Wi-Fi Hotspot
You can change the name of your phone's Wi-Fi network (SSID),
secure your portable Wi-Fi hotspot, and set other options.
65
1. Touch the Home key > > Settings.
2. Touch Wi-Fi hotspot and set the following options.
Configure:
- Network name: Enter or edit a network SSID (name)
that other devices see when scanning for Wi-Fi
networks.
- Channel: Change channels in case of interference.
- Security: Choose a security option: Open (not
recommended) or WPA2 PSK (other users can access
your mobile hotspot only if they enter the correct
password). When you select WPA2 PSK, touch the
Password field to edit the security password. To check or
uncheck Show password can make the password visible
or invisible.
- Broadcast network name (SSID): Check to broadcast
or uncheck to hide your network name (SSID). If the
broadcast is disabled, other users need to get your
network SSID to find the Wi-Fi hotspot.
Manage users: Block or unblock users, or set the
maximum number of devices that can connect to the
hotspot simultaneously.
Sleep policy: Set hotspot sleep policy and notification.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
66
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home key > > Settings > More > VPN.
2. Touch at the top right and fill in the information provided
by your network administrator.
3. Touch SAVE.
The VPN is added to the list on the VPN screen.
NOTE:
You must set a lock screen pattern, PIN or password before
using VPN.
Connect to a VPN
1. Touch the Home key > > Settings > More > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch CONNECT.
67
Modify a VPN
1. Touch the Home key > > Settings > More > VPN.
2. In the VPN profiles list, touch beside the VPN that you
want to modify.
3. Edit the VPN settings you want.
4. Touch SAVE.
68
Phone Calls
You can place calls from the Phone app, the Contacts app, or
other apps or widgets that display contact information. Wherever
you see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home key > .
2. Touch and enter the phone number or the contact name
with the dialpad. Touch to delete incorrect digits.
NOTE:
As you enter the phone number or the contact name, your
phone searches for matching information in your contacts. If
you see the number and contact you want to call, touch it to
place the call immediately.
3. Touch below the keypad to dial.
You can also touch the search box at the top of the Phone app
screen and enter the phone number or contact name you want to
call. Touch the matching contact or Call [number] to place the
call.
NOTE:
To make an international call, touch and hold the 0 key to enter
the plus (+) symbol. Next, enter the country code, followed by the
city/area code and then the phone number.
69
NOTE:
To redial the last call you made, just touch the Home key > >
> and touch again.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the incoming call screen opens,
displaying the caller ID or the information about the caller that
you've entered in the Contacts app. You can answer or reject the
call, or reject it with a text message.
Answer a Call
When you receive a phone call, slide down the green bar to
answer the call.
NOTE:
To silence the ringer before answering the call, press either end
of the Volume key, the Power key, the Home key, the Back key,
or the Recent apps key.
Reject a Call
When you receive a phone call, slide up the red bar to reject the
call.
You can also slide up to reject the call and select a preset
text message or edit one to send to the caller.
70
NOTE:
To edit the preset text response from within the Phone app, touch
in the top search field and select Settings > Quick responses.
Working With the Call History
The call history is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your contacts.
To open the call history, you can touch the Home key > >
(in the top search field) > Call History.
Place a Call From the Call History
1. Open the call history.
2. Touch beside a number to call back.
NOTE:
You can touch MISSED, OUTGOING, or INCOMING to filter the
records by call type.
Add a Number From Call History as a Contact
1. Open the call history.
2. Touch the contact icon in front of a number.
3. Touch on the contact information tab.
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch Create new contact.
71
Take Other Actions on a Call History Entry
Touch a listing in the call history and select Call details to view
more call information.
Touch to delete the entry.
While viewing the call details, touch > Edit before call to
edit the number in the dialer before calling it.
Touch the contact icon in front of the entry to open the contact
information tab from the bottom, where you can send a
message, call back, or add the number to contacts.
NOTE:
You can touch > Clear call history in the call history screen to
delete all history records.
Calling Your Contacts
1. Touch the Home key > . Your favourite contacts and
frequently called contacts are displayed in the tab.
2. Touch a contact to place the call, or touch or swipe to the
tab to view all your contacts and touch beside a
contact to make a call.
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
72
1. Touch the Home key > > .
2. Touch and hold the 1 key in the dialer. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
See Set Voicemail for how to set your voicemail service. For
detailed information, please contact the service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch On hold to put the call on hold.
Touch to make another call separately from the first call,
which is put on hold.
Touch to open the Contacts app.
Touch to switch to the keypad when you need to enter a
code (for example, the PIN for your voicemail or bank
account) during the call.
Touch / to mute or unmute your microphone.
Touch / to turn on or off the speaker.
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold.
73
Touch to merge two calls into a conference call.
Touch to end the current call.
WARNING!
Because of higher volume levels, do not place the phone near
your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Touch to answer the second call and put
the first caller on hold.
Touch to reject the second call and select a preset
text message or write one to send to the caller.
Touch to reject the second call.
To switch between two calls:
74
Touch .
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. Place the first call.
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Set Contact Display Options
You can set the order of the contacts displayed in the tab
of the Phone app.
1. Touch the Home key > > (in the top search field) >
Settings > Display options.
2. Touch Sort by or Name format to set the order of the
contacts and the format of the contact names.
75
Set Sound and Vibration
Set the sound and vibration for incoming calls as well as dialpad
sounds.
1. Touch the Home key > > (in the top search field) >
Settings > Sounds and vibration.
2. Touch the option you want to configure.
Touch Phone ringtone to select the ringtone for incoming
call notification.
Check Also vibrate for calls to enable vibration for
incoming call notification.
Check Dialpad tones to play sounds when you touch the
dialpad keys.
NOTE:
You can set the vibration pattern for incoming call notification.
Touch the Home key > > (in the top search field) >
Settings > Call settings > Vibrate pattern and select one.
Edit Quick Response to Rejected Callers
1. Touch the Home key > > (in the top search field) >
Settings > Quick responses.
2. Touch a text message to edit it.
Set Voicemail
1. Touch the Home key > > (in the top search field) >
Settings > Call settings.
76
2. Touch Voicemail to configure voicemail settings.
Touch Service to select the voicemail service provider.
Your carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number.
Touch Ringtone to select the notification sound for new
voicemails.
Check Vibrate to enable vibration for notification.
Set TTY Mode
Your phone is a TTY compatible device. A TTY device can allow
people who have hearing or speech disabilities to communicate
by telephone. Simply connect the TTY device to the phone’s
headset jack.
Select a TTY mode for your phone to work with a TTY device, or
turn TTY off.
1. Touch the Home key > > (in the top search field) >
Settings > Call settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through TTY
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party, and
77
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Set Hearing Aids
Your phone supports HAC (Hearing Aid Compatibility) function.
When you turn on the hearing aid compatibility and use a hearing
aid with a Telecoil to answer the phone, it will help you hear more
clearly during the phone call.
1. Touch the Home key > > (in the top search field) >
Settings > Call settings.
2. Check Hearing aids to turn on hearing aid compatibility.
Display Duration When Calls End
You can set the phone to display the call duration when each call
ends.
1. Touch the Home key > > (in the top search field) >
Settings > Call settings.
2. Check Display duration.
Set Speed Dials
You can touch and hold the 1 ~ 9 keys from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
78
To assign a speed dial key:
1. Touch the Home key > > (in the top search field) >
Settings > Call settings > Speed dial.
2. Touch a speed dial key.
3. Enter a phone number or select one from the contact list.
4. Touch OK.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home key > > (in the top search field) >
Settings > Call settings > DTMF tones.
2. Touch Normal or Long.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home key > > (in the top search field) >
Settings > Call settings > Call forwarding.
2. Touch an available option (Always forward, Forward when
busy, Forward when unanswered, Cancel All Forwarding)
to configure.
Other Options
Check the Home key > > (in the top search field) >
79
Settings > Call settings > Additionalsettings > Plus code
dialing setting to set plus code dialing number.
Check Setup Plus Code Replacement to replace + with the
international dialing code.
Touch Replace Code of Plus Code to change the
international dialing code.
80
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home key > > Contacts.
From there, you can touch the tabs on the top of the screen to
quickly switch to the contact groups or favorite contacts.
Checking Contact Details
1. Touch the Home key > > Contacts and touch the
CONTACTS tab to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
NOTE:
If you have a lot of contacts stored, you'll see a slider on the right
side of the screen. Drag the slider to the initial letter you need.
Adding a New Contact
1. Touch the Home key > > Contacts and touch the
CONTACTS tab.
2. Touch . If the contacts list is empty, touch CREATE A
NEW CONTACT.
81
3. Enter the contact name, phone numbers, and email
addresses.
4. If necessary, touch More Fields to add more information or
change the contact account.
5. Touch to save the contact.
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to the phone storage or the
microSDHC card. This is especially useful when you need to
transfer contacts between different devices. You can also quickly
share your contacts using Bluetooth, email, messages, etc.
Import Contacts From the microSDHC Card
or Phone Storage
1. From the home screen, touch > .
2. Touch > Import/Export > Import from storage. Start
searching for vCard data in storage automatically and
importing the data if founded.
NOTE:
If the microSDHC card is not installed in the phone, you can
import vCard file(s) in the phone storage.
82
Export Contacts to the microSDHC Card or
Phone Storage
1. Touch the Home key > > Contacts.
2. Touch > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file and
the directory in which the file will be saved. Touch OK to
create the file.
NOTE:
If the microSDHC card is not installed in the phone, you can
export vCard file(s) into the phone storage.
Share Contacts
1. Touch the Home key > > Contacts and touch the
CONTACTS tab.
2. Touch > Multi-Select.
3. Check the contacts you want to share and then touch .
4. Choose how to share the contacts. Options depend on the
applications and services installed.
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite contacts
and frequently contacted contacts.
83
Add a Contact to Favorites
You can add the contacts you use frequently to FAVORITES so
that you can find them quickly.
1. Touch the Home key > > Contacts and touch the
CONTACTS tab.
2. Touch a contact and then touch at the top.
Remove a Contact From Favorites
1. Touch the Home key > > Contacts and touch the
FAVORITES tab.
2. Touch a favorite contact and then touch at the top.
Working With Groups
View Your Contact Groups
1. Touch the Home key > > Contacts and touch the
GROUPS tab.
2. Scroll through the list to view the preset groups and any
groups you have created.
3. Touch a group to view its members.
NOTE:
To send a message or an email to the group members, you can
84
touch > Send Group message / Send Group email after you
open the group.
Set Up a New Group
1. Touch the Home key > > Contacts and touch the
GROUPS tab.
2. Touch to create a new group.
3. Touch to choose an account for the new group if needed.
4. Touch the Group’s name field and enter the group name.
5. Touch Add member and select the contacts you wish to be
the group members.
6. Touch .
7. If necessary, touch Default below RINGTONE or
NOTIFICATION RINGTONE to set a special ringtone for
incoming calls or notifications from the group members.
Touch OK.
8. Touch to save the group.
Delete a Group
1. Touch the Home key > > Contacts and touch the
GROUPS tab.
2. Touch a group and then touch > Delete Group.
3. Touch OK to disband the group. The contacts in the group
85
will not be deleted.
NOTE:
Pre-set groups cannot be deleted.
Edit a Group
1. Touch the Home key > > Contacts and touch the
GROUPS tab.
2. Touch a group and then touch .
3. Touch Edit to edit the group name, add more members, or
change the ringtone. Or touch Multi-Select to select the
members you don’t need and remove them from the group.
Searching for a Contact
1. Touch the Home key > > Contacts.
2. Touch at the top of the screen.
3. Input the contact name or any information the contact has to
search for it. The contacts matched will be listed.
86
Editing Contacts
Edit Contact Details
1. Touch the Home key > > Contacts.
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch .
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
calling when you hear the ringtone.
1. Touch the Home key > > Contacts.
2. Touch a contact you want to set a ringtone for and then touch
> Set ringtone.
3. Select a ringtone you like and touch OK.
Delete Contacts
1. Touch the Home key > > Contacts and touch the
CONTACTS tab.
2. Touch > Multi-Select.
3. Check the contacts you want to remove and then touch .
4. Touch OK to confirm.
87
Join Contacts
As your phone synchronizes with multiple online accounts, you
may see duplicate entries for the same contact. You can merge
all the separate information of a contact into one entry in the
contacts list.
1. Touch the Home key > > Contacts.
2. Touch a contact entry to display the contact’s details and then
touch .
3. Touch > Join.
4. Touch the contact whose information you want to join with the
first entry.
5. Touch .
The information from the second contact is added to the first
contact, and the second contact is no longer displayed in the
contacts list.
You can repeat these steps to join another contact to the main
contact.
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. Touch the Home key > > Contacts.
2. Touch a contact entry you have merged and want to
88
separate.
3. Touch > > Separate.
4. Touch OK to confirm.
89
Web Accounts
Adding or Removing Accounts
You can add multiple Google accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts, depending on the apps installed on your phone.
Add an Account
1. Touch the Home key > > Settings > Accounts > Add
account.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
Accounts section in the Settings menu.
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. Touch the Home Key > > Settings.
2. Touch the account category in the Accounts section and
90
then touch the account.
3. Touch > Remove account > REMOVE ACCOUNT.
Configuring Account Sync
Configure Auto Sync Setting
1. Open the notification panel and drag the panel downwards
to find the Quick Settings on the screen.
2. Touch Sync to enable or disable the auto sync feature.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When automatic sync is turned off, you need to sync
manually to collect emails, updates, or other recent
information.
Sync Manually
1. Touch the Home Key > > Settings.
2. In the Accounts section, touch the account category and
then the account you want to sync.
3. Touch > Sync now. Or touch the types of information you
want to sync.
91
Change an Account’s Sync Settings
1. Touch the Home Key > > Settings.
2. In the Accounts section, touch the account category and
then the account. The Sync screen appears, showing a list
of information the account can sync.
3. When auto-sync is enabled, switch on items as you need.
The items switched on on the phone will be kept in
auto-sync with the web.
92
Email
Touch in the home screen and select Email. Use it to
receive and send emails from your webmail or other accounts
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. Touch the Home key > > Email.
2. Select an email server and enter the email address and
password.
3. Touch NEXT to let the phone retrieve the network parameters
automatically.
NOTE:
You can also enter these details manually by touching
MANUAL SETUP or when automatic setup fails.
4. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the
interval you set when setting up the account.
You can also check new emails manually by dragging down on
93
the message list.
To check earlier emails for your IMAP or POP3 accounts, swipe
upwards to the bottom of the message list and touch LOAD
MORE.
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from the Inbox.
2. Do the following as you need:
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
To forward the email to someone else, touch .
3. Edit your message and touch .
Mark an Email as Unread
You can return a read email to the unread state - for example, to
remind yourself to read it again later. You can also mark a batch
of emails as unread.
While reading a message, touch > Mark unread.
94
While in a message list (for instance, the inbox), touch the
sender images before the messages and then touch .
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch > Delete.
While in a message list (for instance, the Inbox), touch the
sender images before the messages and then touch .
Writing and Sending an Email
1. Open your email inbox and touch .
NOTE:
If you have more than one email account added on the
phone, touch the sender line to select the account you want
to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
+ to select recipients from your contacts or history.
NOTE:
To send a carbon copy or blind carbon copy to other
recipients, touch to open the Cc/Bcc field and enter the
contact names or email addresses.
3. Enter the email subject and compose the email text.
95
4. Touch to add audio files, images, videos and other
types of files as attachments.
5. Touch at the top right of the screen to send the
message.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Setting Up the
First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch Add account.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the Inbox screen.
2. Touch > Settings and touch the account whose
settings you want to change.
3. Make the changes and touch the Back key when you finish.
96
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch > Settings > General settings.
3. Make the changes and touch the Back key when you finish.
97
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch the Home key > .
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the To field and manually enter the recipient’s
number or the contact name. If the phone presents a few
suggestions, touch the one you want to add.
Select recipients from your contacts or call log by
touching .
98
3. Touch the Type message field and enter the message text.
4. If you want to send a multimedia message, touch to
attach a file or a slideshow to the message.
5. Touch or > Send.
NOTE:
You can also include email addresses as recipients for
multimedia messages.
NOTE:
Do not add any attachment if you want to send a text message.
Otherwise you may be charged for a multimedia message.
Replying to a Message
Messages you receive are appended to existing threads for the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
if you want to reply with an MMS.
3. Touch or > Send.
99
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch the message and then touch Forward in the menu
that opens.
3. Enter a recipient for the message and edit the content if you
want.
4. Touch or > Send.
Copying a Message
You can copy text messages in the nano-SIM card to the phone
storage.
1. On the Messaging screen, touch > Settings > Manage
SIM card messages.
2. Touch and hold a message and then touch Copy to phone
memory.
Changing Message Settings
Touch > Settings in the Messaging screen to change
messaging settings.
100
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the home screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch > Calendars to display.
3. Touch the calendars to check the ones you want to see or
uncheck the ones you’d like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four view types: Month, Week, Day, and Agenda.
To change calendar views, touch the current view at the top left
and select the view you prefer. You can also change to Day
101
view from Month view by touching any day in the monthly
calendar twice.
In Month view, swipe vertically to see previous and future
months.
In Week or Day view, swipe horizontally to see previous and
future weeks/days.
When you are viewing past or future days, weeks, or months,
touch the date icon at the top right to quickly switch to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to display events on that day. Then
touch an event to view its details.
Creating an Event
1. In any Calendar view, touch .
You can also touch a spot in Day or Week view twice to add
an event to that time block.
2. If you have more than one calendar account, touch the
current account above the Event name line to choose one.
3. Enter the event details and touch DONE at the bottom.
Editing, Deleting or Sharing an Event
1. Find the event you want to edit, delete, or share.
102
2. Open its details screen (see View Event Details in this
chapter).
3. Do one of the followings as you need.
To edit the event, touch . Touch DONE to save your
changes.
To delete the event, touch > OK.
To share the event, touch and choose how to share.
Changing Calendar Settings
To change the calendar settings, open a calendar view (Day,
Week, Month, or Agenda), and touch > Settings.
You can change General settings, which apply to all accounts.
103
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the home screen to launch the web browser.
The browser also opens when you touch a web link - for
example, in an email or a text message.
Open a Web Page or Search the Web
1. Open the Browser app.
2. Touch the address box at the top of the web page. If the
address box isn’t visible, scroll to the top of the page to
show it.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for.
4. Touch a URL or search suggestion or touch the enter key on
the keyboard to open the web page or search results.
NOTE:
Touch next to the address box or at the bottom if you
want to stop opening the page.
104
Set the Homepage
Your home page opens when you open a new browser tab, and
when you start Browser after restarting your phone.
1. Touch > Settings > Set homepage.
2. Enter the URL in the field and touch OK.
Using Multiple Browser Tabs
You can open several web pages at the same time (one page in
each tab) and switch between them freely.
To open a new browser tab:
Touch > New window. A new browser window opens and
the homepage is loaded.
To switch between tabs:
1. Touch . Titles of opened tabs appear as a list.
2. Touch the title you want to open.
NOTE:
Swipe a title horizontally or touch its X to close the tab.
Downloading Files
1. Touch and hold an image or a link to a file or to another
webpage.
2. In the menu that opens, touch Save image or Save link.
105
The downloaded files are saved to your phone or the
microSDHC card. You can view or open the downloaded files in
the Downloads app ( > Downloads).
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings in
the web page screen.
106
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the microSDHC card you have
installed or in the phone storage. You can copy them to your
computer or check them out in the Gallery app.
Capturing a Photo
1. Touch the Home key > > Camera.
2. Aim the camera at the subject and make any necessary
adjustment. Auto camera mode is used by default.
107
Number
Function
1
Change the camera settings.
2
Change the flash setting, only available for the
back camera.
3
Select the manual or auto camera mode, or use
interval capture, multi-exposure, or panorama.
108
Number
Function
Only available for the back camera.
4
View pictures and videos you have taken.
5
Select filters.
6
Capture a picture.
7
Capture a video clip.
8
Turn on or off the High-Dynamic Range (HDR)
feature, only available for the back camera.
9
Set a time delay before the camera takes a picture
automatically after you touch the shutter icon.
10
Switch between the front and back cameras.
WARNING!
Keep a safe distance when using the flash. Do not point the
flash toward people or animals’ eyes.
NOTE:
You can pinch or spread on the screen to zoom in or zoom
out before taking pictures.
3. Touch the area where you want the camera to focus, or
leave the camera to autofocus on the center of the image.
4. As the exposure bar appears beside the focus point.
You can drag up or down to adjust the exposure.
5. Touch the shutter icon to take the photo.
109
NOTE:
When you use the front camera, you can also touch or
to adjust beauty face or smile detection setting.
To use manual camera mode:
You can use manual camera mode to adjust more camera
options for you photo such as ISO, white balance, exposure,
etc.
1. Touch the Home key > > Camera.
2. Touch MANUAL.
3. Aim the camera at the subject and you can make the
following adjustments.
Drag the green circle to any area on the screen that you
want to focus on.
Drag the yellow cross to any area on the screen where you
want the camera to meter exposure so as to adjust the
photo brightness.
Touch to adjust ISO.
Touch to adjust overall exposure.
Touch to adjust white balance.
Touch to adjust the focus of the picture or leave it at
Auto.
4. Touch the shutter icon to take the photo.
110
Recording a Video
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject. You can touch any area on
the screen that you want the camcorder to focus on before
and during recording.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before and during recording.
3. Touch to start recording. You can also touch / to
pause or resume recording.
4. Touch to stop recording.
NOTE:
While the recording is in progress, you can touch to save
the frame as a separate photo.
Customizing Camera and Video
Settings
Before capturing a photo or video, you can touch to open
the following camera and video setting options.
CAMERA
Full screen: Enable or disable full screen.
111
Picture size: Set the image size for your photo.
Mirror: Enable or disable the mirror function.
Point-and-shoot: Enable or disable the Point-and-shoot
function.
Grid: Show or hide the nine grids or golden spiral for
balanced photo composition.
Gradienter: Enable or disable the gradienter.
Shutter tone: Change the shutter tone.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Storage location: Touch Save location to change the
storage location for captured photos and videos.
Restore defaults: Restore default camera and video
settings.
VIDEO
Video quality: Set the quality for your video.
Time lapse: Set the time interval between each frame
when you shot time lapse videos using the back camera.
Focus lock when recording: Select whether to lock the
focus point on the center of the screen during video
recording using the back camera.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Storage location: Touch Save location to change the
storage location for captured photos and videos.
112
Restore defaults: Restore default camera and
camcorder settings.
NOTE:
Some camera and video options will change in different camera
modes.
113
Gallery
Opening Gallery
Touch the Home key > > Gallery to view albums of your
pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to delete.
114
3. Touch > OK.
To hide albums:
1. Touch and hold an album to select it.
2. Touch more albums that you want to hide.
3. Touch > OK.
NOTE:
To show the hidden albums again, touch > Settings >
Manage hidden albums. Touch the albums you want to restore
and touch Show at the bottom.
Working With Pictures
Touch a picture in an album to view the picture in full screen.
When viewing a picture in full screen, the following features are
available.
115
Swipe horizontally to see more pictures or videos.
Pinch a picture or video to make it smaller. You'll then see a
filmstrip-style view of all your pictures and videos in a row.
Swipe left or right to scan through them all.
NOTE:
You can delete a picture or video by swiping it upwards in
the filmstrip view. If you accidentally delete one, touch
UNDO to retrieve it.
Double-tap the picture, or pinch two fingers together or
spread them apart to zoom out or in.
116
Touch to rotate, rename, print the picture, set it as
wallpaper or contact photo, check file details, or browse the
album contents in a slideshow.
Touch , , or to delete, edit, or share the picture.
Touch to add the picture to favorites.
NOTE:
Some options may not be available for certain albums or
pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery.
1. Touch while viewing a picture in full screen and select
Photo Editor to open the Photo Editor interface.
2. Touch the options along the bottom of the screen to edit the
picture.
Filter
Apply filters, old photo, and blur effects.
Modify
Crop, rotate, or flip (mirror) the picture.
Adjust
Adjust exposure, saturation, hue, sharpness, and
other color options.
Doodle
Apply drawing, text, or mosaic on the picture.
Decoration
Add a frame to the picture, or decorate the
picture with comical stickers.
117
3. Touch to keep the change or touch to cancel it.
4. Touch to save the new picture.
NOTE:
Touch in the Photo Editor screen to see the edits you have
made and undo or redo them.
Making a GIF Picture or a Collage
You can put together a few pictures in the same album to make
an animated GIF picture or a collage of pictures.
1. Open the Gallery app and touch > GIF maker or Collage
maker.
2. Touch an album.
3. Touch the pictures you need.
To make a GIF, touch 2 to 50 pictures in the order or
reverse to the order that you want them to appear in the
GIF.
To make a collage, touch 2 to 9 pictures.
The pictures you touched are displayed along the bottom.
Touch to remove the pictures you do not need.
4. Touch NEXT. The GIF or collage is displayed.
5. Touch the options along the bottom to adjust the final
picture.
For GIF, you can adjust the speed, order, and size. You
can also touch MORE to move, shrink, expand, or rotate
118
the pictures, or touch Manage Frame to add/remove
pictures or adjust their order.
For collage, touch TEMPLATE, FREE, or COLLAGE and
then select a border, shading and style.
6. When you are satisfied with the final picture, touch to
save the GIF or touch to save the collage.
Depending on your storage setting, the picture is saved to the
zte_editor/save folder in your phone storage or your
microSDHC card.
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center and select a player to start playing.
Touch the video to view the playback controls.
When playing the video, you can touch to check Loop video
to play the video again and again automatically.
119
Music
Touch the Home key > > Music to play audio files stored
on your phone. Music supports a wide variety of audio formats,
so it can play music you purchase from online stores, music you
copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Open the notification panel and touch .
3. Touch Media device (MTP). See Connect Your Phone to a
Computer via USB.
4. Copy the music files from the PC and paste them to the
phone storage or the microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Downloading Files.
120
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
See Receive Data via Bluetooth.
Viewing Your Music Library
Touch the Home key > > Music and your music library is
displayed. All your audio files are cataloged, according to the
information stored in the files.
Touch All Songs to view all music files on your phone.
Touch Favorites to browse music files you have marked as
favorites.
Touch Playlists to view all music playlists you have created.
Touch Artists/Albums to browse music files on your phone
organized by the artist or album name.
Touch Folders to find music files through the folders they are
stored in.
NOTE:
If an audio file is being played, its name and player controls are
displayed at the bottom of the screen. Touch the area to open
the playback screen.
121
Setting a Song as the Default
Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see Set a Ringtone for a Contact).
1. Touch the Home key > > Music to see the music
library.
NOTE:
If you are in the playback screen, touch at the top left of
the screen to return to the music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Set as ringtone.
4. Touch Phone Ringtone or Notification Ringtone as
needed.
NOTE:
If the song is being played and you’re in the playback screen,
you can touch > Set as ringtone.
Playing Music
Touch a song in the music library to listen to it. Touch the
bottom of the screen to open the following playback screen.
122
Number
Function
1
Return to the music library.
2
Album artwork (if available).
3
Check the track information.
4
Turn on or off shuffle.
5
Playback control: Skip songs or pause and resume playback.
Drag the progress bar to jump to any part of the track.
6
Toggle repeat mode: no repeat, repeat the current track, or
repeat the current playlist.
7
Add the track to the Favorites playlist.
123
8
Touch to see the current playlist (queue).
9
Access additional options.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to playlist next to a song to add it to a
playlist or create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch > Rename next to a playlist to rename the playlist.
Touch a playlist to view its content. You can touch and hold
a song to select multiple songs for removal from the playlist.
124
Video Player
Use the Video Player app to manage your video library and to
watch videos.
Opening the Video Library
Touch in the home screen and select Video Player to view
your video library, where your video files are displayed in a list.
Swipe up or down to find the video you want. You can also
touch to search for video files, or touch > View by or
Sort by to change the display mode or sort the list.
Playing and Controlling Videos
Touch a video in the video library to play it. Touch the screen to
show the playback controls. You can control the video and
audio or carry out other operations.
Touch the play/pause button at the bottom to pause or
resume the playback.
Slide horizontally on the video to rewind or fast forward.
Slide vertically on the right or left part of the screen to adjust
volume or brightness.
Touch or to skip to the previous or the next video.
Touch or to change the video ratio.
125
Touch to hide the control panel.
Touch to play the video in a small window and continue
with other tasks on the phone.
Touch to capture a screenshot.
Touch to share, trim or delete the video, or configure
player settings.
Managing Video Files
Delete Video Clips
1. Touch and hold a video in the video library.
2. Check other videos you want to delete.
3. Touch > OK.
Share Video Clips
1. Touch and hold a video in the video library.
2. Touch other videos you want to share.
3. Touch and select how you want to share them.
Trim a Video Clip
1. Touch a video to start playing it.
2. Touch > Trim.
3. Drag the two tabs on the progress bar to select the portion
126
you want to keep.
If necessary, touch to preview the selected portion.
4. Stop the preview and touch . The trimmed video is saved
as a new video file.
127
More Apps
Calculator
Touch the Home key > > Calculator to use the phone’s
convenient built-in calculator for some basic as well as advanced
mathematical equations.
NOTE:
Slide left while holding the phone upright, or hold the phone
on its side, to access advanced buttons.
Clock
Touch the Home key > > Clock. The Clock app allows you
to check local time in places around the world, set alarms, and
use timers.
Set a New Alarm
1. Touch the tab in the Clock app.
2. Touch an existing alarm to configure it, or touch at the
bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, alarm days, snooze,
and alarm ringtone.
4. Touch SAVE to save and exit.
NOTES:
128
To enable or disable existing alarms directly, just slide the
switches on the right side.
Touch in the tab to configure alarm settings,
including ringtone volume, vibration, alarm duration, volume
crescendo, and alarm in silent mode.
Check World Time
Touch the tab in the Clock app to check local time around
the world.
Touch at the bottom to add a new city or country.
Use the Stopwatch and Countdown
Touch the or tab in the Clock app to use the stopwatch
or the countdown timer.
Stopwatch allows you to record lap times (100 laps at most),
while countdown allows you to set a time and count down to
zero.
Downloads
The Downloads app keeps a record of the files you have
downloaded using apps such as Browser or Email.
Touch the Home key > > Downloads to check the record.
Touch a file to open it with the appropriate application.
Touch and hold a file to delete or share it.
129
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone storage and the microSDHC card.
Touch the Home key > > File Manager. You can find the
file you need by category in the CATEGORY tab, or browse
folders and files on the phone storage or the microSDHC card
in the LOCAL tab.
Touch folders and files to access stored items.
Touch and hold an item to access option icons such as Copy,
Move, Share, Delete, and more.
To copy or move an item, navigate to a new location and
touch PASTE.
Touch + to create a new folder in the current directory.
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Record a Voice Memo
1. Touch the Home key > > Sound Recorder.
NOTE:
You can touch the HQ switch to set the audio quality.
130
2. Touch to start recording. During recording, you can
touch / to pause or continue the recording.
3. Touch to stop recording. The memo is automatically
saved.
Play a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
1. Touch at the top right of the screen to see all
recordings.
2. Touch the title of a memo to play it.
NOTE:
You can also touch next to a memo to delete, rename,
share, trim it, check its file information, add a tag, or set it as
your phone ringtone or notification ringtone.
Google Apps
Open the Google apps to use Google services.
NOTE:
Some contents or Google services may not be available in your
region.
131
Chrome: Use the Chrome app to browse the Internet and
get your bookmarks, browsing history, and more synced
with your Google account.
Drive: Store files on Google servers for free after you sign
in to your Google account. You can access them on your
computers, your phones and other devices, share them, or
collaborate with others.
Gmail: Send and receive emails via your Gmail account or
other personal email accounts.
Google: Use Google search or get information when you
need it with Google Now.
Hangouts: Chat with Google+ friends or send text or
multimedia messages.
Maps: Find your place and find your way in the world.
Photos: Manage photos on the phone and your Google
account.
Play Movies & TV: Purchase, download and watch the
latest and your favorite movies and TV shows.
Play Music: Play music on the phone and on your Google
account.
Play Store: Buy and download apps, games, and other
content from the Google Play Store.
Voice Search: Search for information with your voice.
YouTube: Watch video clips from YouTube.com, or upload
your own and share with the world.
132
Google Play™ Store
Touch the Home key > . You can buy or rent music, books,
movies, apps, and download them to your phone.
NOTE:
The content you can access in Google Play Store depends on
your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category. Touch a top-level category,
such as GAMES and touch the app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch the search box
at the top and enter the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch Install (free apps) or the price (paid apps). If the app
is not free, you need to sign in to your Google Wallet™
account and select a payment method.
133
CAUTION:
Once installed, some apps can access many functions or a
significant amount of your personal data. The Play Store will
show you what the app can access. Touch Accept to
proceed, or touch the Back key to cancel.
2. For paid apps, touch Continue and follow additional
on-screen instructions for payment.
3. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when appears in the
status bar. You can find the new app after touching the Home
key > .
Creating a Google Wallet™ Account
You must have a Google Wallet account associated with your
Google account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to wallet.google.com to create a Google
Wallet account.
The first time you use your phone to buy an item from Google
Play Store, you’re prompted to enter your billing information to
set up a Google Wallet account.
WARNING!
134
When you’ve used Google Wallet once to purchase items from
the Google Play Store app, the phone remembers your
password so you don’t need to enter it the next time. For this
reason, you should secure your phone to prevent others from
using it without your permission.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
View Your Downloaded Apps
1. In the Play Store screen, touch > My apps.
2. Your list of installed apps opens, you can touch one to rate it,
uninstall it, request a refund, and so on.
Uninstall an App
1. In the Play Store screen, touch > My apps.
2. Touch an app to open its details screen.
3. Touch Uninstall > OK.
135
Settings
Touch the Home key > > Settings. The Settings app
contains most of the tools for customizing and configuring your
phone.
Wireless and Networks
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Wi-Fi.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Bluetooth Devices.
Mobile Networks
Control mobile data use and reset access point names. See
Connecting to Mobile Networks.
Wi-Fi Hotspot
Share your phone’s mobile data connection with PCs or other
devices via Wi-Fi. See Sharing Your Mobile Data Connection.
136
Data Usage
Touch the Mobile data or Set cellular data limit switches to
turn on or off mobile data or mobile data limit.
You can check how much data has been used during the time
cycle you set, set mobile data limit and warning (after some
data has been used), see what apps have been using mobile
data, or restrict background data for individual apps.
NOTE:
The data usage is measured by your phone, and your carrier’s
data usage accounting may differ.
Airplane Mode
Touch the Home key > > Settings > More and slide the
switch beside Airplane mode to turn airplane mode on or off.
All the phone’s radios that transmit voice or data are turned off
when airplane mode is on.
VPN
Touch the Home key > > Settings > More > VPN to set up
and connect to virtual private networks. See Connecting to
Virtual Private Networks.
Default SMS App
Touch the Home key > > Settings > More > Default SMS
app to choose the preferred application for sending and
receiving messages.
137
Personal
Display
Brightness level: Set the brightness of the display.
Adaptive brightness: Automatically adjust screen
brightness.
Wallpaper: Select a background image or animation for the
home screen.
Sleep: Set the length of time of inactivity before the screen
turns off automatically.
Daydream: Manage the Daydream function. When
Daydream is enabled, photos or animations will be
displayed as a screensaver.
Font size: Set the font size of the text on the screen.
Auto-rotate screen: Select whether the screen contents
should rotate when the phone is rotated.
Pulse notification light: Flash the indicator light to notify
you of missed calls, new messages, and other events.
Navigation key light duration: This feature lets you control
the backlight of the touch keys (the Home key, the Back key,
and the Recent apps key). Choose one of the following
options to set the backlight duration.
Always off: Turn off the touch keys backlight.
Always on: Keep the touch keys backlight on while the
screen is turned on.
138
2 seconds / 5 seconds: The touch keys light for 2 or 5
seconds each time you touch the screen or touch keys
while the screen is turned on.
Auto: Let your phone turn on or off the touch keys
backlight automatically.
Sound & Notification
Adjust different types of volume (see Adjusting Volume), toggle
sound, vibration and mute (see Switching to Silent Mode), set
up ringtone and notification sound (see Changing Ringtone and
Notification Sound), select system sounds (see Turning On/Off
System Sounds), or control notification display.
Security
Screen lock: Disable the screen lock or enable it with long
press, pattern, PIN, or password. See Protecting Your
Phone With Screen Locks.
Make pattern visible: Show the pattern as you draw it. This
option is available when unlock pattern is set.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off. This
option is available when pattern, PIN or password is set.
Power button instantly locks: Lock protection is activated
immediately when you press the Power key. This option is
available when pattern, PIN or password is set.
Lock screen message: Set the text that you may display
139
on the lock screen.
Smart Lock: Keep the phone unlocked when connected to
trusted devices, in trusted places, unlocked by trusted faces
or voices, or as long as you keep holding or carrying the
device.
NOTE:
You need to sign in to your Google account on the phone to
use the Smart Lock feature.
Encrypt phone: The phone is encrypted.
Set up SIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the nano-SIM card.
Change SIM PIN: Change the PIN used to access the
nano-SIM card.
NOTE:
Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than
allowed, your nano-SIM card will be locked and you cannot
access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the nano-SIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Enable this option to permit installation
140
of apps from sources other than the Play Store.
Storage type: Check the credential storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the phone
storage or the microSDHC card.
Clear credentials: Delete all certificates.
Trust agents: View or deactivate trust agents.
Screen pinning: Keep a screen of your choice in view, so
that others cannot switch to other apps and access your
personal information. See Protecting Your Phone With
Screen Pinning.
Apps with usage access: Turn on or off some apps’
access to your phone usage information.
Navigation Key
Swap the positions of the Back key and the Recent apps key.
Select an option to make the switch.
Date & Time
Set date, time, time zone, and how time is displayed. You can
also use network-provided data. See Setting the Date and
Time.
Language & Input
Language: Select a language and region for your system.
Spell checker: Use Google Spell Checker to check for
141
spelling errors when entering text.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
Keyboard & input methods: Configure text input settings.
Text-to-speech output:
Preferred engine: Select the speech synthesis engine
you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Pitch: Set the tone of the spoken text.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Default language status: Check whether the
text-to-speech output feature supports the current
system language.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Google
Easily manage settings for Google apps and features. You can
set the options for Google account and services.
142
Device
Location
Activate location services to determine your location. To use
location-related applications, such as finding your location on
Google Maps, you must have location services turned on on
your phone.
1. Touch the Home key > > Settings > Location.
2. Slide the switch at the top to turn location services on or off.
3. When location is enabled, touch Mode to select location
sources you want to use.
High accuracy: Get accurate location using both GPS,
Bluetooth, Wi-Fi and mobile networks.
Battery saving: Use only Wi-Fi, Bluetooth and mobile
networks to get your approximate location. This will drain
less power from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
4. If necessary, touch Accelerated location to use Qualcomm®
IZat™ hardware accelerated location to determine your
position even indoors.
Storage
The Storage settings menu lets you check memory information
for your microSDHC card and internal storage.
You can choose the default location for new data, such as files
downloaded, photos captured, and voice recorded. Touch Save
143
location and select Phone or SD card to store items in the
phone storage or the installed microSDHC card.
In the Portable storage section, you can manage the installed
microSDHC card. For more information about using the card,
see Using the microSDHC Card as Portable Storage.
Battery
Check how much power remains for the battery and what has
been using the battery. You can touch an app to adjust its
settings in order to save battery life.
Touch > Battery saver to turn on or off the battery saver
feature, which reduces your phone’s performance and limits
vibration, location services and most background data to
improve battery life.
Touch > Battery optimization. Battery optimization helps
prolong battery standby time when you're not using the phone.
If there are apps that you don't want battery optimization
enabled, you can turn the feature off in those apps. Just touch
Not optimised > All apps, touch the app name and then touch
Don’t optimize > DONE.
Apps
The Apps settings menu allows you to see apps installed on
your phone and manage them.
Touch an app to see its information. The following options may
be available:
FORCE STOP: Stop the app.
144
UNINSTALL: Uninstall the app.
DISABLE/ENABLE: Disable or enable the app.
Storage: Check its storage information, clear its data or
cache.
Data usage: Check how much data has been used by the
app during the time cycle you set and restrict background
data for the app.
Permissions: Check or change the app permissions.
Notifications: Manage the app notifications in the
notification panel and the lock screen. You can set the
priority, sensitivity, and more.
Open by default: Check the app’s supported links and set
whether to open the links in the app, and clear the app’s
defaults.
Battery: Check the battery use details of the app since last
full charge.
Memory: Check how much memory has been used by the
app.
NOTE:
Not all options are available for the apps.
Memory
Monitor the average memory use and performance of your
phone. You can also check which apps use the most memory.
145
Connect to PC
Select your USB connection type between your phone and PC.
See Connecting to Your Computer via USB.
Backup & Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Backup account: Set the Google account that the data is
backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Network settings reset: Reset all network settings
including Wi-Fi, mobile data and Bluetooth.
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
microSDHC card during the process.
Accounts
Manage your accounts and synchronization. Touch Accounts >
Add account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
146
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
You can manage Google Cloud Print service or other printer
plug-ins installed from the Google Play Store or your printer
manufacturer.
About Phone
View the phone status and other information. You can also
touch Software Update to check for system updates and install
them when they become available.
147
Upgrading the Phone Software
There are several ways to upgrade ZTE phone software.
Use the online upgrade tool for mobile terminal products.
Use the one-press upgrade package offered by your mobile
service provider.
Use the upgrade package on your microSDHC card.
NOTE:
Visit the ZTE official website (http://www.zteusa.com/) and
select your product type on the support page to get to the
information on available upgrade methods for your phone.
148
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
cannot effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
149
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charge
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s temperature
is below 0 °C or higher
than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the phone and charger.
Check all connectors to
ensure that all
connections have been
properly made.
150
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Contact the dealer to
change a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
151
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
nano-SIM
card error
nano-SIM card
malfunction or damage
Take the nano-SIM card
to your service provider
for testing.
nano-SIM card inserted
improperly
Insert the nano-SIM
card properly.
Debris on the nano-SIM
card contacts
Use a soft, dry cloth to
clean the nano-SIM card
contacts.
Unable to
connect to
the network
The nano-SIM card is
invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
The signal is poor.
Move to an open space,
or if you are inside a
building, move closer to
a window.
152
Problem
Possible causes
Possible solution
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
nano-SIM card’s PUK
code, use the PUK code
to unlock the nano-SIM
card.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Uninstall the software
that may cause the
problem.
Upgrade the phone
software.
Reset the phone to
factory status.
153
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15mm away from
your ear or body while
making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
154
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
Turn off when asked to
in hospitals and
medical facilities.
Do not attempt to
disassemble your
phone.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone as a primary
device for emergency
communications.
Radio Frequency (RF) Energy
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
in positions that simulate RF exposure in usage against the
head with no separation, and near the body with the separation
155
of 15 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
had been tested in accordance with the measurement methods
and procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-Z837VL.
For this device, the highest reported SAR value for usage
against the head is 0.54W/kg, for usage near the body is
1.19W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
156
SAR compliance for body-worn operation is based on a
separation distance of 15 mm between the unit and the human
body. Carry this device at least 15 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
holsters that do not contain metallic components to maintain a
separation of 15 mm between this device and your body.
RF exposure compliance with any body-worn accessory that
contains metal was not tested and certified, and using such
body-worn accessory should be avoided.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
157
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
CAUTION:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
Hearing Aid Compatibility (HAC)
regulations for Mobile Phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
158
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
159
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M4/T3 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
Turning on the HAC Setting
To turn on the HAC function, touch the Home key > >
Phone > > Settings > Call settings and check Hearing
aids.
This section applies to T-Rating only and hearing aids that
contain telecoils. When the HAC setting is on, your phone
sends the audio from your phone calls to the telecoil rather than
to the microphone of your hearing aid. You are likely to hear
calls much better because volume is increased and background
160
noise and feedback are diminished. The HAC setting improves
only the calls you listen to through the earpiece. It does not
affect calls heard on the speaker or with a headset. HAC
requires extra battery power, so watch your battery
consumption when it's turned on.
CAUTION:
Do not turn on the HAC setting unless you use a hearing aid
with a telecoil. Using this setting without a hearing aid or with a
hearing aid without a telecoil may be harmful to your hearing.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
161
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean your phone and its accessories with a soft material
such as cleaning cloth for eyeglass lenses. Do not use
alcohol or other corrosive substances for cleaning or allow
them to get inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to
162
clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories,
only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum 23 ℉ and maximum 122 ℉
(minimum - 5 ℃ and maximum + 50 ℃).
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
163
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the nano-SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
164
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician. To reduce the risk of blackouts or seizures, you can
use your phone in a well lit room and take frequent breaks.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as message templates and
predictive text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio devices.
165
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the charging jack
terminals.
Never puncture the surface of the phone with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or its
accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
166
have taken it to be checked at an authorized service center.
CTIA Requirements
Do not disassemble or open crush, bend or deform, puncture
or shred.
Do not modify or remanufacture, attempt to insert foreign
objects into the battery, immerse or expose to water or other
liquids, expose to fire, explosion or other hazard.
Only use the battery for the system for which it is specified.
Only use the battery with a charging system that has been
qualified with the system per CTIA Certification Requirements
for Battery System Compliance to IEEE 1725. Use of an
unqualified battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Do not short circuit a battery or allow metallic conductive
objects to contact battery terminals.
Replace the battery only with another battery that has been
qualified with the system per this standard, IEEE-Std-1725.
Use of an unqualified battery may present a risk of fire,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local
regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is
dropped, especially on a hard surface, and the user suspects
damage, take it to a service center for inspection.
167
Improper battery use may result in a fire, explosion or other
hazard.
The phone shall only be connected to CTIA certified adapters,
products that bear the USB-IF logo or products that have
completed the USB-IF compliance program.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
168
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Equipment
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to
do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft and enable the airplane mode of your phone
when boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of
mobile phones in their vehicles unless a hands-free kit with an
external antenna is included in the installation.
169
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting
operations.
170
Specifications
Handset specifications are shown in the following table.
Operating System
Android 6.0
Handset standard
LTE\CDMA
Dimensions
5.69" (H) x 2.9" (W) x 0.40" (D)
Weight
6.07 oz. (with battery)
Display
5 inch
Camera
5 MP rear camera and 2MP front
camera
Internal memory
ROM: 8 GB, RAM: 1 GB
Removable
memory card
Supports microSDHC card up to 32 GB
Battery
2800 mAh
Continuous idle
time
Up to 7 days
Continuous talk
time
Up to 15 hours
WAP browser
2.0
171
version
HAC
M4/T3
Bluetooth
4.2
NOTE:
The phone’s talk time and idle time are based on ideal working
environments. The use of extended backlighting, browser, and
network conditions can reduce battery life and talk/idle time.
