Android Mobile Phone
User Manual
The manual is applicable for Z850 mobile phone.
Copyright © 2015 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic
or mechanical, including photocopying and microfilm,
without the prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on
print errors or update specifications in this manual without
prior notice.
Google, Android, Android Market, Google Mail are
trademarks of Google, Inc.
Other trademarks and trade names are the property of their
respective owners.
Third-party Software Statement
When you install the software from a third-party, the phone
might be restarted repeatedly or the software might not be
used normally due to the incompatibility of the software itself.
It is not the fault of the phone itself.
Version 1.0 in May 2015
-1-
第1页
Using your phone
Thanks for choosing the Z850. Powered by AndroidTM, the
phone supports 3G high-speed Internet access, which
brings you brand new experiences.
Don’t worry if the pictures we use to demonstrate your
phone’s functions look a little different from what you see
on the screen. It’s the functions that matter.
-2-
Before getting started

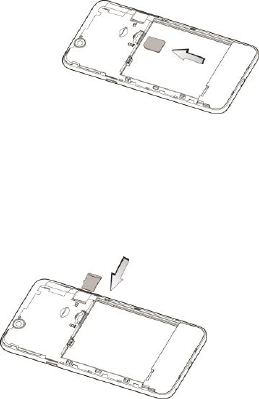

Inserting and removing the SIM
1. Switch off your phone and disconnect any external
power.
2. Remove the back cover and then the battery.
3. Hold your SIM on the cut corner, and slide it face
down into
the card
holder.
4. Insert the
battery.
5. Replace the
back cover.
Inserting a memory card
1. Remove the back cover.
2. Push tightly until the card is installed in the correct
position and replace the back cover.
-3-
第3页
Using the battery
Inserting the battery
1. Open the battery cover on the back of your phone.
2. Align the battery's contact points with those of the
phone and gently press the battery down into place.
3. Replace the battery cover clicking it back into
position.

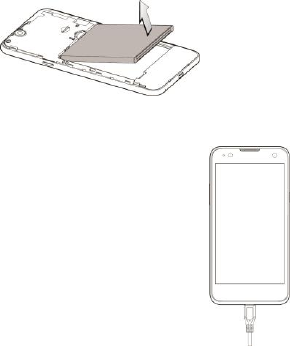

Removing the battery
1. Switch off your phone.
2. Open the battery cover.
-4-
3. Lift the battery up and out of your phone.
Charging the battery
The battery is not fully charged when
you unpack it for the first time. Please
exhaust the capacity of the battery
before you recharge it for the first
time.To ensure the battery is always in
its best condition, please charge the
battery 8 hours for the first time and
recharge it later at least 2 hours each
time.
1. Connect the charger to the phone,
and insert the charger to the
standard power socket.
2. Please disconnect the charger from the power socket
after the charging is completed.
Tips:
To charge the battery, you can also connect the
phone to the PC through the USB cable.
During charging, the phone and charger may
normally become hot.
-5-
第5页
Touch screen
Back key
Home key
Menu key
Earpiece
Camera
Power key
Volume
keys
Headset jack
Front camera
Microphone
Speaker
USB port
Getting to know your phone
-6-
Descriptions of Keys
Keys
Functions
Menu
key
Touch it to open a menu with items that
affect the current screen or application.
Home
key
Touch it to open the home screen. If
you’re viewing the left or right extended
home screen, Press it to open the
central home screen.
Back key
Touch it to open the previous screen
you were working in.
If the onscreen keyboard is open, touch
it to close the keyboard.
Power
key
Press it to turn on/off the display.
Long press it to open a menu with
options for Airplane mode, for Silent
mode, for Vibration mode, and for
powering off and for rebooting the
phone.
Volume
keys
Adjust the volume.
Long press it to quickly adjust the ring
tone volume to maximum or minimum.
-7-
第7页
Onscreen icons
Icon
s
Descriptions
Icon
s
Descriptions
Signal strength
Full battery
Charging
Missed calls
You have an
unread message.
You have an
unread E-mail.
In a call
Music playing
New calendar
reminder
Airplane mode
Connected to a PC
Alarm clock on
Vibration mode
Silent mode
Wi-Fi function on
Bluetooth®
function is on
-8-
Power on/off
Powering on
Long press the Power key until the power-on animation
appears.
Powering off
Long press the Power key to display the phone options
and select Power off.
Basic Operation
Screen control
You can control your phone through a series of operations
on the screen.
Touch: you can touch the items on the screen to
select them, to open the applications, or using the
keyboard to input characters.
Swipe or slide: Quickly move your finger across the
surface of the screen, without pausing when you first
touch (so you don't drag something instead).
Touch & hold: you can touch & hold some items to
get the item’s available menu.
Drag: you can drag some items on the screen to
realize some operations.
Switch between landscape mode and portrait
mode: you can switch to the landscape mode by
rotating your phone. The landscape mode is only
valid under some interfaces, such as text input
interface, message viewing interface, etc.
Pinch: In some apps (such as Maps, Browser, and
Gallery), you can zoom in and out by placing two
fingers on the screen at once and pinching them
together (to zoom out) or spreading them apart (to
-9-
第9页
zoom in).
Home screen
Arrange & work with apps
To see all your apps, touch the All Apps Icon on
any Home screen. After opening the All Apps, press an
icon to enter the corresponding application. Touch the
Back key to return to the previous screen. Touch the
Home key to return to the home screen.
Manage notifications
Open notifications panel: When a new notification
appears on the notification bar, you can drag the
notification bar down from the top of the screen to
open notifications panel.
Respond to a notification: Touch it.
Dismiss a notification: Swipe it sideways.
Close notifications panel: Drag the tab at the
bottom of the notification panel to the top of the
screen.
Favorites tray
Status bar
Shows the signal
strength, battery
status, etc.
Notification bar
Drag the notification
bar down from the
top of the screen to
open the
notifications panel.
-10-
Favorites tray
The app icons you keep in the favorites tray remain visible
on every Home screen.
Touch, hold, & slide to move one of the Favorites icons
out of the tray. Then use the same technique to move
another one into the same position.
The All Apps icon in the center is permanent, You
can't move it.
Display area
The home screen can be extended to exceed the screen’s
width in order to provide more space for newly added
shortcuts, widgets, etc.
On the home screen, slide your finger on the screen to
extend to the left or right.
Add icons to the home screen
Touch & hold the app icon, slide your finger, and lift your
finger to drop the icon in place.
Delete icons on the home screen
Touch & hold the app icon, slide your finger toward the
top of the screen, and drop the app over the Delete icon.
Change wallpaper
1. Touch & hold anywhere on the home screen that's
not occupied. A list of options appears.
2. Select wallpaper to Home or Lock screen.
3. Select wallpaper from Gallery/Live Wallpapers.
Switch to sleep mode
Sleep mode is a power saving mode, which also helps to
prevent inadvertent operations. If your phone has been in
-11-
第11 页
idle mode for a while, it will automatically switch to sleep
mode.
You can also press the Power key to turn off the screen
and enable sleep mode.
Wake up your phone
After the phone switches to the sleep mode, the screen
will be turned off and locked. In this case, please awake
your phone and unlock the screen if you want to use your
phone.
1. Press the Power key to turn on the screen.
2. Touch & hold anywhere on the home screen that's not
occupied.
You can adjust your phone's lock settings:
1. From the Home screen, press the icon then
select Settings> Security> Screen lock.
2. Touch the type of lock you'd like to use.
Text Input
Your phone supports the GoogleTM voice typing input
method.
On the home screen, touch the Menu key and then select
System settings > Language & input. Look under
Default to select Google voice typing input method.
Google voice typing
You can use voice input to type text. This feature uses
Google's speech-recognition service, so you must have a
data connection on a mobile or Wi-Fi network to use it.
You can continue entering text, keep it, or delete it. You
can speak to enter text in most places where you can
enter text with the onscreen keyboard.
1. Touch a text field, or a location in text you've already
-12-
entered in a text field.
2. Touch the Microphone key on the onscreen
keyboard.
3. When you see the microphone image, speak what
you want to be typed.
-13-
第13 页
Using your phone safely
On the road
Using a phone while driving is illegal in many
countries. Please follow local laws and drive safely
at all times.
Near sensitive electronics
Don’t use your phone near sensitive electronic
equipment – particularly medical devices such as
pacemakers – as it could cause them to malfunction. It
can also interfere with the operation of fire detectors
and other automatic-control equipment.
For more information about how your phone affects
pacemakers or other electronic equipment, please
contact the manufacturer or your local distributor.
Your phone may cause interference when used near
TVs, radios or automated office equipment.
While flying
Your phone can cause interference with aircraft
equipment. So it’s essential you follow airline
regulations. And if airline personnel ask you to switch
off your phone, or disable its wireless functions, please
do as they say.
In hospital
Your phone may interfere with the normal operation of
medical equipment. Follow all hospital regulations and
turn it off when you’re asked to by posted warnings or
medical staff.
At a petrol station
Don’t use your phone at petrol stations. In fact, it’s
always best to switch off whenever you’re near fuels,
chemicals or explosives.
-14-
Around water
Keep your phone away from water (or any other
liquid). It’s not a waterproof model.
Making repairs
Never take your phone apart. Please leave that to the
professionals. Unauthorised repairs could break the
terms of your warranty.
Broken antenna
Don’t use your phone if the antenna is damaged, as it
could cause injury.
Please do not touch or cover the antenna area (the
upper part on the back of your phone) during the
conversation to avoid affecting talk quality and
consuming more battery power, which might reduce
the talk time and standby time.
Around children
Keep your phone out of children’s reach. It should
never be used as a toy and it might not be good for
their health.
Original accessories
Only use the original accessories supplied with your
phone or those approved by the manufacturer. Using
unapproved accessories may affect performance,
make the warranty void, break national regulations on
the use of phones, or even cause injury.
Near explosives
Turn off your phone in or near areas where explosive
materials are used. Always obey local laws and turn
off your phone when requested.
-15-
第15 页
Emergency calls
To make an emergency call your phone must be
turned on and in an area where there’s network
coverage. Dial the national emergency number and
touch ‘send’. Explain exactly where you are and don’t
hang up until help has arrived.
Working temperature
The working temperature for the phone is between 0℃
and 40℃. Please don’t use the phone outside the
range. Using the phone under too high or too low
temperature might cause problems.
Eyesight
Please do not use your phone in dim light for a long
time to avoid damage on your eyesight.
For some people, exposure to flashing lights (such as
TV) might trigger seizures or dizziness. If you have a
history of seizures or epilepsy, consult a doctor before
playing video games or enabling a flashlight feature
on your phone.
Safety information
In order to protect your personal information and
prevent disclosure of sensitive information, please set
a phone password and change it from time to time,
make sure to back up important data, back up the
data on your phone before disposal and reset your
phone.
Please do not download unknown applications and
browse suspected websites in order to protect your
phone against malicious applications and viruses.
-16-
At very high volume, prolonged listening to a
phone can damage your hearing.
Battery care and safety
Keep the battery in a cool, ventilated place and out of
direct sunlight.
Although the battery is rechargeable, it’ll eventually start
to lose its ability to recharge. If you find that the battery
won’t recharge, it’s time to replace it.
Please don’t throw old batteries into your household
rubbish. You’ll find there are special bins for batteries at
refuse collection points. And some high street electrical
stores provide a battery recycling service too.
Never throw the battery into a fire – it’s highly
inflammable and could explode, hurting you or
somebody else.
When you put the battery into your phone, there’s no
need to use force. Exerting too much pressure could
make it leak, overheat, explode or burst into flame.
Never take the battery apart. This may result in leakage,
overheating, explosion or fire.
If the battery becomes hot, changes colour or shape at
any time (when in use, charging or even while in
storage) please stop using it immediately and replace.
Keep the battery dry. Damp or wet conditions can
cause it to overheat or corrode.
Don’t leave the battery in direct sunlight or anywhere
really hot, like in a car on a summer’s day. That could
make it leak or overheat, while lowering its performance
and shortening its life.
Don’t charge the battery continuously for 24 hours.
Overcharging is not good for it.
-17-
第17 页
Note:
Please avoid contact with the materials
inside a damaged or leaking battery. If they
get on your skin, wash with lots of water and
seek medical assistance if required.
Charger care and safety
Only plug into voltages between 100VAC and
240VAC. Using a voltage outside that range can
damage the phone/charger – and cause the battery to
leak or catch fire.
Never short-circuit the charger – this may cause
electrocution, overheating or damage.
Don’t charge the phone in direct sunlight or in an area
where it’s damp, dusty, or on a vibrating surface. And
charging your phone near – or on – a TV or radio could
interfere with transmission.
Don’t use the charger if the power cable is damaged.
It may cause a fire or give someone an electric shock.
Keep water well away from the charger. If the charger
does get splashed by water, or any other kind of liquid,
immediately unplug it to avoid overheating, fire or
electrocution.
Don’t take the charger apart. It could cause injury,
give you an electric shock or catch fire.
Never touch any charger, electric cable or socket with
wet hands.
Don’t place heavy objects on the electric cable.
If the cable is damaged, don’t try to mend it yourself –
it could cause a fire or electrocute you.
Always unplug the charger before you clean it.
When unplugging the charger, hold the plug itself,
rather than pulling on the cable. A damaged cable can
-18-
cause electrocution or fire.
-19-
第19 页
Care and maintenance
Your phone is a delicate device. The following advice
will help you to keep it looking good and performing
well…
Use a soft dry cloth to clean your phone, battery and
charger. Don’t use liquids such as alcohol, dilution
agents or benzene.
From time-to-time, clean the socket where the
charger cable connects to the phone. Dust tends to
gather there. This will ensure a really good
connection.
Don’t use needles, pen points or other sharp objects on
the keypad or screen.
Don’t use your phone with wet hands – it could injure
you and damage the phone.
Don’t use your phone in dusty or dirty environment.
Keep your phone away from extremes of heat – like
radiators or ovens. It may explode if it gets too hot.
If your phone gets wet and the colour of the label on it
changes, the warranty will be void, even if the
warranty period hasn’t expired.
If there’s anything wrong with the phone, battery,
charger, or any accessory, please send them to your
nearest service centre for inspection.
-20-
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This mobile phone has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
FCC Note:
Caution: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
-21-
第21 页
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission
of the United States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency bands,
and placed in positions that simulate RF exposure in
usage against the head with no separation, and near the
body with the separation of 10 mm. Although the SAR is
determined at the highest certified power level, the actual
SAR level of the device while operating can be well below
the maximum value. This is because the phone is
designed to operate at multiple power levels so as to use
only the power required to reach the network. In general,
the closer you are to a wireless base station antenna, the
lower the power output.
The exposure standard for wireless devices employing a
unit of measurement is known as the Specific Absorption
Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992
and had been tested in accordance with the measurement
methods and procedures specified in IEEE1528. This
device has been tested and meets the FCC RF exposure
guidelines when tested with the device directly contacted
to the body.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
SRQ-Z850.
-22-
For this device, the highest reported SAR value for usage
against the head is 0.67 W/kg, for usage near the body is
1.26 W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the
human body. Carry this device at least 10 mm away from
your body to ensure RF exposure level compliant or lower
to the reported level. To support body-worn operation,
choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10
mm between this device and your body.
RF exposure compliance with any body-worn accessory,
which contains metal, was not tested and certified, and
use such body-worn accessory should be avoided.
IC Notice
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Le pré sent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisé e aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioé lectrique subi, mê me si le brouillage est susceptible
d'en
This Class B digital apparatus complies with Canadian
ICES-003.
-23-
第23 页
Cet appareil numé rique de la classe B est conforme à la
norme NMB-003 du Canada.
IC: 5200E-Z850
-24-
IC Radiation Exposure Statement
This EUT is compliance with SAR for general
population/uncontrolled exposure limits in IC RSS-102
and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528 and IEC
62209. This equipment should be installed and operated
with minimum distance 1.0 cm between the radiator and
your body. This device and its antenna(s) must not be
co-located or operating in conjunction with any other
antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS
incontrô lé e pour la population gé né rale de la norme
CNR-102 d'Industrie Canada et a é té testé en conformité
avec les mé thodes de mesure et procé dures spé cifié es
dans IEEE 1528 et IEC 62209. Cet appareil doit ê tre
installé et utilisé avec une distance minimale de 1.0 cm
entre l’émetteur et votre corps. Cet appareil et sa ou ses
antennes ne doivent pas ê tre co-localisé s ou fonctionner
en conjonction avec tout autre antenne ou transmetteur.
-25-
第25 页
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear
implants. Although analog wireless phones do not usually
cause interference with hearing aids or cochlear implants,
digital wireless phones sometimes do because of
electromagnetic energy emitted by the phone's antenna,
backlight, or other components. Your phone is compliant
with FCC HAC regulations (ANSI C63.19- 2011). While
some wireless phones are used near some hearing
devices (hearing aids and cochlear implants), users may
detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this
interference noise and phones also vary in the amount of
interference they generate. The wireless telephone
industry has developed a rating system for wireless
phones to assist hearing device users in finding phones
that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the
rating on their box or a label located on the box. The
ratings are not guarantees. Results will vary depending on
the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may
not be able to use a rated phone successfully. Trying out
the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with
hearing aids for some of the wireless technologies that it
uses. However, there may be some newer wireless
technologies used in this phone that have not been tested
yet for use with hearing aids. It is important to try the
different features of this phone thoroughly and in different
locations, using your hearing aid or cochlear implant, to
determine if you hear any interfering noise. Consult your
service provider or the manufacturer of this phone for
-26-
information on hearing aid compatibility. If you have
questions about return or exchange policies, consult your
service provider or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC
requirements and are likely to generate less interference
to hearing devices than phones that are not labeled. M4 is
the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC
requirements and are likely to be more usable with a
hearing device’s telecoil (“T Switch” or “Telephone Switch”)
than unrated phones. T4 is the better/ higher of the two
ratings. (Note that not all hearing devices have telecoils in
them.)
Your phone meets the M4/T3 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you
find this rating. For more information about FCC Hearing
Aid Compatibility, please go to http://www.fcc.gov/cgb/dro.
