ZTE Z862VL LTE/CDMA Multi-Mode Digital Mobile Phone User Manual Z862VL
ZTE Corporation LTE/CDMA Multi-Mode Digital Mobile Phone Z862VL
ZTE >
Users Manual
ZTE Z862VL
User Manual
1
Your phone at a glance
Receiver
Light/proximity
sensor
Back
key
Home key
Menu
key
SIM card tray
Touch
s
creen
Front
camera
Volume
key
Power
key
Headset jack
Noise
-
reduction MIC
Back
camera
Flash
USB
type
-
C
port
Speaker
Microphone
2
Inserting the SIM card
1. Insert the end of the eject tool into the hole of
the card tray and press firmly until the tray
pops out.
2. Put the nano-SIM card into the tray.
3. Push the card tray back into the phone.
Note:
Your phone supports a nano-SIM card ONLY.
Dimensions of a nano-SIM card: 9mm*12mm
3
Inserting the memory card
1. Remove the back cover..
2. Insert the memory card into the memory card
slot.
3. Install the back cover.
4

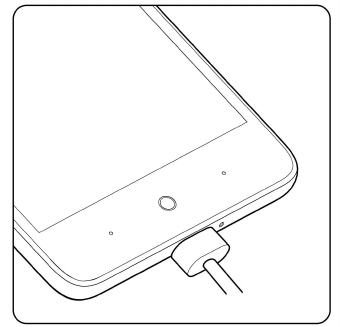

Charging the battery
Connect the phone to the power outlet using the
included USB cable and power adapter.
5
Power on
Long press the Power key to power on the mobile
phone.
6
Health and safety
4FCC Regulations:
This mobile phone complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
This mobile phone has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
7
FCC Note:
Caution: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user‘s authority to operate the
equipment.
4RF exposure information (SAR)
This phone is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal
Communications Commission of the United States.
During SAR testing, this device was set to transmit at
its highest certified power level in all tested
frequency bands, and placed in positions that
simulate RF exposure in usage against the head with
no separation, and near the body with the separation
of 10 mm. Although the SAR is determined at the
highest certified power level, the actual SAR level of
the device while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels so as to
use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
The exposure standard for wireless devices
employing a unit of measurement is known as the
Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general
population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and had been tested
inaccordance with the measurement methods and
procedures specified in IEEE1528. This device has
been tested and meets the FCC RF exposure
guidelines when tested with the device directly
contacted to the body.
The FCC has granted an Equipment Authorization for
this model phone with all reported SAR levels
8
evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is
on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: SRQ-Z862VL
For this device, the highest reported SAR value for
usage against the head is 0.63 W/kg, for usage near
the body is 1.34 W/kg.
While there may be differences between the SAR
levels of various phones and at various positions,
they all meet the government requirements.
SAR compliance for body-worn operation is based on
a separation distance of 10 mm between the unit and
the human body. Carry this device at least 10 mm
away from your body to ensure RF exposure level
compliant or lower to the reported level. To support
body-worn operation, choose the belt clips or
holsters, which do not contain metallic components,
to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn
accessory, which contains metal, was not tested and
certified, and use such body-worn accessory should
be avoided.
This device does not support V.O.I.P. function. It
means that the functions of WLAN and Bluetooth do
not have voice capability in the held to ear mode for
phone service.
WARNING: This product contains a chemical known
to the State of California to cause cancer, birth
defects or other reproductive harm.
4CTIA
a) Do not disassemble or open crush, bend or deform,
puncture or shred.
b) Do not modify or remanufacture, attempt to insert
foreign objects into the battery, immerse or expose
to water or other liquids, expose to fire, explosion or
9
other hazard.
c) Only use the battery for the system for which it is
specified.
d) Only use the battery with a charging system that
has been qualified with the system per CTIA
Certification Requirements for Battery System
Compliance to IEEE 1725. Use of an unqualified
battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
e) Do not short circuit a battery or allow metallic
conductive objects to contact battery terminals.
f ) Replace the battery only with another battery that
has been qualified with the system per this standard,
IEEE-Std-1725. Use of an unqualified battery may
present a risk of fire, explosion, leakage or other
hazard.
g) Promptly dispose of used batteries in accordance
with local regulations.
h) Battery usage by children should be supervised.
i ) Avoid dropping the phone or battery. If the phone
or battery is dropped, especially on a hard surface,
and the user suspects damage, take it to a service
center for inspection.
j ) Improper battery use may result in a fire,
explosion or other hazard.
For those host devices that utilize a USB port as a
charging source, the host device’s user manual shall
include a statement that the phone shall only be
connected to CTIA certified adapters, products that
bear the USB-IF logo or products that have
completed the USB-IF compliance program.
10
Using your phone safely
On the road
Using a phone while driving is illegal in many
countries. Please follow local laws and drive
safely at all times.
Near sensitive electronics
Don’t use your phone near sensitive
electronic equipment – particularly medical
devices such as pacemakers – as it could
cause them to malfunction. It can also
interfere with the operation of fire detectors
and other automatic-control equipment.
For more information about how your phone
affects pacemakers or other electronic
equipment, please contact the manufacturer
or your local distributor.
Your phone may cause interference when
used near TVs, radios or automated office
equipment.
While flying
Your phone can cause interference with
aircraft equipment. So it’s essential you
follow airline regulations. And if airline
personnel ask you to switch off your phone,
or disable its wireless functions, please do as
they say.
In hospital
Your phone may interfere with the normal
operation of medical equipment. Follow all
hospital regulations and turn it off when
you’re asked to by posted warnings or
medical staff.
11
At a petrol station
Don’t use your phone at petrol stations. In
fact, it’s always best to switch off whenever
you’re near fuels, chemicals or explosives.
Around water
Keep your phone away from water (or any
other liquid). It’s not a waterproof model.
Making repairs
Never take your phone apart. Please leave
that to the professionals. Unauthorised
repairs could break the terms of your
warranty.
Broken antenna
Don’t use your phone if the antenna is
damaged, as it could cause injury.
Please do not touch or cover the antenna
area (the upper part on the back of your
phone) during the conversation to avoid
affecting talk quality and consuming more
battery power, which might reduce the talk
time and standby time.
Around children
Keep your phone out of children’s reach. It
should never be used as a toy and it might
not be good for their health.
Original accessories
Only use the original accessories supplied
with your phone or those approved by the
manufacturer. Using unapproved accessories
may affect performance, make the warranty
12
void, break national regulations on the use of
phones, or even cause injury.
Near explosives
Turn off your phone in or near areas where
explosive materials are used. Always obey
local laws and turn off your phone when
requested.
Emergency calls
To make an emergency call your phone must
be turned on and in an area where there’s
network coverage. Dial the national
emergency number and touch ‘send’. Explain
exactly where you are and don’t hang up
until help has arrived.
Working temperature
The working temperature for the phone is
between 0℃ and 40℃. Please don’t use the
phone outside the range. Using the phone
under too high or too low temperature might
cause problems.
Eyesight
Please do not use your phone in dim light for
a long time to avoid damage on your
eyesight.
For some people, exposure to flashing lights
(such as TV) might trigger seizures or
dizziness. If you have a history of seizures or
epilepsy, consult a doctor before playing
video games or enabling a flashlight feature
on your phone.
13
Safety information
In order to protect your personal information
and prevent disclosure of sensitive
information, please set a phone password
and change it from time to time, make sure
to back up important data, back up the data
on your phone before disposal and reset your
phone.
Please do not download unknown
applications and browse suspected websites
in order to protect your phone against
malicious applications and viruses.
At very high volume, prolonged listening
to a phone can damage your hearing.
Charger care and safety
Only plug into voltages between 110VAC and
220VAC. Using a voltage outside that range
can damage the phone/charger – and cause
the battery to leak or catch fire.
Never short-circuit the charger – this may
cause electrocution, overheating or damage.
Don’t charge the phone in direct sunlight or
in an area where it’s damp, dusty, or on a
vibrating surface. And charging your phone
near – or on – a TV or radio could interfere
with transmission.
Don’t use the charger if the power cable is
damaged. It may cause a fire or give
someone an electric shock.
Keep water well away from the charger. If
the charger does get splashed by water, or
any other kind of liquid, immediately unplug
注意此处各国家可能不同
越南应改为 100 和
240
14
it to avoid overheating, fire or electrocution.
Don’t take the charger apart. It could cause
injury, give you an electric shock or catch fire.
Never touch any charger, electric cable or
socket with wet hands.
Don’t place heavy objects on the electric
cable.
If the cable is damaged, don’t try to mend it
yourself – it could cause a fire or electrocute
you.
Always unplug the charger before you clean
it.
When unplugging the charger, hold the plug
itself, rather than pulling on the cable. A
damaged cable can cause electrocution or
fire.
15
Care and maintenance
Your phone is a
delicate
device. The following
advice will help you to keep it looking good and
performing well…
Use a soft dry cloth to clean your phone,
battery and charger. Don’t use liquids such as
alcohol, dilution agents or benzene.
From time-to-time, clean the socket where
the charger cable connects to the phone.
Dust tends to gather there. This will ensure a
really good connection.
Don’t use needles, pen points or other sharp
objects on the keypad or screen.
Don’t use your phone with wet hands – it
could injure you and damage the phone.
Don’t use your phone in dusty or dirty
environment.
Keep your phone away from extremes of
heat – like radiators or ovens. It may explode
if it gets too hot.
If your phone gets wet and the colour of the
label on it changes, the warranty will be void,
even if the warranty period hasn’t expired.
If there’s anything wrong with the phone,
battery, charger, or any accessory, please
send them to your nearest service centre for
inspection.
16
Legal notice
Copyright Statement
Copyright © 2016 by ZTE Corporation
All the copyrights of this document herein belong to
ZTE Corporation. Without the written permission of
copyright owner, no part of this publication may be
excerpted, reproduced, translated by any person or
entity in any form or by any means.
This document is subject to change without prior
notice.
ZTE Corporation keeps the right to make the final
explanation to this document.
Trademarks
Android is a trademark of Google, Inc.
All other trademarks remain the property of their
respective owners.
Statement of Third-party Applications
During the installation process of some third-party
applications, the issues of repeated restart or
abnormal use of software might be caused by
incompatibility of the third-party applications, rather
than the phone itself.
