ZTE Z932L CDMA-LTE DUAL-MODE DIGITAL MOBILE PHONE User Manual
ZTE Corporation CDMA-LTE DUAL-MODE DIGITAL MOBILE PHONE
ZTE >
User Manual
1
ZTE Z932L
Quick Start Guide
![](/img.php?id=1993576&img=bg2.png)
2
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.zte.com.cn) for more
information on self-service and supported product models.
Information on the website takes precedence.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this guide may differ from the
actual product. Content in this guide may differ from the actual
product or software.
![](/img.php?id=1993576&img=bg3.png)
3
Trademarks
ZTE and the ZTE logos are trademarks of the ZTE
Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the
Bluetooth SIG, Inc. and any use of such trademarks by
ZTE Corporation is under license.
The microSD logo is a trademark of the SD Card
Association.
Other trademarks and trade names are the property of their
respective owners.
Version No. : R1.0
Edition Time : 20130604
Manual No. :
![](/img.php?id=1993576&img=bg4.png)
4
Getting to Know Your Phone
Home Key
Earpiece
Touch screen
Back Key
Menu Key
Power Key
Front Camera
![](/img.php?id=1993576&img=bg5.png)
5
Charger/
USB Jack
Headset Jack
Battery Cover
Speaker
Volume Keys
Flash Light
Camera
![](/img.php?id=1993576&img=bg6.png)
6
Knowing the Keys
Power Key
Press and hold to power on, select phone modes, turn
on/off airplane mode, or power off.
Press to turn off or on the screen display.
Home Key
Touch to return to the home screen from any application or
screen.
Touch and hold to see recently used applications.
Menu Key
Touch to get the options for the current screen.
Back Key
Touch to go to the previous screen.
Volume Keys
Press or hold to turn the volume up or down.
![](/img.php?id=1993576&img=bg7.png)
7
Starting Up
Switch off your phone before installing or replacing the battery.
The microSD card is optional and can be installed and
removed while the phone is turned on. Unmount the microSD
card before removing it.

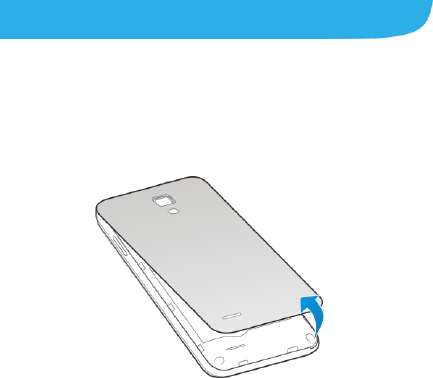

1. Place your finger in the slot at the bottom of the back cover to
lift and remove the cover.

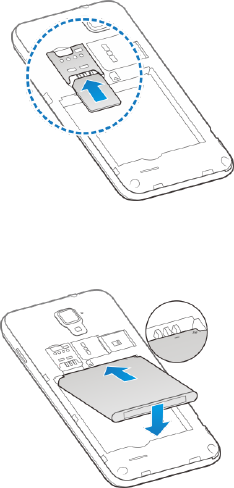

2. Switch off your phone before installing SIM card. Hold the SIM
card with the cut corner oriented as shown and slip it into the
card holder.
![](/img.php?id=1993576&img=bg8.png)
8
3. Insert the battery by aligning the contacts on the battery
with the gold contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
WARNING! Do not handle a damaged or leaking Li-Ion
![](/img.php?id=1993576&img=bg9.png)
9
battery as you can be burned.
4. Hold your microSD card with the metal contacts facing down
and slide it into the microSD card slot.
NOTE:
Your phone may come with a pre-installed microSD
card. Some applications may not function normally
after you remove the card, pre-installed or otherwise.
Your phone has a 4GB capacity SD card is offered in
the box. This should give you enough storage for
normal use, but you can put in a larger SD card if you
need more.
5. Press the cover gently back into place until you hear a click.
![](/img.php?id=1993576&img=bga.png)
10

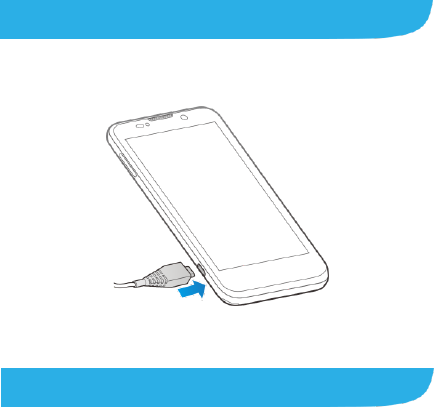

Charging the Battery
1. Connect the adapter to the charging jack. Ensure that the
adapter is inserted with the correct orientation. Do not force
the connector into the charging jack.
2. Connect the charger to a standard AC power outlet.
3. Disconnect the charger when the battery is fully charged.
Powering On/Off Your Phone
Make sure the battery is charged before powering on.
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off > OK.
![](/img.php?id=1993576&img=bgb.png)
11
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding application shortcuts, folders, widgets,
and more.
NOTE: Your home screen extends beyond the initial screen,
providing more space for shortcuts, widgets, and folders.
Simply swipe left or right to see the extended home screens.
Widget
Favorites Tray
Shortcut
Google
Search
Status bar
![](/img.php?id=1993576&img=bgc.png)
12
Opening Applications
1. Touch the Home Key if the current screen is not the home
screen.
2. Touch .
3. Slide left or right on the screen and touch an app to open it.
Adding Shortcuts or Widgets
1. Touch the Home Key > .
2. If you want to add a widget, touch Widgets.
3. Touch and hold a widget or an app icon and drag it to the
home screen.
Removing Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the home screen.
2. Drag it to to remove it.
Organizing Shortcuts With Folders
1. Touch and hold a shortcut on the home screen.
2. Drag it to at the top of the screen. A new folder is
created.
3. If needed, drag more shortcuts and drop them into the
folder.
![](/img.php?id=1993576&img=bgd.png)
13
Applying New Wallpapers
You can set the wallpaper for the home screen or lock
screen.
1. Touch the Home Key > Menu Key > Wallpaper.
2. Touch Home or Lock screen.
3. Select a wallpaper source from Gallery, Live
Wallpapers, or Wallpapers and touch the image or
animation you want to use as the wallpaper.
4. Touch Done, Set wallpaper or SET WALLPAPER.
Checking the Phone Status
The status bar at the top of the screen displays phone and
service status with various icons on the right side. Below are
some of the icons and their meanings.
No signal
Signal strength
3G connected
CDMA connected
Roaming
Mobile data in use
Bluetooth on
Wired headset connected
Ringer off
Connected to a Wi-Fi network
![](/img.php?id=1993576&img=bge.png)
14
Vibrate mode
Wi-Fi in use
Battery low
Speaker on
Battery partially drained
Phone microphone off
Battery full
Alarm set
/
Battery charging
Flight mode

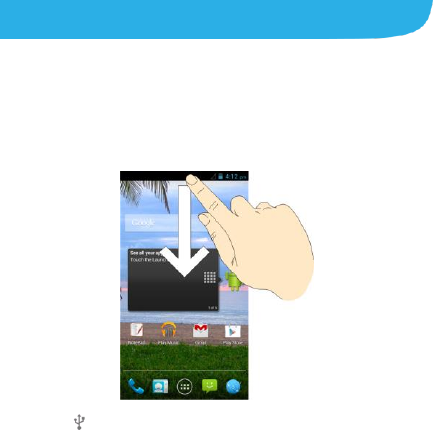

Managing Notifications
The status bar at the top of the screen provides notification alerts
with different icons on the left side. Below are some of the icons
and their meanings.
The notifications depend on the apps installed and you can touch
and drag the status bar down to see more information.
New SMS
microSD card unmounted
New MMS
microSD card removed
New Email
Upcoming event
New Gmail message
Call on hold
![](/img.php?id=1993576&img=bgf.png)
15
Updates available
New Wi-Fi network detected
Problem with SMS/MMS
delivery
Downloading/Saving/Downlo
ad data
Missed call
Sending data
Call in progress
USB tethering is on
USB connected
Wi-Fi direct is on
/
Song is playing
GPS on
Setting Ringtone and Sounds
Setting Ringtone or Notification
Sound
1. Touch the Home Key > > Settings > Sound.
2. Touch Phone ringtone or Default notification.
3. Select the ringtone you want to use.
4. Touch OK.
![](/img.php?id=1993576&img=bg10.png)
16
Setting System Sounds
1. Touch the Home Key > > Settings > Sound.
2. Scroll to the SYSEM section and check the sounds you want
to hear or uncheck those you do not need.
Adjusting Volumes
To adjust call volume, press the Volume Key while on a call. To
adjust other volumes, follow the steps below.
1. Touch the Home Key > > Settings > Sound >
Volumes.
2. Drag the sliders to adjust the volume for music, video, games,
and other media, the ringtone and notification volume, and
the alarm volume.
3. Touch OK to save.
TIP: Press and hold the Power Key and then touch to
enable the silent mode, touch to enable the vibration mode,
or touch to disable the silent mode.
Setting a Screen Lock
You can protect your phone by creating a screen lock. When
enabled, you need to touch and hold an icon, draw a pattern, or
enter a numeric PIN or password to unlock the phone’s screen
![](/img.php?id=1993576&img=bg11.png)
17
and keys.
1. Touch the Home Key > Menu Key > System settings >
Security > Screen lock.
2. Touch None, Long press, Face Unlock, Pattern, PIN or
Password.
Touch Long press to enable unlock with a ‘touch and
hold’ gesture. You can unlock the screen by touching and
holding at the center of the display.
Touch Face Unlock to create a pattern that you must look
at your phone to unlock it.
Touch Pattern to create a pattern that you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password you must enter to unlock your screen.
Checking Voicemail
1. Touch the Home Key > .
2. In the phone tab , touch and hold “1”. If prompted, enter
your voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
![](/img.php?id=1993576&img=bg12.png)
18
Making a Call
1. Touch the Home Key > .
2. In the phone tab , enter the phone number with the
on-screen keypad. Touch to delete incorrect digits.
3. Touch the icon below the keypad to place the call.
NOTE: To call a contact, touch the Home Key > >
and touch a contact and number.
Adding Contacts

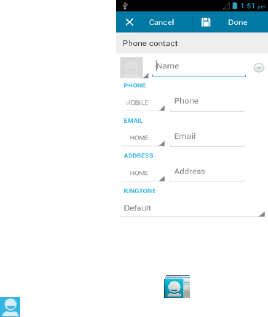

Creating a New Contact
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch to add a new contact.
3. Enter the contact name, phone numbers, email addresses,
and other information, as shown. Touch Done to save the
contact.
![](/img.php?id=1993576&img=bg13.png)
19
Importing Contacts in Batches
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch the Menu key > Import/export > Import from
phone storage or Import from SD card.
3. If prompted, select an account in which to save the
contacts.
4. For importing from the microSD card, select the vCard file(s)
on the microSD card and touch OK to begin importing.
![](/img.php?id=1993576&img=bg14.png)
20
Sending a Message
1. Touch in the home screen and select Messaging, then
touch .
2. Enter the recipient(s) and message text. If you want to send
an MMS, add subject and attachments.
3. Touch Send to send the message.
Select contact
from list
Send
Enter contact
number
Add
attachments
Type message
![](/img.php?id=1993576&img=bg15.png)
21
Setting Up Email Accounts
Setting Up Gmail
1. Touch in the home screen and select Gmail.
NOTE: If another Gmail account is already set up, touch
the Menu Key > Settings > Add Account.
2. Touch Existing to sign in to your existing Google Account. If
you have no Google Accounts, touch New to create one.
3. Follow the instructions on the screen to set up the account.
Setting Up Email
1. Touch in the home screen and select Email.
NOTE: If another email account is already set up, touch the
Menu Key > Settings > Add Account.
2. Enter the email address and password.
3. Touch Next and follow the onscreen instructions.
Setting Up Corporate Exchange Email
1. Touch in the home screen and select Email.
NOTE: If another email account is already set up, touch the
Menu Key > Settings > Add Account.
2. Enter the email address and password.
![](/img.php?id=1993576&img=bg16.png)
22
3. Touch Manual setup > Exchange.
4. Enter Domain\Username, Password, and Server
information.
5. Read the onscreen activation disclaimer and, if prompted,
touch Next.
6. If prompted, touch OK to allow the server to remotely
control some of your phone’s security features.
7. Configure the settings on the screen, such as Days to
sync, and then touch Next.
8. If prompted, touch Activate to activate the Email app as a
device administrator.
9. Identify your new account with a unique name and then
touch Next.
Contact your server administrator for more help.
Connecting With a Bluetooth
Headset
1. Turn on the Bluetooth headset and switch it to pairing mode.
Refer to the headset’s user guide for more information.
2. Touch in the home screen and select Settings >
Bluetooth.
3. Slide the ON/OFF switch if Bluetooth is off. When Bluetooth
![](/img.php?id=1993576&img=bg17.png)
23
is on, the icon appears in the status bar.
NOTE: Your phone automatically scans for and displays
the IDs of all available Bluetooth devices in range. You can
touch SEARCH FOR DEVICES if you want to scan again.
4. Touch the ID of the headset, or any other device you want
to pair with your phone. Enter a password if prompted.
5. If necessary, touch the ID of the paired headset to connect
with it. Once connected, the icon in the status bar turns
blue.
TIP: Touch the ID again to end the connection.
Installing Apps From the Google
Play Store
There are tens of thousands of games and applications in the
Google Play Store for you to download and install. You can
send feedback or comments on an application.
Before you begin, make sure that you have signed in to your
Google account.
NOTE: The content you can access in the Play Store depends
on your region and your service provider.
1. Touch the Home Key > > Play Store.
The first time you launch Play Store, accept the Google
Play Terms of Service.
![](/img.php?id=1993576&img=bg18.png)
24
2. Find the apps you need either by category or by touching
.
3. Touch the app to see detailed description.
4. Touch Install (free apps) or the price (paid apps). If the app
is not free, you need to sign in to your Google Wallet
account and select a payment method.
CAUTION: Once installed, some apps can access many
functions or a significant amount of your personal data. The
Play Store will show you what the app can access. Touch
ACCEPT (free apps) or Accept & buy (paid apps) to
proceed, or touch the Back Key to cancel.
5. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when the icon appears in
the status bar. You can find the new app after touching the
Home Key > .
Taking a Photo
1. Touch in the home screen and select Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
![](/img.php?id=1993576&img=bg19.png)
25
Number
Function
1
Switch to the camcorder.
2
Capture a photo.
3
View photos and videos you have captured.
4
Hold the slider and slide to zoom in or out.
5
Change the camera settings.
6
Switch between normal and timing mode.
7
Select the color effect.
8
Turn on/off flash.
9
Switch between the front and the back cameras.
3. Lightly touch the capture button .
![](/img.php?id=1993576&img=bg1a.png)
26
Recording a Video
1. Touch in the home screen and select Camera.
2. Switch to the camcorder mode.
3. Aim the camera at the subject and make any necessary
adjustment.
Number
Function
1
Switch to the camera.
2
Start or stop recording a video.
3
View photos and videos you have captured.
4
Hold the slider and slide to zoom in or out.
![](/img.php?id=1993576&img=bg1b.png)
27
Number
Function
5
Change the camcorder settings.
6
Turn on/off flash.
7
Switch between the front and the back cameras.
4. Touch to start and to stop recording.
TIP: While the recording is in progress, you can touch the
button to save the frame as a photo.
Playing Music
1. Touch in the home screen and select Play Music.
2. Touch a category, such as Artists or Albums, to find the
song you want to play.
3. Touch the song to play it back. When the song is playing,
touch the album artwork to display more options.
![](/img.php?id=1993576&img=bg1c.png)
28
Number
Function
1
Touch to view the current playing list.
2
Album artwork.
3
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress bar
to jump to any part of the song.
4
Search for music.
5
Back to Now playing list.
6
Rate the song.
![](/img.php?id=1993576&img=bg1d.png)
29
Connecting to PC
You can connect your phone to a computer with a USB cable
and transfer music, pictures, and other files in both directions.
Your device stores these files in internal storage or on a
removable microSD card.
1. Touch and hold the status bar across the top of the screen
and flick down.
2. Touch (Connected as [current connection mode]).
3. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Install the driver needed for connecting
your phone to your PC.
![](/img.php?id=1993576&img=bg1e.png)
30
Media device (MTP): Transfer media files on Windows,
or using Android File Transfer on Mac.
Camera (PTP): Transfer photos using camera software,
and transfer any files on computers that don’t support
MTP.
To disconnect the device from the computer, simply unplug the
USB cable when you’re finished.
Connecting to the Internet
Connecting via Wi-Fi
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the ON/OFF switch if Wi-Fi is off.
You phone automatically searches for Wi-Fi networks in
range and displays their names and security settings. Your
phone also connects to previously linked networks when
they are in range.
3. Touch a network name to connect to it.
If the network is secured, enter a password or other
credentials. (Ask your network administrator for details.)
Connecting via Mobile Network
1. Touch the Home Key > > Settings > Mobile
![](/img.php?id=1993576&img=bg1f.png)
31
networks.
2. Check Data enabled.
Extending Battery Life
There are several things you can do to make your battery last
longer.
Turn on Wi-Fi, Bluetooth, GPS, mobile data, auto-sync only
when you need to.
Lower the screen brightness.
From the home screen, touch > Task Manager and
close the apps you do not need but still run in the
background.
Freeing Up Memory Space
Use Task Manager to free up memory space and optimize
system speed.
1. From the home screen, touch > Task Manager.
2. Touch the Tasks tab and touch the button next to the
application you do not need.
You can also touch CLOSE ALL to stop all running
applications.
![](/img.php?id=1993576&img=bg20.png)
32
Managing the Phone Storage
Deleting Old Messages
You can manually delete old messages to free up some
storage space. You may also set up auto deletion of the oldest
messages when the limits are reached.
1. From the home screen, touch > Messaging.
2. Touch the Menu Key > Settings.
3. Check Delete old messages to enable auto deletion.
4. Touch Text message limit or Multimedia message limit
to set the maximum limit.
5. Touch Set.
Clearing Browser’s Local Content
1. From the home screen, touch > Browser.
2. Touch the Menu Key > Settings > Privacy & security.
3. Touch Clear cache, Clear history, and Clear all cookie
data.
![](/img.php?id=1993576&img=bg21.png)
33
Product Safety Information
Do not use hand-held
while driving
Do not use while re-fuelling
For body-worn operation
maintain a separation of
15 mm
This device may produce a
bright or flashing light
Small parts may cause a
choking hazard
Do not dispose of it in a fire
This device may produce
a loud sound
To prevent possible hearing
damage, do not listen at high
volume levels for long periods.
Avoid contact with
magnetic media
Avoid Extreme Temperatures
Keep away from
pacemakers and other
personal medical
devices
Avoid any contact with liquid,
keep it dry
Switch off when
instructed in hospitals
and medical facilities
Do not attempt to disassemble
Switch off when
instructed in aircrafts
and airports
Only use approved accessories
Switch off in explosive
environments
Do not rely on this device for
emergency communications
![](/img.php?id=1993576&img=bg22.png)
34
Radio Frequency (RF) Energy
This model phone meets the government’s requirements
for exposure to radio waves.
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of
the U.S. Government:
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting
at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone
while operating can be well below the maximum value.
This is because the phone is designed to operate at
multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a
wireless base station, the lower the power output.
The highest SAR values for this model phone as reported
to the FCC when tested for use at the ear and on the body
are:
Head: 1.37 W/kg, Body: 1.31 W/kg.
35
(Body-worn measurements differ among phone models,
depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
individual Z932L phones and at various positions, they all
meet the government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on
FCC ID: Q78-Z932L
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and that positions the
handset a minimum of 1.0 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do not use a body-worn
accessory and are not holding the phone at the ear,
position the handset a minimum of 1.0 cm from your body
when the phone is switched on.
![](/img.php?id=1993576&img=bg24.png)
36
FCC Compliance
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
![](/img.php?id=1993576&img=bg25.png)
37
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Hearing Aid Compatibility (HAC)
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear
implants. Although analog wireless phones do not usually
cause interference with hearing aids or cochlear implants,
digital wireless phones sometimes do because of
electromagnetic energy emitted by the phone's antenna,
backlight, or other components. Your phone is compliant
with FCC HAC regulations (ANSI C63.19- 2011). While
some wireless phones are used near some hearing
devices (hearing aids and cochlear implants), users may
detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this
interference noise and phones also vary in the amount of
interference they generate. The wireless telephone
industry has developed a rating system for wireless
phones to assist hearing device users in finding phones
that may be compatible with their hearing devices. Not all
38
phones have been rated. Phones that are rated have the
rating on their box or a label located on the box. The
ratings are not guarantees. Results will vary depending on
the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may
not be able to use a rated phone successfully. Trying out
the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
used in this phone that have not been tested yet for use
with hearing aids. It is important to try the different features
of this phone thoroughly and in different locations, using
your hearing aid or cochlear implant, to determine if you
hear any interfering noise. Consult your service provider or
the manufacturer of this phone for information on hearing
aid compatibility. If you have questions about return or
exchange policies, consult your service provider or phone
retailer.
M-Ratings: Phones rated M3 or M4 meet FCC
requirements and are likely to generate less interference to
hearing devices than phones that are not labeled. M4 is the
better/higher of the two ratings.
39
T-Ratings: Phones rated T3 or T4 meet FCC requirements
and are likely to be more usable with a hearing device’s
telecoil (“T Switch” or “Telephone Switch”) than unrated
phones. T4 is the better/ higher of the two ratings. (Note
that not all hearing devices have telecoils in them.)
Your phone meets the M4/T4 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you
find this rating. For more information about FCC Hearing
Aid Compatibility, please go to http://www.fcc.gov/cgb/dro.
![](/img.php?id=1993576&img=bg28.png)
40
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always turn off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care
41
and keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean
screen or camera lens may slow down the phone's
reaction to your operations or lower image quality.
Clean the device and its accessories with a soft
material such as cleaning cloth for eyeglass lenses. Do
not use alcohol or other corrosive substances for
cleaning or allow them to get inside.
Do not expose your phone or its accessories to open
flames or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its
accessories. Only authorized personnel can do so.
Do not expose or use your phone or its accessories in
a environment with or that can reach extreme
temperatures, minimum - [5] and maximum + [50]
degrees Celsius.
Do not place your phone inside or near heating
equipments or high pressure containers, such as water
heaters, microwave ovens, or hot cooking utensils.
Otherwise, your phone may be damaged.
42
Please check local regulations for disposal of
electronic products.
Do not carry your phone in your back pocket as it could
break when you sit down.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media to be close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the metal connectors of the phone.
Antenna
Do not touch the antenna unnecessarily.
43
Normal Use Position
When placing or receiving a phone call, hold your phone to
your ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air
bag deployment area as an airbag inflates with great force
and serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when
exposed to flashing lights or light patterns such as when
playing games or watching video. If you have experienced
seizures or blackouts or have a family history of such
occurrences, please consult a physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when
texting or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
![](/img.php?id=1993576&img=bg2c.png)
44
Use the special features which are designed to minimize
the times of pressing buttons, such as Message
Templates and Predictive Text.
Take many breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
![](/img.php?id=1993576&img=bg2d.png)
45
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins
or key rings, to contact or short-circuit in the battery
terminals.
Never puncture the surface of the battery with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface
to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or
its accessories.
If your phone (or its accessories) has been submerged in
water, punctured, or subjected to a severe fall, do not use it
until you have taken it to be checked at an authorized service
center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
46
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source.
Increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Turn off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
![](/img.php?id=1993576&img=bg2f.png)
47
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Turn off your wireless device whenever you are instructed to
do so by airport or airline staff.
Consult the airline staff about the use of wireless devices
onboard the aircraft. If your device offers a ‘flight mode’, this
must be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference with
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fueling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, and areas where the air contains chemicals
48
or particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
