ZTE Z955L LTE/WCDMA/GSM Tri-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation LTE/WCDMA/GSM Tri-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
1
Z955L
User Manual
2
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep
your device in its best condition, please read this manual and
keep it for future reference.
Copyright
Copyright © 2015 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
This manual has been designed with the utmost care to ensure
the accuracy of its content. However, all statements, information
and recommendations contained therein do not constitute a
warranty of any kind, either expressed or implied. Please refer to
For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.zteusa.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
3
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this manual may differ from the
actual product. Content in this manual may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Qualcomm® Snapdragon™ processors are products of
Qualcomm Technologies, Inc.
Qualcomm and Snapdragon are trademarks of Qualcomm
Incorporated, registered in the United States and other countries.
Used with permission.
Manufactured under license from Dolby Laboratories. Dolby,
Dolby Audio, and the double-D symbol are trademarks of Dolby
Laboratories.
4
LTE is a trademark of ETSI.
Other trademarks and trade names are the property of their
respective owners.
Version No.: R1.0
Edition Time: April 20, 2015
Manual No. : 079584507147
5
Contents
Getting Started ....................................................... 12
Getting to Know Your Phone .............................................. 12
Knowing the Keys .............................................................. 14

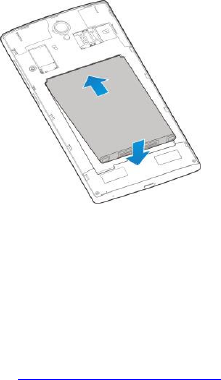

Installing the micro-USIM Cards and the Battery ............... 14
Installing the microSDHC™ Card ...................................... 17

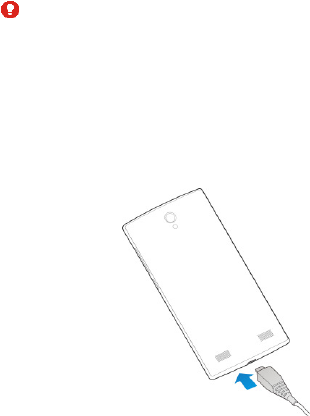

Charging the Battery .......................................................... 18
Extending the Battery Life .................................................. 20
Powering On/Off ................................................................ 21
Restarting Your Phone ....................................................... 21
Setting Up for the First Time .............................................. 21
Locking/Unlocking the Screen and Keys ........................... 22

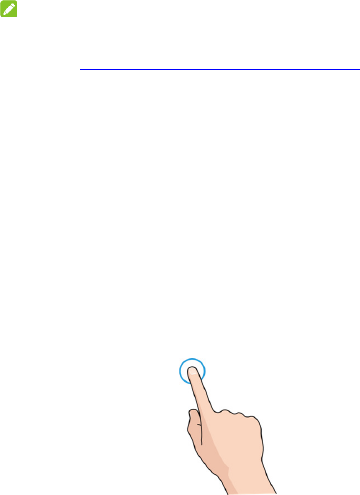

Using the Touch Screen ..................................................... 23
Getting to Know the Home Screen .................................... 27
Personalizing ......................................................... 28
Changing the System Language ........................................ 28
Setting the Date and Time ................................................. 28
Changing Ringtone and Notification Sound ....................... 29
Turning On/Off System Sounds ......................................... 29
Adjusting Volume ............................................................... 30
Switching to Silent Mode ................................................... 30
Applying New Wallpapers .................................................. 31
Changing Screen Brightness ............................................. 31
Setting the Home Screen Effect ......................................... 32
6
Protecting Your Phone With Screen Locks ........................ 33
Protecting Your Phone With Encryption ............................. 34
Knowing the Basics ............................................... 37
Monitoring the Phone Status ............................................. 37
Managing Notifications ...................................................... 38
Managing Shortcuts and Widgets ...................................... 41
Organizing With Folders .................................................... 42
Rearranging the Primary Shortcuts ................................... 44

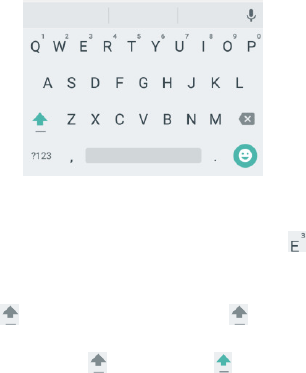

Entering Text...................................................................... 44
Editing Text ........................................................................ 47
Opening and Switching Apps ............................................. 48
Connecting to Networks and Devices .................. 49
Connecting to Mobile Networks ......................................... 49
Connecting to Wi-Fi® ......................................................... 50
Connecting to Bluetooth® Devices ..................................... 55
Connecting to Your Computer via USB.............................. 58
Connecting to Virtual Private Networks ............................. 61
Phone Calls ............................................................ 63
Placing and Ending Calls ................................................... 63
Answering or Rejecting Calls ............................................. 64
Working With the Call Log ................................................. 65
Calling Your Contacts ........................................................ 67
Checking Voicemail ........................................................... 68
Using Options During a Call .............................................. 68
7
Managing Multi-party Calls ................................................ 69
Adjusting Your Call Settings ............................................... 71
Contacts ................................................................. 78
Checking Contact Details ................................................... 78
Adding a New Contact ....................................................... 79
Setting Up Your Own Profile .............................................. 79
Importing, Exporting, and Sharing Contacts ...................... 80
Working With Favorite Contacts......................................... 82
Working With Groups ......................................................... 82
Searching for a Contact ..................................................... 84
Editing Contacts ................................................................. 85
Accounts ................................................................ 88
Adding or Removing Accounts ........................................... 88
Configuring Account Sync .................................................. 89
Email ....................................................................... 91
Setting Up the First Email Account .................................... 91
Checking Your Emails ........................................................ 92
Responding to an Email ..................................................... 92
Writing and Sending an Email ............................................ 93
Adding and Editing Email Accounts ................................... 94
Changing General Email Settings ...................................... 95
Messaging .............................................................. 96
Opening the Messaging Screen ......................................... 96
Sending a Message ........................................................... 96
8
Replying to a Message ...................................................... 97
Forwarding a Message ...................................................... 98
Copying a Message ........................................................... 98
Changing Message Settings .............................................. 99
Calendar ............................................................... 100
Viewing Your Calendars and Events ................................ 100
Creating an Event ............................................................ 102
Editing or Deleting an Event ............................................ 102
Changing Calendar Settings ............................................ 103
Browser ................................................................ 104
Opening the Browser ....................................................... 104
Downloading Files ........................................................... 105
Changing Browser Settings ............................................. 105

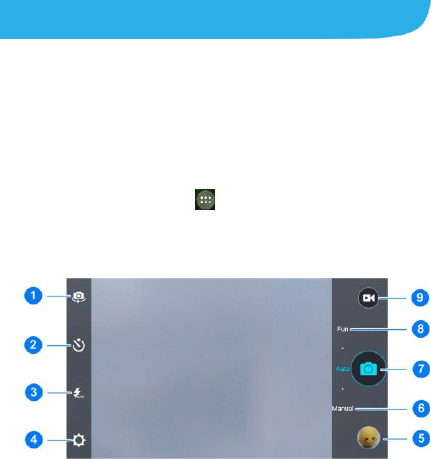

Camera .................................................................. 106
Capturing a Photo ........................................................... 106
Recording a Video ........................................................... 109
Customizing Camera and Video Settings ........................ 110
Gallery ................................................................... 112
Opening Gallery .............................................................. 112
Working With Albums ...................................................... 112
Working With Pictures ..................................................... 113

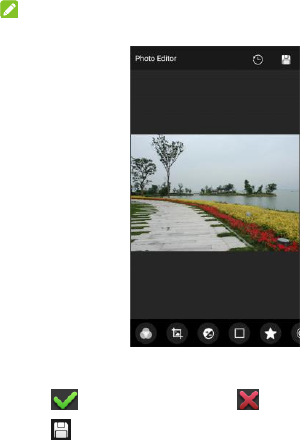

Retouching Your Pictures ................................................ 114
Playing Videos ................................................................. 116
9
Music .................................................................... 117
Copying Music Files to Your Phone ................................. 117
Viewing Your Music Library .............................................. 118
Setting a Song as the Default Ringtone ........................... 119
Playing Music ................................................................... 120
Managing Playlists ........................................................... 121
Play Music ............................................................ 123
Playing Your Music .......................................................... 123
Managing Playlists ........................................................... 126
Video Player ......................................................... 127
Opening the Video Library ............................................... 127
Playing and Controlling Videos ........................................ 127
Managing Video Files ...................................................... 128
Sound Recorder ................................................... 130
Recording a Voice Memo ................................................. 130
Playing a Voice Memo ..................................................... 130
More Apps ............................................................ 132
Calculator ........................................................................ 132
Chrome™ ........................................................................ 132
Clock ................................................................................ 132
Dolby Audio...................................................................... 134
Downloads ....................................................................... 134
Drive ................................................................................ 134
File Manager .................................................................... 135
10
Task Manager .................................................................. 135
Voice Dialer ..................................................................... 136
Google Apps .................................................................... 136
Settings ................................................................. 139
General Settings .............................................................. 139
Wireless and Networks .................................................... 143
Device ............................................................................. 144
Personal .......................................................................... 146
Accounts .......................................................................... 149
System ............................................................................ 150
Upgrading the Phone Software ........................... 151
Troubleshooting ................................................... 152
For Your Safety..................................................... 157
General Safety ................................................................ 157
Radio Frequency (RF) Energy ......................................... 158
FCC Regulations ............................................................. 160
Hearing Aid Compatibility (HAC) regulations for Mobile
phones ............................................................................. 162
Turning on the HAC Setting ............................................. 165
Distraction ....................................................................... 166
Product Handling ............................................................. 166
Electrical Safety ............................................................... 171
Radio Frequency Interference ......................................... 172
Explosive Environments .................................................. 174
12
Getting Started
Getting to Know Your Phone
Earpiece
Home Key
Back Key
Recent Apps Key
Touch Screen
Power Key
Front Camera
Volume Key
Proximity & Light
Sensor
13
Charging/
micro-USB Jack
Headset Jack
Back Camera
Speaker
Flash
14
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off Airplane
mode, Restart, or Power off.
Press to turn off or on the screen display.
Home Key
Touch to return to the home screen from any
application or screen.
Touch and hold to open Google Search.
Back Key
Touch to go to the previous screen.
Recent Apps
Key
Touch to see recently used applications.
Volume Key
Press or hold either end of the key to turn the
volume up or down.
Installing the micro-USIM Cards and
the Battery
Switch off your phone before installing or replacing the battery or
the micro-USIM cards. You can install the micro-USIM cards into
the slots.
1. Insert your fingernail into the slot at the bottom left of the back
15
cover and lift it up gently.
2. Hold the micro-USIM cards with the cut corner oriented as
shown and slip them into the card holders.
NOTE:
The micro-USIM card tray supports GSM/WCDMA/LTE
micro-USIM cards.
16
WARNING!
To avoid damage to the phone, do not use any other kind of
USIM card, or any non-standard micro-USIM card cut from a
USIM card. You can get a standard micro-USIM card from
your service provider.
3. Insert the battery by aligning the metal contacts on the battery
with the metal contacts in the battery compartment. Gently
push down on the battery until it clicks into place.
17
4. Align the back cover with the back of the phone and press the
cover back into place. Ensure that all the tabs are secure and
there are no gaps around the cover.
Installing the microSDHC™ Card
The microSDHC card can be installed and removed while the
phone is turned on. Unmount the microSDHC card before
removing it.
1. Remove the back cover.
2. Hold your microSDHC card with the metal contacts facing
down and slide it in.
18
NOTE:
Some applications may require a microSDHC card to store
certain data on it and to work properly. Therefore, it is
recommended that you keep a microSDHC card installed and
not remove or replace it unnecessarily.
3. Replace the back cover.
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a few calls. You should fully
charge the battery as soon as possible.
If the battery is low, there will be a pop-up message on the
19
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING!
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause the
battery to explode.
1. Connect the adapter to the charging/micro-USB jack. Ensure
that the adapter is inserted in the correct direction. Do not
force the connector into the charging jack.
2. Connect the charger to a standard AC power outlet. If the
20
phone is on, you’ll see a charging icon, such as or ,
appear on the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 20 minutes. Contact the
customer service if you still cannot power on the phone after
prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi
usage and GPS functionality can drain your battery. You can
follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Wi-Fi, Bluetooth and auto-sync off when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location, and each query drains your battery.
21
Powering On/Off
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu, touch Power off.
Restarting Your Phone
If the screen freezes or takes too long to respond, try pressing
and holding the Power Key for about 10 seconds to restart the
phone.
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Backup and Reset), you need to
do some settings before using it.
Flick the language field to select the language and touch .
Then follow the prompts to set up Wi-Fi, Google account, Google
location and other options.
22
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
the phone to sleep mode) when not in use and to turn the screen
back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE:
To save battery power, the phone automatically turns off the
screen after a certain period of time when you leave it idle. You
will still be able to receive messages and calls while the phone
screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen.
- or -
Touch the Camera icon at the bottom right and swipe left to
open the Camera app.
23
NOTE:
If you have set an unlock pattern, PIN or password for your
phone (see Protecting Your Phone With Screen Locks), you’ll
need to draw the pattern or enter the PIN/password to unlock
your screen.
Using the Touch Screen
Your phone’s touch screen enables you to control actions
through a variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
items on the screen such as the application and settings
icons, or press the onscreen buttons, simply touch them with
your finger.
24
Touch and Hold
To open the available options for an item (for example, a
message or link in a web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
25
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
26
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
NOTE:
The Auto-rotate screen check box needs to be selected for
the screen orientation to automatically change. Touch the
Home Key > > Settings > Display > Auto-rotate
screen.
You can also access the screen rotation control by sliding
down the status bar and touch Auto Rotate.
27
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding shortcuts, folders, widgets, and more.
Extended Home Screen Panels
Your home screen is extendable, providing more space for
shortcuts, widgets, and more. Simply swipe left or right on the
home screen to see the extended panels.
Status bar
Primary shortcuts
Shortcut
Folder
Google Search
28
Personalizing
Changing the System Language
1. Touch the Home Key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > > Settings > Date & time.
2. Set the date, time, time zone, and date/time format.
To adjust the date and time automatically, check
Automatic date & time.
To adjust the date and time manually, uncheck
Automatic date & time and touch Set date / Set time to
change the date and time.
To adjust the time zone automatically, check Automatic
time zone.
To adjust the time zone manually, uncheck Automatic
time zone and touch Select time zone to set the correct
29
time zone.
To adjust the format of time and date, touch Use 24-hour
format or Choose date format.
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and the
default notification sound.
1. Touch the Home Key > > Settings > Sound &
notifications.
2. Touch Phone ringtone or Default notification ringtone.
3. Select the ringtone you want to use and touch OK.
NOTE:
See Set a Ringtone for a Contact for how to assign a special
ringtone to an individual contact.
Turning On/Off System Sounds
1. Touch the Home Key > > Settings > Sound &
notifications > Other sounds.
30
2. Touch Dial pad tones, Screen locking sounds, Touch
sounds, or Vibrate on touch.
Adjusting Volume
1. Touch the Home Key > > Settings > Sound &
notifications.
2. Drag the sliders below Media volume, Alarm volume, Ring
volume, and Notification volume to adjust the volume for
each type of audio.
NOTE:
You can adjust the media volume when a media application is in
use by pressing the Volume Key. If no media application is
active, press the Volume Key to adjust ringtone volume (or the
earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
Keep pressing the Volume Down Key when no media
application is active. When the icon appears in the
31
status bar, the phone is set to silent mode with vibration.
When the icon appears in the status bar, the phone is in
silent mode.
Touch the Home Key > > Settings > Sound &
notifications > Notification mode, and touch Vibrate or
Mute.
Applying New Wallpapers
You can set the wallpaper for the home screen.
1. Touch the Home Key.
2. Touch and hold an empty area of the home screen.
3. In the window that appears at the bottom, touch Wallpaper to
pick an image as the wallpaper.
NOTE:
In addition, you can touch the Home Key > > Settings >
Display > Wallpaper to pick an image from Gallery, Wallpapers
or Photos, or an animation from Live Wallpapers.
Changing Screen Brightness
1. Touch the Home Key > > Settings > Display >
32
Brightness level.
2. Drag the slider to manually adjust the screen brightness.
NOTE:
With the proximity and light sensor, your phone can automatically
adjust the screen brightness for available light. Touch Adaptive
brightness in the Display settings screen to turn the feature on
or off.
Setting the Home Screen Effect
Set the animation effect that appears when you swipe left or right
on the home screen between different panels.
1. Touch the Home Key.
2. Swipe up from the bottom of the screen or touch and hold an
empty area of the home screen.
3. In the window that appears at the bottom, touch Effect.
4. Pick an effect and the phone will demonstrate how it works.
Touch other effects until you find the favorite one.
33
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is
enabled, you need to touch and hold on the screen, draw a
pattern or enter a numeric PIN or password to unlock the phone’s
screen and keys.
1. Touch the Home Key > > Settings > Security > Screen
lock.
2. Touch None, Long press, Pattern, PIN or Password.
Touch None to disable the screen lock.
Touch Long press to enable screen lock and allow
unlock with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding on the blank area of the
screen.
Touch Pattern to create a pattern you must draw to
unlock the screen.
Touch PIN or Password to set a numeric PIN or a
password that you must enter to unlock your screen.
NOTE:
34
If you forget the pattern you set, try five times and touch Forgot
Pattern to sign in to the Google account you have added on the
phone and reset the screen lock. You need an active Internet
connection. You can also upgrade the phone software. See
Upgrading the Phone Software.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or a
password each time you power on your phone.
WARNING!
Encryption is irreversible. The only way to revert to an
unencrypted phone is to perform a factory data reset, which
erases all your data.
Encryption provides additional protection in case your phone is
stolen, and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
35
● Set a lock screen PIN or password.
● Charge the battery.
● Keep the phone connected to the charger.
● Schedule an hour or more for the encryption process: you
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch the Home Key > > Settings > Security >
Encrypt phone.
2. Read the information about encryption carefully.
The Encrypt phone button is dimmed if your battery is not
charged or your phone's not plugged in.
If you change your mind about encrypting your phone, touch
the Back Key.
WARNING!
If you interrupt the encryption process, you will lose data.
3. Touch Encrypt phone.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt phone again.
The encryption process starts. Encryption can take an hour or
36
more, during which time your phone may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently, you must enter your PIN or password each time
you power on your phone in order to decrypt it.
37
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
2G connected
No signal
3G connected
Signal strength
4G connected
Mobile data in use
Airplane mode
Ringer off
Battery low
Vibration mode
Battery partially drained
Speaker on
Battery full
Phone microphone off
/
Battery charging
Bluetooth on
Alarm set
Connected to a Wi-Fi®
network
Wired headset
connected
Wi-Fi in use
GPS on
38
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
New SMS
Upcoming event
New MMS
New Wi-Fi network detected
New Email
Downloading data
New Gmail™
message
Sending data
Missed call
/
Song playing
Call in progress
USB connected
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events, such as when
you are playing music. You can open the notification panel to
view the details of notifications.
To open the notification panel, swipe your finger down from
the top of the screen.
39
To close the notification panel, swipe your finger up from the
bottom of the screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications. The notification panel also supports
expandable notifications that let you perform additional actions
right from the notification itself.
To respond to a notification, just touch it.
Slide down with one finger to expand certain notifications.
You can also swipe two fingers vertically or pinch-zoom to
expand or collapse certain notifications.
To remove a notification, swipe it left or right.
To remove all notifications, touch × on the screen.
Touch and hold a notification and then touch App info to
identify the application that created it. To turn off notifications
from that application if needed, uncheck Show notifications
in the App info screen.
Most apps that send notifications, such as Gmail and
Calendar, have notification settings that you can adjust.
40
NOTE:
If you turn off notifications for an app, you may miss its important
alerts and updates. The notifications of some apps cannot be
turned off.
Use Quick Settings
The Quick Settings in the notification panel make it convenient to
view or change the most common settings for your phone.
Open the notification panel to find the following Quick Settings.
Sound: Touch to turn on or off silent mode.
Vibrate: Touch to turn on or off vibrate mode.
Battery: Display the current battery status.
Dolby: Touch to turn on or off the Dolby.
GPS: Touch to turn on or off the Google’s location service.
Airplane: Touch to turn on or off airplane mode.
Flashlight: Touch to turn on or off the flash.
Sync: Touch to turn on or off the auto-sync feature.
Auto Rotate: Touch to turn on or off the auto-rotate screen
feature.
41
Wi-Fi: Touch to turn on or off Wi-Fi.
Data: Touch to turn on or off data service over mobile
networks.
Bluetooth: Touch to turn on or off Bluetooth.
Auto: Check to turn on or off automatic brightness
adjustment.
NOTE:
In the Quick Settings screen, touch at the top to get to the
Settings menu.
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch the Home Key.
2. To add a widget, touch and hold a blank area of the home
screen. The Widgets panel appears.
To add an application shortcut, touch .
3. Slide left or right to view all available widgets or applications.
Touch and hold a widget or an application icon and drag it to
42
a home screen panel.
Move Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the home screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the home screen.
2. Drag it to to remove it.
Adjust Widget Size
1. Touch and hold a widget on the home screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE:
Not all widgets can be resized.
Organizing With Folders
You can create folders on a home screen and put several icons
in a folder.
43
Create a Folder
1. Touch and hold an icon on a home screen until
appears.
2. Drag the icon to and release it. A new folder will be
created and the icon is put into the folder.
Rename a Folder
1. Touch a folder to open it. The old folder name is displayed
above the icons.
2. Touch the folder name and enter a new name.
3. Touch .
Add More Icons to a Folder
1. Touch and hold an icon and then drag it onto a folder icon.
2. Release the icon and it will be put into the folder.
Remove Icons From a Folder
1. Touch a folder to open it.
2. Touch and hold the icon you want to remove and then drag it
to the home screen.
3. Release the icon and it will be removed from the folder.
44
Rearranging the Primary Shortcuts
The home screen includes a customizable primary shortcuts area
at the bottom visible from all home screens. You can keep at
most four items in the primary shortcuts area. Drag shortcuts or
folders in or out of the area to rearrange the area.
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. You can touch the Back Key to hide the
onscreen keyboard.
Change Input Methods
1. Touch the Home Key > > Settings > Language &
input > Current Keyboard.
2. Touch CHOOSE KEYBOARDS.
3. Select an input method you need.
45
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the keyboard
will change from portrait to landscape. The landscape keyboard
is not supported in all applications.
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter È, touch and hold and
the available accented letters and number 3 appear. Then
slide to choose è.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
case you are using: for lowercase, for uppercase,
46
and when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more.
Touch to enter miniature icons, such as expressions,
horoscopes, and animals.
Touch to use Google voice typing.
Google Voice Typing
Google Voice typing uses the Google voice recognition service to
convert speech to text.
1. Touch the Home Key > > Settings > Language &
input > Google voice typing.
Or touch to access the voice typing when you are using
the Android Keyboard.
2. When you see the microphone image, speak what you want
to type.
3. You can continue entering text to keep it or to delete it.
NOTE:
Say "comma," "period," "question mark," "exclamation mark," or
47
"exclamation point" to enter punctuation.
Input Settings
Choose input settings by touching > Settings > Language
& input from the home screen.
In the Keyboard & input methods section, you can set the
default input method and choose the settings for input methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text. The
nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut or Copy button to cut or copy the text
to the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch or PASTE.
48
Opening and Switching Apps
Open an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch and hold the Recent Apps Key. The apps you’ve used
recently are displayed in a series of tabs. Slide up and down
to see all the tabs.
2. Touch a tab to open that app.
NOTE:
You can swipe a tab sideways to remove it from the screen.
49
Connecting to Networks and
Devices
Connecting to Mobile Networks
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home Key > > Settings > Mobile
networks > Mobile Data.
2. Touch the Standard Data switch to enable or disable mobile
data use.
To get data services when roaming:
1. Touch the Home Key > > Settings > Mobile
networks > International Data Roaming.
2. Touch the International Data switch.
NOTE:
Data roaming may incur significant roaming charges.
Select Preferred Network Type
Set the preferred type of network for the micro-USIM card.
50
1. Touch the Home Key > > Settings > Mobile networks.
2. Touch Preferred network type and select the network type
you would prefer the phone to connect with.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > > Settings > Mobile networks.
2. Touch Access Point Names > .
3. Touch each item to enter the information you get from your
service provider.
4. Touch the > Save to complete.
NOTE:
To set the APN to default settings, touch > Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
51
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
Connect.
NOTE:
Your phone automatically connects to previously used Wi-Fi
networks when they are in range.
Get Notified of Open Networks
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > Advanced.
4. Check Network notification.
When Wi-Fi is on, you receive notifications in the status bar
when your phone detects an open Wi-Fi network. Uncheck
the option to turn off notifications.
52
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > Add network.
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch SAVE.
Connect to a WPS Network
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to
add your phone to access points which support WPS.
You can use one of the following two methods to connect your
phone to a wireless network using WPS.
Method one: WPS button
1. Touch the Home Key > > Settings > Wi-Fi.
53
2. Slide the Wi-Fi switch to the On position.
3. Touch the > Advanced > WPS Push Button.
4. Press the WPS button on the access point and the access
point will recognise your phone and add it to the network.
Method two: PIN number
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the On position.
3. Touch the > Advanced > WPS Pin Entry.
4. The WPS PIN number displays on the screen. Enter the PIN
number into the access point’s setup page.
After entering the PIN number, your phone automatically finds
the access point and configures the connection.
NOTE:
For detailed information about the WPS feature of the access
point, please refer to its user documents.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
54
longer use.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Wi-Fi network name and then touch FORGET.
Adjust Advanced Wi-Fi Settings
1. Touch the Home Key > > Settings > Wi-Fi.
2. Touch > Advanced to adjust the following settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
Avoid poor connections: Only use Wi-Fi network when
the Internet connection is good.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
on in sleep mode.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
WPS Push Button: Connect to a WPS network via the
55
push button method.
WPS Pin Entry: Connect to a WPS network via the
phone PIN method.
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters. The
Bluetooth devices must be paired before the communication is
performed.
Turn Bluetooth On/Off
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON or OFF position.
When Bluetooth is on, the icon will appear in the status bar.
Change the Device Name
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
56
off.
3. Touch > Rename this device.
4. Edit the name and touch RENAME.
Pair With Another Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
Your phone automatically scans for and displays the IDs of
all available Bluetooth devices in range. You could touch
> Refresh if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch PAIR. Alternately, enter a
Bluetooth passkey and touch PAIR.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE:
The Bluetooth passkey may be fixed for certain devices, such as
headsets and hands-free car kit. You can try entering 0000 or
1234 (the most common passkeys), or refer to the documents for
57
that device.
Unpair From a Bluetooth Device
You can make your phone forget its pairing connection with
another Bluetooth device. To connect to the device again, you
may need to enter or confirm a passkey again.
1. Touch the Home Key > > Settings > Bluetooth and
ensure that Bluetooth is turned on.
2. In the list of paired devices, touch the icon beside the
Bluetooth device you want to unpair from.
3. Touch FORGET.
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
58
2. Flick down the status bar and touch .
3. Touch ACCEPT to start receiving the data.
Depending on your storage setting and whether a microSDHC
card is installed, received files are stored automatically in a
dedicated folder (Bluetooth, for instance) in the phone storage or
microSDHC directory. You can access them with the File
Manager app. Received contacts (vCard files) are automatically
imported to your contact list.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in the phone storage or on a removable
microSDHC card. For more information, see Storage.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Open the notification panel and touch .
3. Choose one of the following options:
Charge only: Charge your phone via USB.
Install driver: Install the driver needed for some USB
59
connection modes (such as MTP). You only need to install
the driver on the same PC once.
NOTE:
You can also install the driver on PC by running the
executable file in the new CD-ROM drive.
Media device (MTP): Transfer files on Windows® or
Mac®.
NOTE:
For Windows XP, please install the drivers and Media
Player 11 (or later version) when you use Media device
(MTP) for the first time.
Camera (PTP): Transfer photos using camera software.
NOTE:
To make your phone connect to the computer automatically using
the selected connection type, check Don’t ask me again.
Connect With Windows Media® Player
You can sync music on your phone and the computer installed
with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
60
2. Open Windows Media Player and synchronize music files.
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you must unmount it first.
1. Touch the Home Key > > Settings > Storage.
2. Scroll down and touch Unmount SD card > OK.
3. When the Unmount SD card menu changes to Mount SD
card, you can now safely remove the microSDHC card from
the phone.
NOTE:
If you unmount the microSDHC card, some apps that you are
using will stop and may be unavailable until you remount the
microSDHC card.
Erase the microSDHC Card
1. Touch the Home Key > > Settings > Storage.
61
2. Scroll down the screen to the SD card section and touch
Erase external SD card > ERASE SD CARD > ERASE
EVERYTHING.
CAUTION:
The formatting procedure erases all the data on the microSDHC
card, after which the files CANNOT be retrieved.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch + and fill in the information provided by your network
62
administrator.
3. Touch SAVE.
The VPN is added to the list on the VPN screen.
NOTE:
You must set a lock screen pattern, PIN or password before
using VPN.
Connect to a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch CONNECT.
Modify a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch and hold the VPN that you want to modify.
3. Touch Edit profile and edit the VPN settings you want.
4. Touch SAVE.
63
Phone Calls
You can place calls from the Phone app, the Contacts app, or
other apps or widgets that display contact information. Wherever
you see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home Key > .
2. Touch , enter the phone number with the on-screen
keypad. Touch to delete incorrect digits.
NOTE:
As you enter digits, your phone searches for contacts that
match. If you see the number you want to dial, touch it to
place the call immediately without entering the rest of the
number.
3. Touch below the keypad to dial.
You can also touch the search box at the top of the Phone app
screen and enter the phone number or contact name you want to
call. Touch the matching contact or Call [number] to place the
64
call.
NOTE:
To make an international call, touch and hold the 0 key to enter
the plus (+) symbol. Next, enter the country code, followed by the
city/area code and then the phone number.
NOTE:
To redial the last call you made, just touch the Home Key >
> > and touch again.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the Incoming Call screen opens,
displaying the Caller ID or the information about the caller that
you've entered in the Contacts app. You can answer or reject
the call, or reject it with a text message.
Answer a Call
When you receive a phone call, touch the screen and slide down
65
to answer the call.
NOTE:
To silence the ringer before answering the call, press the
Volume Key.
Reject a Call
When you receive a phone call, touch the screen and slide up to
decline the call.
You can also touch to reject the call and send a preset text
message to the caller.
NOTE:
To edit the text response from within the Phone app, touch in
the top search field and select Settings > General settings >
Quick responses.
Working With the Call Log
The call history is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your Contacts.
To open the call history, you can touch the Home Key > >
66
(in the top search field) > Call History.
Place a Call From the Call History
1. Open the call history.
2. Touch next to the number you want to reply to.
NOTE:
You can touch MISSED, OUTGOING, or INCOMING to filter the
records by call type.
Add a Number From Call History as a
Contact
1. Open the call history.
2. Touch a number to view more call information.
3. Touch in front of the number.
4. Touch .
5. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch .
Take Other Actions on a Call History Entry
Open the call history and touch a number.
67
You can to view more call information. While viewing the
call details, you can touch the > Edit number before
call to edit the number in the dialer before calling it.
Touch to delete the entry.
Touch the contact icon in front of the entry to open the
contact information tab from the bottom, where you can
send a message, call back, edit the contact, add the contact
to favorites, or add the number to contacts.
NOTE:
You can touch > Clear call log in the call history screen to
delete all history records.
Calling Your Contacts
1. Touch the Home Key > . Your favourite contacts and
frequently called contacts are displayed in the SPEED DIAL
tab.
2. Touch a contact to place the call, or touch or swipe to the
CONTACTS tab to view all your contacts with phone
numbers and touch to make a call.
68
Checking Voicemail
If you have set the phone to divert calls to voicemail, callers can
leave voicemail messages when they cannot reach you. Here’s
how to check the messages they left.
1. Touch the Home Key > > .
2. Touch and hold “1” in the dialer. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE:
See Set Voicemail for how to set your voicemail service. For
detailed information, please contact the service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to turn on or off the speaker.
Touch to mute or unmute your microphone.
Touch to make another call separately from the first call,
69
which is put on hold.
Touch to switch to the keypad when you need to enter a
code (for example, the PIN for your voicemail or bank
account) during the call.
Touch to put the call on hold.
Touch to merge the separate calls into a single
conference call.
WARNING!
Because of higher volume levels, do not place the phone near
your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE:
The call waiting and three-way call features need network
support and may result in additional charges. Please contact your
service provider for more information.
70
Switch Between Current Calls
When you’re on a call and another call comes in, your phone
screen informs you and displays the caller ID.
To respond to an incoming call while you’re on a call:
Touch to answer the call. (This puts the first
caller on hold and answers the second call.)
To switch between two calls:
Touch (displayed as “Swap”) to switch back to the other
call.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. Place the first call.
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
71
To end the conference call, touch .
Adjusting Your Call Settings
Set Contact Display Options
You can set the order of the contacts displayed in the
CONTACTS tab of the Phone app.
1. Touch the Home Key > > (in the top search field) >
Settings > General settings.
2. Touch Sort by or Name format to set the order of the
contacts and the format of the contact names.
Set Sound and Vibration
Set the sound and vibration for incoming calls as well as
dialpad sounds.
1. Touch the Home Key > > (in the top search field) >
Settings > General settings.
2. In the Sounds and vibrate section, touch the option you
want to configure.
Touch Phone ringtone to select the ringtone for incoming
72
call notification.
Check Dialpad tones to play sounds when you touch the
dialpad keys.
Check Also vibrate for calls to enable vibration for
incoming call notification.
Edit Quick Response to Rejected Callers
1. Touch the Home Key > > (in the top search field) >
Settings > General settings > Quick responses.
2. Touch a text message to edit it.
Set Voicemail
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Touch Voicemail to configure voicemail settings.
Touch Service to select the voicemail service provider.
Your carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number.
Touch Sound to select the notification sound for new
73
voicemails.
Check Vibrate to enable vibration for notification.
Use Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of phone numbers.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Touch Fixed Dialing Numbers and the following options are
available:
Enable FDN: Input the PIN2 code to enable the FDN
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
NOTE:
The PIN2 code is provided by your carrier. Entering an incorrect
PIN2 code more times than allowed can get your micro-SIM card
locked. Contact the service provider for assistance.
74
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings.
2. Touch Call forwarding.
3. Touch an available option ( Always forward, When busy,
When unanswered, or When unreachable) to enable it.
Set TTY Mode
Select a TTY mode for your phone to work with a teletypewriter,
or turn TTY off.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > TTY mode.
2. Select one of the following options. Consult your
teletypewriter manufacturer’s manual if necessary.
TTY Off: Users who can hear and talk can disable TTY
support.
TTY Full: Users who cannot talk or hear may use this
mode to send and receive text messages through a TTY
75
device.
TTY HCO: Users who can hear, but cannot talk, may use
this mode to listen to conversation of the other party and
respond via text messages.
TTY VCO: Users who can talk, but cannot hear, may use
this mode to talk through the phone and receive
responses via text messages.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > DTMF tones.
2. Touch Normal or Long.
Set Speed Dials
You can touch and hold the 1 ~ 9 keys from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
76
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Speed dial.
2. Touch a speed dial key.
3. Enter a phone number or select one from the contact list.
4. Touch OK.
Bar Certain Calls
Call barring feature allows you to forbid certain types of calls from
your phone.
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Call Barring Settings.
2. Set the restriction of specific types of calls from your phone.
Other Options
1. Touch the Home Key > > (in the top search field) >
Settings > Call settings > Additional settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE:
77
Please contact the service provider to check whether the caller
ID and call waiting features are available.
78
Contacts
You can put contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > . From there,
you can touch the tabs on the top of the screen to quickly switch
to contact groups or favorite contacts.
Checking Contact Details
1. Touch the Home Key > and touch the CONTACTS tab
to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
NOTE:
If you have a lot of contacts stored, you'll see a slider on the right
side of the screen. Drag the slider to the letter initial you need.
79
Adding a New Contact
1. Touch the Home Key > and touch the all contacts tab.
2. Touch to add a new contact.
3. Touch the account field near the top of the screen to choose
where to save the contact. If a sync account is selected, the
contacts will be synced automatically with your account
online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch the Home Key > and touch the CONTACTS tab.
2. Touch the contact icon below ME.
3. Edit your profile information. Touch ADD ANOTHER FIELD
to add more information if you want.
4. Touch .
80
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your micro-USIM or
microSDHC card. This is especially useful when you need to
transfer contacts between different devices. You can also quickly
share contacts using Bluetooth, Google Drive, Email, Gmail, or
Messaging.
Import Contacts From the micro-SIM Cards
1. Touch the Home Key > .
2. Touch > Import/Export > Manage SIM card contacts.
3. Touch > Import SIM Contacts.
4. Touch to select the contacts you need and then touch .
Import Contacts From the microSDHC Card
1. Touch the Home Key > .
2. Touch the > Import/Export > Import from storage.
3. Select an account in which to save the contacts.
4. Select the vCard file(s) and touch OK.
81
Export Contacts to the micro-SIM Card
1. Touch the Home Key > .
2. Touch the > Import/Export > Export to SIM card.
3. Touch to select the contacts you need and then touch .
Export Contacts to the Storages
1. Touch the Home Key > .
2. Touch the > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file.
Touch OK to create the file on the microSDHC card or the
phone storage.
Share Contacts
1. Touch the Home Key > and touch the CONTACTS tab.
2. Touch the contacts you want to share to select them and then
touch the > Share.
3. Choose to share the contacts via Messaging, Bluetooth,
Drive, Email or Gmail.
82
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite contacts
and frequently contacted contacts.
Add a Contact to Favorites
You can add the contacts you use frequently to FAVORITES so
that you can find them quickly.
1. Touch the Home Key > and touch the CONTACTS tab.
2. Touch a contact and then touch at the top.
Remove a Contact From Favorites
1. Touch the Home Key > and touch the FAVORITES tab.
2. Touch a favorite contact and then touch at the top.
Working With Groups
View Your Contact Groups
1. Touch the Home Key > and touch the GROUPS tab.
2. Scroll through the list to view the preset groups and any
groups you have created.
83
3. Touch a group to view its members.
NOTE:
Touch the > Send Group message / Send Group email to
send messages or emails to selected group members.
Set Up a New Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch to create a new group.
3. Touch the drop-down box near the top of the screen, which
will be there if you have added accounts to the phone, to
choose an account for the group.
4. Enter a group name.
5. Touch Add member and select the contacts you wish to be
the group members.
6. Touch .
7. Touch the field below RINGTONE to select the ringtone for
incoming calls from the group members.
8. Touch OK.
9. Touch to save the group.
84
Delete a Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch a group and then touch the > Delete Group.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Edit a Group
1. Touch the Home Key > and touch the GROUPS tab.
2. Touch a group and then touch the > Edit.
3. Touch the group name to edit it, or touch the field below
MEMBER or RINGTONE to add more members or change
the ringtone.
NOTE:
To remove group members, touch a group in the GROUPS tab
and touch the > Multi-Select to choose members. Then
touch > OK.
Searching for a Contact
1. Touch the Home Key > .
85
2. Touch at the top of the screen.
3. Input the contact name or any information the contact has to
search for it. The contacts matched will be listed.
Editing Contacts
Edit Contact Details
1. Touch the Home Key > and touch the CONTACTS top.
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch .
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
calling when you hear the ringtone.
1. Touch the Home Key > and touch the CONTACTS top.
2. Touch a contact you want to set a ringtone for and then touch
the > Set ringtone.
3. Select a ringtone you like and touch OK.
86
Delete Contacts
1. Touch the Home Key > and touch the CONTACTS top.
2. Touch and hold to select the contacts you want to remove
and then touch .
3. Touch OK to confirm.
Join Contacts
As your phone synchronizes with multiple online accounts, you
may see duplicate entries for the same contact. You can merge
all the separate information of a contact into one entry in the
Contacts list.
1. Touch the Home Key > and touch the CONTACTS top.
2. Touch a contact entry to display the contact’s details and then
touch .
3. Touch the > Join.
4. Touch the contact whose information you want to join with the
first entry.
The information from the second contact is added to the first, and
the second contact is no longer displayed in the CONTACTS list.
87
You can repeat these steps to join another contact to the main
contact.
Separate Contact Information
If contact information from different sources was joined in error,
you can separate the information back into individual contacts on
your phone.
1. Touch the Home Key > and touch the CONTACTS top.
2. Touch a contact entry you have merged and want to
separate.
3. Touch .
4. Touch the > Separate.
5. Touch OK to confirm.
88
Accounts
Adding or Removing Accounts
You can add multiple Google Accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts depending on the apps installed on your phone.
Add an Account
1. From the home screen, touch > Settings >
Accounts > Add an account.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
Accounts list.
Remove an Account
Removing an account will delete it and all information
89
associated with it from your phone, such as emails and
contacts.
1. From the home screen, touch > Settings > Accounts.
2. Touch the account category in the list and then touch the
account.
Configuring Account Sync
Configure Auto Sync Setting
1. From the home screen, touch > Settings > Accounts.
2. Touch the and check or uncheck Auto-sync data.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When auto sync is turned off, you need to sync manually
to collect emails, updates, or other recent information.
Sync Manually
1. From the home screen, touch > Settings > Accounts.
2. Touch the account category and then the account you want
90
to sync.
3. Touch the > Sync now.
Change an Account’s Sync Settings
1. From the home screen, touch > Settings > Accounts.
2. Touch the account category and then the account you want
to sync. The Sync screen appears, showing a list of
information the account can sync.
3. Check or uncheck items as you need. Checked types of
information on the phone and the web will be kept in sync
when auto-sync is turned on.
91
Email
Touch in the home screen and select Email. Use it to
receive and send emails from your webmail or other accounts,
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Setting Up the First Email Account
1. When you open Email for the first time, enter your email
address and password.
2. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE:
You can also enter these details manually by touching
Manual setup or when automatic setup fails.
3. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
92
Checking Your Emails
Your phone can automatically check for new emails at the
interval you set when setting up the account.
You can also check new emails manually by dragging down on
the message list.
To check earlier emails for your IMAP or POP3 accounts, swipe
upwards to the bottom of the message list and touch Load
more.
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from Inbox.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
email, touch .
93
To forward the email to someone else, touch .
3. Edit your message and touch Send.
Mark an Email as Unread
You can return a read email to the unread state—for example,
to remind yourself to read it again later. You can also mark a
batch of emails as unread.
While reading a message, touch > Mark as unread.
While in a message list (for instance, the inbox), touch the
sender images before the messages and then touch .
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch .
While in a message list (for instance, the inbox), touch the
sender images in front of the messages and then touch .
Writing and Sending an Email
1. Open your email Inbox and touch .
94
NOTE:
If you have more than one email account added on the
phone, touch the sender line to select the account you want
to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
to select recipients from your contacts.
3. Enter the email subject and compose the email text.
4. Touch the > Attach file to add audio files, images,
videos and other types of files as attachments.
5. Touch Send at the top right of the screen to send the
message.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Setting Up the
First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the Inbox screen.
95
2. Touch the > Settings > ADD ACCOUNT.
3. Follow the prompts to set up the account as you did with the
first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
your email signature, and details about the servers the account
uses to send and receive mails.
1. Open Email to get the Inbox screen.
2. Touch the > Settings and touch the account whose
settings you want to change.
3. Make the changes you want and touch the Back Key when
you finish.
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch the > Settings > General.
3. Make the changes and touch the Back Key when you
finish.
96
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch the Home Key > > Messaging.
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the recipient line and manually enter the
recipient’s number or the contact name. If the phone
presents a few suggestions, touch the one you want to
97
add.
Select recipients from your contacts by touching .
3. Touch the Type message field and enter the message text.
4. If you want to send a multimedia message, touch to
attach a file or a slideshow to the message.
5. Touch .
NOTE:
You can also include email addresses as recipients for
multimedia messages.
NOTE:
Do not add a message subject or any attachment if you want to
send a text message. Otherwise you may be charged for a
multimedia message.
Replying to a Message
Messages you receive are appended to existing threads of the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
98
message you want to reply to.
2. Type your reply in the text box at the bottom. You can touch
if you want to reply with an MMS.
3. Touch .
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch the message and then touch Forward in the menu
that opens.
3. Enter a recipient for the message and edit the content if you
want.
4. Touch .
Copying a Message
You can copy text messages in the phone storage to the
micro-UIM card, or vice versa.
To copy a text message from the micro-UIM card to the phone:
1. On the Messaging screen, touch > Settings >
99
Manage SIM card messages.
2. Touch and hold a message and then touch Copy to phone
memory.
Changing Message Settings
Touch > Settings in the Messaging screen to change the
messaging settings.
100
Calendar
Calendar on the phone works with the web-based Google
Calendar™ service for creating and managing events,
meetings, and appointments. It also works with the Microsoft
Exchange ActiveSync calendar once you sign into your
Exchange account on the phone.
To open Calendar, touch in the home screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch > Calendars to display.
3. Touch the calendars to check the ones you want to see or
uncheck the ones you’d like to hide.
Events from hidden calendars are not shown in the Calendar
app.
101
Change Calendar Views
You can view your calendars in different forms. The app offers
four view types: Month, Week, Day, and Agenda.
To change calendar views, touch the view you want at the
bottom of the screen. You can also change to Day view from
Month view by touching any day in the monthly calendar.
In Month view, swipe vertically to see previous and future
months.
In Week or Day view, swipe horizontally to see previous and
future weeks/days.
When you are viewing past or future days, weeks, or
months, touch the icon at the top right to quickly switch
to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view or Agenda
view. Then touch an event to view its details.
102
Creating an Event
1. In any Calendar view, touch .
You can also touch a spot in Day or Week view twice to add
an event to that time spot.
2. If you have more than one calendar account, touch the
current account above the Event name box to choose one.
3. Enter the event details and touch SAVE.
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see View Event Details in this
chapter).
3. Do one of the following as you need.
To edit the event, touch . Touch SAVE to save your
changes.
To delete the event, touch > OK.
103
Changing Calendar Settings
To change the calendar settings, open a calendar view (Day,
Week, Month, or Agenda), and touch > Settings.
You can change General settings, which apply to all accounts,
or other settings that only apply to specific accounts.
104
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the home screen and select Browser to use the
web browser.
The browser also opens when you touch a web link - for
example, in an email or a text message.
Open a Web Page or Search the Web
1. Open the Browser app.
2. Touch the address box at the top of the web page. If the
address box isn’t visible, scroll to the top of the page to
show it.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for.
4. Touch a URL or search suggestion or touch the enter key on
the keyboard to open the web page or search results.
NOTE:
105
Touch at the top of the screen if you want to stop opening
the page. You can also touch to open a new web page in a
new tab.
Downloading Files
1. Touch and hold an image or a link to a file or to another
webpage.
2. In the menu that opens, touch Save image or Save page.
The downloaded files are saved to your phone or the
microSDHC card. You can view or open the downloaded files in
the Downloads app ( > Downloads).
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings in the
web page screen.
106
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the microSDHC card you have
installed or in the phone storage. You can copy them to your
computer or check them out in the Gallery app.
Capturing a Photo
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject and make any necessary
adjustment. Auto camera mode is used by default.
107
Number
Function
1
Switch between the front and the back cameras.
2
Set a time delay before the camera takes a picture
automatically after you touch the shutter icon, or
turn off this feature.
3
Change flash modes (only available for the back
camera).
4
Change the camera settings.
5
View photos and videos you have taken.
6
Switch to manual camera mode (only available for
the back camera).
7
Capture a photo.
8
Switch to fun camera mode (only available for the
back camera).
9
Record a video.
WARNING!
Keep a safe distance when using the flash. Do not point the
flash toward people or animals’ eyes.
NOTE:
You can pinch or spread on the screen or press the Volume
108
Key to zoom in or zoom out before taking picture.
3. You can either let the camera autofocus on the center of the
screen, or touch another area on the screen that you want
to focus on.
4. Touch the shutter icon to take the photo.
To use manual camera mode:
You can use manual camera mode to adjust more camera
options for you photo such as ISO, white balance, exposure,
etc.
1. Touch the Home Key > > Camera.
2. Touch Manual.
3. Aim the camera at the subject and you can make the
following adjustments.
Drag to any area on the screen that you want to focus
on.
Drag to any area on the screen where you want the
camera to meter exposure so as to adjust the photo
brightness.
109
Touch to show the grid or the golden spiral, or hide it.
Touch to enable or disable the gradienter.
Touch to change white balance scenario or leave it at
Auto.
Touch to select ISO level or leave it at Auto.
Touch to adjust the photo exposure.
4. Touch the shutter icon to take the photo.
Recording a Video
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject. You can touch any area on
the screen that you want the camcorder to focus on before
and during recording.
NOTE:
You can pinch or spread on the screen or press the Volume
Key to zoom in or zoom out before and during recording.
3. Touch to start recording. You can also touch / to
pause or resume recording.
4. Touch to stop recording.
110
NOTE:
While the recording is in progress, you can touch to save
the frame as a separate photo.
Customizing Camera and Video
Settings
Before capturing a photo or video, you can touch to open
the following camera and video setting options.
Camera options
Full screen: Change the full screen.
Shutter tone: Change the shutter tone.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Review: Select whether to review the picture after you
shot it. You can also set the review time.
Storage location: Change the storage location for
captured photos and videos.
Restore defaults: Restore default camera and video
settings.
111
Video options
Video quality: Set the quality for your video.
Time lapse: Set the time interval between each frame
when you shot time lapse videos using the back camera.
Focus lock when recording: Select whether to lock the
focus point on the center of the screen during video
recording using the back camera.
Geo-tagging: Select whether to store the GPS location in
your captured photos and videos.
Storage location: Change the storage location for
captured photos and videos.
Restore defaults: Restore default camera and
camcorder settings.
NOTE:
Some camera and video options will change in different camera
modes.
112
Gallery
Opening Gallery
Touch the Home Key > > Gallery to view albums of your
pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums, pictures, or videos:
1. Touch and hold an item in the Albums view to select an
album or after you open an album to select a picture or a
video.
2. Touch more items that you want to share.
3. Touch and select how you want to share the items.
To delete albums:
113
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > OK.
Working With Pictures
Touch a picture in an album to view the picture in full screen.
When viewing a picture in full screen, the following features are
available.
114
Swipe horizontally to see more pictures or videos.
Pinch a picture or video to make it smaller. You'll then see a
filmstrip-style view of all your pictures and videos in a row.
Swipe left or right to scan through them all.
Double-tap the picture, or pinch two fingers together or
spread them apart to zoom out or in.
Touch to edit or rename the picture, or check file details,
etc.
Touch or to rotate the picture.
Touch > Slideshow to browse the album contents in a
slideshow.
Touch to return to the album.
NOTE:
Some options may not be available for certain albums or
pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery.
1. Touch > Edit while viewing a picture in full screen to
115
open the Photo Editor interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
NOTE:
Slide left or right on the bottom of the screen to find all icons.
3. Touch to keep the change or to cancel it.
4. Touch to save the new picture.
116
NOTE:
Touch > History in the PhotoEditor screen to see the edits
you have made and undo or redo them.
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center and select a player to start playing.
Touch the video to view the playback controls.
In the Video Player, you can touch to play the video in a
small floating window and continue with other tasks on the
phone.
117
Music
Touch the Home Key > > Music to play audio files stored
on your phone. Music supports a wide variety of audio formats,
so it can play music you purchase from online stores, music you
copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Open the notification panel and touch .
3. Touch Media device (MTP). See Connect Your Phone to a
Computer via USB.
4. Copy the music files from the PC and paste them to the
phone storage or microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
118
Downloading Files.
Receive via Bluetooth
You can receive music files from other devices via Bluetooth.
See Receive Data via Bluetooth.
Viewing Your Music Library
Touch the Home Key > > Music and your music library is
displayed. All your audio files are cataloged, according the
information stored in the files.
Touch All Songs to view all music files on your phone.
Touch Artists/Albums to browse music files on your phone
organized by the artist or album name.
Touch Folders to find music files through the folders they are
stored in.
Touch Favorites to browse music files you have marked as
favorites.
Touch Playlists to view all music playlists you have created.
NOTE:
119
If an audio file is being played, its name and player controls are
displayed at the bottom of the screen. Touch the area to open
the playback screen.
Setting a Song as the Default
Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see Set a Ringtone for a Contact).
1. Touch the Home Key > > Music to see the music
library.
NOTE:
If you are in the playback screen, touch to return to the
music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Set as ringtone.
NOTE:
If the song is being played and you’re in the playback screen,
you can touch > Set as ringtone.
120
Playing Music
Touch a song in the music library to listen to it. The following
playback screen appears.
121
Number
Function
1
Touch to return to the music library
2
Album artwork. Slide left or right to see lyrics or the
current playlist.
3
View the track info.
4
Open the Dolby app and select a sound effect.
5
Playback control. Skip songs or pause and resume
playback. Drag the slider to jump to any part of the
song.
6
Touch to toggle repeat modes.
7
Touch to play the current playlist in shuffle mode, where
tracks are played in random order.
8
Add the song to your favorites.
9
Share the song.
10
Song, album, and artist information.
11
Touch for more options.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to next to a song to add it to a playlist or
122
create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch > Rename next to a playlist to rename the
playlist.
Touch a playlist to view its content. You can touch >
Remove from playlist to select the songs you want to
remove from the playlist.
123
Play Music
The Play Music application works with Google Music, Google’s
online music store and streaming service. You can stream via
mobile data or Wi-Fi and listen to your favorite songs that
you’ve added to your online Google Music library. You can also
play audio files you’ve copied directly to your phone from a
computer.
NOTE:
The availability of Google Music is dependent on your region. If
it is not available, or you don’t have a mobile data or Wi-Fi
connection, you can only play music stored on your phone.
Playing Your Music
Touch the Home Key > > Play Music. If you are prompted,
select an account to access its online music library.
The app searches your online library and your phone for music
and playlists before displaying your combined music library,
organized by GENRES, ARTISTS, ALBUMS and SONGS. You
can touch > My Library / Playlists to view all the music
and playlists. To changes views of your library, swipe left or
124
right.
Touch a song to play it. When the song is playing, touch the
summary information at the bottom to display the playback
screen.
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.
125
Number
Function
2
Album artwork (if available). Slide left/right to switch to
the next/previous song in the playlist.
3
Give the song a thumbs-up.
4
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress bar to
jump to any part of the song.
5
Give the song a thumbs-down.
6
Touch to see the current playlist (queue).
7
Get more options.
You can still control the music when you are not in the playback
screen.
In the music library of the Play Music app, touch the
summary information at the bottom of the screen to restore
the playback screen.
In other apps, flick down the notification panel. Touch the
song title to restore the playback screen, or just pause/
resume playback or skip songs.
When the screen is locked, the song information, album
cover as well as playback control is displayed on the top of
the screen. You can pause/resume playback or skip songs.
126
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
To create a playlist or add a song to a playlist:
Touch next to a song and select Add to playlist.
To remove a song from a playlist:
1. Touch > Playlists in the Play Music app and open a
playlist.
2. Touch next to a song in the playlist.
3. Touch Remove from playlist.
To delete a playlist:
1. Touch > Playlists in the Play Music app.
2. Touch next to the playlist you want to delete.
3. Touch Delete > OK.
NOTE:
Certain automatically created playlists such as Last added
cannot be deleted.
127
Video Player
Touch in the home screen and select Video Player to view
your video library and play various kinds of videos.
Opening the Video Library
Touch > Video Player in the home screen to view your
video library, where your video files are displayed in a list.
Swipe up or down to find the video you want. You can also
touch to search for video files, or touch the Menu Key to
sort the list.
Playing and Controlling Videos
Touch a video in the video library to play it. Rotate the phone on
its side to watch the video in landscape view.
Touch the video to show the playback controls. You can control
the video and audio or carry out other operations.
Touch the play/pause button at the bottom to pause or
resume the playback.
Slide horizontally on the video to rewind or fast forward.
128
Slide vertically on the right or left part of the screen to adjust
volume or brightness.
Touch or to skip to the previous or the next video.
Touch to change the video ratio.
Touch to rotate the video.
Touch to hide the control panel.
Touch to play the video in a small window and continue
with other tasks on the phone.
Touch to capture a screenshot.
Managing Video Files
Delete Video Clips
1. Touch and hold a video in the video library.
2. Check the videos you want to delete.
3. Touch > OK.
Share Video Clips
1. Touch the > Share in the video library.
129
2. Select how you want to share them.
Rename a Video Clip
1. Touch the > Rename in the video library.
2. Type the new video name and touch OK.
Trim a Video Clip
1. Touch a video in Video player to start playing it.
2. Touch > Trim.
3. Drag the two tabs on the progress bar to select the portion
you want to keep.
If necessary, touch to preview the selected portion.
4. Touch . The trimmed video is saved as a new video file.
130
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch the Home Key > > Sound Recorder.
2. Touch to start recording. During recording, you can do
the following:
Touch / to pause or continue the recording.
Touch to cancel the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
> OK to delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
131
1. Touch at the top right of the screen to see all
recordings.
2. Touch the title of a memo to play it.
NOTE:
You can also touch next to a memo to delete, rename,
share, trim it, check its file information, add a tag, or set it as
your phone ringtone.
132
More Apps
Calculator
Touch the Home Key > > Calculator to use the phone’s
convenient built-in calculator for some basic as well as advanced
mathematical equations.
NOTE:
Hold the phone on its side to display the basic panel and the
advanced panel at the same time.
Chrome™
Touch the Home Key > > Chrome to browse the Internet.
Chrome on your phone can sync bookmarks, browsing history,
and opened tabs from your Google account, so that you can
maintain the same experience across your phone, your PC, your
tablet and other devices.
Clock
The Clock app allows you to check local time and time in other
133
cities in the world, set alarms, and use timers.
Set a New Alarm
1. Touch the tab in the Clock app.
2. Touch an existing alarm to configure it, or touch at the
bottom of the screen to create a new alarm.
3. Set up the alarm options, such as time, repeat, and alarm
sound.
NOTE:
To enable or disable existing alarms directly, just slide the
switches on the right side.
Check World Time
Touch the tab in the Clock app to check local time for cities
around the world.
Touch at the bottom to add a new city or country.
Use the Stopwatch and Countdown
Touch the or tab in the Clock app to use the countdown
timer or the stopwatch.
134
Stopwatch allows you to record lap times, while countdown
timer allows you to set a time and count down to zero.
Dolby Audio
Touch the Home Key > > Dolby Audio to select or
customize a Dolby profile. You can also touch to turn off
Dolby.
Downloads
The Downloads app keeps a record of the files you have
downloaded using apps such as Browser, Email, or Gmail.
Touch the Home Key > > Downloads to check the record.
Touch a file to open it with the appropriate application.
Touch and hold a file to delete or share it.
Drive
Touch the Home Key > > Drive. The Drive app allows
you to store files on Google servers for free after you sign in to
your Google account. You can access them on your computers,
your phones and other devices, share them, or collaborate with
135
others.
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your phone storage and the microSDHC card.
Touch the Home Key > > File Manager. You can find the
file you need by category in the tab, or touch or to
browse folders and files on the phone storage or the
microSDHC card.
Touch folders and files to access stored items.
Touch and hold an item to access option icons such as Copy,
Move, Share, or Delete.
To copy or move an item, navigate to a new location and
touch PASTE.
Touch to create a new folder in the current directory.
Task Manager
Touch the Home Key > > Task Manager to view or stop
applications.
136
Touch a task in the TASKS tab to check the details of the
application or force it to stop.
Touch the APPS tab to manage all the apps on your phone.
Touch the RESOURCES tab to view the real-time use of the
system resources (CPU, RAM and storage).
Voice Dialer
Voice Dialer is speech recognition software. You can use it to
dial a phone number in your contacts, open menus or launch
phone functions.
1. Touch the Home Key > > Voice Dialer.
2. When you see "Listening", follow the onscreen examples to
speak "Call...", "Dial...", or "Open..." to make phone calls or
open phone menus and applications.
Google Apps
Open the Google apps to use Google services. Some apps are
put in the Google folder on the home screen.
NOTE:
Some contents or Google services may not be available in your
137
region.
Google: Use Google search or get information when you
need it with Google Now.
Chrome: Use the Chrome app to browse the Internet and
get your bookmarks, browsing history, and more synced
with your Google account.
Gmail: Use the Gmail service to send and receive emails.
Google+: Socialize with friends on the Google+ online
community.
Maps: Find your place and find your way in the world.
Play Music: Play music on the phone and on your Google
account.
Play Movies & TV: Purchase, download and watch the
latest and your favorite movies and TV shows.
Play Books: Buy and read the electronic version of new
and classic books.
Play Newsstand: Purchase and read newspapers and
magazines.
Play Games: Buy and play games from the Google Play
138
Store.
Drive: Store files on the Google servers.
YouTube: Watch video clips from YouTube.com, or upload
your own and share with the world.
Photos: Manage photos on the phone and your Google
account.
Hangouts: Chat with Google+ friends or send text or
multimedia messages.
Play Store: Buy and download apps, games, and other
content from the Google Play Store.
Voice Search: Search for information with your voice.
139
Settings
Touch the Home Key > > Settings. The Settings app
contains most of the tools for customizing and configuring your
phone.
General Settings
Airplane Mode
Touch the Home Key > > Settings and slide the ON/OFF
switch beside Airplane mode to turn airplane mode on or off.
All the phone’s radios that transmit voice or data are turned off
when airplane mode is on.
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Wi-Fi®.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Bluetooth® Devices.
140
Mobile Networks
Control mobile data use and set access point names. See
Connecting to Mobile Networks.
Sound & notifications
Adjust volumes (see Adjusting Volume), toggle sound and mute
(see Switching to Silent Mode), set Dolby sound effects, set up
ringtone and notification sound (see Changing Ringtone and
Notification Sound), and select system sounds.
Display
Brightness level: Set the brightness of the display.
Adaptive brightness: Automatically adjust screen
brightness.
Wallpaper: Select a background image for the home screen
and lock screen.
Sleep: Set the length of time of inactivity before the screen
turns off automatically.
Daydream: Manage the Daydream function. When
Daydream is enabled, photos or animations will be
displayed as a screensaver.
141
Font size: Set the font size of the text on the screen.
Auto-rotate screen: Check this option to let the phone
automatically change the orientation of some onscreen
content based on the position of the phone.
Pulse notification light: Flash the indicator light to notify
you of missed calls, new messages, and other events.
Navigation key light duration: This feature lets you control
the backlight of the touch keys (the Home Key, the Back
Key, and the Recent Apps Key). Choose one of the
following options to set the backlight duration.
Always off: Turn off the touch keys backlight.
Always on: Keep the touch keys backlight on while the
screen is turned on.
2 seconds / 5 seconds: The touch keys light for 2 or 5
seconds each time you touch the screen or touch keys
while the screen is turned on.
Auto: Let your phone turn on or off the touch keys
backlight automatically.
142
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Language and Input
Language: Select a language and region for your system.
Spell checker: Use Android spell checker to check for
spelling errors when entering text.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
KEYBOARD & INPUT METHODS: Configure text input
settings. See Input Method Settings.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
143
Default language status: Check whether the
text-to-speech output feature supports the current
system language.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Wireless and Networks
Data Usage
Touch the ON/OFF switch to turn on or off mobile data.
You can check how much data has been used during the time
circle you set, set mobile data limit and warning, see what app
has been using mobile data, allow data roaming or restrict
background data for individual apps.
NOTE:
The data usage is measured by your phone, and your carrier’s
data usage accounting may differ.
VPN
Touch the Home Key > > Settings > More > VPN to set
144
up and connect to virtual private networks. See Connecting to
Virtual Private Networks.
Default SMS App
Touch the Home Key > > Settings > More and touch
Default SMS app to choose the preferred application for
sending and receiving messages.
Device
Storage
Check memory information for your microSDHC card and
internal storage.
You can choose the default location for new data, such as files
downloaded, photos captured, and voice recorded. Touch Save
location and select Phone or SD card to store items in the
phone storage or the installed microSDHC card.
Touch Unmount SD card to unmount the microSDHC card
from your phone so that you can safely remove the card while
the phone is on. Touch Erase external SD card to delete all
data on the microSDHC card.
145
Power manager
Check how much power remains for the battery and what has
been using the battery.
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop or uninstall the app, or clear
data and cache.
NOTE:
Not all applications can be uninstalled.
Connect to PC
Select your USB connection type between your phone and PC.
See Connecting to Your Computer via USB.
Call Settings
Configure the call options. See Adjusting Your Call Settings.
146
Personal
Location
Activate location services to determine your location. See
Activating Location Services.
Security
Screen lock: Disable the screen lock or enable it with long
press, pattern, PIN, or password. See Protecting Your
Phone With Screen Locks.
Make pattern visible: Show the pattern as you draw it. This
option is available when unlock pattern is set.
Automatically lock: Set the time needed for the lock
protection to be activated after the screen turns off. This
option is available when unlock pattern, PIN or password is
set.
Power button instantly locks: Lock protection is activated
immediately when you press the Power Key. This option is
available when unlock pattern, PIN or password is set.
Owner info: Set the text that you may display on the lock
screen.
147
Smart Lock: Keep the phone unlocked when connected to
trusted devices, in trusted places, or unlocked by trusted
faces.
NOTE:
You need to sign in to your Google account on the phone to
use the Smart Lock feature.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Protecting Your Phone With Encryption.
Set up SIM/RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the micro-UIM card.
Change SIM PIN: Change the PIN used to access the
micro-UIM card.
NOTE:
Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than
allowed, your micro-UIM card will be locked and you cannot
access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the micro-UIM card.
148
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Check this option to permit installation
of apps from sources other than the Play Store.
Storage type: Check the credential storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the phone
storage or the microSDHC card.
Clear credentials: Delete all certificates.
Trust agents: View or deactivate trust agents.
Screen pinning: Keep a screen of your choice in view, so
that others cannot switch to other apps and access your
personal information. Touch this option to see how it works.
Apps with usage access: Turn on or off some apps’
access to your phone usage information.
149
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Back up account: Set the Google account that the data is
backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
microSDHC card during the process.
Accounts
Manage your accounts and synchronization. Touch Account to
sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
150
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
You can install printer plug-ins from the Google Play Store or
your printer manufacturer and configure cloud printing service
options, manage print jobs and more.
Software Update
You can view the current software version and check for the
software updates.
About Phone
View phone status, legal information and other information.
151
Upgrading the Phone Software
There are several ways to upgrade your phone software.
Use the online upgrade tool for mobile terminal products.
Use the one-press upgrade package offered by your mobile
service provider.
Use the upgrade package on your microSDHC card.
NOTE:
Visit the ZTE official handset service support website
(http://www.ztedevice.com/support) and click your country or
region to learn more about the above upgrade methods, as well
as which phones and methods are supported.
152
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
cannot effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
153
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charge
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s temperature
is below 0 °C or higher
than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the phone and charger.
Check all connectors to
ensure that all
connections have been
properly made.
154
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Contact the dealer to
change a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
155
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
micro-UIM
card error
micro-UIM card
malfunction or damage
Take the micro-UIM card
to your service provider
for testing.
micro-UIM card inserted
improperly
Insert the micro-UIM
card properly.
Debris on the micro-UIM
card contacts
Use a soft, dry cloth to
clean the micro-UIM
card contacts.
Unable to
connect to
the network
The micro-UIM card is
invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
The signal is poor.
Move to an open space,
or if you are inside a
building, move closer to
a window.
156
Problem
Possible causes
Possible solution
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
micro-UIM card’s PUK
code, use the PUK code
to unlock the micro-UIM
card.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Uninstall the software
that may cause the
problem.
Upgrade the phone
software.
Reset the phone to
factory status.
157
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may cause
choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
158
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
Turn off when asked to
in hospitals and
medical facilities.
Do not attempt to
disassemble your
phone.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone as a primary
device for emergency
communications.
Radio Frequency (RF) Energy
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
159
in positions that simulate RF exposure in usage against the
head with no separation, and near the body with the separation
of 10 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
160
SRQ-Z955L.
For this device, the highest reported SAR value for usage
against the head is 0.61 W/kg, for usage near the body is 1.19
W/kg.
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the human
body. Carry this device at least 10 mm away from your body to
ensure RF exposure level compliant or lower to the reported
level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain
a separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation
161
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or
transmitter.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
162
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
wireless phones sometimes do because of electromagnetic
163
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC
regulations (ANSI C63.19- 2011). While some wireless phones
are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others to
this interference noise and phones also vary in the amount of
interference they generate. The wireless telephone industry has
developed a rating system for wireless phones to assist hearing
device users in finding phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones
that are rated have the rating on their box or a label located on
the box. The ratings are not guarantees. Results will vary
depending on the user's hearing device and hearing loss. If
your hearing device happens to be vulnerable to interference,
you may not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best way to
evaluate it for your personal needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However,
there may be some newer wireless technologies used in this
164
phone that have not been tested yet for use with hearing aids. It
is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements
and are likely to generate less interference to hearing devices
than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing
devices have telecoils in them.)
Your phone meets the M3/T3 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
165
Compatibility, please go to http://www.fcc.gov/cgb/dro.
Turning on the HAC Setting
To turn on the HAC function, touch the Home Key > >
Settings > Call settings and check Hearing aids.
This section applies to T-Rating only and hearing aids that
contain telecoils. When the HAC setting is on, your Z936L
sends the audio from your phone calls to the telecoil rather than
to the microphone of your hearing aid. You are likely to hear
calls much better because volume is increased and background
noise and feedback are diminished. The HAC setting improves
only the calls you listen to through the earpiece. It does not
affect calls heard on the speaker or with a headset. HAC
requires extra battery power, so watch your battery
consumption when it's turned on.
CAUTION:
Do not turn on the HAC setting unless you use a hearing aid
with a telecoil. Using this setting without a hearing aid or with a
hearing aid without a telecoil may be harmful to your hearing.
166
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
167
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean your phone and its accessories with a soft material
such as cleaning cloth for eyeglass lenses. Do not use
alcohol or other corrosive substances for cleaning or allow
them to get inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to
clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories,
only authorized personnel can do so.
168
Do not expose your phone or its accessories to extreme
temperatures, minimum 23 ℉ and maximum 122 ℉
(minimum - 5 ℃ and maximum + 50 ℃).
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
169
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the micro-UIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
170
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician. To reduce the risk of blackouts or seizures, you can
use your phone in a well lit room and take frequent breaks.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as message templates and
predictive text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
171
Therefore, you must never rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the charging jack
terminals.
Never puncture the surface of the phone with sharp objects.
172
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or its
accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service center.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
173
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Equipment
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
174
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to
do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft and enable the airplane mode of your phone
when boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of
mobile phones in their vehicles unless a hands-free kit with an
external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone or
other radio equipment.
175
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting
operations.
176
Specifications
Handset specifications are shown in the following table.
Operating System
Android 5.1
Handset standard
GSM/EDGE/HSPA+/LTE
Dimensions
6.06" (H) x 3" (W) x 0.42" (D)
Weight
5.99 oz (with battery)
Display
5.5 inch
Camera
Front 2M FF, Rear 8M AF
Internal memory
ROM: 16 GB, RAM: 2 GB
Removable
memory card
Battery
3000 mAh (Non removable)
Standby time
Up to 250 hours
Talk time
Up to 3 hours
WAP browser
version
2.0
HAC
M3/T3 or above
177
Bluetooth
4.0
NOTE:
The phone’s talk time and idle time are based on ideal working
environments. The use of extended backlighting, browser, and
network conditions can reduce battery life and talk/idle time.
