ZTE Z970 LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone User Manual ZTE T22
ZTE Corporation LTE/WCDMA/GSM(GPRS) Multi-Mode Digital Mobile Phone ZTE T22
ZTE >
User manual
http://www.ztedevice.com
User Manual and Safety Information
ZTE ZMAX
1
ZTE ZMAX
User Manual and
Safety information
2
About This Manual
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION
All rights reserved.
Approved Firmware Versions: No part of this publication may
be quoted, reproduced, translated or used in any form or by any
means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE
Corporation.
ZTE Corporation reserves the right to correct typographical
errors, misprints or update specifications in this guide without
prior notice.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license. Other trademarks and trade names are the
property of their respective owners.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
We offer self-service for our smart terminal device users. Please
visit ZTE official website (at www.ztedevice.com) for more
information on self-service and supported product models.
Information subject to the website.
Version No.: R1.0
Edition Time: July 15, 2014
3
Contents
Getting Started ....................................................... 10
Getting to Know Your Phone ............................................ 10
Knowing the Keys ............................................................ 12

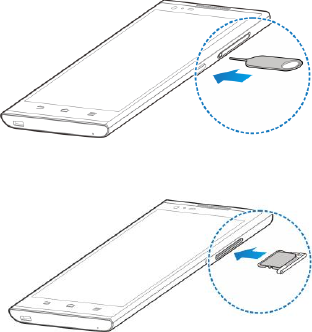

Installing the micro-SIM Card ........................................... 13
Installing the microSDHC Card ......................................... 14
Charging the Battery ........................................................ 15
Extending the Battery Life ................................................ 16
Restarting the Phone ....................................................... 17
Setting Up for the First Time ............................................. 17
Powering On/Off .............................................................. 17
Locking/Unlocking the Screen and Keys ........................... 17
Using the Touch Screen ................................................... 18
Getting to Know the Home Screen ................................... 19
Personalizing ......................................................... 21
Changing the System Language ...................................... 21
Setting the Date and Time ................................................ 21
Changing Ringtone and Notification Sound ...................... 21
Turning On/Off Touch Sounds .......................................... 22
Adjusting Volumes............................................................ 22
Switching to Silent Mode .................................................. 22
Applying New Wallpapers ................................................. 23
Changing Screen Brightness ............................................ 23
Protecting Your Phone With Screen Locks ........................ 24
Protecting Your Phone With Encryption ............................ 25
4
Knowing the Basics ............................................... 27
Monitoring the Phone Status ............................................ 27
Managing Notifications ..................................................... 28
Managing Shortcuts and Widgets..................................... 30
Organizing With Folders .................................................. 31
Rearranging the Favorites Tray ........................................ 32
Entering Text ................................................................... 33
Editing Text ...................................................................... 35
Opening and Switching apps ........................................... 36
Connecting to Networks and Devices .................. 37
Connecting to Mobile Networks ........................................ 37
Connecting to Wi-Fi® ....................................................... 38
Using Wi-Fi Direct® .......................................................... 42
Connecting to Bluetooth® Devices .................................... 44
Connecting to Your Computer via USB ............................. 46
Sharing Your Mobile Data Connection .............................. 48
Connecting to Virtual Private Networks ............................ 50
Phone Calls ............................................................ 53
Placing and Ending Calls ................................................. 53
Answering or Rejecting Calls ........................................... 53
Working With the Call Log ................................................ 54
Calling Your Contacts ...................................................... 56
Checking Voicemail ......................................................... 57
Using Options During a Call ............................................. 57
Managing Multi-party Calls ............................................... 58
5
Adjusting Your Call Settings ............................................. 59
People ..................................................................... 65
Checking Contact Details ................................................. 65
Adding a New Contact...................................................... 65
Setting Up Your Own Profile ............................................. 66
Importing, Exporting, and Sharing Contacts ...................... 66
Working With Favorite Contacts ....................................... 68
Working With Groups ....................................................... 68
Searching for a Contact .................................................... 70
Editing Contacts ............................................................... 70
Accounts ................................................................ 72
Adding or Removing Accounts .......................................... 72
Configuring Account Sync ................................................ 73
Email ....................................................................... 75
Set Up the First Email Account ......................................... 75
Checking Your Emails ...................................................... 75
Responding to an Email ................................................... 76
Writing and Sending an Email .......................................... 77
Adding Signature to Your Emails ...................................... 78
Adding and Editing Email Accounts .................................. 78
Changing General Email Settings ..................................... 79
GmailTM ................................................................... 80
Opening Your Gmail Inbox................................................ 80
Switching Accounts .......................................................... 80
Writing and Sending a Message ....................................... 81
6
Adding Signature to Your Gmail Messages ...................... 81
Replying to or Forwarding a Message .............................. 82
Working With Received Attachments ................................ 82
Searching for Messages .................................................. 83
Working With Labels ........................................................ 83
Changing Gmail Settings ................................................. 84
Messaging .............................................................. 85
Opening the Messaging Screen ....................................... 85
Sending a Text Message .................................................. 85
Sending a Multimedia Message ....................................... 86
Replying to a Message .................................................... 86
Forwarding a Message .................................................... 87
Viewing Details About a Message .................................... 87
Deleting Messages or Threads ........................................ 87
Changing Messaging Settings .......................................... 88
Calendar ................................................................. 89
Viewing Your Calendars and Events................................. 89
Creating an Event ............................................................ 90
Editing or Deleting an Event ............................................. 91
Changing Calendar Settings ............................................ 91
Google+™ ............................................................... 92
Getting Started With Google+ .......................................... 92
Chrome ................................................................... 94
Opening the Internet ........................................................ 94
Downloading Files ........................................................... 95
7
Changing Chrome Settings .............................................. 95
Maps ....................................................................... 96
Activating Location Services ............................................. 96
Getting Your Location ....................................................... 96
Searching for a Location .................................................. 97
Getting Directions to Your Destination .............................. 97
Searching for Local Places ............................................... 98
Google Now and Search ....................................... 99
Enabling Google Now ...................................................... 99
Searching With Text ......................................................... 99
Searching by Speaking .................................................. 100
Changing Search Settings .............................................. 100
Camera ................................................................. 101
Capturing a Photo .......................................................... 101
Recording a Video .......................................................... 102
Customizing Camcorder Settings ................................... 103
Gallery .................................................................. 105
Opening Gallery ............................................................. 105
Working With Albums ..................................................... 105
Working With Pictures .................................................... 106
Working With Videos ...................................................... 108
Music .................................................................... 109
Copying Music Files to Your Phone ................................ 109
Viewing Your Music Library ............................................ 110
8
Playing Music ................................................................. 111
Managing Playlists ......................................................... 112
Play Music ............................................................ 113
Playing Your Music ........................................................ 113
Managing Playlists ......................................................... 115
Video Player ......................................................... 116
Opening the Video Library ............................................. 116
Playing and Controlling Videos ...................................... 116
Managing Video Files .................................................... 116
Sound Recorder ................................................... 118
Recording a Voice Memo ............................................... 118
Playing a Voice Memo ................................................... 118
More Apps ............................................................ 120
File Manager ................................................................. 120
Calculator ...................................................................... 120
Clock ............................................................................. 120
Downloads..................................................................... 121
Flashlight ....................................................................... 122
NotePad ........................................................................ 122
Task Manager ................................................................ 122
YouTube ........................................................................ 123
Google Play™ Store ............................................ 124
Browsing and Searching for Apps .................................. 124
Downloading and Installing Apps.................................... 124
9
Creating a Google Wallet Account .................................. 125
Requesting a Refund for a Paid App ............................... 126
Managing Your Downloads ............................................. 126
Settings ................................................................ 128
General Settings ............................................................ 128
Wireless & Networks ...................................................... 131
Device ........................................................................... 133
Personal ........................................................................ 134
Accounts ........................................................................ 136
System........................................................................... 136
Troubleshooting ................................................... 138
For Your Safety .................................................... 143
General Safety ............................................................... 143
Distraction ...................................................................... 144
Product Handling ........................................................... 145
Electrical Safety ............................................................. 149
Radio Frequency Interference ........................................ 150
Explosive Environments ................................................. 151
Radio Frequency (RF) Exposure .................................... 152
FCC Compliance ............................................................ 154
Hearing Aid Compatibility (HAC) regulations for Mobile
phones ........................................................................... 155
CTIA Requirements ........................................................ 157
10
Getting Started
Getting to Know Your Phone
Menu key
Home key
Back key
Front camera
Proximity & light sensor
Indicator light
Earpiece
11
Flash
Speaker
Back camera
Headset jack
Power key
microSDHC card slot
micro-SIM card
slot
Volume key
Charger /micro-USB
Jack
12
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on your phone.
Press and hold to restart your phone, turn on
or off Airplane mode, enable silent mode,
vibration mode or sound, or to power off your
phone.
Press to switch your phone to Sleep mode.
Press to wake up your phone.
Home Key
Touch to return to the Home Screen from
any application or screen.
Touch and hold to use Google search.
Menu Key
Touch to get the options for the current
screen.
Touch and hold to see recently used
applications.
Back Key
Touch to go to the previous screen.
Volume Keys
Press or hold to turn the volume up or down.
13
Installing the micro-SIM Card
Switch off your phone before installing the micro-SIM card.
1. Use the tray eject tool to take out the card tray.
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card tray.
CAUTION: To avoid damage to the phone, please do not use
other kinds of SIM cards, and do not use a non-standard
micro-SIM card cut from a SIM card. You can get the
standard micro-SIM card from your service provider.
14
Installing the microSDHC Card
The microSDHC card (sold separately) can be installed and
removed while the phone is turned on. Unmount the microSDHC
card before removing it.
1. Use the tray eject tool to take out the card tray.
2. Hold the micro-SIM card with the cut corner oriented as
shown and slip it into the card tray.
NOTE: microSDHC logo is a trademark of SD-3C,
LLC.
15
Charging the Battery
When you get your new phone, you’ll need to charge the battery.
If the battery is low, there will be a pop-up message on the
screen. As you charge your phone, the screen will tell you the
exact battery level each time you wake up your phone.
WARNING! Use only ZTE approved chargers and cables. The
use of unapproved accessories could damage your phone or
cause the battery to explode.
CAUTION: Do not change the built-in rechargeable battery in
your phone by yourself. The battery can only be changed by ZTE
or ZTE authorised service provider.
1. Connect the adapter to the charging jack. Ensure that the
adapter is inserted with the correct orientation. Do not force
the connector into the charging jack.
2. Connect the charger to a standard AC wall outlet. If the phone
16
is on, you’ll see a charging icon, such as or , appear on
the status bar.
3. Disconnect the charger when the battery is fully charged.
NOTE: If the battery is extremely low, you may be unable to
power on the phone even when it is being charged. In this
case, try again after charging the phone for at least 10
minutes. Contact customer service if you still cannot power
on the phone after prolonged charging.
Extending the Battery Life
Active applications, screen brightness levels, Wi-Fi usage and
GPS functionality and other certain features can all drain your
battery. You can follow the helpful tips below to conserve your
battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn auto-sync, portable hotspot, Wi-Fi, and Bluetooth off
when not in use.
Disable the GPS function when not in use. Most applications
using this function will periodically query the GPS satellites
for your current location; each query drains your battery.
17
Restarting the Phone
If the screen freezes or takes too long to respond, try pressing
and holding the Power Key for about 8 seconds to restart the
phone.
Setting Up for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Settings – Personal – Backup &
Reset), you need to do some settings before using it.
Flick the language field to select the language and touch .
Then follow the prompts to download applications, select theme,
and other options.
Powering On/Off
Make sure the micro-SIM card is in your device and the battery is
charged.
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off and then touch OK.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
18
the phone to sleep mode) when not in use, and to turn the screen
back on and unlock it when you need it.
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE: To save battery power, the phone automatically turns off
the screen after a certain period of time when you leave it idle.
You will still be able to receive messages and calls while the
phone screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold any blank area of the screen to unlock it.
NOTE: If you have set a face unlock, unlock pattern, PIN or
password for your phone (see chapter Personalizing – Protecting
Your Phone With Screen Locks), you’ll need to look at the front
camera, draw the pattern or enter the PIN/password to unlock
your screen.
Using the Touch Screen
Your phone’s touch screen lets you control actions through a
variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
onscreen items such as application and settings icons, or
press onscreen buttons, simply touch them with your finger.
19
Touch and Hold
To open the available options for an item (for example, a
message or link in a Web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone
sideways.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s
applications, functions, and menus. You can customize your
home screen by adding application icons, shortcuts, folders,
widgets, and more. Your home screen extends beyond the initial
20
screen. Swipe the screen left or right to display additional
screens.
Extended Home Screens
Your home screen extends beyond the initial screen, providing
more space to add icons, widgets, and more. Simply swipe left or
right on the screen to see the extended Home Screens.
Status &
Notifications
Google Search
Chrome
Messaging
Shortcuts
People
Phone
All apps
21
Personalizing
Changing the System Language
1. Touch the Home Key > Menu Key > System settings >
Language & input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > Menu Key > System settings >
Date & time.
2. Uncheck Automatic date & time and Automatic time zone
if you want to set the date, time and time zone by yourself.
3. Set the date, time, time zone, and time/date format.
Changing Ringtone and Notification
Sound
You can customize the default ringtone for incoming calls and
default notification sound quickly.
1. Touch the Home Key > Menu Key > System settings >
Sound.
2. Touch Phone ringtone or Default notification sound.
3. Scroll through the ringtone list and select the ringtone you
want to use.
22
4. Touch OK.
TIP: See chapter People – Editing Contacts – Set a Ringtone for
a Contact for how to assign a special ringtone to an individual
contact.
Turning On/Off Touch Sounds
1. Touch the Home Key > Menu Key > System settings >
Sound.
2. Check or uncheck Touch sounds.
Adjusting Volumes
1. Touch the Home Key > Menu Key > System settings >
Sound > Volumes.
2. Adjust the volume for music, video, games, and other media,
the ringtone and notification volume, and the alarm volume.
3. Touch OK to save.
TIP: You can adjust the media volume when a media application
is in use by pressing the Volume Up/Down Key. If no media
application is active, press the Volume Up/Down Key to adjust
ringtone volume (or the earpiece volume during a call).
Switching to Silent Mode
You can set the phone to silent mode by using one of the
following methods.
23
Press and hold the Power Key and then touch to enable
silent mode, touch to enable silent mode with vibration,
or touch to disable silent mode.
Keep pressing the Volume Down Key when no media
application is active. When the icon appears in the status
bar, the phone is set to silent mode with vibration. When the
icon appears in the status bar, the phone is in silent
mode.
Touch the Home Key > Menu Key > System settings >
Sound > Silent mode, and touch Vibrate or Mute.
Applying New Wallpapers
You can set the wallpaper for the Home Screen or Lock Screen.
1. Touch the Home Key > Menu Key > Wallpaper.
2. Select a wallpaper source from Gallery, Live
Wallpapers, Photos or Wallpapers and choose the
image or animation you want to use as the wallpaper.
Some cropping may be needed for Gallery images.
3. For Gallery images, touch Done (Crop photo) or OK (Crop
picture). For Photos images, touch SETWALLPAPER. For
Live wallpapers or Wallpapers, touch Set wallpaper.
Changing Screen Brightness
1. Touch the Home Key > Menu Key > System settings >
Display > Brightness.
24
2. Touch AUTO to make the phone adjust the screen brightness
automatically, or adjust the brightness manually.
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When
enabled, you need to touch and hold the screen, look at the front
camera，draw a pattern or enter a numeric PIN or password to
unlock the phone’s screen and keys.
1. Touch the Home Key > Menu Key > System settings >
Security.
2. Touch Screen lock.
3. Touch Long press, Face Unlock, Pattern, PIN or
Password.
Touch Long press to enable screen lock and allow
unlock with a ‘touch and hold’ gesture. You can unlock the
screen by touching and holding any blank area of the
screen to unlock it.
Touch Face Unlock to let the phone capture your face.
You can unlock the screen by looking at the front camera.
You also need to set a pattern or PIN in case the phone
cannot recognize your face.
If you touch Pattern, you’re guided to create a pattern you
must draw to unlock the screen. The first time you do this,
a short tutorial about creating an unlock pattern appears.
Then you’re prompted to draw and redraw your own
25
pattern.
If you touch PIN or Password, you’re prompted to set a
numeric PIN or a password you must enter to unlock your
screen.
IMPORTANT: Screen lock options are listed in the approximate
order of the strength of their security, starting with None and
Long press, which provide no security. A pattern provides
minimal security, although it can be more convenient than the
stronger options.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google Accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or password
each time you power on your phone.
WARNING! Encryption is irreversible. The only way to revert to
an unencrypted phone is to perform a factory data reset, which
erases all your data.
Encryption provides additional protection in case your phone is
stolen, and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
1. Set a lock screen PIN or password.
2. Charge the battery.
3. Keep the phone connected to the charger.
26
4. Schedule an hour or more for the encryption process: you
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
5. Touch the Home Key > Menu Key > System settings >
Security > Encrypt phone.
6. Read the information about encryption carefully.
The Encrypt phone button is dimmed if your battery's not
charged or your phone's not plugged in.
If you change your mind about encrypting your phone, touch
the Back Key.
WARNING! If you interrupt the encryption process, you will
lose data.
7. Touch Encrypt phone.
8. Enter your lock screen PIN or password and touch Next.
9. Touch Encrypt phone again.
The encryption process starts and displays its progress.
Encryption can take an hour or more, during which time your
phone may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently, you must enter your PIN or password each time
you power on your phone, to decrypt it.
27
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and
service status icons on the right side. Below are some of the
icons you may see.
GPRS connected
No signal
EDGE connected
Signal strength
3G connected
Mobile data in use
HSPA connected
No micro-SIM card installed
4G connected
Alarm set
Flight mode
Ringer off
Battery dead
Vibrate mode
Battery low
Bluetooth on
/
Battery charging
Connected to a Wi-Fi
network
Battery partially drained
Wi-Fi in use
Battery full
Wired headset connected
28
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
icons on the left. Below are some of the icons you may see.
New SMS
Upcoming event
New MMS
New Wi-Fi network detected
New Email
New Gmail message
Problem with
SMS/MMS delivery
Downloading data
Missed call
Sending data
Call in progress
USB tethering is on
USB connected
Portable Wi-Fi hotspot is on
/
Song is playing
GPS on
Open/Close the Notification Panel
Notifications report the arrival of new message, calendar
events, and alarms, as well as ongoing events, such as when
you've configured your phone as a Wi-Fi hotspot. You can open
the notification panel to view the details of notifications.
29
To open the notification panel, swipe your finger down from
the top of the screen.
To close the notification panel, swipe your finger up from the
bottom of the screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications.
To respond to a notification, just touch it.
To remove a notification, swipe it left or right.
To remove all notifications, touch in the top.
Touch and hold a notification and then touch App info to
identify the application that created it. To turn off notifications
from that application if needed, uncheck Show notifications
in the App info screen.
NOTE: If you turn off notifications for an app, you may miss its
important alerts and updates. The notifications of some apps
cannot be turned off.
Use Quick Settings
The Quick Settings in the notification panel make it convenient to
view or change the most common settings for your phone.
Open the notification panel and touch to find the following
Quick Settings.
OWNER: Touch to view owner’s information.
BRIGHTNESS: Touch to turn on or off automatic adjustment
30
of the screen brightness.
SETTINGS: Touch to open the Settings menu. See Settings
for more information.
WI-FI: Touch to turn on or off the Wi-Fi feature.
DATA: Touch to turn on or off data access over mobile
networks.
AUTO ROTATE: Touch to turn on or off the Auto-rotate
feature.
CHARGED: Display the current battery status. Touch to open
the Battery menu in Settings.
AIRPLANE MODE: Touch to turn on or off the aeroplane
mode.
BLUETOOTH: Touch to turn on or off Bluetooth.
LOCATION: Touch to turn on or off location services.
SOUND: Touch to switch between vibration and sound.
SYNC: Touch to turn on or off account synchronization.
WIFI HOTSPOT: Touch to turn on or off Wi-Fi hotspot.
FLASHLIGHT: Touch to turn on or off flashlight.
Managing Shortcuts and Widgets
Add Shortcuts and Widgets
1. Touch the Home Key > .
2. Touch APPS or WIDGETS to view the available shortcuts
31
and widgets.
3. Touch and hold a shortcut or widget and drag it to the Home
Screen.
Move Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the Home Screen.
2. Drag it to the place you need.
Remove Shortcuts or Widgets
1. Touch and hold a shortcut or widget on the Home Screen.
2. Drag it to to remove it.
Adjust Widget Size
1. Touch and hold a widget on the Home Screen and then
release it.
2. An outline appears around the widget. Drag the outline to
resize the widget.
NOTE: Not all widgets can be resized.
Organizing With Folders
You can create folders on the Home Screen and add several
shortcuts in a folder.
Create a Folder
1. Touch and hold a shortcut on the home screen.
32
2. Drag the shortcut icon over another and release your finger. A
new folder is created and both shortcuts are added into the
folder.
3. If needed, drag more shortcuts and drop them into the folder.
Rename a Folder
1. Touch a folder to open it.
2. Touch the folder name field and enter a new name.
Add Shortcuts to a Folder
1. Touch and hold a shortcut and then drag it onto a folder icon.
2. Release the shortcut and it will be added into the folder.
Remove Shortcuts From a Folder
1. Touch a folder to open it.
2. Touch and hold the shortcut you want to remove and then
drag it to the Home Screen.
3. Release the shortcut and it will be removed from the folder.
Rearranging the Favorites Tray
The Home Screen includes a customizable favorites tray at
the bottom visible from all Home Screens. You can drag apps,
shortcuts, folders, and other priority items in or out of the
favorites tray for instant access from any Home Screen.
33
To remove items from the favorites tray:
Touch and hold an item in the favorites tray and drag it out of the
tray.
To add items to the favorites tray:
Touch and hold an item on the Home Screen and drag it into the
favorites tray.
If the favorites tray is full, you need to remove an item in the tray.
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. You can touch the Back Key to hide the
onscreen keyboard.
Google Keyboard
The Google Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the keyboard
will change from portrait to landscape. The landscape keyboard
is not supported in all applications.
34
Touch the alphabetic keys to enter letters.
Touch to use uppercase or lowercase. This key also
changes to indicate the current case you are using: for
lowercase, for uppercase, and when locked in
uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more.
Touch to start a new line.
Touch to enter a comma.
Touch and hold and then release it to change the input
languages or set up the Google keyboard.
Input Settings
Choose input settings by touching the Menu Key > System
settings > Language & input from the Home Screen.
35
In the KEYBOARD & INPUT METHODS section, you can set
the default input method and choose the settings for input
methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut or copy: Select the text you want to manipulate. Then
touch the Cut or Copy button to cut or copy the text
to the clipboard.
Replace text with the clipboard text: Select the text you
want to replace. Then touch paste or PASTE.
36
Insert text from the clipboard: Move cursor to the insertion
point and then touch and hold the tab below the cursor.
Release the finger and touch PASTE.
Opening and Switching apps
Open an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Switch Between Recently Opened Apps
1. Touch and hold the Menu Key.
A list of the names and thumbnails of apps you’ve used
recently opens. If you’ve been using more apps recently than
can fit on the screen, you can scroll the list up and down.
2. Touch a thumbnail to open that app.
NOTE: You can swipe a thumbnail sideways to remove it from
the list.
37
Connecting to Networks and
Devices
Connecting to Mobile Networks
Select Network Operator
1. Touch the Home Key > Menu Key > System settings >
Mobile networks > Network operators.
2. Touch Search networks to search for all available networks.
3. Touch a network in the network list to register manually. You
can also touch Choose automatically to select preferred
network automatically.
Control Mobile Data Use
To enable or disable data access:
1. Touch the Home Key > Menu Key > System settings >
Mobile networks.
2. Check Data enabled to enable data access over the mobile
network. Clear the check box to disable data access.
To get data services when roaming:
1. Touch the Home Key > Menu Key > System settings >
Mobile networks.
2. Check Data roaming.
IMPORTANT: Data roaming may incur significant roaming
charges.
38
Use 2G Network Only to Save Power
1. Touch the Home Key > Menu Key > System settings >
Mobile networks.
2. Check Use only 2G networks to save battery power.
Set Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > Menu Key > System settings >
Mobile networks > Access Point Names.
2. Touch .
3. Touch each item to enter the information you get from your
service provider.
4. Touch the Menu Key > Save to complete.
TIP: To set the APN to default settings, touch the Menu Key >
Reset to default.
Connecting to Wi-Fi®
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
39
Turn Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
3. Touch a network name to connect to it.
4. If the network is secured, enter the password and touch
Connect.
NOTE: Your phone automatically connects to previously used
Wi-Fi networks when they are in range.
Get Notified of Open Networks
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Menu Key > Advanced.
1. Check Network notification.
When Wi-Fi is on, you receive notifications in the Status bar
when your phone detects an open Wi-Fi network. Uncheck
the option to turn off notifications.
Add a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
40
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch +.
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch Save.
Forget a Wi-Fi Network
You can make your phone forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the phone
to connect to it automatically or if it is a network that you no
longer use.
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Wi-Fi network name and then touch Forget.
Connect to a WPS Network
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to
add your phone to access points which support WPS.
You can use one of the following two methods to connect your
phone to a wireless network using WPS.
Method one: WPS button
41
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch .
4. Press the WPS button on the access point and the access
point will recognize your phone and add it to the network.
Method two: PIN number
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Menu Key > WPS Pin Entry.
4. The WPS Pin number displays on the screen. Enter the Pin
number into the access point’s setup page.
After entering the Pin number, your phone automatically finds the
access point and configures the connection.
NOTE: For detailed information about the WPS feature of the
access point, please refer to its user documents.
Adjust Advanced Wi-Fi Settings
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi.
2. Touch the Menu Key > Advanced to adjust the following
settings.
Network notification: Get notifications in the status bar
when Wi-Fi is on and an open network is available.
Keep Wi-Fi on during sleep: Set whether to keep Wi-Fi
42
on in sleep mode.
Scanning always available: Allow Google location
services and other apps to scan for networks even when
Wi-Fi is turned off.
Avoid no Internet connections: Only use Wi-Fi network
when it has Internet connection.
Wi-Fi frequency band: Set the Wi-Fi frequency band.
Install certificates: Install certificates needed for
connecting to certain Wi-Fi networks.
Wi-Fi optimization: Minimize battery usage when Wi-Fi
is on.
MAC address: Check the MAC address.
IP address: Check the phone’s IP address.
DLNA IP SETTINGS: Check to use DLNA when no
DHCP server is available.
Using Wi-Fi Direct®
Wi-Fi Direct allows Wi-Fi devices to connect to each other
without the need for wireless access points (hotspots).
NOTE: Activating this feature will disconnect your current Wi-Fi
network connection.
Connect to Another Device via Wi-Fi Direct
1. Touch the Home Key > Menu Key > System settings >
Wi-Fi and turn Wi-Fi on.
43
2. Touch the Menu Key > Wi-Fi Direct. Your phone will search
for other devices enabled with Wi-Fi Direct connections.
3. Touch a device name below PEER DEVICES to connect with
it.
The other device will receive a connection prompt and need
to accept the request. Both devices may need to enter a
common PIN.
4. Once connected the device is displayed as “Connected” in
the PEER DEVICES list.
Send Data via Wi-Fi
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Wi-Fi. The method may vary
by application and data type.
3. Touch a device the phone has connected with or wait for it to
search for new devices and touch one of them.
Receive Data via Wi-Fi
When an attempt to transfer data via Wi-Fi is received, you can
see a notification in the status bar. Touch Accept to start
receiving the data.
Received files are stored automatically in a dedicated folder
(WiFiShare, for instance). You can access them with the File
Manager app.
44
Connecting to Bluetooth® Devices
Bluetooth® is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can exchange
information wirelessly within a distance of about 10 meters. The
Bluetooth devices must be paired before the communication is
performed.
Turn Bluetooth On/Off
1. Touch the Home Key > Menu Key > System settings >
Bluetooth.
2. Slide the Bluetooth switch to the ON or OFF position.
When Bluetooth is on, the icon will appear in the status bar.
Make Your Phone Visible
In order to work with other phones or devices that have
Bluetooth, you need to make your phone ‘visible’ to them.
1. Touch the Home Key > Menu Key > System settings >
Bluetooth.
2. Slide the Bluetooth switch to the ON position.
3. Touch your device name on the top of the screen to make
your phone visible or invisible.
NOTE: Touch the Menu Key > Visibility timeout to set the
Bluetooth visibility timeout of your phone.
Change the Device Name
1. Touch the Home Key > Menu Key > System settings >
45
Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
3. Touch the Menu Key > Rename phone.
4. Edit the name and touch Rename.
Pair With Another Bluetooth Device
1. Touch the Home Key > Menu Key > System settings >
Bluetooth.
2. Slide the Bluetooth switch to the ON position if Bluetooth is
off.
Your phone automatically scans for and displays the IDs of all
available Bluetooth devices in range. You could touch
SEARCH FOR DEVICES if you want to scan again.
3. Touch the device you want to pair with.
4. Confirm that the Bluetooth passkeys are the same between
the two devices and touch Pair. Alternately, enter a Bluetooth
passkey and touch Pair.
Pairing is successfully completed when the other device
accepts the connection or the same passkey is entered.
NOTE: The Bluetooth passkey may be fixed for certain devices,
such as headsets and handsfree car kit. You can try entering
0000 or 1234 (the most common passkeys), or refer to the
documents for that device.
46
Send Data via Bluetooth
1. Open the appropriate application and select the file or item
you want to share.
2. Select the option for sharing via Bluetooth. The method may
vary by application and data type.
3. Touch a Bluetooth device the phone has paired with or wait
for it to search for new devices and touch one of them.
Receive Data via Bluetooth
1. Turn Bluetooth on before trying to receive data via Bluetooth.
NOTE: If the phone has not been paired with the sending
device, you may need to check your phone’s device name in
the Bluetooth menu in Settings to keep the phone
detectable through Bluetooth.
2. When a pop-up box appears, indicating an incoming file via
Bluetooth, touch Accept to start receiving the data.
Depending on your storage setting, received files are stored
automatically in a dedicated folder (Bluetooth, for instance) in the
phone storage. You can access them with the File Manager app.
Received contacts (vCard files) are automatically imported to
your contact list.
Connecting to Your Computer via USB
You can connect your phone to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your
phone stores these files in internal storage or on a removable
47
microSDHC card.
If you are using USB tethering, you must turn that off before you
can use USB to transfer files between your phone and computer.
Connect Your Phone to a Computer via USB
1. Connect your phone to the PC with a USB cable.
2. Open the Notification panel and touch (Connected as...).
3. Choose one of the following options:
Charge only: Stop all USB functions. Lets you charge
your phone via USB.
Install driver: Select this option when features (Connect
to PC software, Media device) enabled for the first time, or
when they’re unavailable.
Media device (MTP): Lets you use phone as USB
storage and transfer files when it is connected to
Windows® PC or Mac®.
Camera (PTP): Lets you use camera software to transfer
pictures from phone to PC.
Connect With Windows Media® Player
You can sync music on your phone and the computer installed
with Windows Media Player.
1. Connect the phone with your computer via USB and choose
Media device (MTP).
2. Open Windows Media Player and synchronize music files
48
Disconnect Your Phone From the Computer
To disconnect the phone from the computer, simply unplug the
USB cable when you’re finished.
Remove the microSDHC Card From Your
Phone
If you need to remove the microSDHC card while the phone is on,
you should unmount it first.
1. Touch the Home Key > Menu Key > System settings >
Storage.
2. Scroll down and touch Unmount SD card > OK.
3. You can safely remove the microSDHC card from the phone.
Sharing Your Mobile Data Connection
You can share your phone’s data capabilities through tethering or
by activating the mobile hotspot feature to create a portable Wi-Fi
hotspot.
Share Your Mobile Data Connection via
Bluetooth
If your computer can obtain an Internet connection via Bluetooth,
you can configure your phone to share its mobile data connection
with your computer.
1. Pair your phone with your computer via Bluetooth.
2. Configure your computer to obtain its network connection via
49
Bluetooth. For more information, please see your computer's
documentation.
3. Touch the Home Key > Menu Key > System settings >
More.
4. Check Bluetooth tethering. Your computer is now sharing
your phone's data connection.
5. To stop sharing your data connection, uncheck Bluetooth
tethering.
Share Your Mobile Data Connection as a
Wi-Fi Hotspot
You can share your phone’s data connection with other devices
by turning your phone into a portable Wi-Fi hotspot. You must
have qualifying service on your account in order to use the
Mobile HotSpot feature.
NOTE: When the portable Wi-Fi hotspot feature is enabled, you
cannot use your phone’s applications to access the Internet via
its Wi-Fi connection. You still remain connected to the Internet
via your mobile data network.
1. Touch the Home Key > Menu Key > System settings >
More > Mobile Hot Spot.
2. Check Mobile HotSpot.
After a moment, the phone starts broadcasting its Wi-Fi
network name (SSID).
3. On another device, locate your phone via Wi-Fi and connect
with it to start using the phone’s mobile data.
NOTE: To stop sharing your data connection, uncheck Mobile
50
HotSpot.
Rename or Secure Your Wi-Fi Hotspot
You can change the name of your phone's Wi-Fi network name
(SSID) and secure your portable Wi-Fi hotspot.
1. Touch the Home Key > Menu Key > System settings >
More > Mobile Hot Spot > Mobile HotSpot settings >
Configure Mobile HotSpot.
2. Set your name and security options as follows:
Network SSID: Enter or edit a network SSID (name) that
other devices see when scanning for Wi-Fi networks.
Channel: Select the channel of the Wi-Fi hotspot.
Security: Choose a security option: Open (not
recommended), WPA2 PSK (other users can access your
mobile hotspot only if they enter the correct password).
When you select WPA2 PSK, touch the Password field to
edit the security password.
3. Touch Save to save your settings.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
51
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Add a VPN
1. Touch the Home Key > Menu Key > System settings >
More > VPN.
2. Touch + and fill in the information provided by your network
administrator.
3. Touch Save.
The VPN is added to the list on the VPN screen.
Connect to a VPN
1. Touch the Home Key > Menu Key > System settings >
More > VPN.
2. Touch the VPN that you want to connect to.
3. When prompted, enter any requested credentials, and then
touch Connect.
When you are connected, the VPN connected icon appears in
the Status bar.
Modify a VPN
1. Touch the Home Key > Menu Key > System settings >
More > VPN.
2. Touch and hold the VPN that you want to modify.
3. Touch Edit profile and edit the VPN settings you want.
4. Touch Save.
52
Delete a VPN
1. Touch the Home Key > Menu Key > System settings >
More > VPN.
2. Touch and hold the VPN that you want to delete.
3. Touch Delete profile.
53
Phone Calls
You can place calls from the Phone app, the People app, or other
apps or widgets that display contact information. Wherever you
see a phone number, you can usually touch it to dial.
Placing and Ending Calls
Place a Call by Dialing
1. Touch the Home Key > > .
2. In the Phone apps, enter the phone number with the
on-screen keypad. Touch to delete incorrect digits.
NOTE: As you enter digits, your phone searches for contacts
that match. If you see the number you want to dial, just touch
it.
3. Touch below the keypad to place the call.
TIP: To make an international call, touch and hold the 0 key to
enter the plus (+) symbol. Next, enter the country code, followed
by the city/area code and then the phone number.
End a Call
During a call, touch on the screen.
Answering or Rejecting Calls
When you receive a phone call, the Incoming Call screen opens,
54
displaying the Caller ID or the information about the caller that
you've entered in People. You can answer or reject the call, or
reject it with a text message.
Answer a Call
When you receive a phone call, drag over to answer
the call.
NOTE: To silence the ringer before answering the call, press the
Volume Key up or down.
Reject a Call
When you receive a phone call, drag over to reject
the call.
You can also drag over to reject the call and send a
preset text message to the caller.
TIP: To edit the text response from within the Phone app, touch
> Settings > Quick responses.
Working With the Call Log
The Call Log is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your Contacts.
To open the call log, touch the Call log tab in the Phone
app.
55
Place a Call From the Call Log
1. Open the call log.
2. Touch a number for more information about the call, or touch
beside it to call back.
NOTE: You can touch MISSED/ OUTGOING / INCOMING to
switch to each call log type you want to view.
Add a Call Log Number as a Contact
1. Open the call log.
2. Touch a number to view more call information.
3. Touch .
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch CREATE NEW
CONTACT.
Take Other Actions on a Call Log Entry
1. Open the call log.
2. Touch a number to view more call information. While viewing
the call details, you can:
Touch the number to call it.
Touch the Menu Key > Edit number before call to edit
the number in the dialer before calling it.
Touch to send a message.
If the number belongs to a contact you have, touch
to view contact details.
56
Delete the Call Log
1. Open the call log.
2. Touch the Menu Key > Clear call log.
3. Touch the call log items you want to delete and then touch
> OK to delete the call logs.
NOTE: You can also touch a number in the call log screen, and
touch the Menu Key > Remove from call log to delete the call
log of the number.
Calling Your Contacts
Call a Contact
1. Touch the Home Key > and then touch the all contacts
tab .
2. Flick the screen up or down to view all your contacts with
phone numbers.
3. Touch a contact or number to call it.
Call a Favorite Contact
1. Touch the Home Key > .
2. Your favorite contacts and frequently called contacts or
numbers are listed on the screen. Touch a contact or number
to call it.
57
Checking Voicemail
If you have set the phone to divert certain calls to the voicemail,
callers can leave voicemail messages when they cannot reach
you. Here’s how to check the messages they left.
1. Touch the Home Key > > .
2. Touch and hold in the dialler. If prompted, enter your
voicemail password.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE: To set your voicemail service, touch > Settings >
Voicemail in the dialler and touch the voicemail settings you
want to change. For detailed information, please contact the
service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to switch to the dialer, for example to enter a
code.
Touch to record the phone conversation.
Touch to turn on or off the speaker.
Touch to hold or unhold the current call.
Touch to make another call separately from the first call,
58
which is put on hold.
Touch to mute or unmute your microphone.
Touch to go to contacts.
Touch to merge the separate calls into a single
conference call.
Touch to put the caller you are speaking to on hold, and
switch to the other call that has been put on hold
Touch to end the current call.
WARNING! Because of higher volume levels, do not place the
phone near your ear during speakerphone use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE: The call waiting and three-way call features need network
support and may result in additional charges. Please contact the
service provider for more information.
Switch Between Current Calls
When you’re on a call, your phone screen informs you that
another call is coming in and displays the caller ID.
To respond to an incoming call while you’re on a call:
Drag over to answer the call. (This puts the first caller
on hold and answers the second call.)
59
To switch between two calls:
Touch on the screen.
Set Up a Conference Call
With this feature, you can talk to two people at the same time.
1. On the dialer screen, enter a number and touch .
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold and
dials the second number.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Set Voicemail
1. Touch the Home Key > > > Settings > Voicemail.
Touch service to select voicemail service provider. Your
carrier is the default.
Touch Setup > Voicemail number to edit the voicemail
number if necessary.
Touch Sound to set the notification sound for new
60
voicemails.
Check Vibrate to let the phone vibrate when receiving
new voicemails.
Edit Quick Response to Rejected Callers
1. Touch the Home Key > > > Settings > Quick
responses.
2. Touch the text message to edit it.
Use Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of phone numbers.
1. Touch the Home Key > > > Settings > Fixed
Dialing Numbers.
2. The following options are available:
Enable FDN: Input the PIN2 code to enable the FDN
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
NOTE: The PIN2 code is provided by your carrier. Entering an
incorrect PIN2 code more times than allowed can get your
micro-SIM card locked. Contact the service provider for
assistance.
Set TTY Mode
Select a TTY mode for your phone to work with a teletypewriter,
61
or turn TTY off.
1. Touch the Home Key > > > Settings > TTY mode.
2. Touch TTY Off to turn the feature off, or touch TTY Full, TTY
HCO, or TTY VCO to select a mode for your phone to work
with the teletypewriter. Consult your teletypewriter
manufacturer’s manual if necessary.
Set DTMF Tones
You can set the length of Dual-tone multi-frequency (DTMF)
signal tones.
1. Touch the Home Key > > > Settings > DTMF
tones.
2. Touch Normal or Long.
Use Wi-Fi Calling
With Wi-Fi Calling you can send and receive calls and messages
over a Wi-Fi network using your existing the service provider
service.
Touch the Home Key > > > Settings > Wi-Fi Calling >
Help or contact the service provider for details.
Set Speed Dials
You can touch and hold the 1 ~ 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
62
1. Touch the Home Key > > > Settings > Speed
dial.
2. Touch a speed dial key.
3. Enter a phone number or select one from the contact list.
4. Touch OK.
Show ended operation tips
Touch to show operation tips when the call ended.
1. Touch the Home Key > > > Settings.
2. Check or uncheck Call ended operation tips.
Bar Certain Calls
Call barring feature allows you to forbid certain types of calls from
your phone.
1. Touch the Home Key > > > Settings > Call
Barring Settings.
2. Set the restriction of specific types of calls from your phone.
Forward Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another phone number.
1. Touch the Home Key > > > Settings > Call
forwarding.
2. Touch an available option ( Always forward, Forward when
busy, Forward when unanswered, or Forward when
63
unreachable) to enable it.
Other Options
1. Touch the Home Key > > > Settings > Additional
settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE: Please contact the service provider to check whether the
caller ID and call waiting features are available.
Internet Call Settings
To add an Internet calling account:
1. Touch the Home Key > > > Settings > Accounts.
2. Touch ADD ACCOUNT.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch SAVE.
To configure which calls use Internet calling:
You can configure your phone to place all calls using Internet
calling (when you’re connected to a Wi-Fi network), just calls to
Internet calling addresses, or to ask each time you place a call.
1. Touch the Home Key > > > Settings.
2. Touch Use Internet calling.
3. Touch the Internet calling option you want.
64
To configure your phone to receive Internet calls:
By default, your phone is configured to make Internet calls, but
not to ensure that you will receive them. But you can configure
your phone to listen for Internet calls made to an Internet calling
account you added to your phone.
1. Touch the Home Key > > > Settings > Accounts.
2. Check Receive incoming calls. Checking this setting will
reduce your battery life between charges.
65
People
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > . From there,
you can touch the tabs on the top of the screen to quickly switch
to the contact groups or favorite contacts .
Checking Contact Details
1. Touch the Home Key > and touch the all contacts tab
to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
TIP: If you have a lot of contacts stored, you'll see a slider when
you touch the right side of the screen. To go directly to a letter,
touch and hold the slider and drag it to a letter.
Adding a New Contact
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch to add a new contact.
3. Touch the account field near the top of the screen to choose
where to save the contact. If a sync account is selected, the
66
contacts will be synced automatically with your account
online.
4. Enter the contact name, phone numbers, email addresses,
and other information.
5. Touch DONE to save the contact.
Setting Up Your Own Profile
You can create your own name card in your phone.
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch Set up my profile or your name, whichever is at the
top of the contact list.
3. Edit your profile information and touch DONE.
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your micro-SIM or
microSDHC card. This is especially useful when you need to
transfer contacts between different devices. You can also quickly
share your contacts using Bluetooth, Email or Messaging, etc.
Export Contacts to the micro-SIM Card
1. Touch the Home Key > .
67
2. Touch the Menu Key > Import/Export > Export to SIM card.
Import Contacts From Storage
1. Touch the Home Key > .
2. Touch the Menu Key > Import/Export > Import from
storage.
3. Select an account in which to save the contacts.
4. Touch to select the vCard file you need and then touch OK.
Export Contacts to Storage
1. Touch the Home Key > .
2. Touch the Menu Key > Import/Export > Export to storage.
3. The phone will prompt you with the name of the vCard file.
Touch OK to create the file on the microSDHC card.
Share Contacts
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch the Menu Key > Import/Export > Share visible
contacts.
3. Choose to share the contacts via Bluetooth, Drive, Email,
Gmail, Messaging or Wi-Fi Direct.
68
Working With Favorite Contacts
In the favorite contacts tab, you can find your favorite
contacts and frequently contacted contacts.
Add a Contact to Favourites
You can add the contacts used frequently to Favorites, so you
can find them quickly.
1. Touch the Home Key > and touch the all contacts tab
.
2. Touch a contact and then touch next to the contact
name.
Remove a Contact From Favorites
1. Touch the Home Key > .
2. Touch a favorite contact and then touch next to the
contact name.
Working With Groups
View Your Contact Groups
1. Touch the Home Key > and touch the contact groups
tab .
2. Scroll through the list to view the preset groups and any
69
groups you have created.
3. Touch a group to view its members.
Set Up a New Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch to create a new group.
3. Touch the account field on the top of the screen to choose an
account for the group.
4. Enter a group name.
5. Touch Add member and select the contacts you wish to be
the group members.
6. Touch .
7. If necessary, touch Default below RINGTONE or VIBRTE
PATTERN to set a special ringtone or vibrate pattern for
incoming calls or messages from the group members.
8. Touch DONE.
Delete a Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch a group and then touch > Delete.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
70
Edit a Group
1. Touch the Home Key > and touch the contact groups
tab .
2. Touch a group.
3. Touch > Rename group to edit the group name. Or touch
Multi-Select to select the members you don’t need and
remove them.
Searching for a Contact
1. Touch the Home Key > .
2. Touch the search box at the top of the screen.
3. Input the contact name you want to search for. The contacts
matched will be listed.
Editing Contacts
Edit Contact Details
1. Touch the Home Key > .
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch DONE.
Set a Ringtone for a Contact
Assign a special ringtone to a contact, so you know who is
71
calling when you hear the ringtone.
1. Touch the Home Key > .
2. Touch a contact you want to set a ringtone for and then touch
> Set ringtone.
NOTE: The contact must be saved on the phone, not the
micro-SIM card.
3. Select a ringtone you like and touch OK.
Delete a Contact
1. Touch the Home Key > .
2. Touch a contact you want to delete and touch > Delete.
3. Touch OK to confirm.
72
Accounts
Adding or Removing Accounts
You can add multiple Google Accounts and Microsoft Exchange
ActiveSync® accounts. You may also add other kinds of
accounts depending on the apps installed on your phone.
Add an Account
1. From the Home Screen, touch the Menu Key > System
settings > Add account.
2. Touch the type of account you want to add.
3. Follow the onscreen steps to enter the information about the
account. Most accounts require a username and password,
but the details may vary. You may also need to obtain some
information from IT support or your system administrator.
When the account is successfully added, it is displayed in the
ACCOUNTS list.
Remove an Account
Removing an account will delete it and all information
associated with it from your phone, such as emails and
contacts.
1. From the Home Screen, touch the Menu Key > System
settings.
73
2. Touch the account (such as Google).
3. Select an exact account and touch the Menu Key >
Remove account > Remove account.
Configuring Account Sync
Configure Auto Sync Setting
1. Touch the Home Key > Menu Key > System settings >
Data usage.
2. Touch the Menu Key and check or uncheck Auto-sync
data.
When automatic sync is turned on, changes you make
to information on your phone or on the web are
automatically synced with each other.
When auto sync is turned off, you need to sync manually
to collect emails, updates, or other recent information.
Sync Manually
1. Touch the Home Key > Menu Key > System settings.
2. Touch the type and then the account you want to sync in the
ACCOUNTS section.
3. Touch the Menu Key > Sync now. Or touch the types of
information you want to sync.
74
Change an Account’s Sync Settings
1. Touch the Home Key > Menu Key > System settings.
2. Touch the type and then the account in the ACCOUNTS
section. The Sync screen appears, showing a list of
information the account can sync.
3. When auto-sync is turned on, check or uncheck items as
you need. Checked types of information on the phone and
the web will be kept in auto-sync.
75
Email
Touch in the Home Screen and select Email. Use it to
receive and send emails from your webmail or other accounts,
using POP3 or IMAP, or access your Exchange ActiveSync
account for your corporate email needs.
Set Up the First Email Account
1. When you open Email for the first time, enter your email
address and password.
2. Touch Next to let the phone retrieve the network parameters
automatically.
NOTE: You can also enter these details manually by touching
Manual setup or when automatic setup fails.
3. Follow the on-screen instructions to finish the setup.
Your phone will show the inbox of the email account and start to
download email messages.
Checking Your Emails
Your phone can automatically check for new emails at the interval
you set when setting up the account.
You can also check new emails manually by touching in any
of the email account’s boxes.
76
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Reply to or Forward an Email
1. Open the email you want to reply to or forward from Inbox.
2. Touch the icons at the bottom to reply or forward the email.
Touch to reply to the sender.
Touch to reply to the sender and all recipients of the
original email.
Touch to forward the email to someone else
3. Type your email. If forwarding, enter the email address(es)
your want to include.
4. Touch .
Mark an Email as Unread
You can return a read email to the unread state—for example,
to remind yourself to read it again later. You can also mark a
batch of emails as unread.
While reading a message, touch the Menu Key > Mark as
unread.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
77
Delete an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch > OK.
While in a message list (for instance, the inbox), touch the
checkboxes in front of the messages and then touch >
OK.
Writing and Sending an Email
1. Open your email Inbox and touch .
NOTE: If you have more than one email account added on
the phone, touch the sender line to select the account you
want to use for sending the message.
2. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma. You can also touch
to select recipients from your contacts.
3. Enter the email subject and compose the email text.
4. Touch the Menu Key > Attach file to add audio files,
images, videos and other types of files as attachments.
5. Touch at the top right of the screen to send the
message.
78
Adding Signature to Your Emails
You can set a few lines of plain text as signature for every
outgoing email message from an account, such as your name
and contact information.
1. Open the Email app.
2. Touch the Menu Key > Settings and select the account you
want to add signature to.
3. Touch Signature and enter the text.
4. Touch OK.
Adding and Editing Email Accounts
Add an Email Account
After setting up your first email account (see Email – Set Up the
First Email Account), you can add more email accounts and
manage them separately.
1. Open Email to get the Inbox screen.
2. Touch the Menu Key > Settings and touch ADD
ACCOUNT at the top right of the screen.
3. Set up the account as you would with the first one.
Edit an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
79
and details about the servers the account uses to send and
receive mails.
1. Open Email to get the Inbox screen.
2. Touch the Menu Key > Settings and touch the account
whose settings you want to change.
3. Make the changes you want and touch the Back Key when
you’re finished.
Remove an Email Account
1. Open Email to get the Inbox screen.
2. Touch the Menu Key > Settings and touch the account you
want to remove.
3. Touch Remove account > OK.
Changing General Email Settings
General settings apply to all email accounts you add.
1. Open Email to get the Inbox screen.
2. Touch the Menu Key > Settings > General.
3. Make the changes you want and touch the Back Key when
you’re finished.
80
GmailTM
After you sign in to your Google Account on the phone, you can
send and retrieve Gmail messages with the Gmail app.
NOTE: This feature may not be available in certain regions or
with certain service providers.
Opening Your Gmail Inbox
Touch in the Home Screen and select Gmail. The Inbox
screen appears.
If you haven’t signed in, you will be prompted to do so or create
a new account.
Touch the Menu Key > Refresh to refresh your Inbox and
download new messages.
Switching Accounts
Gmail displays conversations, messages, and settings from
one Google Account at a time. If you have signed in to more
than one Google Account on your phone, you can switch
accounts and view information in each account.
1. From your Inbox, touch at the top of the screen.
2. Touch the account you want to see. The account’s Inbox will
open.
81
Writing and Sending a Message
1. Open your Gmail Inbox and switch to the account you want
to use for sending the message.
2. Touch .
3. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
4. Enter the email subject and compose the email text.
5. To attach an image, touch the Menu Key > Attach file.
6. Touch at the top of the screen to send the message.
Adding Signature to Your Gmail
Messages
You can set a few lines of plain text as signature for every
outgoing Gmail message. The signature you set on the phone
is independent of the signature you use for Gmail on the web.
1. Open the Gmail app.
2. Touch the Menu Key > Settings and select the account you
want to add signature to.
3. Touch Signature and enter the text.
4. Touch OK.
82
Replying to or Forwarding a Message
1. Open the Gmail message you want to reply to or forward to
another person.
2. Do the following as you need.
To reply to the sender, touch .
To reply to the sender and all recipients of the original
message, touch > Reply all.
To forward the message, touch > Forward.
Touch > Print, to print the message.
3. Edit your message and touch the send icon .
Working With Received Attachments
When a message has an attachment, Gmail displays
information about it in the ATTACHMENTS section of the email.
Depending on the attachment type, the applications installed on
your phone as well as your settings, you may touch to
preview, view, or save the attachment.
TIP: For documents with multiple pages, touching the Preview
option will only download the pages you view, while touching
other options may download the entire file and cost more time
and data.
83
Searching for Messages
You can search for messages using words that appear in
addresses, subjects, labels, or contents.
NOTE: If you search while the phone doesn’t have an active
Internet connection, only messages synchronized onto your
phone can be searched.
1. Open the Gmail app and touch .
2. Enter the words to search for and touch the search key on
the screen keyboard.
As you type, suggestions may appear below the search field.
You can touch a suggestion to search for it right away.
3. In the search results, touch the message you need and
work with it just as you would with any Gmail message.
Working With Labels
Message labels include both labels you create and default
labels such as Sent, Starred, and Outbox. You can organize
your emails by labeling them or adding stars to them. Labels
also help you sort your messages, just like folders.
To label or change labels:
1. Open the Gmail app and touch in the message list the
sender images at the left side of the messages you want to
label.
84
2. At the top of the screen, touch > Change labels.
3. Check or uncheck labels in the new screen and touch OK.
To add stars to messages:
1. Open the Gmail app and touch in the message list the
sender images in front of the messages you want to star.
2. At the top of the screen, touch > Add star.
To view messages by label:
1. Open the Gmail app and touch .
2. Touch a label below ALL LABELS to view messages with
that label.
Changing Gmail Settings
Touch the Menu Key > Settings in any Gmail screen to change
General settings, which apply to all Gmail accounts, or other
settings that only apply to specific accounts.
85
Messaging
You can use Messaging to exchange text messages (SMS) and
multimedia messages (MMS).
Opening the Messaging Screen
Touch in the Home Screen and select Messaging.
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for a message using keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Text Message
1. On the Messaging screen, touch at the bottom.
2. Add recipients by one of the following ways.
Touch the To field and manually enter the recipient’s
number the contact name. If the phone presents a few
suggestions, touch the one you want to add.
Select recipients from your contacts by touching .
and enter the content of you
Touch the Type message field r text message.
86
3. Touch .
Sending a Multimedia Message
1. On the Messaging screen, touch at the bottom.
2. Enter the recipient and the text of the message, as you do
when sending a text message. You can also include email
addresses as recipients.
3. Touch the Menu Key > Add subject to add a message
subject.
4. Touch the paper clip icon to attach a file to the
message.
5. Touch .
NOTE: When you enter an email address as a recipient, add a
subject, or attach a file, the message is automatically converted
to a multimedia message. When you delete such information,
the message is converted to a text message.
Replying to a Message
Messages you receive are appended to existing threads of the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
87
2. Type your reply in the text box at the bottom. You can touch
the attach icon if you want to reply with an MMS.
3. Touch .
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch the message.
3. Touch Forward in the menu that opens.
4. Enter a recipient for the message and edit the content if you
want.
5. Touch .
Viewing Details About a Message
1. Touch a message in a thread.
2. Touch View details to see information about the message,
such as message type, sender, or date.
Deleting Messages or Threads
To delete messages in a thread:
1. On the Messaging screen, touch a thread.
88
2. Touch the Menu Key > Select item(s).
3. Touch the messages you want to delete. The ones you
touch will have a check in the box in front of them.
4. Touch at the bottom.
5. Touch OK.
To delete message threads:
1. On the Messaging screen, touch and hold one thread you
want to delete.
2. If there are more threads you want to delete, touch them
one by one.
3. Touch at the bottom.
4. Touch OK.
Changing Messaging Settings
Touch the Menu Key > Settings in the Messaging screen to
change Messaging settings.
89
Calendar
Calendar on the phone works with the web-based Google
Calendar service for creating and managing events, meetings,
and appointments. It also works with the Microsoft Exchange
ActiveSync calendar once you sign into your Exchange account
on the phone.
To open Calendar, touch in the Home Screen and select
Calendar.
Viewing Your Calendars and Events
Select Visible Calendars
1. Open the Calendar app.
2. Touch the Menu Key > Calendars to display.
3. In the new screen, touch the calendars to check the
calendars you want to see or uncheck the calendars you’d
like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Change Calendar Views
You can view your calendars in different forms. The app offers
four views: Day, Week, Month and Agenda.
To change calendar views, touch the time period shown at the
90
top left and select the view you prefer.
You can also change to Day view from Month view by touching
any day in the grid.
In Month view, swipe vertically to see earlier months and
later months.
In Week or Day view, swipe horizontally to see earlier
weeks/days and later weeks/days.
When you are viewing earlier or later days, weeks, or
months, touch at the top to quickly switch to today.
View Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view. Then touch an
event to view its details.
Creating an Event
1. In any Calendar view, touch > New event to open an
event details screen for a new event.
You can also touch a spot in Day or Week view twice to add
an event to that time spot.
2. Add details about the event. Enter a name, location, time
span, and other additional details about the event.
NOTE: If you have more than one calendar, you can choose
the calendar to which to add the event by touching the
91
current calendar above the Event name box.
3. Touch DONE at the top of the screen to save the new event.
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see Viewing Your Calendars and
Events – View Event Details in this chapter).
3. Do one of the following as you need.
To…
do…
Change the colour
of the event,
touch at the top of the screen and
select the colour you preferred.
Edit the event,
touch at the top of the screen.
Touch DONE to save your changes.
Delete the event,
touch at the top of the screen and
then touch OK.
Changing Calendar Settings
To change Calendar settings, open a Calendar view (Day,
Week, Month, or Agenda). Then touch the Menu Key >
Settings.
You can change General settings, which apply to all accounts,
or other settings that only apply to specific accounts.
92
Google+™
Google+ is a social networking service offered by Google. The
Google+ application on your phone enables you to manage your
data, chat with online contacts, organize them in different circles,
and share your selected information.
Touch in the Home Screen and select Google+. The first
time you open the Google+ app, select the contact sync options
and photo & video backup.
NOTE: For detailed guide for Google+, open Google+ and touch
> Help to view the online instructions.
Getting Started With Google+
Open the Google+ app and touch at the top left to use the
following features:
Home: See posts people have shared with you, a circle you
are in, or everyone.
People: Find people to add to your Google+ circles, create
new circles, view and organize people into circles based on
your relationships. You can also follow content posted by
people you find interesting.
Photos: View photos you uploaded, photos of you, photos
from your posts and more.
Communities: Search and join all kinds of online
communities, where people gather for the sharing and
discussion of a common topic.
93
Locations: See your friends locations on the map and
configure your location sharing settings.
Hangouts: Chat with your Google+ contacts through text
messages or video call.
Events: Manage your social calendar. You can add events,
invite people, and then share photos in real time from the
event.
Search: Search for content posted on Google+.
Touch the headshot image next to your account name to
view and edit your basic information, view your posts and
photos.
94
Chrome
Use Google Chrome to browse the Internet. Chrome on your
phone can sync bookmarks, browsing history, and opened tabs
from your Google account.
Opening the Internet
Touch in the Home screen and select Chrome to start this
function. The last web page you were viewing is displayed. If
you have not used Chrome recently, your home page opens.
Chrome also opens when you touch a web link - for example, in
an email or a text message.
To open a web page or search the web:
1. Open the Chrome app.
2. Touch the address box at the top of the web page.
3. Enter the address (URL) of a web page. Or, enter terms you
want to search for.
4. Touch a URL or search suggestion or touch Go on the
keyboard to open the web page or search results.
TIP: Touch X at the bottom of the screen if you want to stop
opening the page.
TIP: Touch > New tab at the top of the screen to open a
new web page in a new tab.
95
Downloading Files
Touch and hold an image or a link to a file or to another
webpage. In the menu that opens, touch Save image or Save
link.
The downloaded files are saved to your phone or the memory
card. You can view or open them in the Downloads app ( >
Downloads ).
Changing Chrome Settings
You can configure a number of Internet settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Chrome settings screen, touch the Menu Key >
Settings.
96
Maps
Activating Location Services
To find your location on Google Maps, you must have location
services turned on your phone.
1. Touch the Home Key > Menu Key > System settings >
Location.
2. Slide the Location switch at the top to turn location access
on or off.
3. When location access is enabled, touch Mode to select
location modes you want to use.
High accuracy: Get accurate location using both GPS
and Wi-Fi as well as mobile networks.
Battery saving: Use only Wi-Fi and mobile networks to
get your approximate location. This will drain less power
from your battery than using GPS.
Device only: Use GPS to pinpoint your location.
Getting Your Location
1. Touch in the Home Screen and select Maps.
2. Touch at the bottom.
The map centers on a blue blinking dot that indicates your
location.
97
Searching for a Location
1. Touch in the Home Screen and select Maps.
2. Enter the address or the type of business or establishment
you’re looking for in the search box at the top. If suitable
suggestions appear below the search box, touch one to
search for it.
TIP: You can also touch beside the search box to use
voice search.
3. Touch the search icon on the keyboard. Red points
indicating search results appear on the map.
4. Touch a red point to open a card at the bottom with
summary information about the location.
Slide the card up to find more information about the location
as well as options for getting directions and more.
Getting Directions to Your Destination
Maps can provide directions for travel by foot, public
transportation, or car.
1. Touch in the Home Screen and select Maps.
2. Touch beside the search box.
3. Select the mode of transportation and then enter a start and
end point. If your location is found, it will appear in the start
point field by default.
As suggested routes appear, touch one to see it on the map.
98
Slide the bottom card up to see the route directions in a list.
NOTE: For driving routes, touch (Start) to use Google
Maps Navigation (beta) and get turn-by-turn voice directions for
driving.
Searching for Local Places
Google Maps helps you find all kinds of businesses and
establishments around you. You can rate these places and get
recommendations.
1. Touch in the Home screen and select Maps.
2. Navigate the map view to the area you'd like to explore. You
can explore nearby locations or pan the map to another
location.
3. Touch the search bar at the top.
4. Touch the Explore nearby card and choose one option in
the new screen. Results will appear on cards.
5. Touch a location to see it on the map or get directions.
You can also slide up the bottom card to find out more
information, such as the street address, website, and street
view, or to call that place, save it to your Google Account, or
share it with others.
NOTE: The "Explore" feature is not available for all areas.
99
Google Now and Search
You can search for information on the web or on your phone
using Google Search, get information when you need with
Google Now without searching, or perform certain tasks by
speaking.
Enabling Google Now
Google Now gets you just the right information at just the right
time. It tells you today’s weather before you start your day, how
much traffic to expect before you leave for work, and more. You
can turn Google Now on or off from within the Google app.
The first time you open the Google app, see a brief explanation
of how Google Now works and touch Next. When you see Yes,
I’m in, choose it to begin.
1. Touch the Home Key > > Google.
2. Touch the Menu Key > Settings.
3. Slide the ON/OFF switch next to Google Now.
Searching With Text
You can search for information by entering text.
1. Touch in the Home Screen and select Google.
2. Enter the terms you want to search for in the search box
and touch the search key on the keyboard, or touch a
100
search suggestion that appears below the search box.
Searching by Speaking
You can also search the web or perform certain tasks by
speaking.
1. Touch the Home Key > > Google.
2. Touch the microphone icon to the right of the search box, or
just say ‘OK Google’.
NOTE: You can also touch the Home Key > > Voice
Search.
3. Speak the terms you want to search for or the question you
want to ask. When you’re finished speaking, your speech is
analyzed and the search is initiated.
Changing Search Settings
Open the Google app and touch the Menu Key > Settings to
set Google Now, phone search and voice options, and to
change privacy settings for your account.
101
Camera
You can use your phone to take photos and record videos.
Photos and videos are stored on the phone’s memory card or in
the phone’s internal storage. You can copy them to your
computer or access them in the Gallery app.
Capturing a Photo
1. Touch in the Home Screen and select Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
102
Number
Function
1
Switch between the front and back camera.
2
Change the flash setting, only available for the back
camera.
3
Select the color effect.
4
Change the camera settings.
5
Select scene mode.
6
Start video recording.
7
Touch the shutter button to take a picture.
8
View photos and videos you have captured.
WARNING: Keep a safe distance when using the flash. Do
not point the flash towards the eyes of people or animals.
TIP: You can pinch or spread with two fingers on the screen
to zoom in or zoom out.
3. Lightly touch the shutter icon to take the picture.
Recording a Video
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject and make any necessary
adjustment.
3. Touch to start recording.
103
4. Touch to stop recording.
TIP: While the recording is in progress, you can touch to
save the frame as a separate photo.
Customizing Camcorder Settings
Before recording a video, you can touch to open the
following camcorder setting options.
Grid: Show or hide the composition lines.
Self-timer: Set a time delay before the
camera takes a picture automatically after
you touch the shutter icon, or turn off this
feature.
Auto-review: Adjust the review time.
Picture size: Adjust picture size.
Shutter tone: Select your preferred shutter
tone.
Video quality: Set the quality for the video
clips.
Time lapse: Set the time interval between
each frame when you shot time lapse
videos.
Silent camcorder: Check this option if you
want to capture silent video clips.
104
Geo-tagging: Select whether to store the
GPS location in captured pictures or your
recorder video files.
Storage location: Select where to store the
pictures and videos.
Restore defaults: Restore the default
camera settings.
105
Gallery
Opening Gallery
Touch in the Home Screen and select Gallery to view
albums of your pictures and videos.
Working With Albums
When you open Gallery, all pictures and videos on your phone
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to share.
3. Touch at the top of the screen and select how you
want to share the albums.
To delete albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > OK.
106
Working With Pictures
Touch a picture in an album to view the picture in full screen.
Double-touch the picture, or pinch two fingers together or
spread them apart to zoom out or in. Slide left or right to view
other pictures in the album.
Touch the Gallery icon in the upper left corner to return to
the album.
Touch to browse the album contents in a slideshow.
Touch to rotate or rename the picture, view details, or
change settings.
NOTE: All options may not be available for certain albums or
pictures.
107
Retouch Your Pictures
You can edit any photos you took and some other pictures in
Gallery. The changed picture is saved in the same album as
the original one, while the original is never affected.
1. Touch while viewing a picture in full screen to open the
PhotoEditor interface.
2. Touch the options along the bottom of the screen to edit the
picture.
Apply effects such as bleach, blue crush, instant, and
so on.
Crop, straighten, mirror, or rotate the picture.
Adjust exposure, vignette, shadows, sharpness or set
to auto adjust and so on.
Apply a frame to the picture.
Decorate people in the picture with comical
moustaches, eye glasses, hats and more.
Apply a blur effect to the picture.
Select a color and draw anything on the picture.
Add some text to the picture and adjust its effect.
1. To undo or redo the changes you’ve made to the picture,
touch or at the top of the screen.
2. Touch Save to save the new picture.
108
Share Your Pictures
1. Touch an album in the gallery and then touch a picture.
2. Touch at the bottom of the screen. If the icon is
invisible, touch the screen first.
3. Select how you want to share the picture.
Working With Videos
Play Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center to start playing. Touch the video to
view the playback controls.
Share Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the bottom of the screen. If the icon is
invisible, touch the screen first.
3. Select how you want to share the video.
109
Music
Touch in the Home Screen and select Music to play audio
files stored on your phone. Music supports a wide variety of
audio formats, so it can play music you purchase from online
stores, music you copy from your CD collection, and so on.
Copying Music Files to Your Phone
Before using Music, you need to copy or download audio files to
your phone.
Copy From a Computer
1. Connect your phone and the computer with a USB cable.
2. Touch Media device (MTP) to browse the files in the phone
storage and on the microSDHC card.
3. Copy the music file from the PC and paste it to the phone
storage or microSDHC card.
Download From the Internet
You can download music files when browsing web pages. See
Downloading Files.
110
Viewing Your Music Library
Touch in the Home Screen and select Music and your
music library is displayed. All your audio files are cataloged
according to the information stored in the files.
Touch the tabs at the top of the screen to view your music
library organized by Songs, Playlists, Folders, Albums,
Artists, or Genres. You can also touch RECENTLY PLAYED
or FAVORITE to browse songs you recently played or you have
added as favourites.
NOTE: If an audio file is being played, its summary information
is displayed at the bottom of the screen. Touch to open the
playback screen.
Set a Song as the Default Ringtone
The song will be used as the ringtone for all incoming calls,
except those from contacts to whom you have assigned special
ringtones (see People – Editing Contacts – Set a Ringtone for a
Contact).
1. Touch in the Home Screen and select Music to see
the music library.
NOTE: If you are in the playback screen, touch to
return to the music library.
2. Touch next to a song in any list.
3. In the menu that opens, touch Use as ringtone.
TIP: If the song is being played and you’re in the playback
111
screen, you can touch the Menu Key > Use as ringtone.
4. Touch Phone Ringtone or Notification Ringtone.
Playing Music
Touch a song in the music library to listen to it. The following
playback screen appears.
Number
Function
1
Song, album, and artist information.
2
To use DOLBY playing.
112
3
Album artwork and lyrics (if available).
4
Touch to return to the music library.
5
Playback control. Skip songs or pause and resume
playback. Drag the slider to jump to any part of the song.
6
Add to my favorite playlist.
7
Touch to shuffle the songs in the playlist or toggle
repeat modes.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
Touch > Add to playlist next to a song to add it to a
playlist or create a new playlist.
Touch > Delete Playlist next to a playlist to delete the
playlist.
Touch > Rename Playlist next to a playlist to rename
the playlist.
Touch a playlist to view its content. You can touch the Menu
Key > Multi Select to select the song you want to remove.
113
Play Music
The Play Music application ( ) works with Google Music,
Google’s online music store and streaming service. You can
stream via mobile data or Wi-Fi and listen to you favorite songs
that you’ve added to your online Google Music library. You can
also play audio files you’ve copied directly to your phone from a
computer.
NOTE: The availability of Google Music is dependent on your
region. If it is not available, or you don’t have a mobile data or
Wi-Fi connection, you can only play music stored on your
phone.
Playing Your Music
Touch in the Home Screen and select Play Music. If you
are prompted, select an account to access its online music
library.
The app searches your online library and your phone for music
and playlists before displaying your combined music library,
organized by GENRES, ARTISTS, ALBUMS, and SONGS.
You can touch > My Library to view your library or touch
> Playlists to view existing playlists.
Touch a song to play it. When the song is playing, touch the
summary information at the bottom to display the playback
screen.
114
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.
2
Album artwork.
3
Give the song a thumbs-up.
4
Playback control. Skip songs, pause and resume
playback, use shuffle or repeat. Drag the progress bar
to jump to any part of the song.
5
Give the song a thumbs-down.
6
Touch to see the current playlist (queue).
7
Get more options.
115
You can still control the music when you are not in the playback
screen.
In the music library of the Play Music app, touch the
summary information at the bottom of the screen to restore
the playback screen.
In other apps, flick down the notification panel. Touch the
song title to restore the playback screen, or just pause/
resume playback or skip to the next/previous song.
When the screen is locked, the song information, album
cover as well as playback control is displayed on top of the
screen. You can pause/resume playback or skip songs.
Managing Playlists
Create playlists to organize your music files into sets of songs,
so that you can play the songs you like in the order you prefer.
To view all your playlists, touch > Playlists.
Touch > Add to playlist next to a song or a playlist to
add it to a playlist or create a new playlist.
Touch > Delete next to a playlist to delete the playlist.
Touch a playlist to view its content. You can touch >
Remove from playlist next to the song you want to remove,
or drag the handle icon to the left of each song to
rearrange its order in the playlist.
116
Video Player
Use the video player to play various kinds of videos.
Opening the Video Library
Touch in the Home Screen and select Video Player to
view your video library.
Playing and Controlling Videos
Touch a video in the video library to play it.
Touch the video to show the playback controls. You can pause
and resume the playback, or jump to any part of the video,
adjust video brightness, hide the control panel and more.
Managing Video Files
To delete videos:
1. Touch and hold a video in the video library.
2. To remove more videos, touch them.
3. Touch at the bottom left of the screen.
4. Touch OK to confirm.
To share videos:
1. Touch and hold a video in the video library.
117
2. To share more videos, touch them.
3. Touch at the bottom right of the screen and select how
you want to share them.
To rename a video:
1. Touch next to the video you want to rename.
2. Touch Rename.
3. Type the new video name and touch OK.
To view details of a video:
1. Touch next to the video you want to view the details of.
2. Touch Details.
118
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch in the Home Screen and select Sound Recorder.
2. Touch to start recording. Touch to cancel
recording if you change your mind. You can touch to
pause and to continue during the recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
to delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch at the bottom of the screen.
To play any saved memo:
1. Touch at the top right of the screen to see all
recordings.
2. Touch the title of a memo to play it.
119
NOTE: You can also touch beside the memo to delete,
share, rename, add a tag, trim it, check its file information, or
set it as your phone ringtone.
120
More Apps
File Manager
Quickly access all of your images, videos, audio clips, and
other types of files on your phone and on the memory card.
Touch in the Home Screen and select File Manager. The
folders are organized by category, phone storage and the
memory card storage.
Touch folders and files to access stored items.
Touch PHONE / SD Card > to create a new folder in
the current directory.
Calculator
Touch in the home screen and select Calculator to use the
phone’s convenient built-in calculator for some basic.
Clock
Touch in the home screen and select Clock to use a
series of timing tools.
Set a New Alarm
1. Touch in the Home Screen and select Clock.
2. Touch .
121
3. Touch a default alarm to configure it, or touch at the
bottom of the screen to create a new alarm.
4. Set the time and touch Done. Touch each item below the
time to set up the alarm options, such as repeat and alarm
sound.
NOTE: To enable or disable existing alarms directly, just slide
the OFF switch to the ON position.
Stopwatch and Countdown
1. Touch / in Clock app to use the countdown or
stopwatch.
2. Countdown allows you to set a time and count down to zero,
while Stopwatch allows you to record lap times.
World Time
1. Touch in Clock app to check local time for cities
around the world.
2. Touch at the bottom to add a new city or country.
Downloads
The Downloads app keeps a record of the files you have
downloaded using the Chrome, Email, or Gmail app.
Touch in the Home Screen and select Downloads to
122
check the record.
Touch a file to open it with the appropriate applications.
Touch and hold a file, or check the box in front of it, to delete
or share it.
Flashlight
Touch in the home screen and select Flashlight to use
the phone’s flash for illumination.
Touch to turn on or off the flashlight, or to configure
flashlight settings
NotePad
Touch in the Home Screen and select NotePad to save and
view your text notes.
Touch to create a new note. Then enter your text and
touch Save to save it.
Touch a note to view its entire contents. With the option
icons at the bottom, you can edit, delete, or share it, or
export it as a text file (*.txt) to your phone storage.
Task Manager
Touch in the Home Screen and select Task Manager to
view or stop applications.
Touch a task in the Tasks tab to switch to its screen, abort it,
123
or see its details.
Touch the Apps tab to manage all the apps on your phone.
Touch the Resources tab to view the real-time system
resources information.
YouTube
Touch in the Home Screen and select YouTube.
You can watch YouTube videos or upload your own.
124
Google Play™ Store
Touch in the Home Screen and select Play Store. You can
buy or rent music, books, movies, and apps and download
them to your phone.
NOTE: The content you can access in Google Play store
depends on your region and your service provider.
Browsing and Searching for Apps
You can browse apps by category and sort them in different
ways. Touch a top-level category, such as Games and touch an
app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch and enter
the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch INSTALL (free apps) or the price (paid apps). If the
app is not free, you need to sign in to your Google Wallet
account and select a payment method.
CAUTION: Once installed, some apps can access many
functions or a significant amount of your personal data. The
125
Play Store will show you what the app can access. Touch
ACCEPT to proceed, or touch the Back Key to cancel.
2. Wait for the app to be downloaded and installed
automatically. Payment needs to be authorized before paid
apps start downloading.
The app is successfully installed when the icon appears in
the status bar. You can find the new app after touching the
Home Key > .
Creating a Google Wallet Account
You must have a Google Wallet account associated with your
Google Account to purchase items from the Google Play Store
app.
Do one of the following:
On your computer, go to checkout.google.com to create a
Google Wallet account.
The first time you use your phone to buy an item from
Google Play Store, you’re prompted to enter your billing
information to set up a Google Wallet account.
WARNING: When you’ve used Google Wallet once to purchase
items from the Google Play Store app, the phone remembers
your password so you don’t need to enter it the next time. For
this reason, you should secure your phone to prevent others
from using it without your permission.
126
Requesting a Refund for a Paid App
If you are not satisfied with an app, you can ask for a refund
within 15 minutes of the purchase. Your credit card is not
charged and the app is uninstalled from your phone.
If you change your mind, you can install the app again, but you
can’t request a refund a second time. For details, please read
the Play Store help information.
1. Touch the Home Key > > Play Store.
2. Touch > My apps.
3. Touch the app to uninstall for a refund. The details screen for
the app opens.
4. Touch REFUND and then touch UNINSTALL. Your app is
uninstalled and the charge is cancelled.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
update itself automatically, and so on.
View Your Downloaded Apps
1. On the Apps screen of Play Store, touch > My Apps.
2. Your list of installed apps opens. You can touch one to rate it,
uninstall it, request a refund and so on.
127
Uninstall an App
1. On the Apps screen of Play Store, touch > My Apps.
2. Touch an app to open its details screen.
3. Touch UNINSTALL > OK.
128
Settings
Touch in the Home Screen and select Settings. The
Settings app contains most of the tools for customizing and
configuring your device.
General Settings
Airplane Mode
In the Settings app, Slide the Airplane mode switch to the ON
position to turn on Airplane mode. All the phone’s radios that
transmit voice or data are turned off.
Wi-Fi
Turn Wi-Fi on or off and configure your Wi-Fi connections. See
Connecting to Networks and Devices – Connecting to Wi-Fi.
Bluetooth
Turn Bluetooth on or off and configure your Bluetooth
connections. See Connecting to Networks and Devices –
Connecting to Bluetooth Devices.
Mobile Networks
Control mobile data use, select mobile network and set access
point names. See Connecting to Networks and Devices –
Connecting to Mobile Networks.
129
Sound
Adjust volumes (see Personalizing – Adjusting Volumes),
toggle sound and mute (see Switching to Silent Mode), set up
ringtone and notification sound (see Personalizing – Changing
Ringtone and Notification Sound), and select system sounds
(refer to Turning On/Off Touch Sounds).
Display
Brightness: Set the brightness of the display.
Wallpaper: Select a background image for the Home
Screen.
Auto-rotate screen: Rotate the screen display as you
rotate the phone.
Sleep: Set the length of time of inactivity before the screen
turns off.
Daydream: Turn on or off daydream.
Font size: Set the font size of the text on the screen.
Pulse notification light: Flash the LED light to notify you of
missed calls, new messages, and other events.
Cast screen: Turn on or off wireless display to display your
phone on a TV or other devices.
Touch key light duration: Touch to set the duration of the
touch key light.
130
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Language and Input
Language: Select a language and region for your system.
Spell checker: Select spell checker and change its
settings.
Personal dictionary: Add new words to the phone’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
KEYBOARD & INPUT METHODS: Configure text input
settings. See Knowing the Basics – Entering Text – Touch
Input Settings.
Voice Search:
Language: Select the language you use when entering
text by speaking or searching by speaking.
“OK Google” hotword detection: Say “OK Google” to
launch voice search.
Speech output: Select to set the speech output.
Block offensive words: Replace offensive words with
asterisk (*) when you use Google voice recognition to
transcribe your voice into text.
Offline speech recognition: Select one or more
additional language packages so you can use speech
131
recognition when you do not have a network connection.
Personalized recognition: Click to improve speech
recognition accuracy.
Bluetooth headset: Records audio through Bluetooth
headset if available.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quickly you want the
synthesizer to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Default language status: Check the default language
status.
Pointer speed: Select how fast the pointer/mouse should
scroll when you connect the phone to a trackpad or mouse
accessory.
Wireless & Networks
Data Usage
Touch the ON/OFF switch to turn on or off mobile data.
You can check how much data has been used during the time
cycle you set, set a mobile data limit and warning, see what
apps have been using mobile data, or restrict background data
132
for individual apps.
VPN
Set up and connect to virtual private networks. See Connecting
to Networks and Devices – Connecting to Virtual Private
Networks.
Default SMS App
In the Settings app, touch More under Wireless & networks
and select Default SMS app to choose the preferred
application for sending and receiving SMS.
Mobile Hot Spot
Share your phone’s mobile data connection with PCs or Wi-Fi.
See Connecting to Networks and Devices – Sharing Your
Mobile Data Connection.
Bluetooth Tethering
Share your phone’s mobile data connection with PCs or other
devices via Bluetooth. See Share Your Mobile Data Connection
via Bluetooth.
Wi-Fi calling
With Wi-Fi Calling you can send and receive calls and
messages over a Wi-Fi network using your existing the service
provider service. See Use Wi-Fi Calling.
133
Device
Storage
Check memory information for your memory card and internal
storage.
Unmount SD card: Unmount the memory card from your
phone so that you can safely remove the card while the
phone is on.
Erase external SD card: Erase all data on your memory
card and prepare it for use with your phone.
Battery
Check how much power remains for the battery and what has
been using the battery.
Apps
See apps installed on your phone and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop the app, uninstall the app,
clear data and cache, or move the app between the internal
storage and the memory card.
NOTE: Not all applications can be moved or uninstalled.
Connect to PC
Touch to set the connection type for your phone. See Connect
134
Your Phone to a Computer via USB.
Call Settings
Configure phone call related options, such as ringtone,
voicemail and Internet call. For more information, see Phone
Calls – Adjusting Your Call Settings.
Personal
Location
Activate location services to determine your location. See
Getting Your Location.
Security
Screen lock: Lock the screen with none, long press, face
unlock, pattern, PIN, or password. See Personalizing –
Protecting Your Phone With Screen Locks.
Enable widgets: Enable or disable widgets.
Owner info: Set the text that you may display on the lock
screen.
Encrypt phone: Encrypt your data on the phone to protect
your privacy. See Personalizing – Protecting Your Phone
With Encryption.
Set up SIM / RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
135
require PIN before accessing the SIM card.
Change SIM PIN: Change the PIN used to access the
SIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Check this option to permit installation
of apps from sources other than the Play Store.
Verify apps: Disallow or warn before installation of apps
that may cause harm.
Storage type: Set storage type.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the memory
card.
Clear credentials: Delete all certificates.
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Backup account: Select the Google Account that your data
is backed up to.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
136
Factory data reset: Reset your phone to factory default
settings. All your personal data from the phone’s internal
storage will be erased. You can also erase the data on the
memory card during the process.
Collect Diagnostics: Collect diagnostics data for
troubleshooting.
Accounts
Add account
Manage your accounts and synchronization. Touch Add
account to sign in to or create accounts on your phone.
Touch an account type to see that type of accounts you have
added and adjust the accounts settings.
System
Accessibility
Configure accessibility plug-ins on your phone, such as using
TalkBack for low-vision users.
Printing
Configure cloud printing service options, manage print jobs and
more.
137
Developer Options
Developer options contains settings that are useful when
developing Android applications.
About Phone
View phone status and legal information. You can also upgrade
your phone system from update packages copied to the storage
card.
138
Troubleshooting
If you encounter problems while using the phone, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the phone.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is too
weak at your current
location, for example, in
a basement or near a
tall building, because
wireless transmissions
can not effectively reach
it.
Move to a location
where the network
signal can be properly
received.
The network is busy at
the current time (for
example, during peak
times, there may be too
much network traffic to
handle additional calls).
Avoid using the phone at
such times, or try again
after waiting a short
time.
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
139
Problem
Possible causes
Possible solution
Echo or
noise
Poor network link quality
on the part of your
service provider.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Poor local telephone line
quality.
End the call and dial
again. You may be
switched to a
better-quality network
link or phone line.
Unable to
select
certain
features
Your service provider
does not support these
features, or you have not
applied for services that
provide these features.
Contact your service
provider.
Battery not
charging
The battery or battery
charger is damaged.
Contact the dealer.
The phone’s
temperature is below
0°C or higher than 45 °C.
Adjust the battery
charging environment to
avoid extremes of
temperature.
Poor contact between
the battery and charger.
Check all connectors to
make sure all
connections have been
properly made.
140
Problem
Possible causes
Possible solution
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The same
phone used with
different service
providers’ systems will
not provide exactly the
same length of standby
time.
If you are located in an
area where signaling is
weak, temporarily power
off the phone.
The battery is depleted. In
high temperature
environments, battery
life will be shortened.
Use a new battery.
If you are not able to
connect to the network,
the phone will continue
to send out signals as it
attempts to locate a
base station. Doing so
consumes battery power
and will consequently
shorten standby time.
Change your location to
one where the network
is accessible, or
temporarily turn off your
phone.
141
Problem
Possible causes
Possible solution
Cannot turn
your phone
on
Battery power has been
depleted.
Recharge the phone’s
battery.
Micro-SIM
card error
Micro-SIM card
malfunction or damage.
Take the micro-SIM card
to your service provider
for testing.
Micro-SIM card inserted
improperly.
Insert the micro-SIM
card properly.
Debris on the micro-SIM
card contacts.
Use a soft, dry cloth to
clean the micro-SIM
card contacts.
Unable to
connect to
the network
Micro-SIM card invalid.
Contact your service
provider.
You are not within the
network’s service area.
Check the service area
with your service
provider.
Poor signal.
Move to an open space,
or if you are inside a
building, move closer to
a window.
142
Problem
Possible causes
Possible solution
PIN Code
blocked
You have entered an
incorrect PIN code three
consecutive times.
Contact your service
provider. If the service
provider provides the
SIM card’s PUK code,
use the PUK code to
unlock the SIM card.
Unable to
enter
information
into the
phonebook
The phonebook’s
memory is already full.
Delete unnecessary
data from the contacts.
Phone
crashes,
reboots,
freeze, or
cannot be
powered on
Some third-party
software is not
compatible with your
phone.
Reset the phone to
factory status.
Enter safety mode and
uninstall the software
that may cause the
problem.
Upgrade the phone
software.
143
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. Never text
while driving.
Don’t use at gas
stations.
Keep your phone at
least 15 mm away
from your ear or body
while making calls.
Your phone may
produce a bright or
flashing light.
Small parts may
cause choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
To prevent possible
hearing damage, do
not listen at high
volume levels for long
periods.
Avoid contact with
anything magnetic.
Avoid extreme
temperatures.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid contact with
liquids. Keep your
phone dry.
144
Turn off when asked to
in hospitals and
medical facilities.
Don’t take your phone
apart.
Turn off when told to in
aircrafts and airports.
Only use approved
accessories.
Turn off when near
explosive materials or
liquids.
Don’t rely on your
phone for emergency
communications.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating machinery in order
to reduce the risk of an accident.
145
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always turn off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
Keep the screen and camera lens clean. Unclean screen or
camera lens may slow down the phone's reaction to your
operations or lower image quality.
Clean the device and its accessories with a soft material such
as cleaning cloth for eyeglass lenses. Do not use alcohol or
other corrosive substances for cleaning or allow them to get
inside.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not paint your phone or its accessories.
146
Do not attempt to disassemble your phone or its accessories.
Only authorized personnel can do so.
Do not expose or use your phone or its accessories in a
environment with or that can reach extreme temperatures,
minimum - [5] and maximum + [50] degrees Celsius.
Do not place your phone inside or near heating equipments or
high pressure containers, such as water heaters, microwave
ovens, or hot cooking utensils. Otherwise, your phone may be
damaged.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
147
devices or magnetic media to be close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your
ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
148
physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take many breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone for
emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during
149
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or
key rings, to contact or short-circuit in the battery terminals.
Never puncture the surface of the battery with sharp objects.
Connection to a Car
Seek professional advice when connecting a phone interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel can service or repair the phone or its
accessories.
If your phone (or its accessories) has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service center.
150
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the phone on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source. Increasing
the separation between them may reduce the interference. You
may also consult your hearing aid manufacturer to discuss
alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to
151
determine if operation of your phone may interfere with the
operation of your medical device.
Hospitals
Turn off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive medical
equipment.
Aircraft
Turn off your wireless device whenever you are instructed to do
so by airport or airline staff.
Consult the airline staff about the use of wireless devices
onboard the aircraft. If your device offers a ‘flight mode’, this must
be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference with
electronic equipment, some vehicle manufacturers forbid the
use of mobile phones in their vehicles unless a hands-free kit
with an external antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
152
posted signs to turn off wireless devices such as your phone or
other radio equipment.
Areas with potentially explosive atmospheres include fueling areas,
below decks on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting operations.
Radio Frequency (RF) Exposure
This device meets the government’s requirements for exposure
to radio waves.
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government:
The exposure standard for wireless mobile devices employs a
unit of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR
are conducted using standard operating positions accepted by
the FCC with the device transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
a minimum of 1.0 cm from the body. Use of other
153
level of the device while operating can be well below the
maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC
when tested for use at the ear is 0.37 W/kg and when worn on
the body, as described in this user guide, is 1.43 W/kg
(Body-worn measurements differ among device models,
depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
device with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
device is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/ea/fccid/ after
searching on:
FCC ID: SRQ-Z970
For body worn operation, this device has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the handset
enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn accessory
minimum of 1.0 cm from your body when the device is switched
154
and are not holding the device at the ear, position the handset a
on.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
155
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Hearing Aid Compatibility (HAC)
regulations for Mobile phones
In 2003, the FCC adopted rules to make digital wireless
telephones compatible with hearing aids and cochlear implants.
Although analog wireless phones do not usually cause
interference with hearing aids or cochlear implants, digital
wireless phones sometimes do because of electromagnetic
energy emitted by the phone's antenna, backlight, or other
components. Your phone is compliant with FCC HAC regulations
(ANSI C63.19-
near some hearing devices (hearing aids and cochlear implants),
users may detect a buzzing, humming, or whining noise. Some
hearing devices are more immune than others to this interference
noise and phones also vary in the amount of interference they
generate. The wireless telephone industry has developed a
rating system for wireless phones to assist hearing device users
in finding phones that may be compatible with their hearing
2011). While some wireless phones are used
156
devices. Not all phones have been rated. Phones that are rated
have the rating on their box or a label located on the box. The
ratings are not guarantees. Results will vary depending on the
user's hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
This phone has been tested and rated for use with hearing aids
for some of the wireless technologies that it uses. However, there
may be some newer wireless technologies used in this phone
that have not been tested yet for use with hearing aids. It is
important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear
implant, to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this phone for
information on hearing aid compatibility. If you have questions
about return or exchange policies, consult your service provider
or phone retailer.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and
are likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
157
Your phone meets the M4/T3 level rating.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. For more information about FCC Hearing Aid
Compatibility, please go to http://www.fcc.gov/cgb/dro.
CTIA Requirements
Do not disassemble or open crush, bend or deform, puncture
or shred.
Do not modify or remanufacture, attempt to insert foreign
objects into the battery, immerse or expose to water or other
liquids, expose to fire, explosion or other hazard.
Only use the battery for the system for which it is specified.
Only use the battery with a charging system that has been
qualified with the system per CTIA Certification Requirements
for Battery System Compliance to IEEE 1725. Use of an
unqualified battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Do not short circuit a battery or allow metallic conductive
objects to contact battery terminals.
Replace the battery only with another battery that has been
qualified with the system per this standard, IEEE-Std-1725.
Use of an unqualified battery may present a risk of fire,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local
158
regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is
dropped, especially on a hard surface, and the user suspects
damage, take it to a service center for inspection.
Improper battery use may result in a fire, explosion or other
hazard.
The phone shall only be connected to CTIA certified adapters,
products that bear the USB-IF logo or products that have
completed the USB-IF compliance program.
