ZTE Z990 WCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone User Manual Z990
ZTE Corporation WCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone Z990
ZTE >
Z990 User Manual
1
Roamer
User Manual
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic
or mechanical, including photocopying and microfilm,
without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the
right to make modifications on print errors or update
specifications without prior notice. Every effort has been
made in the preparation of this manual to ensure accuracy of
the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty
of any kind, expressed or implied.
Version No.: R1.0
Edition Time : 201104
Manual No. :
3
Contents
For Your Safety ...................................................... 10
General Safety .............................................................. 10
Radio Frequency (RF) Energy ...................................... 11
FCC Compliance ........................................................... 13
Distraction ..................................................................... 17
Driving ..................................................................... 17
Operating Machinery ............................................... 17
Product Handling .......................................................... 17
General Statement on Handling and Use ................ 17
Small Children ......................................................... 18
Demagnetization ..................................................... 19
Electrostatic Discharge (ESD) ................................. 19
Antenna ................................................................... 19

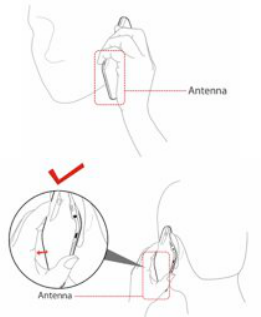

Normal Use Position ................................................ 20
Air Bags ................................................................... 20
Seizures/ Blackouts ................................................. 21
Repetitive Motion Injuries ........................................ 21
Emergency Calls ..................................................... 21
Loud Noise .............................................................. 21
Phone Heating ......................................................... 22
Electrical Safety ............................................................ 22
Accessories ............................................................. 22
Connection to a Car ................................................ 22
Faulty and Damaged Products ................................ 22
Interference ................................................................... 23
4
General Statement on Interface ............................... 23
Pacemakers ............................................................. 23
Hearing Aids ............................................................ 23
Medical Devices ....................................................... 23
Hospitals .................................................................. 24
Aircraft ...................................................................... 24
Interference in Cars ................................................. 24
Explosive Environments ................................................ 25
Petrol Stations and Explosive Atmospheres ............ 25
Blasting Caps and Areas ......................................... 25
Getting Started ....................................................... 26
Overview ........................................................................ 26
Keys Explained .............................................................. 27
Starting up ..................................................................... 28

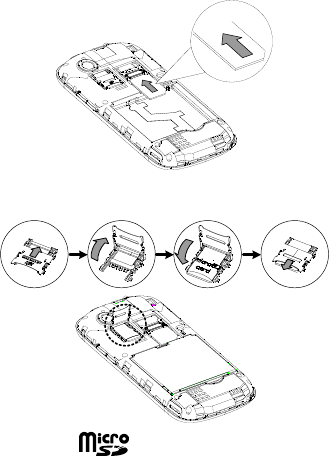

Installing the SIM/microSD Card and Battery .......... 28
Removing the Battery and SIM/microSD Card ........ 30
Charging the Battery ................................................ 30
Switching Your Phone On/Off ........................................ 31
Setting Up Your Phone for the First Time ................ 31
Switching to Sleep Mode ......................................... 32
Waking up Your Phone ............................................ 32
Getting Around .............................................................. 33
Touch Control .......................................................... 33
Home Screen ........................................................... 34
Status and Notification Icons ................................... 36
5
Phone Calls ............................................................ 40
How to Make Calls ........................................................ 40
Calling from the Dialer ............................................. 40
Calling from Your Contacts ..................................... 40
Calling from Your Call History ................................. 40
Calling from a Text Message ................................... 41
Using Speed Dial ..................................................... 41
How to Receive Calls .................................................... 42
Answering a Call ..................................................... 42
Rejecting a Call ....................................................... 42
Muting a Call ........................................................... 42
Putting a Call on Hold .............................................. 42
Turning the Speakerphone On/Off .......................... 43
Ending a Call ........................................................... 43
Adjusting Your Call Settings ......................................... 43
Contacts ................................................................. 45
Importing and Exporting Contacts ................................. 45
Import Contacts from the SIM Card or Export to the
Card ......................................................................... 45
Import Contacts from the microSD Card or Export to
the Card ................................................................... 46
Sharing Contacts Information ....................................... 46
Creating a Contact ........................................................ 46
Adding a Contact to Favorites ....................................... 47
Searching for a Contact ................................................ 47
Creating a New Group .................................................. 47
6
Entering Text .......................................................... 49
Android Keyboard .......................................................... 49

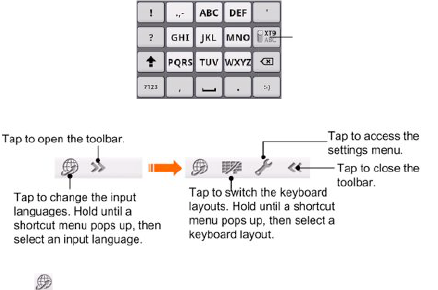

XT9 Text Input ............................................................... 50
Choosing Touch Input Settings ..................................... 53
Messaging .............................................................. 54
The Message Box .......................................................... 54
Sending an Message ..................................................... 54
Changing Message Settings .......................................... 55
Email ....................................................................... 57
Creating an Email account ............................................ 57
Receiving Emails ........................................................... 58
Composing and sending an Email ................................. 58
Replying to or Forwarding an Email .............................. 59
Deleting an Account ...................................................... 59
Email Settings ................................................................ 59
Getting Connected to the Internet ........................ 61
Adding a New GPRS/EDGE/3G Connection ................. 61
Turning on Wi-Fi ............................................................ 62
Connecting to a Wi-Fi Network ...................................... 62
Checking the Wi-Fi Network Status ............................... 62
Using the Phone as a Modem ....................................... 63
Enabling the Phone as a Modem ............................. 63
Disabling the Modem Function ................................ 64
Using the Phone as a Wi-Fi Hotspot ............................. 64
Enabling the Wi-Fi Hotspot ...................................... 65
7
Disabling the Wi-Fi Hotspot ..................................... 65
Browsing the Internet ............................................ 66
Browsing Options .......................................................... 66
Using Bookmarks .......................................................... 67
Editing a Bookmark ................................................. 67
Deleting a Bookmark ............................................... 67
Changing Browser Settings .......................................... 68
Bluetooth® .............................................................. 69
Using Bluetooth ............................................................. 69
Making the Most of Multimedia ............................ 70
Taking Pictures with Your Camera ............................... 70
Adjusting Camera Settings ...................................... 70
Shooting Video with Your Camcorder ........................... 70
Adjusting Your Video Settings ................................. 71
Playing Your Music ....................................................... 71
Creating Playlists ..................................................... 72
Managing Playlists .................................................. 72
Setting a Song as Ringtone ..................................... 73
Playing Your Videos ...................................................... 73
Opening Your Gallery ................................................... 74
Making Memorable Memos ........................................... 74
Using Your Google™ Applications ...................... 76
Gmail ............................................................................. 76
Using Google Calendar ................................................. 77
Using Google Talk ........................................................ 77
8
Opening Google Talk ............................................... 77
Adding a New Friend ............................................... 77
Changing Your Online Status .................................. 78
Starting a Chat ......................................................... 78
Places ............................................................................ 78
Latitude .......................................................................... 79
Sorting out Your Phone Settings ......................... 80
Setting Time and Date ................................................... 80
Changing Display Settings ............................................ 80
Sound Settings .............................................................. 80
Language Settings ......................................................... 81
Mobile Network Services ............................................... 82
Security Settings ............................................................ 82
Protecting Your Phone with a Screen Unlock Pattern
................................................................................. 82
Protecting Your Phone with a PIN or Password ...... 83
Disabling Screen Unlock Security ............................ 84
Protecting Your SIM with a PIN ............................... 84
Setting up Credential Storage .................................. 85
Managing Your Device Memory .................................... 86
Privacy: Reset to Factory Settings ................................ 86
Managing Applications .................................................. 87
How to Install an Application .................................... 87
Managing Other Settings ............................................... 88
Search Settings ........................................................ 88
Voice Interaction ...................................................... 88
9
Accessibility ............................................................. 89
AT&T Software Update ........................................... 89
About phone ............................................................ 89
Other Applications ................................................ 90
Alarms ........................................................................... 90
Docs To Go ................................................................... 90
Note Pad ....................................................................... 90
Calculator ...................................................................... 90
SIM Toolkit .................................................................... 91
Task Manager ............................................................... 91
Stopwatch ..................................................................... 91
AT&T Mobile Care ........................................................ 92
Specifications ........................................................ 93
10
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. And never text
while driving.
Don’t use at petrol
stations.
Keep your phone at
least 15mm away from
your ear or body while
making calls.
Your phone may produce
a bright or flashing light.
Small parts may cause
a choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
Avoid contact with
anything magnetic.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid extreme
temperatures.
Switch off when asked
to in hospitals and
medical facilities.
Avoid contact with
liquids. Keep your phone
dry.
Switch off when told to
in aircrafts and airports.
Don’t take your phone
apart.
11
Switch off when near
explosive materials or
liquids.
Only use approved
accessories.
Don’t rely on your phone for emergency communications.
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government:
The exposure standard for wireless mobile phones employs
a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base
12
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to
the FCC when tested for use at the ear is 1.04 W/kg and
when worn on the body, as described in this user guide, is
1.37 W/kg (Body-worn measurements differ among phone
models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after searching on
FCC ID: Q78-Z990
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the
handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn
accessory and are not holding the phone at the ear, position
the handset a minimum of 1.5 cm from your body when the
phone is switched on.
13
FCC Compliance
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved
by the manufacturer could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
14
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician
for help.
Your Z990 device is compliant with the FCC
Hearing Aid Compatibility (HAC)
requirements. For additional HAC
information, including the HAC rating of this
product, please refer to
www.zteusa-support.com.
When some wireless phones are used near
some hearing devices (hearing aids and
cochlear implants), users may detect a
buzzing, humming, or whining noise. Some
hearing devices are more immune than
others to this interference noise, and phones
also vary in the amount of interference they
generate. The wireless telephone industry
has developed ratings for some of their
mobile phones to assist hearing device
users in finding phones that may be
15
compatible with their hearing devices. Not
all phones have been rated. Phones that
have been rated have a label on the box.
Your F450 has been tested for hearing aid
device compatibility and has an M3 and/or
T3 rating.
These ratings are not guaranteed. Results
will vary, depending on the level of immunity
of your hearing device and the degree of
your hearing loss. If your hearing device
happens to be vulnerable to interference,
you may not be able to use a rated phone
successfully. Trying out the phone with your
hearing device is the best way to evaluate it
for your personal needs.
M-Ratings: Phones rated M3 or M4 meet
FCC requirements and are likely to generate
less interference with hearing devices than
phones that are not labeled. M4 is the
better/higher of the two ratings.
16
T-Ratings: Phones rated T3 or T4 meet FCC
requirements and are likely to be more
usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than
unrated phones. T4 is the better/higher of
the two ratings. (Note that not all hearing
devices contain telecoils.) The more
immune your hearing aid device is, the
less likely you are to experience
interference noise from your wireless
phone.
Hearing devices may also be measured for
immunity to this type of interference. Your
hearing device manufacturer or hearing
health professional may help you find
results for your hearing device.
For additional information about the FCC's
actions with regard to hearing aid compatible
wireless devices and other steps the FCC
has taken to ensure that individuals with
disabilities have access to
17
telecommunications services, please go to
www.fcc.gov/cgb/dro.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
18
measures designed to protect users and their environment.
• Always treat your phone and its accessories with care
and keep it in a clean and dust-free place.
Do not expose your phone or its accessories to open flames
or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories,
only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum - [5] and maximum + [50] degrees
Celsius.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could break
when you sit down.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
19
They could hurt themselves or others, or could accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
GPS antenna
Bluetooth antenna
Antenna
20
Normal Use Position
When placing or receiving a phone call, hold your phone to
your ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air
bag deployment area.
Store the phone safely before driving your vehicle.
21
Seizures/ Blackouts
The phone can produce a bright or flashing light.
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games
with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
Predictive Text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.
22
Phone Heating
Your phone may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as
coins or key rings, to contact or short-circuit in the battery
terminals.
Connection to a Car
Seek professional advice when connecting a phone interface
to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or
its accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until
you have taken it to be checked at an authorized service
centre.
23
Interference
General Statement on Interface
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
24
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‘flight mode’, this
must be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
25
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
26
Getting Started
Overview
Volume +
Volume -
Headset Jack
Power Key
Touch
Screen
Earpiece
Back Key
Menu Key
Home Key
Speaker
27
Keys Explained
Key
Function
Power Key
Hold to turn on or off Silent or Airplane mode,
or to power off.
Press to switch your phone to Sleep mode.
Press to wake up your phone.
Home Key
Press to return to the Home Screen from any
Charger/
USB Jack
Camera
Back
Cover
Thumb
catch
28
Key
Function
application or screen.
Hold to see recently used applications.
Menu Key
Press to get the options for the current
screen.
Back Key
Press to go to the previous screen.
Volume Keys
Press Volume + to turn the volume up.
Press Volume - to turn the volume down.
Starting up
Installing the SIM/microSD Card and Battery
Switch off your phone before installing or replacing the battery,
SIM, or memory card.
1. Remove the back cover.
2. Hold the SIM with the cut corner oriented as shown and
29
slip it into the card holder.
3. Open the microSD card holder, hold your microSD card
by the cut corner end and slide it in.
microSD logo is a trade mark of the SD Card
Association.
4. Insert the battery by aligning the gold contacts on the
30
battery with the gold contacts in the battery compartment.
Gently push down on the battery until it clicks into place.
1
2
5. Press the cover gently back into place until you hear a
click.
Removing the Battery and SIM/microSD Card
1. Make sure that your mobile phone is off.
2. Remove the back cover.
3. Lift the battery up and out.
4. Slide the SIM out.
5. Open the microSD card holder. Slide the microSD card
down gently and remove it.
Charging the Battery
When you first get your new phone you’ll need to charge the
battery like this!
1. Connect the adapter to the charger jack. Ensure that the
adapter is inserted with the correct orientation. Do not
31
force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
Switching Your Phone On/Off
Make sure the SIM is in your device and the battery is
charged.
• Hold Power Key to switch on your phone.
• To switch it off, hold Power Key to get the phone options.
Select Power off, and then tap OK.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Sorting out Your Phone
Settings – Privacy: Reset to Factory Settings), you need to
do some settings before using it.
1. Tap Change language to change the language you want
32
to use, if needed.
2. Tap the Android robot on the screen.
3. Create a Google Account or Sign in your account.
You can also tap Skip to set up an account later.
4. Configure the Google location options and tap Next.
5. Configure the date and time options, and tap Next.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to
a low-power-consumption state while the display is off. Your
device also goes into Sleep Mode by itself when the display
is automatically turned off after a certain period of time, which
you can set in Settings > Display > Screen timeout.
Press Power Key to switch to Sleep Mode.
Waking up Your Phone
1. Press Power Key to activate your screen display.
2. Drag the icon to the right.
NOTE: If you have set an unlock pattern, PIN or password for
your phone (see Sorting out Your Phone Settings – Security
Settings) you’ll need to draw the pattern or enter the
PIN/password to unlock your screen.
33
Getting Around
Touch Control
You can use finger gestures to control your phone. The
controls on your touch screen change dynamically
depending on the tasks you’re performing.
1. Tap the buttons, icons, or applications to select items or
to open applications.
2. Keep your finger on an item to see the available options.
3. Flick the screen to scroll up, down, left or right.
4. Point, drag and drop to move particular items across the
screen.
5. Pinch with two fingers, or double-tap the screen, to zoom
in/out on a web page or an image.
NOTE: You can view the phone screen in portrait or
landscape orientation simply by holding it upright or turning it
on its side.
34
Home Screen
You choose what is shown on your Home Screen. Set your
own wallpaper, add the widgets or application shortcuts you
need, or remove them as you like.
Extended Home Screen
The Home Screen extends beyond the screen width, giving
you loads more space to add more stuff. Simply slide your
finger to the left or right, or tap the dots on the bottom corners
of the screen, to see the extended Home Screen.
Status &
Notifications
Widget
Tap to open
the dialer.
Tap to open the
main menu.
Tap to open the
web browser.
Wallpaper
Shortcut
35
Choosing Your Wallpaper
6. Tap Home Key to return to the Home Screen.
7. Tap Menu Key and select Wallpaper.
8. Tap Gallery, Live wallpapers, or Wallpapers and
choose the image or animation you want to use as
the wallpaper. Some cropping may be needed for
Gallery images.
9. Tap Save or Set wallpaper.
Adding Things to Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Slide left or right to find a part of the Home Screen with
free space.
3. Tap Menu Key and select Add.
You can also tap and hold the blank area of the Home
Screen to get the Add to Home screen menu.
4. Select a category, either shortcuts, widgets, or folders.
5. Choose the item you want to add to the Home Screen.
Removing Things from Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the
icon appears on the screen.
3. Drag the item to and release your finger when the
item turns red.
36
Status and Notification Icons
Your phone will tell you exactly what’s going on by showing
you simple icons. Here’s what they mean.
GPRS connected
No signal
GPRS in use
Signal strength
EDGE connected
Roaming
EDGE in use
Phone speaker off
3G connected
Phone microphone off
37
3G in use
No SIM installed
USB connected
GPS on
Battery flat
Recording phone call
Battery very low
microSD card removed
Battery low
Preparing microSD card
Battery partially
drained
Connected to a Wi-Fi network
Battery full
Alarm set
Battery charging
Wired microphone headset
Syncing
Bluetooth on
Vibrate mode
Speaker on
Airplane mode
Problem with SMS/MMS delivery
38
New mail
New instant message
New SMS/MMS/
voicemail
Upcoming event
New Gmail message
Song is playing
Missed call
Downloading data
Call in progress
Content downloaded and
installed successfully
Call on hold
Sending data
Call forwarding
USB tethering is on
More (not displayed)
notifications
Portable Wi-Fi hotspot is on
Error or warning
New Wi-Fi network detected
39
Using the Notification Panel
Flick the status bar downwards from across the top of the
screen to open the Notification Panel, where you can see
your calendar events, new messages, and current settings
– such as call forwarding or call status. From here you can
also open new messages, reminders, etc.
TIPS: You can also open the Notification Panel by tapping
Menu Key > Notifications from the Home Screen.
Re-open Recently-used Applications
1. Hold Home Key from any screen. The phone will display
icons of applications you used recently.
2. Tap the application you want to open.
40
Phone Calls
How to Make Calls
There are many ways to make a call with your phone. And
they’re all easy to do.
Calling from the Dialer
1. Tap Home Key > > Dialer or on the Home
Screen.
2. Enter the phone number with the on-screen keypad.
Tap to delete wrong digits.
3. Tap .
TIPS: To make international calls, hold to enter the “+”.
Calling from Your Contacts
1. Tap Home Key > > Contacts.
2. Slide your finger to scroll the contacts list and tap the
contact you want to call.
You can search for a contact by tapping Menu Key >
Search and entering the contact name.
3. Tap the phone number you wish to call.
Calling from Your Call History
1. Tap Home Key > > Call log.
41
2. Tap next to the number you want to call.
Calling from a Text Message
If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.
1. Tap Home Key > > Messaging.
2. Tap the conversation and then the message that contains
the phone number you need.
3. Tap the number.
4. Tap .
Using Speed Dial
Press and hold 1 - 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
Assigning a speed dial key:
1. Tap Menu Key > Settings > Call settings > Speed dial
from the Home Screen.
2. Tap a speed dial key.
3. Enter a phone number or tap to select one from the
contact list.
4. Tap OK.
42
How to Receive Calls
Answering a Call
Drag to the right to answer the call.
Rejecting a Call
Drag to the left to reject the call.
Muting a Call
During a call, you can mute your microphone so that the
person you are speaking to cannot hear you, but you can still
hear them:
Tap Mute to turn your microphone off. The mute icon will
appear on the status bar. To turn your microphone back on,
tap Mute again.
Putting a Call on Hold
During a call, you can put it on hold by tapping Menu Key >
Hold. The icon will appear on the screen.
TIPS: If you accept an incoming call while you’re on another
call, the first call automatically goes on hold. Just tap Menu
43
Key > Swap calls to switch between the two callers.
Turning the Speakerphone On/Off
Tap Speaker during a call to turn the speakerphone on. This
icon will appear in the status bar. Tap Speaker again to
turn off the speakerphone.
Ending a Call
Tap to finish a call.
Adjusting Your Call Settings
From the Home Screen, you can open the call settings menu
by going from Menu Key > Settings > Call settings.
Fixed dialing
numbers
Restrict outgoing calls to a fixed set of numbers.
To do this you must know your SIM’s PIN2 code.
Voicemail service
Select a voicemail service provider.
Voicemail settings
Specify a voicemail number.
TTY mode
Set up TTY mode for users with hearing or
speech difficulties.
Hearing aids
Turn on or off hearing aid compatibility.
Speed dial
Set speed dialing keys and numbers.
Call barring
settings
Forbid certain types of calls.
44
Call forwarding
Forward your incoming calls to a different
number. And choose when to forward: Always
forward; Forward when busy; Forward when
unanswered, or Forward when unreachable.
Additional settings
Caller ID
Choose whether people you call
can see your number.
Call waiting
See new incoming calls while
you’re on another call.
Accounts
Set up Internet calling (SIP) accounts.
Use Internet
calling
Choose when to use the Internet calling function.
45
Contacts
You can add contacts on your phone and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, tap Home Key > > Contacts.
From there, you can tap the tabs on the top to quickly switch
to dialer, call log, favorite contacts, or contact groups.
Importing and Exporting Contacts
You can import or export contacts from/to your SIM card or
microSD card. This is especially useful when you need to
transfer contacts between different devices.
Import Contacts from the SIM Card or Export
to the Card
1. Tap Menu Key > Import/Export from the Contacts
Screen.
2. Choose to import or export contacts. Your phone will
automatically display the contacts.
3. Tap the contacts you want to import or export. Or, just tap
Menu Key > Select all.
4. Tap OK.
46
Import Contacts from the microSD Card or
Export to the Card
1. Tap Menu Key > Import/Export from the Contacts
Screen.
2. Choose to import or export contacts.
• For export, the phone will prompt you with the name of
the vCard file. Tap OK to create the file in the microSD
card.
• For import, you should have vCard files saved in the
microSD card. If there’s more than one vCard file, you
need to select the vCard file and tap OK.
Sharing Contacts Information
1. Tap Menu Key > Import/Export > Share visible
contacts from the Contacts Screen. Your phone will
export all information of the contacts in the Contact
Screen to a temporary vCard file.
2. Choose how you want to send the vCard file. You can
either send it via Bluetooth to another device, or as an
attachment in an MMS, an Email or a Gmail message.
Creating a Contact
1. Tap or Menu Key > New contact from the Contacts
Screen.
47
2. Tap Contact type to choose where to save the contact.
3. Enter the contact name and phone numbers, emails, IM
accounts, postal addresses, etc.
4. Tap Done to save the contact.
Adding a Contact to Favorites
1. In the Contact Screen, tap and hold the contact you want to
add to Favorites.
2. Tap Add to favorites from the pop-up menu.
TIPS: You can also tap a contact and then tap next to
the contact’s name to add it to Favorites.
Searching for a Contact
1. Tap at the bottom of the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Creating a New Group
3. Tap the Groups tab from the Contacts Screen.
4. Tap the Add Group icon at the bottom of the screen.
5. Enter the group name and tap OK.
6. Tap the new group and tap to add group members.
7. Tick the check boxes next to the contacts you want. Then
48
tap OK.
To send messages to the group members, you can tap
next to the group and select message recipients from the
listed group members.
49
Entering Text
When you enter a field that needs text or numbers, a
keyboard automatically appears on the screen. Hold the input
box and select Input method from the pop-up menu to
change input method.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the
keyboard will change from portrait to landscape.
To use the landscape keyboard, just tick the Auto-rotate
screen check box in Settings > Display. (The landscape
QWERTY keyboard is not supported in all applications.)
• Tap the alphabetic keys to enter letters. Tap and hold the
keys to enter associated accented letters or numbers. For
example, to enter è, tap and hold and the available
accented letters and number 3 appear. Then slide to
50
choose è.
• Tap to use uppercase or lowercase. This key also
changes to indicate the current case you are using:
for lowercase, for uppercase, and when locked
in uppercase.
• Tap to delete any text you have entered.
• Tap to select numbers and symbols. You can then
tap to find more. Also, often used symbols are
displayed on top of the keyboard. Flick left or right to find
the one you need and tap to enter.
• Tap to enter a smiley face; hold the key and swipe
to choose more emoticons.
• Tap to change input method or set up Android
keyboard.
• Tap to use Google’s networked voice input.
XT9 Text Input
XT9 Text Input can speed up text input by replacing the key
tapping motion of input with a tracing gesture where you
move your finger from letter to letter without lifting the finger
until you reach the end of the word.
XT9 offers three keyboard layouts, Keyboard, Reduced
keyboard, and Phone keypad.
51
• Keyboard
Move your finger from letter to letter to trace a word without
lifting the finger until you reach the end of the word.
The trace feature is also available in the Reduced keyboard
layout and Phone keypad layout.
• Reduced keyboard
Tap to switch between
uppercase and
lowercase. Tap twice to
lock on uppercase.
Tap to select digits
and symbols.
Tap or hold to input
emoticons.
Delete text before
the cursor.
Move your finger on
the letters without
lifting it up.
Start of the word
End of the word
Hold to switch between
multi-tap and predictive
text input.
52
• Phone keypad
Using the toolbar
Notes:
The icon is available when more than one language is
activated. You can select more input languages by pressing
Menu Key > Settings > Language & keyboard > XT9 Text
Input > Languages and settings from Home Screen.
Tips for using XT9 Text Input:
• Ignore double letters – XT9 Text Input will figure those out
for you automatically.
• Lift your finger at the end of the word. A space is added
automatically when you begin to trace the next word.
Hold to switch between
multi-tap and predictive
text input.
53
Choosing Touch Input Settings
Choose the touch input settings by tapping Menu Key >
Settings > Language & keyboard from Home Screen.
In the Keyboard settings section, you can choose the
settings for Android keyboard and XT9.
54
Messaging
Your SMS (text message) and MMS (multimedia messaging
service) are combined into one menu in Home Key > >
Messaging.
The Message Box
Instead of an inbox and outbox, your phone organizes all
messages you sent and received into one box, where
messages exchanged with the same party are grouped into a
message thread in the Messaging Screen. You can tap a
message thread to see the conversation you have had with
someone.
Message threads are sorted in chronological order with the
latest one on top.
Sending an Message
1. Tap Home Key > > Messaging.
2. Tap New message.
3. Enter the recipient’s number or name. As you type,
matching contacts will appear. Tap a suggested contact
to add as a recipient.
4. Tap Type to compose and type your message.
• Tap Menu Key to insert Quick Text, signature, smiley,
or contact.
55
• If you are sending an MMS, tap Menu Key to attach
pictures, videos, audio, or slideshows.
5. Tap Send to send your text.
NOTE: Add an attachment to text message and it will be
converted into an MMS automatically. Likewise if you remove
all attachments from an MMS, it’ll automatically become a
text message.
Changing Message Settings
The phone’s message settings are pre-configured for you to
use immediately. To change them, tap Menu Key > Settings
from the Messages Screen.
Storage settings:
Delete old messages: Select to delete old messages when
your storage limits are reached.
Text message limit: Set the maximum number of text
messages allowed in a single thread.
Multimedia message limit: Set the maximum number of
multimedia messages allowed in a single thread.
Text message (SMS) settings:
Manage SIM card messages: Manage the messages saved
in your SIM card.
Service Center: Enables you to view and edit the service
center number.
56
Multimedia message (MMS) settings:
Tick the Auto-retrieve check box to automatically download
MMS messages.
Notification settings:
Notifications: Show message notifications in the status bar.
Select ringtone: Choose a ringtone for your incoming
messages.
Vibrate: Make your phone vibrate when a new message
arrives.
Signature settings:
Edit signature: Edit your signature, which can be added
automatically to outgoing messages.
Add signature: Add the signature to all outgoing messages.
NOTE: Tap Menu Key > Restore default settings to
change all the message settings back to the original.
57
Email
Tap Home Key > > Email. You can enter the Email
Screen to setup your Email account and exchange Emails.
Creating an Email account
1. When you open Email for the first time, enter your Email
address and password. Then tap Next.
2. Select the type of your account and tap Next.
3. Edit the settings for incoming server and outgoing server.
Then tap Next or Next [Check].
Press Next [Check], and your phone will connect to the
Internet and verify the settings before proceeding to the
next step. Please contact your mobile service provider and
Email service provider for more help.
NOTE: Your phone knows the client settings for lots of
Email service providers. If the Email you use is from those
providers, the phone will automatically configure the
incoming and outgoing settings after you enter your Email
address and password.
4. Set the Email checking frequency, download options,
account name and other settings. Tap Done when you
finish.
Your phone will show the inbox of the Email account and
start to download Email messages.
58
TIPS: To add more Email accounts, open Email to get the
Inbox screen. Then tap Menu Key > More > Accounts >
Menu Key > Add account.
Receiving Emails
Press Menu Key > Refresh to download recent Emails. You
can select Load more messages at the bottom of the Email
list to download earlier messages.
Composing and sending an Email
After creating an Email account, you can compose and send
Email messages.
1. Tap Menu Key > Compose from the Inbox Screen.
2. Tap To field if needed, and enter the recipient’s address.
When you enter the address, matching contacts on the
phone will be displayed. Separate each recipient with a
comma.
TIPS: You can also tap Menu Key > Add Cc/Bcc to add
more recipients.
3. Enter the subject and the content of your Email. If
necessary, change the email priority.
Tap Menu Key > More > Add attachment to add files to
the Email.
4. Tap Send.
59
Replying to or Forwarding an Email
1. Open the Email you want to reply to or forward from Inbox
Screen.
2. Tap Reply or Menu Key > Forward to reply to/forward
the Email.
You can also tap Reply all to reply to all recipients of the
Email.
3. Enter the contents/recipients of your Email.
4. Tap Send.
Deleting an Account
1. Open the Email application. If there is only one account,
tap Menu Key > More > Accounts to get the Accounts
list.
2. Tap and hold the account you want to delete and select
Remove account from the pop-up menu.
3. Tap OK to confirm. All Email messages in the account will
be deleted.
Email Settings
Tap the account you want to set from the Accounts Screen and
tap Menu Key > More > Account settings. You can get the
settings for the Email account. You can also tap Menu Key >
More > System setting to set up storage, exchange and other
60
settings.
61
Getting Connected to the Internet
Your phone’s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.
You can use default connection settings to connect to the
web via your mobile network (GPRS/EDGE/3G), or Wi-Fi.
The GPRS/EDGE/3G connection can be enabled/disabled
manually. Just select > Settings > Wireless &
networks > Mobile networks from the Home Screen and
tick or clear the Data enabled check box.
Adding a New GPRS/EDGE/3G
Connection
To get connected via GPRS/EDGE/3G you need a data plan
with your service provider. Also if the GPRS/EDGE/3G
settings are not pre-configured on your phone, please
contact your provider to get the necessary information.
1. Tap Home Key > > Settings > Wireless &
networks > Mobile networks > Access Point Names.
2. Tap Menu Key > New APN.
3. Tap each item to enter the information you get from your
provider.
4. Tap Menu Key > Save to complete.
TIPS: To set the APN to default settings, tap Menu Key >
Reset to default.
62
Turning on Wi-Fi
Wi-Fi provides wireless Internet access over distances of up
to 300 feet (100 meters).
1. Tap Home Key > > Settings > Wireless &
networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Tap Home Key > > Settings > Wireless &
networks > Wi-Fi settings.
The Wi-Fi access points, or “hotspots”, that your phone
has detected are displayed with their names and
security settings.
2. Tap an access point to connect to it.
If security features are implemented, you’ll need to enter a
password.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by looking at the icon
in the status bar.
Or tap the access point that the phone is currently connected
to in Wi-Fi settings. You can then check the network status
from the pop-up window.
63
Using the Phone as a Modem
You can access the Internet on your PC via your phone as a
modem. Note the function may result in data charges from
your mobile phone carrier. Please contact them for detail.
Enabling the Phone as a Modem
TIPS:
• Make sure that USB storage is turned off before enabling
the modem function. To turn off USB storage, flick down
the notification panel and tap Turn off USB storage >
Turn off USB storage.
• The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
modem.
1. When you connect your phone to your PC with the
provided USB cable for the first time, a window will pop up
and prompt you to install the driver.
2. Double click the executable file (.exe) in the window and
follow the prompt to finish the driver installation.
NOTES: If the window doesn’t pop up automatically for
some reason, please open the new CD-ROM drive on
your PC manually and find the executable file to run it.
3. Tap on the phone Home Key > Menu Key > Settings >
Wireless & networks > Tethering & portable hotspot
64
and tick the USB tethering check box. A new network
connection will be created on your PC.
4. Go to Control Panel > Network on your PC to enable the
new network connection.
Now you can launch the Internet browser on your PC and
start surfing.
Disabling the Modem Function
Tap Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
USB tethering check box.
You can also just pull out the USB cable.
Using the Phone as a Wi-Fi Hotspot
You can use the phone as a portable WLAN router, providing
Wi-Fi connection for one or multiple PC or other devices. The
function need data connection on a mobile network and may
result in data charges.
TIPS:
• The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the GPRS/EDGE/3G
connection correctly before you try to use the phone as a
Wi-Fi hotspot.
• When the portable Wi-Fi hotspot function is enabled, you
cannot access the internet with any application on your
phone via its Wi-Fi connection.
65
Enabling the Wi-Fi Hotspot
1. Tap Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and tick the
Portable Wi-Fi hotspot check box.
2. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi
hotspot.
3. Change the name of the hotspot and its security setting, if
necessary.
The default hotspot is set as an open one. You can tap
Open and choose WPA/WPA2 PSK to set up a password.
The password must have at least 8 characters.
4. Tap Save. Now you can find the hotspot on other devices
and connect to it.
Disabling the Wi-Fi Hotspot
Tap Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
Portable Wi-Fi hotspot check box.
66
Browsing the Internet
You can use your phone to get on the Internet via a GPRS,
EDGE, 3G, or Wi-Fi connection.
Tap Home Key > > Browser.
There are different ways to open web pages:
Tap the address bar to enter the website you want to browse.
Then tap Go.
Tap beside the address bar or tap Menu Key >
Bookmarks. Select a bookmark to open.
Tap beside the address bar or tap Menu Key >
Bookmarks. Choose an item from the Most visited tab or
History tab.
Browsing Options
Press Menu Key to access the following options when
browsing web pages.
Open a New window for web browsing.
Exit the Browser application.
Access Bookmarks, most visited web sites, and browsing
history.
Switch browsing Windows.
Refresh the current web page.
Tap More to forward to the next web page, add bookmarks,
67
search for and select text, share page URL, check page info
or download history, or configure browser settings.
Tap a URL link in a web page to open, bookmark, save,
share the link, or to copy the link URL.
Using Bookmarks
To bookmark a web page, open it and tap or Menu Key >
Bookmarks. Then tap Add or Add bookmark. Give the
bookmark a name and tap OK.
TIPS: You can press Menu Key > List view/Thumbnail
view to change how you view bookmarks on your phone
screen.
Editing a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the
shortcut menu pops up.
4. Select Edit bookmark.
5. Edit the name or location, and then tap OK to save it.
Deleting a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to delete and hold on it until the
68
shortcut menu pops up.
4. Select Delete bookmark and tap OK to confirm.
Changing Browser Settings
Tap Menu Key > More > Settings from a browser window to
change browser settings.
69
Bluetooth®
Bluetooth® is a short-range wireless communication
technology. Phones or other devices with Bluetooth
capabilities can exchange information wirelessly within a
distance of about 10 meters. The Bluetooth devices must be
paired before the communication is performed.
Using Bluetooth
1. Tap Home Key > > Settings > Wireless &
networks and tap the check box by Bluetooth to turn on
Bluetooth.
When Bluetooth is on, the icon will appear in the status
bar.
2. Tap Bluetooth settings > Scan for devices. Your
phone will show all visible Bluetooth devices in range.
3. Tap the device you want to pair with and, if required, enter
your PIN and tap OK.
If a PIN is required, the same PIN should be entered on
the other device. Refer to the document for the other
Bluetooth device for information on pairing mode and
PIN.
Tick the Discoverable check box if the other device tries to
pair with your phone.
70
Making the Most of Multimedia
Taking Pictures with Your Camera
Your phone has a 5-megapixel camera. Open it by tapping
Home Key > > Camera.
Tap to take a shot. To view it, just tap the picture in the
right corner of the screen. Or select Menu Key > Gallery to
view all your pictures.
Adjusting Camera Settings
From the Camera Screen tap to set up focus mode,
exposure, picture size/quality, color effect, ISO, anti-banding,
saturation, contrast, sharpness, and camera reset.
Tap to choose whether to save photo’s geographic location.
Tap to change white balance.
Tap to turn on or off shutter sound.
Tap 1x to zoom in or out.
TIP: To change quickly from camera to camcorder or vice
versa, use the switch icon. Use the
bar to adjust the brightness.
Shooting Video with Your Camcorder
Open the camcorder by tapping Home Key > >
Camcorder. Then select to start shooting, and to
71
stop. Select the picture in the right corner of the screen to
view the video you’ve just shot. Or tap Menu Key > Gallery
to see all your video clips.
Adjusting Your Video Settings
From the Camcorder Screen, tap to adjust color effect,
video quality, video/audio encoder, video duration, and
camcorder reset.
Tap to change white balance setting.
Tap High/Low/MMS/YouTube/ to change video quality,
video/audio encoder, and video duration together.
Playing Your Music
You can play digital audio files from your phone’s memory
card in Music.
1. Tap Home Key > > Music to open the Music
Screen.
2. Select Artists/Albums/Songs/Playlists to find the songs
you want to play.
3. Tap an item from the list to start playing.
4. Adjust the volume with Volume Keys.
72
Creating Playlists
Playlists help you organize your music files:
1. Select a music file you want to add to a new playlist.
2. Tap and hold on the file until a shortcut menu pops up.
3. Tap Add to playlist.
4. Tap New.
5. Type the playlist name and tap Save.
Managing Playlists
1. From the Music Screen tap Playlists to see them all.
Information (artist,
album and title) of
the track. Tap and
hold to search for
related information.
Tap to play the
previous track.
Drag or tap to jump to
any part of the track.
Tap to pause or
resume the track.
Tap to play the
next track.
Tap to choose
repeating mode
(repeat off,
repeat all, repeat
the current track)
Tap to turn on/off
shuffle.
Tap to view the
Now playing list.
73
2. Hold on the playlist you want to play or edit until a
shortcut menu pops up.
3. Tap Play, Delete or Rename.
Adding a Song to a Playlist
1. Open Music and find the song you need under Artists,
Albums, Songs, or Playlists.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist.
Setting a Song as Ringtone
1. Find the music file under Artists, Albums, Songs, or
Playlists.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.
Playing Your Videos
To play a video file, tap Home Key > > Videos. This will
open the Videos Screen and show the video files saved in
your memory card. Tap a video file to start playing.
74
Opening Your Gallery
Gallery helps you view pictures and play videos. You can
also do some basic editing of your pictures – such as setting
them as wallpaper or contact icons, and sharing with friends.
Making Memorable Memos
Sound Recorder enables you to record your voice memos.
You need a microSD card to use it.
1. Tap Home Key > > Sound Recorder.
Tap to return
to Gallery.
Tap to return to the
previous folder
Show the number of
pictures in the folder
Tap to zoom
Tap to view
pictures in
the folder in
a slideshow
75
2. Tap to start recording.
3. Tap to stop recording.
4. Tap to play back the voice recording.
5. Tap OK to save the voice recording, or tap Discard to
delete the recording.
TIPS: You can find your recordings in Home Key > >
Music > Playlists > My recordings.
76
Using Your Google™ Applications
Signing in to your Google Account lets you synchronize
Gmail, Calendar, and Contacts between your phone and the
web. And if you don’t have an account, you can easily create
one.
1. Tap a Google application that need a Google account,
such as Market.
2. Read the instructions and select Next.
3. If you’ve got a Google account, tap Sign in. Enter your
user name and password. Then tap Sign in. (Or tap
Create if you don’t have a Google account.)
4. Set the backup and restore option, and tap Next > Finish
setup.
Gmail
Gmail is a web-based email service that’s configured when
you sign in to your Google account. Depending on your
synchronization settings, the Gmail on your phone can be
automatically synchronized with your Gmail account on the
web.
This is how you create and send a Gmail:
1. Open Gmail by tapping Home Key > > Gmail.
2. Press Menu Key > Compose.
3. Enter the email address of the person you’re contacting in
77
the ‘To’ field. If you’re sending the email to several people,
separate the email addresses with commas. You can add
as many recipients as you want.
4. Enter the email subject, and then write your email.
5. Tap Menu Key > Send.
Using Google Calendar
Tap Home Key > > Calendar to use Google Calendar,
Google’s time management application. You can use the
calendar to schedule appointments, including meetings and
other events. Your appointments will be displayed on the
screen as are scheduled. You can also synchronize
appointments to your Google account, which enables you to
manage your schedule online on your PC.
Using Google Talk
Google Talk is Google’s instant messaging program, which
enables you to communicate with other people who also use
it.
Opening Google Talk
Tap Home Key > > Talk.
Adding a New Friend
You can only add people who have a Google Account.
78
1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google account of the friend you want to add.
Your friend will receive an invitation from Google. Press
Menu Key > More > Invites to see pending invitation.
Changing Your Online Status
1. Tap the Talk status bar above the Friends list.
2. Tap to change status and then enter your status
message in the text box.
Starting a Chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Tap Send.
Places
Google Places helps you find all kinds of businesses near
you.
1. Tap Home Key > > Settings > Location & security
and tick the Use GPS satellites or Use wireless
networks check box.
2. Tap Home Key > > Places. Wait while you are being
located. Your location, when found, is shown at the
bottom of the screen.
3. Select a business category and the information of that
79
type of business near you will be displayed.
You can also use the Find places search box on the top
to find the business you need.
NOTES: Tap Add to add new business categories.
4. Tap a result you are interested in and check out the
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.
Latitude
Google’s Latitude service is a social tool for sharing your
location information with selected friends.
Tap Home Key > > Latitude to enable Latitude service.
Each time you launch Maps application, your location will be
determined using GPS or the phone network, and your
Latitude status will be updated. You can tap Menu Key >
Latitude in Maps or Home Key > > Latitude to see
your status as well as that of your selected friends.
In Latitude, tap Menu Key to refresh friends status, see them
on Maps, add new friends, or change privacy settings.
You can also turn off Latitude service by tapping Sign out of
Latitude in Privacy settings of Latitude.
80
Sorting out Your Phone Settings
Setting Time and Date
1. Tap Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic check box if you want to set the time
and date by yourself.
3. Set date, time, time zone, and date/time format.
Changing Display Settings
By tapping Home Key > Menu Key > Settings > Display,
you can adjust the display settings as you like:
• Brightness: Adjust brightness of the screen.
• Auto-rotate screen: Rotate the screen display as you
rotate the phone.
• Animation: Choose window animation.
• Screen timeout: Set the delay for the screen to
automatically turn off.
Sound Settings
By tapping Home Key > Menu Key > Settings > Sound,
you can adjust the sound settings, such as setting ringtones
and volume, turning on silent mode or vibration, allowing
sound feedback for touching keys, making selections and
81
locking the screen.
• Turn to forbid phone ring: Mute the incoming call
ringtone when flip the phone over.
• Phone ringtone / Notification ringtone: Select the
default ringtones for incoming calls and notifications.
• Haptic feedback: Vibrate when pressing soft keys or on
certain user interface interactions.
To quickly switch to silent mode, press Volume - or, if the
screen is locked, drag to the left.
Language Settings
You can change the language of your phone system in two
82
simple steps.
1. Tap Home Key > > Settings > Language &
keyboard > Select language.
2. Select a language from the list given.
Mobile Network Services
Tap Home Key > > Settings > Wireless & networks >
Mobile networks to enable or disable data service, allow
data services when roaming, or set access point names for
data access.
IMPORTANT: Data roaming may incur significant
roaming charges.
Security Settings
Here’s how to protect your phone and SIM from unauthorized
use.
Protecting Your Phone with a Screen Unlock
Pattern
Creating Your Screen Unlock Pattern
1. Tap Home Key > > Settings > Location & security
> Set up screen lock > Pattern.
2. Read the instructions and tap Next.
3. Watch the example pattern and tap Next.
83
4. With a finger, draw your own pattern and tap Continue.
5. Draw the pattern again and tap Confirm.
6. Press Power Key to lock the screen.
TIPS: Clear the Use visible pattern box if you want to hide
the pattern as you draw it on the screen.
Unlocking the Screen with Your Pattern
1. Press Power Key to wake up the screen.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Cannot recall your screen unlock pattern?
You have up to five attempts to unlock your phone. If you still
cannot recall the screen unlock pattern, you can tap Forgot
pattern? and enter your Google account user name and
password to reset the screen unlock pattern.
IMPORTANT: You must sign in or create a Google
account on your phone before using the following
method to reset the pattern.
Protecting Your Phone with a PIN or
Password
Creating a PIN or Password
1. Tap Home Key > > Settings > Location & security
> Set up screen lock.
2. Tap PIN or Password.
84
3. Enter the numeric PIN or any password you like, and tap
Continue.
4. Enter it again and tap OK to confirm.
Unlocking the Screen with Your PIN or Password
1. Press Power Key to wake up the phone.
2. Drag the icon to the right.
3. Enter the PIN or password you set.
4. Tap OK.
Disabling Screen Unlock Security
If you have created an unlock pattern, PIN or password, you
can disable it.
1. Tap Home Key > > Settings > Location & security
> Change screen lock.
2. Draw the screen unlock pattern or enter your PIN/
password you have created.
3. Tap None.
Protecting Your SIM with a PIN
Every SIM card comes with a PIN. The initial PIN is provided
by your mobile phone carrier. It’s best to lock your SIM as
soon as you can.
1. Tap Home Key > > Settings > Location & security
> Set up SIM card lock.
85
2. Tick the Lock SIM card check box.
3. Enter the PIN you’ve been given and tap OK.
Changing Your SIM PIN
You can change the PIN you’ve been given to one easier for
you to remember and harder for others to guess.
1. Tap Home Key > > Settings > Location & security
> Set up SIM card lock.
2. Make sure you already tick the Lock SIM card check box.
3. Tap Change SIM PIN.
4. Enter the old PIN and tap OK.
5. Enter your new PIN and tap OK.
6. Enter the new PIN again and tap OK.
Restoring a Locked SIM Card
Put all your confidential passwords in a safe place for future
use. If you enter the wrong SIM PIN more times than allowed,
your SIM card will be locked and you cannot access the
mobile phone network. Contact your operator for a PIN
Unlock Key (PUK) to restore the SIM card.
Setting up Credential Storage
This lets you select applications to access secure certificates
and other credentials.
Enabling Secure Credentials
1. Tap Home Key > > Settings > Location &
86
security.
2. Tap Set password and create a password for the
credential storage.
3. Tick the Use secure credentials box.
TIPS: You can also install encrypted certificates from your
microSD card by tapping Install from SD card.
Deleting Secure Credentials
1. Tap Home Key > > Settings > Location &
security.
2. Tap Clear storage to clear credentials.
Managing Your Device Memory
Tap Home Key > > Settings > Storage.
You can view the space information of the microSD card as
well as the phone storage.
• Unmount SD card: You can unmount the card to safely
remove it without switching the phone off.
• Erase SD card: Erase all data on the memory card.
Privacy: Reset to Factory Settings
Tap Home Key > > Settings > Privacy > Factory data
reset > Reset phone > Erase everything.
WARNING: All your personal information and
87
downloaded applications on your phone will be erased
after the resetting.
Managing Applications
Tap Home Key > > Settings > Applications.
• Manage applications: Manage or remove installed
applications.
• Running services: Check currently running services and
stop them if needed.
• Storage use: View storage used by applications.
• Development: Set options for application development.
Tick the Unknown sources check box if you want to
installed applications from sources other than the Android
Market. Note that you may risk your phone and personal data
by installing such applications.
How to Install an Application
You can install an application from the Android Market
(Home Key > > Market) by selecting the item you want
to download and tapping Install.
You can also install a non-Marketing application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.
1. Copy the application file to the microSD memory card and
88
install the card on your phone.
2. Tap Home Key > > Filer, and open the folder where
the application file is.
3. Tap the file to start installation.
4. Read the installation instructions that come with the
application and follow it to complete the setup.
Managing Other Settings
Search Settings
You can manage search settings and search history by
opening the Google Search application and tapping Menu
Key > Search settings.
• Google search: Adjust Google search settings.
• Searchable items: Adjust searching
You can also clear shortcuts to recently chosen search
suggestions.
Voice Interaction
You can set the text-to-speech and voice recognition options
by tapping Home Key > > Settings > Voice input &
output.
NOTE: You need to download voice data in order to use the
text-to-speech function. Just tap Install voice data in
Text-to-speech settings.
89
Accessibility
Configure accessibility options for accessibility-related
applications.
AT&T Software Update
Update the firmware of your phone to the latest available
version. Please pay attention to notes that appear in each
step during the update process.
About phone
Check system updates, phone status and battery use, or
view legal information and software versions.
90
Other Applications
Alarms
1. Tap Home Key > > Alarm.
2. Tap the default alarm to configure it. Or, to create a new
alarm, tap Menu Key > Add alarm.
3. Tick the Turn on alarm box and set up Name, Time,
Repeat, Snooze, Duration, Vibrate, Ringtone, Volume,
Volume crescendo, and Delay.
Docs To Go
A handy application suite that’ll open Word, Excel,
Powerpoint, or PDF files.
Read the on-screen instructions for detailed information.
Note Pad
Note pad is for your memos. Tap Menu Key to add or
delete them, or to export the text to a txt file in the
microSD memory card. Hold an existing note to edit, delete,
share or export, or to change its title.
Calculator
Tap Home Key > > Calculator.
91
TIPS: Tap Menu Key > Advanced panel to use scientific
calculation.
SIM Toolkit
SIM Toolkit will only appear on the screen if your SIM
provides this function. To use SIM services, insert your SIM
in the phone first.
Tap Home Key > > SIM Toolkit.
Task Manager
Tap Home Key > and select Task Manager to view or
stop applications.
Tap a task in the Task tab to switch to its screen, abort it, or
see its detail. Tap Resource to view real-time allocation of
system resources.
Stopwatch
1. Tap Home Key > > Stopwatch.
2. Tap Start to start timing, Pause to pause time, and
Resume to continue.
3. Reset will take the stopwatch back to 00:00.0.
92
AT&T Mobile Care
AT&T Mobile Care allows you get information on your mobile
phone account, manage your account, top up the balance, all
right from your phone.
Tap Home Key > > Mobile Care.
93
Specifications
Dimensions
Approx. 116 mm " 62.5 mm "
12.6 mm
Weight
Approx. 128g (with battery)
Bearer
GSM/WCDMA support
Main display dimension,
resolution
3.5 inches 320*480 (HVGA)
Back
Camera
Sensor type
CMOS
Still image
capture
resolution
5M Pixels with auto focus
Internal memory
ROM: 512MB, RAM: 512MB
Removable memory card
Support microSD card, max.
capacity 32GB
Battery
Capacity
1500mAh
Standby time
Approx. 390 hours (subject to
network status)
Voice talk time
Approx. 170 min (subject to
network status)
WAP browser version
WAP2.0
