ZTE ZTEA36 GSM Dual-band Digital Mobile Phone User Manual A36
ZTE Corporation GSM Dual-band Digital Mobile Phone A36
ZTE >
Users Manual
1
ZTE CORPORATION
A36
GSM Dual-band Digital Mobile Phone
User Manual
2
Copyright © 2007 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE
Corporation.
ZTE operates a policy of continuous development. We reserve the right to update the technical specifications in
this document at any time without prior notice.
Release V 1.0
Manual number
MM DD, 2007
3
Contents
GENERAL INFORMATION........................................................................................................ 4
WELCOME .................................................................................................................................... 4
SECURITY ..................................................................................................................................... 4
SAFETY PRECAUTIONS.................................................................................................................. 4
GETTING STARTED.................................................................................................................... 7
KEY DEFINITION........................................................................................................................... 7
DISPLAY INDICATORS.................................................................................................................... 7
TECHNICAL PARAMETERS............................................................................................................. 8
BATTERY....................................................................................................................................... 8
CONNECTING TO THE NETWORK................................................................................................... 9
BASIC OPERATIONS ................................................................................................................10
MAKING A CALL......................................................................................................................... 10
ANSWERING A CALL ....................................................................................................................11
CALL MENU.................................................................................................................................11
FUNCTION MENU......................................................................................................................11
USAGE AND STRUCTURE OF FUNCTION MENU ............................................................................11
GAMES........................................................................................................................................ 12
CALL MENU................................................................................................................................ 12
TOOLS......................................................................................................................................... 13
PROFILES .................................................................................................................................... 14
MESSAGING................................................................................................................................ 14
ALARM ....................................................................................................................................... 16
STK (SIM TOOLKIT) .................................................................................................................. 16
CONTACTS .................................................................................................................................. 17
SETTINGS.................................................................................................................................... 18
TEXT INPUT ............................................................................................................................... 20
OVERVIEW.................................................................................................................................. 20
123 MODE ................................................................................................................................... 21
ENG MODE.................................................................................................................................. 21
CHARACTER CHART ................................................................................................................... 21
TROUBLESHOOTING .............................................................................................................. 22
4
General Information
Welcome
Thank you for using ZTE A36 GSM digital mobile phone.
To guarantee the mobile phone always in its best condition, please read this manual carefully and keep it for further
use.
The pictures, symbols and contents in this manual are just for your reference. They might not be completely identical
with your mobile phone.
Security
If your mobile phone is lost or stolen, please report to your service provider or proxy agencies to ban the use of
your lost SIM card, which will protect you from economic loss resulted from unauthorized use.
To protect your mobile phone from illegal use, take the security measures as follows:
¾ Set PIN 1 codes of the SIM card.
¾ Set handset lock code.
¾ Take it with you as you can.
¾ Set call restrictions.
Safety Precautions
This section includes some important information on safe and efficient operation. Please read this information before
using the phone.
Operational Precautions
Please use your phone properly. When making or receiving a call, please hold your phone as holding a wireline
telephone. Ensure the phone is at least one inch (two point five centimeters) from your body when transmitting.
Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may
cause the phone to operate at a higher power level than needed.
Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as
when watching television or playing video games. If you have experienced seizures or blackouts, or if you have
a family history of such occurrences, please consult your doctor before playing video games on you phone or
enabling a flashing-lights feature on your phone. (The flashing-light feature is not available on all products.)
Keep the phone out of the reach of small children. The phone may cause injury if used as a toy.
Precautions While Driving
Please pay attention to the traffic safety. Check the laws and regulations on the use of your phone in the area
where you drive. Always obey them.
Use hands-free function of the phone, if available.
Pull off the road and park before making or answering a call if conditions require.
Precautions for Medical Devices and Facilities
When using your phone near pacemakers, please always keep the phone more than eight inches (twenty
centimeters) from the pacemaker when the phone is switched on. Do not carry the phone in the breast pocket.
Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately
if necessary.
Some phones may interfere with some hearing aids. In the event of such interference, you may consult your
hearing aids manufacturer to discuss alternatives.
If you use any other personal medical device, please consult the manufacturer of your device to determine if it is
adequately shielded from RF energy.
5
In those facilities with special demand, such as hospital or health care facilities, please pay attention to the
restriction on the use of mobile phone. Switch off your phone if required.
Mobile phone
Please use original accessories or accessories approved by the phone manufacturer. Using any unauthorized
accessories may affect your mobile phone’s performance, damage your phone or even cause danger to your
body and violate related local regulations about telecom terminals.
Turn off your phone before you clean it. Use a damp or anti-static cloth to clean the phone. Do not use a dry
cloth or electrostatically charged cloth. Do not use chemical or abrasive cleaners as these could damage the
phone.
As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as computer
disks.
Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause
interference.
Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can shorten the
life of electronic devices.
Keep your phone dry. Any liquid may damage your phone.
Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards.
Do not connect the phone with any incompatible enhancement.
Do not attempt to disassemble the mobile phone and battery.
Do not store the phone with flammable and explosive articles.
Do not charge the mobile phone without battery.
Precautions for Potentially Explosive Atmospheres
Switch off your phone prior to entering any area with potentially explosive atmospheres, such as fueling areas,
fuel or chemical transfer or storage facilities.
Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive atmosphere can cause
an explosion or fire resulting in bodily injury or even death.
To avoid possible interference with blasting operations, switch off your phone when you are near electrical
blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.” Obey all signs and instructions.
Precautions for Electronic Devices
Some electronic devices are susceptible to electromagnetic interference sent by mobile phone if inadequately
shielded, such as electronic system of vehicles. Please consult the manufacturer of the device before using the
phone if necessary.
Safety and General Use in Vehicles
Safety airbag, brake, speed control system and oil eject system shouldn’t be affected by wireless transmitting. If
you do meet problems above, please contact your automobile provider. Do not place your phone in the area
over an airbag or in the airbag deployment area. Airbags inflate with great force. If a phone is placed in the
airbag deployment area and the airbag inflates, the phone may be propelled with great force and cause serious
injury to occupants of the vehicle.
Please turn off your mobile phone at a refueling point, and the same to the place where the use of two-way radio
is prohibited.
Aircraft Safety
Please turn off your mobile phone before the airplane takes off. In order to protect airplane’s communication
system from interference, it is forbidden to use mobile phone in flight. Using mobile phone before the plane
taking off should get aircrew’s permission according to safety regulations.
6
If the mobile phone comprises the function of automatic timing power-on, please check your alarm setting to
ensure that your phone will not be automatically turned on during flight.
Battery Use
Do not short-circuit the battery, as this can cause overheating to bring about fire.
Do not store battery in hot areas or throw it into fire. Otherwise, it will cause explosion.
Do not disassemble or refit the battery. Otherwise, it will cause liquid leakage, overheating, explosion and
ignition of the battery.
Please store the battery in a cool dry place if you don’t use it for a long period.
The battery can be recharged for hundreds of times, but it will eventually wear out. When the operating time (talk
time and standby time) is noticeably shorter than normal, it is time to replace a new one.
Please stop using the charger and battery when they are damaged or show evidence of aging.
Return the wear-out battery to the provider or dispose of it in accordance with environment regulations. Do not
dispose of it in household rubbish.
Only use the original batteries. Using any unauthorized battery may affect your handset performance or may
cause danger of explosion, etc.
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information
The handset is designed to comply with safely, requirements for exposure to radio waves. This requirement is
based on scientific guidelines that include safety margins designed to assure the safety of all persons,
regardless of age and health.
The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or
SAR. Tests for SAR are conducted using a standardized method with the phone transmitting at its highest
certified power level in all used frequency bands.
While there may be differences between the SAR levels of various ZTE phone models, they are all designed to
meet the relevant guidelines for exposure to radio waves.
The SAR limit recommended is 1.6W/kg averaged over one(1) gramme of tissue.
The highest SAR value for this model phone tested by MORLAB for use at the head is 1.545 W/kg(1g)
The highest SAR value for this model phone tested by MORLAB for use at the body is 0.529W/kg(1g)
SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar accessories that have no
metallic component in the assembly and which provide at least 1.5 cm separation between the device, including
its antenna, and the users body
Warning: If the battery is damaged, do not discharge it. If the leakage does come into contact with the eyes or skin,
wash thoroughly in clean water and consult a doctor.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
7
Getting Started
Key Definition
Left soft key
Perform the function in the lower left corner of the screen.
Right soft key
Perform the function in the lower right corner of the screen.
Dial key
Make and answer calls. Bring out call logs in the standby mode.
End key
End or reject a call. Power on/off. Return to the standby mode in the menu interface.
Scroll key
Up/Down key: Scroll up and down in the contacts list or setting options. Move the cursor up and down when
editing. Serve as shortcut keys in the standby mode and direction keys in games.
Left/Right key: Move the cursor left and right when editing. Serve as shortcut keys in the standby mode.
OK key: Confirm actions/make selections, which is in the center of the navigation keys.
~0~9 Number key
Input numbers and characters. Used for Speed dials. Select options when entering menus. Serve as direction
keys in games.
* key and # key
They have different functions in different modes or function menus.
Note: In this manual press a key means you press a key and then release it; hold a key means you press a key
and hold on for two seconds or more.
Display Indicators
: Signal strength
: Activate the call diverts function
: Keypad locked
: Roaming
: New message
: Enable the mute mode
: Alarm clock set
: Battery status
: Enable vibrating function
8
Technical Parameters
Handset
Type ZTE A36
Dimensions（W×L×H） 107.6mm x 47mm x 13.8mm
Weight Approx.
48 g (without battery)
Battery
Continuous standby time Approx. 90 hours ~ 130 hours (subject to network status)
Continuous talk time Approx. 2 hours ~ 4 hours (subject to network status)
For other parameters about battery and charger, refer to their labels.
Battery
The accessory lithium battery of the handset can be immediately used after unpacking. A new battery performs
best after full charge/discharge cycles for the first three times.

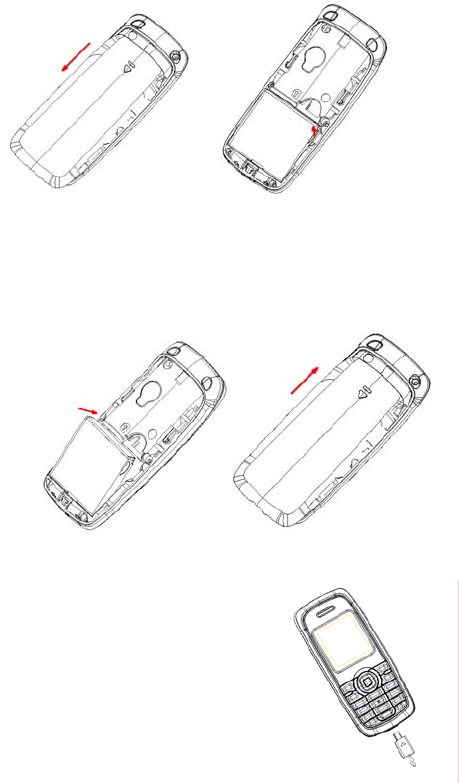

Removing & Installing the Battery
Remove: Power off your phone, slide down the cover and then lift the battery from the compartment to remove
it.
Install: Place the bottom of the battery into position, push down on the upper section of the battery until it clicks
into place and then install battery cover.
Charging the Battery
9
Plug the charger connector into the charge port at the bottom of the phone. (Note: Put upward the side with
arrow.) Then plug the other end of the charger in an appropriate electrical outlet.
Now, a charge indicator displays in the upper right corner of the screen. If the battery is charged in power-off
condition, the indicator bar will scroll. If the phone is over-used in shortage of battery or not used for a long time,
it will take a few minutes for the indicator bar to show.
When the battery is fully charged, the bar stops scrolling. Generally the whole charge process needs two to
three hours (charge the battery for six to eight hours for the first three times). During the charge process, your
phone, battery and charger may become hot, which is normal.
Disconnect the charger with the phone and the power outlet when charge finished.
Warning:
Put the phone at a ventilated place with temperature between + 5℃～ + 40 . ℃Use only the supplied or
approved chargers. Using unauthorized charger may cause danger and violate the authorization and warranty
rules of the phone.
Charge the battery in time when your phone automatically powers off or displays a warning “Battery low”.
The conversation time and standby time of the phone lie on ideal working environments. In practice, the battery
working time varies with different network conditions, working environments and modes.
Connecting to the Network
SIM Card
Insert the SIM card (Subscriber Identity Module card) into the phone. This SIM card can be used by any GSM
mobile phone (A new phone can read the SIM card automatically).
Don’t touch the metal contact area of the SIM card. Doing so may cause information in the card lost or destroyed.
Keep the card away from electricity and magnetism.
Warning: Power off your phone before changing the SIM card. It is forbidden to insert or remove the SIM card
when it is connected to an outer power source.

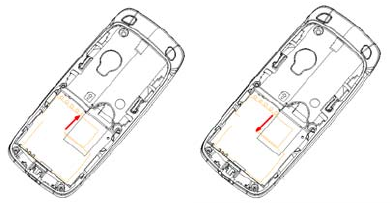

Inserting & Removing SIM Card
Switch off your phone, disconnect the outer power source and remove the battery.
Insert the SIM card into the SIM card slot or pull it out from the slot.
Switch on/off Your Phone
Hold the End key to power on/off the phone.
The mobile phone will automatically test whether the SIM card is plugged in and valid after power on, then the
following messages will be displayed on the screen sequentially.：
Enter PIN 1——if a SIM card password has been set.
Enter phone code——if a handset lock code has been set.
Searching ——search for the right network.
Unlocking the SIM Card and Mobile Phone
By setting a PIN 1 (personal identification number) code of the SIM card and the handset lock code, you can
10
protect your SIM card and phone from illegal use.
Method to unlock the SIM card: Enter a PIN 1 code and press the # key or Left soft key [OK].
If you enter an incorrect PIN 1 code three times in a row, your SIM card will be locked by the network and the
phone will ask for PUK code instead.
Note: Your service provider will set a standard PIN 1 code (four to eight digits) for your SIM card; please change
it with your private password as soon as possible.
Method to unlock the phone: Enter the handset lock code and press the # key or Left soft key [OK].
Note: If you forget your handset lock code, please connect with your distributor or the authorized local customer
service center.
Connecting to the Network

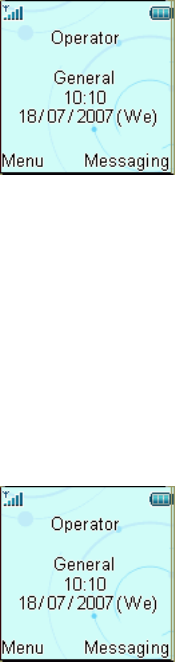

After the SIM card and the phone are unlocked, the mobile phone will automatically search for the network.
After a few seconds, your phone will be registered on the network. Now your phone is in the standby mode.
Besides receiving and sending calls, you can do the following things:
Press the Right soft key to enter the Messaging.
Press the Left soft key or OK key to enter the function menu.
Note: If “Emergency only” is shown on your screen, you can only send emergency calls.
Basic Operations
Making a Call
You can make or answer calls in the standby mode. The information bar in the upper left corner of the screen
shows the network signal strength.
Making DDD(Domestic Direct Dialling): Input the telephone number by Number keys (including the area code
when making a long distance call), press the Dial key to send a call. Press the End key to end a call.
Dialing an extension number:
Method 1: Dial the telephone exchange and then the extension number.
Method 2: Input the telephone exchange number, press the # key twice to input a pause character “P”, input the
extension number, and then press the Dial key. Then your phone will dial the extension automatically after getting
through the exchange. The sequence is as below:
Area code Exchange number P Extension number Dial key
Making IDD(International Direct Dialling): Press the * key twice until your screen displays “+” which is a symbol of an
11
international call, and then input the country code and the phone number and press the Dial key.
Dialing the number in the List: Generally, all calls you have made or received are saved and grouped as Dialed
Calls, Received Calls and Missed Calls. Your phone lists all the numbers so that you can view all the call logs.
When the list is full, the earliest number will be deleted automatically. You can check the list by the following
operations:
¾ View All calls by pressing the Dial key.
¾ View Contacts by pressing the shortcut keys you set.
¾ All the numbers in the lists can be directly dialed by pressing the Dial key.
Note: The Up/Down/Left/Right key shortcuts can be customized in Settings - Phone settings - Fastkey settings.
Answering a Call
Press the Dial key to answer an incoming call. If Anykey Answer is set ON, you can press any key (except End
key and Right soft key ) to answer a call.
Call Menu
In the in-call mode, you can enter the call menu by pressing Options. The operation methods are the same as
those in the function menu. Call menu can be seen only in the process of communication. The functions such as
Call waiting, Call keeping, Multiparty require the network support. If you need those services, please contact
your network service provider.
If you won’t answer the call, press Busy to send busy tones to the caller.
You can do the following operations in the call menu:
Mute: Stop sending local voice.
Speaker volume: Adjust the speaker volume.
Hold/Retrieve/Switch: Keep the current call/Resume the kept call/Switch between two calls.
Contacts: Enter the contact list
Messaging: Enter the messaging interface.
Multiparty
¾ Join all calls: Add the current call to Multiparty.
¾ Hold all calls: Hang on all calls.
¾ Private: Converse with one side privately and keep the session with the other one.
¾ Exclude: Keep one call from Multiparty.
End all calls: End up the current call and the hang-on calls.
Note: Some menu items can only appear in special cases. Menu items such as Swap will appear only when the
ongoing call and the hang-on call coexist.
Function Menu
Usage and Structure of Function Menu
Scrolling search function: Enter the Function main menu by pressing Menu or OK key in the standby mode.
Press Scroll key to select in menu interface.
In the function menu, you can select or quit some menu by pressing the Left soft key or Right soft key
according to the prompt displayed on the screen.
12

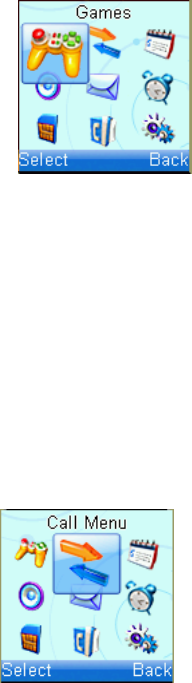

Games
In the standby mode, press Menu, select Games and then press the OK key to enter the games menu interface.
Tetris: The options are as follows:
¾ New game: Start a new game.
¾ Set lines: Select the original lines of the game.
¾ Help: Check the rules and instructions for the game.
Push Box: The options are as follows:
¾ New game: Start a new game.
¾ Load game: Read the saved game records.
¾ Help: Check the rules and instructions for the game.
Call Menu
In the standby mode, press Menu, select Call Menu and then press the OK key to enter the Call Menu
interface.
Calls
View calls list
Select All calls to view all calls list.
Select Received calls to view the calls that you received.
Select Dialled calls to view calls that you have dialed.
Select Missed calls to view the calls that you received, but have not answered.
In the calls list interface, press Options to enter the detailed submenus:
¾ Send message: Send short messages to the number. The operation is the same as creating messages.
¾ Detail: View the detailed information of the call.
¾ Save : Save the number to the SIM card or phone.
¾ Delete: Delete this entry.
Select Delete all in each submenu to clear all the saved records.
Call duration: You can view the approximate duration of the last call. View the approximate total duration of all
your outgoing and incoming call and you can clear all call duration.
Diverts
This service enables you to divert some incoming calls to other preset numbers. Contact your service provider
13
for details.
Set Diverts: Set diverts in different conditions.
¾ Divert always: Divert all calls.
¾ When busy: Divert calls when you are already on another call.
¾ No reply: Divert calls when you are not able to answer the phone within a preset period.
¾ Unreachable: Divert calls when you are out of service.
When you have set conditions and types of divert services, the following can be chosen:
¾ Activate: Only registered services are functional.
¾ Deactivate: Delete the divert service.
¾ Checking availability: Check the status of the recent service.
¾ By service.
Under the By service submenu, there are following service options you can choose to set by a preset divert
number:
z All services: Divert incoming calls, voice calls and short messages.
z Voice calls: Only divert voice calls.
z Data: Only divert data.
z Fax: Only divert faxes.
z Messages: Only divert short messages.
z All except messages: Diverts all services except short messages.
Enter the divert interface, use Scroll key to select Cancel all to cancel all diverts services.
Tools
In the standby mode, press Menu, select Tools and then press the OK key to access the tools interface.
Calculator
Press 0~9 Number keys to input numbers, and press the # key to input the decimal point.
Press the Up/Down/Left/Right key to switch among ＋, －,×, ÷
Press 0~9 Number keys to input numbers, and press the * key negative number can come.
Press the Right soft key to clear last digit and results. Press the End key to exit the calculator. Press the Left
soft key [Equal] to get results.
Note: This calculator has limited accuracy and rounding errors may occur especially in long division.
World clock
The world clock function provides time information on major cities worldwide.
You can view the time of the desired city by using the Scroll key on the navigation screen of World Time.
Press the Left soft key [Save] to save the selected city time as a new local time of the phone.
Press the End key or the Right soft key [Back] to quit.
14
Calendar
Use Scroll key to select and press OK to quick view. The date can be set from January 1, 1996 to December 31,
2055.
Conversion
Exchange rate
Select Euro as the base currency; enter the Exchange rate interface, scroll to select a conversion rate. Press
OK to save the changes.
Conversion
Enter the Conversion interface, select an exchange rate and save it. Input a figure at the field and check the
result.
Profiles
In the standby mode, press Menu, select Profiles and then press the OK key to access the Profiles interface.
Select Profiles: You can select the Profiles you need in this submenu. The Profiles options are: General,
Meeting, Outdoor and Indoor. The default settings for each individual Profiles are preset by the manufactory.
You can change them in Personalise menu.
Personalise menu: Change the detailed settings of the selected Profiles.
¾ Ringtone: Select one from ten types of polyphonic ring tones.
¾ Ringtone volume: Adjust the volume of the ring tone.
¾ Speaker volume: Adjust the volume of the speaker.
¾ Key tones: Select to turn on/off the tone when a key is pressed.
¾ Alarm tone: Select to turn on/off alarm tone for low power.
¾ Missed alert: Select to turn on/off the tone when there is a missed call.
¾ Message alert: Select the alert tone type when a new message is coming or select to turn off the alert tone.
¾ Vibrator: Select to turn on/off the vibrator.
Messaging
If the network supports and you have subscribed this service, you can send and receive text short messages
freely. And you also can subscribe a voice mailbox to receive voicemails. Please contact your service provider
for details.
In the standby mode, press Menu, select Messaging and then press OK key to enter the message menu
15
interface.
Notes: In the standby mode, press the Right soft key to enter Messaging.
New message
Set a message service center number before you start sending messages.
¾ In the message interface, select New message and press the OK key to enter the message input interface
to write the message. (Please refer to Chapter 5 “Text Input”.)
¾ When you finish inputting the message, press Options, and then use the Up/Down key to select Send to
one, Send and save, Send to contacts, or Save as draft.
¾ Select Send to one, you can directly enter the recipient’s number, or select a recipient from the Contacts.
Select Send and save to send and save the message to the SIM card/phone. You can directly input the
recipient’s number according to the prompts on the screen, or select a recipient from the Contacts. Select Send
to contacts, you can only bring out the recipient’s numbers from the Contacts. Press the OK key to select the
record, and then press the Left Soft key to send the SMS. There will be a prompt on the screen after the
message is sent successfully. Select Save as draft to save the message to the SIM card/phone.
Note: The SMS centers of some countries and regions do not support messages longer than 160 English
characters.
Inbox/Outbox
¾ Select Inbox to check received short messages; select Outbox to check the successful saved messages in
the SIM card.
¾ In the message list, press the OK key to view the message details; press Options to do the following
operations:
z Read: Read the message.
z Reply: Send messages to the recipients. (The menu appears only when you are reading messages in the
inbox.)
z Delete: Delete the message.
z Forward: Transfer the message to others.
z Call sender: Call the opposite party. (The menu appears only when reading messages in the Inbox.)
z Extract No.: Extract numbers from the message text and list them on the screen. If you select one, the
number will be displayed on the dialing interface for editing or dialing.
¾ Delete all: Delete all the received or saved messages.
Msg settings
You must set up necessary SMS information before using message functions. Enter the Msg settings
submenu:
¾ Templates: When editing messages, holding the * key can bring out the preset answer sentences. In this
menu, you can edit or change these sentences.
¾ Message center: Input the short message service center number (You must obtain this number from your
service provider.), and then press Save to store the number.
¾ Message validity: In the period of validity, the message center will repeat to deliver a message till it is
received. Press Up/Down key to select a valid time and then press Select to confirm. Note: This function
requires the network support.
¾ Status report: If the Status report is set ON, a message report will be sent to inform you after the sent
message has reached the destination. Note: This function requires the network support.
¾ Storage media: Choose between SIM memory and Phone memory.
¾ Used space: Check the total amount of messages that has already been stored and can be stored at most in
16
the SIM card/phone.
Voicemail
Select and enter Voicemail submenu:
¾ Select Get voicemail to check the voicemail box and listen to the voice message.
¾ Voicemail No.: Set the voicemail number.
Cell info.
Press Select to set Subjects, Language or Service status. In Subjects interface, select Add subject to add subjects.
Alarm
Your phone can set up to 2 alarm clocks at the same time.
Set alarm: Select Set alarm submenu, you can set the corresponding features of the alarm according to
instructions: alarm type (if required), date, time, and ring tone.
List alarms: Select List alarms submenu, you can use Up/Down key to view alarm clocks settings. Press
Options to enter setting screen, select Edit to edit the alarm clock settings, or select Delete to delete it, or
select Enable/Disable to enable/disable it.
Clear all: Select Clear all to clear all the alarm clocks.
Define rest day: Select Define rest day to set or change rest days within a week. Workday alarm will not ring on
the defined rest day(s). Press the Up/Down key to select and then press the OK key to set or cancel rest day.
STK (SIM Toolkit)
In the standby mode, press Menu, select STK and then press the OK key to enter the STK interface.
This service requires the network support. If neither the SIM card nor the network service provider supports this
service, this service will not be available. For more information, please consult the network service provider.
批注 [z1]: 不用加粗
17
Contacts
It prompts List empty when there is no record in the Contacts. You can press Options-Add new Contact to add
records, and you can choose to store in the SIM card or in the phone memory. Saved records will be listed in the
contact list and ordered by the first character of the name. Press the Left/Right keys to switch among groups.
Press the OK key to view the detailed information of a record. In the viewing interface, press the Dial key to dial
the number.
In the contacts list interface, press the OK key to view the detailed information of a record, and in the detailed
information interface press Options to enter the menu interface. The menu options are as follows:
¾ Send message: Enter the message input interface;
¾ Edit: Edit this record;
¾ Delete: Delete this record;
¾ Send contact card: Select Send to one, Send and save, Send to contacts, or Save as draft to send the
current record;
¾ Add to speed: Select Add to speed to set the current record to one specific number (0,2-9) into the speed
dial list, so that in the standby mode, if you hold this corresponding number key, the phone will dial the number
automatically. Press Delete to cancel the setting.
¾ Copy to phone /SIM: Copy this record to the phone memory or the SIM card.
¾ Move to phone /SIM: Move this record to the phone memory or the SIM card.
All records include all the name cards in the SIM card and the phone memory. Records saved in the SIM card
are sorted into an independent group. If the user doesn’t appoint the record to any group, the record will be
sorted into the Default group. Besides, there are six groups for selection: Family, Friend, Colleague,
Schoolmate, Society and VIP.
Note: in the Contacts interface, press options to enter the Contacts menu interface.
Add new Contact
In the contacts list interface, press Options and select Add new Contact. You can decide to save new number
into SIM card or Phone, then press Select to confirm.
If SIM card is selected to save new number, you need:
Enter the phone number you want to add.
Enter the name of the number you want to add.
If Phone is selected to save new number, you need:
Enter the phone number you want to add.
Enter the name of the number you want to add.
Select the group.
Edit
In the contacts list interface, press Options and select Edit. You can edit the current Number and Name record.
Delete
In the contacts list interface, press Options and select Delete, you can delete all information of the current
18
record.
Search
In the contacts list interface, press Options, select Search and then enter the name you want to search.
Quick-search: In the contacts list interface, you can press the number keys to go to the record of the name with
the similar initial character.
¾ Sort principle: Sort by ASCII Code in English mode.
¾ Match principle: If match, go to the character; if not, go to the next.
Details
In the contacts list interface, press Options and select Details. You can check the detailed information of the
selected record.
Settings
Ringtone: You can set different alert rings for different groups.
Save No. to: You can select SIM card/ Phone/Select to save numbers.
Used space: You can view the number of the saved records and the maximum number of the records in the SIM
card and the phone memory.
Speed dial list: You can check the set speed dial list.
Batch operation
Copy SIM to phone: copy all SIM card records to the phone.
Copy phone to SIM: copy all phone records to the SIM card.
Move SIM to phone: move all SIM card records to the phone.
Move phone to SIM: move all phone records to the SIM card.
Delete all SIM contacts: delete all SIM card records.
Delete all phone contacts: delete all phone records.
Settings

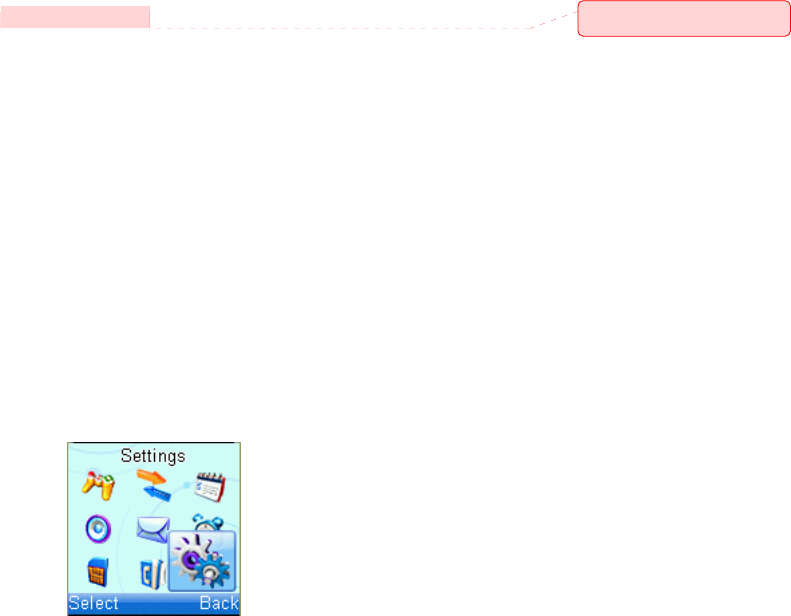

In the standby mode, press Menu, select Settings and then press the OK key to enter the setting interface.
Phone settings
Select and enter the Phone Settings submenu.
Language: Select the language for the display texts.
Own number: Edit/Delete/Add your own phone number.
Fastkey settings: Set the shortcut menu item corresponding to Up/Down/Left/Right key.
Auto lock keypad：Select to turn on/off the automatic keypad locking function. If you select “ON”, the keypad will
be locked in one minute after the screen is switched to the standby mode. You can unlock the keypad according
to the prompt on the interface.
批注 [z2]: 修改
19
Display settings
Wallpaper: Select your favorite wallpaper.
LCD contrast: Use the Scroll key to adjust the screen’s contrast.
Brightness: Use the Scroll key to adjust the screen’s brightness.
Clock settings
Date and Time: You can set date and time. Use the Scroll key to switch among day, month, year and time. Date
can be set from January 1, 2007 to December 31, 2055. Time can be set from 00:00 to 23:59. After inputting the
date and time, press OK to confirm and exit.
Date format: Set the date displayed format.
Call settings
Anykey answer: If “ON” is selected, you can answer the call by pressing any key except the End key and the
Right soft key.
Minute minder: Choose to remind you 5 or 15 seconds ahead of every minute when answering the incoming call,
or selects Always off.
Connected minder: Select to turn on/off the alert ring when the dialed call is connected.
Call waiting: Select Activate/Deactivate to enable/disable this function; select Checking availability to query the
current status of this function. When enabled, the network will notify you of a new call if a new incoming call
takes place during the current conversation. Please contact the network service provider for detailed usage.
Hide my number: Select ON/OFF to enable/disable this function; or select Set by network.
Fixed dialling number
Settings: You can enable or disable fix dialing to a specified phone number only. You must enter your PIN 2 code
for authentication. You can select to change the PIN 2 code
List: List of the fixed dialled numbers.
Service dialling number
The service number has been preset in the SIM card by the network service provider. The service dialling
number can be checked or dialled, however, these numbers can not be modified or deleted.
Network settings
In this menu, you can select Automatic/Manual to select the network service provider according to needs.
If you select Manual to choose a network provider, and then change the other SIM card, you need to select the
network provider again by choosing Automatic or Manual.
Security settings
Security features protect you from illegal use of your phone and SIM card.
Note: You need to input the handset lock code to enter the security settings interface. The default lock code is
1234. Please change it with your own private password as soon as possible.
SIM password :SIM password (PIN 1 code) can prevent your SIM card from illegal use. Select ON/OFF to enable
or disable SIM password protection; select Change PIN 1 to set a new PIN 1 code.
Note: Three consecutive times of wrong PIN 1 code inputting will lock the SIM card. Then, the PUK code is
needed to unlock the SIM card. The PIN 1 code and the PUK code may be provided to you together with the SIM
card. If not, please contact with your network service provider. Please change it with your own private password
20
as soon as possible.
Phone lock: can prevent your mobile phone from unauthorized use. Select ON/OFF to enable or disable the
handset lock protection; select Change code to set a new handset lock code.
Note: The default Phone lock code is 1234.
Network call bar: You can set any combination of the following call restriction options to improve security level.
Please contact with the network service provider for detailed use. The network service provider provides a 4-digit
network password to enable your call restrictions.
¾ International calls: Bar all international calls.
¾ All except home: Bar international calls except local call.
¾ Incoming calls: Bar all incoming calls.
¾ Incoming if abroad: Bar all incoming calls when roaming abroad.
¾ Outgoing calls: Bar all outgoing calls.
After choosing one of the above options, choose Select to restrict any of the following services:
z All services: Restrict incoming calls, voice calls and short messages.
z Voice calls: Only restrict voice calls.
z Data: Only restrict data.
z Fax: Only restrict faxes.
z Messages: Only restrict short messages.
z All except messages: Restrict other services except short messages.
When you have set types of restriction services, the following can be chosen:
z Activate: The restriction is functional.
z Deactivate: Delete the restriction.
z Checking availability: Query if the restriction is set.
¾ Cancel all: Select Cancel all to cancel all set call restrictions.
Note: You need to input the network password to set or cancel network restrictions. Three consecutive times of
wrong network password inputting will lock the call restrictions service. Please contact network service provider
to unlock it.
Factory settings
In this menu, you can select to restore the related settings of the phone to factory settings.
Text Input
Overview
Your mobile phone provides the following input methods: upper and lower case input, numeric input and predictive text
input, punctuation mark or special characters input.
When you are in a field that allows characters to be input, you will notice the text input mode indicator in the upper right
corner of the screen. Press the # key to switch among different input modes.
ABC and abc Mode
Use the number keys from 2 to 9 to input your text.
Press the key labeled with the required letter
z Once for the first letter
z Twice for the second letter
z And so on
To insert a space, press the 0 key once. To delete letters, press the Right soft key.
21
Press the * key to open a list of special characters, use the Scroll key to move through the list, and press the
OK key to select a character.
123 mode
The 123 mode enables you to input numbers in a text message.
Press the keys corresponding to the required digits.
Eng mode
It is a Predictive text input mode. You can input any letter with a single key press. The predictive text input is
based on a built-in dictionary.
To write the desired word, press the keys 2 to 9. Press each key only once for one letter. For example, to write
“book”, press 2 for B, 6 for O twice, 5 for K.
When you finish writing the word and it is correct, press the OK key to confirm it. If the word is not correct, press
the Scroll key to view the matching words found in the dictionary.
Character Chart
Refer to the table below for more information on the characters available using the keys.
key Corresponding Characters
1 1 and some common symbols
2 ABCabc2
3 DEFdef3
4 GHIghi4
5 JKLjkl5
6 MNOmno6
7 PQRSpqrs7
8 TUVtuv8
9 WXYZwxyz9
0 Space 0
* key Press * key to bring out symbols.
# key Switch among different input modes.
Up/Down key Roll the cursor up/down.
Left/Right key Roll the cursor left/right.
End key Exit
22
Troubleshooting
This section describes how to troubleshoot some problems when they occur to your phone. If you cannot deal
with them, contact your local dealer.
1. “Enter PIN 1 ” is shown when the phone is switched on.
Input the PIN 1 or input the new PIN 1 if you have changed the code. The code can be set “OFF” if you do not
want to input.
2. “Insert SIM” is shown when the phone is switched on.
Turn off your phone and make sure that you have inserted a valid SIM card.
3. “Unlock” is shown when the phone is switched on.
Input the phone code and press OK to unlock.
4. No key tone when pressing keys.
Check the keypad setting in Profiles-personalise.
5. No incoming ring tone.
Check the ringing tone and ringing volume settings in Profiles-personalise.
6. No alarm tone when the reminder time reaches.
Check the Profiles setting and the alarm ring setting in Profiles-personalise.
7. A phone number cannot be dialed.
Check whether call restriction is set to the number.
8. A phone call cannot be answered.
Check whether call restriction is set to the number
9. Short message cannot be sent.
Check the Message centre setting in the Message-Message Settings menu.
10. Some menus related to voice setting cannot be used.
Check the Profiles settings.
