ZTE ZTEC90 CDMA 2000 1X Digital Mobile Phone User Manual C90 Metro English
ZTE Corporation CDMA 2000 1X Digital Mobile Phone C90 Metro English
ZTE >
Contents
- 1. Exhibit09 user manual C90
- 2. user manual C90
user manual C90
ZTE C90
CDMA 1X Digital Mobile Phone
User Manual
Copyright © 2009 by ZTE Corporation
All rights reserved
No part of this publication may be excerpted, reproduced, translated, or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the
right to make changes and improvements to any of the products described in this document
without prior notice.
Release: V1.0
Manual number:
02 25 ,2009
C90 User manual
3
Contents
1. For Your Safety................................................................................... 10
General Care ....................................................................................................................10
Aircraft Safety ...................................................................................................................12
Hospital Safety..................................................................................................................13
General Guidelines ...........................................................................................................13
Road Safety ......................................................................................................................14
Vehicles Equipped With an Air Bag ..................................................................................15
Third Party Equipment ......................................................................................................15
Efficient Use......................................................................................................................15
Radio Frequency (RF) Energy ..........................................................................................15
Emergency Services .........................................................................................................16
FCC Notice .......................................................................................................................17
Use Your Phone with a Hearing Aid Device .....................................................................18
Turn on the HAC Setting...................................................................................................19
Copyright Notice ...............................................................................................................19
2. Introduction ........................................................................................ 20
Overview ...........................................................................................................................20
What’s Included ................................................................................................................20
C90 Technical Specifications............................................................................................21

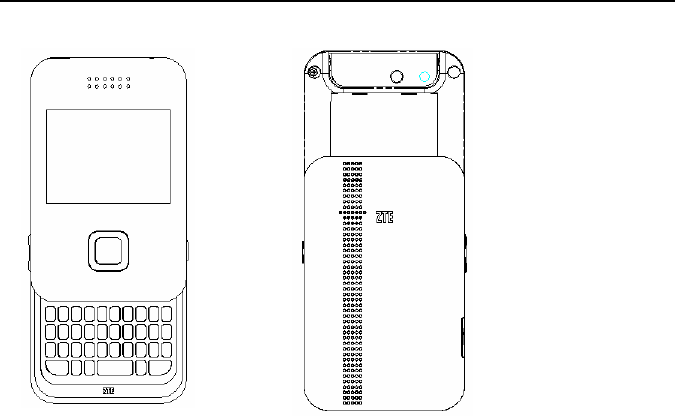

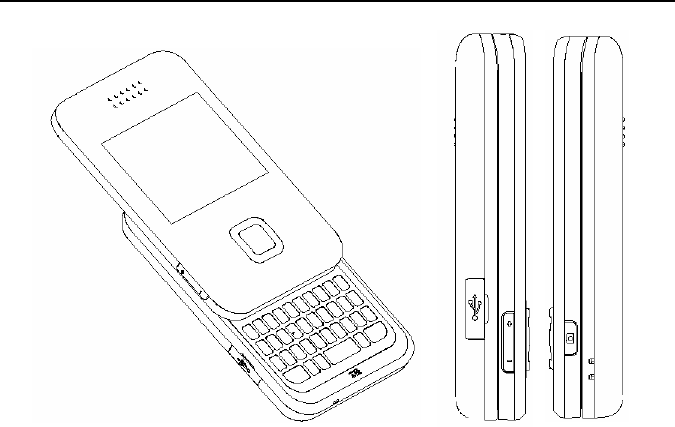

Phone at a Glance ............................................................................................................21
C90 User manual
4
Key Definitions.................................................................................................................. 22
User Interface ................................................................................................................... 24
Indicators and Icons ......................................................................................................... 25
3. Set up Your Phone ............................................................................. 26
Battery .............................................................................................................................. 26

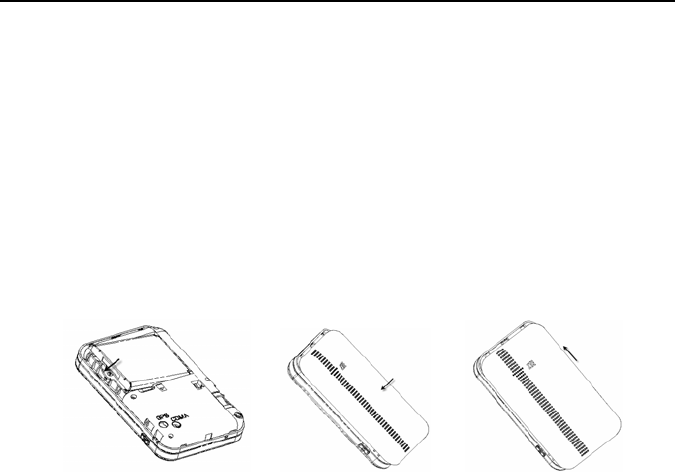

Install the Battery...................................................................................................... 26

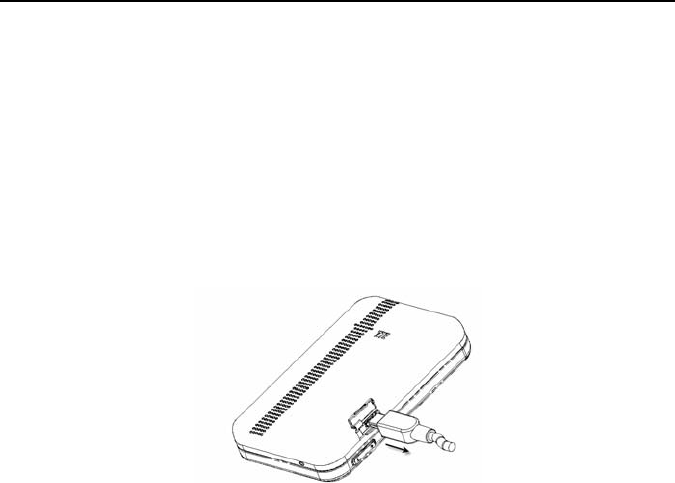

Charge the Battery ................................................................................................... 27

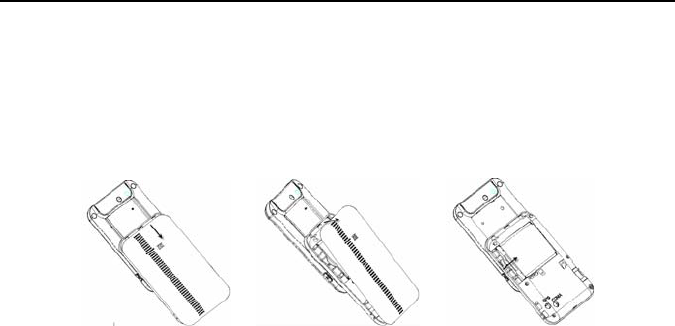

Remove the Battery.................................................................................................. 28
Memory Card.................................................................................................................... 28
Insert the MicroSD Memory Card............................................................................. 28
Remove the MicroSD Memory Card ........................................................................ 29
Power On/Off your Phone ................................................................................................ 29
Lock/Unlock Your Phone.................................................................................................. 30
Connect to the Network .................................................................................................... 30
Activate Your Phone......................................................................................................... 30
4. Basic Operations................................................................................ 31
Make Voice Calls.............................................................................................................. 31
Use the Keypad........................................................................................................ 31
Use the Contacts List ............................................................................................... 31
Use the Last Number Dialed .................................................................................... 31
Use a Number from the Call History......................................................................... 32
Use Speed Dials....................................................................................................... 32
Answer Voice Calls........................................................................................................... 33
C90 User manual
5
In-Call Features ................................................................................................................33
Three-Way Call .................................................................................................................34
Call Waiting.......................................................................................................................35
5. Entering Text ...................................................................................... 36
Key Functions ...................................................................................................................36
Text Input Modes ..............................................................................................................37
6. Contacts .............................................................................................. 39
Contact List .......................................................................................................................40
New Contact .....................................................................................................................41
Groups ..............................................................................................................................42
Speed Dials.......................................................................................................................42
7. Calls ..................................................................................................... 43
All Calls .............................................................................................................................43
Missed Calls......................................................................................................................43
Incoming Calls ..................................................................................................................44
Outgoing Calls ..................................................................................................................44
Call Timers........................................................................................................................44
8. Messaging........................................................................................... 45
Send New .........................................................................................................................45
Insert.........................................................................................................................46
Slide..........................................................................................................................47
C90 User manual
6
Preview..................................................................................................................... 47
Erase Item ................................................................................................................ 47
Cc/Bcc/Sub............................................................................................................... 47
Save To Drafts ......................................................................................................... 47
Quick Text ................................................................................................................ 47
Signature .................................................................................................................. 48
Message Priority....................................................................................................... 48
Inbox................................................................................................................................. 48
Read a Message ...................................................................................................... 48
Reply to a Message.................................................................................................. 49
Outbox .............................................................................................................................. 49
Drafts ................................................................................................................................ 49
Sent .................................................................................................................................. 49
Saved ............................................................................................................................... 50
Voice Mail......................................................................................................................... 50
Web Alerts ........................................................................................................................ 50
Settings............................................................................................................................. 51
Message Settings..................................................................................................... 51
Quick Text Settings .................................................................................................. 51
Memory Info...................................................................................................................... 51
11. Music & Media .................................................................................... 56
Music Player..................................................................................................................... 56
Create a Play List ..................................................................................................... 56
Edit a Play List.......................................................................................................... 57
C90 User manual
7
Manage a Play List ...................................................................................................57
Control the Music Player...........................................................................................58
Camera .............................................................................................................................59
Take Pictures............................................................................................................59
View Your Photos .....................................................................................................60
MyTunes ...........................................................................................................................60
Play Your Tunes .......................................................................................................60
Manage Your Tunes .................................................................................................60
MyImages .........................................................................................................................61
View Your Image ......................................................................................................61
Manage Your Images ...............................................................................................61
MyMusic............................................................................................................................62
Preload Files .....................................................................................................................63
Tunes........................................................................................................................63
Images ......................................................................................................................63
Format MicroSD................................................................................................................63
Memory Info ......................................................................................................................64
12. Games.................................................................................................. 65
13. Tools .................................................................................................... 66
Calculator..........................................................................................................................66
Alarm Clock.......................................................................................................................67
Edit an Alarm ............................................................................................................67
Alarm Options ...........................................................................................................68
C90 User manual
8
Calendar ........................................................................................................................... 68
Add an Appointment................................................................................................. 68
View an Appointment ............................................................................................... 68
Calendar Options ..................................................................................................... 69
Tip Calc ............................................................................................................................ 69
World Clock ...................................................................................................................... 69
Voice Memo...................................................................................................................... 70
Record a Voice Memo.............................................................................................. 70
Listen to a Voice Memo............................................................................................ 70
14. Settings ............................................................................................... 71
Sound Settings ................................................................................................................. 71
Ringers ..................................................................................................................... 71
Keypad Tone ............................................................................................................ 72
Volume ..................................................................................................................... 72
Power On/Off Tone .................................................................................................. 72
Alerts ........................................................................................................................ 73
Systems Switch Tone............................................................................................... 73
Display Settings................................................................................................................ 73
Language.......................................................................................................................... 74
Bluetooth .......................................................................................................................... 74
Bluetooth Manager ................................................................................................... 74
Bluetooth Device ...................................................................................................... 75
Pair with a New Bluetooth Device ............................................................................ 75
GPS .................................................................................................................................. 76
C90 User manual
9
System ..............................................................................................................................76
Call Setup .................................................................................................................76
Saving Options .........................................................................................................76
Memory Info..............................................................................................................76
Phone Info ................................................................................................................77
System Settings........................................................................................................77
TTY Mode .................................................................................................................77
Security.....................................................................................................................78
HAC Mode ................................................................................................................79
Airplane Mode ON/OFF ....................................................................................................79
15. Glossary .............................................................................................. 80
16. Index .................................................................................................... 82
C90 User manual
10
1. For Your Safety
General Care
Your handset contains delicate electronic circuitry, magnets and battery systems. You should
treat it with care and give particular attention to the following points:
Do not allow the handset, battery or accessories to come into contact with liquids or
moisture at any time. Do not immerse it in any liquid.
Do not place the handset alongside computer disks, credit cards, travel cards or other
magnetic media. The information contained on the disks or cards may be affected by the
handset.
Do not place anything inside the folded handset.
Do not paint the handset.
Do not leave the handset or battery in places where the temperature could exceed 140 ˚F,
e.g. on a car dashboard or a windowsill, behind glass in direct sunlight, etc.
Do not remove the handset battery while the handset is switched on.
Take care not to allow metal objects, such as coins or key rings to contact or short circuit
the battery terminals.
Do not dispose of batteries in fire. The handset’s Li-ION batteries may be safely
disposed of at a Li-ION recycling point. Follow local requirements for recycling.
Do not put the handset’s battery in your mouth, as battery electrolytes may be toxic if
swallowed.
C90 User manual
11
Only use the battery with a charging system that has been qualified with the system per
this standard. Use of an unqualified battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Do not disassemble or open, crush, bend or deform, puncture, or shred.
Do not short circuit a battery or allow metallic or conductive objects to contact the battery
terminals.
Promptly dispose of used batteries in accordance with local regulations.
Improper battery use may result in a fire, explosion, or other hazard.
Do not put a battery into a microwave oven, dryer or high-pressure container.
Do not contact battery directly into an electric outlet or cigarette lighter charger. Use only
authorized chargers.
Do not puncture the battery with a sharp object such as a needle.
When the battery is disposed, be sure it is non-conducting by applying vinyl tape to the (+)
and (-) terminals.
Do not drop, throw, or subject the handset to rough treatment.
Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal
condition is detected during use, charge or storage.
Do not use with a damaged or deformed battery.
Do not solder the battery directly.
Remove the battery whose life cycle has expired from equipment immediately.
The earpiece may become warm during normal use. Also, the handset itself may
become warm while the battery is being charged.
When a handset is in vibration mode, the vibration may cause the handset to move.
Be careful not to place the handset near heat sources (such as a heater).
C90 User manual
12
Use a damp or anti-static cloth to clean the handset. Do not use an ordinary dry cloth or
electrostatic cloth. Do not use chemical or abrasive cleaners as these could damage the
casing.
Third party equipment: The use of third party equipment, cables, or accessories, not
made or authorized by ZTE, may invalidate the warranty of your phone and also
adversely affect the phone’s safety and operation.
Remember to make backup copies of all important data on your handset.
Remember to recycle: The cardboard packing supplied with this handset is ideal for
recycling.
Warnings: In the unlikely event of a battery leak, tare care to keep the battery discharge away
from your eyes and skin. If the leakage does come into contact with the eyes or skin, flush
thoroughly with clean water and consult with a doctor.
Aircraft Safety
Switch off your phone or activate the airplane mode when inside or near an aircraft. Use
of handsets in an aircraft may be dangerous to the operation of the aircraft and may
disrupt the cellular network. Failure to observe this instruction may lead to suspension or
denial of phone service to the offender, or legal action, or both.
Airplane mode allows you to use many of your phone’s features, such as games,
calculator, voice memos, and many others when you are in an airplane or other area
where wireless signals may cause interference. In the airplane mode, you are prohibited
from making or receiving voice/data calls, however you may still attempt calls to your
local emergency number, i.e., 911.
C90 User manual
13
Hospital Safety
Switch off your phone and remove its battery in areas where handset use is prohibited.
Follow the instructions given by any respective medical facility regarding the use of
cellular handsets on their premises.
General Guidelines
Many jurisdictions have laws and regulations about taking pictures in public or private
areas regarding the processing and further use of such pictures. ZTE encourages its
customers to obey all laws and to honor the personal rights of others.
Check the roaming agreement availability with your network operator.
The use of mobile phones is not allowed in some radiation sensitive areas, such as
hospitals, research centers, and airplanes. The user is responsible to power-off the
device. If there is any uncertainty, the battery should be removed.
Observe any signs that indicate to power off your handset, such as those near gas
stations, or explosives and power off the handset/device upon them.
If you have a heart condition, be careful with the setting of call vibration or tone volume.
Do not allow children to play with the handset, charger or batteries.
The operation of some medical electronic devices, such as hearing aids and pacemakers,
may be affected if a handset is used next to them. Observe any Caution signs and the
manufacturer’s recommendations.
Take care not to put your phone in the back pocket of your pants and then sit on the
phone. Also, do not put your phone at the bottom of a bag where it may be subject to
excessive weight or pressure as this may damage the LCD and camera lens and cause
them to malfunction.
C90 User manual
14
Your phone contains metal, which may cause you to develop an itch, rash or eczema
depending on your physical condition.
Do not leave the phone discharged or without a battery for a long period of time.
Otherwise some data may be erased.
Road Safety
You must exercise proper control of your vehicle at all times. Give your full attention to
driving.
Observe all of the recommendations contained in your local traffic safety documentation.
Pull off the road and park before making or answering a call, if driving conditions require
so. Check if local laws and/or regulations restrict the use of cellular phones while driving.
You must not stop on the hard shoulder of a motorway to answer or make a call, except
in emergency situations.
Switch off your handset at a refueling point, such as a gas station, even if you are not
refueling your own car.
Do not store or carry flammable or explosive materials in the same compartment as the
handset.
Electronic systems in vehicle, such as anti-lock brakes, speed control and fuel injection
systems are not normally affected by radio transmissions. The manufacturer of such
equipment may advise if it is adequately shielded from radio transmissions. If you
suspect vehicle problems caused by the radio transmitter in handset, consult your dealer
and do not switch on the handset until your handset has been checked by a qualified
technician.
C90 User manual
15
Vehicles Equipped With an Air Bag
An airbag inflates with great force. Do not place objects, including either installed or portable
wireless equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle
wireless equipment is improperly installed and the airbag inflates, serious injury could result.
Third Party Equipment
The use of third party equipment, cables or accessories, not made or authorized by ZTE, may
invalidate the warranty of the handset and also adversely affect the handset’s operation. For
example, use only the ZTE charger supplied with the handset.
Efficient Use
For optimum performance with minimum power consumption, do not cover the antenna area
(It’s on the bottom of your phone) with your hand. Covering the antenna affects the call quality,
may cause the handset to operate at higher power levels than needed, and may shorten talk
and standby times.
Radio Frequency (RF) Energy
Your handset is a low-power radio transmitter and receiver. When it is turned on, it intermittently
receives and transmits Radio Frequency (RF) energy in radio waves to handle and control the
power level at which the handset transmits. Exposure to radio frequency energy:
Radio wave exposure and Specific Absorption Rate (SAR) information. The handset is
designed to comply with safely, requirements for exposure to radio waves. This requirement is
based on scientific guidelines that include safety margins designed to assure the safety
of all persons, regardless of age and health.
C90 User manual
16
The radio wave exposure guidelines employ a unit of measurement known as the
Specific Absorption Rate, or SAR. Tests for SAR are conducted using a standardized
method with the phone transmitting at its highest certified power level in all used
frequency bands.
While there may be differences between the SAR levels of various ZTE phone models,
they are all designed to meet the relevant guidelines for exposure to radio waves.
The SAR limit recommended is 1.6 W/kg averaged over one (1) gram of tissue. The
highest SAR value for this model phone tested for use at the head is 0.869 W/kg (1g)
The highest SAR value for this model phone tested for use at the body is 0.469 W/kg (1g)
SAR compliance for body-worn operations is restricted to belt-clips, holsters, or similar
accessories that have no metallic component in the assembly and which provide at least
1.5 cm separation between the device, including its antenna, and the user’s body.
Emergency Services
To make an emergency call in any country:
1. Ensure your handset is ON and in service.
2. Press the End Key as many times as needed to clear the display and ready the device for
calls.
3. Enter a local emergency number, i.e., 911.
4. Press the Send Key to dial the number. Follow instructions received and do not end the
call until told to do so.
Note: Tell the operator which service you require: Police, Ambulance, Fire Engine,
Coastguard or Mountain Rescue Service. Give your position, and if possible, remain
stationary and maintain contact. Due to the nature of the cellular system, the connection of
C90 User manual
17
emergency calls cannot be guaranteed. You should never rely on any wireless device for
essential communication like medical emergencies.
FCC Notice
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
C90 User manual
18
Use Your Phone with a Hearing Aid Device
Your C90 device is compliant with the FCC Hearing Aid Compatibility (HAC) requirements.
When some wireless phones are used near some hearing devices (hearing aids and cochlear
implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are
more immune than others to this interference noise, and phones also vary in the amount of
interference they generate. The wireless telephone industry has developed ratings for some
of their mobile phones, to assist hearing-device users in finding phones that may be
compatible with their hearing devices. Not all phones have been rated. Phones that have
been rated have a label on the box. Your C90 has been tested for hearing aid device
compatibility and has an M4 and/or T4 rating.
These ratings are not guarantees. Results will vary, depending on the level of immunity of your
hearing device and the degree of your hearing loss. If your hearing device happens to be
vulnerable to interference, you may not be able to use a rated phone successfully. Trying out
the phone with your hearing device is the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference with hearing devices than phones that are not labeled. M4 is the better/higher of
the two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be
more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated
phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices contain
telecoils.) The more immune your hearing aid device is, the less likely you are to experience
interference noise from your wireless phone. Hearing aid devices should have ratings similar
to those of phones. Ask your hearing health-care professional for the rating of your hearing
aid.
C90 User manual
19
Hearing devices may also be measured for immunity to this type of interference. Your hearing
device manufacturer or hearing health professional may help you find results for your hearing
device. The more immune your hearing aid is, the less likely you are to experience interference
noise from wireless devices.
For additional information about the FCC's actions with regard to hearing aid compatible
wireless devices and other steps the FCC has taken to ensure that individuals with disabilities
have access to telecommunications services, please go to www.fcc.gov/cgb/dro.
Turn on the HAC Setting
When the HAC setting is on, your C90 sends the audio from your phone calls to the telecoil
rather than to the microphone of your hearing aid. You are likely to hear calls much better
because volume is increased and background noise and feedback are diminished. The HAC
setting improves only the calls you listen to through the earpiece. Turn off the Bluetooth
function. It does not affect calls heard on the speakerphone or with a headset. HAC requires
extra battery power, so watch your battery consumption when it's turned on.
CAUTION: Do not turn on the HAC setting unless you use a hearing aid with a telecoil. Using
this setting without a hearing aid or with a hearing aid without a telecoil may be harmful to your
hearing.
Copyright Notice
The video/audio recordings you make/download are protected by copyright laws. They are for
personal use only and must not be otherwise used without the permission of the copyright
owner.
C90 User manual
20
2. Introduction
Overview
Thank you for purchasing the ZTE C90 Mobile Phone. The C90 is capable of making voice calls,
PTT (Push to Talk) calls and data connections to CDMA 1x networks. This phone provides
many functions which are practical for daily use, including a camera, wireless internet browser,
music player etc. It has the functionality of being connected to a PC as an USB flash disk.
Meanwhile, it can be connected to Bluetooth wireless devices and accessories. Its A2DP and
AVRCP Bluetooth profiles make you enjoy the music play via Bluetooth headset.
To guarantee this mobile phone is always in its best condition, read this manual carefully and
keep it for future reference. To ensure your safety, read the section For Your Safety thoroughly
before using this handset for the first time.
The pictures and icons shown in the manual are just schematic drawings for function
demonstration. If they are inconsistent with your handset, please take your handset as the
standard. If the inconsistency happens in the manual because of the handset function
updating, please refer to the follow-up public information from ZTE Corporation.
What’s Included
Your ZTE C90 Mobile Phone package contains the following components. Check the box
carefully to ensure all items are present.
C90 Handset
Battery
User Manual and literature pack
AC Travel Charger
We, ZTE Corporation, declare that the product is packaged with battery separately in the box.
The FCC ID label is placed on the mobile phone clearly visible to all persons at the time of purchase.
C90 User manual
21
Phone at a Glance
C90 User manual
22
C90 User manual
23
Key Definitions
Left Soft Key – Execute prompts that appear in the lower-left corner of the
screen, directly above the button. These prompts change according to the
screen content.
Right Soft Key – Execute prompts that appear in the lower-right corner of the
screen, directly above the button. These prompts change according to the
screen content.
Send Key – Make and answer calls. This button is also a short cut key to “All
Calls” from the idle screen.
End Key – End calls and close applications.
Power Key –Holding this key for a while in the idle screen, it will power off the
handset.
Camera Key – Holding this key for a while will launch the camera function when
flip open.
Vol. up / Vol. down Keys– Adjusts the volume of calls and music player.
C90 User manual
24
Navigation Keys – These keys (UP, DOWN, LEFT and RIGHT) allow for navigation
through menu options and quick accessing to some function menus. These keys
also allow for control of the music player.
OK Key – Confirm actions and make selections. This key also executes prompts
that appear on the lower-middle button on the screen, above the key. These
prompts change according to screen content.
0-9 Number/Alphabetic Keys – These keys are used for entering numbers and
letters to a text, dialing a speed call, and selecting options while navigating menus.
Press 1 key in standby mode to launch Voice Mail for shortcut.
Back Key – Deletes characters during text entry. This key returns to the
previous page during menu navigation and web browsing.
Speaker Key – Activates and de-activates the speakerphone function during
voice calls. Quick access to the music player when it is pressed in standby mode.
Indicators and Icons
Signal Strength No Signal
Call Connect Battery Status
C90 User manual
25
New Voice Mail New SMS Message
New MMS Message New MMS and SMS Message
New Web Message New Voice Mail and Web Message
1x Service Missed Call
High SMS Priority High MMS Priority
Ringer Mode Silent Mode
Vibration Mode Alarm Indicator
Vibration and Ringer Mode Bluetooth
Roaming Bluetooth Headset
E911 GPS Icon GPS Service Available Icon
Data Transfer Data Dormant
Calendar SSL ( Web Security)
TTY Mode Airplane Mode Is Active
C90 User manual
26
3. Set up Your Phone
This chapter outlines the steps required to set up your phone, power-on and activate on your
service provider’s network. Follow the procedure below step-by-step to get started.
Battery
Please switch off your phone and disconnect the charger with it before removing the battery.
Avoid touching electronic components on the battery and battery compartment of the phone.
Install the Battery
1. Insert battery to the plastic retainer clip. Make sure the + and – terminals on the battery be
lined up with the metallic points in the battery compartment.
3.
2. 1.
C90 User manual
27
2. Push down on the bottom section of the battery until it clicks into place. It should be aligned
with the bottom of the phone.
3. Place the battery cover so that it covers the entire battery. Slide the cover until it locks into
position. Make sure the battery cover is secure.
Charge the Battery
Your phone is powered by a rechargeable battery. The battery is not fully charged when you
purchase your phone, but there may be enough power in the battery to turn the phone on.
Charge the battery with the procedure indicated below.
Note: For maximum battery performance, it is recommended that you completely charge the
battery before using the phone for the first time. A new battery’s full performance is achieved
only after three complete charge and discharge cycles.
1. Pull the rubber USB cover out of the USB port and rotate it 90 degrees.
2. Insert the charger’s USB adapter into the USB port. Ensure that the adapter is inserted with
the correct orientation. Do not force the connector into the USB port.
1.
2.
C90 User manual
28
Note: Make sure plug the AC charger into a standard AC outlet box when you begin charging
the battery
Remove the Battery
If you need to remove your phone’s battery, please follow the procedure indicated below:
1. Slide the back cover toward the bottom of the phone and lift off the back cover.
2. Insert your fingernail into the finger grip the slot on the bottom of the battery. Lift the bottom
of the battery away from the handset.
3. Remove the battery from the battery compartment.
Memory Card
Your phone allows you to use a microSD memory card to expand the phone’s available
memory space. This digital card allows you to easily exchange images, music and voice data
quickly between SD compatible devices.
1. 2. 3.
C90 User manual
29
Note: Maximum Memory Card capacity supported is 2 GB. Your phone may work with a
microSD of greater capacity, but even if so, it may not be able to access beyond the 2 GB limit.
Insert the microSD Memory Card
1. Open the rubber microSD access door located on the top of the phone and rotate it 90
degrees.
2. Firmly insert the microSD card into the slot until it clicks into place.
3. Close the rubber memory card access door.
Remove the microSD Memory Card
1. Open the rubber microSD access door located on the top of the phone and rotate it 90
degrees.
2. Push the memory card downwards to release it from the slot.
3. Pull the memory card completely out of the microSD slot on the handset.
4. Close the rubber memory card access door.
Note: Do not remove the memory card while reading or writing to the card. Doing so may
cause data corruption on the card or phone. If possible, insert and remove the memory card
while the phone is powered off.
Power On/Off your Phone
To power on the phone, press and hold the Power key for at least 3 seconds. If the handset
lock code has been activated, the phone will prompt to enter the code. The default password
for an inactivated phone is 1234. Once you have activated your handset, the default lock code
will be the last 4 digits of your phone number.
C90 User manual
30
It is also possible that the lock code has been updated by the user. If the updated lock code is
lost or forgotten, please contact your service provider.
To power off the phone, press and hold the Power key for at least 3 seconds from the idle
screen.
Warning: Do not power the phone on when wireless phone use is prohibited, or when it may
cause interference or danger.
Lock/Unlock Your Phone
By setting the handset lock code, you can protect your phone against unauthorized use.
To Lock the phone, hold the # key for about 3 seconds in standby mode and enter the
handset lock code, the phone will be locked.
To unlock the phone, press the Unlock on the right soft key, then enter the handset lock code
and press the OK key.
Connect to the Network
After your phone is unlocked, it will automatically search for the network.
Activate Your Phone
Before placing a call with your new phone, you must activate the phone on the network. To
activate the phone, dial provisioning number from the idle screen and follow the step-by-step
instructions. Once the display indicates that programming is successful, please restart the
handset. You may then place a call with your handset.
C90 User manual
31
4. Basic Operations
Make Voice Calls
Use the Keypad
1. Enter a phone number including the full area code by using the numeric keypad. If an
incorrect character is entered, use the Back key to delete the digit. Pressing the Back key
for a while will erase all digits before the cursor.
2. Press the Send key to make the voice call.
3. Press the End key to end the call, or to cancel the call attempt.
Note: To make an emergency call, enter the emergency number, i.e., 911, and press the
Send key. If possible, remain stationary and keep the line connected.
Use the Contacts List
You can also make a call by choosing a record from your Contacts. To place a call from the
contact list:
1. Choose the Contacts menu to display your contact list.
2. Scroll to the desired entry and press the Send key to make a call.
Use the Last Number Dialed
Your phone can re-dial the last number that was called. To dial the last number:
1. Press the Send key from the standby mode.
2. Press the Send key again to dial the first entry.
C90 User manual
32
Use a Number from the Call History
Generally, all calls you have made or received are saved in a list on the phone.
You may use the Send Key as a short cut key to “All Calls” from the idle screen.
All numbers are grouped into Outgoing Calls, Incoming Calls, and Missed Calls. To dial a
number from your call history:
1. Select Menu→Calls from the standby mode.
2. Navigate through the menu and press OK to select Outgoing, Incoming or Missed calls.
3. Select the phone number you want to dial from the list and press the Send key to place the
call.
Use Speed Dials
Your phone is capable of storing 9 Speed Dial numbers that can be quickly dialed from the
standby mode. Among the nine digit buttons, the 1 is assigned to Voice Mail function. To use
the Speed Dialing feature:
1. Press and hold the number key for the Speed Dial entry you would like to call.
2. The call will be connected automatically.
3. Press the End key to end the call, or to cancel the call attempt.
Note: If you have not already assigned a Speed Dial to the selected key, the phone will
prompt that no Speed Dial has been assigned. You may click Yes to add a Speed Dial
immediately. For more information on creating Speed Dials, refer to section Contacts-Speed
Dials in this manual.
C90 User manual
33
Answer Voice Calls
When you receive a call, the ring tone, illumination or vibration function will be activated,
depending on your current settings. If the Caller ID function has been activated by the caller,
the caller’s phone number will be displayed. If the calling party use the service hiding their
phone number, your phone will show that the phone number has been withheld.
To answer the call, open the flip and press the Send or OK key. You can disconnect the call
by pressing the End key or closing the phone’s flip.
Note: You can also enable the phone to answer calls automatically when the flip is opened, or
by pressing any key on the keypad. The default setting can be changed in
Menu→Settings→System→Call Setup→Call Answer.
If your phone is connected to a compatible Bluetooth headset, you can answer or end the call
by pressing the Send/End key on the Bluetooth headset.
In-Call Features
Volume
During a call, you can adjust the earpiece volume by pressing the volume keys on the side of
the phone.
Mute
You can mute your voice during the call by pressing Mute, located on the right soft key.
Pressing Unmute will allow the caller to hear your voice again.
C90 User manual
34
Speakerphone
Your phone has a speakerphone function that allows you to talk hands-free with the use of the
phone’s external speaker. To talk with speakerphone, press the Speaker key on the keypad
after the call has been connected. Press the Speaker key again to return to the standard call
mode.
Advance Features
To enter the advanced in-call features, press the Options during a call. The followings will be
available:
1. Call the Third Party: Call another number to activate 3-way call feature.
2. Messaging: Switch to the message interface during the call.
3. Contacts: Switch to the contacts interface during the call.
4. Switch to BT/Receiver: Switch to Bluetooth headset/receiver to answer the call.
5. APP Mgr: Switch to the dynamic application management interface during the call.
Three-Way Call
Your phone has a three-way calling feature, which enables you to have conference calls with
two parties. You can activate this function by following the procedure below:
1. Once a voice call has been established with Party A, press the Options button and select
Call the Third Party.
2. The dialing window will appear. Enter the phone number of Party B and press Send key.
3. When the Party B answers the call, you will be connected with Party B only. Party A will
remain on hold.
4. To activate the three-way call, press the Send key again. You will be able to converse with
both parties simultaneously.
C90 User manual
35
5. Press the Send key again to end the call with the Party B. You may press the End key to
end both calls.
Call Waiting
Your phone can accept phone calls while another call is active. You can manage the phone’s
call waiting feature as follows:
1. If you receive a call during an active conversation, the phone will prompt that there is an
incoming call and allow you to accept or reject the call.
2. Press Yes on the left soft key to accept the call.
3. After accepting the call, you will be connected with the second caller, while the first party is
put on hold. You may switch between callers by pressing the Send key again, or by
selecting Options→Swap.
4. Press the End key to disconnect from the active caller.
Note: When the End key is pressed, both the active and holding user will be disconnected. If
the holding user remains on the call, your phone will ring again. You may accept or reject the
call.
Note: The 3-way calling and call waiting feature requires network support and may result in
additional charges. Contact your service provider for more information.
C90 User manual
36
5. Entering Text
Key Functions
Key Function Description
Left soft key Execute prompts that appear in the lower-left
corner of the screen, directly above the button
Right soft key Execute prompts that appear in the lower-right
corner of the screen, directly above the button
OK key
Confirm actions and make selections. This key
also executes prompts that appear on the lower-
middle button on the screen, above the key.
Navigation
Key
Move the cursor up and down, left and right
during text editing.
End key Exit
C90 User manual
37
~
~
0-9 ，A-Z
keys
Enter characters 0-9 and the letters from a-z. In
text input mode, use key 1 to enter punctuation
marks and symbols.
Back key Delete the previous character during text editing.
Long pressing the Back key erases all text.
Text Input Modes
During text entry, you can press the display symbol button on the right soft key to select the
input mode. The current mode is indicated on the right soft key menu among the following
display symbols:
Display Symbol Text Entry Mode
Lowercase Alphabetic mode
Uppercase Alphabetic mode
Word predictive text mode
Number mode
Alphabetic Mode
C90 User manual
38
In Alphabetic mode, the alphanumeric keys from 2 to 9 are used to enter letters and numbers.
You can enter the letter among the letters displayed on the keypad by pressing the keypad
once and once again, and wait for a while until the underline of the entering letter disappears,
the letter will be entered successfully. Take the 2 key for example:
There are letters “abc” on the keypad.
So press the 2 key once to enter the letter “a”, twice to enter the letter “b”, three times to letter
“c” and four times to enter number “2”, then continue pressing to start a new loop of “a” to “2”.
Word Mode
Word mode allows you to input messages or text quickly by using your keypad and the built-in
predictive dictionary. To write a desired word, begin entering letters with the keys “a” to “z”.
After part of the word has been entered, a list will be displayed on the menu bar with the most
commonly used words containing the letters you have input.
As you enter more letters, the words in the predictive dictionary will be modified to reflect your
current text. At any time, you may scroll down the list with the Navigation Keys or 0 key and
select a desired word by pressing OK key. The complete word will be displayed in the editing
window.
Number Mode
In Number mode, use alphanumeric keys from 0 to 9 to enter the number. You can only enter
the number directly shown on the keypad. The letters can’t be entered in this mode.
C90 User manual
39
6. Contacts
Your phone has an address book capable of storing 500 contacts containing phone numbers,
E-mail addresses and many other fields. To enter the contact list from the standby mode,
select Menu→Contacts.
This menu allows you to save and manage contact address information. In Contacts you can
add a new address, or search saved contact addresses by name. You can also add a
personal ringtone to a contact card.
Note: To quickly access the Contacts menu, press the left soft key named Contacts from the
standby mode.
Contact List
Select Contact List to view the listing of all contacts stored on your phone. You may scroll up
or down the list using the UP/DOWN key, and press OK to view the desired contact
information. Pressing Options will display the following pop-up menu:
1. New Contact: Add a new contact.
2. Send Message: Send a message or an E-mail to the contact.
3. Send Bus. Card: Send the name, number and e-mail address of the record via Bluetooth to
another Bluetooth compatible mobile phone.
4. Delete: Delete the selected record.
5. Groups: Display the groups interface.
C90 User manual
40
6. Set Speed Dial: Assign the current number to one of the Speed Dial dialing keys. Speed
dialing allows you to press and hold a number key in standby mode to call the stored phone
number.
7. Delete All: Delete all records.
8. Memory Info: View the amount of Used, Available and Total records information.
You may also search for a contact from the Contact List screen. Type the name of the
desired contact. Your input will be displayed at the bottom of the contact list. The phone will
automatically scroll to the name that most closely matches your input.
New Contact
The New Contact menu allows you to add a new contact record. The following information
can be stored for each contact:
Name: Contact name.
Mobile1: Mobile phone number.
Home: Home phone number.
Office: Office phone number.
Mobile2: Mobile phone number.
C90 User manual
41
Email: Email address.
Group: Contact group (e.g., General, Family, Business, Personal and VIP)
Ringtone: Ringtone to be played when receiving calls from the contact.
Notes: Other information about the contact.
Press the OK key to save the contact information. Press the Back key to exit from the New
Contact interface.
Note: You may enter any of the contact information above; however, the name and a phone
number or an E-mail address must be entered in order to save the contact.
Groups
The Groups menu allows you to add contacts to any of the five caller groups. The following
are available from the Groups menu:
Edit: Rename the selected group.
Msg: Switch to the contact list for the desired group. You can mark recipients from the group
to whom you can send an MMS or SMS message.
Select: Switch to the contacts list of the current group.
C90 User manual
42
Speed Dials
The Speed Dials menu allows you to view the current list of speed dials and add new entries.
Use the UP/DOWN key to navigate to a desired speed dial number.
For speed dial numbers that are already assigned, click View to see the contact name and the
phone number. You may also select Dial to call the contact, or Clear to remove the contact
from the voice dialing list.
To add a new speed dial, navigate an empty speed dial number and press List. The contact
list will be displayed. Navigate to the desired contact and press Select to add the contact to
the speed dial list.
C90 User manual
43
7. Calls
Your phone has a call history feature that automatically stores information about incoming,
outgoing and missed calls.
You may use the Send Key as a short cut key to All Calls from the idle screen.
You may navigate through the Calls interface with the UP/DOWN key and press OK key to
view the information below:
All Calls
List of all incoming, outgoing and missed calls.
Missed Calls
Displays calls received but not answered.
Incoming Calls
Displays calls received by the phone.
Outgoing Calls
Displays calls made from the phone.
C90 User manual
44
Call Timers
The Call Timers feature allows you to view the approximate duration of your calls, as well as
data transferred and data connection time.
You can reset the information such as Last Call, Total Dialed Calls, Total Received Calls, Data
Transferred and Connection Time by selecting the Reset on the right soft key.
Note: The call timers are not intended for billing purposes. The actual invoice for calls and
service provider may vary depending on network features, rounding off for billing, rates and so
forth.
C90 User manual
45
8. Messaging
Your phone has the functionalities of sending and receiving text messages (SMS), multimedia
messages (MMS) and voice mail messages. To enter the messaging interface from standby
mode, select Menu→Messaging.
Send New
The Send New selection is used to create and send a message with the composer. To create
a message, enter a phone number or E-mail address in the To field. You may directly enter
the recipient’s number using the keypad. After entering one number or address, you may
press Add to enter additional addresses.
You may also add recipients from your contact list by pressing the Options→Contact. Use
the UP/DOWN keys to highlight the desired contact, and press the Mark and then press
Select to select the contact. You may scroll down to select multiple recipients. After the
desired numbers have been selected, press OK to add the recipients to the message.
Note: You may send an SMS to a maximum of 10 recipients, and an MMS to a maximum of
30 recipients, inclusive of the To, Cc and Bcc fields. These fields can each contain a maximum of
10 recipients.
When you have finished entering all recipients, press the DOWN key to move the cursor to the
lower window for creating your message text. For more information about text entry, refer to
Section 5 – Entering Text.
C90 User manual
46
Press Send to send the message when you finish editing. You can also save your message
at any time by selecting Options→Save To Drafts.
Note: The maximum size of an MMS message is 350 kB, and it may contain a combination of
text, audio, and photo.
Your phone allows you to perform a variety of other functions within the messaging window.
Select Options to access the following features:
Insert
Your phone also allows you to add pictures and audio files to your message. From the
messaging composition screen, select Insert to display the following options:
1. MyImages: Add an image from the folder lists.
2. MyTunes: Add an audio clip from the folder lists.
3. New Image: Start the camera to take a photo and insert it into the message.
4. New Tune: Start the sound recorder to create a new audio file, and insert it into the message.
Slide
Enter the slide interface
1. Add A Slide: Switch to the slide interface.
2. Delete Slide: Delete the current slide.
3. Previous Slide: View the previous slide.
4. Next Slide: View the next slide, when more than one slides have been added.
5. Slide Timing: Set the duration (in seconds) for each slide.
Preview
Preview the message.
C90 User manual
47
Erase Item
Erase the selected image and audio item from the message.
Cc/Bcc/Sub
View and enter the cc/bcc recipients and subject text. After inputting the desired information,
press Done (or Options - Done) to save.
Save To Drafts
Save the message to the Drafts folder.
Quick Text
Quick Text messages are used to enter common responses to questions from a pre-defined
dictionary. Select Quick Text, locate a desired phrase and click OK to add the text to the
current message. For more information about Quick Text, refer to Settings - Quick Text
settings.
Signature
Input your pre-defined signature. See Settings – Message Settings – Signature for information
on how to create a customized signature.
Message Priority
Set the priority for the message. If you set high priority to the message, it will be an exclamation
mark displayed on the message icon when the message listed in the message box.
C90 User manual
48
Inbox
The Inbox folder contains all of your received text and multimedia messages. From this folder
you can review your received messages, reply or forward messages to another recipient. To
access the inbox from standby mode, select Menu→Messaging→Inbox.
Read a Message
1. Use the UP/DOWN keys to select the desired message.
2. Press the View.
3. If the message is an SMS message or a downloaded MMS message, it will be displayed on
the screen immediately.
4. If the message is an MMS message without download, an MMS notification will be
displayed. Press the Get to download the message. The message will be downloaded and
the phone will return to the Inbox. Highlight the downloaded MMS message and press
View. The message will be displayed on the screen.
5. You may press the Reply to respond to the original recipient.
Reply to a Message
1. Highlight the desired message and press the Reply or View→Reply.
2. Compose your reply message. For more information about creating messages, refer to
Send New.
C90 User manual
49
Outbox
The Outbox folder contains all messages that were unsuccessfully sent during the last attempt.
From this folder you can edit or re-send your message.
To edit a message before sending, press Edit. This will display the composer interface where
you can edit your message. Select Send from this screen to send the message.
You can also send a message directly from the Outbox by pressing the Send.
Drafts
The Drafts folder contains drafts and unfinished text and multimedia messages. From this
folder you can complete and re-send your messages. Select Edit to open the message, and
press Send in the composer to send the message.
You may delete a highlighted message by pressing Delete and delete all the messages in the
folder by pressing Options→Delete All.
Sent
The Sent folder contains messages that have been successfully sent by your phone. Press
Edit to open the composer interface to edit or re-send your message. You may also select
Delete to delete selected message from the Sent box.
Saved
The Saved folder contains saved text and multimedia messages. From this folder you can edit
and resend your messages. The messages that are saved in this folder will not be deleted
automatically.
You can view a saved message by highlighting the desired message and selecting View. You
C90 User manual
50
can also reply to messages by pressing Reply.
Voice Mail
When the Voice Mail function is available, all unanswered calls to your phone can be
transferred to your voice mailbox, even if your phone is not being used or powered off. You
should set up your voice mailbox and personal greeting as soon as your phone is activated.
For more information, contact your service provider.
To check your voice mailbox, select Call from the Voice Mail interface. The phone will
automatically place a voice call to the Voice Mail center. You may clear the new Voice Mail
indicator by pressing Reset.
Shortcut: To quickly access your voice mailbox from standby mode, press and hold the 1 key.
Your phone will automatically place a voice call to the Voice Mail center.
Web Alerts
Your phone is capable of receiving Web Alerts from online providers. For more details,
contact your service provider. To access your Web Alerts:
1. From standby mode, select Menu→Messaging→Web Alerts.
2. Follow the on-screen instructions.
Settings
This menu allows you to customize the options to fit your preferences. From the standby
mode, select Menu→Messaging→Settings to access the settings menu.
Message Settings
1. Save To Sent Box: Set whether messages are saved to the Sent folder.
C90 User manual
51
2. Auto Delete Inbox: If new message comes, it will automatically delete the oldest message
when the inbox is full.
3. Default Entry Mode: Set the default entry mode.
4. Auto Download: Set the preference for downloading MMS messages.
5. Delivery Report: Set on and off the delivery report.
6. Picture Talk Alert: Set on and off the picture talk alert.
7. Callback: Set the callback number that is sent along with SMS and MMS messages.
8. Signature: Allow you to input and save your message signature. The saved signature is
appended to all outgoing messages.
Quick Text Settings
The Quick Text Settings is a list of phrases that are commonly used in short messaging. To
view or edit the phrase, press the Edit. For more information on adding Quick Text to your
message, refer to Send New.
Memory Info
The Memory Info menu displays the amount of memory available for text and multimedia
messages. Press the OK key to exit from the menu.
C90 User manual
52
9. Music & Media
Your phone has the capability of playing music, playing voice memos and ringtones and
capturing images. This functionality is all accessible through the Music & Media menu. To
access Music & Media, select Menu→Music & Media from standby mode.
Music Player
The Music Player allows you to enjoy the music stored on a microSD memory card inserted
into the phone.
Adding Music to Your Phone
Before music can be loaded on your phone, you need to create a folder on the memory card
called mymusic. There are two ways to add the mymusic folder:
1. When a new memory card is inserted in the phone, the phone will create the mymusic folder
automatically.
2. The memory card can be connected directly to a personal computer using a USB/microSD
card reader. If a folder called mymusic does not exist on the card, create it as a new folder
in the main top-level directory.
To add music files, make sure the memory card is inserted in the phone and use the USB
cable to connect your C90 to your PC. Then simply drag and drop or copy music files into the
mymusic folder on the memory card.
C90 User manual
53
All MP3 music files must be loaded into the mymusic folder of an inserted microSD memory
card for the C90 phone to play them in the Music Player.
Create a Play List
Make sure there are songs, tunes and other music in the MyMusic folder on the microSD card.
1. Access the music player via the path Menu→ Music & Media → Music Player or select .
2. Unless prompted to create a play list, press Options to select the PlayLists to get into
PlayLists interface. Use Options and choose Create to get into music library.
3. Select AllMusic, mark selected tracks, and press Save.
4. Enter the name of the play list. (The default name is PlayListX.)
5. Press OK. The play list will be displayed in the PlayLists interface.
6. Use the ListPlay to view the music items in the list.
Manage a Play List
In the PlayList interface, you can manage the play list by the following operations:
1. Highlight a play list.
2. Use the ListPlay to view the music information in the list.
3. Use EditList to edit the existing list and add or remove tracks.
4. Use Options→Delete to delete an existing list.
5. Use Options→Rename to rename and existing list.
Control the Music Player
When you use the music player to enjoy music, the Navigation Keys (LEFT/RIGHT keys) and
OK Key are used to control the play. The UP navigation key allows you to move up and
C90 User manual
54
select a new music file, the DOWN navigation key allows you to move down and select a new
music file.
LEFT navigation key allows you to move back to the beginning of a music file. You can restart
the current track or skip backward to the previous track by a short press of the LEFT
navigation key, and fast reverse the track by a long press of the key. RIGHT navigation key
allows you to move forward to the end of a music file. You can skip forward to the next track
in the play list by a short press of the RIGHT navigation key, and fast forward the current track
by a long press of the key.
Use Exit on right soft key or Back Key to stop the play and exit from the player.
In music player interface, press Options and choose Play Mode to set the music player’s play
mode. You can turn on/off the Repeat and Shuffle mode here, and then press OK to save
the setting.
When the flip is closed, the player can control the music playback using the External Player
Control Keys to play/pause, rewind, skip forward, fast forward, etc.
Camera
The Camera function allows you to take pictures with your phone. To access your camera,
select Menu→Music & Media→Camera from standby mode.
Shortcut: You can quickly access the Camera application by long pressing the Camera key
on the left side of the phone in standby mode.
C90 User manual
55
Take Pictures
To take a photo, press the Capture to shoot an image as your desired. You also can press
the Camera key on the left side of the phone to take a photo.
You can use the RIGHT and LEFT navigation keys to view your image settings while shooting.
Use the UP and DOWN navigation keys to adjust the level for each of the following settings:
Brightness: Adjust the brightness level of the image.
Contrast: Adjust the contrast of the image.
Zoom: Adjust the zoom level.
Effect: Change the effect of the image.
For more shooting options, select the Options to do the following operations:
1. Self Timer: Set the self timer to be Off, 5s, 10s, or 15s.
2. Image Size: Choose among image sizes of 1280×960, 1024×768,640×480, etc.
3. Image Quality: Select Super Fine, Fine or Standard image quality.
4. White Balance: Choose Auto, Sunny, Cloudy, Incandescent, and Fluorescent white
balances.
5. Shutter Sound: Select your desired shutter sound.
6. Save To: Choose the saving location to Phone or MicroSD.
View Your Photos
You can view your previously taken images and the download images by selecting the
MyImages located on the right soft key. For more information, see the MyImages sections.
C90 User manual
56
MyTunes
The Tunes selection allows you to play and manage the tunes in the phone. To access your
Tunes from standby mode, select Menu→Music & Media→MyTunes.
Play Your Tunes
In the MyTunes interface when you highlight a tune, press Play to get into music player
interface to play the highlighted tune.
Use OK key to start and pause the playing.
Use RIGHT navigation key with a long press to fast forward.
Use LEFT navigation key with a long press to fast backward.
Use Back key to stop the playing and exit from the player.
Manage Your Tunes
In the MyTunes interface, you can manage tunes files and send tunes via Message or Bluetooth.
After highlight a tune, press Mark to mark the tune and Play to play the tune by the music
player. When press Options, you can do the followings:
1. Send: Send the tune via Message or Bluetooth. Some files, such as MP3 music files, may
be too large to send.
2. Set As: Set the tune as the default ringer of the phone.
3. Rename: Rename the tune.
4. Delete: Delete the tune.
5. Mark All: Mark all the tunes in the folder.
6. File Info: View the file property of the tune.
7. DRM Digital Info: View the DRM detail digital information. (This menu only displays for the
DRM file)
C90 User manual
57
MyImages
Your phone is able to manage the image in the format of JPG, GIF, BMP and PNG. You can view it,
send it via the MMS or Bluetooth and set it as the wallpaper. To access the Images menu from
standby mode, select Menu→Music & Media→MyImages.
View Your Image
When you highlight a file, press View to view it. In viewing interface you can view it with full
screen by press Full Scr and send it via MMS or set it as the wallpaper by pressing
Options→Send or Options→Set As Wallpaper.
Manage Your Images
In the MyImages interface when you highlight an image, you can send the image via Message
or Bluetooth, copy it, move it, etc.
After highlight an image, press Mark to mark the image and View to view the image. When
press Options, you can do the followings:
1. Send: Send the image via Message or Bluetooth.
2. Set As Wallpaper: Set the image as the wallpaper.
3. Copy to MicroSD/Phone: Copy the image to the microSD or Phone.
4. Move to MicroSD/Phone: Move the image to the microSD or Phone.
5. Rename: Rename the image.
6. Delete: Delete the image.
7. Mark All: Mark all the images in the folder.
8. File Info: View the file property of the image.
9. DRM Digital Info: View the DRM detail digital information. (This menu only displays for the
DRM file)
C90 User manual
58
10. Switch to MicroSD/Phone: Switch the management between microSD card and phone.
MyMusic
Note: If your phone without a microSD card, you can skip this section.This section only
applies if you have a microSD card inserted to the phone.
The MyMusic folder allows you manage the tracks in the microSD card. This folder will only
be displayed when the phone has a microSD card inserted. To manage the music saved in
your microSD card, select Menu→Music & Media→MyMusic.
When a track is highlighted, you can manage the track(s) by the following operations found in
Options:
1. Rename: Rename the track.
2. Delete: Delete the marked track or tracks.
3. Mark All: Mark all the tracks in the folder.
4. File Info: View the file property of the track.
Preload Files
The preload files folder is a convenient way to organize all the preload tunes, images of your
handset. To access the preload files folder from standby mode, select
Menu→Music & Media→Preloaded Files. In this folder you will be able to access the folders
Tunes and Images.
C90 User manual
59
Tunes
After you highlight a tune, you can play it by pressing Play and set the tunes as Caller ID
Ringtone, Unknown Calls Ringtone, etc via Set As.
Images
When you highlight an image, you can view it by pressing View and set the image as the
wallpaper via Set As.
Format MicroSD
You can format your microSD card using this function. This option will erase all content that is
currently stored on the microSD card from any source. This is helpful if the card is full of
content you no longer need and will make room for you to add new music and images for use
with the phone.
1. Access this function via the path Menu→Music & Media→Format MicroSD, it will prompt
“It will erase all files in MicroSD, Continue?”.
2. Press Yes to confirm.
After a new mircoSD card is successfully formatted, the default folders named MyMusic and
MyImage in the card will be created to save the related files.
Memory Info
The Memory Info selection allows you to view the details about the space used and available
memory. To view the memory information from standby mode, select
Menu→Music & Media→Memory Info.
C90 User manual
60
10. Games
Your phone is capable of playing a variety of games that are available through your service
provider. You can download games and store them on your phone for future use. To access
the Games folder from standby mode, select Menu→Games.
Please follow the instructions on the screen to play the game.
C90 User manual
61
11. Tools
The Tools menu provides helpful software applications to assist with daily tasks, such as a
calculator, alarm clock, voice memo, world clock etc. To access the Tools folder, select Menu
→Tools from standby mode.
Calculator
Your mobile phone comes with a built-in calculator capable of performing addition, subtraction,
multiplication and division. To access the calculator from standby mode, select Menu→Tools
→Calculator.
1. Enter a number with the keypad.
2. If necessary, press the right soft key to insert a decimal point.
3. Use the navigation keys to select a mathematical function.
a. UP key: add.
b. DOWN key: subtract.
c. LEFT key: multiply.
d. RIGHT key: divide.
4. Enter the next number with the keypad.
5. Press Equal to view the result.
C90 User manual
62
Alarm Clock
The alarm function allows you to set up multiple separate alarms. To access the alarm clock
function, select Menu→Tools→Alarm Clock from standby mode.
Edit an Alarm
To edit an alarm, highlight the desired alarm, select Options→Set Alarm to edit or create a
new alarm by pressing New. You may set the alarm options described below:
Type: Set the alarm type.
Date: Select the date. This feature is only available for Once alarm type.
Time: Enter the time for the alarm format.
Ringtone: Select the Ringtone that will be played when the alarm sounds.
Status: Enable or disable the alarm.
Remark: Enter a comment about the alarm.
You can save the alarm by pressing Save.
Alarm Options
To access the alarm settings, press Options. The following options are available:
1. Set Alarm: Edit the highlighted alarm entry.
2. Set Rest Days: Set the rest days that the alarm will not alert when the alarm in weekdays
type.
C90 User manual
63
3. Delete All: Delete all the alarms set.
If there are alarms existed, select View can view the alarm info. Press Delete, if you want to
cancel. And press Edit, if you want to edit the viewing alarm.
Calendar
The Calendar allows you to conveniently access and modify your agenda. Simply store your
appointment with a reminder and your phone will alert you on the time and date selected. You
can access the Calendar by selecting Menu→Tools→Calendar.
Add an Appointment
To add an appointment to the Calendar, press Add on the right soft key. You may select to
add a Meeting, Memo or Anniversary from the list.
View an Appointment
When you open your Calendar, it will automatically navigate to the current date. You may
navigate the navigation keys to view appointments on a different date. To view the details of
an appointment, highlight the desired appointment and press the View. This will display
various parameters such as the time, date, subject and location. You can manage the
appointments in the view interface by Edit, and Delete.
Calendar Options
To access the Calendar settings, press the Options located on the left soft key. The following
options are available:
1. Go To Date: Input a date and press OK to jump to the specified date.
2. Delete Entries: Delete the In This Day, Before Date, and All Entries appointments.
3. Settings: Set the alarm tone and default calendar view (Month or Day view).
C90 User manual
64
4. Memory Info: Displays the number of used, available and total calendar entries.
Tip Calc
The tip calculator function allows you to quickly and easily calculate the tip amount based on
the tip rate and bill. You can access the Tip Calculator from standby mode by selecting Menu
→Tools→Tip Calc. To calculate a tip:
1. Enter the Bill amount. Press Decimal to enter a decimal point.
2. Enter the Tip percentage.
3. Press OK.
4. The Tip and Total will be displayed.
You may press Reset to clear the bill and tip amount.
World Clock
The world clock displays the time in twenty-four different time zones around the world,
together with one or more cities, states, regions or countries in each time zone. To access the
World Clock, select Menu→Tools→World Clock from standby mode. Press the left and right
navigation keys to display different time zones.
You may press the DST to enable or disable daylight savings time. The Cities sets the default
time zone for the phone.
Voice Memo
You can use your phone to record brief memos to remind yourself of important events, phone
numbers or other information. To access the voice memo from standby mode, select Menu→
Tools→Voice Memo.
C90 User manual
65
Record a Voice Memo
You may press the Record to record a memo. Once the recording has started, press the
Stop to end the memo. After the recording is complete, you may press the Discard to delete,
or Save to store the memo for future reference.
Press the Options to display the following features:
1. Send: Send the voice memo via MMS message.
2. Play: Play the voice memo.
Listen to a Voice Memo
To listen to a previously recorded voice memo, press MyTunes on the right soft key. A listing
of audio clips will be displayed. Navigate to the desired entry and press Play to listen to the
clip. For more information about managing a voice album, please reference to Section 11
Music & Media→MyTunes.
C90 User manual
66
12. Settings
The settings menu allows you to customize your phone’s display, sound, and various other
settings based on your preferences. In the standby mode, select Menu→Settings to access
the settings menu.
Various phone settings are available within the Settings menu. Highlight the desired selection
and press OK key to view or change the current settings.
Sound Settings
The sound setting menu allows you to change the sound properties of your phone.
Ringers
Many different ringers are available to help you identify incoming calls and messages. You
can assign ringtones to individual contact entries and types of calls or messages.
1. Voice Calls:
Caller ID: Edit the ringtone for calls with caller ID tags.
Unknown Calls: Set the ringtone for blocked or restricted phone numbers.
2. Messages:
Voice Mail: Select the Voice Mail indicator sound.
Messaging: Set the tone for new text and multimedia messages.
Web Alerts: Choose the indicator for new web alerts.
Reminder: Set the reminder time for new messages.
C90 User manual
67
Press Default to set the ringers as initial ringer. Press Edit to edit the ringtone for types of
ringers. To save the settings of ringers, you can press OK key.
Keypad Tone
The keypad tone menu allows you set the volume of the keypad tone.
Volume
The Volume menu sets the mode and volume options for the ringer and earpiece.
1. Silent Mode: Enable or disable silent mode.
2. Master Volume: Change the master volume level among Off, Vibrate only, four steps of
Volume Level, etc.
3. Earpiece: Set the volume level among three steps of volume level for the earpiece of the
wired headset accessory.
Power On/Off Tone
The Power On/Off setting allows you to enable or disable the music played during power
on/off of the handset.
Alerts
The alerts menu allows you to change the sound settings for various alerts on your phone. To
access the alerts menu, select Menu→Settings→Sound Settings→Alerts from standby
mode. The following settings are available:
1. Minute Beep: Enable or disable the beep played before the calling time is about to achieve
one minute or multi-minutes.
2. Call Connect: Enable or disable the alert when a call is connected successfully.
3. Call Lost: Enable or disable the alert when a call is lost.
C90 User manual
68
4. Low Battery: Enable or disable the low battery alert when the battery low.
Systems Switch Tone
You can turn on and off the systems switch tone with this function. When network switching
happens and the function is on, the phone will alert a system switch tone at the moment.
Display Settings
The display settings allow you to customize your mobile phone’s display screen. To access
the display settings from the standby mode, select Menu→Settings→Display Settings. The
following settings can be changed via the display settings menu:
1. Banner: Edit the banner name displayed on the standby mode.
2. Wallpaper: Select the background image from Images for the standby mode.
3. Backlight: Set the screen and keypad backlight to be Always Off, 3 Seconds, 10 Seconds
or 20 Seconds.
4. Clock Format: Change the format of the clock between Digital and Large Digital.
5. Menu Style: Choose between Icon and List menu style.
6. Dialing Font: Change the size of dialing font between Normal and Large.
Language
Your phone can display text in English or Spanish. To change the language settings, select
Menu→Settings→Language from the standby mode. Changing the language settings
changes all menus and message settings. Use the UP and DOWN keys to select between
English and Spanish. Press OK to select the highlighted language.
C90 User manual
69
Bluetooth
Your phone is capable of connecting to a variety of Bluetooth wireless accessories. It makes
you implement data transfer between Bluetooth devices, talk with a Bluetooth wireless
earphone, remote control the handset, etc. You may create and store 20 pairings within the
phone and connect to one device at a time. The approximate range for Bluetooth wireless
technology is up to 30 feet (10 meters).
The Bluetooth menu allows you to search for Bluetooth wireless devices, and manage devices that
have already been paired with your phone. To access the Bluetooth menu from standby mode,
select Menu→Settings→Bluetooth.
Bluetooth Manager
Manage the Bluetooth settings below:
1. Power: Enable or disable the Bluetooth support.
2. Discovery Mode: Disable or enable discovery mode for 60 seconds. Turn discovery mode
on for 60 seconds to allow other devices to find your handset.
3. Device Name: Set the Bluetooth device name for your phone. This name will appear on
other Bluetooth devices when your phone is located.
4. Address: Identify the address for your handset.
5. Device Type: Show your Bluetooth device type.
6. Support Profiles: Allow you to view a listing of the Bluetooth profiles supported by the
handset, such as HSP, HFP, OPP, A2DP and AVRCP.
Bluetooth Device
This menu allows you to manage the Bluetooth devices that have been, or currently are paired
to your handset.
C90 User manual
70
Note: Before using your Bluetooth headset to receive/make calls or to enjoy music, please
make sure the handset is in standby mode and the Bluetooth headset has been connected
with the handset.
Pair with a New Bluetooth Device
1. Access in the Bluetooth Device interface.
2. Press Search to find a new compatible device.
3. If Bluetooth power is set to off, you will be prompted to turn the power on. Select OK to
enable Bluetooth.
4. The device will appear in the Bluetooth Devices menu once it has been located. Highlight
the desired device and press Pair.
5. The phone will prompt you for the pass key. Consult the Bluetooth accessory instruction
manual for the correct pass key. Enter the pass key and press the OK key.
6. Once paired, you will see the device listed in the Paired Devices menu, and the Bluetooth
icon will appear on the status bar.
Note：You can download what u want with FTP in Bluetooth module.
GPS
Your phone’s GPS features enable service providers to locate your position in emergencies, or
for other services to request your position. You may choose the GPS Status between
Location On and E911 Only, and then set the GPS Privacy if necessary.
System
The System menu provides system settings.
C90 User manual
71
Call Setup
The call setup menu allows you to change the answering features on your phone. To access
the call setup menu from standby mode, select Menu→Settings→System→Call Setup. The
following settings are available:
1. Call Answer: Set the way of answering a call.
2. Auto Answer: Set the auto-answer settings. This feature is intended for use when your
phone is connected to an optional hands-free headset.
3. Auto Redial: Enable or disable the auto-redial feature. This feature automatically redials a
call after an unsuccessful call.
Saving Options
You can choose files in the phone to save to microSD card or Phone.
Memory Info
The Memory Info menu allows you to view information about the phone’s and microSD card’s
memory.
Phone Info
You can view the phone information such as the phone number, phone software version,
serving system of PRI version, CDMA channel and System ID (SID), etc.
System Settings
1. Set Mode: Select the mode of network.
2. Set NAM: Your phone has the capability of storing 2 different phone numbers. Use this
setting to select the current Number Assignment Module (NAM). Contact your service
provider for more information about the NAM.
C90 User manual
72
Note: Additional fees may apply when roaming on another network.
TTY Mode
Your handset is a TTY compatible device. Simply connect the TTY equipment to the USB jack
with the ZTE TTY-to-USB connector. To access the phone’s TTY settings, select Menu→
Settings→System→TTY mode. Use the UP and DOWN keys to choose between the
following settings:
TTY Full: Users who cannot talk or hear may use this setting to send and receive text
messages through TTY equipment.
TTY+Talk: Users who can talk, but cannot hear, may use this setting to speak through
the phone and receive responses via text message.
TTY+Hear: Users who can hear, but cannot speak, may use this setting to listen to
conversation of the other party, and respond via text message.
TTY Off: Users who can hear and speak may use this setting to disable TTY support.
Connecting to TTY Equipment
1. Connect the cable from the TTY device into the ZTE TTY-to-USB connector.
2. Plug the USB connector into the jack on the right side of the phone.
3. Enter the TTY Mode menu and select the desired TTY Mode (shown above).
4. After setting the TTY mode, check the LCD screen on the phone for the TTY icon.
5. Connect the TTY equipment to the power source and turn it on.
6. Make a phone connection to the desired number.
7. When a connection is made, use the TTY equipment to send a text message, or speak (for
TTY+Talk mode).
C90 User manual
73
8. The voice or text message from the other party will be heard or displayed on the TTY
equipment, depending on the TTY mode selected.
Security
The security menu allows you to lock your phone electronically. To access the Security menu,
select Menu→Settings→System→Security from the standby mode.
Note: You will need to enter the phone lock code to enter this menu. The default password for an
inactivated phone is 1234. Once you have activated your handset, the default lock code will
be the last 4 digits of your phone number.
It is also possible that the lock code has been updated by the user. If the updated lock code is
lost or forgotten, please contact your service provider.
The following options are available:
Lock Mode: Choose between Unlock, Lock and On Power Up. In Lock mode, the phone is
only able to receive calls or make emergency calls. The On Power-Up setting will
automatically lock your phone when it is powered on.
Change Code: This menu allows you to change the phone’s lock pass code. To change your
code:
1. Select Menu→Settings→System→Security→Change Code from the standby mode.
2. When prompted, enter your old lock code.
3. Input the new code (1 to 8 characters).
4. Input the new code again to confirm.
Reset Defaults: Reset the default security settings.
C90 User manual
74
HAC Mode
This phone supports HAC (Hearing Aid Compatibility) function. You can turn on and off the
function by this menu. When you turn on the HAC mode and use a hearing aid with a Telecoil
to answer the phone, it will help you hear more clearly while speaking on the phone.
For more detailed information of HAC, please refer to the section For Your Safety – Turn on
the HAC Setting.
Airplane Mode ON/OFF
Airplane Mode allows you to use some features of your phone, such as games, calculator,
voice memos, and many others when you are in an airplane or other area where RF signals may
cause interference. In airplane mode, you are prohibited from making or receiving voice/data
calls, however you may still make calls to your local emergency number, i.e., 911.
To enable Airplane Mode, select Menu→Settings from standby mode. Highlight Airplane
Mode: On/off and press Select.
C90 User manual
75
13. Glossary
Abbreviation Description
A2DP Advanced Audio Distribution Profile
AC Alternating Current
ADS Application Download Sever
AVRCP Audio/Video Remote Control Profile
BREW Binary Runtime Environment for Wireless
CDMA Code Division Multiple Access
DST Daylight Saving Time
HAC Hearing Aid Compatibility
HFP Hands-free Profile
HSP Headset Profile
GPS Global Positioning System
MMS Multimedia Messaging Service
NAM Number Assignment Module
OPP Object Push Profile
C90 User manual
76
PC Personal Computer
PTT Push To Talk
RF Radio Frequency
SD Secure Digital
SID System Identifier
SMS Short Messaging Service
TTY Teletype
URL Uniform Resource Locator
USB Universal Serial Bus
VIP Very Important Person
C90 User manual
77
14. Index
Activate Your Phone, 4, 30
Adding Music to Your Phone, 56
Aircraft Safety, 3, 12
Alarm
Alarm Options, 8, 68
Edit an Alarm, 8, 67
All Calls, 5, 22, 32, 43
Answer Voice Calls, 4, 33
Basic Operations, 4, 31
Battery
Charge the Battery, 4, 27
Install the Battery, 4, 26
Remove the Battery, 4, 28
Bluetooth
Bluetooth Device, 9, 75
Bluetooth Manager, 9, 74
Pair with a New Bluetooth Device, 9, 75
C90 Technical Specifications, 3, 21
Calculator, 8, 66
Calendar
Add an Appointment, 8, 68
Calendar Options, 8, 69
View an Appointment, 8, 68
Call Timers, 5, 44
Call Waiting, 5, 35
Calls, 4, 5, 31, 32, 43, 44, 63, 72
Camera, 7, 21, 22, 59
Connect to the Network, 4, 30
Contact List, 5, 40
Contacts, 5, 31, 32, 34, 39
Control the Music Player, 7, 58
Copyright Notice, 3, 19
Create a Play List, 7, 57
Display Settings, 9, 73
Drafts, 6, 47, 49
Efficient Use, 3, 15
Emergency Services, 3, 16
Entering Text, 5, 36, 46
FCC Notice, 3, 17
For Your Safety, 3, 10, 20, 79
Games, 8, 65
General Care, 3, 10
General Guidelines, 3, 13
GPS, 9, 25, 76, 80
C90 User manual
78
Groups, 5, 40, 42
Hospital Safety, 3, 13
Images, 7, 61, 63, 73
Inbox
Read a Message, 6, 48
Reply to a Message, 6, 49
In-Call Features, 5, 33
Incoming Calls, 5, 32, 44
Indicators and Icons, 4, 25
Introduction, 3, 20
Key Definitions, 4, 22
Key Functions, 5, 36
Language, 9, 74
Lock/Unlock Your Phone, 4, 30
Make Voice Calls
Use a Number from the Call History, 4,
32
Use Speed Dials, 4, 32
Use the Contacts List, 4, 31
Use the Keypad, 4, 31
Use the Last Number Dialed, 4, 31
Manage a Play List, 7, 57
Manage Your Images, 7, 61
Manage Your Tunes, 7, 60
Memory Card
Format MicroSD, 7, 63
Insert the microSD Memory Card, 28
Remove the microSD Memory Card, 29
Memory Info, 6, 7, 9, 40, 51, 64, 69, 76
Message Settings, 6, 48, 51
Messaging, 5, 34, 45, 48, 50, 51, 72, 80, 81
Missed Calls, 5, 32, 43
Music, 7, 56, 57, 59, 60, 61, 62, 63, 64, 70
Music & Media, 7, 56, 57, 59, 60, 61, 62, 63,
64, 70
Music Player, 7, 56, 57
my apps, 6, 52
New Contact, 5, 40, 41
Outbox, 6, 49
Outgoing Calls, 5, 32, 44
Overview, 3, 20
Phone at a Glance, 3, 21
Play Your Tunes, 7, 60
Power On/Off your Phone, 4, 29
Preload Files, 7, 63
Quick Text Settings, 6, 51
Radio Frequency (RF) Energy, 3, 15
Road Safety, 3, 14
Saved, 6, 50
Send New
Cc/Bcc/Sub, 6, 47
Erase Item, 6, 47
Insert, 4, 5, 26, 27, 28, 36, 46
Message Priority, 6, 48
C90 User manual
79
Preview, 6, 47
Quick Text, 6, 47, 51
Save To Drafts, 6, 46, 47
Signature, 6, 48, 51
Slide, 5, 26, 28, 47
Sent, 6, 49, 51
Set up Your Phone, 4, 26
Sound Settings
Alerts, 8, 50, 73
Keypad Tone, 8, 72
Power On/Off Tone, 8, 72
Ringers, 8, 71
Systems Switch Tone, 9, 73
Volume, 8, 21, 33, 72
Speed Dials, 5, 32, 42
System
Call Setup, 9, 33, 76
HAC Mode, 9, 79
Memory Info, 6, 7, 9, 40, 51, 64, 69, 76
Phone Info, 9, 77
Saving Options, 9, 76
Security, 9, 25, 55, 78, 79
System Settings, 9, 77
TTY Mode, 9, 25, 77, 78
Take Pictures, 7, 59
Text Input Modes, 5, 37
Third Party Equipment, 3, 15
Three-Way Call, 5, 34
Tip Calc, 8, 69
Tools, 8, 66, 67, 68, 69, 70
Tunes, 7, 60, 63
Turn on the HAC Setting, 3, 19, 79
Use Your Phone with a Hearing Aid Device,
3, 18
User Interface, 4, 24
Vehicles Equipped With an Air Bag, 3, 15
View Your Image, 7, 61
View Your Photos, 7, 60
Voice Mail, 6, 23, 25, 32, 50, 72
Voice Memo
Listen to a Voice Memo, 8, 70
Record a Voice Memo, 8, 70
Web Alerts, 6, 50, 72
What’s Included, 3, 20
World Clock, 8, 69
