ZTE ZTECS1001 CDMA2000 1X Digital Mobile Phone User Manual ZTE C S100
ZTE Corporation CDMA2000 1X Digital Mobile Phone ZTE C S100
ZTE >
user_manual
BAYN S1001
CDMA 1X Digital Mobile Phone
Quick Guide
LEGAL INFORMATION
Copyright © 2011BAYN CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of BAYN Corporation.
The manual is published by BAYN Corporation. We reserve the right to make modifications on
print errors or update specifications without prior notice.
Version No. : R1.2
Edition Time : Jan 2011
Manual No. : 07958450
Contents
Know Your Phone ................................................................................................................. 4
Key Instruction ...................................................................................................................... 4
Interface Icons ....................................................................................................................... 5
Insert and Extract UIM Card ................................................................................................. 6
Remove and Install the Battery ............................................................................................. 6
Remove the Battery ........................................................................................................... 6
Install the Battery .............................................................................................................. 7
Charge the Battery ................................................................................................................ 8
Power on/off Your Phone ..................................................................................................... 8
Make and Answer a Call ....................................................................................................... 9
Menu Tree ............................................................................................................................. 9
Voice Mail........................................................................................................................... 10
Text Input ............................................................................................................................ 10
Send a New Message .......................................................................................................... 10
Menu Functions................................................................................................................... 11
Phone Code ......................................................................................................................... 14
PIN Code and PUK Code .................................................................................................... 14
Warning and Maintenance .................................................................................................. 14
Warranty Terms .................................................................................................................. 15
Limitation of Liability ......................................................................................................... 15
Confidential and Proprietary Information of ZTE CORPORATION 4

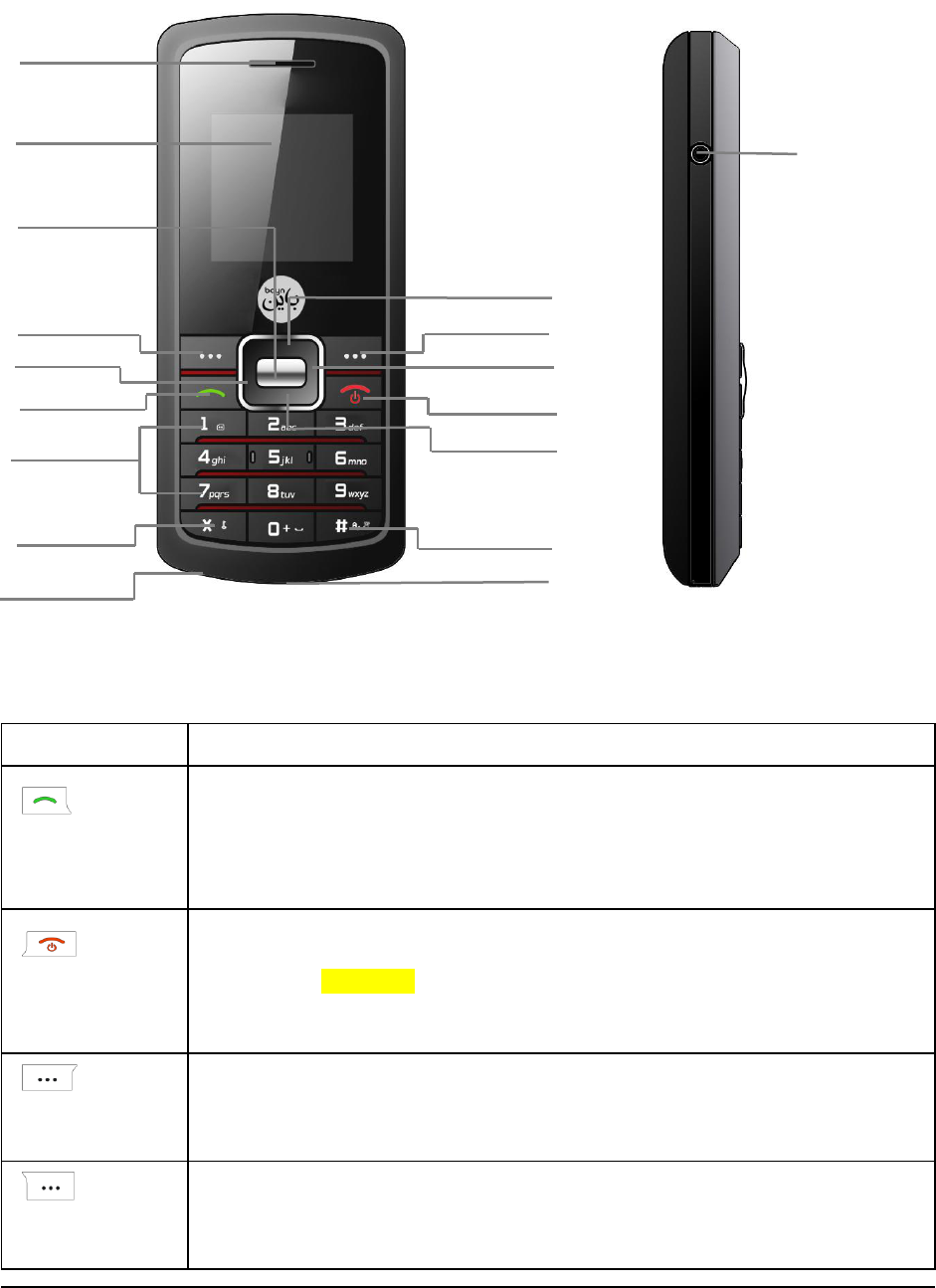

Know Your Phone
Key Instruction

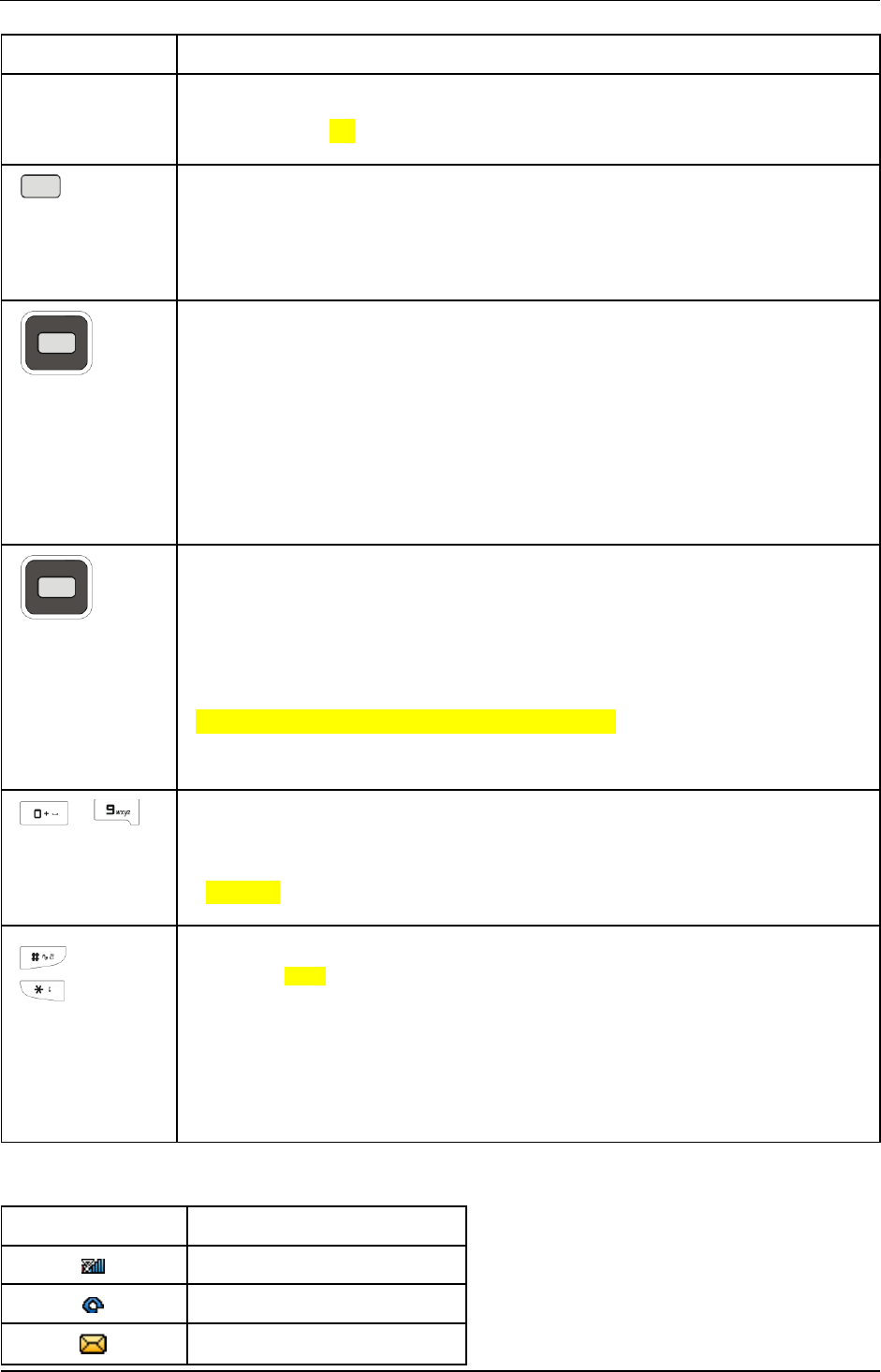

Key
Function Description
• Make or answer a call.
• Press Send Key in standby mode to enter All Calls list.
• Press Send Key twice directly to redial the last number.
• End an active call or reject a call.
• Long press to Power on/off.
• Exit from any interface to standby mode.
• Enter main Menu in standby mode.
• Switch to the options of left bottom submenu.
• Enter Contacts in standby mode.
• Switch to the options of right bottom submenu.
Charger Connector
LCD screen
OK Key
Earpiece
Right Select Key
# Key
End Key
Up Key
* Key
Left Key
Left Select Key
Call Key
Number Key
Microphone
Earphone Connector
Right Key
Down Key
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 5
Key
Function Description
• Erase character(s) while editing.
• Cancel operation, exit to previous pop-up window.
• Confirm the commands and options selected.
• Confirm the character chosen while character inputting.
• In standby mode, press OK Key to enter main Menu.
Up/Down Key
• Scroll the cursor up and down.
• Used as selection key up and down for keying in commands and selecting options shown on the
display.
• In standby mode, press Up Key to enter Profile menu.
• In standby mode, press Down Key to enter new message interface.
• Used as direction key in games.
Left/Right Key
• Scroll the cursor left and right.
• Used as selection key to scroll cursor left and right for keying in commands and selecting
options shown on the display.
• In standby mode, press Left Key to enter Games menu, press Right Key to enter Services menu.
• Press Left Key/Right Key to adjust volume in conversation.
• Used as direction key in games.
~
• Key in numbers or characters.
• Make a Speed Dial call (1–9).
• Long press 0 Key to input + in standby mode.
# Key:
• Long press # Key in standby mode to activate/deactivate vibration.
• Press # Key to select text mode when edit text.
* Key:
• Long press * Key in standby mode to lock phone’s keypad.
• Press * Key once to enter Symbols mode in text input mode.
Interface Icons

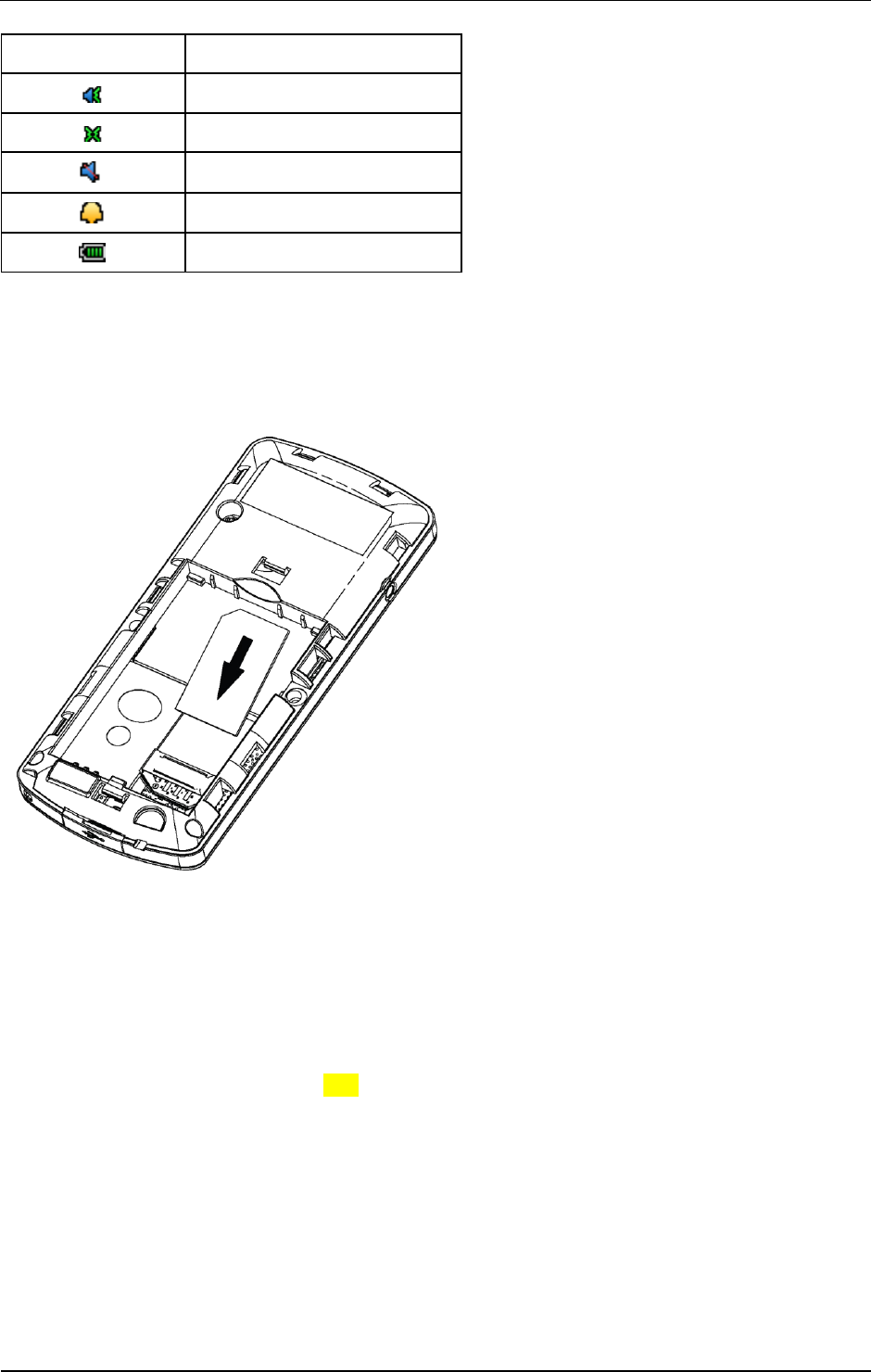

Icon
Indication
Signal strength
Earphone in use
New message
BAYN 1001 Quick Guide
6 Confidential and Proprietary Information of BAYN CORPORATION
Icon
Indication
Ring + Vibration
Vibration
Silence all
Alarm
Power indicator
Insert and Extract UIM Card
1. Power off the phone, remove the battery and other external power.
2. Insert UIM card into UIM card slot in the phone, or remove UIM card out of slot, as shown in picture
hereinafter.
Remove and Install the Battery
The attached Li-ion battery along with the phone can be used after unpacking. For the first three times,
please use up the power and charge it fully for a new battery to perform well.

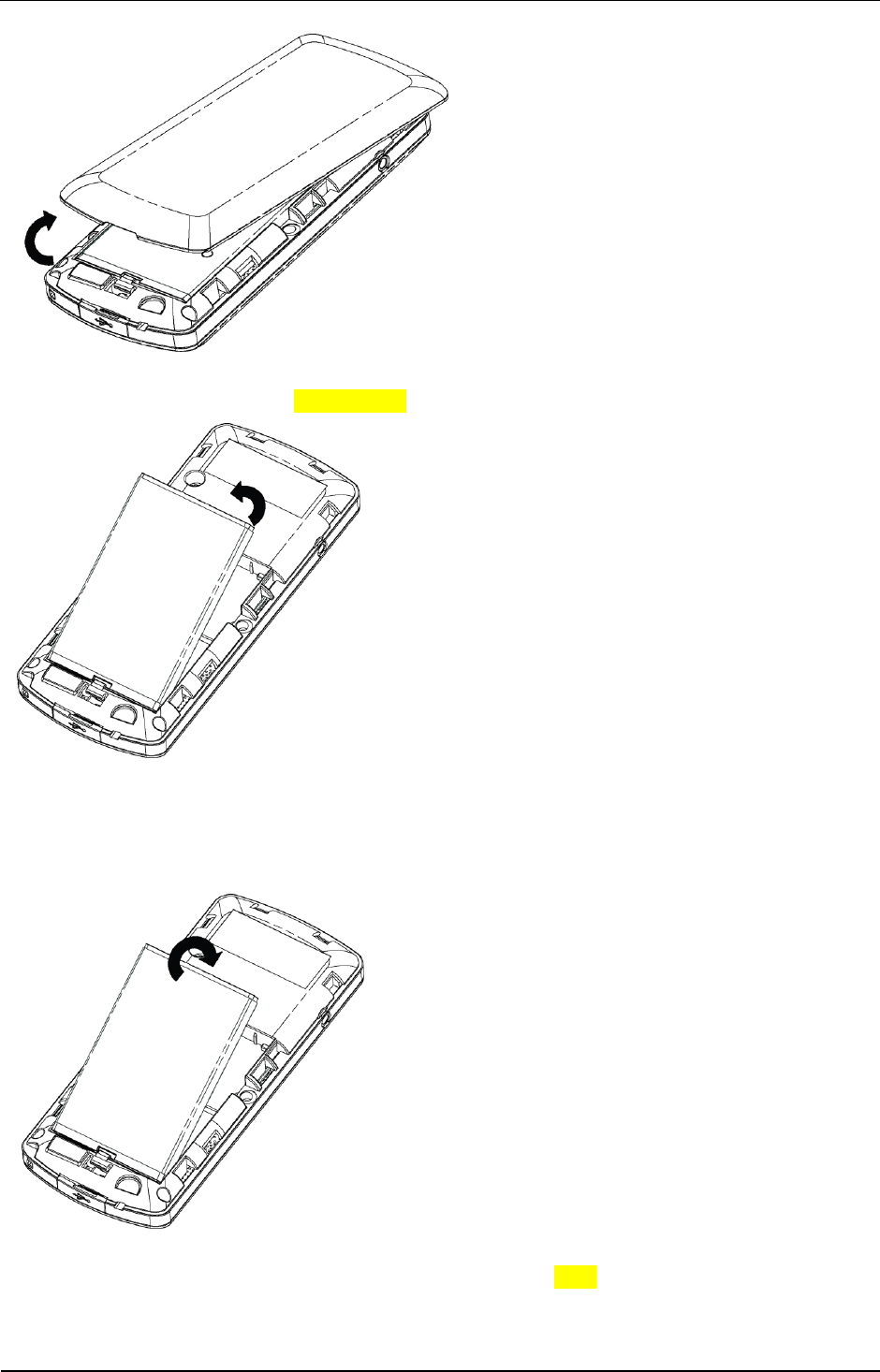

Remove the Battery
1. Put finger on the bottom finger grip, then lift the back-cover of the phone up to release and remove.
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 7
2. Put finger on the top finger grip, then lift up to remove the battery.
Install the Battery
1. Replace the battery into the battery slot, to be noted that the lower end of the battery firstly inserted.
2. Put the back-cover of the phone flatly upon the body of phone. Then direct the back-cover towards the
locking catches on the top/sides of the phone and push the back-cover of the phone to lock the cover
into its place.
BAYN 1001 Quick Guide
8 Confidential and Proprietary Information of BAYN CORPORATION

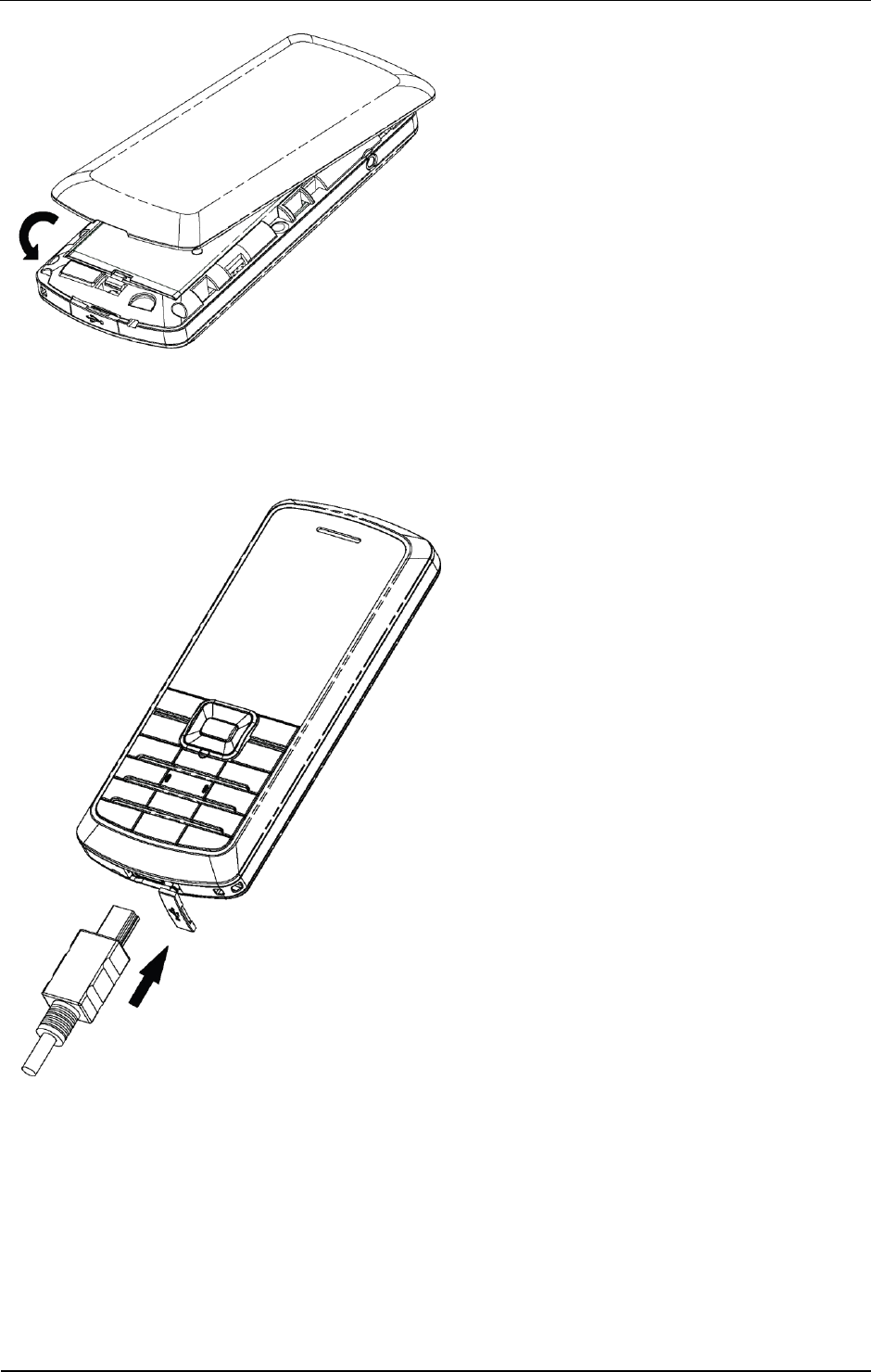

Charge the Battery
1. Plug out rubber away from the jack on the bottom of the handset and connect the lead from the charger
to the socket on the bottom of the phone.
2. Connect the charger to a standard wall AC socket.
3. When the charging animation on the screen stops, the charging is completed. The charging takes
usually up to 2～3 hours. During charging, it is a normal phenomenon that the battery, phone and
charger may get hot.
4. After the completion of charging, disconnect the charger from the phone and AC socket.
Power on/off Your Phone
1. Please hold End key to power on/off the phone. The phone will automatically search for the network.
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 9
2. Besides sending and receiving calls in standby mode, you can also do:
Press Left Select Key/OK Key to enter main Menu.
Press Right Select Key to enter Contacts menu.
Press Up Key to enter Profile menu.
Press Down Key to enter new message interface.
Press Left Key to enter Games menu.
Press Right Key to enter Services menu.
Press Send Key to enter All Calls list.
Long press * Key to lock the keypad.
Long press # Key to activate/deactivate vibration.
Make and Answer a Call
Make a call
1. Enter the phone number, and press Send Key to make the call.
2. Press End Key to end the call.
Answer a call
1. Press Send Key to answer the call.
2. Press End Key to end the call.
Make a Pause Call
Make use of pause call to dial an extension or voice service call.
1. Key in phone number, press * Key twice to input ―P‖ or press * Key three times to input ―T‖, and then
key in number afterwards.
2. Press Send Key to dial the first number. When connected, if you select ―P‖, press Send Key again to
dial the second number. If you select ―T‖, the phone will dial the second number automatically. ―P‖
and ―T‖ can be used for not only once.
Menu Tree
1. Messages
1.1 New Message
1.2 Inbox
1.3 Voice Mail
1.4 Drafts
1.5 Outbox
1.6 Sent
1.7 Message Settings
1.8 Message Template
1.9 Delete Message
1.0 Memory Status
2. Contacts
2.1 Add Name
5. Services
6. My Record
7. Profile
7.1 Silent
7.2 Vibrate
7.3 General
7.4 Outdoor
7.5 Meeting
7.6 Flight
8. Games
8.1 Hit the moles
8.2 Pop the ice cubes
9 Magic Box
BAYN 1001 Quick Guide
10 Confidential and Proprietary Information of BAYN CORPORATION
2.2 All List
2.3 Groups
2.4 Speed Dials
2.5 Memory Status
3. Call History
3.1 Call History
3.2 Call Duration
4. Settings
4.1 Display Settings
4.2 Phone Settings
4.3 Call Settings
4.4 Time & Date Settings
4.5 Security Settings
9.1 Alarm
9.2 Calendar
9.3 Calculator
9.4 Voice Recorder
9.5 Stopwatch
9.6 Notepad
Voice Mail
Before using Voice Mail box, please consult with service provider to confirm that the voice mailbox has
been activated.
The system automatically sends a message to your phone informing a new voice message. Read the
message and then dial voice mail box number to listen to your voice message.
Text Input
Your phone offers text input modes: Multitap Input (abc/Abc/ABC), Numbers Input (123), eHiText Input
(eZi), and Symbol Input (Symbols).
Operation
Method
Input Letters
Multitap Input—―abc/Abc/ABC‖ press corresponding
letter key till the letter appears.
Input Words
eHiText Input—―eZi‖, press any key once to key in any
word.
Input Digits
Numbers Input—―123‖, press digit key once.
Input Symbol
Symbols Input—Press * Key to enter the symbols mode
and press corresponding digit key.
Or press 1 Key till the symbol (common symbols) appears
except for Numbers Input mode.
Input Space
Press 0 Key, except for being in numbers mode.
Erase Character
Press Right Select Key.
Move cursor
Press Left/Right Key or Up/Down Key.
Change input mode
Press # Key to select another text mode.
Send a New Message
1. Select Menu > Messages > New Message or press Down Key in standby mode to send a new message.
2. Input receiver’s phone number in number field. Press Right Key to input the multi-receivers’ phone
number, or press OK Key to select phone number directly from Contacts. The numbers displayed can
be reedited. The maximum of receivers not exceed 100 persons.
3. Press Down Key to write the message. Press OK Key to send the message or select Option to Send the
message or Save the message to Drafts.
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 11
Menu Functions
Herein after are brief instructions on menu functions of the phone.
Function
Selection
Description
Write and send new
message
Menu > Messages > New Message
Write and send new SMS to other mobile
phones. The message could be sent to
multi-receivers.
Read message
Menu > Messages >
Inbox/Outbox/Drafts/Sent
Read and do more options of the
messages.
Voice mail
Menu > Messages > Voice Mail
Read the voice mail information. In
standby mode, long press 1 Key to dial
the voice mail number directly.
Message settings
Menu > Messages > Message
Settings
SMS settings options (SMS delivery
ACK, priority, validity period, send failed
indication, save location, call back
settings and edit call back number) and
General settings options (auto delete, auto
save, auto add signature and edit my
signature).
Templates message
Menu > Messages > Message
Template
View, delete, and edit the common used
messages preformatted in phone, or create
new message.
Delete message
Menu > Messages > Delete
Message
Delete all messages in Inbox, Drafts, Sent,
Outbox or delete all messages.
Message memory status
Menu > Messages > Memory
Status
View used and unused capacity of Inbox,
otherbox and UIM.
View all records
Menu > Contacts > All List
View the corresponding records in all
lists. Press Left/Right Key to view
different group.
Find contact
Menu > Contacts > All List
Input first character(s) to search for a
phonebook entry.
Add contact
Menu > Contacts > Add Name
Add a new entry in the contacts.
Edit
Menu > Contacts > All List >
Option > Edit
Modify the contents of record.
Delete
Menu > Contacts > All List >
Option > Delete
Delete a record in Contacts.
Delete all
Menu > Contacts > All List >
Option > Delete All
Delete all records in phone (no group,
family, friend, and colleague, etc.).
Send name-card
Menu > Contacts > All List >
Option > Send Message
Send name-card information of the record.
Make a call to specific
number
Menu > Contacts > All List >
Option > Call
Make a call to the number of the record.
Send name card
Menu > Contacts > All List >
Option > Send Name Card
Send name card information of the record.
BAYN 1001 Quick Guide
12 Confidential and Proprietary Information of BAYN CORPORATION
Function
Selection
Description
Delete the selected
entries
Menu > Contacts > All List >
Option > Multiple Select
Delete the records you select.
Batch operation
Menu > Contacts > All List >
Option > Copy/Move to
Phone/UIM
Copy or move the contacts between UIM
card and Phone.
Edit group
Menu > Contacts > Groups
View, edit and select the ringer for the
group.
Speed dial list
Menu > Contacts > Speed Dials
View the speed dial list. In standby mode,
long press the number key to dial the
corresponding call.
Memory status
Menu > Contacts > Memory
Status
Number of entries saved and maximum
number of entries capacity in phone.
Call history
Menu > Call History > Call
History > All Calls/Dialed
Calls/Answered Calls/Missed Calls
View and dial recent calls.
Call timer
Menu > Call History > Call
Duration
View and reset call duration of dialed
calls, answered calls and all calls.
Wall paper set
Menu > Settings > Display
Settings > Screen Settings >
Wallpaper Settings
Set wall papers as background in idle
state.
Backlight
Menu > Settings > Display
Settings > Screen Settings >
Backlight Time
Set backlight duration.
Brightness
Menu > Settings > Display
Settings > Screen Settings >
Brightness
Adjust brightness.
Contrast
Menu > Settings > Display
Settings > Screen Settings >
Contrast
Adjust contrast.
Idle display content
Menu > Settings > Display
Settings > Screen Settings > Idle
Display Content
Set idle display content.
Banner
Menu > Settings > Display
Settings > Banner
Set greeting banner.
Roaming Reminder
Menu > Settings > Display
Settings > Roaming Reminder
Open roaming reminder or not.
Keypad light
Menu > Settings > Display
Settings > Keypad Light Settings
Set keypad and time.
Language
Menu > Settings > Phone
Settings >Language
Select the language.
Auto key guard
Menu > Settings > Phone
Settings > Auto Keypad Lock
Set phone’s auto key lock and time.
Power save
Menu > Settings > Phone
Settings >Power Save
Set the power save on/off.
Auto power on/off
Menu > Settings > Phone
Set auto power on/off.
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 13
Function
Selection
Description
Settings > Auto Power On/Off
Version
Menu > Settings > Phone
Settings > Version Info.
View present preferred roaming list,
software and hardware version.
Call forwarding
Menu > Settings > Call Settings >
Call Settings > Call Forwarding
Forward an incoming call to a designated
number.
Call waiting
Menu > Settings > Call Settings >
Call Settings > Call Waiting
Answer the second call, hold the first call.
Call connect alert
Menu > Settings > Call Settings >
Call Settings > Connection
Reminder
The phone alert when a call is connected.
Any key answer
Menu > Settings > Call Settings >
Answer Settings > Any Key
Answer
Press any key to answer a call except End
Key, Left/Right Select Key.
Auto answer
Menu > Settings > Call Settings >
Answer Settings > Headset Auto
Answer
Auto answer via earpiece. Answer
incoming call automatically when
connecting with an earphone.
Voice privacy
Menu > Settings > Call Settings >
Voice Privacy
Set voice encryption.
Remind alert
Menu > Settings > Call Settings >
Call Information Reminder
Set if the phone alert for reminding
minute, missed call.
International Dial
Menu > Settings > Call Settings >
International Dial
Set to make international dial manual or
automatic.
Time format
Menu > Settings > Time & Date
Settings > Time Format
Set format of time.
Date format
Menu > Settings > Time & Date
Settings > Date Format
Set format of date.
PIN lock
Menu > Settings > Security
Settings > Use/Change PIN Code
Set or change the PIN lock.
Handset lock
Menu > Settings > Security
Settings > Use/Change Phone
Code
Set or change the handset lock.
Restore settings
Menu > Settings > Security
Settings > Restore Factory
Settings
Restore factory default (ring tone,
backlight, language, settings, etc. except
for SMS, Contacts, call history).
Clear data
Menu > Settings > Security
Settings > Clear User Data
Restore factory default and delete all the
records of user data.
Services
Menu > Services
Enjoy services which are available to the
subscribers.
My Recorder
Menu > My Record
Record files.
Games
Menu > Games
Play games.
Tone/volume
Menu > Profile >
Vibrate/Silent/General/Outdoor/M
Set phone’s ring/SMS/earpiece/key
beep/alert etc. tone and volume or set the
BAYN 1001 Quick Guide
14 Confidential and Proprietary Information of BAYN CORPORATION
Function
Selection
Description
eeting/Flight
phone in Flight mode.
Alarm clock
Menu > Magic Box > Alarm
Set alarm alert time.
Calendar
Menu > Magic Box > Calendar
View calendar.
Calculator
Menu > Magic Box > Calculator
Execute basic math calculation.
Voice memo
Menu > Magic Box > Voice
Recorder
Make a voice record.
Stopwatch
Menu > Magic Box > Stopwatch
Stopwatch timing.
Notepad
Menu > Magic Box > Notepad
Write and edit note.
Phone Code
Phone code could prevent your phone from illegal use. The default phone code is 0000. Please change it
to your own phone code as soon as possible.
PIN Code and PUK Code
PIN Code
PIN code could prevent your UIM card from illegal use. When PIN lock is on, you should enter the PIN
code when opening the handset again. The network provider offers you PIN code (four to eight digits).
You should change PIN code as soon as possible for security.
PUK Code
Consecutive inputting wrong PIN code for three times can cause locking of UIM card. To unlock, you
need PUK code.
Notes:
PIN code and PUK code may be offered together with the UIM card. If not, please contact with network
operator. Please change default PIN code to your own as soon as possible.
Warning and Maintenance
• Keep the phone out of the reach of little children. The phone may cause injury if used as a toy.
• Please use original accessories or accessories that are authorized by the manufacturer.
• Please keep the phone dry and store in shady and cool place.
• Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can
shorten the life of electronic devices.
• Prevent liquid from seeping into your phone.
• Do not drop, knock or harshly treat the phone. Rough handling can break internal circuit boards.
• Do not connect the phone with other unauthorized peripheral equipments. Do not attempt to disassemble
the mobile phone and battery by yourself.
BAYN 1001 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 15
• Power off your phone before you clean the phone. Please use clean fabric that is anti-static to clean your
phone.
• As your mobile phone can produce electromagnetic field, do not use the phone near electrical appliances.
• Do not charge the mobile phone without battery.
• Be aware of the usage limitation when using a mobile phone at places such as oil warehouses or
chemical factories.
• The user is cautioned that changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
Warranty Terms
The warranty does not apply to defects or errors in the product caused by:
1. Reasonable abrasion.
2. Misuse including mishandling, physical damage, improper installation, unauthorized disassembly of the
product.
3. Water or any other liquid damage.
4. Any unauthorized repair or modification.
5. Power surges, lightning damage, fire, flood or other events outside BAYN’s reasonable control.
6. Use of the product with any unauthorized third party products such as generic chargers.
7. Any other cause beyond the range of normal usage for products.
End User shall have no right to reject, return, or receive a refund for any product from BAYN under the
above-mentioned situations.
This warranty is end user’s sole remedy and BAYN’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required under
the mandatory provisions of the law.
Limitation of Liability
BAYN shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using this product, whether or not BAYN had been
advised, knew or should have known the possibility of such damages.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
BAYN 1001 Quick Guide
16 Confidential and Proprietary Information of BAYN CORPORATION
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
RF Exposure
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure
to radio waves recommended by international guidelines. These guidelines were developed by the
independent scientific organisation ICNIRP and include safety margins designed to assure the protection
of all persons, regardless of age and health.
The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR. As mobile
devices offer a range of functions, they can be used in other positions, such as on the body as described in
this user guide.
FCC：The SAR limit for mobile devices is 1.6 W/kg and the highest SAR value for this device when
tested at the ear was 1.220 W/kg and at the body worn was 0.627 W/kg
As SAR is measured utilising the device’s highest transmitting power, the actual SAR of this device while
operating is typically below that indicated above. This is due to automatic changes to the power level of
the device to ensure it only uses the minimum power required to communicate with the network.
Body Worn Operation
Important safety information regarding radio frequency(RF) radiation exposure.
To ensure compliance with RF exposure guidelines the phone must be used with a minimum of 15 mm
separation from the body.
Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline
limits.
