ZTE ZTECS185 CDMA2000 1X Digital Mobile Phone User Manual

ZTE Corporation CDMA2000 1X Digital Mobile Phone

Contents

User Manual

ZTE-C S185
cdma 1X Digital Mobile Phone
Quick Start Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No.: 1.0
Edition Time: 03-31-2011
Manual No.: 07958450XXXX
Phone Overview
Earpiece
LCD Screen
Navigation keys
(Left/Right/Up/Down) OK key
Left soft key Right soft key
Call key End key
Number keys(0~9)
* key
# key
LED
Speaker
USB/Charger jack
Microphone
Confidential and Proprietary Information of ZTE CORPORATION 1
Key Functions
Key Function Description
Call key • Make or answer a call.
• Press the Call key in the standby mode to enter All Calls list.
End key • End an active call or reject a call.
• Hold to Power on/off the phone.
Left soft key • Enter the main menu in the standby mode.
• Switch to the options at lower left of the LCD.
Right soft key • Enter the list of all the contacts in the standby mode.
• Switch to the options at lower right of the LCD.
Navigation keys • Move the cursor up, down, left and right.
• In the standby mode, Used as hot keys to enter the designated functions.
• In the standby mode, hold the Up key to open/close the LED.
• In the contacts list, press the Left key or Right key to switch groups.
• Press the Left key or Right key to adjust volume in conversation.
• Used as direction key in games.
OK key • Confirm the commands and options selected.
• Confirm the character chosen while character inputting.
• In the standby mode, press the OK key to browse the T WORLD website.
Number keys • Key in numbers or characters.
• Hold the 0 key to input + in the standby mode.
• Hold to make a speed dial call (1~9) in the standby mode.(The 1-5 key is preset as the
service call.)
• Press to enter corresponding submenu.
# key • Hold the # key in the standby mode to enable/disable vibration.
• Press the # key to change the text mode while editing text.
* key • Hold the * key in the standby mode to lock the keypad.
• Press the * key to enter symbols in the text input mode.
Confidential and Proprietary Information of ZTE CORPORATION 2

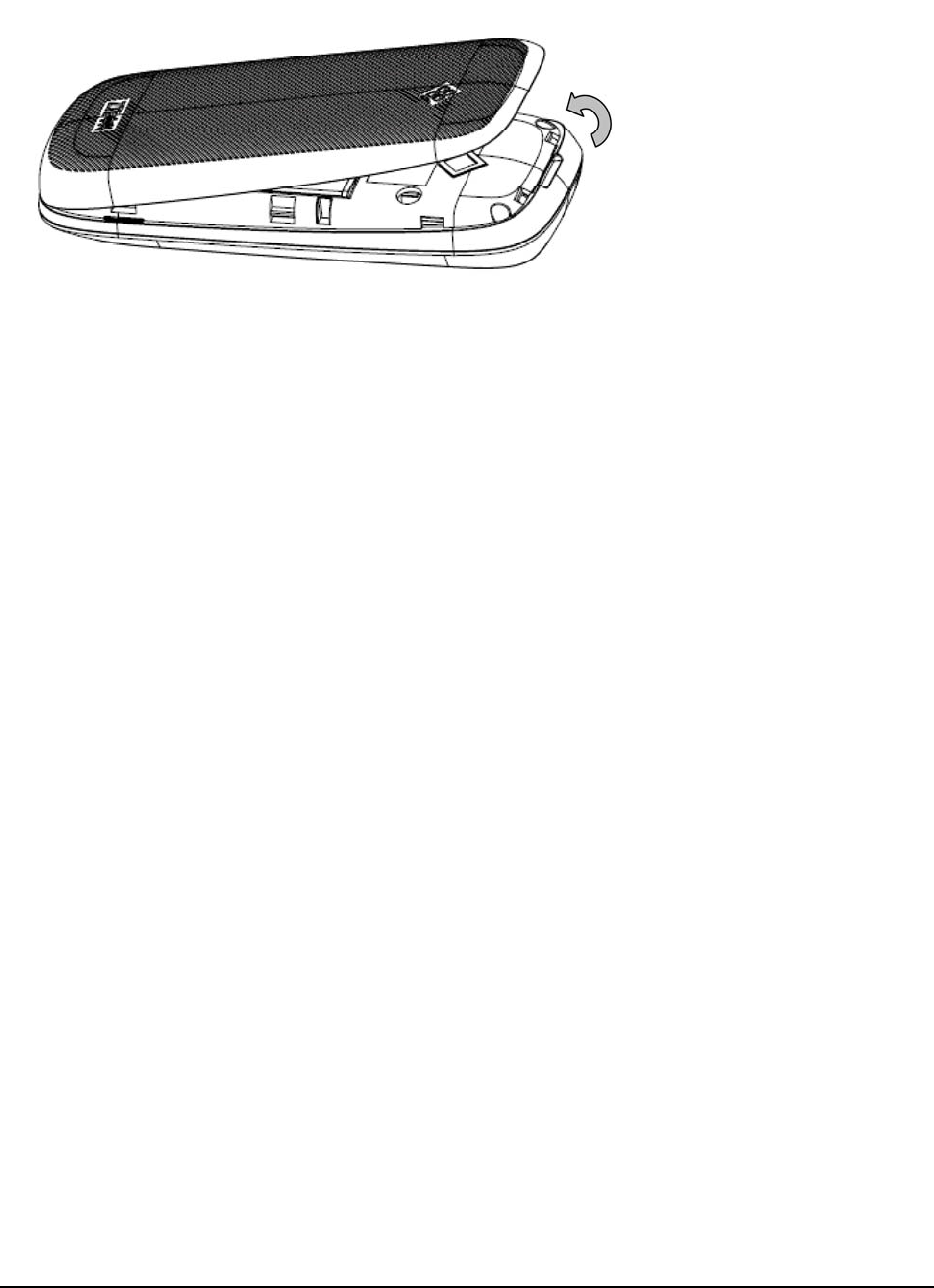

Open the Back Cover
Remove the back cover as follows.
Confidential and Proprietary Information of ZTE CORPORATION 3

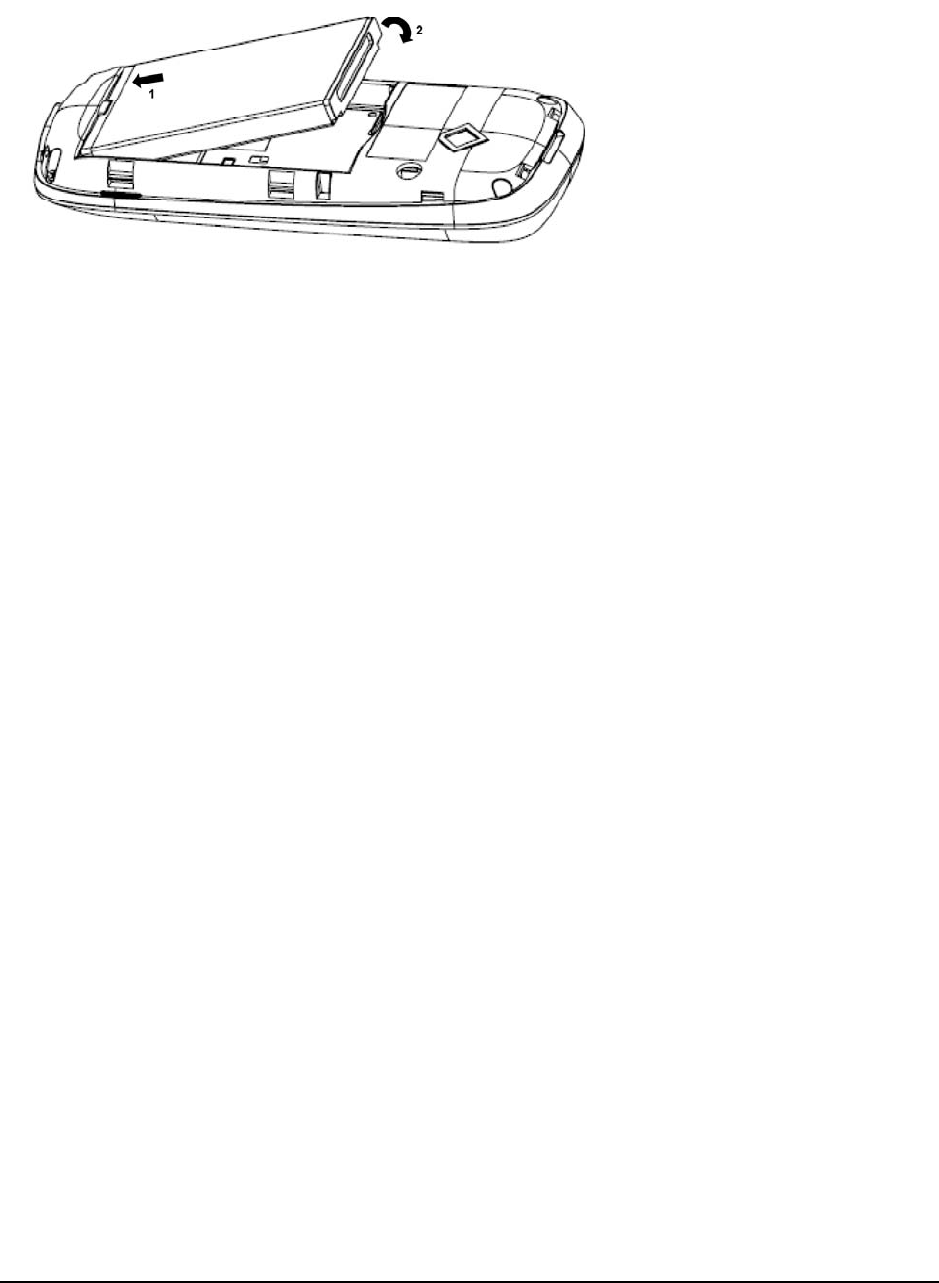

Installing the Battery
Install the battery as follows.
Confidential and Proprietary Information of ZTE CORPORATION 4

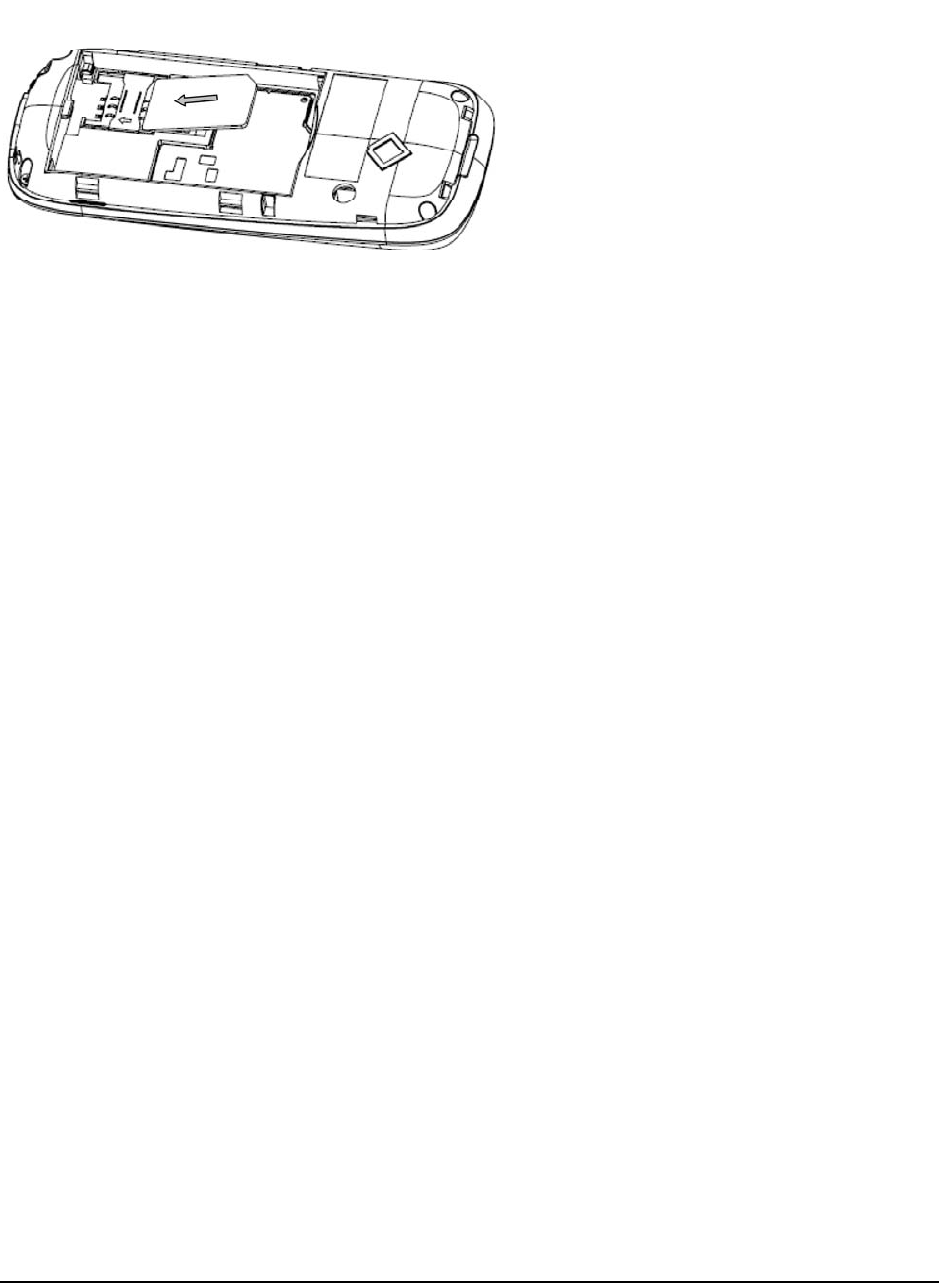

Inserting the UIM Card
Insert the UIM card as follows.
Confidential and Proprietary Information of ZTE CORPORATION 5

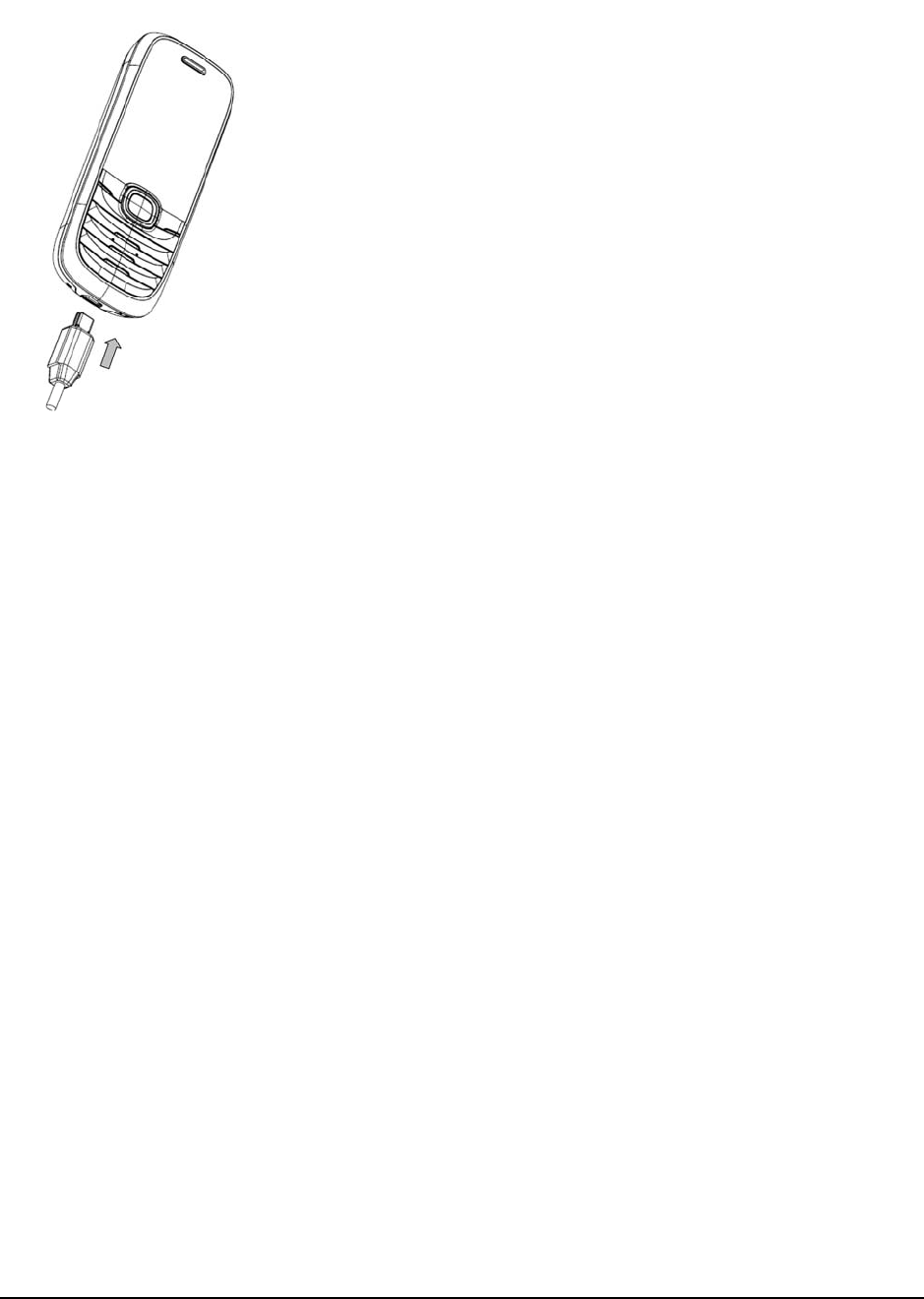

Charging Your Phone
1. Insert the lead from the charger to the socket, and connect the charger to a standard wall AC socket.
2. After the completion of charging, disconnect the charger from the phone and AC socket.
Confidential and Proprietary Information of ZTE CORPORATION 6
Switching On/Off
1. Hold the End key to switch on/off your phone.
2. The phone will automatically search for available networks.
Confidential and Proprietary Information of ZTE CORPORATION 7
Indicators and Icons
Icons Description Icons Description
CDMA 1X signal strength New SMS
Ring + Vibration mode Vibration mode
In the call Silence mode
Battery indicator Alarm enabled
Confidential and Proprietary Information of ZTE CORPORATION 8
Keypad Lock
If you activate Auto Keypad Lock, the keypad will be locked automatically according to your settings.
Hold the * key to lock the keypad in the standby mode.
Press the Right soft key and then press the * key to unlock the keypad.
Notes:
If the call is coming when the keypad is locked, you can press the Call key to answer.
When the keypad is locked, calls may be possible to the official emergency number programmed into
your device.
Confidential and Proprietary Information of ZTE CORPORATION 9
Phone Code
The phone code could protect your phone from illegal use. The default phone code is 0000. Please change
it to your own as soon as possible.
Notes:
Please remember the code, otherwise some service expense may happen.
Confidential and Proprietary Information of ZTE CORPORATION 10
PIN and PUK
PIN Code
PIN code could protect your UIM card from illegal use. When PIN lock is on, you should enter the PIN
code when powering on the phone. The network provider offers you PIN code. You should change PIN
code as soon as possible for security.
PUK Code
Consecutive inputting wrong PIN code for three times will cause locking of UIM card. To unlock, you
need PUK code.
Notes:
PIN code and PUK code may be offered together with the UIM card. If not, please contact your network
service provider. Please change default PIN code to your own as soon as possible.
Confidential and Proprietary Information of ZTE CORPORATION 11
Text
Your phone offers text input modes: abc, Abc, ABC, 123, eZi, Indic and Symbols.
Operation Method
Change input mode Press the # key to select another text mode, press the * key to enter the symbols mode.
Input letters In the abc/Abc/ABC mode, press corresponding letter key till the letter appears.
Input words In the eZi and Indic mode, you can press the keys to key in word. Predictive text input
is based on a built-in dictionary. When you have finished writing the word and it is
correct, confirm it by pressing the OK key. If the word is incorrect, press the Up key or
Down key to view other matching words found in the dictionary.
Input digits In the 123 mode, press digit key once.
Input symbol Press the Navigation keys to switch symbols and press corresponding digit key. Or
press the 1 key till the symbol (common symbols) appears except the 123 mode.
Input space Press the 0 key, except the 123 mode.
Erase character Press the Right soft key.
Move cursor Press the Navigation keys.
Confidential and Proprietary Information of ZTE CORPORATION 12
Basic Function
Hereinafter are the basic functions of the phone.
Contacts
• Add Name: Add a new contact to your phone or UIM card.
• All List: View all contacts in all list, press the Left key or Right key to view different groups. In all list,
you can search a contact by entering the character matching with the contact name’s first character,
press the OK key to view the details. Select Option to do more operations.
• Groups: View/edit/create groups and set the group ringer.
• Speed Dials: View the speed dial list and set speed dial. In the standby mode, hold the number key to
dial the corresponding call.
• Memory Status: View the number of entries saved and maximum number of entries in phone and UIM
card.
Messages
• New Message: Create a new text message. The message could be sent to multi-receivers. See Text
chapter for more instructions of writing text and character. Select Option to insert contact details and
message templates when you edit a message.
• Inbox/Voice Mail/Drafts/Outbox/Sent: Read the messages in Inbox/Drafts/Outbox/Sent and check the
voice mail.
• Message Settings: Change the general /SMS settings and edit the SMS reject template.
• Message Template: Some common used messages preformatted in the phone. You can view, edit, delete
or send them, besides you can create new templates.
• Delete Message: You can choose to delete the messages in the inbox, drafts, outbox, sent or delete them
together.
• Memory Status: Check the storage status of the phone/UIM card.
Call History
• Call History: View call’s log. Select Option to perform more operations accordingly.
• Call Duration: Check the call duration and clear the corresponding time.
Settings
• Profile: Select or edit the profile.
• Display Settings: You can change the settings of screen/ banner/roaming reminder/keypad light.
• Phone Settings: Set the language/auto keypad lock/power save/auto power on/off of the phone and view
the version information.
• Call Settings: Set the call/answer/call information reminder/voice privacy/international dial settings.
• Time & Date Settings: Set time and date format of your phone.
• Security Settings: Change the settings about the phone code, PIN code, restore factory settings and clear
user data.
Confidential and Proprietary Information of ZTE CORPORATION 13
Other Functions
Hereinafter are the other functions of the phone.
Voice Recorder
1. Select Menu > Magic Box > Voice Recorder.
2. Select Option > Settings to set the volume.
3. Go back to the voice recorder interface, and press the OK key to start recording your voice memo.
4. Press the Left soft key [Pause] to pause, press the Left soft key [Continue] to resume recording.
5. Press the Right soft key [Stop] to stop recording, and then the voice memo will be saved
automatically.
Press the OK key to play it.
Select Option to perform more actions to the recorded memo.
Confidential and Proprietary Information of ZTE CORPORATION 14
ZTE-C S325 User Guide
Confidential and Proprietary Information of ZTE CORPORATION 15
Other Facility
• TATA Zone: It contains some network services and applications, contact your network provider for the
detailed information.
• Scheduler: View calendar and create tasks.
• Games: Select one game and play it.
• File Manager: Organize your files in folders.
• Alarm: Set alarm alert time.
• Calculator: Execute basic math calculation.
• World Time: View times of the other cities in the world and perform corresponding operations.
• Stopwatch: Select the normal/lap/split timing mode to count time.
Safety Information
General Care
Your handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with
care and give particular attention to the following points:
• Do not allow the handset, battery or accessories to come into contact with liquids or moisture at any time.
Do not immerse the handset in any liquid.
• Do not place the handset alongside computer disks, credit cards, travel cards and other magnetic media.
The information contained on disks or cards may be affected by the handset.
• Do not paint the handset.
• Do not leave the handset or the battery in places where the temperature could exceed 60 °C, e.g. on a car
dashboard or a windowsill, behind glass in direct sunlight, etc.
• Do not remove the handset’s battery while the handset is switched on.
• Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery
terminals.
• Do not dispose of battery in a fire. The handset’s Li-ION batteries may be safely disposed of at a Li-ION
recycling point. Follow local requirements for recycling.
• Do not put the handset’s battery in your mouth, as battery electrolytes may be poisonous if swallowed.
• Do not attempt to dismantle the handset or any of its accessories.
• Do not put a battery into a microwave oven, dryer, or high-pressure container.
• Do not contact battery directly to an electric outlet or cigarette lighter charger. Use only approved
charger units.
• Do not pierce battery with a sharp object such as a needle.
• Do not disassemble or modify the battery.
• Do not use a damaged or deformed battery.
• Do not drop, throw, or subject the handset to rough treatment.
• Do not solder the battery directly.
• Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal condition is
detected during use, charge, or storage.
• Remove the battery whose life cycle has expired from equipment immediately.
• This equipment is fitted with an internal battery. Take it to a qualified service engineer when the
replacement of the battery is required.
• The earpiece may become warm during normal use. Also, the handset itself may become warm while the
battery is being charged.
• When a handset is in vibration mode, the vibration can sometimes cause the handset to move.
• Be careful not to place the handset near heat sources (such as a heater) or too close to the edge of the
table.
• Power off your phone before you clean it. Use a damp or anti-static cloth to clean the handset. Do not
use an ordinary dry cloth or electrostatic cloth. Do not use chemical or abrasive cleaners as these could
damage the casing.
• Remember to make backup copies of all important data on your handset.
• Remember to recycle: the cardboard packing supplied with this handset is ideal for recycling.
Confidential and Proprietary Information of ZTE CORPORATION 16
ZTE-C S180 Quick Start Guide
Warning:
In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes or skin.
If the leakage does come into contact with the eyes or skin, please flush thoroughly in clean water and
consult with a doctor.
General Guidelines
• In some countries, national law prohibits private copying of copyrighted material. Please check the
national legislation of the applicable country concerning the use of such material.
• Many jurisdictions have laws and regulations about taking pictures in public or private areas and
regarding the processing and further use of such pictures. The manufacturer encourages its customers to
obey all laws and to respect the personal rights of others.
• Please check roaming agreement availability with your service provider.
• The use of mobile phones is not allowed in some radiation sensitive areas, such as hospitals, research
centers and airplanes. The user is responsible to power-off the device. If there is any uncertainty, you
should remove the battery from the handset.
• Observe any signs that indicate powering off handsets, such as those near gas stations, or explosives, and
power off the handset immediately.
• If you have a heart condition, be careful with the settings of call vibration or tone volume.
• Do not allow children to play with the handset, charger or batteries.
• Do not use the handset where blasting is in progress.
• Do not try to make a call or conversation while the temperature of charging battery is above 50°C.
• Take care not to put your handset in the back pocket of your trousers or skirt and then sit on it. Also, do
not put your phone at the bottom of bag where it may subject to excessive weight or pressure. Doing so
may damage the LCD and camera lens and cause them malfunction.
• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected
if a handset is used next to them. Observe any caution signs and the manufacturer’s recommendations.
• Do not leave the handset discharged or without a battery for a long time, otherwise some data may be
erased.
• Your phone contains metal, which may cause you an itch, a rash or eczema depending on your physical
condition.
Road Safety
• You must exercise proper control of your vehicle at all times. Give your full attention to driving.
• Observe all of the recommendations contained in your local traffic safety documentation.
• Pull off the road and park before making or answering a call, if driving conditions require so. Check if
local laws and/or regulations restrict the use of handsets while driving
• You must not stop on the hard shoulder of a motorway to answer or make a call, except in an emergency.
• Power off your handset at a refueling point, such as a gas station, even if you are not refueling your own
car.
• Do not store or carry flammable or explosive materials in the same compartment as the handset.
• Electronic systems in vehicle, such as anti-lock brakes, speed control and fuel injection systems are not
normally affected by radio transmissions. The manufacturer of such equipment can advise if it is
adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio
transmissions, consult your dealer and do not power on the handset until it has been checked by a
qualified technician.
Confidential and Proprietary Information of ZTE CORPORATION 17
ZTE-C S180 Quick Start Guide
Hospital Safety
•
Power off your phone and remove the battery in areas where the use of handsets is prohibited.
•
Follow the instructions given by the respective medical facility regarding the use of handsets on their
premises.
Emergency Service
To make an emergency call in any country:
1. Ensure that your handset is on and in service.
2. Press the End key as many times as needed to clear the display and ready the device for calls.
3. Enter the official emergency number for your present location.
4. Press the Call key to dial the number. Follow instructions received and do not end the call until told to
do so.
When the UIM card is not inserted or when the phone/PIN code is on, Press SOS and then enter the
official emergency number for your present location. Press the Call key to dial the number.
Notes:
•
Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coastguard or Mountain
Rescue Service. Tell them where you are and remain stationary to maintain contact if possible.
•
Due to the nature of the cellular system, the connection of emergency calls cannot be guaranteed. You
should never rely solely on any wireless device for essential communications like medical emergencies.
Third Party Equipment
The use of third party equipment, cables or accessories, not made or authorized by ZTE, may invalidate
the warranty of your handset and also adversely affect the phone’s safety/operation.
Vehicles Equipped with an Airbag
An airbag inflates with great force. Do not place objects, including either installed or portable wireless
equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment
is improperly installed and the airbag inflates, serious injury could result.
Aircraft Safety
•
Power off your phone before the airplane takes off. In order to protect airplane’s communication system
from interference, it is prohibited to use mobile phone in flight. If you want to use mobile phone before
the airplane takes off, you should get aircrew’s permission according to safety regulations.
•
If the mobile phone has the function of automatic timing power-on, please check your alarm setting to
ensure that your phone will not be automatically powered on during the flight.
Copyright Notice
The audio recordings you make/download are protected by copyright laws. They are for personal use only
and must not be otherwise used without the permission of the copyright owner.
18 Confidential and Proprietary Information of ZTE CORPORATION
ZTE-C S180 Quick Start Guide
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR
are conducted using standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency bands. Although the SAR
is determined at the highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear
is 1.47 W/kg and when worn on the body, as described in this user guide, is 0.899 W/kg
(Body-worn measurements differ among phone models, depending upon available enhancements
and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after searching on
FCC ID: Q78-ZTECS185.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines
for use with an accessory that contains no metal and the positions the handset a minimum of 1.5
cm from the body. Use of other enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn accessory and are not holding the phone at
the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched
on.
Confidential and Proprietary Information of ZTE CORPORATION 19
ZTE-C S180 Quick Start Guide
20 Confidential and Proprietary Information of ZTE CORPORATION
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warranty Terms
The warranty does not apply to defects or errors in the product caused by:
• Reasonable abrasion.
• Misuse including mishandling, physical damage, improper installation, unauthorized disassembly of the
product.
• Water or any other liquid damage.
• Any unauthorized repair or modification.
• Power surges, lightning damage, fire, flood or other events outside ZTE’s reasonable control.
• Use of the product with any unauthorized third party products such as generic chargers.
• Any other cause beyond the range of normal usage for products.
End User shall have no right to reject, return, or receive a refund for any product from ZTE under the
above-mentioned situations.
This warranty is end user’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required under
the mandatory provisions of the law.
Confidential and Proprietary Information of ZTE CORPORATION 21
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using this product, whether or not ZTE has been
advised, knew or should have known the possibility of such damages. Refer to the enclosed warranty card
for full warranty and service information.
Confidential and Proprietary Information of ZTE CORPORATION 22

Navigation menu
