User Manual
ZTE S188
CDMA 1X Digital Mobile Phone
Quick Start Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time : 2012.07
Manual No. : 07958450xxxx
Confidential and Proprietary Information of ZTE CORPORATION 1
C h a p t e r 1

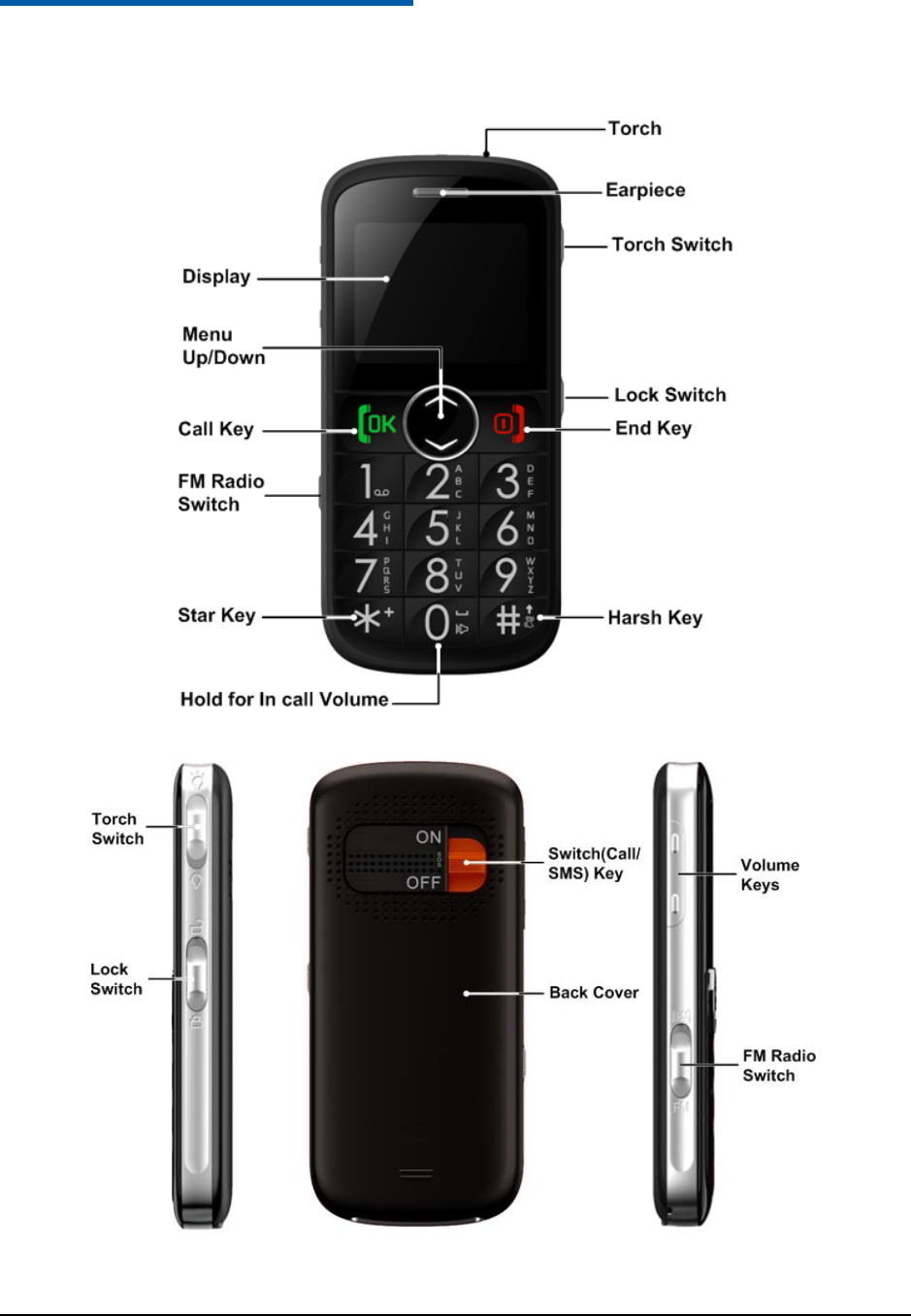

Phone Overview
Confidential and Proprietary Information of ZTE CORPORATION 2
C h a p t e r 2
Key Functions
Key Function Description
Call key
(Green Key)
• Press to make a call. Press to answer an incoming call.
• From the idle screen, press to enter the call history list.
• Press to confirm the function you choose.
End key
(Red Key)
• End an active call or reject a call.
• Long press to Power on/Power off.
• Press to go back to previous menu.
• Clear text and numbers
Up key • From the idle screen, press to enter the Contacts.
• Press to move cursor up.
Down key • From the idle screen, press to access the Messages.
• Press to move cursor down.
# key (Harsh Key) • Press to input ‘#’. Switch text input mode – (Predictive).
• Hold down to engage / disengage Vibrate mode.
0 ~ 9 Number Keys • Key in numbers or characters.
• Press and hold the 0 key to input + (international dial prefix) in standby mode.
• Make a Speed Dial call (1–9) in standby mode.
• Press to enter corresponding submenu.
* key (Star Key) • From the idle screen, press to enter ‘*’, ‘+’, ‘P’, or ‘T’.
• ‘T’ will wait until the next number is entered into the dial sequence (extension or voice
service call).
• ‘P’ inserts a 3 second pause into the dial sequence (extension or voice service call).
• In SMS mode press to access common symbols.
Switch • Activate your Switch Call and SMS (see Switch Setting).
Volume keys • Adjust the volume up and down.
Torch Switch • Turn the torch on or off.
FM Radio Switch • Turn the FM radio on or off.
Lock Switch • Lock and unlock keypad.
Confidential and Proprietary Information of ZTE CORPORATION 3
C h a p t e r 3
Open the Back Cover and Remove the Battery

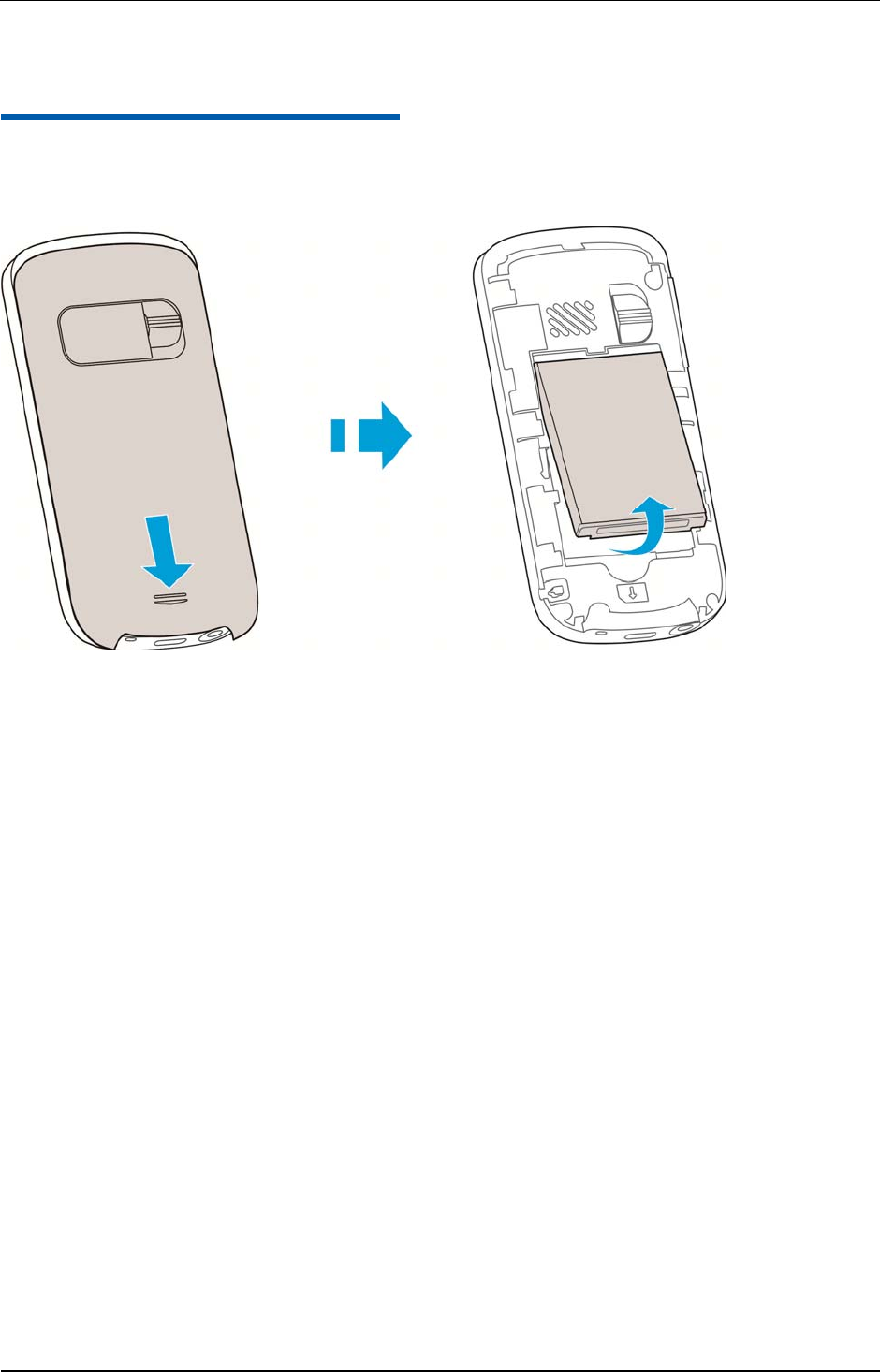

Remove the back cover and install the battery as shown below.
Confidential and Proprietary Information of ZTE CORPORATION 4
C h a p t e r 4
Installing the Battery

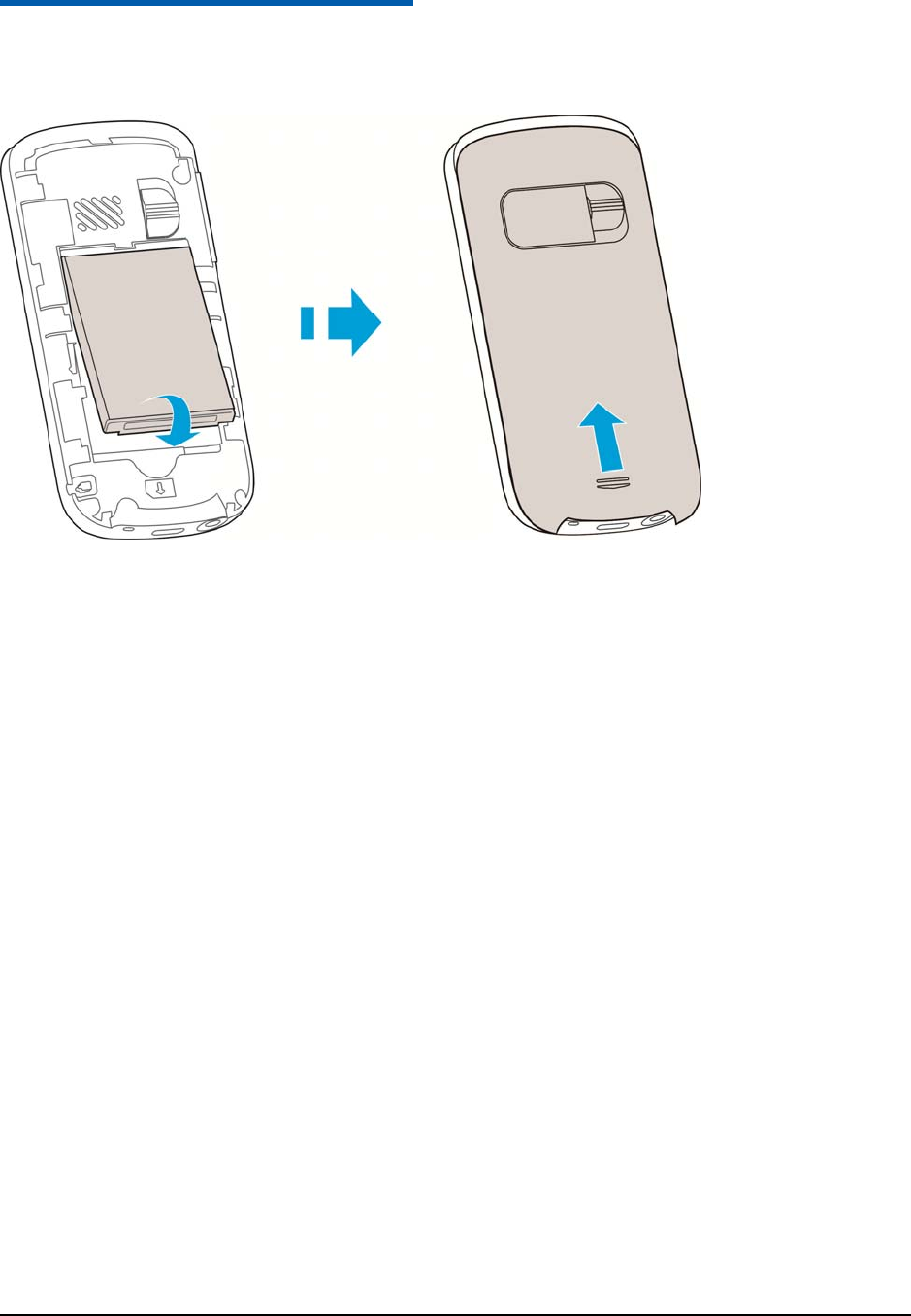

Install the battery as shown below.
Confidential and Proprietary Information of ZTE CORPORATION 5
C h a p t e r 5
Charging Your Phone

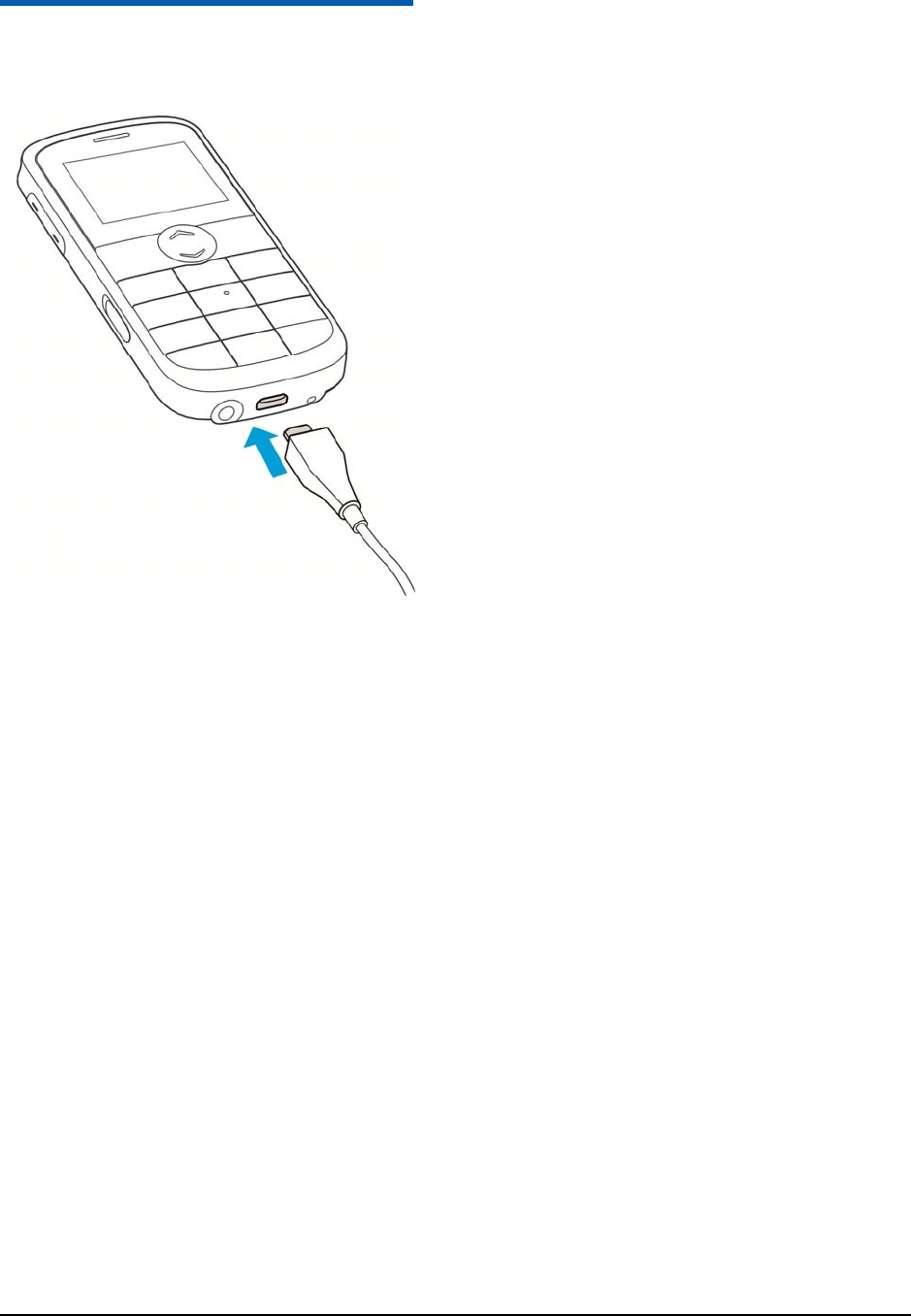

1. Insert the lead from the charger to the socket, and connect the charger to a standard wall AC socket.
2. After the completion of charging, disconnect the charger from the phone and AC socket.
Confidential and Proprietary Information of ZTE CORPORATION 6
C h a p t e r 6
Switching On/Off
1. Press and hold the End Key (Red key ) to switch on/off your phone.
2. The phone will automatically search for available networks.
Confidential and Proprietary Information of ZTE CORPORATION 7
C h a p t e r 7
Indicators and Icons

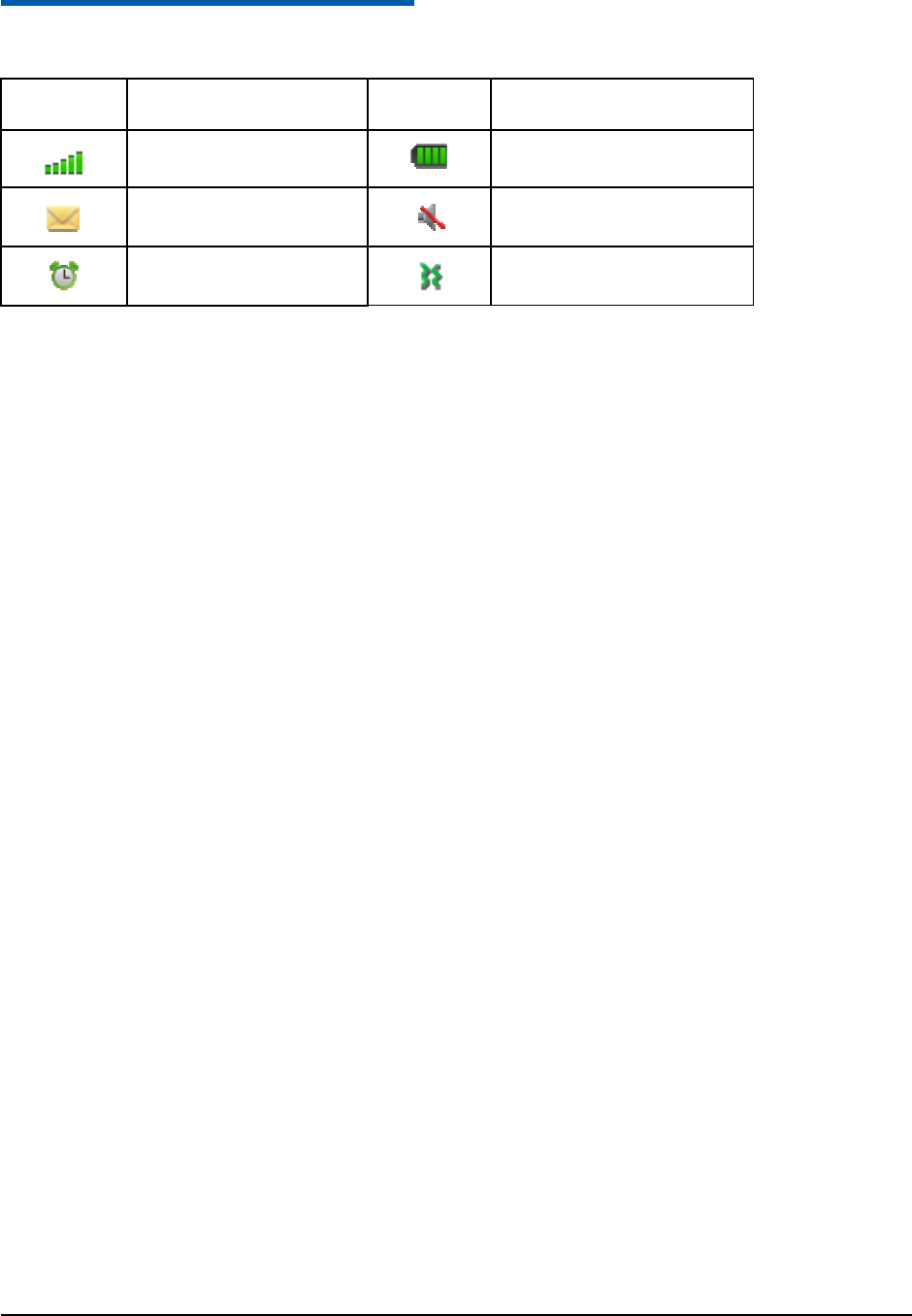

icon description icon description
Signal strength Battery indicator
New SMS Silence mode
Alarm Vibration
Confidential and Proprietary Information of ZTE CORPORATION 8
C h a p t e r 8
Keypad Lock
Slide the Lock Switch down to lock the keypad. If you get an incoming call, you can press the OK Key
(Green Key) to answer or the End Key (Red Key) to reject the call.
Notes:
You can also dial emergency numbers when the keypad is locked.
Confidential and Proprietary Information of ZTE CORPORATION 9
C h a p t e r 9
Phone Code
Phone code could prevent your phone from illegal use. Enter the Phone code if you have set .
Notes:
Please remember the code; otherwise some service expense may happen.
ZTE-C S170 User Guide
10 Confidential and Proprietary Information of ZTE CORPORATION
C h a p t e r 10
Switch Setting
The Switch on the back of the handset can be programmed to make a call and/or send an SMS to friends
or relatives simultaneously.
1. Press Up Key > Up Key > Up Key > Up Key to get to the Settings Menu.
2. Go to Settings > Emergency Settings > Switch Status to enable this feature. The switch is Off by
default.
3. Go to Settings > Emergency Settings > Emergency Num to program your phone numbers:
- The first location will define the voice call number.
- Location 2-5 defines the SMS numbers.
4. Go to Settings > Emergency Settings > Sms Content to send an automated text message you must
enter a message in this field.
5. When enabled and programmed, pushing the Switch Key will send an SMS message to numbers 2-5
and initiate a call to the first defined number.
6. The Alert tone (when enabled) will continue after the call until the Switch Key is pushed back to the
down position.
7. When the call is connected the handset automatically enables Handsfree (speaker-phone) mode.
8. The alert tone volume can be adjusted.
9. In any state, push the Switch key down to return the phone to standby mode.
10. Switch Dialling is still activated when the keypad is locked.
Confidential and Proprietary Information of ZTE CORPORATION 11
C h a p t e r 11
Torch
Switch the torch on or off using the side switch. The torch works whether the handset is on or off, or in
the locked or unlocked state so be careful not to activate the torch while the handset is in your pocket.
Confidential and Proprietary Information of ZTE CORPORATION 12
C h a p t e r 12
Text
Your phone offers text input modes: abc, Abc, ABC, 123, eZi and Symbols.
Operation Method
Change input mode Press the # Key to select another text mode, press the * Key to enter the symbols mode.
Input Letters In the abc/Abc/ABC mode, press corresponding letter key till the letter appears.
Input Words In the eZi mode, press any key once to key in any word. Predictive text input is based
on a built-in dictionary. When you have finished writing the word and it is correct,
confirm it by pressing the OK Key.
Input Digits In the 123 mode, press digit key once.
Input Symbol In the symbols mode, press the Up/Down
K
eys to switch symbols and press
corresponding digit key. Or press the 1 Key till the symbol (common symbols) appears
except for the 123 mode.
Input Space Press the 0 key, except for the 123 mode.
Move cursor Press the Up/Down
K
eys.
Confidential and Proprietary Information of ZTE CORPORATION 13
C h a p t e r 13
Basic Function
Herein after are basic functions of the phone.
Contacts
• Add Name: Add a new contact to your phone or UIM card.
• All List: View all contacts in all list, press the Up/Down Key to view different contacts. In all list, you
can search for a contact by entering the key words, press the OK Key to view the Details and to select
more options.
• Speed Dials: View speed dial list and you can set speed dial. In standby mode, press and hold the
number key to dial the corresponding call.
• Memory Information: View Number of entries saved and maximum number of entries capacity in
phone.
Messages
• New Message: Send a new message to other mobile phones’ number. The message could be send to
multi-receivers. See “Text” for more instructions of writing text and character. Select Option to insert
contact details and message template when you edit a message.
• Inbox/Voice Mail/Drafts/Outbox/Sent: Read messages in Inbox/Voice Mail/Drafts/Outbox/Sent.
• Settings: Change the general and SMS settings.
• Template: Some common used messages preformatted in phone. You can edit or send them.
• Delete Message: You can choose to delete the messages in the inbox, drafts, outbox, sent or delete them
together.
• Memory Status: Check the storage status of the phone/UIM card.
Call History
• Missed Calls: View all the calls missed.
• Dialed Calls: View all the calls dialed.
• Received Calls: View all the calls received.
• Delete all: Delete all the contacts in call history.
• Call Time: Check the call duration.
Settings
• Profile: You can select the mode of profile Silent/Vibrate/General/Flight to edit it.
• Emergency Settings: The Switch on the back of the handset can be programmed to make a call and/or
send an SMS to friends or relatives simultaneously.
• Display Settings: Change the settings of Screen/Keypad Light.
• Phone Settings: Set the language/auto power on/off of the phone/DTMF tones/own number/view the
version information.
14 Confidential and Proprietary Information of ZTE CORPORATION
• Call Settings: Set the call/answer/call information reminder/auto redial/voice privacy.
• Time & Date Settings: Set the time and date format.
• Security Settings: Change the settings about the phone code, restore factory settings and clear user data.
• Text Voice: Your handset supports SMS/call broadcast feature for the new, inbox messages, incoming
call or call for dial.
.
Confidential and Proprietary Information of ZTE CORPORATION 15
C h a p t e r 14
Radio
Compatible earphone or component is necessary for the radio usage.
You can listen to radio by the handset.
1. Slide the FM Radio Switch up to turn the radio on. Or in standby mode, press and select Up Key > Up
Key > Up Key > Radio, the radio will turn on.
2. Press the Up/Down Arrow Keys to manually tune to the required frequency.
3. Use the side volume keys to adjust the volume.
4. Select Option > Channel List > Option > Rename to enter a new channel directly. Enter the required
frequency, use the * Key to view the symbols.
5. Select Option > Channel List > Option > Play to play the selected channel.
6. Select Option > Enter Frequency to manually input a channel.
7. Select Option > Auto Search to preset the playlist with available channels.
Tips:
Please select suitable volume while listening.
Continuous high volume may be harmful to your ear.
Confidential and Proprietary Information of ZTE CORPORATION 16
C h a p t e r 15
Other Facility
• Alarm/Reminders: Set alarm alert time/reminder.
• Calculator: Execute basic math calculation.
• Calendar: View calendar and schedule events.
• World Time: Check the time zone and city time in the world.
Confidential and Proprietary Information of ZTE CORPORATION 17
C h a p t e r 16
Safety Information
General Care
• If you want to clean your phone, please use clean fabric that is a bit wet or anti-static. Do not use harsh
chemical cleaning solvents or strong detergents to clean it. Turn off your phone before you clean it.
• As your mobile phone can produce electromagnetic field, do not place it near magnetic items such as
computer disks.
• Using the phone near electrical appliances such as TV, telephone, radio and personal computer can cause
interference, which affects the function of the phone.
• Do not expose your mobile phone to direct sunlight or store it in hot areas. High temperatures can
shorten the life of electronic devices.
• Prevent liquid from leaking into your phone.
• Do not drop, knock or harshly treat your phone. Rough handling can break internal circuit boards.
• Do not charge the mobile phone without battery.
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
• Store the phone out of the reach of little children. The phone may cause injury if used as a toy.
• Be aware of the usage limitation when using a mobile phone at places such as oil warehouses or
chemical factories, where there are explosive gases or explosive products being processed, because even
if your phone is in standby mode, it still transmits radio frequency (RF) energy. Therefore, power off
your phone if required.
• Do not touch the antenna while calling. Otherwise it will affect the quality of calling and waste battery
energy. The damaged antenna will cause slight burn while touching your skin.
• Do not put other things on the terminal to avoid overlaying radiator.
• Keep the antenna free from obstructions and position the antenna straight up. This will ensure best call
quality.
General Guidelines
• If your mobile phone is lost or stolen, please report to your service provider or agencies of banning the
use of your lost phone, which will protect you from economic losses resulted from unauthorized use.
You need to provide the phone’s ESN/MEID number labeled. You can see ESN/MEID number after
removing the battery. Please keep ESN/MEID number for future use.
• To protect your mobile phone from illegal use, please take the security measures as follows:
f Set phone code of the phone.
f Take it with you as you can.
Road Safety
Pay attention to traffic safety. Do not use your mobile phone while driving. Park before making or
answering a call.
18 Confidential and Proprietary Information of ZTE CORPORATION
Hospital Safety
• Some electronic devices are susceptible to electromagnetic interference sent by phone if
inadequately shielded. Please use phone at least 20 cm or as far away as you can from TV set,
radio and other automated office equipment so as to avoid electromagnetic interference.
• Operating of mobile phone may interfere with medical devices like hearing aid and pacemaker. Please
always keep the mobile phone more than 20 centimeters away from such medical devices when the
phone is powered on. Do not carry the mobile phone in the breast pocket. Power the mobile phone off if
necessary. Consult a physician or the manufacturer of the medical device before using the phone.
Emergency Service
On occasion of emergent calling, keep your phone in status of power on and in area of service. On the
condition of standby, press the key to enter emergency phone number, and then press Call Key to make a
phone call.
Third Party Equipment
• Please use original accessories or accessories that are authorized by the manufacturer. Using any
unauthorized accessories may affect your mobile phone’s performance, and violate related national
regulations about telecom terminals, or even endanger your body.
• Do not connect the phone with other unauthorized peripheral equipments.
• Do not attempt to disassemble the mobile phone and battery by yourself. Non-expert handling of the
devices may damage them.
Vehicles Equipped with an Airbag
• Before making or answering a call, you should pay attention to the local laws about using wireless
mobile phones and take them into account in practical use.
• Safety airbag, brake, speed control system and oil eject system shouldn’t be affected by wireless
transmitting. If you do meet problems above, please contact your automobile provider.
• Please power off your mobile phone when refueling your automobile, and so do the place where duplex
wireless equipments are banned. Don’t put your phone together with flammable or explosive items, as
inner spark may cause fire.
Aircraft Safety
• Follow the restrictions in aircraft. Wireless devices can cause interference in aircraft.
• Please power off your mobile phone before taking on till landing. In order to protect airplane’s
communication system from interference, it is never allowed to use mobile phone when it is in flight.
Using mobile phone before the plane taking off should get aircrew’s permission according to safety
regulations.
Confidential and Proprietary Information of ZTE CORPORATION 19
C h a p t e r 17
Warranty Terms
The warranty does not apply to defects or errors in the product caused by:
• Reasonable abrasion.
• Misuse including mishandling, physical damage, improper installation, unauthorized disassembly of the
product.
• Water or any other liquid damage.
• Any unauthorized repair or modification.
• Power surges, lightning damage, fire, flood or other events outside ZTE’s reasonable control.
• Use of the product with any unauthorized third party products such as generic chargers.
• Any other cause beyond the range of normal usage for products.
End User shall have no right to reject, return, or receive a refund for any product from ZTE under the
above-mentioned situations.
This warranty is end user’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required under
the mandatory provisions of the law.
Confidential and Proprietary Information of ZTE CORPORATION 20
C h a p t e r 18
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using this product, whether or not ZTE had been
advised, knew or should have known the possibility of such damages. Refer to the enclosed warranty card
for full warranty and service information.
Confidential and Proprietary Information of ZTE CORPORATION 21
C h a p t e r 19
FCC Compliance
• This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
• This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
f Reorient or relocate the receiving antenna.
f Increase the separation between the equipment and receiver.
f Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
f Consult the dealer or an experienced radio/TV technician for help.
f Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
• The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radio Frequency (RF) Energy
This device meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can be well below the
maximum value. This is because the device is designed to operate at multiple power levels so as to
use only the poser required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is
1.130W/kg and when worn on the body, as described in this user guide, is 0.531W/kg (Body-worn
measurements differ among phone models, depending upon available enhancements and FCC
requirements.)
ZTE-C S170 User Guide
22 Confidential and Proprietary Information of ZTE CORPORATION
While there may be differences between the SAR levels of various phones and at various positions,
they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is
on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID: Q78-ZTECS188.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for
use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm
from the body. Use of other enhancements may not ensure compliance with FCC RF exposure
guidelines. If you do no t use a body-worn accessory and are not holding the phone at the ear,
position the handset a minimum of 1.5 cm from your body when the phone is switched on.
