MF29A User Manual FCC rev2
MF29A
User Manual
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755- 26779999
http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.2
Edition Time : Feb 2012
Manual No. : 07958450XXXX
Content
Welcome ............................................................................................................................... 1
General Information .............................................................................................................. 1
Safety Precautions ............................................................................................................. 1
Cleaning and Maintaining ................................................................................................. 1
National Restrictions ......................................................................................................... 2
FCC Compliance ............................................................................................................... 2
Radio Frequency (RF) Energy .......................................................................................... 2
Limited Warranty .............................................................................................................. 3
Limitation of Liability ....................................................................................................... 3
Getting started ....................................................................................................................... 4
Appearance........................................................................................................................ 4
LED Indicator ............................................................................................................... 4
Interface Description ..................................................................................................... 5
Installation ......................................................................................................................... 5
Inserting (U)SIM Card .................................................................................................. 5
Connecting to Phone ..................................................................................................... 6
Connecting to Computer ............................................................................................... 6
Connecting to PSTN ..................................................................................................... 6
Connecting to WAN/LAN ............................................................................................ 6
Connecting with External Power .................................................................................. 6
Switching on Your Device ............................................................................................ 7
Power Supply .................................................................................................................... 7
Voice ..................................................................................................................................... 8
Making a Call .................................................................................................................... 8
Answering a Call ............................................................................................................... 8
Internet Access ...................................................................................................................... 9
Preparation ........................................................................................................................ 9
Establishing a connection between your device and the client ......................................... 9
Accessing the Internet ..................................................................................................... 10
Accessing the Internet by Bridge Mode ...................................................................... 10
Accessing the Internet by Cable Broadband ............................................................... 10
Accessing the Internet by 3G Gateway ....................................................................... 11
Accessing the WebGUI Configuration Page .................................................................. 11
Login ............................................................................................................................... 12
Operation Mode .............................................................................................................. 13
WAN Connection ............................................................................................................ 14
In Cable Broadband mode........................................................................................... 14
In 3G Gateway mode .................................................................................................. 14
SMS ................................................................................................................................. 15
Sending new SMS ....................................................................................................... 15
Operating Messages in native ..................................................................................... 15
Settings ............................................................................................................................ 17
3G Settings .................................................................................................................. 17
Wi-Fi Settings ............................................................................................................. 18
Firewall ....................................................................................................................... 24
Advanced .................................................................................................................... 28
Usage of WPS ................................................................................................................. 31
Logout ............................................................................................................................. 31
Troubleshooting .................................................................................................................. 33
Technical Parameters .......................................................................................................... 34
Technical Parameters .......................................................................................................... 34
Glossary .............................................................................................................................. 35
Confidential and Proprietary Information of ZTE CORPORATION 1
C h a p t e r 1
Welcome
Thank you for choosing ZTE MF29A Router (hereinafter referred to as “unit” or “router”). To get the
most from your router and to keep it in the best condition, please read this manual carefully.
The pictures, symbols and contents in this manual are for your reference only. They might not be
completely identical with your router. ZTE operates a policy of continuous development. We reserve the
right to update the technical specifications in this manual at any time without prior notice.
General Information
Safety Precautions
• Some electronic devices may be susceptible to electromagnetic interference. Locate the router away from
TV set, radio and other electronic equipment to avoid electromagnetic interference.
• The router may interfere with medical devices like hearing aids and pacemakers. Consult a physician or
the manufacturer of the medical device before using the router.
• Please keep yourself at least 20 centimeters away from router.
• Do not use your router in dangerous environments such as oil terminals or chemical factories where there
are explosive gases or explosive products being processed.
• Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may
affect the router performance, damage the router or cause danger to you.
• Do not attempt to dismantle the router. There are no user serviceable parts.
• Do not allow the router or accessories to come into contact with liquid or moisture at any time. Do not
immerse the router in any liquid.
• Do not place objects on top of the router. This may lead to overheating of the device.
• The device must be placed in ventilation environment for use.
• Do not expose the router to direct sunlight or store it in hot areas. High temperature can shorten the life
of electronic devices.
• Do not allow children to play with the router or charger.
• Keep the length of the cable between the router and the phone less than 10 meters.
• The router is for indoor use only. Do not use the router outside. Do not connect telephone extensions
which run outside of the building. These can result in lightning damage to your unit.
Cleaning and Maintaining
• Use an antistatic cloth to clean the router. Do not use chemical or abrasive cleanser as these could
damage the plastic case. Turn off your router before you clean it.
• Use the router within the temperature range of -10℃ ～ +55℃, and the storage temperature range is
-20℃ ～+65℃. The humidity range is 5%~95%.
• Do not use your router during a thunderstorm. Remove the mains power pack from the wall socket.
• Do not take out your (U)SIM card unnecessarily. The (U)SIM card may be easily lost or it can be
damaged by static electricity.
2 Confidential and Proprietary Information of ZTE CORPORATION
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor
use and public service
France Outdoor use limited to 10
mW e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of
the 2.4 GHz band has been ongoing in
recent years to allow current relaxed
regulation. Full implementation planned
2012
Italy If used outside of own premises, general
authorization is required
Luxembourg None General authorization required for network
and service supply (not for spectrum)
Norway Implemented This subsection does not apply for the
geographical area within a radius of 20 km
from the centre of Ny-Alesund
Russian Federation Only for indoor applications
Note: Please don’t use the product outdoors in France.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Radio Frequency (RF) Energy
This model device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
Please keep 20cm far from body when use this device .
All information of this model device is on file with the FCC and can be found under the Display Grant
section of http://www.fcc.gov/oet/ea/fccid/ after searching on FCC ID: Q78-ZTEMF29A
MF23 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 3
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable Router Appearance Disfiguration.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassemble, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accident, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of products of third Parties, or usage in conjunction with third party products provided that
such defects is due to the combined usage.
vii. Any other cause beyond the range of normal usage for Products. End User shall have no right to
reject, return, or receive a refund for any Product from ZTE under the above-mentioned situations.
• This warranty is end user’s sole remedy and ZTE's sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
Confidential and Proprietary Information of ZTE CORPORATION 4
C h a p t e r 2
Getting started
The router operates on the LTE/HSUPA+/HSUPA/HSDPA/WCDMA network and GSM/GPRS/EDGE
network and supports voice and data service.
Appearance

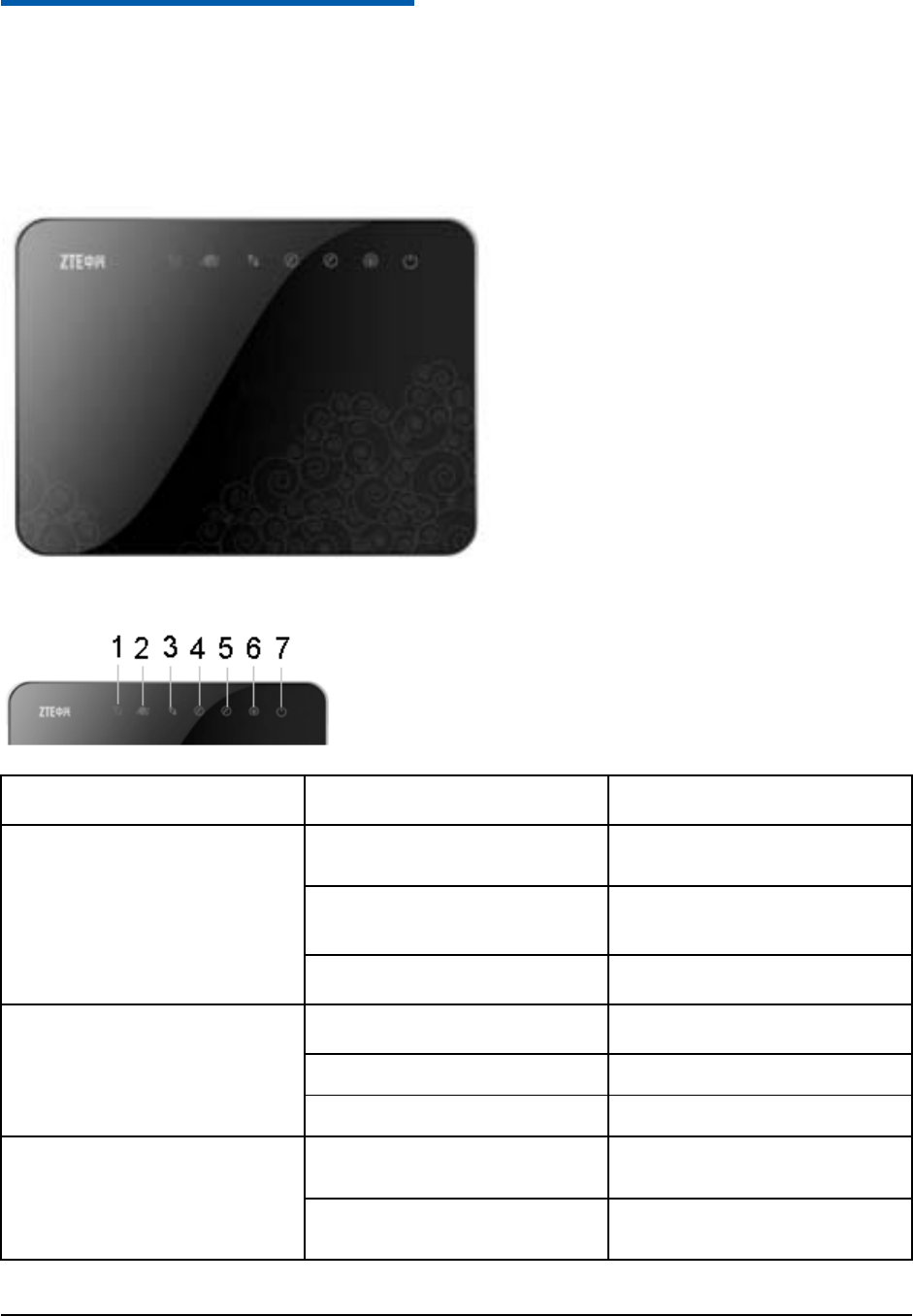

LED Indicator
Indicator State Description
1 WAN signal strength indication ON Signal strength is very good or good
(RSSI >= -90dBm)
Blinking Signal strength is weak (-100dBm <
RSSI < -90dBm)
OFF No signal
2 Network mode indication Green Registered to 3G network
Blue Registered to 2G network
OFF Not Registered
3 WAN connection status
indication
ON WAN connection established (PDP
activated)
Blinking WAN connection establishing (PDP
activating)
MF23 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 5
OFF WAN connection not established
(PDP not activated)
4 Phone status indication Off PSTN not connected
Blinking Calling via PSTN
On PSTN connected
5 Phone status indication Off Local phone hang up
Blinking Phone picked up, ringing or network
CS registering
On In calling.
6 WiFi indication Off WLAN shut down
Blinking WLAN working normally with data
transmission
7 Power indication ON External power supply works
normally.
OFF External power supply is
disconnected or power off.

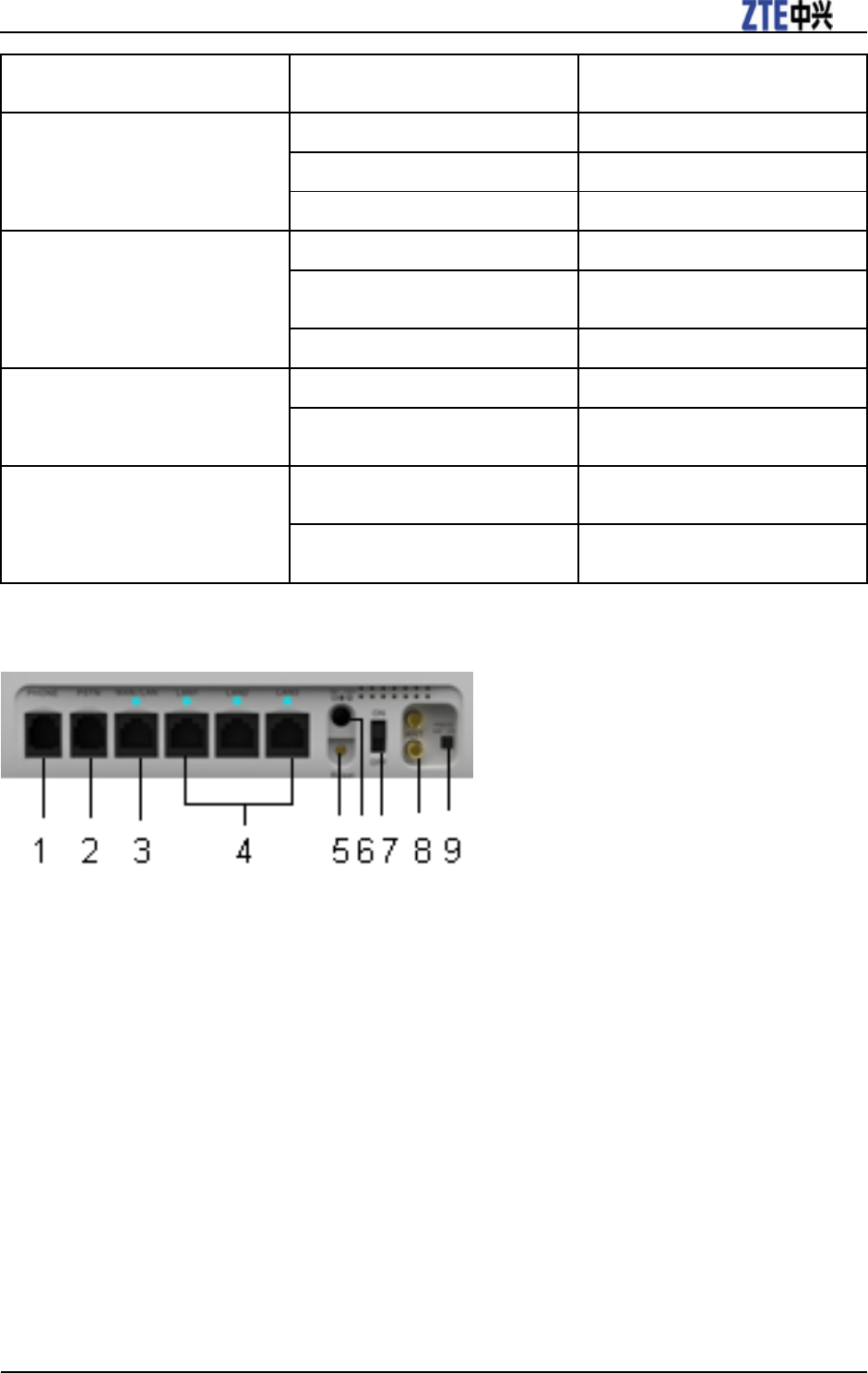

Interface Description
1.Phone: Standard RJ11 connector for Telephone.
2.PSTN: Standard RJ11 connector for PSTN.
3.WAN/LAN: Ethernet connections to internet.
4.LAN1~LAN3: Ethernet connections to computer.
5.Reset: Reset button
6.POWER Socket: Connection to the external power supply.
7.ON/OFF: Turn the router ON or OFF.
8.ANT
9.PRESS ANT ON
Installation
Inserting (U)SIM Card

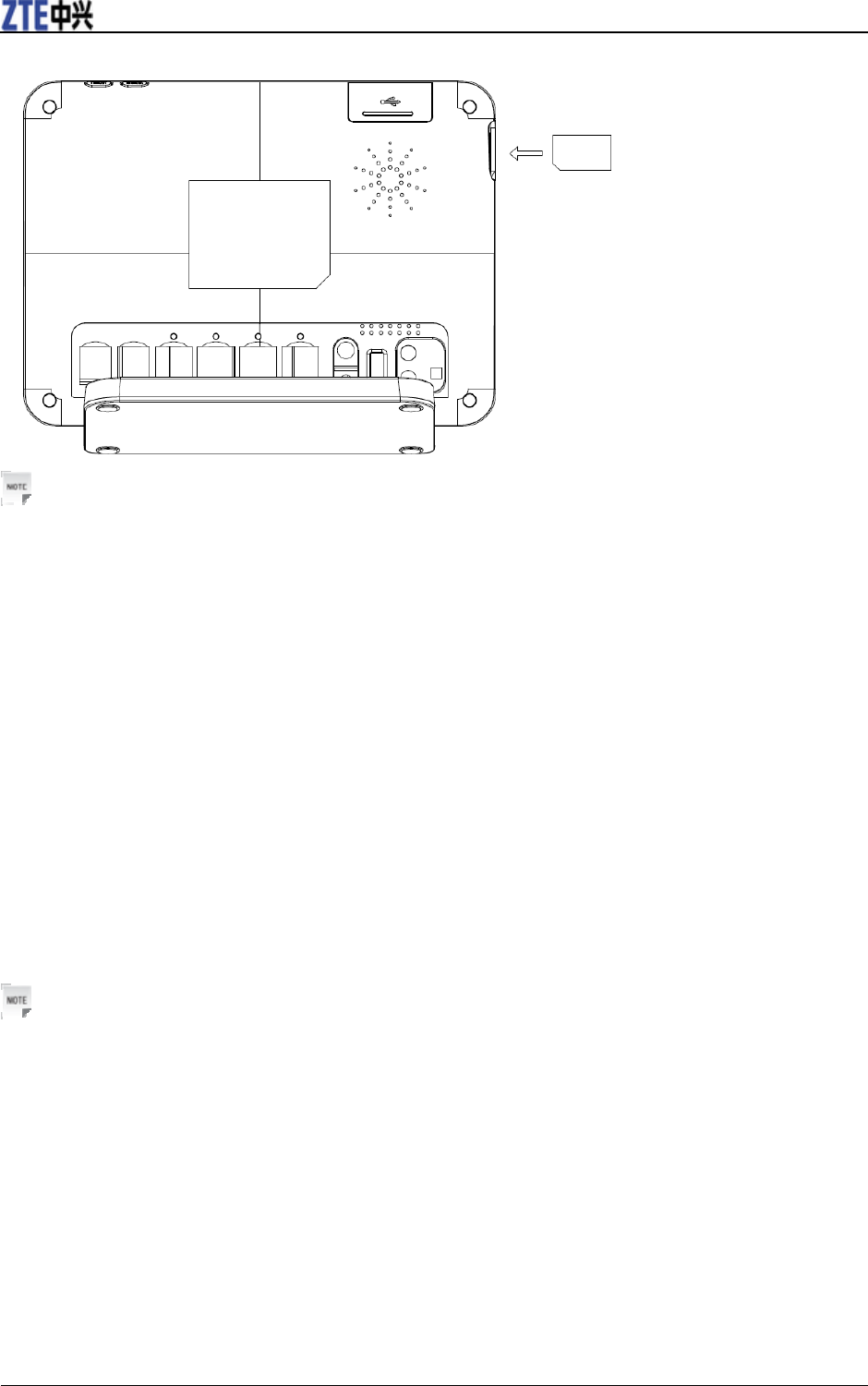

Insert the (U)SIM card into the (U)SIM port.
MF23 User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
Please power off the router and remove the external power adapter before removing or inserting the
(U)SIM card. If not, the router or (U)SIM card may be damaged.
About (U)SIM Card
Avoid handling the (U)SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep
the (U)SIM card away from electrical and magnetic appliances.
If you cannot get service, make sure that：
• You are in an area which has network coverage.
• You are using the correct (U)SIM card.
Connecting to Phone
Connect the telephone to the PHONE interface with a phone cable(RJ11).
Connecting to Computer
Connect your computer to the LAN interface with an Ethernet cable (RJ45).
Notes:
The router will adapt the Ethernet cable style (crossover or straight) automatically.
Connecting to PSTN
Connect PSTN with a phone cable (RJ11).
Connecting to WAN/LAN
Connect WAN with an Ethernet cable (RJ45).
Connecting with External Power
Connect the external power adaptor to a standard power outlet. Insert the plug into the socket at the rear of
the router.
MF23 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
Switching on Your Device
1. Turn the power switch on to get started. Make sure that the phone is on hook before power on.
Notes:
Do not put anything on the top of the router. Do not lay routers to overlap each other when using.
2. Wait 1～2 minutes after turning the router on before you use the service. The 3G & POWER indicator
should be lit on.
Notes:
When the router is turned off, an incoming caller will hear the prompt like “The number you have dialed
is currently unavailable.”
If the 3G LED is blinking constantly, try to move the router to another location. The router takes 1~2
minutes to initialize, attach to the network and obtain an IP address.
Power Supply
For normal operation, connect the router to the external power adapter. In case of power failure or when
there is no available external power supply, the router will not work.
Confidential and Proprietary Information of ZTE CORPORATION 8
C h a p t e r 3
Voice
Making a Call
You have two ways to make a call:
• Through (U)SIM card.
• Through PSTN.
To make a call:
1. Pick up the handset.
2. Key in the telephone number.
3. You can either press # key on the telephone to send the call, or wait 4～8 seconds for the call to be
connected automatically.
4. Call will be connected.
Notes:
If there is no 3G indication, the RF signal is unavailable. Change the location of the router and make sure
nothing is blocking it.
Making a Trunk Call
If you are making a trunk call, add the area code as normal.
E.g. 03 9612 3456
Making an International Call
If you are making an international call, key in the international access code followed by the country code,
area code and number.
E.g. 00 11 64 12 345678
Answering a Call
When the phone rings, pick up the handset to answer it. If the telephone has hands-free function you also
can answer the call by pressing the Hands-free button. Press the Hands-free button again to end the call.
Confidential and Proprietary Information of ZTE CORPORATION 9
C h a p t e r 4
Internet Access
The router does not require any drivers, and it supports all operating systems with Ethernet LAN
capability, such as Windows 2000, XP, Vista, MAC OS X and Linux. The router supports two computers
surfing on internet using Ethernet cable at the same time.
Note: All the parameter settings in this chapter are just for your reference. Please contact your service
provider for detail.
Preparation
Establishing a connection between your device and the client
Via RJ45 Ethernet cable
1.Connect your device and the client with the RJ45 Ethernet cable.
2.Power on your device.
The connection between your device and the client will be established successfully a moment later.
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize, and then Wi-Fi LED is blinking.

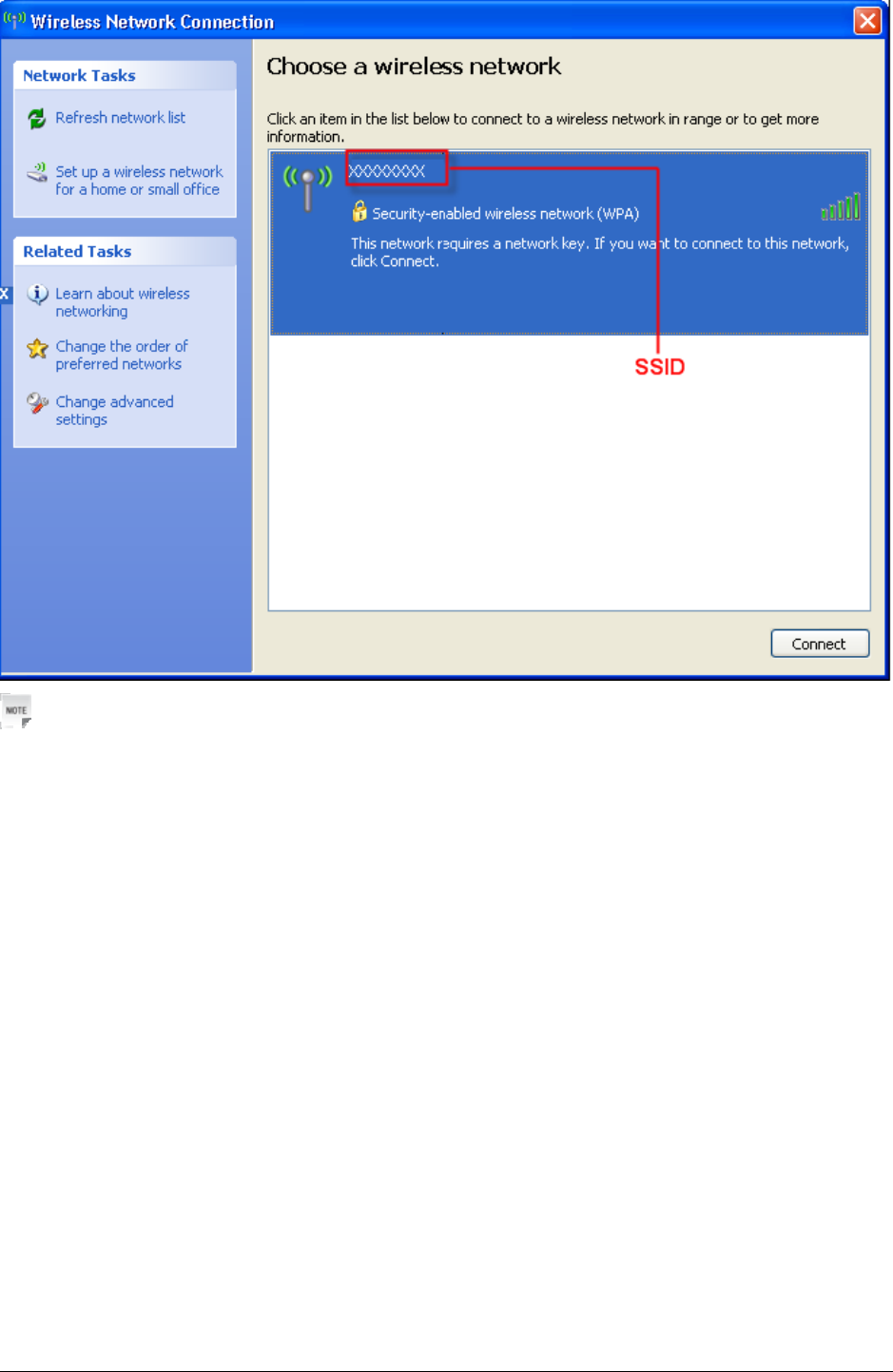

2. Use your normal Wi-Fi application on the client to search the available wireless network.
Notes: You need to check your Wireless Network Connection. Set the client to obtain an
IP address automatically in the Internet protocol (TCP/IP) properties, and the client will get
an IP address like”192.168.0.100”.
3. Select the SSID of your device, and then click Connect.
10 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
There will be a pop-up window to require the password. Please check the label on the battery
compartment of your device to gain the SSID and preset password information.
4. Wait a moment, the connection between your device and the client will be established
successfully.
Accessing the Internet
Before accessing the internet, make sure;
1. Switch on the device.
2. Establish a connection between your device and the client.
Accessing the Internet by Bridge Mode
1.Login the WebGUI and set the Operation Mode as Bridge Mode.
2.Connect the device with internet by WAN/LAN.
Accessing the Internet by Cable Broadband
1.Login the WebGUI and set the Operation Mode as Cable Broadband.
2.Connect the device with internet by WAN.
Confidential and Proprietary Information of ZTE CORPORATION 11
3.Set WAN Connection in WebGUI.
Accessing the Internet by 3G Gateway
Note: Please make sure that you have install (U)SIM card before you switch on the device.
1.Login the WebGUI and set the Operation Mode as 3G Gateway.
2. Set WAN Connection in WebGUI.
Accessing the WebGUI Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the internet browser and enter http://192.168.0.1 in the address bar.
Notes:
It is recommended that you use IE (6.0 or later), Firefox (2.0 or later), Opera (10.0 or later), Safari
(4.0 or later) or Chrome (5.0 or later).

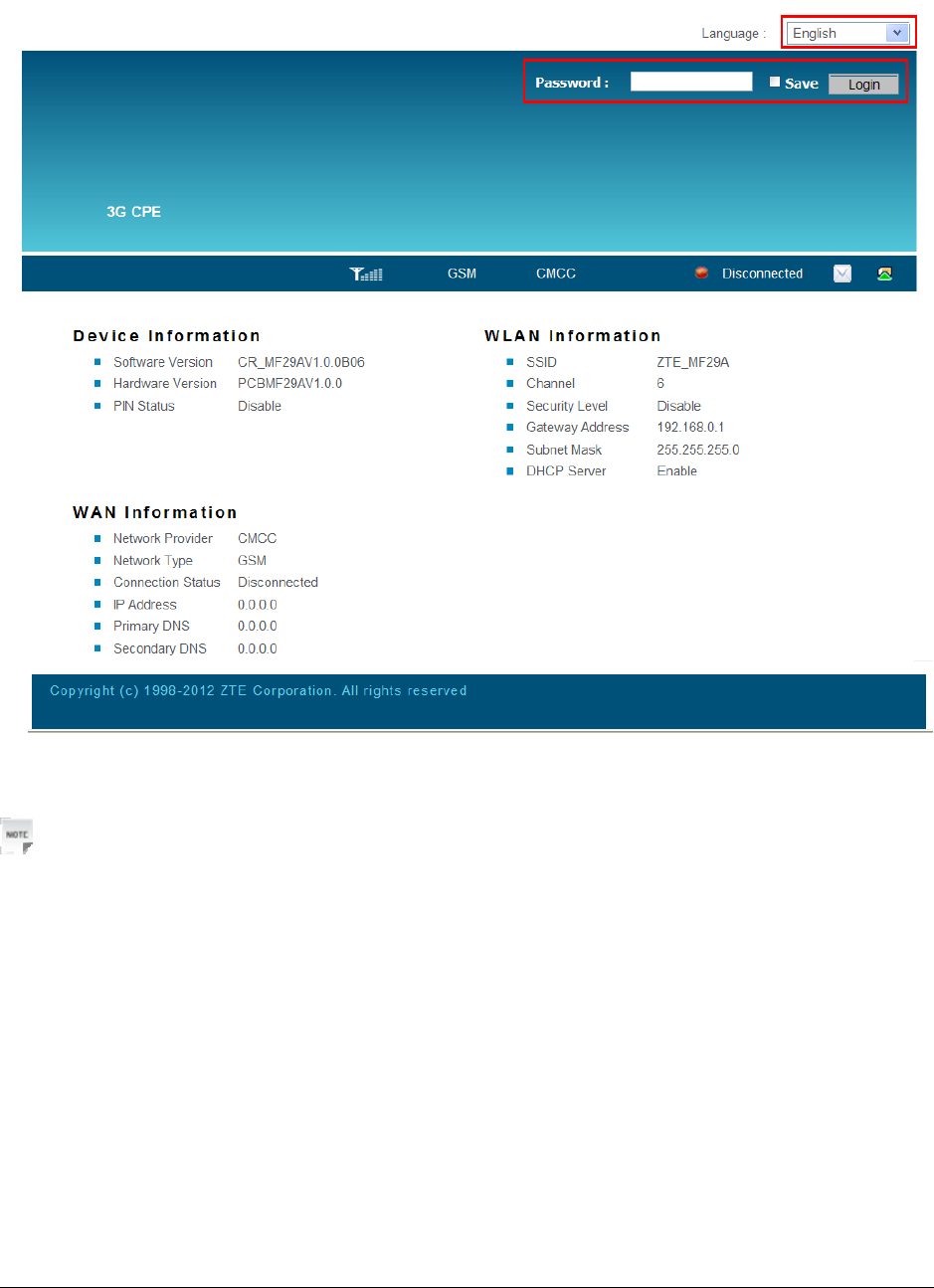

3.The login page appears as follows.
12 Confidential and Proprietary Information of ZTE CORPORATION
Login
In the WebGUI Configuration page, select the desired language and input the password (the default
Password is admin).
Click Login to log in the device.
Notes:
If you check Save after type in password, the device will save it. Next time when you want to login the
device with the same password, what you need to do is click Login.

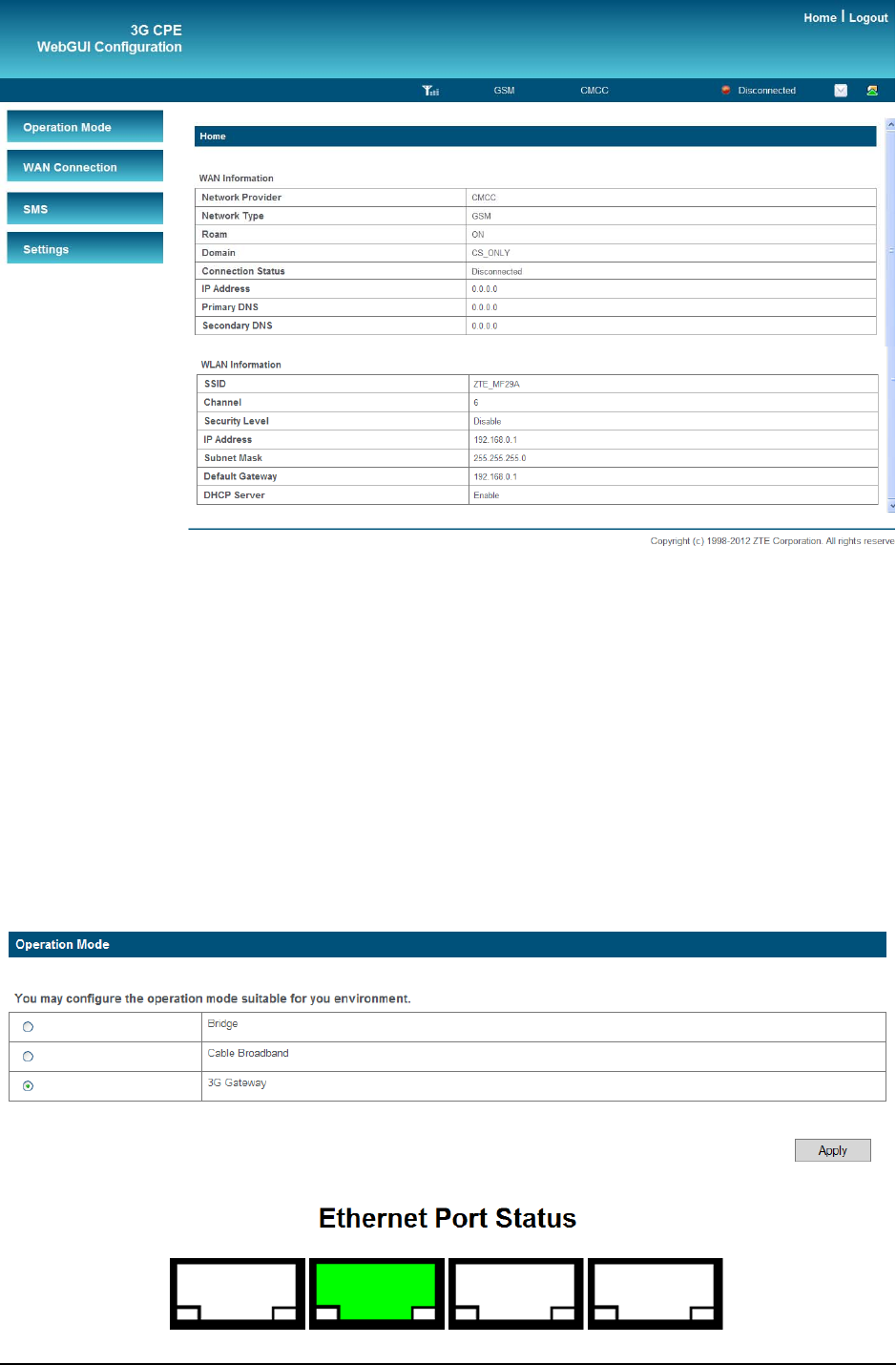

When you login, the following interface appears.
Confidential and Proprietary Information of ZTE CORPORATION 13
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
• Index area: Show the configuration list for your device.
• Content area: Show the detailed configuration.
• System Information Area: Show the system status and different kinds of tips.
Operation Mode
When you fist login the webGUI, you need to choose the operation mode to make the correct setting.
14 Confidential and Proprietary Information of ZTE CORPORATION
There are three operation mode:
• Bridge Mode：Connect to Internet by WAN/LAN interface.
• Cable Broadband: Connect to Internet by WAN interface.
• 3G Gateway: Connect to Internet by (U)SIM.
Please choose the correct operation mode according to your actual network condition. For detailed
information, please contact network operator. Click Apply to finish the setting.
WAN Connection
In Cable Broadband mode

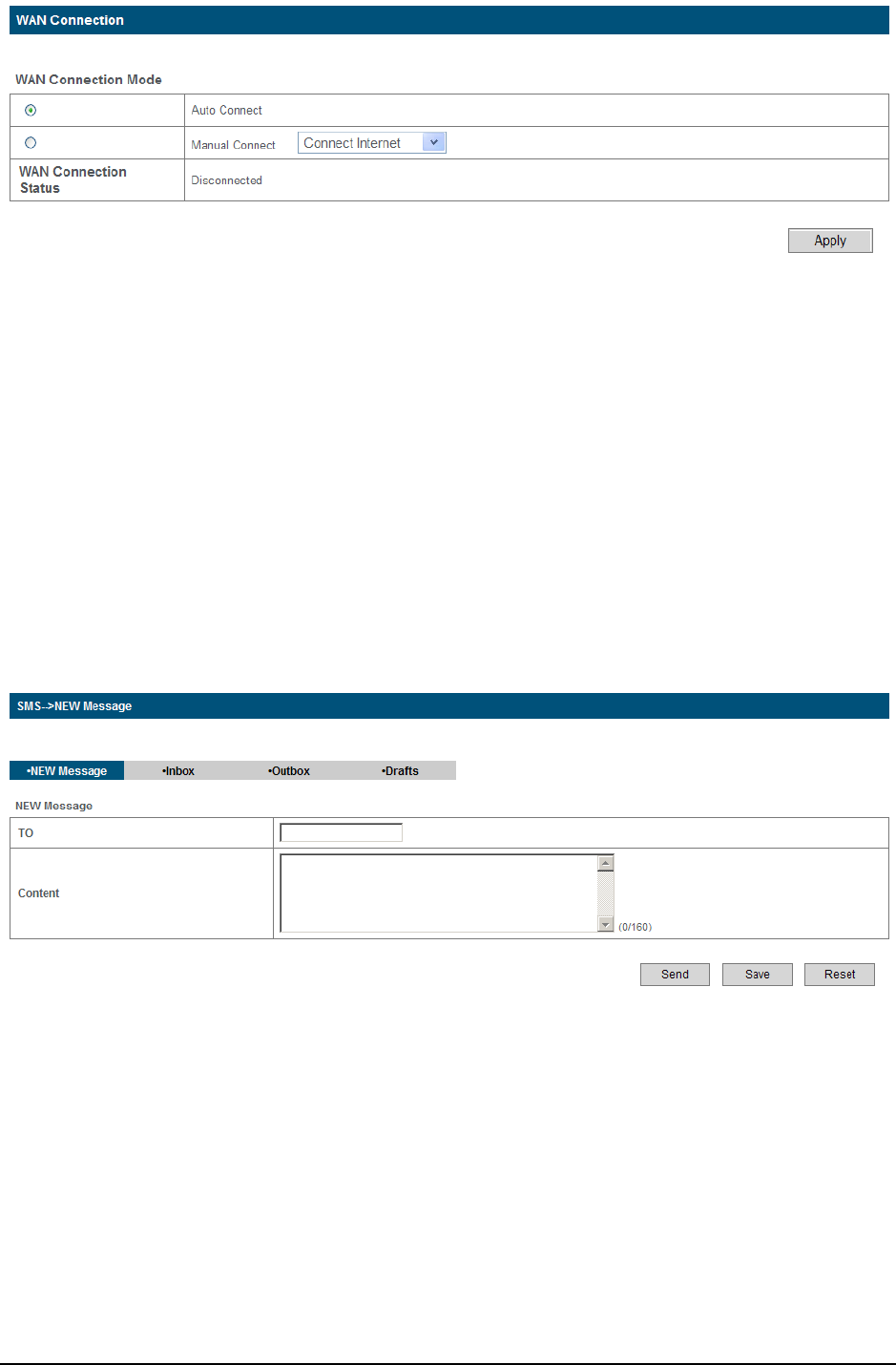

Click WAN Connection, you can configure how to connect to the Internet.
Select PPPoE，input the User Name and Password supplied by the network provider, and select the
Connect mode.
• Auto Connect: The router will automatically connect to WAN when it is powered on.
• On Demand Connect: The connection will be established when data transmission is required. Router
will disconnect from the Internet if there is no data traffic going through during the Max Idle Time.
• Manual Connect: Connect to Internet or disconnect from Internet manually.

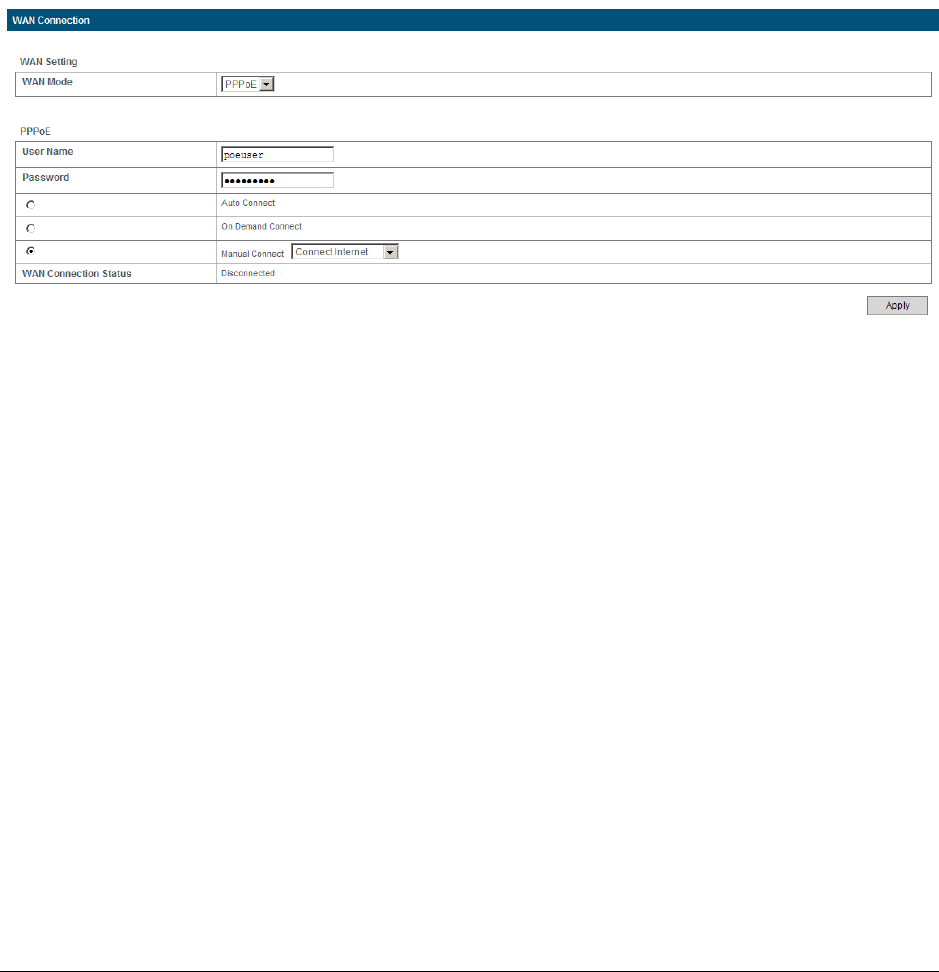

Click Apply to confirm your configuration, and then the figure will show in the wan connection status.
In 3G Gateway mode
Click WAN Connection, you can configure how to connect to the Internet.
Confidential and Proprietary Information of ZTE CORPORATION 15
There are two connection modes:
• Auto Connect: The router will automatically connect to WAN when it is powered on.
• Manual Connect: Connect to Internet or disconnect from Internet manually.
Click Apply to confirm your configuration, and then the figure will show in the wan connection status.
SMS
This function allows you to send or receive short messages. And you can use this function only in 3G
Gateway mode.
Sending new SMS
1. Select SMS > New Message to access the following figure:
2. Enter the recipient’s phone number.
3. Enter a message.
4. Click Send to send the message.
Operating Messages in native
You can check the messages saved in your device.
Inbox

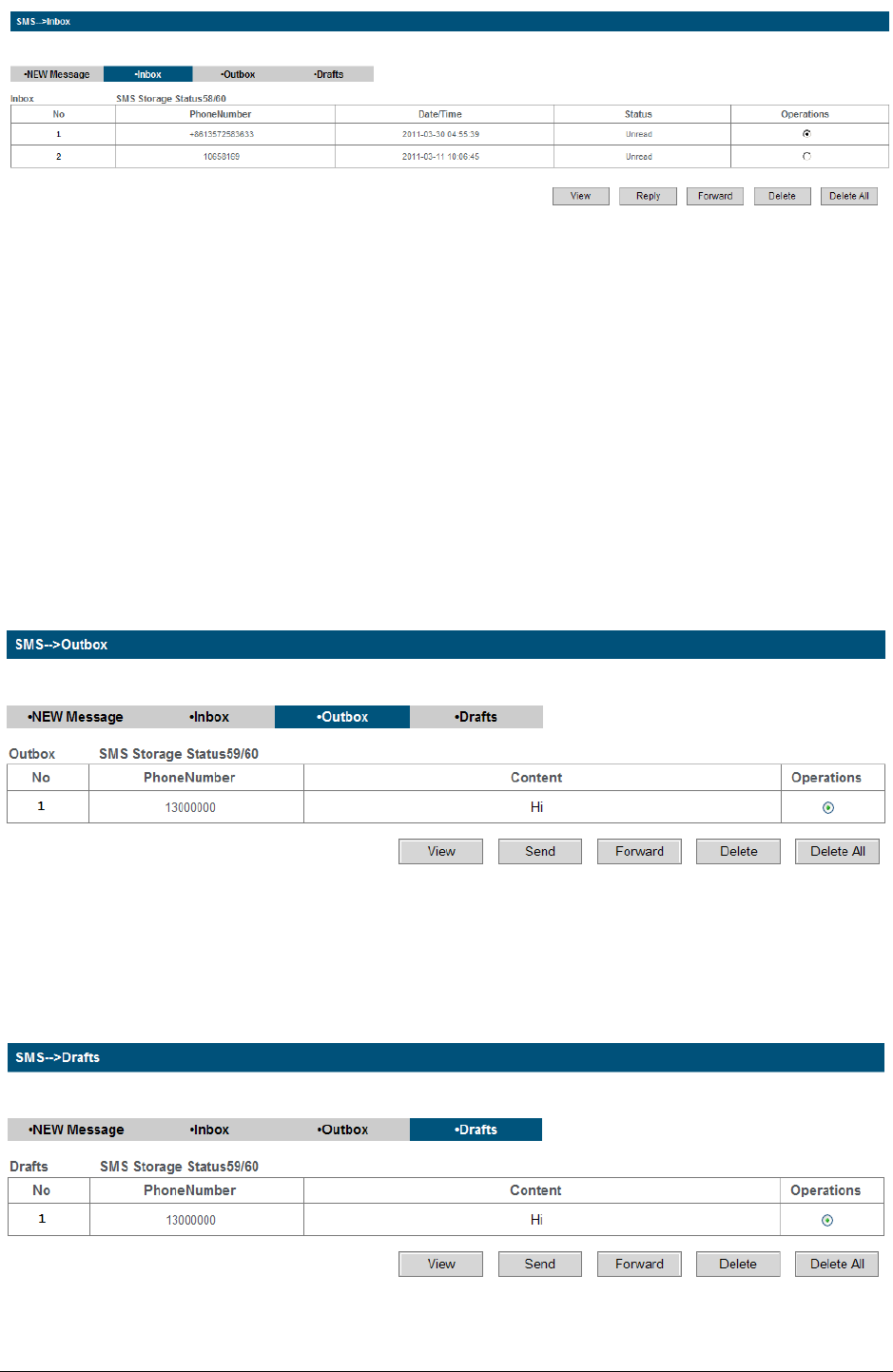

Select SMS > Inbox to access the following figure:
16 Confidential and Proprietary Information of ZTE CORPORATION
All the received messages saved in your device will be displayed here.
• Click View to view the selected message.
• Click Reply to reply to the selected message sender.
• Click Forward to forward message to other person.
• Click Delete to delete the selected message.
• Click Delete All to delete all the messages.
Outbox
Select SMS > Outbox to access the following figure:
All the sent messages in your device will be displayed here.
Drafts
Select SMS > Drafts to access the following figure:
All the drafts saved in your device will be displayed here.
Confidential and Proprietary Information of ZTE CORPORATION 17
• Click View to access the edited interface of selected message, then click Send to send it.
Settings
• Do not modify any settings unless instructed by your service provider.
• Please disconnect the device from the network before change the settings.
3G Settings
Wireless Info

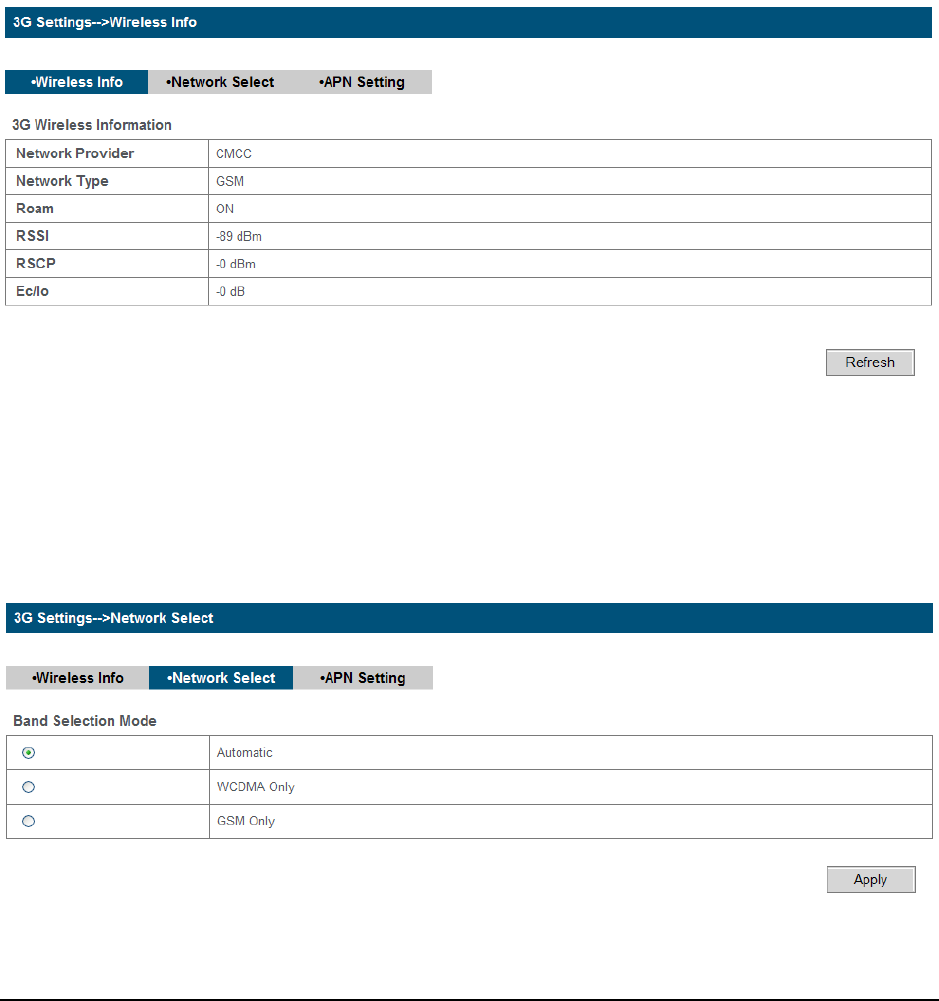

Select Settings > 3G Settings > Wireless Info, the 3G wireless information is shown in the following
figure:
Click Refresh to update the wireless information.
Network Select
Select Settings > 3G Settings > Network Select, the Band Selection Mode is shown in the following
figure:
• Automatic: Device searches for available network.
18 Confidential and Proprietary Information of ZTE CORPORATION
• WCDMA Only: Device searches for WCDMA network only.
• GSM Only: Device searches for GSM network only.
Click Apply to confirm your configuration.
APN Setting
Select Settings > 3G Settings > APN Setting, the APN parameters are shown in the following figure:
• Profile Selection: Choose the desired profile name.
• APN: Access Point Name.
• PDP Setting: PDP address mode. If a fixed IP address is given by your service provider, select Manual
PDP. Otherwise select the Auto PDP and the router will automatically obtain this parameter.
• DNS: If a fixed IP address is given by your service provider, then choose Manual DNS. Otherwise,
choose Auto DNS, and device will automatically obtain parameters.
• Authentication: Password Authentication Protocol (PAP) provides a simple method without encryption
for the peer to establish its identity using a 2-way handshake. Challenge-Handshake Authentication
Protocol (CHAP) is used to periodically verify the identity of the peer using a 3-way handshake.
• User Name: User name is used to obtain authentication from the ISP when the connection is established
• Password: Password is used to obtain authentication from the ISP when the connection is established.
Click Set default to set this profile as the default profile.
Wi-Fi Settings
Station list

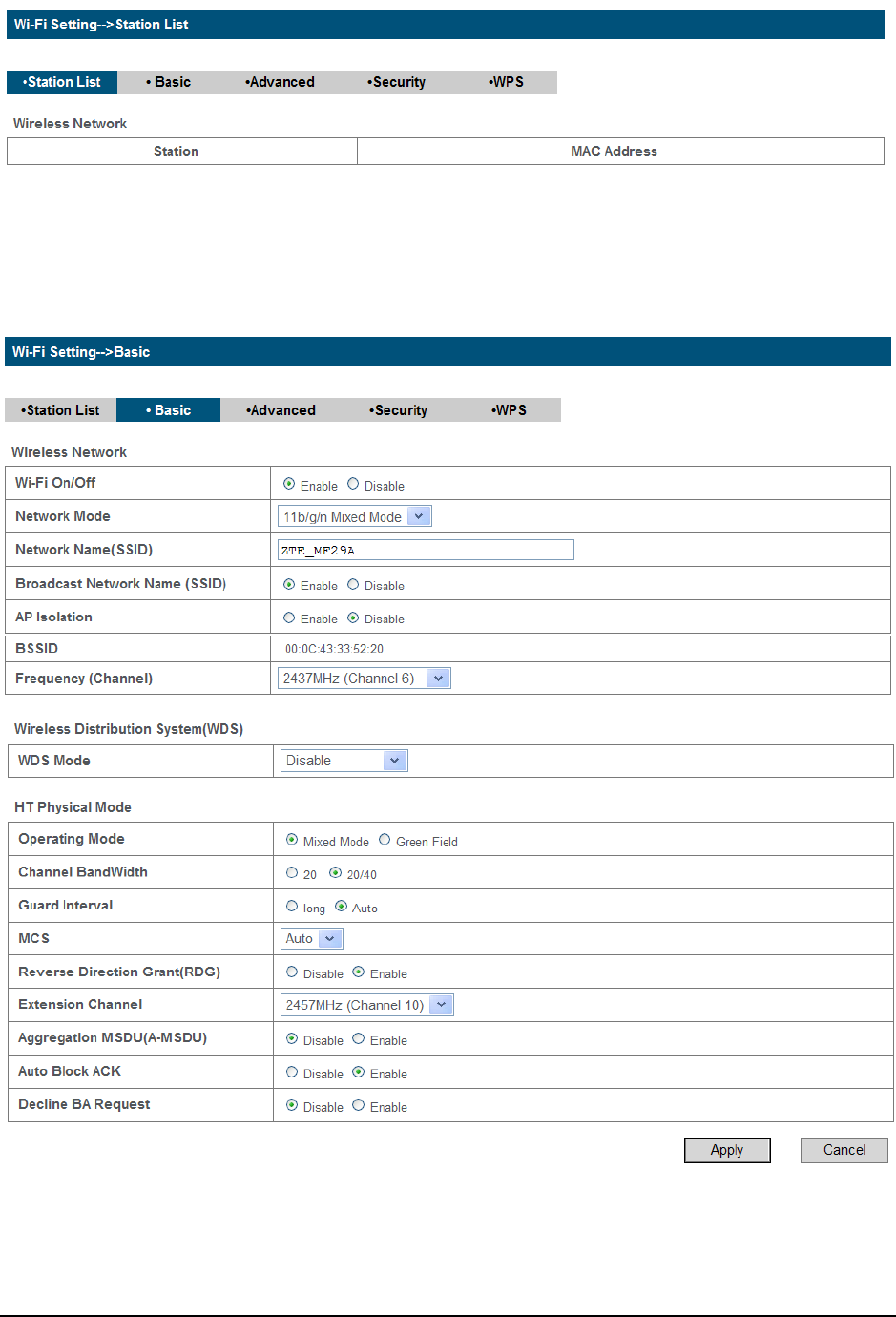

Select Settings > Wi-Fi Setting > Station List, the wireless network stations are shown in the following
Confidential and Proprietary Information of ZTE CORPORATION 19
figure:
Basic
Select Settings > Wi-Fi Setting > Basic, the wireless network basic parameters are shown in the
following figure:
• Wi-Fi On/Off: Enable Wi-Fi or not.
• Network Mode: If all of the wireless devices connect with this router in the same transmission mode,
performance will be improved by choosing the appropriate wireless mode.
• Network Name(SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the name
20 Confidential and Proprietary Information of ZTE CORPORATION
for your wireless local area network (WLAN).
• Broadcast Network Name(SSID): Disable or Enable (Default) this function. If Enable is selected, the
router broadcasts the SSID, and other devices can detect and connect to it.
• AP Isolation: When Enabled is selected, each of your wireless clients will not be able to communicate
with each other.
• BSSID: MAC address of the Wi-Fi.
• Frequency(Channel): Choose the appropriate channel to optimize the performance and coverage of
your wireless network.
• WDS Mode: WDS enable router to communicate with other APs, WDS connection is two-way
communication, APs should know each other’s wireless MAC address. And make sure that all APs
share the same SSID and channel.
WDS configuration is shown below:
Step Description
1.Set the same SSID and channel for APs Manually set the SSID and channel is strongly
recommended.
2.Select WDS mode: Disable, Lazy Mode, Bridge Mode or
Repeater Mode ·If you select Disable, WDS is disabled.
·If you select Lazy Mode, WDS is enabled, and set
wireless MAC address only on the peer APs.
·If you select Bridge Mode, WDS is enabled, and set the
peer APs wireless MAC address on router. When you set
Bridge Mode, your PC can not search SSID of AP after
connected.
·If you select Repeater Mode, WDS is enabled, and set the
peer APs wireless MAC address on router. When you set
Repeater Mode, your PC can search SSID of AP after
connected.
3.Select Phy mode:
CCK,OFDM, HTMIX or GREENFIELD
CCK: 802.11b
OFDM: 802.11g
HTMIX: 802.11b/g/n Mixed Mode
GREENFIELD: 802.11b/g Mixed Mode
4.Select Encrypt Type:
WEP, TKIP, AES
If you select NONE, all the data transmitted without
encryption, and other station can access router.
5.Set peer AP's wireless MAC address on router Only Repeater Mode and Bridge Mode need this.
The HT physical Mode parameters are shown below:
• Operating Mode: In Mixed Mode, packets are transmitted with a preamble compatible with the legacy
802.11a/g, the rest of the packet has a new format. In Green Field, high throughput packets are
transmitted without a legacy compatible part.
• Channel Bandwidth: Set the HT physical channel bandwidth.
• Guard Interval: Guard interval is to introduce immunity to propagation delays, echoes and reflections,
to which digital data is normally very sensitive.
• MCS: The Modulation and Coding Scheme (MCS) is a value that determines the modulation, coding and
number of spatial channels.
• Reverse Direction Grant(RDG): Enable RDG or not.
• Extension Channel: Set extension channel. Extension channel is also able to send and receive data.
Confidential and Proprietary Information of ZTE CORPORATION 21
• Aggregation MSDU(A-MSDU) :To enable Hyper Throughput TX Aggregate MAC Service Data Unit,
select Enable.
• Auto Block ACK: Select to block ACK (Acknowledge Number) or not during data transferring.
• Decline BA Request: Select to reject peer BA-Request or not.
Click Apply to confirm your configuration.
Advanced

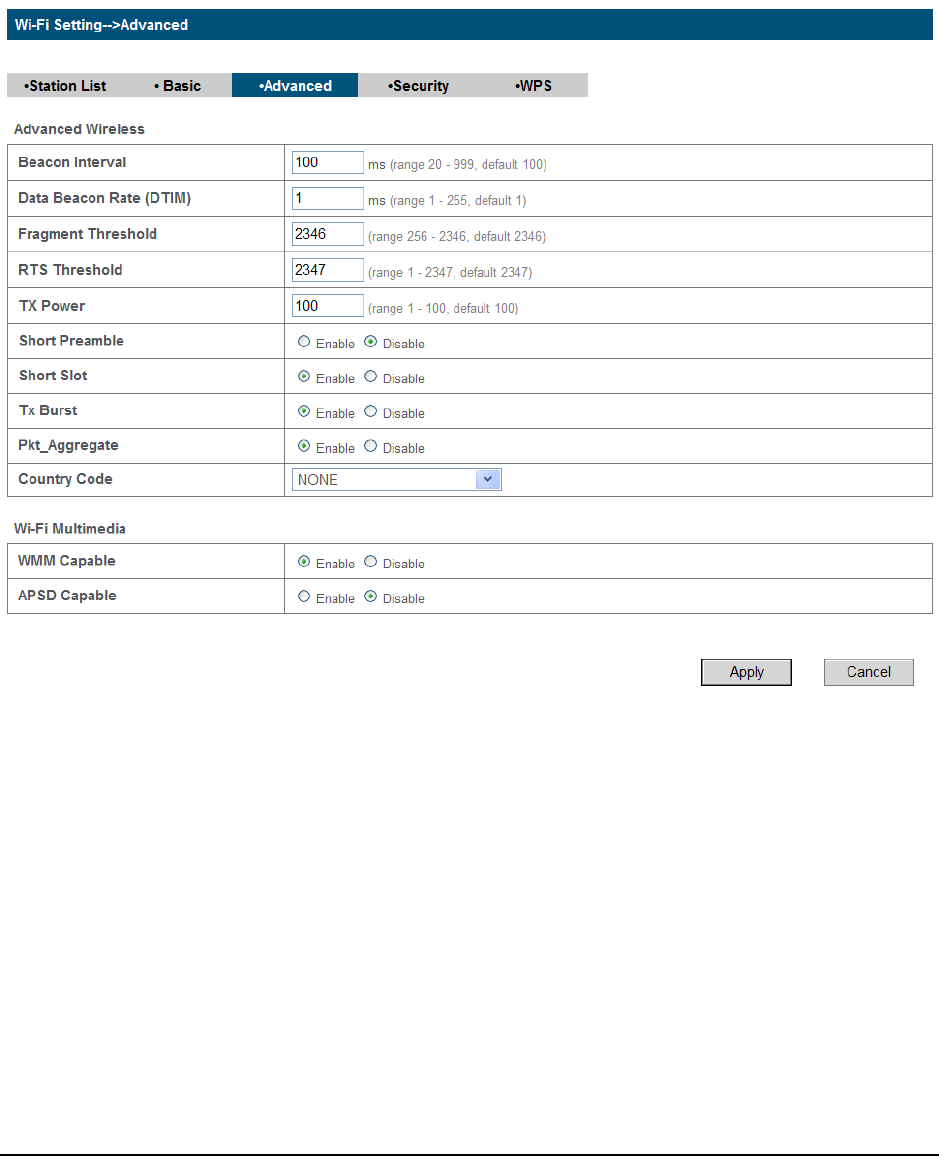

Select Wi-Fi Setting > Advanced, the advanced wireless network parameters are shown in the following
figure:
• Beacon Interval: The router broadcasts beacon message to announce that it has buffered frames to
deliver. The default value is 100 (ms).Beacons are packets sent by an access point to synchronize a
wireless network. Specify a beacon interval value. is recommended.
• Data Beacon Rate(DTIM): A Delivery Traffic Indication Message(DTIM) informs next clients to listen
to broadcast and multicast messages.
• Fragment Threshold: This value should remain at its default value of 2346. If you experience a high
packet error rate, you may slightly increase your fragment threshold. Setting the fragment threshold too
low may result in poor performance.
• RTS Threshold: Request To Send (RTS) threshold should be remained as the value of 2347. If you
encounter inconsistent data flow, only minor modifications are recommended.
• TX Power: Transmit power should be remained as the value of 100.
• Short Preamble: The length of CRC block in the frames during the wireless communication.
• Shot Slot: To indicate that 802.11g is using a shot time slot because there is no legacy station(802.11b)
present.
22 Confidential and Proprietary Information of ZTE CORPORATION
• Tx Burst: Tx burst allows router to deliver better throughput in the same period and environment in
order to increase speed.
• Pkt_Aggregate: Increase efficiency by aggregating multiple application packets data into a single
transmission frame. In this way, 802.11n networks can send multiple data packets with the fixed
overhead cost in just a single frame.
Country Code: Select the region you live.
The Wi-Fi multimedia parameters are shown below:
• WMM Capable: When multimedia contents are transferred over wireless network, this function
enhances data transfer performance.
• APSD Capable: Automatic Power Save Delivery (APSD),enable or disable data flow using APSD
during transmitting for power saving.
Click Apply to confirm your configuration.
Security

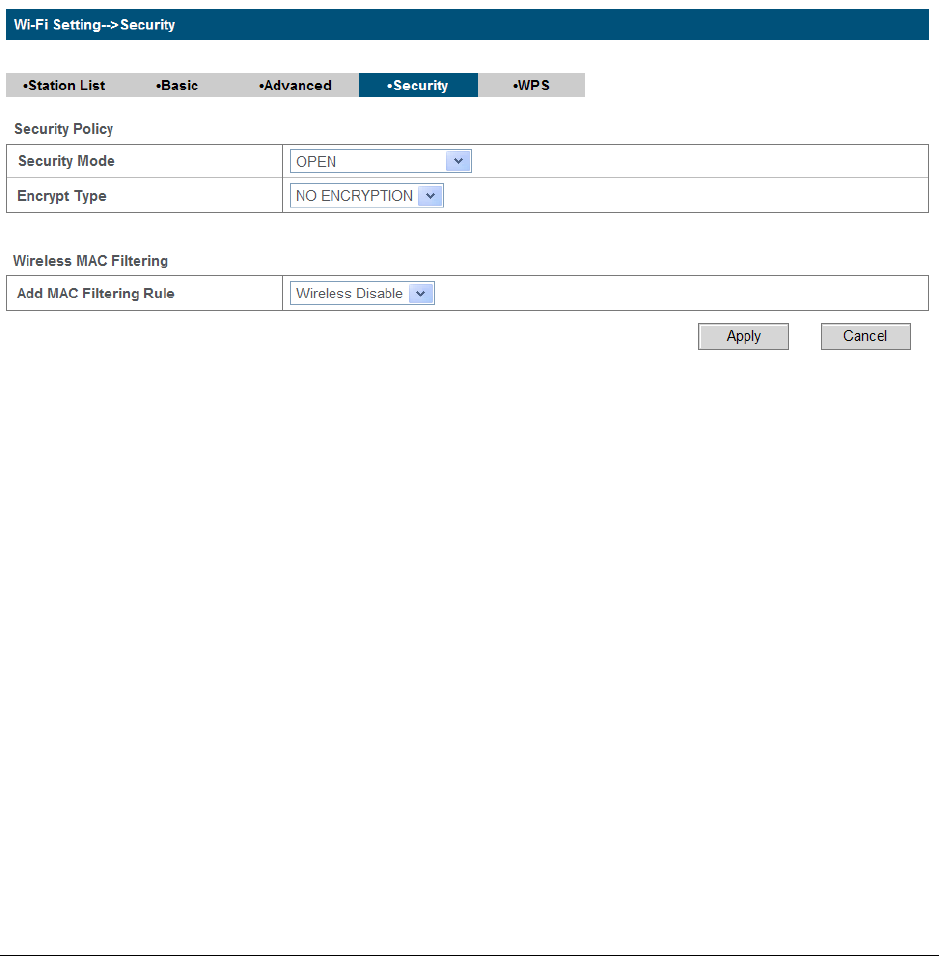

Select Wi-Fi Setting > Security, the Security parameters are shown in the following figure:
Unless one of these encryption modes is selected, wireless transmissions to and from your wireless
network can be easily intercepted and interpreted by unauthorized users.
The security modes are described below:
• Open: You can authenticate successfully with a SSID, whether it is valid or empty.
• Shared: The WLAN clients who have the same WEP key with wireless gateway can pass the
authentication and access the wireless network.
• WEPAUTO: Select WEP security automatically.
• WPA-PSK: WPA Pre-Shared Key, Enter the Pre-Shared key as a plain text (ASCII) pass-phrase of at
least 8 characters.
• WPA2-PSK: It is the securer version of WPA with implementation of the 802.11i standard.
• WPA-PSK/WPA2-PSK: Apply both the WPA-PSK and WPA2-PSK scheme.
If the Authentication type is Open, Shared, WEPAUTO, the bottom part of the configuration page
displays parameters as shown.
• WEP Keys: At most four keys can be set in the blank. Choose the primary key index. The primary key is
the only key in use at a given time. Whatever keys you enter for an access point, you must also enter the
same keys for the client adapter in the same order. In other words, WEP key 1 on the AP must match
WEP key 1 on the client adapter, WEP key 2 on the AP must match WEP key 2 on the client adapter,
etc. Select Hex if use 10 or 26 hexadecimal numbers (0～9, a～f or A～F). Select ASCII if use 5 or 13
Confidential and Proprietary Information of ZTE CORPORATION 23
ASCII characters (case-sensitive).
If the Authentication type is WPA-PSK , WPA2-PSK or WPA-PSK/WPA2-PSK , the bottom part of
the configuration page displays WPA parameters.
• WPA Algorithm: TKIP, AES or AUTO.
• Pass phrase: You can input hexadecimal digits up to 64 characters or input ASCII characters choose a
length of 63 characters or less.
• Key Renewal Interval: Define how long the key should be renew.
You can set Wireless MAC Filtering:
• Wireless Disable: If disabled, MAC address is not used to control network access.
• Wireless Allow: Set the MAC address that is allowed to access network.
• Wireless Reject: Set the MAC address that is not allowed to access network.
Click Apply to confirm your configuration.
WPS

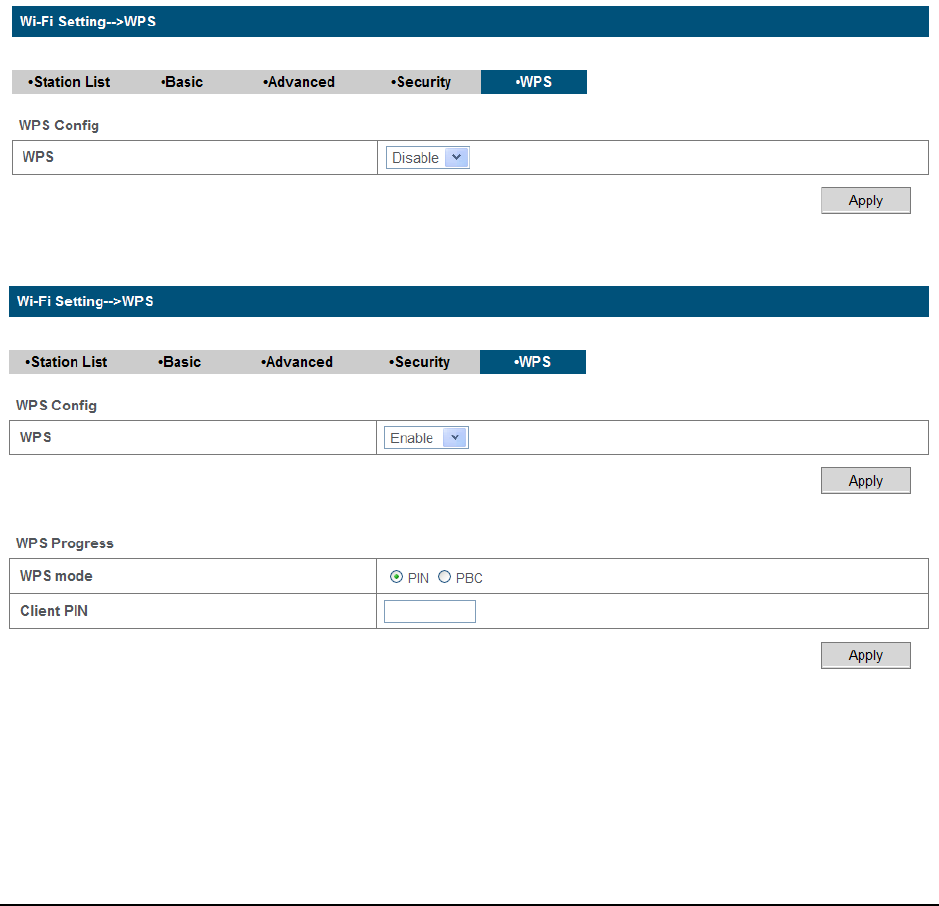

Select Wi-Fi Setting > WPS, the WPS configuration is shown in the following figure:
Select Enable, click Apply ,the WPS settings are shown in the following figure:
WPS Summary, WPS Progress and WPS Status are all shown in the figure.
To set WPS, select WPS mode, the two modes are described below:
• PIN: There are two ways to use PIN mode, one is set PIN code on the client's wireless adapter(you can
find the PIN code in AP PIN field of WPS Summary), the other way is set the client's PIN code in
Client PIN field.
• PBC: Press the WPS button of the router or select PBC, and then click Apply. Press WPS button on the
client wireless adapter within two minutes, and the negotiation process will be established.
24 Confidential and Proprietary Information of ZTE CORPORATION
Firewall
You may setup firewall rules to protect your network from virus, worm and malicious activity on the
Internet.
Notes:
You can set the maximum 10 filtering items for MAC/IP/Port Filtering and Port Forwarding.
MAC/IP/Port Filtering

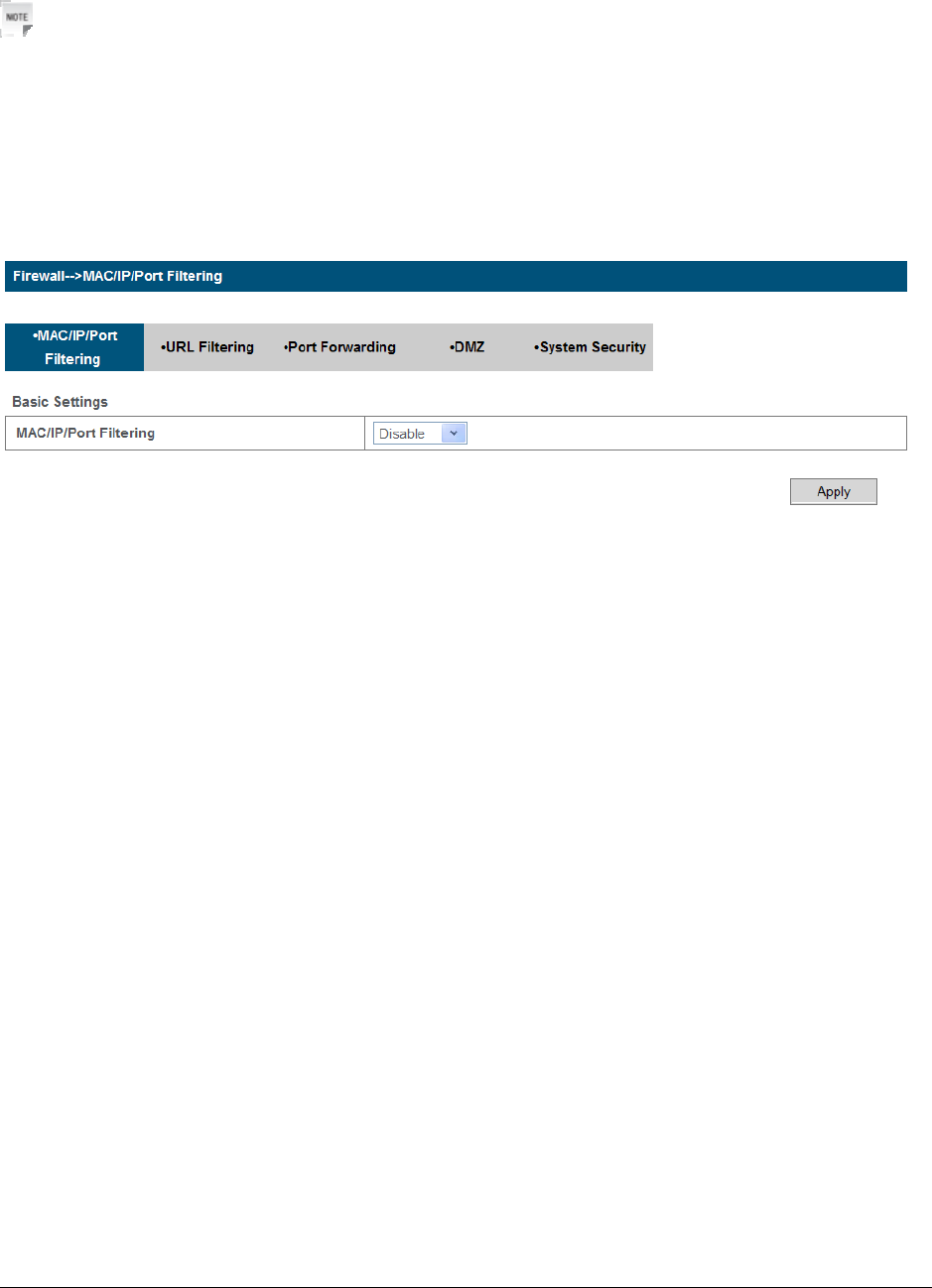

Select Settings > Firewall > Mac/IP/Port Filtering, the Mac/IP/Port Filtering is shown in the following
figure:

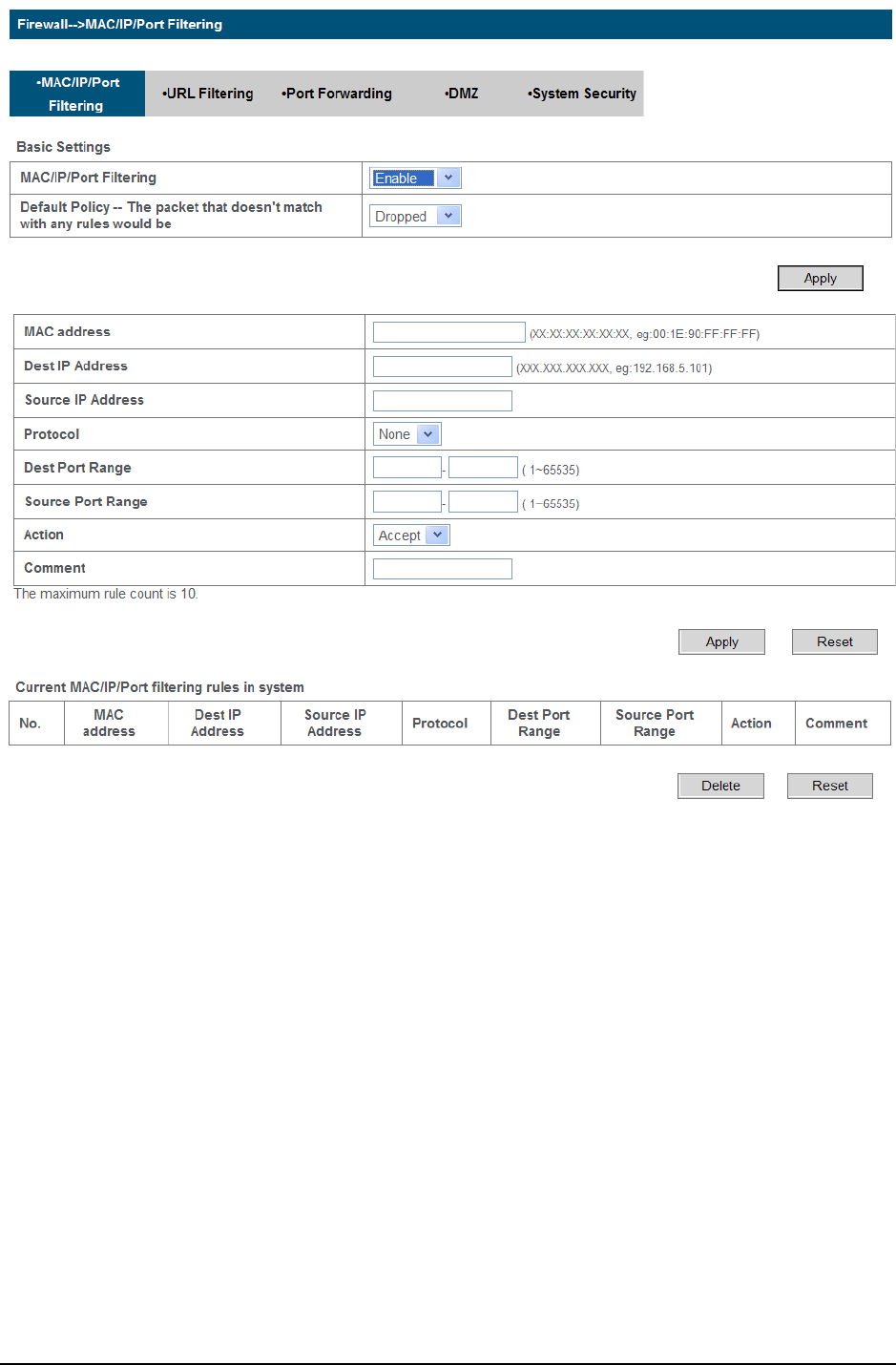

If you select Enable, the filter settings will appear:
Confidential and Proprietary Information of ZTE CORPORATION 25
• Default Policy: Set how to handle the packet if none of the rules matches.
• MAC address: Set the MAC address that will be filtered.
• Dest IP Address: Set the destination IP address that will be filtered.
• Source IP Address: Set the source IP address that will be filtered.
• Protocol: Set which protocol will be used for filtering.
• Dest Port Range: Set the destination port numbers that will be filtered
• Source Port Range: Set the source port numbers that will be filtered.
• Action: Set how to handle the packet if it matches with the rule.
• Comment: Type comment for the filter settings.
26 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
Filtering rules are matched one by one, if met this provision, it will not continue to match the rules listed
below.
Click Apply to confirm your configuration.
Click Delete Selected to delete the rule which you selected.
Click Reset to clear what you select or input.
To add a new rule:
1. Select Enable in the Basic Settings area.
2. Click Apply.
3. Input the detail information in the Mac/IP/Port Filtering area.
4. Click Apply in the Mac/IP/Port Filtering area.
URL Filtering
You can setup content filter to restrict the improper content access. Select Firewall > URL Filtering, the

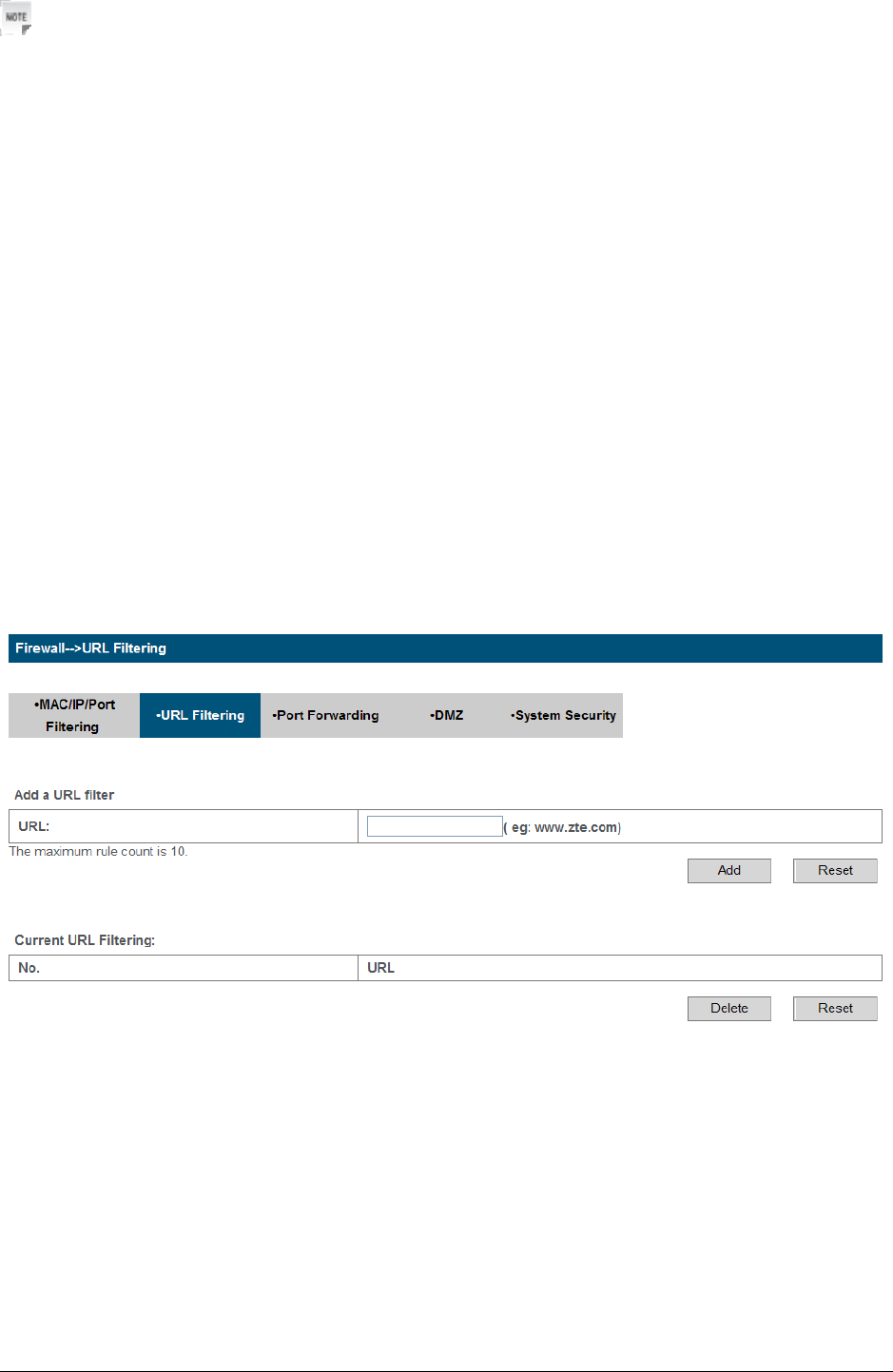

URL Filtering is shown in the following figure:
Type URL address, and then click Add to add the URL address into the filtering list. The new URL
filtering item will be shown in the Current Webs URL Filters: field.
Port Forwarding

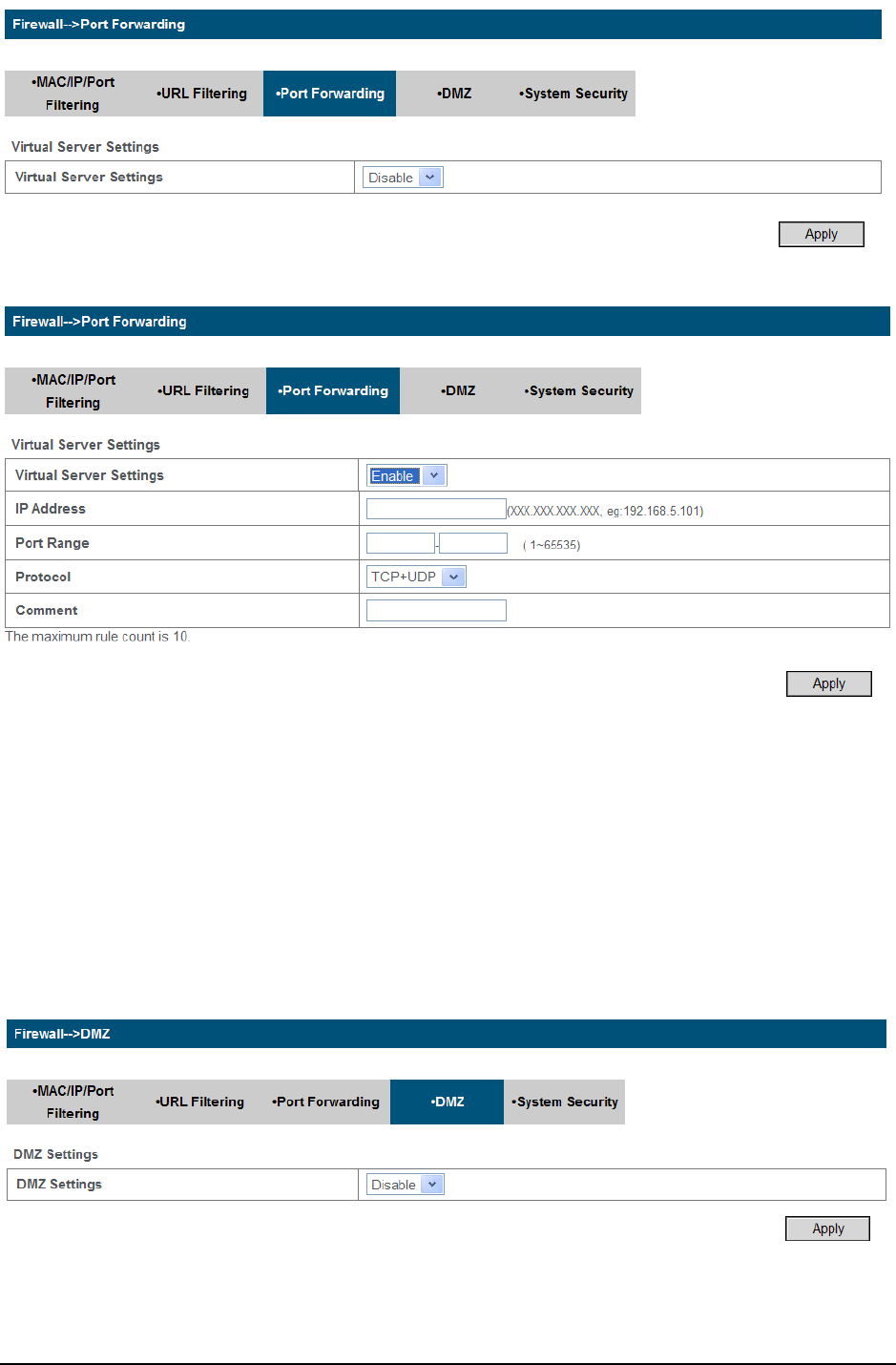

You can setup virtual servers to provide services on the Internet. Select Firewall > Port Forwarding, the
virtual server settings is shown in the following figure:
Confidential and Proprietary Information of ZTE CORPORATION 27
If you select Enable, the Virtual Server Settings will appear:
• IP Address: Set IP address for the virtual server.
• Port Range: Set port numbers for the virtual server.
• Protocol: Set protocol for the virtual server.
• Comment: Type comment for the virtual server settings.
Click Apply to confirm your configuration.
DMZ
You can setup a De-militarized Zone(DMZ) to separate internal network with the Internet. Select

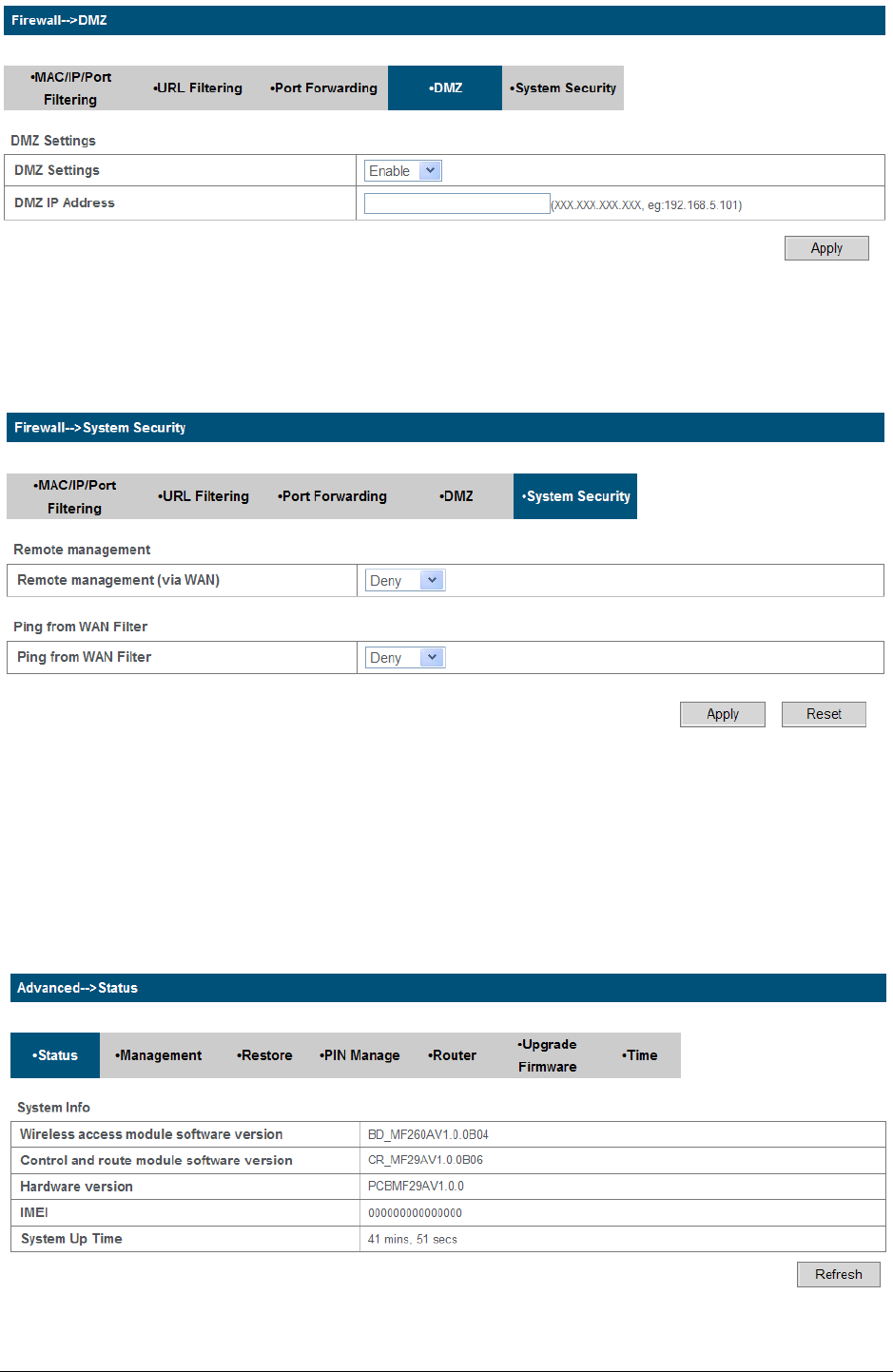

Firewall > DMZ, the DMZ setting is shown in the following figure:
If you select Enable, set the DMZ IP Address, and then click Apply to confirm your configuration.
28 Confidential and Proprietary Information of ZTE CORPORATION
System Security
You can configure system firewall to protect AP or router from being attacking. Select Firewall > System
Security, the system security setting is shown in the following figure:
Allow or Deny the remote management function, Allow or Deny ping from WAN filter on requirement,
and then click Apply.
Advanced
Status
Select Settings > Advanced > Status, the system information is shown in the following figure:
Management
Confidential and Proprietary Information of ZTE CORPORATION 29

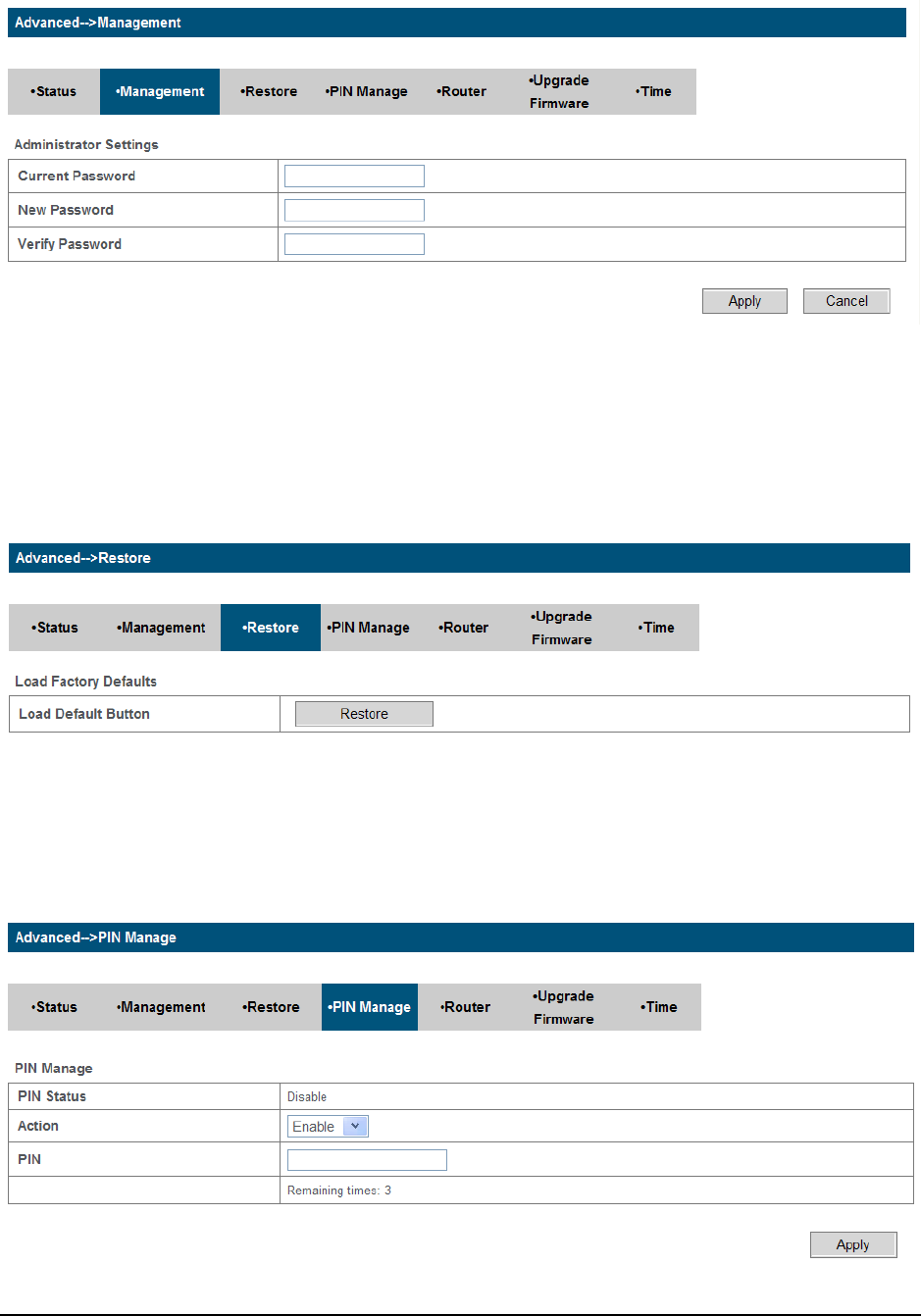

Select Settings > Advanced > Management, the administrator settings information is shown in the
following figure:
You can change the administrator’s password. Click Apply to confirm your configuration.
Restore
Select Settings > Advanced > Restore, click Restore to set all the settings to their factory default values,
and then the device will restart automatically.
PIN Manage
Note: Pin Manage can be used in 3G Gateway mode.

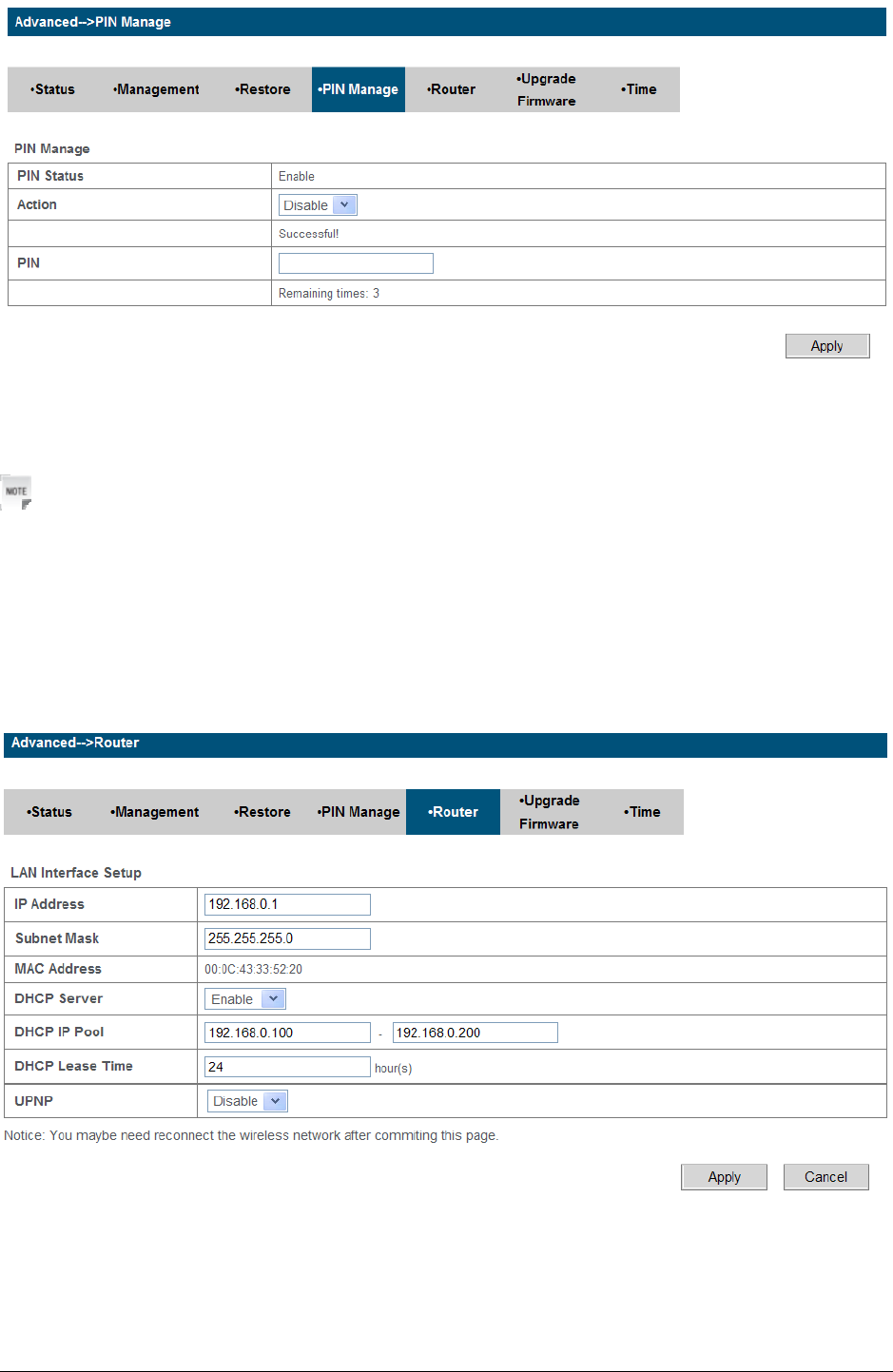

Select Settings > Advanced > PIN Manage, the PIN manage is shown in the following figure:
If you select Modify, the modification parameters are shown in the following figure:
30 Confidential and Proprietary Information of ZTE CORPORATION
Type the old PIN code, and then type two times the new PIN code. Click Apply to confirm your
configuration.
Notes:
Three times consecutive wrong PIN code entries will block the SIM card.
Router
Note: Router can be used in 3G Gateway mode and Cable Broadband mode.
Select Settings > Advanced > Router, the router information is shown in the following figure:
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
• MAC Address: MAC address for the LAN interface.
Confidential and Proprietary Information of ZTE CORPORATION 31
• DHCP Server: Enable or disable DHCP Server function.
• DHCP IP Pool: Allocate begin and end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired, and will relocate new IP
address.
Click Apply to confirm your configuration.
Upgrade Firmware
Select Settings > Advanced > Upgrade Firmware to upgrade the software version of the router.
Click Browse..., locate the latest software version, and then click Upgrade.

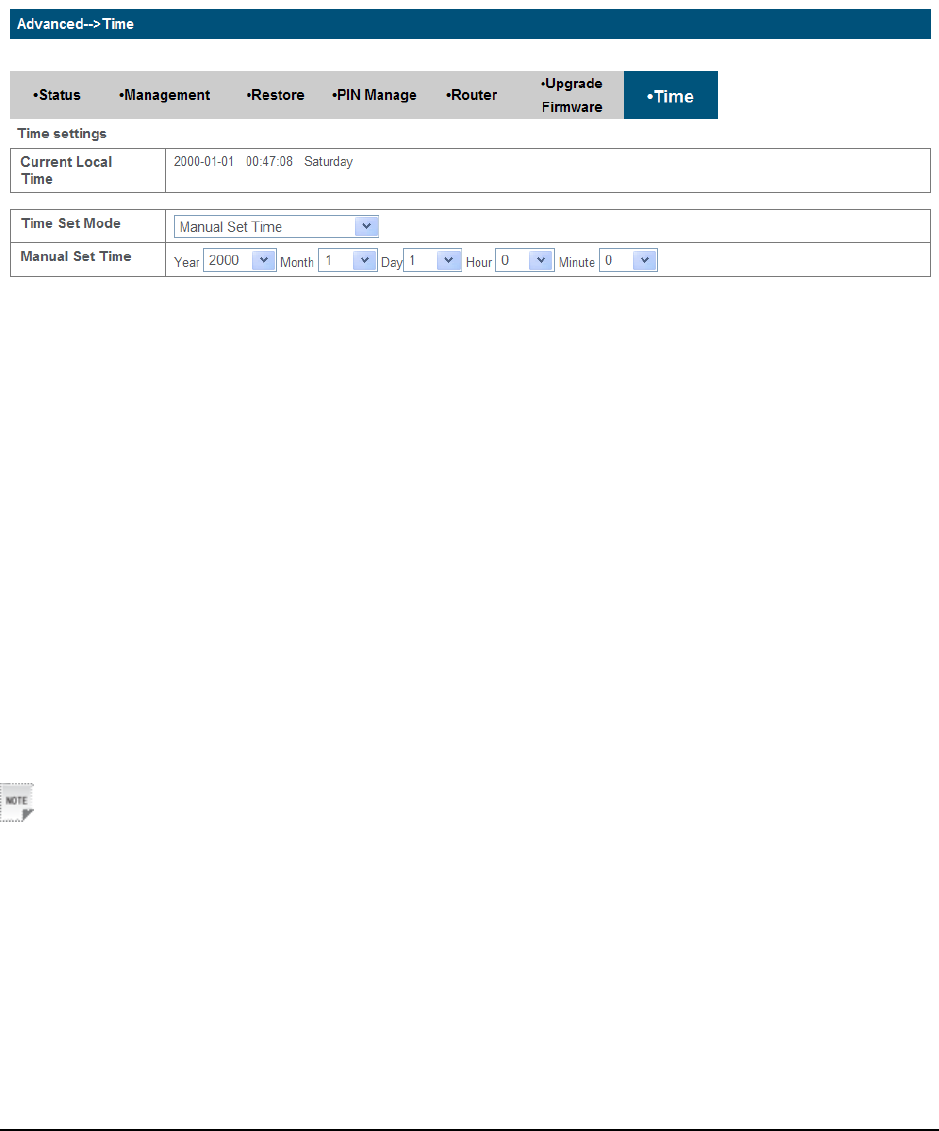

Time
Select Settings > Advanced > Time to set the time of the router.
Usage of WPS
If your client device supports WPS, you need not to input the password manually after WPS has
been available. Please do the following:
1. Start up your device.
2. Launch the client device connected to your device.
3. Enable the WPS function of your device.
4. Enable the WPS function of the client.
Notes:
For the detailed operations about the client, please refer to the client’s instruction.
Logout
Select Logout, a pop-up window will appear as the following figure shown:
32 Confidential and Proprietary Information of ZTE CORPORATION
Click OK to logout the web page.
Confidential and Proprietary Information of ZTE CORPORATION 33
C h a p t e r 4
Troubleshooting
Voice Related Problems
Symptoms Possible Problems/ Solutions
No Dial Tone. Please wait for 1~2 minutes after the router is turned on.
If 3G LED light is blinking, you have no good RF
reception. Change the location of the router.
There is a prompt/ phone alert/ announcement as soon as I
lift the phone off the hook. Make sure your (U)SIM card is inserted correctly and the
PIN number has been entered. If the PIN number has been
entered incorrectly then you will need to enter the PUK
code when prompted.
The line is noisy/ distorted when I lift the phone off the
hook. Remove any electrical appliance which is too close to the
phone or router.
The cable or phone set might be faulty.
I hear a rapid engaged tone as soon as I lift the phone off
the hook. Put the phone on hook and try again. If you are connected
to the internet using the 2G (GSM) network, please
disconnect this first.
After dialing the last digit I hear nothing /silence. When you have finished dialing you can press the # key or
wait 4-8 seconds to connect the call.
I can’t make or receive a call when I am surfing on the net. If you are connected using the 2G (GSM) network then
you cannot surf the net and make a phone call
simultaneously. Please disconnect the internet and wait 30
seconds to 1 minute before making a call.
Internet Related Problems
Symptoms Possible Problems/ Solutions
I cannot access the internet at all. Please check your configuration settings.
Please wait 1~ 2 minutes for the router to initialize.
Check your service indicator LED’s.
The download or upload speeds are very slow. The speed is dependent on signal strength. Check your
signal strength and network type.
Others
Symptoms Possible Problems/ Solutions
The RSSI signal indicator is always blinking or does not
light. This indicates poor reception. Try moving the router to
another location near the window.
Confidential and Proprietary Information of ZTE CORPORATION 34
C h a p t e r 5
Technical Parameters
Technical Parameters
Network & Frequency Band
EDGE/GPRS/GSM: 850/900/1800/1900MHz
HSPA+/HSUPA/HSDPA/UMTS: 850/900/1900/2100MHz
Power Adapter
Input: 100V~240V(AC), 50/60Hz
Output:+12V (DC), 1.5A
Data Service
HSUPA 5.76Mbps UL
HSDPA 28Mbps DL
Dimensions (W×H×D)
202mm×160mm×30.5mm
Weight
About 550g
Confidential and Proprietary Information of ZTE CORPORATION 35
C h a p t e r 6
Glossary
• AC: Alternating Current
• APN: Access Point Name
• DC: Direct Current
• DHCP: Dynamic Host Control Protocol
• DNS: Domain Name System (or Service or Server)
• DoS: Denial of Service
• EDGE: Enhanced Data GSM Evolution
• ESSID: Expanded Service Set Identifier
• Ethernet: A frame-based computer networking technology for local area networks (LANs)
• GSM: Global System for Mobile Communications
• GPRS: General Packet Radio Service
• HSDPA: High Speed Downlink Packet Access
• HSUPA: High Speed Uplink Packet Access
• IP: Internet Protocol
• LAN: Local Area Network
• LED: Light - emitting Diode
• MHz: Megahertz
• MTU: Maximum Transmission Unit
• PDP: Packet Data Protocol
• PIN: Personal Identification Number
• PPP: Point to Point Protocol
• PSTN: Public Switched Telephony Network
• PUK: PIN Unlocking Key
• RSSI: Radio Signal Strength Indicator
• RF: Radio Frequency
• SIP: Session Initiated Protocol
• UPnP: Universal Plug and Play
• (U)SIM: Subscriber Identification Module
• WCDMA: Wideband CDMA (Code-Division Multiple Access)
• WEP: Wired Equivalent Privacy
• WLAN: Wireless LAN
• WPA-PSK: Wi-Fi Protected Access–PreShared Key
