Quick Guide
Introduction
ZTE MF50 is a 3G mobile hotspot device, working in GPRS/EDGE/WCDMA/HSPA network. It provides
Internet connection via USB or Wi-Fi to clients, enabling you to communicate anytime and anywhere.
Specification
Data Service
HSPA:
DL 14.4 Mbps
UL 5.76Mbps
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
Interface
USB and Wi-Fi
Wi-Fi Standard
802.11b/g/11n
Wi-Fi Security
WEP/WPA/WPA2
USB Version
USB 2.0 HIGH SPEED
USB Interface Type
Micro USB
Weight
80g
Dimensions (W×H×D):
101.8mm*51.8mm*13.65mm
microSD card
Support up to 32GB microSD card
Battery
1500mAh Li-ion battery
*Standby time
100 hours
*Working time
4 hours
Charge time
3 hours
Operate system
Windows 7, Windows Vista, Windows XP (SP2 or later), Mac OS (10.4 or later)
Web Browser
IE (6.0 or later), Firefox (1.0 or later), Opera (6.0 or later), Safari (3.0 or later), Chrome
(6.0 or later)
Working temperature
-10℃ ~ +45℃
Storage temperature
-20℃ ~ +70℃
Charging temperature
0℃ ~ +40℃
2 Confidential and Proprietary Information of ZTE CORPORATION
Humidity
5%~ 95%
Notes:
microSD is a trademark of SD Card Association.
The device’s standby and working time are only for your reference, and based on ideal working
environment.
Getting to Know Your Device

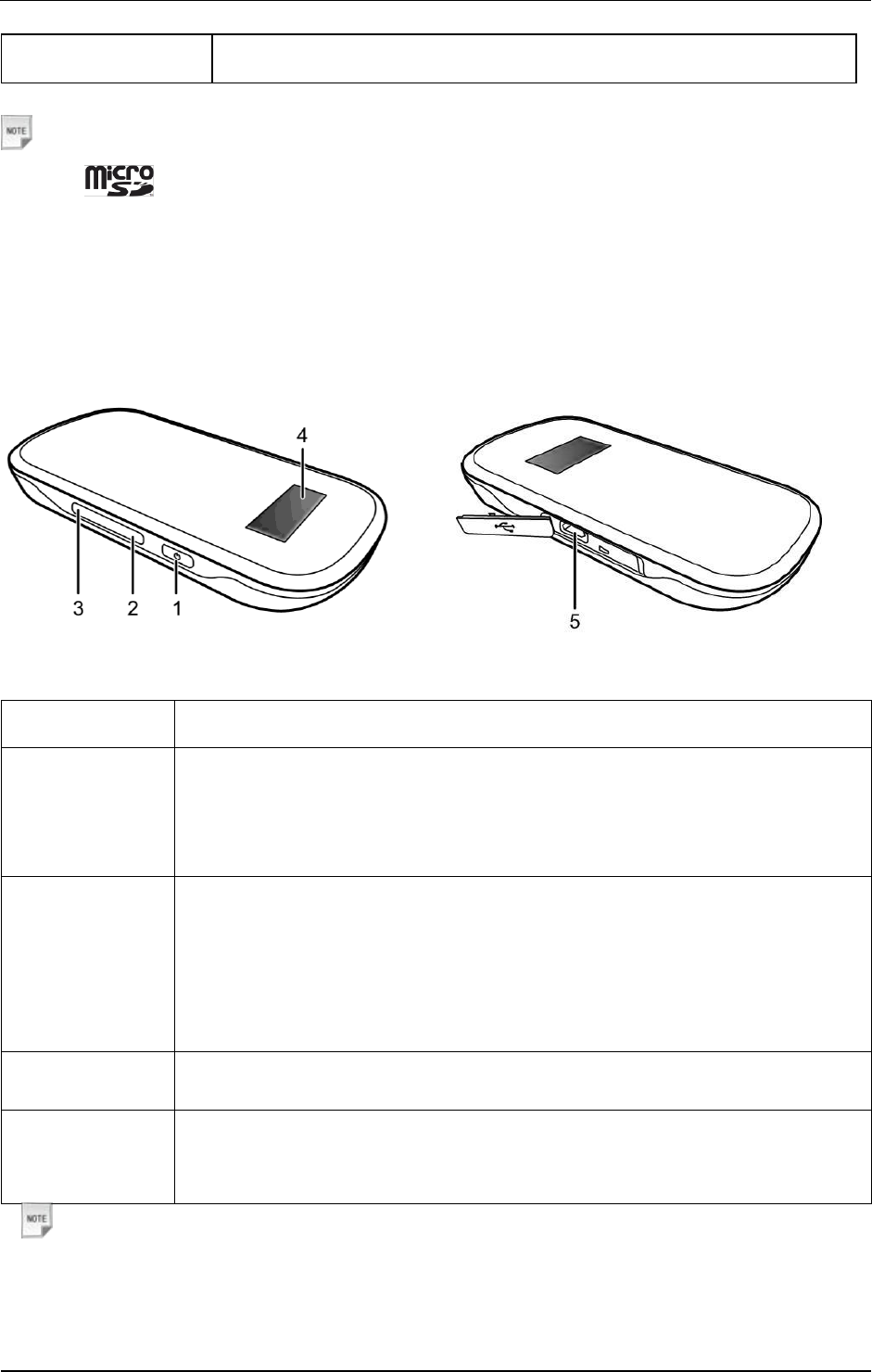

The following figure shows the appearance of the device. It is only for your reference. The actual device
may be different.
Interface and Buttons
1.Power
Hold the Power button to switch on/off the device.
2. Internet
Press to connect to or disconnect from the Internet.
Hold for about five seconds to change between manual and automatic
connection.
3.WPS
This button is used to start Wi-Fi Protected Setup authentication process and
enable/disable the Wi-Fi function.
Hold it for about five seconds to activate the WPS process.
Hold it for about two seconds to enable/disable Wi-Fi function.
4. LED Screen
It is to indicate the signal type, signal strength, battery, Wi-Fi, etc.
5.Charger/USB
port
Charge your device.
Connect the client to your device via USB cable.
Notes:
• Press WPS and Power buttons simultaneously, and hold on about three seconds until all LEDs are off,
then release the buttons, the device will restart automatically and restore to the factory default settings.
• Please use the original external antenna if necessary.
Confidential and Proprietary Information of ZTE CORPORATION 3
LED Indicator

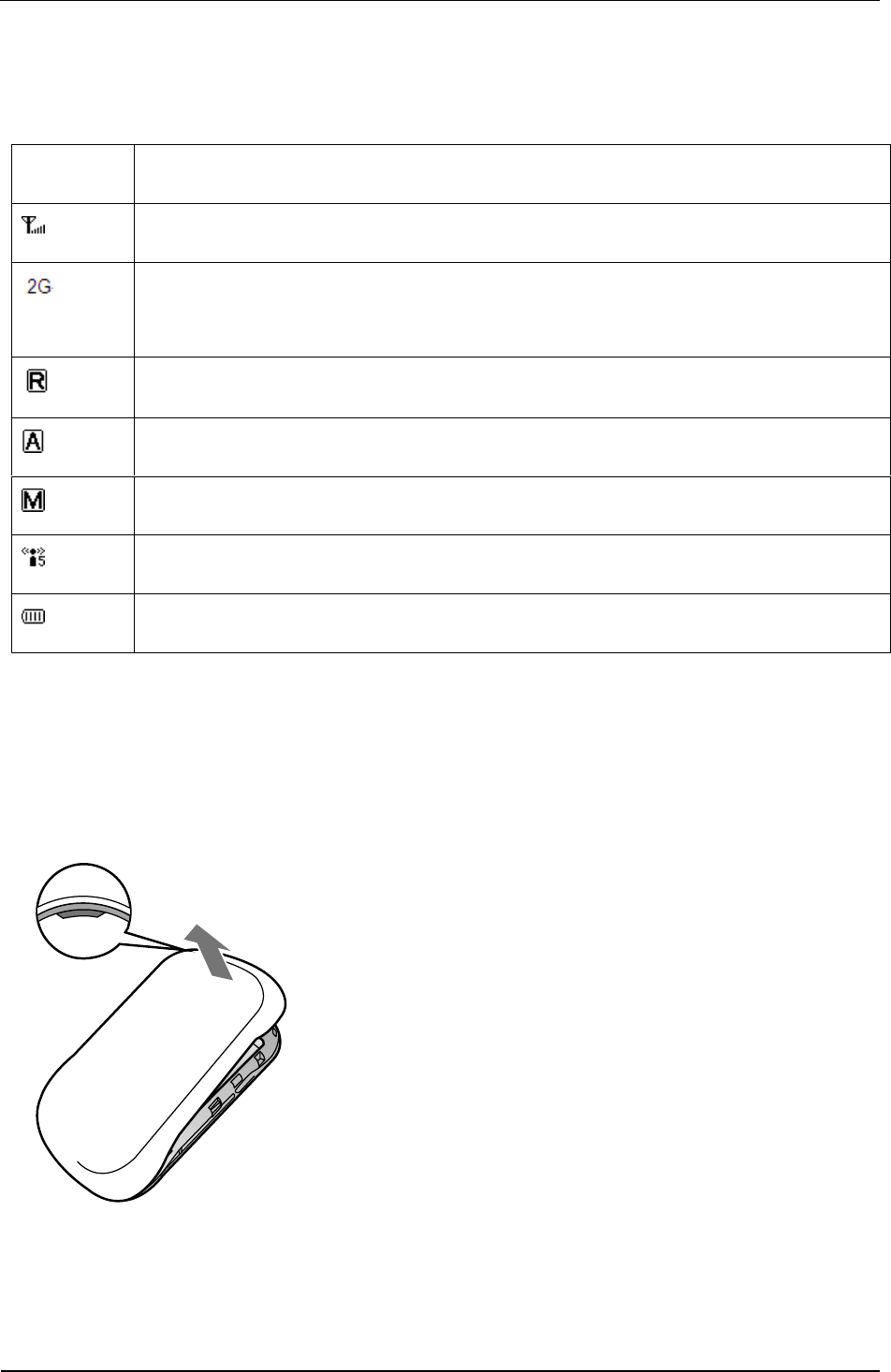

When the device is powered on, the following icons will appear on the OLED screen, with the
corresponding indications listed in the table below:
Icon
Indication
Network signal strength.
Network type. 2G or 3G icon will appear on the OLED screen according to the network
being connected.
Roaming network indication.
Connect to the Internet automatically.
Connect to the Internet manually.
Wi-Fi status and number of the connected users.
Battery power indication.
.
Hardware Installation
Inserting SIM Card, Memory Card and Battery

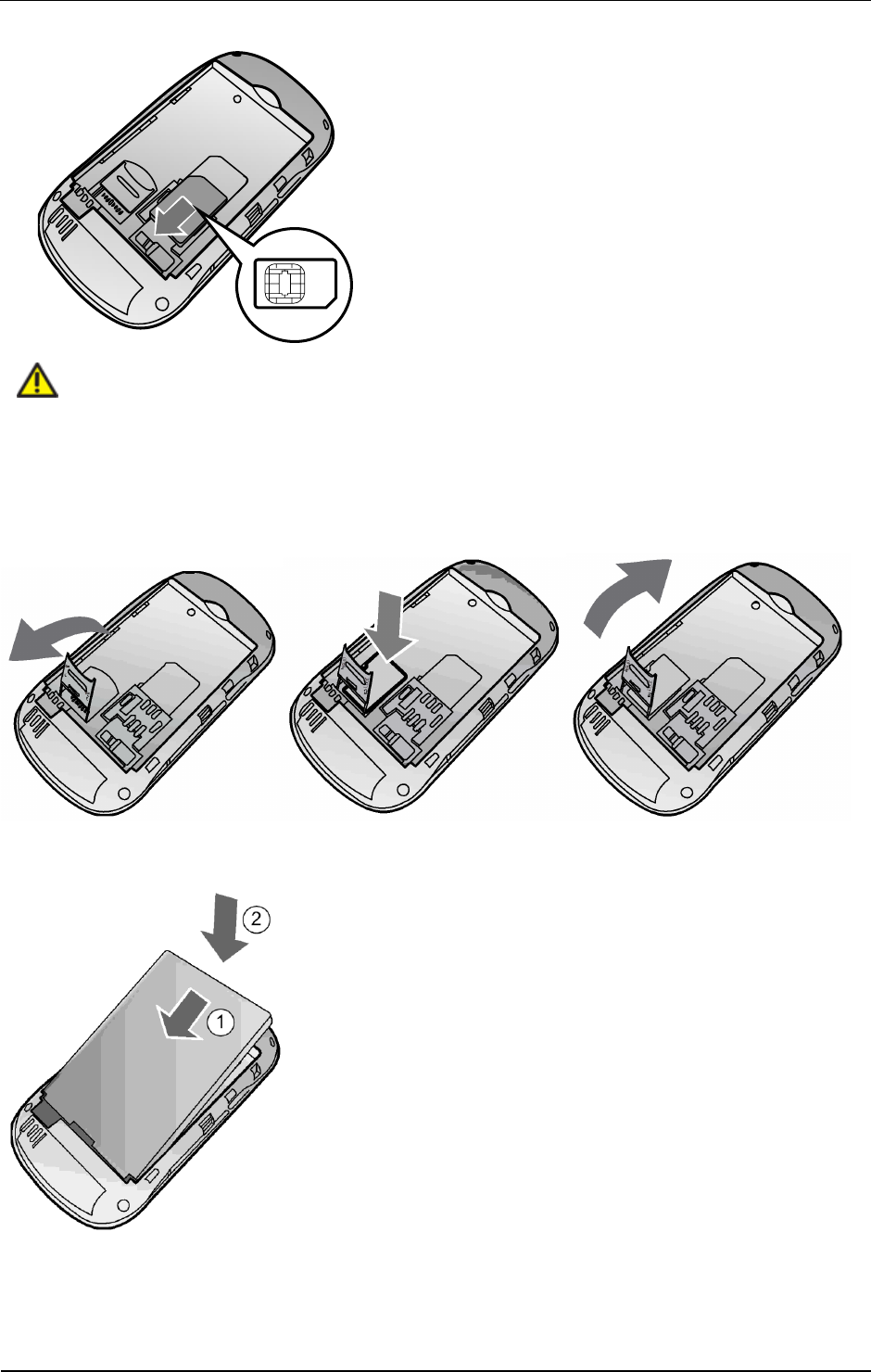

1. Use the thumb catch on the device to open the battery cover.
2. Insert SIM Card into the slot.
4 Confidential and Proprietary Information of ZTE CORPORATION
Warning:
Please power off the device and remove the external power adapter before removing or inserting the
SIM card, if not, the device or SIM card may be damaged.
3. Insert the memory card into the memory card holder.
4. Insert the battery as shown with the contacts located against the gold springs.
5. Line the battery cover up correctly and press gently to close the case.
Confidential and Proprietary Information of ZTE CORPORATION 5
Switching On/Off Your Device
Press and hold the Power button to switch on/off the device.
Notes:
Please install battery before power on.
Charging Your Device

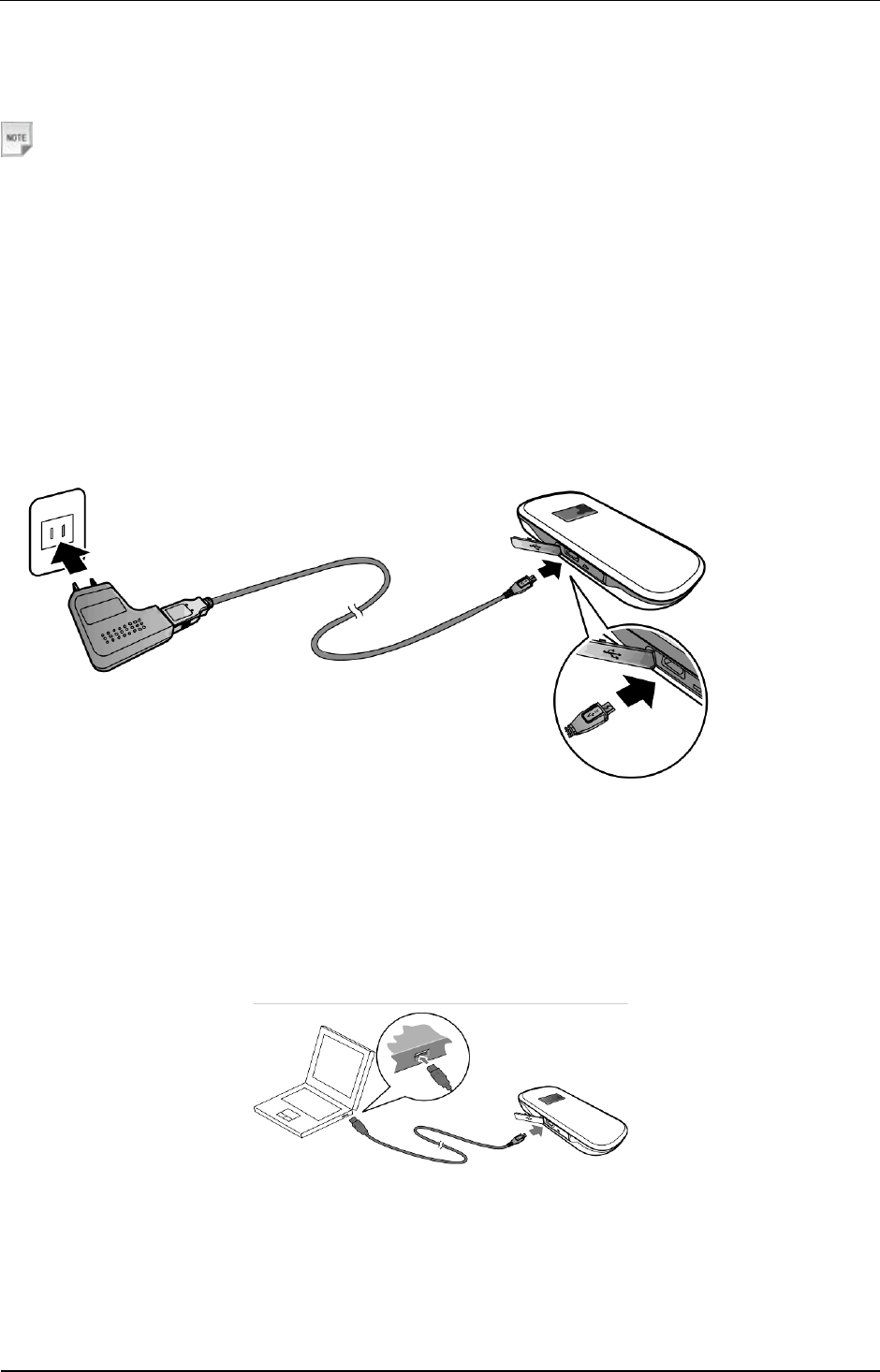

1. Insert the charger lead carefully with the correct orientation to the charger port.
The plug only fits one way. Do not use excessive force to insert the plug.
2. Connect the charger to a mains socket.
3. Disconnect when the battery is fully charged.
Working Mode
Your device supports three working modes. For the client, we only use PC or laptop as the example in this
document.
USB Mode: Connect the device to your PC or laptop via the included USB cable, then power on your
device. And the following picture is one application example:

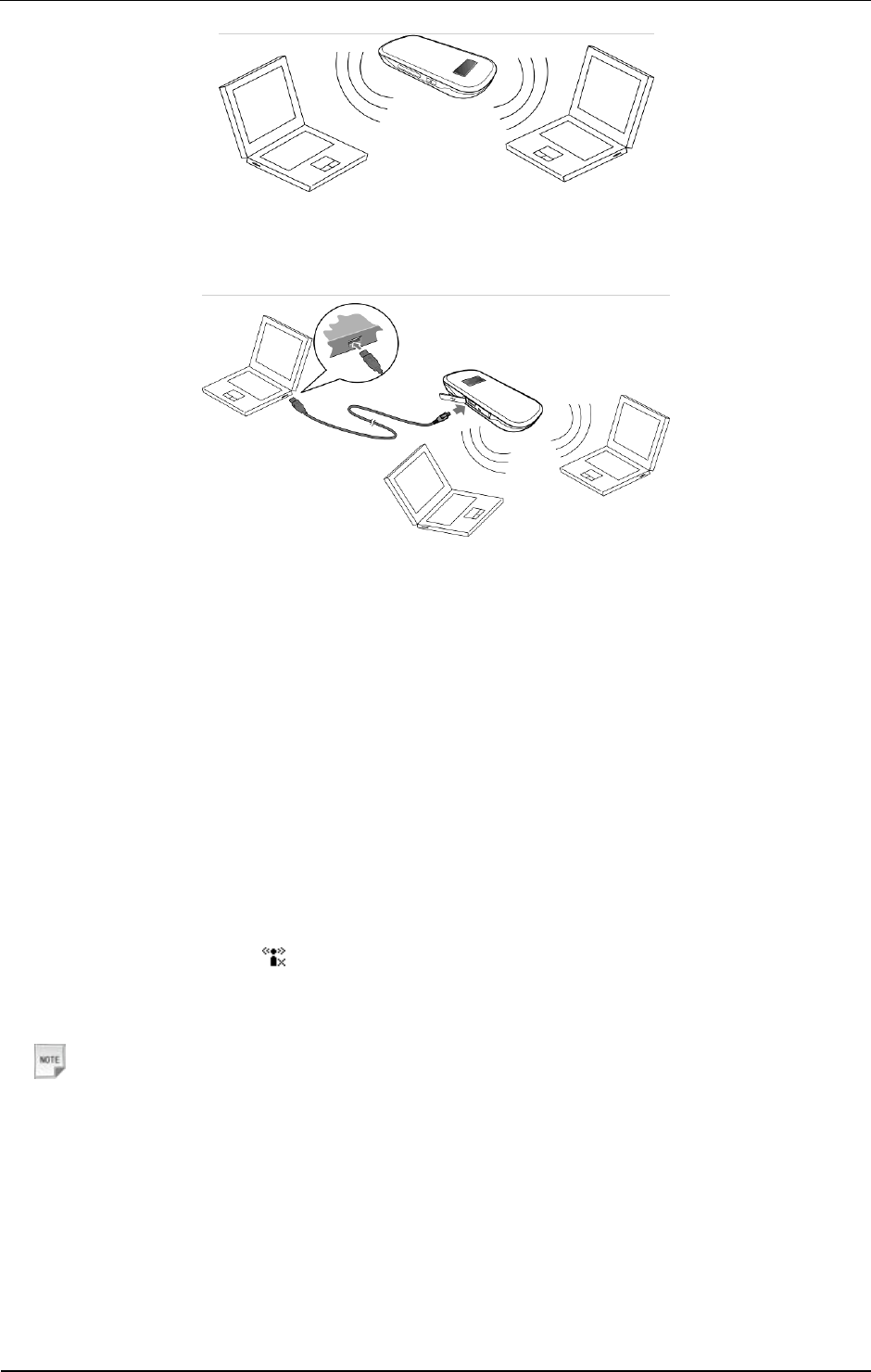

Wi-Fi Mode: Power on directly, and then connect the device to your PC or laptop via Wi-Fi. And the
following picture is one application example:
6 Confidential and Proprietary Information of ZTE CORPORATION
Mixed Mode: Connect to the device with the above two connection methods.
The following picture is the application example. All of the client devices can surf on the Internet at the
same time.
Establish a connection between your device and the client
Via USB Cable
1.Connect your device and the client with the USB cable.
2.Install software.
After the installation, the connection between your device and the client will be established successfully a
moment later.
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize, and then Wi-Fi status icon will
appear on the screen of your device.
2. If the Wi-Fi status shown is , hold the WPS key for about 2 seconds to enable the Wi-Fi function.

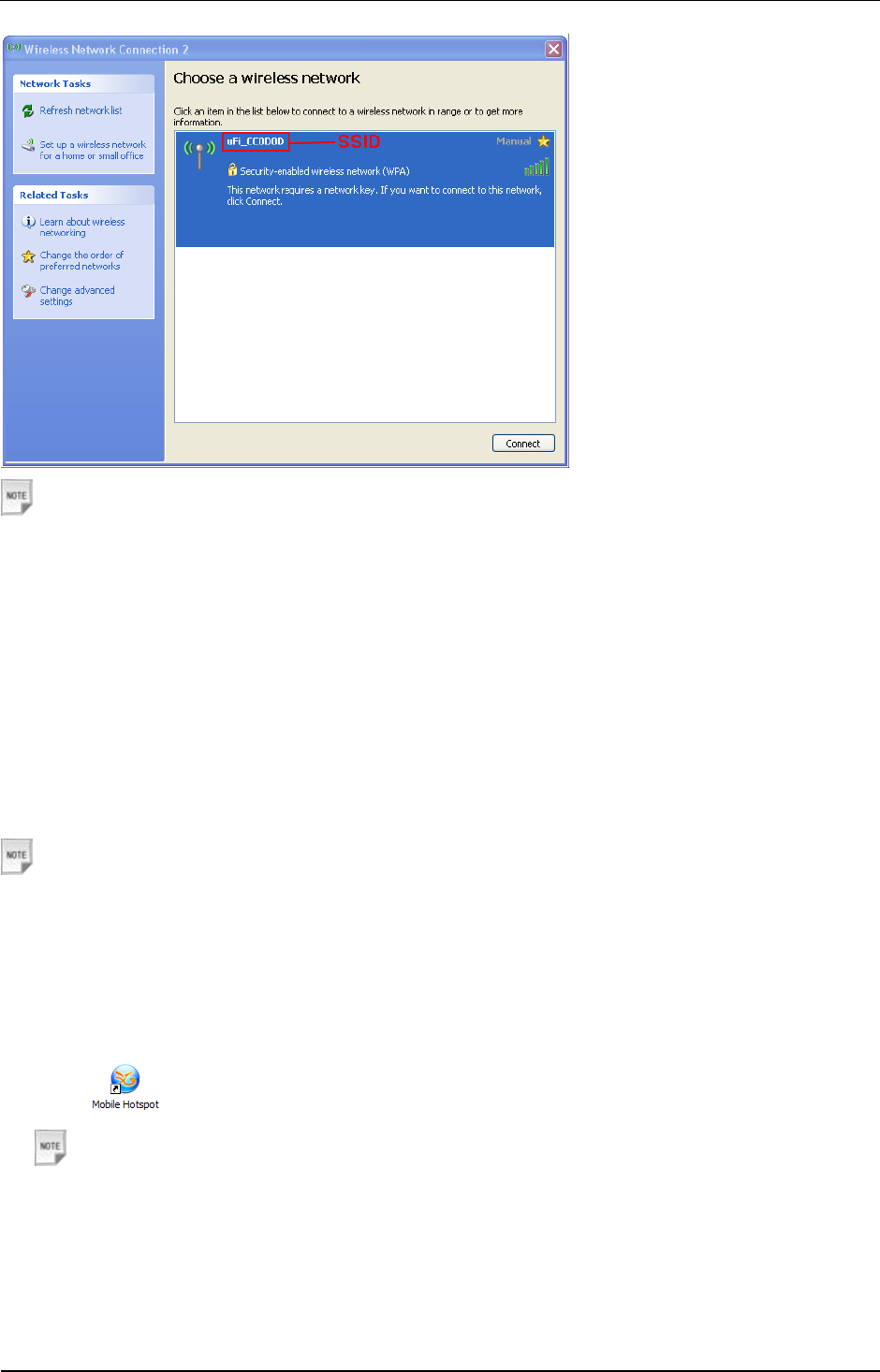

3. Use your normal Wi-Fi application on the client to search the available wireless network.
Notes: You need to check your Wireless Network Connection. Set the client to obtain an
IP address automatically in the Internet protocol (TCP/IP) properties, and the client will get
an IP address like”192.168.0.101”.
4. Select the SSID of your device, and then click Connect.
Confidential and Proprietary Information of ZTE CORPORATION 7
Notes:
There will be a pop-up window to require the password. Please check the label on the battery
compartment of your device to gain the SSID and preset password information.
5. Wait a moment, the connection between your device and the client will be established successfully.
Access the Internet
1. Switch on the device.
2. Establish a connection between your device and the client.
3. After successfully establishing the connection, access the Internet in the Always On or
Manual mode. The default mode is Manual.
Notes:
You can browse the WebGUI Configuration page and click WAN Connection to set the WAN connection
mode.
Access the WebGUI Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Click to Launch the internet browser.
Notes:
It is recommended that you use IE (6.0 or later), Firefox (1.0 or later), Opera (6.0 or later), Safari (3.0
or later), Chrome (6.0 or later)

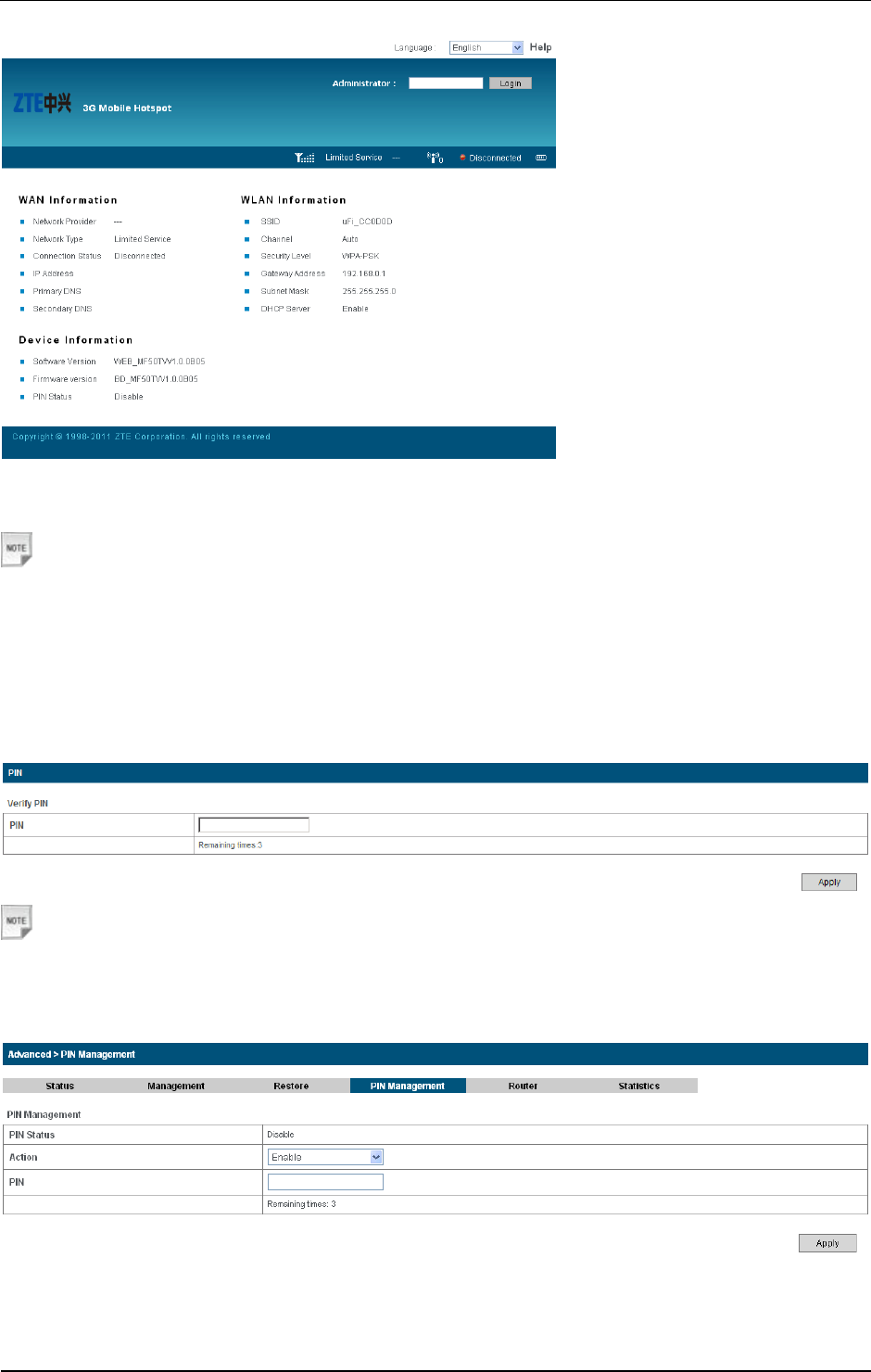

3.The login page appears as follows.
8 Confidential and Proprietary Information of ZTE CORPORATION
4.View the information of WAN, WLAN and Device. Input the case-sensitive default password
“admin”, and then click Login to access the WebGUI Configuration page.
Notes:
•Do not put anything on the top of your device. Do not lay devices to overlap each other when using.
•The device takes 1~2 minutes to initialize, and attach to the network.
PIN Code Verification
If the PIN code of your SIM card is enabled, you will need to input the PIN code when you login at the
first time.
Notes:
The SIM card will be locked if you enter wrong PIN code consecutively for three times.
If you want to modify the PIN Status, please select Settings > Advanced > PIN Manage to do the
actions.
Quick Setup

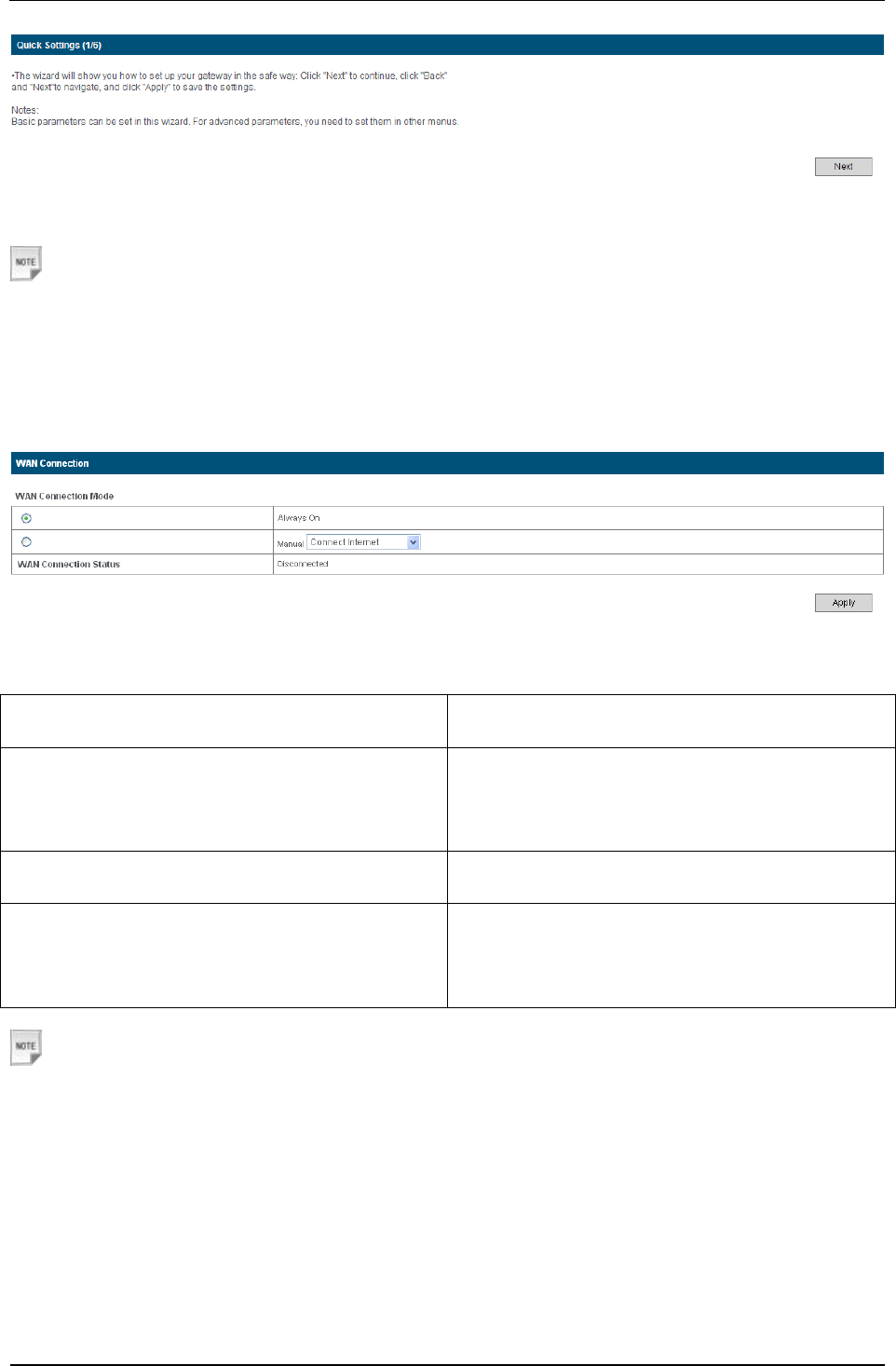

After logging in, select Quick Settings, and then the Quick Settings wizard appears.
Confidential and Proprietary Information of ZTE CORPORATION 9
The Quick Settings wizard guides you how to set the basic parameters for your device in the safest way.
After this procedure, you can use your Internet service.
Notes:
The parameter settings may have been preset by your service provider, and you will enjoy your Internet
service directly. Please contact your service provider for details if you want to do some modification.
WAN Connection
After logging in, select WAN Connection, and you can choose the WAN Connection Mode
according to your requirement.
Settings
After logging in, select Settings, and you can do the following operations.
Select Settings > 3G Settings
View the 3G Wireless Information, select Band
Selection Mode or change APN Setting.
Select Settings > Wi-Fi Settings
View the current station list, change the basic
wireless network settings, choose security
mode and WPA type, and perform the WPS
configuration.
Select Settings > Firewall
Set the Mac/IP/Port Filtering, Port Forwarding
or the System Security configuration.
Select Settings > Advanced
View the current status of your device, change
the Administrator Settings, restore factory
defaults, manage PIN or set the LAN interface
configuration.
Notes:
Make sure that you can remember the new password if you change the login password by
selecting Settings > Advanced > Management. Please restore the device to the factory default
settings in case you forget the new password.
Disconnect from the Internet

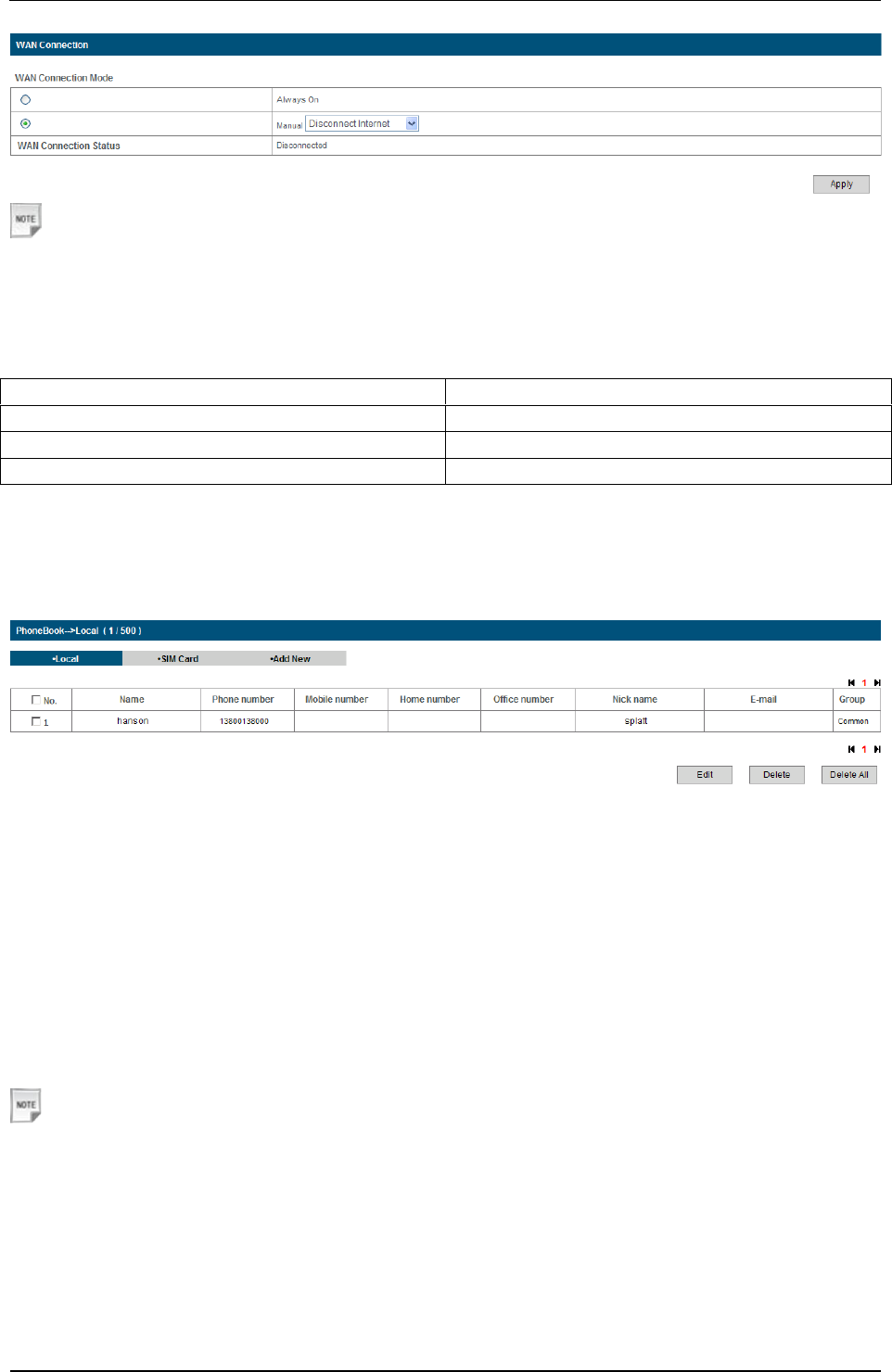

1.Log in the WebGUI Configuration page, and select WAN Connection.
2.Select Manual > Disconnect Internet.
3.Click Apply.
10 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
Turning off the device can also terminate the Internet connection.
SMS
This function allows you to view, send and receive short messages.
After logging in, select SMS, and you can do the following operations.
Select SMS > Device
Operate the SMS in your device.
Select SMS > SIM Card
Operate the SMS in your SIM card.
Select SMS > New Message
Send or save SMS.
Select SMS > SMS Settings
Set the SMS configuration.
PhoneBook
This function allows you to store contacts to your device or SIM card.
After logging in, select PhoneBook, and you can add a new contact by clicking the Add New tab,
and perform operations to the contacts in the Local or SIM Card tab.
Usage of WPS
If your client device supports WPS, you need not to input the password manually after WPS has
been available. Please do the following:
1. Start up your device.
2. Launch the client device connected to your device.
3. Enable the WPS function of your device.
4. Enable the WPS function of the client.
Notes:
For the detailed operations about the client, please refer to the client’s instruction.
Sleep Mode
• After powering your device on without USB connection, once no user connects to the device
within 10 minutes and no action is performed to the device, or the WPS button is pressed
manually, the device will enter the sleeping mode with the screen off. In the sleeping mode, the
Confidential and Proprietary Information of ZTE CORPORATION 11
Wi-Fi function will be disabled.
• With USB connection, once no user connects to the device within 10 minutes and no action is
performed to the device, or the WPS button is pressed manually, the Wi-Fi function will be
disabled, and then unplug the USB cable, the device will enter the sleeping mode.
In the sleeping mode, press any button or connect your device and PC with the USB cable to
wake up the device, and the screen will be turned on.
Warning and Notice
To the Owner
• Some electronic devices are susceptible to electromagnetic interference sent by your device if
inadequately shielded, such as the electronic system of vehicles. Please consult the manufacturer of your
device before using if necessary.
• Operating of laptop and desktop PCs and your device may interfere with medical devices like hearing
aids and pacemakers. Please always keep them more than 20 centimeters away from such medical
devices when they are turned on. Turn your device off if necessary. Consult a physician or the
manufacturer of the medical device before using your device.
• Be aware of the usage limitation when using your device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your device if
required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your device in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s performance.
• Store your device out of the reach of little children. Your device may cause injury if used as a toy.
• Do not touch the metallic parts of your device so as to avoid a burn, when your device is working.
Using Your Device
• Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your device’s performance, and violate related national regulations about telecom terminals.
• Avoid using your device near or inside metallic structures or establishments that can emit
electromagnetic waves. Otherwise it may influence signal reception.
• Your device is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use your device immediately after a sudden temperature change. In such case, it will produce dew
inside and outside your device, so don’t use it until it becomes dry.
• Handle your device carefully. Do not drop, bend or strike it. Otherwise your device will be damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of 0℃ ~ +35℃ and humidity range of 5% ~ 95% are recommended.
Using Battery
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from the device and store it in a cool dry place.
12 Confidential and Proprietary Information of ZTE CORPORATION
• Never use any charger or battery damaged or worn out.
• Return the wear-out battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
Warning:
If the battery is broken, keep away from it. If it taints your skin, wash your skin with abundant fresh water
and ask doctor help if necessary.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
Confidential and Proprietary Information of ZTE CORPORATION 13
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Radio Frequency (RF) Energy
This model device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the device transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the model device as reported to the FCC when worn on the body, as described
in this user guide, is 1.15 W/kg (Body-worn measurements differ among device models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device
is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: Q78-ZTEMF50.
Body Worn Operation
Important safety information regarding radio frequency radiation (RF) exposure:
To ensure compliance with RF exposure guidelines the phone must be used with a minimum of 10 mm
14 Confidential and Proprietary Information of ZTE CORPORATION
separation from the body.
Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline
limits.
Confidential and Proprietary Information of ZTE CORPORATION 15

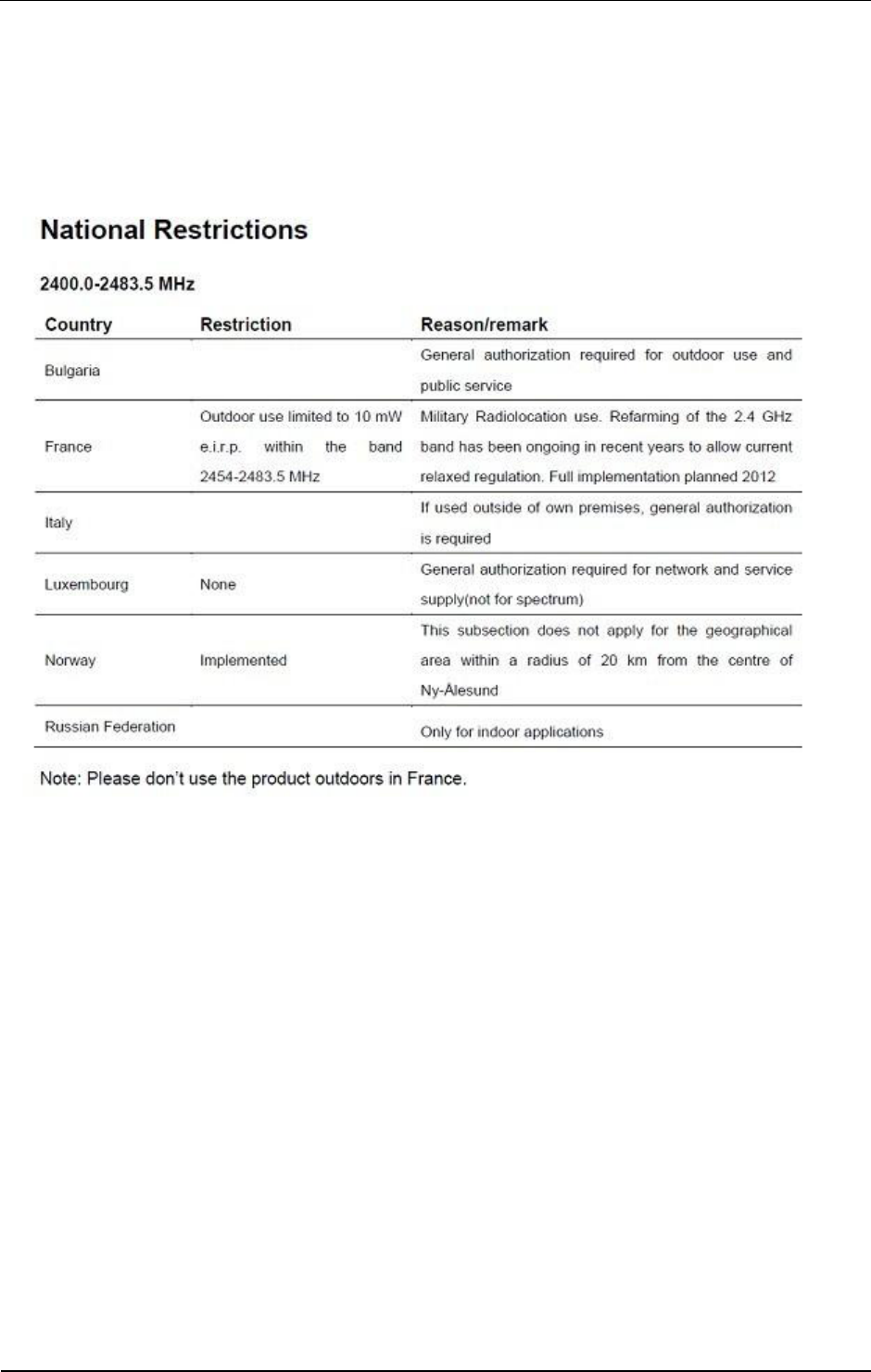

How to Get Help
You can get Help by:
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
