ZTE ZTEMF60 Wireless Access Terminal User Manual ZTE MF30
ZTE Corporation Wireless Access Terminal ZTE MF30
ZTE >
user_manual
Confidential and Proprietary Information of ZTE CORPORATION 1
ZTE MF60
3G Global Mobile Hotspot
User Manual
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
Confidential and Proprietary Information of ZTE CORPORATION 2
LEGAL INFORMATION
Copyright © 2010 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R
Edition Time :
Manual No. :
Confidential and Proprietary Information of ZTE CORPORATION 3
Contents
Getting Started ...................................................................................................................... 5
Device Appearance ........................................................................................................... 5
Indicators ........................................................................................................................... 6
Hardware Installation ........................................................................................................ 6
Inserting SIM Card and Battery .................................................................................... 6
Inserting microSD Card ................................................................................................ 7
Switching On/Off Your Device .................................................................................... 8
Charging Your Device .................................................................................................. 8
microSD Card ................................................................................................................... 9
About SIM Card ................................................................................................................ 9
Working Mode .................................................................................................................... 10
USB Mode....................................................................................................................... 10
Wi-Fi Mode ..................................................................................................................... 13
Mixed Mode .................................................................................................................... 14
Operation and Function ....................................................................................................... 15
Preparation ...................................................................................................................... 15
Establish a connection between your device and the client ............................................ 15
Access the Internet .......................................................................................................... 16
Access the WebGUI Configuration Page........................................................................ 16
Login ............................................................................................................................... 17
Quick Setup ..................................................................................................................... 19
Settings ............................................................................................................................ 21
3G Settings .................................................................................................................. 21
Wi-Fi Settings ............................................................................................................. 24
Firewall ....................................................................................................................... 27
Advanced .................................................................................................................... 30
Phonebook ....................................................................................................................... 33
Adding new contact .................................................................................................... 33
Confidential and Proprietary Information of ZTE CORPORATION 4
Operation in native ...................................................................................................... 33
Operation in SIM Card ................................................................................................ 34
SMS ................................................................................................................................. 34
Configing SMS ........................................................................................................... 34
Sending new SMS ....................................................................................................... 35
Operation in native ...................................................................................................... 35
Operation in SIM Card ................................................................................................ 36
WAN Connection ............................................................................................................ 36
Usage of WPS ................................................................................................................. 37
Logout ............................................................................................................................. 37
Disconnecting from the Internet ..................................................................................... 37
Sleep Mode ..................................................................................................................... 37
Warning and Notice ............................................................................................................ 39
To the Owner .................................................................................................................. 39
Using Your Device.......................................................................................................... 39
Using Battery .................................................................................................................. 40
Limited Warranty ............................................................................................................ 40
Limitation of Liability ..................................................................................................... 41
FCC Compliance ............................................................................................................. 41
Radio Frequency (RF) Energy ........................................................................................ 41
Troubleshooting .................................................................................................................. 43
Technical Parameters .......................................................................................................... 45
Glossary .............................................................................................................................. 47
Confidential and Proprietary Information of ZTE CORPORATION 5
C h a p t e r 1
Getting Started
ZTE MF60 is a 3G mobile hotspot device, working in EDGE/WCDMA/HSPA network. The client
devices can connect to the device via USB or Wi-Fi interface; the device supports data and SMS services,
enabling you to communicate anytime and anywhere.

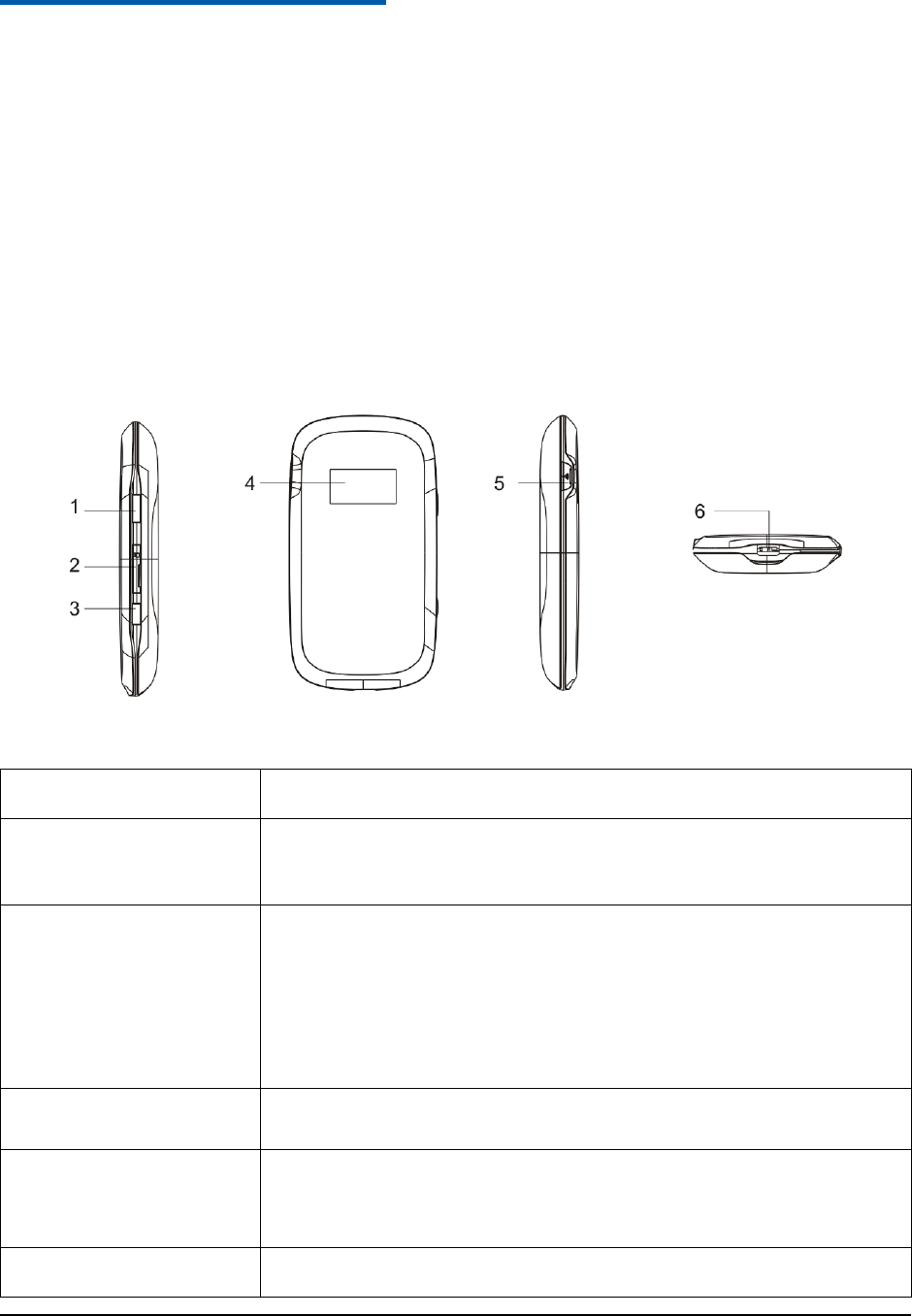

Device Appearance
The following figure shows the appearance of the device. It is only for your reference. The actual device
may be different.
Right Side Front Left Side Bottom
1.Power
Hold the Power button to switch on/off the device.
2.Memory card slot
(microSD card)
It is where you insert the memory card (microSD card).
3.WPS
This button is used to start Wi-Fi Protected Setup authentication process
and enable/disable the Wi-Fi function.
Hold it for three seconds to activate the WPS process.
Press it to enable/disable Wi-Fi function.
4. LED Screen
It is to indicate the signal type, signal strength, battery, Wi-Fi, etc.
5. External Antenna
Connector
It is used to connect an external antenna to enhance the signal strength.
6.Charger/USB port
Charge your device.
ZTE MF60 User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
Connect the client to your device via USB cable.
Notes:
• Press WPS and Power buttons simultaneously, and hold on about three seconds until all LEDs are off,
then release the buttons, the device will restart automatically and restore to the factory default settings.
• is a trademark of SD Card Association.

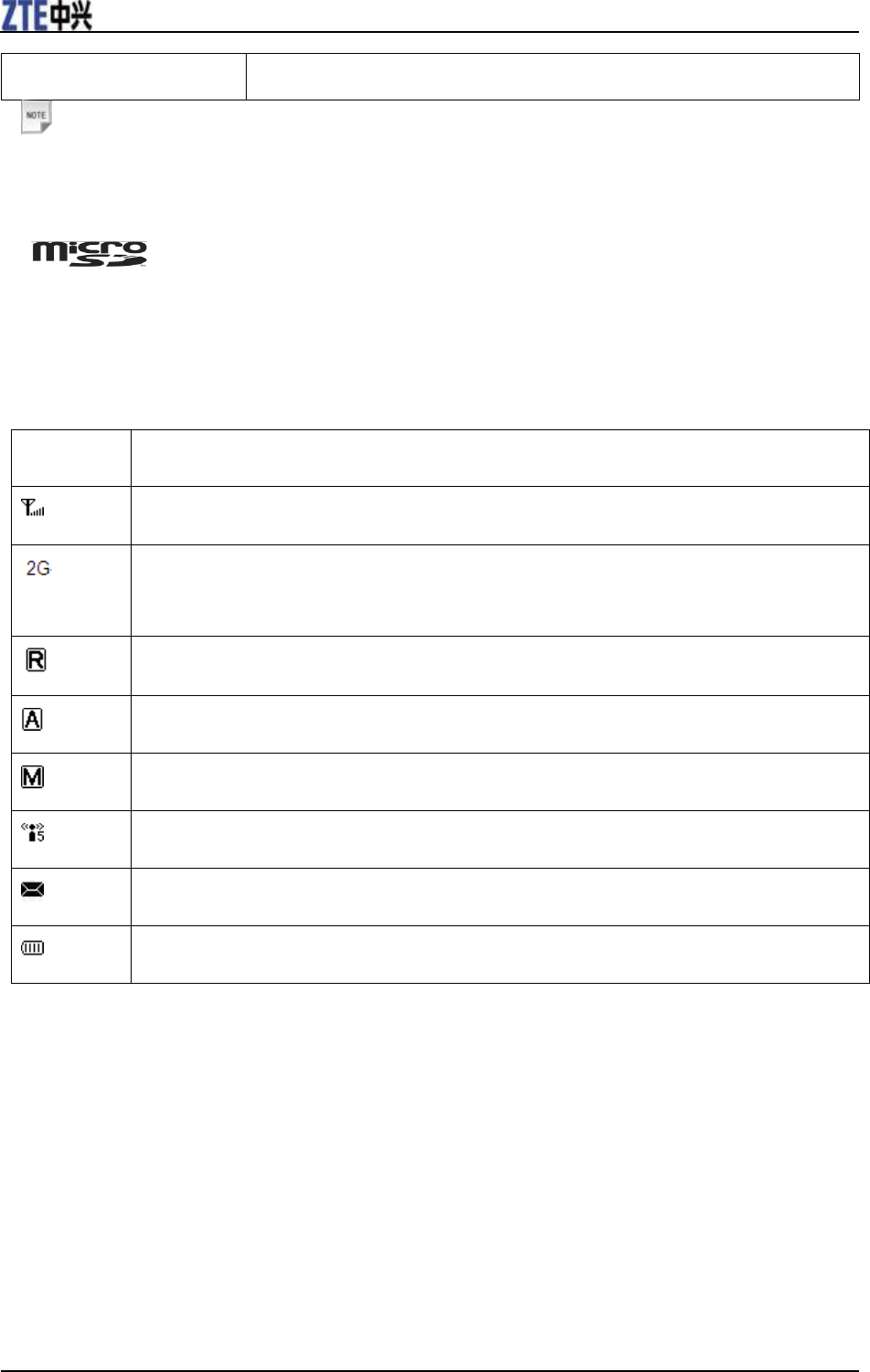

Indicators
When the device is powered on, the following icons will appear on the LED screen, with the
corresponding indications listed in the table below:
Icon
Indication
Network signal strength.
Network type. 2G or 3G icon will appear on the LED screen according to the network
being connected.
Roaming network indication.
Connect to the Internet automatically.
Connect to the Internet manually.
Wi-Fi status and number of the connected users.
New incoming message indication.
Battery power indication.
Hardware Installation
Inserting SIM Card and Battery

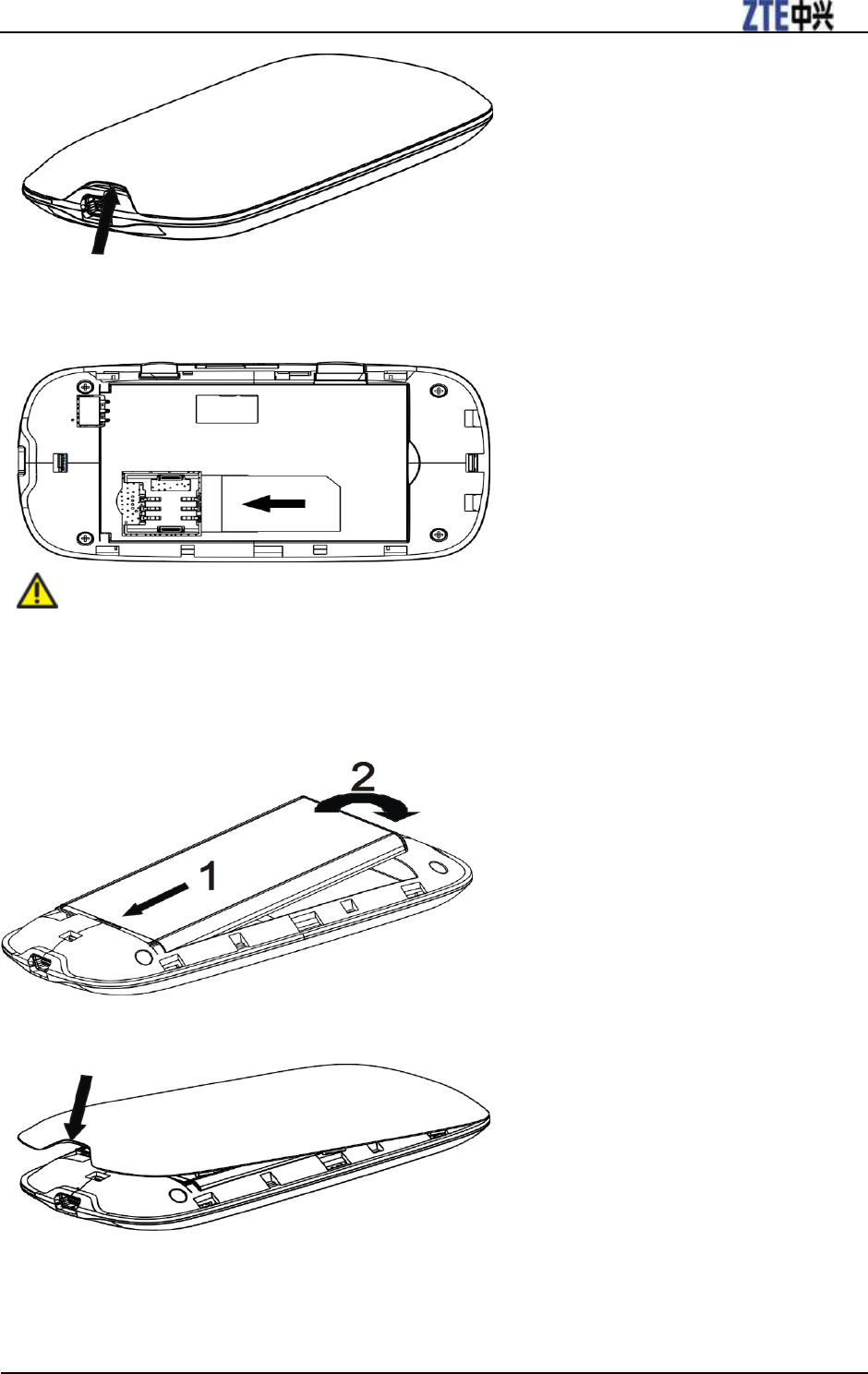

1. Use the thumb catch at the bottom of the device to open the battery cover.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
2. Insert SIM Card into the slot.
Warning:
Please power off the device and remove the external power adapter before removing or inserting the
SIM card, if not, the device or SIM card may be damaged.
3. Insert the battery as shown with the contacts located against the gold springs.
4. Line the battery cover up correctly and press gently to close the case.
Inserting microSD Card

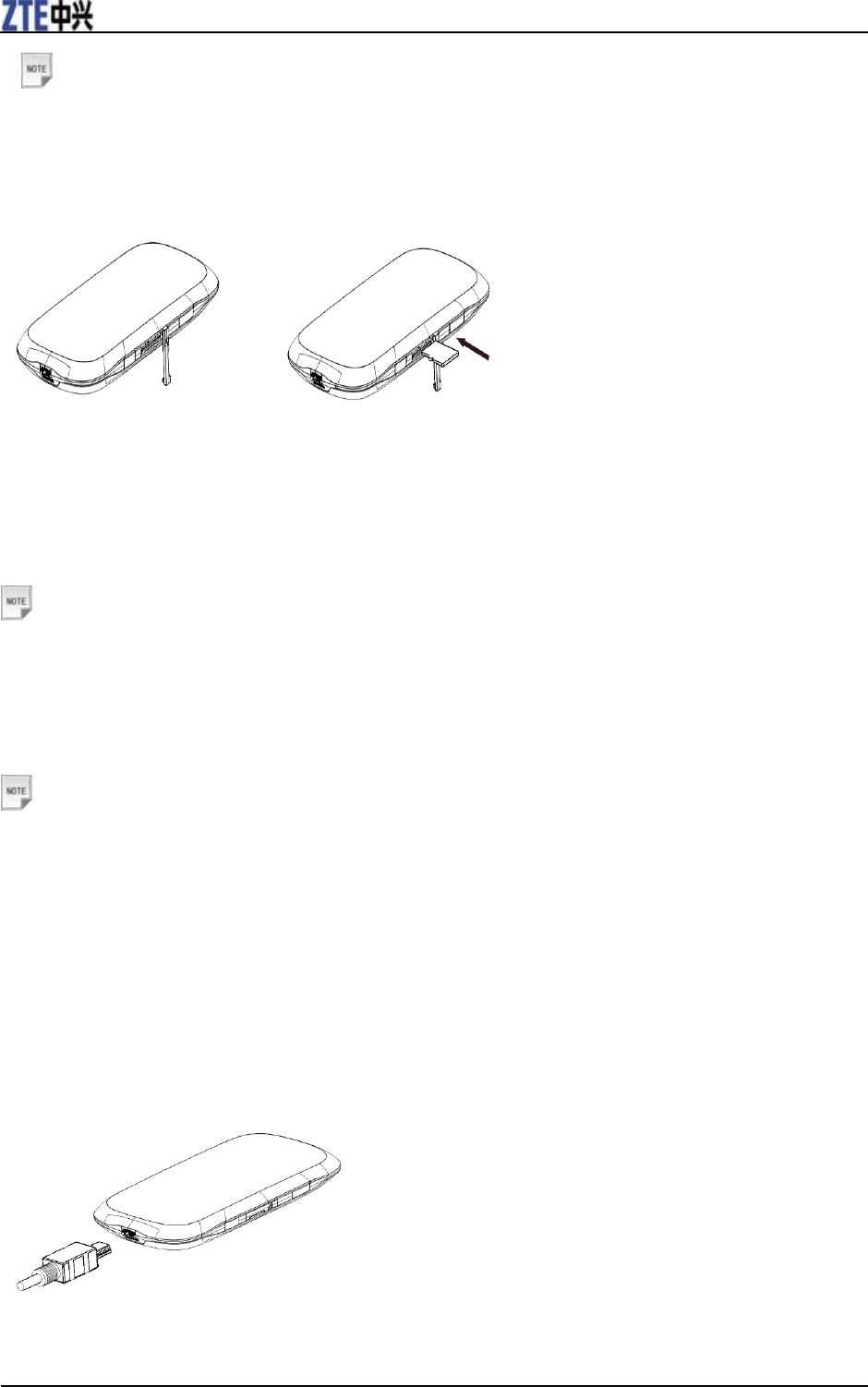

1. Pull the microSD cover out of the card slot.
ZTE MF60 User Manual
8 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
Do not pull the cover rudely, as it is connected with the device.
2. Insert the microSD card into the microSD slot. The following picture shows the correct inserting
direction. You will hear a click when the microSD card locks in place.
3. Close the microSD cover.
Switching On/Off Your Device
Press and hold the Power button to switch on/off the device.
Notes:
• Please install battery before power on.
• The device is powered on when the signal strength indication lights up.
Charging Your Device
Notes:
• Charge at least 4 hours to ensure a full initial charge.
• Charging is only possible within a temperature range of 0℃ to 45℃.
• You can charge your device by using USB cable or adapter.
1. Insert the charger lead carefully with the plug arrow facing the bottom of the device.
2. The plug only fits one way. Do not use excessive force to insert the plug.
3. Check the plug is the right way round and lined up correctly and insert it gently.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9
microSD Card
Using microSD Card
1. Insert the microSD card into the device.
2. Connect the microSD with PC or laptop via provided USB cable, and the system will display it as a
removable disk.
3. Use it freely.
Uninstall microSD Card
1. Left click the icon in the Windows system tray bar. Then a menu will popup and indicate the USB
devices list as below:
2. Select Safely remove the USB disk which is relevant to the device.
3. Remove the device directly.
About SIM Card
Avoid handling the SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep
the SIM card away from electrical and magnetic appliances.
If you cannot get service, make sure that：
• You are in an area which has network coverage.
• You are using the correct SIM card.
Confidential and Proprietary Information of ZTE CORPORATION 10
C h a p t e r 2
Working Mode
The following picture is the application example. Use the USB cable to connect your PC or
laptop which cannot provide wireless network function, and connect other laptops with device
via Wi-Fi, so all of them can surf on the Internet at the same time.
Your device supports three working modes: USB mode, Wi-Fi mode, and Mixed mode. For the client, we
only use PC or laptop as the example in this document.

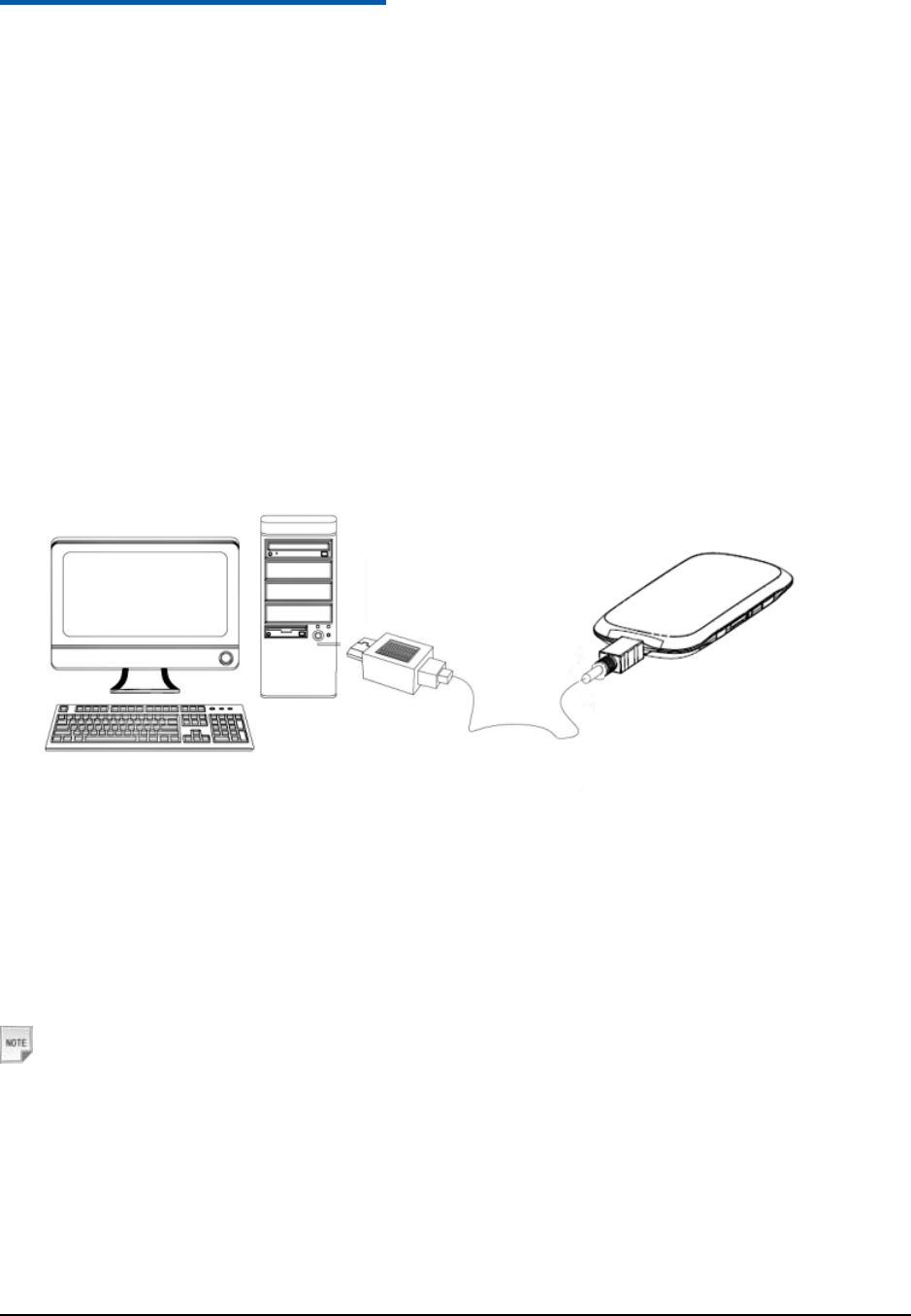

USB Mode
Connect the device to your PC or laptop via the included USB cable, then power on your device. And the
following picture is one application example:
Installing Software
When you connect your device to PC or laptop for the first time, the system will automatically detect and
recognize the new hardware and display the new icon in the desktop status bar, indicating that the PC or
laptop and the USB device have been connected properly. After a few seconds, there will show the
following installation interface if the laptop and desktop PC supports automatic installation.
Notes:
If the system does not launch installation automatically, you can run the installation program in path of
My Computer > Portable Hotspot > Setup.exe.

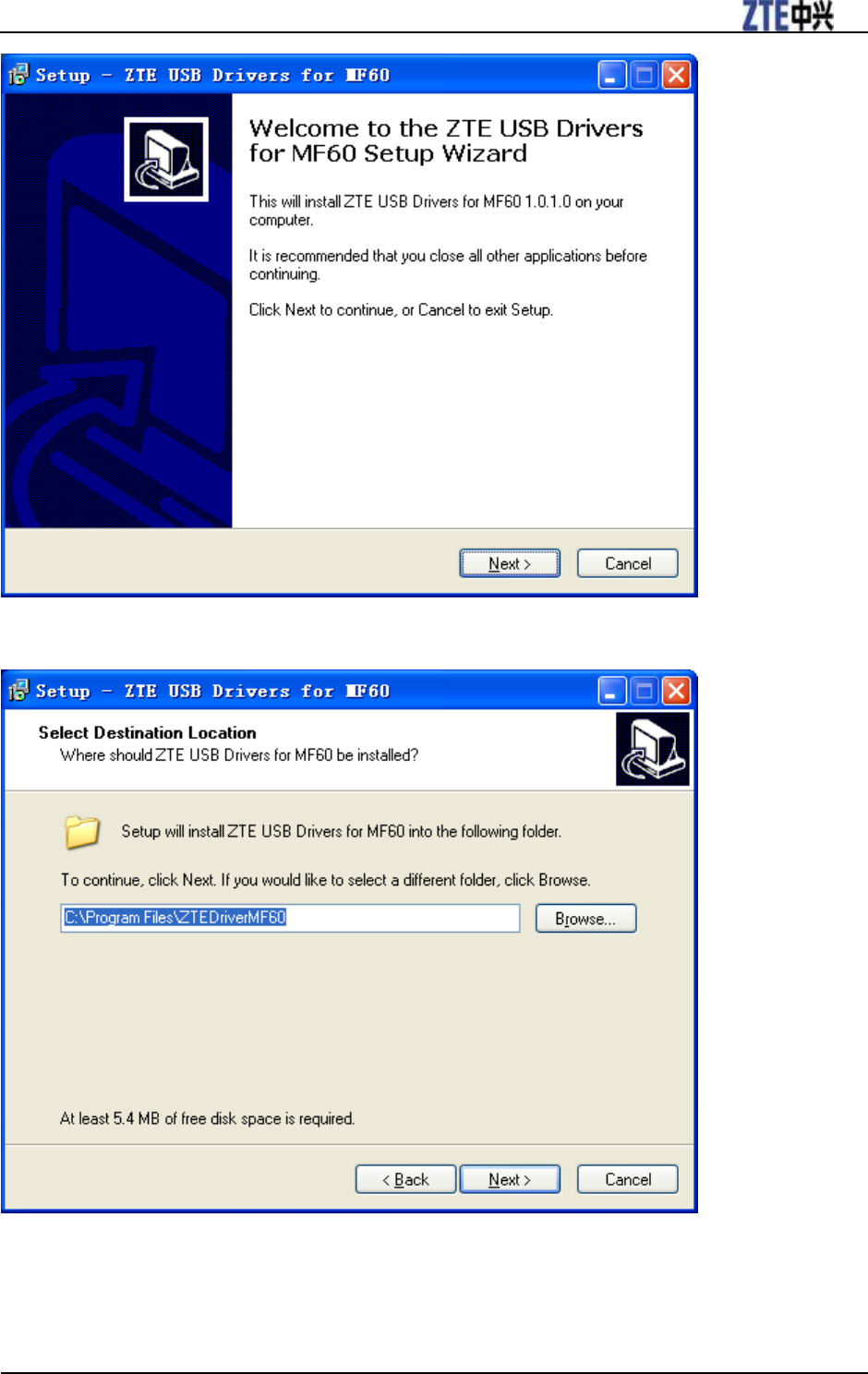

The following installation interface will show how to start installation. And the first screen you see as
following:
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
Strongly recommend you to exit Windows programs, and click Next,
Select the folder that you want to install the software, and you can select a different path by pressing
Change, and then click Next.
ZTE MF60 User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION

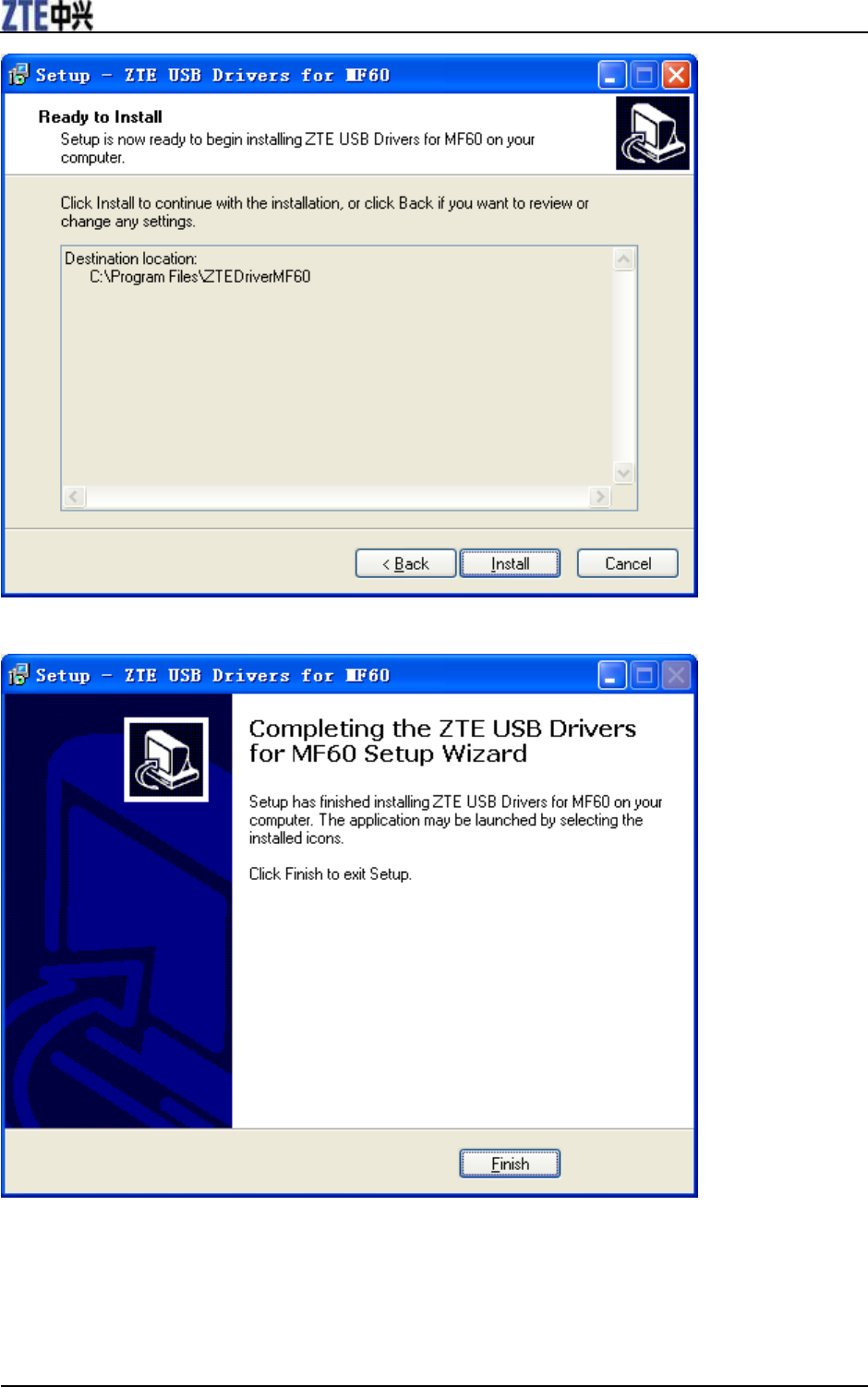

Click Install.
Click Finish to complete the installation.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 13

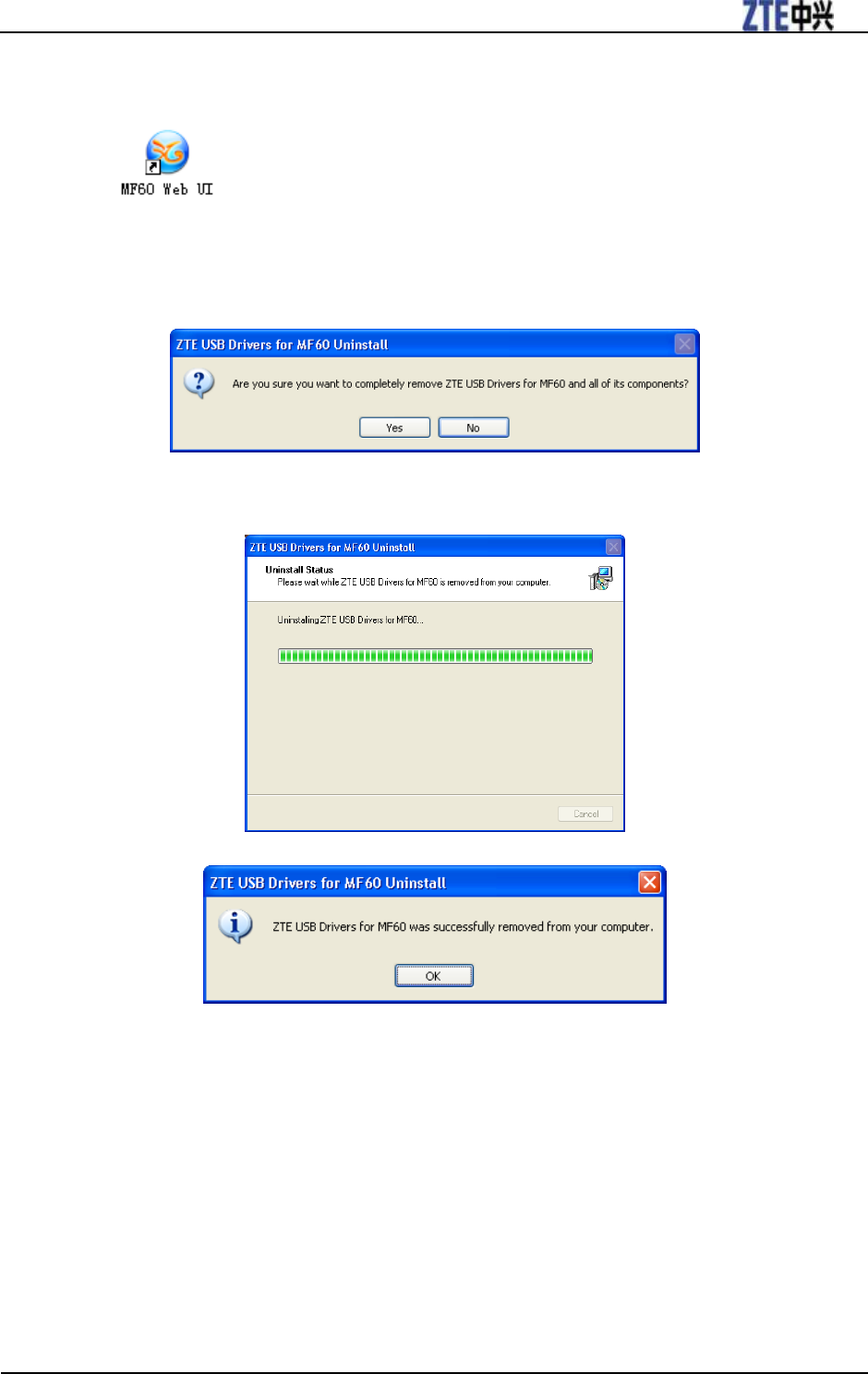

After the installation, select Start > Programs and there will be a ZTE USB Drivers for MF60 program
group，which includes MF60 Web UI and Uninstall ZTE USB Drivers for MF60. There will be a
shortcut icon on the desktop.
Uninstalling Software
Select Start > Programs > ZTE USB Drivers for MF60 > Uninstall ZTE USB Drivers for MF60
menu on the laptop or desktop PC.
Click Yes to confirm uninstall the software. Then the system begins to uninstall programs, and this
interface will indicate the progress of uninstall.
Click OK to complete the application software uninstall.

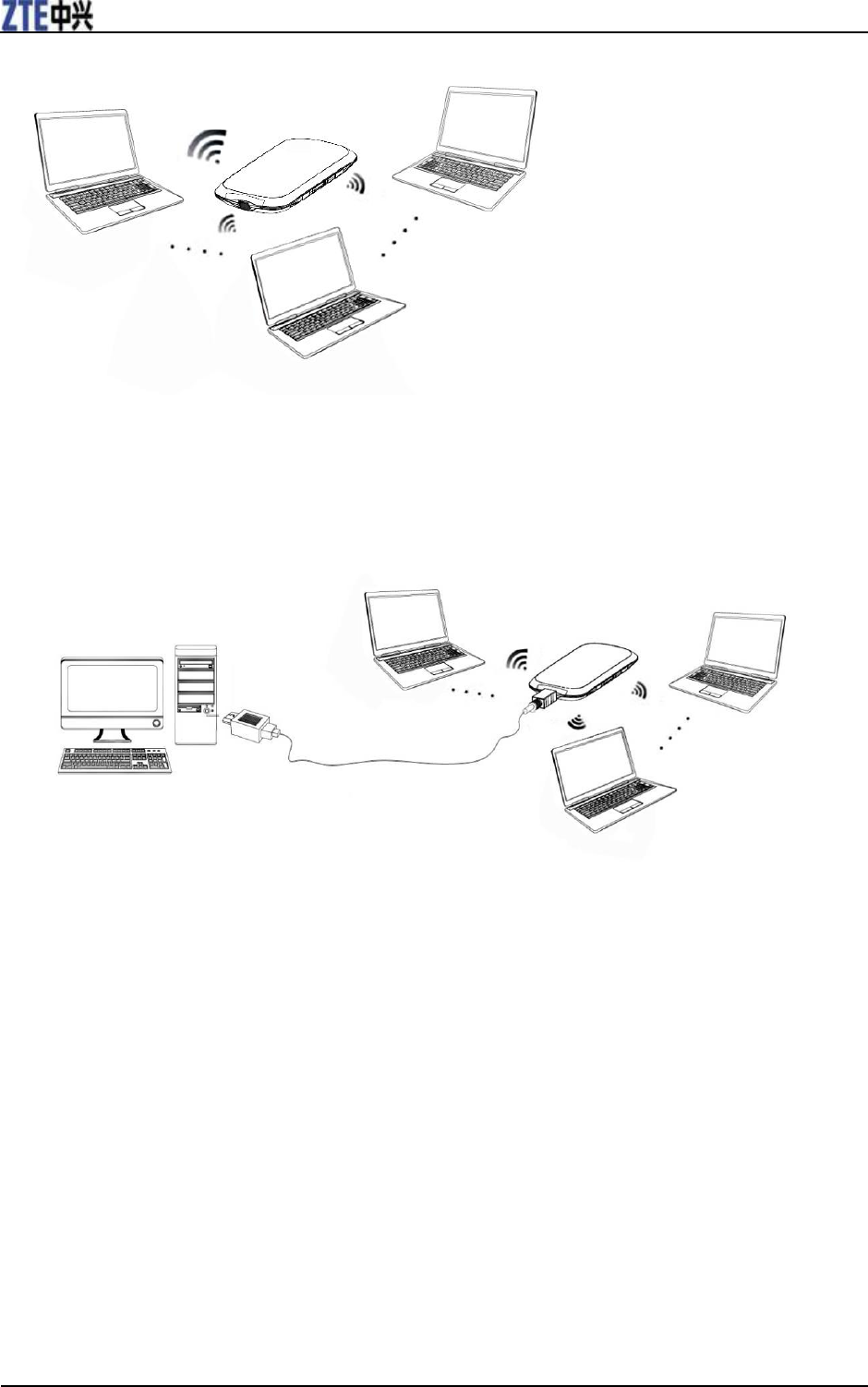

Wi-Fi Mode
Power on directly, and then connect the device to your PC or laptop via Wi-Fi. And the following picture
is one application example:
ZTE MF60 User Manual
14 Confidential and Proprietary Information of ZTE CORPORATION
Mixed Mode
Use the both connection methods to connect your PC or laptop. And the following picture is one
application example:
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 15
C h a p t e r 3
Operation and Function
Preparation
Before using the data service, make sure:
• SIM card is inserted.
• All LED Indicators are working normally.
Establish a connection between your device and the client
Via USB Cable
1.Connect your device and the client with the USB cable.
2.Power on your device.
3.Install software.
After the installation, the connection between your device and the client will be established successfully a
moment later.
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize, and then Wi-Fi LED icon will be
indicated on the LED screen of your device.
2. Use your normal Wi-Fi application on the client to search the available wireless network.
Notes: You need to check your Wireless Network Connection. Set the client to obtain an
IP address automatically in the Internet protocol (TCP/IP) properties, and the client will get
an IP address like‖192.168.0.101‖.

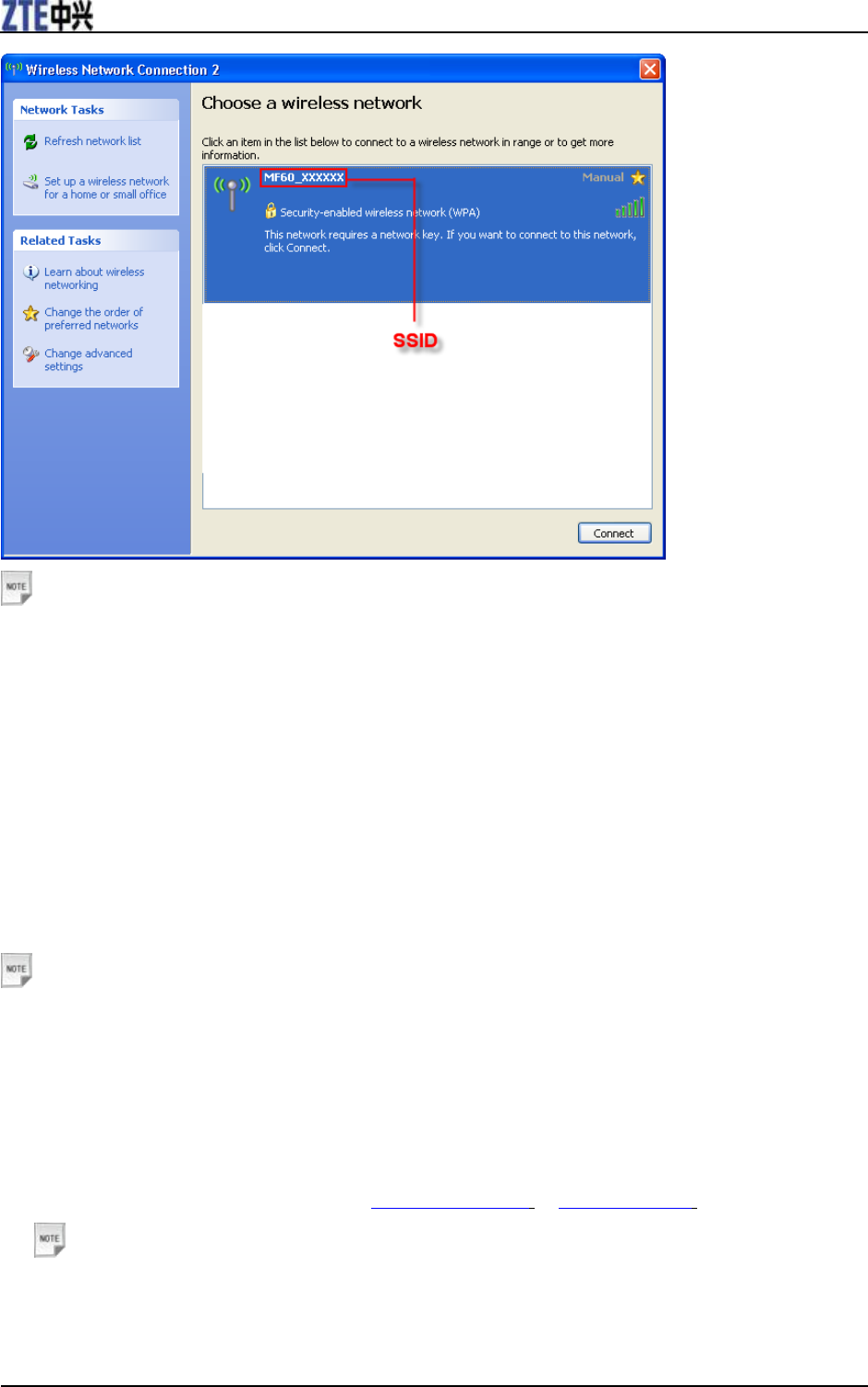

3. Select the SSID of your device, and then click Connect.
ZTE MF60 User Manual
16 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
There will be a pop-up window to require the password. Please check the label on the battery
compartment of your device to gain the SSID and preset password information.
4. Wait a moment, the connection between your device and the client will be established successfully.
Access the Internet
1. Switch on the device.
2. Establish a connection between your device and the client.
3. After successfully establishing the connection, access the Internet in the Always On or
Manual mode. The default mode is Manual.
Notes:
You can browse the WebGUI Configuration page and click WAN Connection to set the WAN connection
mode.
Access the WebGUI Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the internet browser and enter http://192.168.0.1 or http://ufi.home in the address bar.
Notes:
It is recommended that you use IE (6.0 or later), Firefox (1.0 or later), Opera (6.0 or later), Safari (3.0
or later), Chrome (6.0 or later)

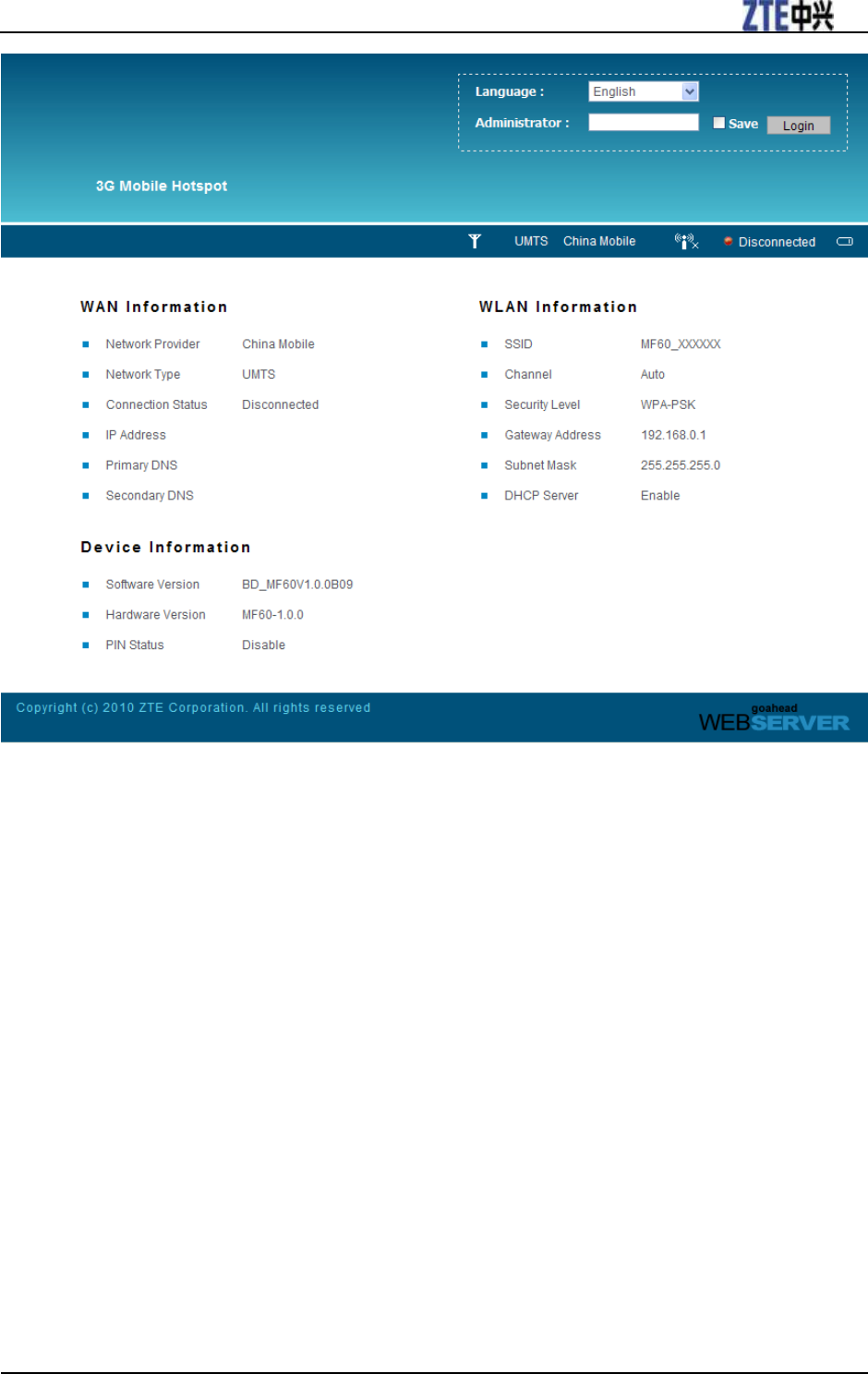

3.The login page appears as follows.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 17
Login

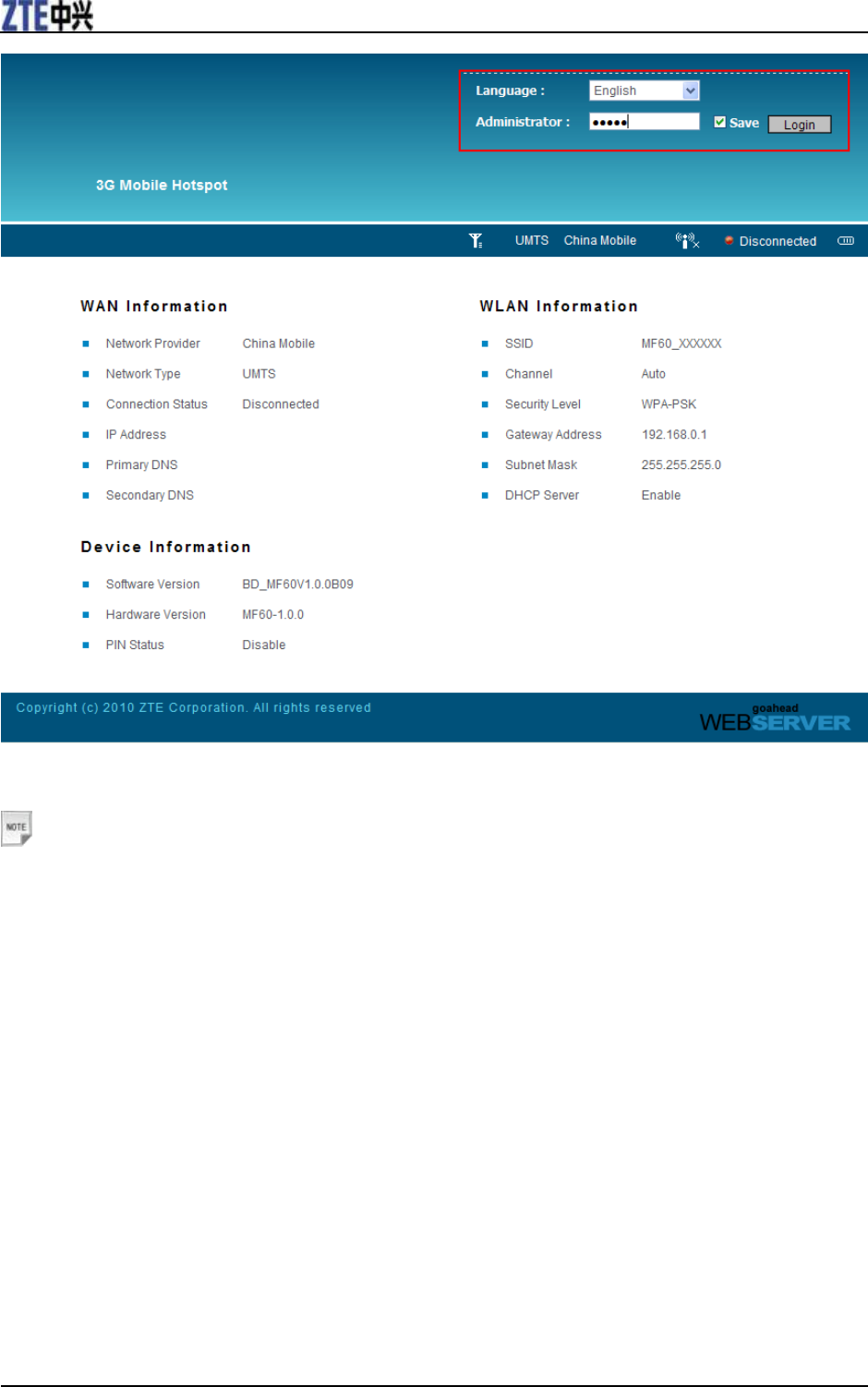

In the WebGUI Configuration page, select the desired language and input the password (the default
Password is admin).
ZTE MF60 User Manual
18 Confidential and Proprietary Information of ZTE CORPORATION
Click Login to log in the device.
Notes:
If you check Save after type in password, the device will save it. Next time when you want to login the
device with the same password, what you need to do is click Login.

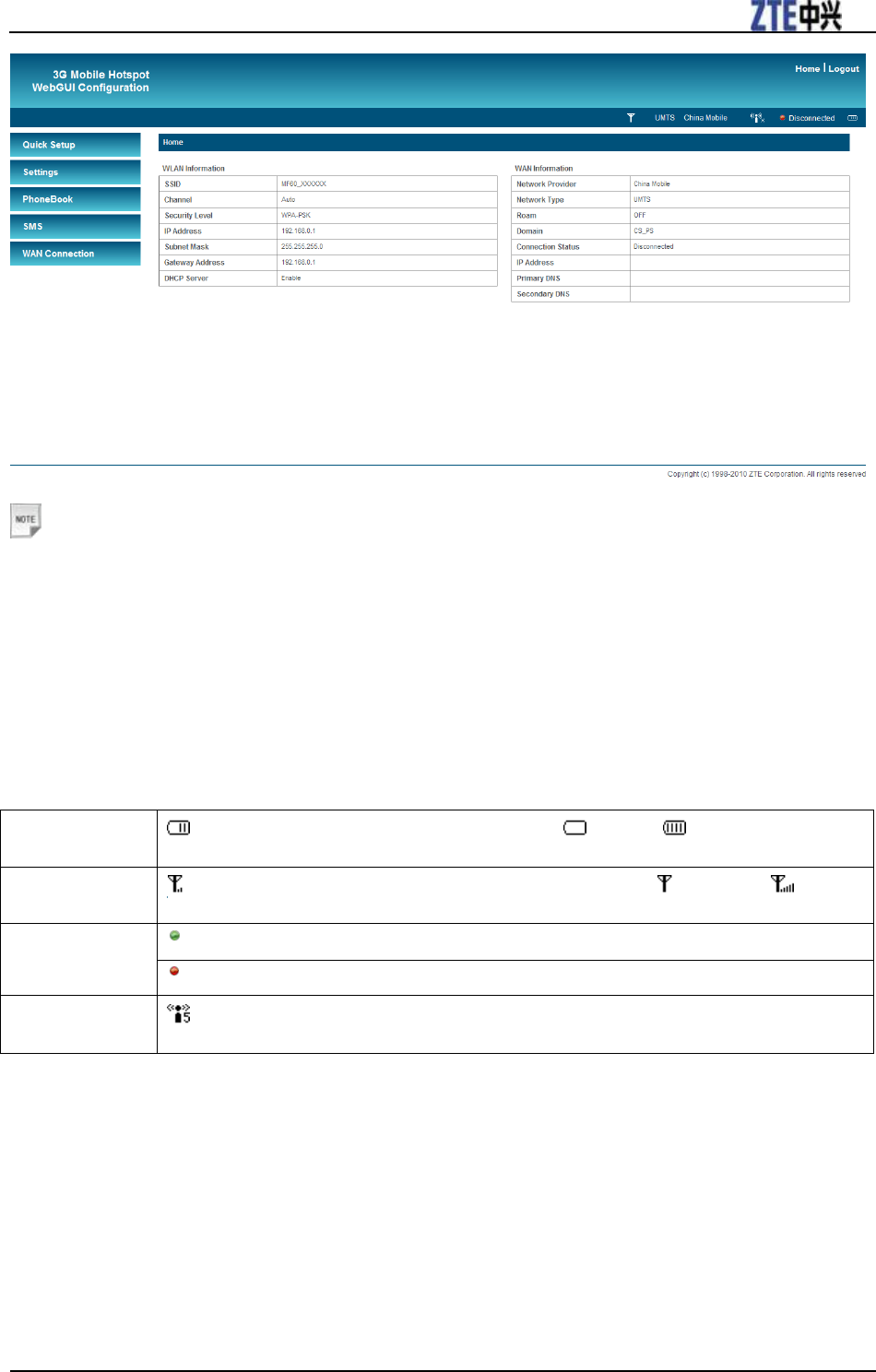

When you login, the following interface appears.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 19
Notes:
In any situation click Home to switch to this interface.
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
• Index area: Show the configuration list for your device.
• Content area: Show the detail configuration.
• System Information Area: Show the system status and different kinds of tip.
Battery indicator
: Shows the battery level, 4 stages from none to high .
Signal strength
: Shows the network signal intensity, 5 stages from none to strong .
Internet Status
: Connect Internet.
: Disconnect Internet.
Wi-Fi Strength
: Wi-Fi status and number of the connected users. And the maximum number is 10.

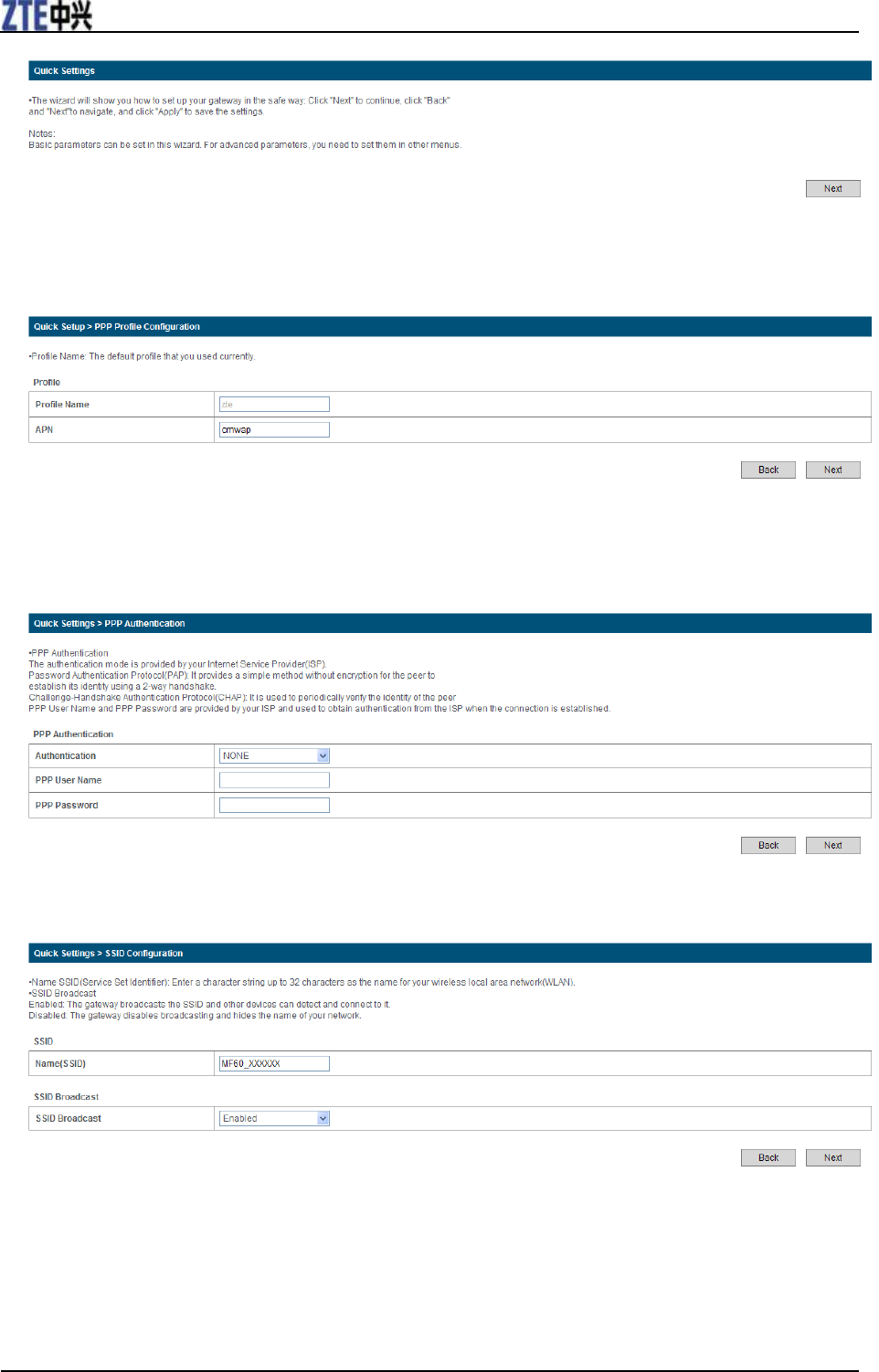

Quick Setup
1. In the main interface click Quick Setup.
2. Read the guide carefully, and then click Next.
ZTE MF60 User Manual
20 Confidential and Proprietary Information of ZTE CORPORATION
3. Set PPP Profile Configuration in the following figure:
Type the APN string.
4. Set PPP Authentication in the following figure:
5. Set SSID Configuration in the following figure:
Service Set Identifier (SSID) is used to uniquely identify your WLAN. If you enable SSID Broadcast,
the gateway will broadcast the SSID, and other devices can detect and connect to it.

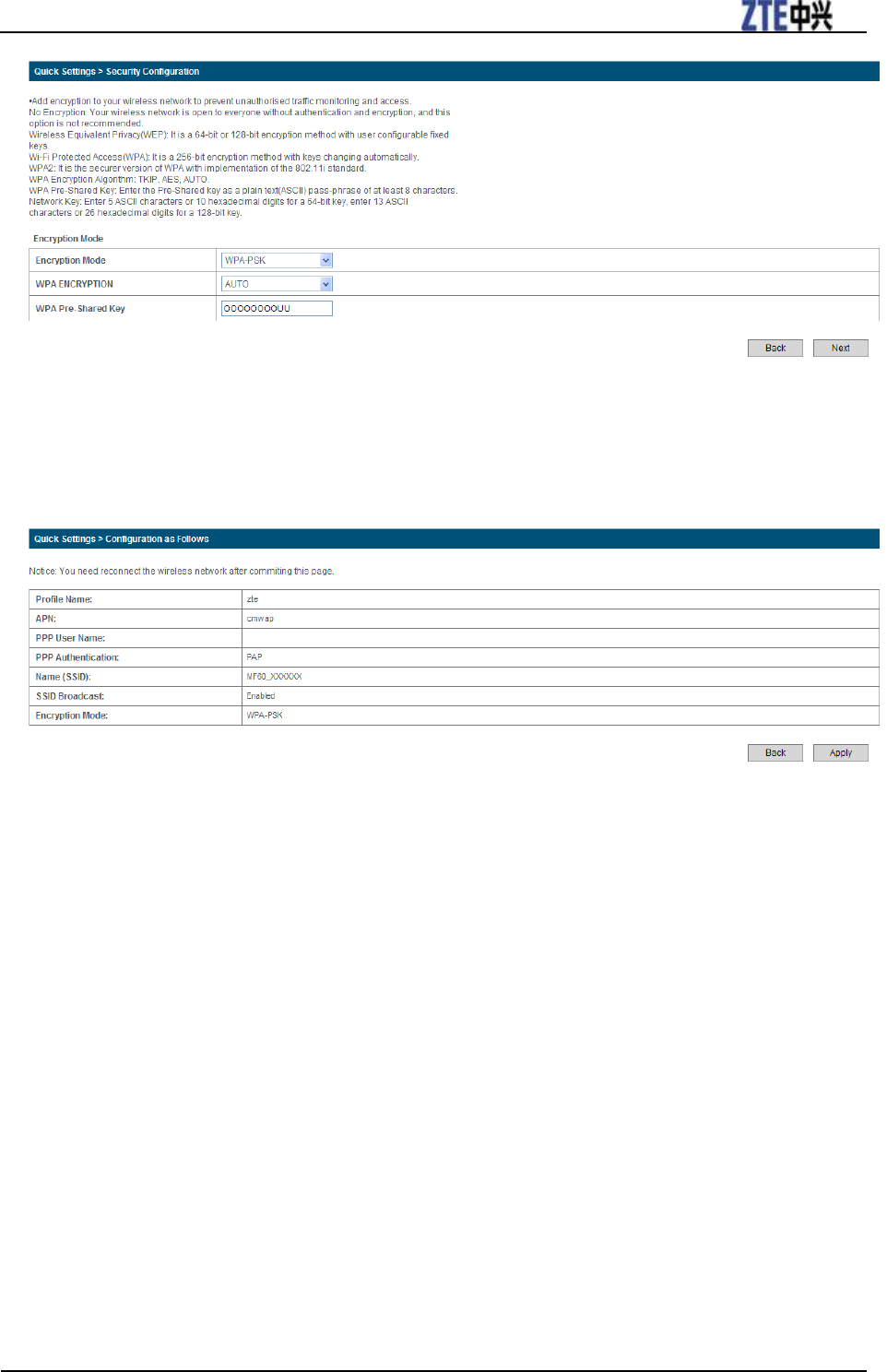

5. Set Security Configuration in the following figure:
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 21
Encryption will keep your traffic from being unauthorized monitored and accessed, select one
encryption mode from the list, and then set key and/or algorithm for it.
6. Show the Configuration in the following figure:
Make sure that all the parameters shown in the figure are correct, and then click Apply.
Settings
• Do not modify any settings unless instructed by your service provider.
• Please disconnect the device from the network before change the settings.
3G Settings

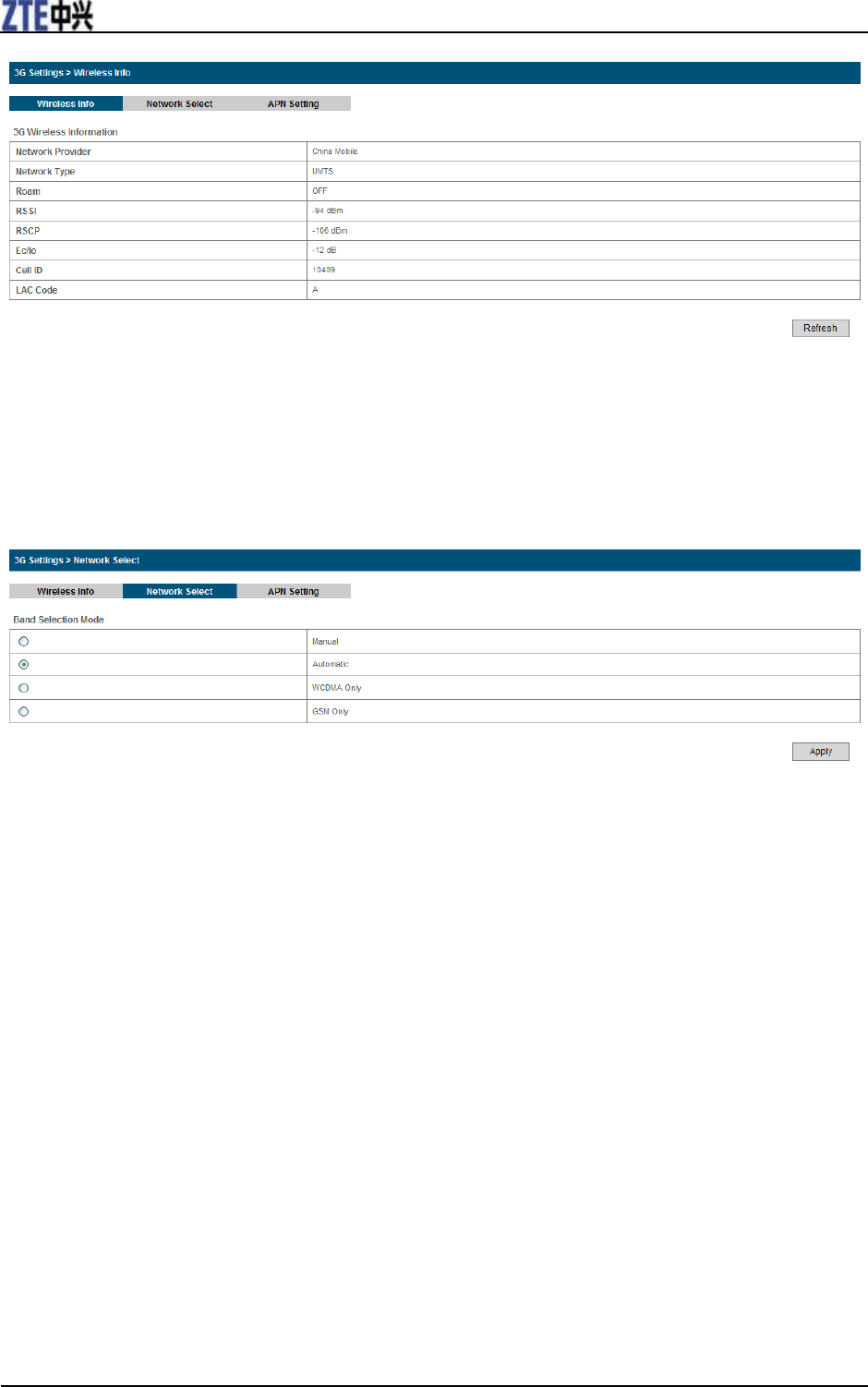

Wireless Info
Select Settings > 3G Settings > Wireless Info, the 3G wireless information is shown in the following
figure:
ZTE MF60 User Manual
22 Confidential and Proprietary Information of ZTE CORPORATION
Click Refresh to update the wireless information.
Network Select
Select Settings > 3G Settings > Network Select, the Band Selection Mode is shown in the following
figure:
• Manual: Search the available network manually.
• Automatic: Device searches for available network.
• WCDMA Only: Device searches for WCDMA network only.
• GSM Only: Device searches for GSM network only.
Click Apply to confirm your configuration.
APN Setting

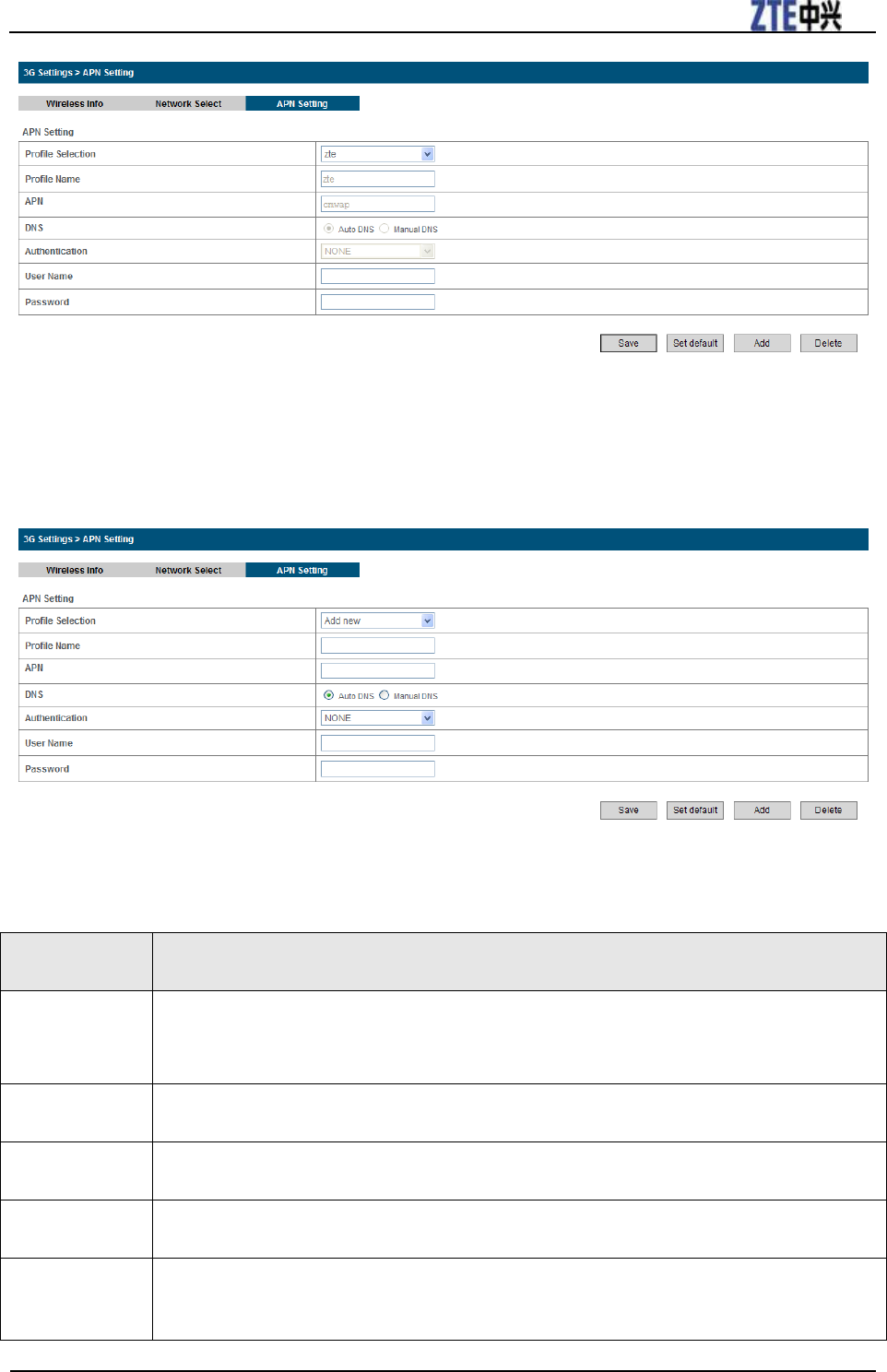

Select Settings > 3G Settings > APN Setting, the APN parameters are shown in the following figure:
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 23
• Click Set default to set current profile as the default profile.
• Click Delete to delete the current profile.
• Click Add to access the following figure:
Enter the related parameters (detailed please see following table), and then click Save to add one new
profile.
Parameter
Function
Profile
Selection
Choose one profile from the list.
Profile Name
Type the profile name.
APN
Type the APN string.
DNS
Set DNS mode.
Authentication
Password Authentication Protocol (PAP) provides a simple method without encryption
for the peer to establish its identity using a 2-way handshake. Challenge-Handshake
ZTE MF60 User Manual
24 Confidential and Proprietary Information of ZTE CORPORATION
Authentication Protocol (CHAP) is used to periodically verify the identity of the peer
using a 3-way handshake.
User Name
User name is used to obtain authentication from the ISP when the connection is
established
Password
Password is used to obtain authentication from the ISP when the connection is
established.
Wi-Fi Settings

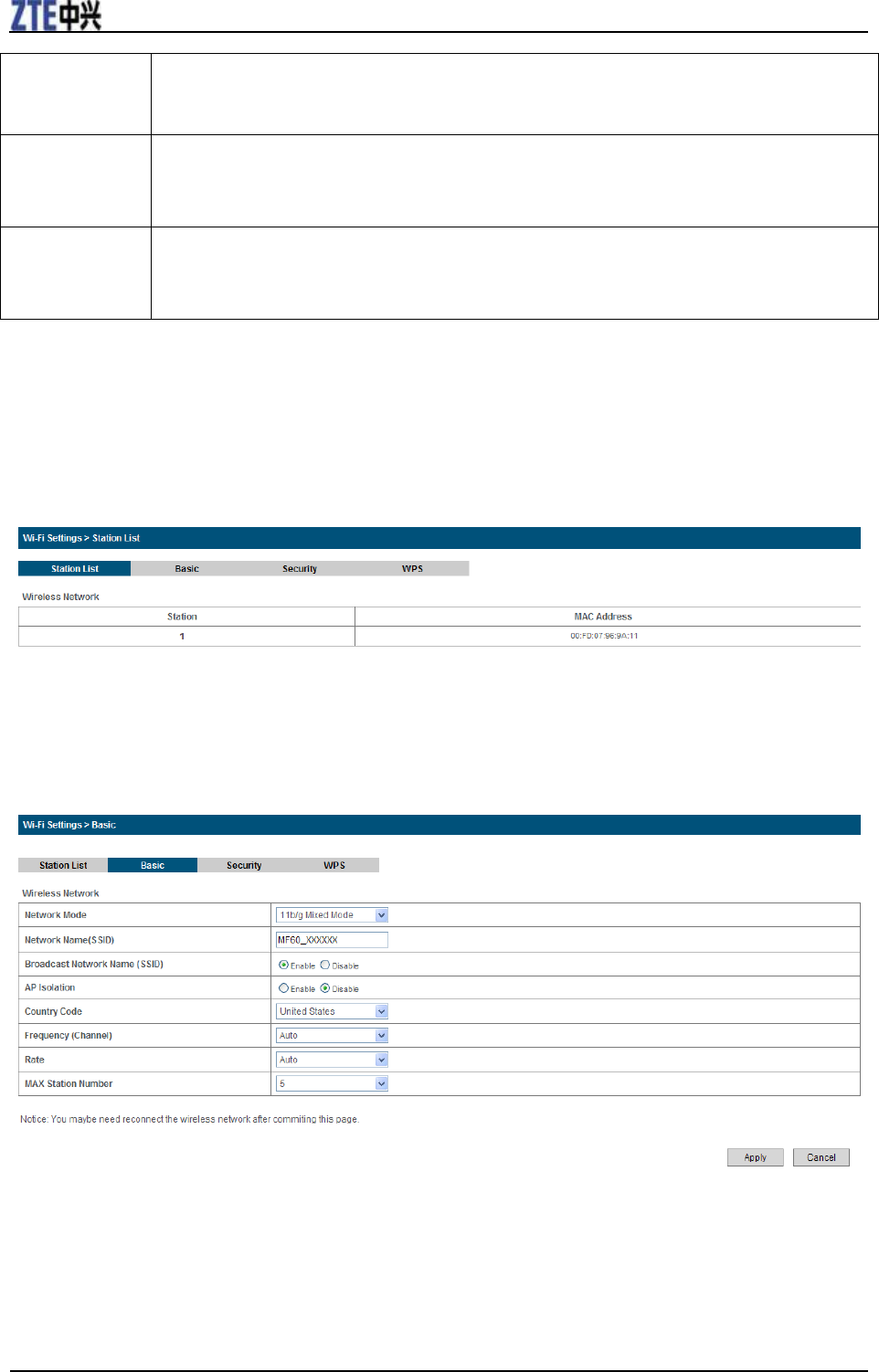

Station list
Select Settings > Wi-Fi Settings > Station List, the wireless network stations are shown in the following
figure:
Basic
Select Settings > Wi-Fi Settings > Basic, the wireless network basic parameters are shown in the
following figure:
• Network Mode: If all of the wireless devices connect with this device in the same transmission mode,
performance will be improved by choosing the appropriate wireless mode.
• Network Name(SSID): Service Set Identifier(SSID). Enter a string less than 32 characters as the name
for your wireless local area network(WLAN).
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 25
• Broadcast Network Name(SSID): Disable or Enable(Default) this function. If Enable is selected, the
device broadcasts the SSID, and other devices can search and connect to it. When you select Disable,
other devices can not search out the SSID. If you want someone to connect, you need tell them the SSID,
and let them setup manually.
• AP Isolation: When Enabled is selected, each of your wireless clients will not be able to communicate
with each other.
• Country Code: Choose the right country code.
• Frequency(Channel): Choose the appropriate channel to optimize the performance and coverage of
your wireless network.
• Rate: Choose the speed rate.
• MAX Station Number: Choose the maximum number of the stations which connect the AP
simultaneously.
Click Apply to confirm your configuration.
Security

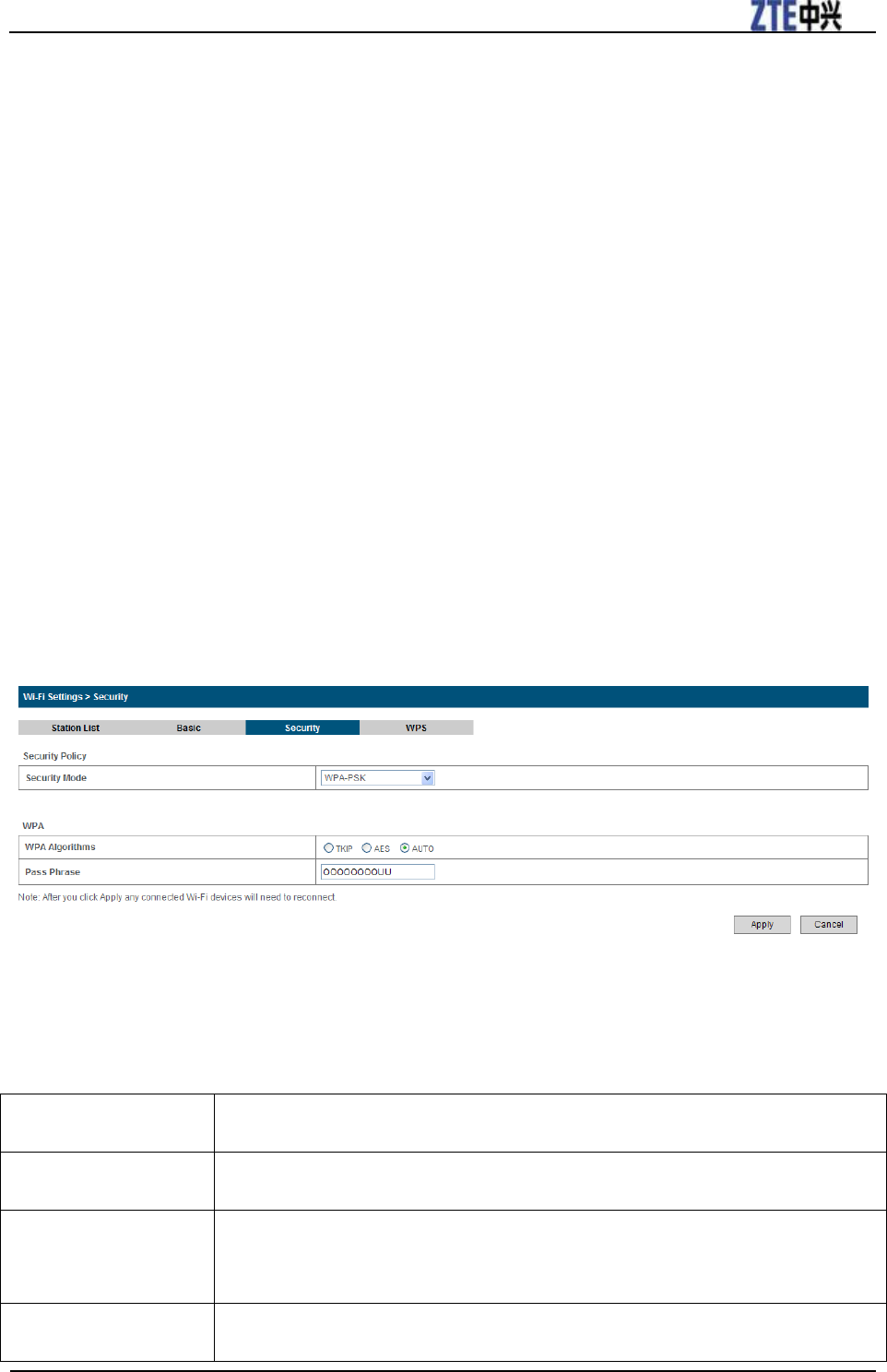

Select Settings > Wi-Fi Settings > Security, the Security parameters are shown in the following figure:
Unless one of these encryption modes is selected, wireless transmissions to and from your wireless
network can be easily intercepted and interpreted by unauthorized users.
• Security Mode: The security modes are described below:
Mode
Description
OPEN
You can authenticate successfully with a SSID, whether it is valid or empty.
SHARED
The WLAN clients who have the same WEP key with wireless gateway can
pass the authentication and access the wireless network.
WPA-PSK
WPA Pre-Shared Key, Enter the Pre-Shared key as a plain text (ASCII)
ZTE MF60 User Manual
26 Confidential and Proprietary Information of ZTE CORPORATION
pass-phrase.
WPA2-PSK
It is the securer version of WPA with implementation of the 802.11i standard.
WPA-PSK/WPA2-PSK
Apply both the WPA-PSK and WPA2-PSK scheme.
• WPA Algorithm: TKIP, AES or AUTO.
• Pass phrase: Enter the password manually.

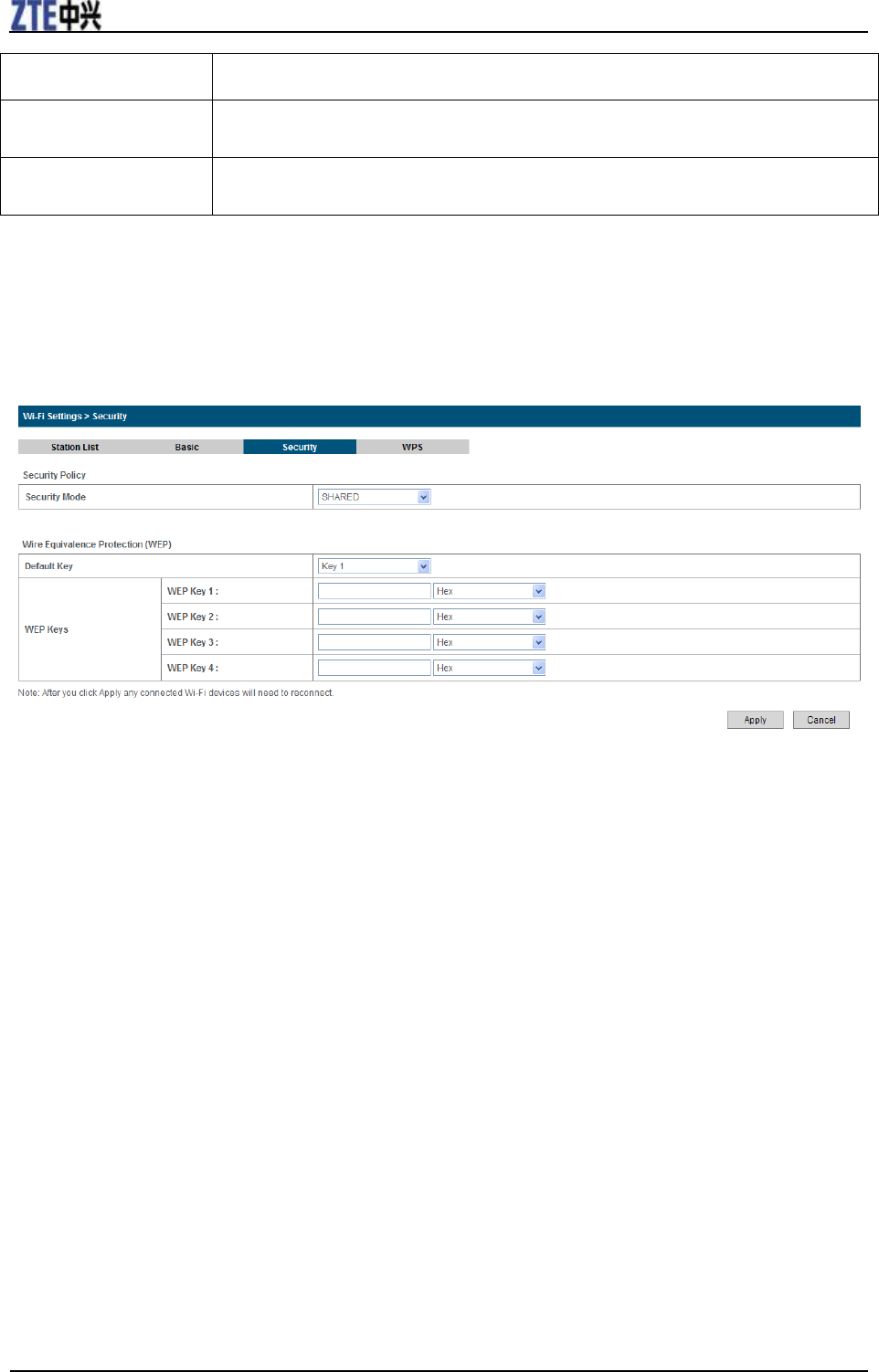

If the Authentication type is SHARED, the bottom part of the configuration page displays parameters as
shown:
• WEP Keys: At most four keys can be set in the blank. Choose the primary key index. The primary key is
the only key in use at a given time. Whatever keys you enter for an access point, you must also enter the
same keys for the client adapter in the same order. In other words, WEP key 1 on the AP must match
WEP key 1 on the client adapter, WEP key 2 on the AP must match WEP key 2 on the client adapter,
etc. A WEP can be in HEX form either 10 or 26 hexadecimal digits (0~9,a~f and A~F) and in ASCII
form either 5or 13 ASCII code.

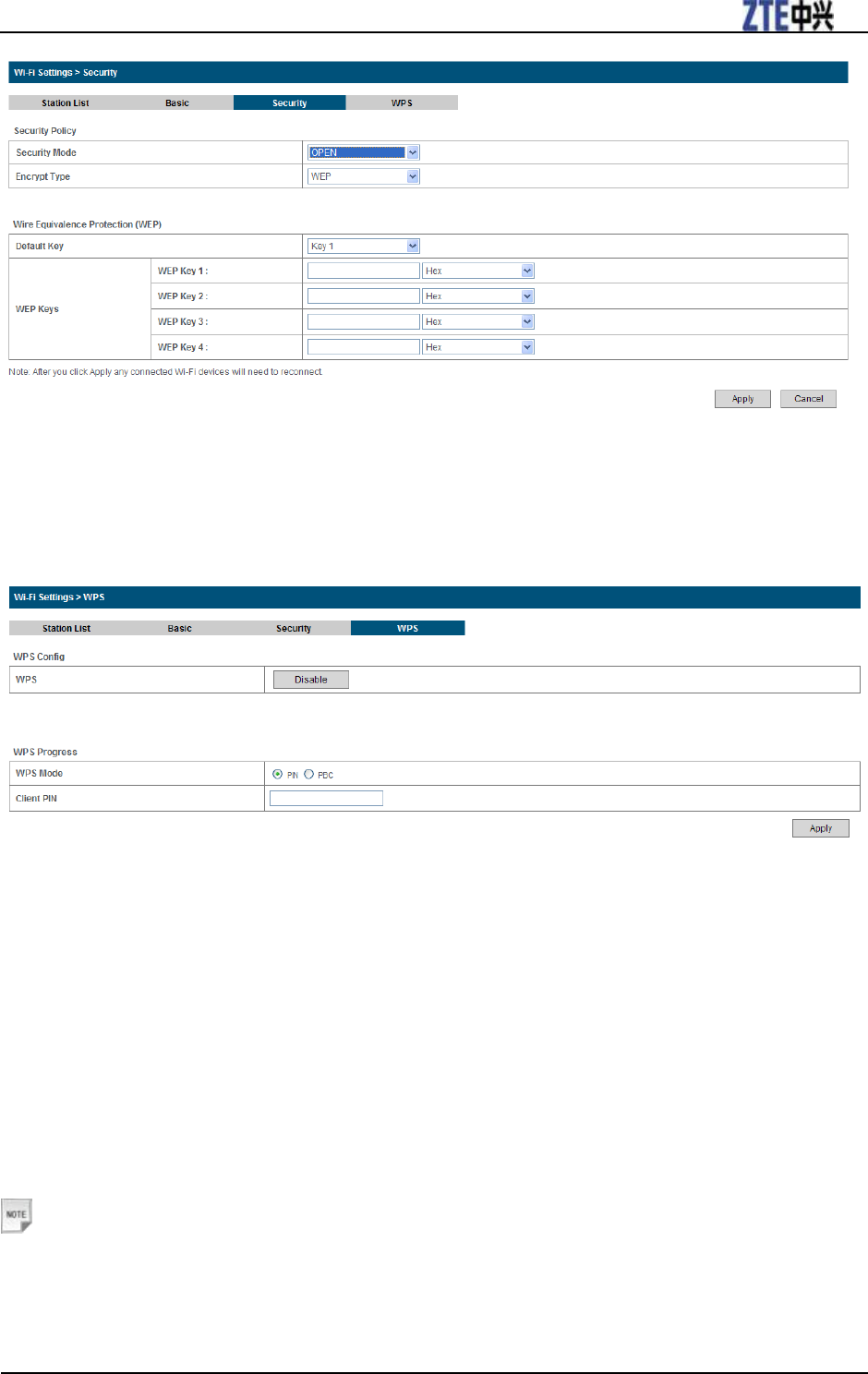

If the Authentication type is OPEN, the bottom part of the configuration page displays WPA parameters.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 27
• Encrypt Type: There are two encrypt type: WEP and No ENCRYPTION.
WPS
Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure:
• WPS: Disable this function.
• WPS mode: Choose the desired mode.
• Client PIN: Enter the client PIN.
Click Apply to confirm your configuration.
Firewall
You may setup firewall rules to protect your network from virus, worm and malicious activity on the
Internet.
Notes:
You can set the maximum 10 filtering items for MAC/IP/Port Filtering and Port Forwarding.
MAC/IP/Port Filtering
ZTE MF60 User Manual
28 Confidential and Proprietary Information of ZTE CORPORATION

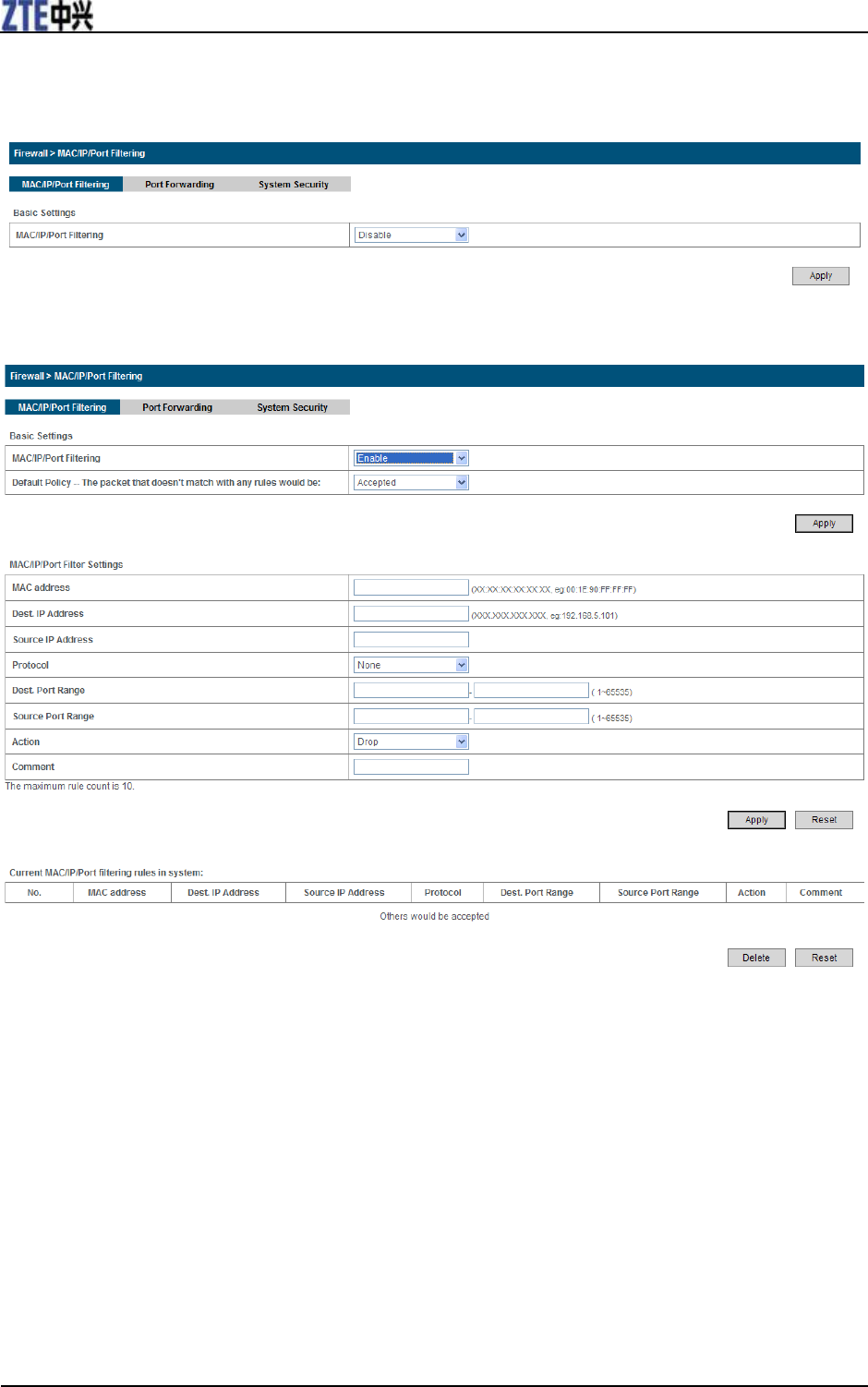

Select Settings > Firewall > Mac/IP/Port Filtering, the Mac/IP/Port Filtering is shown in the following
figure:
If you select Enable, the filter settings will appear:
• Default Policy: Set how to handle the packet if none of the rules matches.
• MAC address: Set the MAC address that will be filtered.
• Dest. IP Address: Set the destination IP address that will be filtered.
• Source IP Address: Set the source IP address that will be filtered.
• Protocol: Set which protocol will be used for filtering.
• Dest. Port Range: Set the destination port numbers that will be filtered
• Source Port Range: Set the source port numbers that will be filtered.
• Action: Set how to handle the packet if it matches with the rule.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 29
• Comment: Type comment for the filter settings.
Notes:
Filtering rules are matched one by one, if met this provision, it will not continue to match the rules listed
below.
Click Apply to confirm your configuration.
Click Delete to delete the rule which you selected.
Click Reset to clear what you select or input.
To add a new rule:
1. Select Enable in the Basic Settings area.
2. Click Apply.
3. Input the detail information in the Mac/IP/Port Filtering area.
4. Click Apply in the Mac/IP/Port Filtering area.

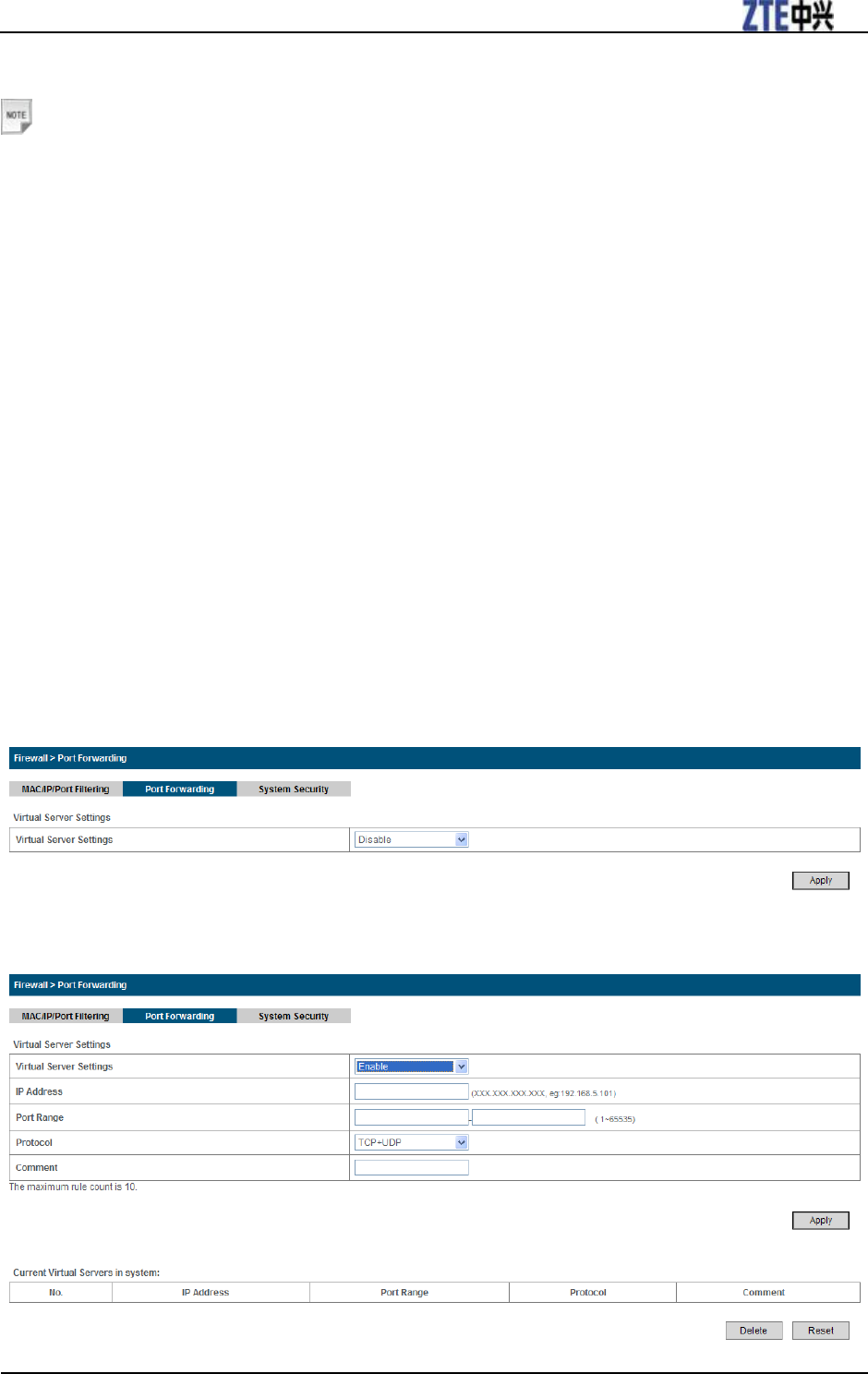

Port Forwarding
You can setup virtual servers to provide services on the Internet. Select Settings > Firewall > Port
Forwarding, the virtual server settings are shown in the following figure:
If you select Enable, the Virtual Server Settings will appear:
ZTE MF60 User Manual
30 Confidential and Proprietary Information of ZTE CORPORATION
• IP Address: Set IP address for the virtual server.
• Port Range: Set port numbers for the virtual server.
• Protocol: Set protocol for the virtual server.
• Comment: Type comment for the virtual server settings.
Select Enable, and input the detail information in the Virtual Server Settings area, then click Apply to
add a new rule.
Click Delete Selected to delete the rule which you selected.
Click Reset to clear what you select or input.

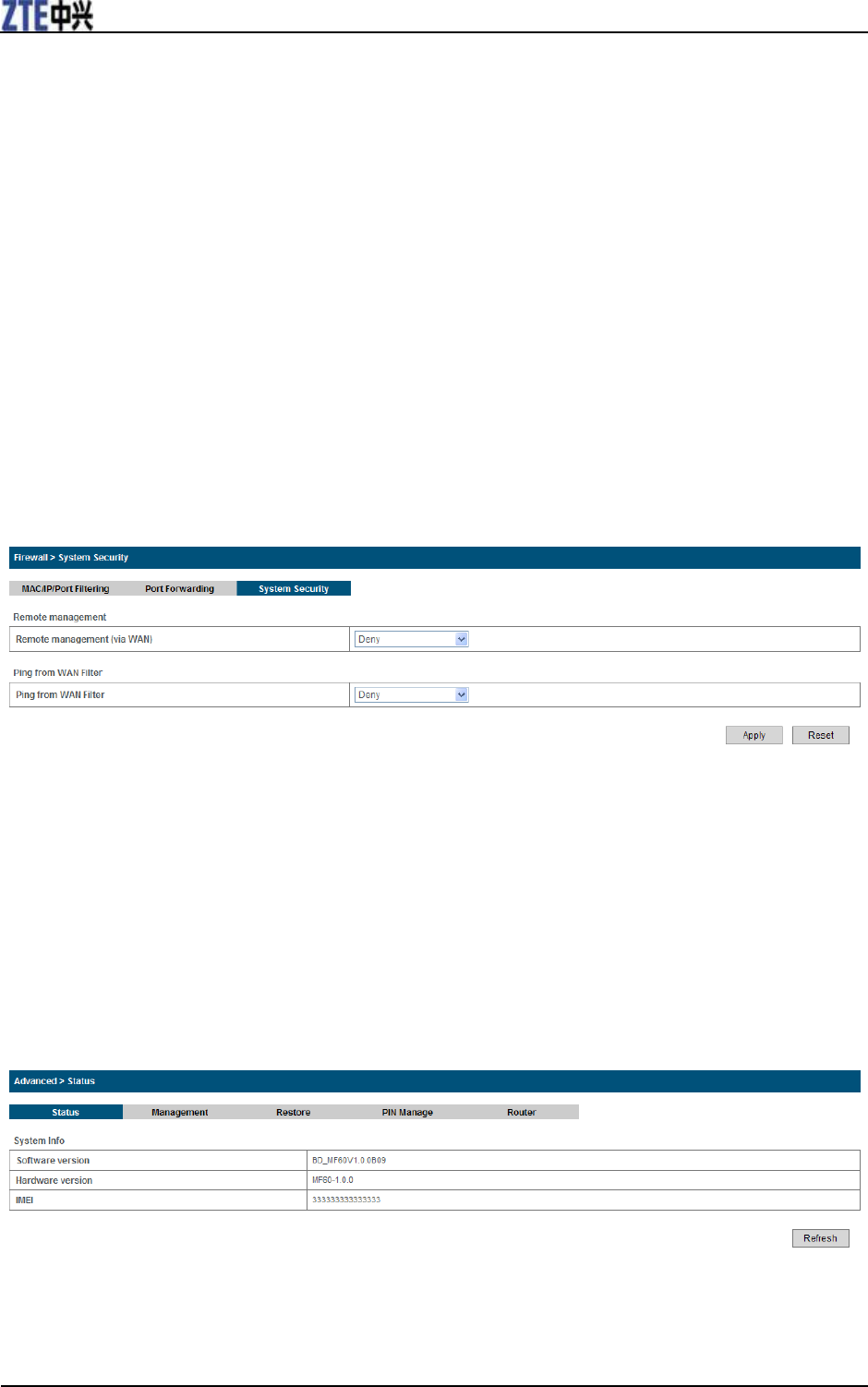

System Security
You can configure system firewall to protect the device from being attacked. Select Settings > Firewall >
System Security, the system security setting is shown in the following figure:
Allow or Deny the remote management function and ping from WAN filter function on requirement, and
then click Apply.
Click Reset to restore the default value.
Advanced
Status
Select Settings > Advanced > Status, the system information is shown in the following figure:
Management

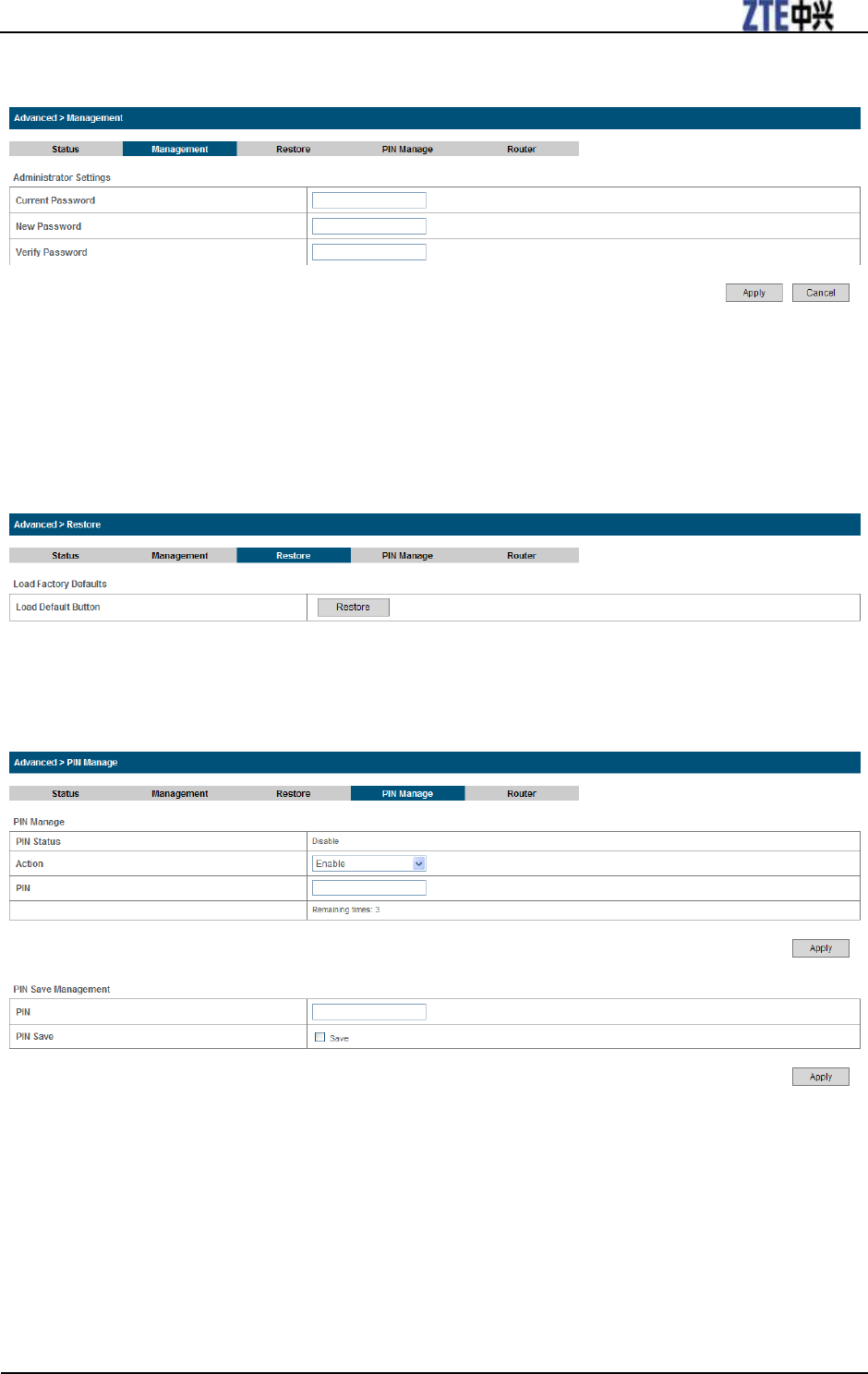

Select Settings > Advanced > Management, the administrator settings information is shown in the
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 31
following figure:
You can change the administrator’s password. Click Apply to confirm your configuration.
Restore
Select Settings > Advanced > Restore, click Restore to set all the settings to their factory default values,
and then the device will restart automatically.
PIN Manage
Select Settings > Advanced > PIN Manage, the PIN manage is shown in the following figure:
• PIN Status: Show the current PIN status.
• Action: Choose one option, and then click Apply to active corresponding function.
• PIN: Type the PIN code.
• PIN Save: Check the box, then click Apply to enable PIN save function. After you enable this function,
the device will save your PIN code, and you do not need to input PIN code every time after power on.

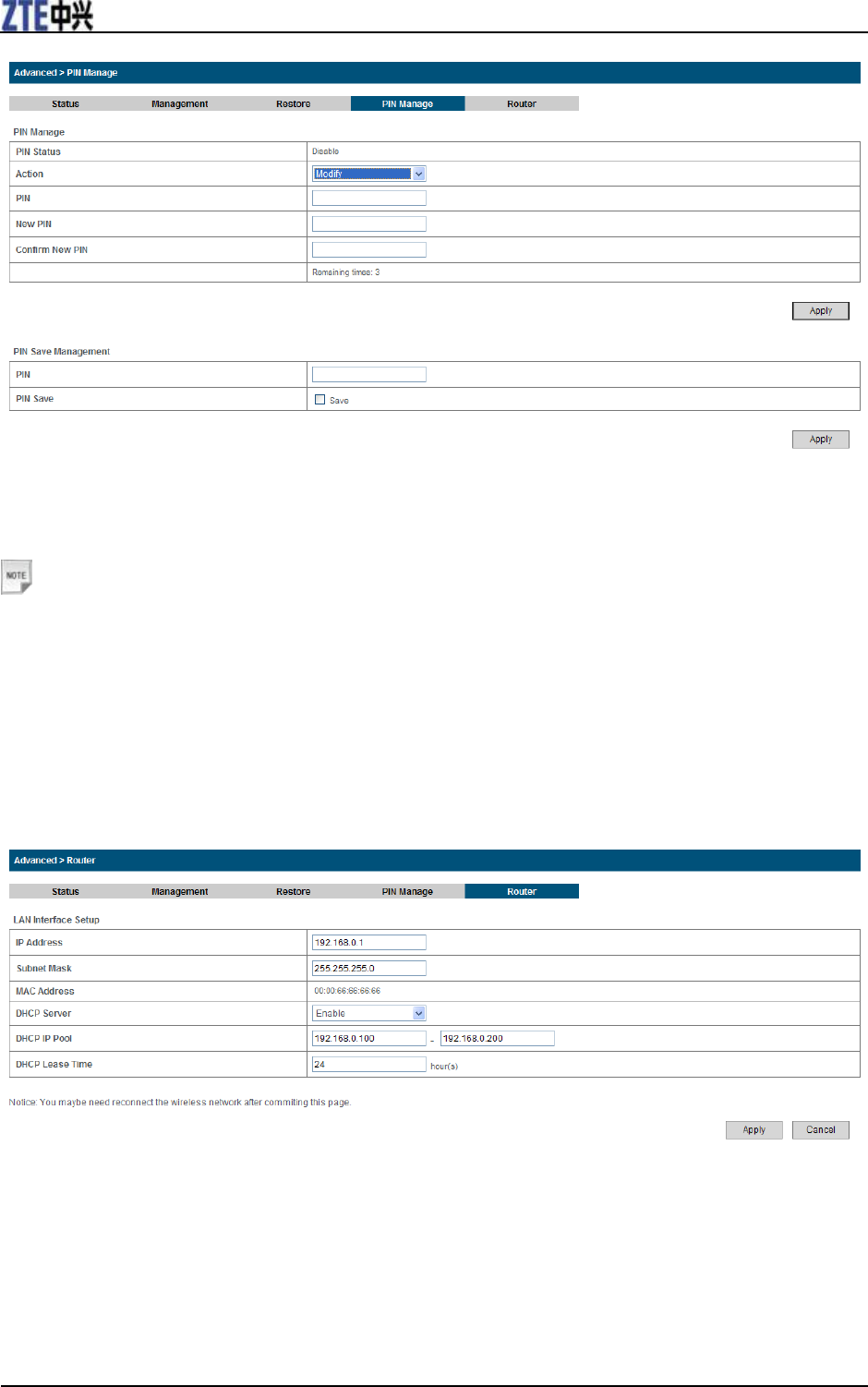

If you select Modify, the modification parameters are shown in the following figure:
ZTE MF60 User Manual
32 Confidential and Proprietary Information of ZTE CORPORATION
Type the old PIN code, and then type two times the new PIN code. Click Apply to confirm your
configuration.
Notes:
• Three times consecutive wrong PIN code entries will block the SIM card.
• After you changed the PIN code, you still need input PIN code again, even though you enable PIN save
function.
Router
Select Settings > Advanced > Router, the router information is shown in the following figure:
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
• MAC Address: MAC address for the LAN interface.
• DHCP Server: Enable or disable DHCP Server function.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 33
• DHCP IP Pool: Allocate begin and end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired, and will relocate new IP
address.
Click Apply to confirm your configuration.
Phonebook
This function allows you store contacts.
Adding new contact

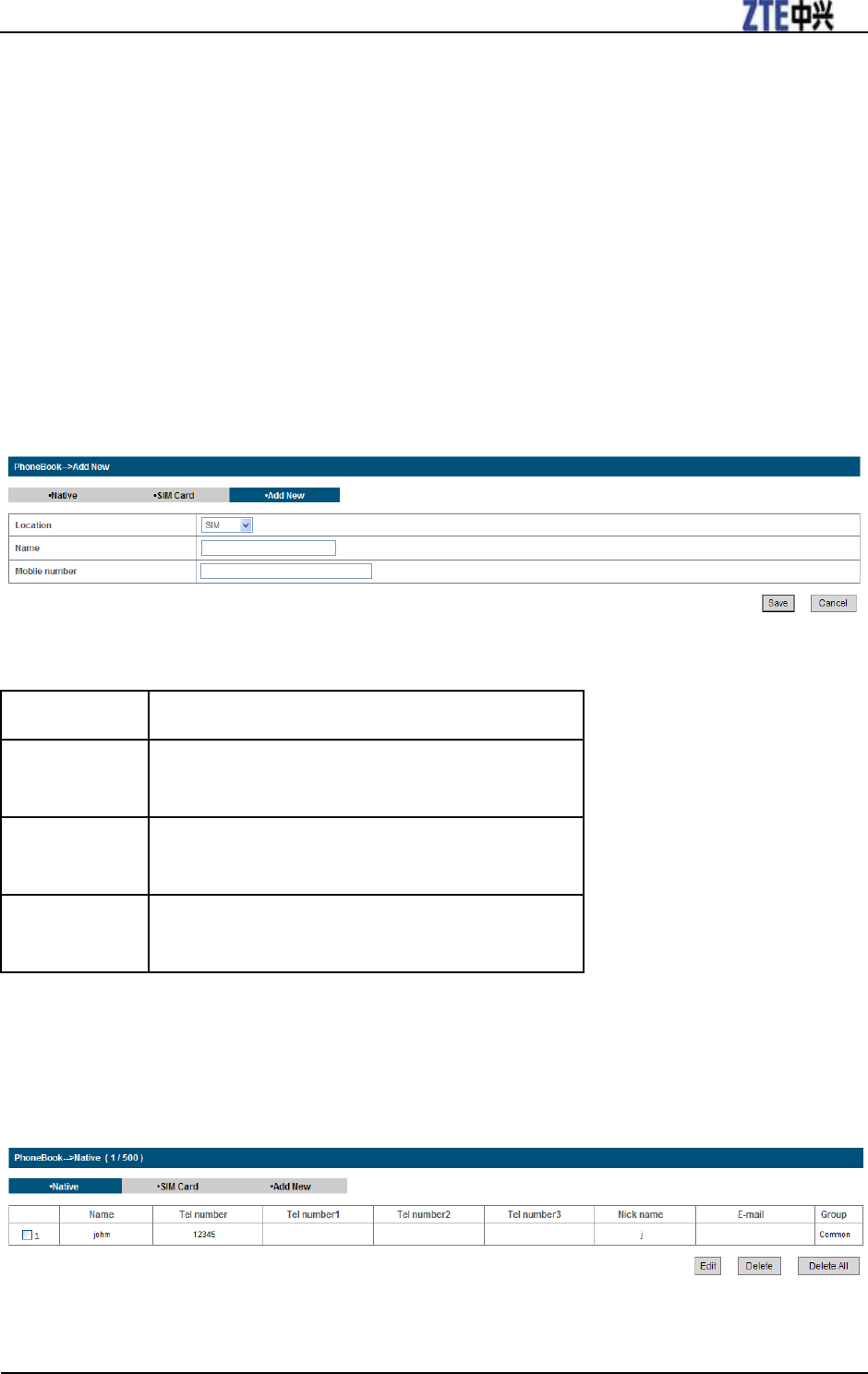

1. Select Phonebook > Add New to access the following figure:
2. Set the related parameters.
Parameters
Description
Location
Select the device or SIM card to save your contacts
Name
Enter the contact’s name
Mobile number
Enter the contact’s phone number
3. Click Save to confirm your configuration.
Operation in native
Select Phonebook > Native to access the following figure:
All contacts stored in your device will be displayed here.
ZTE MF60 User Manual
34 Confidential and Proprietary Information of ZTE CORPORATION
• Click Edit to edit the selected contact.
• Click Delete to delete the selected contact.
• Click Delete All to delete all the contacts.
Operation in SIM Card

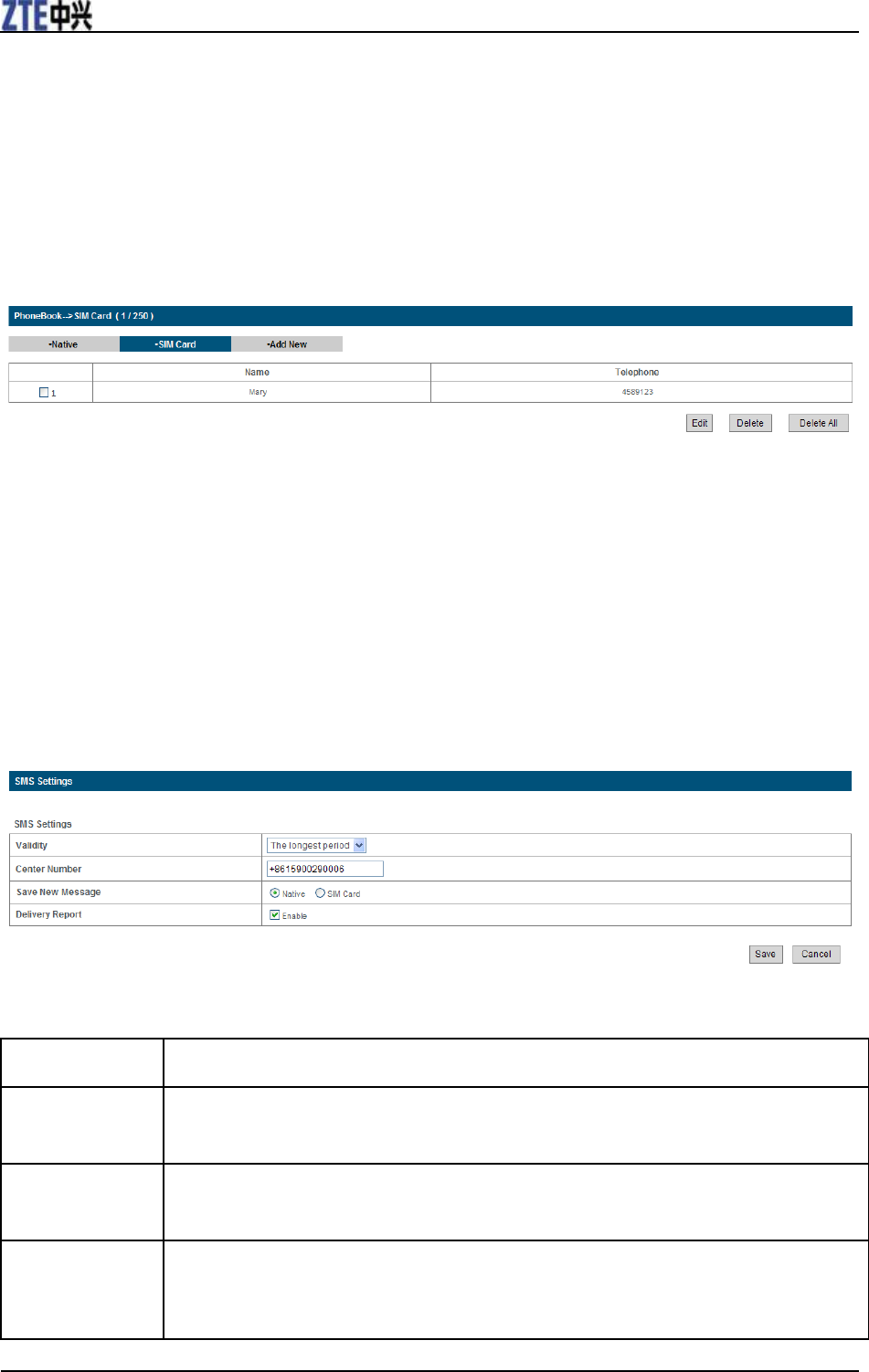

Select Phonebook > SIM Card to access the following figure:
All contacts stored in your SIM card will be displayed here, detailed operation please refer to chapter
Operation in native.
SMS
This function allows you to send or receive short messages.
Configing SMS
1. Select SMS > SMS Settings to access the following figure:
2. Set the related parameters.
Parameters
Description
Validity
Configure the validity period of outgoing messages
Center Number
Enter the short message center number, detailed please consult your service provider
Save New
Message
Select the device or SIM card to save your messages
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 35
Parameters
Description
Delivery Report
Receive or reject a popup message to inform you when the message is delivered to
the recipient
3. Click Save to confirm your configuration.
Sending new SMS

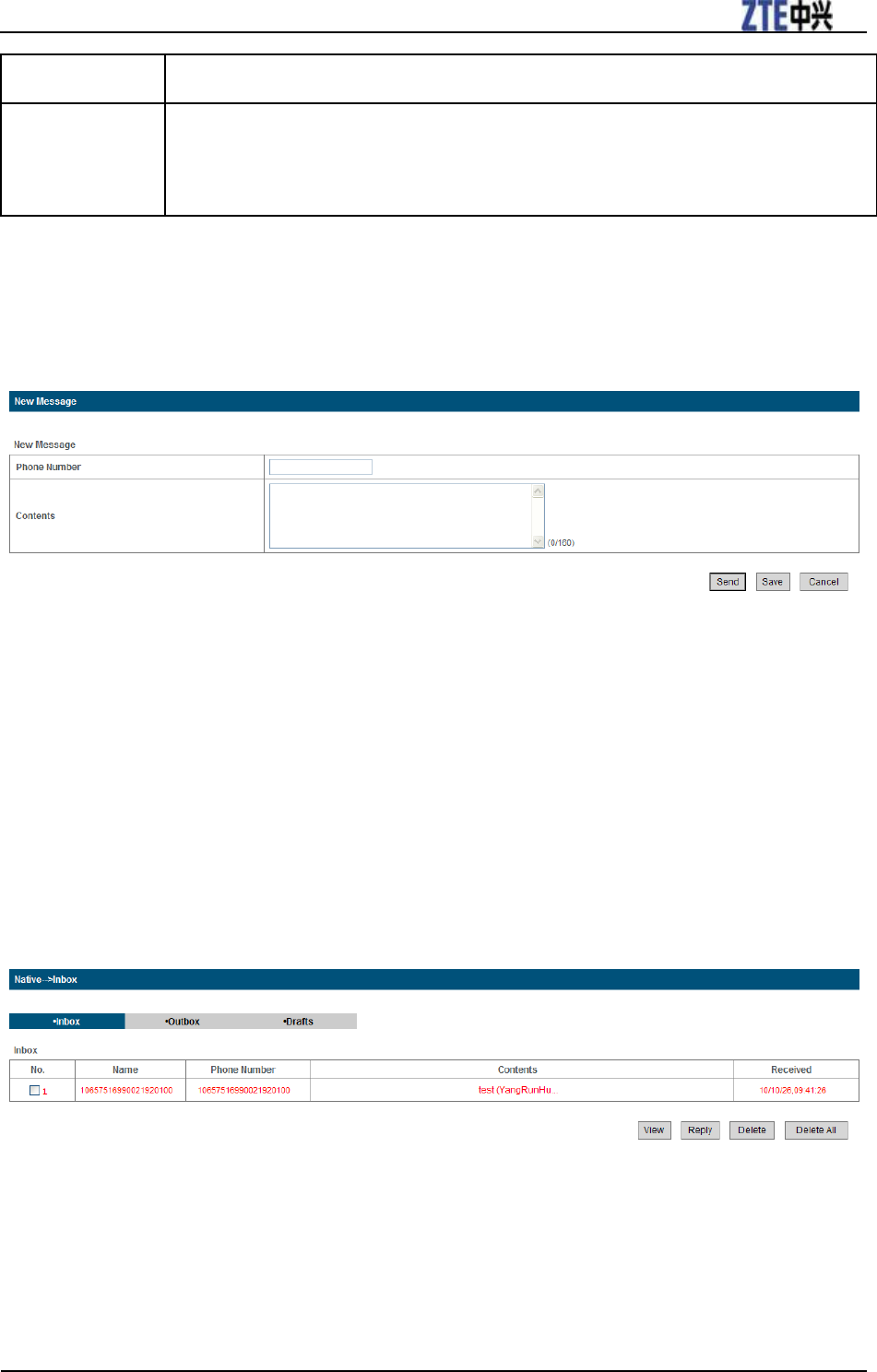

1. Select SMS > New Message to access the following figure:
2. Enter the recipient’s phone number.
3. Enter a message.
4. Click Send to send the message.
Operation in native
You can check the messages saved in your device.
Inbox
Select SMS > Native > Inbox to access the following figure:
All the received messages saved in your device will be displayed here.
• Click View to view the selected message.
• Click Reply to reply to the selected message sender.
• Click Delete to delete the selected message.
ZTE MF60 User Manual
36 Confidential and Proprietary Information of ZTE CORPORATION
• Click Delete All to delete all the messages.

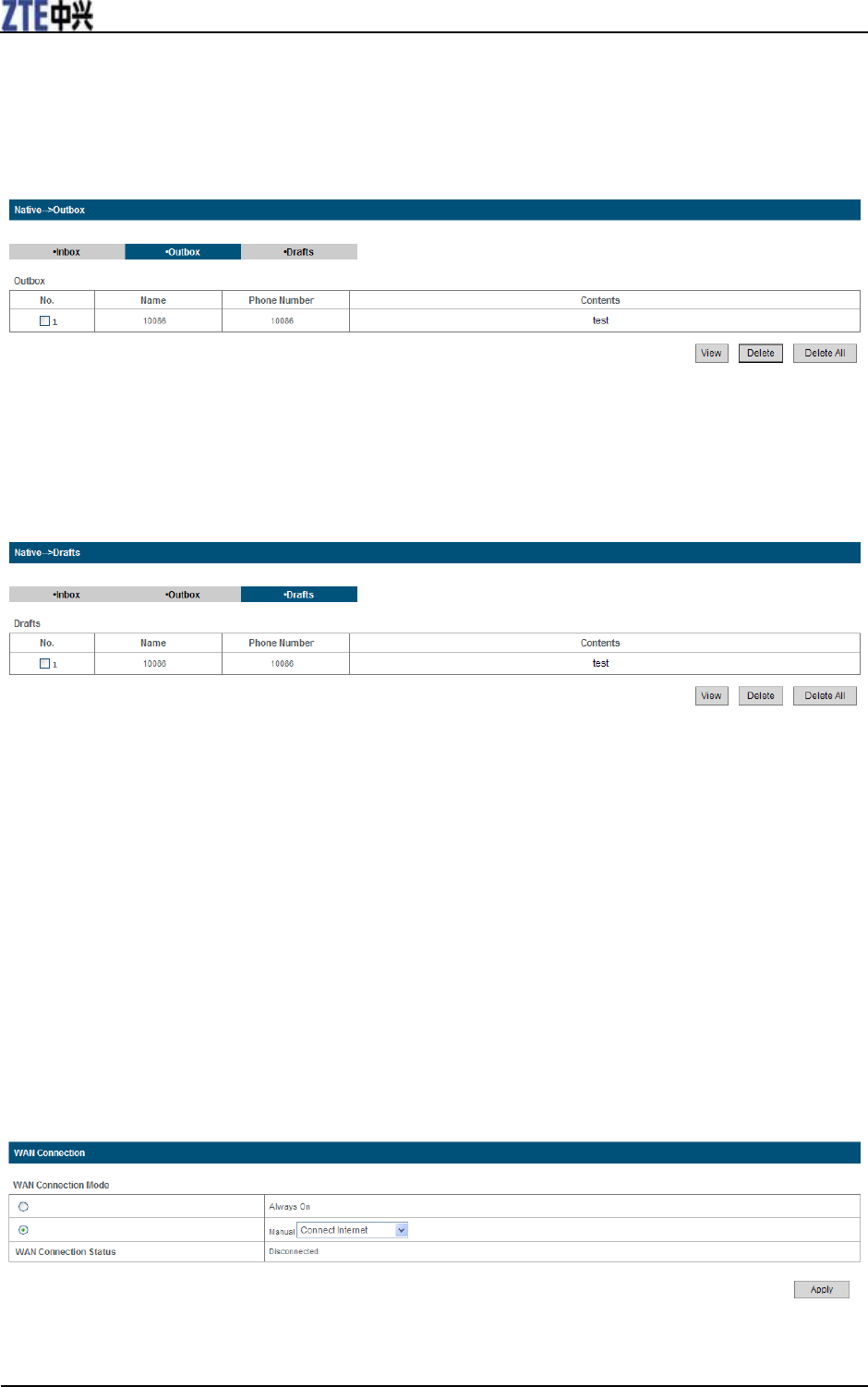

Outbox
Select SMS > Native > Outbox to access the following figure:
All the successfully sent messages in your device will be displayed here.
Drafts
Select SMS > Native > Drafts to access the following figure:
All the drafts and unsuccessfully sent messages saved in your device will be displayed here.
• Click View to access the selected message edited interface, then click Send to send it.
Operation in SIM Card
You can check the messages saved in your SIM card.
Select SMS > SIM Card > Inbox/Outbox/Drafts to access the corresponding figure, detailed operation
please refer to the chapter Operation in native.
WAN Connection
Click WAN Connection, you can configure how to connect to the Internet in the following figure:
There are two connection modes:
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 37
• Always On: The device will automatically connect to WAN when it is powered on.
• Manual: Connect to the Internet manually.
Click Apply to confirm your configuration.
Usage of WPS
If your client device supports WPS, you need not to input the password manually after WPS has
been available. Please do the following:
1. Start up your device.
2. Launch the client device connected to your device.
3. Enable the WPS function of your device.
4. Enable the WPS function of the client.
Notes:
For the detailed operations about the client, please refer to the client’s instruction.
Logout

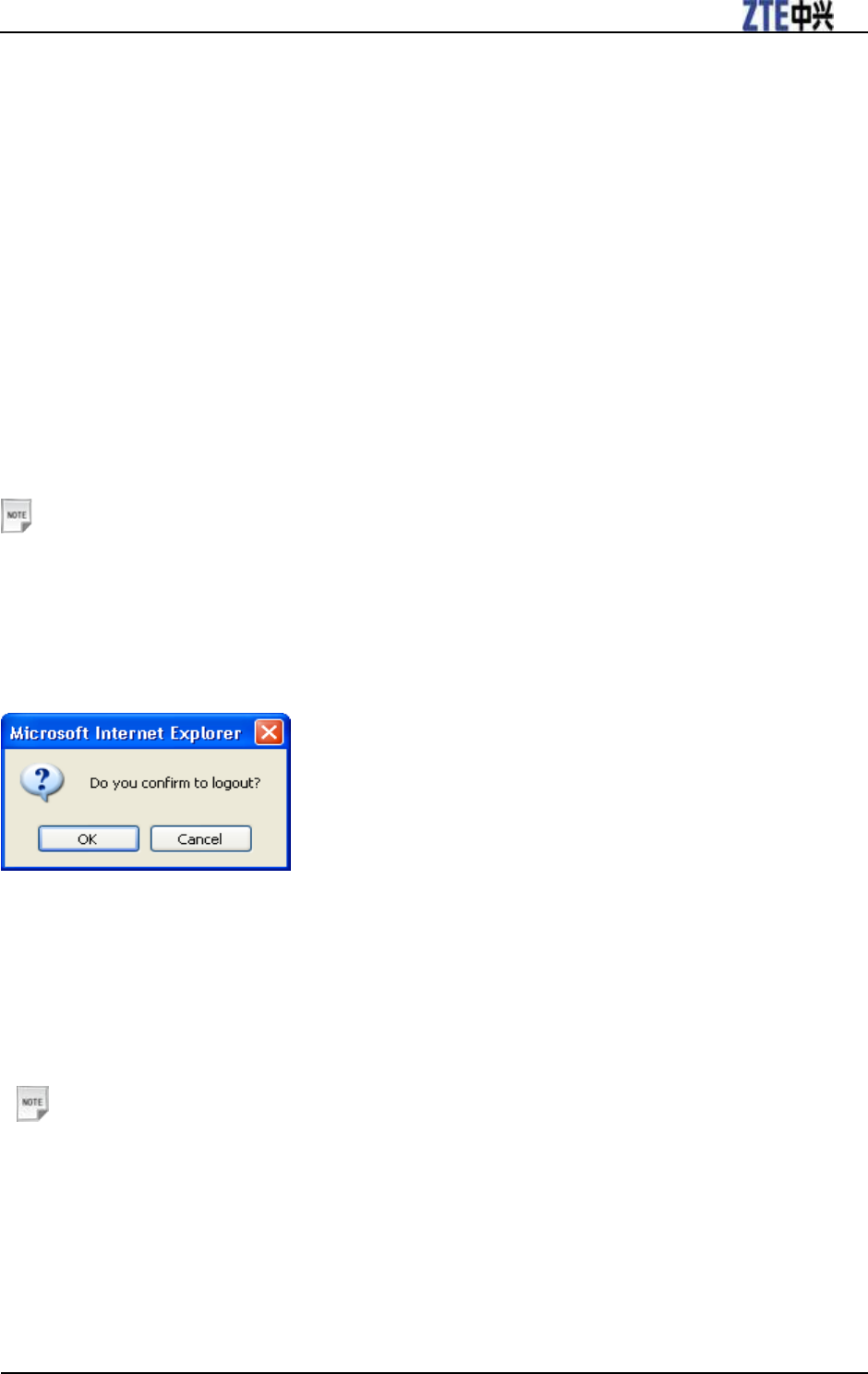

Select Logout, a pop-up window will appear as the following figure shown:
Click OK to logout the web page.
Disconnecting from the Internet
1. Select Disconnect Internet from WAN Connection page.
2. Click Apply to disconnect from the Internet.
Notes:
Turn off the device can also terminate Internet connection.
Sleep Mode
When you enable the Wi-Fi function and use the battery to supply power to the device, once no
user connects to the device within 10 minutes or you press the WPS button, the device will enter
the sleep mode，and the LED screen will be turned off. In the sleep mode, the Wi-Fi function will
ZTE MF60 User Manual
38 Confidential and Proprietary Information of ZTE CORPORATION
be also disabled. Press Power or WPS button to wake up the device, and all LEDs will be turned
on.
Notes:
With USB connection if no Wi-Fi user connects to the device within 10 minutes, only the Wi-Fi
function will be disabled. Press WPS button to enable this function.
Confidential and Proprietary Information of ZTE CORPORATION 39
C h a p t e r 4
Warning and Notice
To the Owner
• Some electronic devices are susceptible to electromagnetic interference sent by device if inadequately
shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before
using the device if necessary.
• Operating of laptop and desktop PCs and the device may interfere with medical devices like hearing aids
and pacemakers. Please always keep them more than 20 centimeters away from such medical devices
when they are turned on. Turn the device off if necessary. Consult a physician or the manufacturer of
the medical device before using the device.
• Be aware of the usage limitation when using a device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your device if
required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your device in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s performance.
• Store the device out of the reach of little children. The device may cause injury if used as a toy.
• Do not touch the metallic parts of the device so as to avoid a burn, when the device is working.
Using Your Device
• Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your device’s performance, and violate related national regulations about telecom terminals.
• Avoid using the device near or inside metallic structures or establishments that can emit electromagnetic
waves. Otherwise it may influence signal reception.
• The device is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use the device immediately after a sudden temperature change. In such case, it will produce dew
inside and outside the device, so don’t use it until it becomes dry.
• Handle the device carefully. Do not drop, bend or strike it. Otherwise the device will be damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
ZTE MF60 User Manual
40 Confidential and Proprietary Information of ZTE CORPORATION
• Operating temperature range of 0℃ ~ +35℃ and humidity range of 5% ~ 95% are recommended.
Using Battery
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from the phone and store it in a cool dry place.
• Never use any charger or battery damaged or worn out.
• Return the wear-out battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from the phone and store it in a cool dry place.
Warning:
If the battery is broken, keep away from content. If it taints your skin, wash your skin with abundant fresh
water and ask doctor help if necessary.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
ZTE MF60 User Manual
Confidential and Proprietary Information of ZTE CORPORATION 41
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Radio Frequency (RF) Energy
This model device meets the government’s requirements for exposure to radio waves.
ZTE MF60 User Manual
42 Confidential and Proprietary Information of ZTE CORPORATION
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the device transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the model device as reported to the FCC when worn on the body, as described
in this user guide, is 1.080 W/kg (Body-worn measurements differ among device models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device
is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: Q78-ZTEMF60.
Confidential and Proprietary Information of ZTE CORPORATION 43
C h a p t e r 5
Troubleshooting
Problem
Suggested Solution
Can not establish the USB
connection between your device
and PC
1. You need install the software. Run the installation program in
path of My Computer >Portable Hotspot.
2. If the driver of your device is abnormal, please install the
software again. You need uninstall the software first.
Can not establish the Wi-Fi
connection between your device
and client
1. Make sure Wi-Fi LED is blue blinking.
2. Refresh network list and select SSID named
―MF60_XXXXXX‖.
3. Check the IP address to make sure your client to obtain an IP
address automatically in the Internet protocol (TCP/IP) properties.
4. Type the correct network key when you connect to the device.
The client connected to the device
can not access the Internet
1. Make sure your SIM card is available.
2. Change the location to find a place with good signal.
3. Check WAN Connection mode setting.
4. Contact with your service provider and confirm your APN
settings.
Forget the password
1. For the Wi-Fi connection password, please check the label on
the battery compartment of your device.
2. For the webGUI configuration page password, the default
password is Admin.
3. If you changed the password, and forgot the new password. You
need to restore the device to the factory default settings.
For more assistance, please:
ZTE MF60 User Manual
44 Confidential and Proprietary Information of ZTE CORPORATION
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
Confidential and Proprietary Information of ZTE CORPORATION 45
C h a p t e r 6
Technical Parameters
Data Service
HSPA:
DL 21.6Mbps
UL 5.76Mbps
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
Interface
USB and Wi-Fi
Wi-Fi Standard
802.11b/g
Wi-Fi Security
WEP/WPA/WPA2/WAPI
USB Version
USB 2.0 HIGH SPEED
USB Interface Type
Micro USB
Weight
77g
Dimensions (W×H×D):
99.7mm*53.7mm*13.9mm
microSD card
Support up to 32GB microSD card
Power Adapter
5V/700mA
Battery
1500mAh Li-ion battery
*Standby time
100hours
*Working time
4hours
Charge time
4hours
Operate system
Windows 7, Windows Vista, Windows XP (SP2 or later), Mac OS (10.4 or later), Linux
Web Browser
IE (6.0 or later), Firefox (1.0 or later), Opera (6.0 or later), Safari (3.0 or later), Chrome
(6.0 or later)
Working temperature
0℃ ~ +35℃
Storage temperature
-20℃ ~ +50℃
ZTE MF60 User Manual
46 Confidential and Proprietary Information of ZTE CORPORATION
Charging temperature
0℃ ~ +40℃
Humidity
5%~ 95%
Notes:
The device’s standby and working time are based on ideal working environment.
Confidential and Proprietary Information of ZTE CORPORATION 47
C h a p t e r 7
Glossary
• AC: Alternating Current
• APN: Access Point Name
• DC: Direct Current
• DHCP: Dynamic Host Control Protocol
• DNS: Domain Name System (or Service or Server)
• EDGE: Enhanced Data GSM Evolution
• Ethernet: A frame-based computer networking technology for local area networks (LANs)
• GSM: Global System for Mobile Communications
• GPRS: General Packet Radio Service
• HSDPA: High Speed Downlink Packet Access
• HSUPA: High Speed Uplink Packet Access
• IP: Internet Protocol
• LAN: Local Area Network
• LED: Light - Emitting Diode
• MHz: Megahertz
• PDP: Packet Data Protocol
• PIN: Personal Identification Number
• PPP: Point to Point Protocol
• PUK: PIN Unlocking Key
• UPNP: Universal Plug and Play
• SIM: (UMTS) Subscriber Identification Module
• WCDMA: Wideband CDMA (Code-Division Multiple Access)
• WEP: Wired Equivalent Privacy
• Wi-Fi：Wireless Fidelity
ZTE MF60 User Manual
48 Confidential and Proprietary Information of ZTE CORPORATION
• WLAN: Wireless LAN
• WPA-PSK: Wi-Fi Protected Access–PreShared Key
