User Manual Rev 1
MF613 3G Wireless Router
Fixed Wireless Adapter
User Manual
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2008 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.3
Edition Time : 090619
Manual No. :
WELCOME
Thank you for choosing the ZTE MF613 Wireless Router (hereinafter referred to as "router").
The Wireless Router comprises two parts, one is a MF613 Fixed Wireless Adapter, and the other
is a USB modem. The router supports Voice and Internet service, and offers you the connection
to the Internet with LAN or WLAN.
Notes:
When you only buy the MF613 Fixed Wireless Adapter, if you want to enjoy the Voice and
Internet service，you must prepare a USB modem which supports voice and internet service.
To get the most from your router and to keep it in the best condition please read this manual
carefully.
The pictures, symbols and contents in this manual are for reference only. They might not be
completely identical with your router. ZTE operates a policy of continuous development. We
reserve the right to update the technical specifications in this document at any time without prior
notice.
Glossary
• AC: Alternating Current
• APN: Access Point Name
• DC: Direct Current
• DHCP: Dynamic Host Control Protocol
• DNS: Domain Name System (or Service or Server)
• DoS: Denial of Service
• EDGE: Enhanced Data GSM Evolution
• ESSID: Expanded Serv ice Set Identifier
• Ethernet: A frame -based computer networking technology for local area networks (LANs)
• GSM: Global System for Mobile Communications
• GPRS: General Packet Radio Service
• HSDPA: High Speed Downlink Packet Access
• HSUPA: Hig h Speed Uplink Packet Access
• IP: Internet Protocol
• LAN: Local Area Network
• LED: Light - emitting Diode
• MHz: Megahertz
• MTU: Maximum Transmission Unit
• PDP: Packet Data Protocol
• PIN: Personal Identification Number
• PPP: Point to Point Protocol
• PSTN: Public Switched Telephony Network
• PUK: PIN Unlocking Key
• RSSI: Radio Signal Strength Indicator
• RF: Radio Frequency
• SIP: Session Initiated Protocol
• UPnP: Universal Plug and Play
• (U)SIM: Subscriber Identifica tion Module
• VOIP: Voice over Internet Protocol
• WCDMA: Wideband CDMA (Code -Division Multiple Access)
• WEP: Wired Equivalent Privacy
• WLAN: Wireless LAN
• WPA -PSK: Wi-Fi Protected Access–PreShared Key
Contents
WELCOME .......................................................................................................................... 3
Glossary ................................................................................................................................ 5
Contents ................................................................................................................................ 7
General Information .............................................................................................................. 8
Safety Precautions ............................................................................................................. 8
Cleaning and Maintaining ................................................................................................. 8
Limited Warranty .............................................................................................................. 8
Limitation of Liability ....................................................................................................... 9
Emergency Call ................................................................................................................. 9
Getting started ..................................................................................................................... 10
Parts Supplied ................................................................................................................. 10
Appearance...................................................................................................................... 10
LED Indicator ............................................................................................................. 10
Interface Description ................................................................................................... 11
Installation ....................................................................................................................... 12
Inserting the (U)SIM Card .......................................................................................... 12
Inserting the modem.................................................................................................... 12
Connecting phone ....................................................................................................... 13
Connecting computer .................................................................................................. 13
Connecting the external power ................................................................................... 13
Switching on your device ............................................................................................ 13
Power supply ................................................................................................................... 14
About (U)SIM card ......................................................................................................... 14
Notes on Service and Coverage ...................................................................................... 14
Voice Calls .......................................................................................................................... 15
Making a Call .................................................................................................................. 15
Answering the Call.......................................................................................................... 15
Internet Access .................................................................................................................... 16
Preparation ...................................................................................................................... 16
Settings ............................................................................................................................ 16
Login ........................................................................................................................... 16

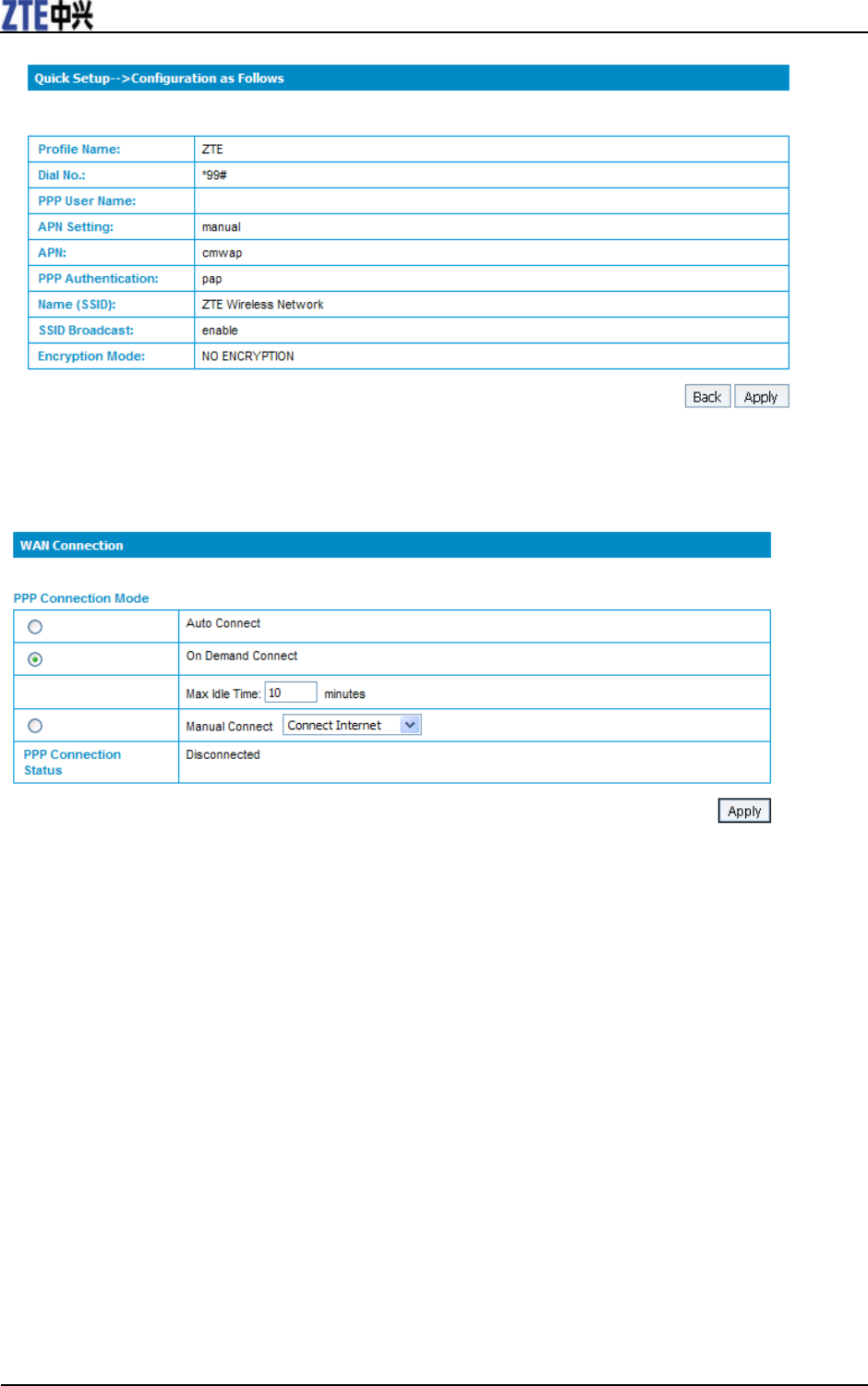

Quick Setup ................................................................................................................. 17
WAN Connection ........................................................................................................ 20
3G Settings .................................................................................................................. 20
Router .......................................................................................................................... 22
Wi-Fi Settings ............................................................................................................. 23
Firewall ....................................................................................................................... 29
Advanced .................................................................................................................... 32
Logout ............................................................................................................................. 35
Disconnecting from the Internet ..................................................................................... 35
Troubleshooting .................................................................................................................. 37
Technical Parameters .......................................................................................................... 38
Confidential and Proprietary Information of ZTE CORPORATION 8
C h a p t e r 1
General Information
Safety Precautions
• Some electronic devices may be susceptible to electromagnetic interference. Locate the router away from
TV set, radio and other electronic equipment to avoid electromagnetic interference.
• The router may interfere with medical devices like hearing aides and pacemakers. Consult a physician or
the manufacturer of the medical device before using the router.
• Do not use your router in dangerous environments such as oil terminals or chemical factories where there
are explosive gases or explosive products being processed.
• Please use original accessories or accessories that are authorized by ZTE. Unauthorized accessories may
affect the router performance, damage the router or cause danger to you.
• Do not attempt to dismantle the router. There are no user serviceable parts.
• Do not allow the router or accessories to come into contact with liquid or moisture at any time. Do not
immerse the router in any liquid.
• Do not place objects on top of the router. This may lead to overheating of the device.
• The device must be placed in ventilation environment for use.
• Do not expose the router to direct sunlight or store it in hot areas. High temperature can shorten the life
of electronic devices.
• Do not allow children to play with the router or charger.
• Keep the length of the cable between the router and the phone less than 10 meters.
• The router is for indoor use only. Do not use the router outside. Do not connect telephone extensions
which run outside of the building. These can result in lightning damage to your unit.
Cleaning and Maintaining
• Use an antistatic cloth to clean the router. Do not use chemical or abrasive cleanser as these could
damage the plastic case. Turn off your router before you clean it.
• Use the router within the temperature range of -10°C ~ +55°C, and the storage temperature range is
-20°C ~ +65°C. The humidity range is 5%~95%.
• Do not use your router during a thunderstorm. Remove the mains power pack from the wall socket.
• Do not take out your (U)SIM card unnecessarily. The (U)SIM card may be easily lost or it can be
damaged by static electricity.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable Router Appearance Disfiguration.
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassemble, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accident, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of products of third Parties, or usage in conjunction with third party products provided that
such defects is due to the combined usage.
vii. Any other cause beyond the range of normal usage for Products. End User shall have no right to
reject, return, or receive a refund for any Product from ZTE under the above-mentioned situations.
• This warranty is end user’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
Emergency Call
Do not rely on the 3G Wireless Router to provide emergency call in all situations.
Your 3G Wireless Router only supports emergency dialing when there is power and connection to the
mobile network. If the power fails, the router can not work. If you have no network coverage you will not
be able to make emergency calls. The 3G Wireless Router does not include a lifeline facility (wired access
to the PSTN).
Confidential and Proprietary Information of ZTE CORPORATION 10
C h a p t e r 2
Getting started
The router operates on the HSUPA/HSDPA/UMTS network and GSM/GPRS/ EDGE network and
supports voice and data service.
Parts Supplied
Parts Quantity
3G Wireless Router 1
*USB Modem 1
External power adapter 1
User manual 1
Certificate of quality 1
*In this manual, the USB Modem is produced by ZTE.

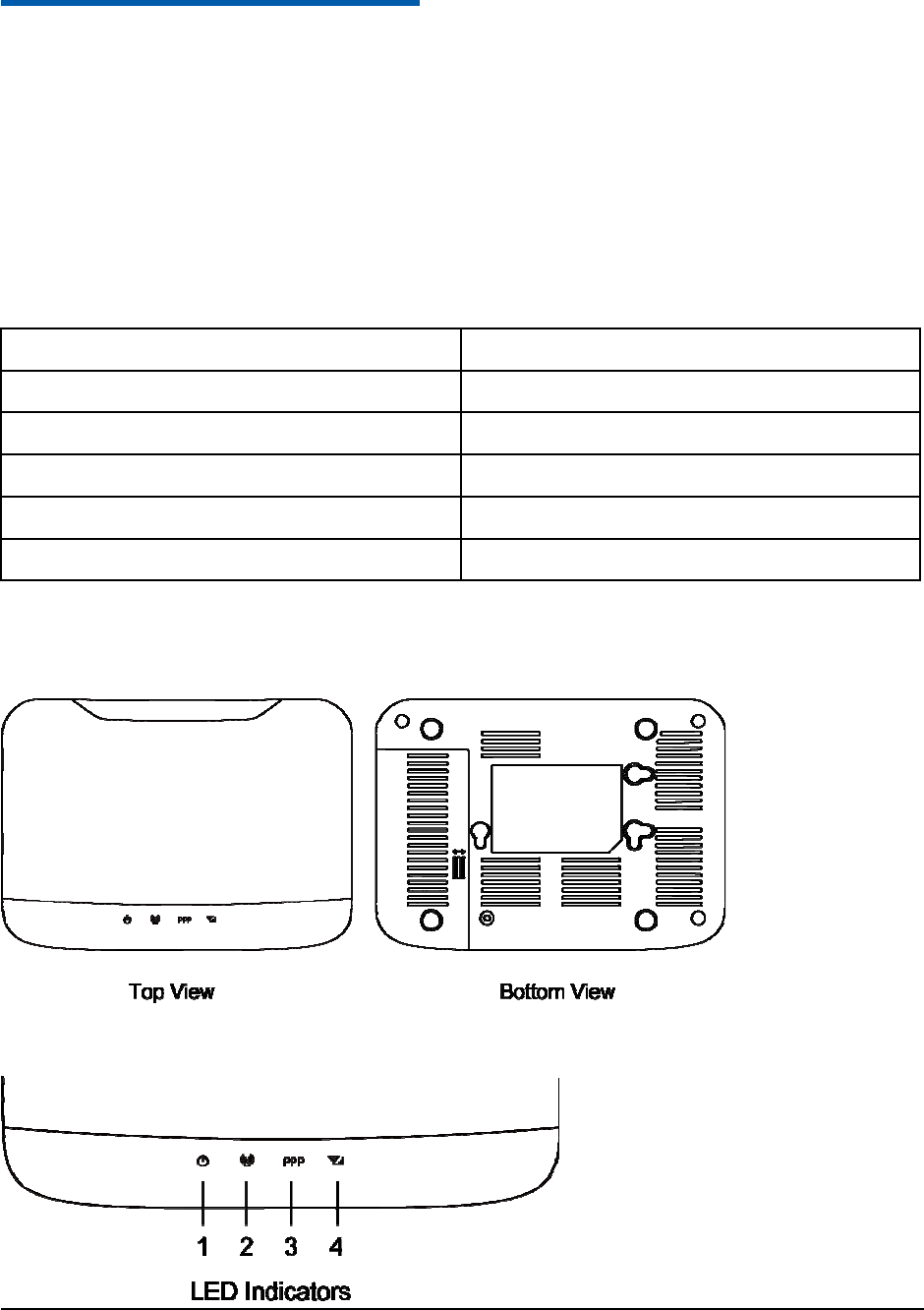

Appearance
LED Indicator
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
Indicator State Description
1. PWR ON External power supply works
normally.
OFF External power supply is
disconnected or power off.
2. Wi-Fi ON Wi-Fi works normally.
Blinking Data transmission
OFF Wi-Fi works abnormally.
3. PPP ON Internet connected
Blinking The router attempts to connect
Internet.
OFF Internet disconnected and not attempt
to connect.
4. RSSI ON RF signal is normal. Different color
indicates different network.
Red: GSM/GPRS/EDGE
Yellow: UMTS
Green: HSDPA/HSUPA
Blinking RF signal is poor.
OFF RF signal is not available.
Notes:
The indicators (including PPP and RSSI) are all blinking in green when:
• The (U)SIM card has not been installed.
• The PIN code or PUK code is required.
• The router can not work normally.

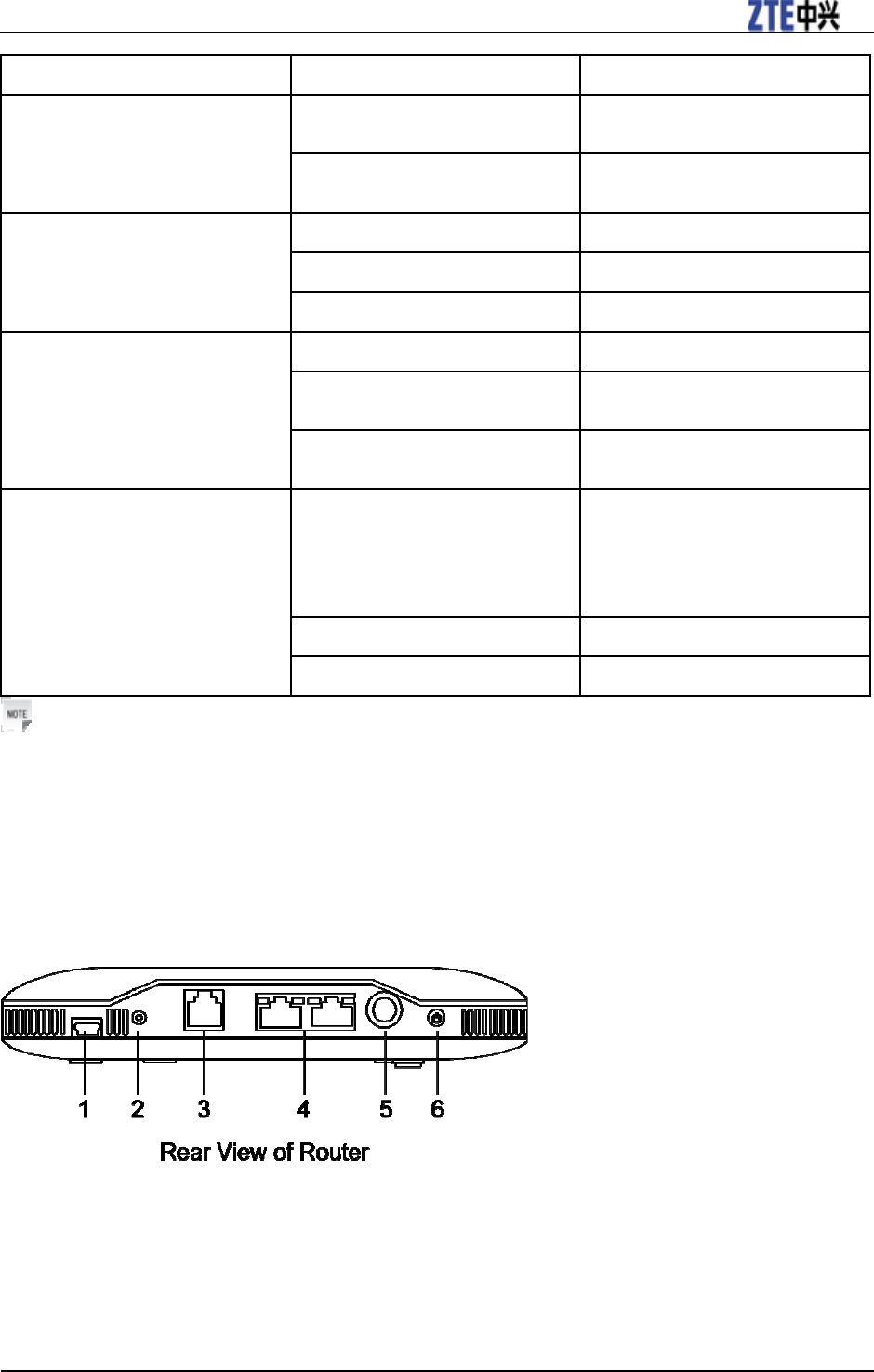

Interface Description
1. USB: Test and diagnostic interface for factory use only.
2. WPS: WPS button is used to start Wi-Fi Protected Setup authentication process.
3. PHONE: Standard RJ11 connector for Telephone.
4. LAN 1~ LAN 2: Ethernet connections to computer.
5. POWER Socket: Connection to the external power supply.
MF613 3G Wireless Router User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION
6. POWER Switch: Turn the router ON or OFF. Hold on for several seconds to restore the factory default
settings.
Installation
This section will show you how to install the hardware.

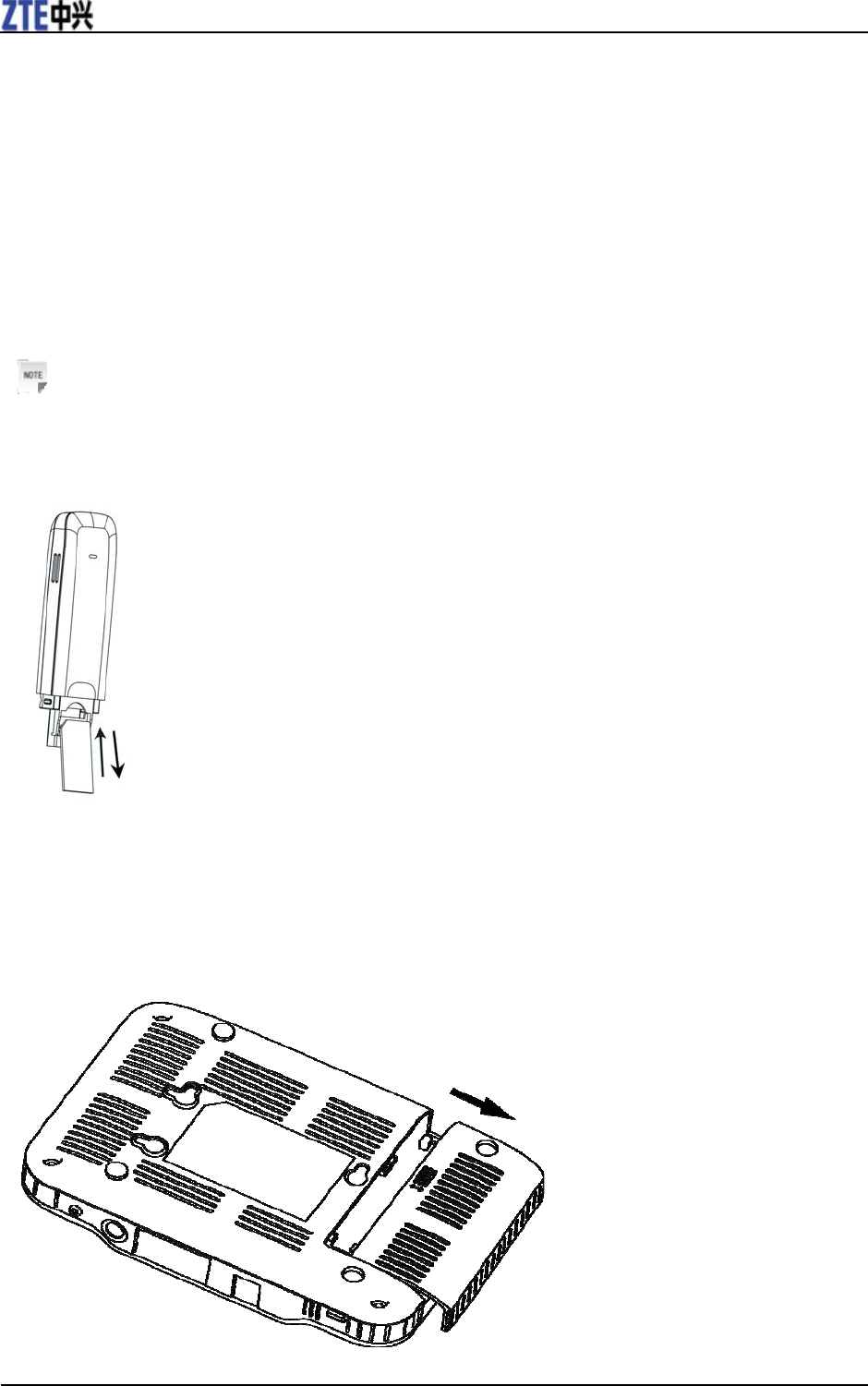

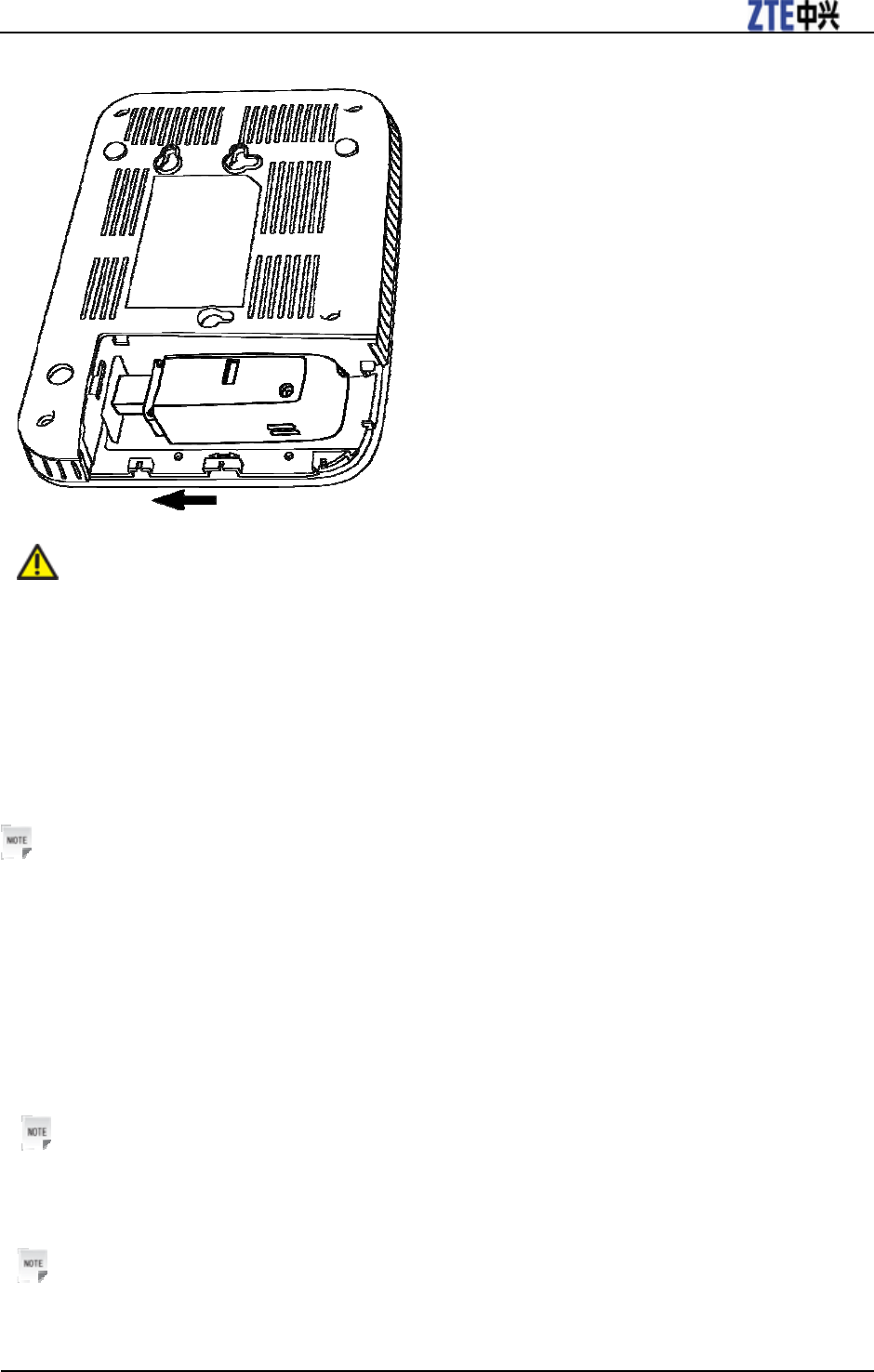

Inserting the (U)SIM Card
Insert the (U)SIM card into the modem(supplied by ZTE).
1. Take down the modem cap, and then the USB connector is visible.
2. Pull the plastic socket above the USB connector out.
Notes:
Do not pull the (U)SIM socket rudely for the socket is fixed with the modem. Otherwise the socket
will get damaged.
3. Insert the (U)SIM card into the socket, and make sure that metal contact area facing to the modem.
4. Insert the plastic socket into the modem. You can hear a click when the (U)SIM card socket locks into
place.
Inserting the modem
Insert the modem into the router.
1. Slide the back cover and remove it.
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 13
2. Plug the USB connector into the USB port.
3. Close the back cover.
Warning:
Please power off the router and remove the external power adapter before removing or inserting
the modem, if not, the router or modem may be damaged.
Connecting phone
Connect the telephone to the PHONE interface using phone cable(RJ11).
Connecting computer
Connect your computer to the LAN interface using the Ethernet cable (RJ45).
Notes:
The router will adapt the Ethernet cable style (crossover or straight) automatically.
Connecting the external power
1. Connect the external power adaptor to a standard power outlet.
2. Insert the plug into the socket at the rear of the router.
Switching on your device
1. Turn the power switch on to get started. Make sure that the phone is on hook before power on.
Notes:
Do not put anything on the top of router. Do not lay routers to overlap each other when using.
2. Wait 1~2 minutes after turning the router on before you use the service. The RSSI & PWR indicator
should be lit on.
Notes:
When the router is turned off, an incoming caller will hear the prompt like “The number you
have dialed is currently unavailable.”
MF613 3G Wireless Router User Manual
14 Confidential and Proprietary Information of ZTE CORPORATION
If the RSSI (Radio Signal Strength Indicator) LED is blinking constantly then try moving the router to
another location. The router takes 1~2 minutes to initialize, attach to the network and obtain an IP
address.
Power supply
For normal operation connect the router to the external power adapter. In case of power failure or when
there is no available external power supply, the router can not work.
About (U)SIM card
Avoid handling the (U)SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep
the (U)SIM card away from electrical and magnetic appliances.
Notes on Service and Coverage
If you cannot get service, make sure that：
• You are in an area which has sufficient network coverage.
• You are using the correct (U)SIM card.
• If necessary you need enter your PIN or PUK code.
• If the RSSI (Radio Signal Strength Indicator) LED is blinking constantly then try moving the modem to
another location.
• Please wait 1-2 minutes for the modem to initialize, attach to the network and obtain an IP address.
Confidential and Proprietary Information of ZTE CORPORATION 15
C h a p t e r 3
Voice Calls
Making a Call
Before making a call, make sure:
• The (U)SIM card is inserted.
• The modem is inserted properly.
• The telephone cable (RJ11) is connected properly.
• The PWR light is on.
• The RSSI light is on.
To make a call:
1. Pick up the handset.
2. Key in the telephone number.
3. You can either press # key on the telephone to send the call, or wait 4~8 seconds for the call to be
connected automatically.
4. Call will be connected.
Notes:
If there is no RSSI indication, the RF signal is unavailable. Change the location of the router and
make sure nothing is blocking it.
Making a Trunk Call
If you are making a trunk call, add the area code as normal.
E.g. 0396 12345678
Making an International Call
If you are making an international call, key in the international access code followed by the country code,
area code and number.
E.g. 00 11 64 12345678
Answering the Call
When the phone rings, pick up the handset to answer it. If the telephone has hands-free function you can
answer the call by pressing the Hands-free button. Press the hands-free button again to end the call.
Confidential and Proprietary Information of ZTE CORPORATION 16
C h a p t e r 4
Internet Access
The router does not require any drivers, and it supports all operating systems with Ethernet LAN
capability, such as Windows 2000, XP, Vista , MAC OS X and Linux. The router supports two computers
surfing on internet using Ethernet cable at the same time, and also supports Wireless LAN connection.
Notes:
All the parameter settings in this chapter are just for your reference. Please contact your service
provider for detail.
Preparation
Before using the data service, make sure:
• The (U)SIM card is installed into the modem.
• The modem is inserted into the router.
• The Ethernet cable is connected properly.
• The PWR light is on.
• The RSSI light is on.
• The PPP light is on.
Web browser requirement:
It is suggested that you use one of these web browsers to connect to the internet.
• IE 6.0 or above
• Firefox 2.0
• Netscape version 9.0
Settings
Do not change any settings unless instructed by your service provider. To make changes to your settings
you need to disconnect the router from the network. After making changes reboot your router by turn off
and on again.
Login
The router can be connected by RJ45 or by Wi-Fi (the SSID is “ZTE Wireless Network”). By either
connection mode, you should set to obtain an IP address automatically in the attribution setting of Internet
protocol(TCP/IP).
After your computer gets the IP address (like 192.168.0.101) from the router, open a web browser and
type “ http://192.168.0.1” in the address bar, and then input the username and password to log in.
User Name: admin
Password: admin
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 17

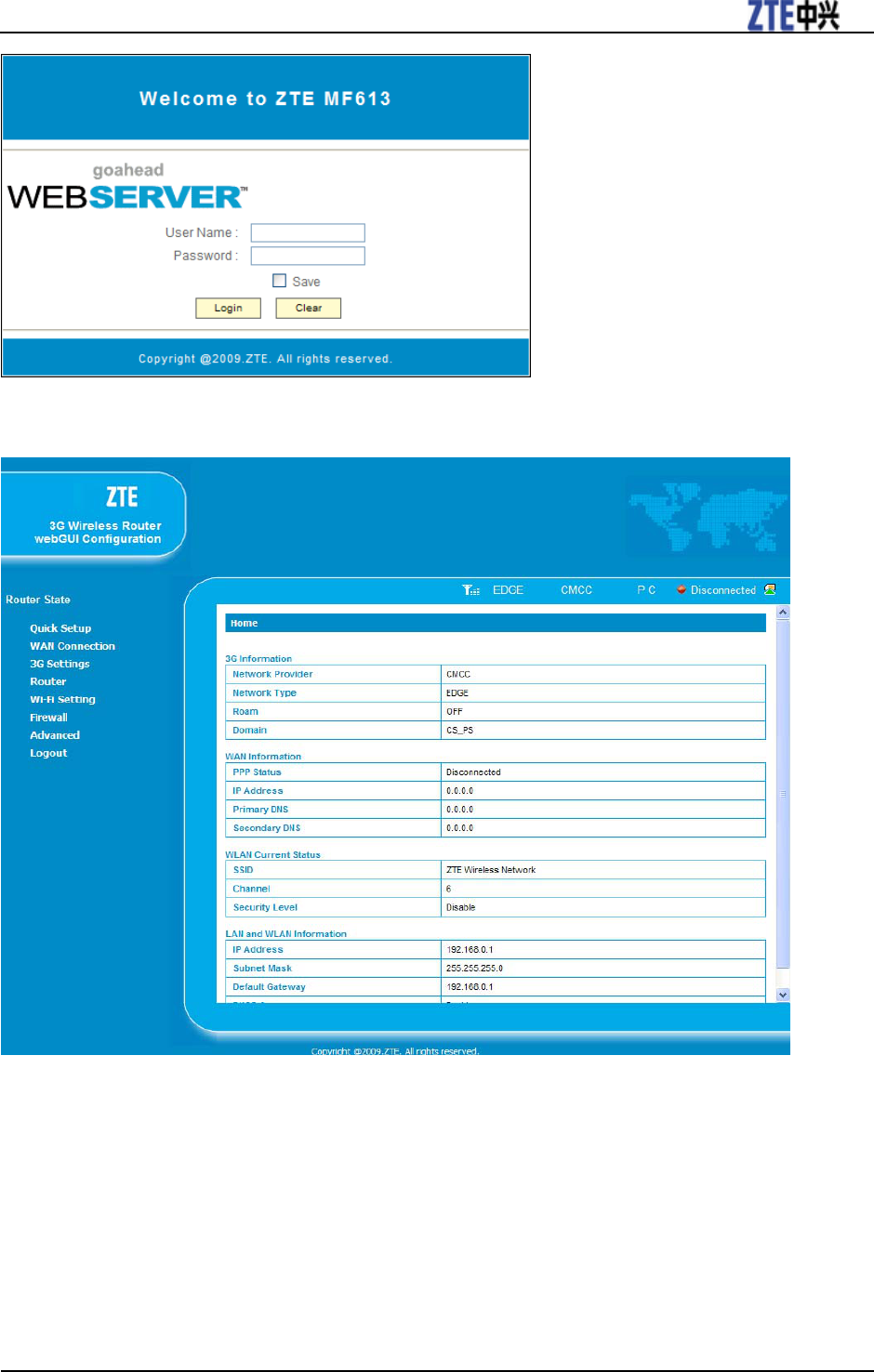

Click Login to log in the router. Check Save to let the Explorer keep the user name and password.
When you successfully login, the router status web page appears:
The whole page is divided into two parts. Related functions can be executed by operation in the related
areas.
• Index area: Show configuration list for your router.
• Content area: Show the detail configuration.

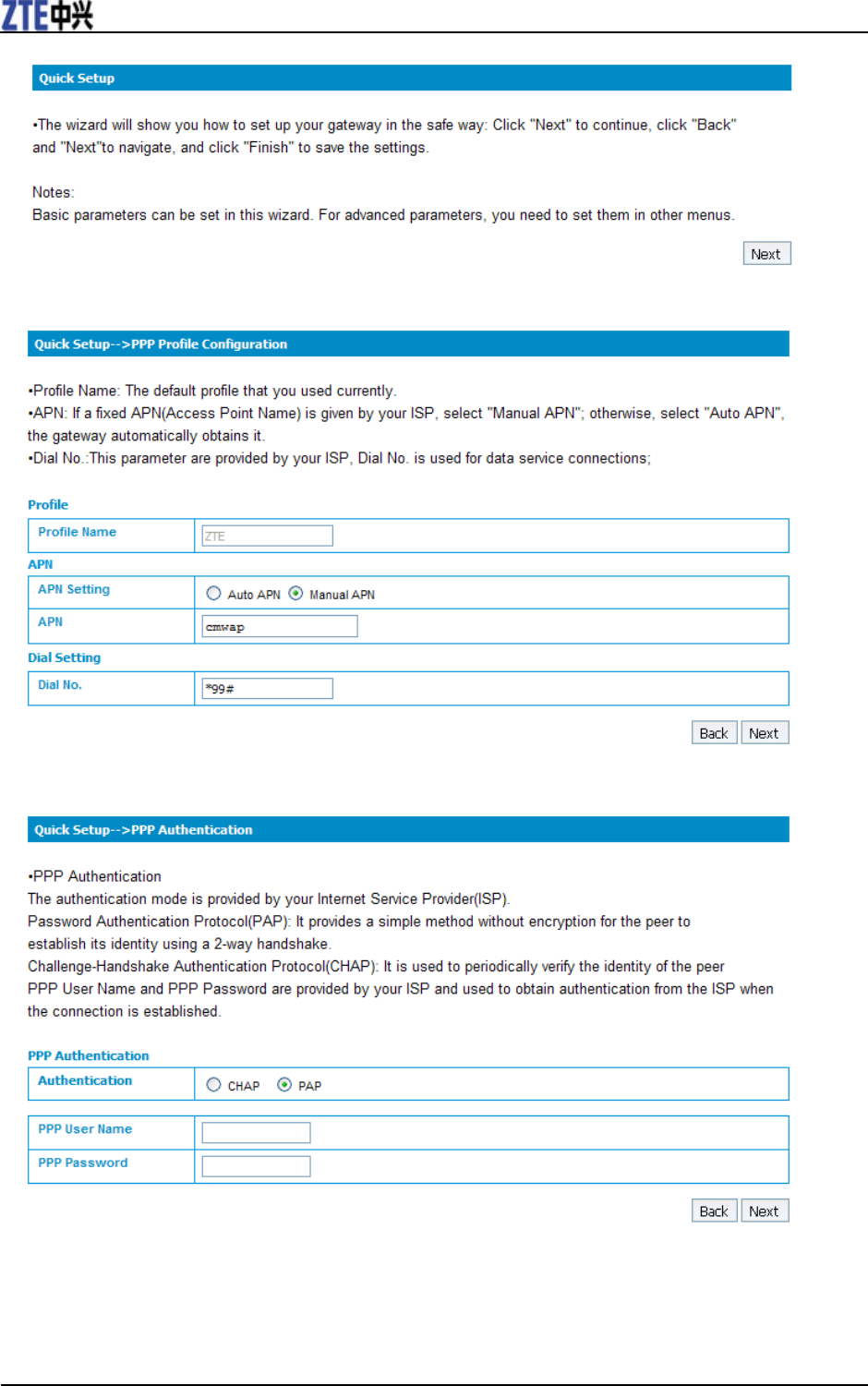

Quick Setup
The Quick Setup helps you to quickly set the basic settings of your router. The following sections
describe the steps and parameters of Quick Setup.
1. Read the guide carefully, and then click Next.
MF613 3G Wireless Router User Manual
18 Confidential and Proprietary Information of ZTE CORPORATION
2. Set the PPP Profile Configuration and then click Next.
3. Set the PPP Authentication and then chick Next.

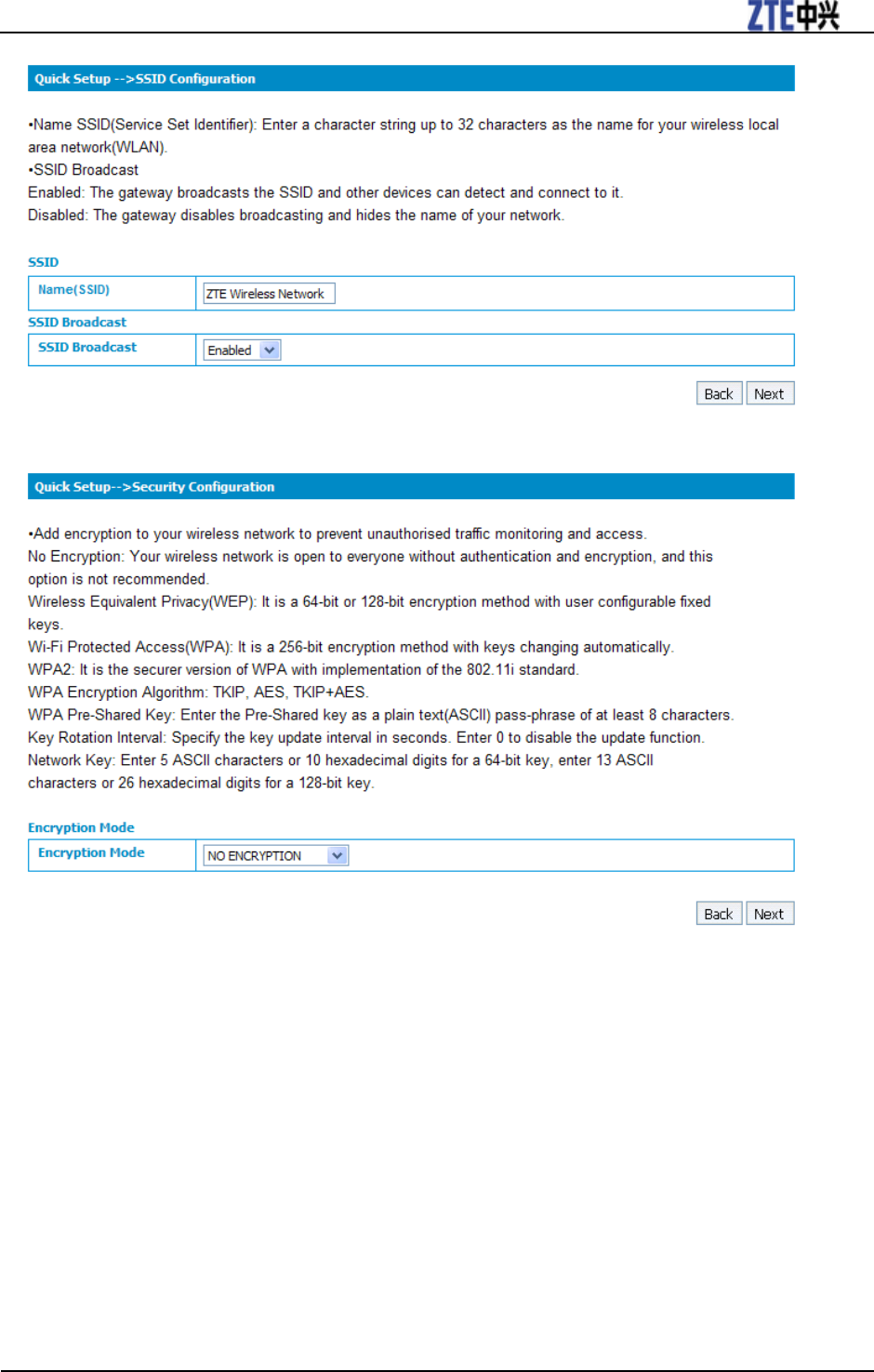

4. Set the SSID Configuration and then click Next.
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 19
5. Set the Security Configuration and then click Next.
6. Show all the configurations and then click Finish to complete. If you want to modify, please click Back.
(The figure is only for your reference as shown below).
MF613 3G Wireless Router User Manual
20 Confidential and Proprietary Information of ZTE CORPORATION

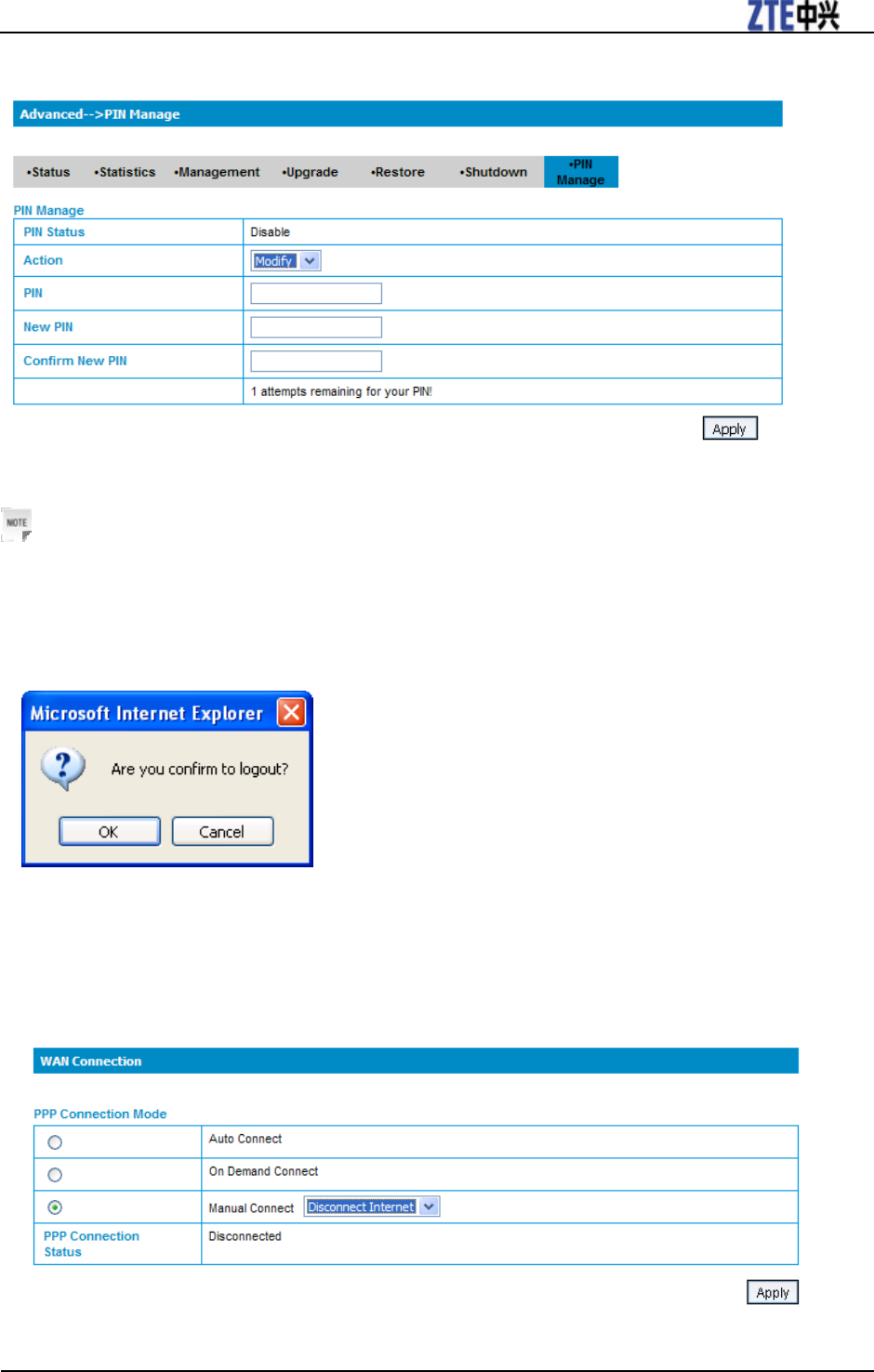

WAN Connection
Click WAN Connection, you can configure how to connect to the Internet.
There are three connection mode:
• Auto Connect: The router will automatically connect to WAN when it is powered on.
• On Demand Connect: The connection will be established when data transmission are required.
• Max Idle Time: The router will disconnect from the Internet if there are no data transmission for a
specific time. The default value is 10 minutes
• Manual Connect(Default): Connect to Internet or disconnect from Internet manually.
Click Apply to confirm your configuration, and then the PPP connection status will be shown in the
figure.
3G Settings
Wireless Info

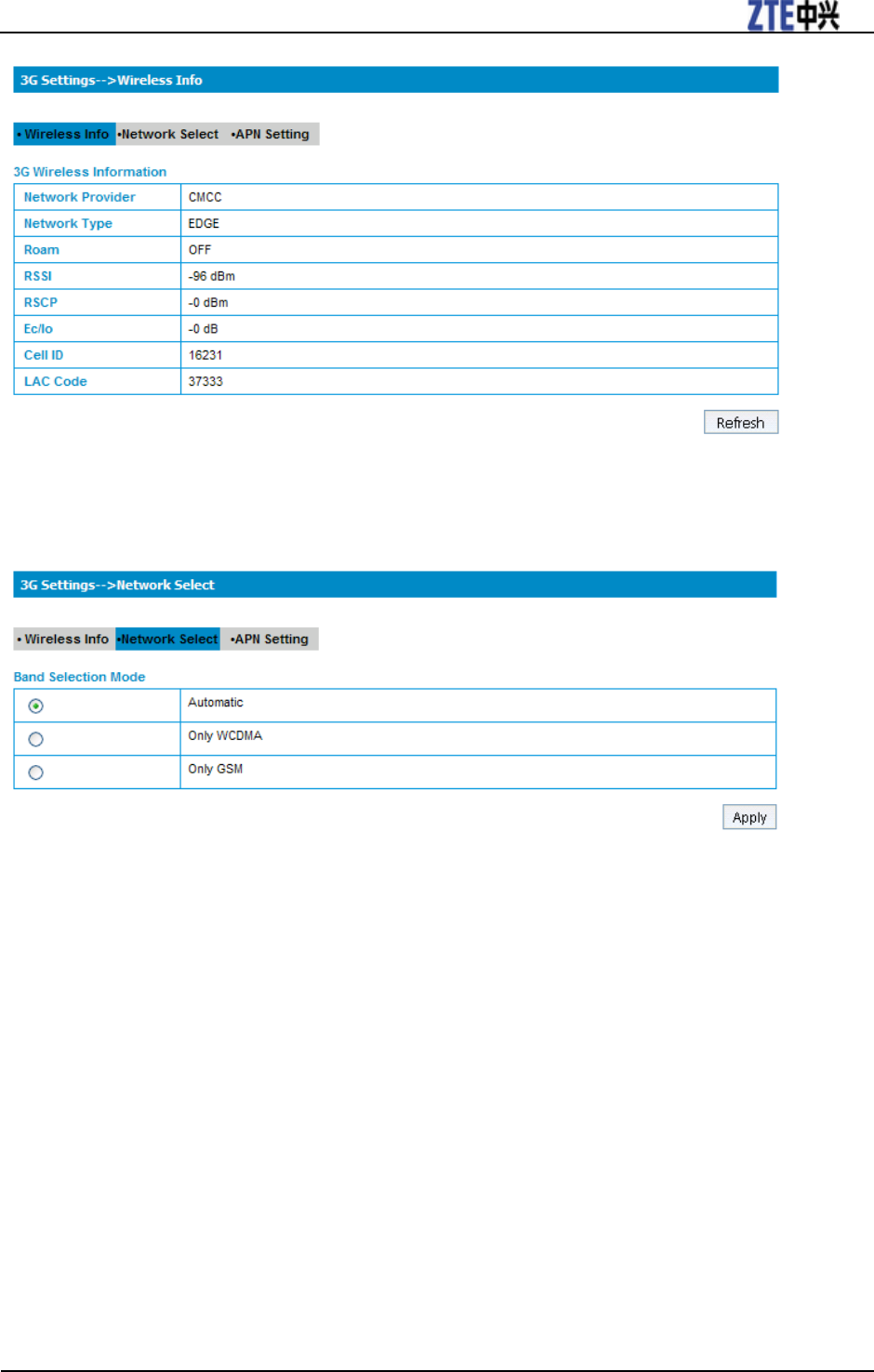

Select 3G Settings > Wireless Info, the 3G wireless information is shown in the following figure:
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 21
Click Refresh to update the wireless information.
Network Select
Select 3G Settings > Network Select, the Band Selection Mode is shown in the following figure:
• Automatic: Router searches for valid network according to the wireless network.
• Only WCDMA: Router searches for WCDMA network only.
• Only GSM: Router searches for GSM network only.
Click Apply to confirm your configuration.
APN Setting

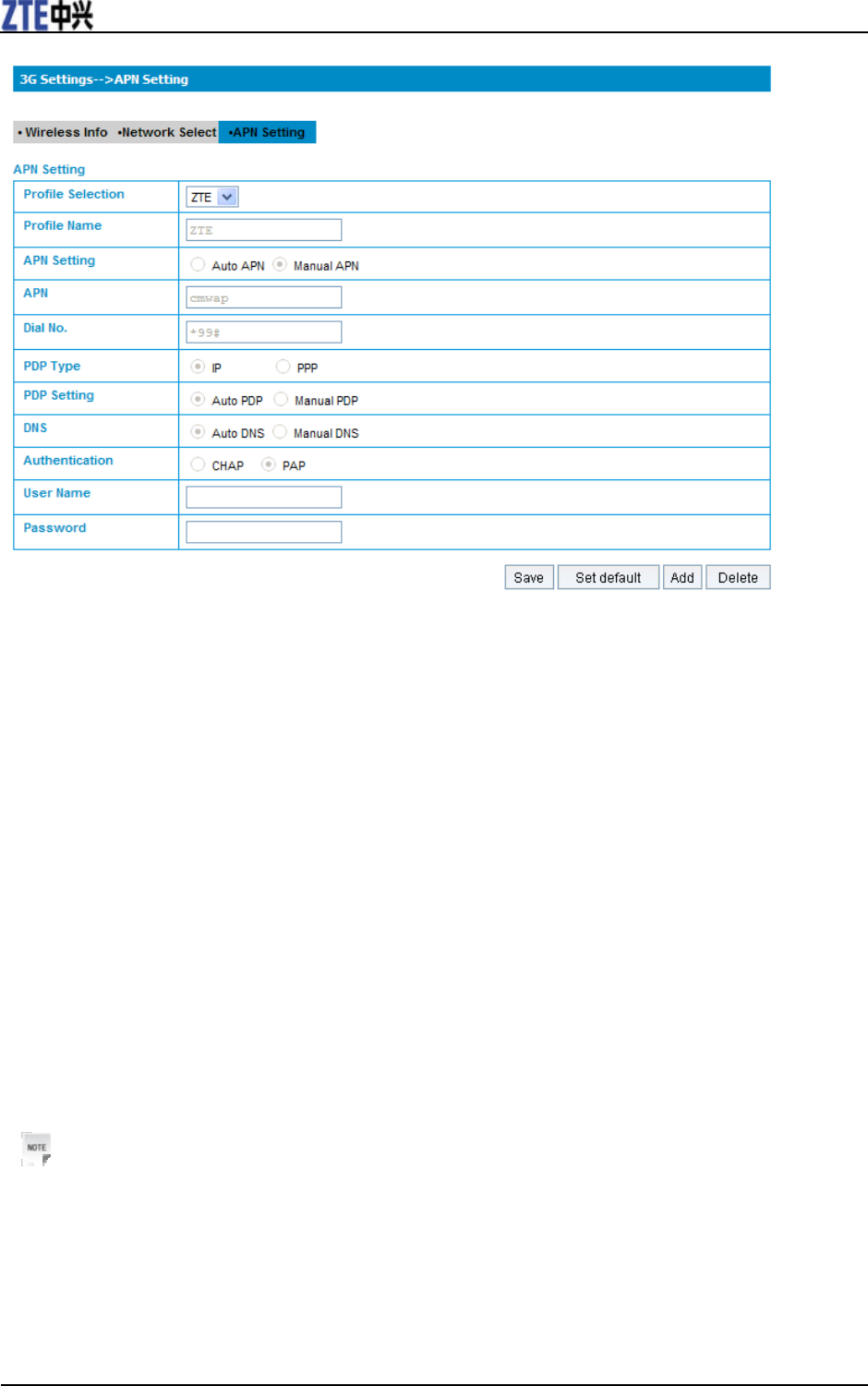

Select 3G Settings > APN Setting, the APN parameters are shown in the following figure:
MF613 3G Wireless Router User Manual
22 Confidential and Proprietary Information of ZTE CORPORATION
• Profile Selection: Select the profile which you want to use for the internet connection.
• Profile Name: The profile which is set as default.
• APN Setting: APN address mode. If a fixed APN is given by your service provider, select Manual APN.
Otherwise select the Auto APN, and the router will automatically obtain this parameter.
• APN: Access Point Name.
• Dial No.: This dial number is used for data service connection.
• PDP Type: IP (Default)or PPP.
• PDP Setting: PDP address mode. If a fixed IP address is given by your service provider, select Manual
PDP. Otherwise select the Auto PDP and the router will automatically obtain this parameter.
• DNS: Select Auto DNS or Manual DNS.
• Authentication: Select CHAP or PAP.
• User Name: Set user name for this APN .
• Password: Set password for this APN.
To add a new APN profile:
1. Click Add to define a new APN profile.
2. Input those parameters as shown above.
Notes:
If you have any problem, please contact with your service provider.
3. Click Save to save this new profile.
4. Click Set default to set this profile as default.
Router
LAN
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 23

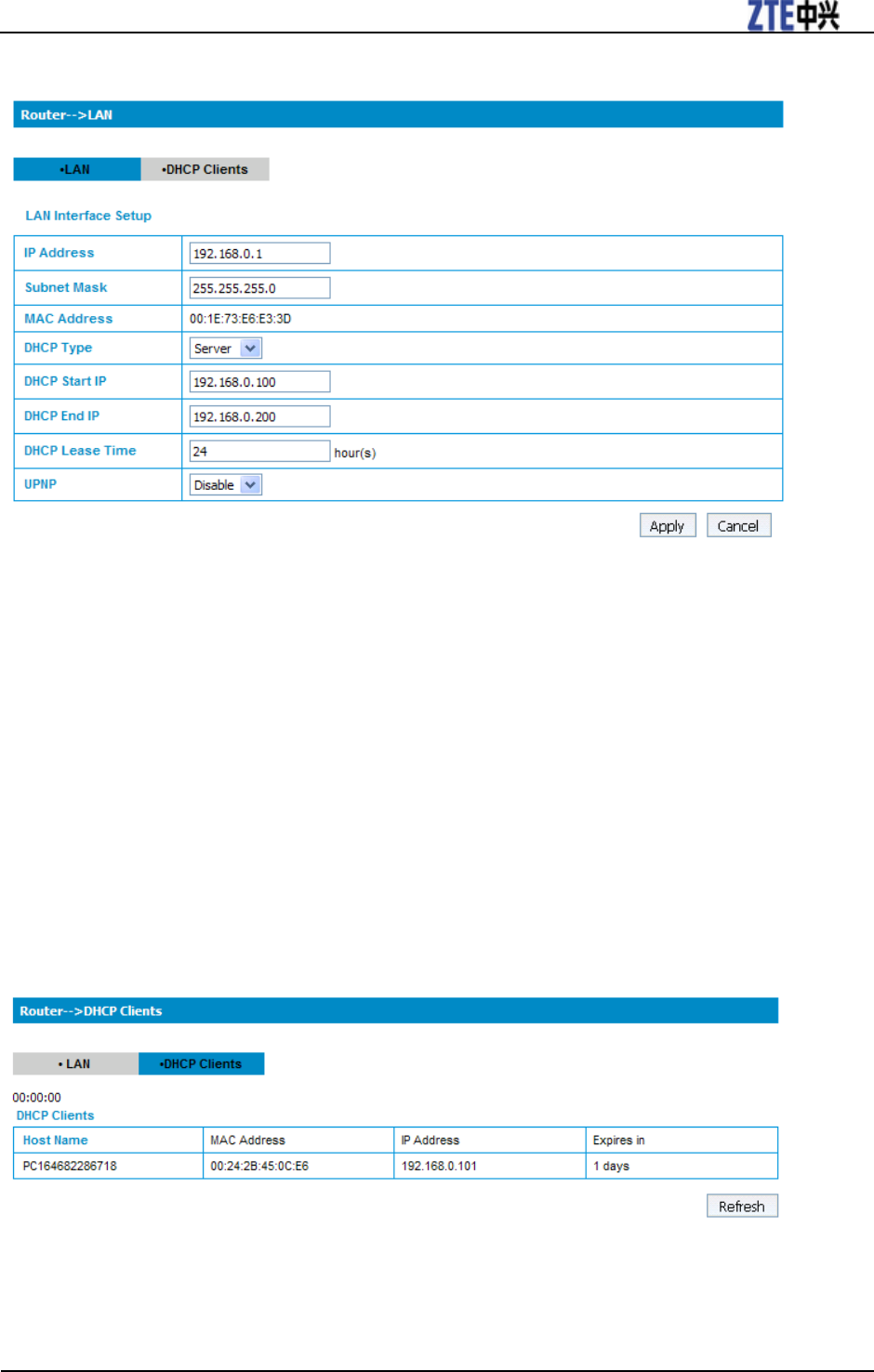

Select Router > LAN, the LAN parameters are shown in the following figure:
• IP Address: LAN IP address of the router.
• Subnet Mask: Subnet mask of the router.
• MAC Address: MAC address of the LAN interface.
• DHCP Type: The router is set up as a DHCP server, which provides IP address in IP pool range for all
the computer connections.
• DHCP Start IP: Allocate start IP address for IP pool.
• DHCP End IP: Allocate end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired.
• UPNP: Enable or Disable the Universal Plug and Play function.
Click Apply to confirm your configuration.
DHCP Clients
Select Router > DHCP Clients, All of the DHCP clients information will be shown in the following
figure.
Wi-Fi Settings
Station list

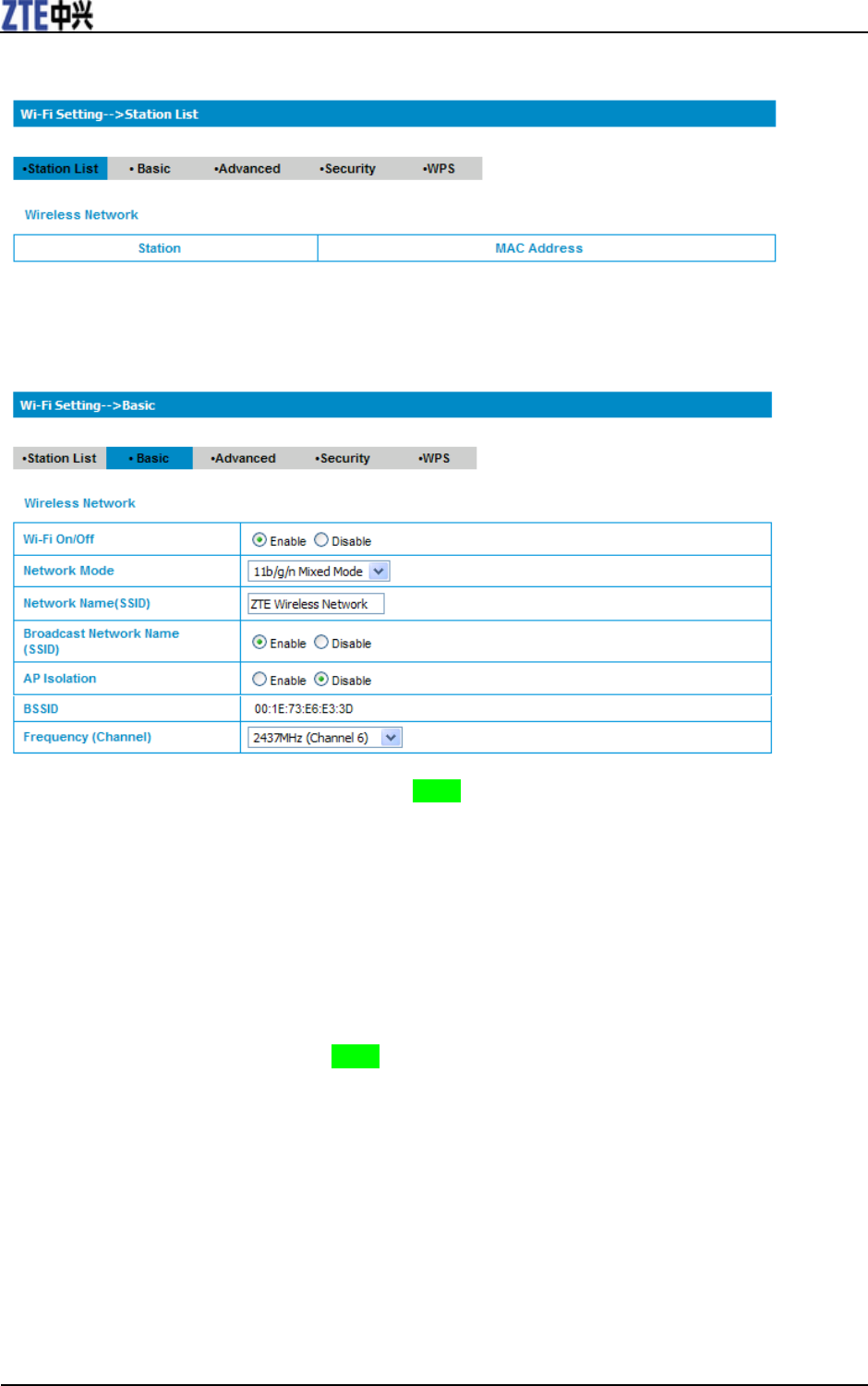

Select Wi-Fi Setting > Station List, All of the wireless network stations information will be shown in the
MF613 3G Wireless Router User Manual
24 Confidential and Proprietary Information of ZTE CORPORATION
following figure:
Basic
Select Wi-Fi Setting > Basic, the wireless network parameters and WDS mode are shown in the
following figure:
• Wi-Fi On/Off: Click this button to set the router Wi-Fi On or Off.
• Network Mode: Including 11b/g Mixed Mode, 11b only,11g only and 11b/g/n Mixed Mode.
• Network Name(SSID): Service Set Identifier. Enter a string less than 32 characters as the name for your
wireless local area network(WLAN).
• Broadcast Network Name(SSID): Disable or Enable(Default) this function. The router broadcasts the
SSID, and other devices can detect and connect to it by selecting Enable. The router disables
broadcasting and hides the name of your network by selecting Disable.
• AP Isolation: When enable this function, each of your wireless client will not be able to communicate
with each other.
• BSSID: Show the MAC address of the Wi-Fi.
• Frequency(Channel): The frequency band in which the WLAN operates. If some channels in your area
may have interference from other electronic devices, please choose the clearest channel to optimize the
performance and coverage of your wireless network. The default value is 2437MHz(Channel 6).
The Wireless Distribution System allows the router to communicate with other APs wirelessly. To make it
work, please make sure that the router and these APs are in the same channel with the same SSID.
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 25

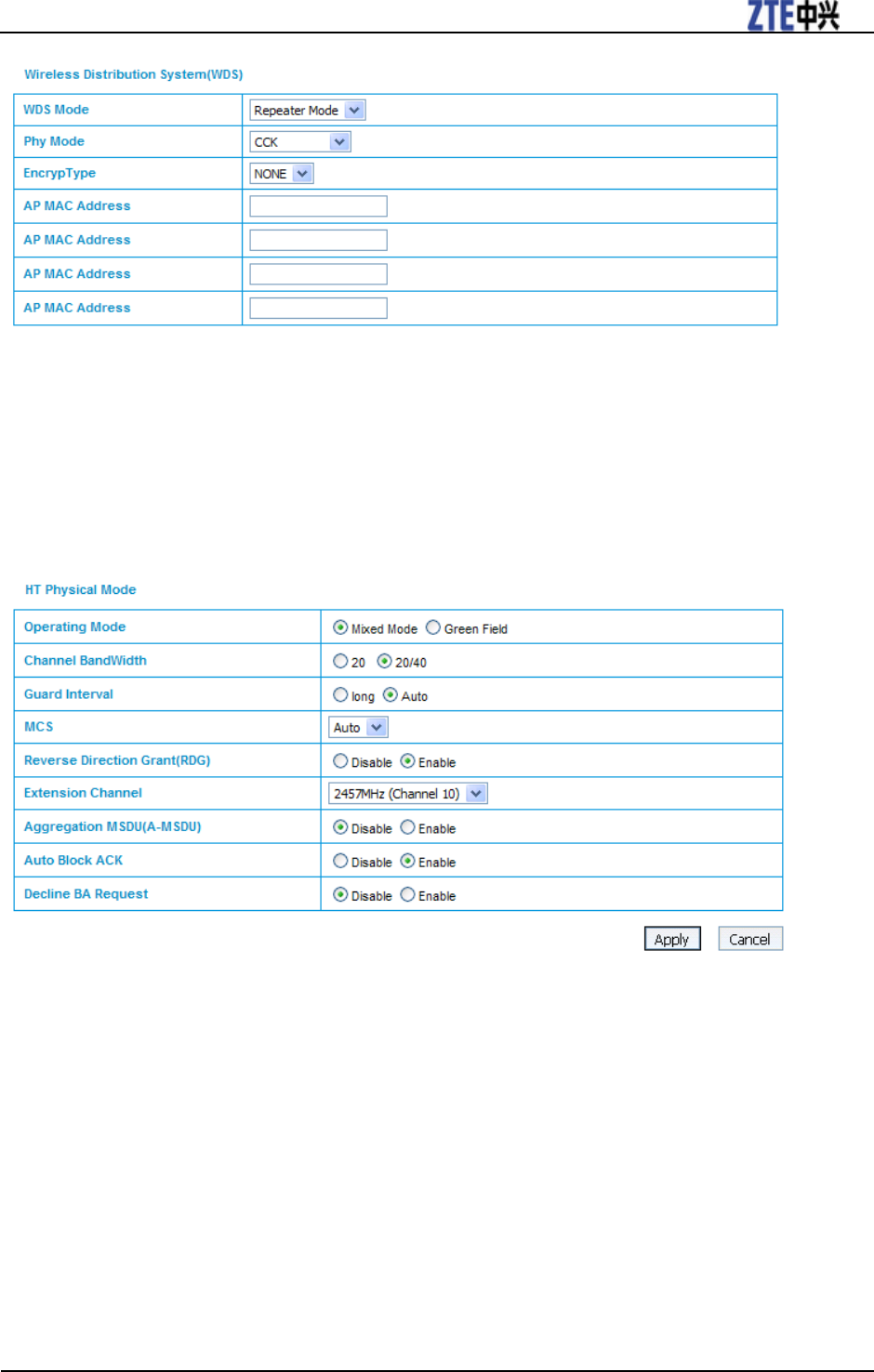

• WDS Mode: Lazy Mode, Bridge Mode and Repeater Mode are available. The default value is Disable.
• Phy Mode: Physical layer transmission mode. CCK, OFDM, HTMIX and GREENFIELD are available.
• EncrypType: The encryption type including NONE, WEP, TKIP or AES. If you select NONE, any data
will be transmitted without encryption and any station can access the router.
• AP MAC Address: For WDS Mode of Bridge Mode and Repeater Mode, you have to fill in the other
AP MAC address.
The HT physical Mode parameters are shown in the following figure:
• Operating Mode: Set the HT physical operating mode.
• Channel Bandwidth: Set the HT physical channel bandwidth.
• Guard Interval: Set the HT physical guard interval.
• MCS: Set fix MCS rate for HT rate.
• Reverse Direction Grant(RDG):Enable RDG or not.
• Extension Channel: Set extension channel. The extension channel is also able to send and receive data.
• Aggregation MSDU(A-MSDU) : Mark to enable Hyper Throughput TX Aggregate MAC Service Data
Unit, and clear by selecting Disable.
• Auto Block ACK: Block ACK(Acknowledge Number) or not during data transferring.
• Decline BA Request: Reject peer BA-Request or not.
Click Apply to confirm your configuration.
Advanced
MF613 3G Wireless Router User Manual
26 Confidential and Proprietary Information of ZTE CORPORATION

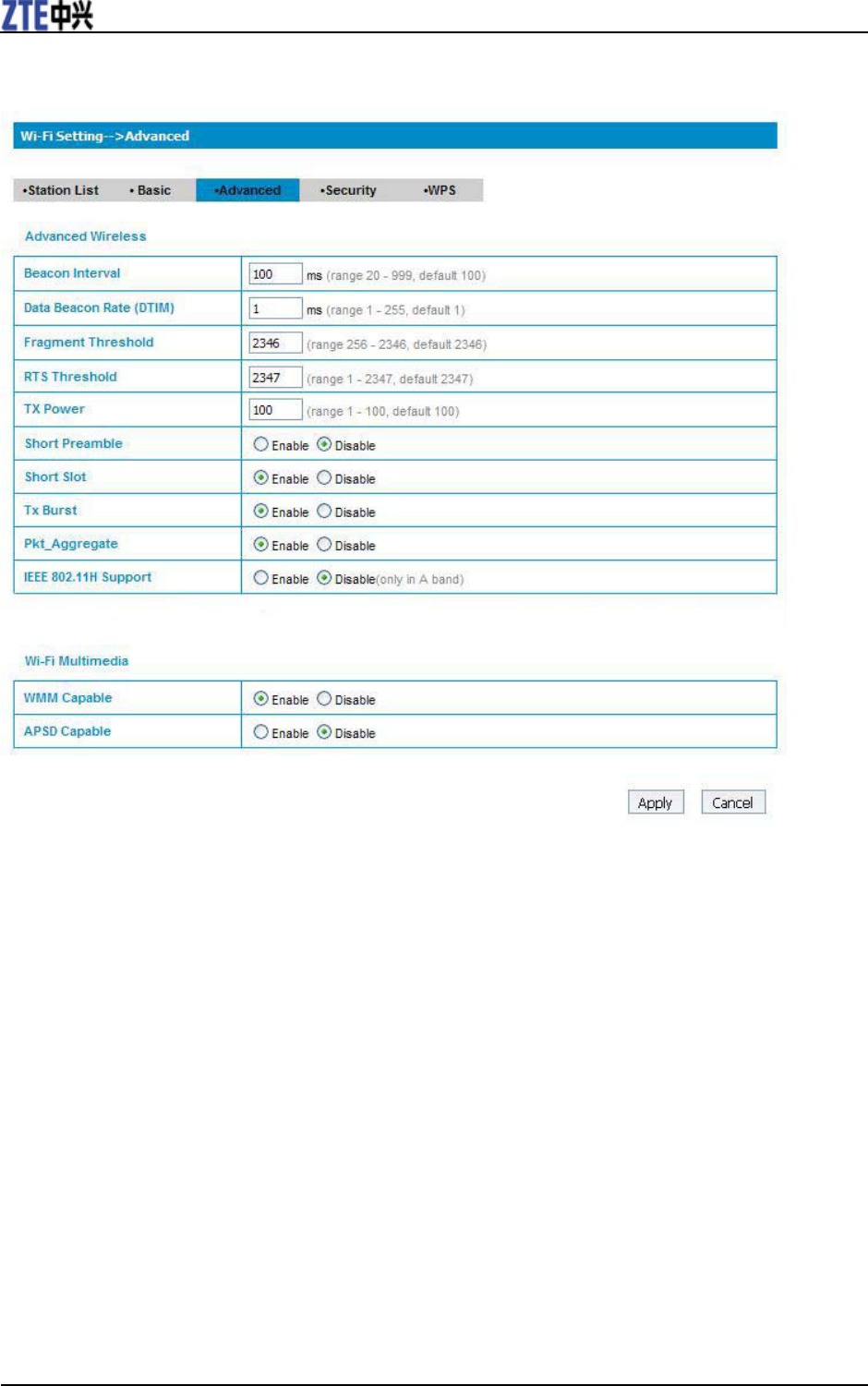

Select Wi-Fi Setting > Advanced, the advanced wireless network parameters and Wi-Fi multimedia
parameters are shown in the following figure:
• Beacon Interval: The router broadcasts beacon message to announce that it has buffered frames to
deliver. The default value is 100 (ms).
• Data Beacon Rate(DTIM) :Set the wireless network data beacon rate.
• Fragment Threshold: Set the wireless network fragment threshold.
• RTS Threshold: Set the wireless network RTS threshold.
• TX Power: Set the wireless network TX power.
• Short Preamble: Disable short preamble or not.
• Short Slot: Enable short slot or not.
• Tx Burst: Enable Tx burst or not.
• Pkt_Aggregate: Enable packet aggregation or not.
• IEEE 802.11H Support: Support IEEE 802.11H or not.
• WMM Capable: Enable Wi-Fi Multimedia(WMM) or not.
• APSD Capable: Enable APSD or not.
Click Apply to confirm your configuration.
Security

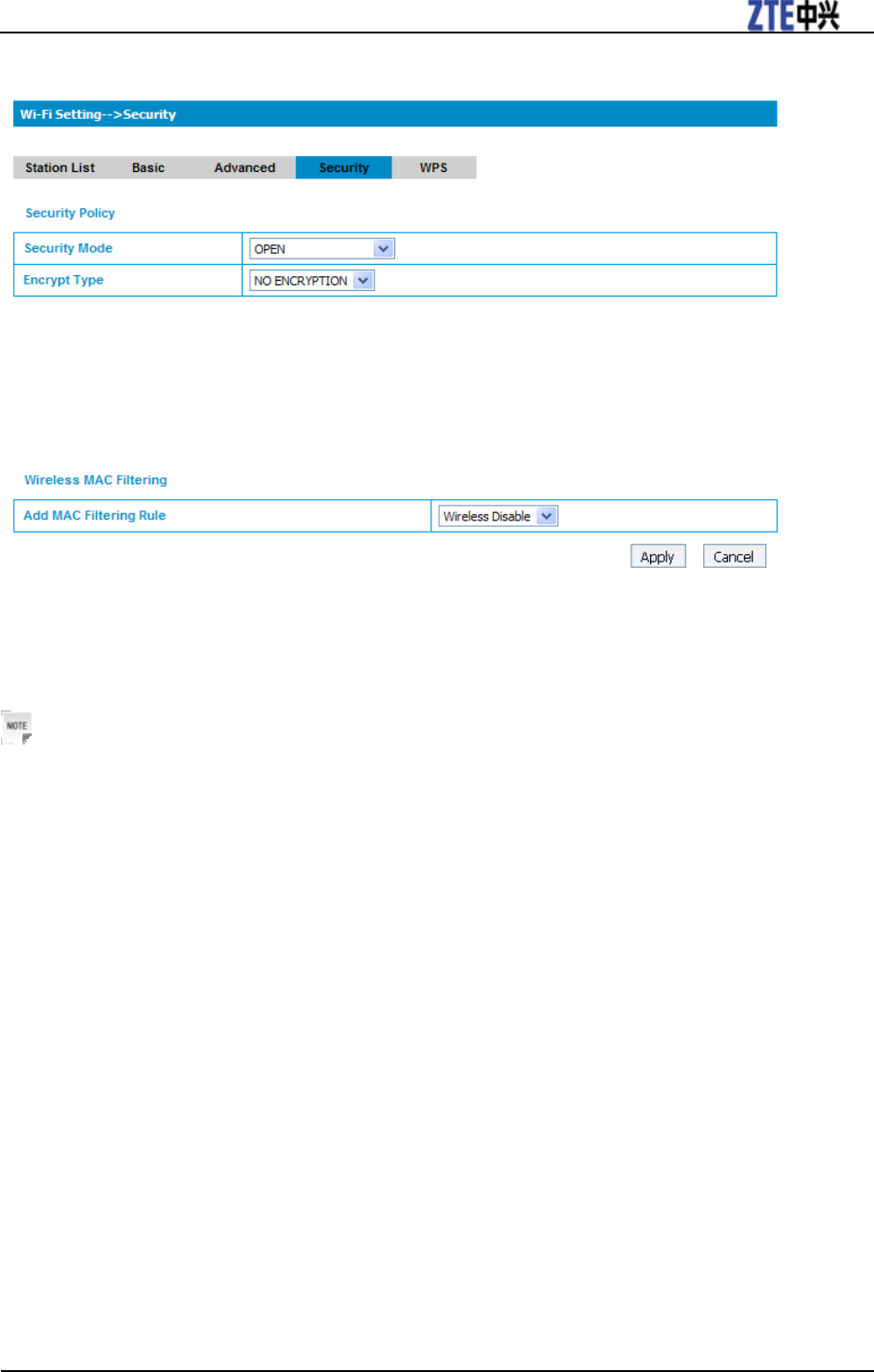

Select Wi-Fi Setting > Security, the Security parameters and Wireless MAC Filtering parameters are
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 27
shown in the following figure:
• Security Mode: Including OPEN, SHARED, WEPAUTO, WPA-PSK, WPA2-PSK or
WPA-PSK/WPA2-PSK.
• Encrypt Type: Use WEP Encryption or not.
The Wireless MAC Filtering is used to control the wireless network access.
• Add MAC Filtering Rule: Choose the type of MAC filtering, Wireless Disable, Wireless Allow or
Wireless Reject.
• MAC Address: Add the MAC addresses to the rule list.
Click Apply to confirm.
Notes:
• For Add MAC Filtering Rule of Wireless Allow: The devices with the MAC address added in the
list can communicate with the router. And others can not.
• For Add MAC Filtering Rule of Wireless Reject: The devices with the MAC address added in the
list can not communicate with the router. And others can.
The security modes are described below:
• Open: You can authenticate successfully with a SSID, whether it is valid or empty.
• SHARED: The WLAN clients who have the same WEP key with wireless gateway can pass the
authentication and access the wireless network.
• WEPAUTO: Select WEP security automatically.
• WPA-PSK: WPA Pre-Shared Key, Enter the Pre-Shared key as a plain text (ASCII) pass-phrase of at
least 8 characters.
• WPA2-PSK:It is the securer version of WPA with implementation of the 802.11i standard.
• WPA-PSK/WPA2-PSK:Apply both the WPS-PSK and WPA2-PSK scheme.

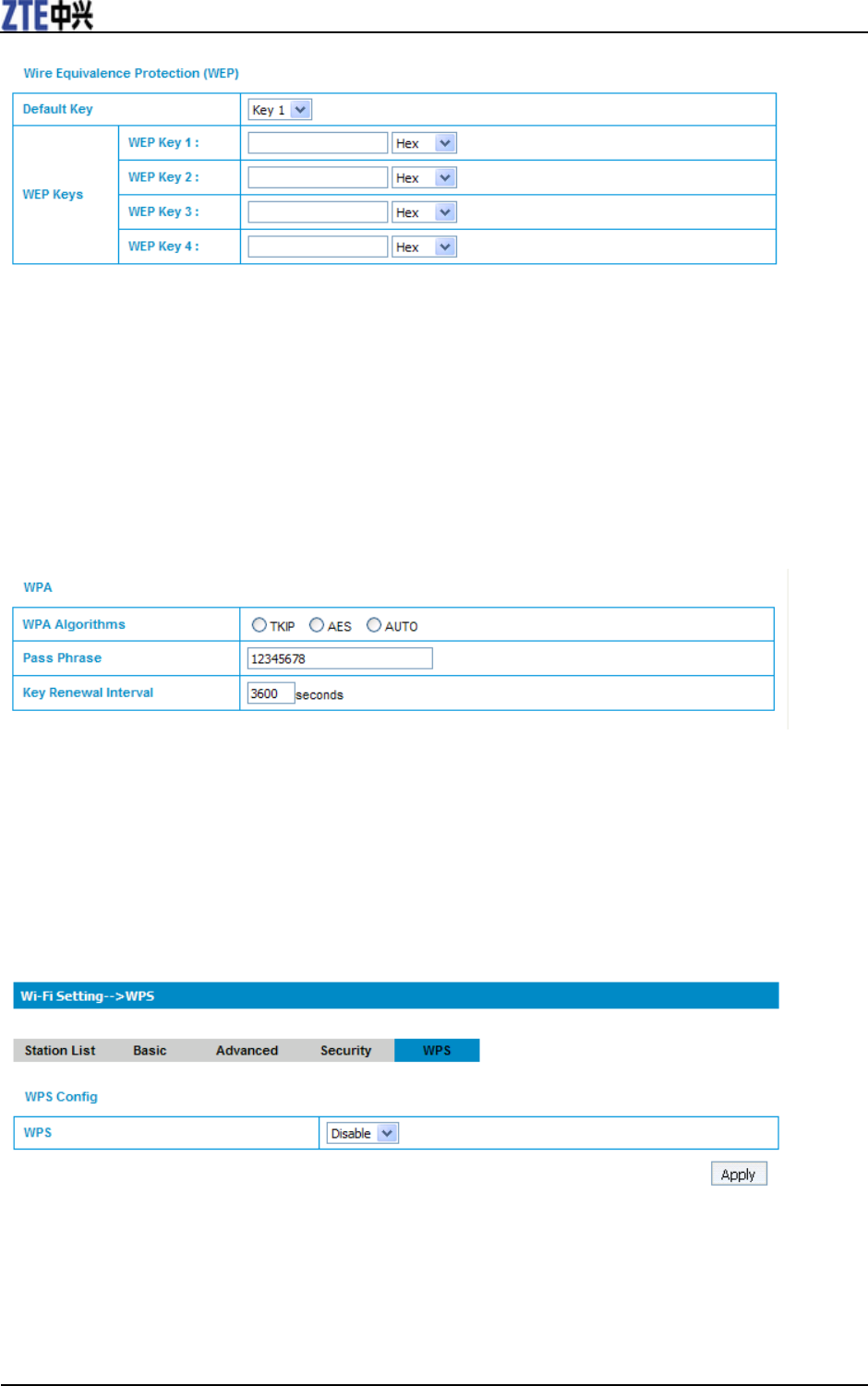

If the Authentication type is Shared or WEPAUTO, or you select Open and set the Encrypt Type as
WEP, the WEP parameters are shown in the following figure.
MF613 3G Wireless Router User Manual
28 Confidential and Proprietary Information of ZTE CORPORATION
• Default Key: Set the WEP Key as the default.
• WEP Keys: At most four keys can be set in the blank. Choose the primary key index. The primary key is
the only key in use at a given time. Whatever keys you enter for an access point, you must also enter the
same keys for the client adapter in the same order. In other words, WEP key 1 on the AP must match
WEP key 1 on the client adapter, WEP key 2 on the AP must match WEP key 2 on the client adapter,
etc. A WEP is either 10 or 26 hexadecimal digits (0~9,a~f and A~F)based on whether you select 64 bits
128 bits or 152 bits in the Encryption Strength drop-down list.
If the Authentication type is WPA-PSK , WPA2-PSK or WPA-PSK/WPA2-PSK , the WPA parameters
are shown in the following figure.
• WPA Algorithm: TKIP, AES or AUTO.
• Pass Phrase: You can input hexadecimal digits up to 64 characters or input ASCII characters choose a
length of 63 characters or less.
• Key Renewal Interval: Define how long the key should be renewed.
Click Apply to confirm your configuration.
WPS
Select Wi-Fi Setting > WPS, the WPS page shown in the following figure:
WPS: This function is to simplify the security setup of Wi-Fi networks. This Router supports the
configuration setup using PIN configuration method or PBC configuration method.
Select Enable , and then click Apply to configure the details.

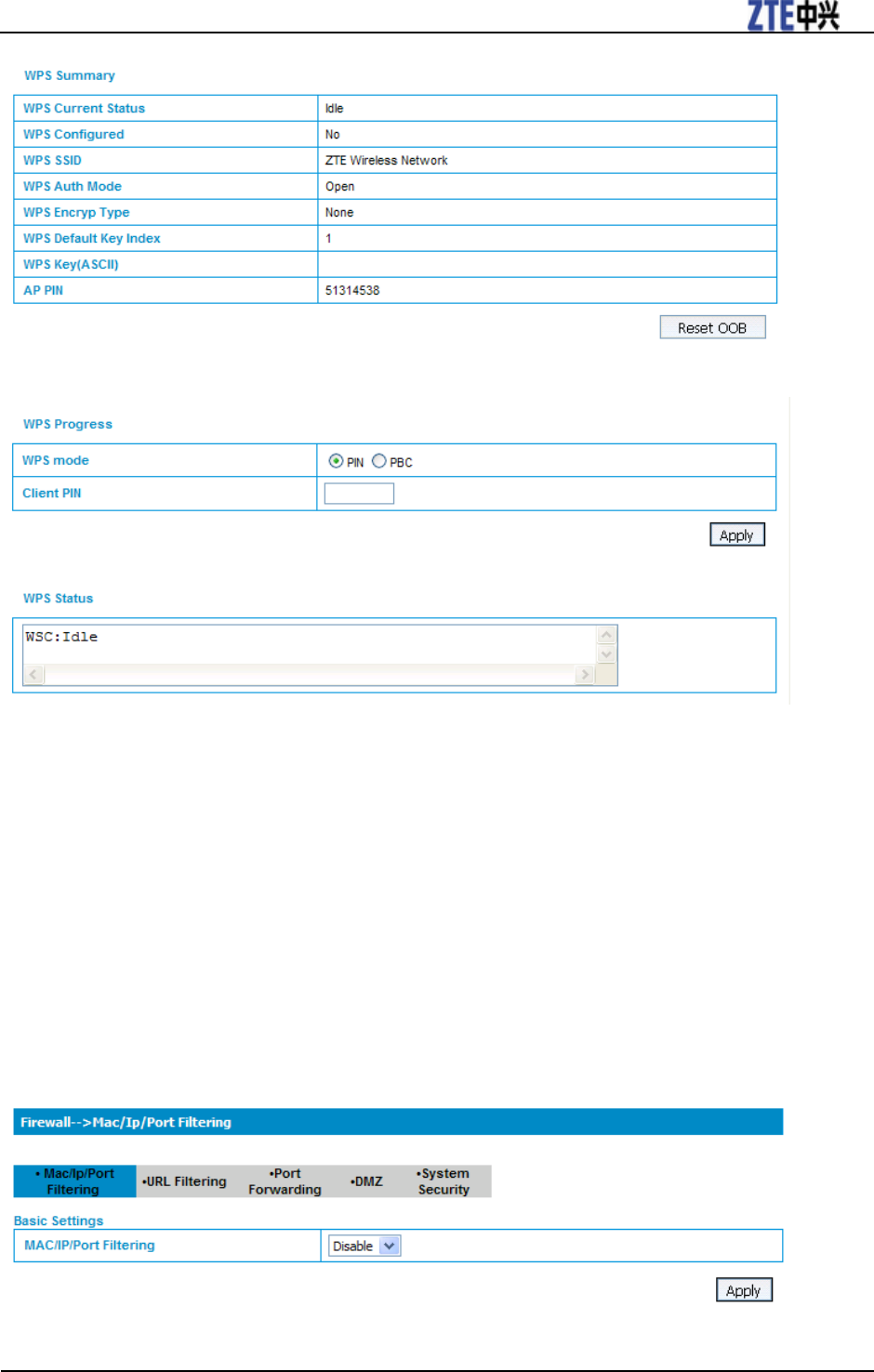

The following figure shows you the current configuration of WPS. Click Reset OOB on this page to
restore the default value.
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 29
The following figure shows you the WPS mode and status.
• WPS mode: Select PIN or PBC mode. If you select PIN mode, you need fill in the Clinet PIN which
you can get from other wireless device, or input the router’s PIN(AP PIN in the WPS Summary) in the
other wireless device. If you select PBC (Push Button Communication) mode, click Apply or press the
WPS Key at the rear of the router to active this function, and then you need enable the WPS function on
the other wireless device in two minutes to start authentication process with the router.
• Client PIN: Fill in the PIN code of the other wireless device if selecting PIN mode as the WPS Config
method.
• WPS Status: Show the authentication process of WPS
Firewall
MAC/IP/Port Filtering

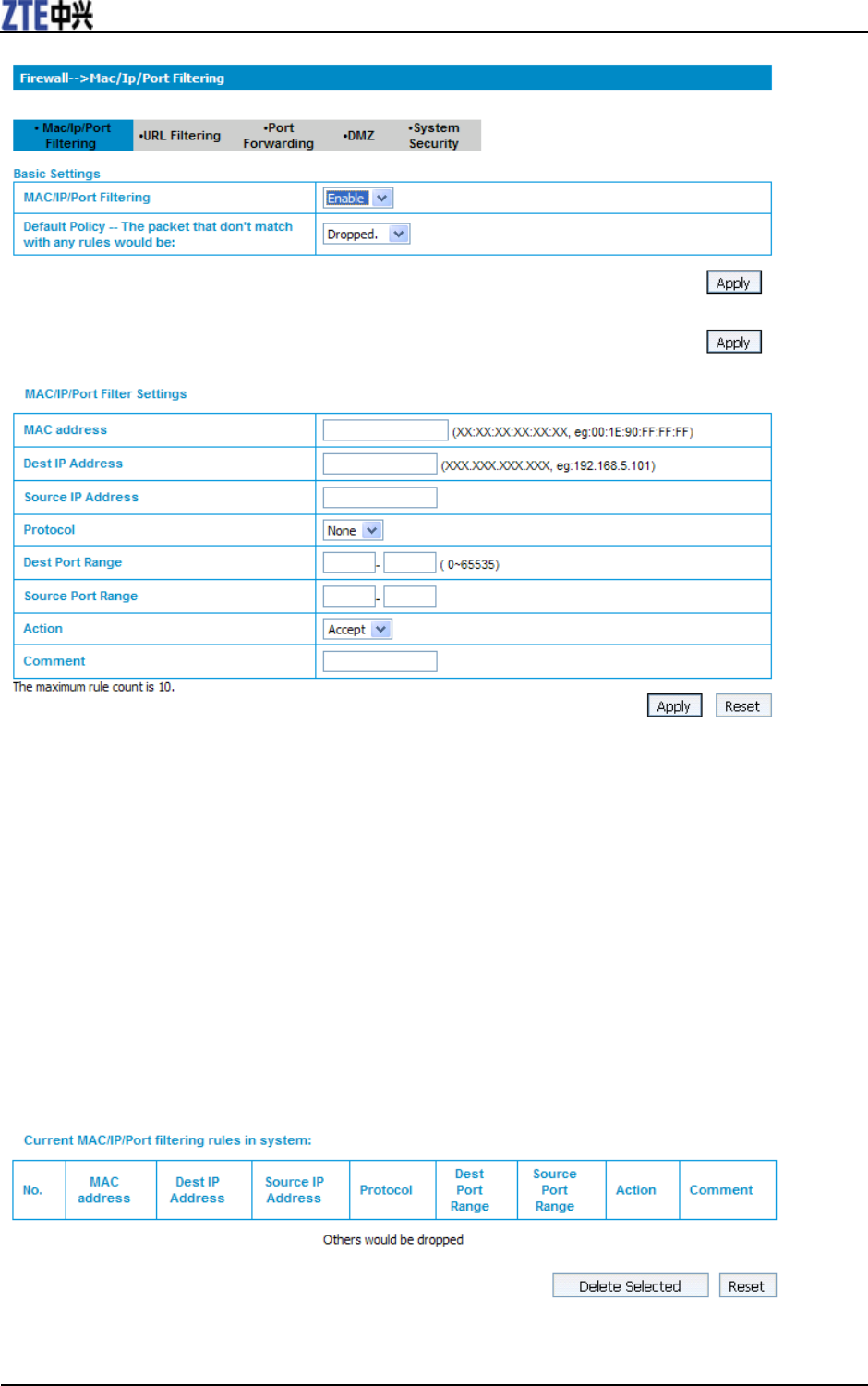

Select Firewall > Mac/Ip/Port Filtering, the Mac/IP/Port Filtering is shown in the following figure:
If you select Enable, the filter settings will appear:
MF613 3G Wireless Router User Manual
30 Confidential and Proprietary Information of ZTE CORPORATION
• Default Policy: Set how to handle the packet if none of the rules matches.
• MAC address: Set the MAC address that will be filtered.
• Dest IP Address: Set the destination IP address that will be filtered.
• Source IP Address: Set the source IP address that will be filtered.
• Protocol: Set which protocol will be used for filtering.
• Dest Port Range: Set the destination port numbers that will be filtered.
• Source Port Range: Set the source port numbers that will be filtered.
• Action: Set how to handle the packet if it matches with the rule.
• Comment: type comment for the filter settings.
Click Apply to confirm your configuration.
The following figure shows you the current MAC/IP/Port filtering rules in system.
URL Filtering
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 31

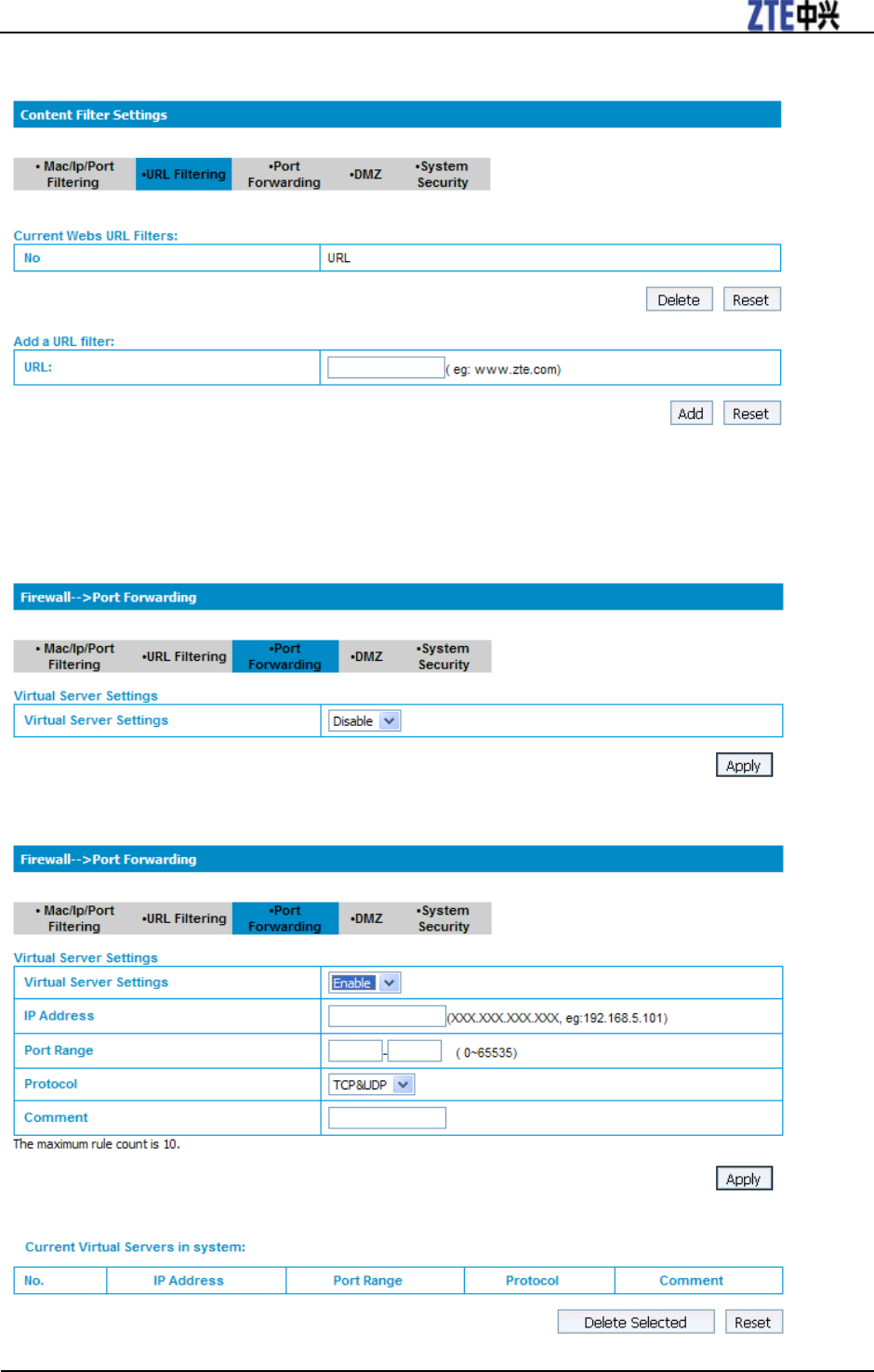

Select Firewall > URL Filtering, the URL Filtering is shown in the following figure:
Type URL address, and then click Add to add the URL address into the filtering list. The new URL
filtering item will be shown in the Current Webs URL Filters area.
Port Forwarding
Select Firewall > Port Forwarding, the port forwarding is shown in the following figure:
If you select Enable, the Virtual Server Settings will appear:
MF613 3G Wireless Router User Manual
32 Confidential and Proprietary Information of ZTE CORPORATION
• IP Address: Set IP address for the virtual server.
• Port Range: Set port numbers for the virtual server.
• Protocol: Set protocol for the virtual server.
• Comment: Type comment for the virtual server settings.
Click Apply to confirm your configuration. And the current virtual servers will be shown in the Current
Virtual Servers in system area.
DMZ

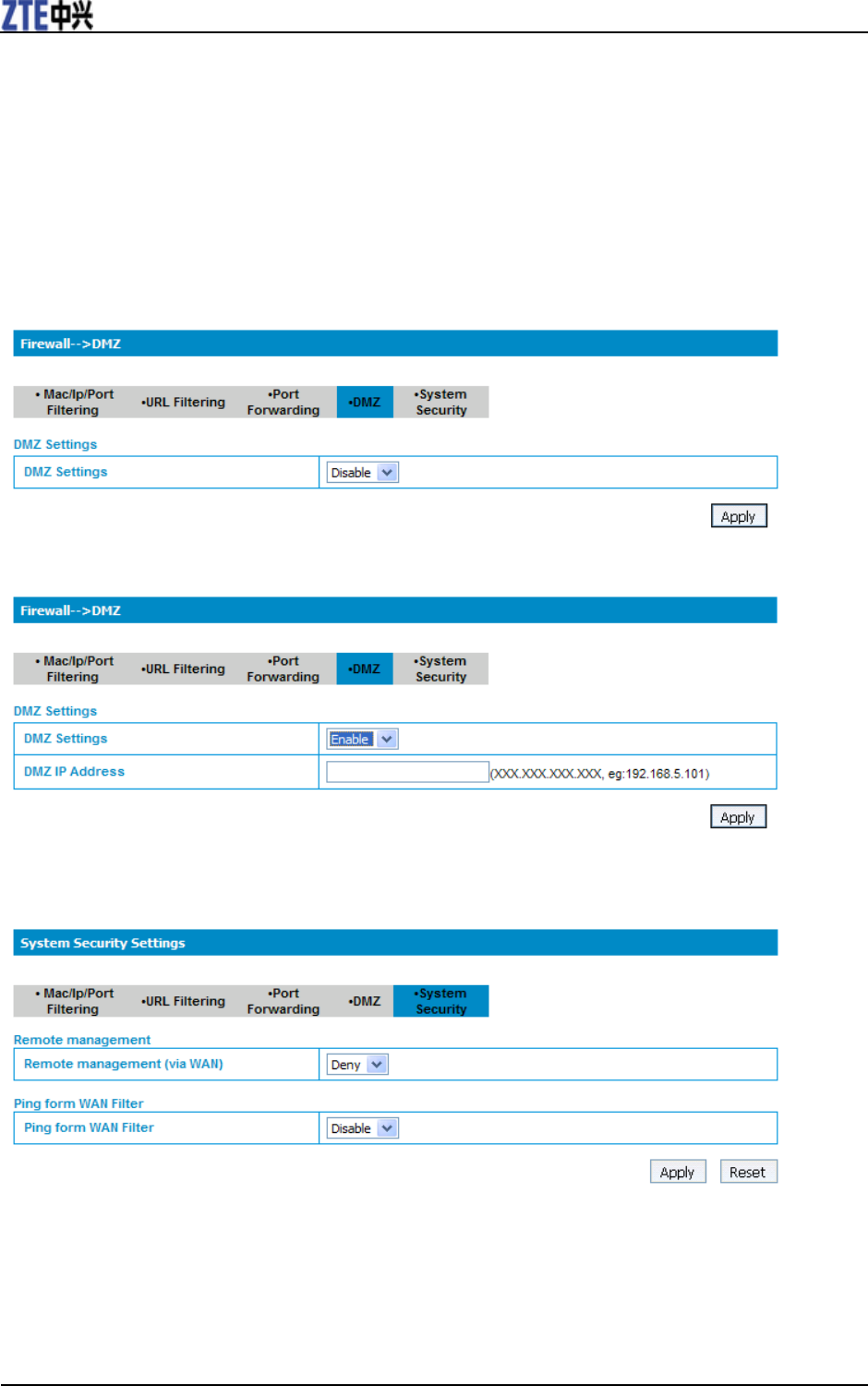

Select Firewall > DMZ, the DMZ setting is shown in the following figure:
If you select Enable, set the DMZ IP address, and then click Apply to confirm your configuration.
System Security
Select Firewall > System Security, the system security setting is shown in the following figure:
Allow or Deny the remote management function and Enable or Disable ping from WAN filter on
requirement, and then click Apply to confirm your configuration..
Advanced
Status
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 33

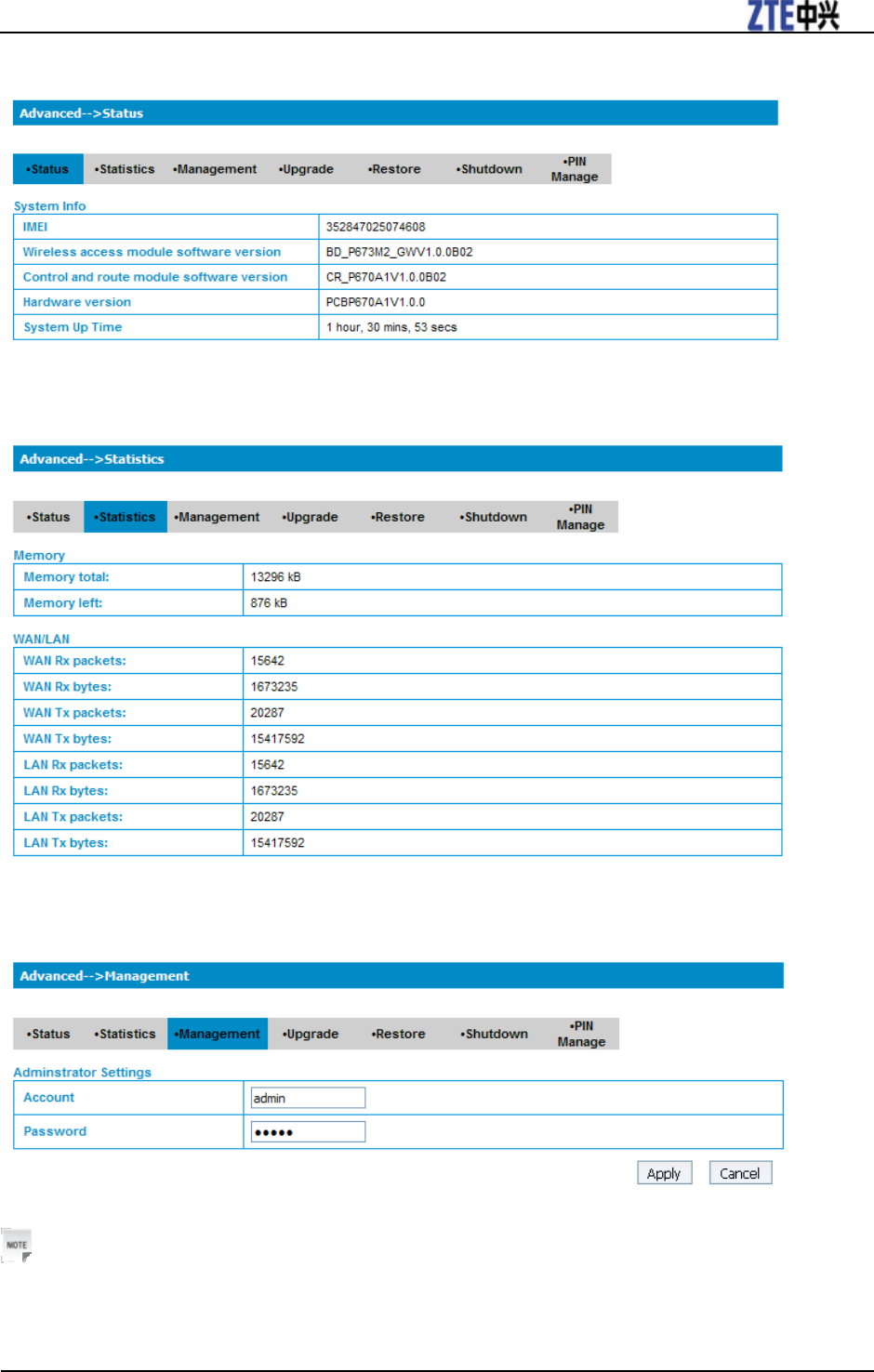

Select Advanced > Status, the system information is shown in the following figure:
Statistics
Select Advanced > Statistics, the system statistics information is shown in the following figure:
Management
Select Advanced > Management, the administrator settings information is shown in the following figure:
To set new account, type new account and password, and then click Apply to confirm your configuration.
Notes:
If you change the Account or Password, please make sure that you can remember the new Account
or Password.
Upgrade
MF613 3G Wireless Router User Manual
34 Confidential and Proprietary Information of ZTE CORPORATION

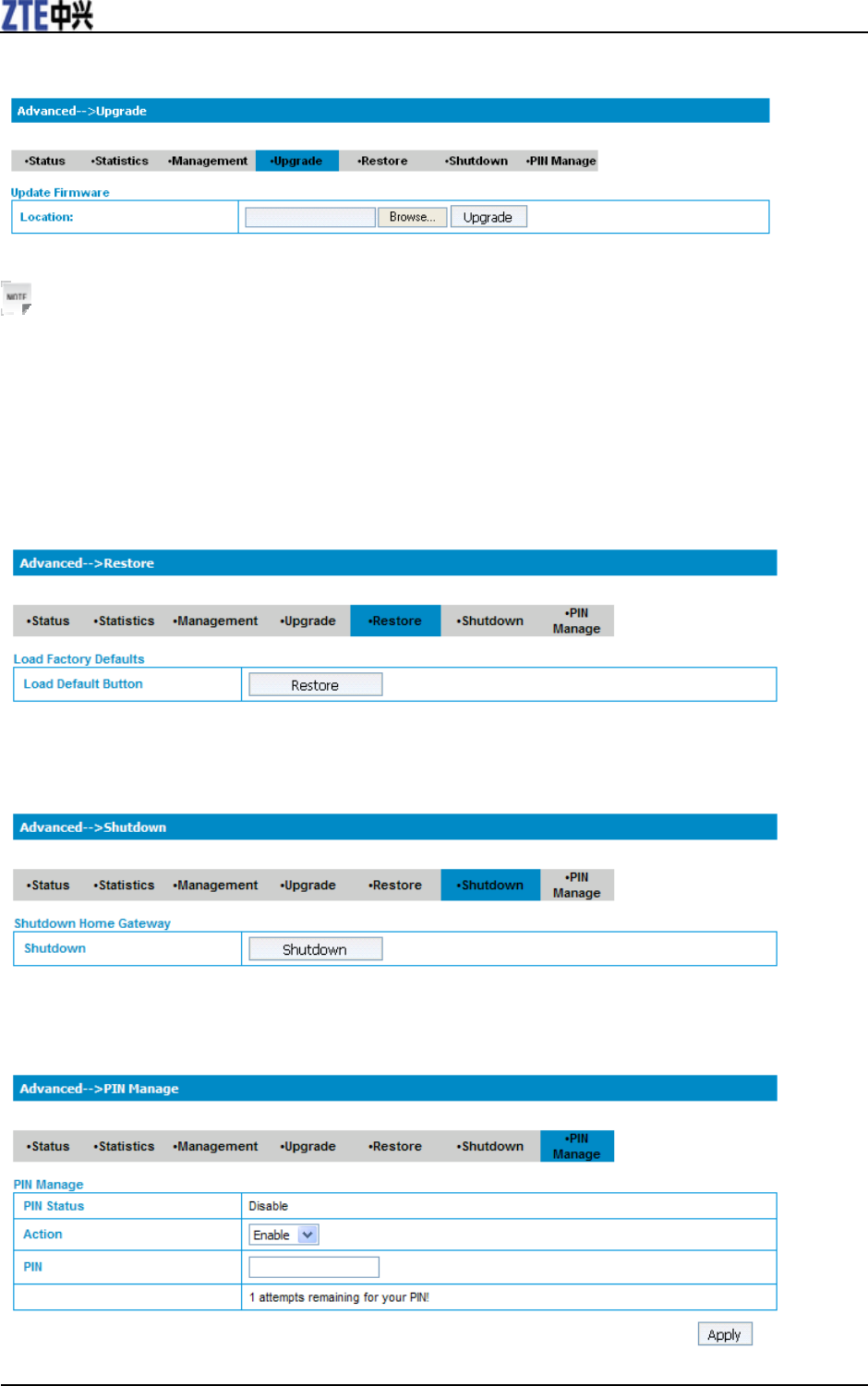

Select Advanced > Upgradeto upgrade the software version of the router.
Click Browse... locate the latest software version, and then click Upgrade.
Notes:
• Please do not cut off the power supply, and do not to do any other operations when upgrading.
• After upgrading, the router will turn off automatically. You should turn the router on by
manually.
Restore
Select Advanced > Restore, click Restore to set all the settings to their factory default values, and the
device will be turned off.
Shutdown
Select Advanced > Shutdown, click Shutdown to turn the router off.
PIN Manage
Select Advanced > PIN Manage, the PIN manage is shown in the following figure:
MF613 3G Wireless Router User Manual
Confidential and Proprietary Information of ZTE CORPORATION 35
If you select Modify, the modification parameters are shown in the following figure:
Type the old PIN code, and then type two times the new PIN code. Click Apply to confirm your
configuration.
Notes:
Three time consecutive wrong PIN code entries will lock the (U)SIM card.
Logout
1. Select Logout, a pop-up windows will appear as shown in the following figure :
2. Click OK to log out .
Disconnecting from the Internet
1. Select Disconnect Internet from WAN Connection page, if you want to terminate your Internet
connection.
2. click Apply to confirm.
MF613 3G Wireless Router User Manual
36 Confidential and Proprietary Information of ZTE CORPORATION
Tips:
Turn off the router can also terminate Internet connection.
Confidential and Proprietary Information of ZTE CORPORATION 37
C h a p t e r 5
Troubleshooting
1. Make sure that the router is turned on and all the cables are connected correctly.
2. Check the RSSI, PPP, WiFi and PWR LED’s are all in normal state.
Voice Related Problems
Symptoms Possible Problems/ Solutions
No Dial Tone. Please wait for 1~2 minutes after the router is turned on. If
RSSI is blinking, you have no good RF reception. Change
the location of the router.
There is a prompt/ phone alert/ announcement as soon as I
lift the phone off the hook. Make sure your (U)SIM card is inserted correctly and the
PIN number has been entered. If the PIN number has been
entered incorrectly then you will need to enter the PUK
code when prompted.
The line is noisy/ distorted when I lift the phone off the
hook. Remove any electrical appliance which is too close to the
phone or router. The cable or phone set might be faulty.
I hear a rapid engaged tone as soon as I lift the phone off
the hook. Put the phone on hook and try again. If you are connected
to the internet using the 2G (GSM) network, please
disconnect this first.
After dialing the last digit I hear nothing /silence. When you have finished dialing you can press the # key or
wait 4-8 seconds to connect the call.
I can’t make or receive a call when I am surfing on the net. If you are connected using the 2G (GSM) network then
you cannot surf the net and make a phone call
simultaneously. Please disconnect the internet and wait 30
seconds to 1 minute before making a call.
Internet Related Problems
Symptoms Possible Problems/ Solutions
I cannot access the internet at all. Please check your configuration settings. Please wait 1~ 2
minutes for the router to initialize. Check your service
indicator LED’s.
The download or upload speeds are very slow. The speed is dependent on signal strength. Check your
signal strength and network type.
Others
Symptoms Possible Problems/ Solutions
The RSSI signal indicator is always blinking or does not
light. This indicates poor reception. Try moving the router to
another location near the window.
Confidential and Proprietary Information of ZTE CORPORATION 38
A p p e n d i x A
Technical Parameters
MF613 Fixed Wireless Adapter
• LED Display:
i. Power Indicator
ii. Wi-Fi Indicator
iii. PPP Indicator
iv. Radio Signal Strength Indicator
• External Interface:
i. External Power Socket
ii. Phone Interface (PHONE)
iii. Data Interface (LAN)
iv. Test Interface (Mini-USB)
• Power Adapter:
Input: 100V~240V (AC), 50~60Hz
Output: +12V (DC), 1.2A
• Dimensions (W×H×D): 163mm×114mm×29mm
ZTE USB Modem (Inner modem)
• Network:
HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM
• Data Service:
HSUPA 2Mbps UL
HSDPA 7.2Mbps DL
• MicroSD Slot: up to 4GB
• Dimensions (H×W×D): 69mm×26mm×12mm
